22 February 2021

8 Pages

Illumination Calibration for Computational Ghost Imaging

,
,
and
School of Instrumentation and Opto-Electronic Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Smart Pixels and Imaging

Abstract

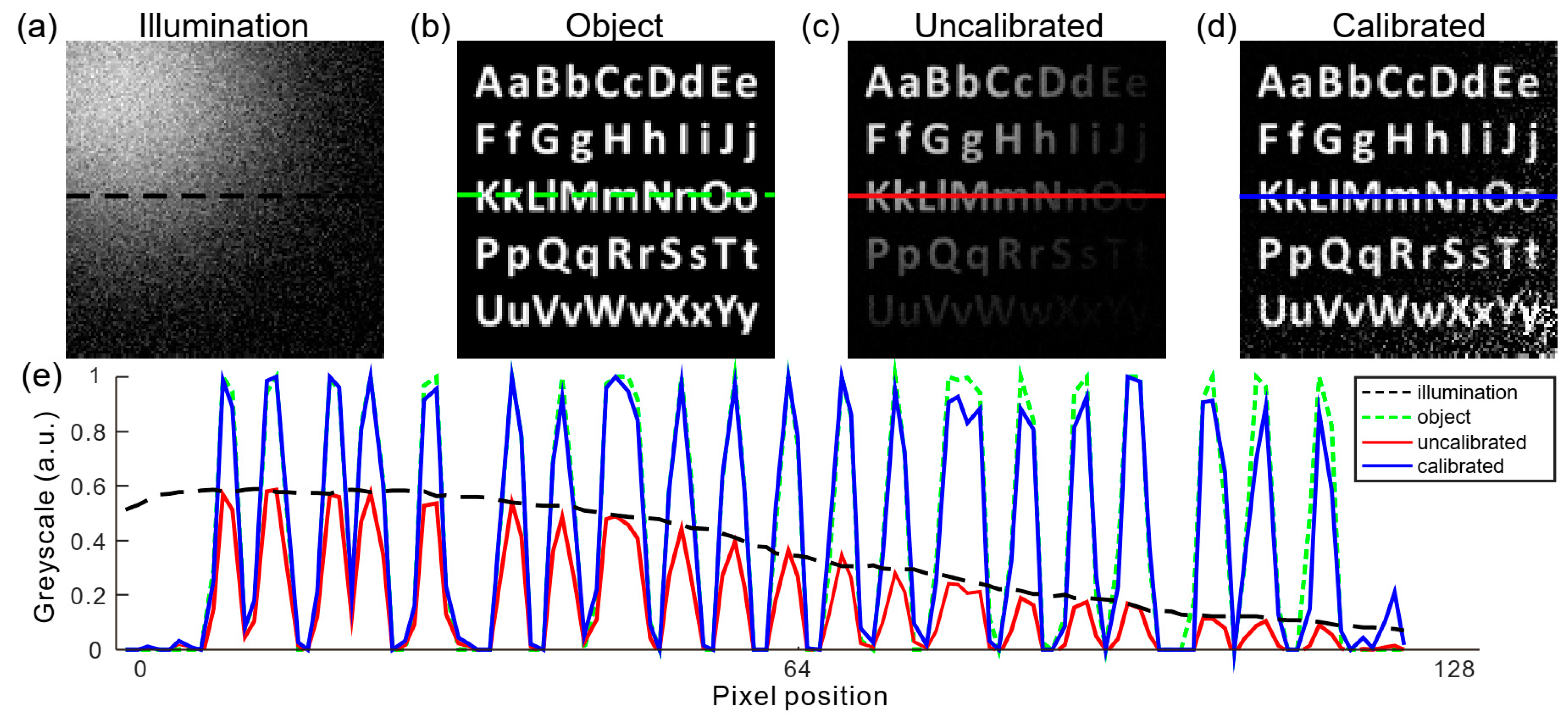

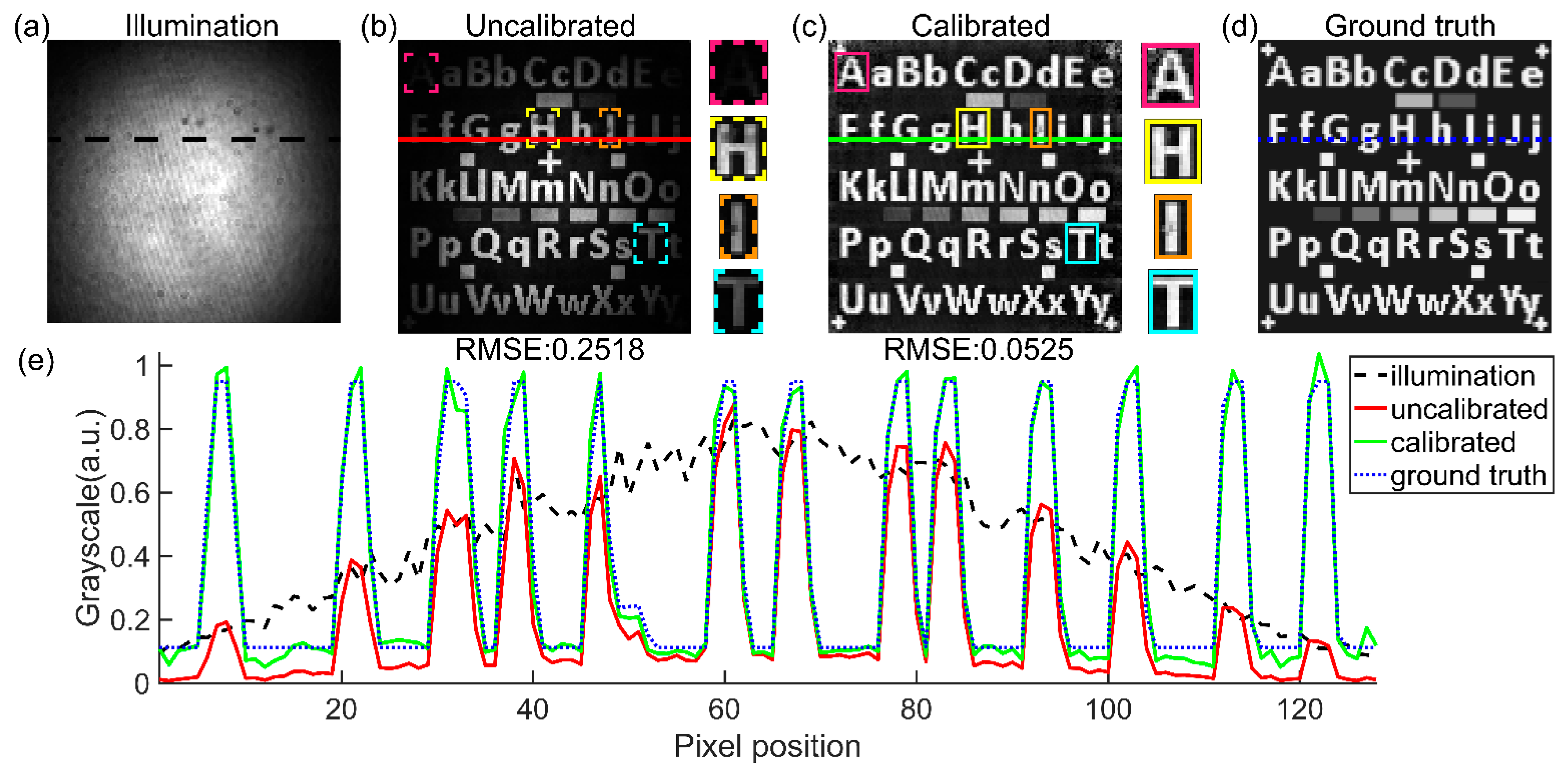

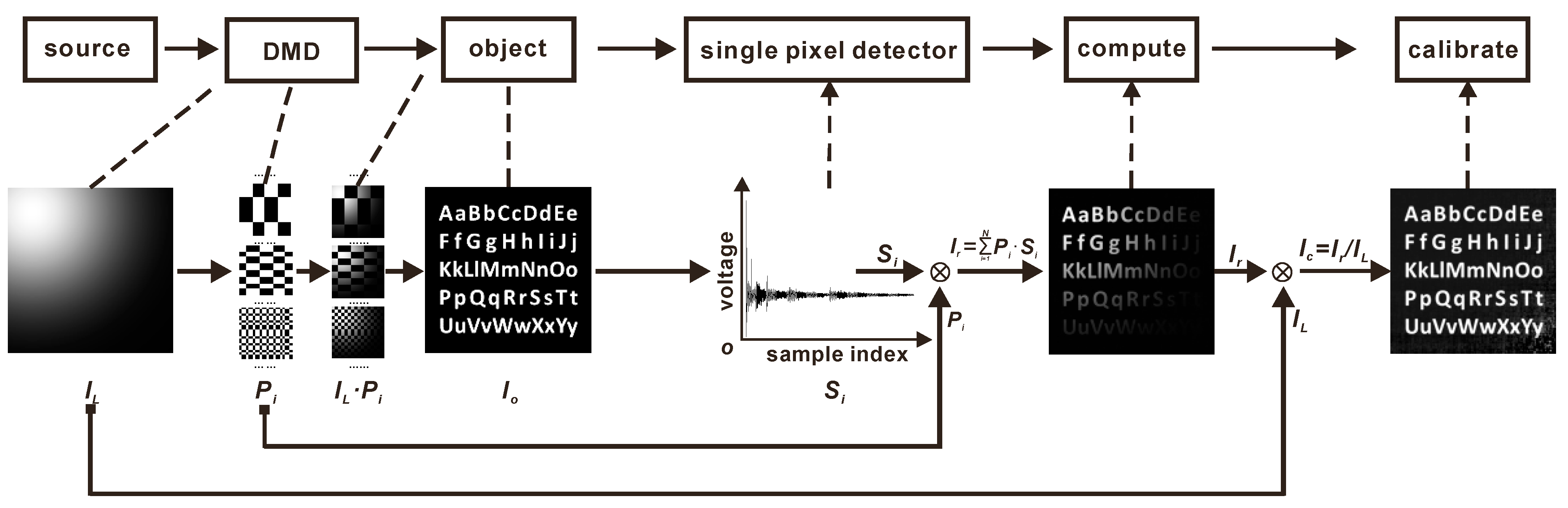

We propose a fast calibration method to compensate the non-uniform illumination in computational ghost imaging. Inspired by a similar procedure to calibrate pixel response differences for detector arrays in conventional digital cameras, the proposed method acquires one image of an all-white paper to determine the non-uniformity of the illumination, and uses the information to calibrate any further reconstructed images under the same illumination. The numerical and experimental results are in a good agreement, and the experimental results showed that the root mean square error of the reconstructed image was reduced by 79.94% after the calibration.
