Abstract

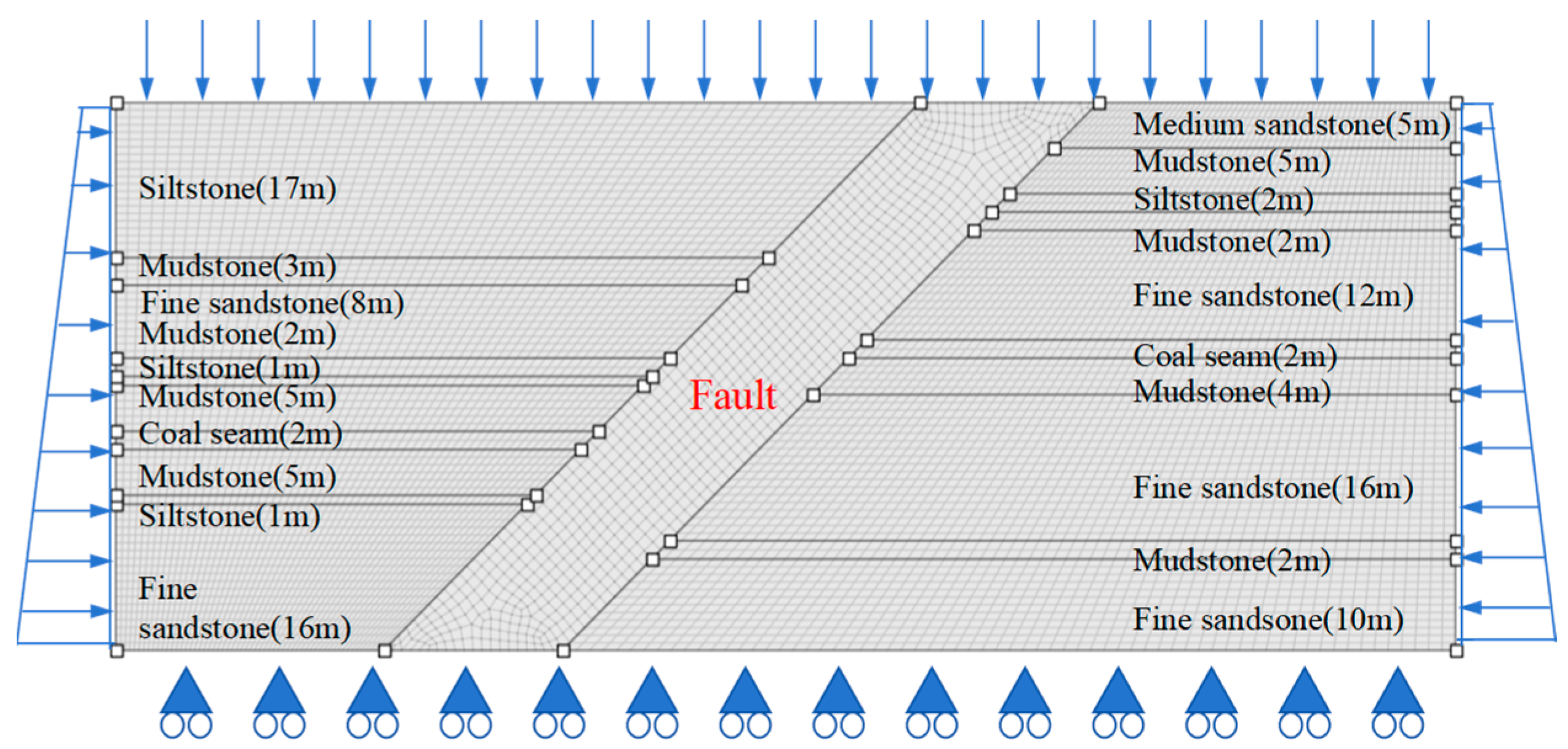

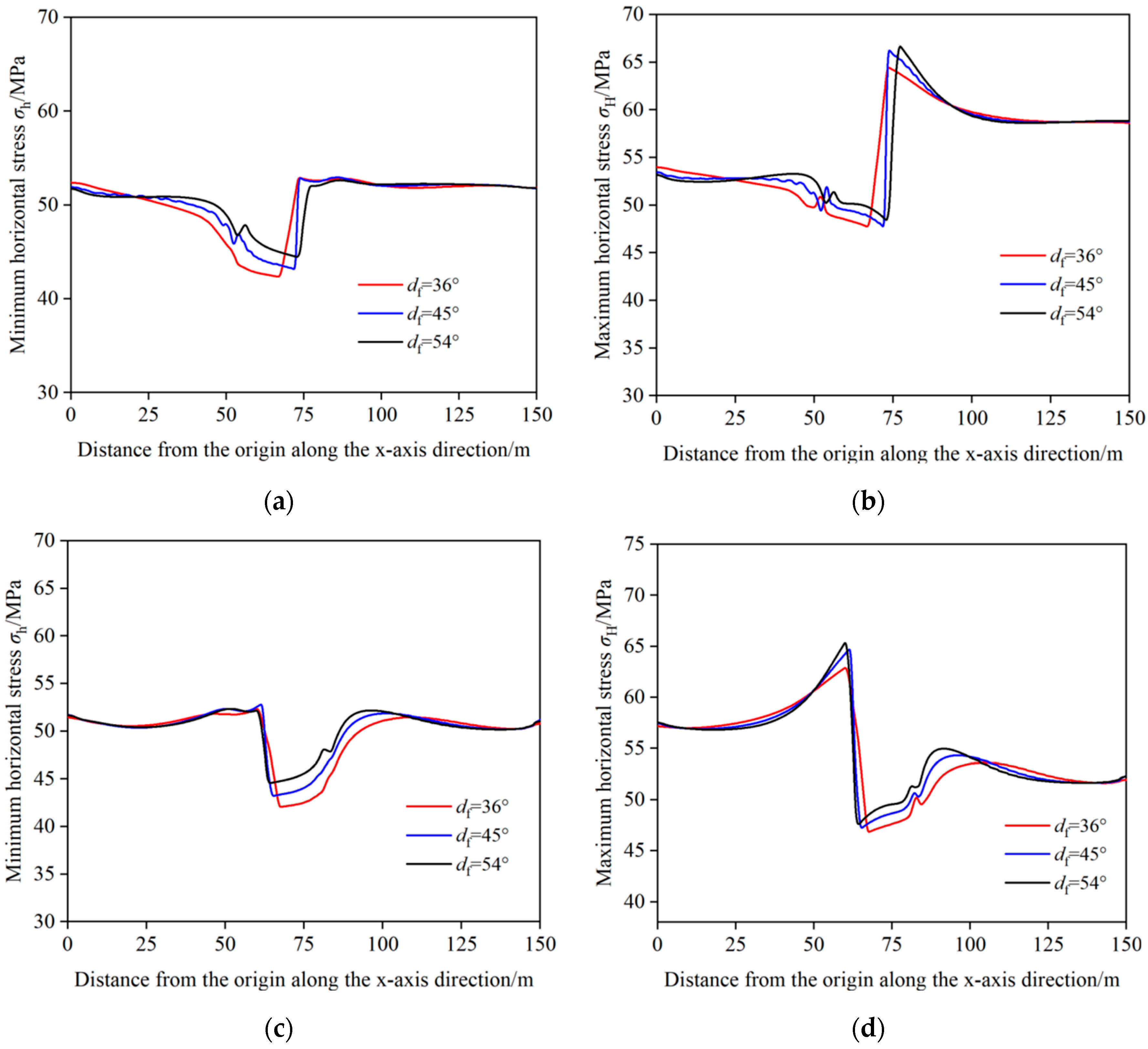

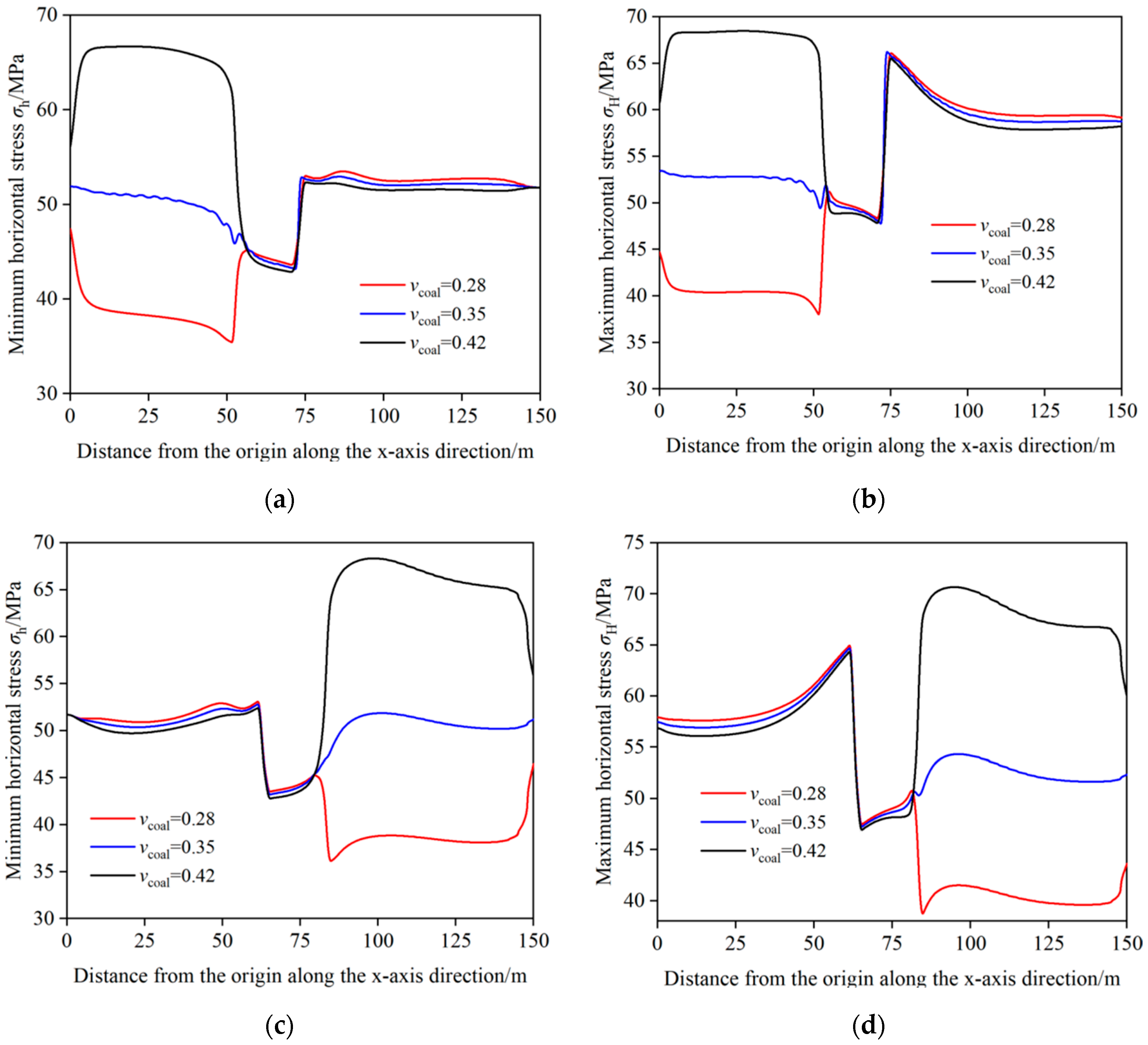

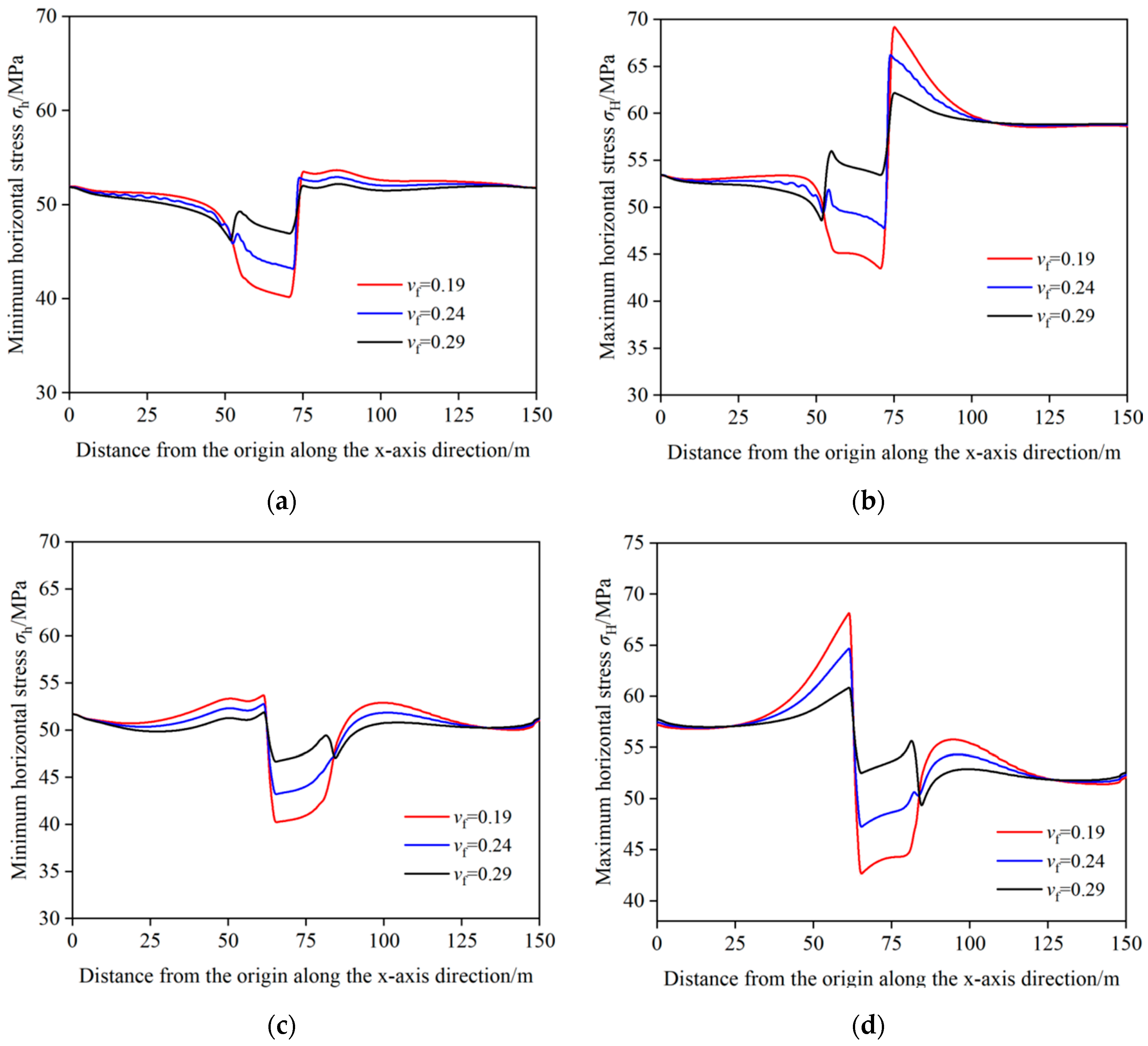

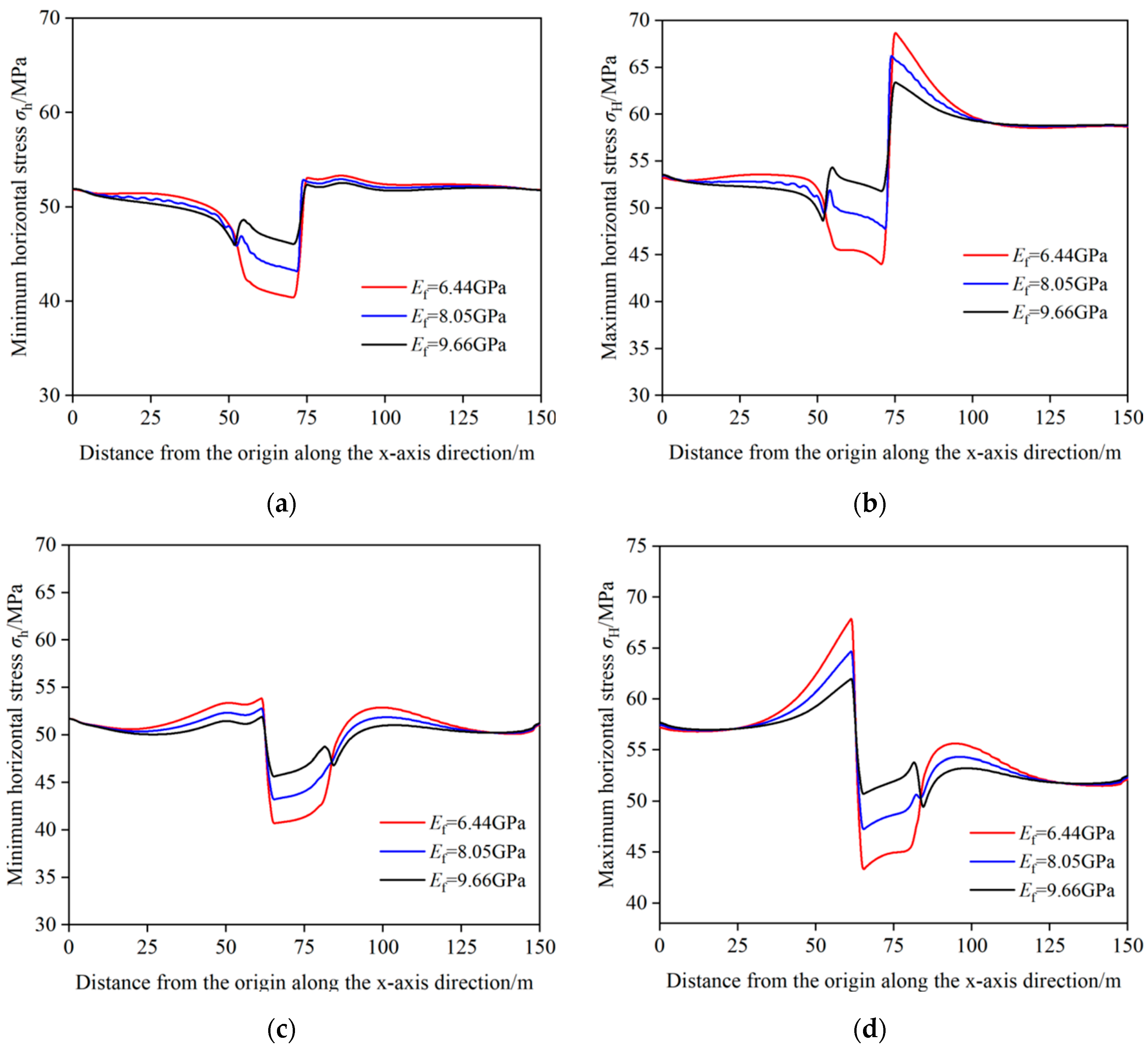

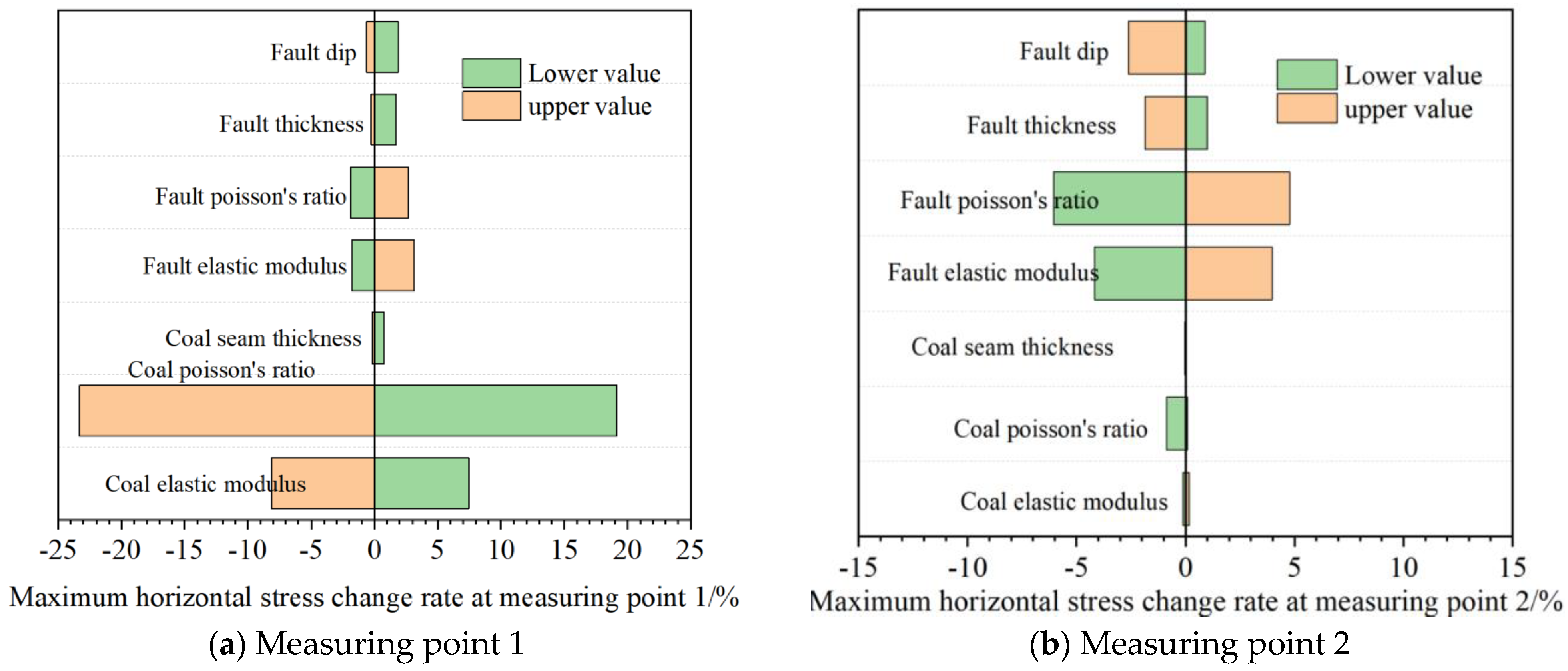

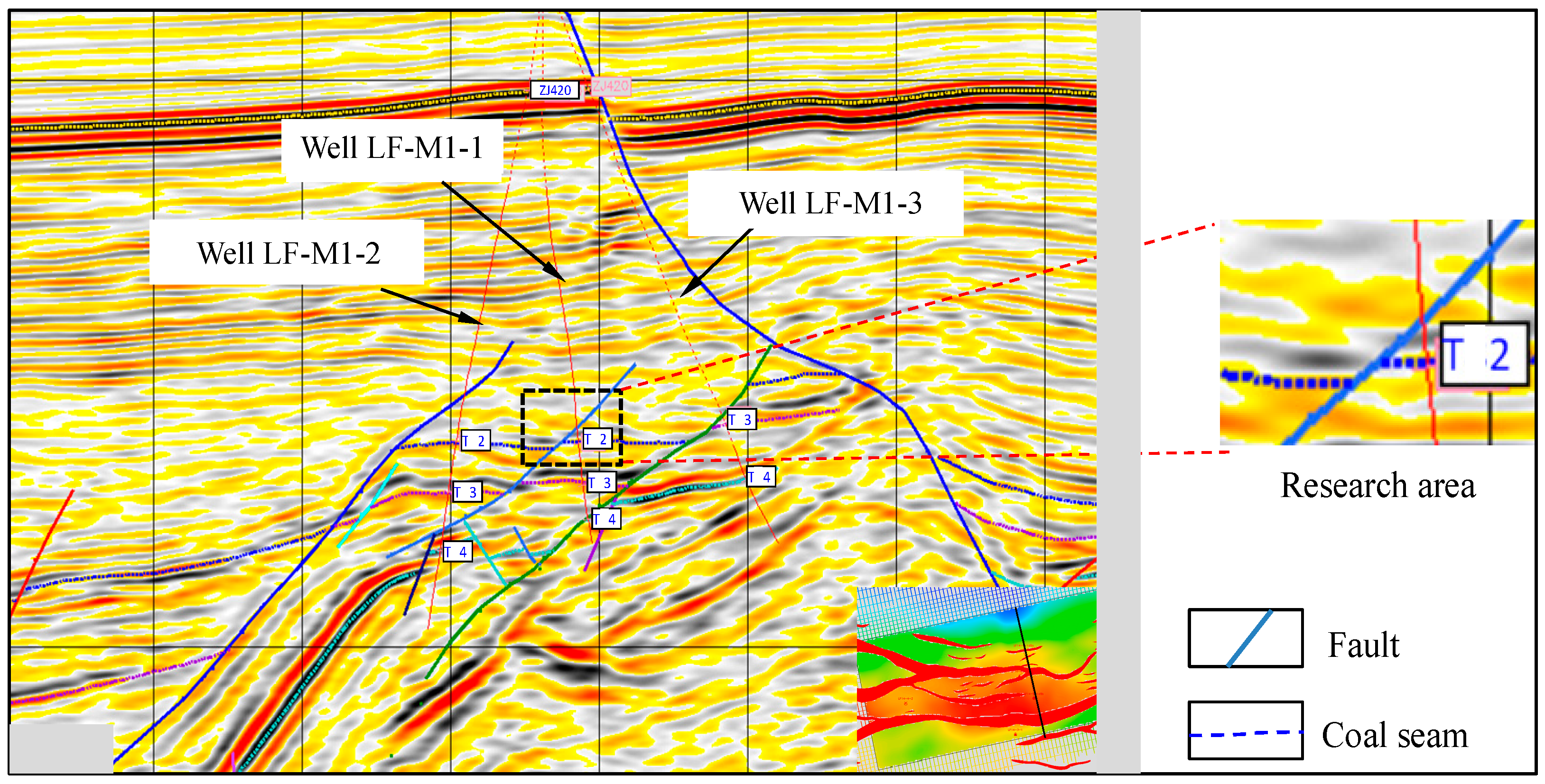

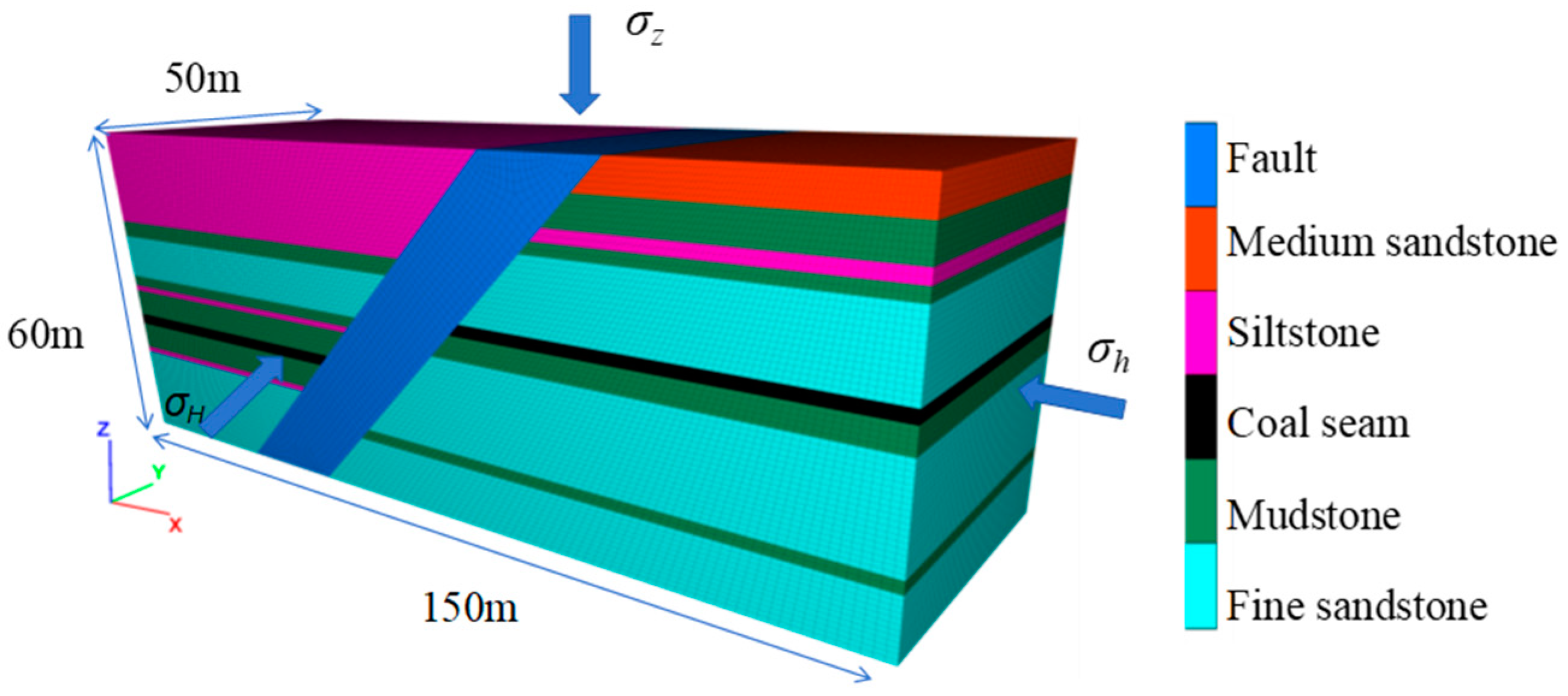

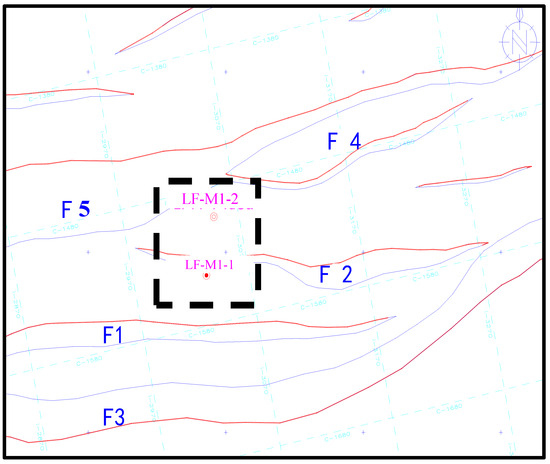

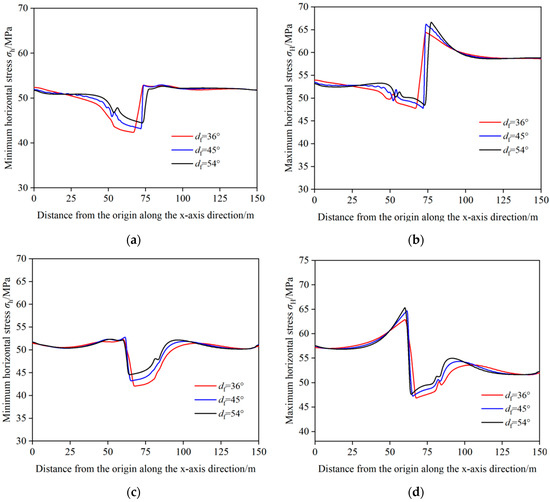

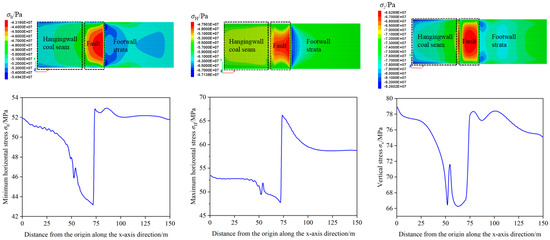

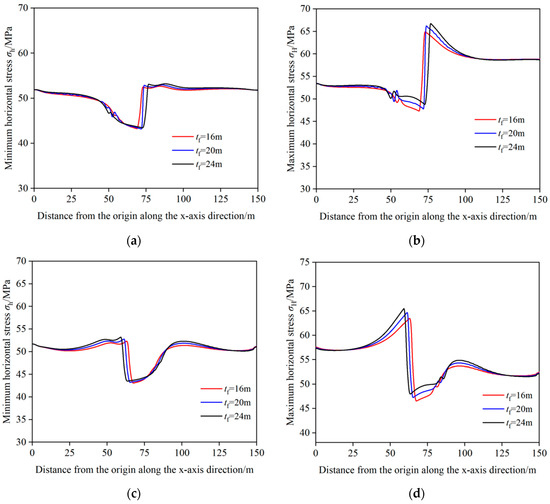

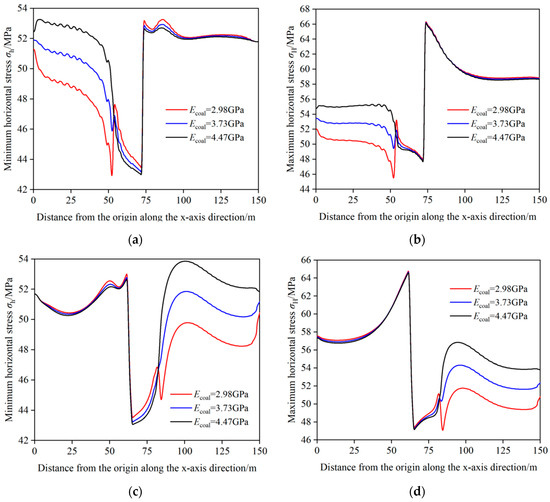

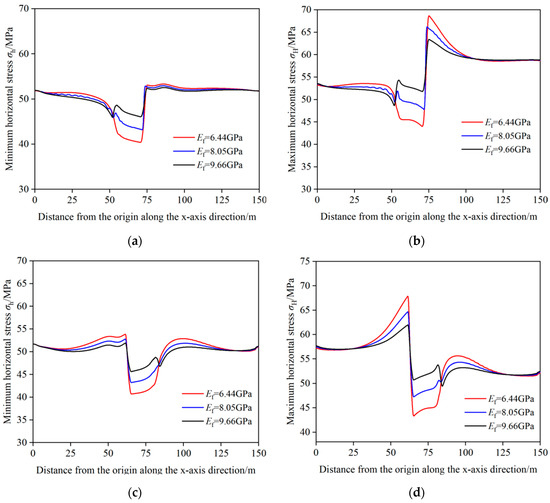

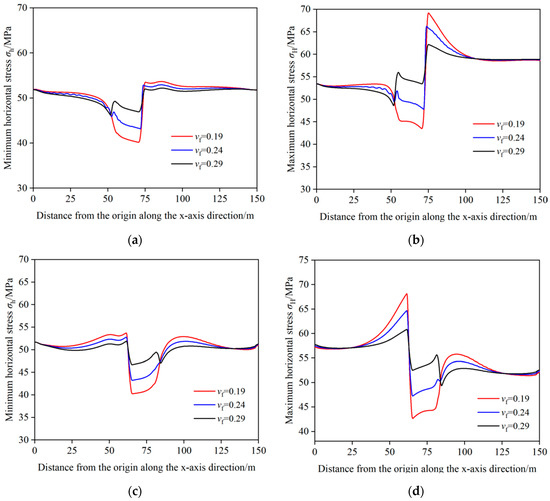

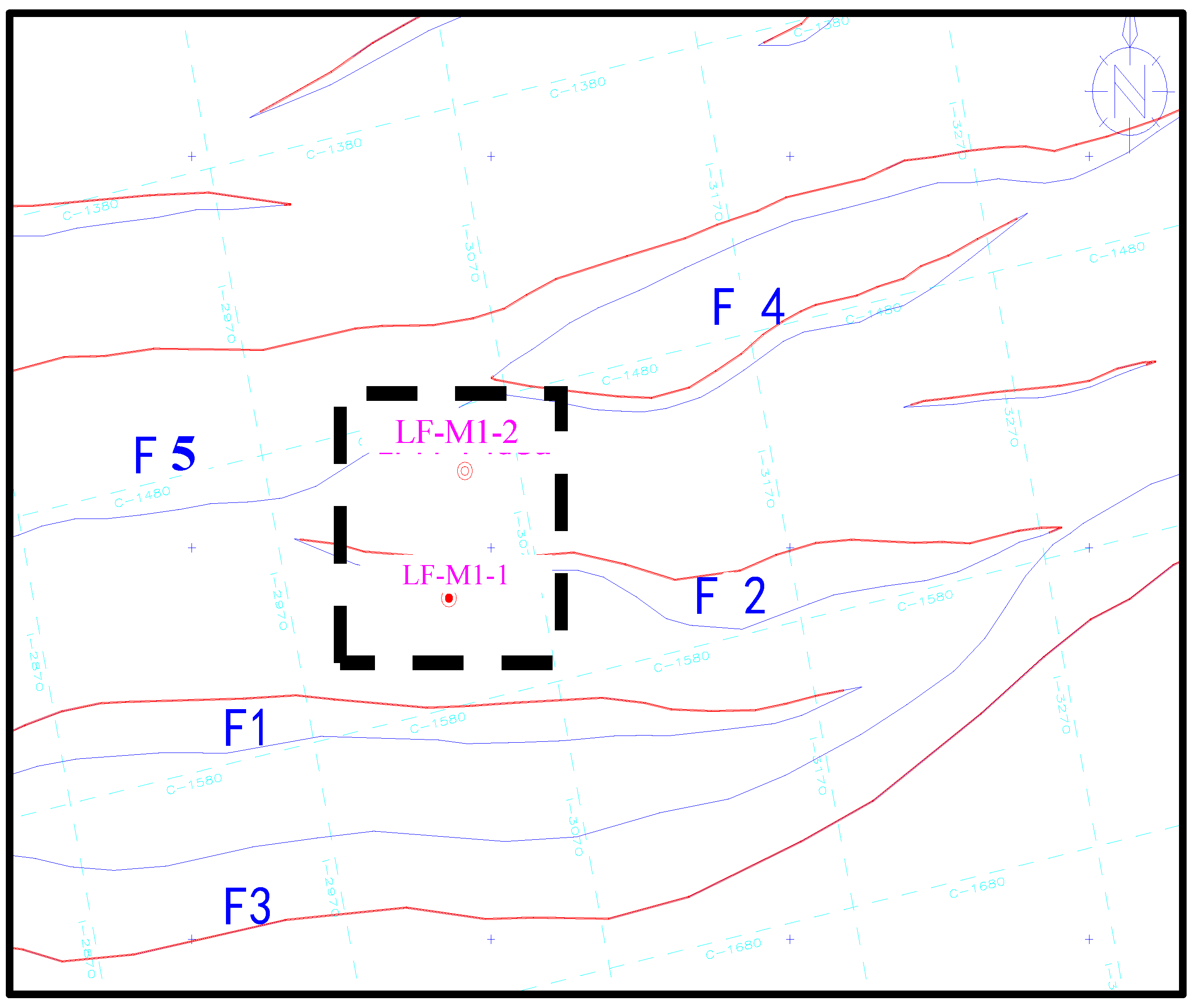

This study focuses on the complex stress distribution in coal seams influenced by normal fault using the fault development zone of the LF-M1 oilfield in southern China as a case study. Based on 3D seismic and drilling data, a key research area was delineated, and strata were reclassified considering rock parameter similarity. An FLAC3D model encompassing hanging wall, normal fault, and footwall strata was developed to systematically analyze geostress near the fault under various conditions. The results indicate that the normal fault induces non-uniform and discontinuous stress patterns in the coal seam’s transverse plane. Stress weakening occurs near the fault, with a pronounced concentration on its flanks, approaching in situ stress levels in the far field. Coal’s Poisson’s ratio, elastic modulus, and fault dip negatively correlate with horizontal in situ stress, whereas other parameters show positive correlations. The maximum horizontal stress is more sensitive to parameter variations than the minimum. Stress weakening is most influenced by coal’s Poisson’s ratio, followed by coal’s elastic modulus, fault elastic modulus, fault Poisson’s ratio, fault dip, and fault thickness and the coal seam thickness. Notably, a 20% decrease in coal’s Poisson’s ratio leads to a 23.32% stress reduction at measuring point 1. Conversely, the coal seam thickness has a minimal impact on stress across the fault. When the coal seam thickness increases by 20%, the maximum horizontal stress at measuring point 2 only decreases by 0.06%. In summary, fault geometry, rock mechanics parameters, and external loads collectively complicate stress distributions near faults, posing risks of drilling accidents such as wellbore instability, leakage, and reservoir damage, necessitating careful consideration.
