Electronics 2019, 8(1), 35; https://doi.org/10.3390/electronics8010035
Low-Cost Portable Reader for Frequency Domain Chipless Tags: Architecture and Experimental Results on Depolarizing Tags
Luca Boggioni 1, Lorenzo Monti 1, Sergio Terranova 2, Filippo Costa 2,*
, Simone Genovesi 2 and Giuliano Manara 2
, Simone Genovesi 2 and Giuliano Manara 2
1
Cubit scarl, 56023 Navacchio (PI), Italy
2
Dipartimento di Ingegneria dell’Informazione, Università di Pisa, 56122 Pisa, Italy
*
Author to whom correspondence should be addressed.
Received: 20 November 2018 / Revised: 21 December 2018 / Accepted: 23 December 2018 / Published: 1 January 2019
(This article belongs to the Special Issue RFID, WPT and Energy Harvesting)
Abstract

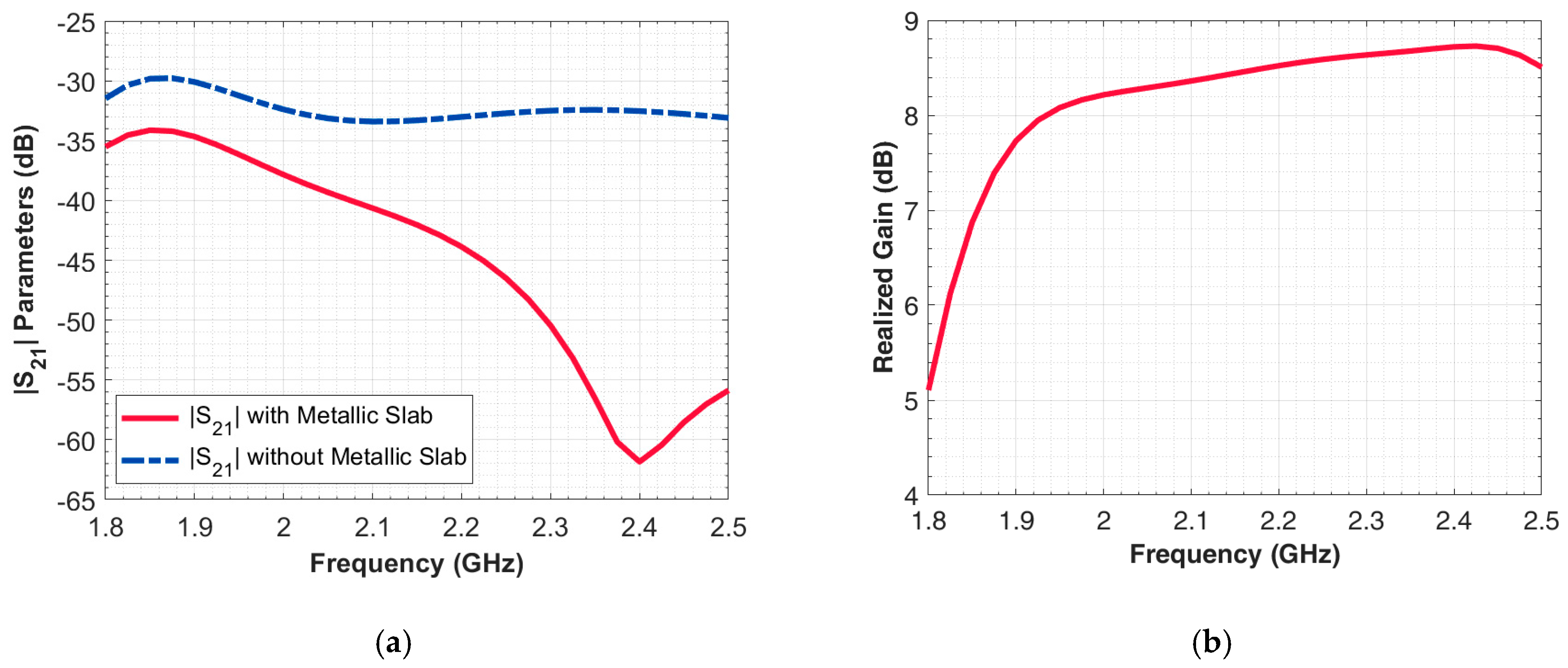

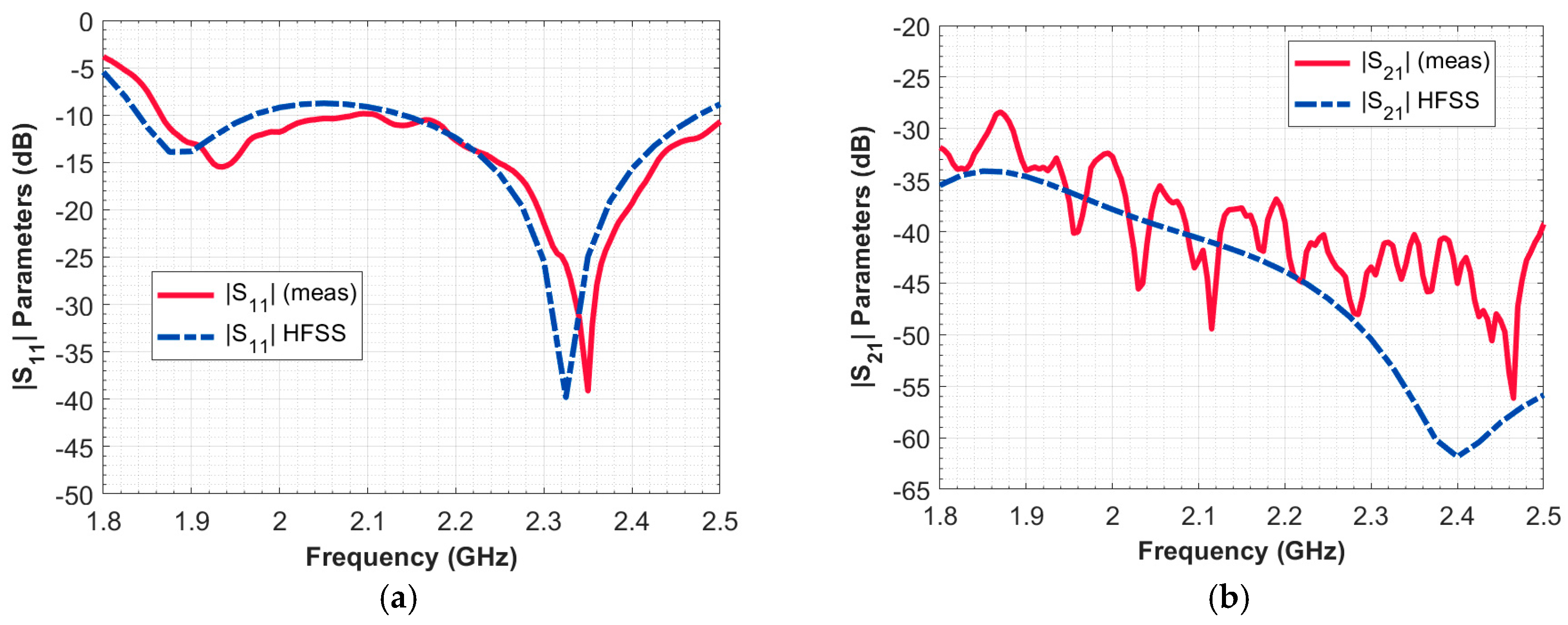

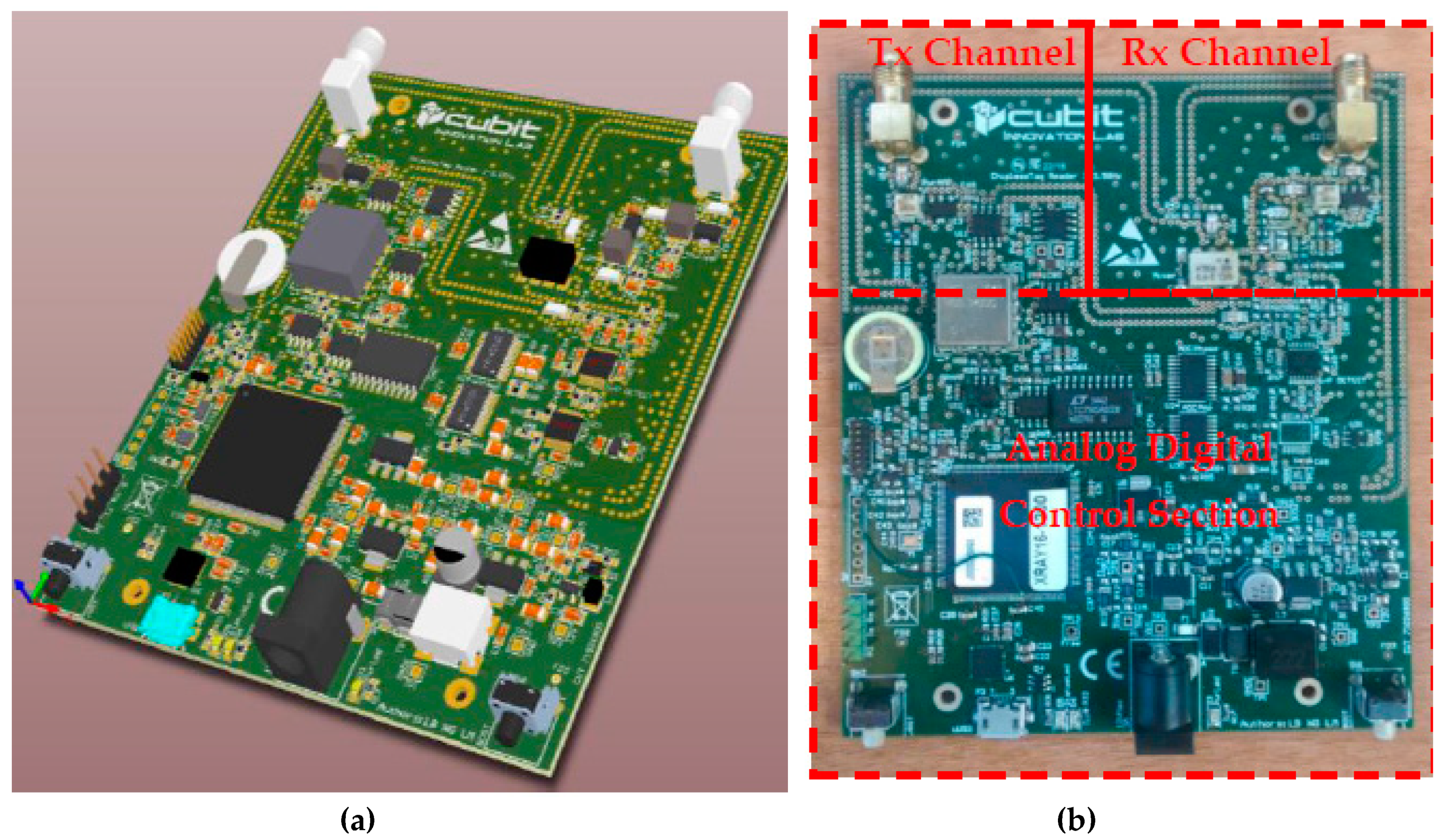

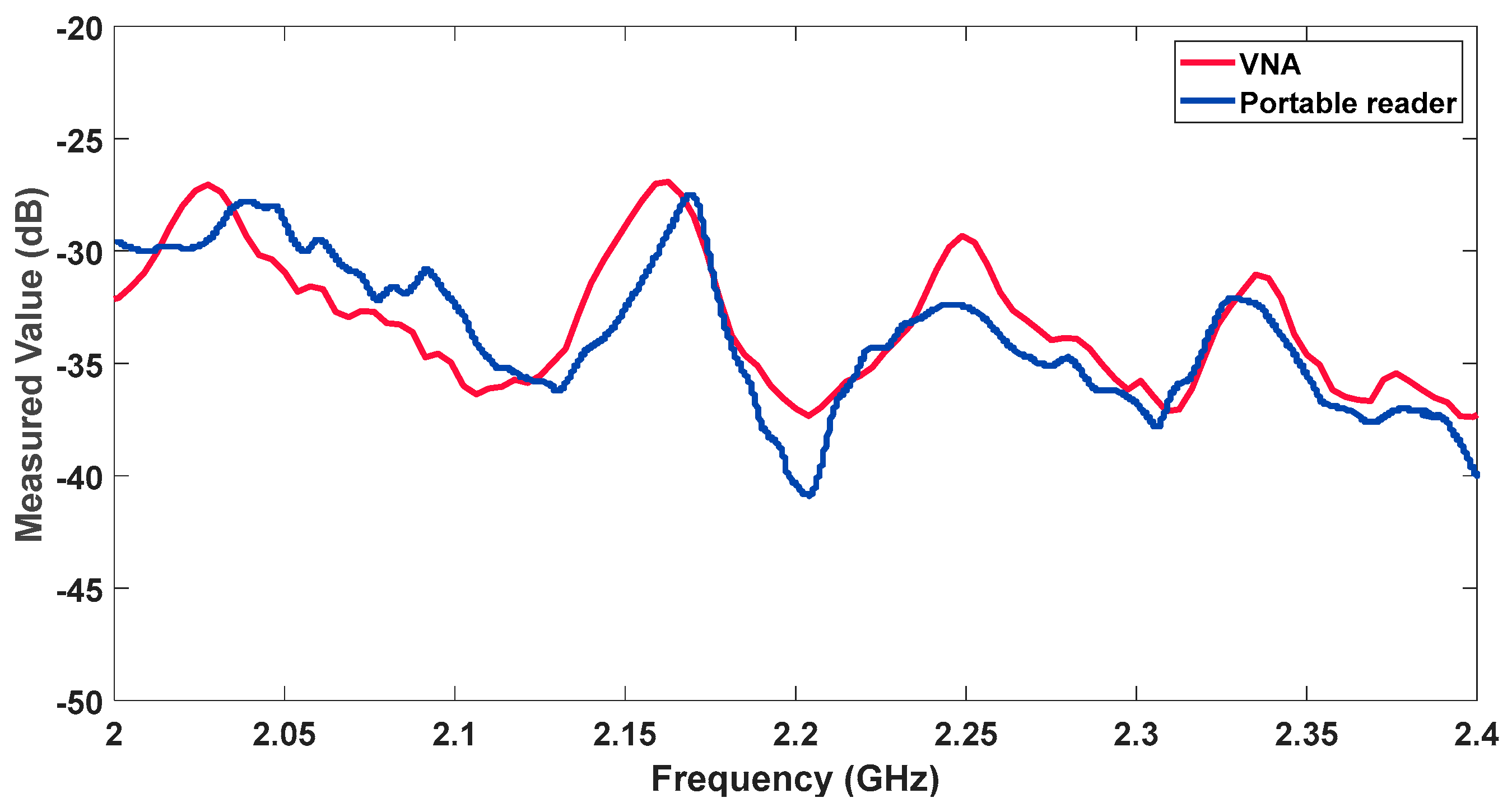

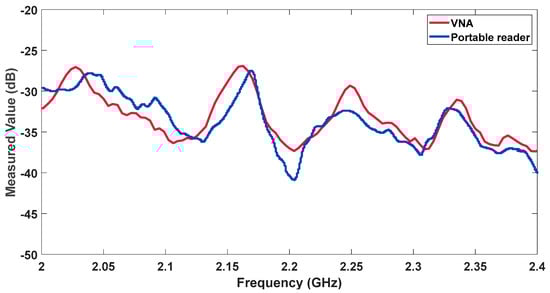

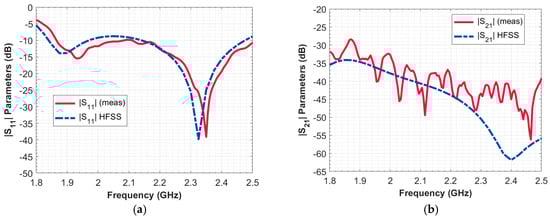

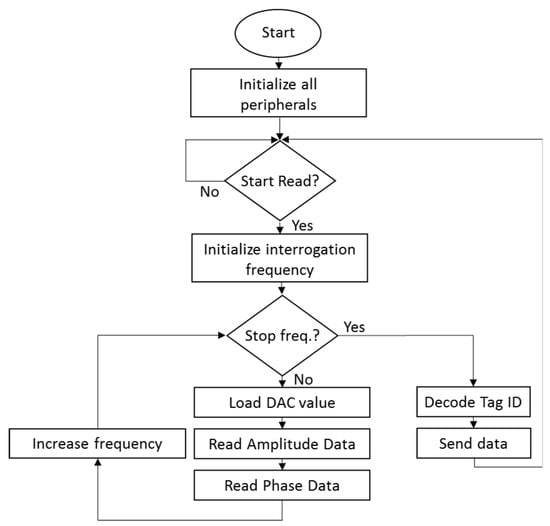

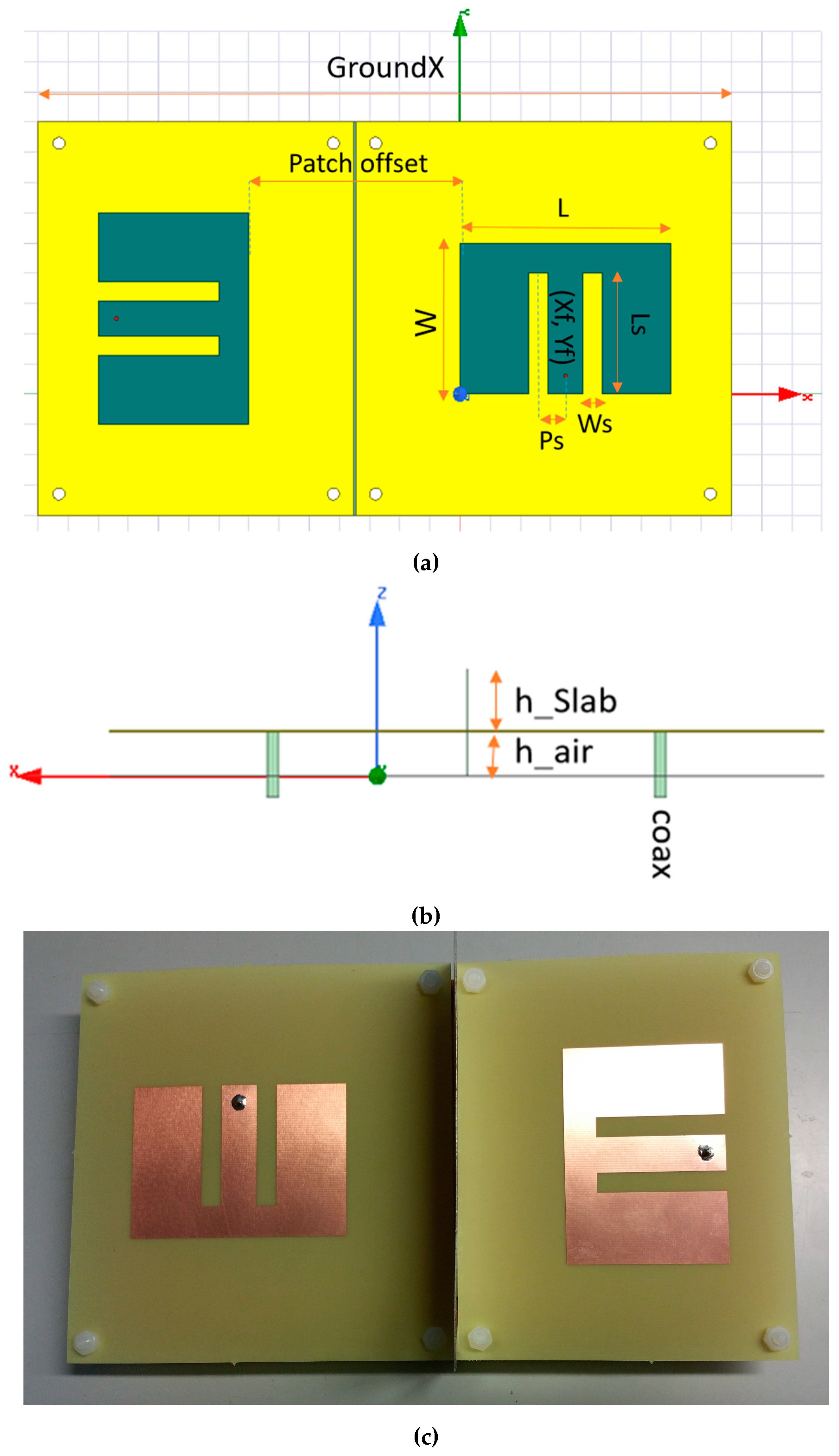

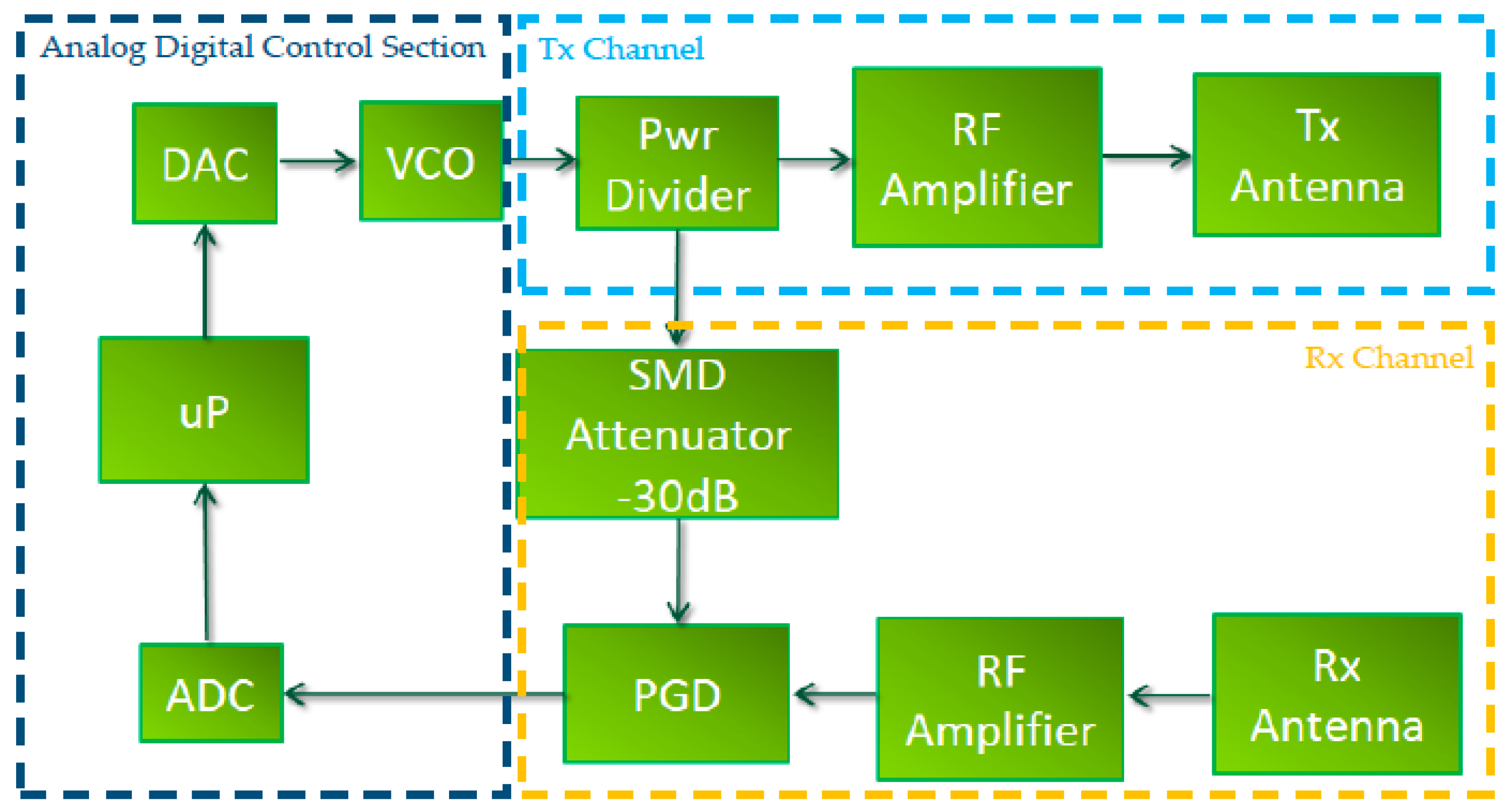

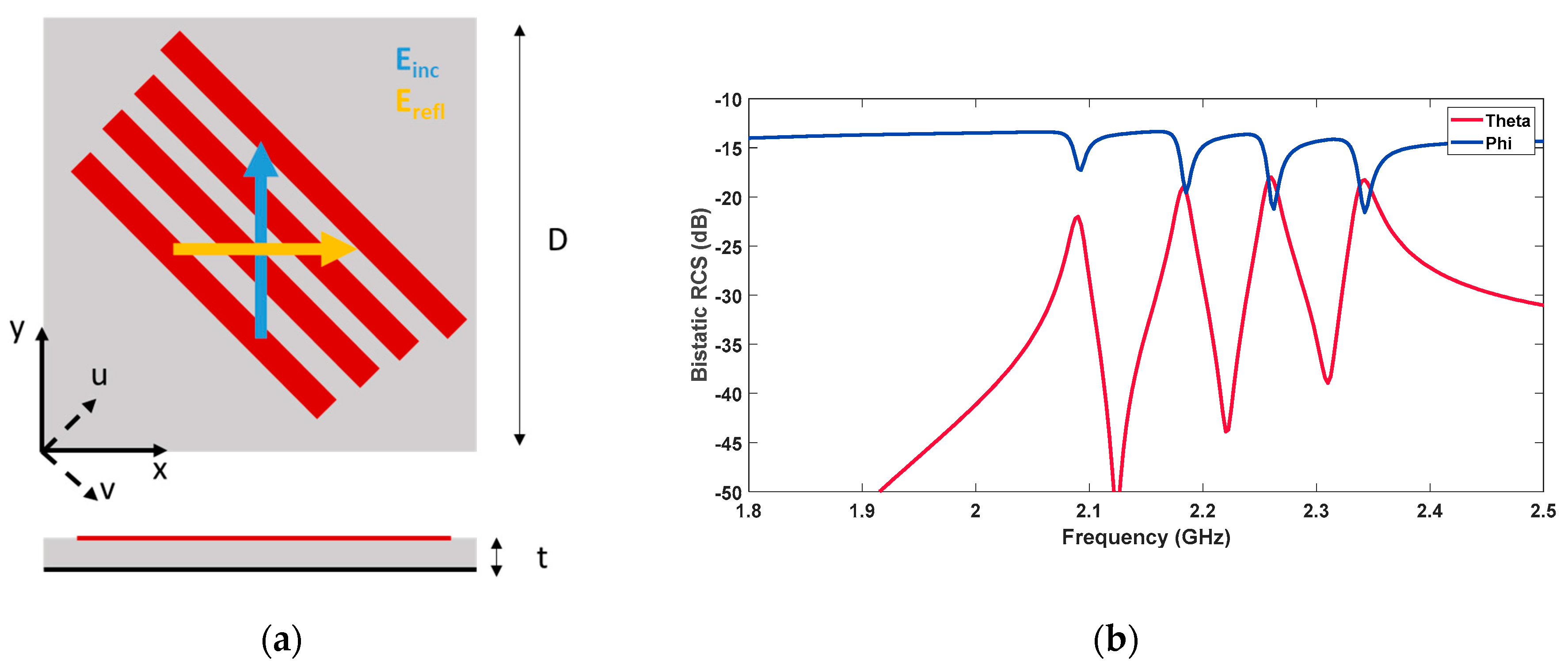

In this paper, a low-cost chipless reader for detecting depolarizing tags is described. The reader operates in the frequency band (2–2.5) GHz, and it is compact and integrated in a single board. The reader architecture and its transmitting and receiving antennas are presented. Reader antennas comprise of two orthogonally placed, E-shaped patches with a decoupling below −35 dB. The reader performance is evaluated on a four-bit tag formed by four obliquely placed dipoles on top of a metallic ground plane. View Full-TextKeywords:
Chipless RFID; Chipless RFID reader
▼
Figures
Figure 1
