Jamming Analysis between Non-Cooperative Mega-Constellations Based on Satellite Network Capacity

,
,
,
and
1
School of Space Information, Space Engineering University, Beijing 101400, China
2
National Key Laboratory of Spatial Target Awareness, Space Engineering University, Beijing 101400, China
*
Author to whom correspondence should be addressed.

Abstract

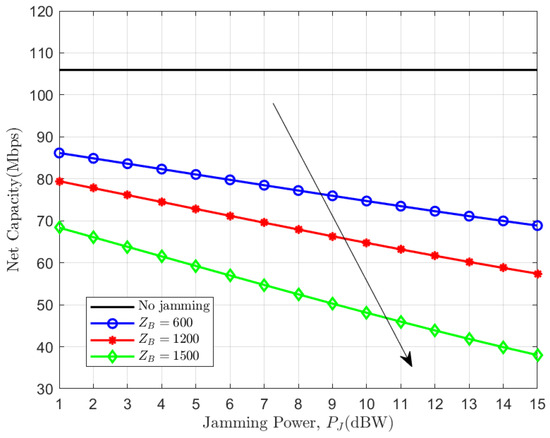

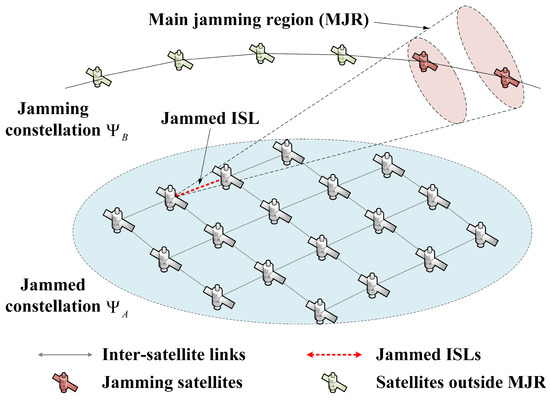

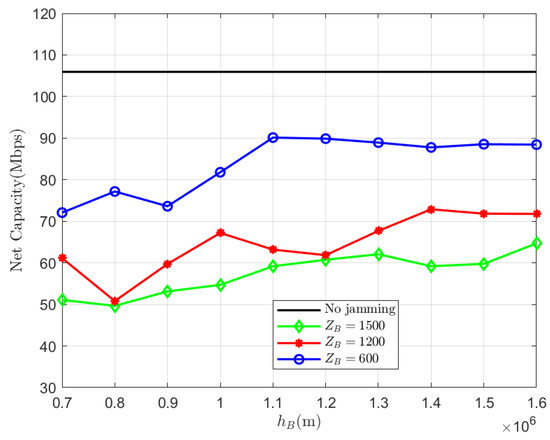

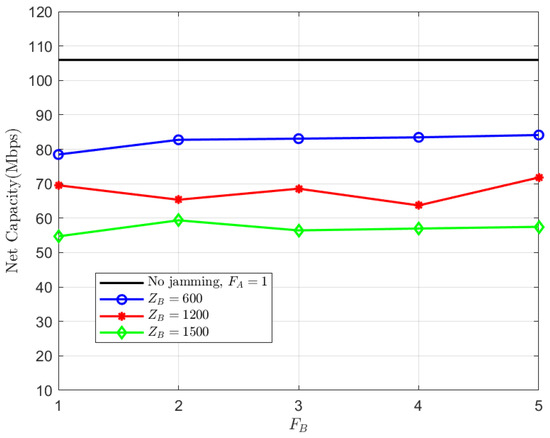

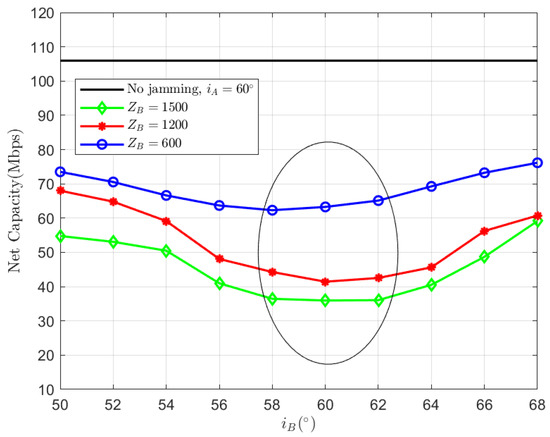

Due to the openness of inter-satellite links (ISLs) in mega-constellations, the threat posed by jamming from non-cooperative constellations is becoming increasingly significant. Most of the existing approaches focus on the up/down link capacity between satellites and ground stations, which differs greatly from the situation whereby ISLs are subjected to non-cooperative jamming. Therefore, this work investigates the transmission rates of ISLs under jamming from non-cooperative mega-constellations. Based on this, a novel satellite network capacity calculation method is proposed to evaluate the mega-constellation network capacity when the transmission rates change dynamically. The simulation results show that the satellite number, jamming power and inclination of non-cooperative constellations have a significant influence on the network capacity. The optimal jamming efficiency occurs when the constellation inclinations are close.
