Article

The Novel Z-Scheme Ternary-Component Ag/AgI/α-MoO3 Catalyst with Excellent Visible-Light Photocatalytic Oxidative Desulfurization Performance for Model Fuel

by
Yanzhong Zhen
1,*,
Jie Wang
1,
Feng Fu
1,*,
Wenhao Fu
1 and
Yucang Liang
2,*
1
Shaanxi Key Laboratory of Chemical Reaction Engineering, School of Chemistry & Chemical Engineering, Yan’an University, Yan’an 716000, Shaanxi, China
2
Institut für Anorganische Chemie, Eberhard Karls Universität Tübingen, Auf der Morgenstelle 18, 72076 Tübingen, Germany
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(7), 1054; https://doi.org/10.3390/nano9071054
Submission received: 4 July 2019 / Revised: 17 July 2019 / Accepted: 19 July 2019 / Published: 23 July 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
The novel ternary-component Ag/AgI/α-MoO3 (AAM) photocatalyst was successfully fabricated by a facile hydrothermal method combined with a charge-induced physical adsorption and photo-reduced deposition technique. X-ray diffraction, scanning/transmission electron microscope, X-ray photoelectron, UV-vis diffuse reflectance, photoluminescence and electrochemical impedance spectroscopy were employed to characterize the composition, morphology, light-harvesting properties and charge transfer character of the as-synthesized catalysts. The ternary-component AAM heterojunctions exhibited an excellent visible-light photocatalytic oxidative desulfurization activity, in which the AAM-35 (35 represents weight percent of AgI in AAM sample) possessed the highest photocatalytic activity of the conversion of 97.5% in 2 h. On the basis of band structure analysis, radical trapping experiments and electron spin resonance (ESR) spectra results, two different catalytic mechanisms were suggested to elucidate how the photogenerated electron-hole pairs can be effectively separated for the enhancement of photocatalytic performance for dual composites AM-35 and ternary composites AAM-35 during the photocatalytic oxidative desulfurization (PODS) of thiophene. This investigation demonstrates that Z-scheme Ag/AgI/α-MoO3 will be a promising candidate material for refractory sulfur aromatic pollutant’s removal in fossil fuel.

Graphical Abstract

1. Introduction

The serious environmental problems caused by air, water, soil, noise and light pollution have received extensive attention and considerable research interest, especially, air pollution caused by the combustion of sulfur and nitrogen-containing fossil fuel generated SOx and NOx, which further leads to water and soil pollution. Desulfurization and denitrification of fossil fuel are becoming a key and challenging topic for controlling air pollution [1,2]. The conventionally industrial hydrodesulfurization (HDS) is not an effective approach to thoroughly/ultra-deeply removing aromatic sulfur compounds (ASCs) in fossil fuel, due to the ASCs with alone electron pairing on the sulfur S atom [3]. Therefore, the development of highly-efficient and environmentally benign techniques is urgent and necessary for removing ASCs in fuels in order to produce ultra-clean fuel [4].
The photocatalytic oxidative desulfurization (PODS), with a lower cost and easy operation under a mild reaction condition is a novel oxidative desulfurization (ODS) technique, which has attracted widespread interest in the treatment of ASCs. For example, during the process of PODS, when Pd/ZrO2-chitosan nanocomposite was used as a photocatalyst, thiophene could be photooxidized to the corresponding SO3 and CO2 under UV-vis light irradiation [5]. At present, in an attempt to remove ASCs in fuel, many photocatalysts including BiVO4-based [6,7,8,9], TiO2-based [10,11,12,13,14,15,16,17], graphene oxide or carbon nanotubes-based multicomposites [18,19,20] and phosphotungstic acid [21,22] have been used and showed good catalytic performances.
α-MoO3 is a chemically stable and nontoxic n-type semiconductor, readily prepared by abundant molybdenum-containing source. Although unique energetic and electrical properties of α-MoO3 made it successful as a very promising visible-light driven (VLD) photocatalyst [23,24,25,26], the high recombination rate of photogenerated charge carriers and the low quantum yield greatly restricted its practical application in the photocatalytic field [26]. To solve this problem, enormous efforts have focused on the tunable electronic band structures of α-MoO3 by doping and constructing heterojunction to improve photocatalytic activity [27,28]. Some successful photocatalysts, such as Ce-doped MoO3 [29], Bi2Mo3O12/MoO3 [30], MoS2@α-MoO3 [31], g-C3N4/MoO3 [32,33] and TiO2/α-MoO3 [34], have been reported. For semiconductor photocatalysts, it is well known that a suitable conduction and valence band edge potential is critical to facilitate the desired redox reactions in the process of photocatalytic reaction [35]. For α-MoO3, the conduction band (CB) has much more positive potential (0.37 eV vs. normal hydrogen electrode (NHE)) than that of O2/·O2− (−0.33 eV vs. NHE), wherein it is impossible to perform the reduction of O2 to ·O2− by electrons in the CB. Recently, the artificial Z-scheme photocatalytic system that mimics natural photosynthesis of the green plant has been developed due to superior photocatalytic performance. Such a Z-scheme photocatalytic system containing two independent reduction and oxidation reaction systems not only results in high charge separation efficiency, but also preserves the high redox ability of the photocatalyst, because a Z-scheme pathway of electron transfer can preserve the oxidative holes in the lower VB and reductive electrons in the higher CB. For example, carbon dots (CDs)-modified Z-scheme photocatalyst CDs/g-C3N4/MoO3 exhibited a remarkably enhanced visible-light photocatalytic activity for the degradation of tetracycline [36].
Recently, the silver/silver halides (Ag/AgX, X = Cl, Br, I) photocatalysts have attracted much attention due to their excellent photocatalytic performance and high stability under various light irradiations caused by the surface plasmon resonance effect of metallic silver [37,38]. The constructed Z-scheme heterojunction between Ag/AgX and semiconductor can effectively accelerate the interfacial charge carriers transfer and separation due to Ag nanoparticles as the charge carrier transmission-bridge [39]. Hence, a series of Z-scheme photocatalysts containing Ag/AgX, such as Ag/AgI-δ-Bi2O3 [40], α-Fe2O3/Ag/AgX [41], Ag/AgX/AgIO3 [42], and g-C3N4/Ag/BiVO4 [43], were successfully fabricated and showed an excellent photocatalytic performance.
The photocatalysis is an environmentally benign technique for removing organic pollutants or dyes/pigments. It is well known that thiophene as a refractory sulfur aromatic pollutant is extremely difficult to remove from fuel, through conventional hydrodesulfurization (HDS) [44]. The previous study revealed that α-MoO3-based photocatalysts (α-MoO3 nanoblet [45], Ag/α-MoO3 [46]) showed good photocatalytic activity for the degradation of thiophene because of their good adsorption performance and the promotion separation of charge carrier by plasmonic metallic Ag nanoparticles.
Combined with the aforementioned analysis, it is desirable to fabricate a Z-scheme heterojunction photocatalyst Ag/AgI/α-MoO3 with a boosting photocatalytic activity. To the best of our knowledge, the relative reports about Z-scheme α-MoO3-based heterojunctions are quite scarce for the photocatalytic degradation of thiophene.
In the present work, a series of Z-scheme heterojunction photocatalysts Ag/AgI/α-MoO3 with a different mass percent of initially formed AgI contents were successfully prepared by a charge-induced physical adsorption and in-situ photo-reduced deposition method. The photocatalytic activities of the as-prepared Ag/AgI/α-MoO3 were evaluated by the degradation of thiophene under visible light irradiation. The synergistic effects among metallic Ag, and AgI and α-MoO3 in multicomponent AgI/α-MoO3 and Ag/AgI/α-MoO3 were systematically investigated and combined with UV-Vis diffuse reflectance spectroscopy (UV-Vis-DRS), photoluminescence spectroscopy (PL), electrochemical impedance spectroscopy (EIS), the scavenger trapping experiment and electron spin resonance spectroscopy (ESR) in order to explore the enhanced photocatalytic activity mechanisms towards the decomposition of refractory pollutants. This strategy will create a new avenue for the photocatalytic oxidative desulfurization of fossil fuel in the future.

2. Materials and Methods

2.1. Sample Preparation

All chemicals with analytical grade were used without further purification and purchased from Sinopharm Chemical Reagent Co. Ltd. (Beijing China) as follows: (NH4)6Mo7O24·4H2O (99%), HNO3 (98%), AgNO3 (98.9%), KI (≥ 99.0%), thiophene (99%), ethanol (≥ 99.7%), BaSO4, isopropanol alcohol (IPA, ≥ 99.7%), ethylenediamine tetraacetic acid disodium salt (EDTA-2Na, 99%), and 1, 4-benzoquinone (BQ, 98%). Deionized water was used for all reactions, if no any special emphasis is given otherwise.

2.1.1. Preparation of α-MoO3 Nanobelt

α-MoO3 nanobelt was prepared using a template-free hydrothermal method. In a typical process, (NH4)6Mo7O24·4H2O (2.0 mmol) in water (10 mL) was stirred for 30 min at ambient temperature to form a clear solution. An aqueous HNO3 solution (2.0 M, 10 mL) was then added with stirring and the mixture was continuously stirred for 30 min. Afterwards, the mixture was transferred into a Teflon-lined stainless-steel autoclave with 50 mL capacity and reacted at 180 °C for 8 h in an oven. After the autoclave was naturally cooled down to room temperature, the resulting sample was collected by centrifugation, washed first with water and then absolute ethanol several times, and dried at 80 °C for 6 h under vacuum.

2.1.2. Synthesis of A Series of Ag/AgI/α-MoO3 Heterojunctions

Ag/AgI/α-MoO3 heterojunctions were fabricated by a charge-induced physical adsorption and in-situ photo-reduced deposition process. To a suspension of as-synthesized α-MoO3 (0.5 g) dispersed in ethanol (80 mL), KI (0.1904 g) dissolved in water (10 mL) was added under vigorous stirring. The resulting suspension was sonicated for 20 min, and an appropriate amount of AgNO3 dissolved in water was then added dropwise. After stirring for 12 h under a dark condition, the suspension was irradiated for 5 min using a 250 W metal halide lamp at room temperature under stirring. The cut-off filter was used to cut off the light below 420 nm. The precipitate was collected by centrifugation, washed with water and absolute ethanol several times, and dried at 80 °C for 6 h under vacuum. The same procedure was used to prepare as-synthesized a series of samples, AAM-x (x = 15, 25, 35 and 45, which represents weight percent of AgI in sample AAM, for example, AAM-15 means 15 wt % AgI in sample), with different mass percent of initially formed AgI contents in all starting chemicals.

2.2. Characterization

X-ray diffraction (XRD) were carried out with a Shimadzu XRD-7000 X-ray diffractometer (Bruker, Karlsruhe, Germany) using Cu Kα radiation (λ = 0.15418 nm) at a scanning rate of 2° per minute in the 2θ range of 10–80° with an accelerating voltage of 40 kV and an applied current of 30 mA. The surface morphology and microstructures of the sample were observed using a JEOL-6700 (JEOL Ltd., Tokyo, Japan) field emission scanning electron microscope (FE-SEM) and a JEM-2100 (JEOL Ltd., Tokyo, Japan)high-resolution transmission electron microscope (HR-TEM). X-ray photoelectron spectroscopy (XPS) was recorded on a PHI-5400 X-ray photoelectron spectrometer (Ulvac-Phi Inc., Kanagawa, Japan). UV-Vis diffuse reflectance spectra (UV-Vis-DRS) were obtained using a Shimadzu UV-2550 UV-Vis spectrophotometer (SHIMADZU, Kyoto, Japan) in the range of 200–800 nm equipped with an integrating sphere assembly. BaSO4 was used as a reflectance standard. Photoluminescence (PL) spectra were measured on an F-4500 fluorescence spectrophotometer (Hitach, Tokyo, Japan) at an excitation of 337 nm. Electrochemical impedance spectroscopy (EIS) was carried out on an CHI660C electrochemical workstation (CH Instruments, Inc., Shanghai, China) using a typical three-electrode configuration, with an ITO glass/sample as a working electrode, a platinum wire as a counter electrode, and a saturated calomel electrode (SCE) in a saturated KCl aqueous solution as a reference electrode. Na2SO4 (0.5 M) aqueous solution was used as the electrolyte.

2.3. Photocatalytic Activity

The photocatalytic activity of as-synthesized samples was evaluated through the degradation of thiophene in a model fluid catalytic cracking (FCC) gasoline. The model FCC gasoline was prepared by dissolving thiophene in n-octane, in which the initial sulfur content was about 500 ppm. The reaction system consisted of a 400 W metal halide lamp as the simulated visible-light source equipped with an optical filter (λ ≥ 420 nm) to cut off the light in the ultraviolet region.
In a typical reaction, a certain amount of as-synthesized sample was added into 20 mL of simulated FCC gasoline in a 50 mL quartz tube reactor with water circulation facility, and the mixed solution was then placed in the dark to establish adsorption-desorption equilibrium. Before and during the irradiation, the solution was purged with air as the oxidant. At expected time intervals, 5.0 mL of solution was withdrawn and photocatalysts were separated through centrifugation. The supernatant was then extracted with acetonitrile. The sulfur content of model fuel oil was detected by a WK-2D microcoulometer analyzer with nitrogen as carrier gas, oxygen as combustion gas, an iodide electrode as a reference electrode, and a platinum electrode as a potential electrode. The temperature of vaporization segment is 680 °C and the combustion temperature is 850 °C. The desulfurization ratio for thiophene was calculated by the following formula:
η = ( 1 − C t C 0 ) × 100 %
where η stands for desulfurization ratio for thiophene, C0 and Ct are the concentration of initial thiophene and of unconverted thiophene at light irradiation time t, respectively.
Furthermore, trapping experiments were performed to probe the main active species in the photocatalytic process. The experimental apparatus and procedures were identical for all photocatalytic activity tests, but different types of scavengers, including isopropanol alcohol (IPA) for hydroxyl radical (OH), ethylenediamine tetraacetic acid disodium salt (EDTA-2Na) for hole (h+), and 1, 4-benzoquinone (BQ) for superoxide radical (O2−), were added into the simulated FCC gasoline.

3. Results

3.1. Formation and Characterization of Ag/AgI/α-MoO3 Heterojunctions

As shown in Scheme 1, AgI/α-MoO3 heterojunctions were fabricated by homogeneous adsorption of iodide ions on the surface of α-MoO3 nanobelts in an ethanol solution via electrostatic interaction. The surface of α-MoO3 nanobelts is positively charged which can firstly absorb anionic I− ions, then the attached I− further reacts with Ag+ ions to fabricate the AgI/α-MoO3 heterostructure [24]. Under visible-light irradiation, the AgI on α-MoO3 surface was partially converted into metallic Ag nanoparticles and therefore resulted in the formation of a novel ternary Ag/AgI/α-MoO3 (AAM) heterojunction.
For AAM heterojunctions with different mass percent of initially formed AgI, the XRD patterns (Figure 1) clearly indicated characteristic diffraction peaks of as-made pure α-MoO3 nanobelts with orthorhombic Pbnm symmetry (JCPDS No. 05-0508) and γ-AgI with face-centered cubic F-43m symmetry (JCPDS No. 09-0399). No featuring diffraction peaks of Ag nanoparticles were observed due to the low content of metallic Ag nanoparticles and the overlapping of α-MoO3 diffraction peaks. Note that the intensities of diffraction peaks of AgI in AAM gradually increased with increasing AgI loading, and the corresponding value of IAgI (111)/IMoO3 (040) also increased. No other diffraction peaks were detected, implying the high purity of the final products obtained. These findings are in accordance with the expected composites.
To investigate the composition of the AAM samples and chemical states of every element, X-ray photoelectron spectroscopy (XPS) analysis was performed and showed in Figure 2. All main peaks corresponded to O, Mo, Ag and I were detected (Electronic supplementary information (ESI), Figure S1), and the C signal derived from the residual/adventitious carbon of the XPS instrument. A broad O 1s spectrum (Figure 2a) can be decomposed as three peaks at 530.8, 531.7 and 532.6 eV, corresponding to the Mo-O, Mo-OH, and surface adsorbed oxygen, respectively [21,22,23]. The peaks at 232.6 and 235.8 eV in Figure 2b respectively belong to Mo 3d5/2 and Mo 3d3/2 of Mo6+ [22]. The Ag 3d spectrum shown in Figure 2c can be divided into four characteristic peaks, in which the peaks at 368.8 and 374.3 eV are attributed to Ag 3d5/2 and Ag 3d3/2 of metallic Ag, meanwhile the peaks at 368.0 and 374.0 eV are assigned to Ag 3d5/2 and Ag 3d3/2 of Ag+, respectively. In addition, the peaks with I 3d5/2 and I 3d3/2 can also be observed at 619.9 and 631.4 eV in Figure 2d, respectively. Hence, the results from XPS clearly demonstrated the successful preparation of Ag/AgI/α-MoO3 with heterojunctions.
The morphology and microstructure of as-made pure α-MoO3 nanobelts and AAM-35 heterojunctions were investigated by SEM and (HR)TEM measurements, and the results are shown in Figure 3a–f. For pure α-MoO3, a unique belt-shaped morphology with smooth surface, sharp top and uniform belt width of about 100 nm is observed (Figure 3a). Crystalline orthorhombic α-MoO3 nanobelts with Pbnm symmetry was confirmed by (HR)TEM images (Figure 3b,c), the lattice fringe corresponded to (110) plane of the α-MoO3 (JCPDS No. 05-0508), and is clearly visible with a spacing of 0.379 nm. For Ag/AgI/MoO3 heterojunction (AAM-35), Figure 3d and e clearly show that Ag/AgI nanoparticles with the size of 20–30 nm located on the surface of the α-MoO3 nanobelts form different Ag/AgI, AgI/MoO3 and Ag/MoO3 heterostructures. In order to confirm the existence of metallic Ag in AAM-35, HRETM image shown in Figure 3f indicated three obviously different lattice fringes that respectively belong to the (111) plane with a spacing of 0.369 nm for AgI with F-43m symmetry, the (040) reflection plane with a spacing of 0.342 nm for α-MoO3, and the (111) planes with spacing of 0.232 nm for face-centered cubic metallic Ag nanoparticles with Fm-3m symmetry. These lattice fringes clearly reveal the formation of a ternary heterojunction, Ag/AgI/α-MoO3, which probably further promotes the effective separation of electrons and holes between the Ag, AgI and α-MoO3.
The UV-Vis DRS spectra of pure α-MoO3 nanobelts, AgI, and AAM heterojunctions are shown in Figure 4a. The absorption edge of pure α-MoO3 and AgI was estimated to be about 420 and 458 nm, respectively. However, owing to the formation of heterojunction structures among AgI, Ag and α-MoO3, the absorption edge of the AAM nanocomposite exhibited an obvious red-shift phenomenon accompanied by a gradually enhancing intensity with an increasing initially formed AgI amount. This is according to the following equation, [F(R∞)hγ] =A(hγ-Eg)n/2, where F(R∞), γ, Eg, A and h are the Kubelka–Munk function, the light frequency, the band gap, the proportionality constant, and Planck constant, respectively. In this equation, n depends on whether the transition is direct (n = 1) or indirect (n = 4) semiconductor type. For α-MoO3 and AgI, n = 1 [36]. The band gap of pure α-MoO3 nanobelts and AgI is calculated to be 3.06 and 2.78 eV, respectively. For Ag/AgI/MoO3 composite, the profile of (αhγ)2 versus hγ is shown, but the band gap of composite cannot be simply calculated using this method. Moreover, for pure α-MoO3 nanobelts and AgI, the valance band (VB) potential (EVB) and the conduction band (CB) potential (ECB) can be calculated by the empirical equations:
EVB = χ − Ee + 0.5Eg
ECB = EVB − Eg,
where χ is the absolute electronegativity of the semiconductor, which is the geometric mean of the electronegativity of the constituent atoms. Ee is the energy of free electrons on the hydrogen scale (about 4.5 eV vs. NHE) and Eg is the band gap of the semiconductor. The values of χ for pure α-MoO3 nanobelts and AgI are 6.40 and 5.40 eV, respectively [47]. As a consequence, the EVB of pure α-MoO3 nanobelts and AgI are 3.43 and 2.29 eV, respectively, and the ECB of pure α-MoO3 nanobelts and AgI are 0.37 and −0.49 eV, respectively.
Photoluminescence (PL) spectrum and electrochemical impedance spectroscopy (EIS) are widely used to monitor the separation and transfer efficiencies of the photogenerated charge carrier. For the PL spectrum, the high emission intensity implies a high recombination rate of the photogenerated charge carrier [48]. For pure α-MoO3 nanobelts, AgI, and AAM-35, the PL emission intensity of AAM-35 depicted in Figure 5a was weaker than that of pure α-MoO3 nanobelts and AgI, indicating that the modification of Ag/AgI on the surface of α-MoO3 nanobelts efficiently improved the separation of photogenerated e− and h+. Moreover, the arc size of the AAM-35 from the EIS results was smaller than that of the α-MoO3 nanobelt and AgI, further suggesting that AAM-35 possessed smaller charge-transfer resistance is in favor of photogenerated charge carrier transfer. This result is consistent with the PL property of AAM-35 [49].

3.2. Photocatalytic Oxidative Desulfurization Activity

Thiophene is a refractory sulfur-containing pollutant in gasoline, which is chosen as a model of sulfur-containing pollutant to evaluate the photocatalytic oxidative desulfurization (PODS) activity of as-made photocatalysts in the AAM series. As can be seen in Figure 6a, the pure α-MoO3 nanobelt and AgI as the photocatalysts show the degradation rate of thiophene of 34.5% and 75.4% under visible-light irradiation for 2 h, respectively. However, under an identical condition, the AAM series exhibited superior PODS activity, in which AAM-35 had a highest PODS activity with a thiophene degradation rate of 97.5%. Note that the PODS activity of AAM series gradually increased with the increasing loading of the initially formed AgI amount, and then decreased. In our studies, 35 wt % AgI in all starting chemicals was the formed starting amount and is an inflexion point in AAM series. The excess loading of Ag/AgI nanoparticles occupied the partially active sites of surface of α-MoO3 nanobelts and thereby reduced the efficiency of the charge carrier separation [49]. As a comparison, when AgI/α-MoO3-35 (AM-35) was used as a photocatalyst for the degradation of thiophene, the degradation rate reached 87.6%. This result is obviously lower than that of AAM-35, confirming that Ag nanoparticles coated on an AgI or α-MoO3 surface act as a key role for the efficient enhancement of the PODS activity of AAM-35. These results also indirectly imply that Ag nanoparticles are beneficial to the improvement of electron-hole separation efficiency. Roles of AgI and Ag/AgI are in good agreement with that of AgI/Bi2SiO5 for the degradation of acid red aqueous solution (ARG) and gaseous formaldehyde [39] and AgI/Ag/Bi2MoO6 for the degradation of organic pollutants [40].
During photocatalysis, the photocatalyst amount used in the reaction system is an important factor to affect the conversion of substrate. Herein, we investigated the amounts of AAM-35 ranging from 0.5 to 2.0 g·L−1 for the influence of the photocatalytic degradation of thiophene under visible-light irradiation. As shown in Figure 6b, the thiophene degradation speed initially increased and then decreased with increasing amount of catalyst. When the concentration of catalyst was 1.0 g L−1, the degradation of thiophene could be completed in 2 h. If it was less or higher than this concentration, thiophene degradation was markedly weakened due to insufficient catalyst or that the excessive amount of photocatalysts blocked the light penetration [50].
To obtain a further insight of the photocatalytic process, the experimental results were simulated by pseudo-first-order kinetic model, and the results are shown in Figure 6c. The photodegradation process of thiophene on various catalysts fitted well with a pseudo-first-order model, ln (C0/Ct) = kappt, where kapp is the apparent rate constant (min−1). C0 and Ct are the thiophene concentrations at corresponding reaction time 0 and t, respectively. For thiophene degradation, the results demonstrated that with increasing irradiation time the plot of ln (C0/Ct) versus irradiation time (t) is a typical pseudo first-order reaction in the presence of photocatalysts. The corresponding rate constants (kapp) for pure α-MoO3, AgI, AM-35, AAM-15, AAM-25, AAM-35 and AAM-45 are 3.21 × 10−3, 8.49 × 10−3, 2.04 × 10−2, 1.28 × 10−2, 2.94 × 10−2, 4.89 × 10−2 and 1.49 × 10−2 min−1, respectively. The kapp of AAM-35 is the highest, which is 15.2, 5.8 and 2.4 times higher than that of pure α-MoO3, AgI and AM-35, respectively. These findings reveal that Z-scheme Ag/AgI/α-MoO3 heterojunction-structured catalysts can significantly improve the photocatalytic activity for the degradation of thiophene compared to single α-MoO3 and AgI, and dual composite AgI/MoO3. Moreover, photocatalytic performances of all catalysts are in good agreement with the PL and EIS results.
The stability and recyclability of photocatalysts are often used to evaluate their practical applications in industry. Herein, catalyst AAM-35 was run four times for thiophene degradation. The results are shown in Figure 7a. It is clear to see that the catalytic activity of catalyst slightly decreased from 97.5% to 86.2% after four cycles, which could be ascribed to the reduction of the active sites and loss of the active component [49]. The XRD patterns and UV-DRS spectra before and after four times confirm that no remarkable changes can be observed (Figure 7b,c), although the UV-DRS spectrum shows a similar trend with a slight change (Figure 7c). These results are enough to corroborate the high stability and recyclability of Z-scheme Ag/AgI/α-MoO3 heterojunction-structured catalyst, which can be a promising photocatalyst in the practical application for PODS in the future.

3.3. Photocatalytic Mechanism

To elucidate and understand the reaction mechanism, the active species trapping experiments were carried out. Ethylenediaminetetraacetic acid disodium salt (EDTA-2Na), isopropanol (IPA), and benzoquinone (BQ) were adopted as the scavengers for photogenerated holes (h+), hydroxyl radical (OH), and superoxide radical (O2−), respectively. The experimental results shown in Figure 8 reveal that the addition of EDTA-2Na and IPA markedly suppresses the PODS activity of AAM-35. When the EDTA-2Na and IPA were added into the reaction system, the thiophene degradation rates declined from 97.5% to 18.3% and 42.4%, respectively, suggesting that h+ and ·OH should be the mainly active species, wherein h+ played a greater role than OH during photocatalysis. Moreover, the addition of BQ slightly weakened the thiophene degradation, implying that O2− had also a small contribution to the thiophene degradation. Hence, for AAM-catalyzed thiophene degradation, the h+ and OH are two primary active species and the O2− is secondary active species in the PODS process.
To further identify the radical species in the reaction process, the spin trapping ESR spectra utilized DMPO (5,5-Dimethyl-1-pyrroline N-oxide) as a trapping agent for hydroxyl radicals (·OH) and superoxide anionic radicals (·O2−); these were measured under visible light irradiation in the presence of pure α-MoO3 nanobelt, or AgI, or AAM-35. As can be seen in Figure 9, for all catalysts, no any radical signals can be observed in the dark. However, under visible light irradiation, the concentration of hydroxyl radicals is much higher than ·O2− for pure α-MoO3 nanobelts (Figure 9a,b), indicating that the primary active species are the radicals ·OH. For AgI, the signals of DMPO-OH radicals are much weaker than ·O2− (Figure 9c,d), corroborating that the radicals·O2− are absolutely dominant species, which are derived from the reduction of physical adsorbed O2 on AgI surface by the photogenerated electron at the CB of AgI. For AAM-35, note that the signals of both of radicals ·O2− and ·OH are observed and their intensities increase with increasing irradiation time (Figure 9e,f), implying the co-existence of two primary active species ·O2− and ·OH. These findings are consistent with the results of active species trapping experiments, further verifying that the photocatalytic process was performed by the synergistic effect of active species h+, ·OH and·O2−.
On the basis of the above-mentioned experimental results, the photocatalytic mechanisms of AM (AgI/α-MoO3) and AAM (Ag/AgI/α-MoO3) are proposed and schematically illustrated in Scheme 2. Under visible light irradiation, both α-MoO3 nanobelts and AgI could be excited to generate electron-hole pairs (e−-h+), as shown in Scheme 2a, for AM heterojunction, due to the conduction band potential of α-MoO3 being much higher than that of AgI and the valence band potential of AgI being much lower than that of α-MoO3, and therefore, the electrons at CB of AgI can readily transfer to the CB of α-MoO3, meanwhile the holes from VB of α-MoO3 nanobelts can transfer to VB of AgI. Such transfer leads to the effectively spatial separation of photo-generated electron-hole pairs on AM catalyst and therefore performs the reducing reaction of O2 to ·O2− on AgI surface and the conversion of H2O to radicals ·OH on α-MoO3 nanobelts. These radicals or holes further interact with thiophene and decompose it to form the final CO2, SO3 and H2O. As a result, the separation efficiency of photogenerated charge carriers of AM-35 are significantly enhanced compared to single α-MoO3 and AgI, due to the synergistic effect of heterojuction structure of dual composites. Note that AM-35 can partially convert into a similar structure as AAM-35 during the visible-light irradiation-catalyzed process. A similar case of AgI partially converted into metallic Ag under visible light irradiation had been reported previously on photocatalyst Bi2SiO5/AgI for the degradation of acid red G aqueous solution [51].
However, when partial AgI in AM-35 was reduced to metallic Ag until the AgI surface was completely encapsulated by metallic Ag under visible light irradiation to form Ag/AgI and Ag/α-MoO3 heterojunctions, while accompanied by the preservation of initial AgI/α-MoO3 heterojunction, then multiply heterojunction-structured Ag/AgI/α-MoO3 (AAM-35) was prepared in this case. In the AAM-35 heterojunction system, except from the above-mentioned AM-35-catalyzed photocatalytic mechanism, under visible-light irradiation, photo-induced electrons and holes on MoO3 and AgI were transferred by different routes. Due to the ECB of MoO3 being more negative than the Fermi level of metallic Ag, photo-generated electrons on MoO3 would like to move to metallic Ag. Because the EVB of AgI is more positive than the Fermi level of metallic Ag, electrons in Ag transferred to the VB of AgI, while photo-induced holes on the surface of AgI would spontaneously transfer to metallic Ag and combined with the transferred electrons on the VB of AgI, which was faster than the recombination between electrons and holes of AgI itself [52]. Thus, the efficient charge transmission could enhance charge carriers’ separation efficiency. This case occurs at the interface MoO3/Ag/AgI heterojunction structure. Additionally, the transfer of holes on AgI can also happen at interface AgI/Ag [39]. The resulting holes (h+) are richened on MoO3 to perform oxidation reaction—the holes at the VB of α-MoO3 can interact with thiophene and H2O to form radical C4H4S+ cation and ·OH due to the fact that the EVB of α-MoO3 (3.44 eV vs. NHE) is more positive than the standard redox potential ·OH/OH− (+2.40 eV vs. NHE), and the electrons are richened on AgI to carry out reduction reactions—the electrons at the CB of AgI reduced the adsorbed O2 on the surface of heterojunctions to ·O2−. The resultant active species further react with C4H4S+ to produce final SO3 and CO2 to perform the effective degradation of thiophene [7]. These pathways greatly improve the separation efficiency of photo-induced electrons and holes and thereby remarkably promote photocatalytic performance of catalyst. To identify the final product of the AAM-catalyzed photodegradation of thiophene, 0.1 M Ba(NO3)2 aqueous solution was introduced to the reaction system. After finishing the photoreaction, the white precipitates were collected by centrifugation and characterized by XRD. The results shown in Figure S2 confirm that white precipitates are the mixture of BaSO4, BaCO3 and AAM-35, suggesting that the final products of thiophene photodegradation catalyzed by AAM-35 are SO3 and CO2. This result is in good agreement with that of previous reports catalyzed by Ag/MoO3 [46] and Pd/ZrO2–chitosan composite [5]. In summary, the metal Ag in the Z-scheme heterojunction as a photogenerated charge carriers transfer bridge could significantly promote the electrons and holes’ transmission and separation, resulting in better stability and superior photocatalytic activity.

4. Conclusions

In this study, a series of novel Z-scheme photocatalysts Ag/AgI/α-MoO3 (AAM) heterojunctions with initially formed AgI contents were successfully fabricated by a facile hydrothermal method combined with a charge-induced physical adsorption and photo-reduced deposition technique, and well-characterized by XRD, SEM/TEM analysis, XPS and spectroscopies. The results revealed that AgI and Ag derived from the reduction of AgI were incorporated to α-MoO3 or AgI surface to form different heterojunctions AgI/α-MoO3, Ag/AgI and Ag/α-MoO3 for dual/ternary composites AM-35/AAM-35. For the photocatalytic oxidative desulfurization of thiophene, ternary composites AAM-35 (Ag/AgI/α-MoO3) heterojunction exhibited the highest photocatalytic activity (the conversion of 97.5% in 2 h) under visible-light irradiation compared to the single composite pure α-MoO3 nanobelts and AgI, and dual composites AM-35 (AgI/α-MoO3). Two different catalytic mechanisms were suggested to elucidate the effective separation of photogenerated electron-hole pairs for the enhancement of photocatalytic performance for dual composites AM-35 and ternary composites AAM-35 during the photocatalytic oxidative desulfurization of thiophene, revealing a key role of Ag and the importance of heterojunctions in a multiple-composite system. For the PODS of thiophene, three dominantly active species confirmed by radical trapping experiments and ESR spectra are h+, ·OH and·O2−. The final products of PODS of thiophene are SO3, CO2 and H2O verified by the formation of BaSO4 and BaCO3 in the presence of Ba(NO3)2. This investigation demonstrates that PODS is a promising candidate for refractory sulfur aromatic pollutant’s removal in fuel, also implying that the fabrication of Z-scheme-type heterojunctions might be a new approach for achieving the environmental requirements of VLD photocatalysts. However, how to regulate photocatalyst interface performance so that it can be easily separated from the reaction system, which should be addressed in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/7/1054/s1, Figure S1. XPS survey spectrum of Ag/AgI/α-MoO3 (AAM-35). Figure S2. Comparison of XRD patterns of white precipitates in Ba(NO3)2 solution and AAM-35.

Author Contributions

Conceptualization, Y.Z. and F.F.; formal analysis, Y.Z.; investigation, J.W. and W.F.; writing—review and editing, Y.L.; writing—original draft preparation, Y.Z.; funding acquisition, F.F.

Funding

This research was funded by National Natural Science Foundation of China (21663030), the Project of Science and Technology Office of Shaanxi Province (2016DDJC-19, 2015GY174, 2015SF291,), the Project of Science and Technology of Yan’an City (2016CGZH-12-01, 2015CHTD-04), Science and Technology Plan Project of Yan’an University (YD2015-13) and Innovation Training Project (YCX201734, 12288, 1553).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dai, C.N.; Zhang, J.; Huang, C.P.; Lei, Z.G. Ionic liquids in selective oxidation: Catalysts and solvents. Chem. Rev. 2017, 117, 6929–6983. [Google Scholar] [CrossRef] [PubMed]
  2. Stanislaus, A.; Marafi, A.; Rana, M.S. Recent advances in the science and technology of ultra low sulfur diesel (ULSD) production. Catal. Today 2010, 153, 1–68. [Google Scholar] [CrossRef]
  3. Samokhvalov, A. Desulfurization of real and model liquid fuels using light: Photocatalysis and photochemistry. Catal. Rev. 2012, 54, 281–343. [Google Scholar] [CrossRef]
  4. Wei, S.N.; He, H.J.; Cheng, Y.; Yang, C.P.; Zeng, G.M.; Qiu, L. Performances, kinetics and mechanisms of catalytic oxidative desulfurization from oils. RSC Adv. 2016, 6, 103253–103269. [Google Scholar] [CrossRef]
  5. Abdelaal, M.Y.; Mohamed, R.M. Environmental remediation from thiophene solution by photocatalytic oxidation using a Pd/ZrO2-chitosan nanocomposite. Ceram. Int. 2014, 40, 7693–7699. [Google Scholar] [CrossRef]
  6. Miao, G.; Huang, D.; Ren, X.; Li, X.; Li, Z.; Xiao, J. Visible-light induced photocatalytic oxidative desulfurization using BiVO4/C3N4@SiO2 with air/cumene hydroperoxide under ambient conditions. Appl. Catal. B Environ. 2016, 192, 72–79. [Google Scholar] [CrossRef]
  7. Lin, F.; Li, C.; Wang, D.G.; Jiang, Z.X.; Ma, Y.; Li, J.; Li, R.G. Photocatalytic oxidation of thiophene on BiVO4 with dual co-catalysts Pt and RuO2 under visible light irradiation using molecular oxygen as oxidant. Energy Environ. Sci. 2012, 5, 6400–6406. [Google Scholar] [CrossRef]
  8. Gao, X.M.; Fu, F.; Zhang, L.P.; Li, W.H. The preparation of Ag-BiVO4 metal compositeoxides and its application in efficient photocatalytic oxidative thiophene. Phys. B Condens. Matter 2013, 419, 80–85. [Google Scholar] [CrossRef]
  9. Zhang, B.; Li, J.; Zhang, B.Q.; Chong, R.F.; Li, R.G.; Yuan, B.S.; Lu, M.; Li, C. Selective oxidation of sulfides on Pt/BiVO4 photocatalyst under visible light irradiation using water as the oxygen source and dioxygen as the electron acceptor. J. Catal. 2015, 332, 95–100. [Google Scholar] [CrossRef]
  10. Lu, X.; Li, X.; Qian, J.; Miao, N.; Yao, C.; Chen, Z. Synthesis and characterization of CeO2/TiO2 nanotube arrays and enhanced photocatalytic oxidative desulfurization performance. J. Alloys Compd. 2016, 661, 363–371. [Google Scholar] [CrossRef]
  11. Zarrabi, M.; Entezari, M.H.; Goharshadi, E.K. Photocatalytic oxidative desulfurization of dibenzothiophene by C/TiO2@MCM-41 nanoparticles under visible light and mild conditions. RSC Adv. 2015, 5, 34652–34662. [Google Scholar] [CrossRef]
  12. Mahd Zaid, H.F.; Chong, F.K.; Abdul Mutalib, M.I. Photooxidative–extractive deep desulfurization of diesel using Cu-Fe/TiO2 and eutectic ionic liquid. Fuel 2015, 156, 54–62. [Google Scholar] [CrossRef]
  13. Miao, G.; Ye, F.Y.; Wu, L.M.; Ren, X.L.; Xiao, J.; Li, Z.; Wang, H.H. Selective adsorption of thiophenic compounds from fuel over TiO2/SiO2 under UV-irradiation. J. Hazard. Mater. 2015, 300, 426–432. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, C.; Zhu, W.S.; Xu, Y.H.; Xu, H.; Zhang, M.; Chao, Y.H.; Yin, S.; Li, H.M.; Wang, J.G. Preparation of TiO2/g-C3N4 composites and their application in photocatalytic oxidative desulfurization. Ceram. Int. 2014, 40, 11627–11635. [Google Scholar] [CrossRef]
  15. Dedual, G.; MacDonald, M.J.; Alshareef, A.; Wu, Z.; Tsang, D.C.W.; Yip, A.C.K. Requirements for effective photocatalytic oxidative desulfurization of a thiophene-containing solution using TiO2. J. Environ. Chem. Eng. 2014, 2, 1947–1955. [Google Scholar] [CrossRef]
  16. Lin, F.; Zhang, Y.; Wang, L.; Zhang, Y.; Wang, D.; Yang, M.; Yang, J.; Zhang, B.; Jiang, Z.; Li, C. Highly efficient photocatalytic oxidation of sulfur-containing organic compounds and dyes on TiO2 with dual cocatalysts Pt and RuO2. Appl. Catal. B Environ. 2012, 127, 363–370. [Google Scholar] [CrossRef]
  17. Wang, X.J.; Li, F.T.; Liu, J.X.; Kou, C.G.; Zhao, Y.; Hao, Y.J.; Zhao, D.S. Preparation of TiO2 in ionic liquid via microwave radiation and in situ photocatalytic oxidative desulfurization of diesel oil. Energy Fuel. 2012, 26, 6777–6782. [Google Scholar] [CrossRef]
  18. Zeng, X.Y.; Xiao, X.Y.; Li, Y.; Chen, J.Y.; Wang, H.L. Deep desulfurization of liquid fuels with molecular oxygen through graphene photocatalytic oxidation. Appl. Catal. B Environ. 2017, 209, 98–109. [Google Scholar] [CrossRef]
  19. Li, S.; Mominou, N.; Wang, Z.; Liu, L.; Wang, L. Ultra-deep desulfurization of gasoline with CuW/TiO2-GO through photocatalytic oxidation. Energy Fuel. 2016, 30, 962–967. [Google Scholar] [CrossRef]
  20. Aazam, E.S. Visible light photocatalytic degradation of thiophene using Ag-TiO2/multi-walled carbon nanotubes nanocomposite. Ceram. Int. 2014, 40, 6705–6711. [Google Scholar] [CrossRef]
  21. Yang, C.; Ji, H.; Chen, C.; Ma, W.; Zhao, J. Desulfurization of thiophenes in oils into H2SO4 using molecular oxygen. Appl. Catal. B Environ. 2018, 235, 207–213. [Google Scholar] [CrossRef]
  22. Zeng, X.; Xiao, X.; Chen, J.; Wang, H. Electron-hole interactions in choline-phosphotungstic acid boosting molecular oxygen activation for fuel desulfurization. Appl. Catal. B Environ. 2018, 248, 573–586. [Google Scholar] [CrossRef]
  23. Cheng, L.; Shao, M.H.; Hu, H.B. Single-crystalline molybdenum trioxide nanoribbons: Photocatalytic, photoconductive, and electrochemical properties. Chem. Eur. J. 2009, 15, 2310–2316. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, Y.P.; Lu, C.L.; Xu, L.; Ma, Y.; Hou, W.H.; Zhu, J.J. Single-crystalline orthorhombic molybdenum oxide nanobelts: Synthesis and photocatalytic properties. CrystEngComm 2010, 12, 3740–3747. [Google Scholar] [CrossRef]
  25. Shakir, I.; Shahid, M.; Kang, D.J. MoO3 and Cu0.33MoO3 nanorods for unprecedented UV/Visible light photocatalysis. Chem. Commun. 2010, 46, 4324–4326. [Google Scholar] [CrossRef] [PubMed]
  26. Feng, B.; Wu, Z.Y.; Liu, J.S.; Zhu, K.J.; Li, Z.Q.; Jin, X.; Hou, Y.D.; Xi, Q.X.; Cong, M.Q.; Liu, P.C.; et al. Combination of ultrafast dye-sensitized-assisted electron transfer process and novel Z-scheme system: AgBr nanoparticles interspersed MoO3 nanobelts for enhancing photocatalytic performance of RhB. Appl. Catal. B Environ. 2017, 206, 242–251. [Google Scholar] [CrossRef]
  27. De Castro, I.A.; Datta, R.S.; Ou, J.Z.; Castellanos-Gomez, A.; Sriram, S.; Daeneke, T.; Kalantar-Zadeh, K. Molybdenum oxides—from fundamentals to functionality. Adv. Mater. 2017, 29, 1701619–1701650. [Google Scholar] [CrossRef]
  28. Lin, F.; Cai, J.B.; Li, Y.H.; Yu, H.W.; Li, S.X. Constituting fully integrated colorimetric analysis system for Fe(III) on multifunctional nitrogen-doped MoO3/cellulose paper. Talanta 2018, 180, 352–357. [Google Scholar] [CrossRef]
  29. Liu, Z.L.; Jin, Y.J.; Teng, F.; Hua, X.; Chen, M.D. An efficient Ce-doped MoO3 catalyst and its photo-thermal catalytic synergetic degradation performance for dye pollutant. Catal. Commun. 2015, 66, 42–45. [Google Scholar] [CrossRef]
  30. Liu, T.X.; Li, B.X.; Hao, Y.G.; Yao, Z.Y. MoO3-nanowire membrane and Bi2Mo3O12/MoO3 nano-heterostructural photocatalyst for wastewater treatment. Chem. Eng. J. 2014, 244, 382–390. [Google Scholar] [CrossRef]
  31. Li, H.; Yu, K.; Tang, Z.; Fu, H.; Zhu, Z. High photocatalytic performance of a type-II α-MoO3@MoS2 heterojunction: From theory to experiment. Chem. Chem. Phys. 2016, 18, 14074–14085. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, X.N.; Yi, J.J.; Chen, H.X.; Mao, M.; Liu, L.; She, X.J.; Ji, H.Y.; Wu, X.Y.; Yuan, S.Q.; Xu, H.; et al. Construction of a few-layer g-C3N4/α-MoO3 nanoneedles all-solid-state Z-scheme photocatalytic system for photocatalytic degradation. J. Energy Chem. 2019, 29, 65–71. [Google Scholar] [CrossRef]
  33. Huang, L.Y.; Xu, H.; Zhang, R.X.; Cheng, X.N.; Xia, J.X.; Xu, Y.G.; Li, H.M. Synthesis and characterization of g-C3N4/MoO3 photocatalyst with improved visible-light photoactivity. Appl. Surf. Sci. 2013, 283, 25–32. [Google Scholar] [CrossRef]
  34. Liu, H.; Lv, T.; Zhu, C.K.; Zhu, Z.F. Direct band gap narrowing of TiO2/MoO3 heterostructure composites for enhanced solar-driven photocatalytic activity. Sol. Energy Mater. Sol. Cells 2016, 153, 1–8. [Google Scholar] [CrossRef]
  35. Qu, Y.Q.; Duan, X.F. Progress, challenge and perspective of heterogeneous photocatalysts. Chem. Soc. Rev. 2013, 42, 2568–2580. [Google Scholar] [CrossRef] [PubMed]
  36. Xie, Z.J.; Feng, Y.P.; Wang, F.L.; Chen, D.N.; Zhang, Q.X.; Zeng, Y.Q.; Lv, W.Y.; Liu, G.G. Construction of carbon dots modified MoO3/g-C3N4 Z-scheme photocatalyst with enhanced visible-light photocatalytic activity for the degradation of tetracycline. Appl. Catal. B Environ. 2018, 229, 96–104. [Google Scholar] [CrossRef]
  37. Wang, P.; Huang, B.; Qin, X.; Zhang, X.; Dai, Y.; Wei, J.; Whangbo, M.H. Ag@AgCl: A highly efficient and stable photocatalyst active under visible light. Angew. Chem. Int. Ed. Engl. 2008, 47, 7931–7933. [Google Scholar] [CrossRef]
  38. Ji, H.; Zhang, L.; Hu, C. Chemical-bond conjugated BiO(OH)x I1-x -AgI heterojunction with high visible light activity and stability in degradation of pollutants. Appl. Catal. B Environ. 2017, 218, 443–451. [Google Scholar] [CrossRef]
  39. Wan, Z.; Zhang, G.K. Synthesis and facet-dependent enhanced photocatalytic activity of Bi2SiO5/AgI nanoplate photocatalysts. J. Mater. Chem. A 2015, 3, 16737–16745. [Google Scholar] [CrossRef]
  40. Gao, X.M.; Shang, Y.Y.; Gao, K.L.; Fu, F. Plasmon sensitized heterojunction 2D ultrathin Ag/AgI-δ-Bi2O3 for enhanced photocatalytic nitrogen fixation. Nanomaterials 2019, 9, 781. [Google Scholar] [CrossRef]
  41. Sun, L.; Wu, W.; Tian, Q.; Lei, M.; Liu, J.; Xiao, X.; Zheng, X.; Ren, F.; Jiang, C. In situ oxidation and self-assembly synthesis of dumbbell-like α-Fe2O3/Ag/AgX (X = Cl, Br, I) heterostructures with enhanced photocatalytic properties. ACS Sustain. Chem. Engin. 2015, 4, 1521–1530. [Google Scholar] [CrossRef]
  42. Zeng, C.; Hu, Y.M.; Guo, Y.; Zhang, T.R.; Dong, F.; Zhang, Y.H.; Huang, H.W. Facile in situ self-sacrifice approach to ternary hierarchical architecture Ag/AgX (X = Cl, Br, I)/AgIO3 distinctively promoting visible-light photocatalysis with composition-dependent mechanism. ACS Sustain. Chem. Eng. 2016, 4, 3305–3315. [Google Scholar] [CrossRef]
  43. Chen, F.; Yang, Q.; Wang, Y.; Zhao, J.; Wang, D.; Li, X.; Guo, Z.; Wang, H.; Deng, Y.; Niu, C.; et al. Novel ternary heterojunction photcocatalyst of Ag nanoparticles and g-C3N4 nanosheets co-modified BiVO4 for wider spectrum visible-light photocatalytic degradation of refractory pollutant. Appl. Catal. B Environ. 2017, 205, 133–147. [Google Scholar] [CrossRef]
  44. Lin, F.; Jiang, Z.X.; Tang, N.F.; Zhang, C.; Chen, Z.P.; Liu, T.F.; Dong, B. Photocatalytic oxidation of thiophene on RuO2/SO42−-TiO2: Insights for cocatalyst and solid-acid. Appl. Catal. B Environ. 2016, 188, 253–258. [Google Scholar] [CrossRef]
  45. Zhen, Y.Z.; Li, J.; Wang, D.J.; Fu, F.; Xue, G.L. Synthesis of α-MoO3 nanobelts and its photocatalytic oxidative desulfurization (Photo-ODS) activity of simulation fuel. J. Inorg. Mater. 2015, 30, 408–412. [Google Scholar]
  46. Zhen, Y.Z.; Wang, J.; Li, J.; Fu, M.X.; Fu, F.; Zhang, Y.Z.; Feng, J.H. Enhanced photocatalytic degradation for thiophene by Ag/α-MoO3 heterojunction under visible-light irradiation. J. Mater. Sci. Mater. Electron. 2018, 29, 3672–3681. [Google Scholar] [CrossRef]
  47. Shi, H.; Chen, J.; Li, G.; Nie, X.; Zhao, H.; Wong, P.K.; An, T. Synthesis and characterization of novel plasmonic Ag/AgX-CNTs (X= Cl, Br, I) nanocomposite photocatalysts and synergetic degradation of organic pollutant under visible light. ACS Appl. Mater. Interfaces 2013, 5, 6959–6967. [Google Scholar] [CrossRef]
  48. Zhou, F.Q.; Fan, J.C.; Xu, Q.J.; Min, Y.L. BiVO4 nanowires decorated with CdS nanoparticles as Z-scheme photocatalyst with enhanced H2 generation. Appl. Catal. B Environ. 2017, 201, 77–83. [Google Scholar] [CrossRef]
  49. Wang, D.J.; Shen, H.D.; Guo, L.; Wang, C.; Fu, F.; Liang, Y.C. Ag/Bi2MoO6-x with enhanced visible-light-responsive photocatalytic activities via the synergistic effect of surface oxygen vacancies and surface plasmon. Appl. Surf. Sci. 2018, 436, 536–547. [Google Scholar] [CrossRef]
  50. Nishio, J.; Tokumura, M.; Znad, H.T.; Kawase, Y. Photocatalytic decolorization of azo-dye with zinc oxide powder in an external UV light irradiation slurry photoreactor. J. Hazard. Mater. 2006, 138, 106–115. [Google Scholar] [CrossRef]
  51. Chen, F.; Yang, Q.; Sun, J.; Yao, F.; Wang, S.; Wang, Y.; Wang, X.; Li, X.; Niu, C.; Wang, D.; et al. Enhanced photocatalytic degradation of tetracycline by AgI/BiVO4 heterojunction under visible-light irradiation: Mineralization efficiency and mechanism. ACS Appl. Mater. Interfaces 2016, 8, 32887–32900. [Google Scholar] [CrossRef] [PubMed]
  52. Chen, Z.; Wang, W.; Zhang, Z.; Fang, X. High-efficiency visible-light-driven Ag3PO4/AgI photocatalysts: Z-scheme photocatalytic mechanism for their enhanced photocatalytic activity. J. Phys. Chem. C 2013, 117, 19346–19352. [Google Scholar] [CrossRef]
Nanomaterials 09 01054 sch001 550
Scheme 1. Schematic illustration of the synthetic process of AAM heterojunctions.
Scheme 1. Schematic illustration of the synthetic process of AAM heterojunctions.
Nanomaterials 09 01054 sch001
Nanomaterials 09 01054 g001 550
Figure 1. XRD patterns of the as-prepared α-MoO3 nanobelts, AgI and Ag/AgI/α-MoO3 (AAM) heterojunctions.
Figure 1. XRD patterns of the as-prepared α-MoO3 nanobelts, AgI and Ag/AgI/α-MoO3 (AAM) heterojunctions.
Nanomaterials 09 01054 g001
Nanomaterials 09 01054 g002 550
Figure 2. XPS spectra of AAM-35, (a) O 1s, (b) Mo 3d, (c)Ag 3d, and (d) I 3d.
Figure 2. XPS spectra of AAM-35, (a) O 1s, (b) Mo 3d, (c)Ag 3d, and (d) I 3d.
Nanomaterials 09 01054 g002
Nanomaterials 09 01054 g003 550

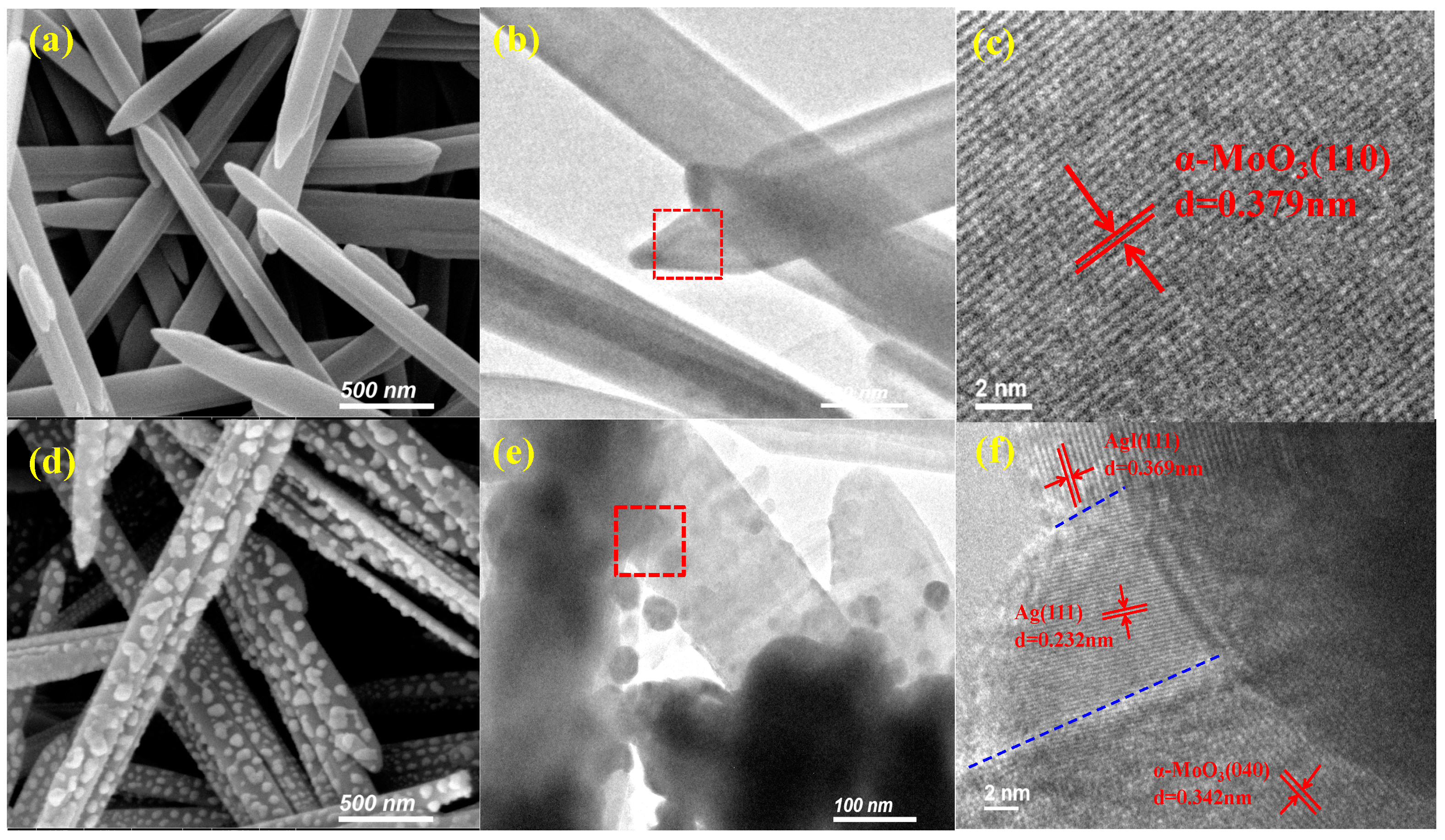

Figure 3. The SEM and TEM images of (a–c) α-MoO3 and (d–f) AAM-35.
Figure 3. The SEM and TEM images of (a–c) α-MoO3 and (d–f) AAM-35.
Nanomaterials 09 01054 g003
Nanomaterials 09 01054 g004 550

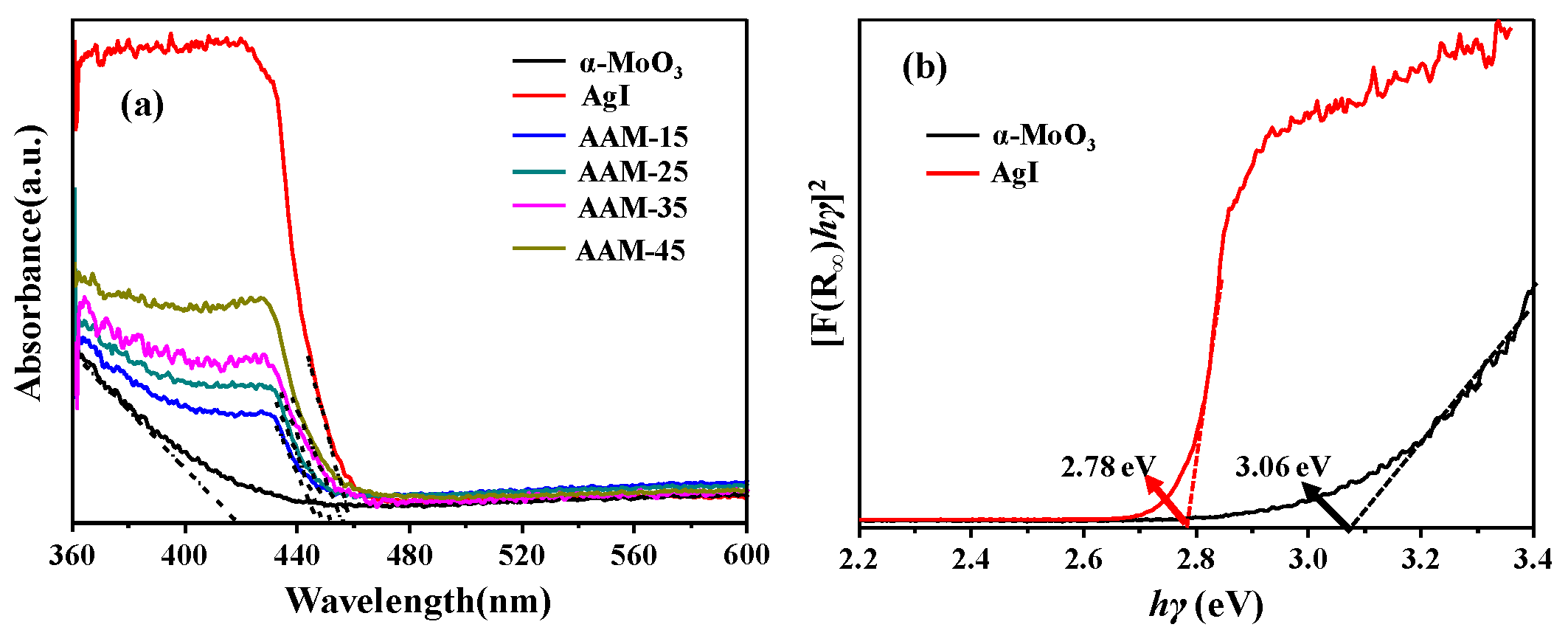

Figure 4. (a) UV-vis absorbance spectra of pure α-MoO3, AgI and AAM heterojunctions with different mass percent of initially formed AgI content, (b) the plots of [F(R∞)hγ]2 versus hγ of α-MoO3, AgI.
Figure 4. (a) UV-vis absorbance spectra of pure α-MoO3, AgI and AAM heterojunctions with different mass percent of initially formed AgI content, (b) the plots of [F(R∞)hγ]2 versus hγ of α-MoO3, AgI.
Nanomaterials 09 01054 g004
Nanomaterials 09 01054 g005 550
Figure 5. (a) Photoluminescence (PL) spectra of pure α-MoO3, AgI and AAM-35 heterojunction, (b) EIS plots of α-MoO3, AgI and AAM-35 heterojunction. The inset is an ideal equivalent circuit for the working photoelectrode.
Figure 5. (a) Photoluminescence (PL) spectra of pure α-MoO3, AgI and AAM-35 heterojunction, (b) EIS plots of α-MoO3, AgI and AAM-35 heterojunction. The inset is an ideal equivalent circuit for the working photoelectrode.
Nanomaterials 09 01054 g005
Nanomaterials 09 01054 g006 550

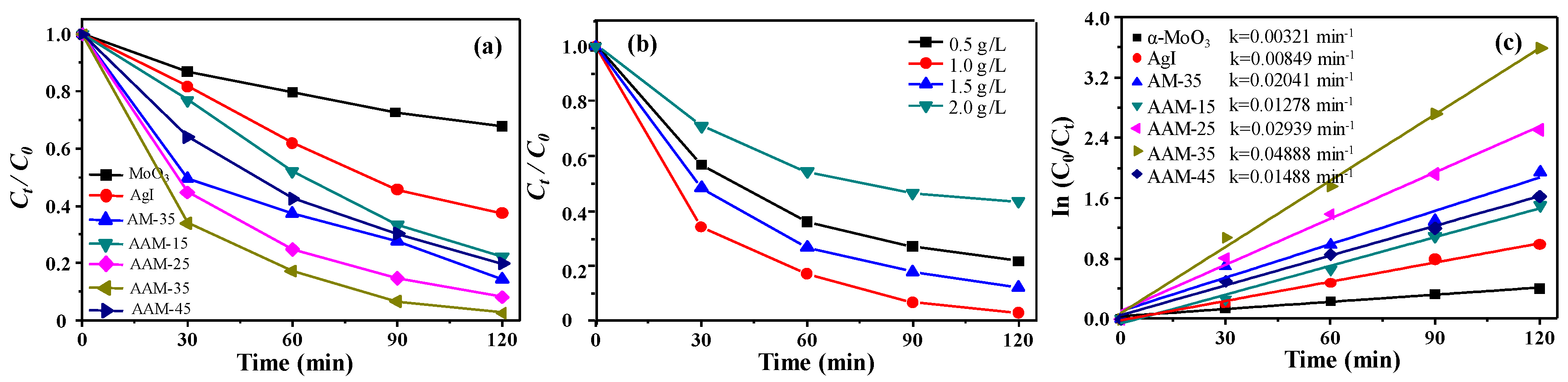

Figure 6. Photocatalytic performances of α-MoO3, AgI and AAM heterojunctions, (a) the desulfurization efficiency of difference catalyst, (b) the first-order kinetic fit for photodegradation for thiophene, (c) recycling run experiments of catalyst.
Figure 6. Photocatalytic performances of α-MoO3, AgI and AAM heterojunctions, (a) the desulfurization efficiency of difference catalyst, (b) the first-order kinetic fit for photodegradation for thiophene, (c) recycling run experiments of catalyst.
Nanomaterials 09 01054 g006
Nanomaterials 09 01054 g007 550

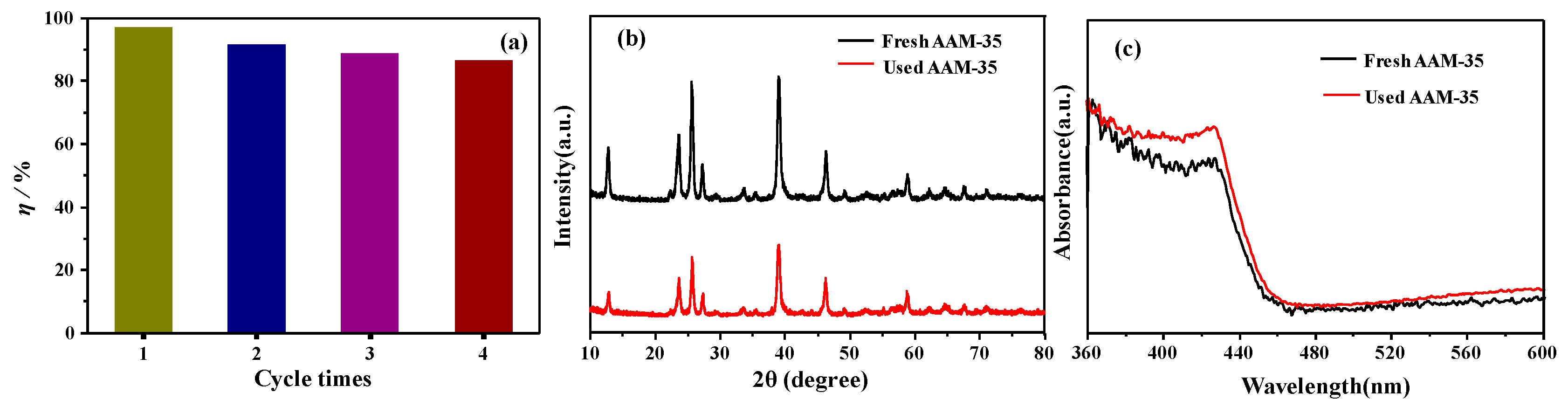

Figure 7. The comparison of (a) the degradation ratio of thiophene, (b) the XRD patterns and (c) diffuse reflectance spectroscopy (DRS) patterns before and after four run times for catalyst AAM-35.
Figure 7. The comparison of (a) the degradation ratio of thiophene, (b) the XRD patterns and (c) diffuse reflectance spectroscopy (DRS) patterns before and after four run times for catalyst AAM-35.
Nanomaterials 09 01054 g007
Nanomaterials 09 01054 g008 550
Figure 8. The active species trapping experiments of AAM-35 heterojunction, (a) the desulfurization efficiency and (b) the thiophene degradation rates of catalyst AAM-35 in the presence of different scavengers.
Figure 8. The active species trapping experiments of AAM-35 heterojunction, (a) the desulfurization efficiency and (b) the thiophene degradation rates of catalyst AAM-35 in the presence of different scavengers.
Nanomaterials 09 01054 g008
Nanomaterials 09 01054 g009 550

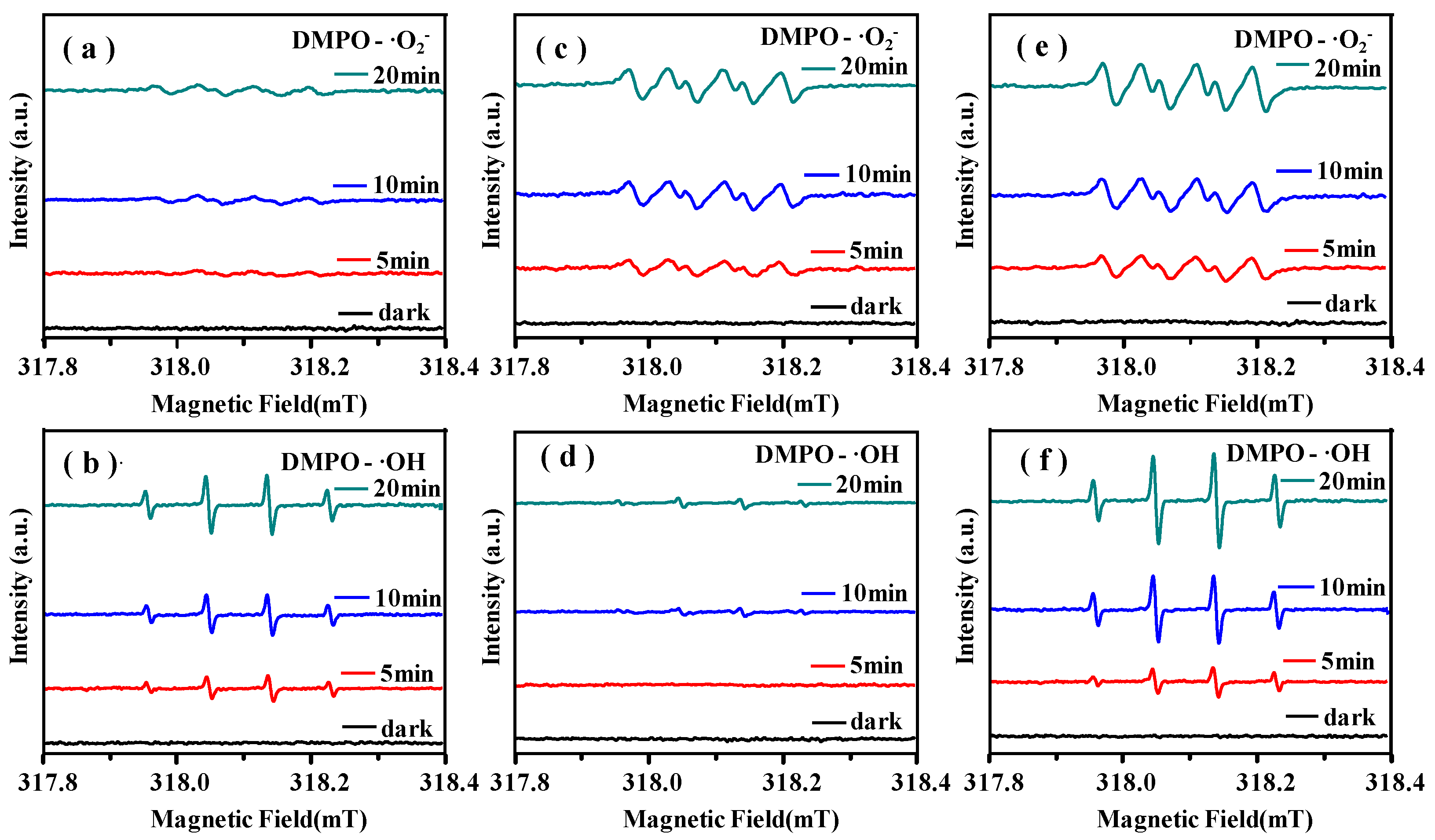

Figure 9. DMPO spin-trapping ESR spectra of photocatalysts in model fluid catalytic cracking (FCC) gasoline for (a,b) α-MoO3, (c,d) AgI, and (e,f) AAM-35 heterojunction under visible light irradiation (λ > 420 nm), respectively.
