Article

Early Detection of Inter-Turn Short Circuits in Induction Motors Using the Derivative of Stator Current and a Lightweight 1D-ResNet

by
Carlos Javier Morales-Perez
1,
David Camarena-Martinez
2,
Juan Pablo Amezquita-Sanchez
1,
Jose de Jesus Rangel-Magdaleno
3,
Edwards Ernesto Sánchez Ramírez
4 and
Martin Valtierra-Rodriguez
1,*
1
ENAP-Research Group, CA-Sistemas Dinámicos, Facultad de Ingeniería, Universidad Autónoma de Querétaro (UAQ), Campus San Juan del Río, Río Moctezuma 249, Col. San Cayetano, San Juan del Río 76807, Queretaro, Mexico
2
ENAP-Research Group, División de Ingeniería, Universidad de Guanajuato (UG), Campus Irapuato-Salamanca, Carretera Salamanca-Valle de Santiago km 3.5 + 1.8 km, Comunidad de Palo Blanco, Salamanca 36885, Guanajuato, Mexico
3
Digital Systems Group, Coordinación de Electrónica, Instituto Nacional de Astrofísica, Óptica y Electrónica (INAOE), Luis Enrique Erro #1, Sta. María Tonanzintla, San Andrés Cholula 72840, Puebla, Mexico
4
Laboratorio de Procesamiento de Imagenes y Señales, ESIME Zacatenco, Instituto Politécnico Nacional (IPN), Unidad Profesional Adolfo López Mateos, Avenida Luis Enrique Erro S/N, UPALM, Alcaldía Gustavo A. Madero 07738, Mexico City, Mexico
*
Author to whom correspondence should be addressed.
Computation 2025, 13(6), 140; https://doi.org/10.3390/computation13060140
Submission received: 13 May 2025 / Revised: 30 May 2025 / Accepted: 2 June 2025 / Published: 4 June 2025
(This article belongs to the Special Issue Diagnosing Faults with Machine Learning)
Browse Figures
Versions Notes

Abstract

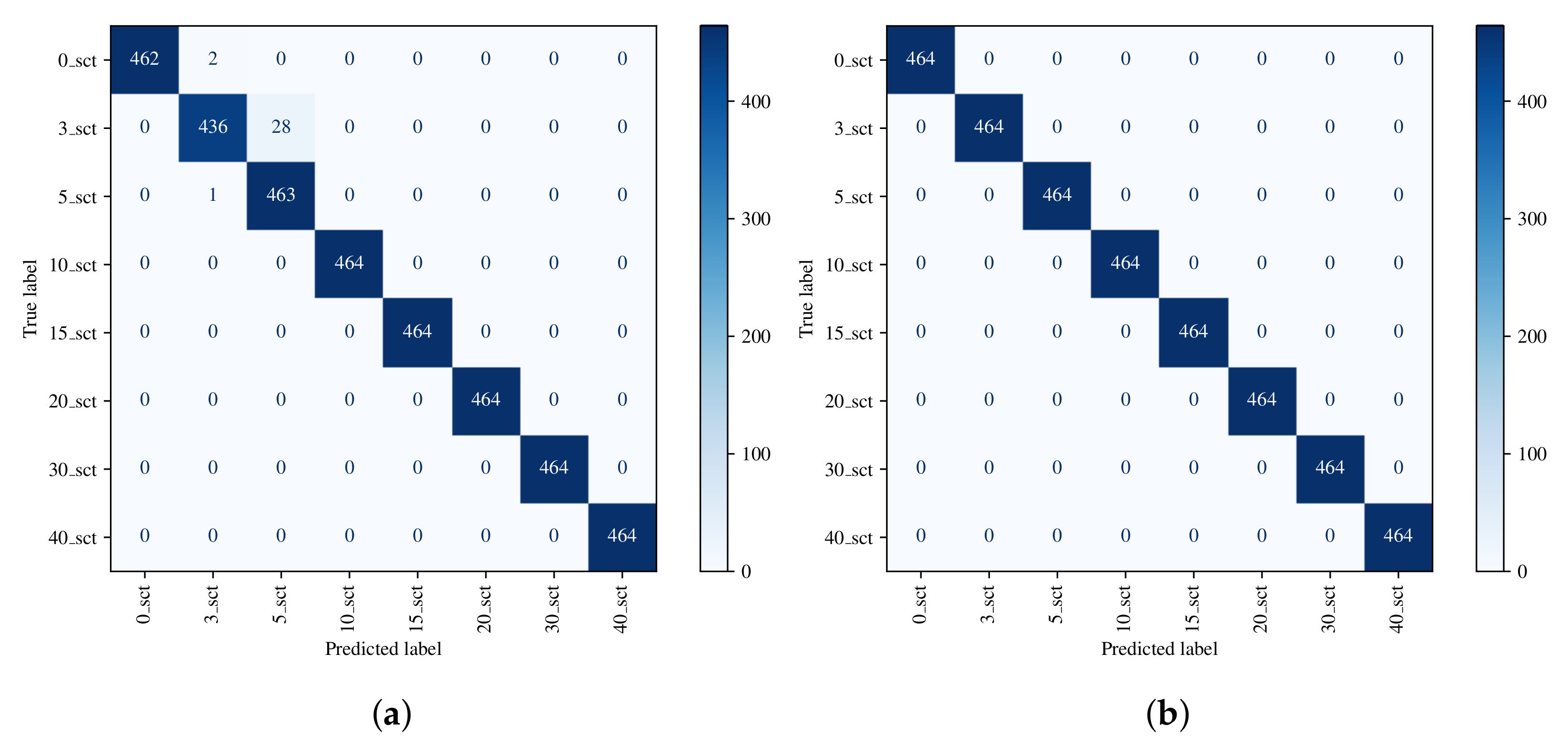

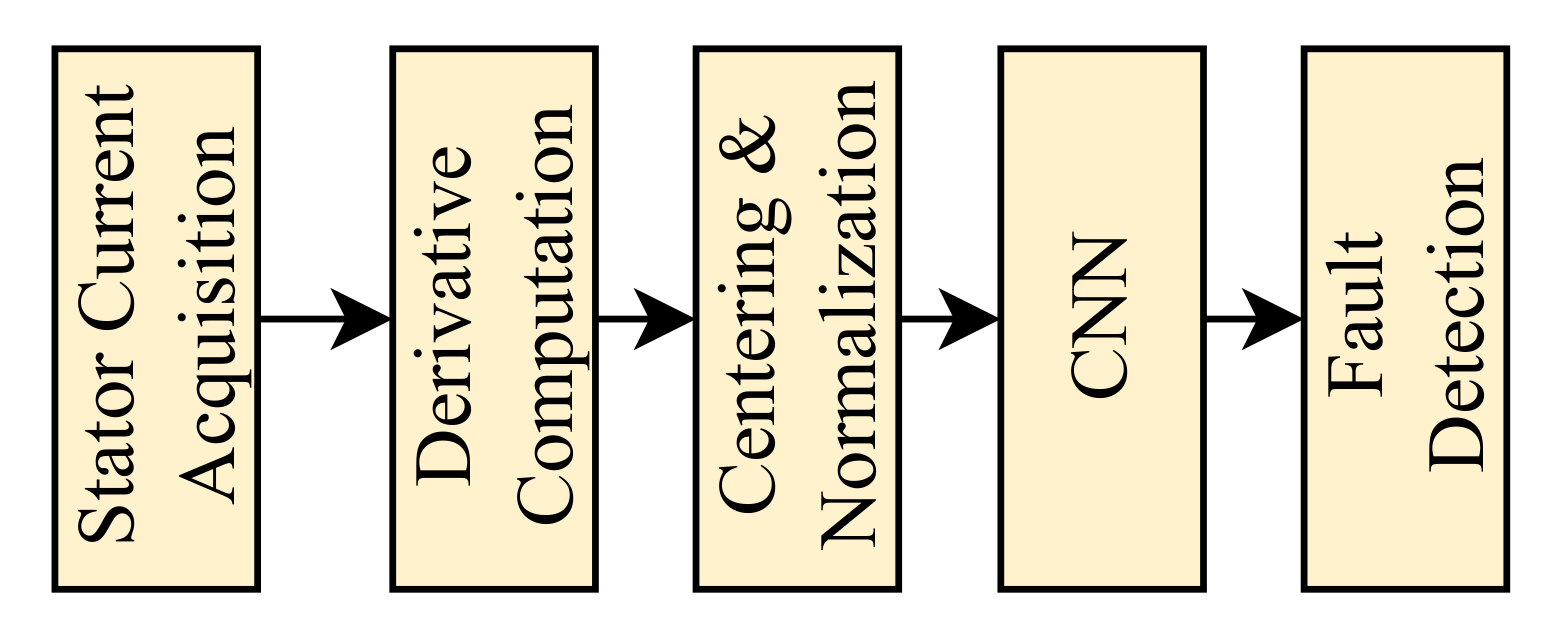

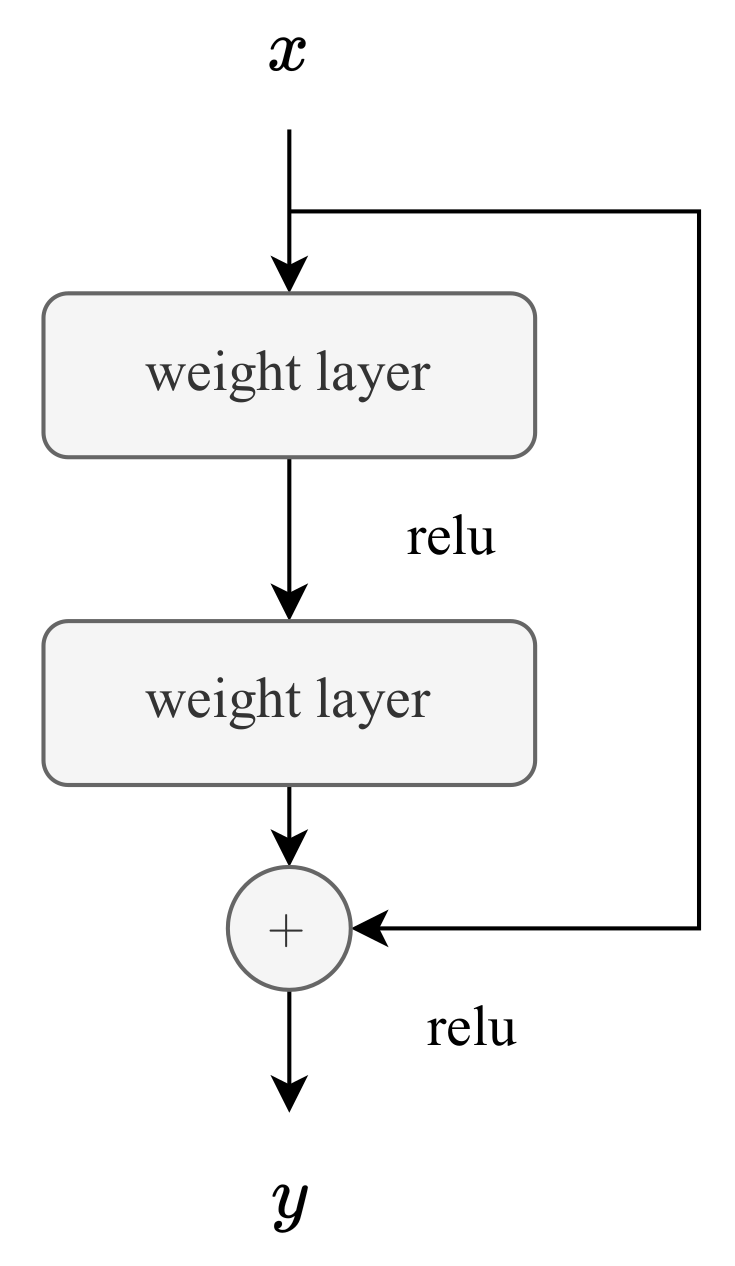

This work presents a lightweight and practical methodology for detecting inter-turn short-circuit faults in squirrel-cage induction motors under different mechanical load conditions. The proposed approach utilizes a one-dimensional convolutional neural network (1D-CNN) enhanced with residual blocks and trained on differentiated stator current signals obtained under different load mechanical conditions. This preprocessing step enhances fault-related features, enabling improved learning while maintaining the simplicity of a lightweight CNN. The model achieved classification accuracies above 99.16% across all folds in five-fold cross-validation and demonstrated the ability to detect faults involving as few as three short-circuited turns. Comparative experiments with the Multi-Scale 1D-ResNet demonstrate that the proposed method achieves similar or superior performance while significantly reducing training time. These results highlight the model’s suitability for real-time fault detection in embedded and resource-constrained industrial environments.
Keywords: current stator signal; incipient fault; induction motor; inter-turn short circuit; residual neural networks; signal derivative current stator signal; incipient fault; induction motor; inter-turn short circuit; residual neural networks; signal derivative
