Prediction of Jacking Force in Vertical Tunneling Projects Based on Neuro-Genetic Models

Abstract

The vertical tunneling method is an emerging technique to build sewage inlets or outlets in constructed horizontal tunnels. The jacking force used to drive the standpipes upward is an essential factor during the construction process. This study aims to predict the jacking forces during the vertical tunneling construction process through two intelligence systems, namely, artificial neural networks (ANNs) and hybrid genetic algorithm optimized ANNs (GA-ANNs). In this paper, the Beihai hydraulic tunnel constructed by the vertical tunneling method in China is introduced, and the direct shear tests have been conducted. A database composed of 546 datasets with ten inputs and one output was prepared. The effective parameters are classified into three categories, including tunnel geometry factors, the geological factor, and jacking operation factors. These factors are considered as input parameters. The tunnel geometry factors include the jacking distance, the thickness of overlaying soil, and the height of overlaying water; the geological factor refers to the geological conditions; and the jacking operation factors consist of the dead weight of standpipes, effective overburden soil pressure, effective lateral soil pressure, average jacking speed, construction hours, and soil weakening measure. The output parameter, on the other hand, refers to the jacking force. Performance indices, including the coefficient of determination (R²), root mean square error (RMSE), and the absolute value of relative error (RE), are computed to compare the performance of the ANN models and the GA-ANN models. Comparison results show that the GA-ANN models perform better than the ANN model, especially on the RMSE values. Finally, parametric sensitivity analysis between the input parameters and output parameter is conducted, reaching the result that the height of overlaying water, the average jacking speed, and the geological condition are the most effective input parameters on the jacking force in this study.

1. Introduction

The vertical tunneling method (VTM) is an emerging approach to build vertical hydraulic tunnels to the inlets or outlets in sewage systems in China. In the VTM construction process, the standpipes are jacked upward from the horizontal tunnel to the seabed by applying jacking force through four jacks in the constructed horizontal tunnel. It is crucial to predict the jacking force during the VTM construction.

There are only a few studies related to the jacking force of the VTM available to date [1,2,3]. To calculate the jacking force during the vertical tunneling process in advance, Wang et al. regarded standpipes as reverse piles and utilized the Meyerhof foundation theory to compute the maximum jacking force [1,2]. To gain insight into the effective factors that influence the jacking force, Wang et al. have conducted case research about the vertical tunneling project, concluding that the jacking force is affected by factors such as the average jacking speed, the jacking distance, the geological conditions, and the effective overburden soil pressure [3].

The VTM is similar to the pipe jacking method and the microtunneling method. Thus, the influence factors of the jacking force in these methods can give clues to the research related to the VTM. The jacking force in the microtunneling process must be higher than the sum of the boring machine penetration force and the soil–pipe friction force. Specifically, overcut, lubrication, and stoppages have a dominating effect on friction force [4]. Moreover, factors such as length of drive, misalignment and corrections, jacking speed, curved alignment, and intermediate jacking station are also associated with the friction force [5]. According to the direct shear results of the underground trunk sewer lines constructed by the pipe jacking method in the Tuang formation of Kuching City, Malaysia, Choo and Ong presented that the jacking force was proved to be not only related to the surrounding geologies, but also to the lubrication [6]. Based on the previous related research, factors around the tunnel geometry, geological factor, and jacking operation factors can be concluded to be three crucial categories on jacking force.

Artificial intelligence (AI) techniques have been widely applied to solve geotechnical engineering problems [7,8,9]. Among the AI techniques, artificial neural networks (ANNs) can deal with problems with uncertain or limited experience, and no pre-knowledge on the relationships between the examined components is required. ANNs, comprising input, hidden, and output layers, can develop black-box models to classify or predict. The main objective in ANN models is to obtain optimum weights and biases, which can minimize the error [10]. Among the training algorithms in ANNs, the back propagation (BP) algorithm is the most widely used training algorithm. Although it can provide relatively precise prediction results, shortcomings exist, i.e., it may be trapped in local optima [8,11]. Thus, several optimization algorithms, including the genetic algorithm (GA), particle swarm algorithm, and imperialist competitive algorithm, are utilized to overcome this problem. By applying these optimization algorithms, different hybrid models can be developed to search for global minimum and overcome the shortcomings of the original backpropagation algorithm, and then the optimum model can be obtained [12].

This paper intends to propose an approach for predicting jacking force during the vertical tunneling construction process using ANNs and GA-ANNs. To achieve this goal, the hydraulic tunnel constructed by the VTM in Beihai, China is introduced. The jacking force, together with its effective factors such as the average jacking speed and the jacking distance, was collected and comprises one database with 546 datasets. Then, the 546 datasets were divided into five datasets, and several ANN models and GA-ANN models were established. Finally, the obtained models were evaluated, and the most suitable model was selected to predict the jacking force.

2. Case Study and Data Source

2.1. Construction Process

To deal with the sewage from the sewage treatment plant in Beihai, China, the VTM was used to construct vertical standpipes in the sea area, together with the pipe jacking method [1,2,3]. The horizontal tunnel was built by the pipe jacking method firstly, and the diameter was 2000 mm. When the construction of the horizontal tunnel was completed, the standpipes were constructed by the VTM. In this project, multi-point drainage of the standpipes was adopted to avoid seawater pollution (Figure 1). The distances between the vertical standpipes were mostly 13 m. At the end of 400 m in the horizontal pipe jacking project, 29 vertical standpipes with an outer diameter of 500 mm were set up with a height of 12.5 m (Figure 1 and Figure 2).

Figure 1. The multi-point drainage mode of the standpipes in the vertical tunneling method (VTM).

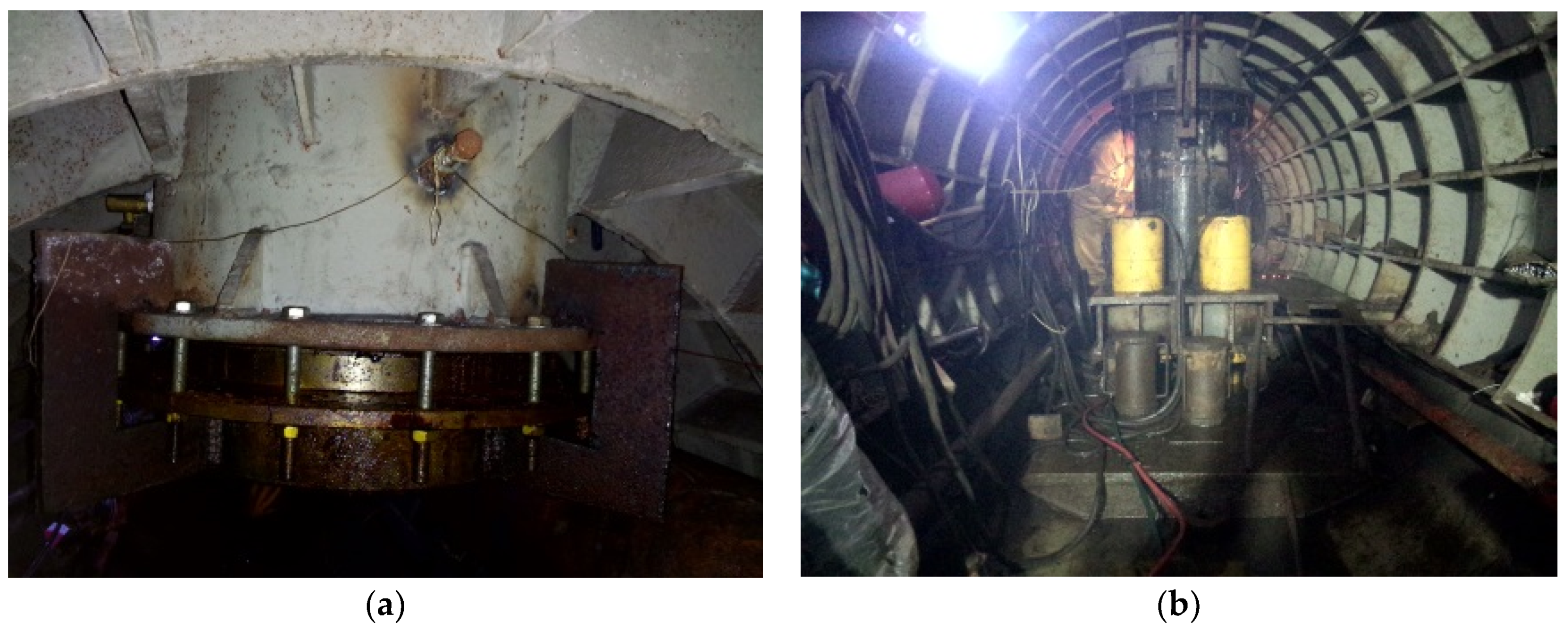

Figure 2. Construction process of the VTM: (a) The embedded first standpipe section; (b) Construction diagram on site.

There were 21 standpipe sections for each standpipe in total; the first standpipe section was 50 cm in length, and the remaining sections were 60 cm in length. Figure 3 shows the construction flow chart of the VTM. Wang et al. depicted a detailed description of the VTM, comprising the construction process [3]. Before the VTM construction started, the soil above the excavation line was excavated. Thus, 29 standpipes could be jacked upward to the same altitude, and the upper 1 m of all the standpipes were embedded in water. When the standpipe could be easily jacked upward, i.e., when the jacking force was too large, the soil weakening measure was conducted. An advanced drilling bore at the corresponding standpipe position was constructed, and thixotropic mud was injected to weaken the soil. In order to ensure the safety of the standpipes during construction, the deviation of the standpipes was measured. The deviation tolerances ranged from 3 to 4 mm in different conditions. More details about the construction process of the VTM can be found in [3].

Figure 3. Flowchart of the construction process of the VTM.

2.2. Factors Affecting Jacking Force

The jacking force of the standpipe (J) can be explained as:

$$J=G+W+R+S$$

(1)

where J is the jacking force, G is the dead weight of the standpipe, W is the external water pressure above the standpipe, R is the frictional resistance along pipe run, and S is the penetration resistance [3].

Based on the previous research about the VTM, the pipe jacking method and the microtunneling method, factors that affect the jacking force in the VTM construction, can be classified into three groups, including tunnel geometry, geological conditions, and jacking operation factors.

2.2.1. Tunnel Geometry Factors

Three tunnel geometry factors, including the jacking distance, the thickness of overlaying soil, and height of overlaying water, are regarded as effective parameters on the jacking force (Figure 4). As shown in Figure 4, the jacking distance (D) means the height of the standpipe that has been jacking upward. The thickness of overlaying soil (L) means the height between the mudline and the top of the standpipe. Moreover, the height of overlaying water (H) means the height between the sea surface and the top of the standpipe. Note that the diameters of the standpipes in this project are the same. Thus, they are not considered here.

Figure 4. Factors affecting the jacking force.

2.2.2. The Geological Factor

According to the drilling results at the field, there was a quaternary artificial accumulation layer and marine sedimentary layer overlying the site. The drilling area was mainly composed of clay and sand layers. The soil layers intersected by the standpipes were mainly poorly graded sand, silty sand, and backfill. According to the direct shear test results, the distribution of geological properties of the site is shown in Table 1.

Table 1. Soil properties.

Soil Type	Water Content (%)	Unit Weight (kN·m3)	Cohesive Force (kPa)	Internal Friction Angle (°)	Compression Modulus (MPa)	Classification
Backfill	30.90	19.33	11.1	4.20	4.36	1
Low liquid limit clay	22.48	19.6	47.44	13.23	12.03	2
Silty sand	21.07	18.86	7.6	18.30	6.34	3
Silty clay	39.60	16.96	7.72	4.39	2.89	4
Poorly graded sand	25.12	19.18	5.29	8.74	5.42	5
Water	-	9.8	-	-	-	6

Because of the excavation before constructing the standpipes, after the jacking distance was larger than 11.5 m, there was no soil above the standpipe. As a result, there was only water above it. In general, there are six types of materials in the standpipes, including backfill, silty sand, silty clay, poorly graded sand, low liquid limit clay, and water. To consider the effect of the geological conditions, the five soil types were classified as 1 to 5, respectively (Table 1). Moreover, water was classified as 6 in the geological conditions. The geological condition (C) shown in Figure 4 is illustrated by number 2 standpipe, and it consisted of backfill, silty clay, and poorly graded sand.

2.2.3. Jacking Operation Factors

Jacking operation factors refer to factors that affect the jacking force during the operation of the jacking process. The jacking force in the vertical tunneling project should be larger than the sum of face resistance, friction resistance, the dead weight of standpipes, and the external water above the standpipe at the corresponding jacking distance [3]. According to this, jacking operation factors, including the dead weight of standpipes, effective overburden soil pressure, effective lateral soil pressure, average jacking speed, construction hours, and soil weakening measure, are concluded to be the influencing factors of the jacking force.

The dead weight of standpipes (G) consists of the dead weight of the ceiling segment (G₁), the first standpipe section (G₂), and the standard standpipe section(s) (G₃) (Figure 4). It can be calculated according to the jacking distance [3]:

$$G=G_1+G_2+n{G}_3$$

(2)

where G₁ = 0.6353 kN, G₂ = 1.6747 kN, G₃ = 1.6572 kN, which was given by the on-site engineering report; n is the number of the standard standpipe sections which have been jacked upward, which ranged from 0 to 20.

The dominant factor that affects the face resistance of the standpipes is the effective overburden soil pressure (F). F means the effective vertical pressure produced by the gravity of the overlying soil above the standpipe (Figure 4). The expression of F is:

$$F={\displaystyle \sum _{i=1}^m{l}_i\times {\gamma }_i^{\prime }}$$

(3)

where l_i is the length of the standpipe buried in the ith soil layer during construction; γ’_i is the effective unit weight of the ith soil layer; and m is the number of soil layers that the standpipe is buried in.

The primary control influencing factor of the friction resistance is the effective lateral soil pressure (N). N means the effective pressure that soil exerts in the horizontal direction when underwater. It can be calculated by the following equation:

$$N={\displaystyle \sum _{i=1}^m{l}_i\times {\gamma }_i^{\prime }}\times K_i$$

(4)

where K_i is the static earth pressure coefficient of the ith soil layer (K₁ = 0.9268, K₂ = 0.7711, K₃ = 0.6860, K₄ = 0.9235, K₅ = 0.8481). Note that K_i is calculated by K_i = 1−sinφ, where φ is the internal friction angle of the corresponding soil layer (Table 1).

During construction, the construction hours (T) of each standpipe were measured and collected. T refers to the time it has taken to jack the standpipe. Thus, the average jacking speed of standpipes (V) can be computed by divide the construction hours (T) by the jacking distance (D).

When the jacking force was too large, high-pressure rotary jet pile equipment was used to inject thixotropic mud to advance the standpipe by weakening the soil. In this project, a soil weakening measure (M) was only conducted on standpipe number 9 [3].

In conclusion, ten factors affect the jacking force during the vertical tunneling process. Statistical information, including maximum, minimum, average, and standard deviation of the used parameters in this study to estimate jacking force, is shown in Table 2. The exact values of ten influencing factors, together with the jacking force, can be found in the Supplementary Materials.

Table 2. Maximum, minimum, average, and standard deviation of the used parameters to estimate jacking force.

Classification	Parameter	Unit	Category	Min.	Max.	Ave.	Standard Deviation	NP
Tunnel geometry factors	Jacking distance (D)	m	Input	0.5	12.5	6.5	3.63	-
	The thickness of overlaying soil (L)	m	Input	0	11	5.07	3.53	Yes
	The height of overlaying water (H)	m	Input	13.41	25.41	19.41	3.63	Yes
Geological factor	Geological conditions (C)	-	Input	1	6	4.75	1.02	Yes
Jacking operation factors	The dead weight of standpipes (G)	kN	Input	2.31	35.45	18.88	10.03	Yes
	The effective overburden soil pressure (F)	kN/m2	Input	0	100.97	46.09	32.26	Yes
	The effective lateral soil pressure (N)	kN/m2	Input	0	87.57	47.09	26.35	Yes
	Construction hours (T)	h	Input	34.34	63.97	43.64	5.70	-
	Average jacking speed (V)	mm/min	Input	3.33	16.67	9.30	2.88	-
	Soil weakening measure (M)	-	Input	1	2	1.03	0.19	-
Prediction object	Jacking force (J)	kN	Output	380	2160	1122	439.47	-

Note: Max., maximum; Min., minimum, Ave., average; NP, normally proportional relationship between the corresponding influencing factor and the jacking force.

Before applying these data to establish the neuron-genetic model, the effects of these factors on the jacking force should be discussed briefly first. The relationships of six factors with the jacking force (J) are shown in Table 2. Six factors include the thickness of overlaying soil (L), the height of overlaying water (H), geological conditions (C), the dead weight of standpipes (G), the effective overburden soil pressure (F), and the effective lateral soil pressure (N). The relationships between other four factors and the jacking force were discussed in the following text.

As shown in Table 2, six influencing factors, including L, F, H, N, G, C, are all normally proportional to the jacking force. The thickness of overlaying soil (L) and the effective overburden soil pressure (F) are normally proportional to the penetration resistance (S). Thus, J will increase if there is a higher L and a higher F according to Equation (1). The height of overlaying water (H) is normally proportional to the external water pressure above the standpipe (W), so J will increase if there is a higher H. Similarly, the effective lateral soil pressure (N) is normally proportional to the frictional resistance (R); hence there will be a higher jacking force when N is higher. The dead weight of standpipes (G) is one part of the jacking force according to Equation (1), so it also has a normal proportional relationship with the jacking force. Moreover, when the standpipe is jacked from a soft soil layer to a hard soil layer, the jacking force will increase, explaining the normally proportional relationship between the geological condition (C) and the jacking force.

However, concerning the otherfour factors, including D, T, V, and M, the changing trend of the jacking force with regard to the jacking distance (D) includes two trends: the jacking force reaches a peak force at 25.7% of the jacking distance and then decreases to the lowest force [3]. When applying the soil weakening measure (M), the hard soil above the standpipe is replaced with soft soil; therefore, the jacking force will decrease when applying it. The exact effects of the construction hours (T) and the average jacking speed (V) cannot be decided yet. Nevertheless, the conclusion has been made that stoppage time will result in the fluctuation of jacking forces [6], and the jacking speed will be faster in the gravel layer than in the sand layer [5].

3. Intelligent Methods for Predicting Jacking Force

Due to limited on-site data, no more data of other factors can be gathered to help build the intelligent models. Thus, the intelligent method was applied when assuming that only the ten influencing factors in Section 2.2 are related to the jacking force. In the future, the bigger the dataset and the more related factors gathered, the more accurate the results can be obtained.

3.1. Artificial Neural Network

A typical ANN consists of three layers, including input, hidden, and output layers. In these layers, several neurons are logically arranged and connected by weights, determining the strength of influence between these neurons. The typical training process of an ANN is divided into three steps. The first step is to import the database into the input layer. The second step is to transfer the data multiplied by corresponding weights to the hidden layer(s) and calculate transfer functions. The last step is to obtain the output parameters in the output layer.

Rezaei et al. stated that three fundamental aspects, including network topology, activation functions, and training algorithms, are essential when building a specific ANN [13].

To develop the ANN model for predicting the jacking force, 546 datasets were analyzed in this study. Here, all 546 datasets were chosen randomly and classified as five different sets, namely dataset 1 to 5 (see Supplementary Materials). Wang et al. suggested that the ratio of the training dataset to the testing dataset should be 3:1 [14]. Thus, 75% of the total dataset is utilized as the training set, and 25% is utilized as the test set.

The architecture, i.e., network topology, of the ANN, is an essential factor that affects the performance of the ANN model significantly. It includes the features of the input layer, hidden layer(s), and output layer. According to Section 2.2 and Table 2, the input neurons (N_i) and the output neurons (N_o) are set to be 10 and 1, respectively. According to a systematic review of the application of ANN in the tunnel engineering field, Wang et al. summarized that single hidden layer networks could be applied in most problems, and the Equations for determination of the hidden neurons are provided [14] (Table 3). Hence, one hidden layer is selected in this paper, and the number of the hidden neurons (N_h) ranged from 1 and 30, according to Table 3. To choose a proper number of the hidden neurons, the trial-and-error method was conducted. Thus, 150 ANN models with N_h ranging from 1 to 30 for dataset 1 to 5 were constructed. To obtain an optimum number of hidden neurons, these models were evaluated by the average values of the coefficient of determination (R²) and root mean square error (RMSE) for the five datasets. The definitions of R² and RMSE are explained in the following text.

Table 3. Equations for Determination of the Hidden Neurons.

Heuristic	Application in This Paper	References
$N_h\le 2\times N_i+1$	$N_h\le 21$	[15]
$N_h=3N_i$	$N_h=30$	[16]
$N_h=\left(N_i+N_o\right)/2$	$N_h=5.5$	[17]
$N_h=\left[2+N_o\times N_i+0.5N_o\times \left(N_o^2+N_i\right)-3\right]/\left(N_i+N_o\right)$	$N_h=1.93$	[18]
$N_h=2N_i/3$	$N_h=6.6$	[19]
$N_h=\sqrt{N_i\times N_o}$	$N_h=3.16$	[20]
$N_h=2N_i$	$N_h=20$	[21,22]
$N_h=3N_i/2$	$N_h=15$	[23]

To evaluate the performance of petrography-based models, Zorlu et al. have proposed a model selection procedure based on rate [24]. This method, named the total rate method, is widely used to evaluate model performance [8]. Thus, this method was applied here to choose the best hidden neuron number.

As shown in Table 4, the highest total rate of 102 was achieved when N_h = 7 (with the average R² of 0.827 and 0.622, average RMSE of 26.0867 and 50.3891, for the training set and test set, respectively). Thus, N_h = 7 was found to be the best hidden neuron number among all the ANN models. Thus, 10 × 7 × 1 was chosen to be the optimum architecture to build neural network models (Figure 5). It can be found that N_h = 2N_i/3 was proven to be the well-matched equation of hidden neurons in this study, which can provide a reference to related researches. The activation functions are the hyperbolic tangent function (Tansig) in the hidden layer and the pure linear function (Purelin) in the output layer, respectively. Moreover, the Levenberg–Marquardt backpropagation algorithm was utilized in the ANN models. The best ANN model among the five ANN models for five datasets was selected later.

Table 4. Artificial neural network (ANN) models with the top eight rates.

Number of Hidden Neurons	Training Set		Test Set		Rate for Training Set		Rate for Test Set		Total Rate
	R2	RMSE	R2	RMSE	R2	RMSE	R2	RMSE
7	0.8270	26.0867	0.6222	50.3891	27	21	29	25	102
6	0.8136	18.6259	0.4891	46.1933	24	26	17	27	94
12	0.8427	31.1240	0.5721	68.2328	29	17	25	17	88
28	0.7865	43.9984	0.6263	48.8771	23	9	30	26	88
14	0.7710	25.7299	0.5343	61.0777	19	23	21	20	83
2	0.6600	13.5642	0.4851	28.1256	5	29	15	30	79
11	0.7682	23.1934	0.5739	97.8736	18	24	26	9	77
17	0.8517	19.2946	0.3817	72.0997	30	25	6	15	76

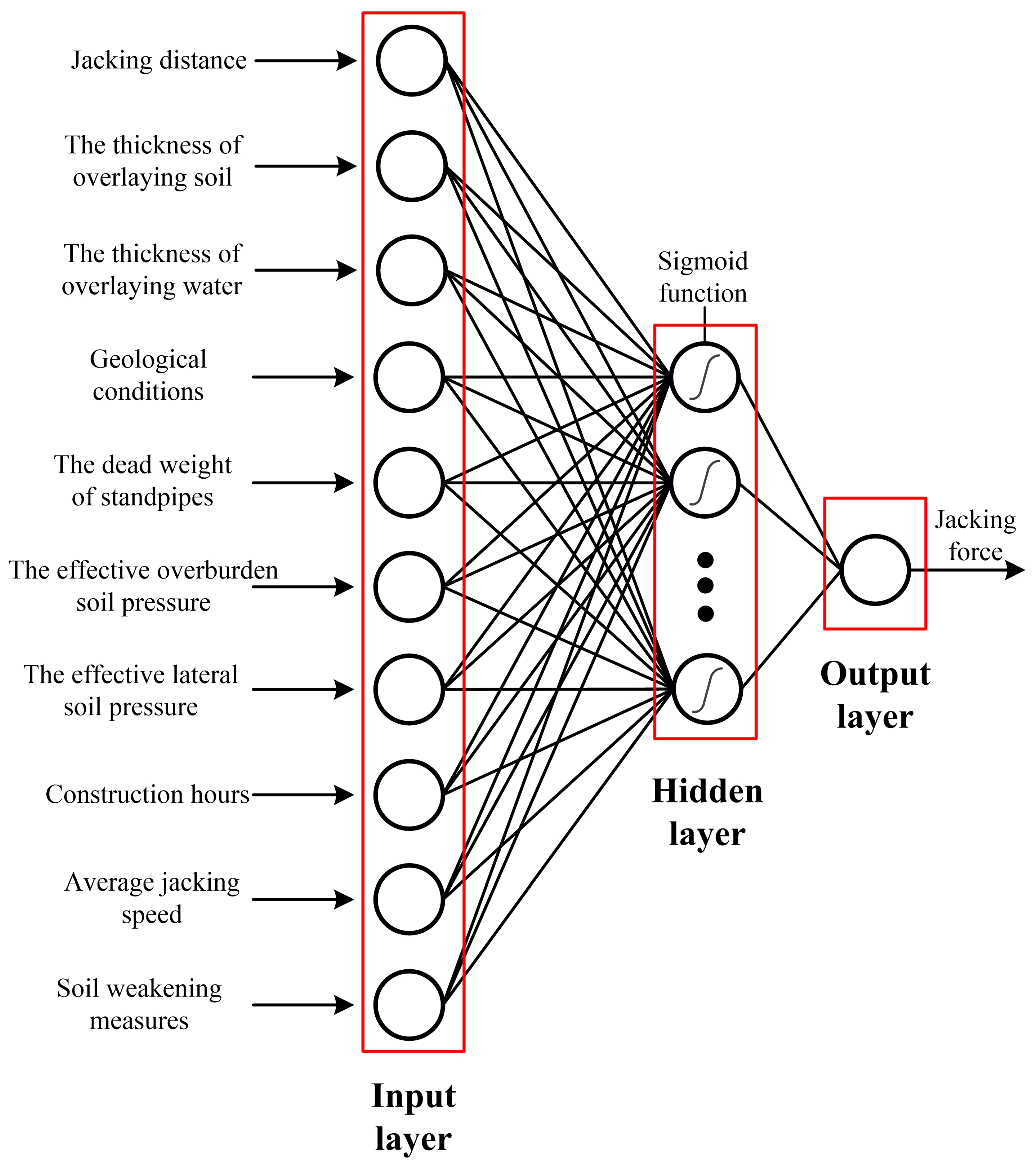

Figure 5. The structure of the ANN model.

3.2. Genetic Algorithm

Firstly developed by Holland (1975), GA is one of the optimization techniques used to solve highly nonlinear or non-differentiable optimization problems [25]. Concepts from evolutionary biology are used to find the global minimum. It starts with an initial generation of candidate solutions that are tested against the objective function. Subsequent generations evolve from the first generation through reproduction, crossover, and mutation [7]. First of all, initial chromosomes are evaluated, and the fitness function value for each one of them is determined. After that, the best chromosomes are selected for reproduction and transferred to the next generations as “parents”. Thus, by absorbing the advantages of parents, new generations are evaluated, and the abovementioned process is continuing until stop criteria are met. Finally, the mutation process is conducted to change the chromosomes randomly to avoid being trapped in a local minimum [26].

Although the BP algorithm is widely used in ANN models, it may be trapped in local minima. Hence, optimization is necessary. GA can be applied to optimize the original ANN to obtain better prediction results. The implementation process of GA-ANN in this paper is shown in Figure 6.

Figure 6. The implementation process of genetic algorithm optimized ANNs (GA-ANNs).

During the optimization process of GA, determining the parameters of this algorithm, such as population size and genetic operator rates, and creating the proper function, are the most challenging problems. These parameters will considerably influence the convergence and results of the algorithm, which should be noticed during the optimization process [27,28]. Koopialipoor et al. selected 0.25 and 0.09 as the mutation probability value and percentage of recombination, respectively. The population range of 25–600 was utilized to conduct the parametric study, and 300 was chosen to be the optimum number of the population [7].

In this paper, a series of hybrid GA-ANN models were created to determine the best population size and the number of generations. The ranges of the population size and the number of generations were 50–500 and 10–500, respectively. In total, 140 hybrid models were generated to obtain the best GA parameters. In order to select the best GA parameters, the total rate method was applied as well [24]. Among the 140 hybrid models, eight models with the top rates are shown in Table 5. As shown in Table 5, the total rate for the hybrid model with 400 generations and 150 populations is the highest.

Table 5. GA-ANN models with the top eight rates among the 140 GA-ANN models.

Number of Generation	Population Size	Training Set		Test Set		Rate for Training Set		Rate for Test Set		Total Rate
		R2	RMSE	R2	RMSE	R2	RMSE	R2	RMSE
400	150	0.8808	2.5368	0.8519	1.4076	138	111	131	137	517
500	500	0.868	1.2022	0.8461	7.9039	124	129	121	122	496
350	300	0.8684	0.9074	0.8412	9.5502	125	134	108	121	488
250	150	0.8757	3.061	0.8543	13.0499	134	102	134	110	480
300	400	0.8679	0.9775	0.8446	18.1216	123	133	118	91	465
20	500	0.8717	1.8646	0.8534	20.395	130	118	133	81	462
350	100	0.8705	3.5565	0.8476	14.3326	128	96	125	104	453
30	200	0.8655	0.171	0.8383	15.8342	114	138	95	96	443

Thus, 400 generations and 150 populations were chosen to be the optimum GA parameters in this paper. Table 6 shows the GA parameters used in this study. Note that the architecture of the GA-ANN was 10 × 7 × 1, which is the same as that of the ANN.

Table 6. GA parameters used for the determination of jacking force.

GA Parameter	Values
Genetic operators (possibility)	Crossover (0.9), mutation (0.1)
Selection method	Roulette wheel selection
Number in population	150
Number of generations	400

According to Table 6, five GA-ANN models were established. The performance of these models will be discussed later.

4. Results and Discussion

4.1. Evaluation of the Results

Performance indices (PIs), including coefficient of determination (R²), root mean square error (RMSE), and the absolute value of relative error (RE), are utilized to evaluate the performance of the five ANN models and five GA-ANN models. Equations of these PIs are presented as follows:

$$R^2=1-\frac{{\displaystyle \sum _{k=1}^N{\left(t_k-y_k\right)}^2}}{{\displaystyle \sum _{k=1}^N{\left(t_k-{\overline{t}}_k\right)}^2}}$$

(5)

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle \sum _{k=1}^N{\left(t_k-y_k\right)}^2}}$$

(6)

$$RE=\left|\frac{t_k-y_k}{t_k}\right|$$

(7)

where t_k is the measured output value, y_k is the predicted output value, $\overline{t_k}$ is the average value of actual t_k values, and N is the number of datasets.

Table 7 illustrates the values of PIs for training and test sets of five datasets. Similarly, the total rate method is applied here to select the optimum model from five ANN models and five GA-ANN models [24].

Table 7. Values of the performance indices (PIs) for ANN and GA-ANN models.

Method	Model	RMSE	R2	RE	Rate			Total Rate
					RMSE	R2	RE
ANN	Tr 1	6.713	0.873	0.129	4	3	1	8
	Tr 2	85.924	0.613	0.099	1	2	2	5
	Tr 3	22.071	0.896	0.034	2	4	3	9
	Tr 4	2.759	0.904	0.022	5	5	5	15
	Tr 5	12.966	0.904	0.027	3	5	4	12
	Ts 1	66.928	0.794	0.014	2	5	3	10
	Ts 2	34.284	0.632	0.008	4	2	4	10
	Ts 3	93.595	0.278	0.034	1	1	2	4
	Ts 4	37.350	0.766	0.004	3	4	5	12
	Ts 5	19.788	0.641	0.037	5	3	1	9
GA-ANN	Tr 1	1.511	0.868	0.012	5	4	5	14
	Tr 2	53.862	0.570	0.060	1	2	1	4
	Tr 3	23.972	0.808	0.043	3	3	2	8
	Tr 4	20.341	0.894	0.027	4	5	4	13
	Tr 5	47.804	0.426	0.035	2	1	3	6
	Ts 1	7.834	0.731	0.005	5	4	5	14
	Ts 2	25.691	0.506	0.063	3	2	1	6
	Ts 3	8.038	0.718	0.029	4	3	4	11
	Ts 4	66.201	0.463	0.052	1	1	2	4
	Ts 5	54.433	0.746	0.039	2	5	3	10

Note: Tr means training, Ts means test.

Afterwards, the ratings of PIs for both training and test set for each AI model was calculated (Table 8). As shown in Table 8, number 4 and number 1 models exhibited the highest total rate for the ANN and GA-ANN methods.

Table 8. Total rates for ANN and GA-ANN models.

Method	Model	Total Rate
ANN	1	18
	2	15
	3	13
	4	27
	5	21
GA-ANN	1	28
	2	10
	3	19
	4	17
	5	16

Values of the three PIs (R², RE, RMSE) and the total rates show that the GA-ANN model is superior to the ANN model for the jacking force during the VTM construction, especially on the values of RMSE.

The performance prediction results for the best models for ANN and GA-ANN are displayed in Figure 7 and Figure 8, respectively. It can be seen from Figure 7 and Figure 8 that the hybrid GA-ANN model performs better than the ANN model, especially the performance of the test set.

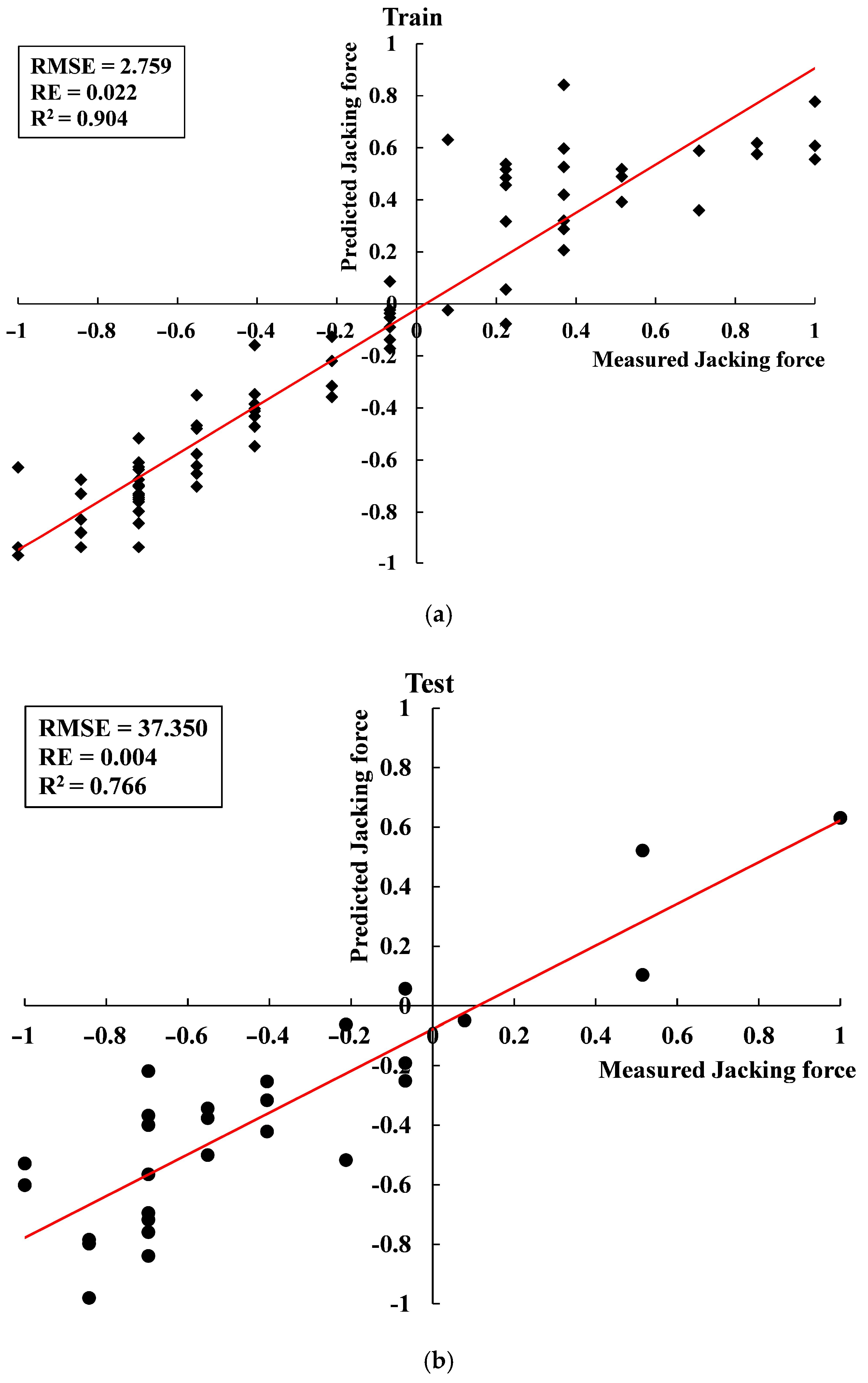

Figure 7. Prediction results of the best ANN model to predict the jacking force: (a) Training set; (b) Test set.

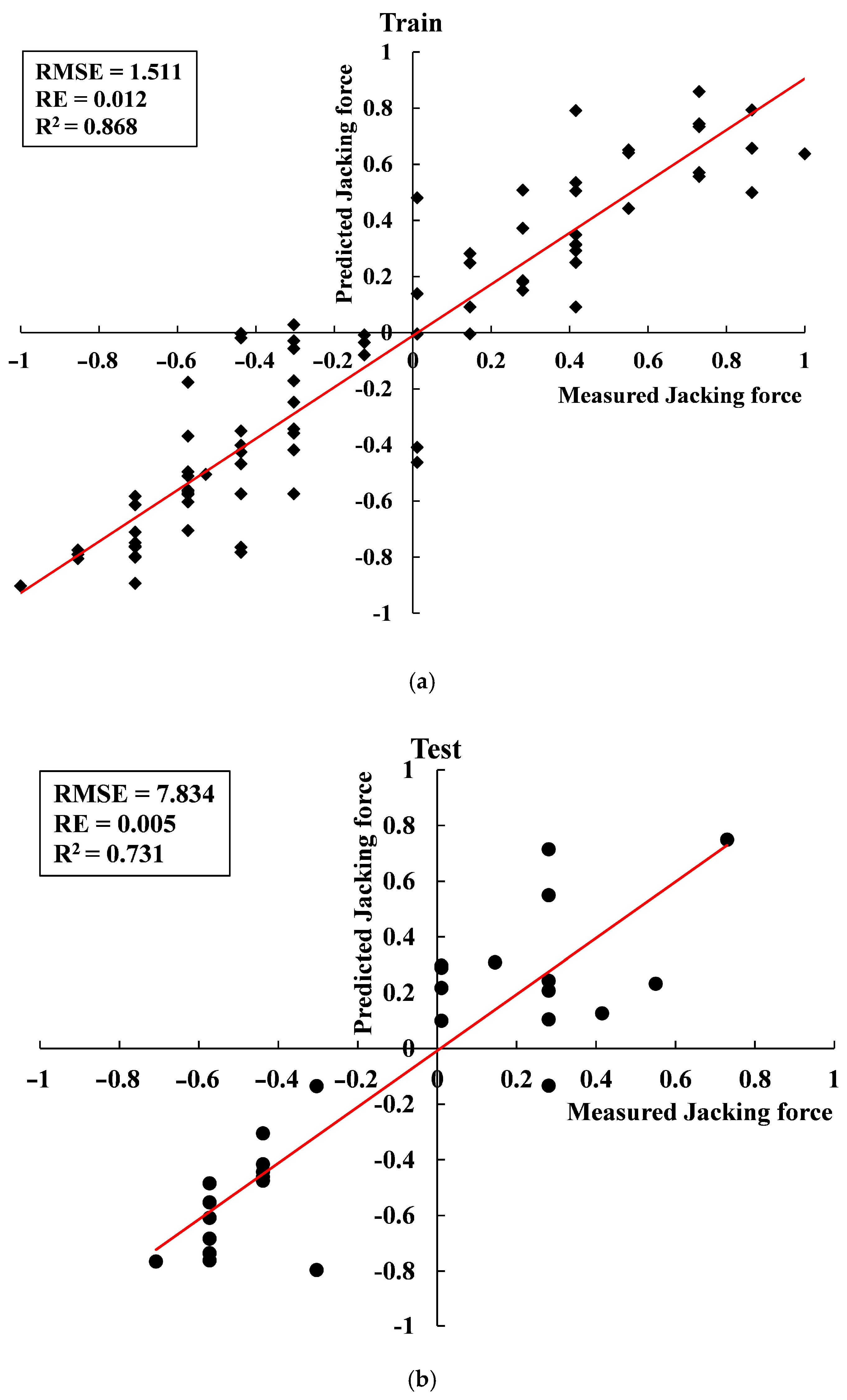

Figure 8. Prediction results of the best GA-ANN model to predict the jacking force: (a) Training set; (b) Test set.

4.2. Parametric Sensitivity Analysis

The ANN models are known as black-box models, which cannot provide a detailed relationship between the output parameter and the input parameters. To overcome this shortcoming, a sensitivity analysis was conducted to ascertain the importance of each influencing factor, i.e., each input parameter. The cosine amplitude method is widely applied when conducting parametric sensitivity analyses [29,30,31]. All data pairs are expressed in common X-space. The data pairs can be expressed as:

$$X=\left\{X_1,X_2,X_3,\cdot \cdot \cdot ,X_q\right\}$$

(8)

Each of the elements X_i in array X itself is a vector of length q, and can be expressed as:

$$X_i=\left\{x_{i1},x_{i2},x_{i3},\cdot \cdot \cdot ,x_{iq}\right\}$$

(9)

The strength of the relationship (r_ij) between datasets X_i and X_j can be expressed as follows:

$$r_{ij}=\frac{{\displaystyle {\sum }_{k=1}^q{x}_{ik}{x}_{jk}}}{\sqrt{{\displaystyle {\sum }_{k=1}^q{x}_{ik}^2}{\displaystyle {\sum }_{k=1}^q{x}_{ik}^2}}}$$

(10)

According to Equation (10), the relationship between the input data and the output data is shown in Figure 9. As shown in Figure 9, the height of overlaying water, the average jacking speed, and the geological condition are the most effective input parameters on the jacking force, whereas the jacking distance and the dead weight of standpipes are the least effective parameters.

Figure 9. Strength of the relationship (r_ij) between the input parameters and the jacking force.

5. Conclusions

To predict the jacking force during the VTM construction, a case study from Beihai, China was introduced, and 546 datasets were utilized to build ANN and GA-ANN models. The ten influencing factors which affect the values of the jacking force can be divided into three categories, i.e., geological condition factor, tunnel geometry factor, and jack operation factor. Assuming that only the ten influencing factors in Section 2.2 are related to the jacking force and using these ten factors as the input parameters, the jacking force as the output parameters, the basic ANN model was established. After a parametric study, the structure of 10 × 7 × 1 was chosen to be the best architecture. Based on this structure, many ANN models and hybrid GA-ANN models were built. Finally, three PIs, including R², RMSE, and RE, were used to choose the best neural network of all the models. The number 4 and number 1 models exhibited the best total rates for ANN and GA-ANN models, respectively. The results show that the GA-ANN models were better than the ANN models. Finally, the sensitivity analysis showed that the height of overlaying water, the average jacking speed, and the geological condition are the most effective input parameters on the jacking force. In contrast, the jacking distance and the dead weight of standpipes are the least effective parameters.

Note that the limitation of the intelligent models in this paper is that the dataset number is not enough. Driven by big data, the accumulation of more data is believed to provide more accurate neural-genetic models to predict jacking force. By using this methodology, researchers and engineers will be able to predict the jacking force before the VTM construction, which can, in turn, guide the related projects. Moreover, the models in this paper may perform better if methods like “dropout”, activation functions such as “the rectified Linear Unit” (ReLU) can be used in the study [32,33]. This kind of method can optimize the neural network model and broaden its application field.
