Anchor Chain Optimization Design of a Catenary Anchor Leg Mooring System Based on Adaptive Sampling

,
,
,
,
,
,
and
1
Faculty of Vehicle Engineering and Mechanics, Dalian University of Technology, Dalian 116023, China
2
Dalian Shipbuilding Industry Co., Ltd., Dalian 116005, China
*
Author to whom correspondence should be addressed.

Abstract

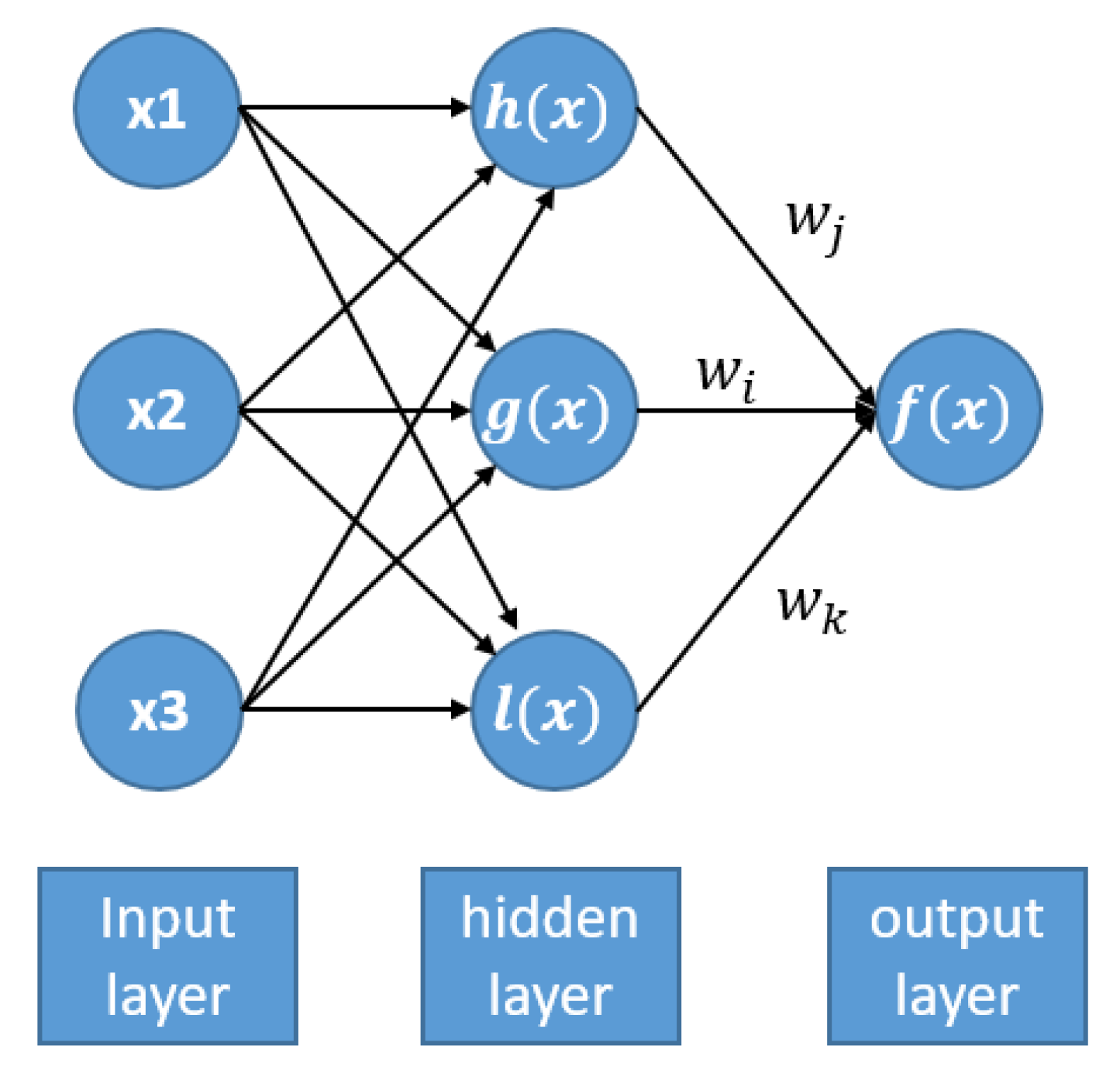

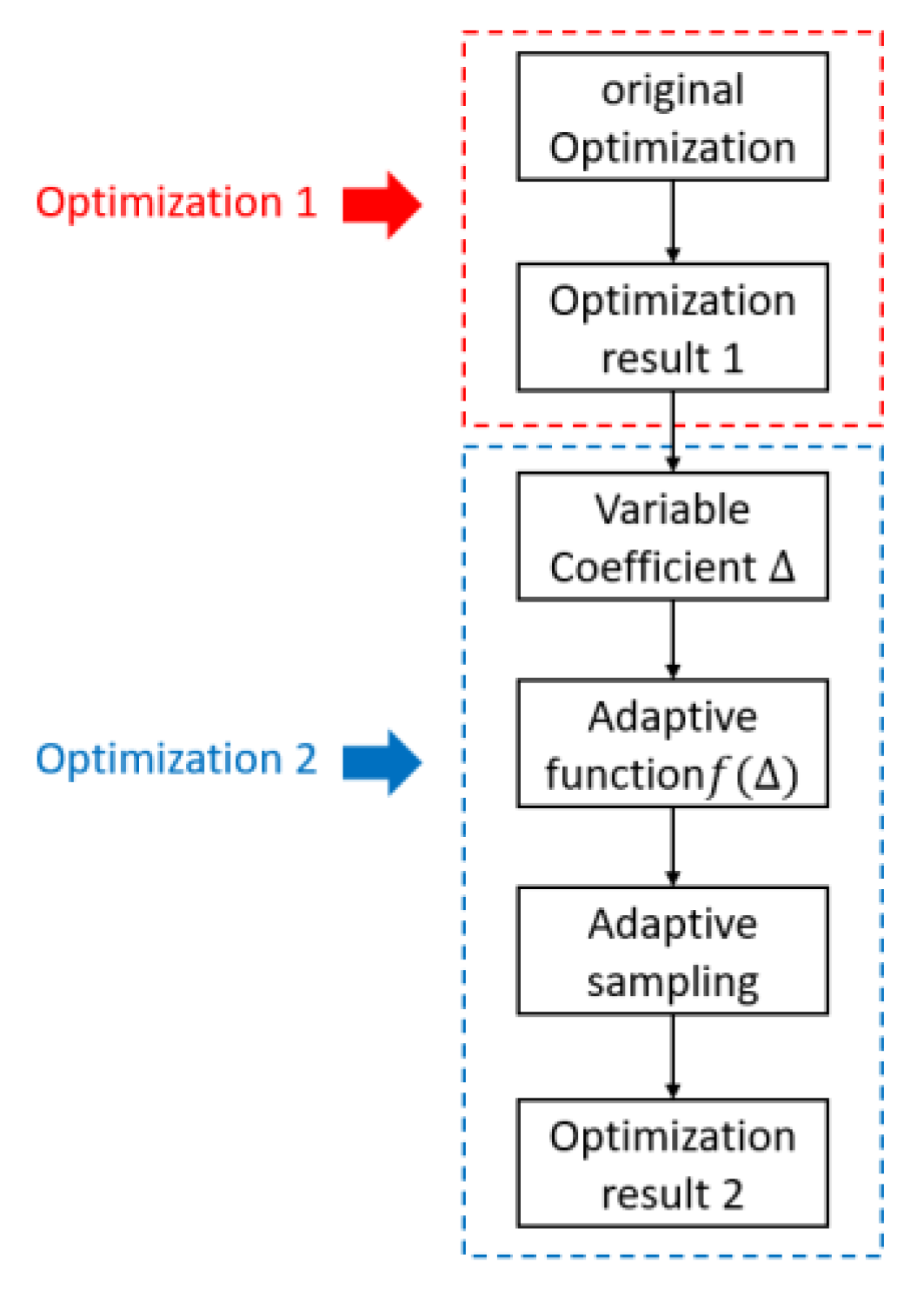

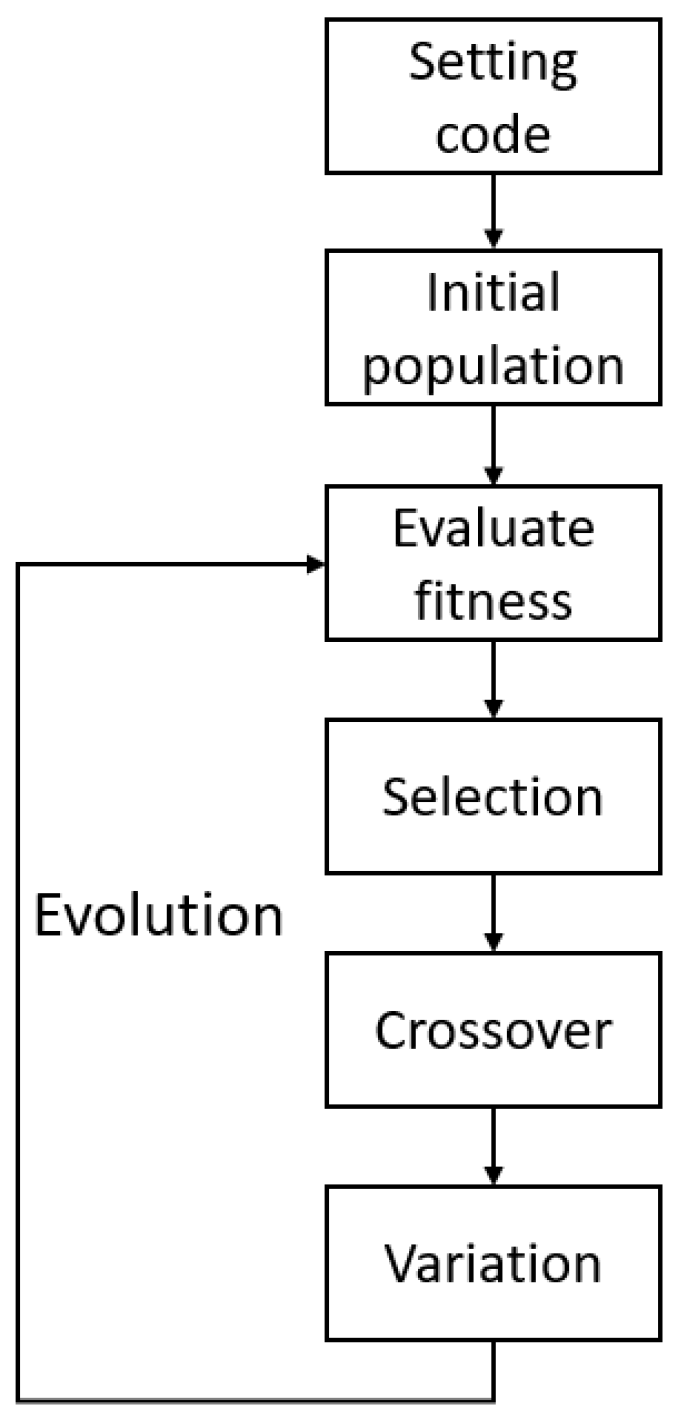

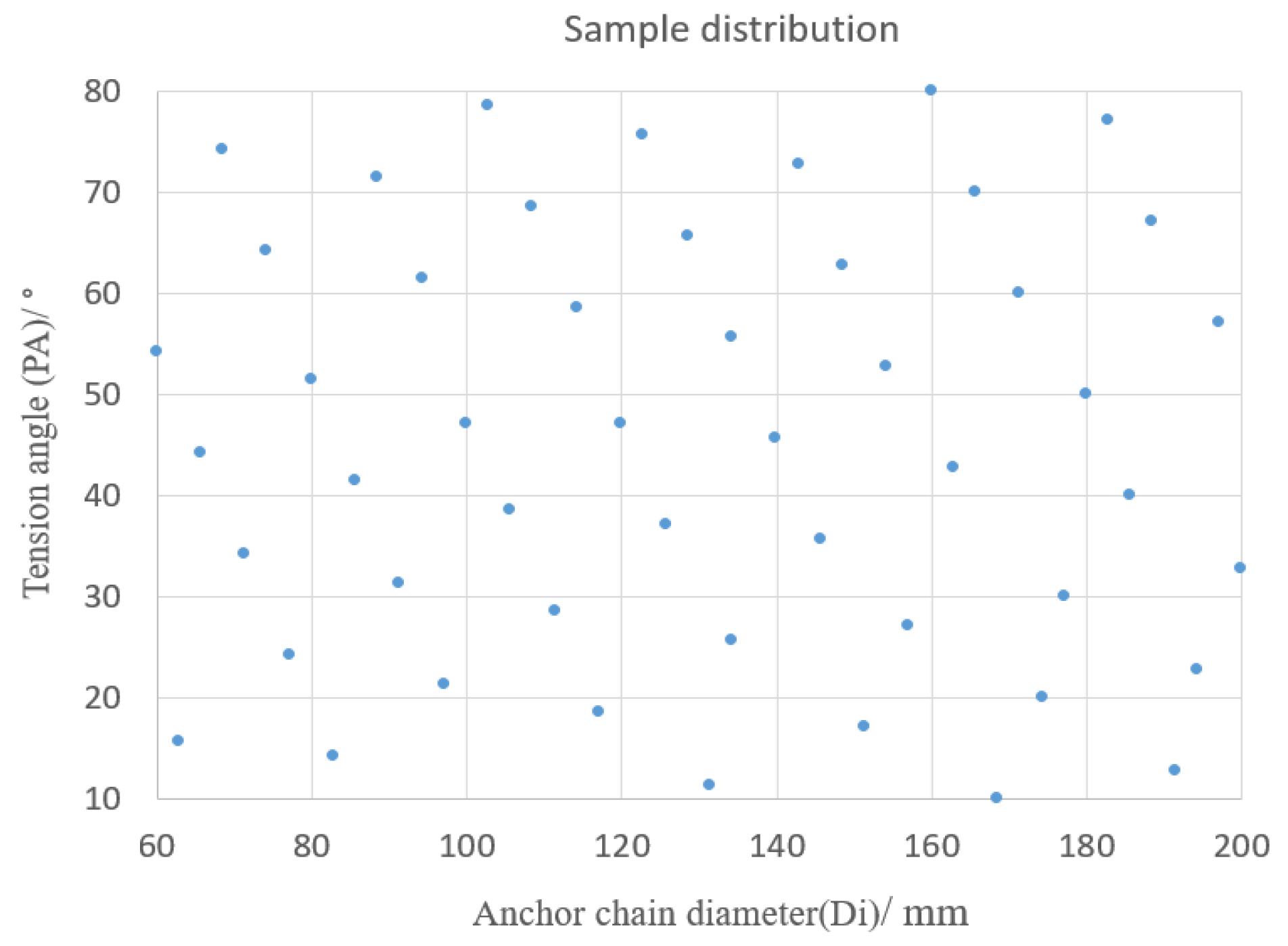

A catenary anchor leg mooring system (CALM) is one of the main kinds of offshore transport terminals. Its buoyancy is connected by multiple anchor chains fixed on the seabed. Because a large deformation characterizes the anchor chain, it is prone to fatigue failure under dynamic loads in marine environments. These factors lead to many challenges in the design optimization of anchor chains. This study aims to develop a rapid optimization design framework for a mooring anchor chain with cost minimization as the design objective. In this framework, an approximation model of the mooring analysis is built based on an adaptive sampling method, and a combination of a genetic algorithm and a sequential quadratic programming method is utilized to optimize the established approximation model. The results show that the framework significantly reduces the computation time, and the error of the final optimization result obtained by adaptive sampling is significantly reduced. We found that using a quadratic or elliptic function as an adaptive function is good enough to obtain the optimization result.
