Study on the Treatment of Refined Sugar Wastewater by Electrodialysis Coupled with Upflow Anaerobic Sludge Blanket and Membrane Bioreactor

,
,
,
and
School of Chemical Engineering and Technology, Tianjin Key Laboratory of Membrane Science and Desalination Technology, State Key Laboratory of Chemical Engineering (Tianjin University), Tianjin University, Tianjin 300350, China
*
Authors to whom correspondence should be addressed.

Abstract

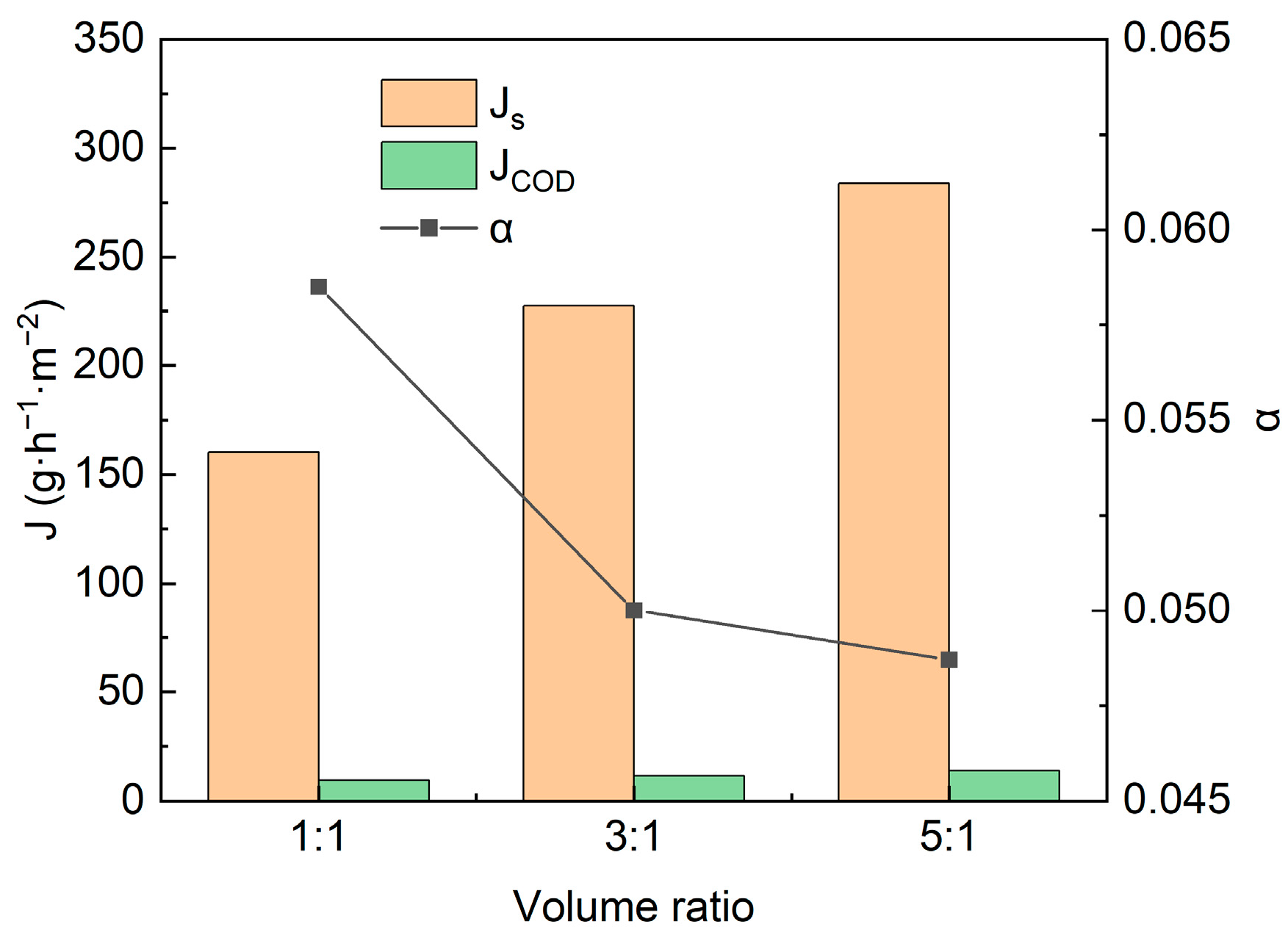

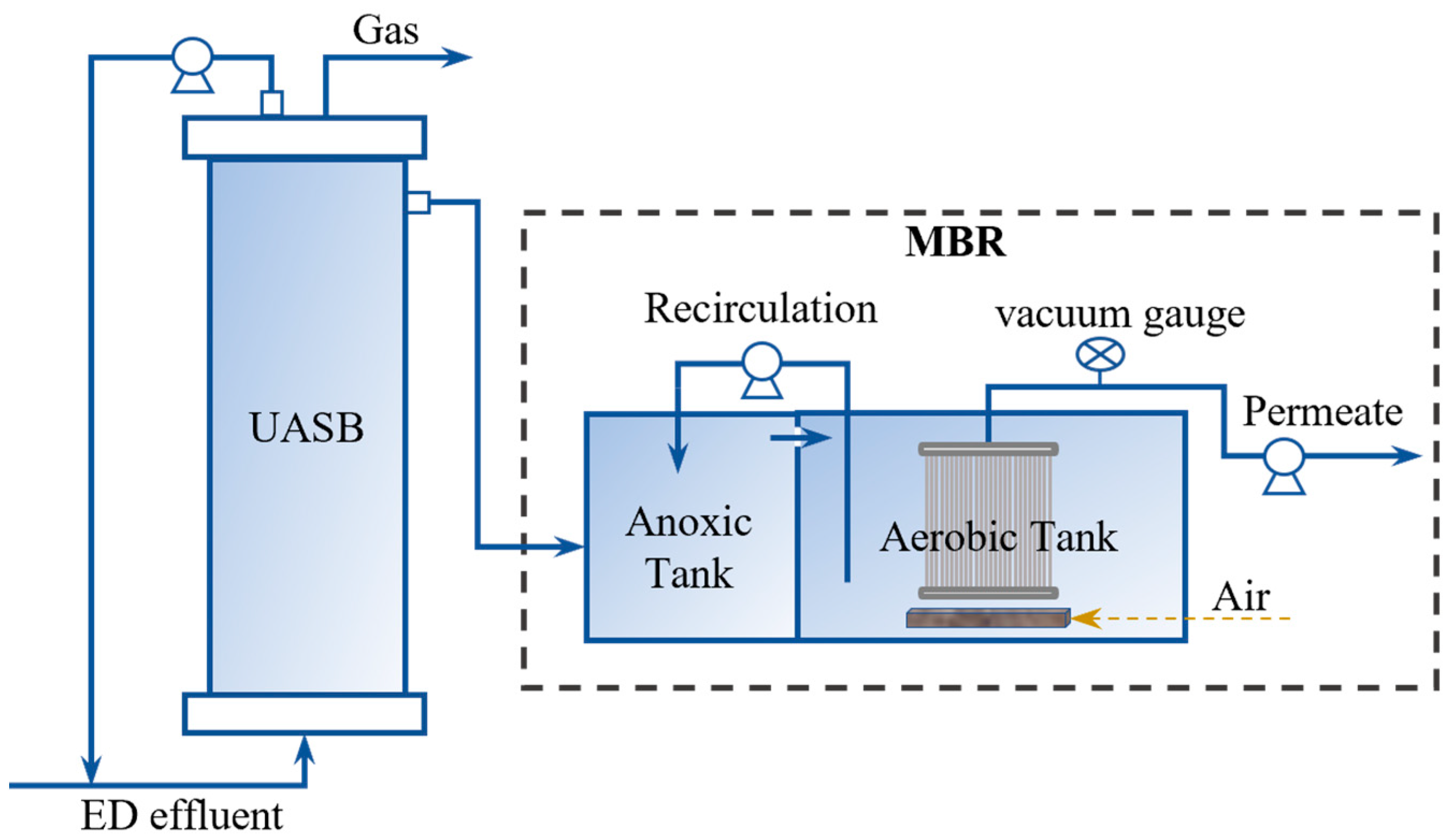

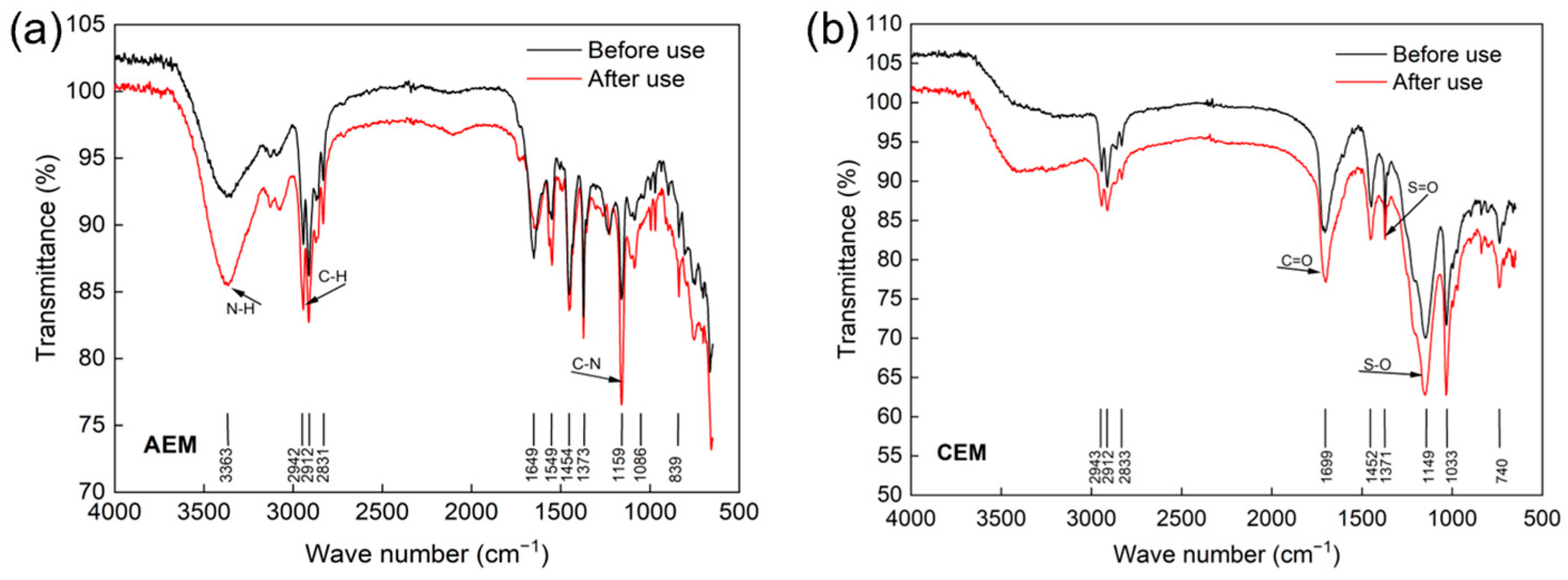

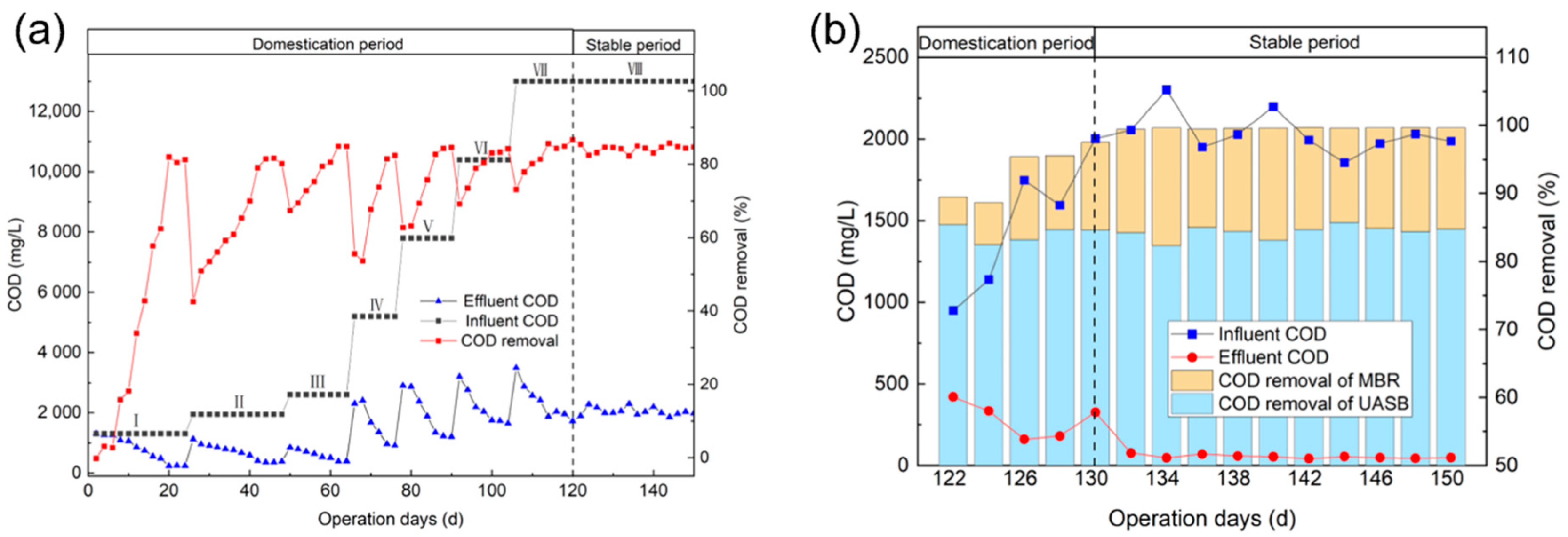

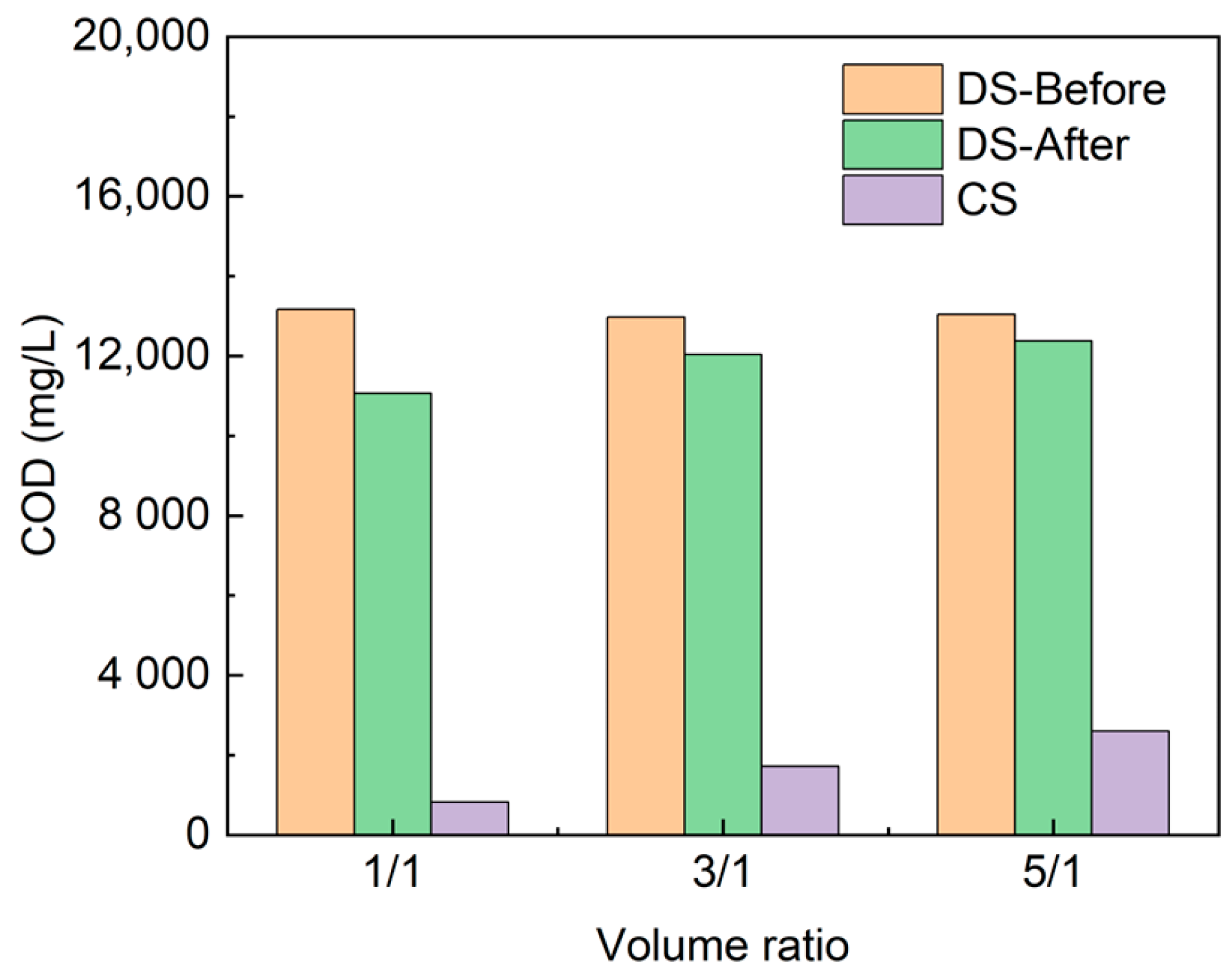

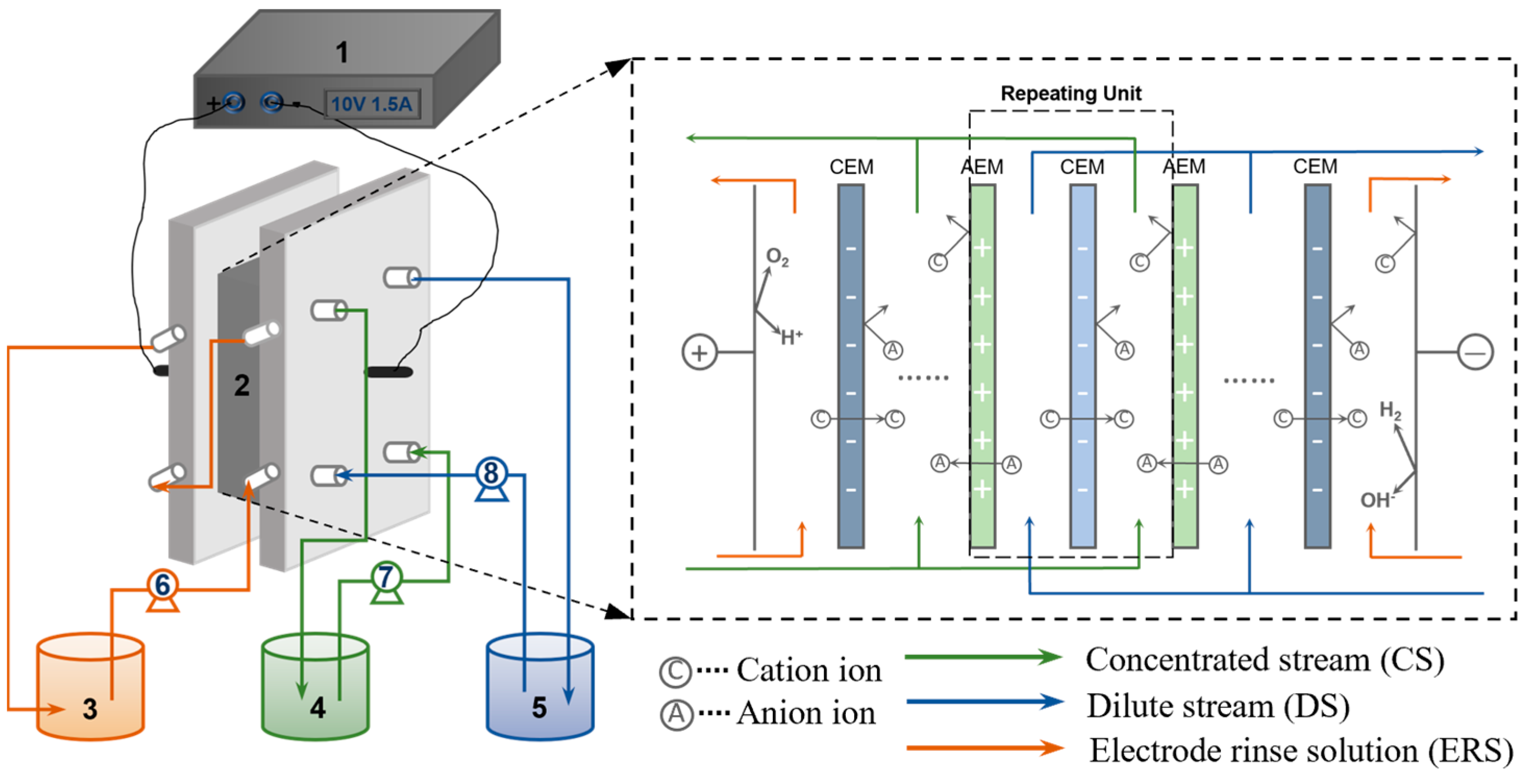

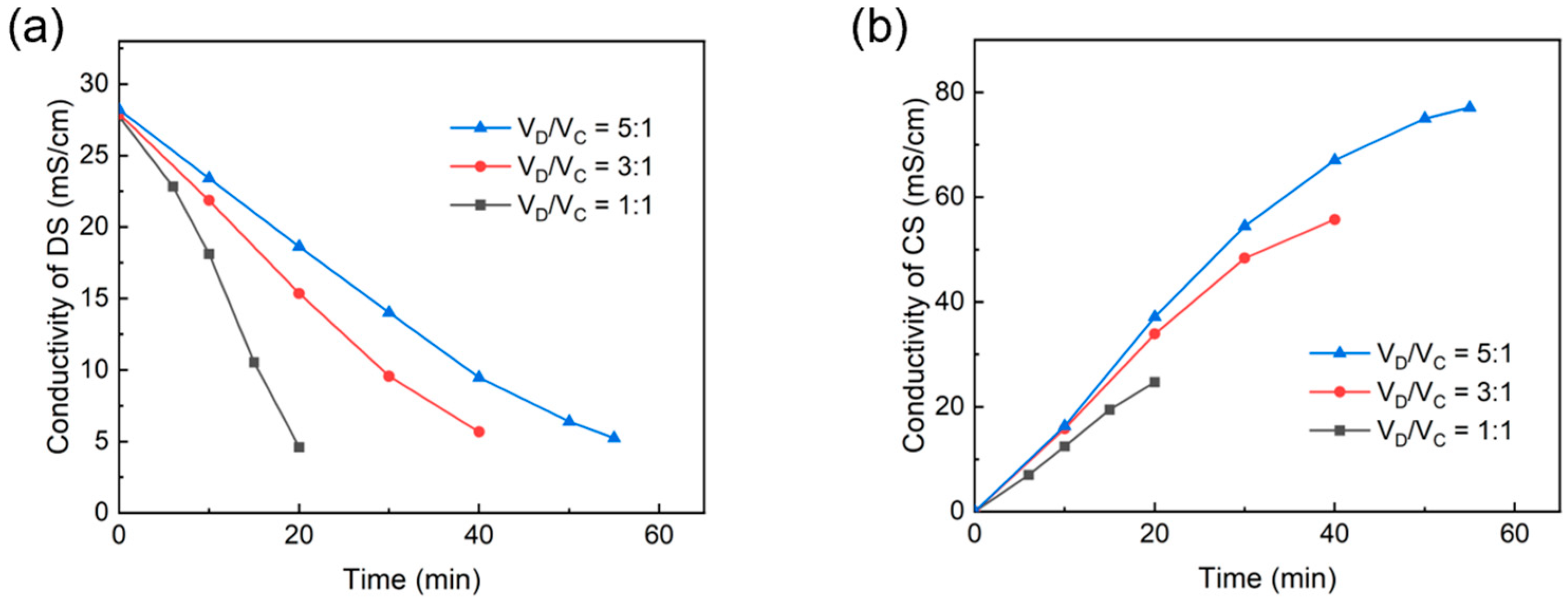

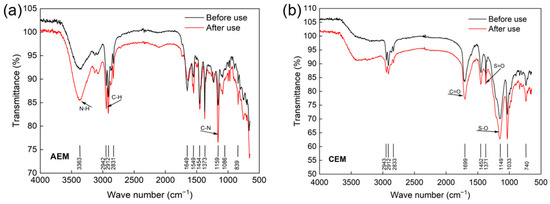

In this paper, refined sugar wastewater (RSW) is treated by electrodialysis (ED) coupled with an upflow anaerobic sludge blanket (UASB) and membrane bioreactor (MBR). The salt in RSW was first removed by ED, and then the remaining organic components in RSW were degraded by a combined UASB and MBR system. In the batch operation of ED, the RSW was desalinated to a certain level (conductivity < 6 mS·cm−1) at different dilute to concentrated stream volume ratios (VD/VC). At the volume ratio of 5:1, the salt migration rate JR and COD migration rate JCOD were 283.9 g·h−1·m−2 and 13.84 g·h−1·m−2, respectively, and the separation factor α (defined as JCOD/JR) reached a minimum value of 0.0487. The ion exchange capacity (IEC) of ion exchange membranes (IEMs) after 5 months of usage showed a slight change from 2.3 mmol·g−1 to 1.8 mmol·g−1. After the ED treatment, the effluent from the tank of the dilute stream was introduced into the combined UASB-MBR system. In the stabilization stage, the average COD of UASB effluent was 2048 mg·L−1, and the effluent COD of MBR was maintained below 44–69 mg·L−1, which met the discharge standard of water contaminants for the sugar industry. The coupled method reported here provides a viable idea and an effective reference for treating RSW and other similar industrial wastewaters with high salinity and organic contents.
