Analysis of a Main Cabin Ventilation System in a Jack-Up Offshore Platform Part I: Numerical Modelling

by
Yingchun Xie
1,*,
Zepeng Zheng
1,
Huibin Wang
1,
Zhen Xu
2,
Guijie Liu
1,
Reza Malekian
3 and
Zhixiong Li
4
1
Department of Marine Engineering, School of Engineering, Ocean University of China, Qingdao 266110, China
2
School of Energy and Power Engineering, Shandong University, Jinan 250061, China
3
Department of Electrical, Electronic and Computer Engineering, University of Pretoria, Pretoria 0002, South Africa
4
School of Mechanical, Materials, Mechatronic and Biomedical Engineering, University of Wollongong, Wollongong, NSW 2522, Australia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(15), 3185; https://doi.org/10.3390/app9153185
Submission received: 12 July 2019 / Revised: 30 July 2019 / Accepted: 31 July 2019 / Published: 5 August 2019
(This article belongs to the Special Issue Fault Diagnosis of Rotating Machine)
Browse Figures
Versions Notes

Abstract

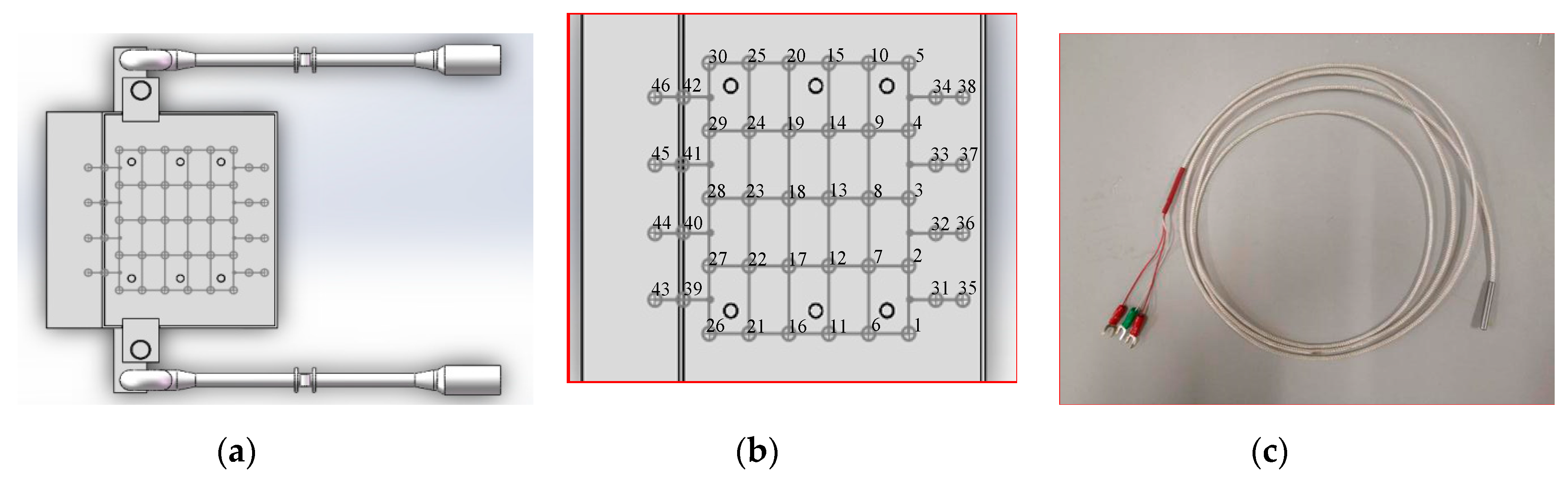

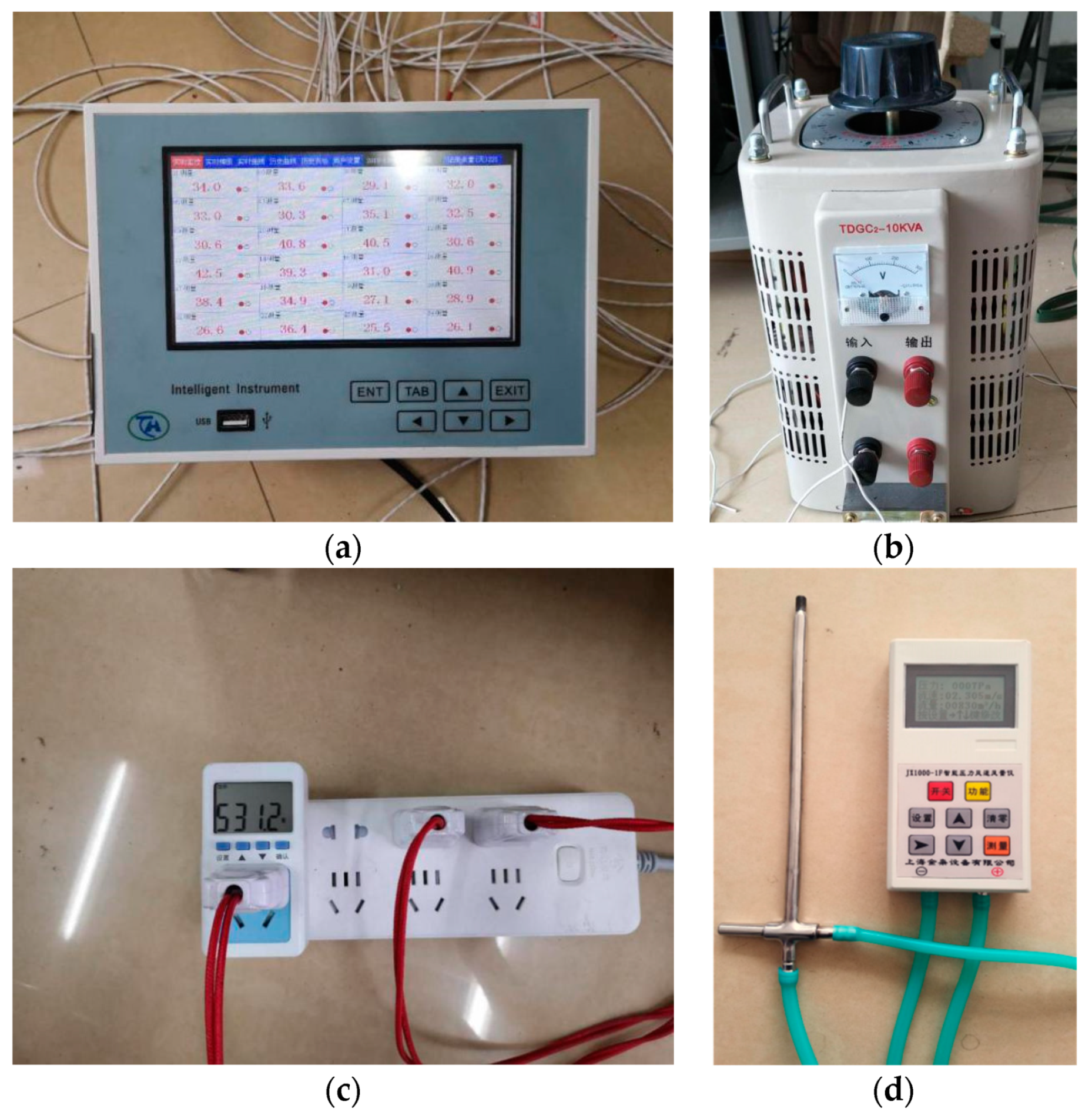

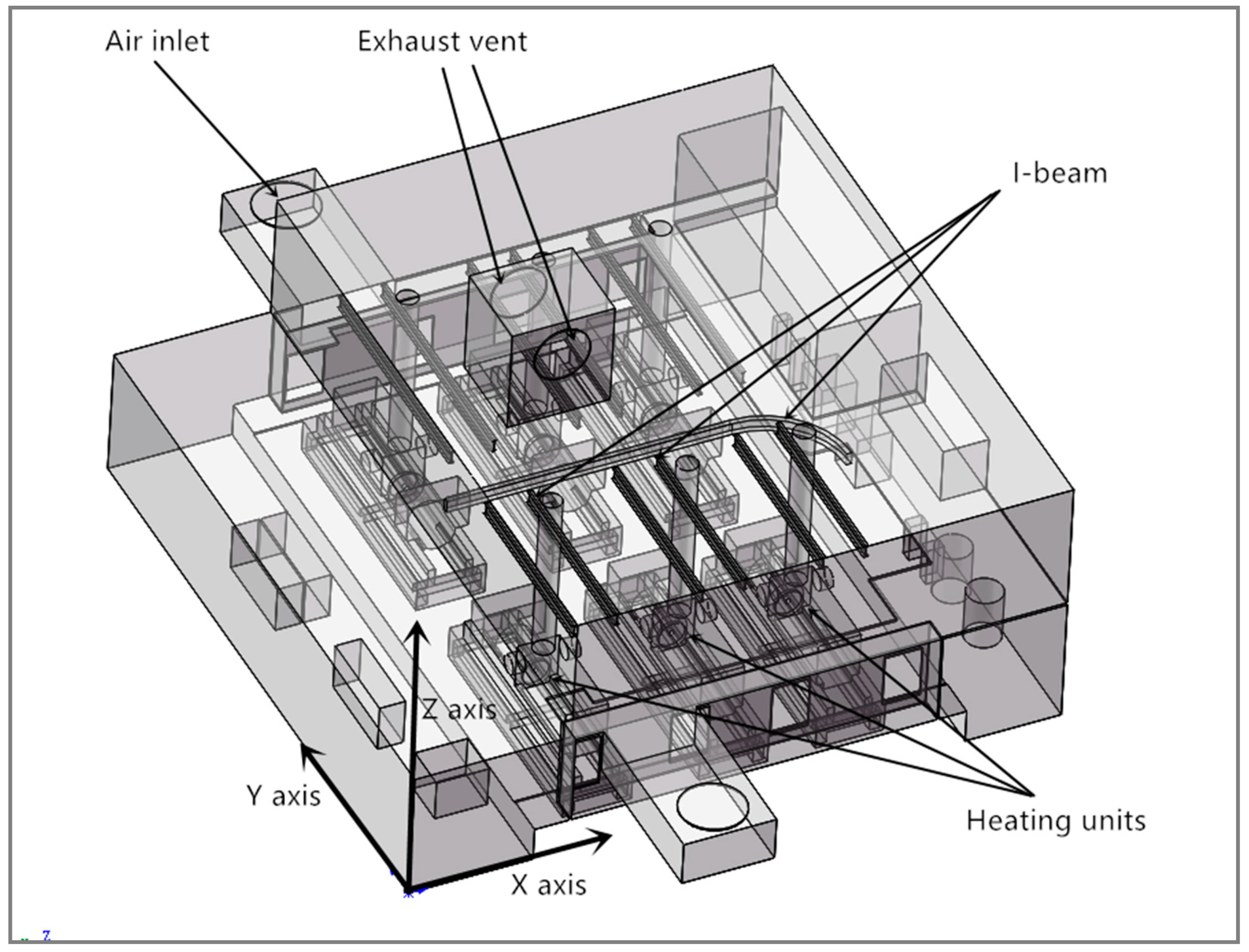

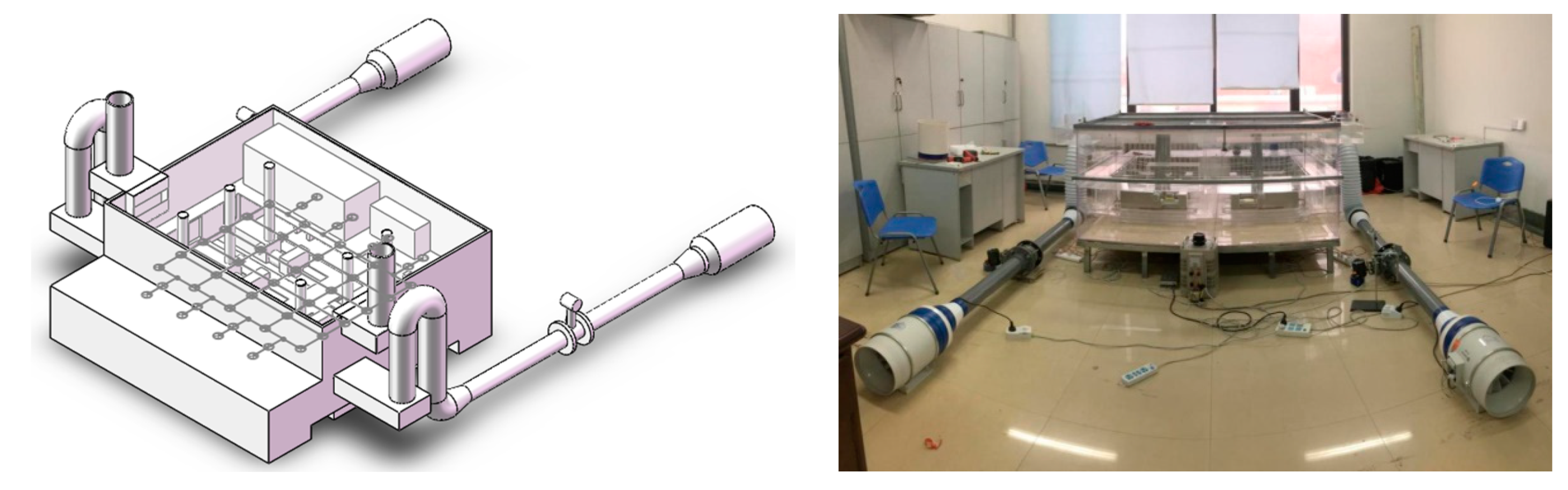

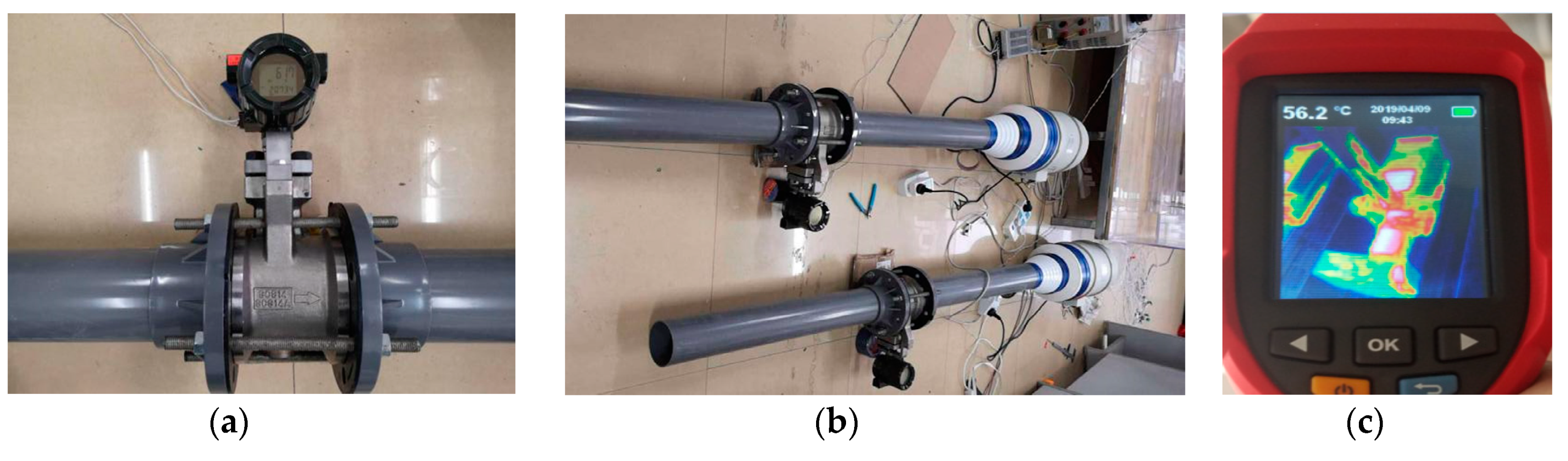

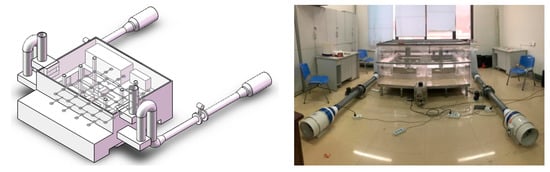

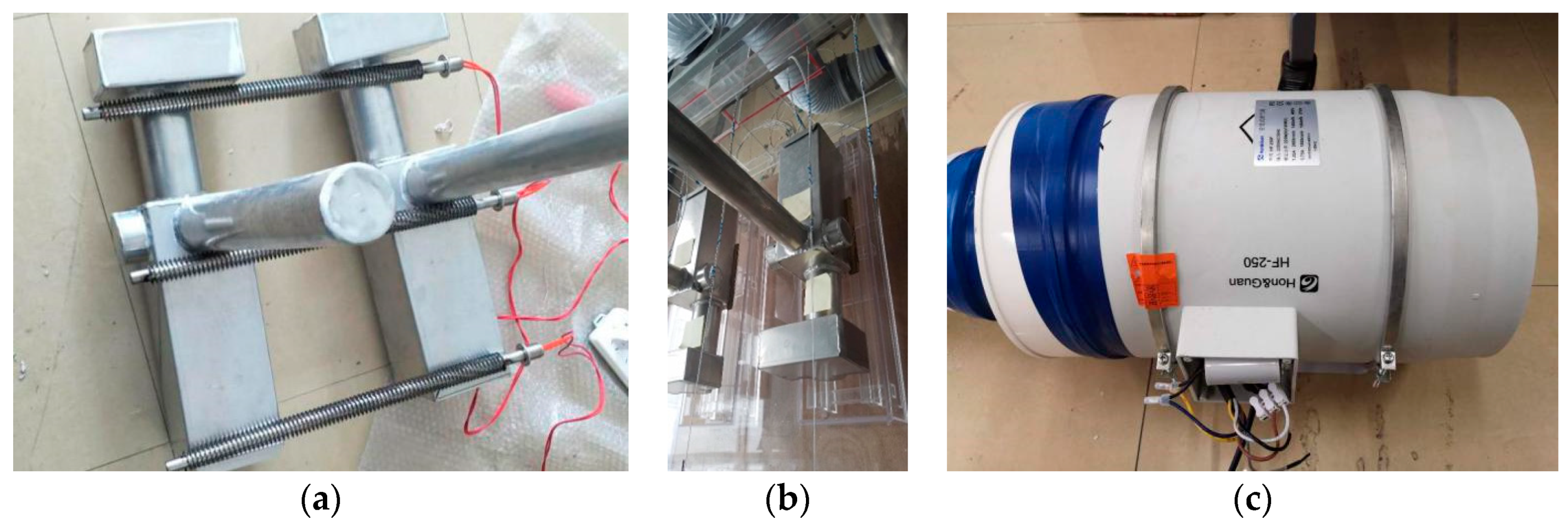

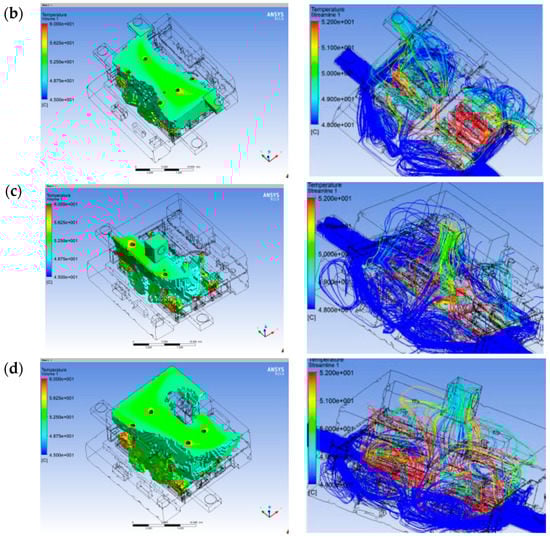

This work aims to measure the thermodynamics of a main cabin ventilation system in a JU-2000E jack-up offshore platform. A three-dimensional (3D) physical model of the ventilation system was established, and the computational fluid dynamics (CFD) software (ANSYS FLUENT) was used to calculate the model thermodynamics. Numerical analysis was performed to investigate the influence mechanisms of the ventilation factors such as ventilation temperature and volume on the ventilation performance. The analysis results demonstrate that (1) top-setting of the exhaust vents is more effective than the side-setting in terms of high temperature reduction, (2) small ventilation temperature and volume can improve the ventilation efficiency, and (3) proper shutdown selection of the backup diesel engine can enhance the ventilation performance. Furthermore, the effect of humidity for the ventilation air was investigated. Lastly, an experimental platform was developed based on the simulation model. Experimental tests were carried out to evaluate the shutdown selection of the backup engine and have shown consistent results to that of the simulation model. The findings of this study provide valuable guidance in designing the ventilation system in the JU-2000E jack-up offshore platform.
Keywords: main engine cabin; ventilation effect; thermodynamics; CFD main engine cabin; ventilation effect; thermodynamics; CFD
