Three-Dimensional FEM Analysis of the Protective Effects of Isolation Piles on Tunnels Under Adjacent Excavations

,
,
,
and
1
Department of Civil Engineering, Zhejiang University, Hangzhou 310058, China
2
Ningbo Rail Transit Group Co., Ltd., Ningbo 315101, China
3
Deep Mining and Rock Burst Research Branch, Chinese Institute of Coal Science, Beijing 100013, China
4
State Key Laboratory of Hydroscience and Engineering, Tsinghua University, Beijing 100084, China

Abstract

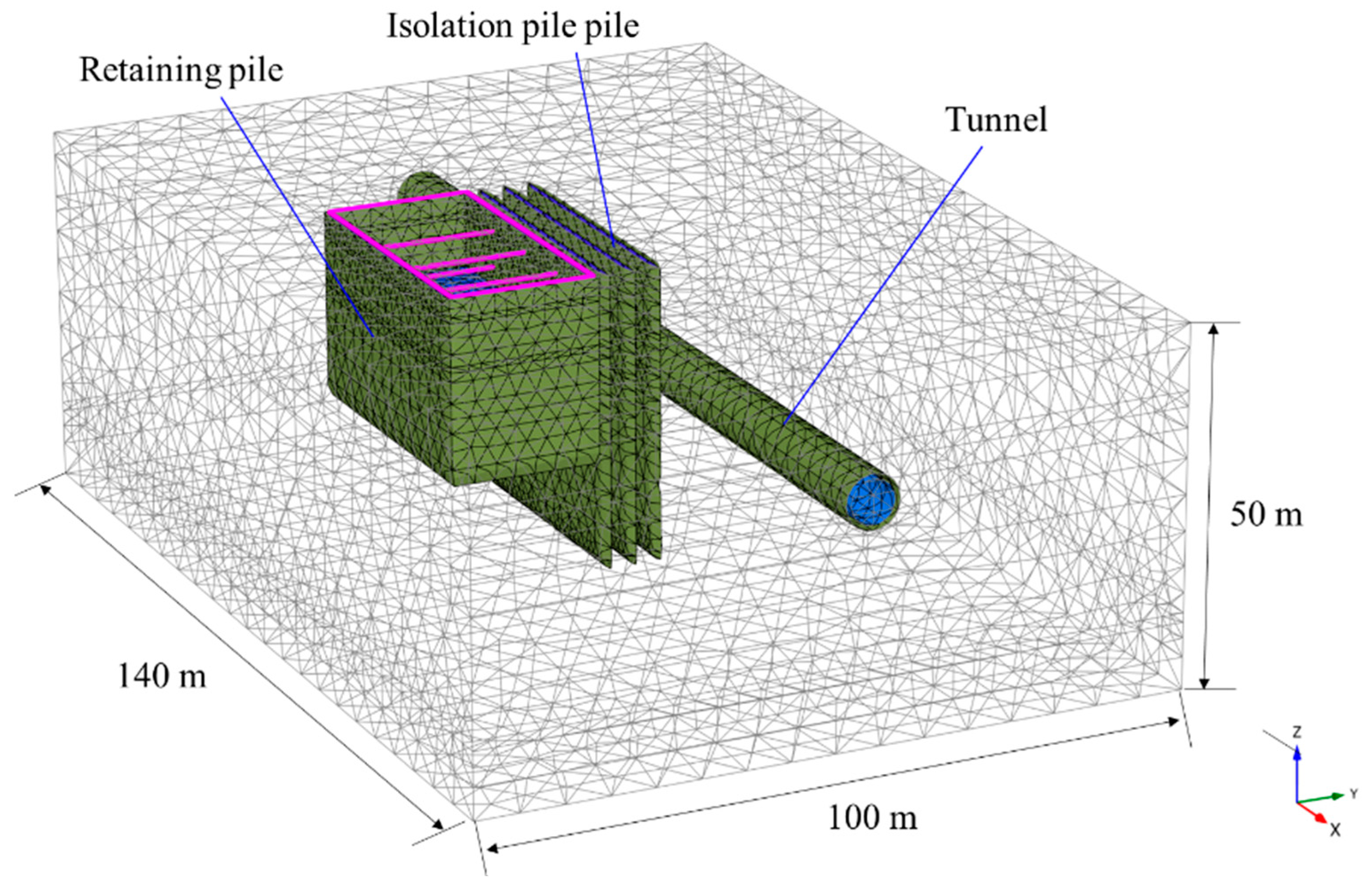

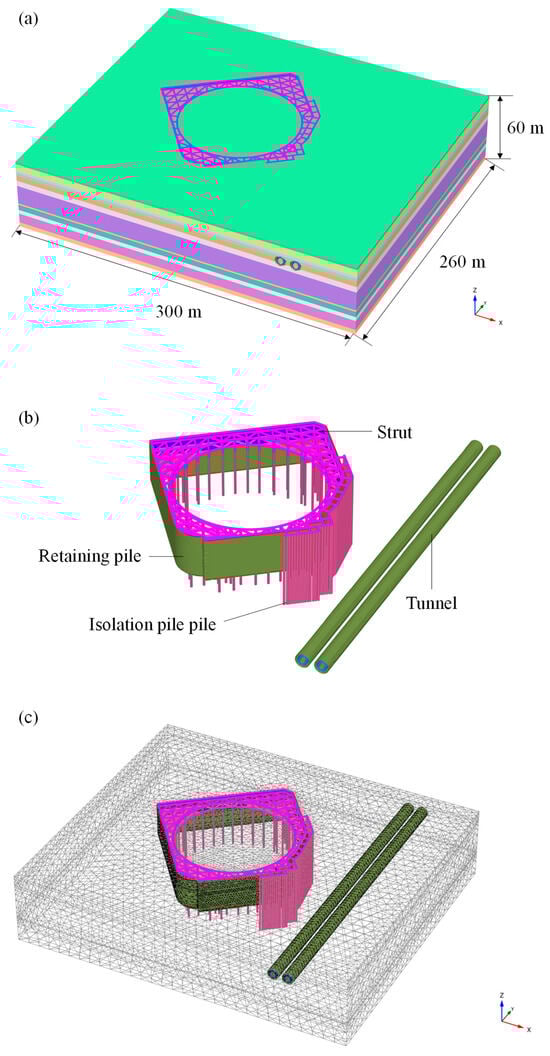

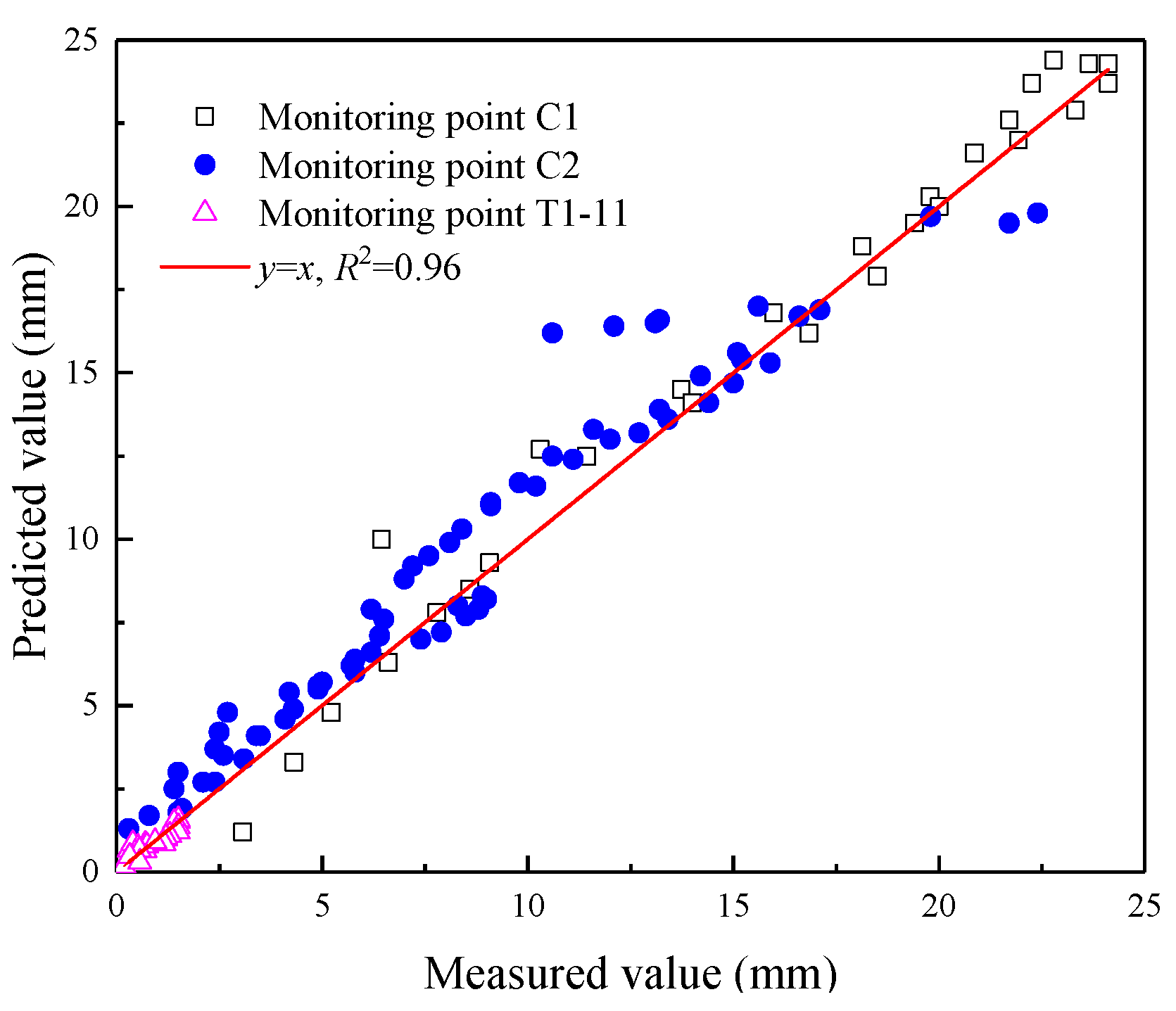

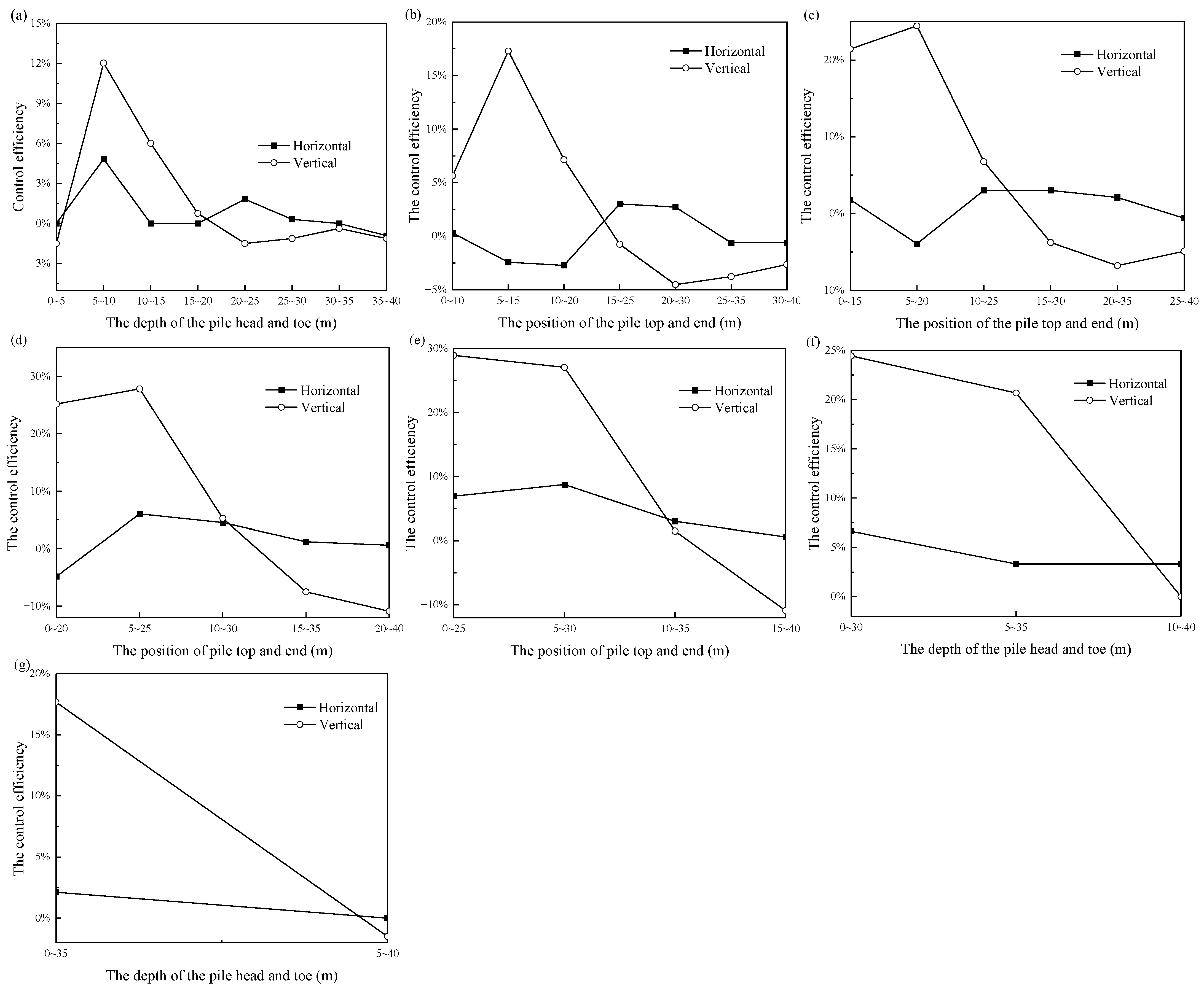

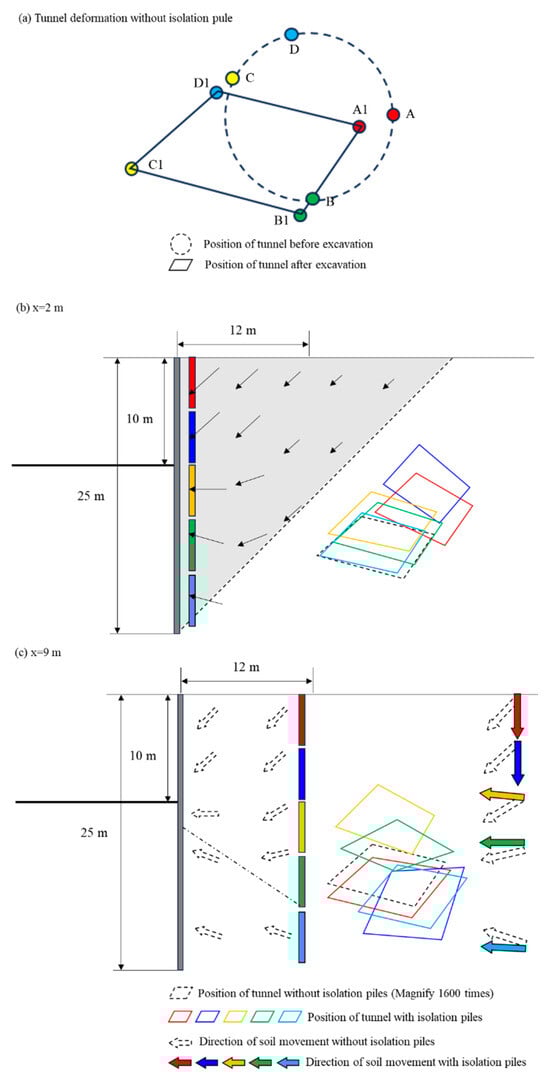

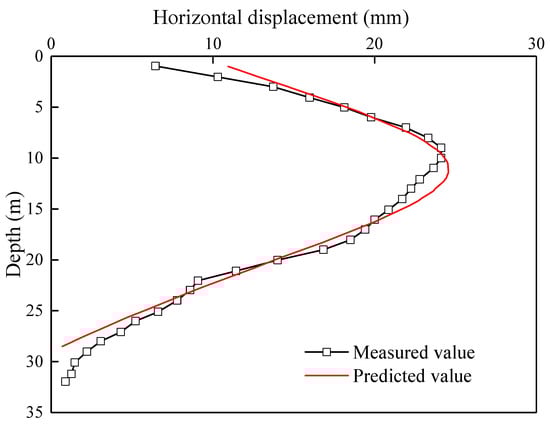

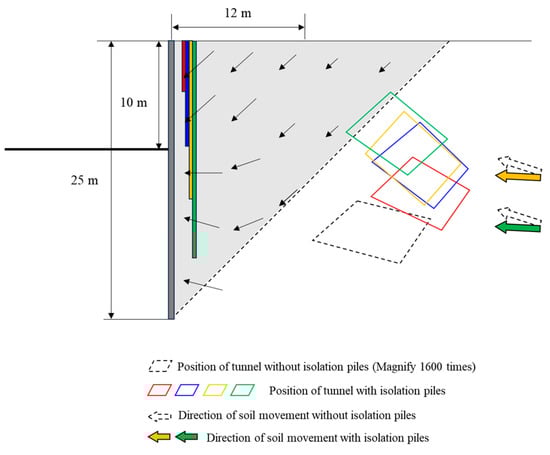

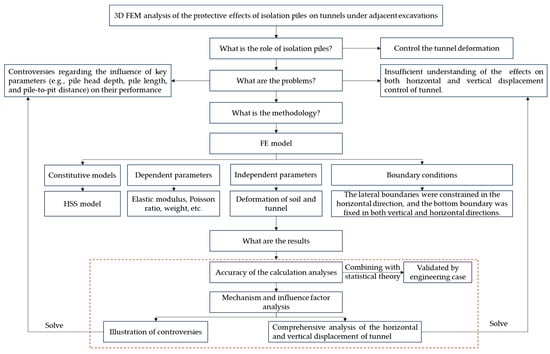

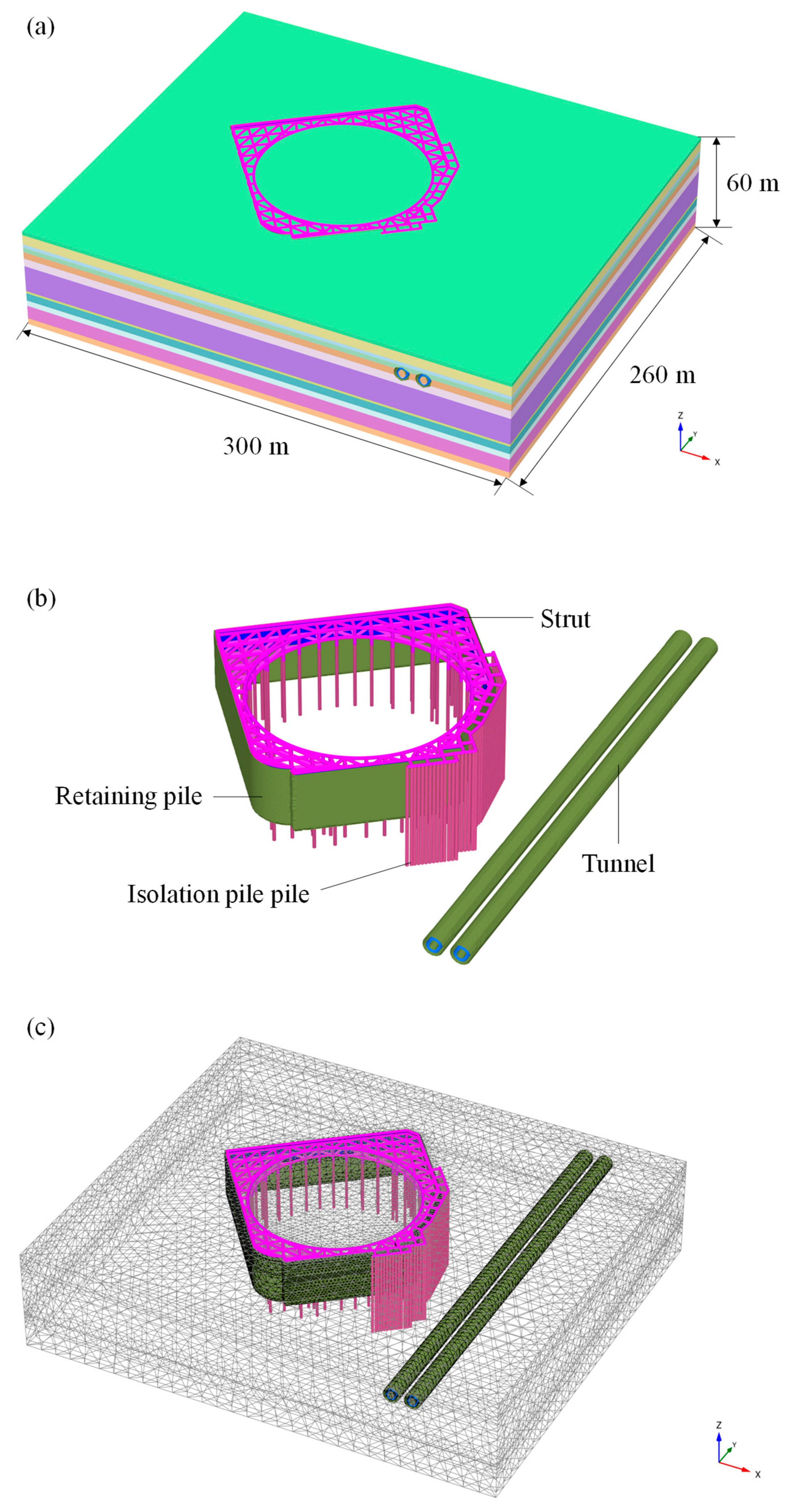

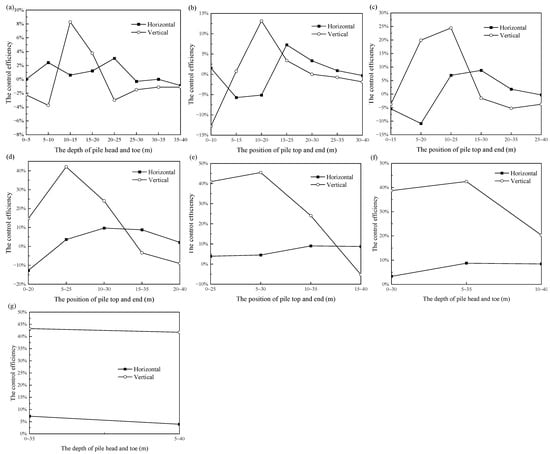

Isolation piles are critical for mitigating excavation-induced tunnel displacements, yet two unresolved challenges persist in tunnel engineering: (1) controversies regarding the influence of key parameters (e.g., pile head depth, pile length, and pile-to-pit distance) on their performance, and (2) insufficient understanding of the effects on both horizontal and vertical displacement control of tunnel. These challenges stem from the current research focus on isolated displacement components or simplified scenarios, which fails to address the complex interactions between key parameters and the deformation mechanisms. To address these gaps, this study proposes a hybrid validation framework integrating a three-dimensional finite element model (HS-Small constitutive model) with field monitoring data. A concept of “control efficiency” is introduced to quantify the effectiveness of isolation piles, complemented by a parametric sensitivity analysis framework. By synergizing the mirror image method and statistical theory, the research reveals a dual-path control mechanism involving displacement blocking and tunnel geometric reconfiguration. The findings advance the state of the art by resolving controversies over critical parameters and establishing a unified theoretical framework for coupled displacement control, providing actionable insights for optimizing isolation pile design in engineering practice.
