Abstract
With the advancement of science and technology, pollution in rivers and water surfaces has increased, impacting both ecology and public health. Timely identification of surface waste is crucial for effective cleanup. Traditional edge detection devices struggle with limited memory and resources, making the YOLOv8 algorithm inefficient. This paper introduces a lightweight network model for detecting water surface litter. We enhance the CSP Bottleneck with a two-convolutions (C2f) module to improve image recognition tasks. By implementing the powerful intersection over union 2 (PIoU2), we enhance model accuracy over the original CIoU. Our novel Shared Convolutional Detection Head (SCDH) minimizes parameters, while the scale layer optimizes feature scaling. Using a slimming pruning method, we further reduce the model’s size and computational needs. Our model achieves a mean average precision (mAP) of 79.9% on the surface litter dataset, with a compact size of 2.3 MB and a processing rate of 128 frames per second, meeting real-time detection requirements. This work significantly contributes to efficient environmental monitoring and offers a scalable solution for deploying advanced detection models on resource-constrained devices.
1. Introduction
The meteorological conditions, which have become increasingly erratic, have resulted in the accumulation of waste material in river systems. Surface garbage is a significant contributor to river pollution, disrupting the ecological balance of rivers and causing the death of vast numbers of river organisms. This, in turn, affects the ecological balance of rivers and the living environment of people in riverine areas. The recycling and cleaning of river garbage is an essential step in maintaining the ecological balance of the planet. Nevertheless, this process is inherently time consuming and labor intensive.
In recent years, a substantial body of research has been conducted on target detection in the domain of deep learning, as evidenced in [1,2,3,4,5]. These methods have the capacity to extract features from images and have demonstrated notable efficacy in target detection, image classification, and target localization. However, these models suffer from several limitations, including the use of large models, parameter redundancy, limited robustness, and low efficiency. Furthermore, they are not suitable for deployment on edge devices. In recent years, studies [6,7,8] have shown that deploying neural network models on edge devices is economical and applicable. The combination of high-resolution cameras and the compact size of edge devices allows for the effective detection of surface litter. Furthermore, the flexibility of the edge device, which has a minimal environmental impact, makes it a sustainable tool for the ecological maintenance of rivers. The ability to analyze real-time data enhances the timeliness of decision-making and effectively reduces the waste of labor. Thus, the deployment of the network model at the edge facilitates a shift towards more efficient, safe, and environmentally friendly practices in the field of river ecological surface waste detection.
In recent years, deep learning has become more and more important in the field of object detection, which is proved by the literature [9]. Application of deep learning neural networks for target calling algorithms has demonstrated considerable promise in the automatic detection of rubbish, offering real-time, robust, and widely available solutions. Nevertheless, the extant algorithmic models remain susceptible to improvement with respect to the detection of water surface litter. The traditional Faster R-CNN [10] is afflicted by the vices of parameter redundancy, a substantial model, and low efficiency. Classical single-stage algorithms, such as YOLOv8 [11], have demonstrated notable efficiency gains. However, they remain suboptimal in terms of accuracy and are characterized by large models that present challenges for deployment on edge devices.
It is commonly acknowledged that traditional convolutional neural networks (CNNs) often necessitate substantial computational resources and parameters to achieve satisfactory performance. This presents a significant challenge in terms of deploying such models on edge devices, which are often constrained by limited memory and computational capabilities. Accordingly, our objective is to develop a lightweight and highly performant model for the detection of water surface litter.
Henar Mike [12] made a number of comparisons of deployments at the edge of some of the columns. The optimized model deployed in all the Jetson series achieved an average percent power reduced (%R) of 53.18% with a percent difference of 35.9% from the results of the local PC.
Despite the success of lightweight neural networks in various industries, research in river water surface litter detection is quite limited. This study aims to address this gap by developing an efficient and lightweight surface waste detection model. The contributions of this study are as follows:
- (1)

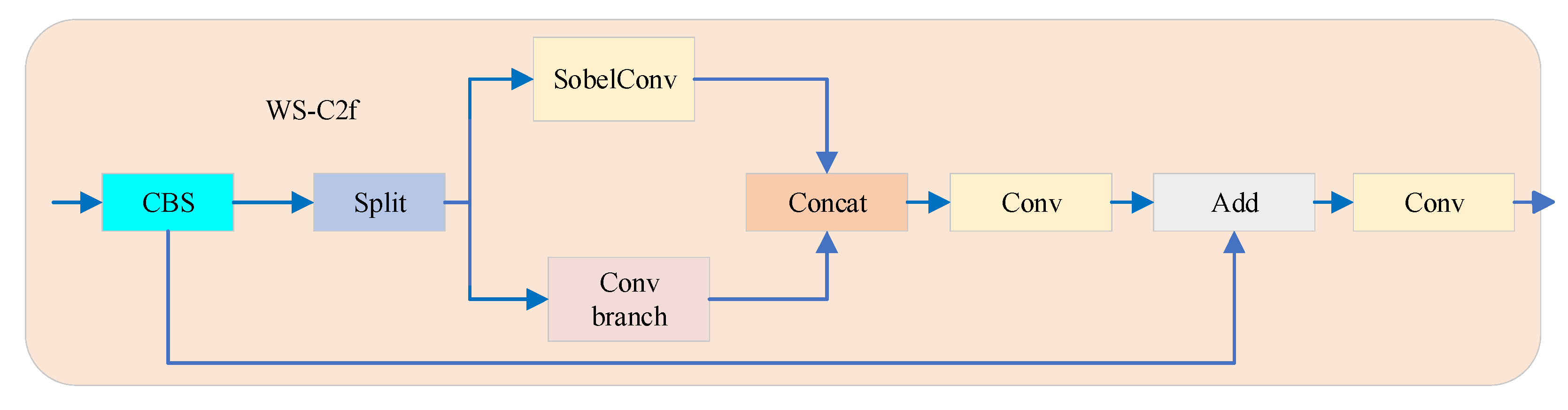

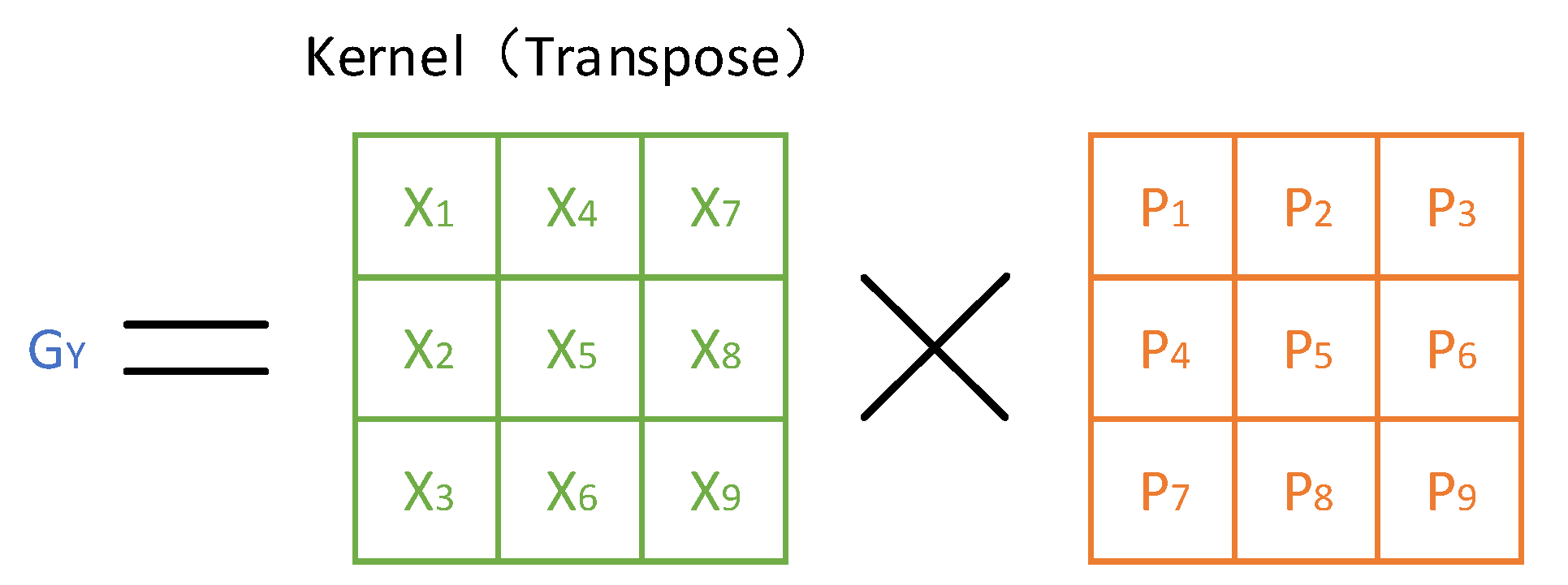

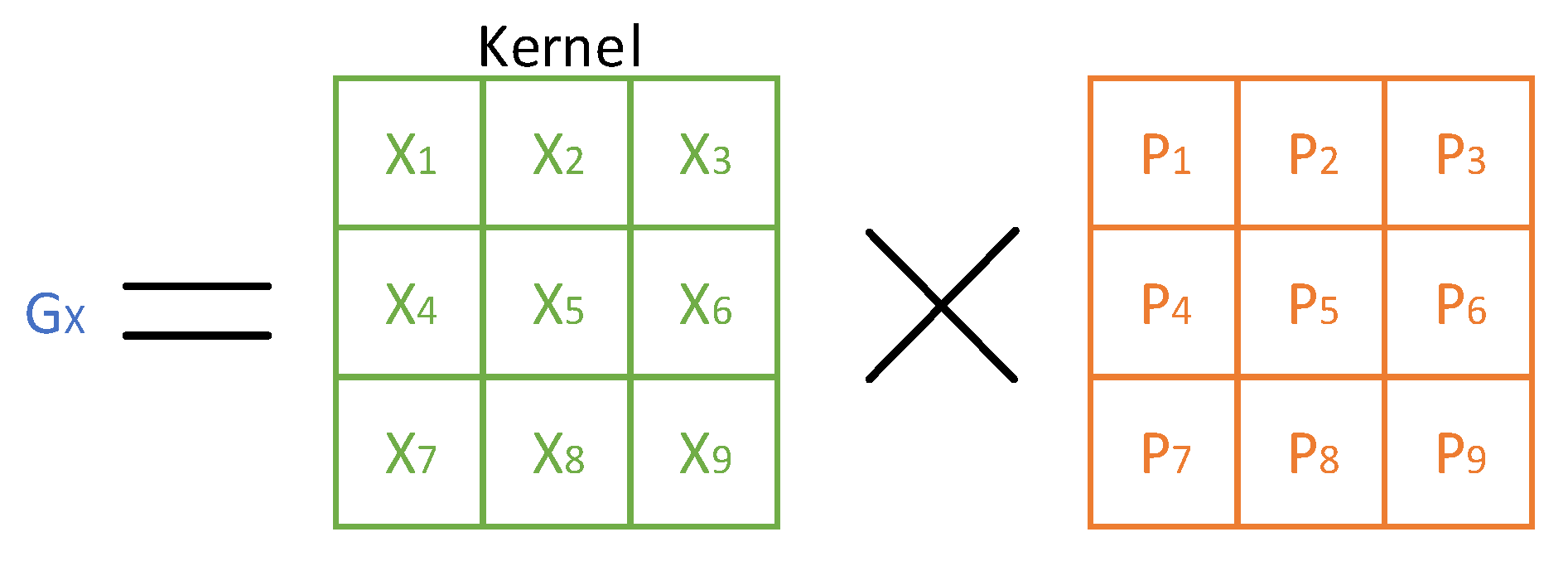

- It is proposed that the faster implementation of the CSP Bottleneck with convolutions and the Sobel convolutions (Sobel_Conv) C2f-WS module be used for the detection of real water surface litter, based on the C2f module in YOLOv8. The WS module employs a Sobel convolution branch (Convbranch) to explicitly extract edge features from the image. An additional convolutional branch is employed for the extraction of spatial information. In contrast to the Sobel_Conv branch, the convolutional branch (conv_branch) extracts features from the original image, thereby preserving rich spatial details. The WS module concatenates the features extracted from the Sobel_Conv branch and the convolutional branch. This fusion operation permits the learned feature representation to contain both rich edge information and spatial information, thereby enabling a more comprehensive portrayal of the image content;
- (2)

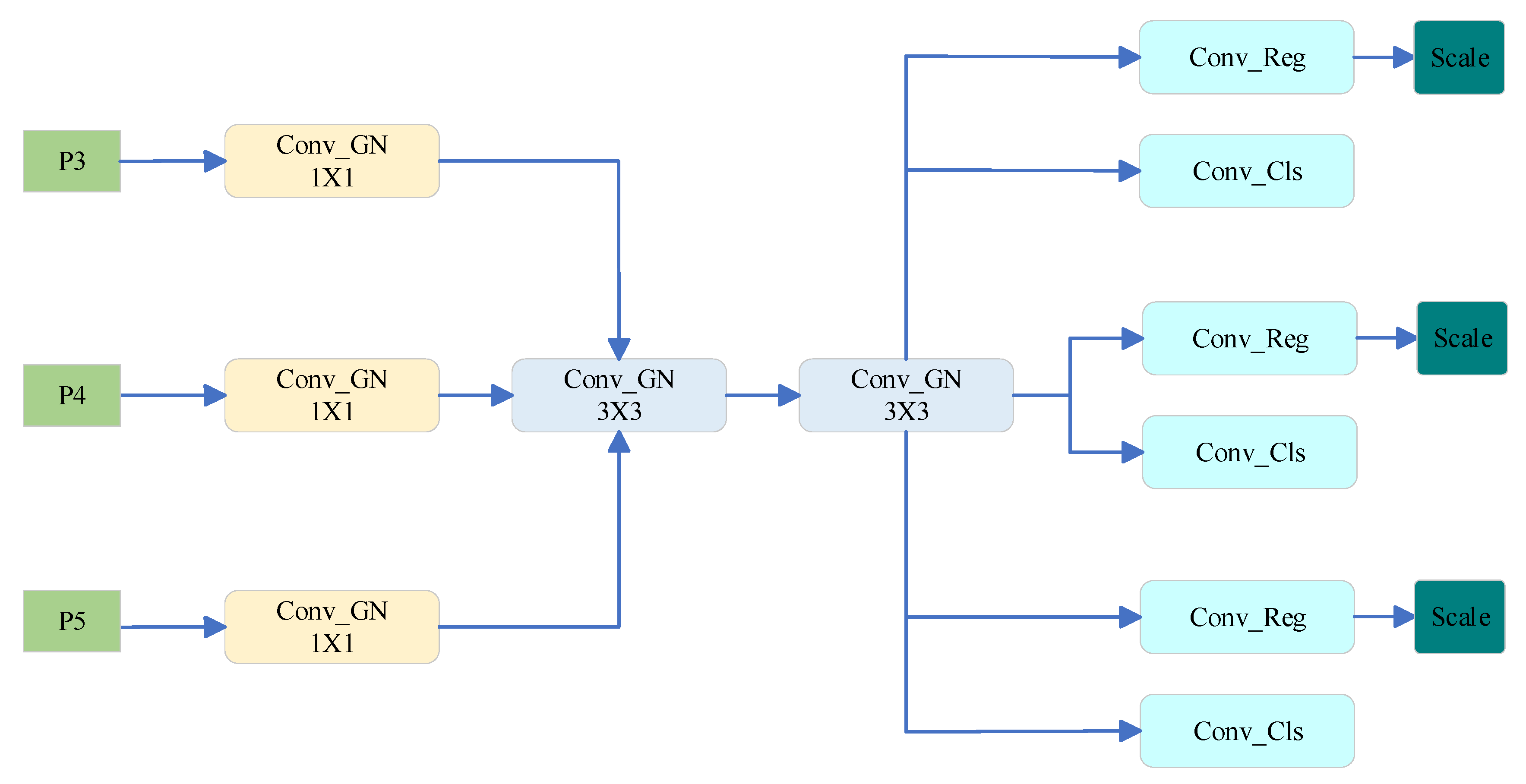

- The concept of shared convolution is employed to develop a more compact detection head, SCDH, which significantly reduces the number of parameters and increases the efficiency of the model, particularly on constrained devices. To solve the problem that the target data scales detected via each detection head are inconsistent, the scale coefficient is used to scale the features in shared convolution;
- (3)
- The slimming pruning method reduces the number of parameters and the calculation, thus reducing the size of the model and speeding up the model’s execution;
- (4)

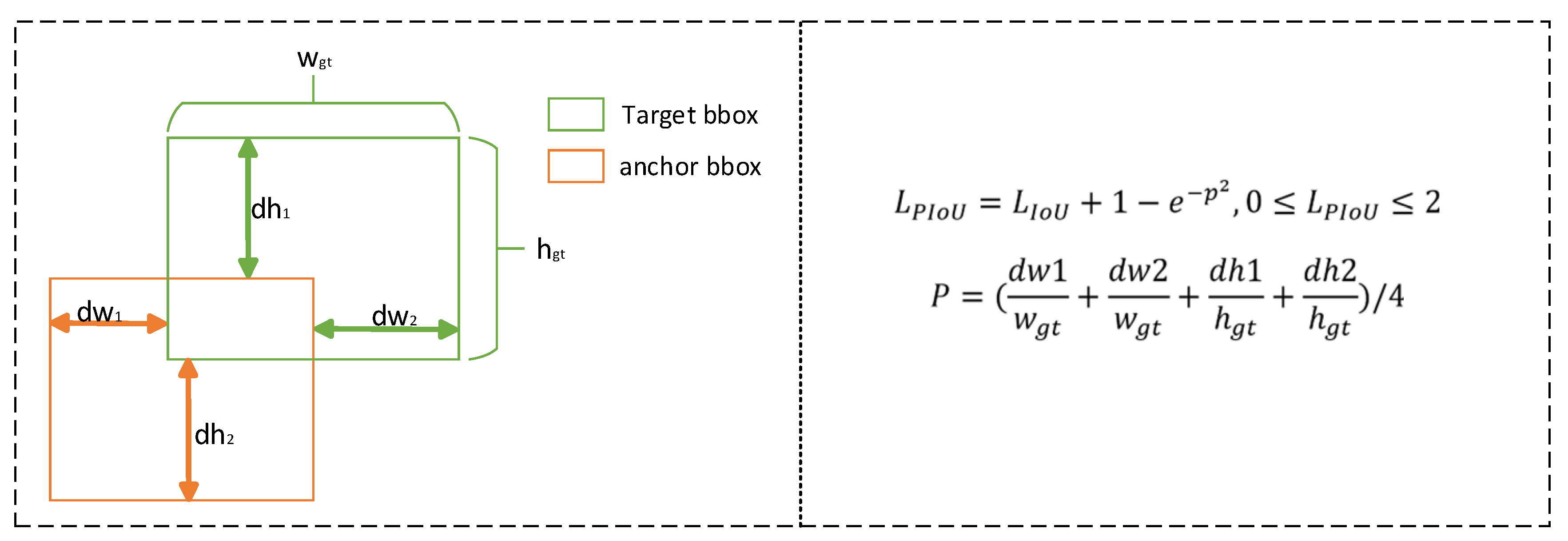

- The introduction of PIoU2 as a novel regression loss function serves to accelerate the regression of the network on low IoU samples and enhance the localization precision of targets.
2. Related Works
2.1. Surface Litter Detection
The conventional methodologies employed for the detection of water surface litter primarily entail the construction of templates through the enumeration of the texture, hue, and contour characteristics of water surface entities. Subsequently, the pertinent classifiers are utilized to ascertain the categories of water surface litter.
Scholars currently employ deep learning techniques for the purpose of object detection [13,14]. The primary distinction between these two approaches is whether they employ a single or double stage. In order to achieve real-time deployment, the single-phase you only look once (YOLO) series [15,16] model is commonly utilized in the edge segment. Zhou et al. [17] employed the MobileViTv3 as a feature extraction network to encode the entire visual field, thereby reducing the parameters of the YOLO model and expanding its scope of application. Jiang et al. [18] employed a modified YOLOv7 with ACanny PConv-ELAN and multi-scale gated attention for adaptive weight allocation (MGA) attention to enhance the precision of target detection for small, challenging objects.
While these methods are valuable for water surface litter detection, they still present several challenges. (1) Although numerous methodologies exhibit augmented detection precision in specific scenarios, they frequently necessitate larger model parameters and elevated computational complexity, which constrains their applicability for deployment at the edge. (2) Some existing lightweight models reduce the number of model parameters but fail to achieve the best match point between accuracy and model size. In this paper, we propose a convolutional module based on Sobel convolution, which is designed to facilitate the recognition of target edges, facilitate the separation of target and background, and thereby enhance the accuracy of the model. Furthermore, the model is pruned in order to reduce its overall size. This method achieves the best match point between model size and accuracy.
2.2. YOLOv8 Algorithm
YOLOv8 is the next major update version based on YOLOV5, which was open sourced by ultralytics on 10 January 2023. It currently supports image classification, object detection, and instance segmentation tasks. In view of the good performance of Yolov5, Yolov8 was well received at the start of its release.
The YOLOv8 model introduces new features and improvements based on the YOLOv5 [19] model. The YOLOv8 model better balances speed and accuracy than the YOLOv5 model. The YOLOv8 model is categorized into five different sizes of models, n, s, m, l, and x, depending on the depth and width of the network. The n model has lower computational and parameter requirements, which facilitates deployment on mobile and CPU devices. YOLOv8 consists of three main components: the backbone, which is based on CSP, the neck, which is the feature enhancement network, and the head, which is the detection head.
These components are utilized for target characteristics extraction, target characteristics fusion, and prediction image output, respectively. The network structure is illustrated in Figure 1. The backbone comprises the CBS, C2f, and SPPF modules. The C2f module makes the model lighter by reducing one convolution layer from the original C3 module. In addition, it retains the concept of CSP in YOLOv5, and the Space Pyramid Pool (SPPF) module. The neck component employs the PA-FPN (Path Aggregation Network-Feature Pyramid Network) concept, which involves a two-way fusion of low-level and high-level features to enhance target detection across different scales. This is achieved by removing the convolution of the sampling stage in the PA-FPN of YOLOV5 and replacing the C3 module with a C2f module. The head is replaced by an anchor-free decoupled head derived from the anchor-based coupled head in YOLOv5. This change removes the obj branch. It introduces a new cls classification branch and a box regression branch. Furthermore, the regression branch employs the integral form representation of the DFL strategy, while the decoupled head [20] is utilized for more efficient training and inference. Ultimately, this approach incorporates three detection heads for the prediction of targets of varying sizes. These improvements make YOLOv8 perform more fine tuning and optimization while maintaining the advantages of YOLOv5’s network structure and improving the model’s performance in various scenarios.
Figure 1.
YOLOv8 architecture diagram.
4. Discussion
4.1. Experimental Environment and Dataset
The environment configuration for this experiment is shown in Table 1 below.
Table 1.
Experimental environment configuration.
The key parameters for this network training are shown in Table 2.
Table 2.
Configuration of training parameters.
The edge end device used in this post is the Jetson Nano b01. The key parameters of the Jetson Nano b01 are shown in Table 3.
Table 3.
The key parameters of the Jetson Nano b01.
This experiment was conducted using the publicly available surface litter dataset SLD (Surface litter Dataset), which is a high-quality dataset focusing on floating debris, consisting of a series of well-labeled images designed to train and evaluate the performance of a computer vision model on the task of floating debris detection. The dataset contains 2400 images in eight categories, namely ‘bottle’, ‘grass’, ‘branch’, ‘milk crate’, ‘plastic bag’, ‘plastic garbage’, ‘ball’, and ‘leaf’. Examples of some images from the SLD are shown in Figure 9. The analysis shows that the dataset is relatively complex, the impact of water surface reflection is serious, and the edge contour of the object is entangled with the reflection of the water surface of the object and is difficult to distinguish, so it is often necessary to detect objects on images of different scales, requiring the network model to accurately identify the contour of the target to identify the target.
Figure 9.
Selected samples of the dataset.
4.2. Evaluation Indicators
In this paper, the experiments use Precision (P), Recall (R), and mean Average Precision (mAP) as the evaluation metrics of the algorithm’s detection performance. The formula is as follows:
where is the number of negative samples that were incorrectly predicted, is the number of positive samples that were incorrectly predicted, and is the number of positive samples that were correctly predicted. reflects the accuracy of target detection for a single category, and indicates the average value for multiple categories. Additional metrics are introduced to evaluate model complexity and computational efficiency, mainly GFLOPs, Params, Model Size, Latency, and FPS. GFLOPs and Params are used to evaluate the computational complexity of the model; Latency is the time it takes the model to complete a forward inference, excluding image preprocessing and non-maximum suppression (NMS), which is used to evaluate the computational efficiency of the network; FPS represents the recognition speed of the model.
4.3. Ablation Experiments
Ablation experiments were conducted to ascertain the efficacy of each SS-YOLOv8n improvement in terms of accuracy and the detection of light river garbage. The results are presented in Table 4. In Experiment A, the C2f module was replaced with WS-C2f, forming a new backbone network. This resulted in a reduction of 0.53 in the number of model parameters and 0.4 GFLOPs in computation. In Experiment B, the SCDH was employed in lieu of the original model’s detection head. This results in a reduction in the number and volume of model parameters, with an improvement in mAP50 of 1.2%. This demonstrates that the novel network configuration mitigates the loss of information pertaining to surface spam targets. Experiment C introduces a novel loss function, PIoU2, based on B, which enhances the mAP50 to 80.1% and further optimizes the detection accuracy. The utilization of an auxiliary bounding box has been demonstrated to enhance the efficacy of water surface litter target localization. Experiment D employs the slimming pruning method to compress the model derived from C. Subsequently, the compressed model is fine-tuned. While the mAP50 is reduced by 0.2%, the resulting model is only 2.3 MB in size and exhibits a 0.12ms reduction in inference delay. By adopting this strategy, the quantity of parameters is efficiently minimized without compromising the model’s efficacy. Moreover, this results in increased operational speed.
Table 4.
Ablation experiments.

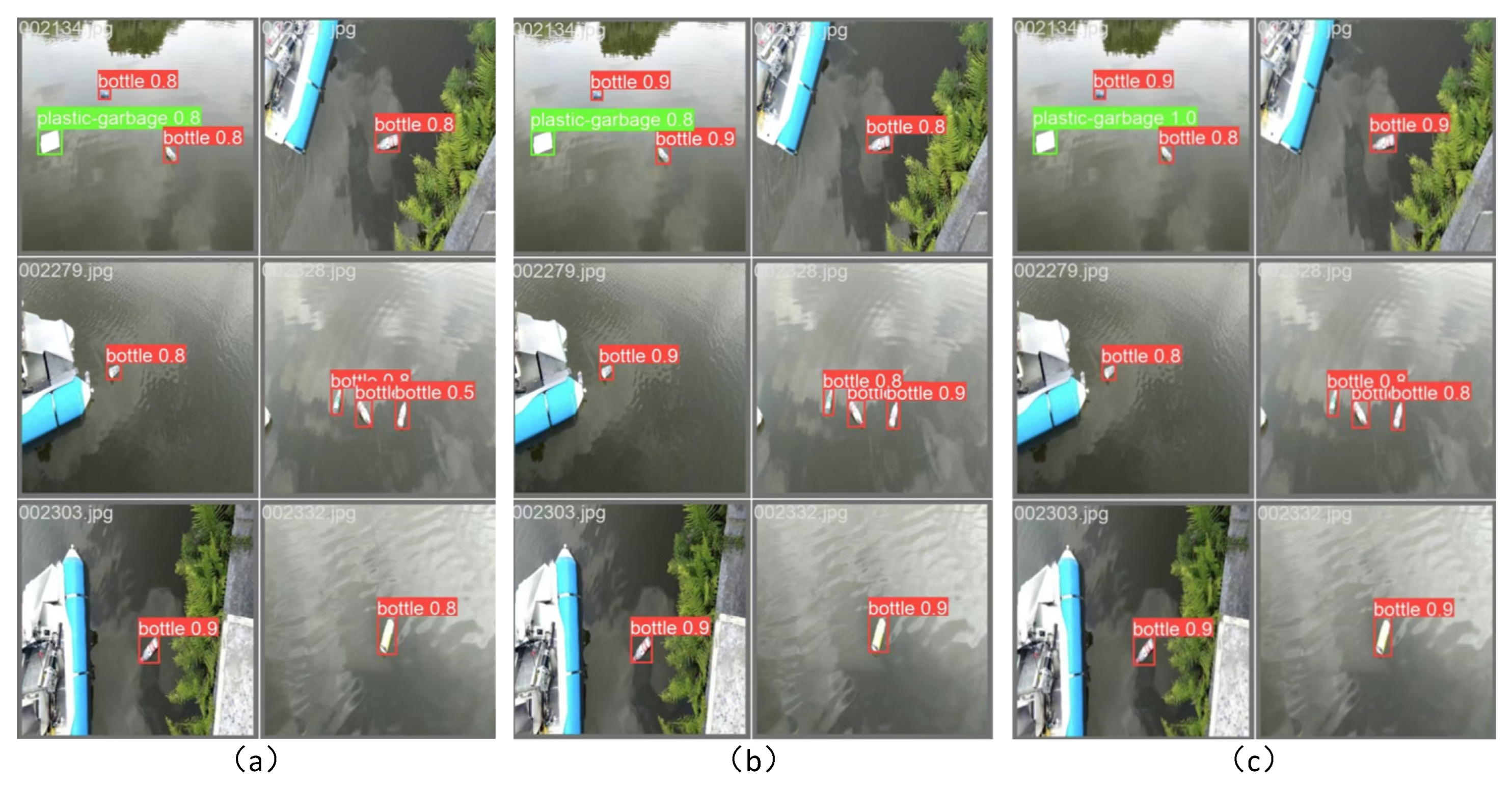

To further show the effect of Experiments A, B, and C, the models of Experiments A, B, and C were migrated to the Jetson Nano b01 for testing, as shown in Figure 10.
Figure 10.
(a) Experiment A; (b) Experiment B; (c) Experiment C.
4.4. Comparative Experiments
4.4.1. Comparison of Different Loss Functions
To assess PIoU2’s efficacy, it was contrasted against WIoU [29] and EIoU [30], along with Wise-PIoU2 and Wise-Inner-PIoU2 [31], which integrated concepts from wiseiou and inneriou, respectively. Findings delineated in Table 5 illustrate this evaluation. Post-application, when mAP calculations were conducted at 50% and 95% model performance levels, enhancements amounted to 2.1% and 1.5%, respectively.
Table 5.
Comparison of results of different loss functions.
4.4.2. Comparison of Different Pruning Methods
To determine the effectiveness of the slimming pruning method, it is compared with the lamp [32] and Group-norm [33] methods at a 50 percent pruning rate. It can be observed that the accuracy of the slimming, lamp, and Group-norm methods remain consistent, even when the pruning size is identical, whereas the accuracy of the other two methods declines, as shown in Table 6.
Table 6.
Comparison of results of different pruning methods.
4.4.3. Comparison of Whether Global Pruning Is Turned on or Not
The question of whether to eliminate key network layers is a significant challenge in the process of pruning. Global pruning, which does not differentiate between the importance of network layers based on the pruning method, has the advantage of significantly reducing the complexity of the network model. However, this approach may result in a trade-off between reduced complexity and accuracy. In the absence of global pruning, certain crucial layers may be bypassed during the pruning process. This approach offers the benefit of enhanced accuracy but comes at the cost of a larger network model. As illustrated in Table 7.
Table 7.
Comparison of results with and without global pruning turned on.
4.4.4. Comparison of Different Pruning Rates
As illustrated in Table 8, the impact of disparate pruning rates under a unified pruning methodology exhibits variability. The lightweight model was subjected to pruning at varying rates, after which the pruned model was fine-tuned to restore accuracy. It is found that with the increase in pruning rate, the number of parameters and the computational complexity of the model decrease. However, this does not necessarily result in a reduction in the model’s expressive capacity. In contrast, the accuracy of the 50% pruned model is enhanced by 0.4% in comparison to the baseline model. This indicates that the convolutional kernels within the same layer of the model may have acquired numerous analogous features, thereby resulting in parameter and computational redundancy.
Table 8.
Comparison of results for different pruning rates.

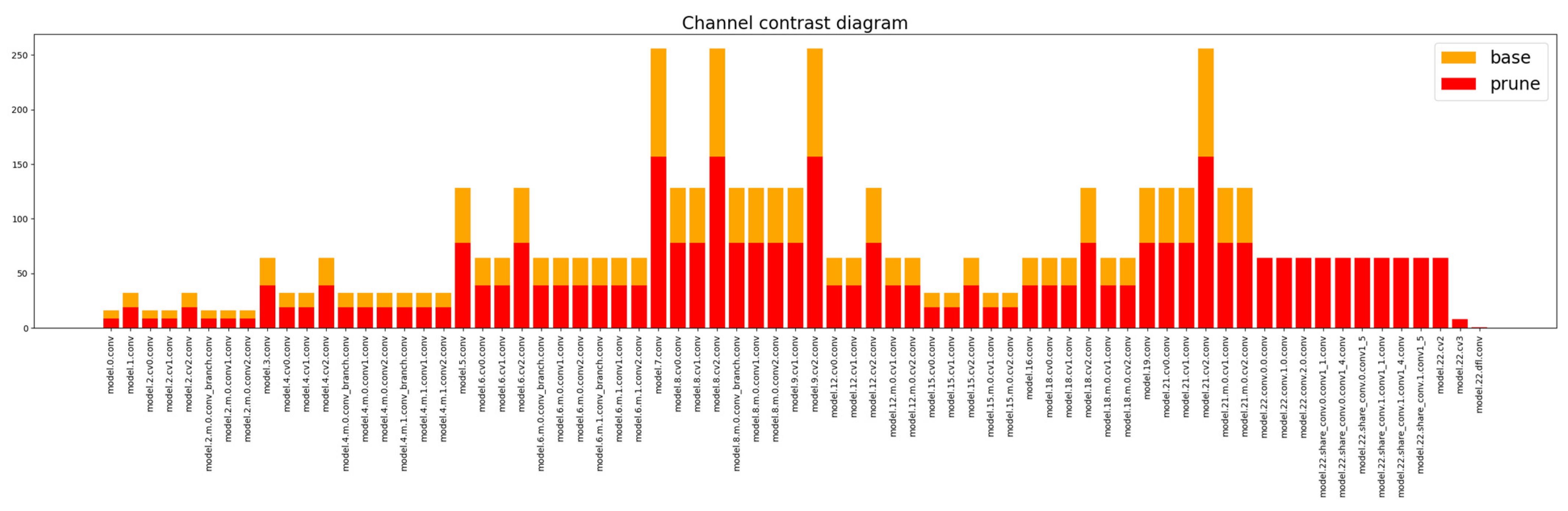

Furthermore, the number of channels in each layer of the network before and after pruning is analyzed. This is illustrated in Figure 11, which depicts the 7, 8, 9, and 21 output channels of the backbone network as the most heavily pruned. This suggests that the redundancy within the shallow network is relatively minimal, with parameter redundancy emerging as the network deepens. Additionally, it indicates that the exportation parameters identified will not significantly impact the overall performance of the network.
Figure 11.
Comparison of the number of channels before and after pruning.
4.4.5. Comparison of Different Models
To assess the algorithm’s superiority, this research directly benchmarks SS-YOLOv8s against counterparts from the YOLO lineage: YOLOv5n, YOLOv5s, YOLOv8n, and YOLOv8s. As demonstrated in Table 9, in terms of lightweighting, SS-YOLOv8s exhibits the lowest parameter, computation, and model memory, particularly exhibiting a memory consumption of only 12% and 10% of YOLOv5s and YOLOv8s, respectively. This represents a reduction of 12% and 10%, respectively, in comparison to YOLOv5s and YOLOv8s. In terms of accuracy, SS-YOLOv8n showed the highest detection accuracy and the lowest number of parameters compared with YOLOv8-ghost [34] of the same scale.
Table 9.
Comparative tests of different models.
Considering processing speed, the FPS of SS-YOLOv8n hits 128.9, suggesting an image detection timeframe of roughly 8.7 milliseconds. It represents an improvement of 13 frames/s compared with the original model and 10 frames/s compared with YOLOv8-ghost. This evidence supports the assertion that the pruning method proposed in this paper is effective in achieving the objectives of model compression and inference acceleration.
4.5. Visual Analytics
To analyze the enhancement effect of the overall improved model in comparison with the pre-improved model, Grad-CAM [35] was employed to generate heat maps for the feature layers with a network layer index of 10 in the pre- and post-improved models. The heat map is used to represent the degree of confidence that the model has about the existence of the object. The values at each location represent the probability of detecting an object at that location, and the heat map is used to represent the model’s confidence in the presence of the object. The value at each location represents the probability of detecting an object at that location. The model’s focus on a particular region can be visually assessed by observing changes in the region’s shadow brightness, as shown in Figure 12.
Figure 12.
(a) SS-YOLOv8n heat map. (b) YOLOv8n heat map. (c) YOLOv8-ghost heat map. (d) YOLOv8-mobilentv4 heat map.
The improved model produces a more concentrated region of brightness. For example, in the figure, SS-YOLOv8n not only accurately distinguishes the foreground and background, but it also shows that the model pays more attention to the top half of the target. In contrast, the original model correctly detects the target, but it erroneously identifies part of the background region as the target’s feature information. In YOLOv8-mobilentv4, the recognition of the target and the background is not accurate, and some edges are not recognized. YOLOv8 ghost will mainly detect the central location of the target, which is not very friendly to garbage floating on the surface of the water with reflections. YOLOv8-mobilentv4 is a network that replaces the backbone of YOLOv8n with the backbone of mobilentv4, which is too thin, so the target positioning is much worse than the other three groups of models.
According to the different thermal maps of the same images of four groups of different models, SS-YOLOv8n has the best performance identifying the target edge, which improves the detection ability of the model.
5. Conclusions
In this paper, we make improvements for YOLOv8 when deployed at the edge end where the model is too large, the processing speed is too slow, and the real-time effect is not good. To this end, this paper proposes a fast and lightweight SS-YOLOv8 algorithm. First, the WS-C2f module with Sobel_conv was used to replace the C2f module, with the objective of enhancement of backbone feature extraction capabilities. Secondly, in order to ensure the model is lightweight, a detection head SCDH utilizing shared convolutional composition is proposed. Thirdly, the original CIoU loss function is replaced by PIoU2, which improves the localization accuracy of small garbage on the surface of the water while accelerating the convergence speed of the network. Fourth, a slimming pruning method is employed to significantly reduce the number of redundant parameters, thereby reducing the model size. The experiments demonstrate that SS-YOLOv8 exhibits notable enhancements in model size, computational efficiency, and inference speed. The model’s mAP50 and mAP50–95 are 79.9% and 51%, respectively, while its memory occupation is reduced by 88.3%. Additionally, the detection speed has been accelerated by 14 frames/s, which considerably simplifies its operation on edge devices while maintaining a minimal degree of accuracy. Subsequent work will concentrate on the implementation of the model on edge devices, with the objective of enhancing the model’s detection capabilities in complex airspace and special scenarios.
Surface litter has a more complex background and is susceptible to weather. The semi-floating trash and the refraction of the water surface can affect the computer’s vision. This is the limitation of this model. In the future, high-resolution drones, satellite imagery, and underwater sensors will be capable of monitoring and identifying the type and location of surface debris in real time. The model presented in this paper, when combined with automated garbage sorting and tracking, can facilitate improvements in the accuracy and efficiency of cleanup work. The results of this research have the potential to enhance the quality of life for citizens by improving the living environment.
Author Contributions
Conceptualization, Z.Q. (Zheng Qin) and Z.F.; methodology, Z.F.; formal analysis, Z.Q. (Zheng Qin) and Z.F.; investigation, Z.Q. (Zheng Qin), Z.Q. (Zeguo Qiu), and W.L.; resources, Z.Q. (Zheng Qin) and Z.F.; data curation, Z.Q. (Zheng Qin); writing—original draft preparation, Z.F.; writing—review and editing, Z.Q. (Zheng Qin) and Z.F.; visualization, Z.F.; supervision, Z.Q. (Zeguo Qiu) and Z.F.; project administration, M.C.; funding acquisition, M.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Heilongjiang Postdoctoral Fund to pursue scientific research (grant number LBH-Z23025), Heilongjiang Province Colleges and Universities Basic Scientific Research Business Expenses Project (grant number 2023-KYYWF-1052), Harbin University of Commerce Industrialization Project (grant number 22CZ04), and Collaborative Innovation Achievement Program of Double First-class Disciplines in Heilongjiang Province (grant number LJGXCG2022-085).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The surface litter dataset for this paper can be accessed with the URL ‘https://pan.baidu.com/s/1rkhxL9LsOrdiWwotMfFXyw?pwd=u0b0’ (accessed on 8 October 2024). Additional original contributions presented in this study are included in this article, and further inquiries can be directed to the corresponding author.
Conflicts of Interest
The authors declare no conflicts of interest.
