Novel Method for Monitoring Mining Subsidence Featuring Co-Registration of UAV LiDAR Data and Photogrammetry

,
,
,
and
1
College of Mining Engineering, Guizhou University of Engineering Science, Bijie 551700, China
2
School of Geology Engineering and Geomatics, Chang’an University, Xi’an 710054, China
3
College of Mining Engineering, Taiyuan University of Technology, Taiyuan 030024, China
4
Inspection and Testing Center of Shanxi Province (Institute of Standard Metrology of Shanxi Province), Taiyuan 030012, China

Abstract

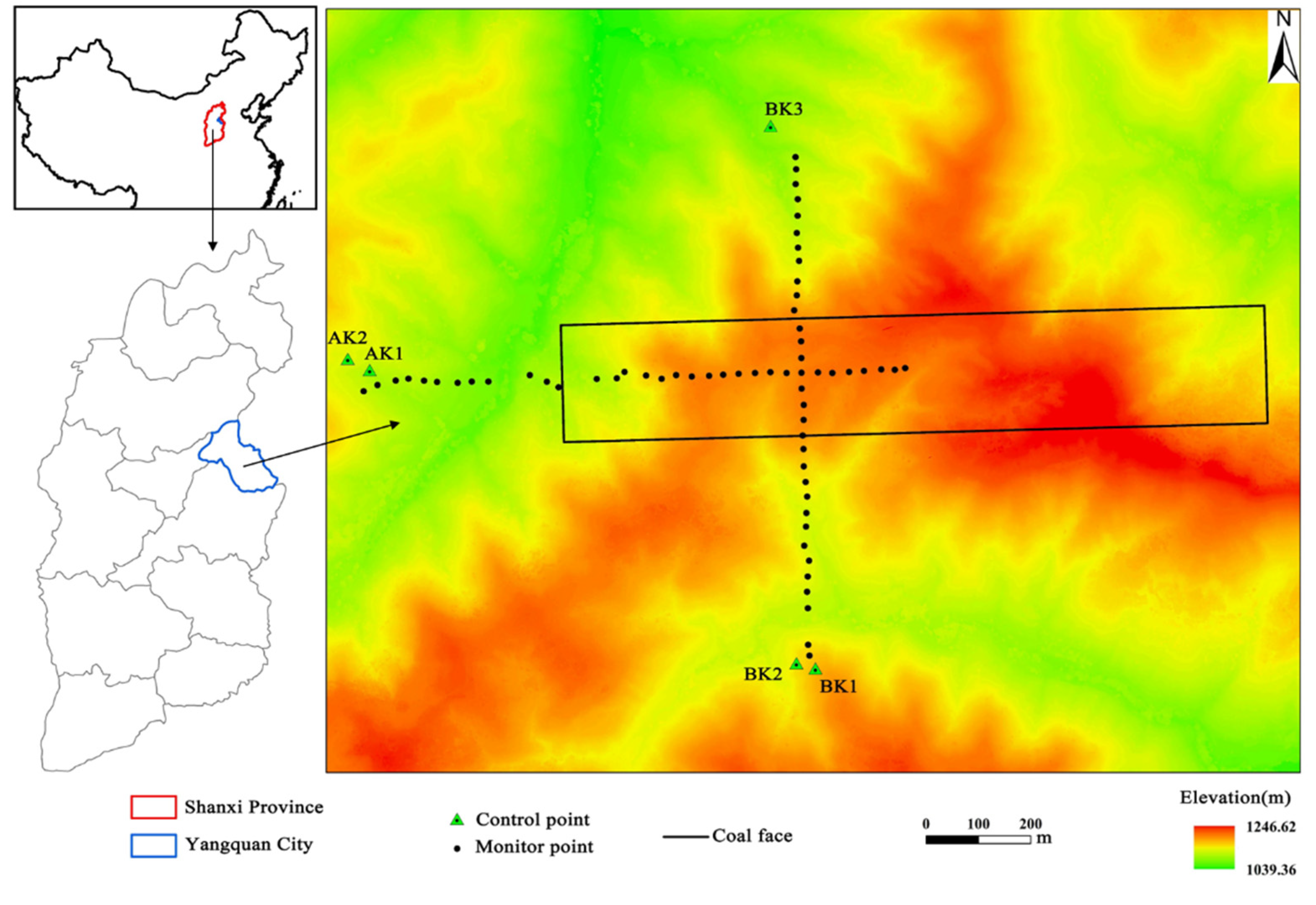

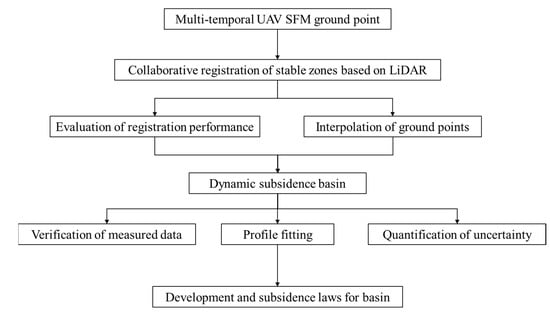

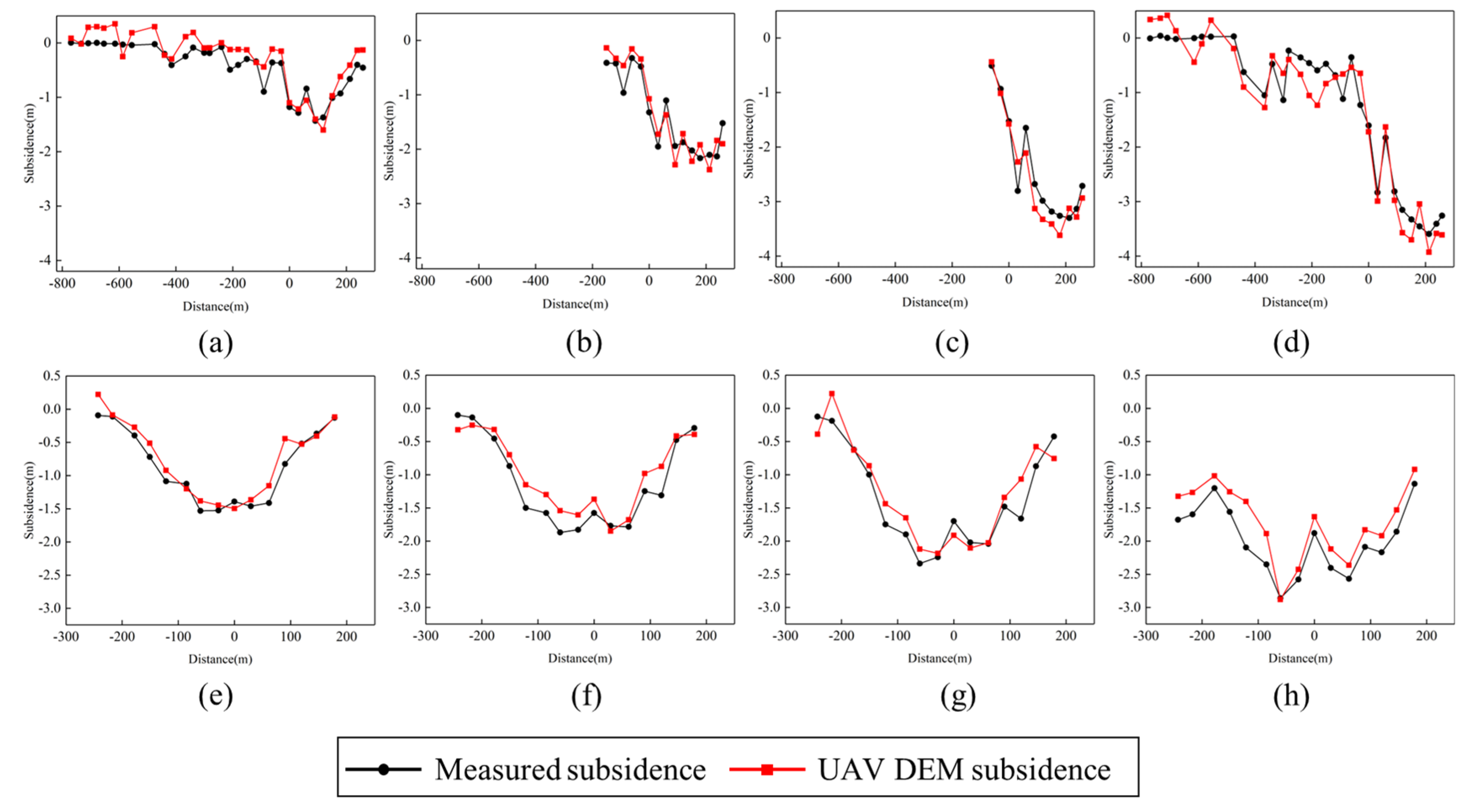

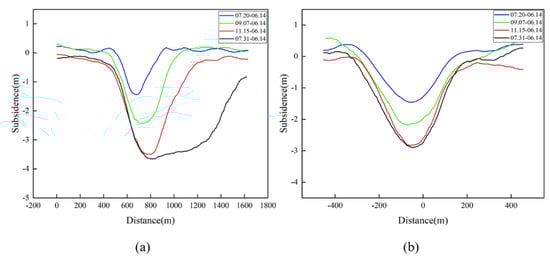

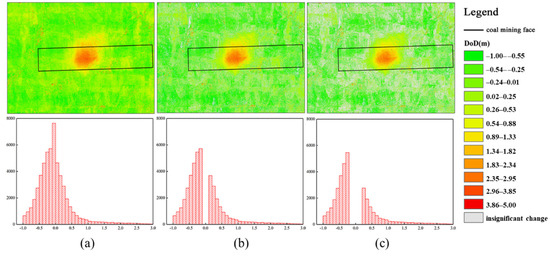

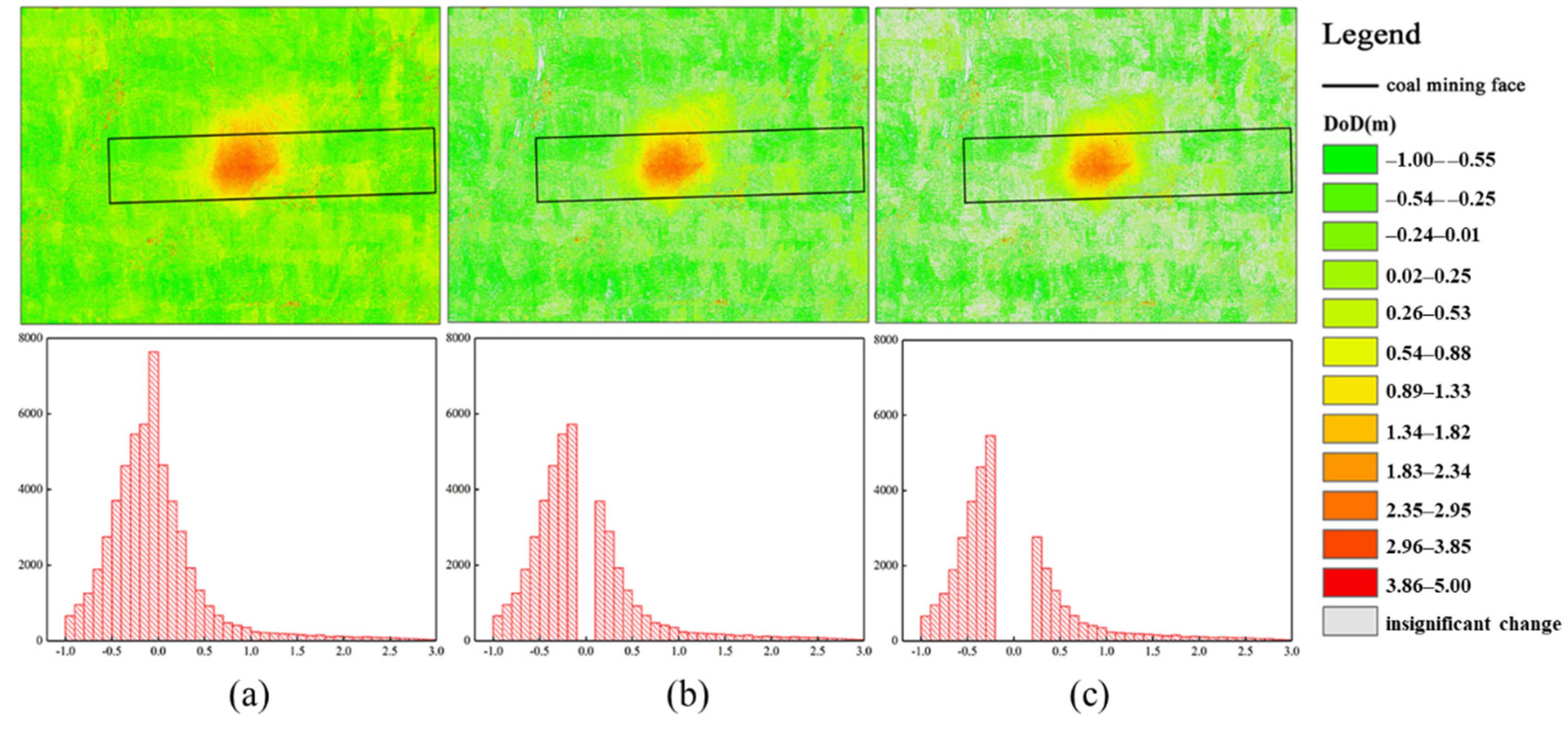

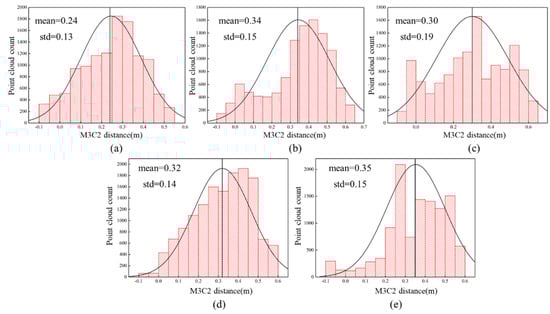

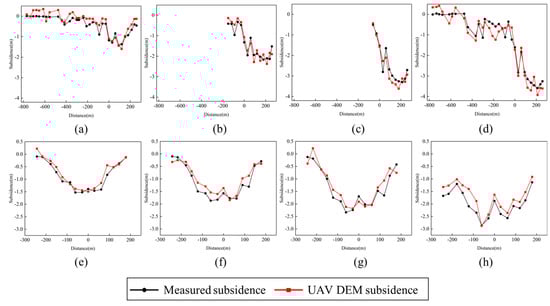

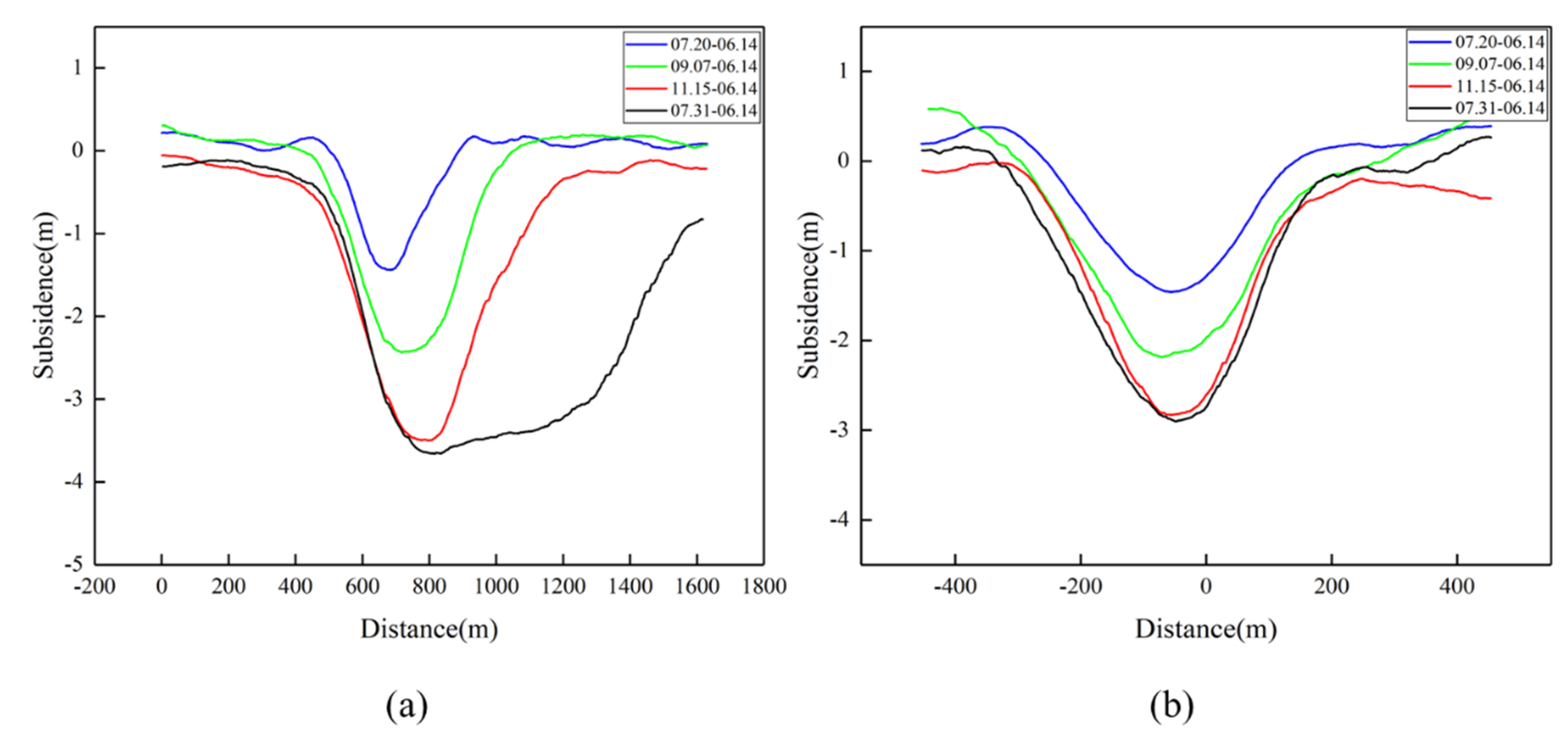

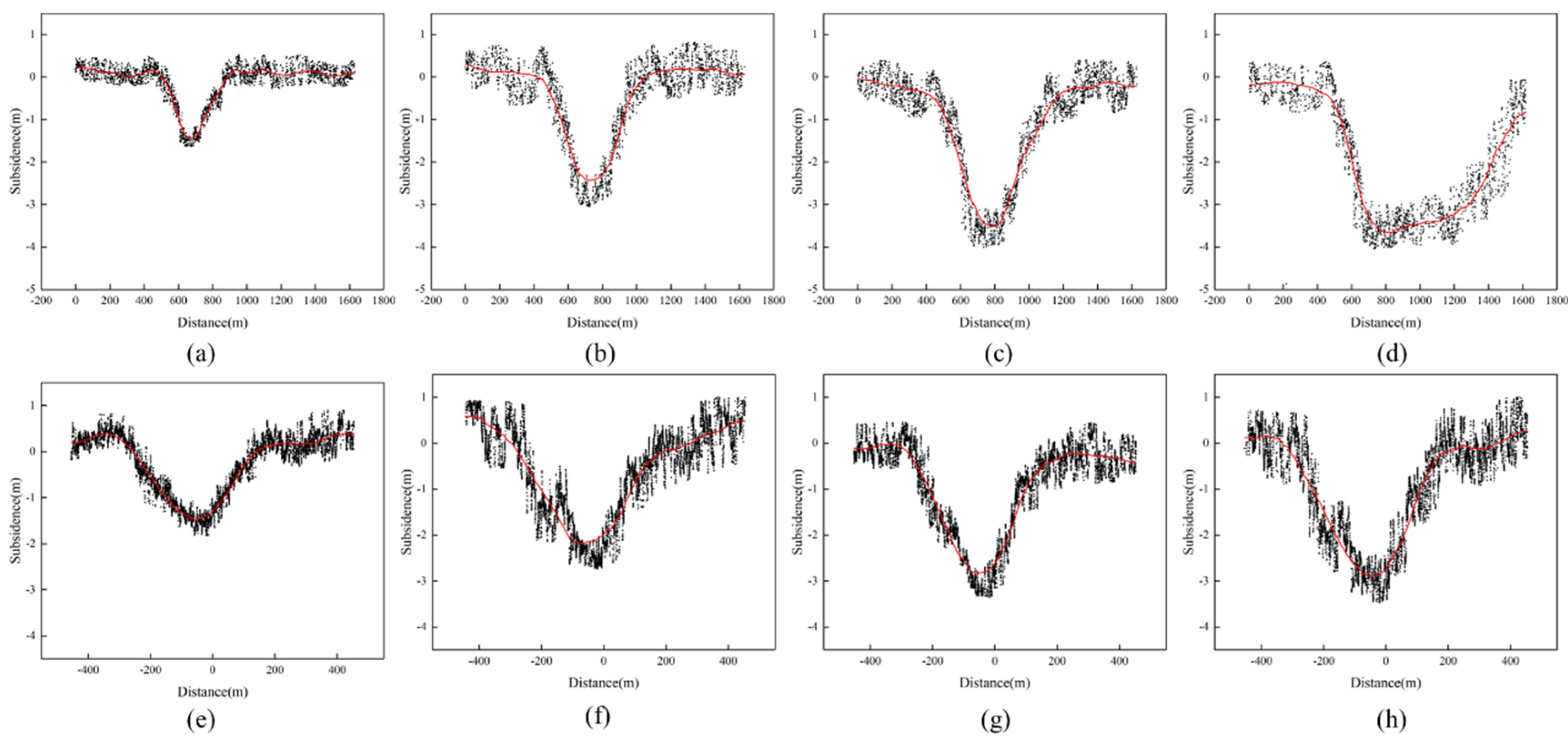

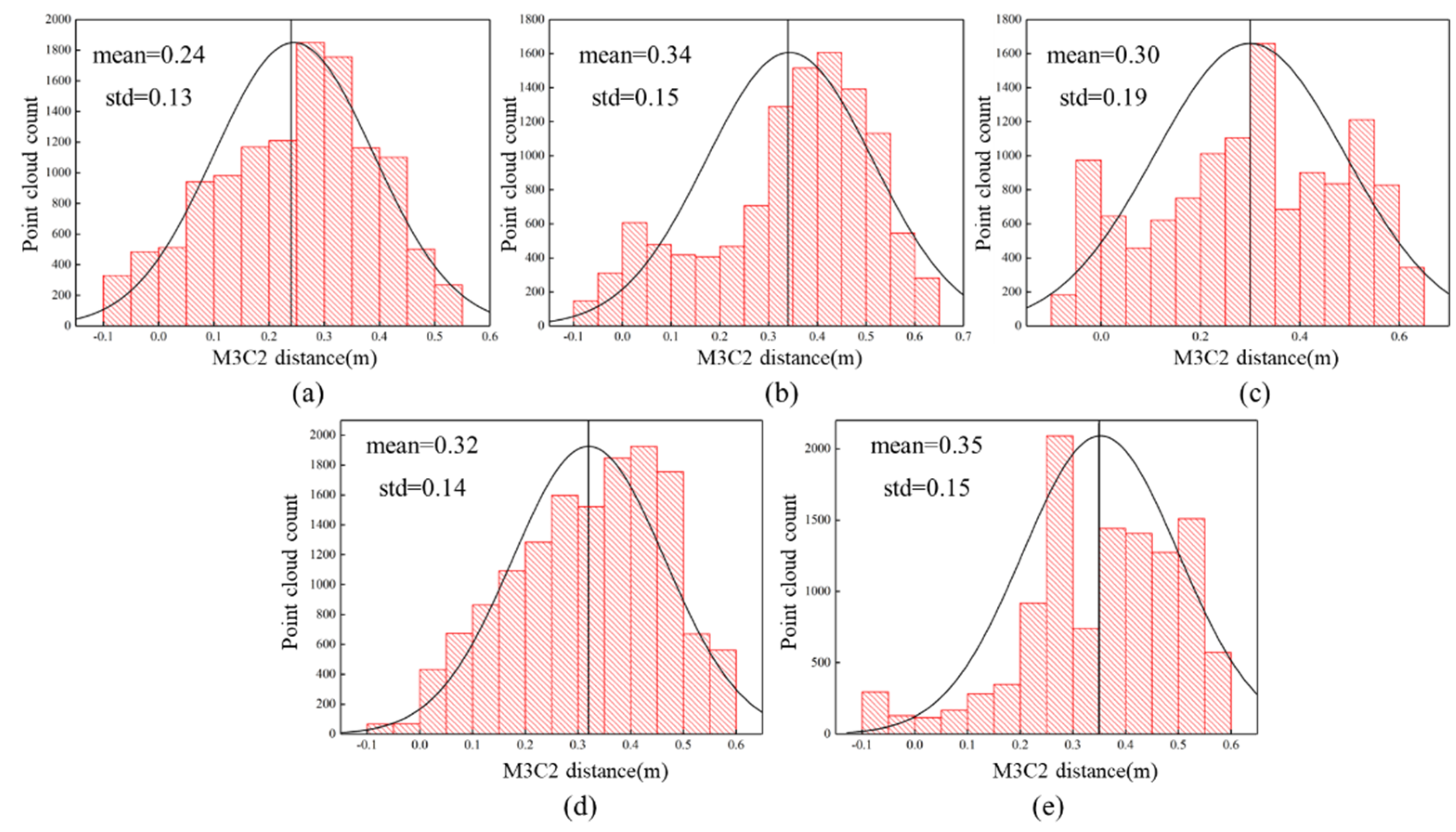

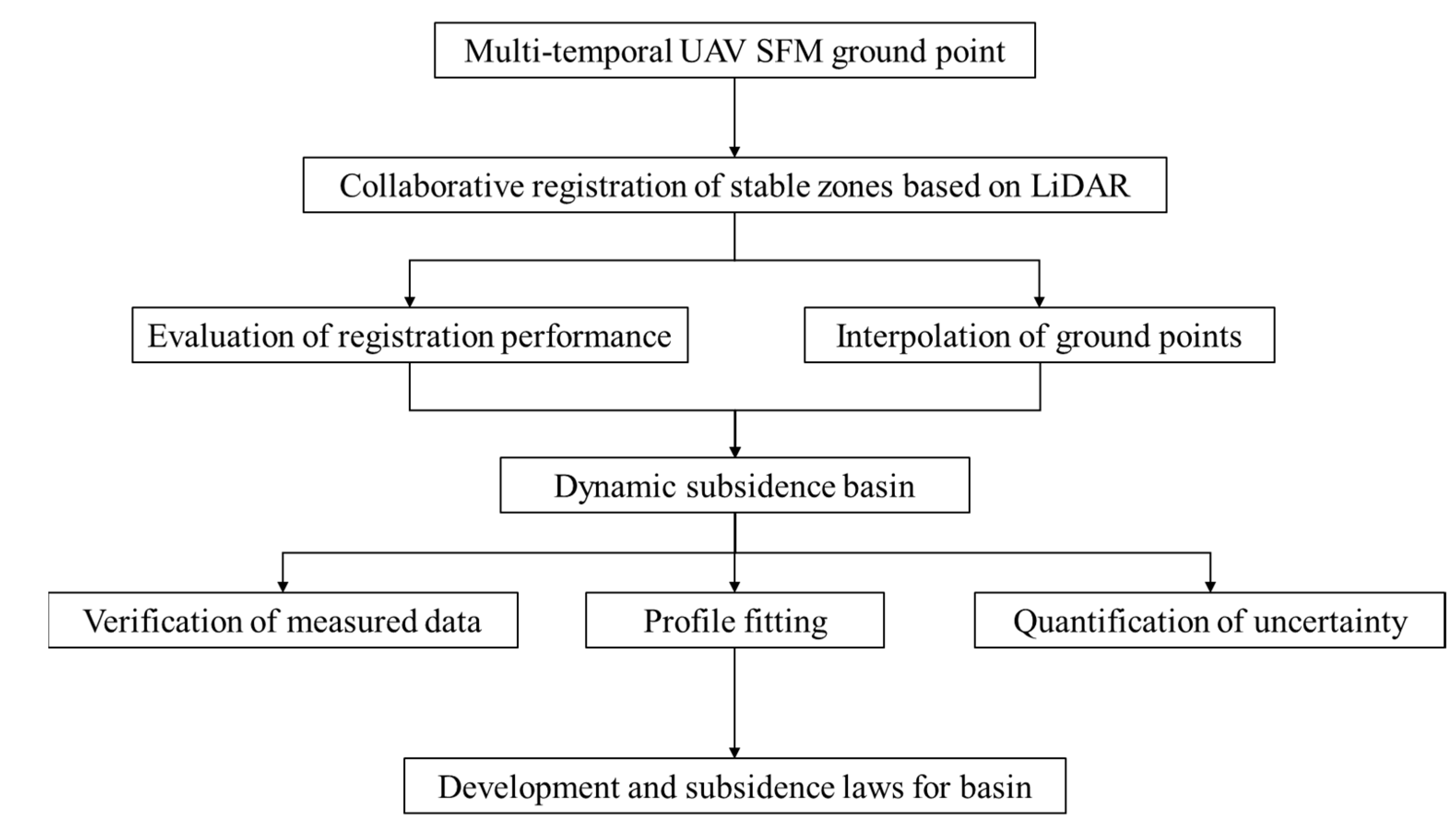

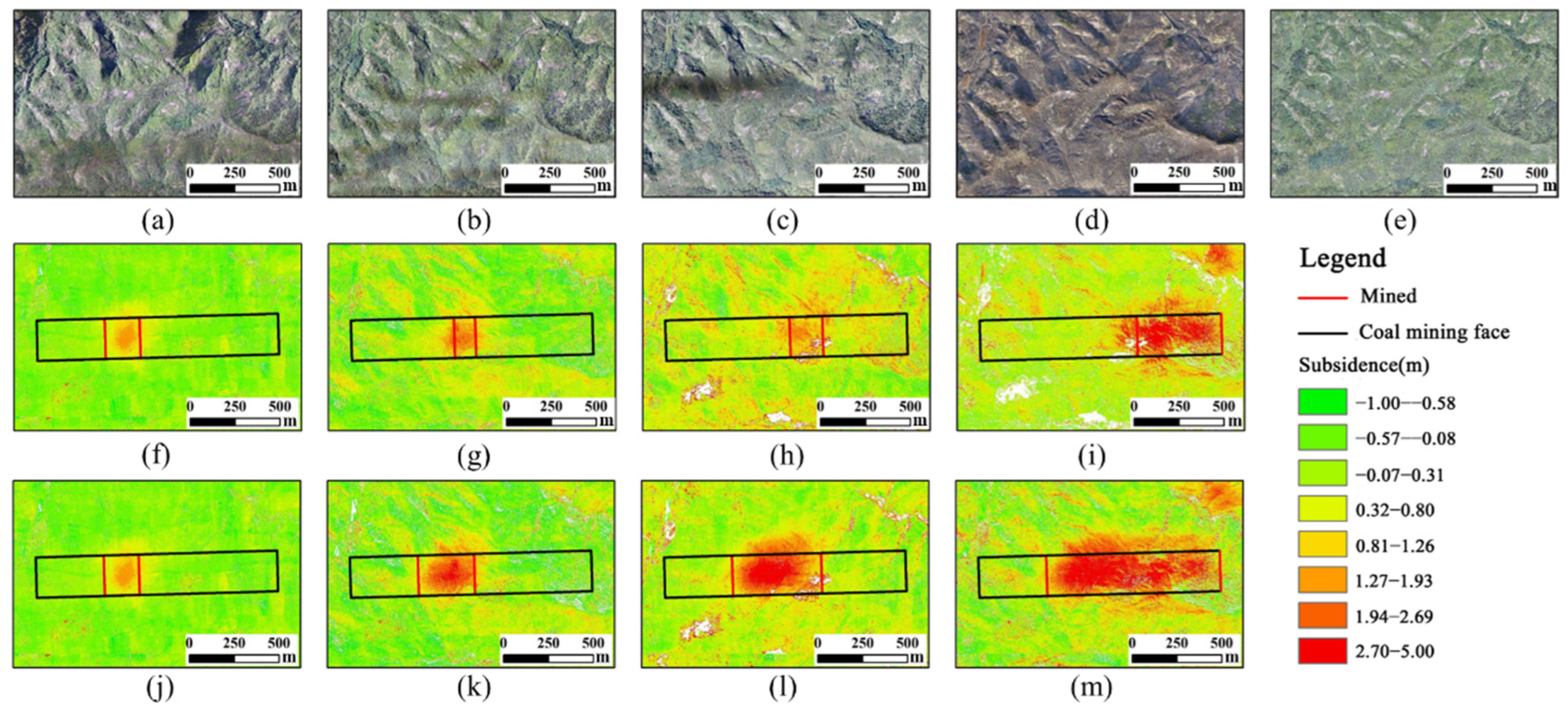

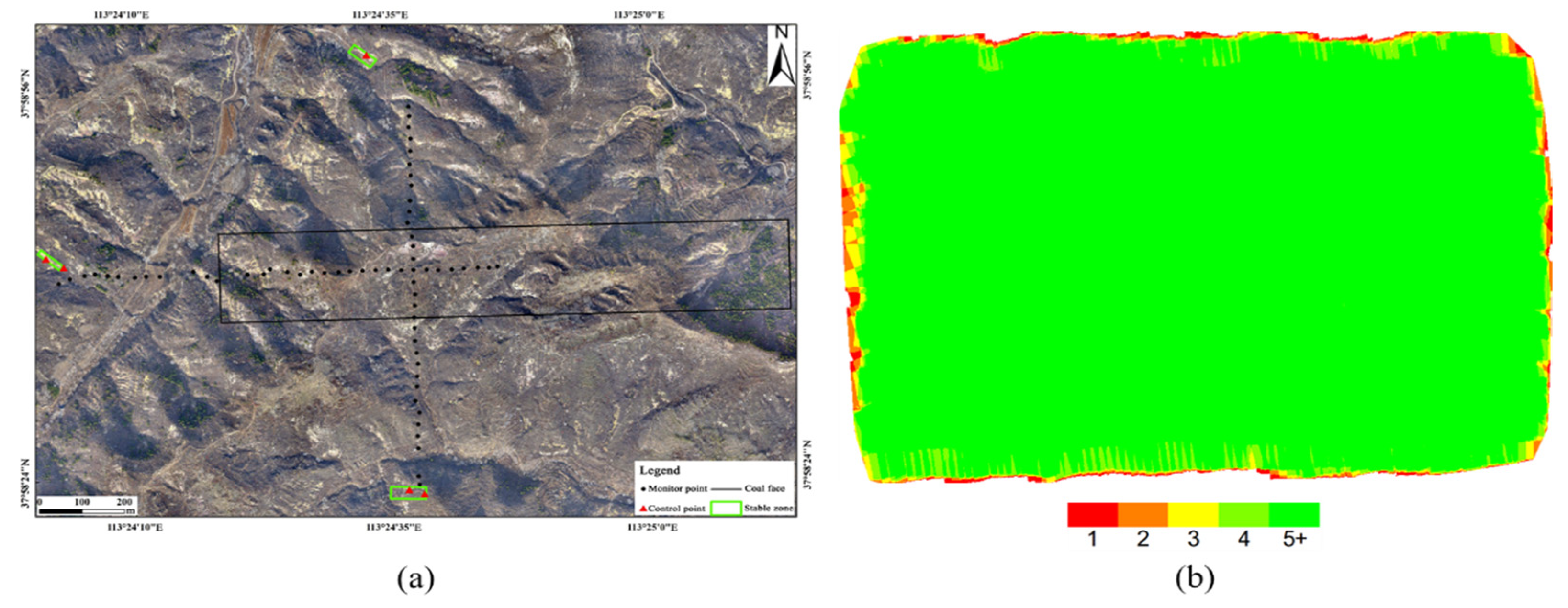

Addressing the problem that traditional methods cannot reliably monitor surface subsidence in coal mining, a novel method has been developed for monitoring subsidence in mining areas using time series unmanned aerial vehicle (UAV) photogrammetry in combination with LiDAR. A dynamic subsidence basin based on the differential digital elevation model (DEM) was constructed and accuracy of the proposed method was verified, with the uncertainty of the DEM of difference (DoD) being quantified via co-registration of a dense matching point cloud of the time series UAV data. The root mean square error calculated for the monitoring points on the subsidence DEM was typically between 0.2 m and 0.3 m with a minimum of 0.17 m. The relative error between the maximum subsidence value of the extracted profile line on the main section after fitting and the measured maximum subsidence value was not more than 20%, and the minimum value was 0.7%. The accuracy of the UAV based method was at the decimeter level, and high accuracy in monitoring the maximum subsidence value was attained, confirming that an innovative strategy for monitoring mining subsidence was realized.
