Abstract

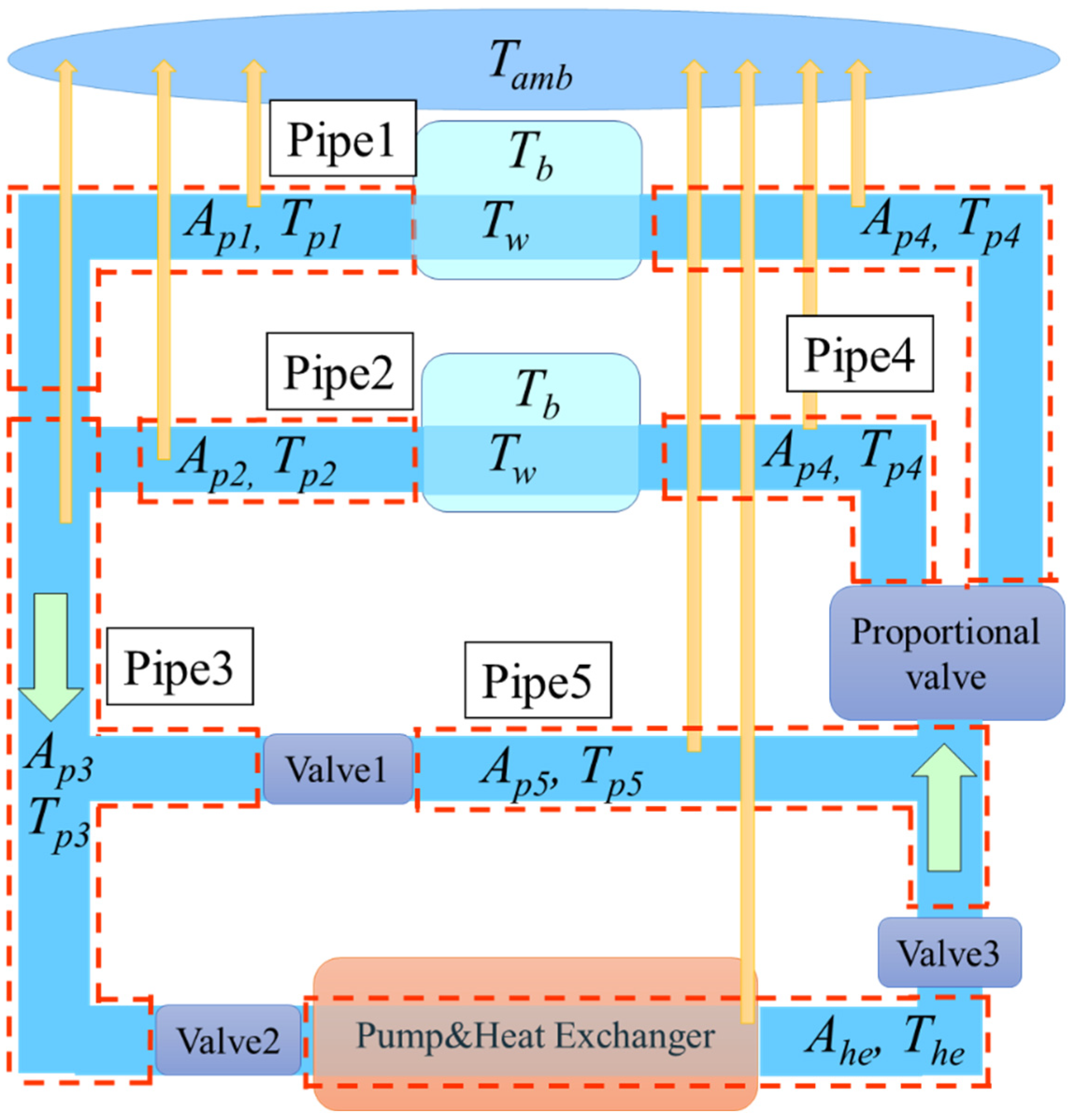

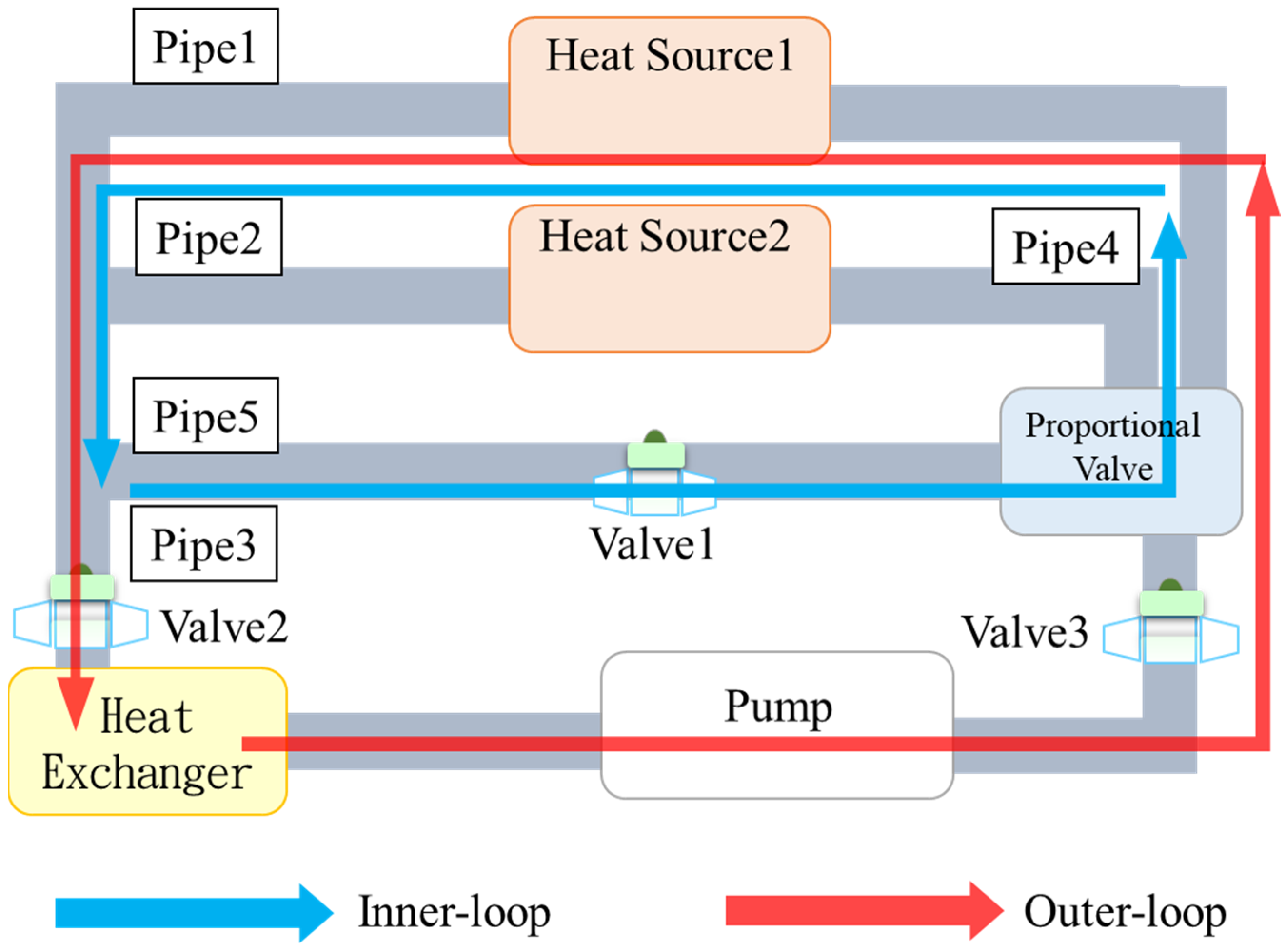

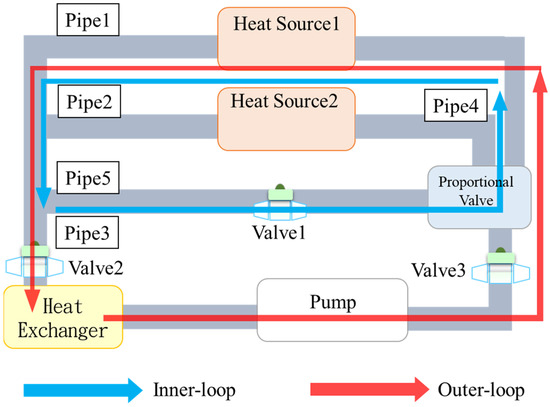

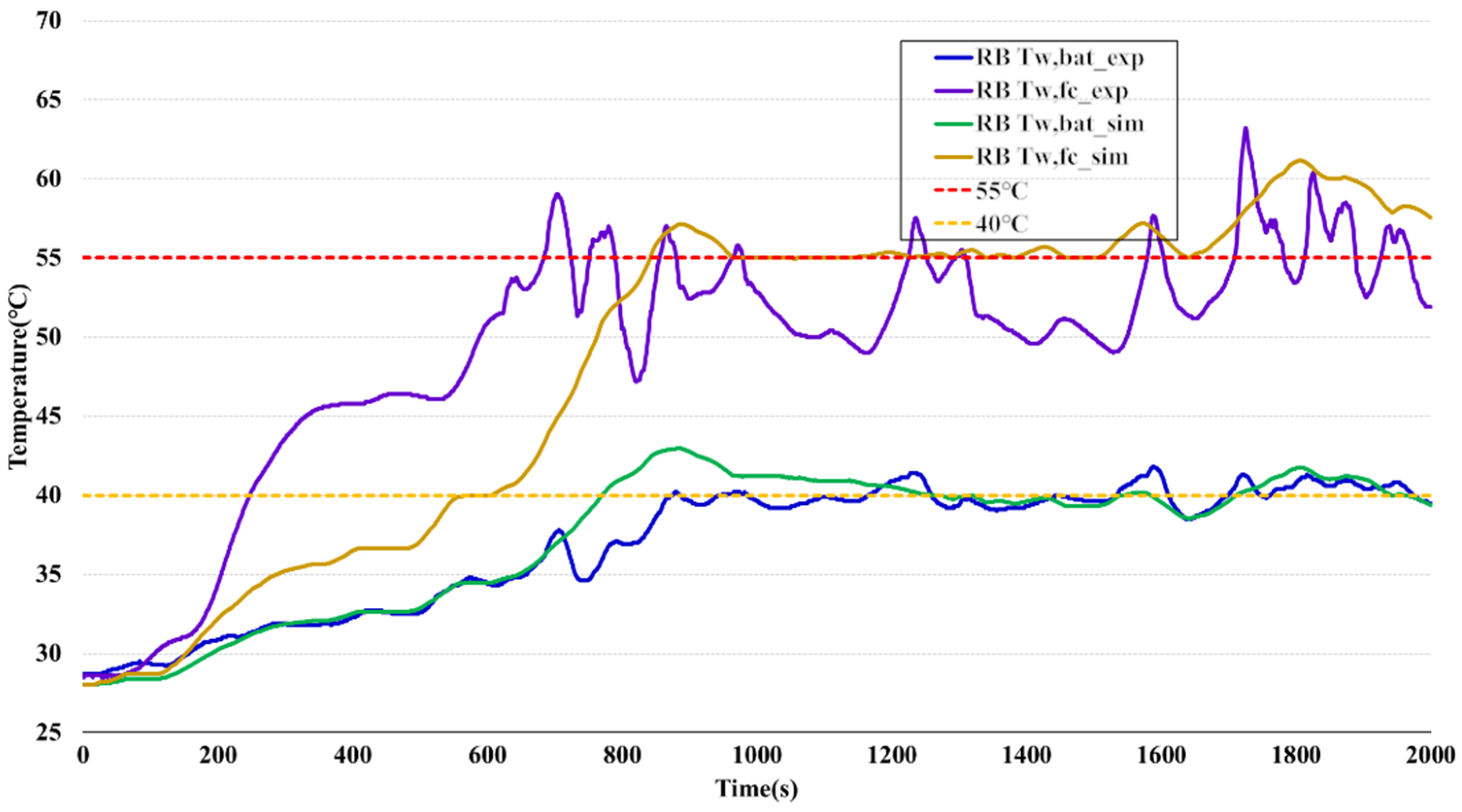

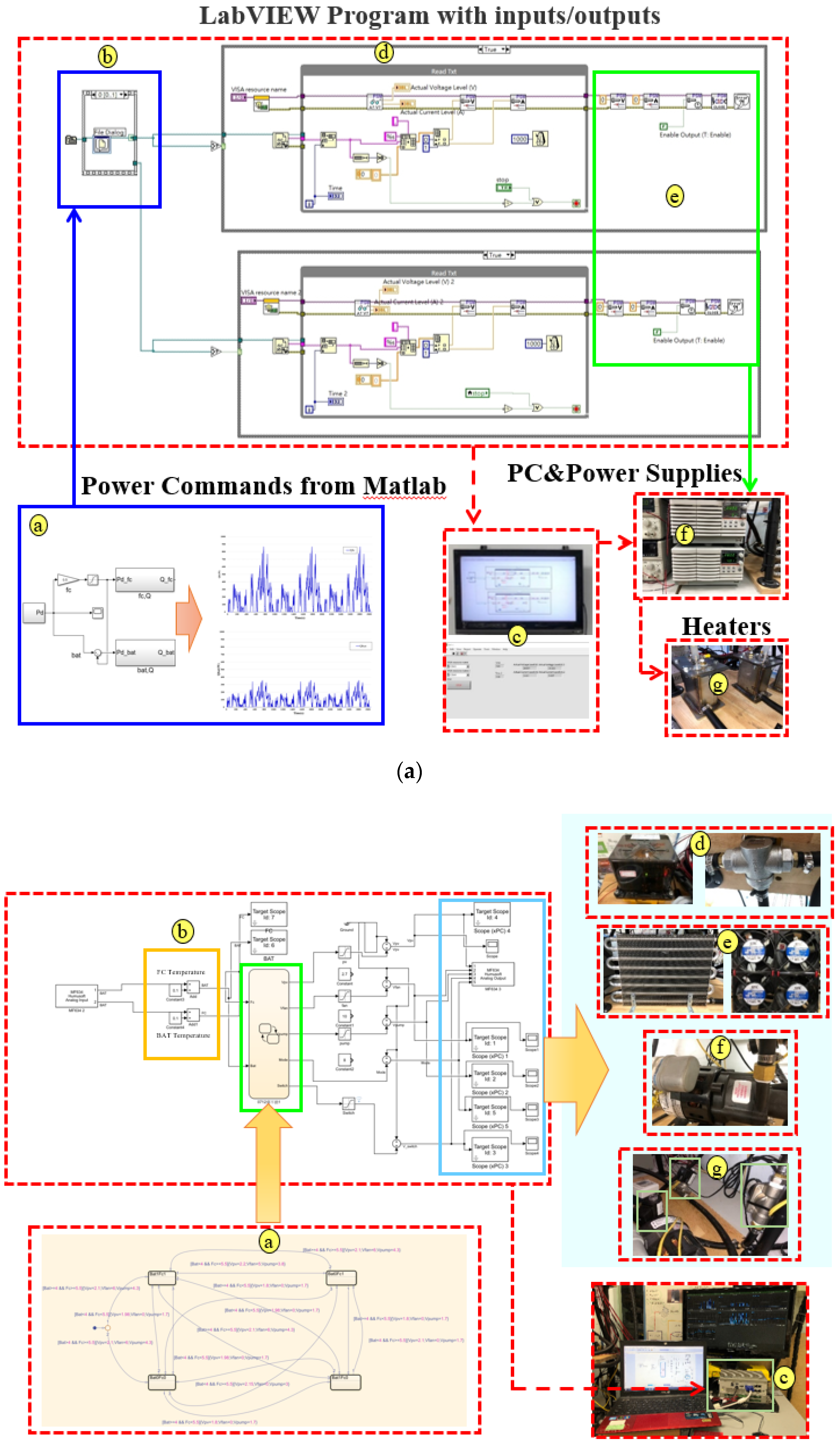

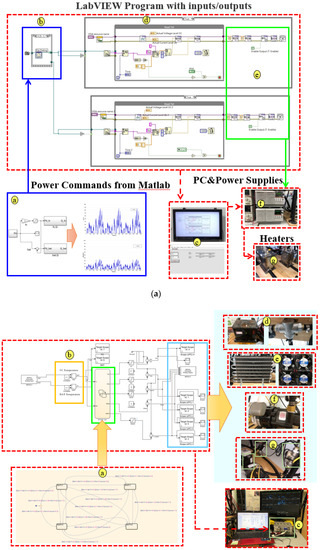

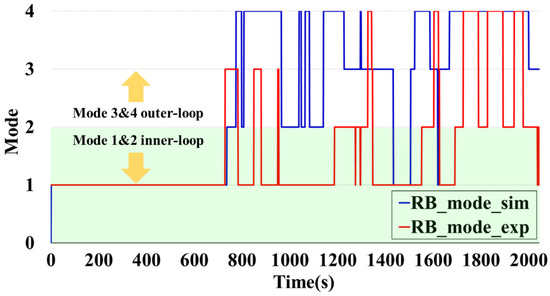

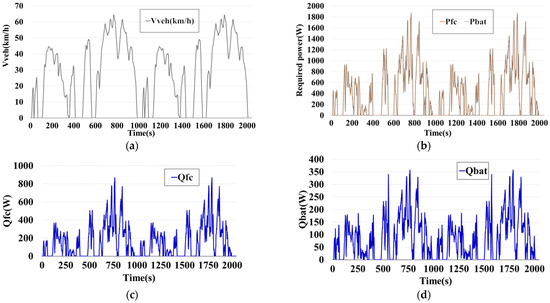

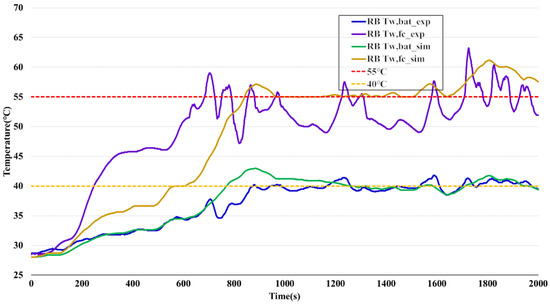

The performance and efficiency of green energy sources in electric vehicles (EVs) are significantly affected by operation temperatures. To maintain the optimal temperatures of a hybrid energy system (HES), an innovative hybrid thermal management system (IHTMS) was designed. The IHTMS contains a coolant pump, a heat exchanger, a proportional valve for hybrid flow rates, five coolant pipes, and three electromagnetic valves to form two mode-switch coolant loops. A Matlab/Simulink-based simulator of the IHTMS was constructed by formulating a set of first-ordered dynamics of temperatures of coolant pipes and energy bodies using the theories of Newton’s law of cooling and the lumped-parameter technique. Parameters were majorly derived by measured performance maps and data from the experimental platform of the IHTMS. To properly manage the optimal temperatures, four control modes were designed for inner-loop form and outer-loop form. For the experimental platform to verify the simulator, two power supplies generated the waste heat of dual energy sources calculated by the driving cycle and vehicle dynamics. Simulation results show that the temperatures were controlled at their optimal ranges by proper mode/loop switch. With the inner-loop mechanism, the rise time of optimal temperature decreased 27.4%. The average simulation-experiment temperature error of the battery was
