Numerical Investigation of Plasma-Based Active Flow Control on Heaving-Pitching NACA0015 Airfoil via Large Eddy Simulation

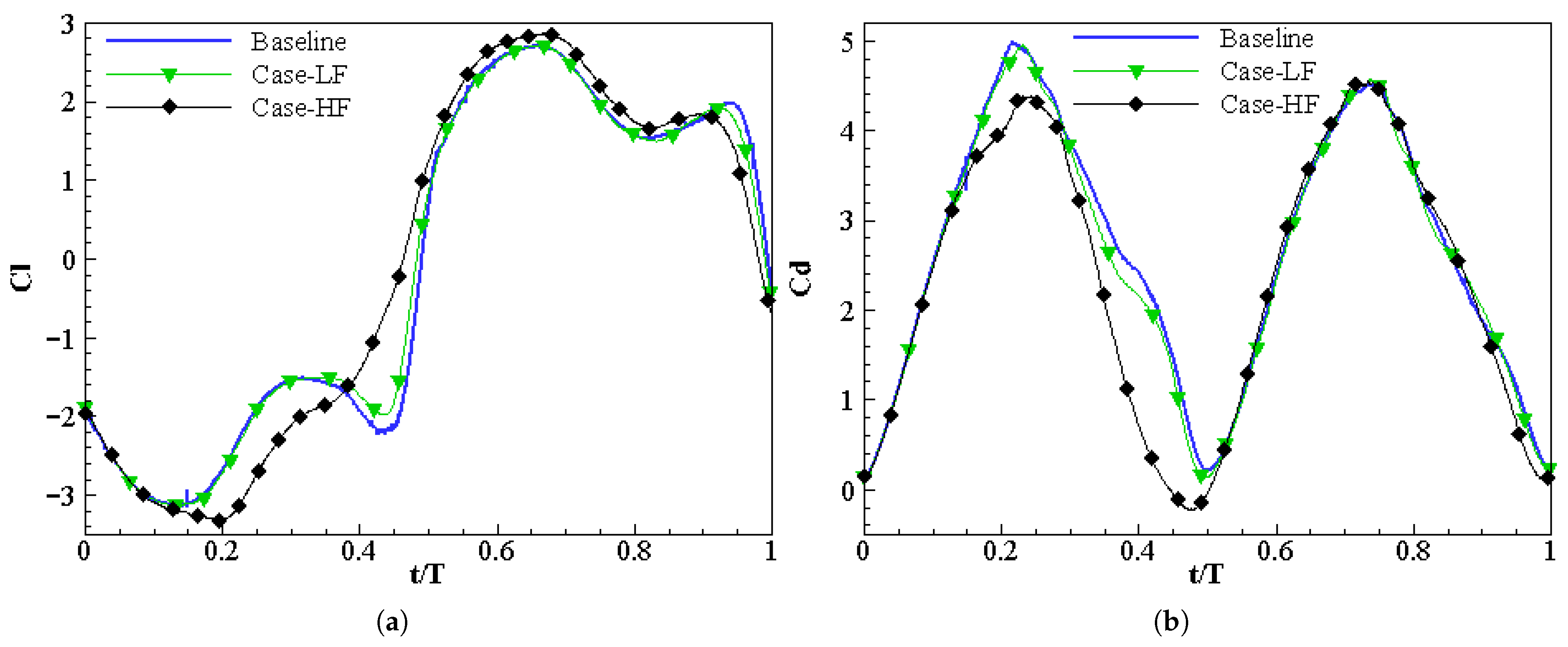

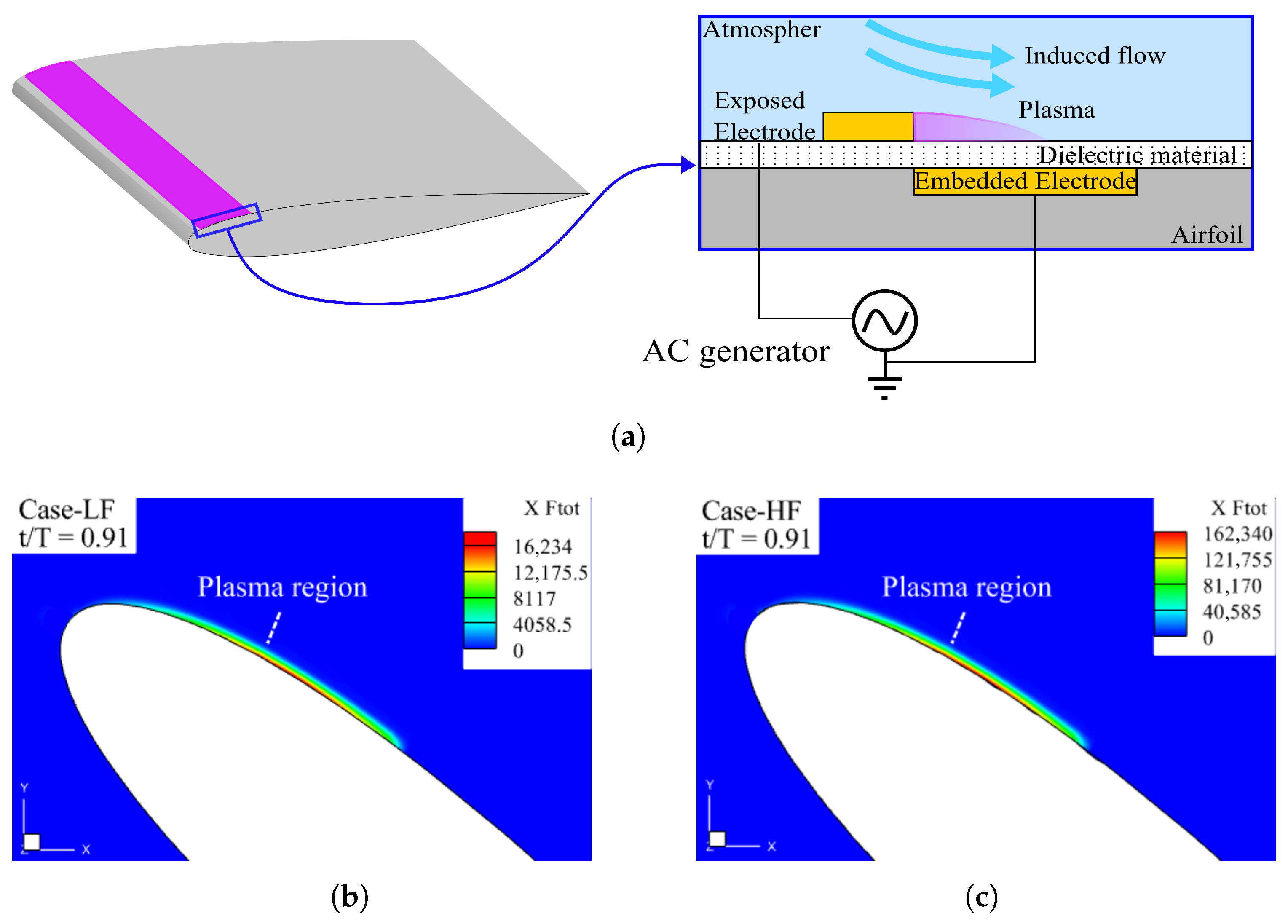

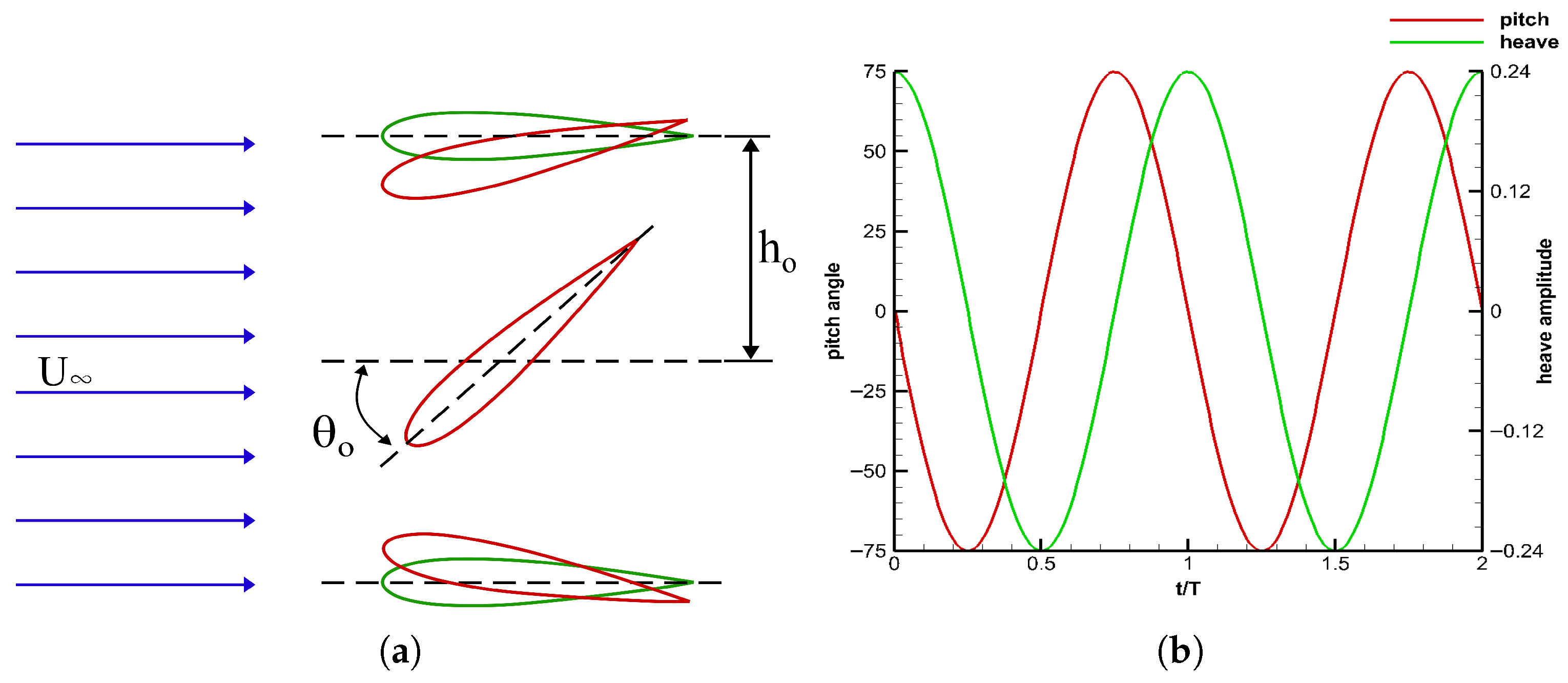

This study implements Active Flow Control (AFC) in the form of a dielectric barrier discharge (DBD) plasma actuator to enhance aerodynamic performance during heave–pitch motions on a three-dimensional NACA 0015 airfoil at a Reynolds number of $Re=5\times {10}^5$ using the Large Eddy Simulation (LES) turbulence method. The simulation at a reduced frequency of 0.14 incorporates two-degrees-of-freedom wing motion, allowing for simultaneous pitching and heaving motions with amplitudes of ${75}^{\circ }$ and a chord length ($1c$), respectively. We evaluate the impact of localized momentum injection via a phenomenological plasma actuator model across two force intensities. A low-force configuration (Case-LF) provides marginal control, whereas a high-force configuration (Case-HF) provides greater control than the baseline without plasma. After applying DBD plasma to the airfoil, flow-field analysis revealed that the plasma treatment significantly improved the lift coefficient. It showed that the lower plasma cases achieved a 1.46% improvement only on the $C{l}_{rms}$, a 14.57% reduction in the averaged $Cd$, and a 19.11% enhancement on the $C{l}_{rms}$-to-$C{d}_{avg}$ ratio. Furthermore, the cases with higher plasma forces resulted in significant improvements when compared to the Baseline and Case-LF; it showed a 11.65% improvement in $C{l}_{rms}$, 19.87% in $C{d}_{avg}$, and 39.8% in $C{l}_{rms}$-to-$C{d}_{avg}$ ratio when compared to the baseline. These results validate the effectiveness of plasma actuators in enhancing wing aerodynamic performance during such complex motions.
