Web Crippling Behaviour of 7075-T6 and AA-6086 High-Strength Aluminium Alloy Channel Sections Under End-Two-Flange and Interior-Two-Flange Loading

,
and
Department of Fundamentals, Hebei University of Water Resources and Electric Engineering, Cangzhou 061001, China
*
Author to whom correspondence should be addressed.

Abstract

Two types of high-strength aluminium alloy (HA) namely AA-6086, and 7075-T6 have been developed and extensively used in recent years. These high-strength aluminium alloys offer advantages such as lower prices and higher yield strength than traditional ones. The webs of aluminium channel members under concentrated loads are susceptible to web buckling failure, which restricts their applications. However, no research work has been reported that evaluated the web buckling performance of high-strength aluminium alloy channel sections, and the material characteristics of these high-strength aluminium alloys differ significantly from those of conventional aluminium alloys. This work addresses this research gap through a detailed numerical investigation, focusing on AA-6086 and 7075-T6 alloys under both end-two-flange (ETF) and interior-two-flange (ITF) loading conditions. For comparison, specimens with web openings were also analysed under the ETF loading case. A parametric investigation consisting of 3506 models was performed using the finite element (FE) models previously developed for traditional aluminium alloys. Specifically, 1024 models represented imperforated specimens under ITF loading, 1024 under ETF loading, and 1458 perforated specimens under ETF loading. A wide range of high-strength aluminium alloy sections covering varying web slenderness ratios, internal corner radii, bearing lengths, and aluminium alloy grades were considered in this investigation. It was shown that the latest design recommendations in the Australian and New Zealand Standards (AS/NZ S4600) and (AS/NZS 1664.1) cannot accurately predict the web buckling strength of such channel sections. Finally, new design equations were proposed for AA-6086 and 7075-T6 high-strength aluminium alloy channel sections under both end-two-flange (ETF) and interior-two-flange (ITF) loading conditions, including cases with web openings.

1. Introduction

Aluminum alloys are being increasingly used as building materials in structural engineering applications because of their numerous benefits, including being lightweight, highly resistant to deterioration, and easy to manufacture—as illustrated in Figure 1. In recent times, two types of channel sections fabricated by extrusion using high-strength aluminum alloys (HAs) AA-6086 and 7075-T6 have been extensively used due to their lower cost and higher yield strength [1,2]. However, the webs of aluminum channel members are prone to web buckling when subjected to concentrated loading, as aluminum alloys have a lower elastic modulus than steel. The Australian/New Zealand Standard (AS/NZS 4600) classifies web crippling into four distinct loading cases: End-Two-Flange (ETF), End-One-Flange (EOF), Interior-Two-Flange (ITF), and Interior-One-Flange (IOF). Therefore, the impact of web buckling on the performance of HA channel sections should be evaluated carefully.

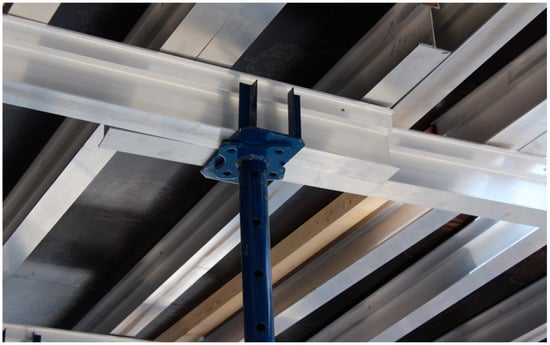

Figure 1. Aluminum alloy sections used as load-bearing members in engineering applications.
The use of aluminum alloy sections as load-bearing members subjected to different loadings has been investigated by many researchers [3,4]. Roy et al. [5,6] and Fang et al. [7,8] numerically and experimentally studied the buckling performance and design of a back-to-back built-up aluminum alloy channel section subjected to axial compression, and the impacts of modified slenderness, screw number, and section thickness were evaluated. Feng et al. [9] reported the results of twelve laboratory tests on the flexural capacity of perforated aluminum members subjected to bending, and they found that the current design guidelines are normally over-conservative when estimating the flexural capacity of such channel sections.
Researchers have carried out a significant number of studies to evaluate the web buckling performance of cold-formed steel (CFS) sections over the last few years. Examples include Uzzaman et al. [10,11], Janarthanan et al. [12,13], Chen et al. [14], and Gunalan and Mahendran [15]. Web buckling failure in CFS beams was first experimentally investigated by Winter and Pian [16], and they reported a total of 136 laboratory test results. Following this, Young and Hancock [17] carried out web buckling laboratory testing on CFS beams featuring both restrained and unrestrained flanges. Macdonald et al. [18,19] observed that the web’s bearing length, corner radius, and clear height significantly affected the member’s web buckling strength. The web buckling performance of CFS hollow flange channel beams under two-flange loading was evaluated by Keerthan and Mahendran [20]. Using both laboratory testing and numerical methods, Sundararajah et al. [21,22] developed new design rules in web buckling strength using the Direct Strength Method (DSM).
Limited research works are available regarding the web buckling performance of aluminum channels. Alsanat et al. [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27] recently evaluated the web buckling failure of aluminum sections with fastened flanges experimentally and numerically; they thoroughly assessed the existing design guidelines and suggested new ones based on their evaluation results. Zhou and Young [28] experimentally evaluated the web buckling performance of aluminum alloy channels, with 340 data points reported. They found that the latest design recommendations were generally unconservative and unreliable for those members with one flange-restrained condition.
However, all of the studies mentioned above were mainly focused on traditional aluminum alloy sections or CFS sections [29], despite the popularity of HA channels. No research study has been reported investigating the web buckling strength of HA channels subjected to end-two-flange (ETF) loading or interior-two-flange (ITF) loading. In a recent study, Alsanat et al. [23] evaluated the web buckling performance of traditional aluminum alloy channels and presented new design recommendations according to their laboratory testing and finite element analysis results. These results, however, may not be appropriate for HA sections. More importantly, the existing standards—such as the Australian and New Zealand Standards (AS/NZ S4600) [30], American Iron and Steel Institute (AISI S100-16) [31], and Australian Standards (AS/NZS 1664.1) [32]—do not include design guidelines for evaluating the web buckling capacity of high-strength aluminum sections.
This study addresses this research gap through a detailed numerical investigation, focusing on AA-6086 and 7075-T6 alloys under both end-two-flange (ETF) and interior-two-flange (ITF) loading conditions. For comparison, specimens with web openings were also analysed under the ETF loading case. This research was built upon the work of Alsanat et al. [23] but focused on HA sections instead of traditional aluminium alloy. Both material grades of AA-6086 and 7075-T6 were considered. The finite element (FE) models were developed and verified using the data obtained from the laboratory testing. A parametric investigation consisting of 3506 models was undertaken to examine the impact of various parameters on the web buckling performance of HA sections. Based on the outcomes of the numerical investigation, the accuracy of the latest design recommendations in the AS/NZS 4600 [30] and AS/NZS 1664.1 [32] was assessed. Moreover, new design equations were proposed for AA-6086 and 7075-T6 high-strength aluminium alloy channel sections under both end-two-flange (ETF) and interior-two-flange (ITF) loading conditions, including cases with web openings.

2. Material Characteristics of High-Strength Aluminum Alloys

2.1. 7075-T6 Aluminum Alloy

Zhi et al. [1] carried out 16 tensile coupon tests using the coupons cut from the flange and web of columns. Four different nominal thicknesses—which were 4, 5, 6, and 8 mm—were considered, and each thickness was tested four times.
An extensometer was employed to record strain during laboratory testing, which were carried out on a 1000 kN testing machine. Figure 2a depicts stress–strain curves related to aluminum alloy 7075-T6. Table 1 summarizes its crucial material characteristics, including the 0.2% proof stress (f0.2), ultimate strength (fu), and elongation after failure with an initial gauge length of 80 mm (δ), as well as variables in the two-stage Ramberg–Osgood model (E0.2, n, and m).

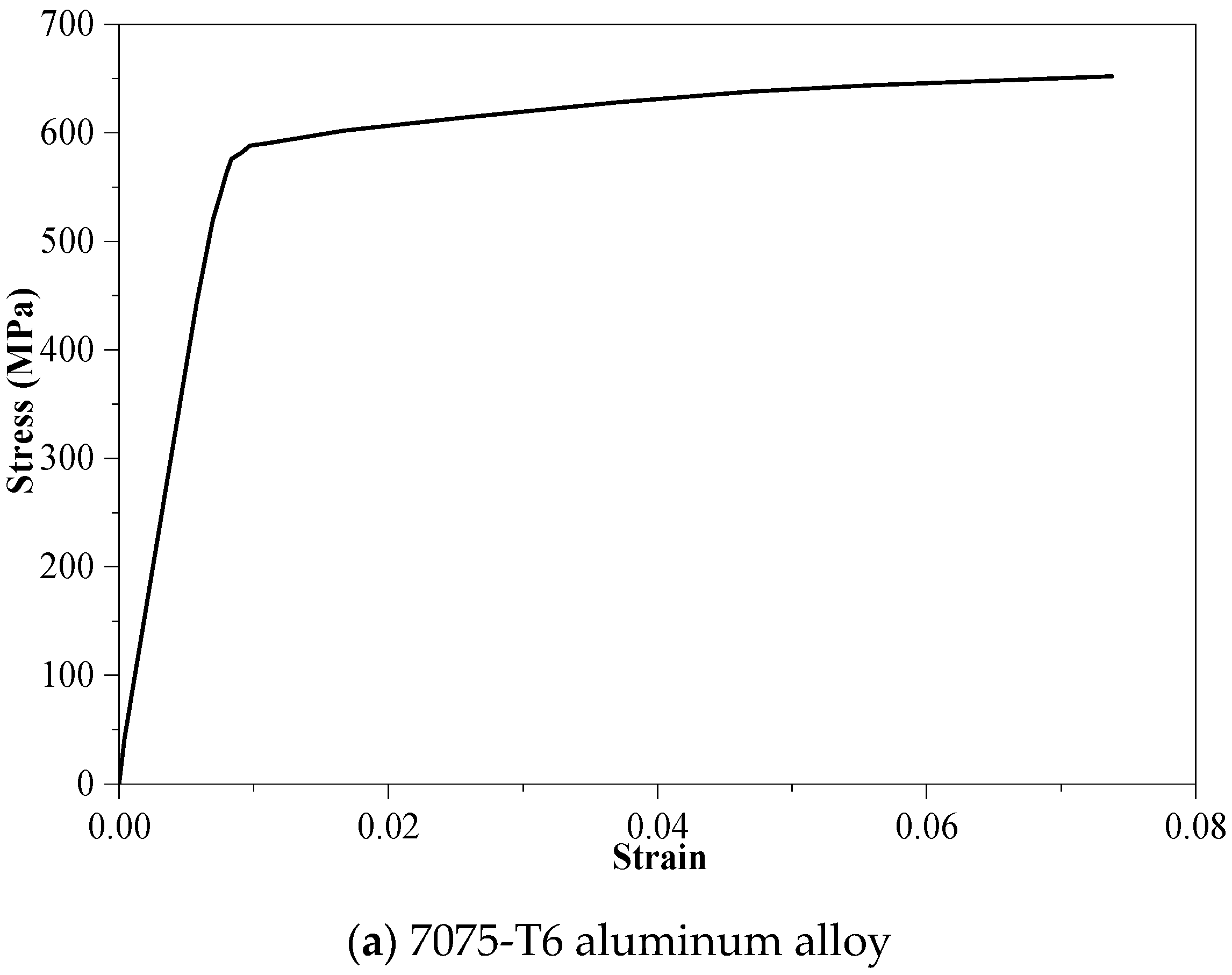

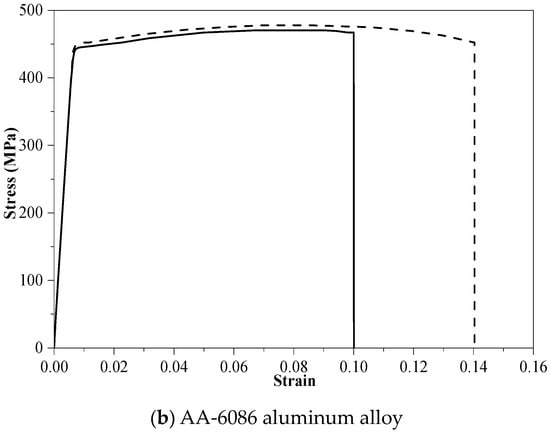

Figure 2. Stress–strain curves of 7075-T6 [1] and AA-6086 [2].
Table 1. Material characteristics of specimens obtained from tensile coupon tests [1,2].

2.2. AA-6086 Aluminium Alloy

Zupanič et al. [2] conducted two tensile coupon tests in order to characterize the physical properties of the aluminum alloy AA-6086. The new alloy had a higher silicon, copper, and zirconium content in its material composition. Before being analyzed, the material underwent the processes of being homogenized, extruded, and T6 heat-treated to achieve a desired state.
A mechanical extensometer featuring a 25 mm gauge length and a 100 kN servo-hydraulic test equipment was utilized. Figure 2b illustrates the stress–strain curves for the AA-6086 aluminum alloy and Table 1 summarizes its material properties.

3. Brief Overview of the Experimental Investigation [23]

3.1. General

Alsanat et al. [23] recently performed laboratory testing on web buckling for traditional aluminum alloy channels under ITF and ETF loadings. A total of forty test results were reported, which were then employed for validating the FE models. Detailed descriptions of both the laboratory testing and finite element models can be found in Alsanat et al. [23]; however, brief details concerning the laboratory testing methods are summarized below.

3.2. Testing Setup and Loading Process

All test specimens were manufactured from the structural aluminum alloy 5052H36. The depth of web section (d) was changed from 100 to 250 mm, while the widths of the flange (bf) was changed from 60.5 to 75 mm. The specimen’s total length (L) was calculated according to AS/NZ S4600 [30]. For the ITF condition, the length was calculated as being three times the height of the channel section added to the bearing plate length, and for the ETF condition, as being 1.5-times the height of the channel added together with the bearing plate length. The impact of bearing plate length on web buckling performance was evaluated (N was ranged from 25 mm to 150 mm). It should be noted that the flanges of these specimens were not fastened to the supports.
To carry out web buckling laboratory testing on the CFS sections, the procedures outlined in AS/NZ S4600 [30] were followed. Figure 3 shows the test setup, where a 100 kN Instron piece of testing equipment was utilized to exert a centralized reaction on the specimens. Half-rounds were employed to replicate the top and bottom hinge supports. The test specimens were positioned at the edge and mid-span between two bearing plates for the ETF and ITF loading case, respectively. Three laser displacement transducers (LVDTs) were employed to obtain the lateral displacement of the web in three different positions, while one LVDT was employed to obtain the vertical displacement of the bottom flange. Displacement control was implemented, maintaining a steady speed of 0.05 mm/min.

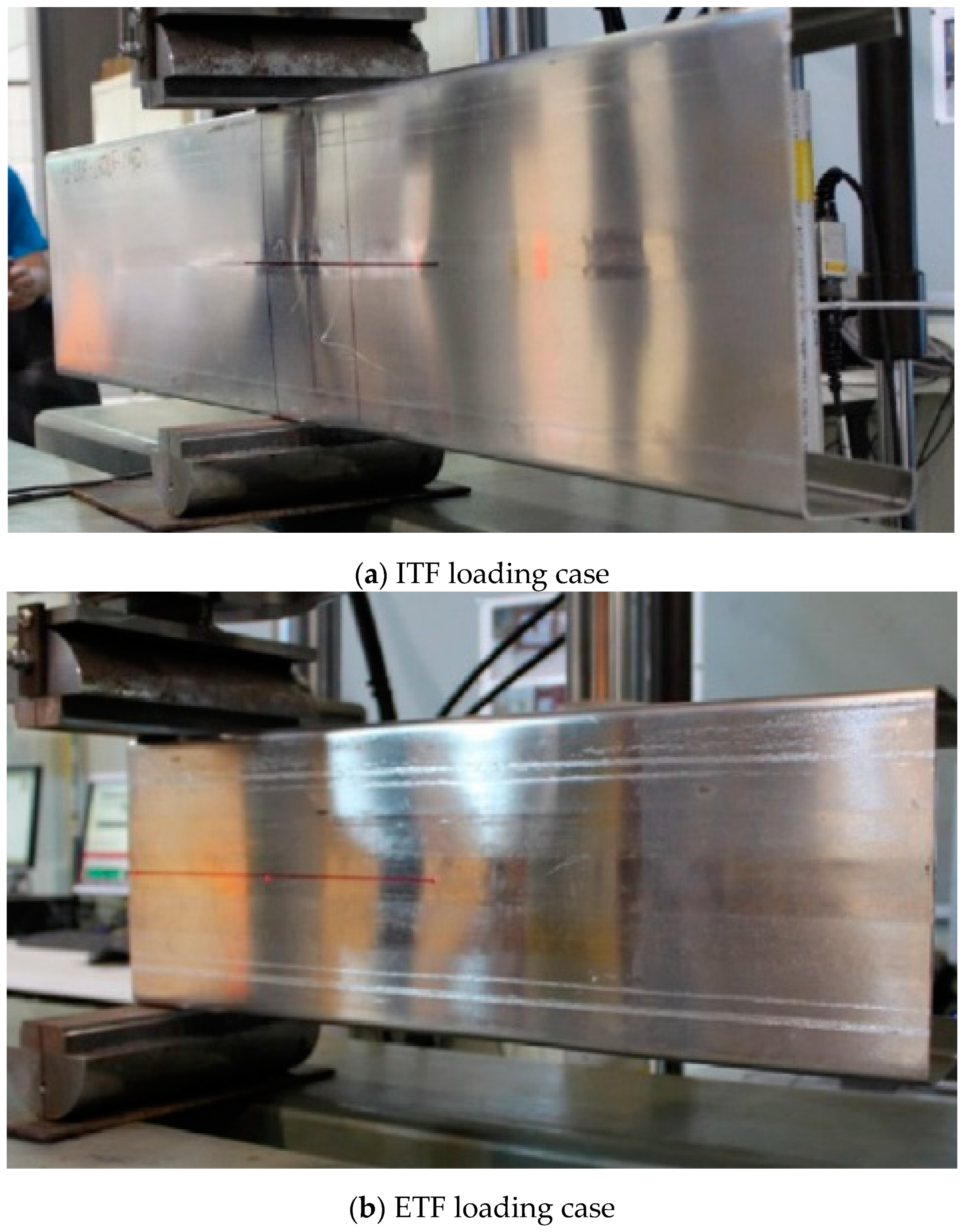

Figure 3. Testing setup for the web buckling tests [23].

4. Development of Numerical Models and Parametric Study

4.1. General

The ABAQUS software was employed to establish FE models that can simulate the nonlinear behaviour and web buckling performance of HA channel sections under both ETF and ITF loading conditions. For comparison, specimens with web openings were also analysed under the ETF loading case. The recorded cross-sectional measurements and the aluminum’s characteristics gleaned from the coupon tensile tests were adopted in the FE models. Similar modelling methods have been reported by many researchers [33,34,35,36,37,38,39,40,41,42,43]. A detailed discussion of the modelling method is presented as follows.

4.2. Geometry and Material Characteristics Modelling

In each analysis, the steel’s isotropic yielding and plastic hardening were defined using the ABAQUS classical metal plasticity model. The stress–strain curve employed in the FE models was simplified, bilinear, and did not consider strain hardening. The numerical models incorporated the material parameters from coupon testing. The engineering material curve was transformed into an actual stress–strain curve in accordance with the recommended equations provided in the ABAQUS manual [44]. The true stress (σtrue) and true strain (εtrue) can be calculated by the following Equations (1) and (2):
σ t r u e = σ ( 1 + ε )
ε t r u e ( p l ) = ln ( 1 + ε ) − σ t r u e E

4.3. FE Meshing

S4R shell elements were utilized to model channel sections made of the aluminum alloy, while the top and bottom endplates were simulated utilizing rigid quadrilateral shell elements (R3D4). In order to explore how various mesh sizes might impact the capacity of web buckling strength in these members, a mesh sensitivity analysis was undertaken, and the mesh size was varied from 2 mm to 50 mm. The impact of varying mesh element sizes on the ultimate strength of these sections has been studied, revealing that a mesh size of 5 mm was the suitable for simulating the aluminum alloy channel members—being able to provide accurate results. Mesh refinement was applied around the corner between the web and flange to achieve a more accurate FE analysis, as can be seen in Figure 4, Figure 5 and Figure 6.

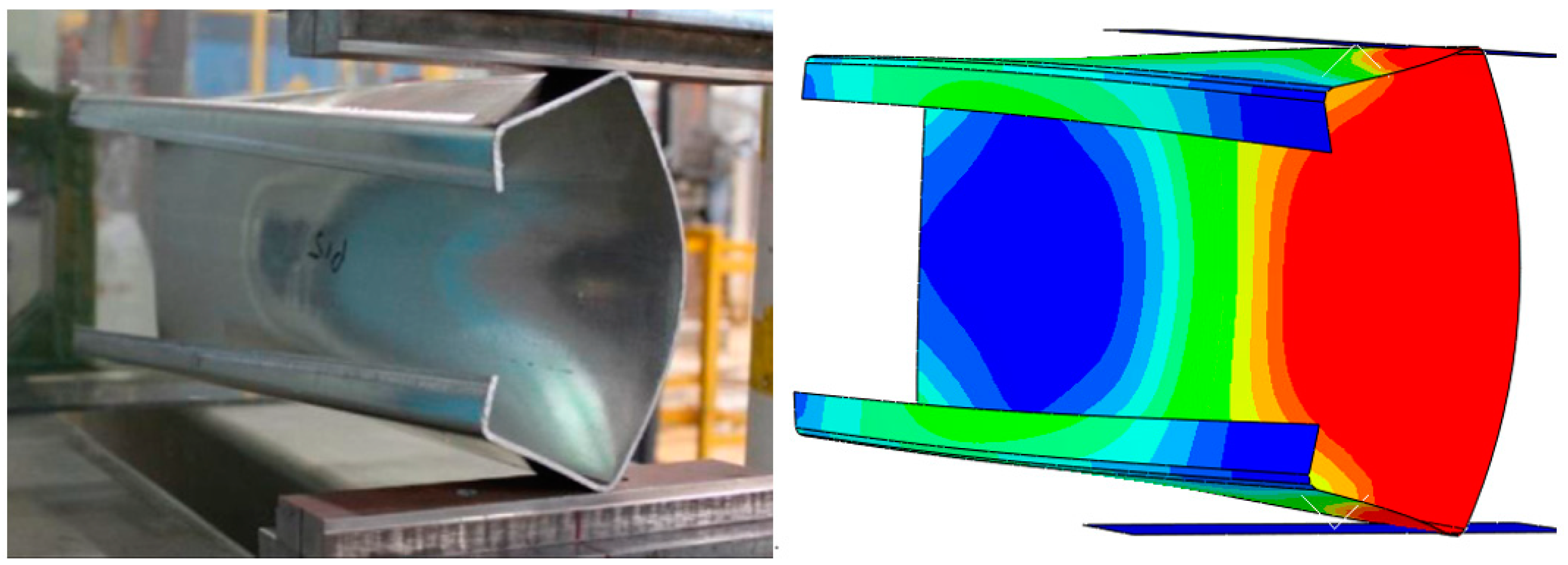

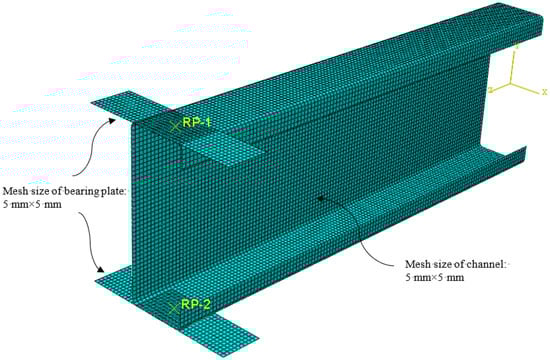

Figure 4. Numerical modelling for imperforated specimens under ETF loading cases.
Figure 5. Numerical modelling for imperforated specimens under ITF loading cases.
Figure 6. Numerical modelling for perforated specimens under ETF loading.

4.4. Boundary Conditions and Loading Procedures

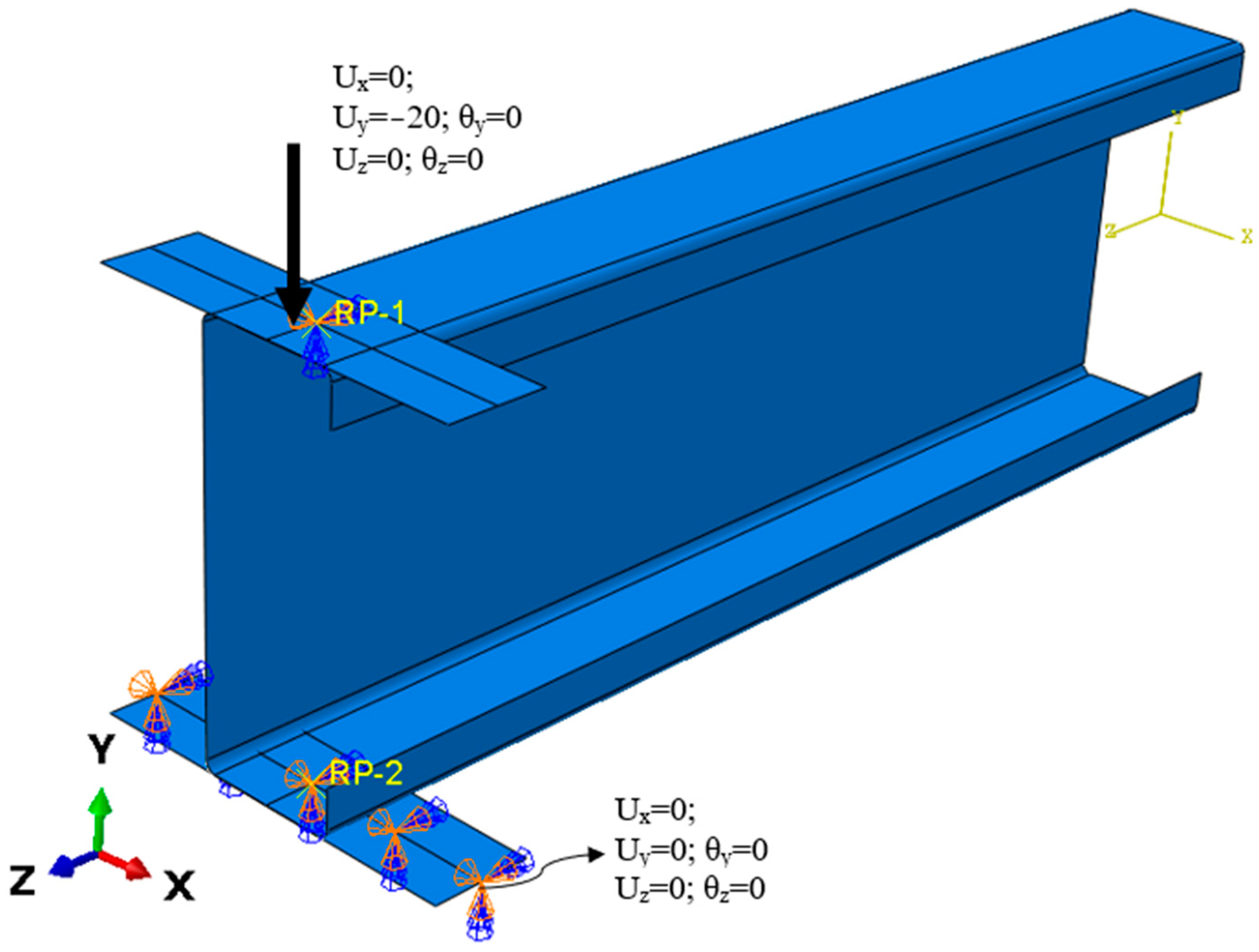

The boundary conditions deployed in the FE models are illustrated in Figure 4, Figure 5 and Figure 6. The load in the axial direction was introduced via the reference point of the upper base plate using the displacement control general static method [44]. All degrees of freedom on the top surface of the end plates were constrained except for translational flexibility in the Y axis. The surface-to-surface contact option was selected in the modelling of the interface between the end plates and the aluminum alloy section. No object was allowed to pass through these two touching surfaces.

4.5. Analysis Methods

Elastic buckling and implicit dynamic analysis were employed to model the aluminum alloy channel sections. The dynamic approach involving implicit time integration was utilized to determine the models’ quasi-static responses.

4.6. FE Model Validation

A total of 19 laboratory test outcomes for aluminum-lipped channel sections presented by Alsanat et al. [23] were included in Table 2 to validate the numerical modelling methodology adopted in this investigation. Figure 7 depicts the failure modes seen in laboratory testing and FE analysis. It can be observed that the shapes of deformation suggested by the FE models were comparable to the ones discovered through the laboratory testing. Table 2 contrasts the experimental data (PEXP) with the computational findings (PFEA). As displayed in Figure 8, the PEXP/PFEA had a coefficient of variation of 0.09 and a mean of 0.98, showing that the web buckling strength of aluminum alloy channels could be reliably estimated using the FE models developed in this work. Figure 9 presents the load–displacement curves generated from the numerical modelling and laboratory testing, demonstrating a strong agreement.
Table 2. Comparison of the ultimate strength predicted from laboratory tests [23] and numerical analysis.

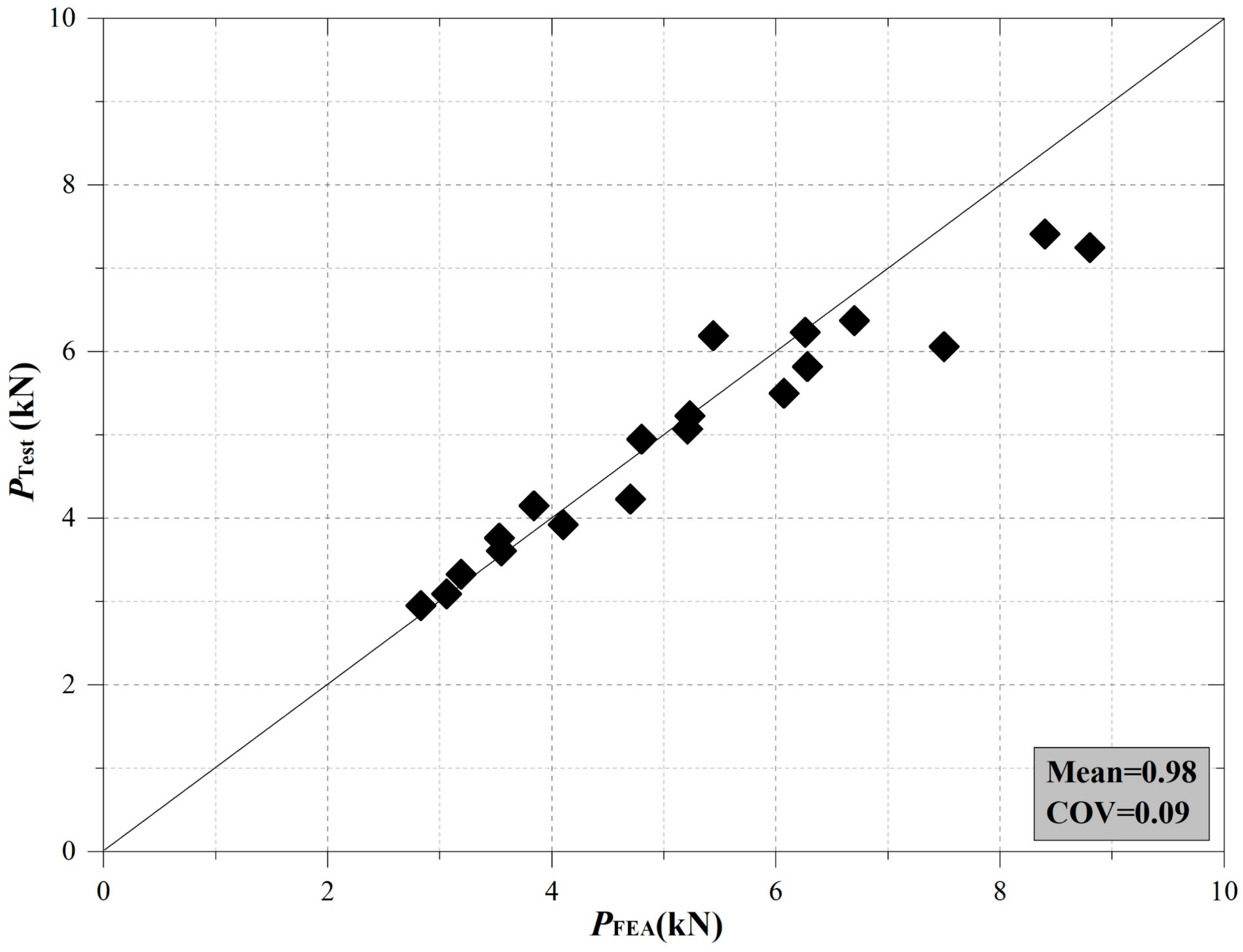

Figure 7. Comparison of ultimate strength between the laboratory tests [23] and numerical analysis.

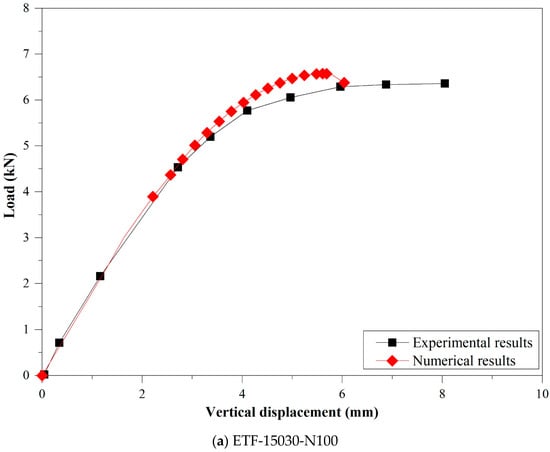

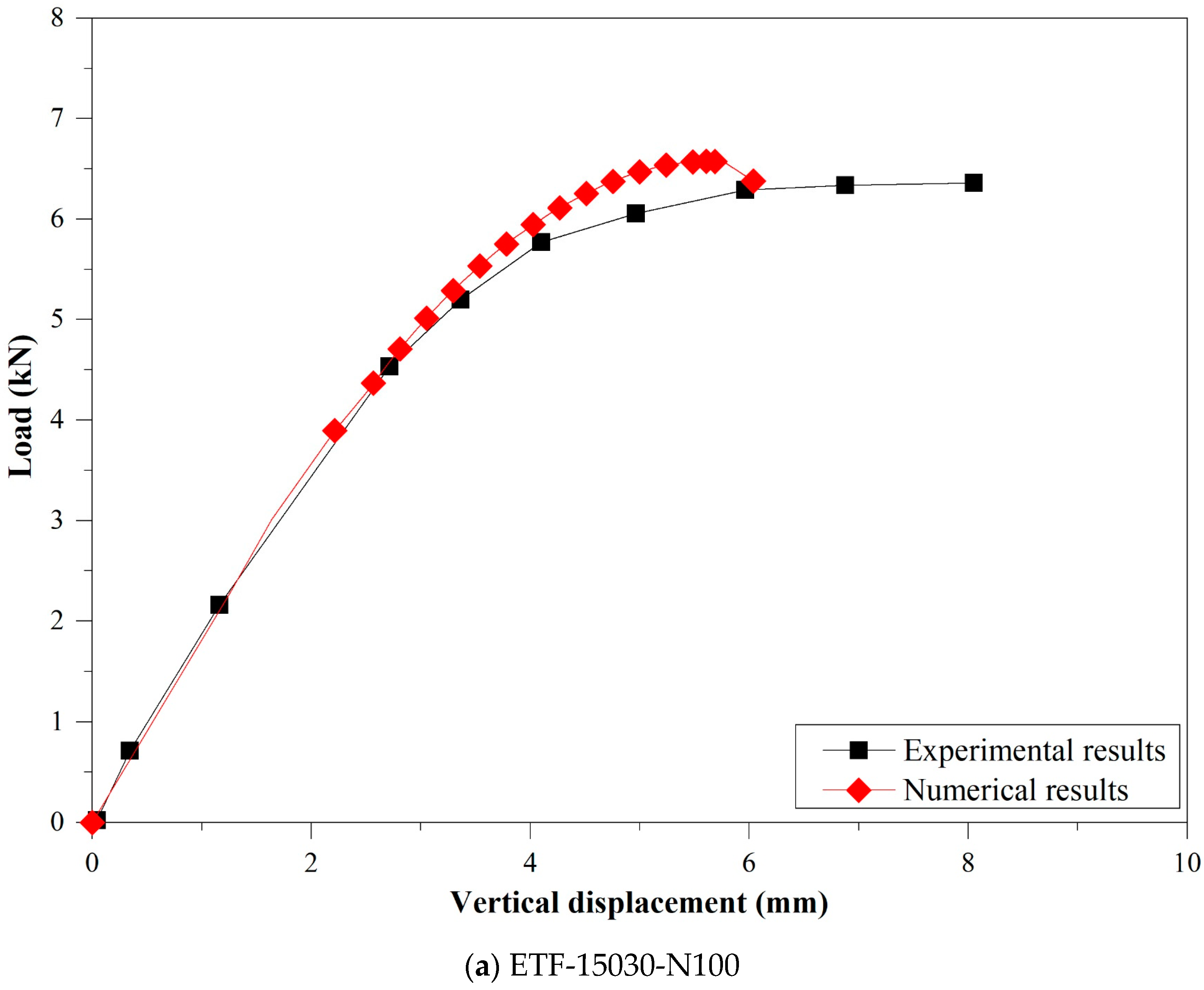

Figure 8. Load-displacement relationship between the laboratory tests [23] and numerical analysis.
Figure 9. Web buckling strength versus web stiffness ratio (hw/t).

4.7. Parametric Study for High-Strength Aluminum Alloys

After the verification of the FE models for conventional aluminum alloy channel sections, a detailed parametric investigation was undertaken to create a comprehensive database for HA sections. A total of 1024 simulation results were generated, in which 256 FE results were for AA-6086 aluminum alloy lipped channel sections, 256 FE results were for AA-6086 aluminum alloy unlipped channel sections, 256 FE results were for 7075-T6 aluminum alloy lipped channel sections, and the remaining 256 FE results were for 7075-T6 aluminum alloy unlipped channel sections.
Previous work reported by Chen et al. [29] demonstrated that the web buckling strength of CFS sections is primarily affected by the length of the bearing plate (N), web slenderness ratio (h/tw), and internal corner radii ratio (ri/tw). Therefore, a wide range of HA sections covering varying web slenderness ratios, internal corner radii, bearing lengths, and aluminum alloy grades were examined in the parametric study (Table 3). The web slenderness ratio (h/tw) was considered at values of 50, 75, 100, and 125. Four bearing plate lengths (N) were selected: 25, 50, 75, and 100 mm. The internal corner radii ratio (ri/tw) was considered at values of 1.0, 2.0, 3.0, and 4.0. Four distinct web thicknesses of aluminum alloy channels (tw) were included in the parametric study—namely, 1.0, 2.0, 3.0, and 4.0 mm.
Table 3. Details of parametric analysis.

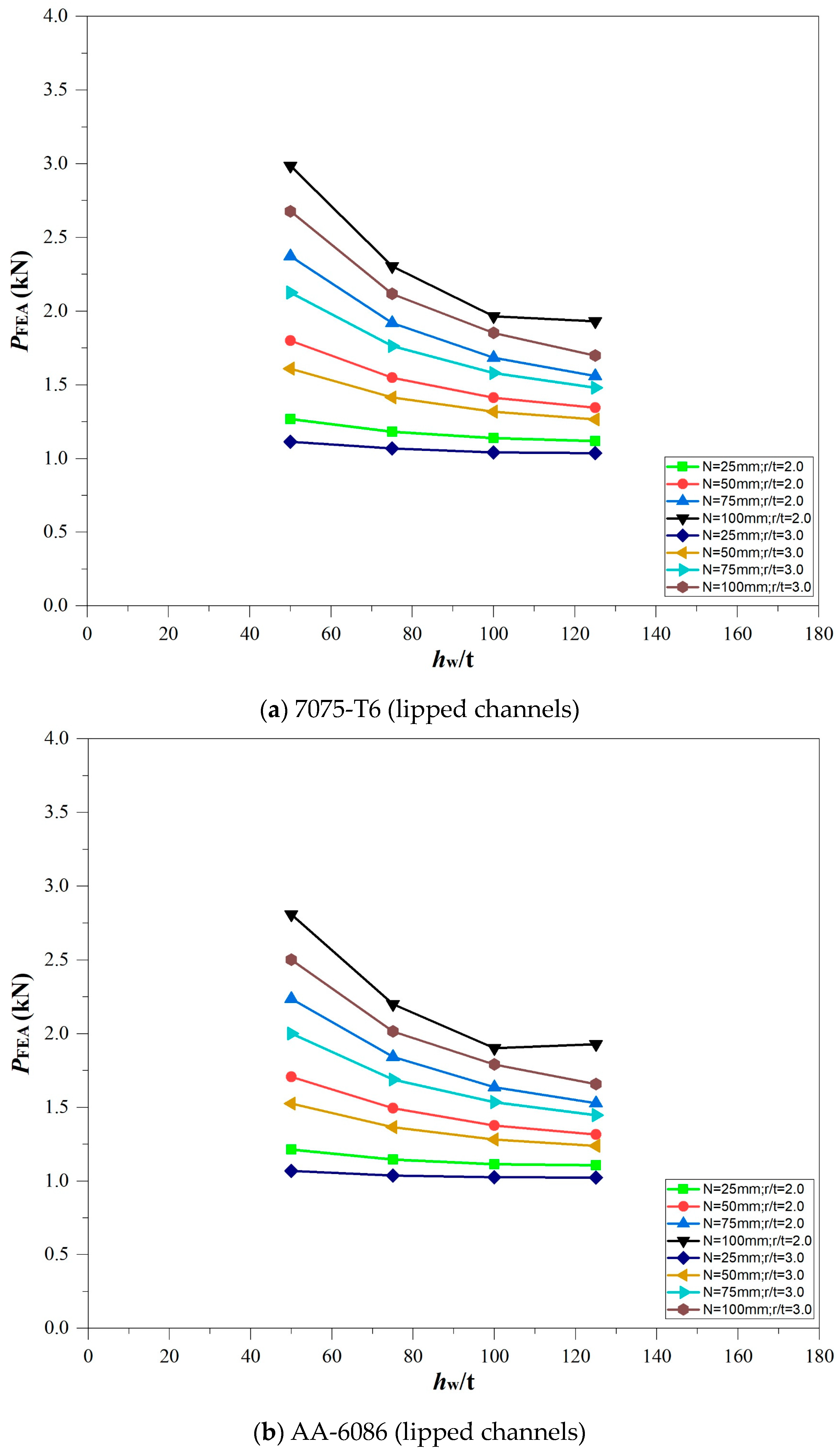

Figure 9, Figure 10 and Figure 11 show the impact of the ratios hw/t, N/t, and ri/t on the web buckling strength of HA sections, correspondingly. When hw/t rose from 50 to 125, a minor reduction in strength was noticed—as illustrated in Figure 9. As depicted in Figure 10, the web buckling strength increased significantly when N/t increased from 25 to 100. The impact of the r/t ratio on the web buckling strength of the HA sections was studied, as illustrated in Figure 11, and it was found that a considerable decrease in strength was observed when r/t increased from 1.0 to 4.0. This indicated that the impact of the r/t ratio on the web buckling strength cannot be ignored.

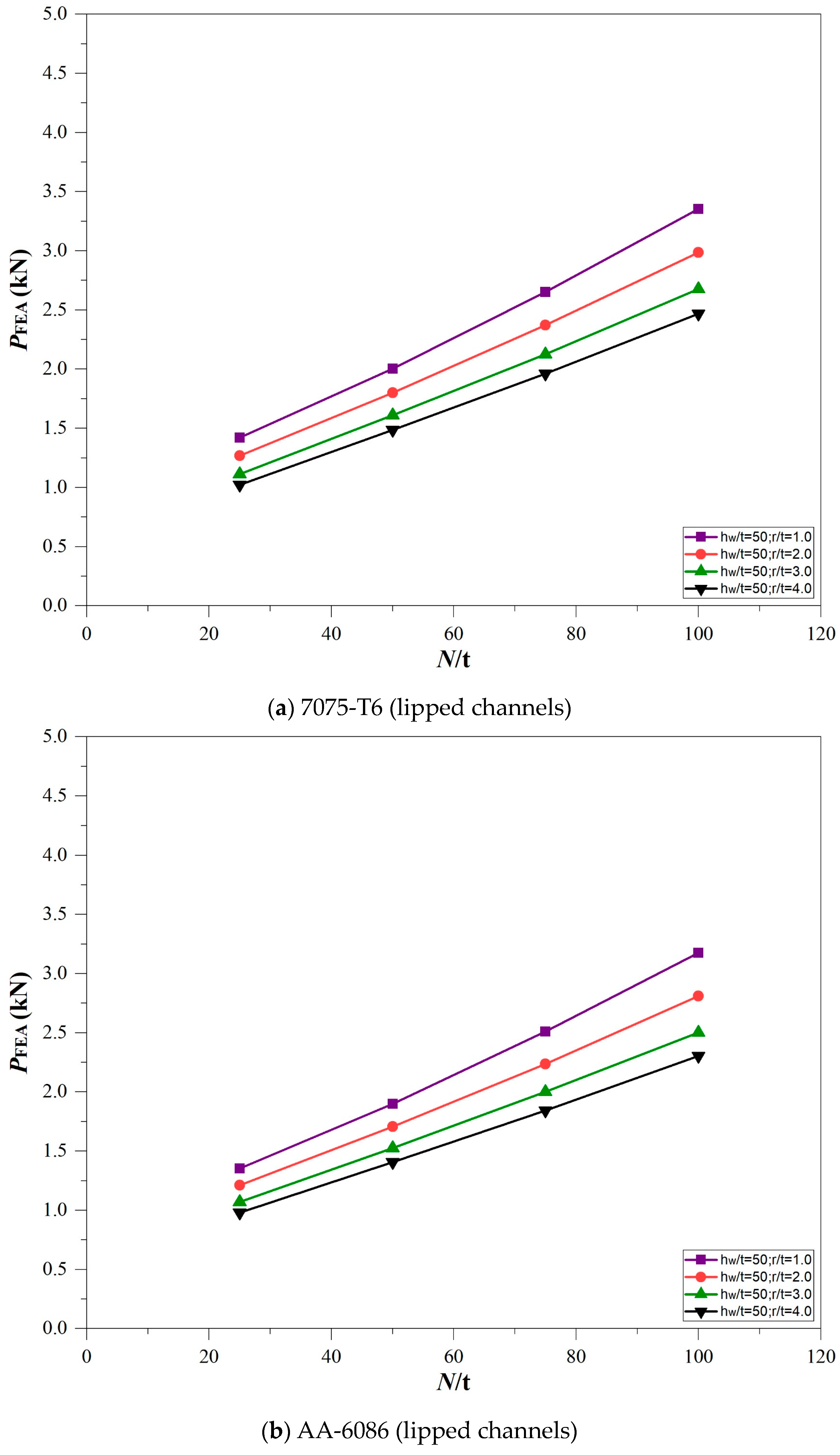

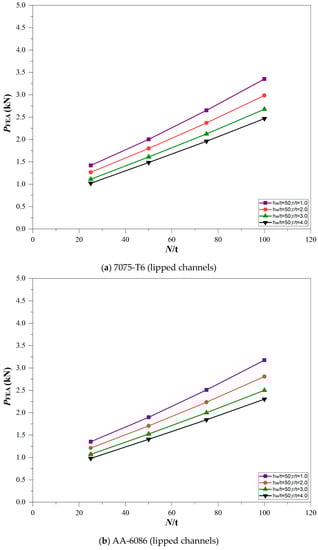

Figure 10. Web buckling strength versus the bearing length ratio (N/t).

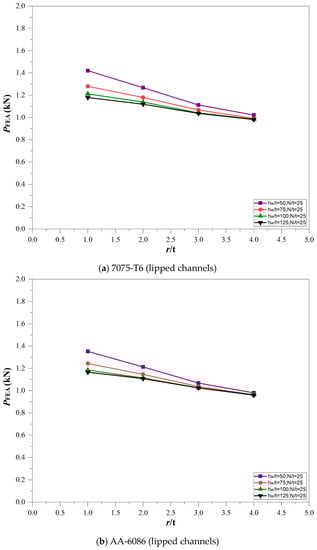

Figure 11. Web buckling strength versus the inside bent radius ratio (r/t).

5. Parametric Investigation

After the verification of the FE models for conventional aluminium alloy channel sections, A parametric investigation consisting of 3506 models was performed. Specifically, 1024 models represented imperforated specimens under ITF loading, 1024 under ETF loading, and 1458 perforated specimens under ETF loading.
Previous work reported by Chen et al. [29] demonstrated that the web buckling strength of CFS sections was primarily affected by the length of bearing plate (N), web slenderness ratio (h/tw), and internal corner radii ratio (ri/tw). Therefore, a wide range of HA sections covering varying web slenderness ratios, perforation diameter ratio, perforation distance ratio, internal corner radii, bearing lengths, loading cases and aluminium alloy grades were examined in the parametric study (Table 3).
The web slenderness ratio (h/tw) was considered as 50, 75, 100, and 125. Four bearing plate lengths (N) were selected, 25, 50, 75, and 100 mm. The internal corner radii ratio (ri/tw) was considered as 1.0, 2.0, 3.0, and 4.0. Four web thicknesses of aluminium alloy channels (tw) were included in the parametric study, namely 1.0, 2.0, 3.0, and 4.0 mm. In terms of web openings, this study assessed a total of three different perforation distance ratios (x/h)—0.1, 0.3 and 0.5. The study also included varying perforation diameter ratio (a/h) at three different ratios-0.1, 0.3 and 0.5. Two material grades were considered: 7075-T6, AA-6086.

5.1. Effect of ETF Loading on Web Crippling Capacity of Imperforated Specimens

Figure 10, Figure 11 and Figure 12 show the impact of ratios hw/t, N/t, and ri/t on the web buckling strength of HA sections, correspondingly. When hw/t rises from 50 to 125, a minor reduction in strength is noticed, as illustrated in Figure 10. As depicted in Figure 11, the web buckling strength increases significantly when N/t increases from 25 to 100. The impact of r/t ratio on the web buckling strength of HA sections was studied as illustrated in Figure 12, and it was found that a considerable decrease in strength was observed when r/t increases from 1.0 to 4.0. This indicated that the impact of r/t ratio on the web buckling strength cannot be ignored.
Figure 12. Comparison between simulation results and design strength calculated by AS/NZS 4600 [30].

5.2. Effect of ITF Loading on Web Crippling Capacity of Imperforated Specimens

5.2.1. Effect of hw/t on Web Buckling Behaviour

As depicted in Figure 13, how the ratio hw/t could affect the web bearing capacity of high-strength aluminium channels was comprehensively analysed. The outcomes revealed that, on average, there was a 9.7% reduction in web buckling behaviour of C-sections made from 7075-T6 when hw/t escalated from 50 to 125. Similarly, the strength experienced an average decrease of 13.4% for AA-6086 aluminium in the same hw/t ratio range. This observation underscores the criticality of accounting for the influence of hw/t while designing structures composed of HA.

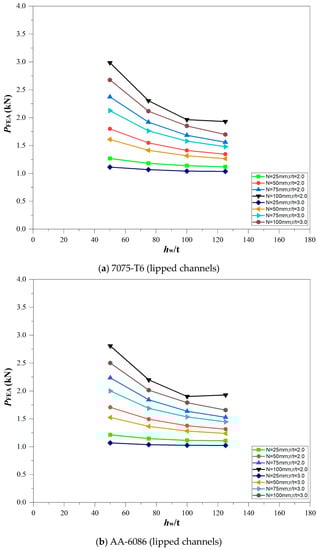

Figure 13. The influence of hw/t on web buckling behaviour of lipped channels.

5.2.2. Effect of N/t on Web Buckling Behaviour

The effects of N/t on the web bearing capacity of high-strength aluminium channels were investigated, as depicted in Figure 14. Notably, elevating the N/t ratio from 25 to 100 yielded an augmentation in web buckling behaviour. Specifically, the data indicated that, on average, the web bearing capacity experienced a 36.8% increment for 7075-T6 aluminium and 38.3% for AA-6086 aluminium. The observation emphasises the necessity to account for the effect of the N/t in the context of web buckling behaviour, which in turn holds significance when devising novel design equations for HA C-sections.
Figure 14. The influence of N/t on web buckling behaviour of lipped channels.

5.2.3. Effect of ri/t on Web Buckling Behaviour

Figure 15 displays the investigation delved into the effects of the ri/t on the web bearing capacity of high-strength aluminium channels. When the ri/t ratio transitioned from 1.0 to 4.0, a marginal reduction in strength was discerned. Specifically, the data revealed that, on average, there was a 25.3% decrease in web buckling behaviour for 7075-T6, while a 24.5% decline in strength was observed for AA-6086, with an increase in ri/t from 1.0 to 4.0. This underlines the significance of incorporating the influence of ri/t when formulating design equations targeted at HA C-sections.

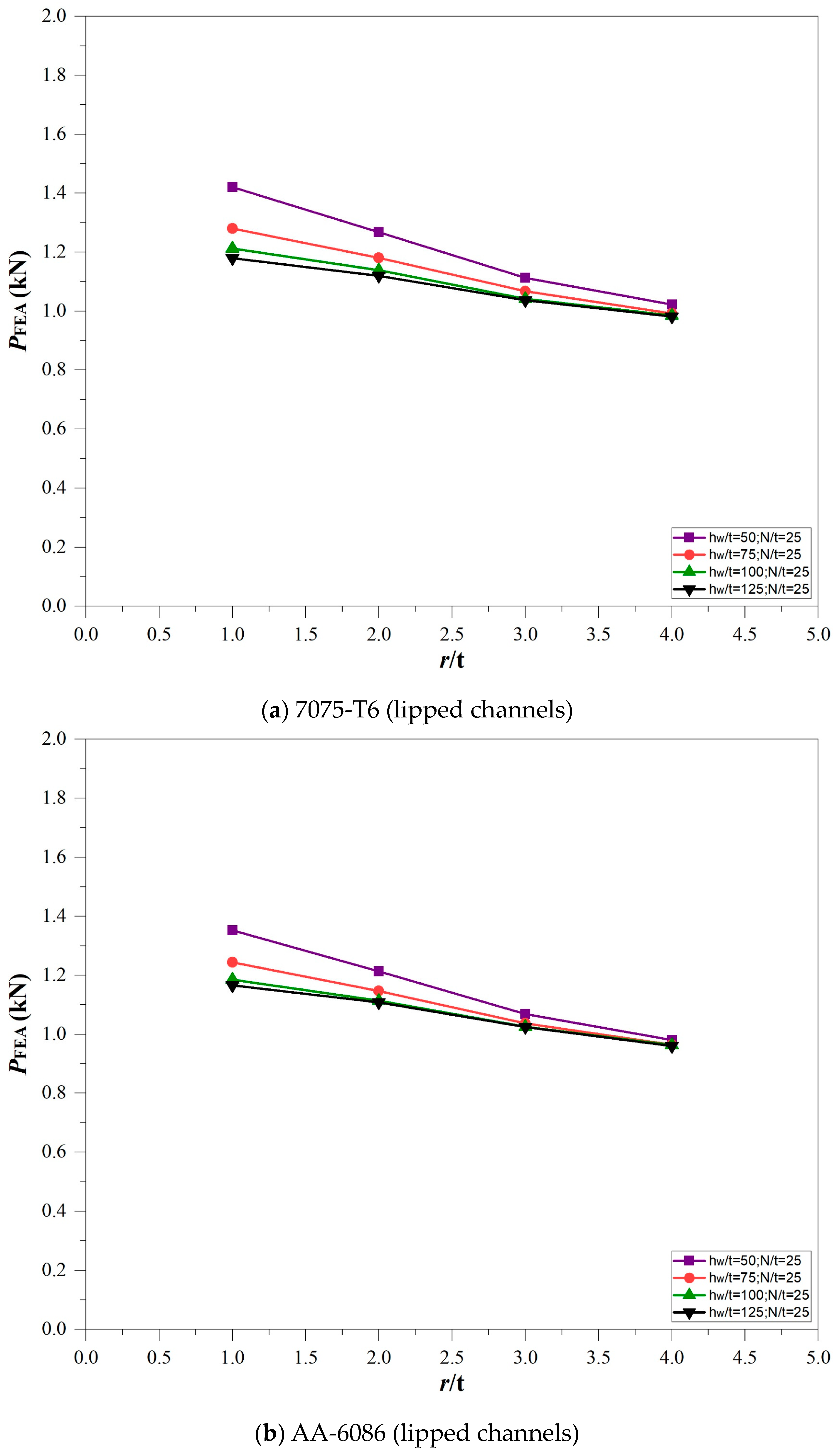

Figure 15. The influence of r/t on web buckling behaviour of lipped channels.

5.3. Effect of ETF Loading on Web Crippling Capacity of Perforated Specimens

5.3.1. Impact of a/h Ratio on Web Buckling Resistance

Figure 16 evaluated the impact of a/h ratio on the web buckling resistance of HA C-shaped members that contain perforated webs. The results showed that for 7075-T6 aluminium, a/h ratio increment from 0.1 to 0.5 resulted in an average decrease of 9.7% in web buckling resistance. Similarly, for AA-6086 aluminium, a decrease of 9.3% on average in web buckling resistance was observed. This indicates the importance of including the impact of a/h ratio when proposing the design formulas for estimating the web buckling resistance of HA C-shaped members that contain perforated webs.
Figure 16. Web buckling resistance versus perforation diameter ratio (a/h).

5.3.2. Impact of N/h Ratio on Web Buckling Resistance

As illustrated in Figure 17, the length of bearing plates (N) was varied from 100 mm to 200 mm, and the N/h ratio was assessed at three different ratios—1.0, 1.3 and 2.0. It can be found that increasing N/h from 1.0 to 2.0 resulted in an increase in web buckling resistance. As depicted in Figure 10, the web buckling resistance experiences an average increase of 61.7% for 7075-T6 aluminium and 54.1% for AA-6086 aluminium. This demonstrates that the impact of N/h ratio on the web buckling resistance of HA C-shaped members that contain perforated webs needs to be included when developing new design formulas.
Figure 17. Web buckling resistance versus bearing length ratio (N/h).

5.3.3. Impact of x/h Ratio on Web Buckling Resistance

The impact of the perforation distance ratio (x/h) on the web buckling resistance of HA C-shaped members that contain perforated webs was studied as illustrated in Figure 18. It was found that when the x/h ratio varied from 0.1 to 0.5, there was a minor increase in web crippling resistance. The findings showed that the web buckling resistance increased by 6.2% for 7075-T6 aluminium alloy, while the strength increased by 4.0% for AA-6086 aluminium alloy when the x/h ratio was increased from 0.1 to 0.5. This highlights the significance of considering the impact of x/h ratio when proposing new design formulas for HA C-shaped members that contain perforated webs.
Figure 18. Web buckling resistance versus perforation distance ratio (x/h).

6. Evaluation of the Current Design Guidelines

6.1. General

The web buckling strength database derived from the parametric analysis was evaluated against the expected web buckling strength calculated by the latest design recommendation given in AS/NZS 4600 [30] and AS/NZS 1664.1 [32]. AS/NZS 4600 [30] is intended for cold-formed carbon steel, while AS/NZS 1664.1 [32] is a specification for aluminum buildings. It is worth mentioning that the comparison mentioned does not consider the design methods outlined in Eurocode 9 [45] for aluminum structures. These methods are applicable only to aluminum structural sheeting, which involves members with two or more webs. They do not provide design guidelines for determining the web buckling strength of single-web sections such as aluminum channel sections. Additionally, a recent study by Alsanat et al. [23] found that Eurocode 9 [45] was not suitable for estimating the web buckling strength of aluminum single-web sections.

6.2. Design Methods in AS/NZ S4600 [30]

The current AS/NZ S4600 [30] and AISI S100-16 [31] guidelines provide design calculations with different specific coefficients for evaluating the web buckling strength of CFS lipped channels. These coefficients are directly related to the loading conditions, types of support, and flange types. The expression for evaluating the web buckling strength is as illustrated below:
R b = C t w 2 f y sin θ 1 − C w h t w 1 − C r r i t w 1 + C l N t w

6.3. Design Methods in AS/NZS 1664.1 [32]

Design calculations are available in AS/NZS 1664.1 [32] for estimating the web buckling strength of aluminum alloy channel sections undergoing ETF and ITF loadings. Additionally, any enhancement in web buckling strength due to the flanges secured to the supports is disregarded in the design guidelines. The design calculations for both flange-fastened and unfastened support scenarios are the same. Below is the expression for estimating the web buckling strength under ETF and ITF loading:
P A S 1664 = ( 1.2 t w 2 sin θ ( 0.46 f y + 0.02 E f y ) ( N + C w 2 ) ) / ( C w 3 + r i ( 1 − cos θ ) )
P A S 1664 = ( t w 2 sin θ ( 0.46 f y + 0.02 E f y ) ( N + C w 1 ) ) / ( C w 3 + r i ( 1 − cos θ ) )

6.4. Comparing the Design Strengths with the Simulation Results

In this section, the accuracy of the existing design methods given in AS/NZ S4600 [30] and AS/NZS 1664.1 [32] were evaluated based on the parametric analysis outcomes.
The design strengths derived from AS/NZ S4600 [30] and AS/NZS 1664.1 [32] were compared to the web buckling strength obtained from the parametric investigation. The comparison was summarized in Table 4. As illustrated in Figure 19, the average design strength calculated by AS/NZ S4600 [30] compared to the simulation results was 1.53 and 1.37 for 7075-T6 and AA-6086, respectively. The web buckling strength predicted by AS/NZS 1664.1 [32] was slightly unconservative by 14% and 2% for 7075-T6 and AA-6086, respectively, compared to simulation results (see Figure 20). This indicates that the existing design methodologies tend to be overly conservative when assessing the web buckling strength of such members.
Table 4. Comparison of the simulation results with the design strength.

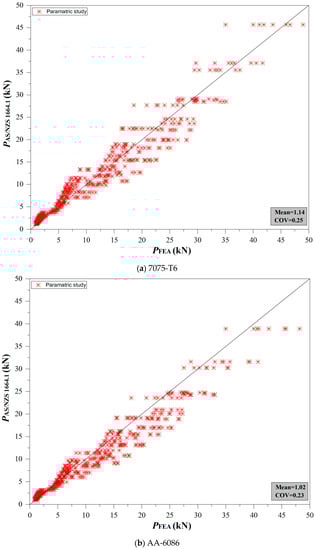

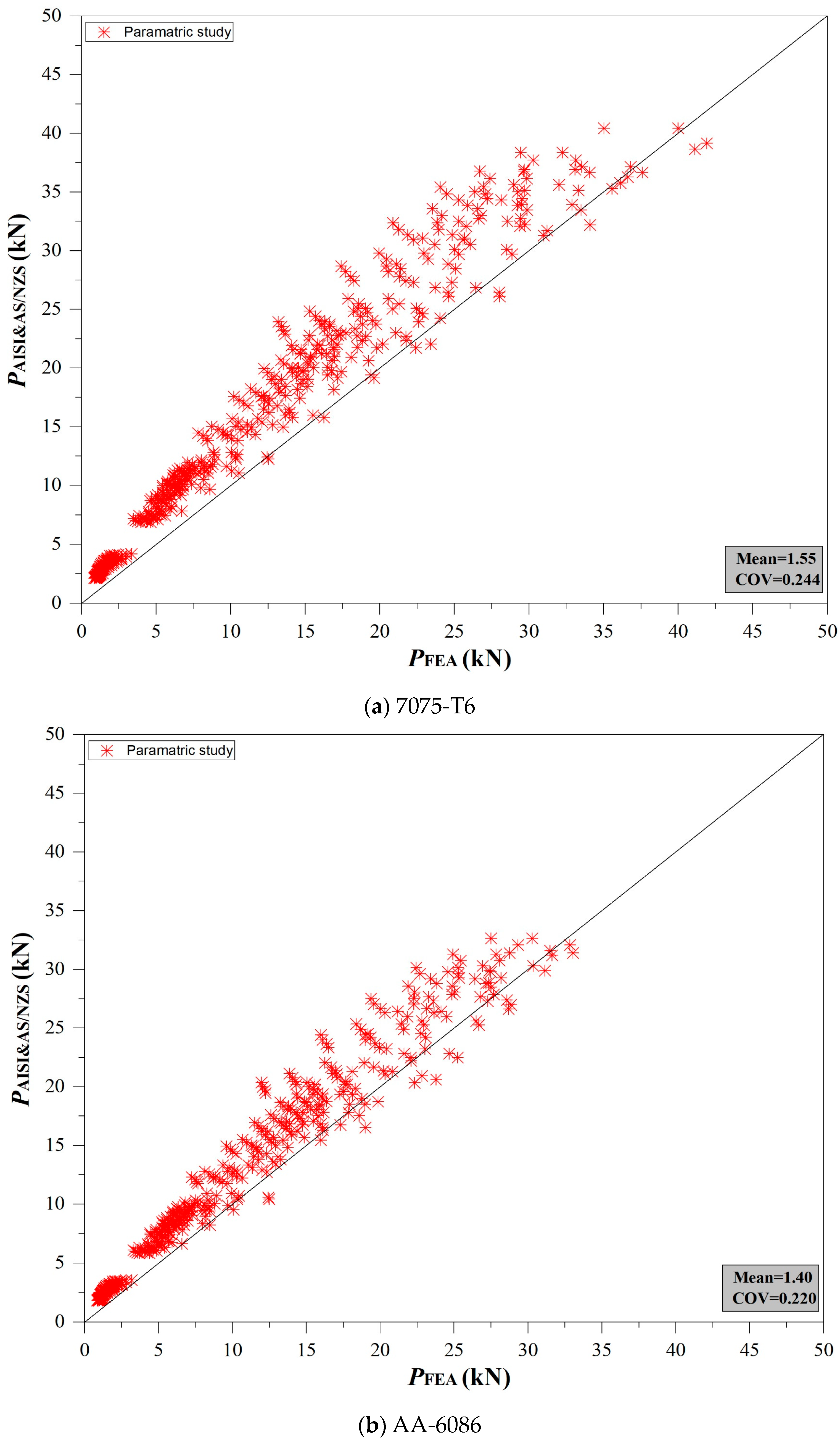

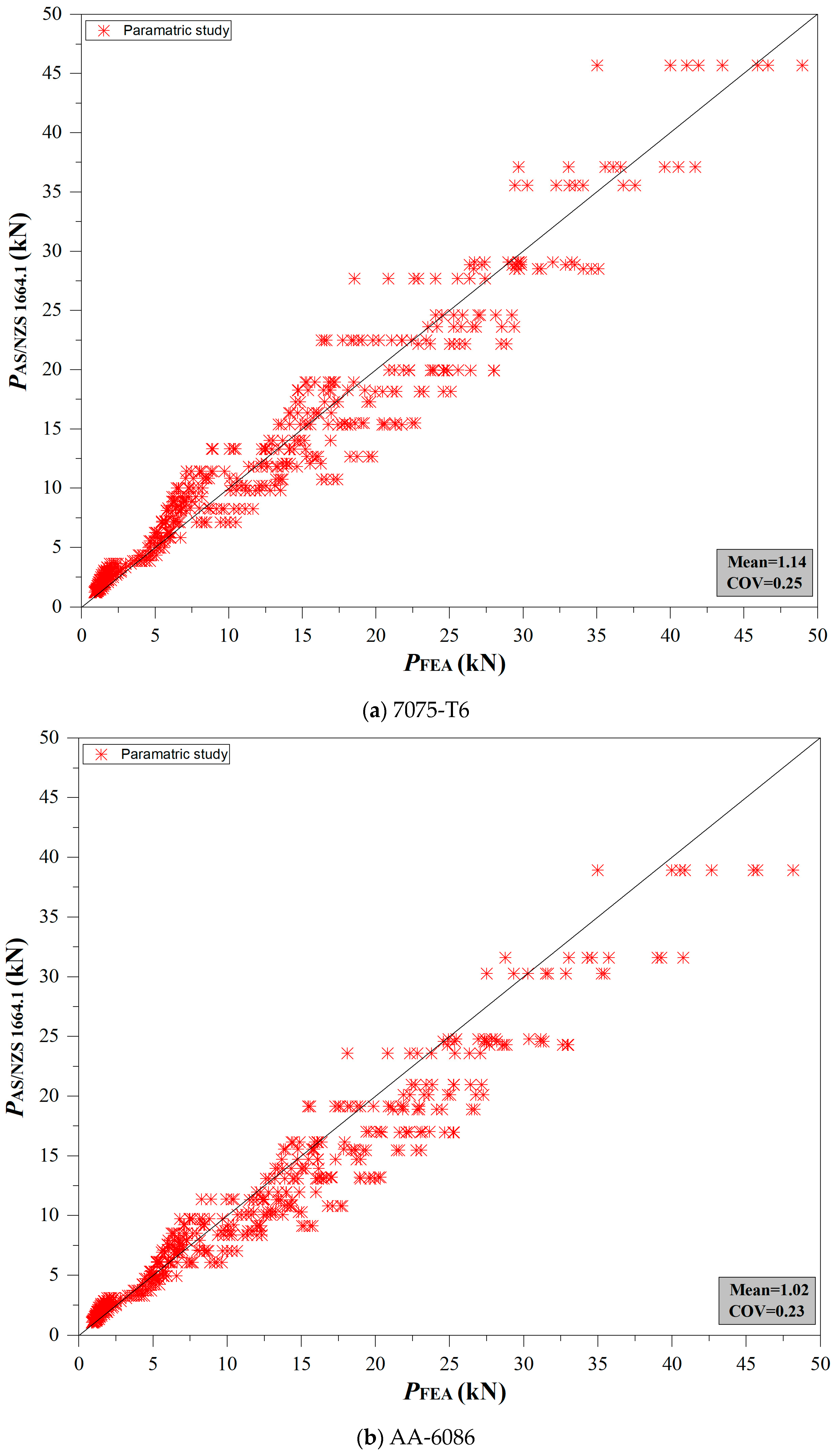

Figure 19. Comparison between simulation results and design strength calculated by AS/NZS 4600.

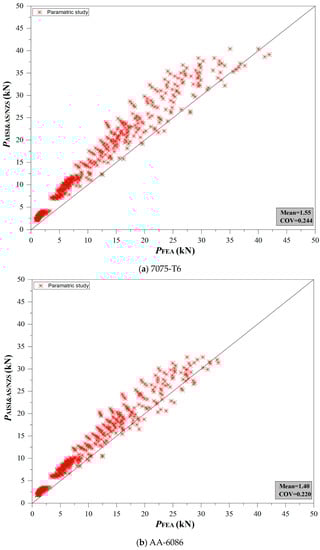

Figure 20. Comparison between simulation results and design strength calculated by AS/NZS 1664.1 [32].

7. Proposed Design Equations for High-Strength Aluminium Alloys

7.1. Development of New Design Equations for Imperforated Section Under ETF Case

As mentioned previously, the existing design rules are demonstrated to be over conservative when assessing the web buckling strength of such members, and new design rules should be presented in this investigation. The simulation results suggested that the impact of the hw/t, N/t, and ri/t ratios on the web buckling strength of HA sections was significant. This indicates the importance of including the impact of hw/t, N/t, and ri/t ratios when proposing design calculations for estimating the web buckling strength of such members.
In this investigation, new design calculations for imperforated section under ETF case were presented based on three key parameters (hw/t, N/t, and ri/t ratios), which followed the format of the design calculations given in AS/NZS 4600. Therefore, only new coefficients such as 1.483, 0.01, 0.265, and 0.505 were developed using the bivariate linear regression analysis, based on a total of 1024 numerical results. Table 5 summarizes the new coefficients for HA presented in this work. The web buckling capacity (Rb) for 7075-T6 and AA-6086 HA can be determined from Equations (6)–(9):
Table 5. Coefficients of the proposed design equation.
For 7075-T6 lipped channel sections:
R b = 1.483 t w 2 f y sin θ 1 − 0.01 h t w 1 − 0.265 r i t w 1 + 0.505 N t w
For 7075-T6 unlipped channel sections:
R b = 1.495 t w 2 f y sin θ 1 − 0.01 h t w 1 − 0.274 r i t w 1 + 0.433 N t w
For AA-6086 lipped channel sections:
R b = 1.492 t w 2 f y sin θ 1 − 0.01 h t w 1 − 0.281 r i t w 1 + 0.626 N t w
For AA-6086 unlipped channel sections:
R b = 1.516 t w 2 f y sin θ 1 − 0.01 h t w 1 − 0.289 r i t w 1 + 0.533 N t w
These equations are limited to HA channel sections with dimensional ranges of 1 ≤ r/t ≤ 4, 25 ≤ N ≤ 100, 50 ≤ h/t ≤ 125, and θ = 90°.
As depicted in Figure 21, the simulation results—which were the outcomes from the parametric investigation—and the design strengths, which were derived from the newly presented equations given in this investigation (M-AS/NZ S4600), were comparatively analyzed. Table 4 summarizes the findings from the comparison. The average ratio of design values to simulation results was found to be 0.94, and the coefficient of variation (COV) was 0.24 for 7075-T6 aluminum, while the average ratio was 0.93 and the COV was 0.25 for AA-6086 aluminum. Therefore, it can be concluded that the newly presented design calculations provided in this research (M-AS/NZ S4600) were marginally conservative in comparison to the simulation results.
Figure 21. Comparison between simulation results and design strength calculated by proposed design formulas.

7.2. Development of New Design Equations for Imperforated Section Under ITF Case

This section introduces four web crippling equations, specifically tailored for high-strength aluminium (HA) members under ITF case, which were developed utilising the insights gleaned from the parametric analysis. These updated design formulas adhere to the structure of AS/NZS 1664.1 [32]. It is worth emphasising that pivotal factors, for instance, the 0.452 and 0.018 in Equation (10), were computed using a bivariate linear regression analysis.
The web buckling behaviour (Pprop) can be computed as follows:
For a 7075-T6 lipped C-section,
P p r o p = t 2 sin θ ( 0.452 f y + 0.018 E f y ) ( N + C w 1 ) C w 3 + r i ( 1 − cos θ )
For a 7075-T6 unlipped C-section,
P p r o p = t 2 sin θ ( 0.441 f y + 0.015 E f y ) ( N + C w 1 ) C w 3 + r i ( 1 − cos θ )
For an AA-6086 lipped C-section,
P p r o p = t 2 sin θ ( 0.455 f y + 0.022 E f y ) ( N + C w 1 ) C w 3 + r i ( 1 − cos θ )
For an AA-6086 unlipped C-section,
P p r o p = t 2 sin θ ( 0.459 f y + 0.016 E f y ) ( N + C w 1 ) C w 3 + r i ( 1 − cos θ )
These equations are applicable within specific limitations to 7075-T6 and AA-6086, and under certain constraints such as 1 ≤ r / t   ≤ 4, 25 ≤ N ≤ 100, 50 ≤ h / t   ≤ 125, and θ = 90 ° .
Figure 22 compares the outcomes derived from the parametric analysis and the design strengths computed using the newly introduced equations (M-AS/NZS 1664.1). The ratio between the design values and the numerical outcomes was determined to be 0.93 for 7075-T6 aluminium on average, exhibiting a coefficient of variation of 0.12. Likewise, the ratio between the design values and the numerical outcomes was determined to be 0.94 on average for AA-6086 aluminium, accompanied by a coefficient of variation of 0.11. The findings underscore the efficiency of the introduced equations (M-AS/NZS 1664.1) in precisely predicting the strengths of HA C-sections, thereby presenting a dependable and secure design methodology.

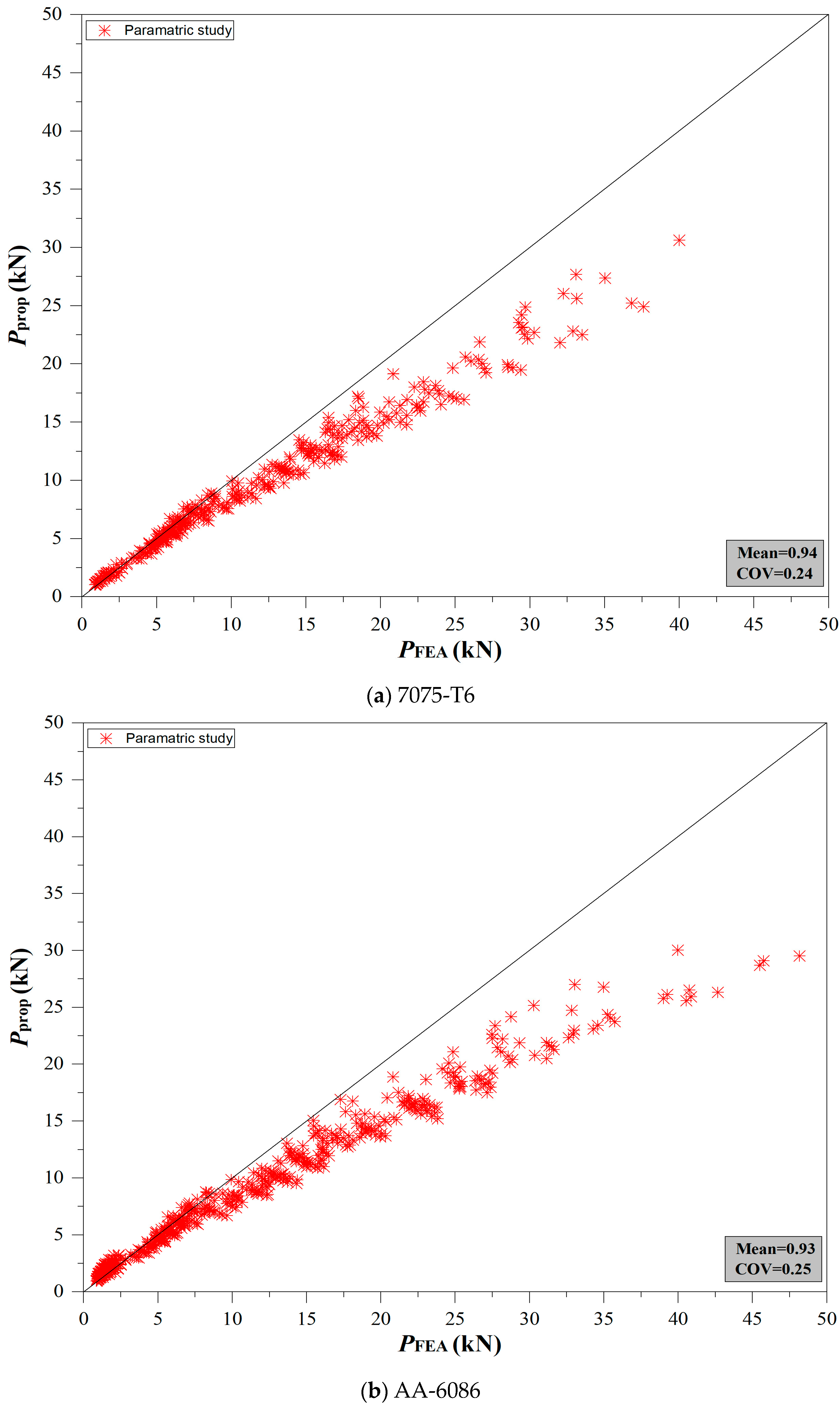

Figure 22. Comparing strengths obtained from the parametric study and computed using proposed design equations for (a) 7075-T6 and (b) AA-6086.

7.3. Development of New Design Equations for Perforated Section Under ETF Case

In this section, new web buckling formulas for perforated section under ETF case in the form of strength reduction factors were presented based on the outcomes of the parametric examination. The results derived from the parametric examination indicated that the web buckling resistance of high-strength aluminium members that contain perforated webs was significantly influenced by the bearing plate ratio (N/h), perforation diameter ratio (a/h) and perforation distance ratio (x/h). Therefore, such new design formulae were proposed based on three key parameters (N/h, a/h and x/h), which followed the format of design rules presented by Fang et al. [33,41,42]. Also, it is important to note that key variables such as 0.763, 0.647,0.152 and 0.059 were generated by the bivariate linear regression analysis.
The strength reduction factor (Rprop) for 7075-T6 and AA-6086 high-strength aluminium alloy can be determined from Equations (14) and (15):
For 7075-T6 C-shaped member,
R p r o p = 0.763 − 0.647 a h + 0.152 N h + 0.059 x h ≤ 1
For AA-6086 C-shaped member,
R p r o p = 0.812 − 0.567 a h + 0.156 N h + 0.065 x h ≤ 1
Figure 23 present the results of the comparison between the parametric examination and the newly proposed formulas (M-Fang). The findings show that for 7075-T6 aluminium, the average ratio of design values to the simulation results was 0.96 with a COV of 0.13, while for AA-6086 aluminium, the average ratio was 0.95 with a COV of 0.12. These results indicate that the newly suggested design formulas are both reliable and accurate in estimating the web buckling resistance of HA C-shaped members that contain perforated webs.
Figure 23. Comparison between simulation results and design strength generated by proposed design formulas.

8. Conclusions

This work addresses this research gap through a detailed numerical investigation, focusing on AA-6086 and 7075-T6 alloys under both end-two-flange (ETF) and interior-two-flange (ITF) loading conditions. For comparison, specimens with web openings were also analysed under the ETF loading case. Both material grades of AA-6086 and 7075-T6 were investigated. Based on the outcome of this study, the following conclusions can be drawn:
  • A parametric investigation consisting of 3506 models was performed using the finite element (FE) models previously developed for traditional aluminium alloys. Specifically, 1024 models represented imperforated specimens under ITF loading, 1024 under ETF loading, and 1458 perforated specimens under ETF loading. A wide range of high-strength aluminium alloy sections covering varying web slenderness ratios, internal corner radii, bearing lengths, and aluminium alloy grades were considered in this investigation. The results obtained from the parametric investigation suggested that the impact of hw/t, N/t, and ri/t ratios on the web buckling strength of high-strength aluminium alloy sections was significant. This indicates the importance of including the impact of hw/t, N/t, and ri/t ratios when proposing the design calculations for estimating the web buckling strength of such members.
  • The accuracy of the latest design recommendation provided in the Australian and New Zealand Standards (AS/NZ S4600) (2018) and Australia Standards (AS/NZS 1664.1) (1997) was evaluated by comparing them with parametric analysis results. The results showed that for imperforated section under ETF case, the average design strength calculated by AS/NZ S4600 to the simulation results was 1.53 and 1.37 for 7075-T6 and AA-6086, respectively. The web buckling strength predicted by AS/NZS 1664.1 was slightly un-conservative by 14% and 2% for 7075-T6 and AA-6086, respectively, compared to simulation results. It was shown that the latest design recommendations were over-conservative when estimating the web buckling strength of such channel sections. For imperforated section under ITF case, it was found that the design methods provided in AS/NZS 4600 were excessively cautious, whereas the design specifications outlined in AS/NZS 1664.1 (1997) led to unconservative estimations when calculating the web buckling behaviour of C-sections made from high-strength aluminium alloy.
  • For imperforated section under ETF case, new unified web buckling equations with new coefficients for high-strength aluminium alloys were presented based on the simulation results. The same methodology as AS/NZS 4600 (2018) was adopted in developing the new design calculations. The average ratio of design values to simulation results was found to be 0.94, and the coefficient of variation (COV) was 0.24 for 7075-T6 aluminium, while the average ratio was 0.93, and the COV was 0.25 for AA-6086 aluminium. A comparison revealed that the design strengths calculated by the newly presented formulas (M-AS/NZ S4600) were close to the simulation results. For imperforated section under ITF case, the results from testing demonstrated that, on average and in the case of 7075-T6, the ratio between design values and numerical results was 0.93, accompanied by a coefficient of variation of 0.12. Similarly, in the case of AA-6086, the ratio between design values and numerical results was 0.94 on average, accompanied by a coefficient of variation of 0.11. For perforated section under ETF case, the findings show that for 7075-T6 aluminium, the average ratio of design values to the simulation results was 0.96 with a COV of 0.13, while for AA-6086 aluminium, the average ratio was 0.95 with a COV of 0.12.
  • Although an extensive parametric investigation has been undertaken, an experimental program should be performed to evaluate the accuracy of the design calculations presented in this investigation.
