Next Article in Journal
Utilization of a Porous Cu Interlayer for the Enhancement of Pb-Free Sn-3.0Ag-0.5Cu Solder Joint
Next Article in Special Issue
Hot Deformation Behavior of As-Cast and Homogenized Al0.5CoCrFeNi High Entropy Alloys
Previous Article in Journal
Deformation Characteristic and Constitutive Modeling of 2707 Hyper Duplex Stainless Steel under Hot Compression
Previous Article in Special Issue
An Insight into Evolution of Light Weight High Entropy Alloys: A Review
Open AccessArticle

Influence of Annealing on the Microstructures and Oxidation Behaviors of Al8(CoCrFeNi)92, Al15(CoCrFeNi)85, and Al30(CoCrFeNi)70 High-Entropy Alloys

1
UES, Inc., 4401 Dayton-Xenia Road, Dayton, OH 45432-1805, USA
2
Department of Metallurgical and Materials Engineering, University of Alabama, Tuscaloosa, AL 35487-0202, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Michael C. Gao and Junwei Qiao
Metals 2016, 6(9), 222; https://doi.org/10.3390/met6090222
Received: 28 July 2016 / Revised: 2 September 2016 / Accepted: 5 September 2016 / Published: 12 September 2016
(This article belongs to the Special Issue High-Entropy Alloys (HEAs))

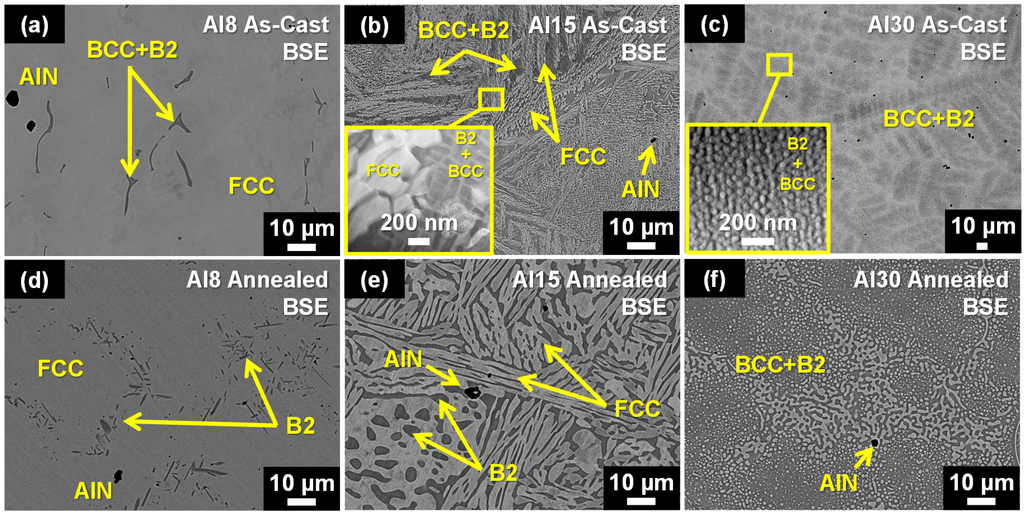

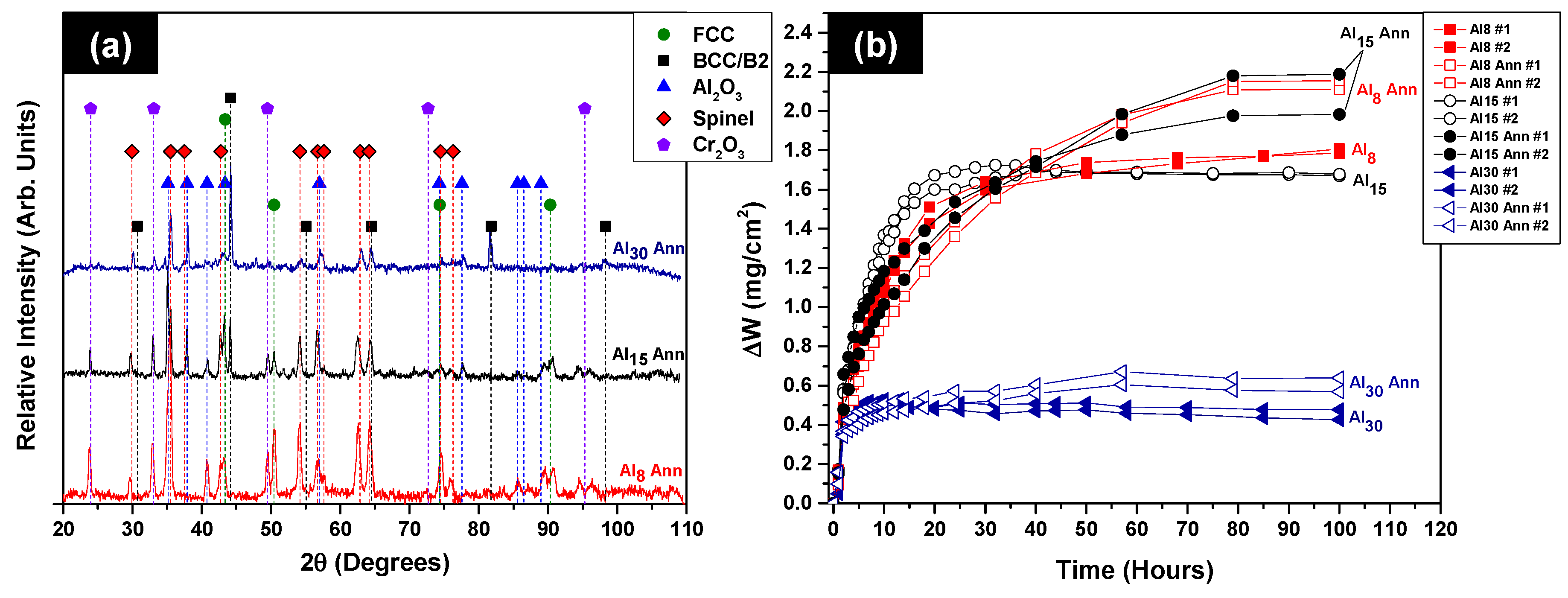

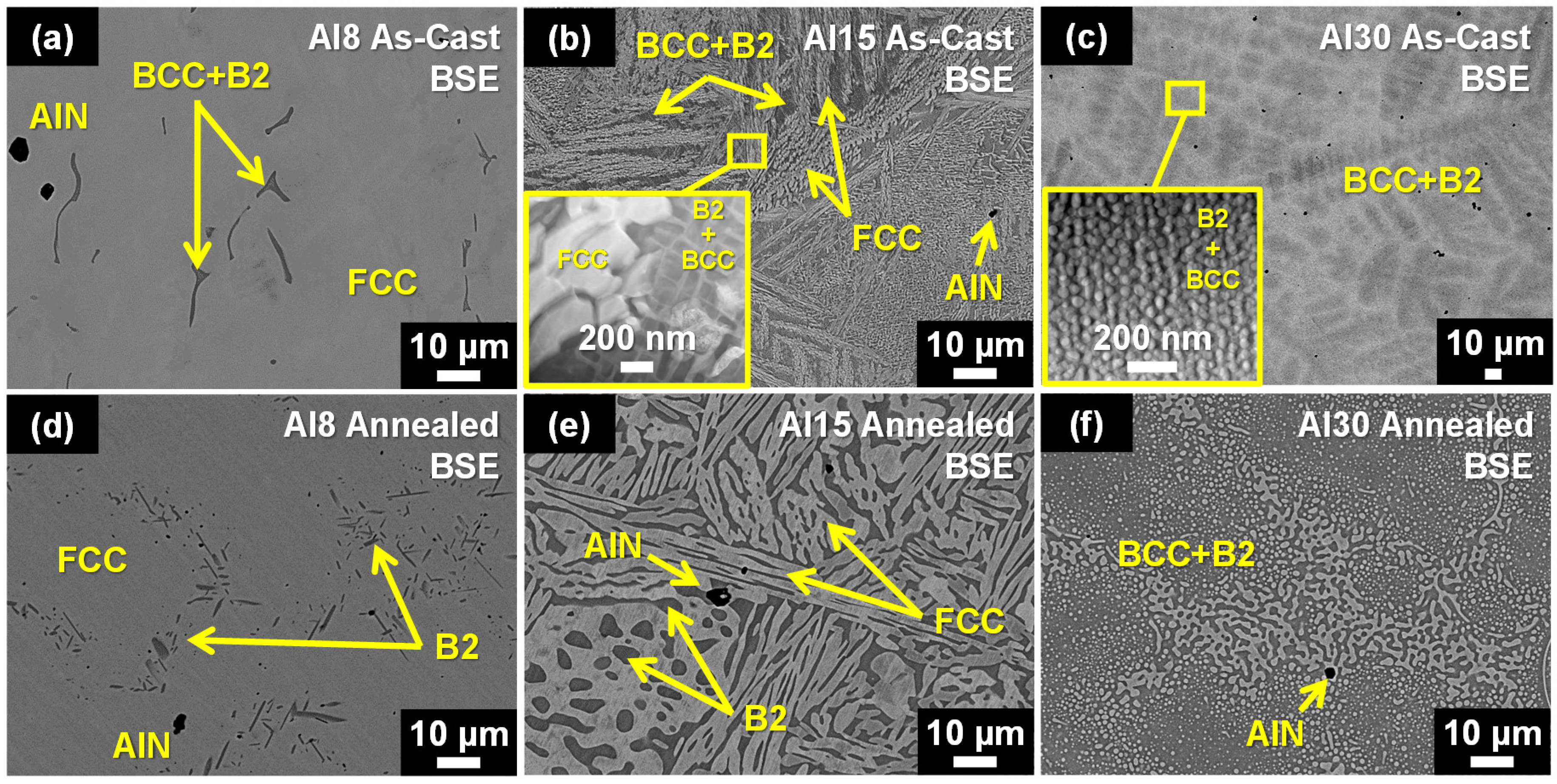

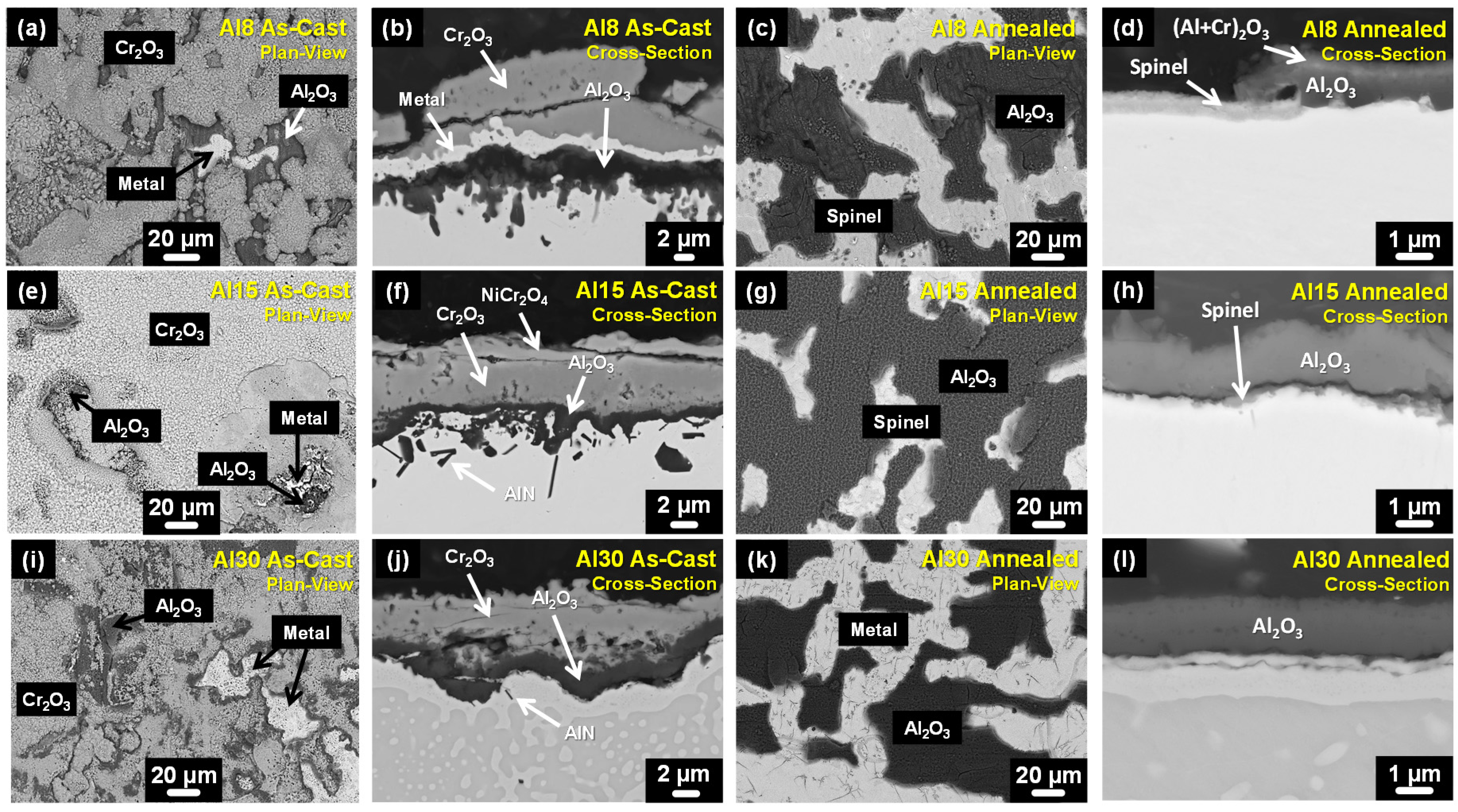

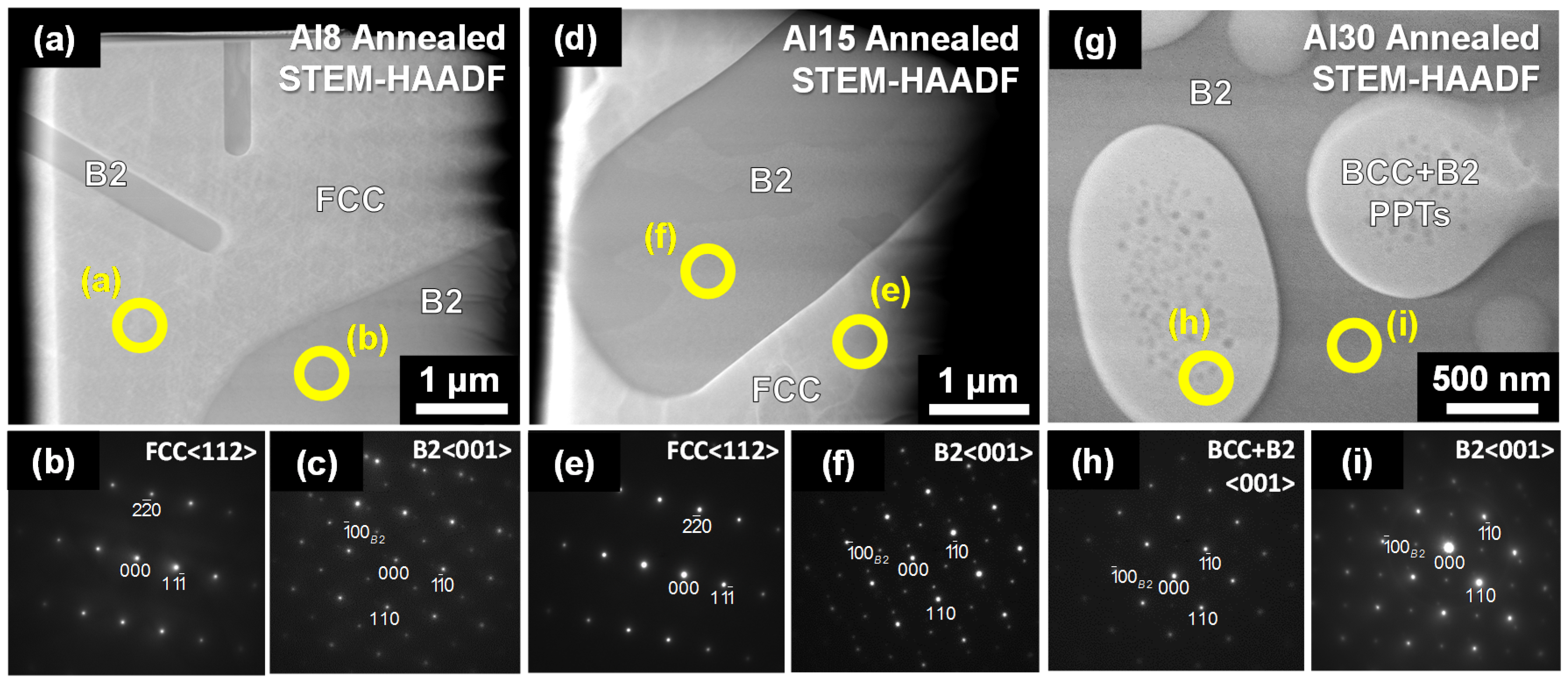

The understanding of the oxidation behaviors of as-cast and annealed high-entropy alloys (HEAs) is currently limited. This work systematically investigates the influence of annealing on the microstructures and oxidation behaviors of AlCoCrFeNi-based HEAs. Annealing was found to alter the distribution of Al-rich phases which caused a change in the oxidation mechanisms. In general, all three of the investigated HEAs displayed some degree of transient oxidation at 1050 °C that was later followed by protective, parabolic oxide growth. The respective oxidation behaviors are discussed relative to existing oxide formation models for Ni–Cr–Al alloys. View Full-Text
Keywords: high-entropy; oxidation; multi-component alloys high-entropy; oxidation; multi-component alloys
Show Figures

Figure 1

MDPI and ACS Style

Butler, T.M.; Weaver, M.L. Influence of Annealing on the Microstructures and Oxidation Behaviors of Al8(CoCrFeNi)92, Al15(CoCrFeNi)85, and Al30(CoCrFeNi)70 High-Entropy Alloys. Metals 2016, 6, 222.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
