Next Article in Journal
Composition Distribution and Electrochemical Behavior of an Ni2Al3 Coating on Q235 Steel
Previous Article in Journal
Surface and Microstructural Failures of PET-Coated ECCS Plates by Salmon-Polymer Interaction


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Metals
Volume 6
Issue 3
10.3390/met6030060
metals-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Experimental Investigation of the Ti-Nb-Sn Isothermal Section at 1173 K

by
Jianli Wang
1,2,*,
Libin Liu
2,
Ligang Zhang
2,
Biyang Tuo
3,
Weimin Bai
2 and
Di Wu
2
1
School of Metallurgical Engineering, Hunan University of Technology, Zhuzhou 412007, China
2
School of Material Science and Engineering, Central South University, Changsha 410083, China
3
College of Mining, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Metals 2016, 6(3), 60; https://doi.org/10.3390/met6030060
Submission received: 21 January 2016 / Revised: 3 March 2016 / Accepted: 7 March 2016 / Published: 11 March 2016
Browse Figures
Versions Notes

Abstract

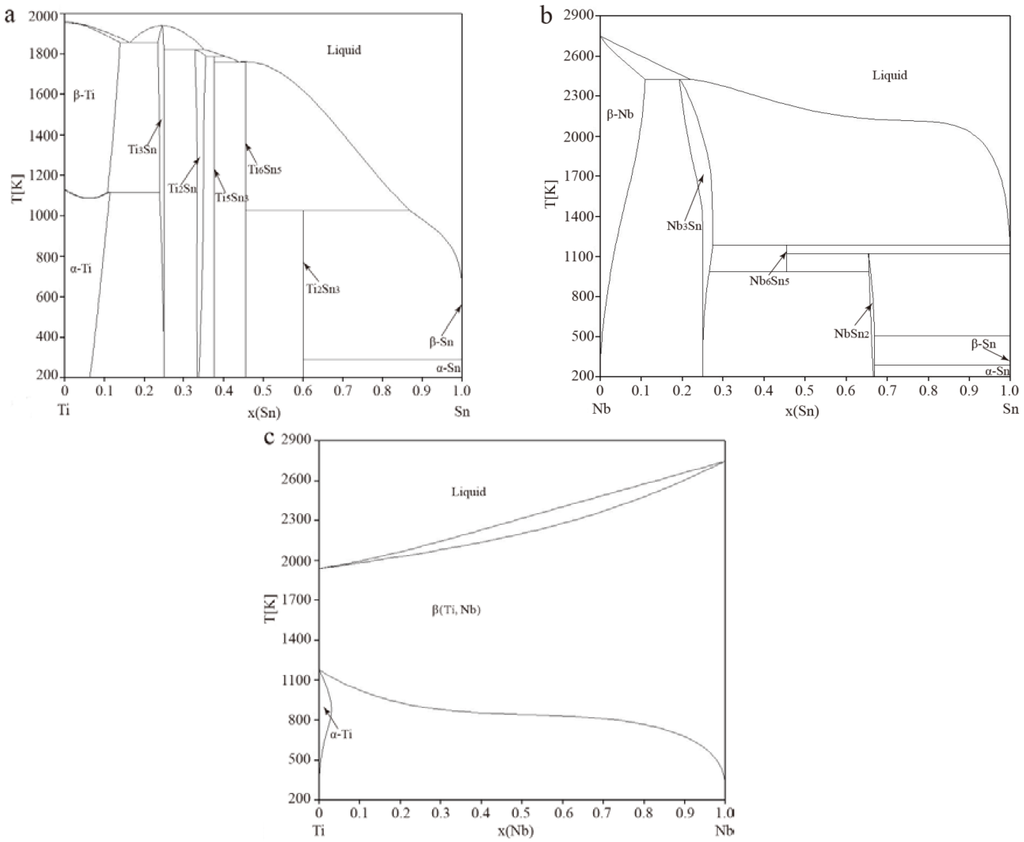

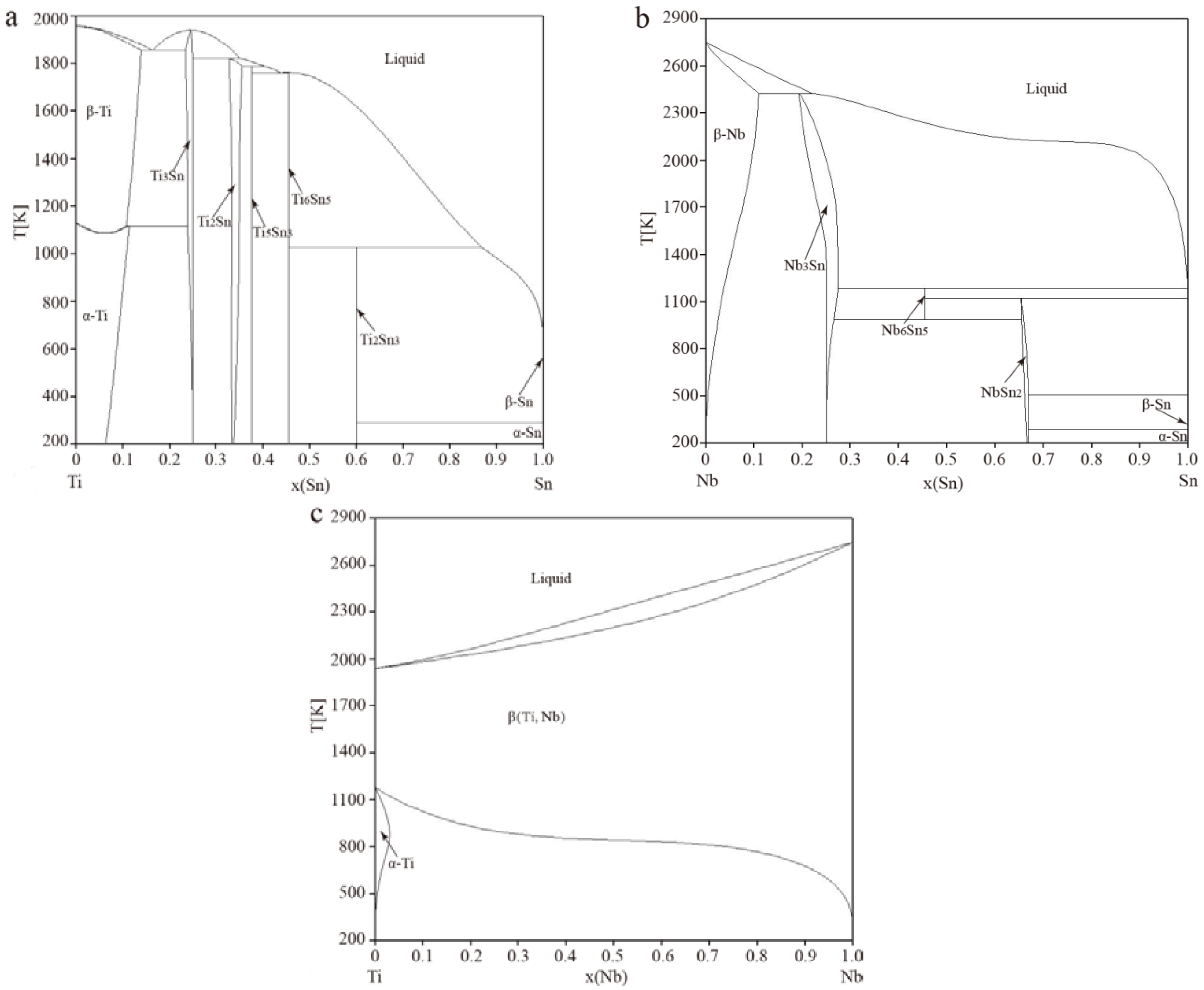

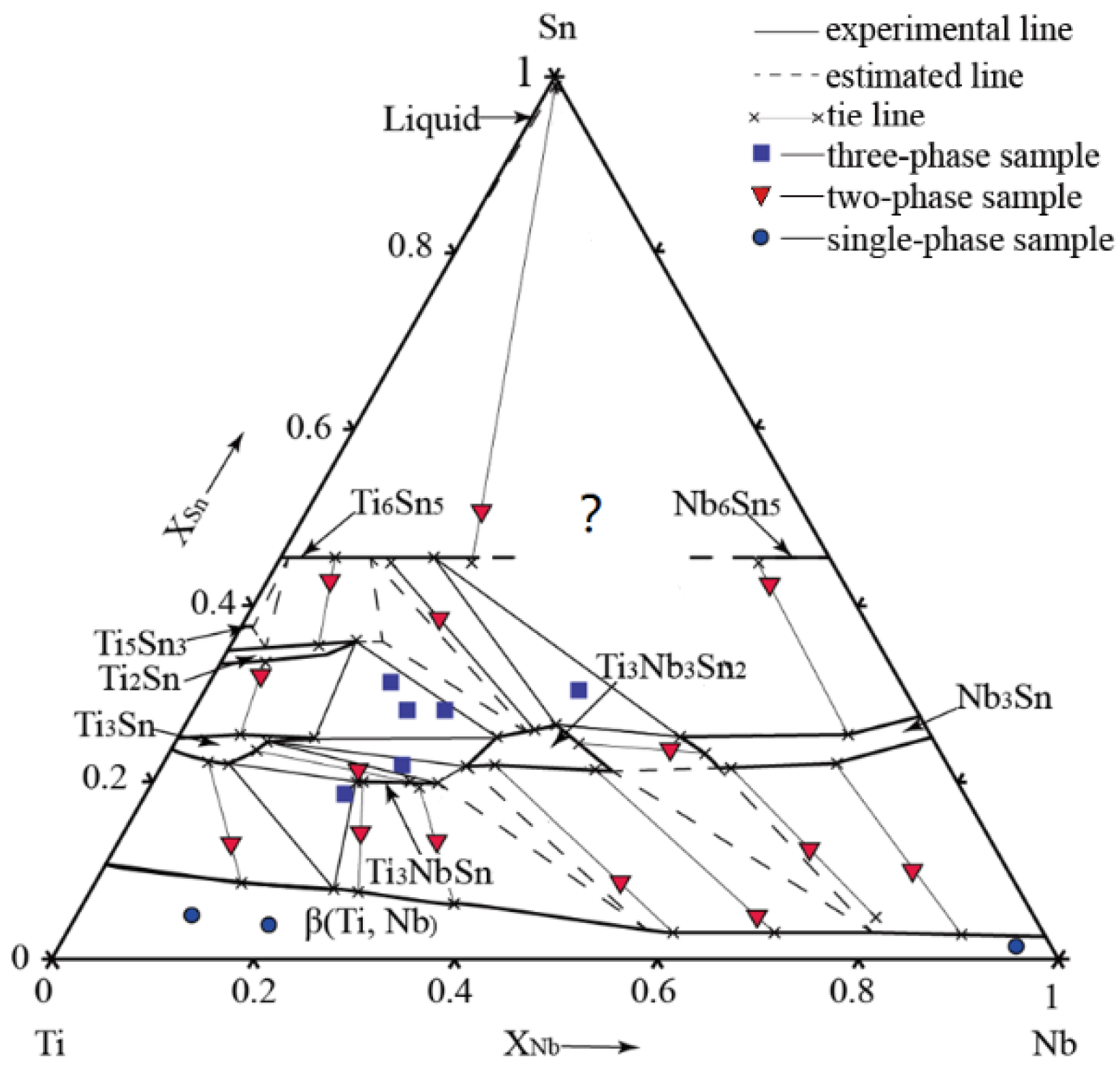

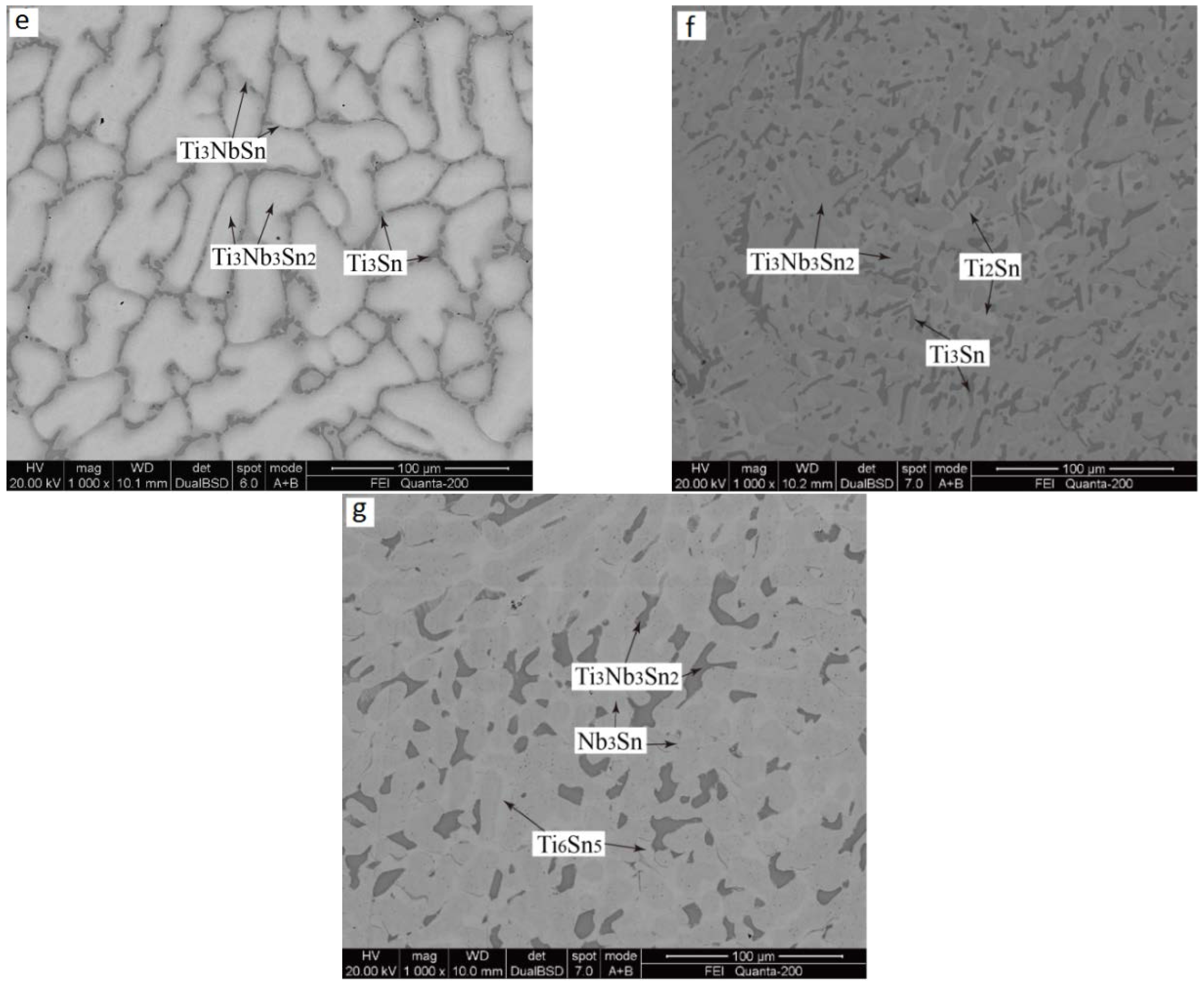

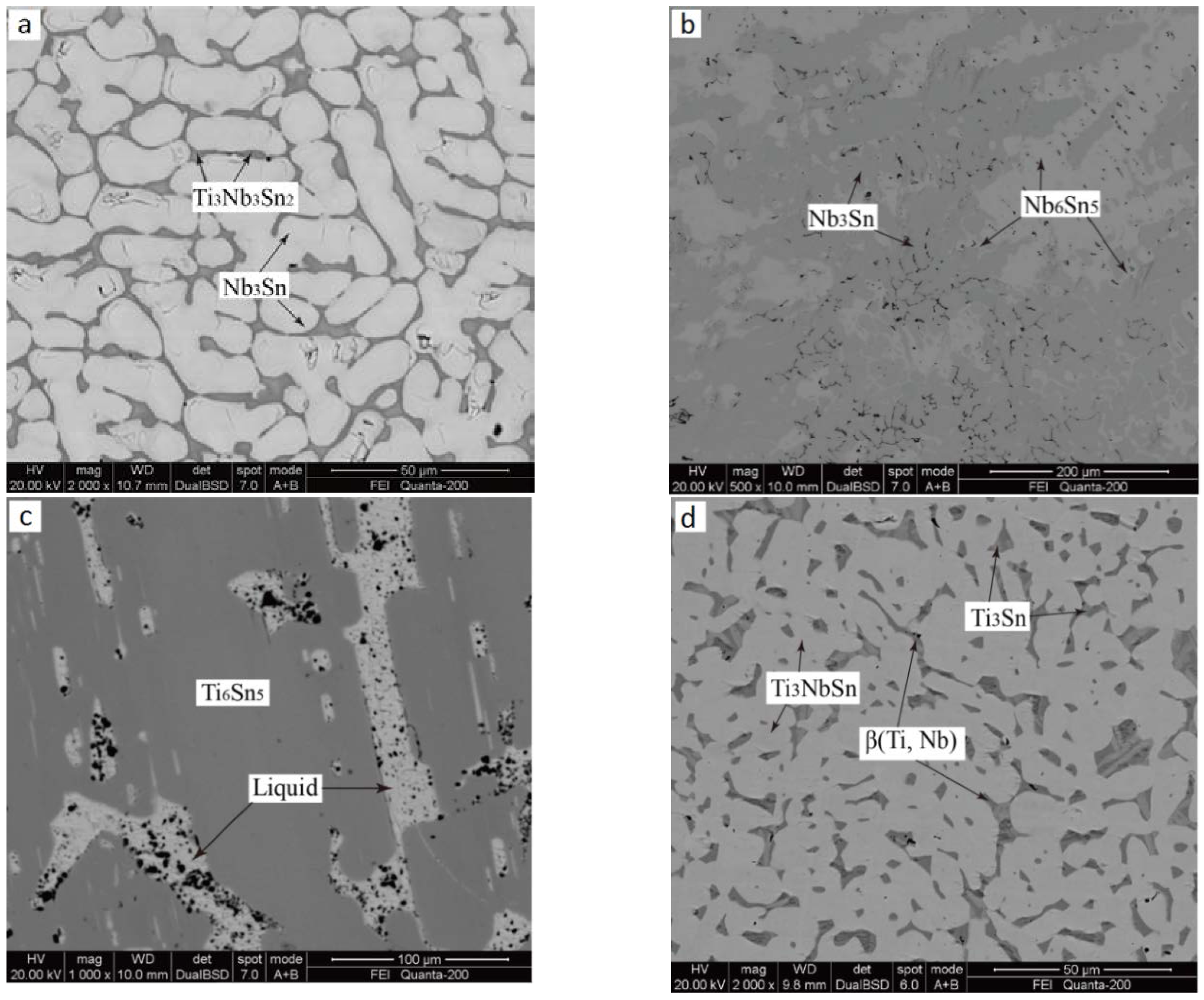

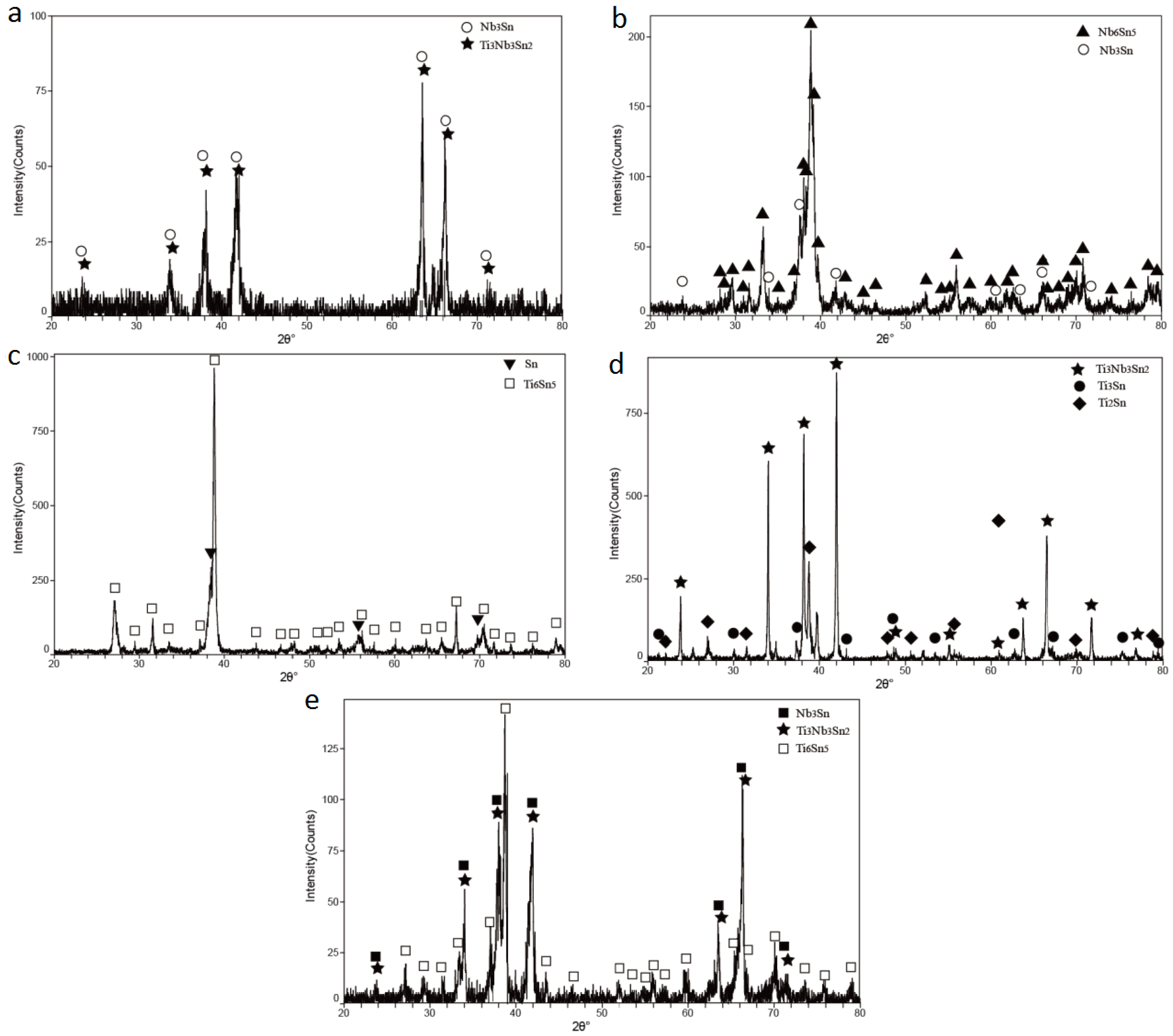

Isothermal section of Ti-Nb-Sn at 1173 K was experimentally studied by back-scattered electron, electron probe microanalysis and X-ray diffraction analysis. Solid solution phase β(Ti, Nb), liquid Sn and eight intermetallic compounds Ti3Sn, Ti2Sn, Ti5Sn3, Ti6Sn5, Nb6Sn5, Nb3Sn, Ti3Nb2Sn2 and Ti3NbSn coexisted. Four ternary phase regions Ti3Sn + Ti3NbSn + β(Ti, Nb), Ti3NbSn + Ti3Nb3Sn2 + Ti3Sn, Ti2Sn + Ti3Sn + Ti3Nb3Sn2 and Ti6Sn5 + Ti3Nb3Sn2 + Nb3Sn were experimented. In addition, the proper composition range of the single phase was suggested. All the detected Ti-Sn and Nb-Sn compounds have a remarkable solubility along the isoconcentration of Sn. β(Ti, Nb) has a relatively large solution while liquid Sn has a little in the isothermal section.
Keywords: isothermal section; Ti-Nb-Sn ternary system; phase equilibrium isothermal section; Ti-Nb-Sn ternary system; phase equilibrium
Graphical Abstract

Share and Cite

MDPI and ACS Style

Wang, J.; Liu, L.; Zhang, L.; Tuo, B.; Bai, W.; Wu, D. Experimental Investigation of the Ti-Nb-Sn Isothermal Section at 1173 K. Metals 2016, 6, 60. https://doi.org/10.3390/met6030060

AMA Style

Wang J, Liu L, Zhang L, Tuo B, Bai W, Wu D. Experimental Investigation of the Ti-Nb-Sn Isothermal Section at 1173 K. Metals. 2016; 6(3):60. https://doi.org/10.3390/met6030060

Chicago/Turabian Style

Wang, Jianli, Libin Liu, Ligang Zhang, Biyang Tuo, Weimin Bai, and Di Wu. 2016. "Experimental Investigation of the Ti-Nb-Sn Isothermal Section at 1173 K" Metals 6, no. 3: 60. https://doi.org/10.3390/met6030060

APA Style

Wang, J., Liu, L., Zhang, L., Tuo, B., Bai, W., & Wu, D. (2016). Experimental Investigation of the Ti-Nb-Sn Isothermal Section at 1173 K. Metals, 6(3), 60. https://doi.org/10.3390/met6030060

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
