Fatigue Limit Improvement and Rendering Surface Defects Harmless by Shot Peening for Carburized Steel

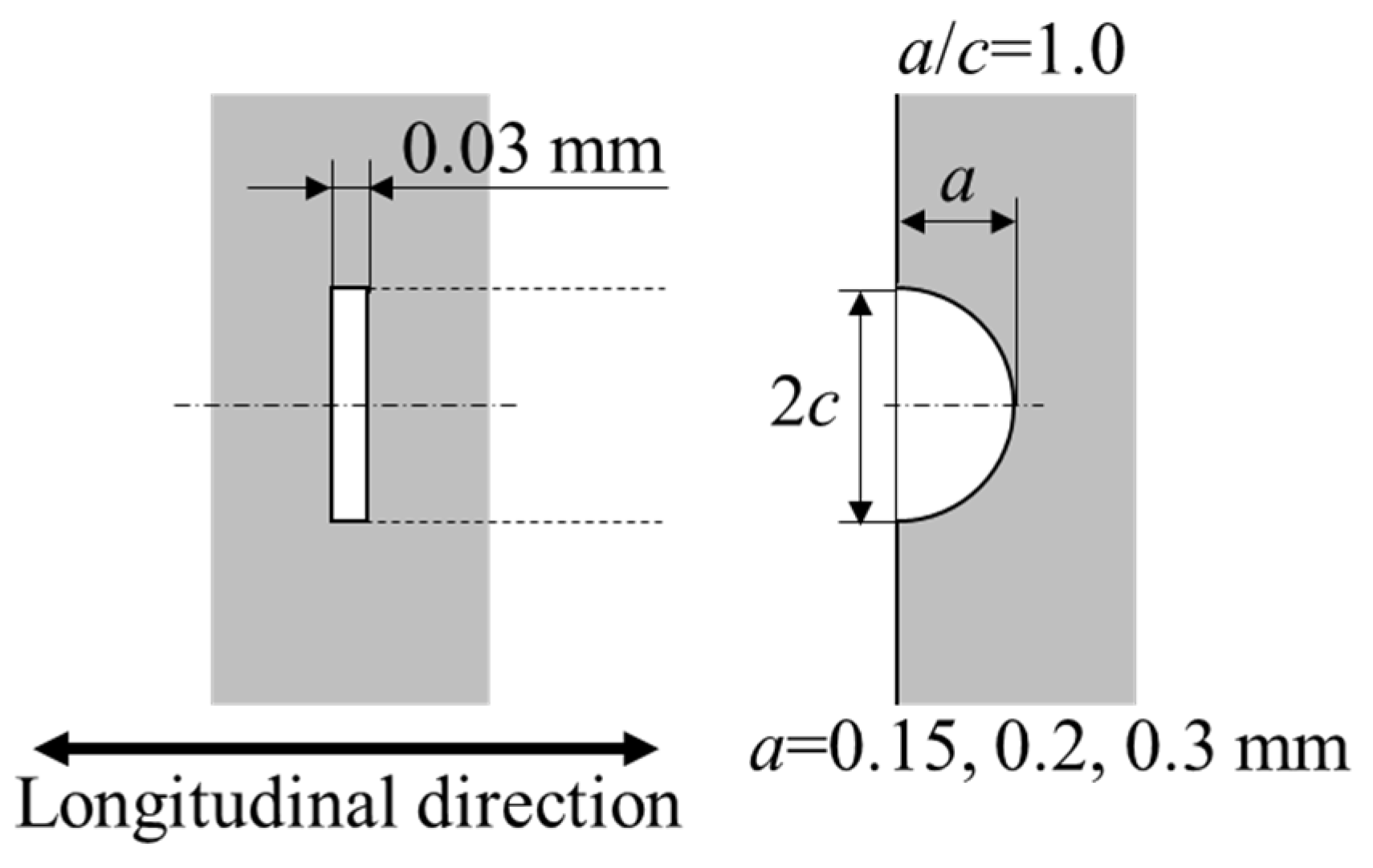

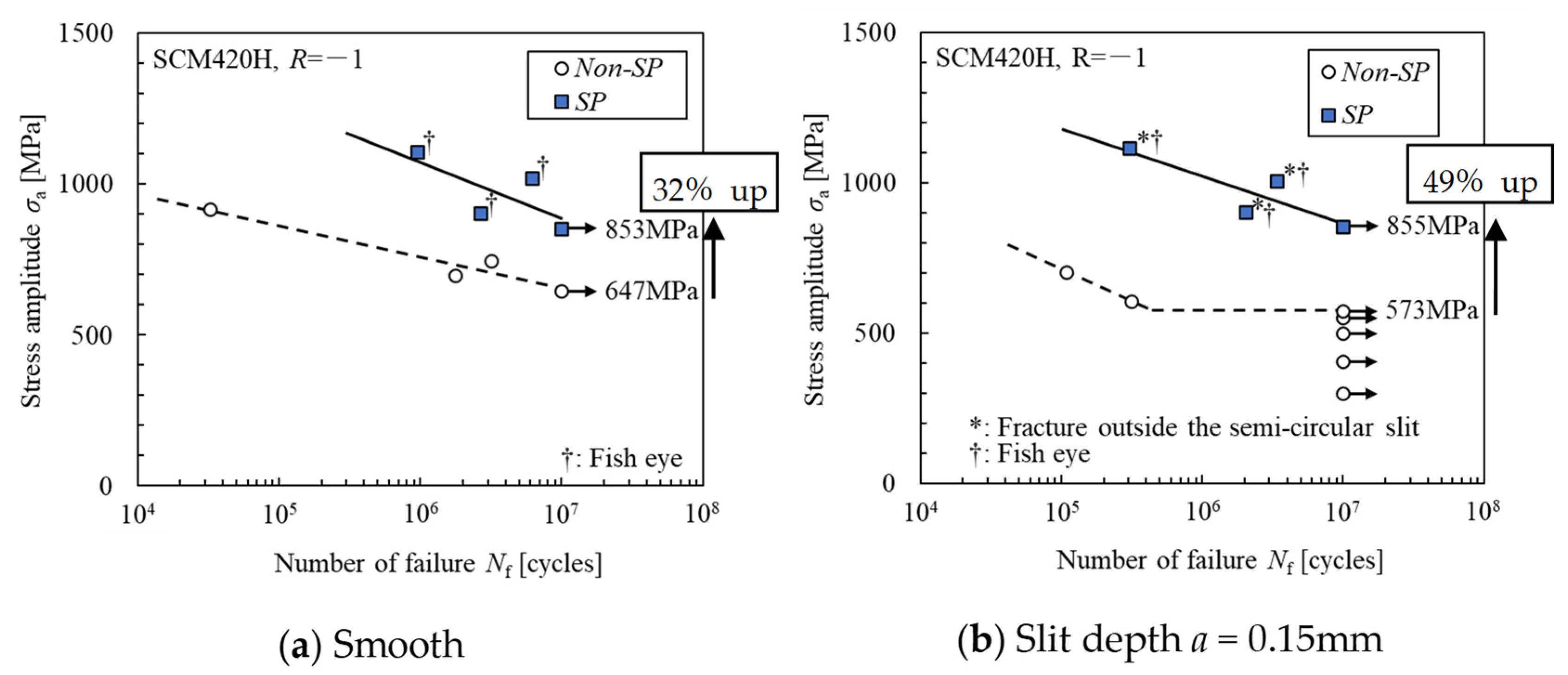

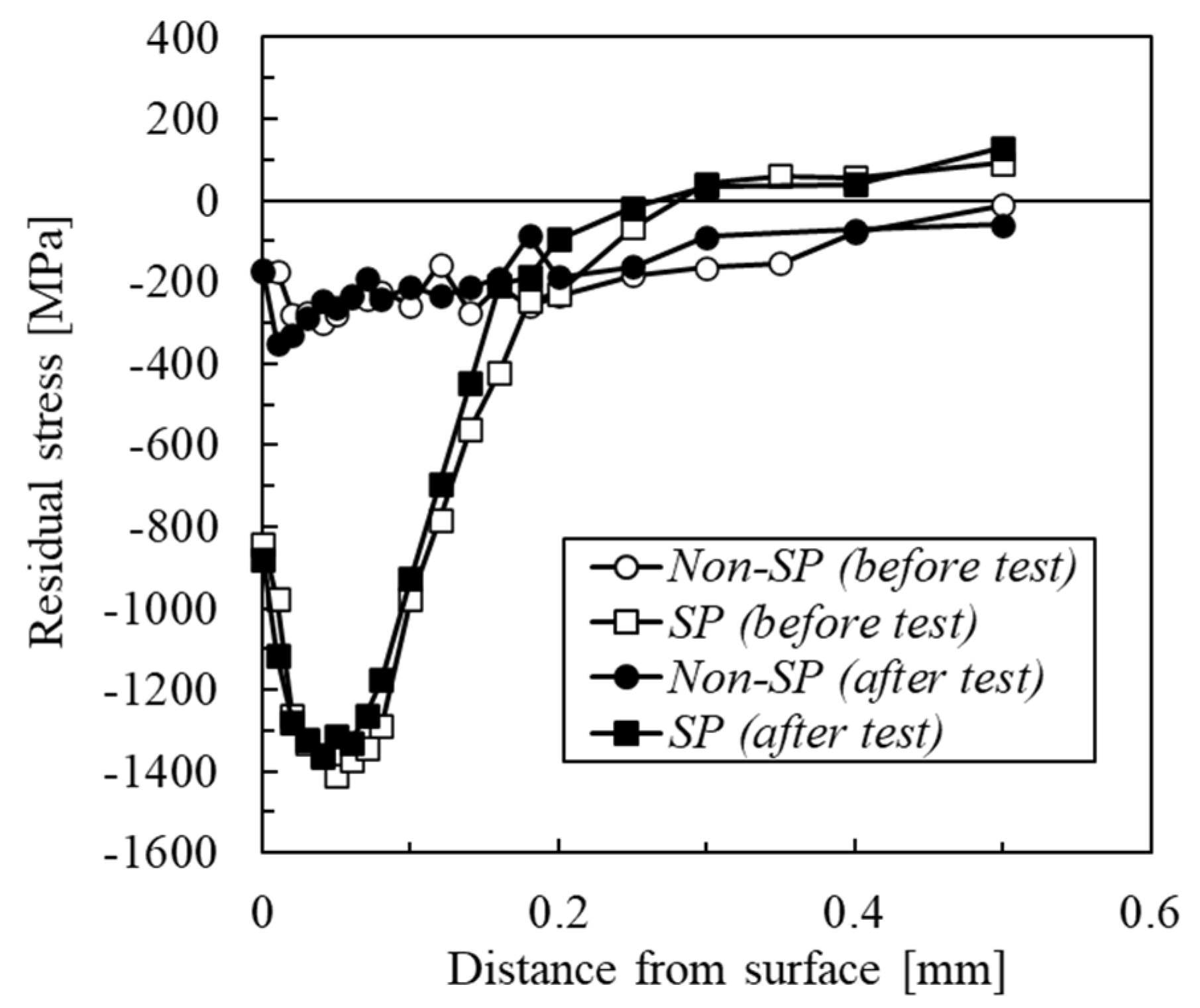

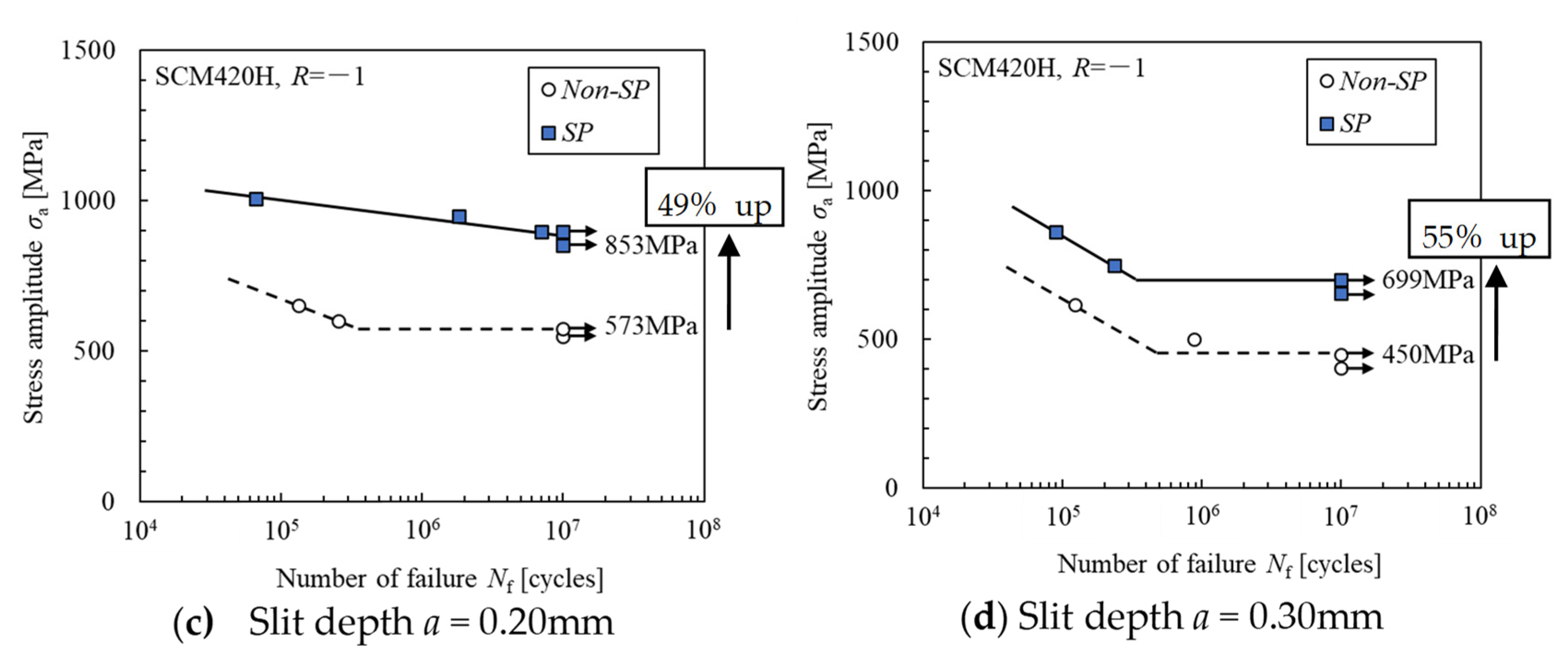

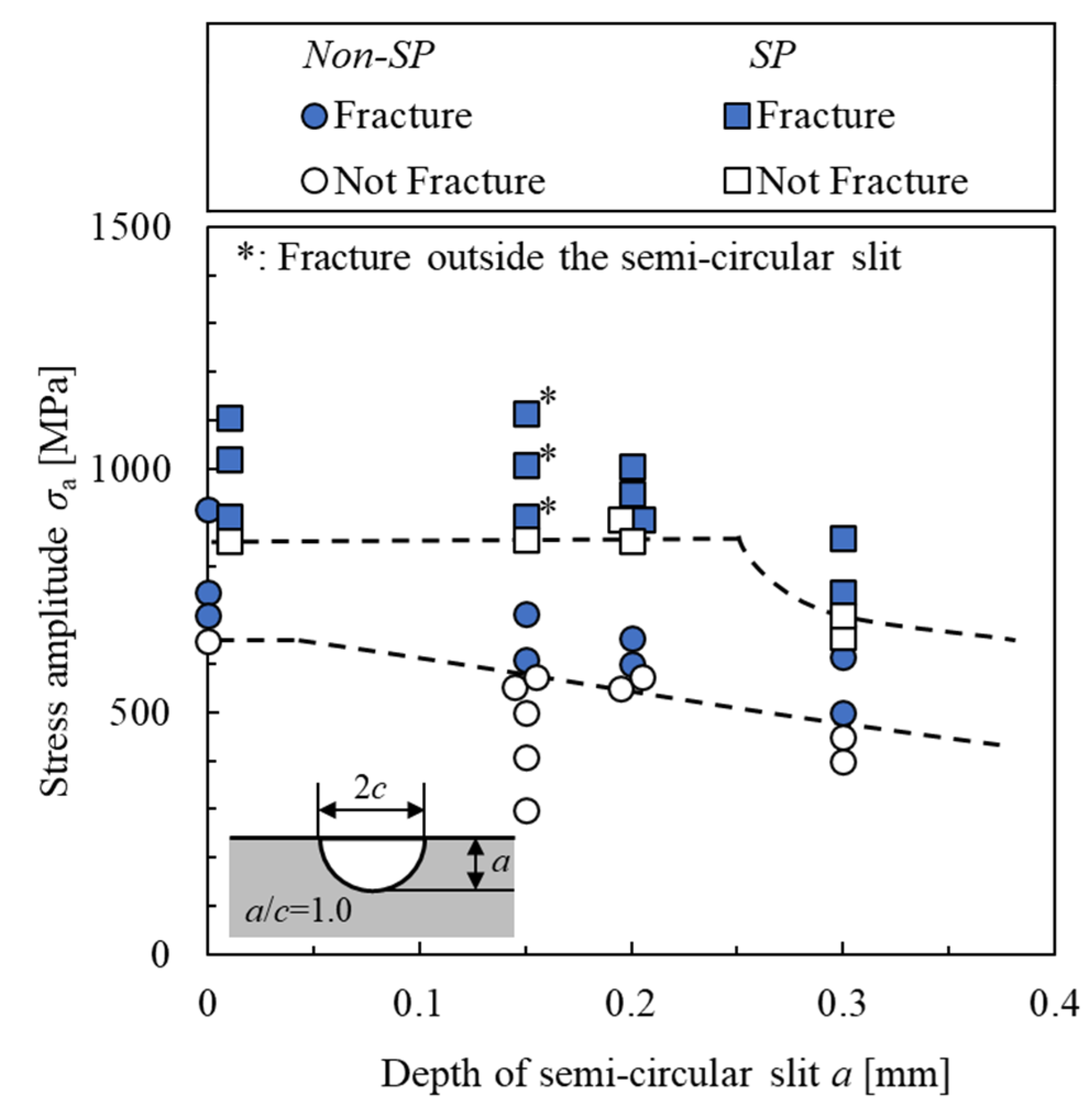

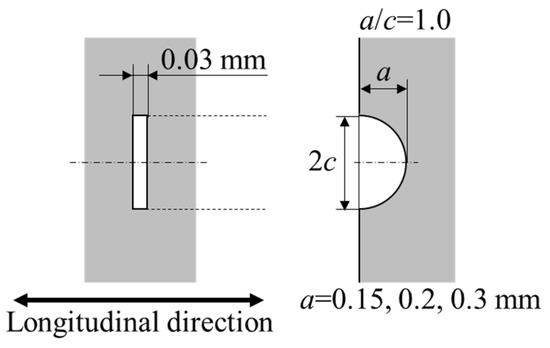

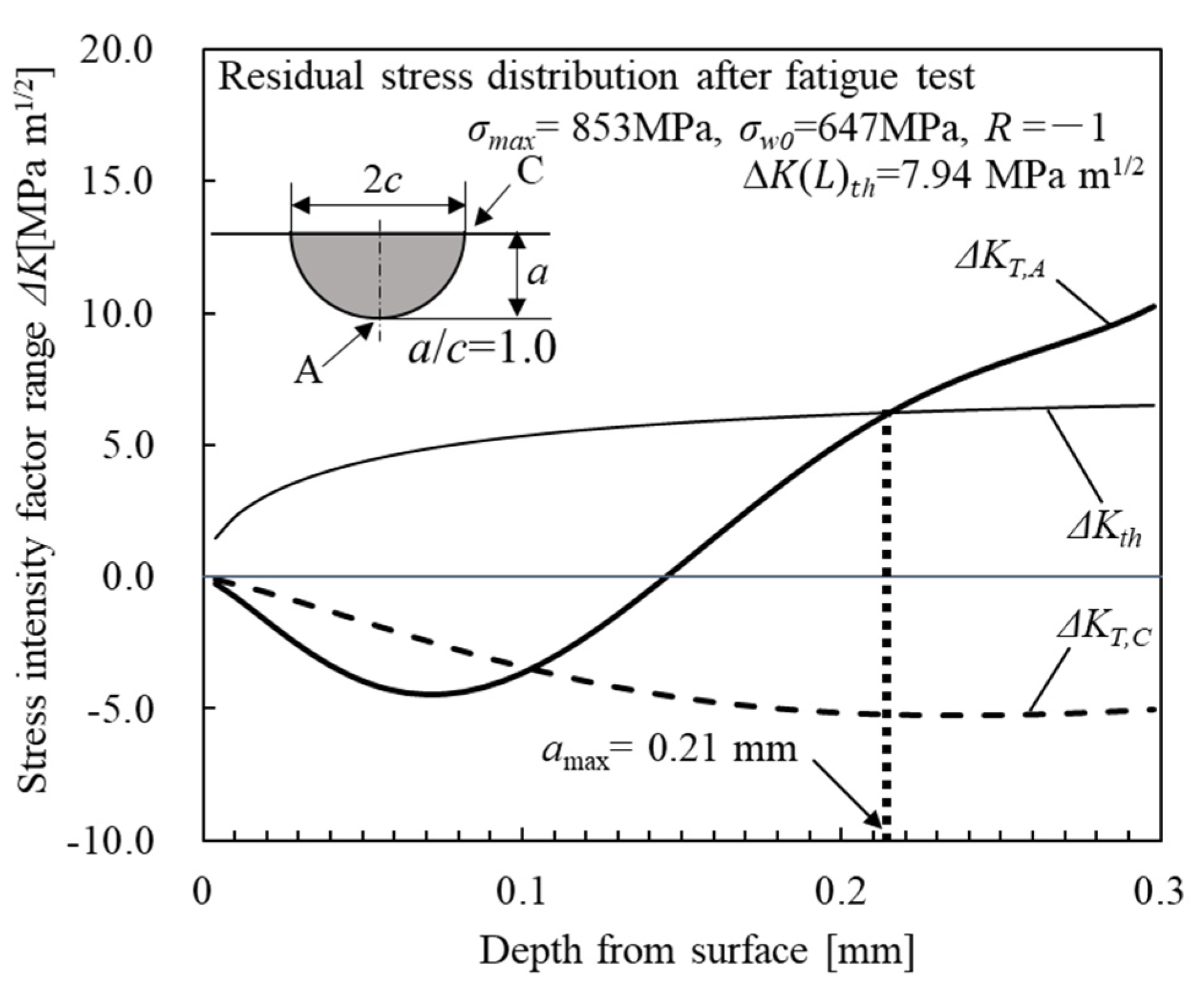

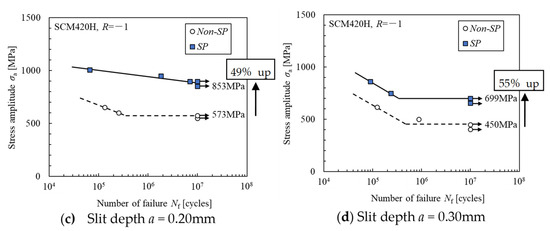

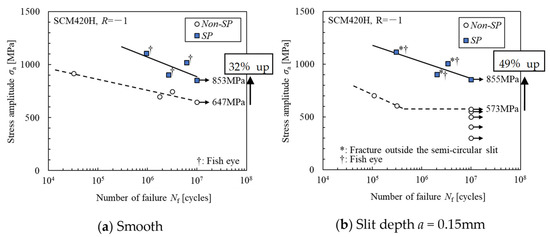

Remanufacturing has become popular as a system for reducing CO₂ emissions caused by the life cycle of products. Therefore, producing more components via remanufacturing is important. Shot peening can be used to render surface defects harmless owing to the compressive residual stress effects. This study investigated the effects of shot peening as a means of remanufacturing gears. In this study, carburized steel specimens containing artificial defects were used to investigate the effects of shot peening on the fatigue strength; the defect size was rendered harmless by shot peening. Shot peening was conducted after inducing semicircular slits with depths of a = 0.15, 0.20, and 0.30 mm. Subsequently, plane bending fatigue tests were carried out. A maximum compressive residual stress of 1400 MPa was induced after shot peening. The fatigue limit of the smooth specimen increased by approximately 31% after shot peening. A semicircular slit of at least 0.20 mm deep could be rendered harmless by shot peening (SP). The defect size reduced by SP was evaluated on the basis of fracture mechanics. The estimated results are consistent with the experimental results. On the basis of the results, the feasibility of shot peening as a remanufacturing method for gears is discussed.
