17 January 2022

19 Pages

Fabrication, Microstructure, Mechanical, and Electrochemical Properties of NiMnFeCu High Entropy Alloy from Elemental Powders

,
,
,
,
and
1
Waikato Centre for Advanced Materials and Manufacturing, School of Engineering, University of Waikato, Hamilton 3240, New Zealand
2
School of Science, University of Waikato, Hamilton 3240, New Zealand
3
Key Laboratory of Advanced Metals and Materials of Inner Mongolia, School of Materials and Metallurgy, Inner Mongolia University of Science and Technology, Baotou 014010, China
4
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
This article belongs to the Special Issue Hot Forming/Processing of Metallic Materials

Abstract

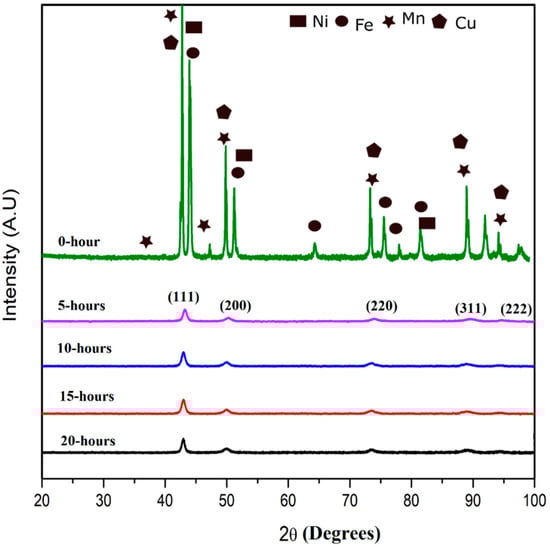

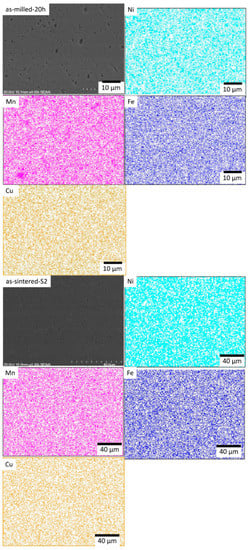

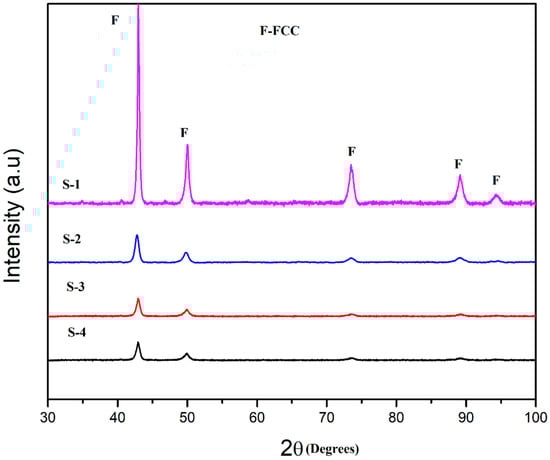

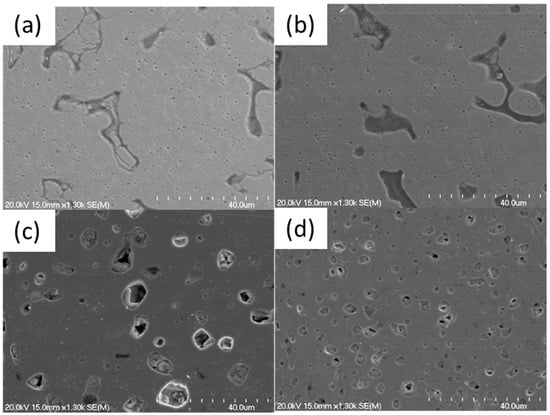

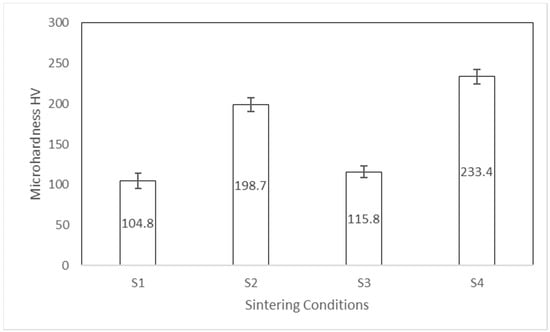

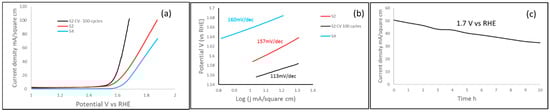

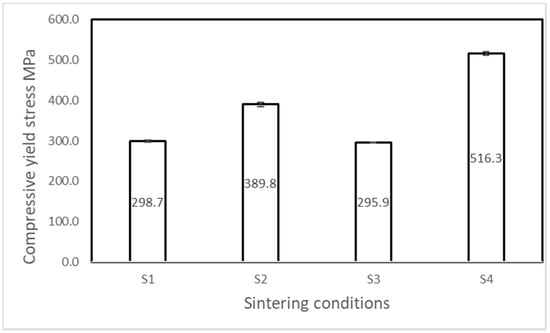

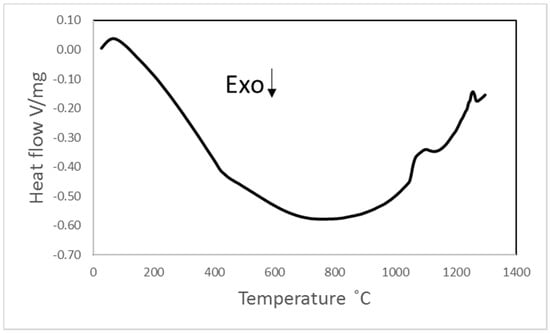

Transition metal based high entropy alloys (HEAs) are often used in electrocatalytic (water electrolysis) applications due to the synergistic effect operating among its constituent elements and unpaired electrons in d orbitals of the concerned metal. In this study, a low cost NiMnFeCu high entropy alloy was successfully synthesised using the combined techniques of mechanical milling (MA) and vacuum sintering. X-ray diffraction was used to analyse the phase composition, optical microscopy, and scanning electron microscopy were used to characterise the fabricated material’s microstructure and chemical homogeneity, thermal, and mechanical properties were tested using the differential scanning calorimetry method and a universal testing machine, respectively. Electrochemical workstation was used to carry out preliminary electrochemical studies such as linear sweep voltammetry (LSV), cyclic voltammetry (CV) and chronoamperometry. The results showed that the as- sintered NiMnFeCu HEA possessed a single- phase FCC structure. The HEA NiMnFeCu sintered at 1050 °C (S4) and 1000 °C (S2) with a holding time of 2 h showed a yield strength of 516.3 MPa and 389.8 MPa, respectively, and the micro-hardness values were measured to be 233.45 ± 9 HV and 198.7 ± 8 HV, respectively. Preliminary electrochemical studies proved that the alloy sintered at 1000 °C (S2) with a holding time of 2 h exhibited excellent electrocatalytic properties with a measured overpotential of 322 mV at 10 mA cm−2 at 100 cycles of CV and good stability for 10 h when compared to state-of-the-art electrocatalytic materials IrO2 and RuO2. This suggested that the HEA NiMnFeCu fabricated under the condition S2 could potentially be used for industrial-scale water electrolysis as it possesses permissible mechanical and good electrochemical properties.
