Next Article in Journal
Deep Contact Strength of Surface Hardened Gears
Previous Article in Journal
A Bibliometric Analysis of the Publications on In Doped ZnO to be a Guide for Future Studies
Previous Article in Special Issue
Novel α + β Type Ti-Fe-Cu Alloys Containing Sn with Pertinent Mechanical Properties
Open AccessArticle

Formation and Properties of Amorphous Multi-Component (CrFeMoNbZr)Ox Thin Films

1
Key Laboratory for Advanced Materials Processing Technology (MOE), School of Materials Science and Engineering, Tsinghua University, Beijing 100084, China
2
School of Materials Science and Engineering, Beihang University, Beijing 100084, China
3
Institute of Materials, China Academy of Engineering Physics, Mianyang 621907, China
4
Laboratory of Science and Technology on Reactor Fuel and Materials, Nuclear Power Institute of China, Chengdu 610041, China
5
Key Laboratory for Advanced Materials (MOE), School of Materials Science and Engineering, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(5), 599; https://doi.org/10.3390/met10050599
Received: 15 February 2020 / Revised: 27 April 2020 / Accepted: 1 May 2020 / Published: 5 May 2020
(This article belongs to the Special Issue Advanced Non-Equilibrium Metallic Materials)

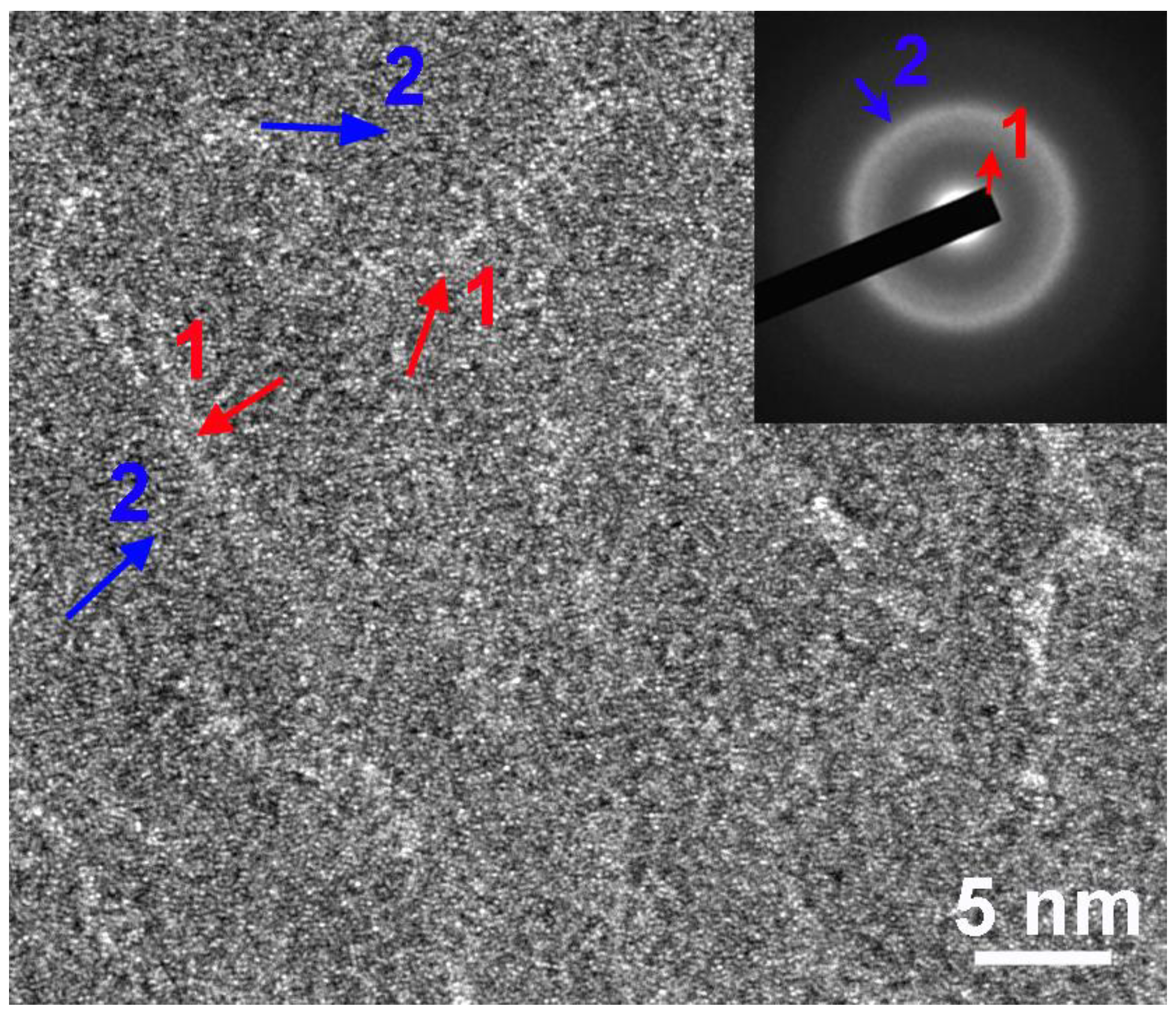

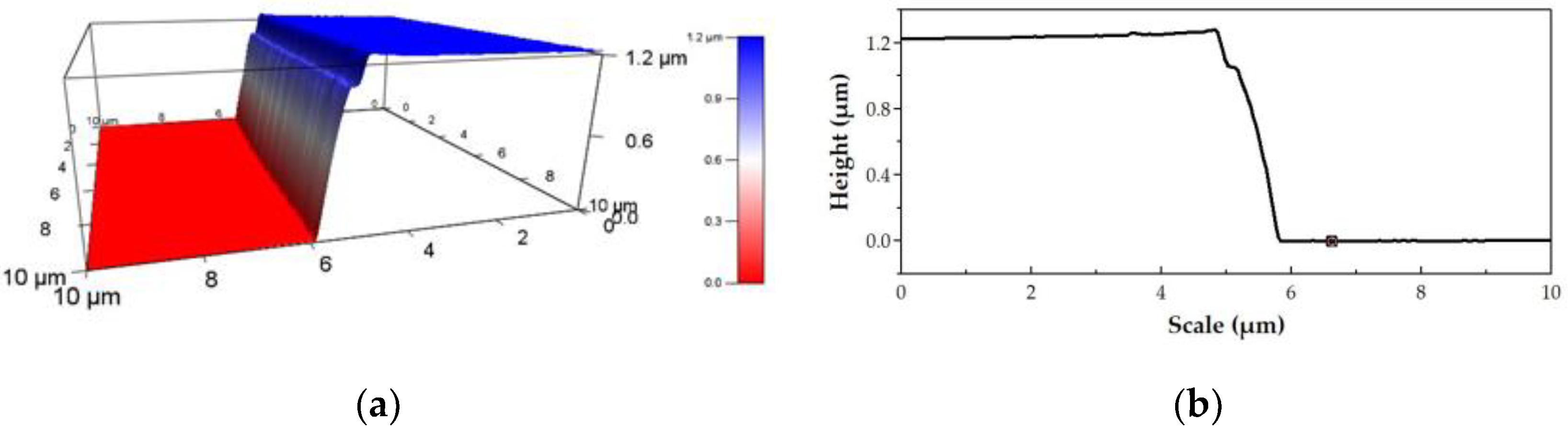

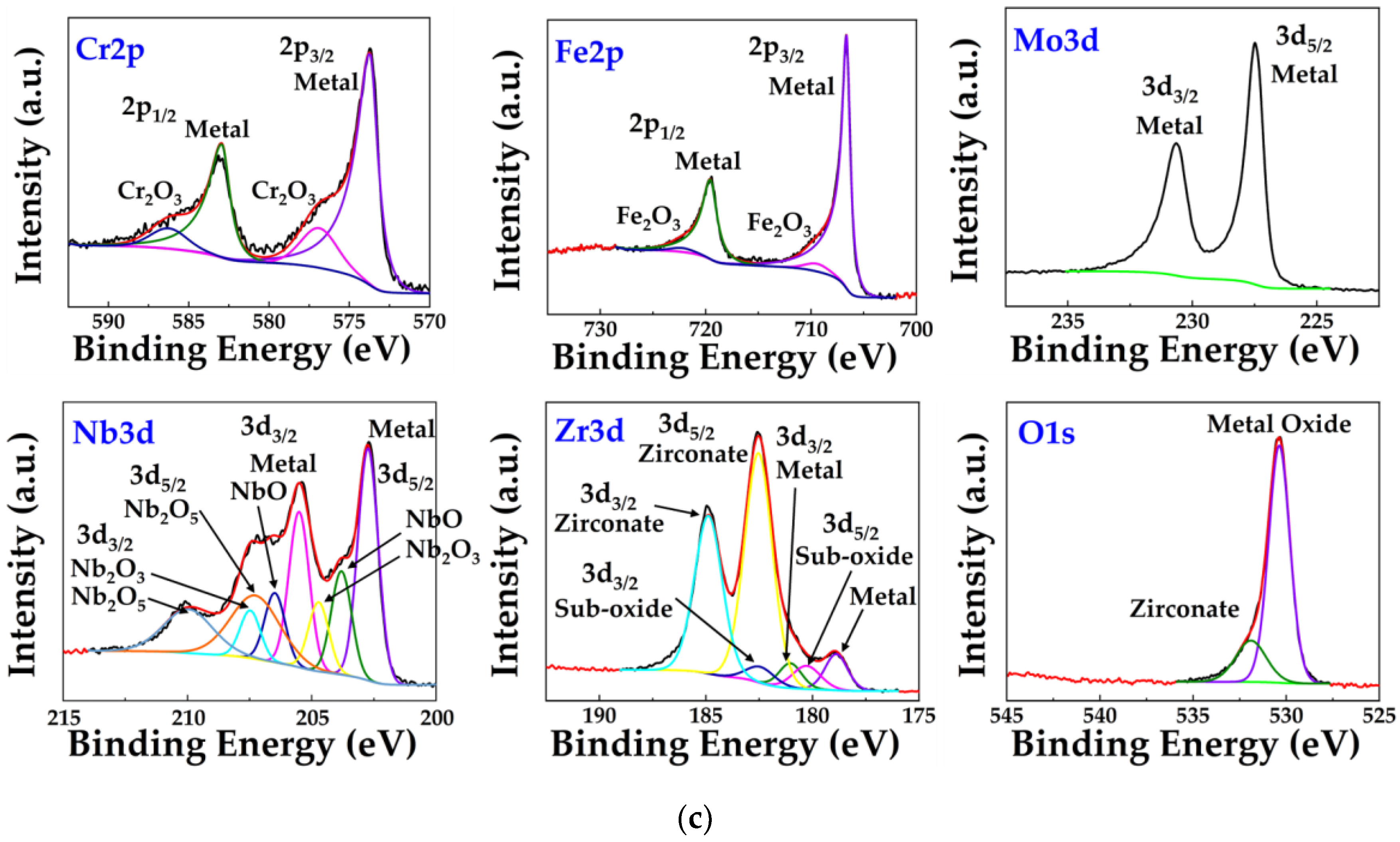

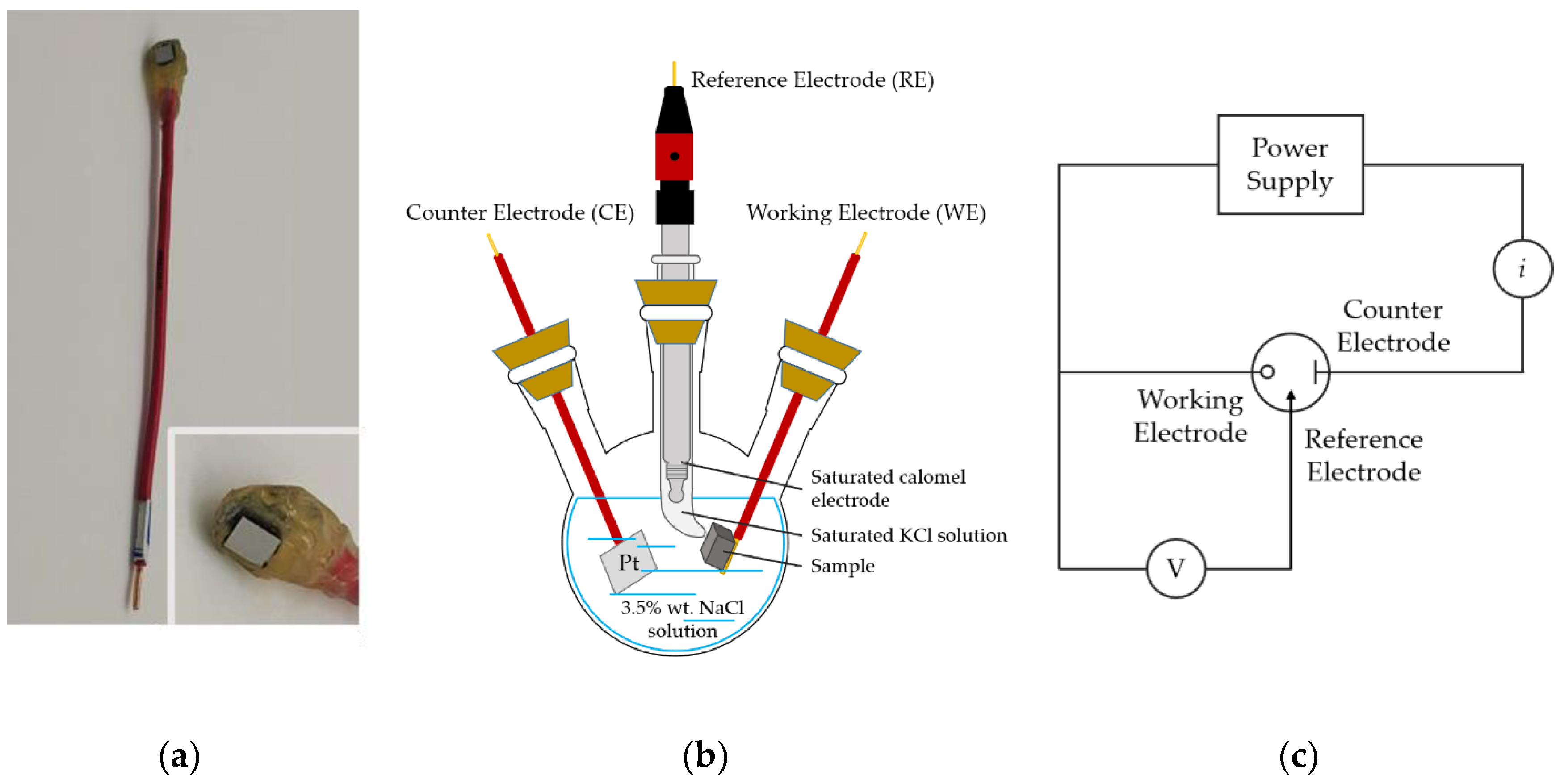

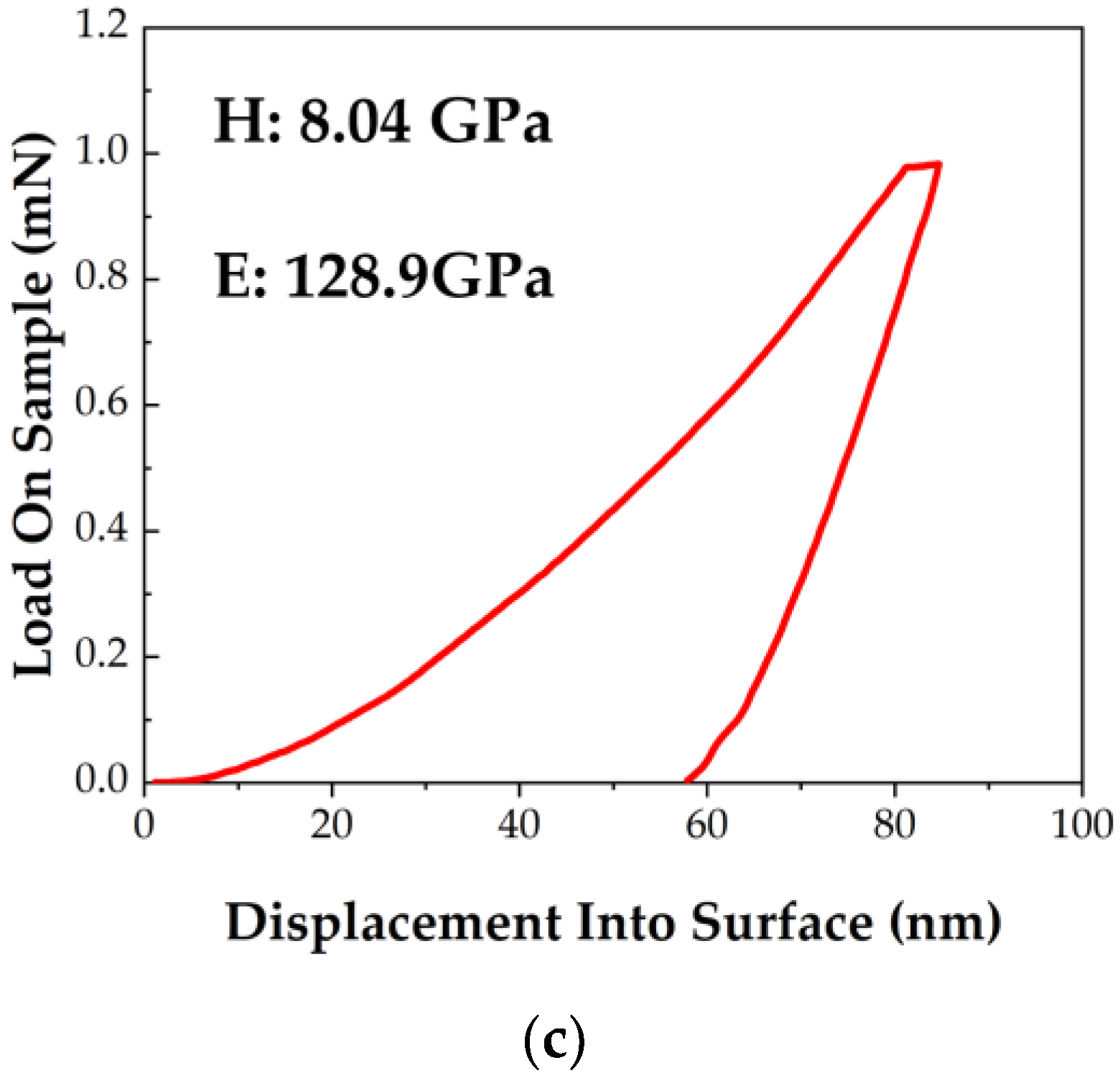

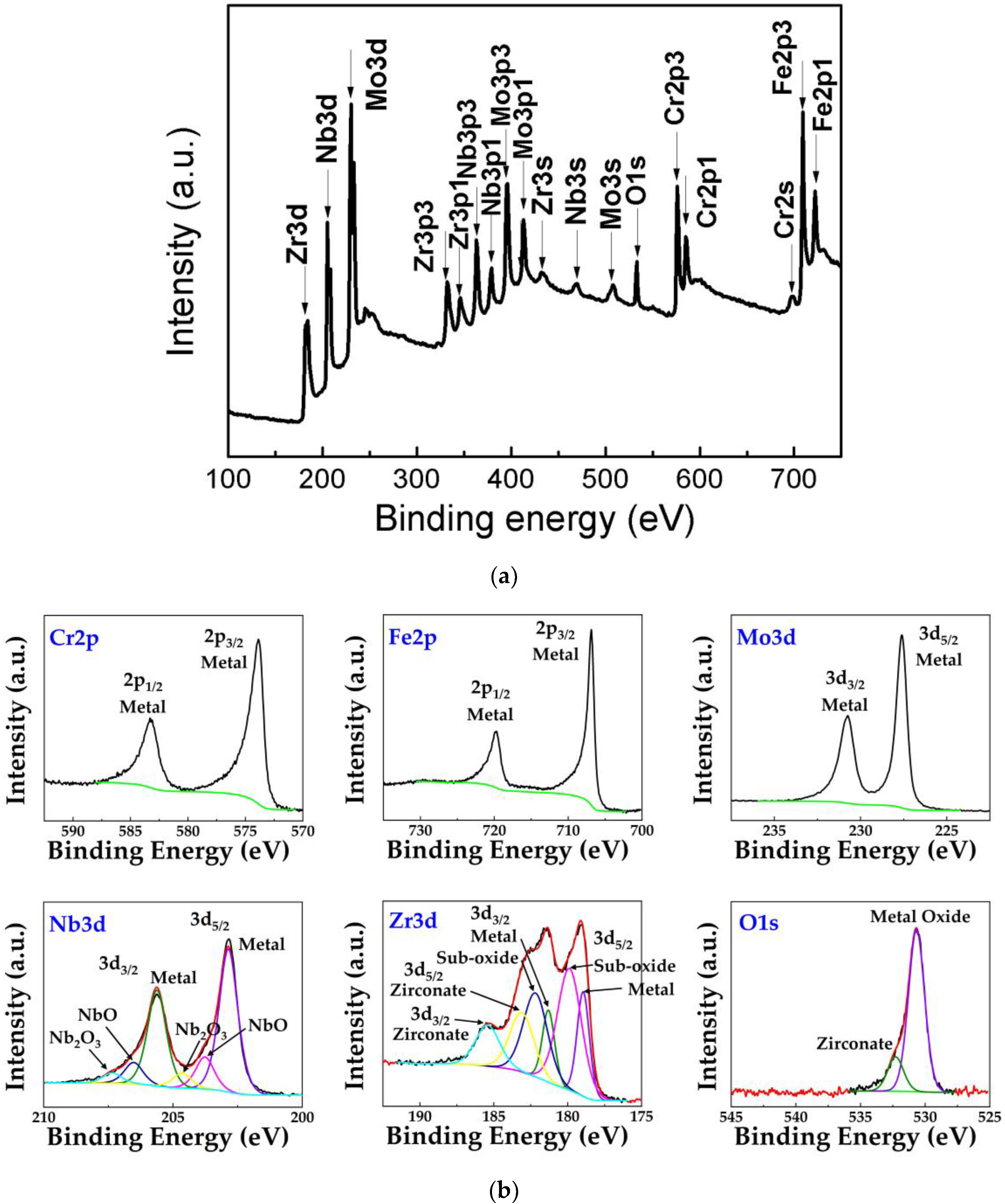

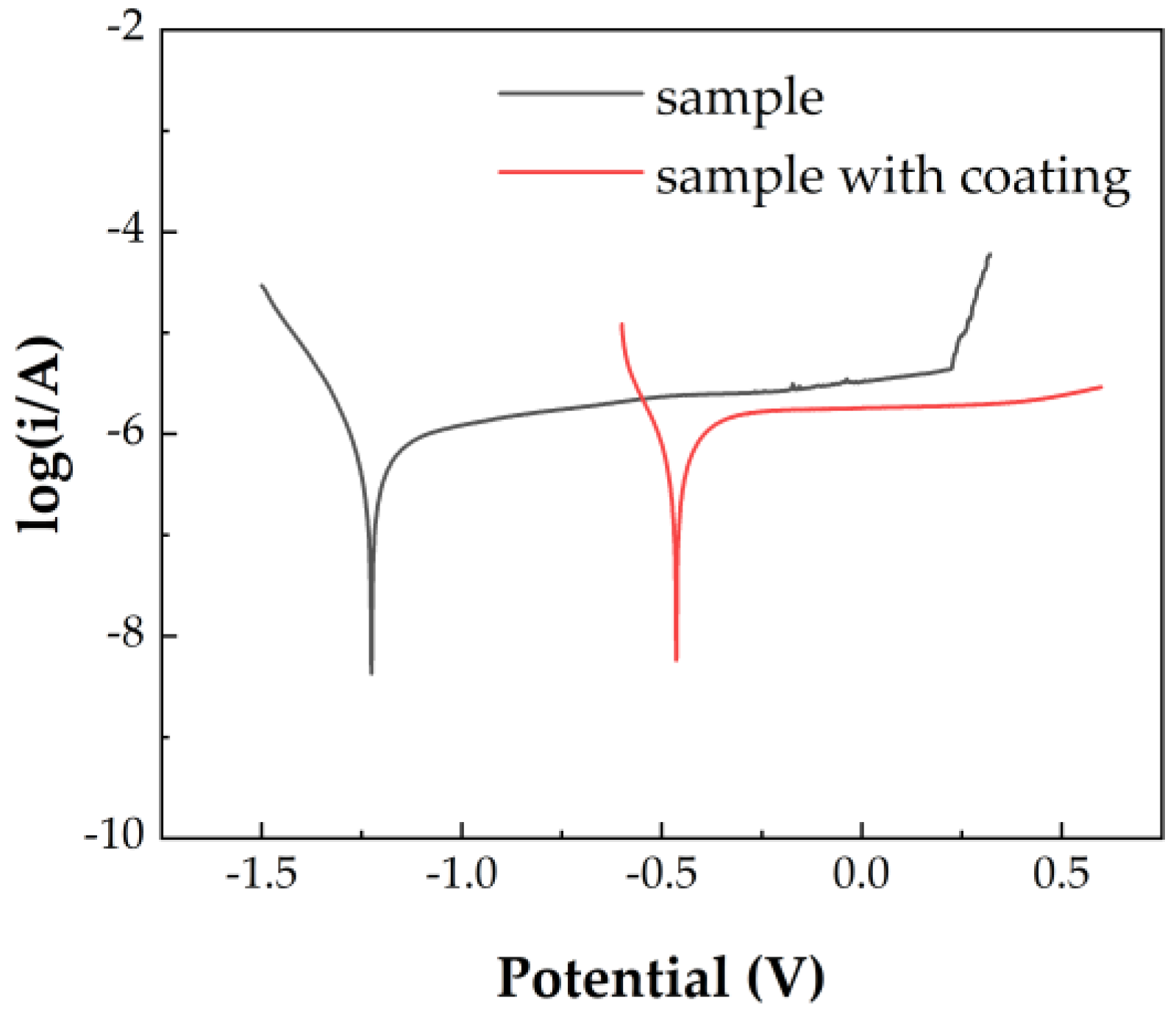

In this work, a new multi-component (CrFeMoNbZr)Ox system was developed. The thin films presented dual-phase amorphous structures, comprising a dominant amorphous alloy phase and a small amount of an amorphous oxide phase. The thin films showed higher hardness and better corrosion resistance than a commercial Zr-based alloy. The combined properties of high hardness and superior corrosion-resistance make the amorphous thin film a candidate for coating materials on commercial Zr-based alloys for engineering applications. View Full-Text
Keywords: multi-component alloys; amorphous thin film; hardness; corrosion resistance multi-component alloys; amorphous thin film; hardness; corrosion resistance
Show Figures

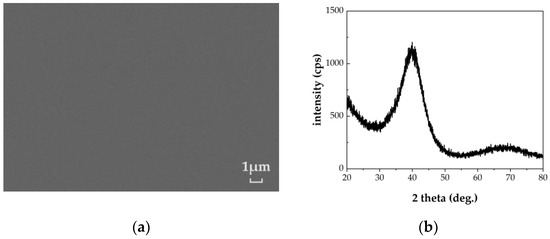

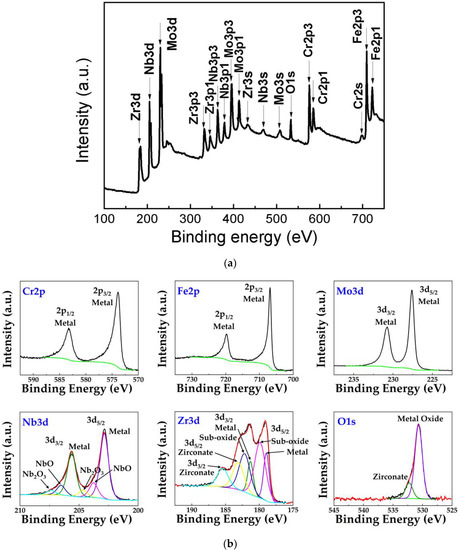

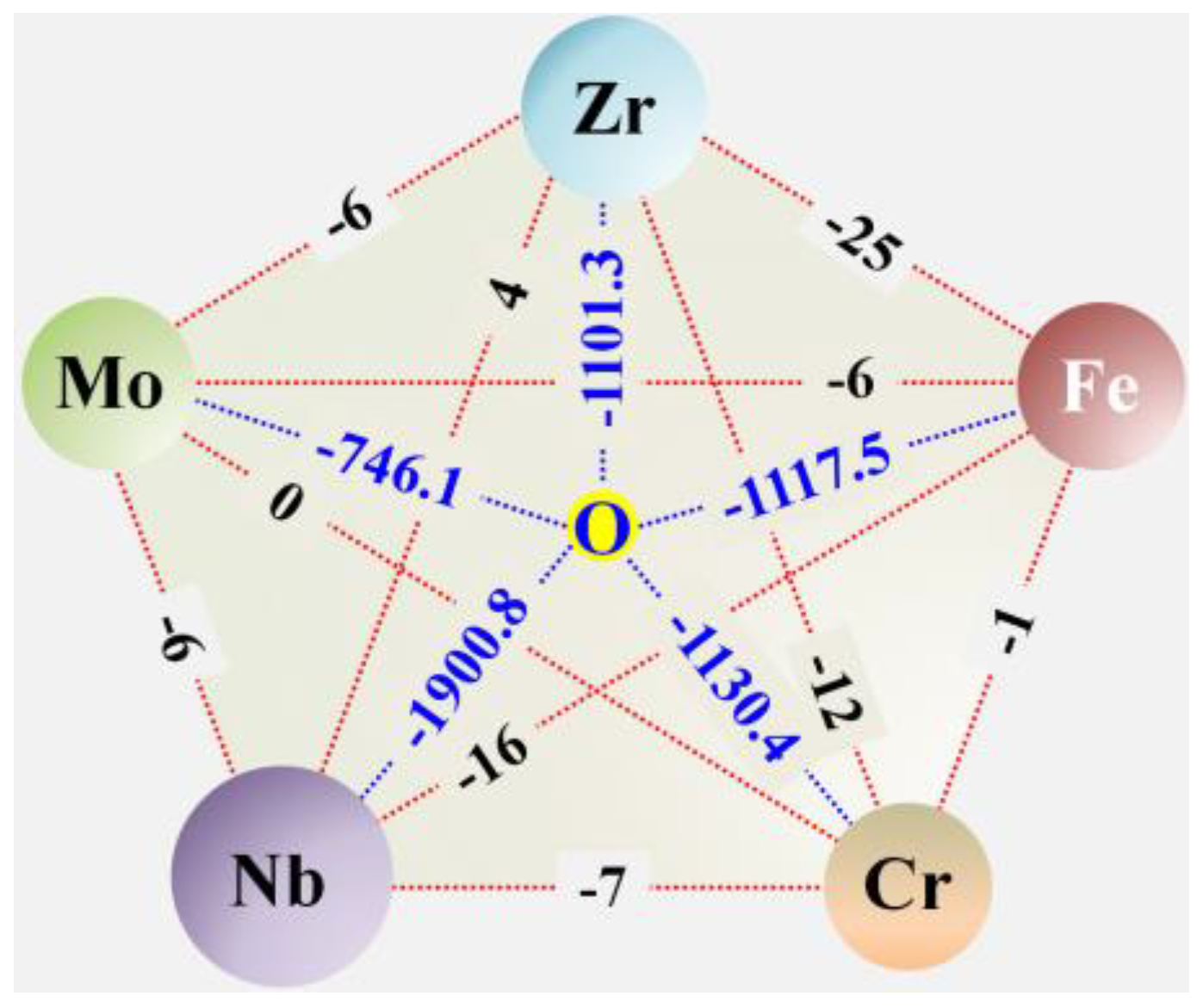

Figure 1

MDPI and ACS Style

Gu, X.; Luan, H.; Yang, X.; Wang, X.; Fang, K.; Li, J.; Jia, Y.; Yao, K.; Zhang, Z.; Chen, N. Formation and Properties of Amorphous Multi-Component (CrFeMoNbZr)Ox Thin Films. Metals 2020, 10, 599.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
