  • Technical Note
  • Open Access

25 February 2024

11 Pages

Measuring the In Situ Density and Moisture Content of Filtered Tailings Using an Electrical Density Gauge

,
,
and
1
Geotechnical Center, Department of Civil & Environmental Engineering, University of Alberta, Edmonton, AB T6G 1H9, Canada
2
Meliadine Mine, Agnico Eagle Mines Limited, Rankin Inlet, NU X0C 0G0, Canada
*
Author to whom correspondence should be addressed.

Abstract

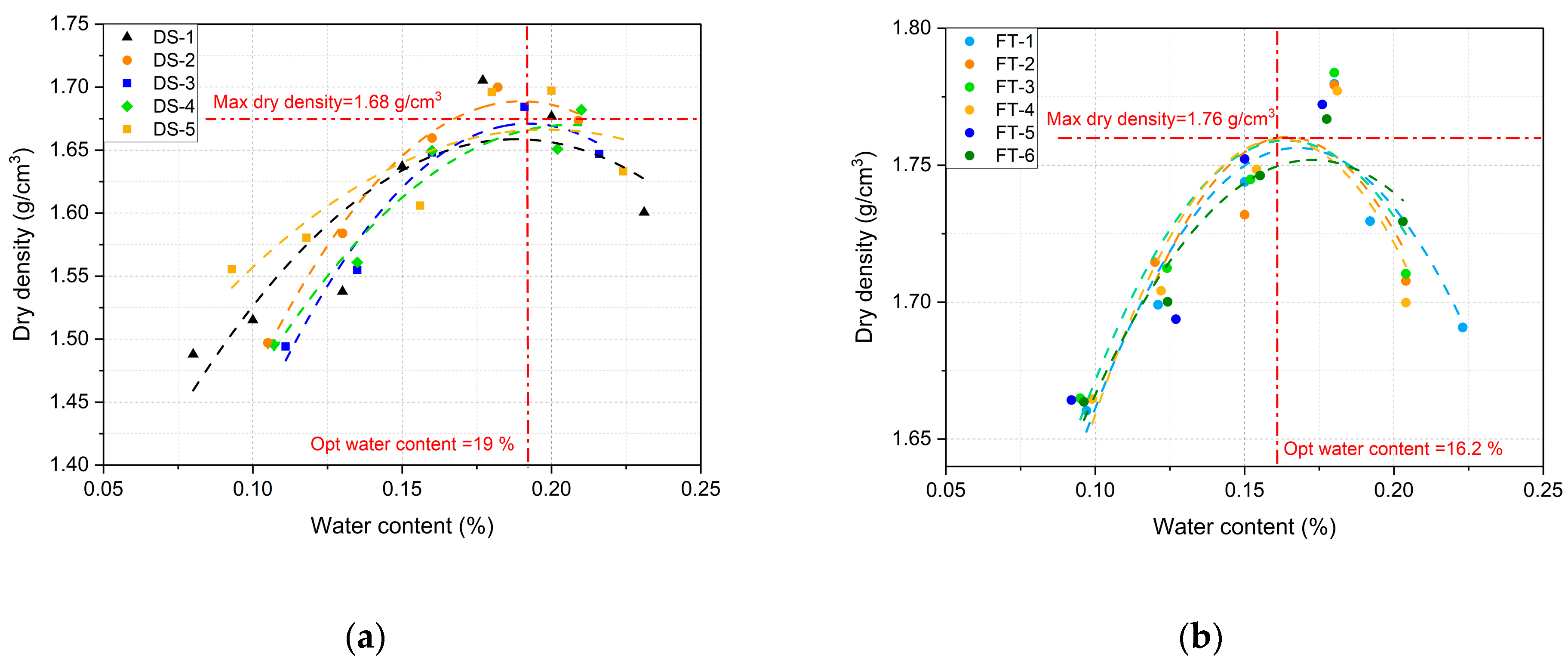

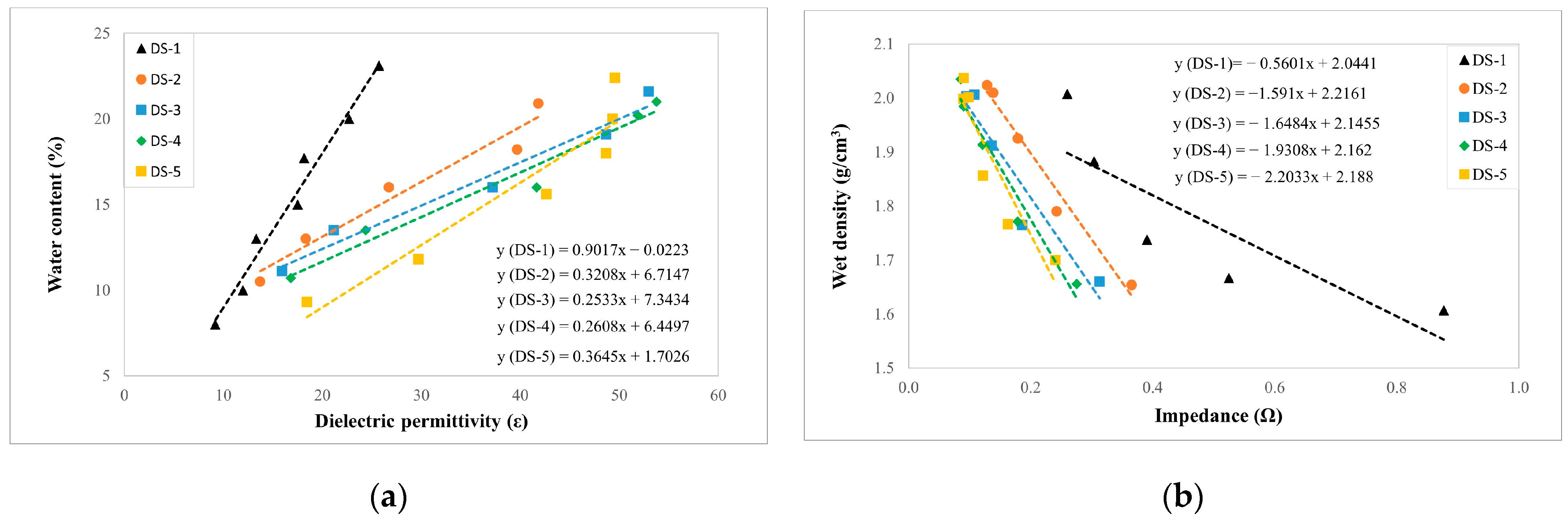

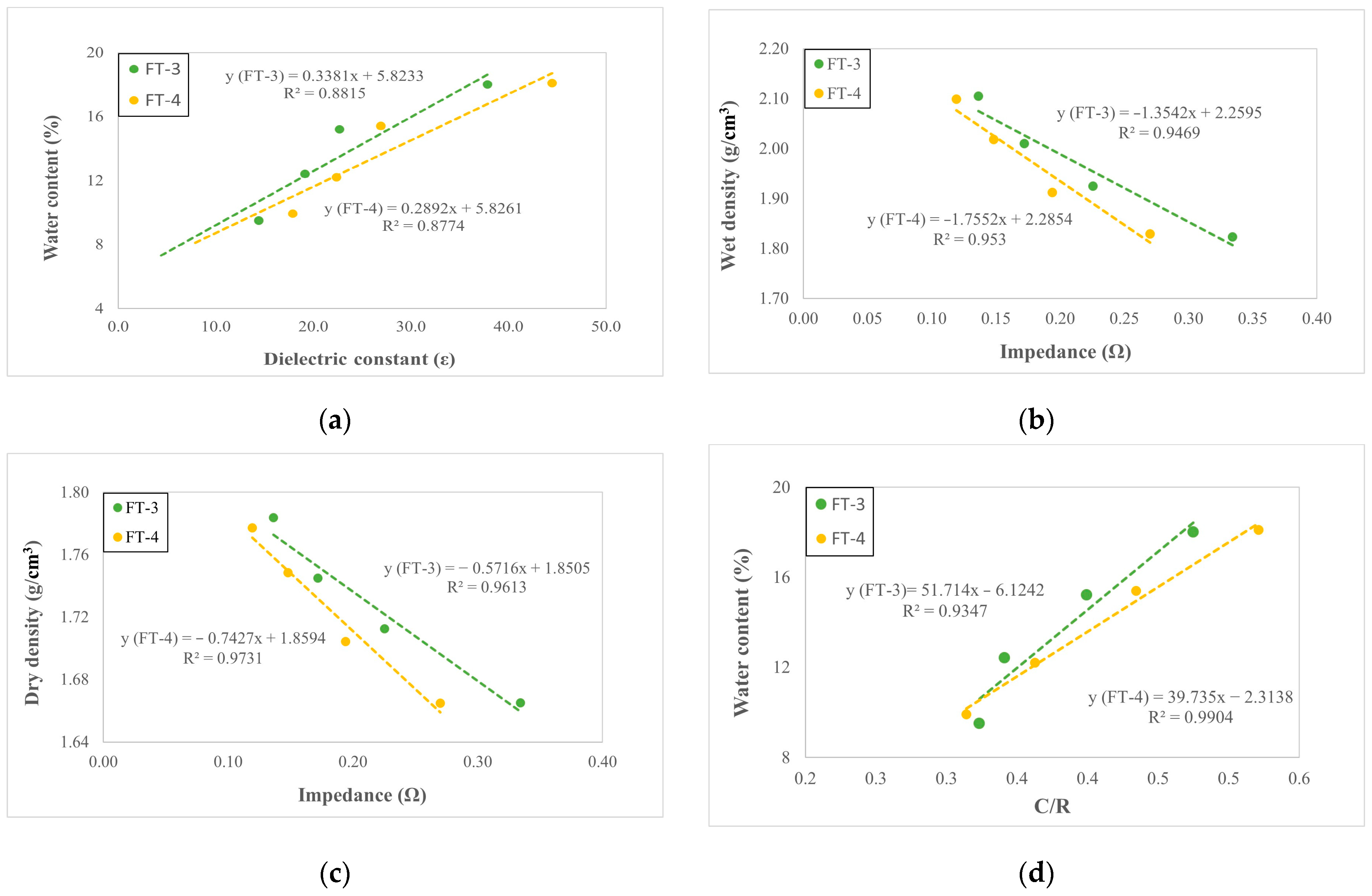

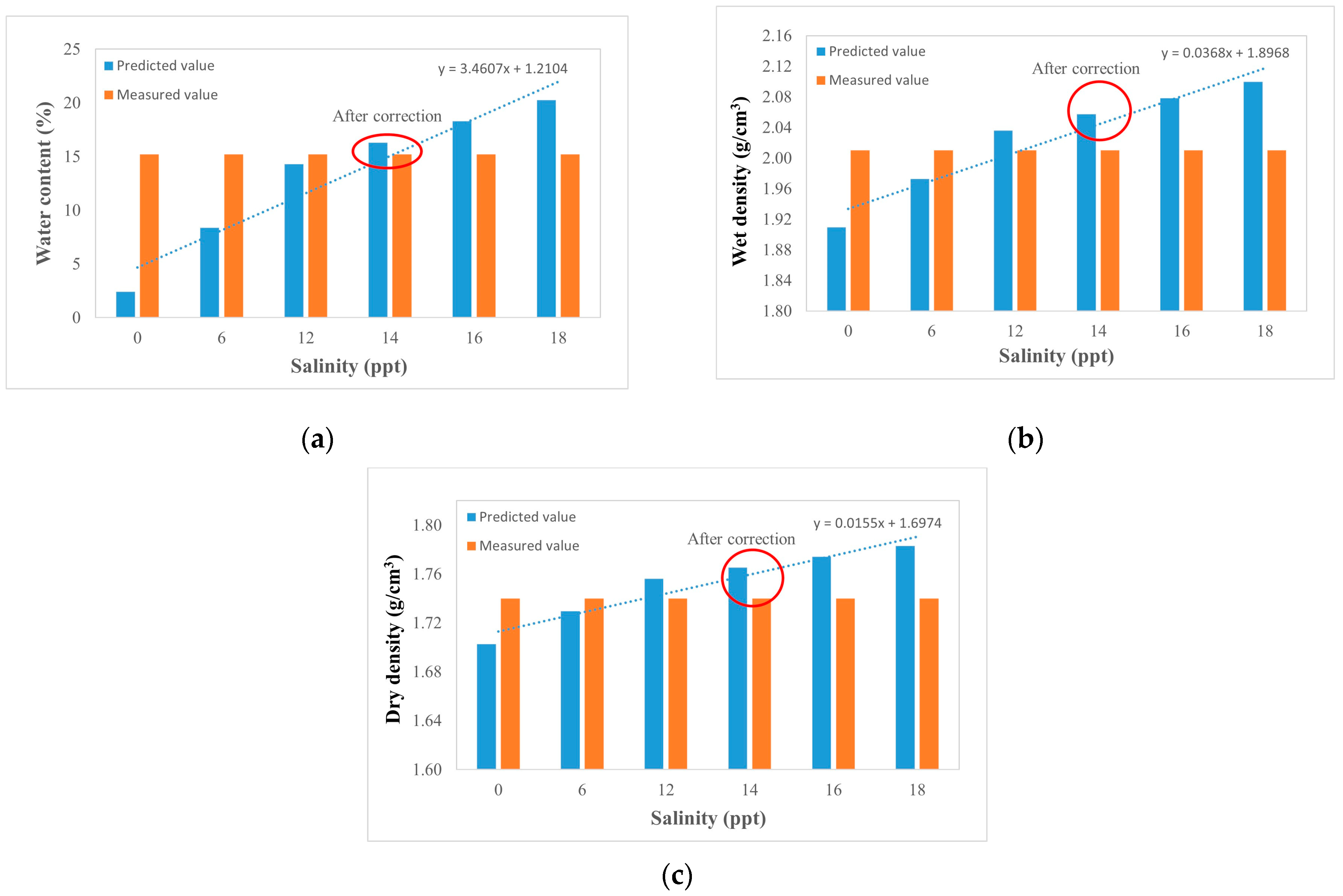

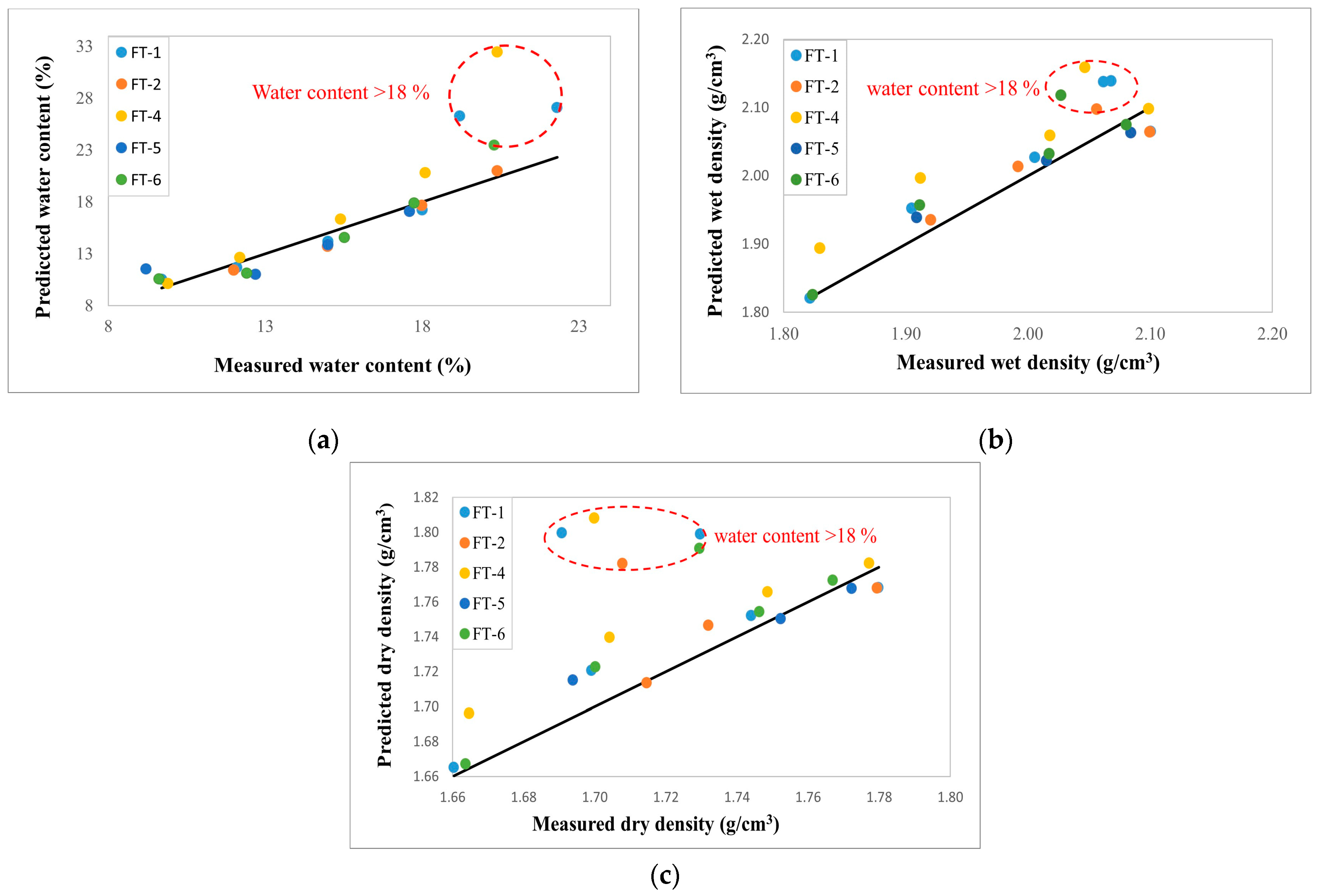

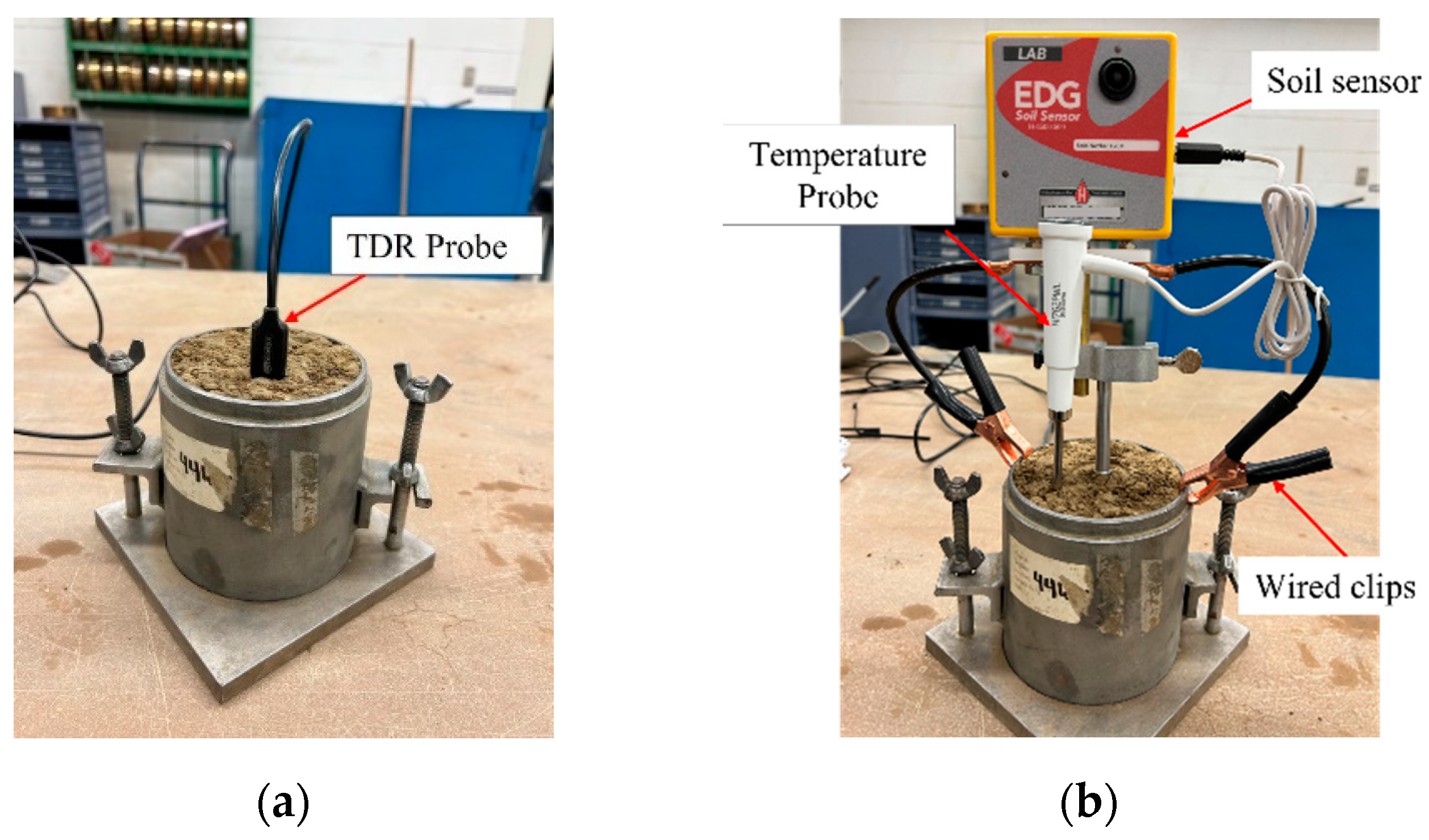

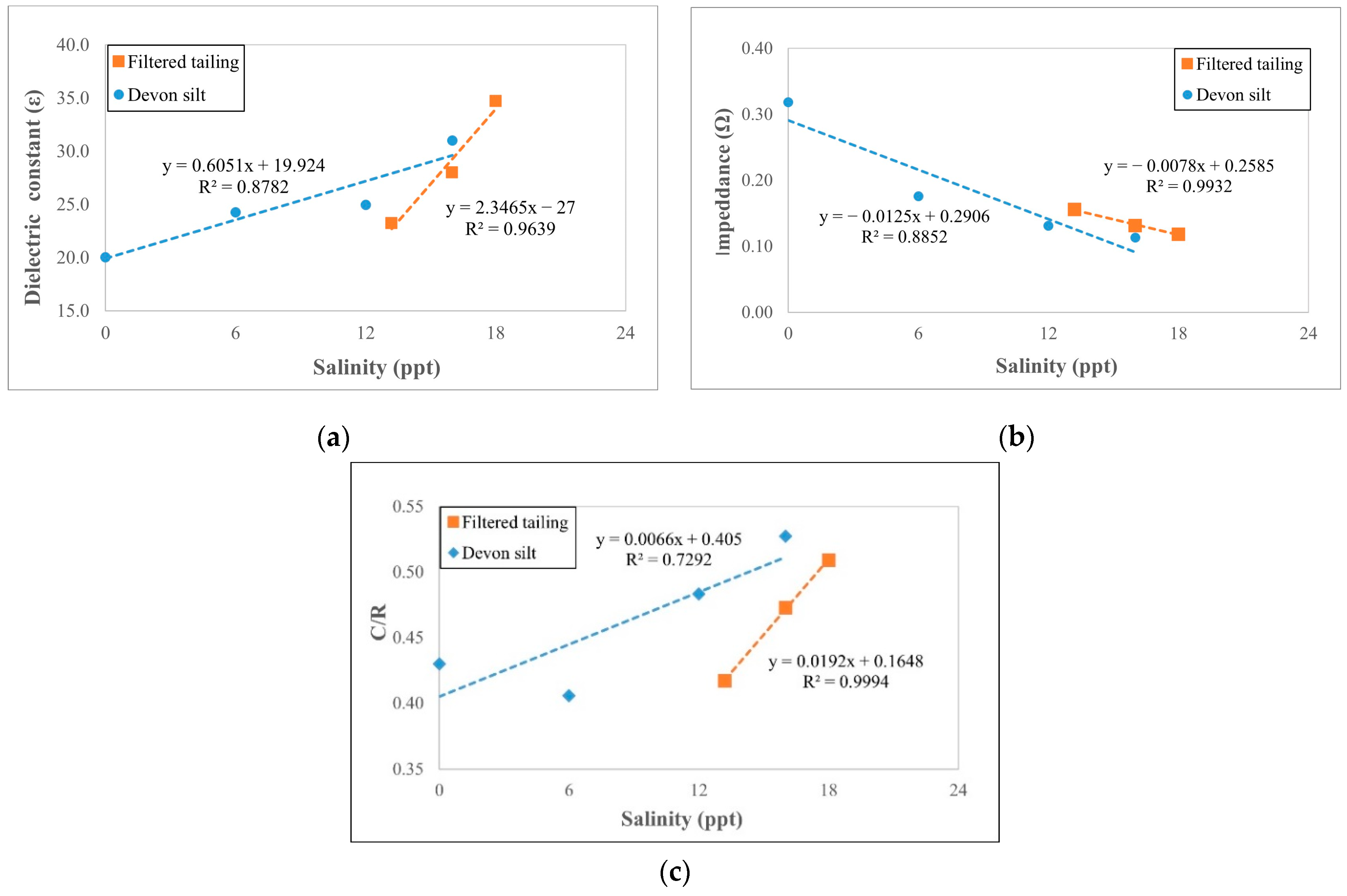

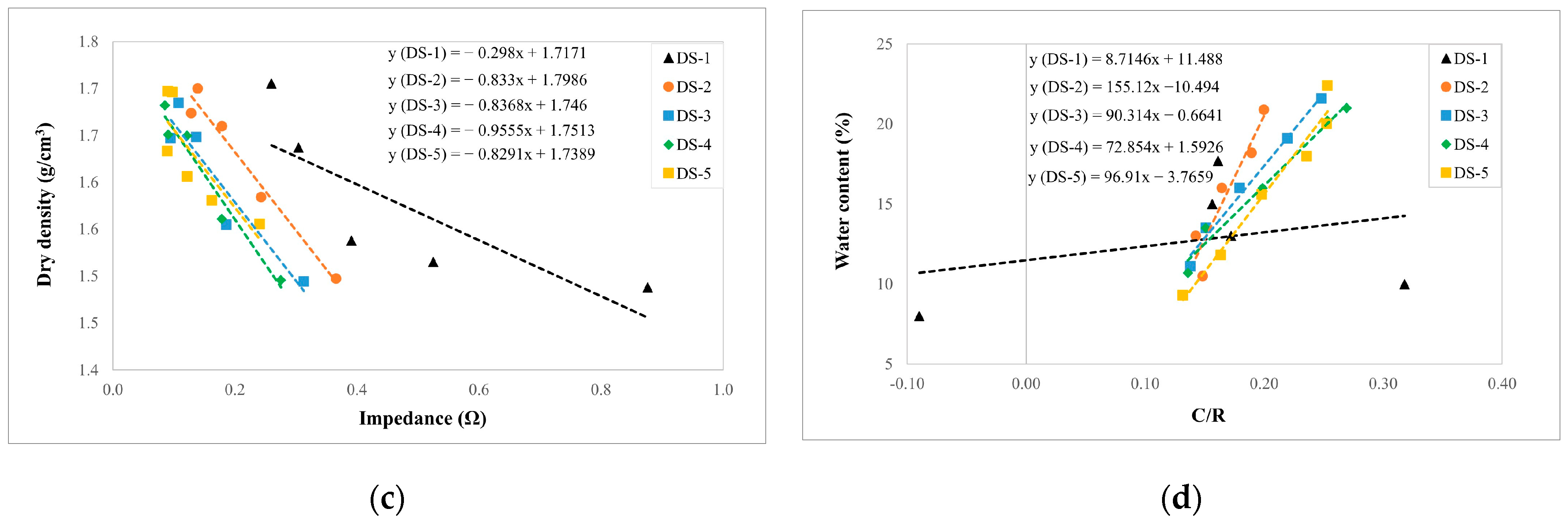

Due to the logistical challenges associated with using nuclear densitometers at remote sites, the industry is seeking an alternative method to determine the in situ density and moisture content during the construction of filtered tailings facilities. This study aims to investigate the impact of salinity on soil electrical properties and evaluate the feasibility of using an electrical density gauge (EDG) to measure the in situ density and moisture content of saline filtered tailings. The results indicate a dependence of electrical measurements on salinity. To develop procedures for soil calibration models of filtered tailings, standard Proctor tests were first conducted using Devon silt. These procedures were then applied to the filtered tailings to establish correlations between electrical properties (dielectric constant, impedance, capacitance-to-resistance ratio) and physical properties (density and moisture content) at varying salinities. It is suggested to build the soil calibration model using an EDG within a water content range of 10% to 18%. Furthermore, the effectiveness of the developed calibration models has been validated, demonstrating the applicability of the EDG instrument for filtered tailings in a saline environment. However, applying the salinity correction is crucial when the sample has a considerably different salinity than the calibration model.
