Low-Temperature Hydrothermal Synthesis of Chromian Spinel from Fe-Cr Hydroxides Using a Flow-Through Reactor

,
,
,
,
,
and
1
School of Engineering, Hokkaido University, Kita-13, Nishi-8, Sapporo 060-8628, Japan
2
Geological Survey of Japan, National Institute of Advanced Industrial Science and Technology, 1-1-1 Higashi, Tsukuba 305-8567, Japan
3
Faculty of Science, Department of Chemistry, Okayama University of Science, 1-1 Ridaicho, Kita-ku, Okayama 700-0005, Japan
4
Institute of Low Temperature Science, Hokkaido University, Kita-19, Nishi-8, Kita-ku, Sapporo 060-0819, Japan

Abstract

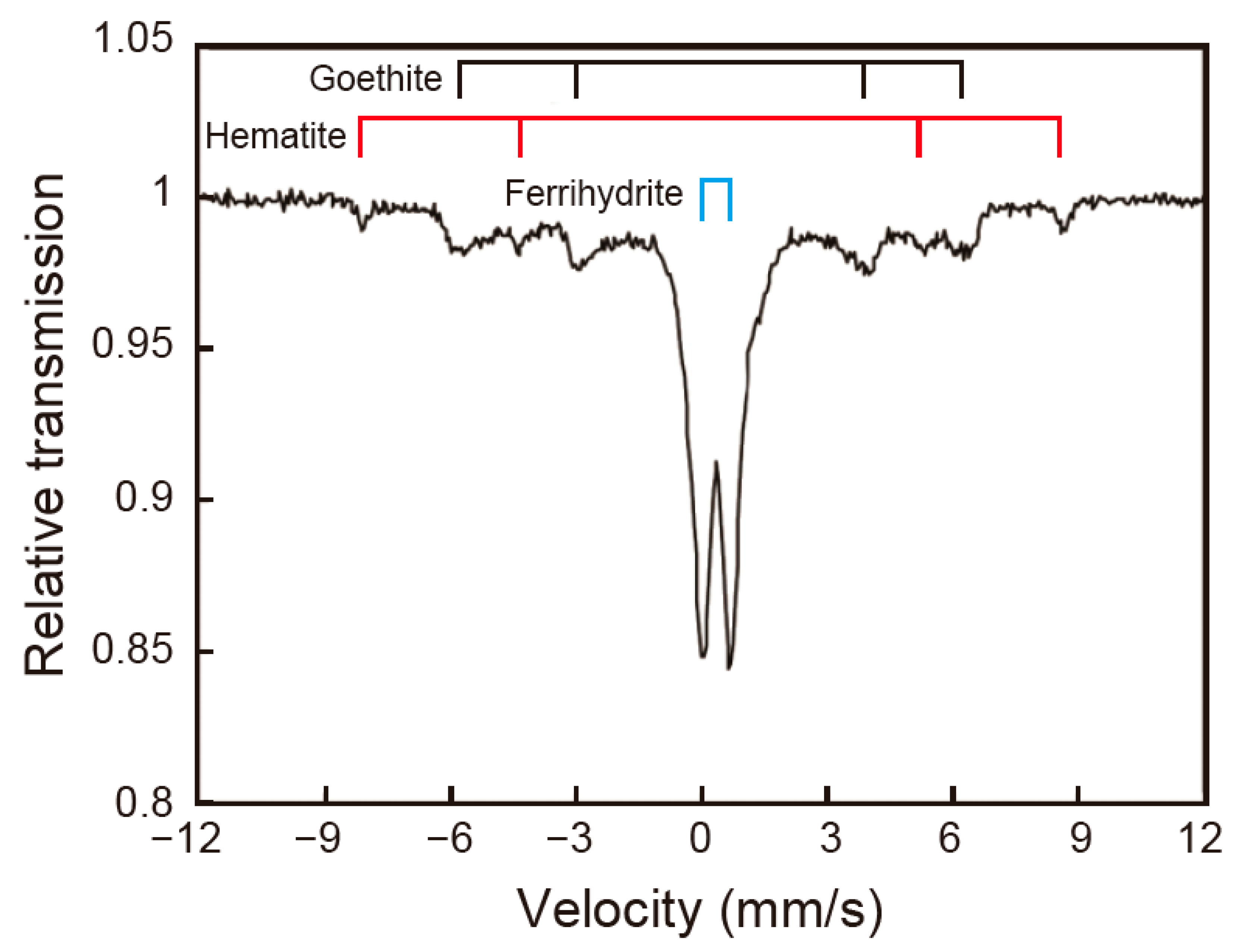

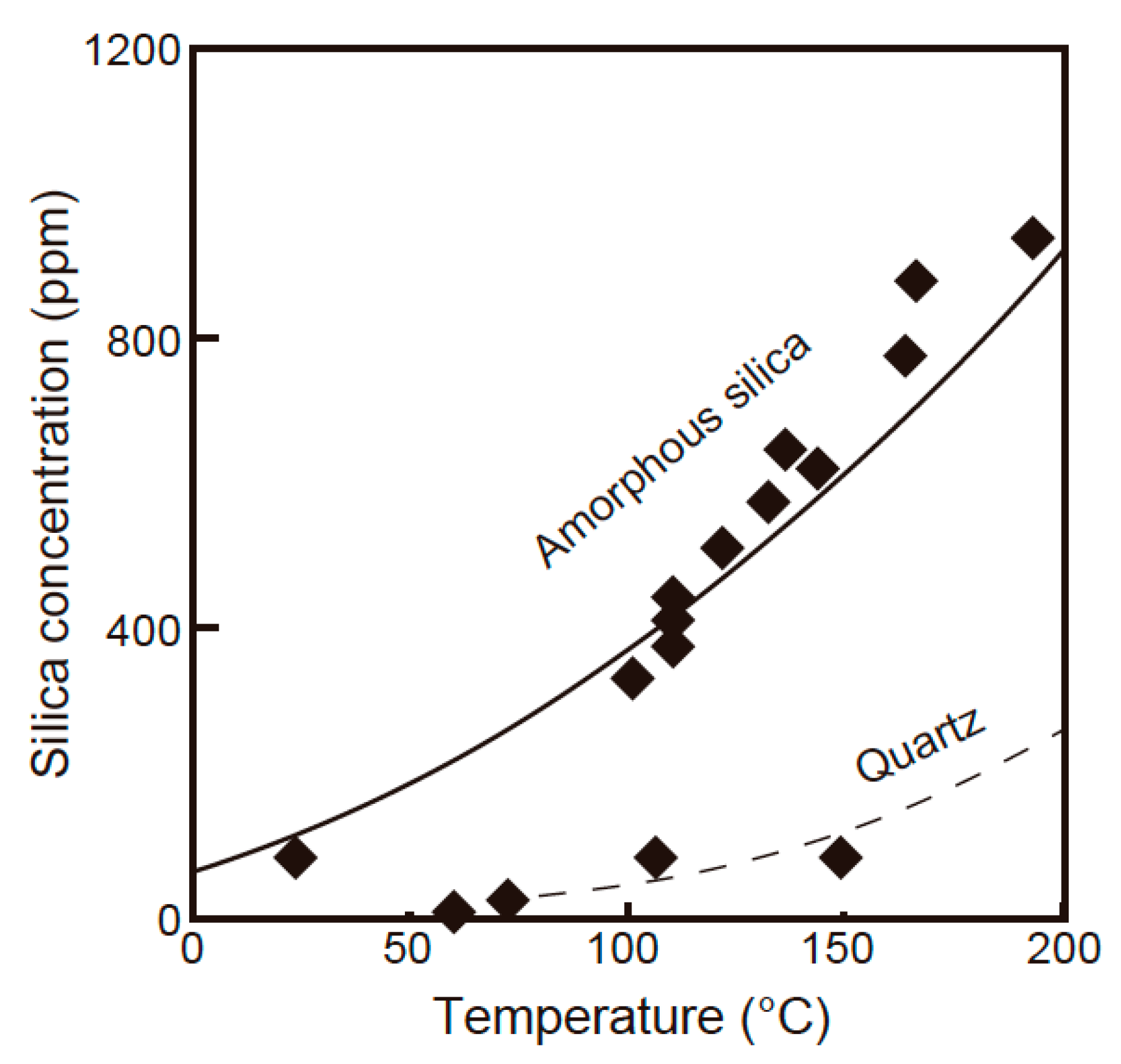

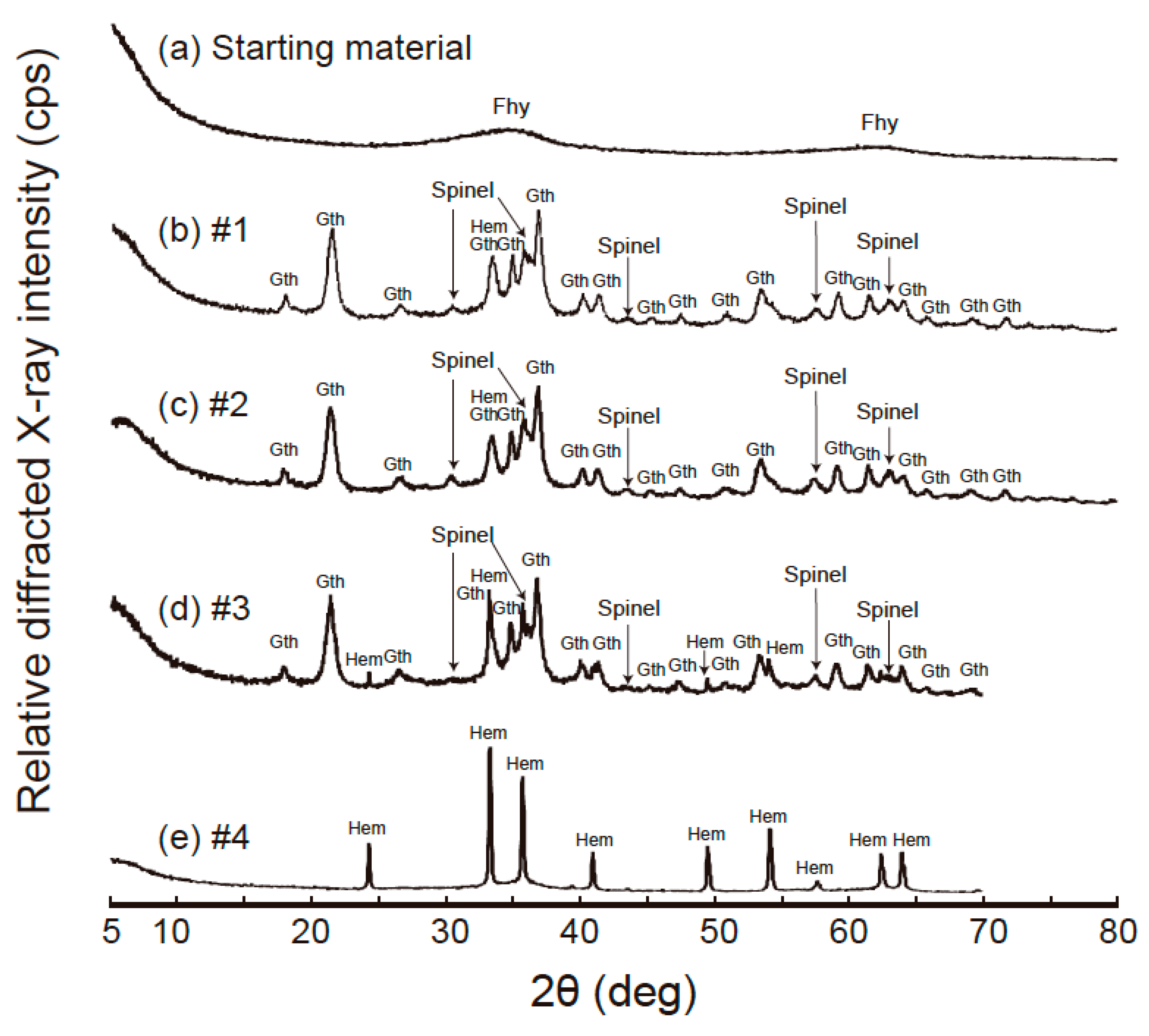

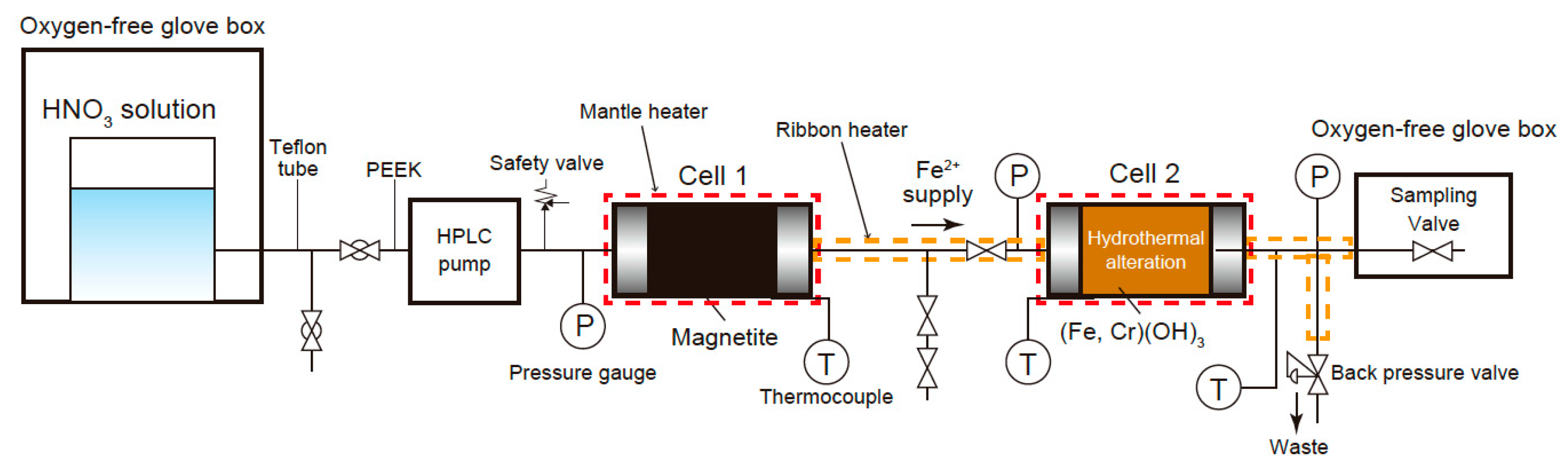

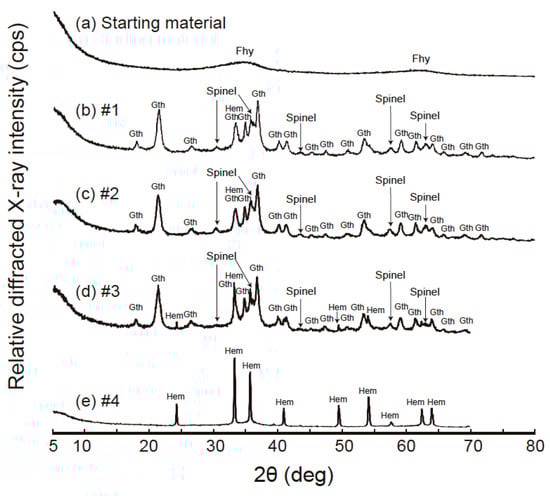

Recent studies have suggested that a chromian spinel can be formed under natural hydrothermal conditions; however, the required conditions, process, and associated redistribution of Cr are still poorly understood. Here, chromian spinel formation was performed by Fe-Cr hydroxides alteration with an Fe2+(aq) supply at 150, 170, and 200 °C and 5 MPa simulating the diagenetic process. The flow-through system enabled the Fe2+(aq) supply to be leached from the magnetite by an acidic solution to synthesize Fe-Cr hydroxides as the starting material with two reaction cells, flow lines, heaters, and a high-performance liquid chromatography (HPLC) pump. The accuracy of the temperature measurement was confirmed based on the amorphous silica solubility. Mineralogical analysis of solid samples recovered from the reaction cell indicated that the chromian spinel was formed between 150 and 170 °C from Fe-Cr hydroxides through goethite with a simultaneous hematite formation, while Mössbauer spectra showed that a large quantity of Fe-Cr ferrihydrites still remained after the experiments probably because of the Cr addition to the stability of ferrihydrites. The Cr/Fe ratio of the chromian spinel was smaller than that of the bulk of the Fe-Cr ferrihydrites and equivalent to Cr-rich magnetite, suggesting a redistribution of Cr during the transformation from goethite to synthesized spinel under the hydrothermal conditions.
