Modeling the Effect of Mineral Particles of Mixture of Sandy Soil on Its Physical–Mechanical Properties Based on the Triangular Nomogram

,
,
,
,
and
1
Institute of Cold Regions Science and Engineering, School of Civil Engineering, Northeast China Observatory and Research Station of Permafrost Geo-Environment of the Ministry of Education, Northeast Forestry University, Harbin 150040, China
2
Department of Engineering and Ecological Geology, Geological Faculty, Lomonosov Moscow State University, 119234 Moscow, Russia
3
Melnikov Permafrost Institute, Siberian Branch, Russian Academy of Science, 677010 Yakutsk, Russia
4
China Railway Qinghai-Tibet Group Co., Ltd., Xining 810007, China

Abstract

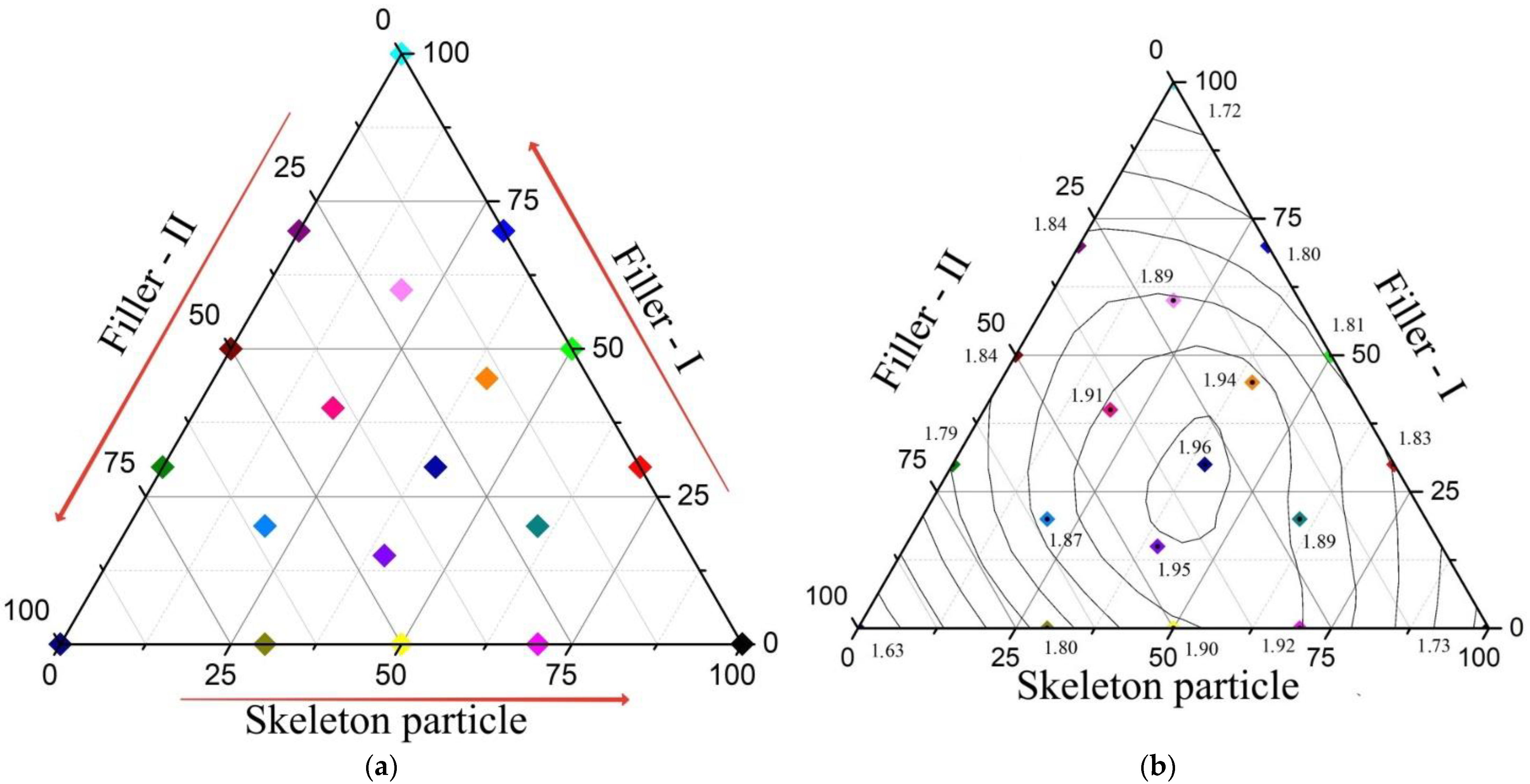

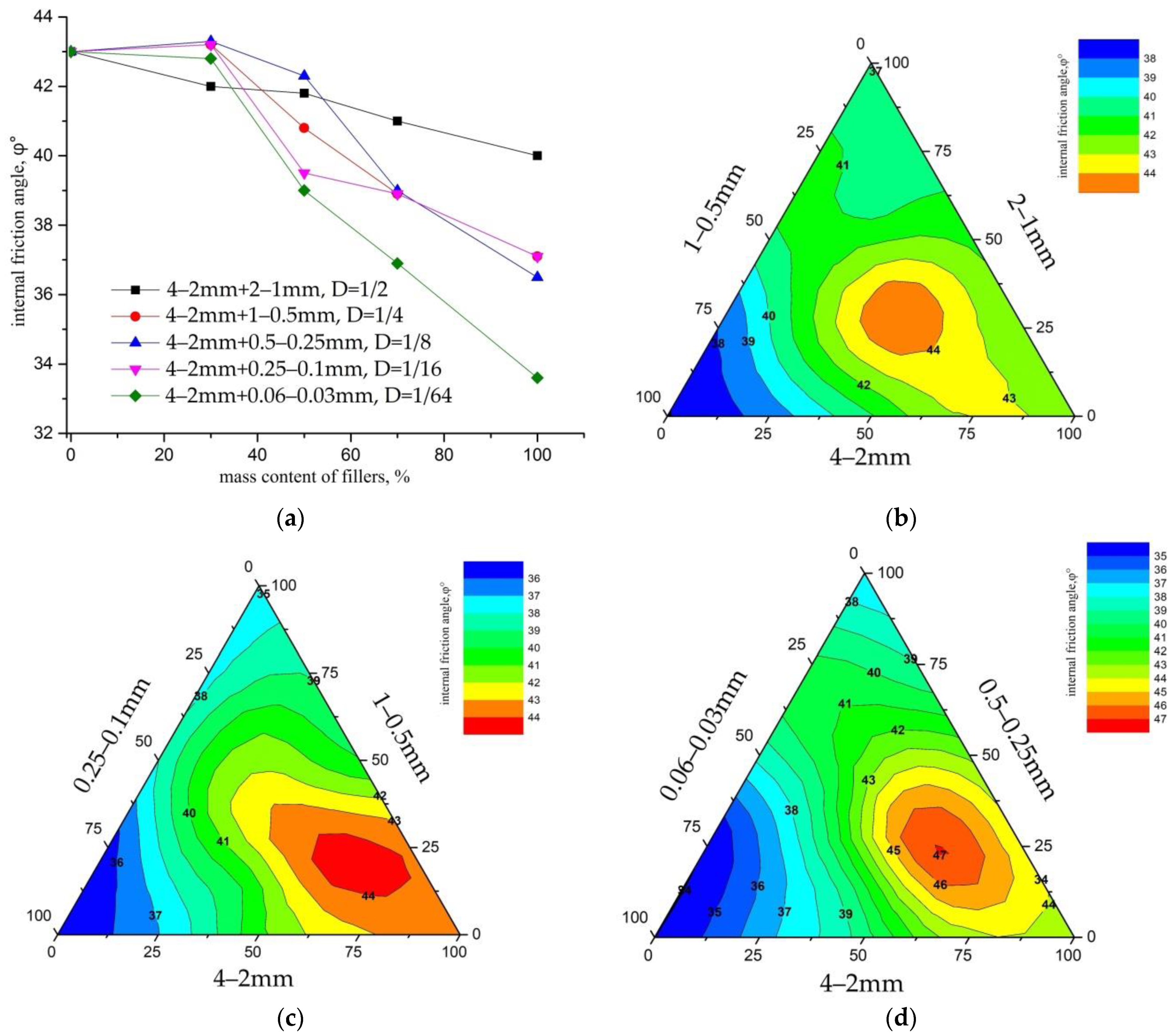

Soil is regarded as a multi-component, multi-phase (solid, liquid and gaseous) dynamic system. The solid component, especially soil mineral particles, has a significant influence on the properties of soil, including its physical, physical–chemical and physical–mechanical properties. By studying the literature, we know that the majority of studies have explained the influence of mineral particles on the physical and physical–mechanical properties of soil bino–mixtures (sand–silt, sand–clay, coarse sand, etc.) through two-dimensional figures. Obviously, for multi-component soil, these two-dimensional figures are not sufficient and should be improved in order to show the influence of soil particles more comprehensively. Therefore, in this paper, we applied a new model—the triangular nomogram—to describe and analyze the change in the inter-friction angle of soil mixtures under different particle size distributions. Through the obtained result, we found that the triangular nomogram is an effective model that can be used to analyze and simulate the properties of soil mixtures.
