# Migration of DNAPL in Saturated Porous Media: Validation of High-Resolution Shock-Capturing Numerical Simulations through a Sandbox Experiment

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Governing Equations

#### 2.2. Experimental Equipment

#### 2.2.1. Tracer

#### 2.2.2. Experimental Setup for DNAPL Migration in a Column

#### 2.2.3. Experimental Setup for DNAPL Migration in a Sandbox

#### 2.2.4. Data Acquisition

^{®}environment, version 11.0.0.4029 (National Instruments, 2011) stored the injection and background rate and controlled the injection timing and the camera.

## 3. Results

#### 3.1. Numerical Setup of a DNAPL Migration

#### 3.1.1. Numerical Setup of a DNAPL Migration in a Column

#### 3.1.2. Numerical Setup of a DNAPL Migration in a Sandbox

#### 3.2. Comparison of DNAPL Migration between Experiment and Numerical Simulations in a Column

#### 3.3. Comparison of DNAPL Migration between Experiment and Numerical Simulations in a Sandbox

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Goswami, R.R.; Clement, T.P. Laboratory-scale investigation of saltwater intrusion dynamics. Water Resour.
**2007**, 43, W04418. [Google Scholar] [CrossRef] - Silliman, S.E.; Zheng, L. Comparison of observations from a laboratory model with stochastic theory: Initial analysis of hydraulic and tracer experiments. Transp. Porous Media
**2001**, 42, 85–107. [Google Scholar] [CrossRef] - Rathfelder, K.M.; Abriola, L.M.; Taylor, T.P.; Pennell, K.D. Surfactant enhanced recovery of tetrachloroethylene from a porous medium containing low permeability lenses 2. Numerical simulation. J. Contam. Hydrol.
**2001**, 48, 351–374. [Google Scholar] [CrossRef] - Luciano, A.; Viotti, P.; Papini, M.P. Laboratory investigation of DNAPL migration in porous media. J. Hazard. Mater.
**2010**, 176, 1006–1017. [Google Scholar] [CrossRef] [PubMed] - Luciano, A.; Mancini, G.; Torretta, V.; Viotti, P. An empirical model for the evaluation of the dissolution rate from a DNAPL-contaminated area. Environ. Sci. Pollut. Res.
**2018**, 25, 33992–34004. [Google Scholar] [CrossRef] - Citarella, D.; Cupola, F.; Tanda, M.G.; Zanini, A. Evaluation of dispersivity coefficients by means of a laboratory image analysis. J. Contam. Hydrol.
**2015**, 172, 10–23. [Google Scholar] [CrossRef] [PubMed] - Seyedpour, S.M.; Valizadeh, I.; Kirmizakis, P.; Doherty, R.; Ricken, T. Optimization of the Groundwater Remediation Process Using a Coupled Genetic Algorithm-Finite Difference Method. Water
**2021**, 13, 383. [Google Scholar] [CrossRef] - Aksoy, A.; Guney, M.S. Experimental determination of three-dimensional dispersivities in homogeneous porous medium. Environ. Earth Sci.
**2010**, 60, 383–393. [Google Scholar] [CrossRef] - Castro-Alcala, E.; Fernàndez-Garcia, D.; Carrera, J.; Bolster, D. Visualization of mixing processes in a heterogeneous sand box aquifer. Environ. Sci. Technol.
**2012**, 46, 3228–3235. [Google Scholar] [CrossRef] - Praseeja, A.V.; Sajikumar, N. A review on the study of immiscible fluid flow in unsaturated porous media: Modeling and remediation. J. Porous Media
**2019**, 22, 889–922. [Google Scholar] [CrossRef] - Soga, K.; Page, J.W.E.; Illangasekare, T.H. A review of NAPL source zone remediation efficiency and the mass flux approach. J. Hazard. Mater.
**2004**, 110, 13–27. [Google Scholar] [CrossRef] - Engelmann, C.; Lari, K.S.; Schmidt, L.; Werth, C.J.; Walther, M. Towards predicting DNAPL source zone formation to improve plume assessment: Using robust laboratory and numerical experiments to evaluate the relevance of retention curve characteristics. J. Hazard. Mater.
**2021**, 407, 124741. [Google Scholar] [CrossRef] [PubMed] - Zheng, F.; Gao, Y.; Sun, Y.; Shi, X.; Xu, H.; Wu, J. Influence of flow velocity and spatial heterogeneity on DNAPL migration in porous media: Insights from laboratory experiments and numerical modelling. Hydrogeol. J.
**2015**, 23, 1703–1718. [Google Scholar] [CrossRef] - Parker, B.L.; Cherry, J.A.; Chapman, S.W. Field study of TCE diffusion profiles below DNAPL to assess aquitard integrity. J. Contam. Hydrol.
**2004**, 74, 197–230. [Google Scholar] [CrossRef] - Harbaugh, A.W.; Banta, E.W.; Hill, M.C.; McDonald, M.G. MODFLOW-2000, the U.S. Geological Survey Modular Ground-Water Model—User Guide to Modularization Concepts and the Ground-Water Flow Process; Open File Report 00-92; United States Geological Survey: Reston, VA, USA, 2000.
- Zheng, C.; Wang, P.P. MT3DMS: A Modular Three-Dimensional Multispecies Transport Model for Simulation of Advection, Dispersion, and Chemical Reactions of Contaminants in Groundwater Systems; Documentation and User’s Guide No. SERDP-99-1; U.S. Army Engineer Research and Development Center: Vicksburg, MS, USA, 1999.
- Feo, A.; Celico, F. High-resolution shock-capturing numerical simulations of three-phase immiscible fluids from the unsaturated to the saturated zone. Sci. Rep.
**2021**, 11, 5212. [Google Scholar] [CrossRef] - Feo, A.; Celico, F. Investigating the migration of immiscible contaminant fluid flow in homogeneous and heterogeneous aquifers with high-precision numerical simulations. PLoS ONE
**2022**, 17, e0266486. [Google Scholar] [CrossRef] [PubMed] - Kurganov, A.; Tadmor, E. New high-resolution central scheme for non-linear conservation laws and convection-diffusion equations. J. Comput. Phys.
**2000**, 160, 241–282. [Google Scholar] [CrossRef] [Green Version] - Lax, P.; Wendroff, B. Systems of conservation laws. Commun. Pure Appl. Math.
**1960**, 3, 217–237. [Google Scholar] [CrossRef] [Green Version] - Hou, T.Y.; LeFloch, P.G. Why nonconservative schemes converge to wrong solutions: Error analysis. Math. Comp.
**1994**, 62, 497–530. [Google Scholar] [CrossRef] - Allen, G.; Goodale, T.; Lanfermann, G.; Radke, T.; Rideout, D.; Thornburg, J. Cactus Users’ Guide. 2011. Available online: http://www.cactuscode.org/documentation/UsersGuide.pdf (accessed on 1 January 2023).
- Cactus Developers. Cactus Computational Toolkit. Available online: http://www.cactuscode.org/ (accessed on 1 January 2023).
- Goodale, T.; Allen, G.; Lanfermann, G.; Massó, J.; Radke, T.; Seidel, E.; Shalf, J. The Cactus Framework and Toolkit: Design and Applications. In Vector and Parallel Processing—VECPAR’2002, Proceedings of the 5th International Converence, Porto, Portugal, 26–28 June 2002; Lecture Notes in Computer Science; Springer: Berlin/Heidelberg, Germany, 2003. [Google Scholar]
- Schnetter, E.; Hawley, S.H.; Hawke, I. Evolutions in 3D numerical relativity using fixed mesh refinement. Class. Quantum Gravity
**2004**, 21, 1465–1488. [Google Scholar] [CrossRef] [Green Version] - Schnetter, E.; Diener, P.; Dorband, E.N.; Tiglio, M. A multi-block infrastructure for three-dimensional time-dependent numerical relativity. Class. Quantum Gravity
**2006**, 23, S553. [Google Scholar] [CrossRef] [Green Version] - Faust, C.R. Transport of immiscible fluids within and below the unsaturated zone: A numerical model. Water Resour. Res.
**1985**, 21, 587–596. [Google Scholar] [CrossRef] - Faust, C.R.; Guswa, J.H.; Mercer, J.W. Simulations of three-dimensional flow of immiscible fluids within and below the unsaturated zone. Water Resour. Res.
**1989**, 25, 2449–2464. [Google Scholar] [CrossRef] - Parker, J.C.; Lenhard, R.J.; Kuppusamy, T. A parametric model for constitutive properties governing multi-phase flow in porous media. Water Resour. Res.
**1987**, 23, 618–624. [Google Scholar] [CrossRef] - van Genuchten, M.T. A closed form equation for predicting the hydraulic conductivity of unsaturated soils. Soil Sci. Soc. Am. J.
**1980**, 44, 892–898. [Google Scholar] [CrossRef] [Green Version] - Chiapponi, L. Water retention curves of multicomponent mixtures of spherical particles. Powder Technol.
**2017**, 320, 646–655. [Google Scholar] [CrossRef] - Hu, X.; Meng, X.; Wei, K.; Li, W.; Wu, J. Compressed Liquid Viscosity Measurements of HFE-7000, HFE-7100, HFE-7200, and HFE-7500 at temperatures from (253 to 373) K and pressures up to 30 Mpa. J. Chem Eng. Data
**2015**, 60, 3562–3570. [Google Scholar] [CrossRef] - Freeze, R.A.; Cherry, J.A. Groundwater Book; Prentice-Hall, Inc.: Englewood Cliffs, NJ, USA, 1979. [Google Scholar]
- Carsel, R.F.; Parrish, R.S. Developing Joint Probability Distributions of Soil Water Retention Characteristics. Water Resour. Res.
**1988**, 24, 755–769. [Google Scholar] [CrossRef] [Green Version]

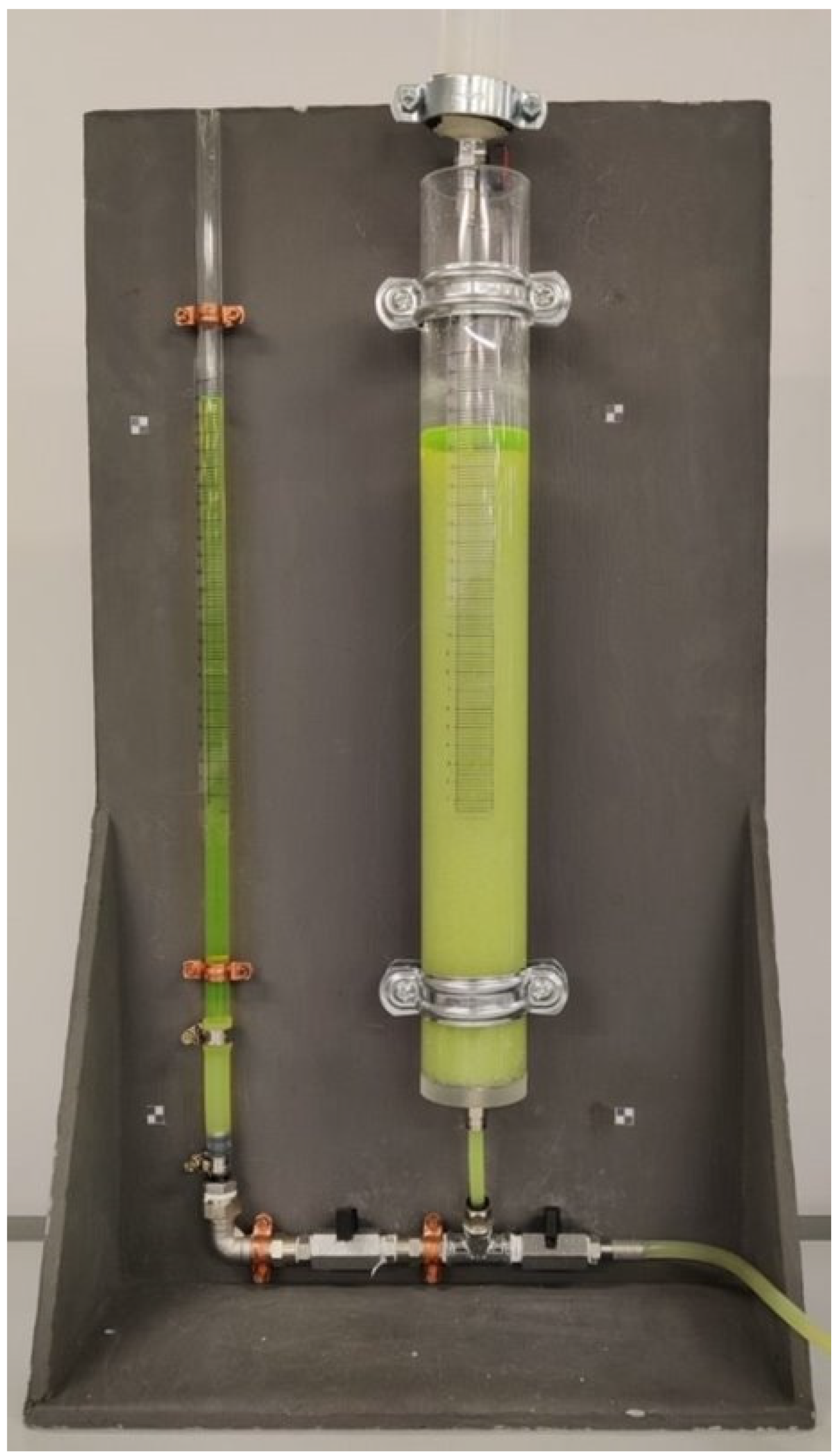

**Figure 1.**Experimental equipment for the column filled with glass beads of 1 mm diameter as the porous media and saturated with water and fluorescein.

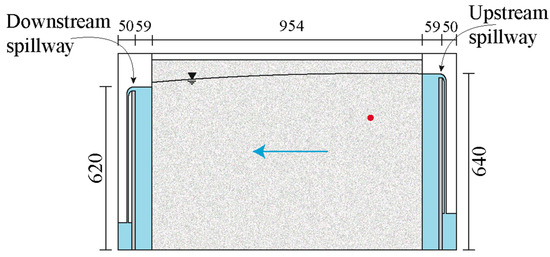

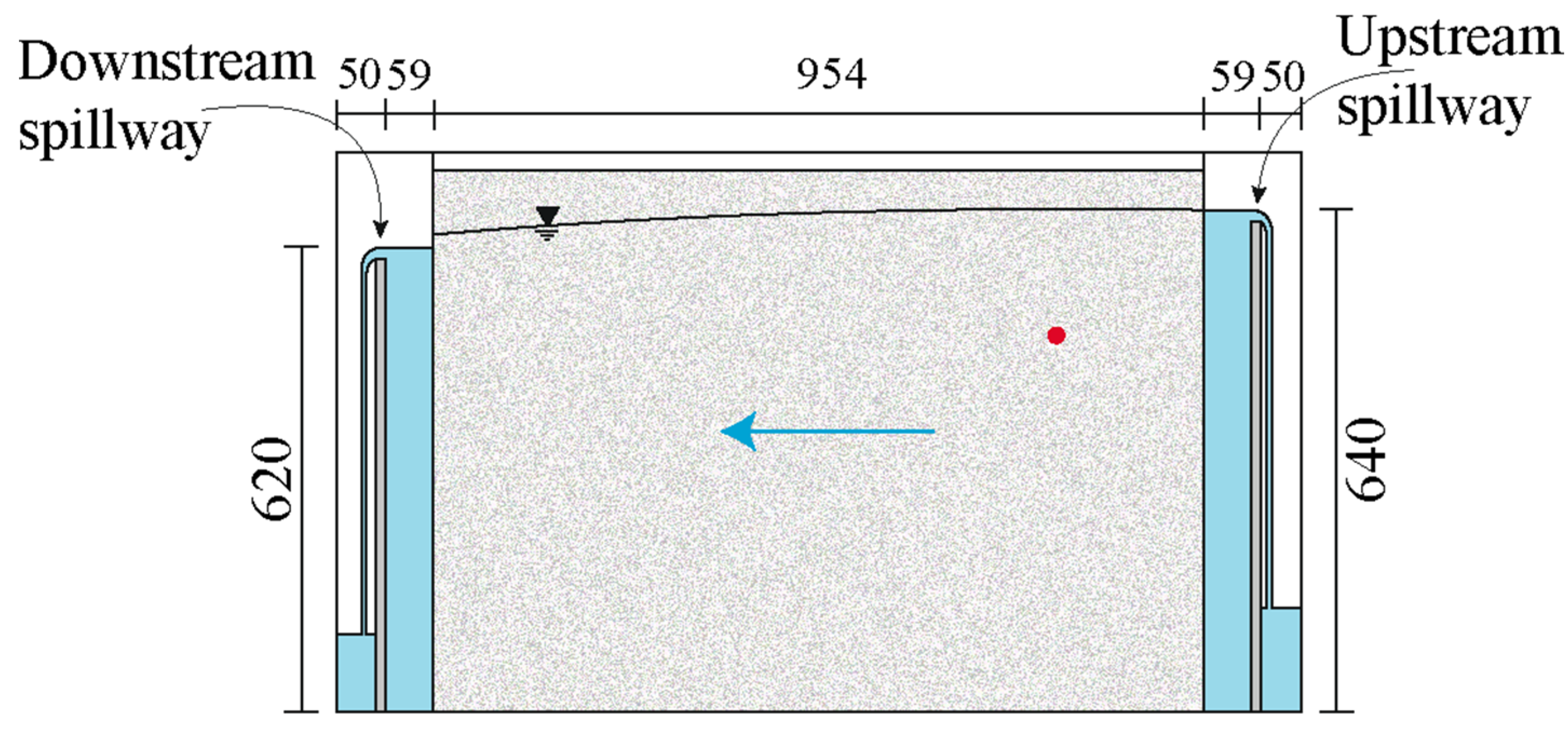

**Figure 2.**Sketch of the experimental device. Constant head boundaries upstream and downstream; the porous media was laterally confined by iron plates, and at the top, it is involved in the capillary fringe. The red dot is the source location. Dimensions are in mm. The blue arrow indicates the flow direction.

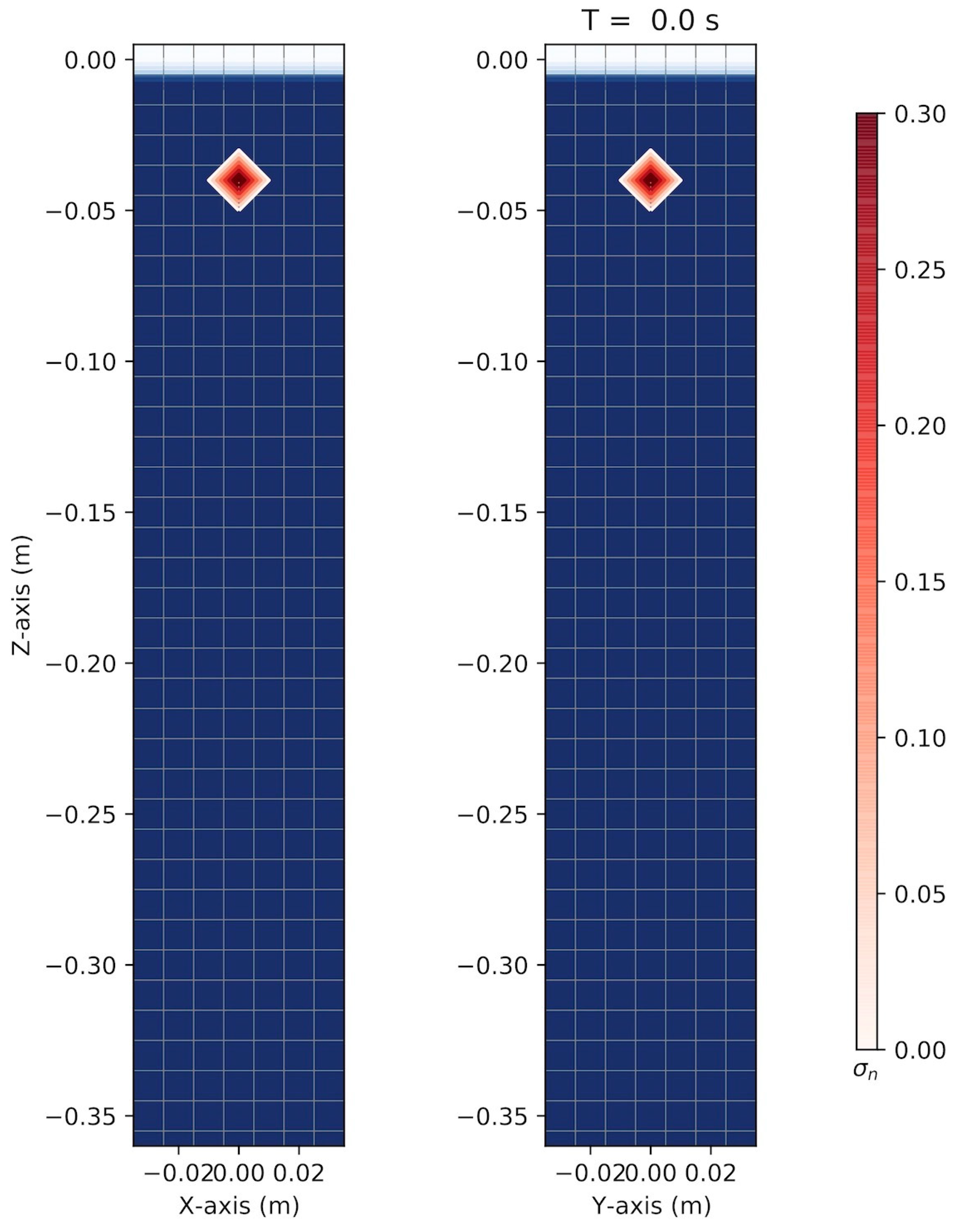

**Figure 3.**The grid geometry used in the numerical simulation of an immiscible DNAPL inside a saturated column and a grid dimension of 0.060 m × 0.060 × 0.360 m, at the initial time t = 0 s. The red box is the immiscible DNAPL at the top of the parallelepiped in the $z-x$ plane (left-hand side) and the $z-y$ plane (right-hand side), respectively.

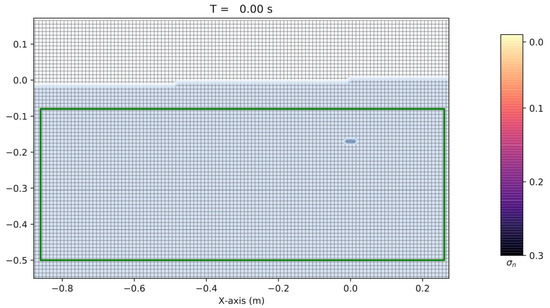

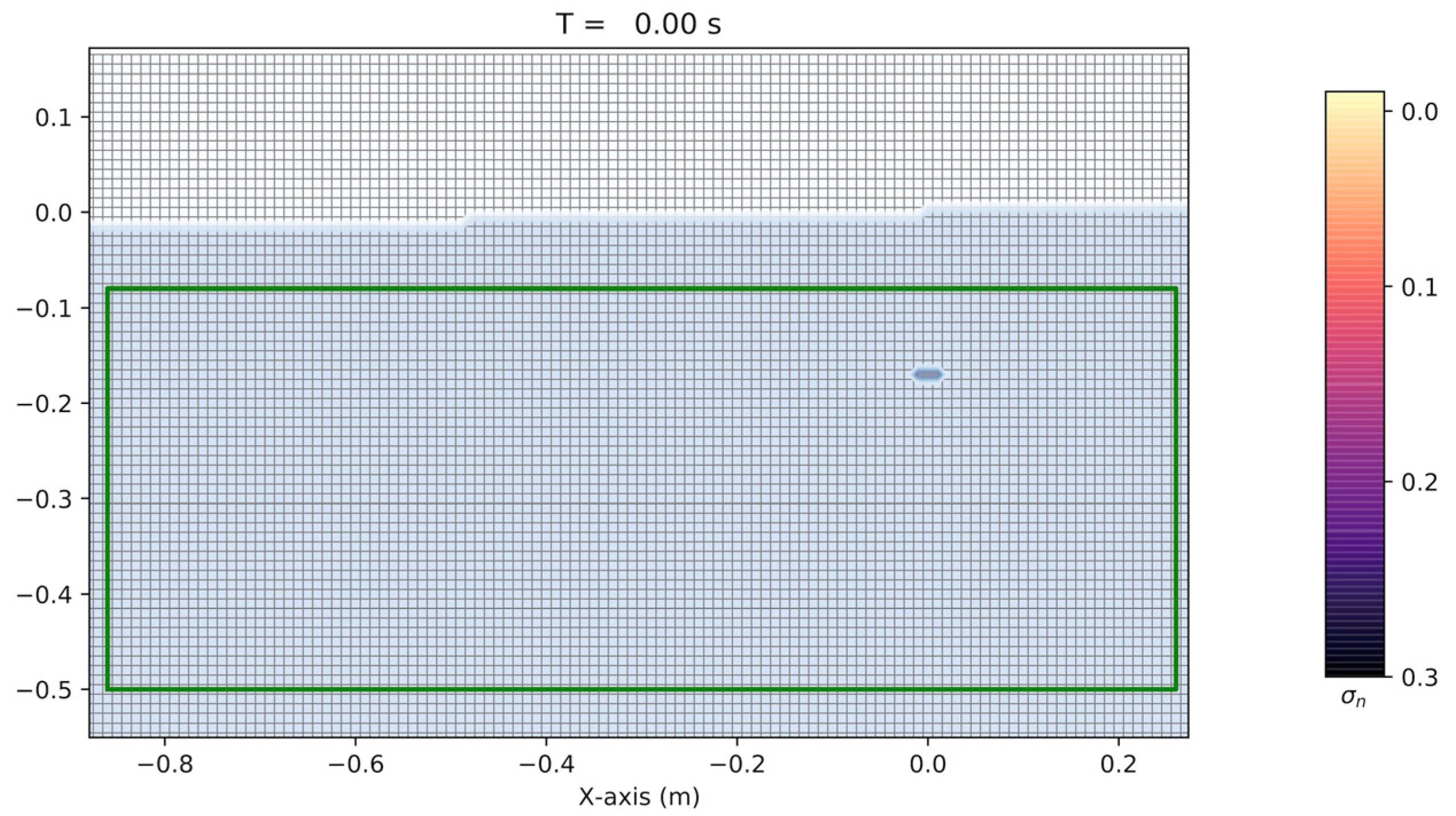

**Figure 4.**The grid geometry used in the numerical simulation of an immiscible DNAPL inside a saturated sandbox and a grid dimension of 1.16 m × 0.10 × 0.80 m, at the initial time t = 0 s. The blue box is the immiscible DNAPL at the top of the parallelepiped in the $z-x$ plane.

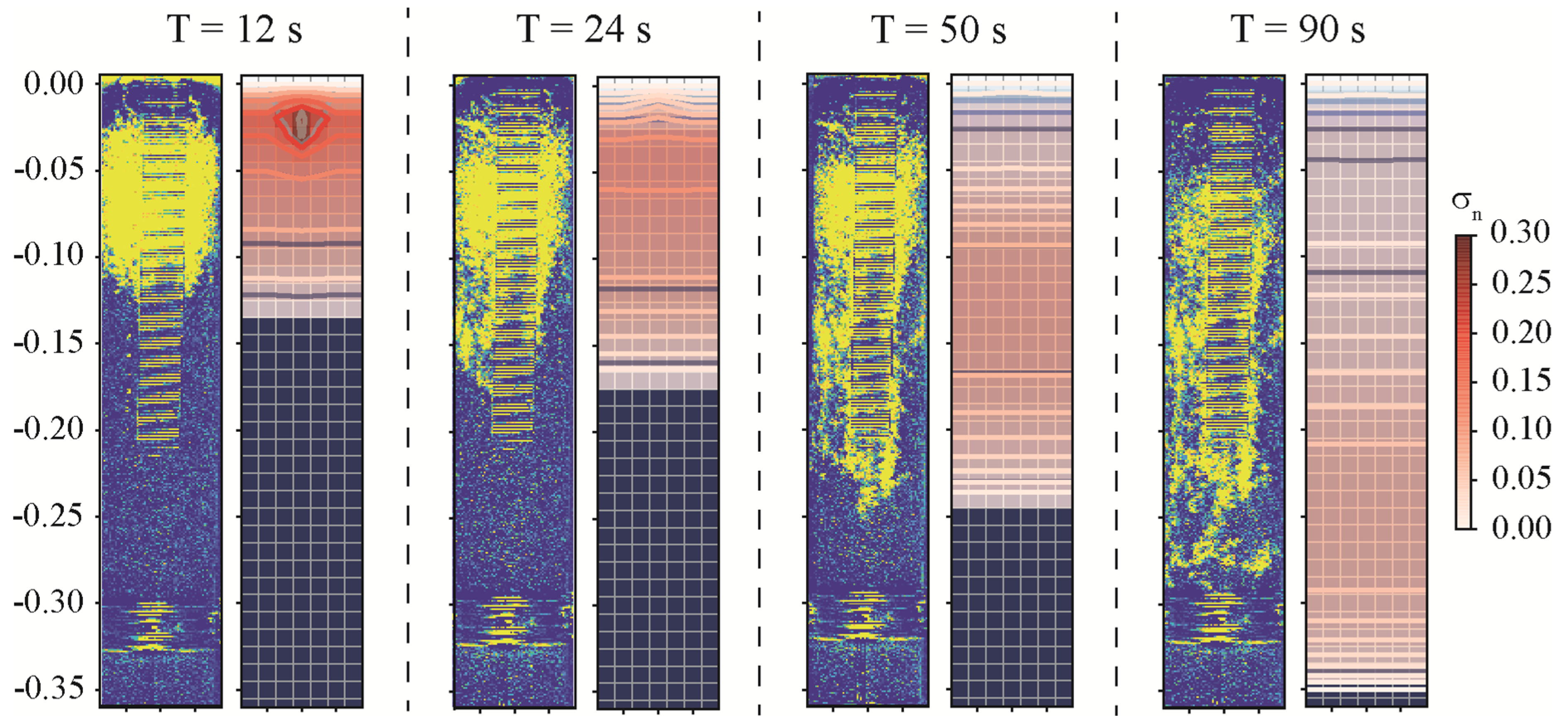

**Figure 5.**Comparison between the experimental results on the DNAPL migration in a column and three-dimensional numerical results on the saturation contours $\left({\sigma}_{n}={S}_{n}\varphi \right)$ of the DNAPL in a column using a grid dimension of $0.060\mathrm{m}\times 0.060\times 0.360\mathrm{m},$ at different times: 12 s, 24 s, 50 s, 90 s. The left-hand side of each panel time shows the experimental result, while the saturation contours of the DNAPL migration in the $\left(z-x\right)$ plane are placed on the right-hand side of each panel.

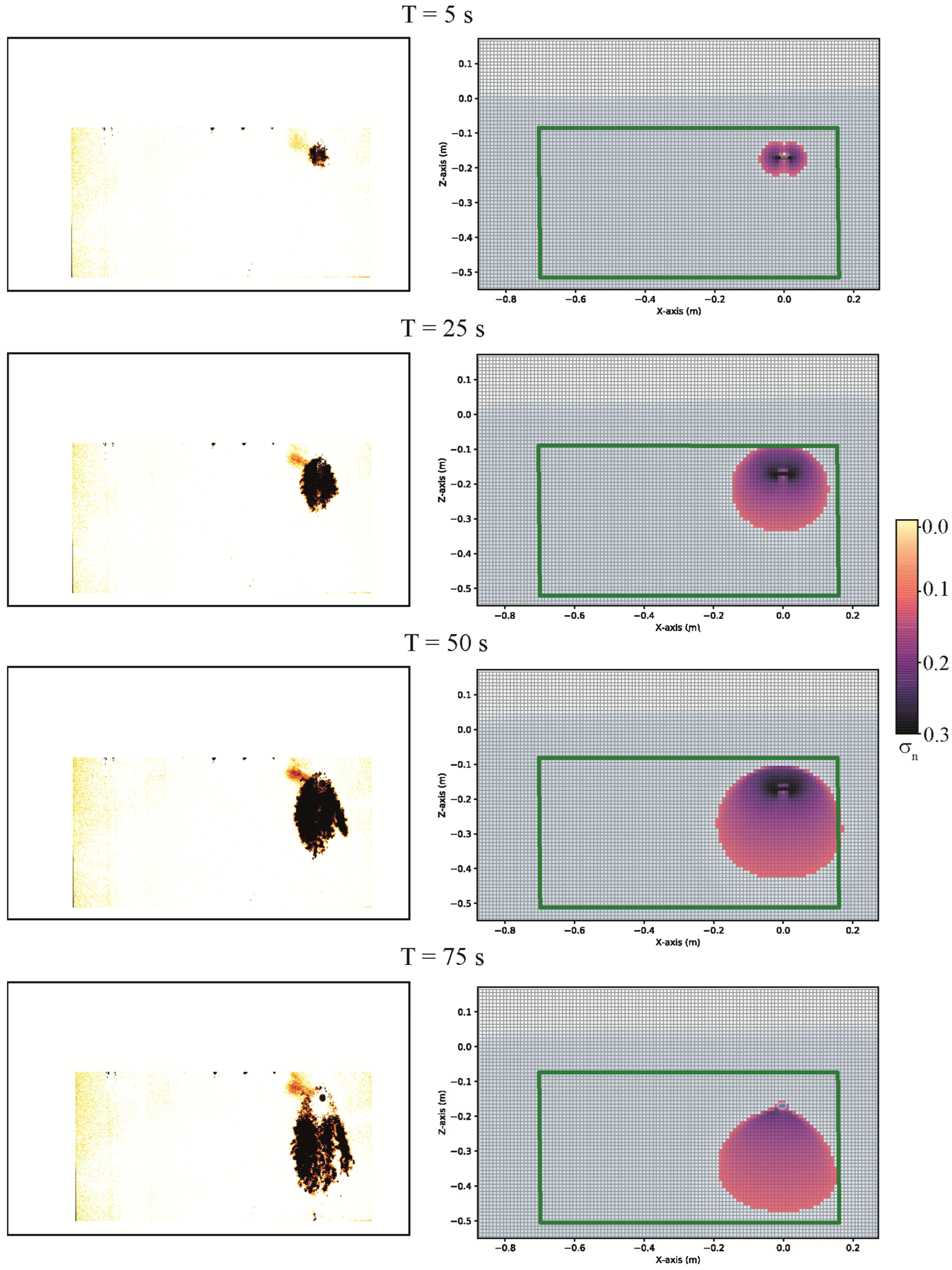

**Figure 6.**Comparison between the experimental results on the DNAPL migration in a sandbox and three-dimensional numerical results on the saturation contours $\left({\sigma}_{n}={S}_{n}\varphi \right)$ of the DNAPL in a sandbox using a grid dimension of $0.060\mathrm{m}\times 0.060\times 0.360\mathrm{m}$ at different times: 5 s, 25 s, 50 s, 75 s, respectively. The left-hand side of each panel time shows the experimental result in the sandbox, while the saturation contours of the DNAPL migration in the $\left(z-x\right)$ plane are placed on the right-hand side of each panel.

**Table 1.**List of parameters used for the three-dimensional numerical simulations of a DNAPL leak in a column.

Parameter | Symbol | Value |
---|---|---|

Absolute permeability, ${\mathrm{m}}^{2}$ | $k$ | $6.122\times {10}^{-10}\hspace{0.17em}$ |

Rock compressibility, $\mathrm{P}{\mathrm{a}}^{-1}$ | ${c}_{R}$ | $4.35\times {10}^{-7}$ |

Porosity | ${\varphi}_{0}$ | $0.37$ |

Water viscosity, $\mathrm{k}\mathrm{g}/\left(\mathrm{m}\mathrm{s}\right)$ | ${\mu}_{w}$ | ${10}^{-3}\hspace{0.17em}$ |

Water density, $\mathrm{k}\mathrm{g}/{\mathrm{m}}^{3}$ | ${\rho}_{w}$ | ${10}^{3}\hspace{0.17em}$ |

DNAPL HFE-7100 dynamic viscosity, $\mathrm{k}\mathrm{g}/\left(\mathrm{m}\mathrm{s}\right)$ | ${\mu}_{n}$ | ${1.35\times 10}^{-3}$ |

DNAPL HFE-7100 density,$\mathrm{k}\mathrm{g}/{\mathrm{m}}^{3}$ | ${\rho}_{n}$ | $1500$ |

Air viscosity, $\mathrm{k}\mathrm{g}/\left(\mathrm{m}\mathrm{s}\right)$ | ${\mu}_{a}$ | $1.8\times {10}^{-5}$ |

Air density, $\mathrm{k}\mathrm{g}/{\mathrm{m}}^{3}$ | ${\rho}_{a}$ | $1.225$ |

Van Genuchten parameter | $\left(n,m\right)$ | $\left(\mathrm{2.68,0.627}\right)$ |

Irreducible wetting phase saturation | ${S}_{wir}$ | $0.045$ |

Surface tension DNAPL, $\mathrm{N}/\mathrm{m}$ | ${\sigma}_{na}$ | $13.60\times {10}^{-3}$ |

Interfacial tension DNAPL, $\mathrm{N}/\mathrm{m}$ | ${\sigma}_{nw}$ | $35.59\times {10}^{-3}$ |

Surface tension water, $\mathrm{N}/\mathrm{m}$ | ${\sigma}_{aw}$ | $71.75\times {10}^{-3}$ |

Capillary pressure air-water at zero saturation, $\mathrm{P}\mathrm{a}$ | ${p}_{caw0}$ | $676.55$ |

Capillary pressure DNAPL-water at zero saturation, $\mathrm{P}\mathrm{a}$ | ${p}_{cnw0}$ | $334.93$ |

Capillary pressure air-nonaqueous at zero saturation, $\mathrm{P}\mathrm{a}$ | ${p}_{can0}$ | $341.62$ |

Resolution, $\mathrm{m}$ | $\Delta x=\Delta y=\Delta z$ | $0.01$ |

**Table 2.**Values of the position of the contaminant migration in the column experiment, and in the numerical model output, for different times.

Time (s) | Position of the Contaminant in the Experimental Column (m) | Position of the Contaminant in the Numerical Model (m) |
---|---|---|

12 | $-0.125$ | $-0.135$ |

24 | $-0.170$ | $-0.175$ |

50 | $-0.240$ | $-0.245$ |

90 | $-0.320$ | $-0.350$ |

**Table 3.**Values of the position of the contaminant migration in the sandbox experiment, and in the numerical model output, for different times.

Time (s) | Position of the Contaminant in the Experimental Sandbox (m) | Position of the Contaminant in the Numerical Model (m) |
---|---|---|

5 | $-0.200$ | $-0.225$ |

25 | $-0.280$ | $-0.335$ |

50 | $-0.380$ | $-0.435$ |

75 | $-0.435$ | $-0.480$ |
