Editorial

Inorganic-Nanoparticle Modified Polymers

by
Ana M. Díez-Pascual
Universidad de Alcalá, Facultad de Ciencias, Departamento de Química Analítica, Química Física e Ingeniería Química, Ctra. Madrid-Barcelona, Km. 33.6, 28805 Alcalá de Henares, Madrid, Spain
Polymers 2022, 14(10), 1979; https://doi.org/10.3390/polym14101979
Submission received: 2 May 2022 / Accepted: 10 May 2022 / Published: 12 May 2022
(This article belongs to the Special Issue Inorganic-Nanoparticle Modified Polymers)
Inorganic nanoparticle-modified polymer nanocomposites have attracted substantial attention over the last years in the preparation of materials for a number of applications. Numerous types of inorganic nanoparticles, such as quantum dots, metal oxides, mesoporous silica, gold and silver nanoparticles, and ceramics (Figure 1) have been incorporated into polymers for application in a wide range of fields, such as medicine, photovoltaics, packaging, and structural applications, etc.
One of the major aims of the addition of inorganic nanoparticles to polymers is to enhance their mechanical and thermal properties. Thus, a few percent of clay usually confers improved flame retardant behavior, higher stiffness and strength, and enhanced barrier properties against gases and vapors compared to the neat polymer [1,2,3,4]. Nanoparticles display a higher specific surface area compared to microsized particles and can therefore lead to better properties than those attained using conventional microfiller loadings. However, a number of tasks have to be completed first. Nanoparticle agglomeration within the polymer matrix and poor interfacial adhesion between the nanofillers and the matrix often impede property improvements, which represent a challenge in modifying the surface chemistry to promote physical or chemical interactions with polymer chains. The final properties of nanocomposites depend directly on several factors such as the chemistry of the polymer matrix, the filler-polymer affinity, the geometry of the particle, its degree of orientation and dispersion inside the polymer, as well as the means of nanocomposite preparation. This Special Issue, with a collection of seven original contributions, provides selected examples of the most recent advances in the preparation, characterization, and application of polymeric nanocomposites comprising nanoparticles.
Over the last years, inorganic nanotubes, fullerenes, and 2D nanomaterials based on layered metal dichalcogenides such as WS2 and MoS2, have arisen as very promising nanostructures over their carbon counterparts owed to their low toxicity and biocompatibility, enabling their use for environmental and biomedical applications [5]. Numerous research works have investigated the promising tribological, mechanical, and barrier properties of WS2 nanomaterials, making them an excellent alternative to carbon nanotubes and graphene as nanofillers in polymeric nanocomposites [6,7,8,9]. Besides, WS2 nanoparticles demonstrate great potential for mechanical reinforcement of a variety of biopolymers [10,11,12], showing good manufacturability and performance, as well as reduced manufacturing costs compared to other inorganic or organic nanomaterials such as nanoclays, carbon nanotubes, etc.
These types of nanoparticles are currently the subject of intense research. In particular, inorganic fullerene (IF)-like WS2 nanoparticles ranging from 0.1 to 1 wt% were integrated into a poly(L-lactic acid) (PLLA) matrix via a simple melt extrusion process [13]. TEM and SEM results revealed that the nanoparticles were well dispersed in the PLLA matrix without the need for a compatibilizer or modifier. DSC analysis showed that the crystallization and melting temperature as well as the crystallinity of PLLA were controlled by the cooling rate and composition. The crystallization behavior and kinetics were examined using the Lui model, and the nucleating effect of the nanoparticles was assessed based on Gutzow and Dobreva approaches. It was found that the incorporation of increasing IF-WS2 contents speeds up the crystallization rate of PLLA. This high performance of these novel bionanocomposites could be suitable for different industrial applications.
The same authors used tungsten disulfide nanosheets (2D-WS2) as nanofillers for PLLA, in the same concentration range [14]. In this case, the analysis of the cold-crystallization behavior of the PLLA showed that the crystallization rate of the polymer was reduced upon nanosheet incorporation. Unpredictably for polymer nanocomposites, a radical change from retardation to promotion of crystallization was found upon raising the nanosheet content, whereas the melt-crystallization mechanism of PLLA remained unchanged. On the other hand, the double-melting peaks, mainly derived from melting–recrystallization–melting processes upon heating, and their dynamic behavior were consistent with the effect of 2D-WS2 involved in the crystallization of PLLA.
IF-WS2 nanoparticles in the range of 0.1–2 wt% have also been used as nanofillers for the manufacturing of polyethylene terephthalate (PET)/polypropylene (PP)-based nanocomposite blends via melt extrusion [15]. The nanocomposites were characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), thermogravimetric analysis (TGA), dynamic differential scanning (DSC), dynamic mechanical analysis (DMA), and X-ray diffraction (XRD). The aim of the strategy was to increase the compatibility of PP and PET wherein IF-WS2 localized at the interface of the blend components. The tensile strength of the PP/PET increased by 32% with 1% IF-WS2, and the thermal stability by 18 °C with 2 wt%. This route can also be used for the large-scale production of such materials to be used in high-temperature environments.
On the other hand, conjugated polymers (CPs) are widely used in photovoltaic devices and organic light-emitting diodes (OLEDs) [16]. The alternating carbon–carbon double bonds in their structure are responsible for their electronic properties, low-energy optical transitions, and high-electron affinities that can be tuned either by blending compatible CPs or controlling the energy transfer between the CPs or a combination of both. For instance, a full-color emitter for white OLEDs (WOLEDs) can be achieved by blending different CPs that emit lights covering the entire visible spectrum. One widely explored binary blend WOLED is the combination of poly(9,9-dioctylfluorene-2,7-diyl) (PFO) and poly(2-methoxy-5(2-ethylhexyl)-1,4-phenylenevinylene (MEH-PPV) that produces blue and red emissions, respectively. In this blend, PFO with large energy band gap acts as a donor whereas MEH-PPV is the acceptor. Over the years, numerous efforts have been made to improve the luminance of this blend WOLED by either improving the charge carrier transportation via the modification of electrodes [17], or through blending with metal oxide nanoparticles [18]. In this regard, Al-Bati et al. [19] have investigated the effects of two acceptors on the emission characteristics of the PFO/F8BT/MEH-PPV ternary blend, and assessed the feasibility of TiO2 nanoparticles as quenching inhibitors as well as emission enhancers for the ternary blends. The effect of TiO2 nanoparticles on the surface morphology, photophysical properties, and current density–voltage (J-V) characteristics of the ternary blend thin films was also investigated, and the optimum amount of TiO2 nanoparticles was found to be 10 wt%.
The same authors also investigated the effect of SiO2/TiO2 nanocomposites on the properties of the PFO/MEH-PPV blend [20] using steady-state and time-resolved photoluminescence spectroscopies at room temperature. The improved energy transfer from PFO to MEH-PPV upon increasing nanocomposite content was demonstrated by examining absorbance, emission, and photoluminescence excitation spectra. The shorter values of the quantum yield and lifetime of the PFO in the hybrid thin films compared with the pure PFO indicate efficient energy transfer from PFO to MEH-PPV. The Förster radius was tuned from 44 to 76 Å, the distance between the molecules of donor and acceptor increased from 23 to 69 Å while the conjugation length slightly increased from −4.278 to −1.020 Å when the nanocomposite content increased from 0 to 20 wt%. Thus, the incorporation of SiO2/TiO2 nanocomposites into CPs plays a crucial role in the improvement of OLED devices’ performance.
Another conjugated conducting polymer, poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS) is widely used for practical applications such as energy conversion and storage devices, due to its good flexibility, processability, high electrical conductivity, and superior optical transparency, among others. Nonetheless, its hygroscopic character, short durability, and poor thermoelectric performance compared to inorganic counterparts have greatly limited its high-tech applications. In a recent work, SnO2 (0.5–10 wt%) was incorporated into PEDOT:PSS via a simple, low-cost, environmentally friendly method without the need for organic solvents or compatibilizing agents [21]. The morphology, thermal, thermoelectrical, optical, and mechanical properties of the resulting nanocomposites were extensively explored. A uniform dispersion of the SnO2 nanoparticles within the matrix was revealed by SEM microscopy, and the Raman spectra revealed the existence of very strong SnO2-PEDOT:PSS interactions. The stiffness and strength of the matrix steadily improved with increasing SnO2 content, up to 120% and 65%, respectively, upon the addition of 10 wt% SnO2. Furthermore, the nanocomposites showed greater thermal stability (by up to 70 °C), improved electrical conductivity (up to 140%), and higher Seebeck coefficient (about 80% increase) than neat PEDOT:PSS, while the optical transparency remained almost unchanged. These sustainable nanocomposites display noticeably better performance compared to commercial PEDOT:PSS, and can be applied in energy storage, flexible electronics, thermoelectric devices, and so forth.
Over the last decades, severe environmental concerns and food safety problems have led to the development and application of degradable active packaging materials [22,23]. Among the widely known degradable polymers, poly(vinyl alcohol) (PVA) is a synthetic, water-soluble polymer used in the packaging industry due to its excellent film-forming performance, oxygen barrier properties, and chemical resistance [24]. However, the poor barrier and antibacterial properties of PVA have limited its application in active food packaging [25]. To overcome these deficiencies, one of the most effective methods is to prepare nanocomposites by blending PVA matrix with functional nanoparticles. In this regard, layered double hydroxides (LDHs) are a class of layered anionic synthetic clay, which have high anion exchange capacity and chemical purity, uniform structure, and controllable chemical composition. Organophilic LDHs coated by TA-Ti coordination compounds (LDHs@TA-Ti) were prepared by a green and simple method and incorporated into PVA via a solution casting process [26]. The effect of LDHs@TA-Ti on the thermal, mechanical, barrier, and antibacterial properties of LDHs@TA-Ti/PVA nanocomposites was investigated. Upon TA-Ti coating onto the LDHs surface, the antibacterial rate of LDHs@TA-Ti was increased up to 99.98%, as a result of the synergistic effect from the phenolic hydroxyl groups and photocatalytic TiO2. Moreover, LDHs@TA-Ti/PVA nanocomposites displayed outstanding antibacterial properties. Compared with pure PVA, LDHs@TA-Ti/PVA nanocomposites showed a 41% increase in tensile strength, an 18% increase in elongation at break, a 36% reduction in oxygen permeability, and a diminution of 26% in water vapor permeability upon the addition of 1.0 wt% LDHs@TA-Ti. On the other hand, their UV transmittance decreased by 99% when LDHs@TA-Ti content reached 3 wt%. Therefore, these novel nanocomposites show a great potential in the active packaging application due to their outstanding mechanical, barrier and antibacterial properties.

Funding

This research received no external funding.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Kotal, M.; Bhowmick, A.K. Polymer Nanocomposites from Modified Clays: Recent Advances and Challenges. Prog. Polym. Sci. 2015, 51, 127–187. [Google Scholar] [CrossRef] [Green Version]
  2. Diez-Pascual, A.M.; Naffakh, M. Towards the development of poly(phenylene sulphide) based nanocomposites with enhanced mechanical, electrical and tribological properties. Mater. Chem. Phys. 2012, 135, 348–357. [Google Scholar] [CrossRef] [Green Version]
  3. Díez-Pascual, A.M.; Díez-Vicente, A.L. Nano-TiO2 Reinforced PEEK/PEI Blends as Biomaterials for Load-Bearing Implant Applications. ACS Appl. Mater. Inferfaces 2015, 7, 5561–5573. [Google Scholar] [CrossRef] [PubMed]
  4. Díez-Pascual, A.M.; Díez-Vicente, A.L. ZnO-Reinforced Poly(3-hydroxybutyrate-co-3-hydroxyvalerate) Bionanocomposites with Antimicrobial Function for Food Packaging. ACS Appl. Mater. Inferfaces 2014, 6, 9822–9834. [Google Scholar] [CrossRef] [Green Version]
  5. Naffakh, M.; Díez-Pascual, A.M.; Marco, C.; Ellis, G.J.; Gómez-Fatou, M.A. Opportunities and challenges in the use of inorganic fullerene-like nanoparticles to produce advanced polymer nanocomposites. Prog. Polym. Sci. 2013, 38, 1163–1231. [Google Scholar] [CrossRef] [Green Version]
  6. Naffakh, M.; Díez-Pascual, A.M.; Gómez-Fatou, M.A. New hybrid nanocomposites containing carbon nanotubes, inorganic fullerene-like WS2nanoparticles and poly(ether ether ketone) (PEEK). J. Mater. Chem. 2011, 21, 7425–7433. [Google Scholar] [CrossRef]
  7. Díez-Pascual, A.M.; Naffakh, M.; Marco, C.; Ellis, G. Mechanical and electrical properties of carbon nanotube/poly(phenylene sulphide) composites incorporating polyetherimide and inorganic fullerene-like nanoparticles. Compos. Part. A 2012, 43, 603–612. [Google Scholar] [CrossRef]
  8. Flores, A.; Naffakh, M.; Díez-Pascual, A.M.; Ania, F.; Gómez-Fatou, M.A. Evaluating the Reinforcement of Inorganic Fullerene-like Nanoparticles in Thermoplastic Matrices by Depth-Sensing Indentation. J. Phys. Chem. C 2013, 117, 20936–20943. [Google Scholar] [CrossRef]
  9. Naffakh, M.; Díez-Pascual, A.M. Thermoplastic Polymer Nanocomposites Based on Inorganic Fullerene-like Nanoparticles and Inorganic Nanotubes. Inorganics 2014, 2, 291–312. [Google Scholar] [CrossRef] [Green Version]
  10. Naffakh, M.; Díez-Pascual, A.M.; Marco, C.; Gómez, M.A.; Jiménez, I. Novel melt-processable poly (ether ether ketone) (PEEK)/inorganic fullerene-like WS2 nanoparticles for critical applications. J. Phys. Chem. B 2010, 114, 11444–11453. [Google Scholar] [CrossRef] [Green Version]
  11. Naffakh, M.; Díez-Pascual, A.M. Nanocomposite biomaterials based on poly(etherether-ketone) (PEEK) and WS2 inorganic nanotubes. J. Mater. Chem. B 2014, 2, 4509–4520. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Naffakh, M.; Díez-Pascual, A.M. WS2 inorganic nanotubes reinforced poly(L-lactic acid)/hydroxyapatite hybrid composite biomaterials. RSC Adv. 2015, 5, 65514–65525. [Google Scholar] [CrossRef]
  13. Naffakh, M. Biopolymer Nanocomposite Materials Based on Poly(L-lactic Acid) and Inorganic Fullerene-like WS2 Nanoparticles. Polymers 2021, 13, 2947. [Google Scholar] [CrossRef] [PubMed]
  14. Naffakh, M.; Rica, P.; Moya-Lopez, C.; Castro-Osma, J.A.; Alonso-Moreno, C.; Moreno, D.A. The Effect of WS2 Nanosheets on the Non-Isothermal Cold- and Melt-Crystallization Kinetics of Poly(l-lactic acid) Nanocomposites. Polymers 2021, 13, 2214. [Google Scholar] [CrossRef]
  15. Chen, D.; Tiwari, S.K.; Ma, Z.; Wen, J.; Liu, S.; Li, J.; Wei, F.; Thummavichai, K.; Yang, Z.; Zhu, Y.; et al. Phase Behavior and Thermo-Mechanical Properties of IF-WS2 Reinforced PP–PET Blend-Based Nanocomposites. Polymers 2020, 12, 2342. [Google Scholar] [CrossRef]
  16. Luceño-Sanchez, J.A.; Díez-Pascual, A.M.; Peña Capilla, R. Materials for Photovoltaics: State of Art and Recent Developments. Int. J. Mol. Sci. 2019, 20, 976. [Google Scholar] [CrossRef] [Green Version]
  17. Huang, T.-H.; Chi, X.-C.; Xu, T.-N.; Zhang, J.-R.; Xu, H.-Y.; Zhu, Z.-Y.; Yu, R.-B.; Wang, Y.-H.; Zhang, H.-Z. Effect of Ag nanoparticles on the photoluminescence of poly [2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylene-vinylene. J. Photochem. Photobiol. A Chem. 2018, 356, 334–339. [Google Scholar] [CrossRef]
  18. Al-Asbahi, B.; Qaid, S.M.H.; Jumali, M.H.H.; AlSalhi, M.S.; Aldwayyan, A.S. Long-range dipole–dipole energy transfer enhancement via addition of SiO2/TiO2 nanocomposite in PFO/MEH-PPV hybrid thin films. J. Appl. Polym. Sci. 2019, 136, 47845. [Google Scholar] [CrossRef]
  19. Al-Bati, S.; Hj Jumali, M.H.; Al-Asbahi, B.A.; Ibtehaj, K.; Yap, C.C.; Qaid, S.M.H.; Ghaithan, H.M.; Farooq, W.A. Improving Photophysical Properties of White Emitting Ternary Conjugated Polymer Blend Thin Film via Additions of TiO2 Nanoparticles. Polymers 2020, 12, 2154. [Google Scholar] [CrossRef]
  20. Al-Asbahi, B.A.; Hj. Jumali, M.H.; AlSalhi, M.S.; Qaid, S.M.H.; Fatehmulla, A.; Mujamammi, W.M.; Ghaithan, H.M. Tuning Photophysical Properties of Donor/Acceptor Hybrid Thin- Film via Addition of SiO2/TiO2 Nanocomposites. Polymers 2021, 13, 611. [Google Scholar] [CrossRef]
  21. Díez-Pascual, A.M. Environmentally Friendly Synthesis of Poly(3,4-Ethylenedioxythiophene): Poly(Styrene Sulfonate)/SnO2 Nanocomposites. Polymers 2021, 13, 2445. [Google Scholar] [CrossRef] [PubMed]
  22. Díez-Pascual, A.M.; Díez-Vicente, A.L. Poly(3-hydroxybutyrate)/ZnO bionanocomposites with improved mechanical, barrier and antibacterial properties. Int. J. Mol. Sci. 2014, 15, 10950–10973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Díez-Pascual, A.M.; Díez-Vicente, A.L. Electrospun fibers of chitosan-grafted polycaprolactone/poly(3-hydroxybutyrate-co-3-hydroxyhexanoate) blends. J. Mater. Chem. B 2016, 4, 600–612. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, C.; Tang, Z.; Ma, Y.; Qiu, W.; Yang, F.; Mei, J.; Xie, J. Physicochemical, microstructural, antioxidant and antimicrobial properties of active packaging films based on poly(vinyl alcohol)/clay nanocomposite incorporated with tea polyphenols. Prog. Org. Coat. 2018, 123, 176–184. [Google Scholar] [CrossRef]
  25. Díez-Pascual, A.M. Antibacterial Activity of Nanomaterials. Nanomaterials 2018, 8, 359. [Google Scholar] [CrossRef] [Green Version]
  26. Mao, L.; Xie, J.; Wu, H.; Liu, Y. Mussel-Inspired Approach to Constructing Dual Network Coated Layered Clay for Enhanced Barrier and Antibacterial Properties of Poly(vinyl alcohol) Nanocomposites. Polymers 2020, 12, 2093. [Google Scholar] [CrossRef]

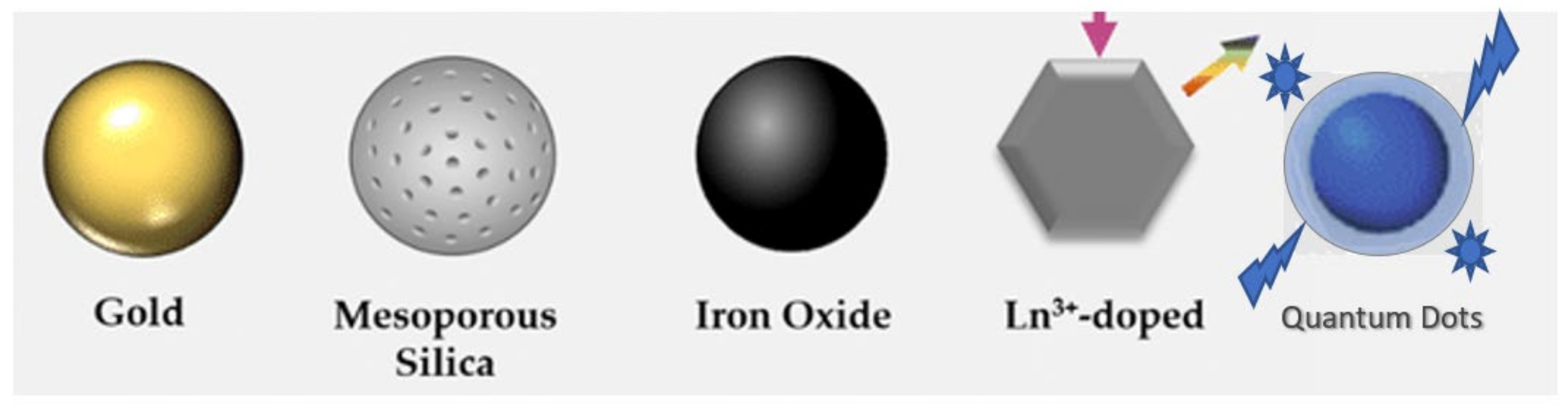

Figure 1. Commonly used inorganic nanoparticles to reinforced polymer matrices.
Figure 1. Commonly used inorganic nanoparticles to reinforced polymer matrices.
