Next Article in Journal
Morphological Structure, Rheological Behavior, Mechanical Properties and Sound Insulation Performance of Thermoplastic Rubber Composites Reinforced by Different Inorganic Fillers
Previous Article in Journal
Two Chemically Stable Cd(II) Polymers as Fluorescent Sensor and Photocatalyst for Aromatic Dyes
Previous Article in Special Issue
Vesicles from Amphiphilic Dumbbells and Janus Dendrimers: Bioinspired Self-Assembled Structures for Biomedical Applications
Open AccessArticle

Co-Deposition of a Hydrogel/Calcium Phosphate Hybrid Layer on 3D Printed Poly(Lactic Acid) Scaffolds via Dip Coating: Towards Automated Biomaterials Fabrication

1
Institute of Chemistry, University of Potsdam, D-14476 Potsdam, Germany
2
Institute of Earth and Environmental Sciences, University of Potsdam, D-14476 Potsdam, Germany
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(3), 275; https://doi.org/10.3390/polym10030275
Received: 23 October 2017 / Revised: 16 February 2018 / Accepted: 28 February 2018 / Published: 7 March 2018
(This article belongs to the Special Issue Bio-inspired and Bio-based Polymers)

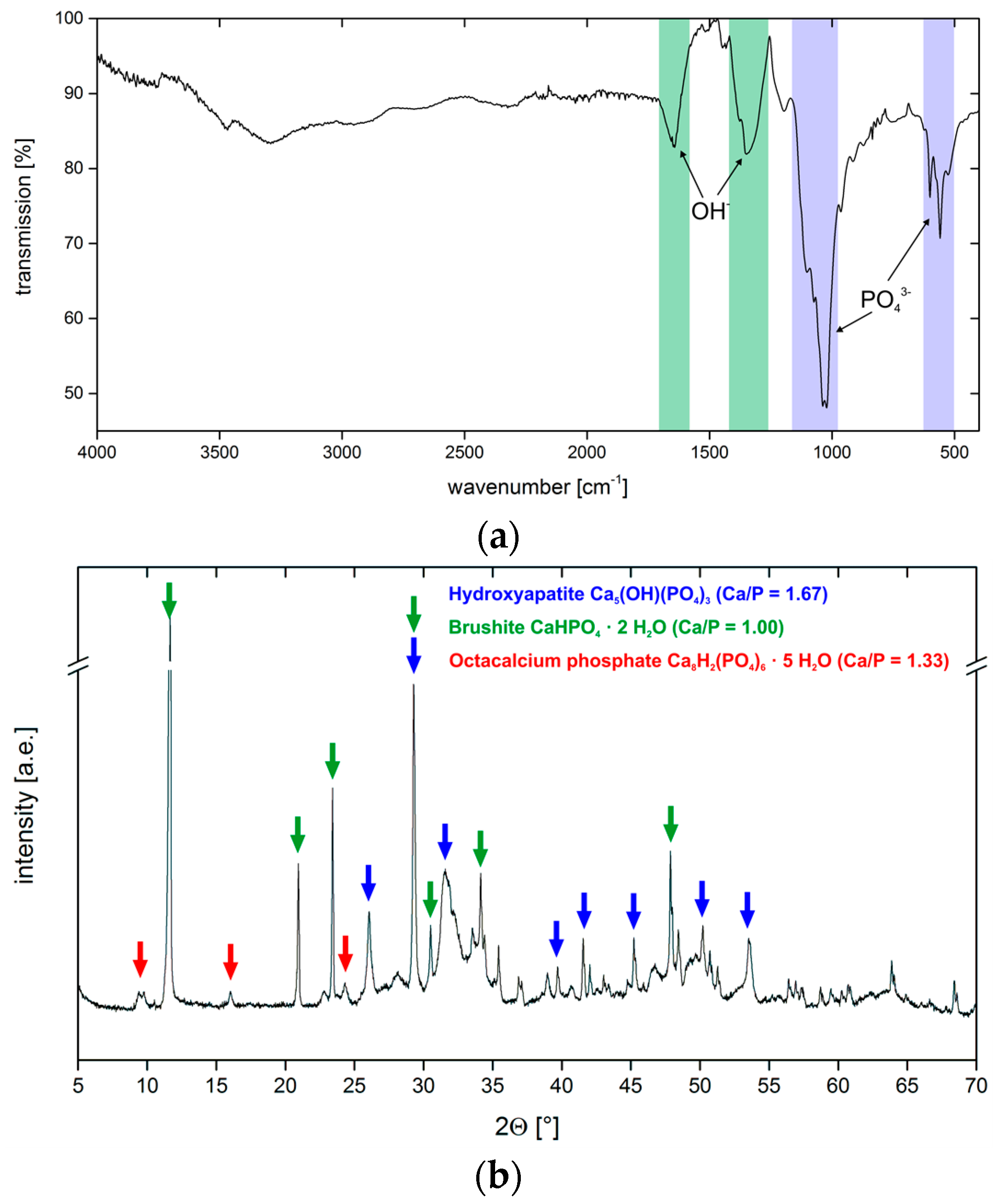

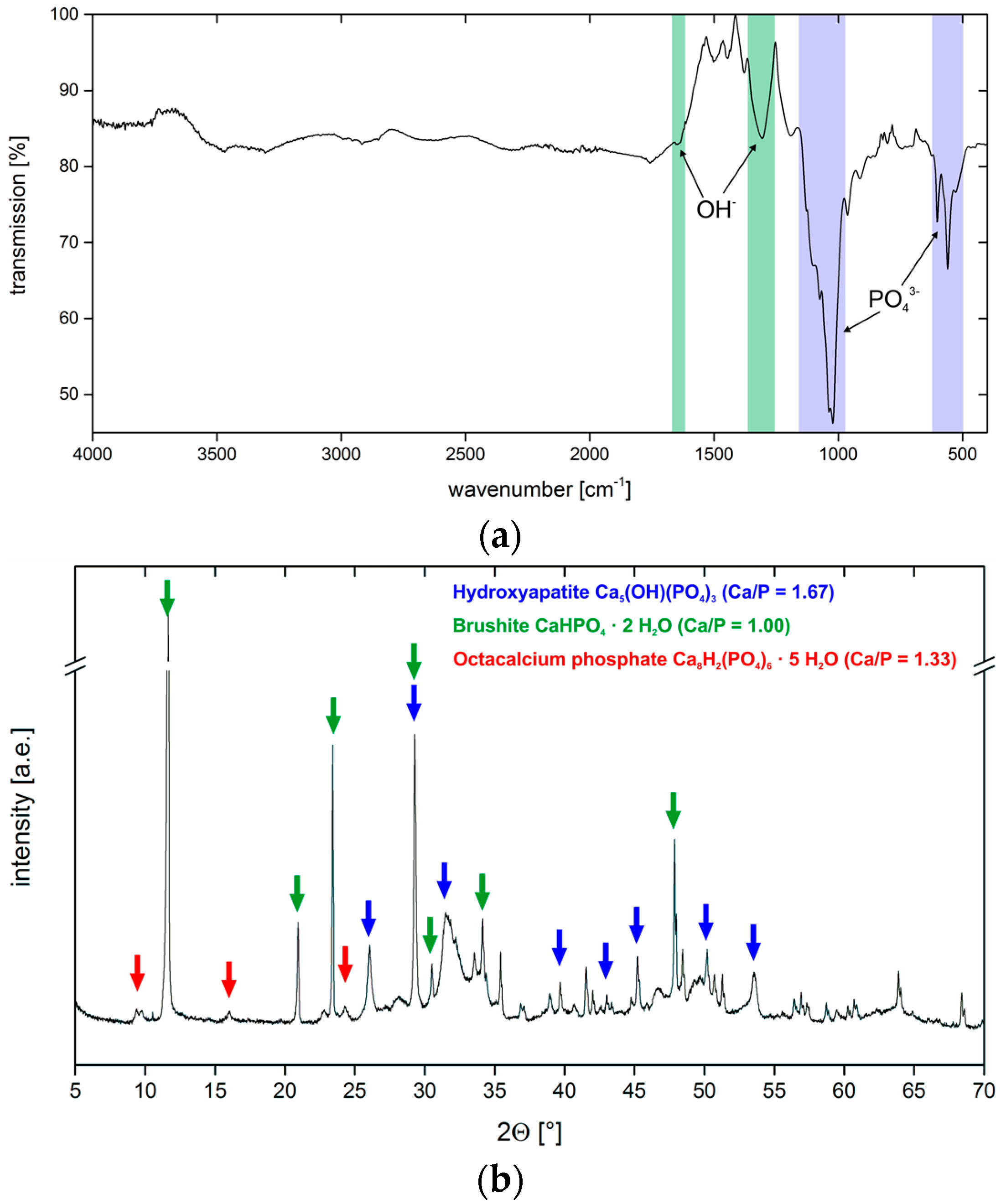

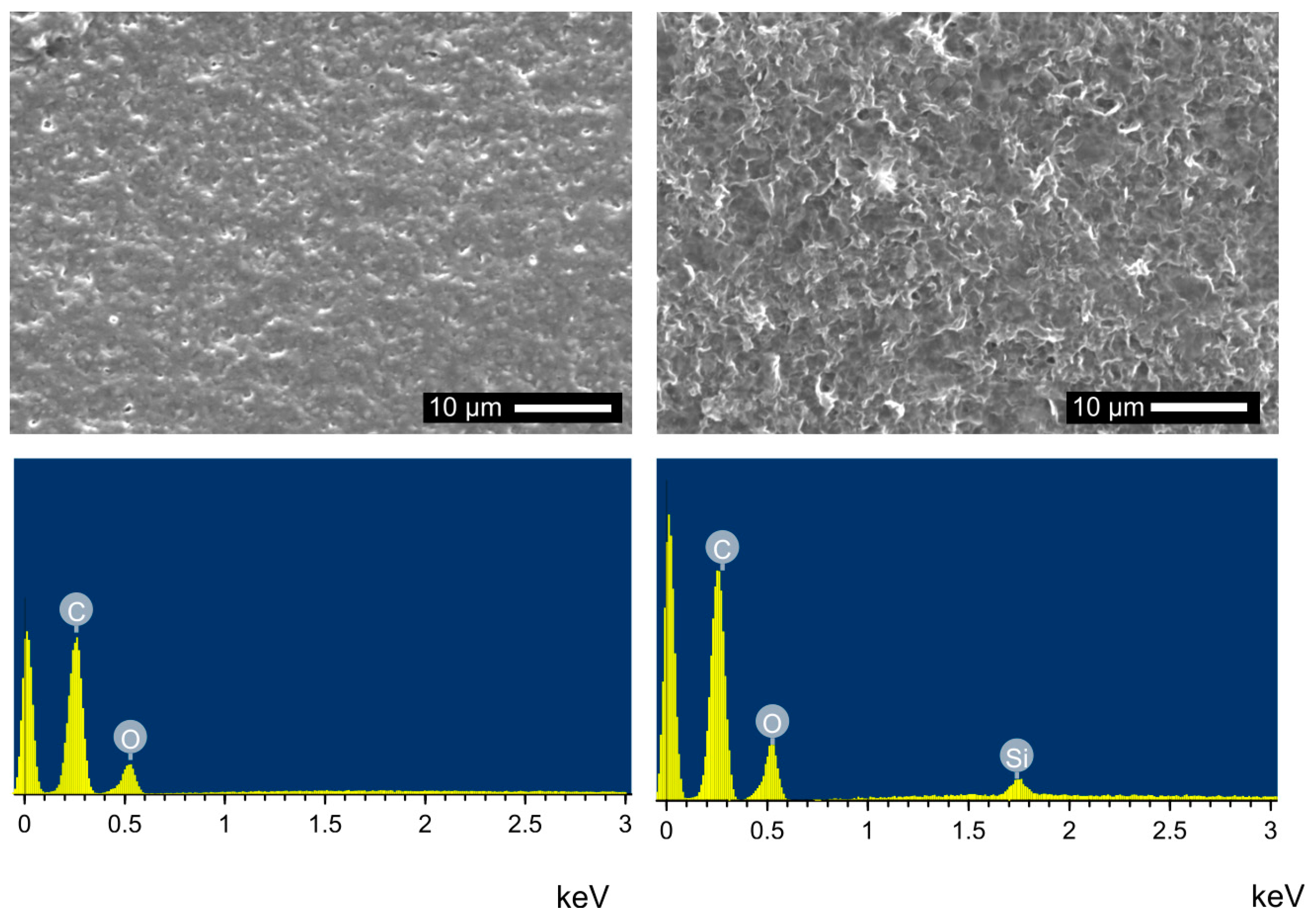

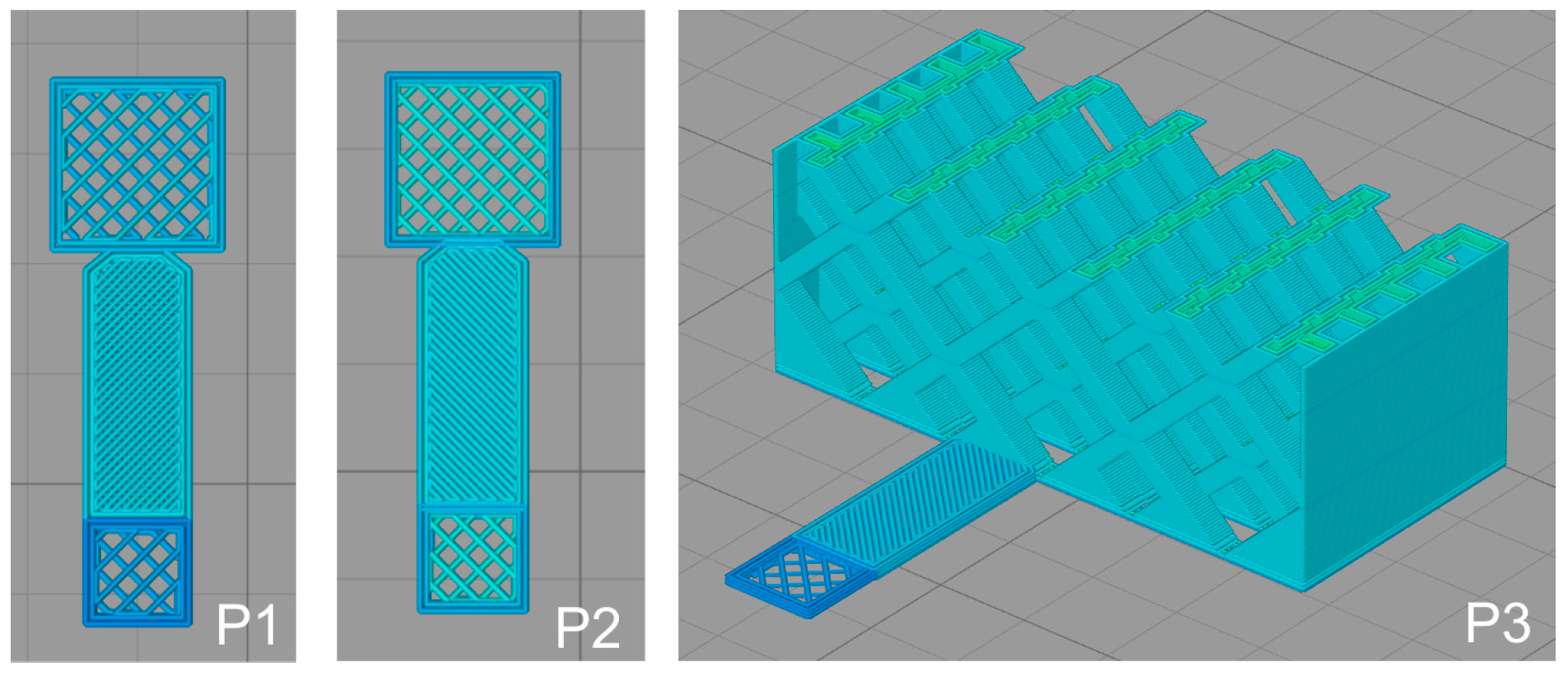

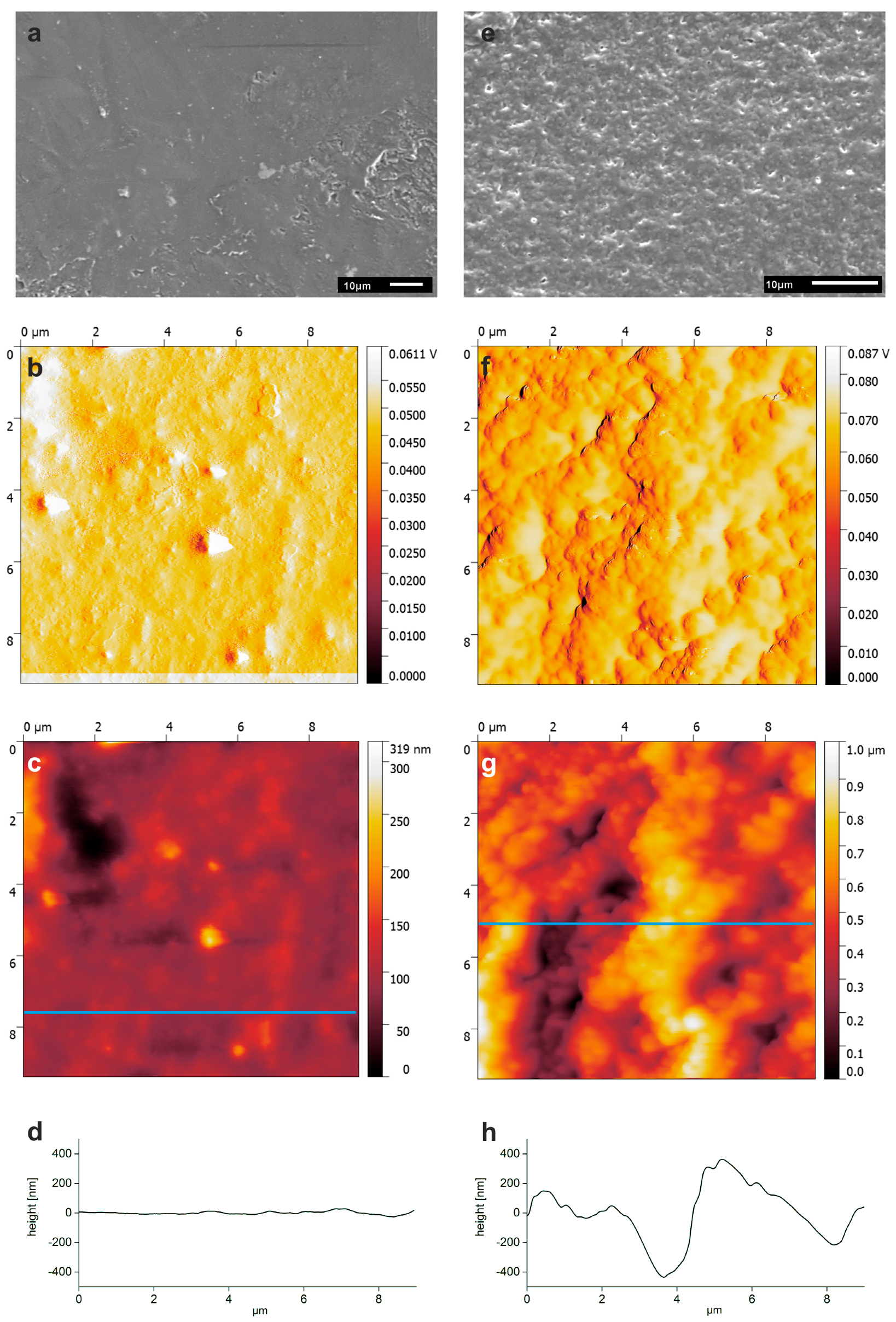

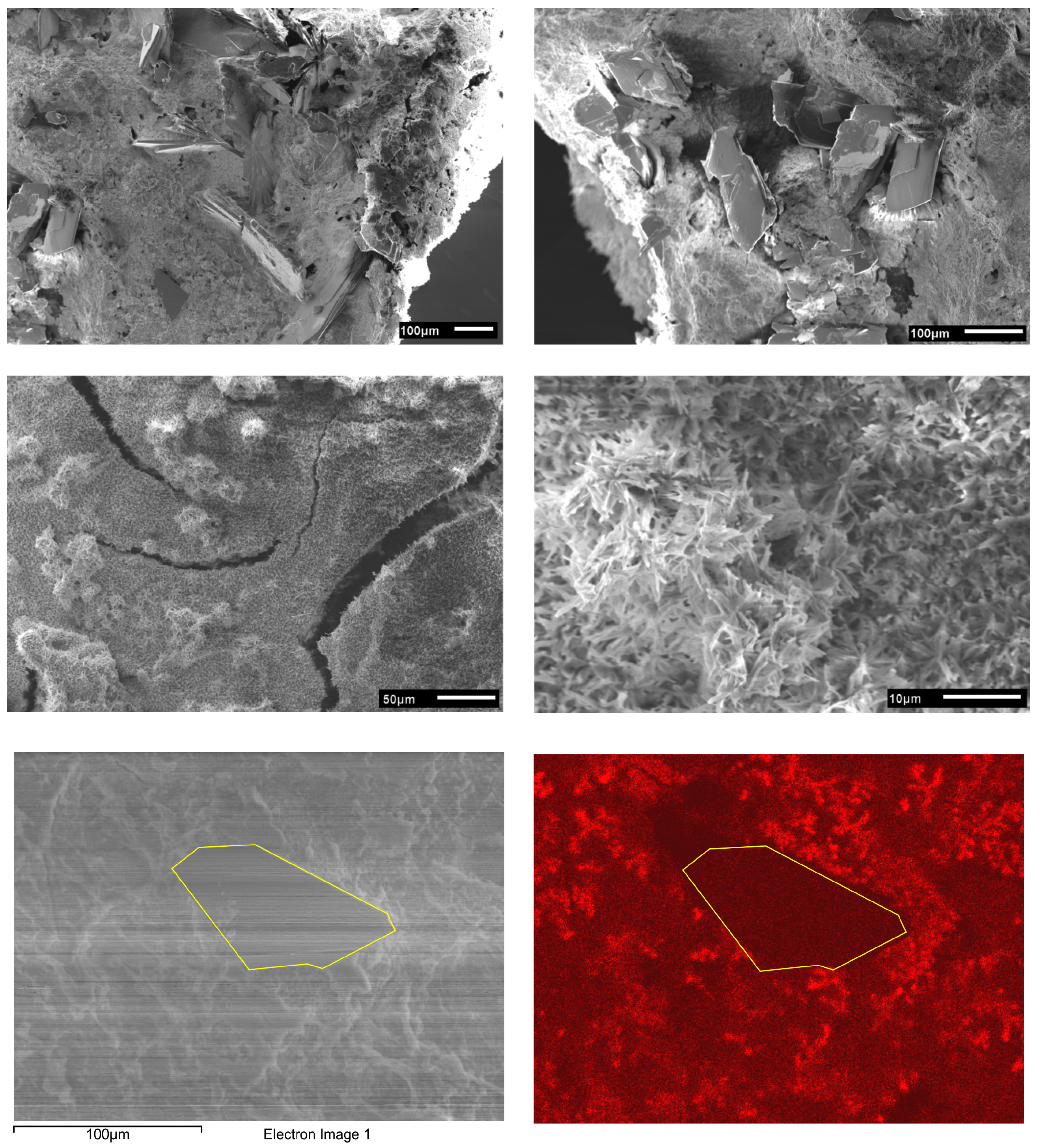

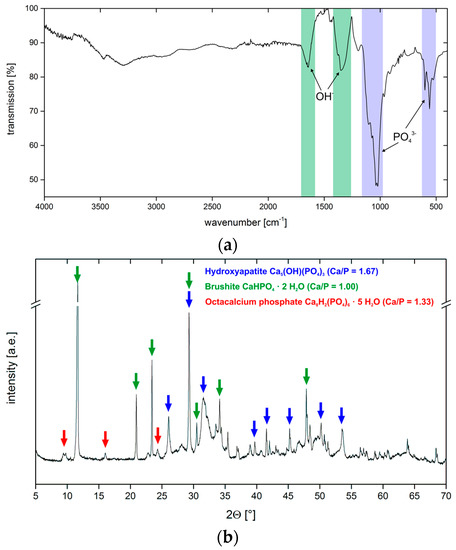

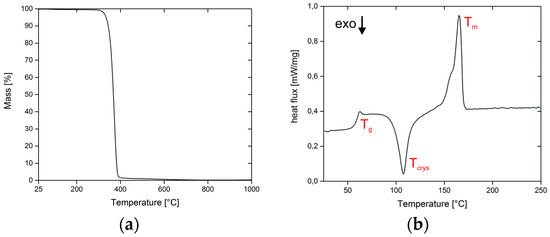

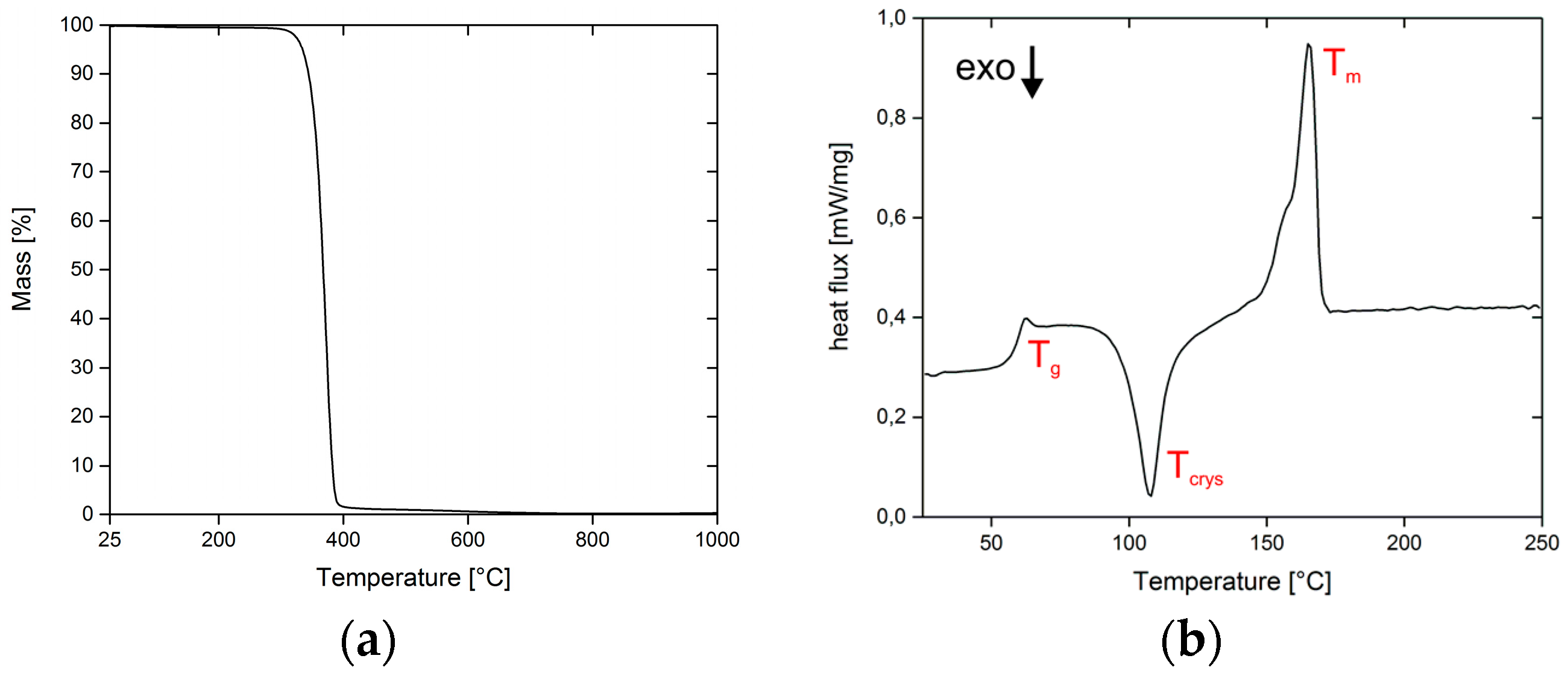

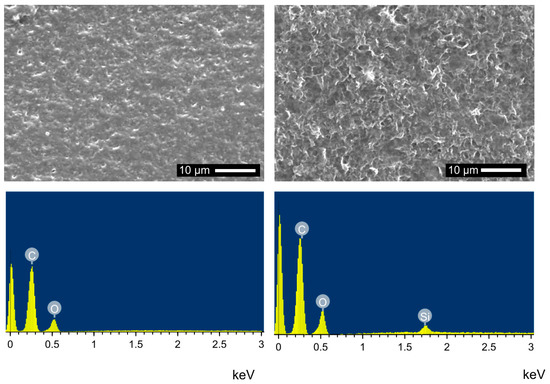

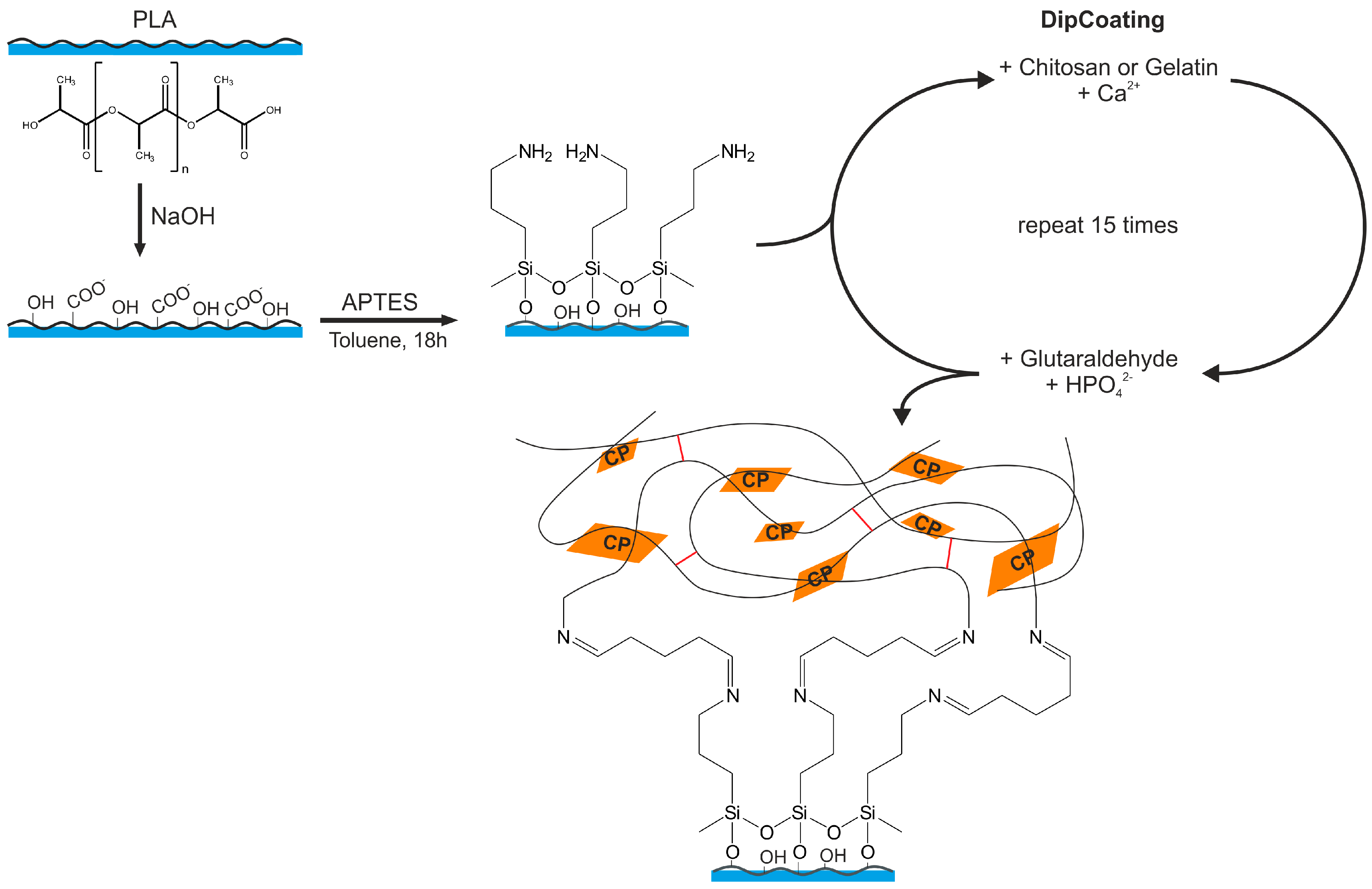

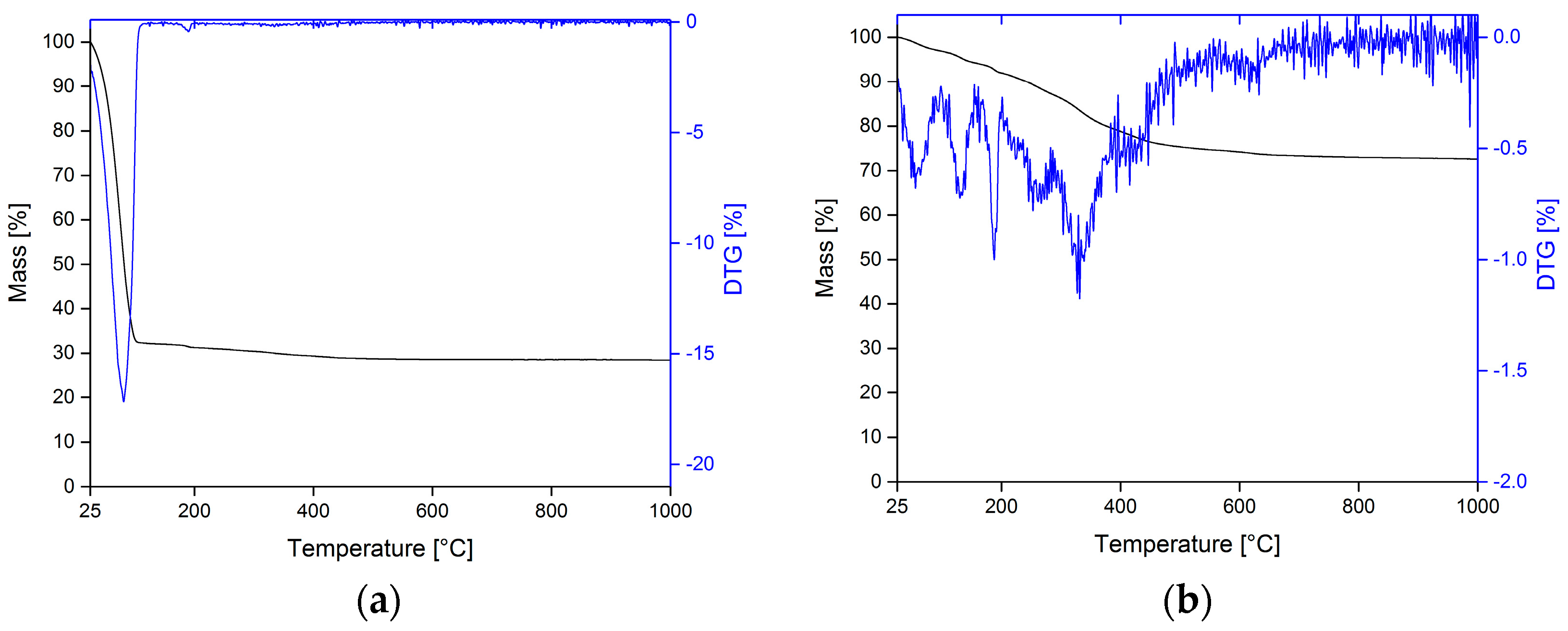

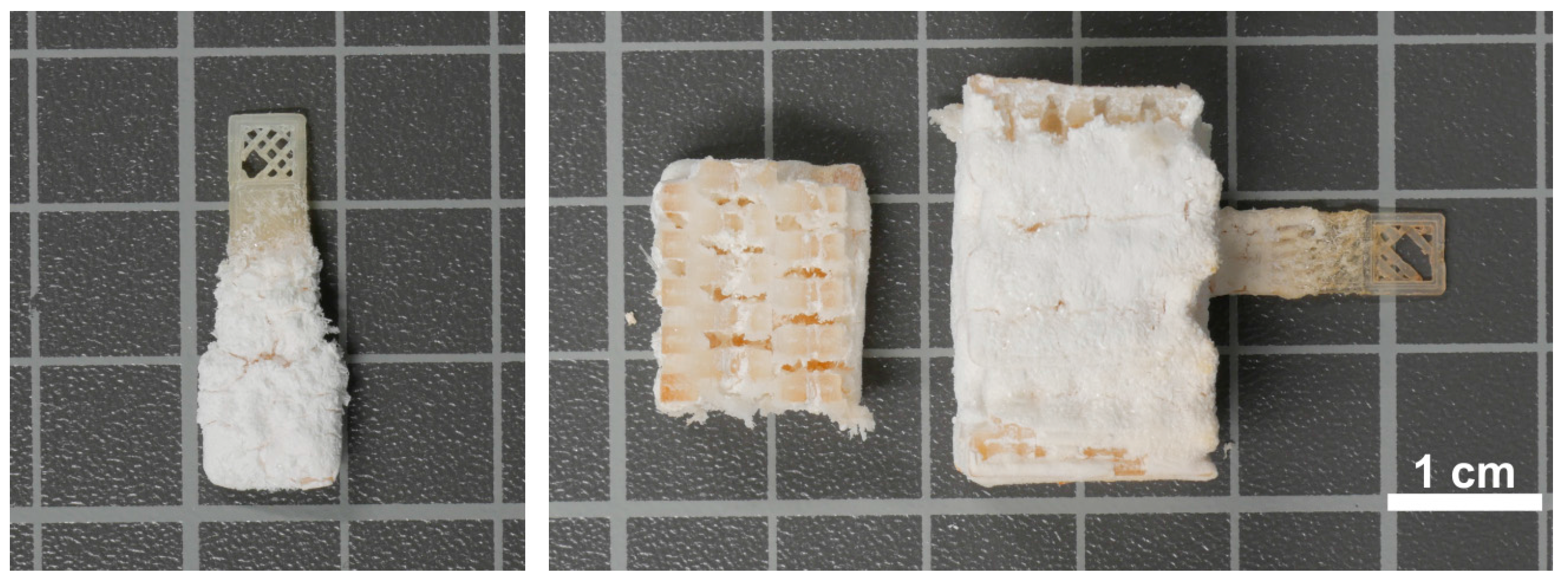

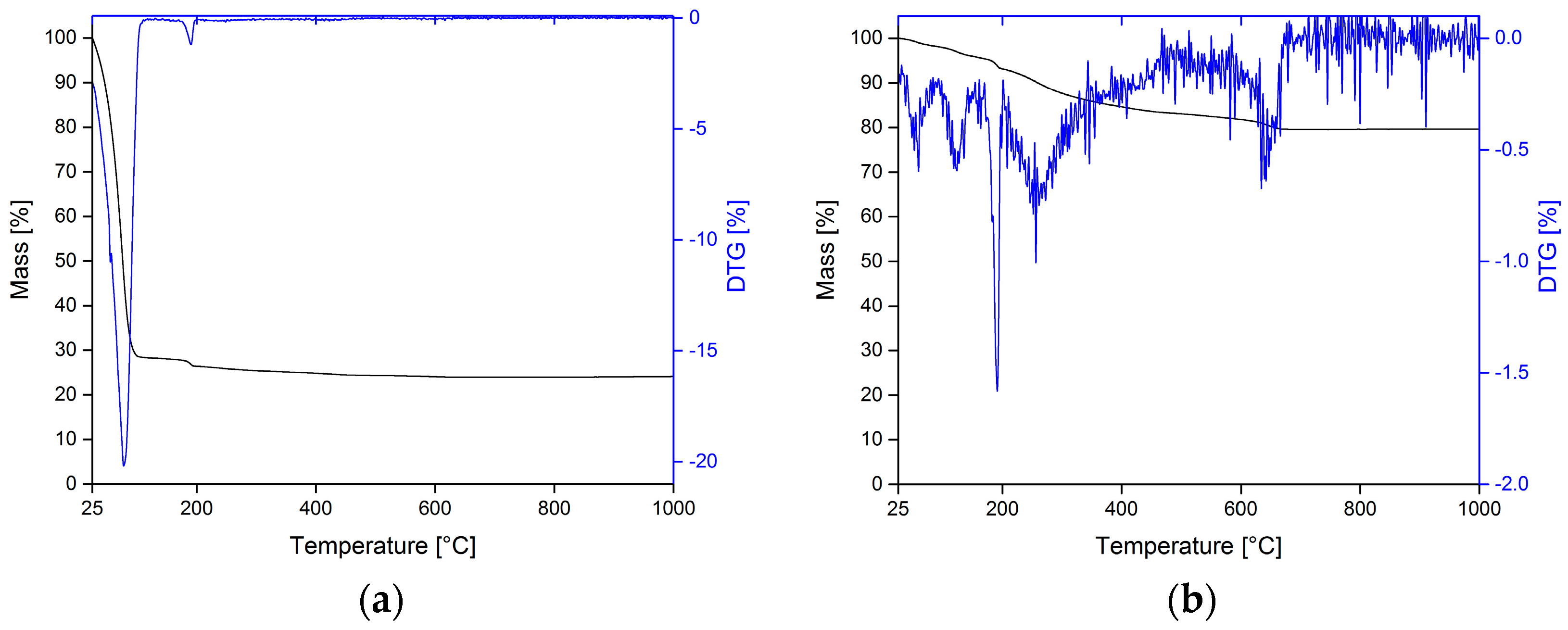

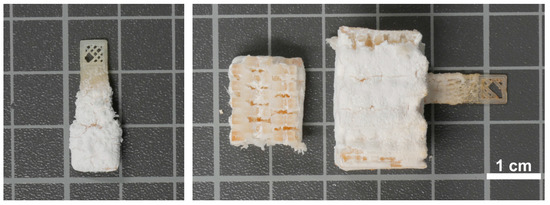

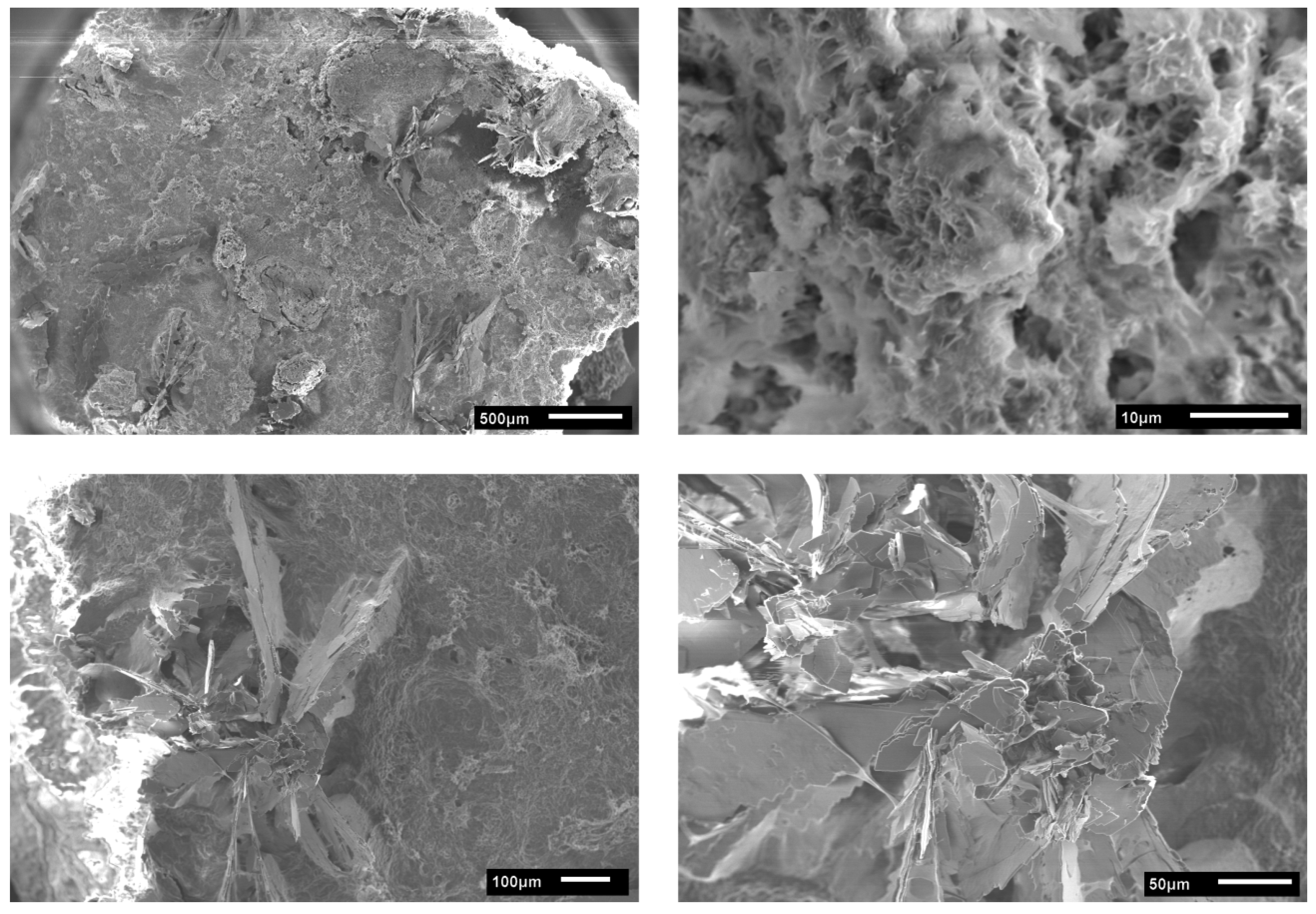

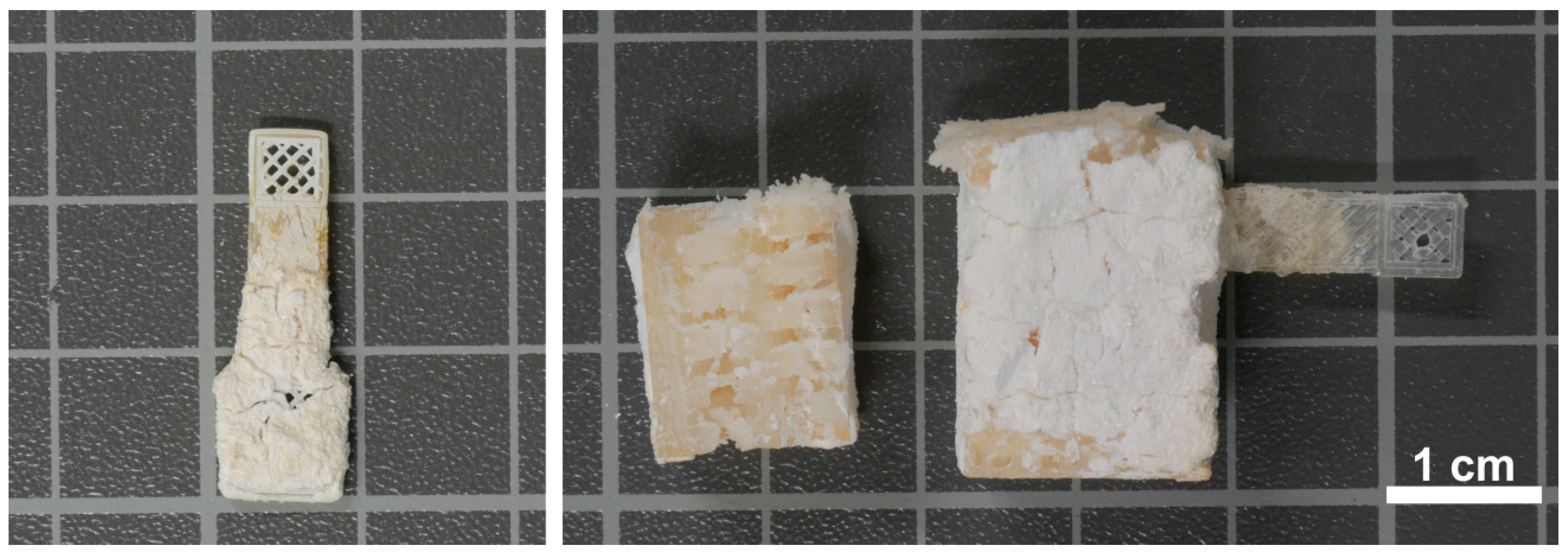

The article describes the surface modification of 3D printed poly(lactic acid) (PLA) scaffolds with calcium phosphate (CP)/gelatin and CP/chitosan hybrid coating layers. The presence of gelatin or chitosan significantly enhances CP co-deposition and adhesion of the mineral layer on the PLA scaffolds. The hydrogel/CP coating layers are fairly thick and the mineral is a mixture of brushite, octacalcium phosphate, and hydroxyapatite. Mineral formation is uniform throughout the printed architectures and all steps (printing, hydrogel deposition, and mineralization) are in principle amenable to automatization. Overall, the process reported here therefore has a high application potential for the controlled synthesis of biomimetic coatings on polymeric biomaterials. View Full-Text
Keywords: 3D printing; dip-coating; poly(lactic acid); PLA; calcium phosphate; gelatin; chitosan; hydrogel; calcium phosphate hybrid material; biomaterials 3D printing; dip-coating; poly(lactic acid); PLA; calcium phosphate; gelatin; chitosan; hydrogel; calcium phosphate hybrid material; biomaterials
Show Figures

Graphical abstract

MDPI and ACS Style

Schneider, M.; Günter, C.; Taubert, A. Co-Deposition of a Hydrogel/Calcium Phosphate Hybrid Layer on 3D Printed Poly(Lactic Acid) Scaffolds via Dip Coating: Towards Automated Biomaterials Fabrication. Polymers 2018, 10, 275.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
