Open AccessArticle
Micromachines 2015, 6(7), 855-864;

Effects of Fumed and Mesoporous Silica Nanoparticles on the Properties of Sylgard 184 Polydimethylsiloxane

Key Laboratory for Micro/Nano Technology and System of Liaoning Province, Dalian University of Technology, Dalian 116024, China
Key Laboratory for Precision and Non-traditional Machining Technology of Ministry of Education, Dalian University of Technology, Dalian 116024, China
Author to whom correspondence should be addressed.
Academic Editor: Hongrui Jiang
Received: 21 April 2015 / Revised: 17 June 2015 / Accepted: 2 July 2015 / Published: 8 July 2015
Full-Text   |   PDF [4278 KB, uploaded 8 July 2015]   |

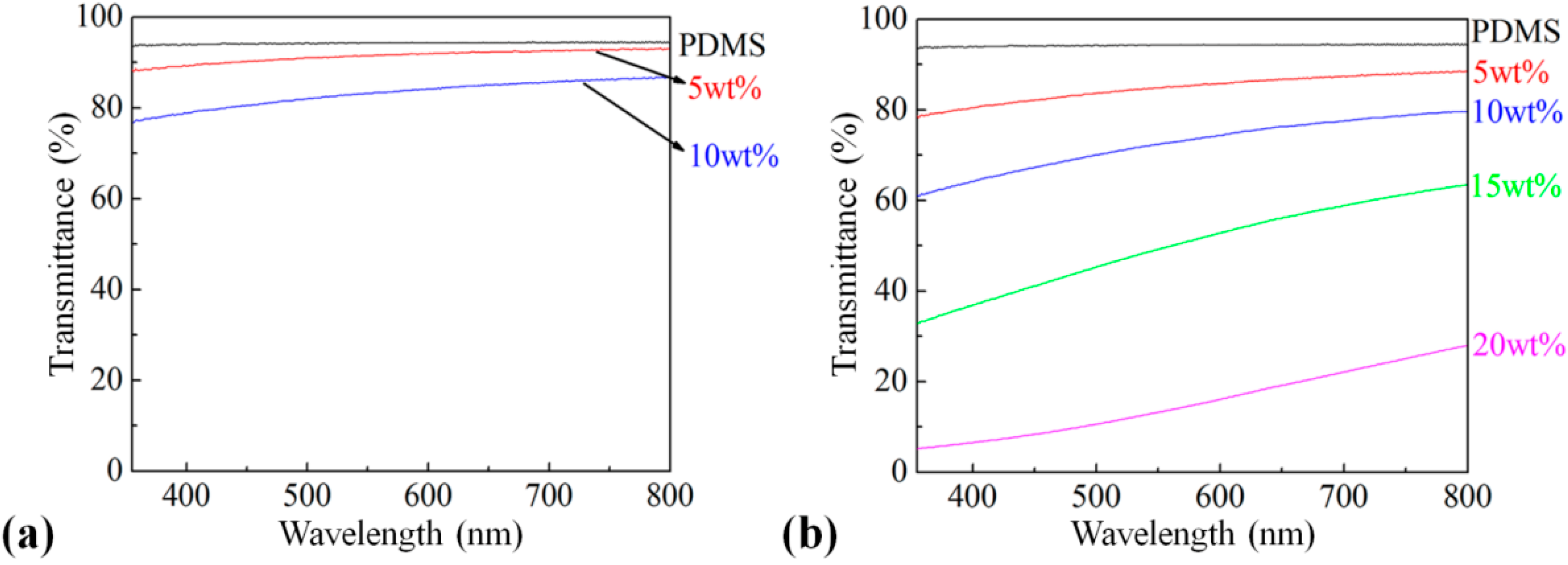

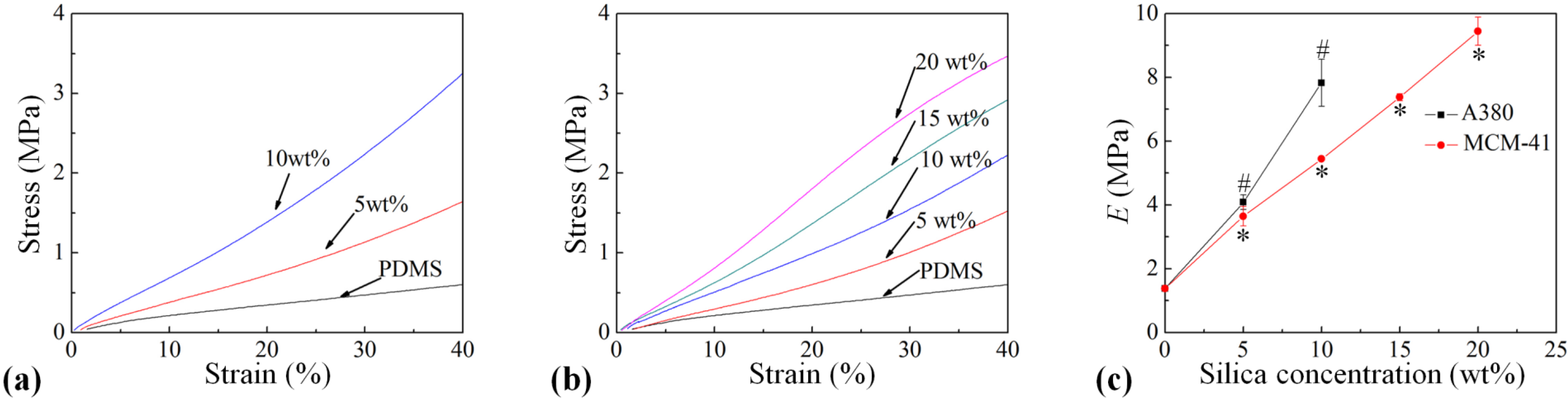

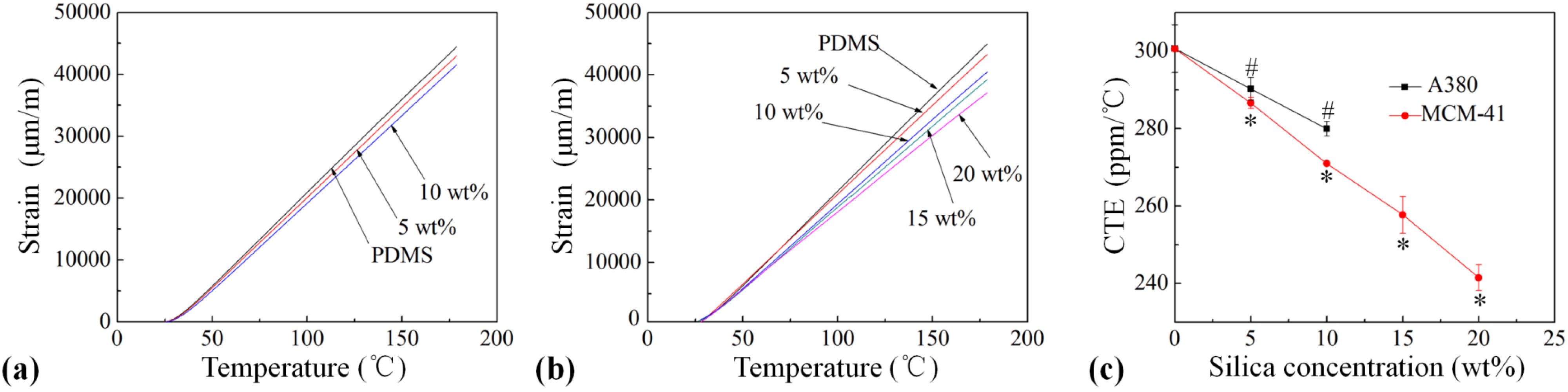

The effects of silica nanoparticles on the properties of a commonly used Sylgard 184 polydimethylsiloxane (PDMS) in microfluidics were systemically studied. Two kinds of silica nanoparticles, A380 fumed silica nanoparticles and MCM-41 mesoporous silica nanoparticles, were individually doped into PDMS, and the properties of PDMS with these two different silica nanoparticles were separately tested and compared. The thermal and mechanical stabilities of PDMS were significantly enhanced, and the swelling characteristics were also improved by doping these two kinds of nanoparticles. However, the transparency of PDMS was decreased due to the light scattering by nanoparticles. By contrast, PDMS/MCM-41 nanocomposites showed a lower coefficient of thermal expansion (CTE) owing to the mesoporous structure of MCM-41 nanoparticles, while PDMS/A380 nanocomposites showed a larger elastic modulus and better transparency due to the smaller size of A380 nanoparticles. In addition, A380 and MCM-41 nanoparticles had the similar effects on the swelling characteristics of PDMS. The swelling ratio of PDMS in toluene was decreased to 0.68 when the concentration of nanoparticles was 10 wt %. View Full-Text
Keywords: polydimethylsiloxane; PDMS; Sylgard 184; silica; nanoparticles polydimethylsiloxane; PDMS; Sylgard 184; silica; nanoparticles

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, J.; Zong, G.; He, L.; Zhang, Y.; Liu, C.; Wang, L. Effects of Fumed and Mesoporous Silica Nanoparticles on the Properties of Sylgard 184 Polydimethylsiloxane. Micromachines 2015, 6, 855-864.
