A Ring-Type Triboelectric Nanogenerator for Rotational Mechanical Energy Harvesting and Self-Powered Rotational Speed Sensing

,
,
,
,
and
1
Dalian Key Lab of Marine Micro/Nano Energy and Self-Powered System, Marine Engineering College, Dalian Maritime University, Dalian 116026, China
2
College of Mechanical and Electronic Engineering, Dalian Minzu University, Dalian 116600, China
*
Authors to whom correspondence should be addressed.
This article belongs to the Section E: Engineering and Technology

Abstract

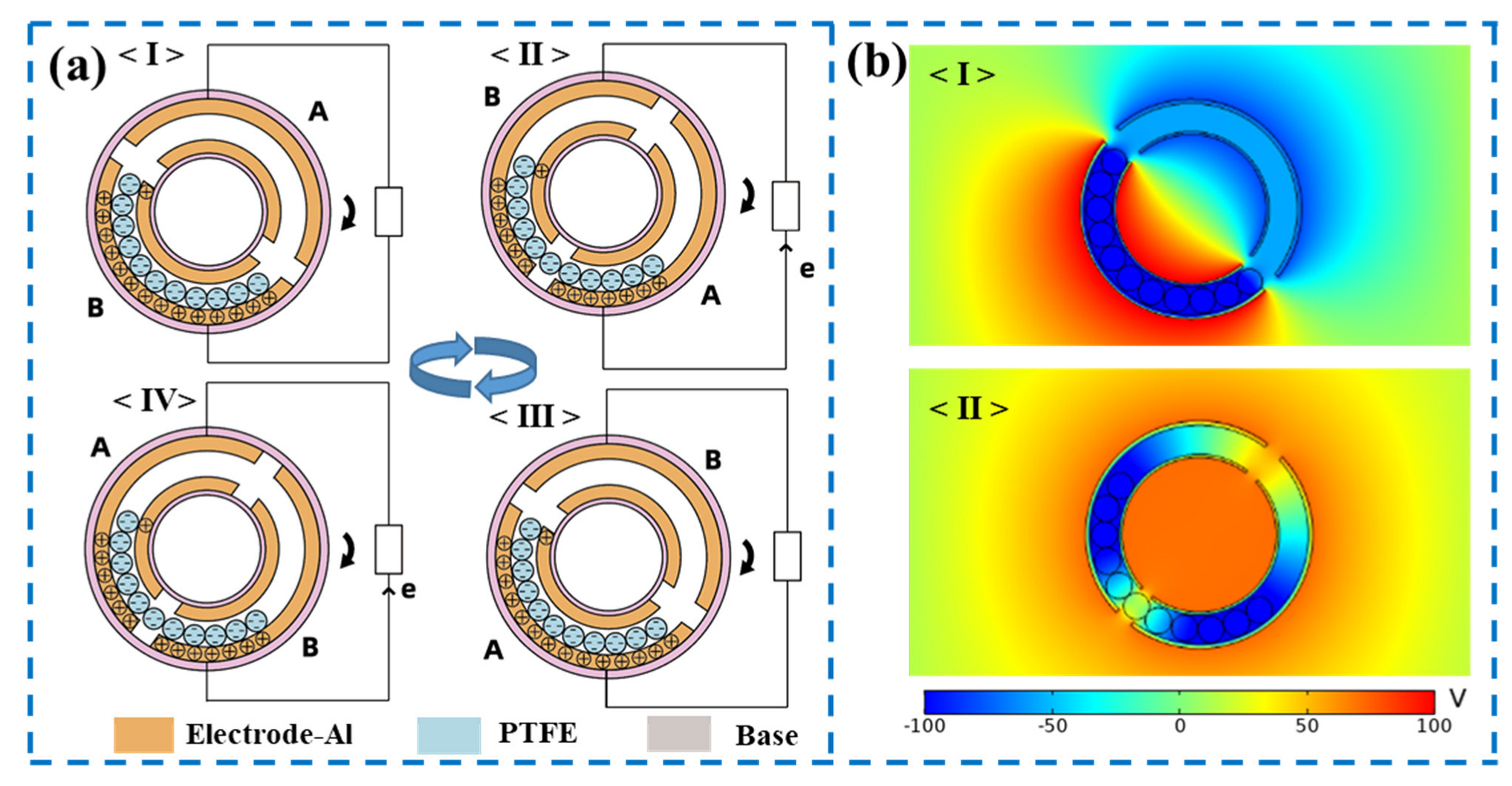

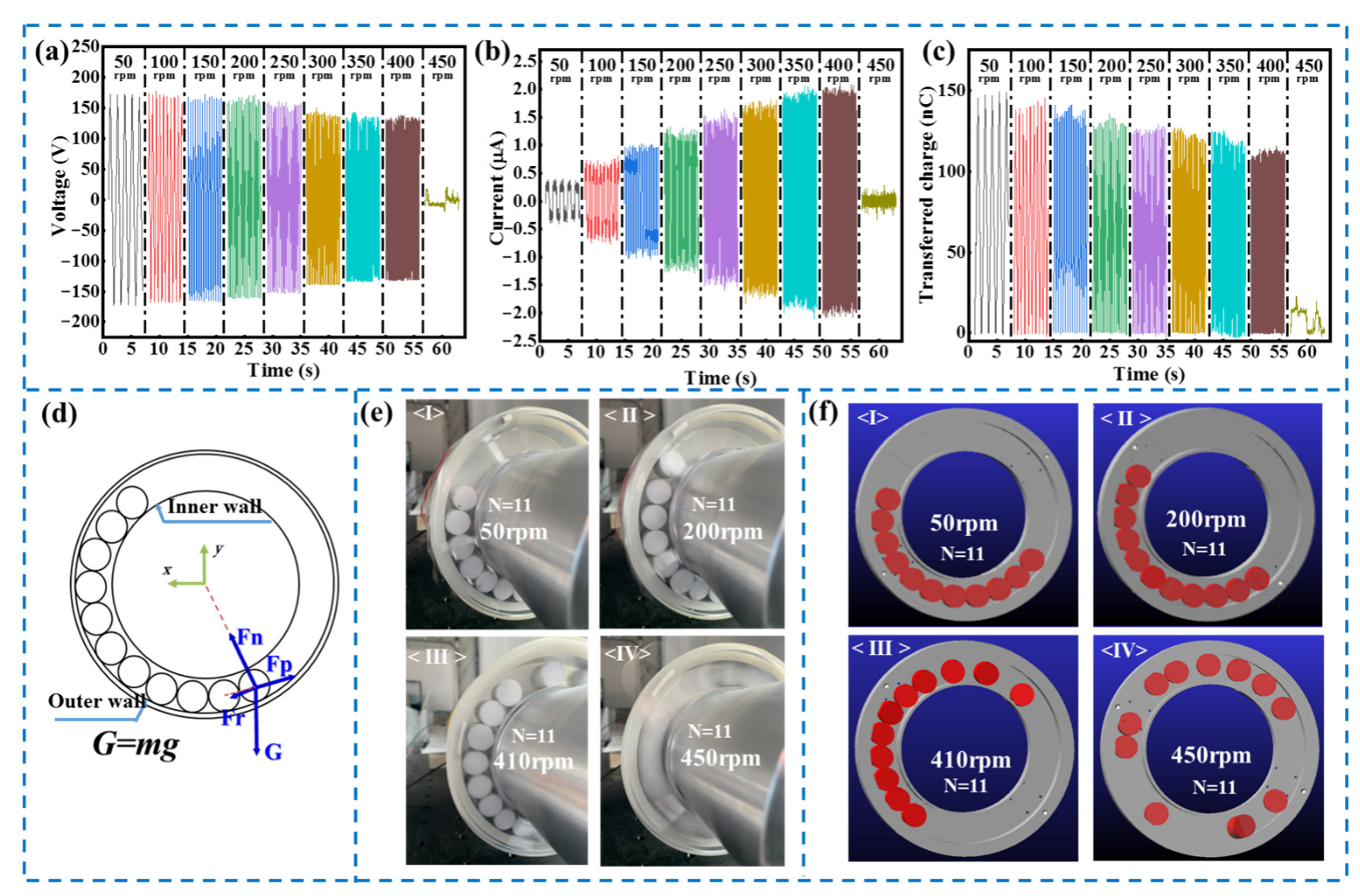

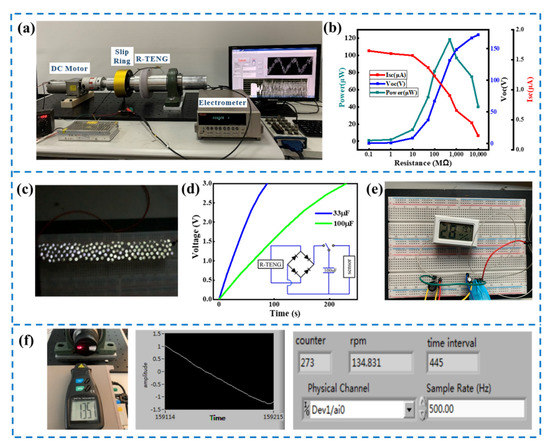

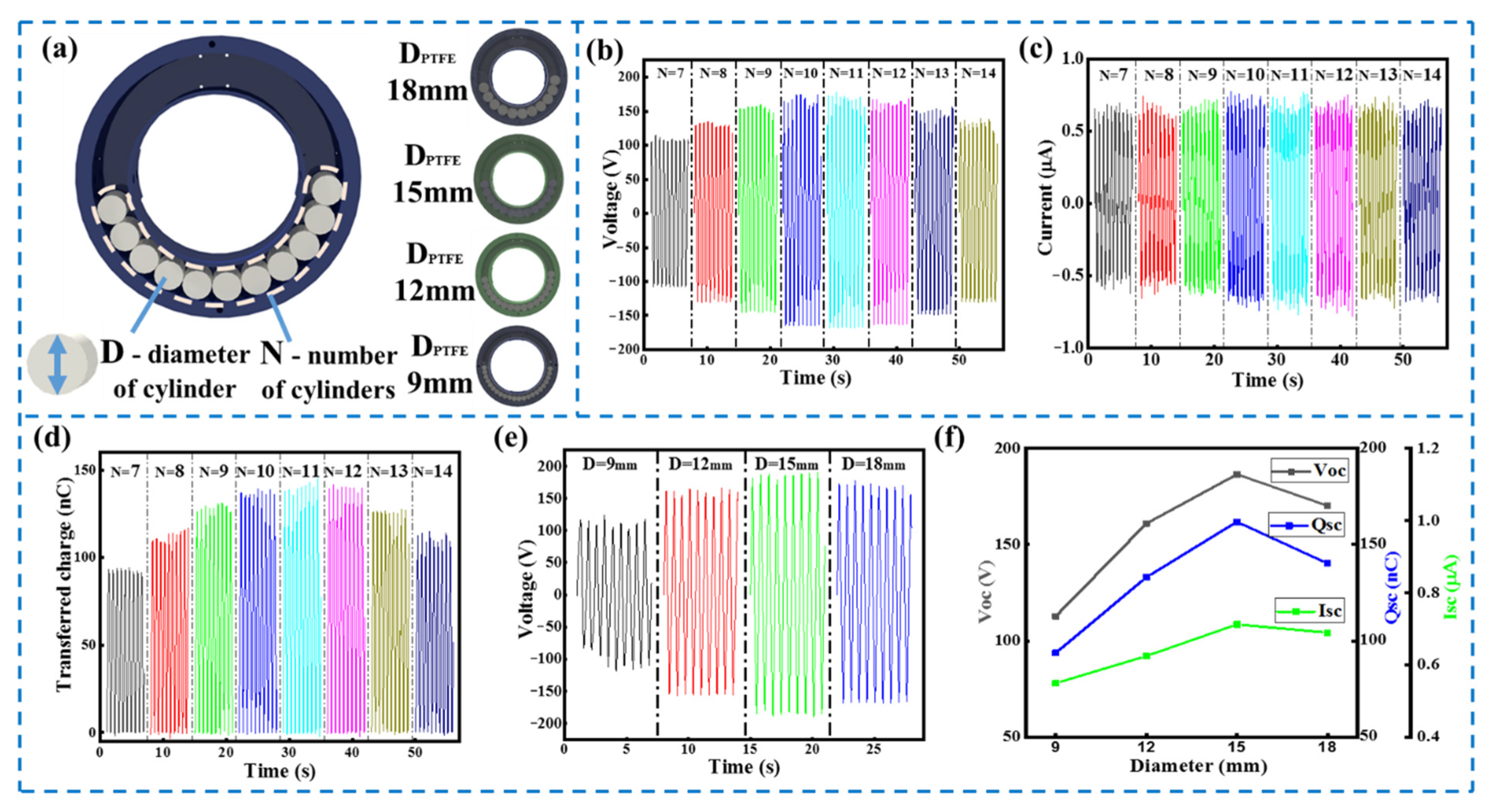

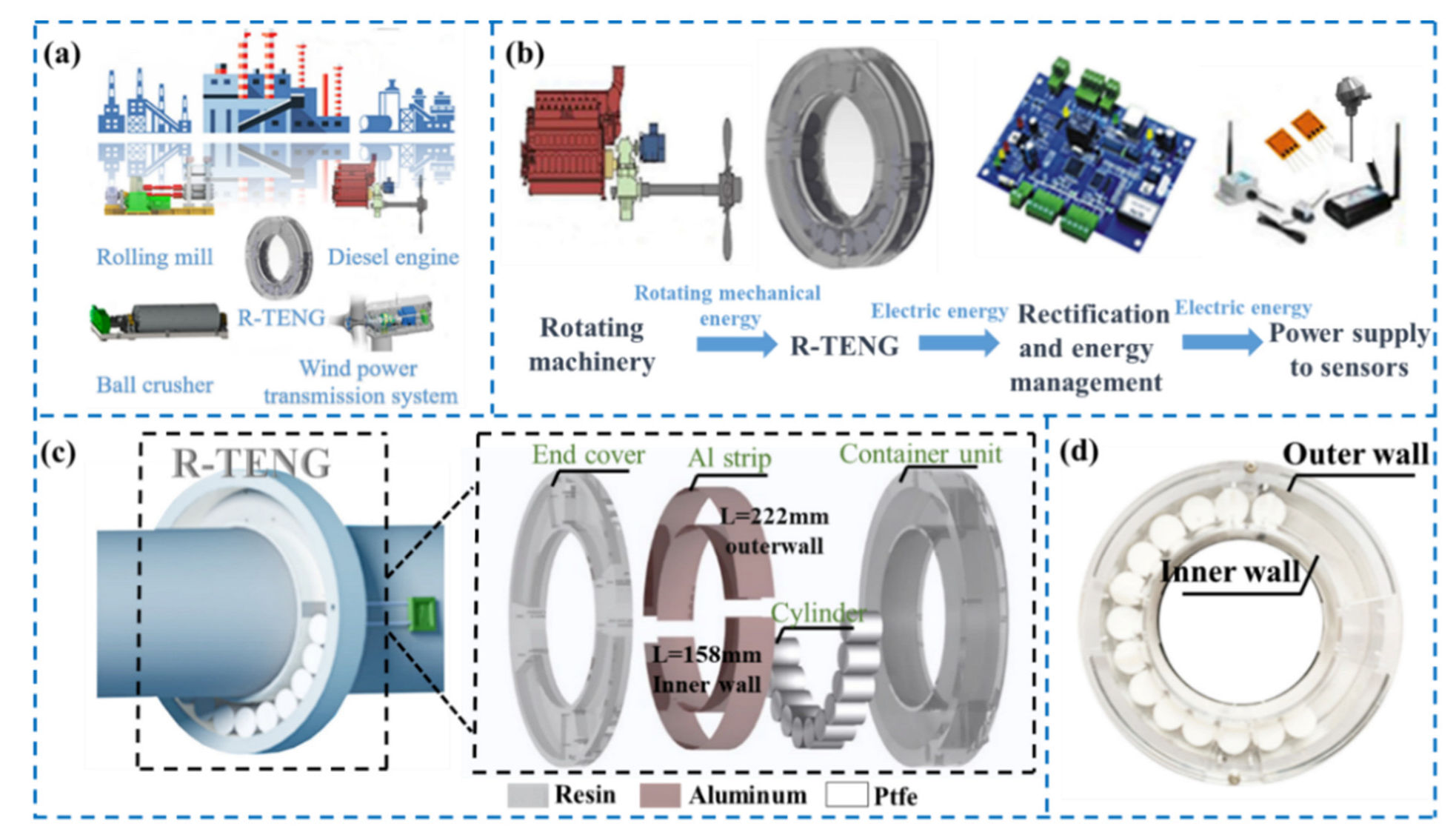

In recent years, sensors have been moving towards the era of intelligence, miniaturization and low power consumption, but the power-supply problem has always been a key issue restricting the popularization and development of machine-mounted sensors on the rotating machinery. Herein, we develop a ring-type triboelectric nanogenerator (R-TENG) that functions as a sustainable power source as well as a self-powered rotational speed sensor for rotating machinery. The R-TENG adopts a freestanding mode and consists of a ring-type container unit, an end cover and polytetrafluoroethylene (PTFE) cylinders. In this study, the influence of the number of cylinders, the PTFE cylinder’s diameter and the rotational speed on the electrical output are systematically examined, and the motion law of the PTFE cylinders in the container is revealed by the experimental results and verified by kinetic simulation. At a rotational speed of 400 rpm, the output voltage, current and transferred charge of the designed R-TENG reached 138 V, 115 nC and 2.03 μA, respectively. This study provides an attractive power supply strategy for machine-mounted sensors of the rotating machinery, and the rotational speed measurement test also suggests the potential application of the R-TENG as a self-powered rotational speed sensor.
