Magnetically Guided Micromanipulation of Magnetic Microrobots for Accurate Creation of Artistic Patterns in Liquid Environment
1
Chongqing Key Laboratory of Manufacturing Equipment Mechanism Design and Control, Chongqing Technology and Business University, Chongqing 400067, China
2
Beijing Advanced Innovation Center for Intelligent Robots and Systems, Beijing Institute of Technology, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(7), 697; https://doi.org/10.3390/mi11070697
Received: 28 June 2020
/
Revised: 15 July 2020
/
Accepted: 16 July 2020
/
Published: 18 July 2020
(This article belongs to the Special Issue Magnetic Microrobots)

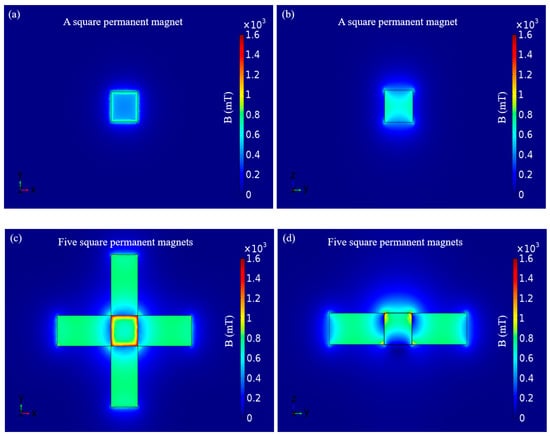

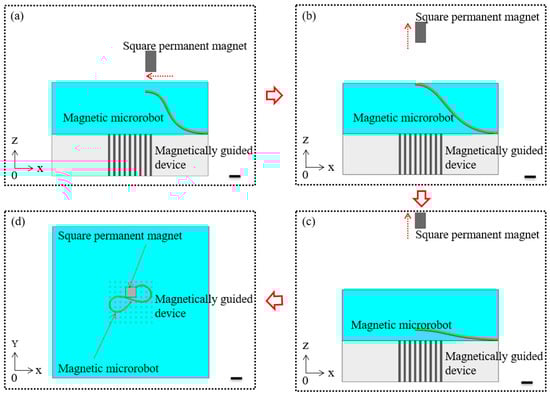

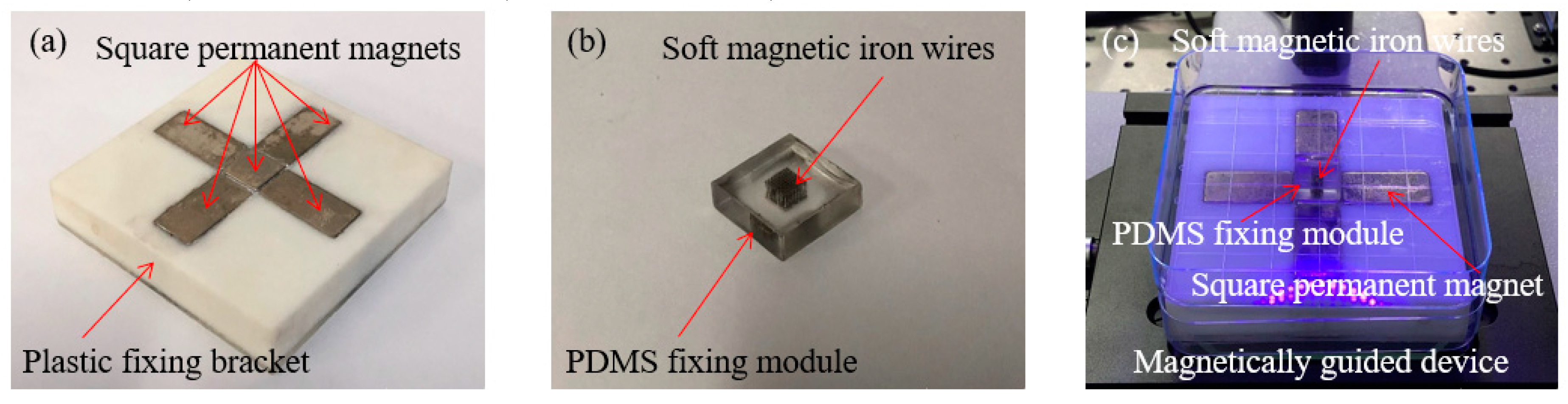

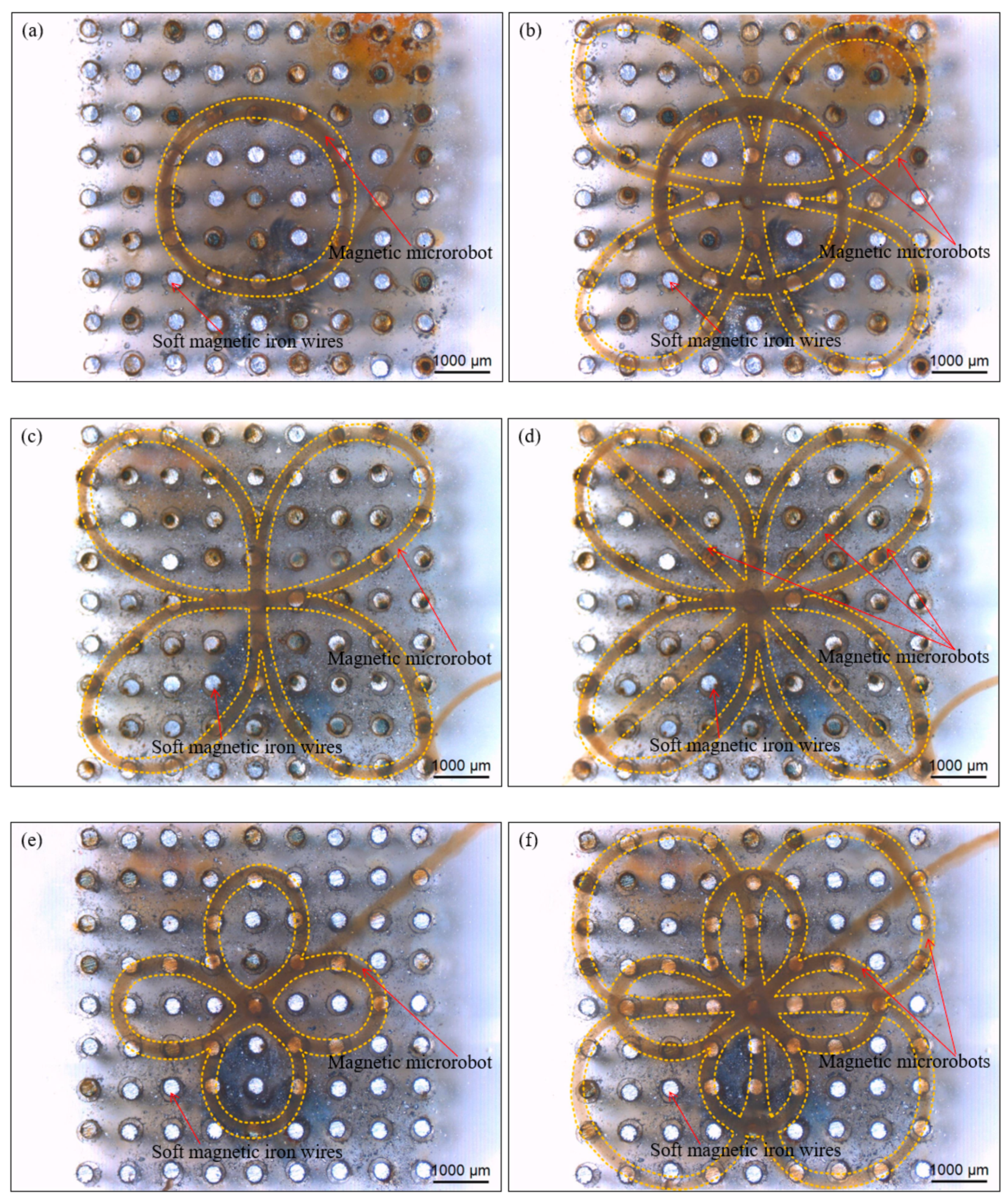

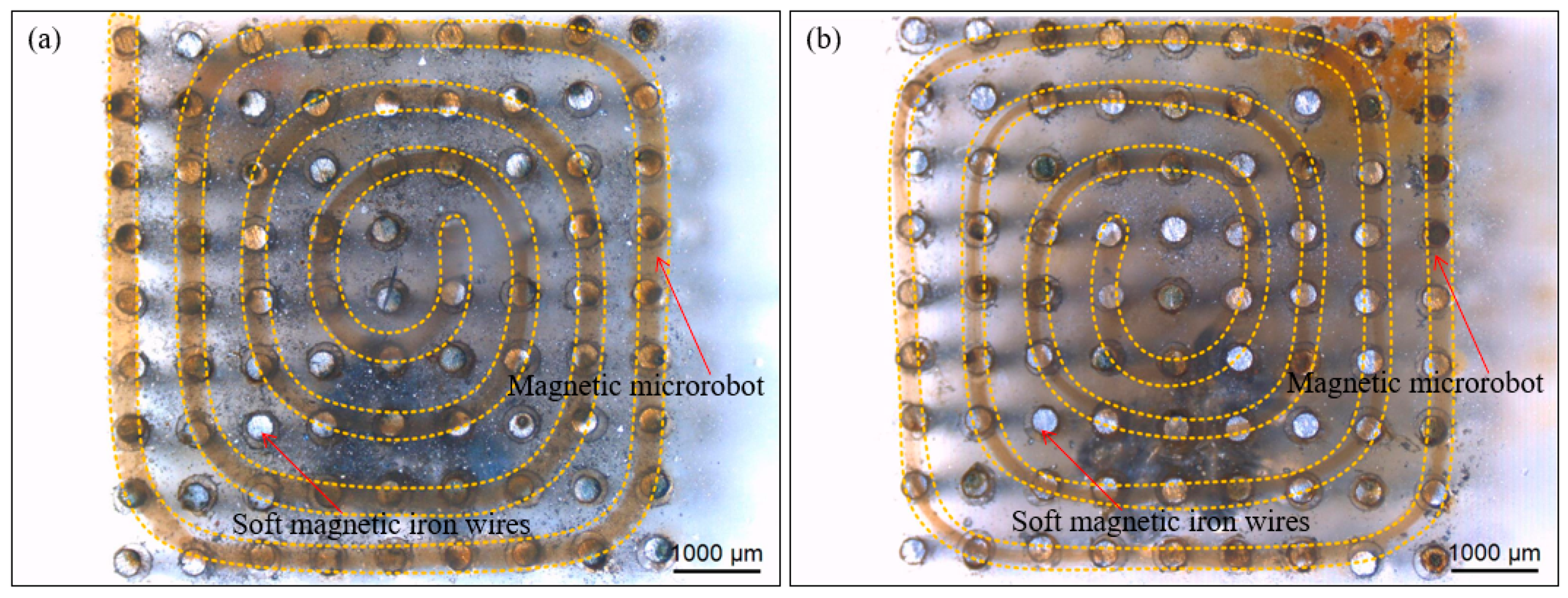

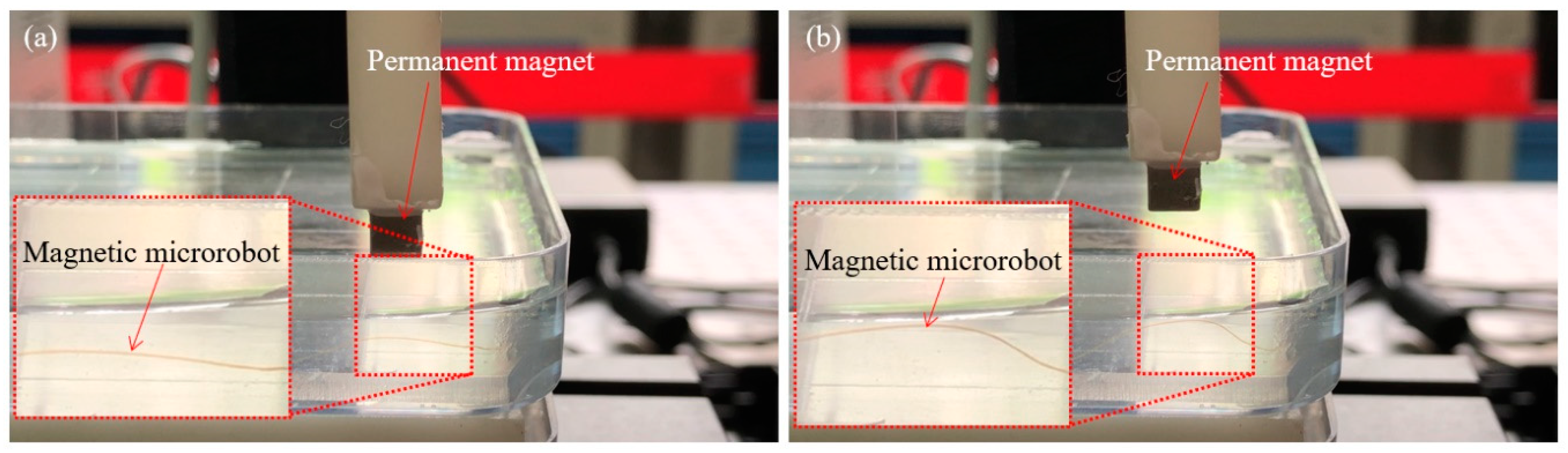

In this paper, a magnetically guided micromanipulation method is proposed to accurately create artistic patterns with magnetic microrobots in a liquid environment for tissue engineering. A magnetically guided device is developed depend on symmetrical combination of square permanent magnets and array layout of soft magnetic wires, which changed the space distribution of magnetic field of conventional permanent magnet and generated powerful magnetic flux density and high magnetic field gradient. Furthermore, the morphological structure of the magnetic microrobot is flexibly adjusted via precise control of the volumetric flow rates inside the microfluidic device and the magnetic nanoparticles are taken along to enable its controllability by rapid magnetic response. And then, the spatial posture of the magnetic microrobot is contactless controlled by the magnetically guided manipulator and it is released under the influence of surface tension and gravity. Subsequently, the artistic fashions of the magnetic microrobots are precisely distributed via the dot-matrix magnetic flux density of the magnetically guided device. Finally, the experimental results herein demonstrate the accuracy and diversity of the pattern structures in the water and the developed method will be providing a new way for personalized functional scaffold construction.
View Full-Text
Keywords:
micromanipulation; magnetic guidance; magnetic microrobot; dot-matrix magnetic flux density; tissue engineering
▼
Show Figures

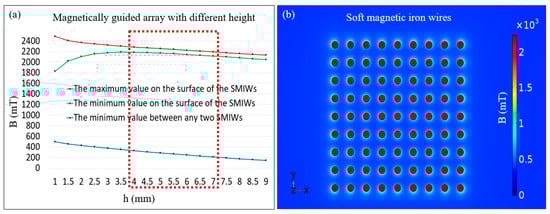

Figure 1
