Review

New Development Direction of Underground Logistics from the Perspective of Public Transport: A Systematic Review Based on Scientometrics

by
Han Zhang
,
Yongbo Lv
* and
Jianwei Guo
School of Traffic and Transportation, Beijing Jiaotong University, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(6), 3179; https://doi.org/10.3390/su14063179
Submission received: 11 January 2022 / Revised: 20 February 2022 / Accepted: 6 March 2022 / Published: 8 March 2022
Browse Figures
Versions Notes

Abstract

:
Research on the underground logistics system (ULS) has been carried out for nearly 30 years, but the description of the global research network, research trends, and the discussion of advanced theories and practices have not been systematically reviewed so far. The concept of public freight has expanded a new development direction: metro-based underground logistics system (M-ULS). The purpose of this paper is to analyze this new model by taking underground logistics and public freight as the research object. We performed statistical analyses of 222 references and constructed three kinds of visualized bibliographic information experiments for regional collaboration, authorship collaboration, and keywords co-occurrence. Based on the scientometrics results, the evolution path of the literature evolution was drawn. We used cluster-analysis-based taxonomy to structure the recent relevant literature. According to the comprehensive review, the research stays in the theoretical research stage, mainly focusing on system concept and planning, traffic organization, and network operation. There is still a lack of discussion on engineering quantification and application implementation. Finally, this study highlights some brief ideas, discussions, and potential suggestions for future research. This bibliometric research is expected to provide researchers and practitioners with a panoramic description and in-depth understanding of ULS and M-ULS research.

1. Introduction

Urban freight accounts for an increasing proportion of urban transport tasks, and is very important to the operation of the city [1]. Traditional logistics not only cannot meet the increasing urban freight demand, but also bring a huge burden to urban development. Scholars put forward the concept of “underground logistic system” (ULS) in the 1990s [2]. As an advanced intelligent transport system, a ULS can effectively ensure the efficiency, reliability, and sustainability of urban logistics distribution [3]. However, a ULS is a complex system involving many disciplines, such as above-ground and underground connection, logistics and engineering, construction, and management. Research progress is slow due to the huge investment, vague income, and lack of forward-looking theory.
A ULS project is huge and difficult to realize in a short time. The scheme of using a public passenger transport system to carry out freight service has become another way out for the sustainable development of urban freight. QiHu Qian, academician of the Chinese Academy of engineering, pointed out that the construction of a new smart city needs to include the vigorous development of green transport and green urban infrastructure characterized by a metro-based rail transit system and an urban underground logistics system. Savelsbergh et al. [4] pointed out that the biggest opportunity of urban logistics in the future lies in the design of an integrated service network of public transport and urban freight. Based on the above considerations, Chen et al. [5] proposed the concept of metro-based underground logistics (M-ULS) from the perspective of saving social resources.
Obviously, the development of ULS and public transport can enlighten and lead M-ULS. However, considering the time of publication and the number of papers, the existing research is outdated and incomplete. At the same time, it is difficult to integrate many research directions and build a complete knowledge structure. Therefore, an objective and quantitative study of the overall progress of ULS and public transport has important theoretical and practical significance for the implementation and application of M-ULS.
The intent of this article is to enable researchers to quickly understand and intervene in ULS and M-ULS through tabular description. In more detail, in this paper we want to answer the following questions:
  • Can we find out the current international research status, hot spots, and research trends of ULS, public transport, and M-ULS?
  • Can we organize the papers in a taxonomy and highlight the research mainstreams and future directions?
  • Can we see any lack in current frameworks in the literature, in terms of current trends and future paths?
To answer our research questions, we structured this paper as follows. Section 2 and Section 3 detail the six scientometrics experiments designed to track and analyze theoretically the evolution of the research field: (I) publication year and journals, (II) countries, organizations, and authors, and (III) literature keyword clustering and research topics. In Section 4, a cluster-analysis-based taxonomy is established to structure the recent relevant literature. Section 5 identifies the current research gaps and agenda. Section 6 summarizes the major findings and limitations.

2. Materials and Methods

Based on retrospective research, this study systematically investigated the academic development of global ULS, public transport, and M-ULS research by using the methods of scientific econometric analysis and scientific map. Scientometrics analysis is a quantitative tactic that can enhance the visual and logical perception of systematic review outcomes by assessing, clustering, and mapping the quality and the relevance of articles through mathematical models and algorithms [6]. Scientific knowledge map is an important method of scientific and technological measurement. It takes a certain knowledge field as the research object and shows the relationship between its internal scientific knowledge and the overall development process and structure. It can directly, clearly, and vividly interpret the dynamic evolution, development trend, research progress, and frontier hotspots of this knowledge domain through visualization technology. CiteSpace [7] is widely used by researchers in various fields because of its powerful function, good visualization effect, and rich layout. This method has been widely used in many academic fields [8], such as sustainable transport [9], environmental science [10], urban logistics [11], and waste management [12].

2.1. Overview of Review Protocol

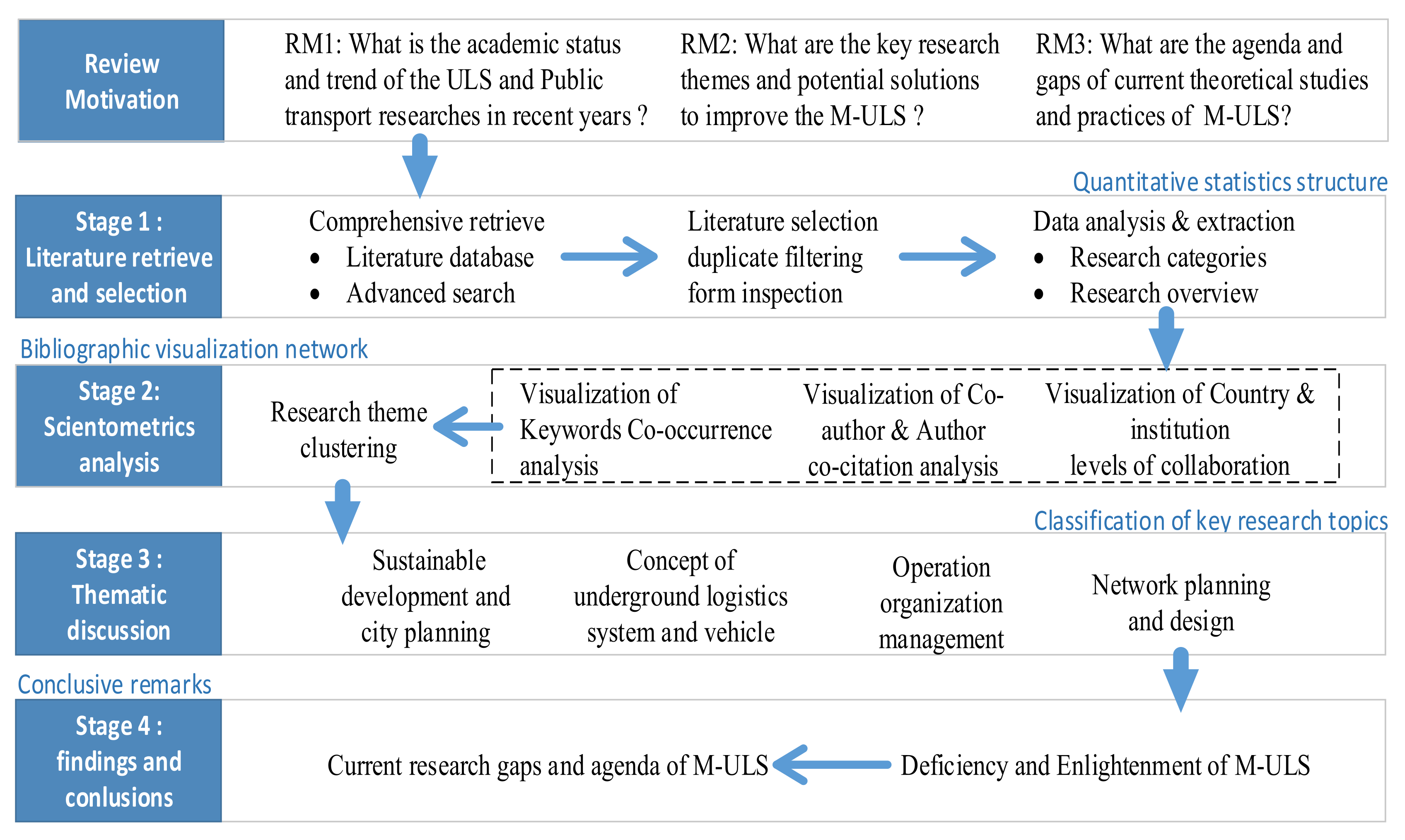

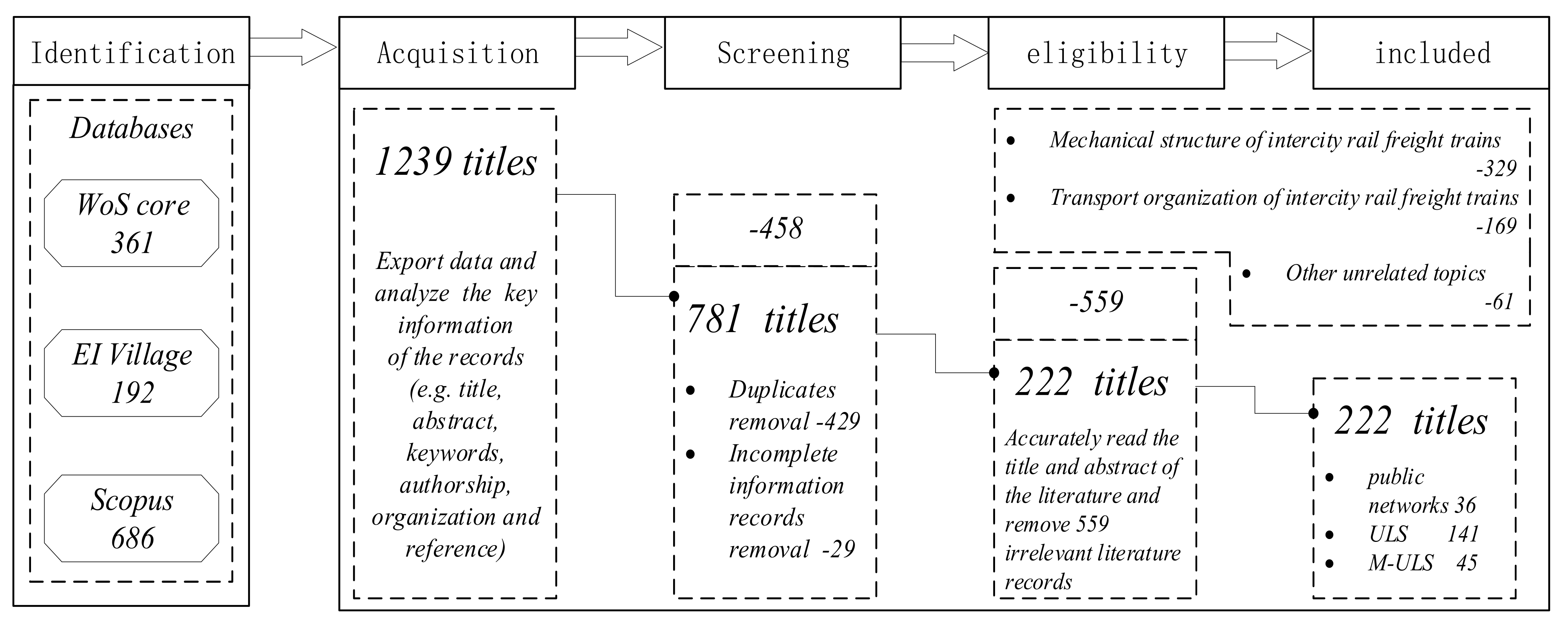

Figure 1 presents the three-stage schematic process of this study. The research framework is organized as follows: In the first stage, a comprehensive material retrieval was carried out, followed by the setting of criteria to select literature, and finally, data synthesis was conducted. After an overview of indexed documents, the bibliographic network visualization and quantitative analysis were completed in Stage 2, where three branches of scientometrics experiments were designed and performed. In the third stage, three themes were discussed separately based on the scientometrics results. Finally, gaps and research findings were summarized.

2.2. Literature Retrieval and Selection

Taking Web of Science (WOS) core, Engineering Village (EI) and Scopus as data sources, we selected advanced retrieval methods to search the literature from January 1990 to July 2021. In order to ensure the quality of literature, the document type was limited to research journal article and proceedings paper. Using the following advanced search statements: TITLE ((“underground” OR (“train$” OR “metro$” OR “subway$” OR “Urban Rail” or “Public transport”)) AND ((“logistics” OR “freight”) OR ((“goods” OR “freight” OR “cargo”) AND (“transport” OR “transport” OR “delivery” OR “distribution” OR “movement” OR “shipment” OR “Transit” or “supply”)))), 1239 records were obtained.

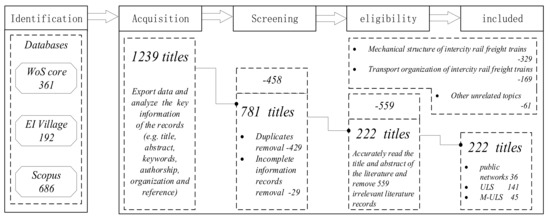

We conducted three rounds of data screening on the original data, and finally retained 222 qualified records focused on three modules. The process of literature collection and screening is shown in Figure 2. A total of 429 duplicate records were removed in the first round of screening. The second round removed 29 records with incomplete literature information, such as lack of author information, literature sources, or abstracts. In the third round, the titles and abstracts were checked one by one, and 559 references unrelated to the research topic, including mechanical structure and transportation organization of intercity heavy rail freight trains and others, were removed as shown in Table 1.

2.3. Overview of Selected Literature

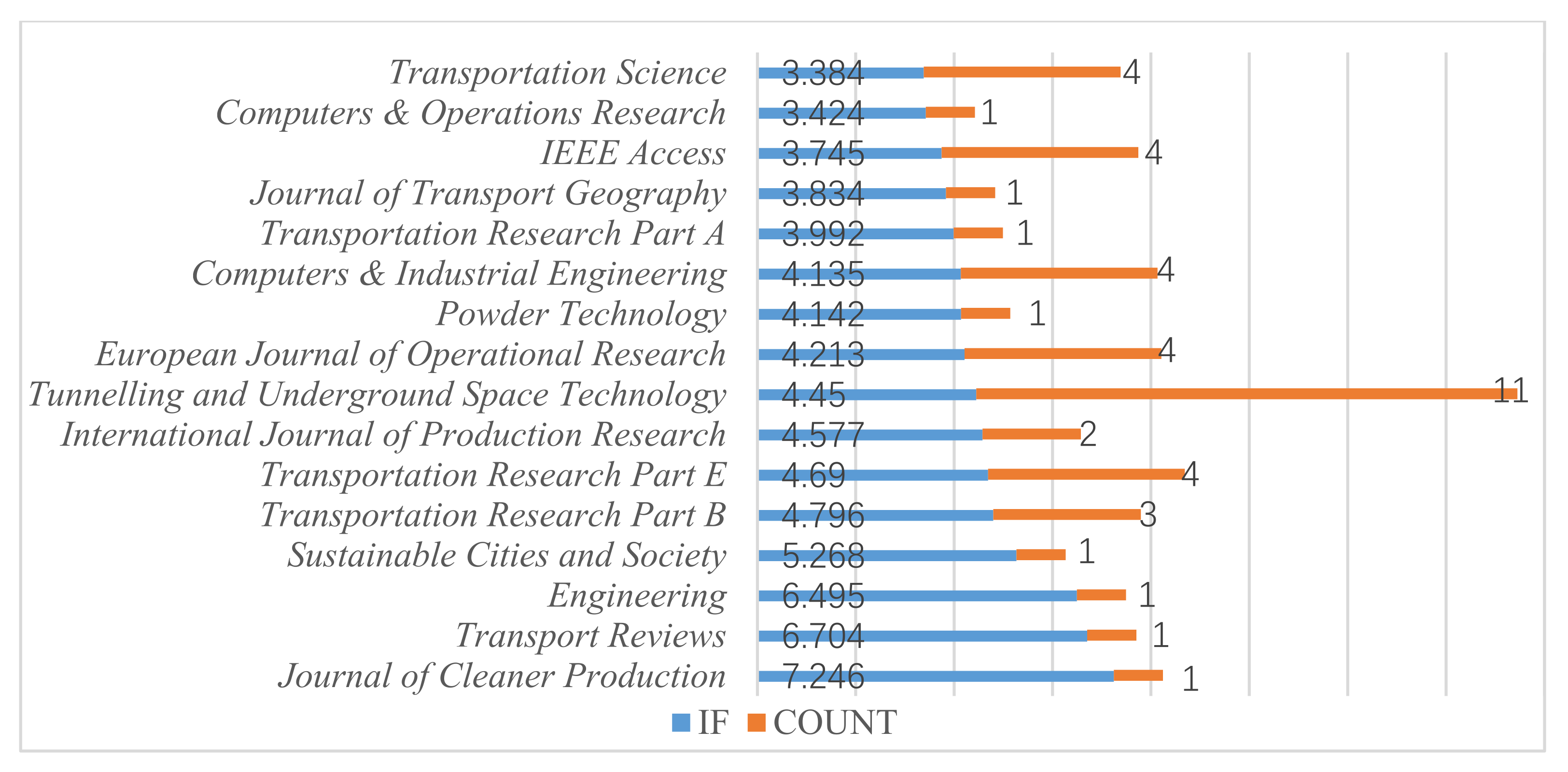

The literature review portfolio contains 145 journal articles and 77 proceedings. Articles were included in 77 journals. Figure 3 shows the count of articles published in journals with IF higher than 3.0. The proceedings were included in 56 international conferences. Table 2 lists the three academic conferences with high influence. Papers in these journals and conferences are focused on.

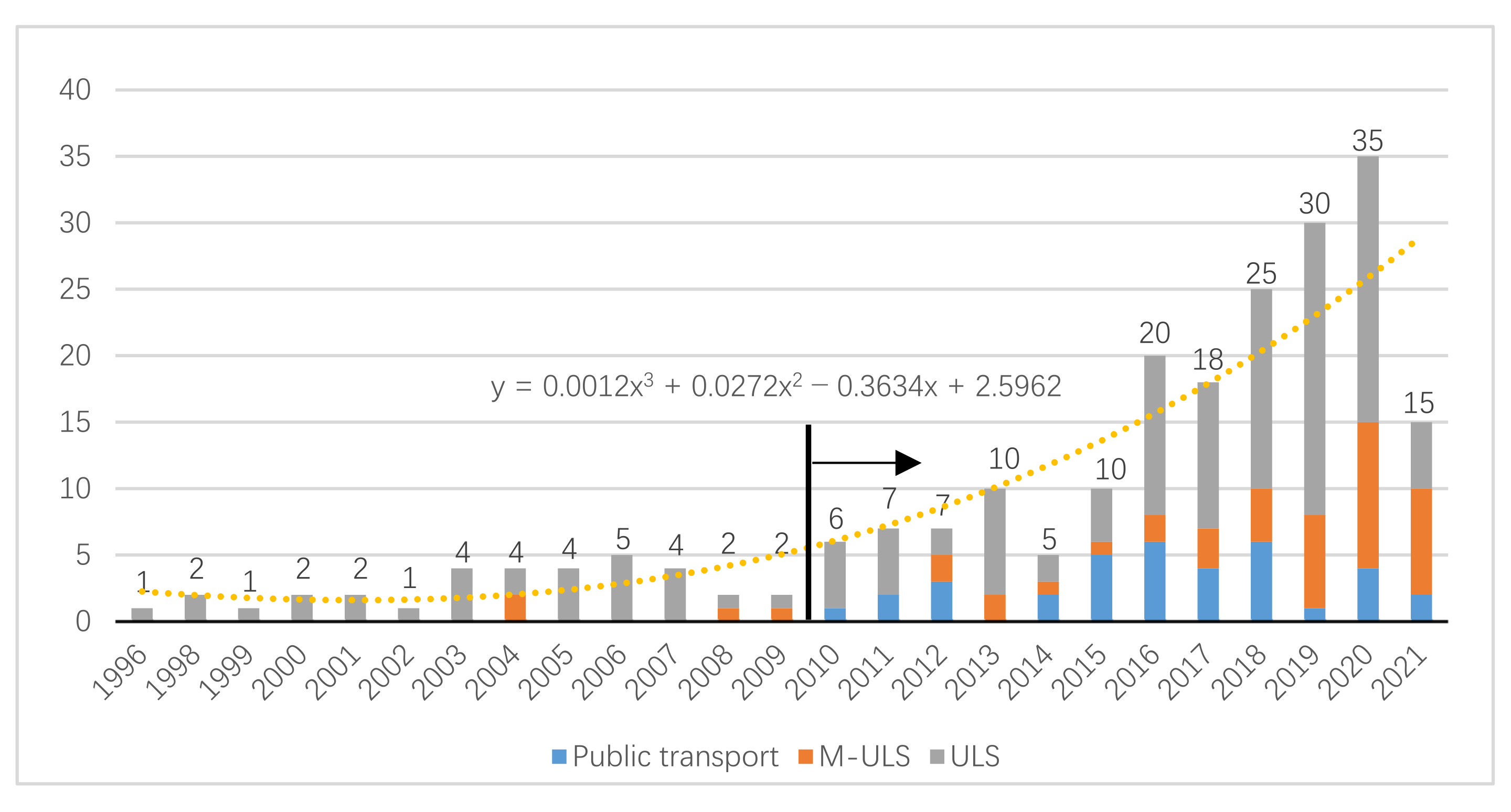

Figure 4 displays the number of papers published annually from 1996 to 2021 in the portfolio. Obviously, research on ULS and M-ULS was virtually stagnant until 2009, and relevant research has increased significantly year by year since 2016. In addition, after 2015, with the in-depth study of the concept of urban logistics and public transport integration and the promotion of underground logistics research, the development of M-ULS collaborative operation research has been promoted. From the publication number and the recent discussed topics of ULS and M-ULS, it is evident that the public awareness, market acceptance, social demand, and real-world practice of underground logistics are undergoing a remarkable ascent.

3. Scientometrics Experiments and Analysis

Based on the citation analysis theory, we used the scientific text mining and information visualization software CiteSpace V (5.8.R1, http://cluster.cis.drexel.edu/~cchen/citespace/, accessed on 1 January 2022) to carry out three kinds of experiments, including countries/organizations collaboration, authorship collaboration, and keywords co-occurrence, with a total of five experiments. Before the experiment, we selected import/export under the data column to import the original data of EI village and Scopus and convert them into WOS format. The experimental parameter settings are shown in Table 3.
In the visual network, a node represents a specific bibliographic information type, while link describes the co-citation or collaboration between these nodes. The size of the node or label indicates the occurring frequency. The color changes of nodes and wires reflect the temporal distribution of literature. Nodes with a purple rim have higher centrality scores, indicating important relationships among large clusters they link [13]. Two metrics, the mean silhouette (S) and the modularity (Q), are used to reveal the “overall structural properties” of the network. A higher S value indicates a better matching degree between this node and its generic clustering, while a higher Q denotes a higher dispersion degree of the merged network [14]. Generally, Q > 0.3 means that the divided community structure is significant; S > 0.5 means clustering is reasonable.

3.1. Countries/Organizations Collaboration Experiments

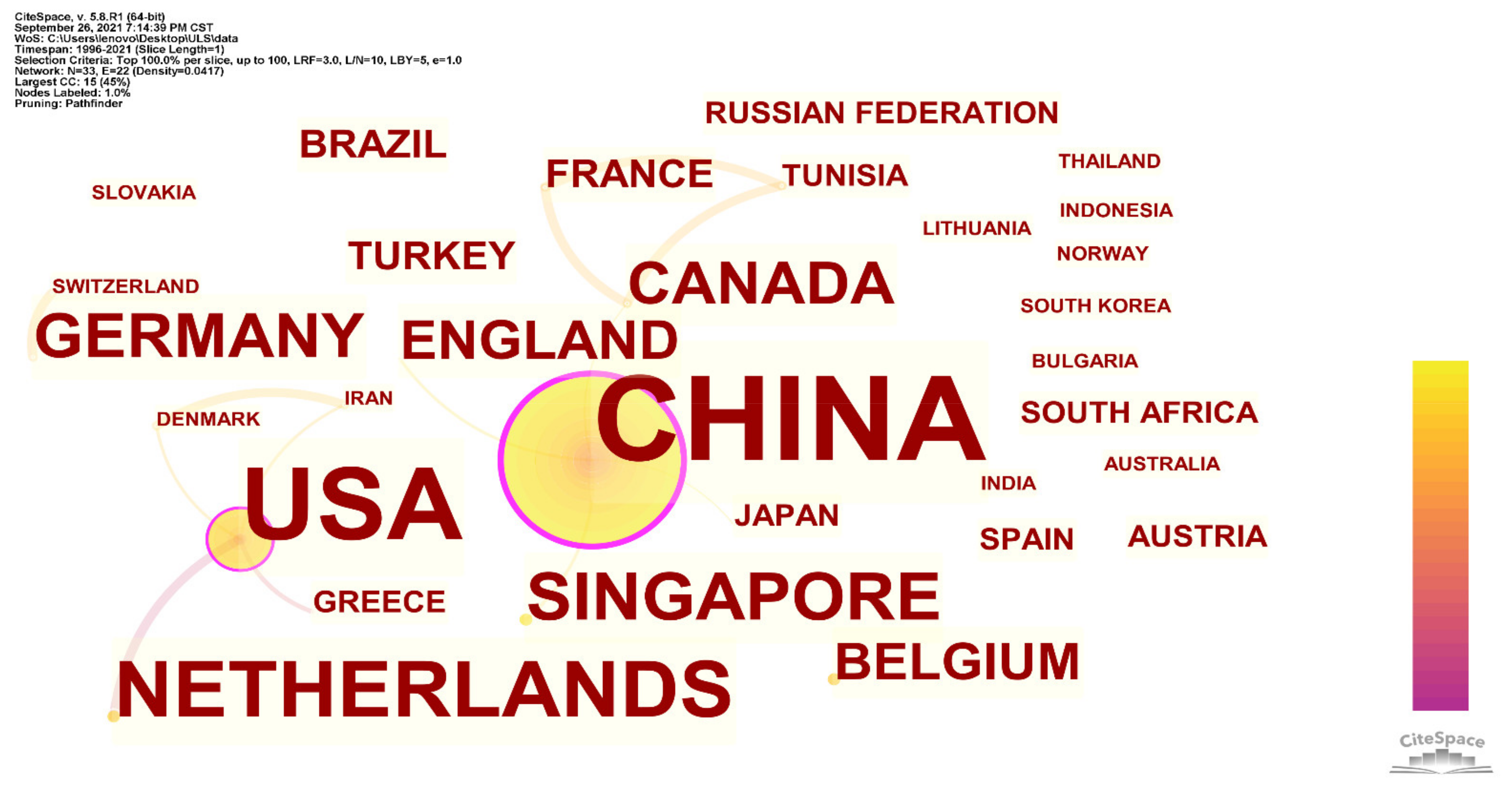

CiteSpace provides two levels of regional scientific cooperation analysis, namely, institutional cooperation and national cooperation network. A visual network (as shown in Figure 5) representing the “country” category contains 33 nodes and 22 links. The number of relevant research papers in China (89) far exceeds that in other countries, the count of citations in the United States (272) is the highest, and the year of publication in Germany (1972) is the earliest. In addition, the Netherlands is also an influential country, with the highest average citation rate (12.69 times per article). From the perspective of network connection, China and the United States are important network nodes (centrality exceeds 0.1). There is almost no cooperative relationship among other countries. The international cooperation of research is obviously insufficient.
A total of 161 institutions appeared in the selected articles, of which China (62) had the largest number of institutions, accounting for 38.51% of the total, followed by Germany (12), with only 7.45%. This paper focused on the analysis of 8 national institutions with strong influence, and created statistics on academic institutions and application-oriented companies to evaluate the actual construction and application of ULS in various countries, as shown in Table 4. Germany’s application-oriented companies account for the highest proportion (41.67%), followed by the Netherlands (33.33%), which is consistent with the actual construction and promotion of ULS.

3.2. Authorship Collaboration Experiments

3.2.1. Co-Author Network

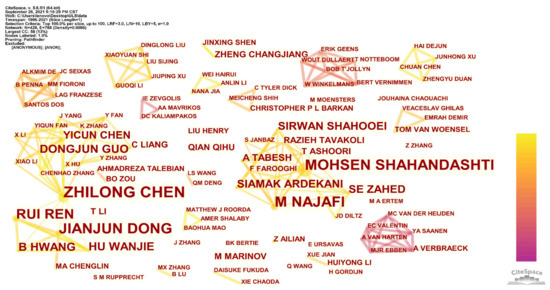

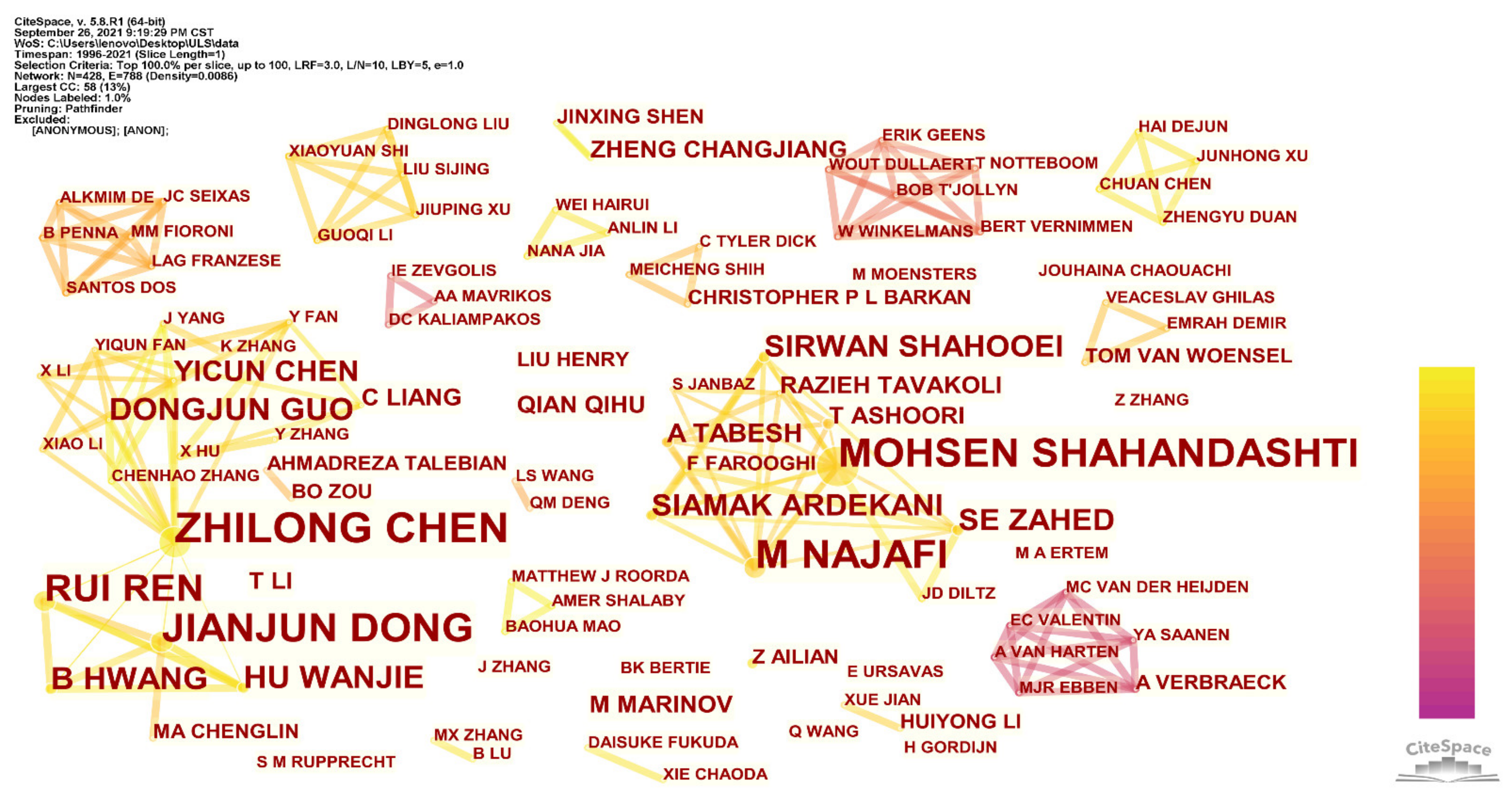

According to the 222 bibliographic authorship, an initial co-author network with 428 nodes and 788 links was generated. To facilitate the analysis of the cooperation network, the node position was adjusted and the minor nodes with less than 2 publications were weakened. Figure 6 shows 17 research teams. Cheng Zhilong and Mohsen Shahandashti, who are the top 2 prolific authors, form three closed-loop research teams. These teams cover the top 10 prolific authors and their studies have played the most important role in promoting the research on the subject, as shown in Table 5.

3.2.2. Author Co-Citation Network

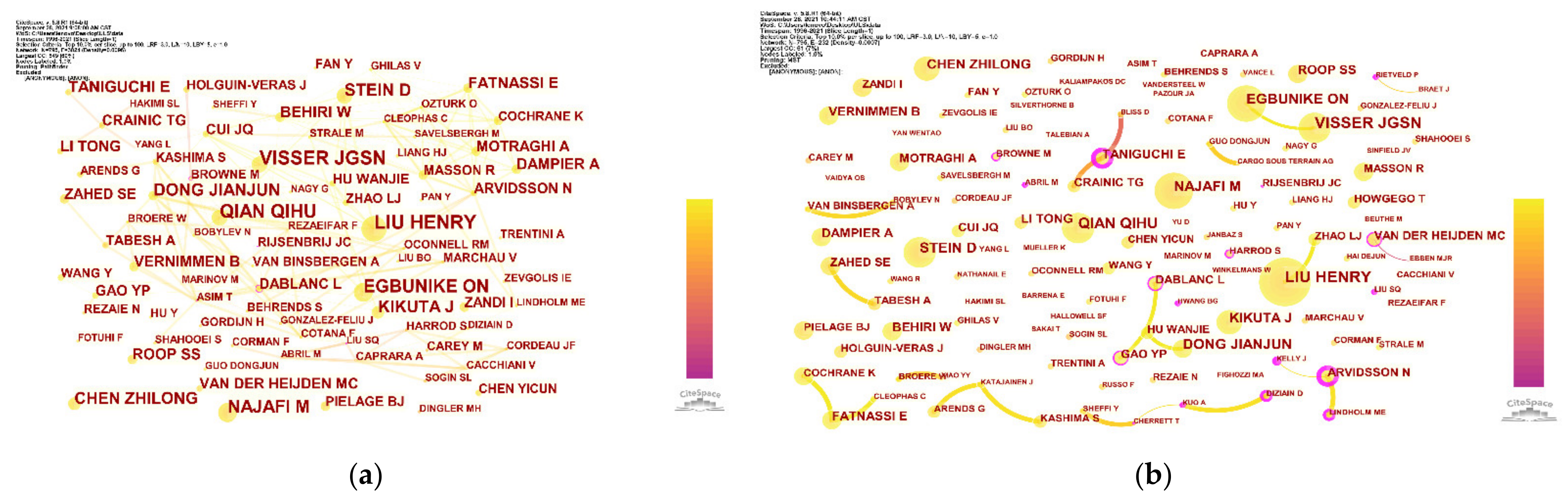

In order to highlight the important authors in the research field, the cited author experiment took separate measures to complete pruning of the merged network. The author co-citation network with 795 nodes and the minor nodes with less than 5 citations were weakened. In Figure 7, the left figure uses Pathfinder to show a more complete network, the right uses minimum spanning tree to show the more closely related nodes. It is easy to see that Niklas Arvidsson (centrality = 0.55, Sweden), Eiichi Taniguchi (centrality = 0.49, Japan), and James Kelly (centrality = 0.46, UK) have a thick purple rim, indicating their work served as a bridge between different authors and communities. Larger nodes indicate authors whose work has been widely recognized and who play a fundamental role in promoting the ULS research. The top 10 highest cited authors are listed in Table 6.

3.3. Keywords Co-Occurrence Experiments

Keywords co-occurrence analysis is a method to study the development trend and research hotspot of a field by extracting keywords or subject terms and analyzing the distribution of their occurrence frequency. Two experiments were carried out in the co-occurrence analysis: keywords co-occurrence and bursts terms analysis. The keywords analyzed included original keywords offered by authors in their articles, and extended keywords based on the subject classification of journal or database. The bursts analyzed included extracted terms from the article title, keywords, supplementary keywords, and abstract.

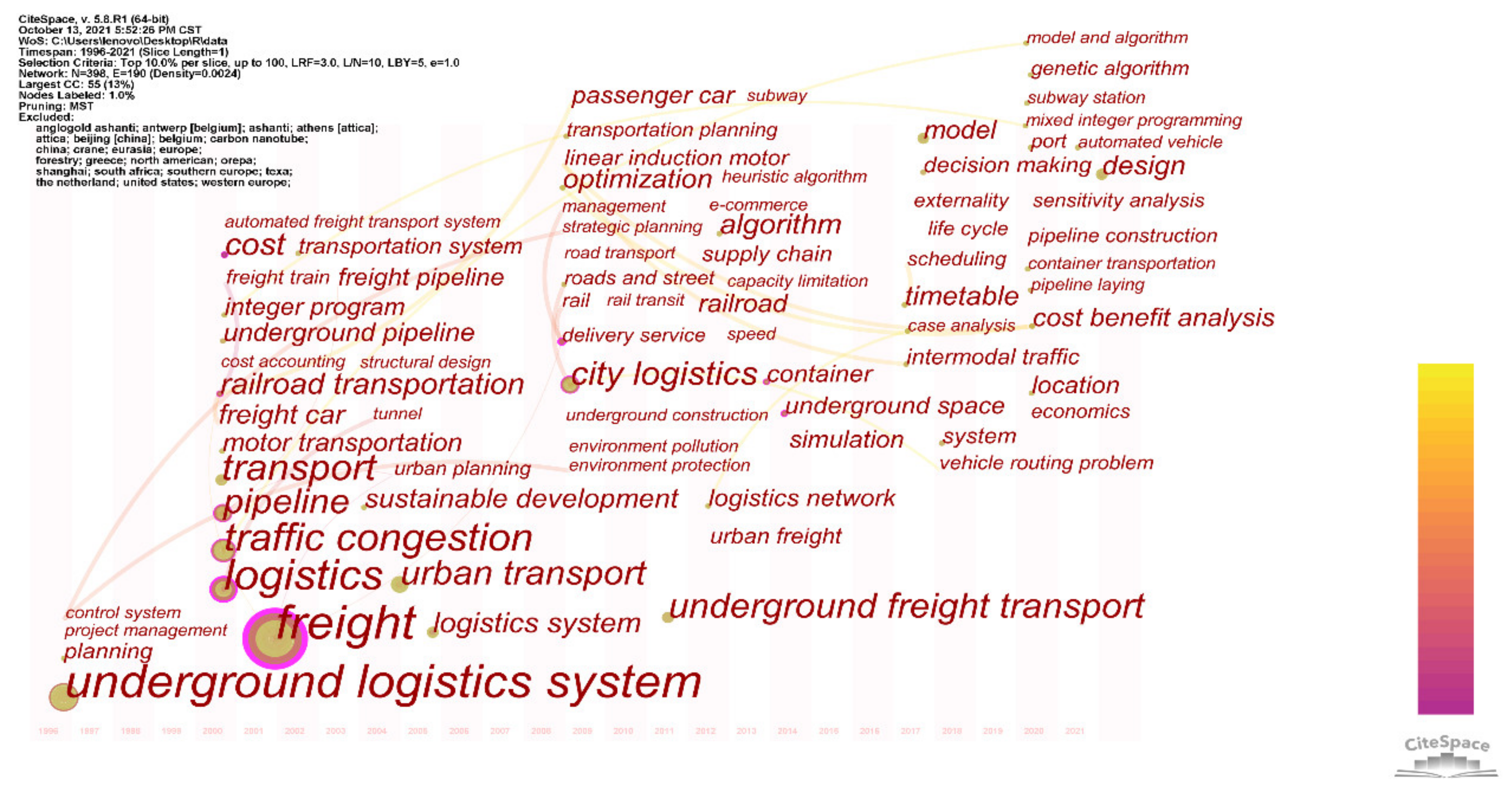

Co-Occurrence Keywords

In the visualization process, 89 terms with similar meanings were merged, such as “transportation” and “transport”, and “critical problem” and “key link”. In order to facilitate the cluster analysis of common words, 23 words representing place names were excluded. A chronological network consisting of 398 nodes and 190 links reflecting the co-occurred keywords was built, as shown in Figure 8. The value of modularity and mean silhouette resulted in Q = 0.7454, S = 0.8806, and harmonic mean (Q, S) = 0.8073. The values of Q and S are ideal, indicating that the threshold setting of experiment is reasonable. The top 10 high-frequency keywords are “freight”, “underground logistics system”, “logistics”, “traffic congestion”, “transport”, “underground freight transport”, “pipeline”, “urban transport”, “city logistics”, and “cost”. Additionally, the five nodes that scored high in centrality for the purple rim are “freight” (centrality = 0.63), “logistics” (centrality = 0.42), “city logistics” (centrality = 0.39), “underground logistics system” (centrality = 0.34), and “cost” (centrality = 0.33). These keywords play a crucial role in connecting major branches of knowledge.

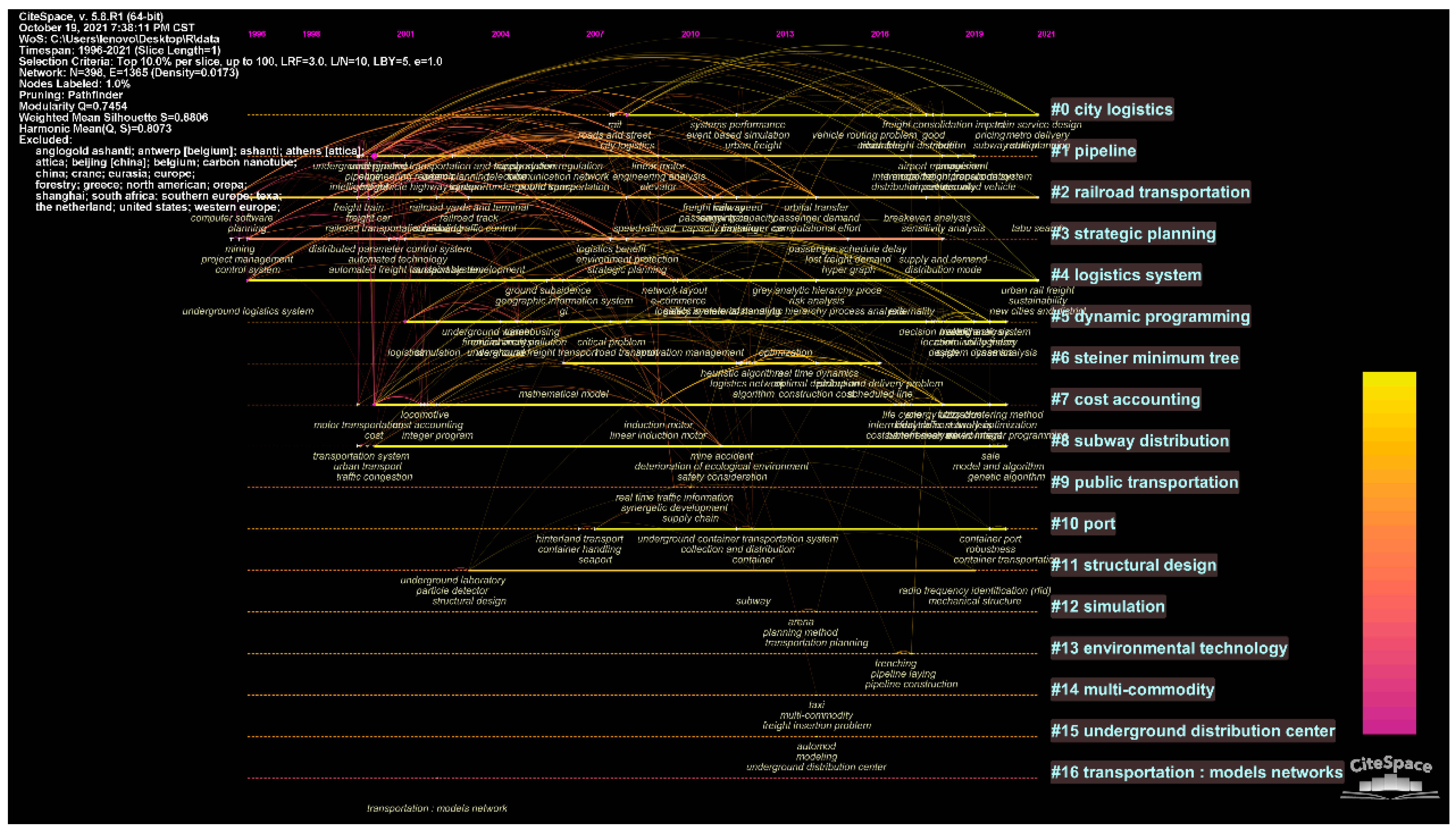

Keyword clustering analysis is an exploratory data mining technology. Its main function is to identify and classify keywords in a certain field. CiteSpace was used to cluster closely related keywords through the log likelihood ratio (LLR) algorithm. CiteSpace automatically gives each keyword a value through the algorithm, and the keyword with the largest median in the same cluster will be selected as the label word of the category. If the timeline button is selected, CiteSpace will set each node in the corresponding position according to the cluster to which the node belongs (coordinate vertical axis) and the published time (coordinate horizontal axis), so as to generate a timeline view. In the timeline map, the same cluster is arranged close to the same horizontal line, so it can intuitively outline the relationship between clusters and the historical span of literature in a cluster. Figure 9 presents the timeline map of 17 noticeable clusters automatically output by CiteSpace. The detailed classification results are given in Table 7. The cluster size represents the number of discrete keywords. In addition, in order to facilitate the formation of thematic discussion, 17 cluster tags were divided into three thematic groups.
The research frontier emphasizes the new trend and mutation characteristics of scientific development [15]. Therefore, it is more suitable to track the frontier of discipline research with the help of surged topical terms high-frequency subject words [7]. We used CiteSpace to set burst terms, select terms as node type, and adjust the minimum duration and γ parameters in burstness. Table 8 lists the top 20 bursts terms.
The top 2 strongest bursts terms are “underground freight transport” and “underground logistics system”, which is consistent with the time division of time cluster analysis. The sudden period of these bursts terms has obvious time division, and “underground logistics system” is gradually used as a special noun in the research of underground freight transport. “Freight trains”, “passenger trains”, and “intermodal terminals” indicate that ULS operation needs to be combined with various urban transportation modes. Using urban railway to realize urban passenger and freight collaborative transport is an alternative to the ULS operation. “Civil engineers”, “engineering geography”, “automated freight transport system”, “propulsion system”, “capacity limitation”, “real world simulation”, and “mathematical model” respectively point out the relevant technical support research fields for the development of ULS in the future from the aspects of building structure, mechanical power, and operation optimization.

3.4. Literature Evolution Path

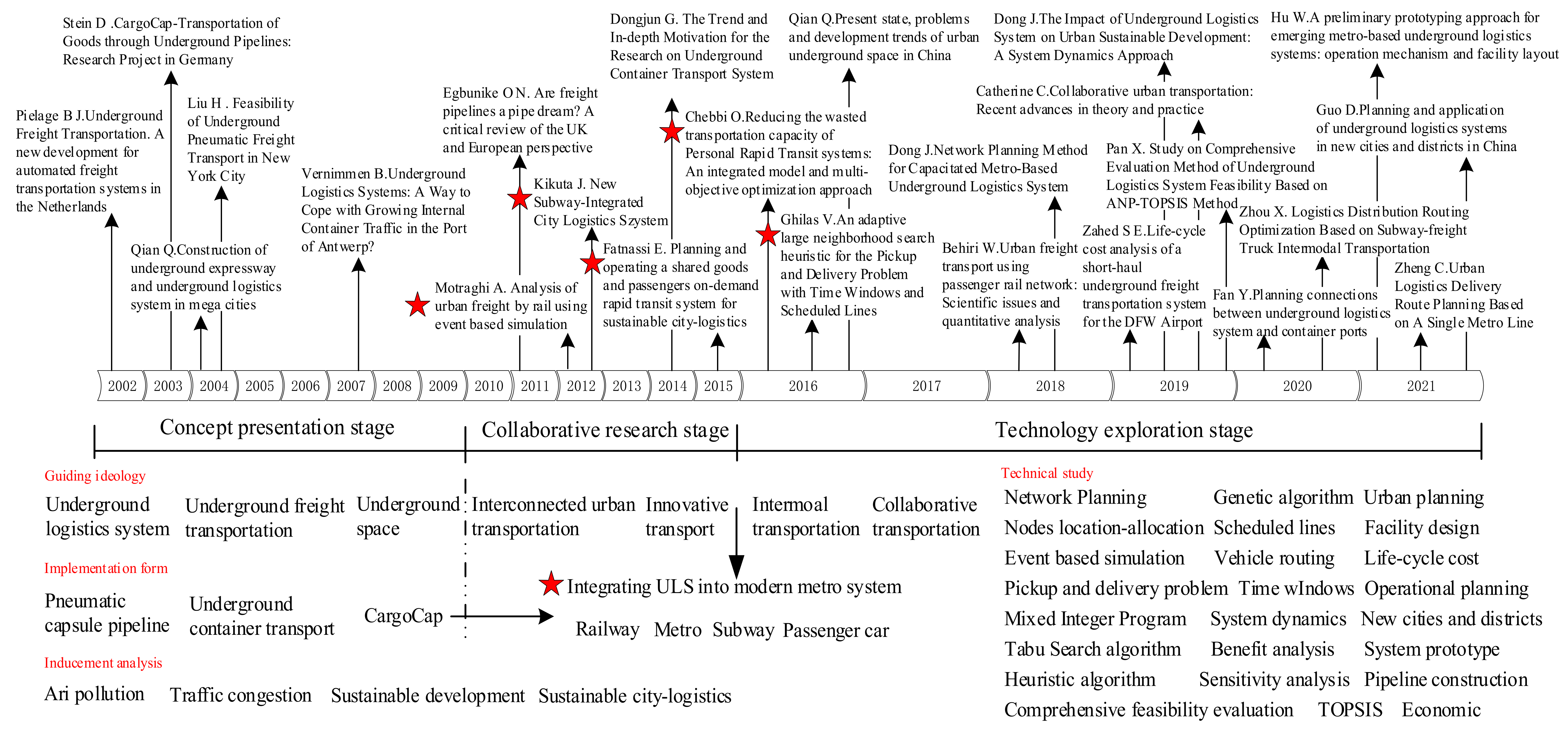

Combined with the time zone distribution of keywords and the publication of the paper, the evolution path and development is divided into three stages: concept proposal stage, collaborative operation stage, and key technology research stage. We comprehensively considered the source, author, citation, and other factors of the literature, combed the keywords and key literature of key nodes in chronological order, and drew the evolution route of underground transportation research, as shown in Figure 10.
From the 1990s to 2009 was the stage of ULS concept proposal and system design. The traffic congestion and environmental damage brought by the process of urbanization exacerbated the burden of urban freight [16]. The traditional form of urban freight could no longer meet the logistics needs. Expansion and improvement of existing infrastructure for the various transport modalities were not always possible [17]. The form of small batch and scattered freight needed to be innovated, and it was particularly important to build a sustainable and integrated urban transport system in a planned way [18]. Many classic logistics systems were designed, such as OLS-ASH [17], CargoCap [18], pneumatic capsule pipeline (PCP) [19], and underground container transport system (UCTS) [16].
2009–2015 was the preliminary development stage of the research on the coordinated operation of ULS and public transport. The development of E-commerce had further exacerbated the contradiction between urban freight supply and demand [20]. The disadvantages of environmental pollution brought by traditional road transport continued to show. The concept of developing underground freight as an alternative to road transport had been gradually recognized by society [21]. At the same time, people had also noticed the difficulty of underground logistics construction [22], the affluence and imbalance of urban passenger transport resources [23], and the advantages of railway transport [24]. These three factors inspired a new idea of coordinated operation of urban underground logistics and urban subway [25].
From 2015 to 2021, the research entered the stage of technology quantitative exploration. With the recognition of ULS, the research began to be closely related to urban logistics and dynamic planning, and gradually moved to the application research stage. The research topics focus on underground space development and management [26,27], pipe network site selection and construction [28,29], cost–benefit analysis [30,31,32], operation plan research [33,34], etc. The coordinated operation of urban underground logistics and urban subway has become a research hotspot. A series of studies were carried out on intermodal transport optimization of M-ULS, such as the station function design [35], station location [36], network planning [29,37], operation plan [38], and freight connection [39]. Related optimization algorithms were the mainstream of research. The concept of coordinated development of public transport and logistics [40,41] attracted scholars’ attention, and relevant research on buses [42] and taxis [43] was also derived. In addition, the scheme research focused more specifically on the application of real areas. Guo et al. [44] summarized the implementation elements of building and planning underground logistics in new cities and districts in China. Fan et al. [45] and Hai et al. [46] planned the connection between the underground logistics system and the container port in Shanghai.

4. Discussion

4.1. Taxonomy Construction

We followed the three-steps method to build the cluster-analysis-based taxonomy [47]. Based on the previous work, we briefly describe this process as follows:
  • We began with the empirical analysis of a database of papers. The titles and abstracts were checked one by one, and those unrelated to the research topic were removed, as shown in Table 1.
  • In the second stage, the information obtained in the first stage was clustered. CiteSpace was used to cluster closely related keywords through log likelihood ratio (LLR) algorithm, obtaining 17 noticeable clusters, as shown in Table 7.
  • In the third stage, a mental concept of the cluster was envisioned by generating a name or label for the cluster, which was integrated into one of three research topics. Figure 11 depicts the result of our process and is structured in three levels of detail.
The rest of Chapter 4 provides a description of the objects and ranges for each axis and its category. The number of representative articles of each theme is included.

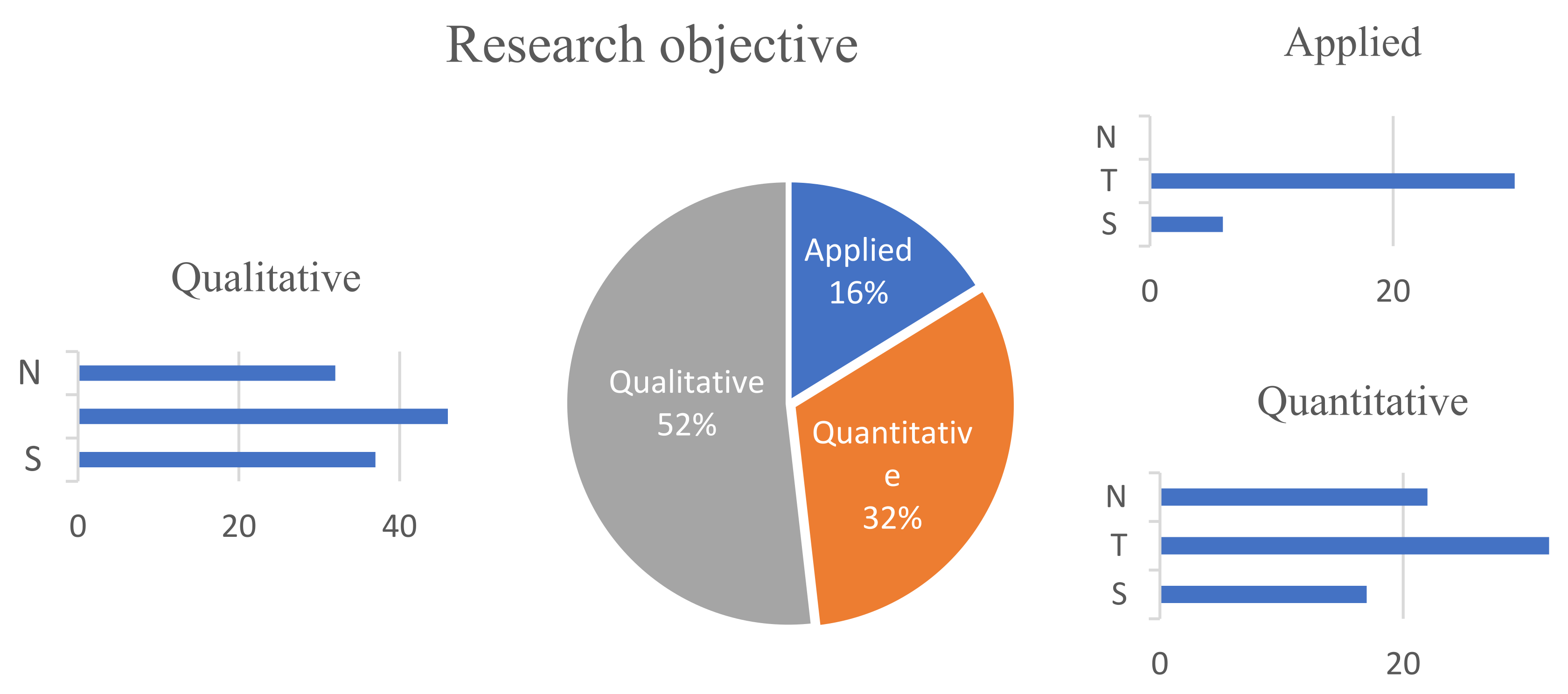

We reviewed the research objective of each study, and divided the studies into quantitative research, qualitative research, and applied research. Qualitative research includes overview, design, planning, etc.; quantitative research includes optimization, simulation, and evaluation; application research refers to the development of hardware and software for implementation, such as vehicle equipment, tunnel construction, and information system. Figure 12 shows the distribution in each part.

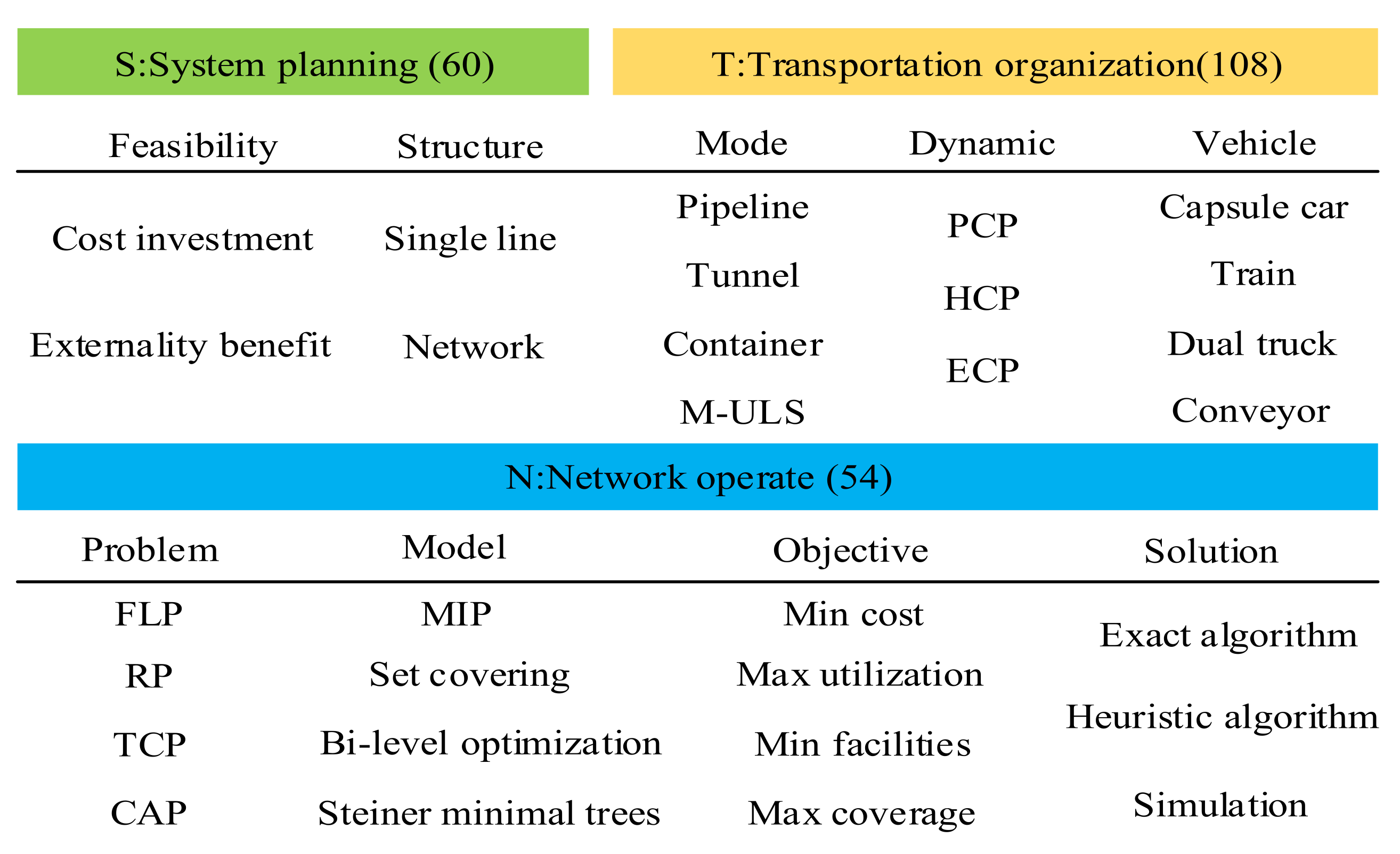

Considering both the literature evolution path and the distribution of research objectives, although underground freight transportation has entered the stage of quantitative technology exploration, the proportion of applied research and engineering quantitative research is still small, especially the research on application and implementation.

4.2. Part 1 Urban Underground Logistics System and Planing

4.2.1. Research on ULS Concept

International research on ULS has been conducted for nearly 30 years, but it is still a relatively new expansion field [3]. Urban ULS is a fully automated transport and supply system that uses clean energy vehicles to transport goods in closed spaces such as underground tunnels or pipelines in a separate or grouped manner, finally distributing the goods to each terminal [48,49]. These terminals include factories, business centers, and even residential areas [3]. From the research topics and relevant literature review of all ISUFT conferences, the problems involved range from the technical research of single pipeline transport to construction, design planning, integrated operation management, and other directions and fields. Underground logistics system has developed into a complex system integrating a modern logistics concept and operation mode.

4.2.2. Sustainable Underground Transportation System

The research shows that the implementation of ULS is of great significance to the sustainability of urban logistics. This can be summarized into the following four aspects: alleviate the pressure of urban transportation; improve the efficiency of urban logistics; improve the quality of living environment; integrate social resources. Liu et al. [19] and Qian [50] pointed out that urban ULS can reduce the dependence of freight on trucks, alleviate road and traffic congestion, and related environmental problems, such as air pollution and noise. Moreover, these environmental problems would be completely solved, because vehicle exhaust can be contained and treated within the tunnel system [51]. Shang et al. [52] calculated the three indicators of logistics volume, network efficiency, and negative effect under the condition of fixed demand, and verified the advantages of establishing the ULS on the existing route. Similarly, Hai et al. [46] proposed an empirical method, taking Shanghai Waigaoqiao port to Jiading as the study area. Dong et al. [30] studied the impact of four ULS network densities on the sustainable development of Beijing by using the system dynamics. The four representative indicators selected were average road network speed in peak hours, congestion loss, delivery travel time in peak hours, and truck PM emission. The results showed that the four indicators performed best under a high-density network, and the improvement rates were 28.1%, 28.0%, 45.45%, and 64.2%, respectively.

4.2.3. Urban Underground Logistics Planning

Interdisciplinary cooperation is one of the key success factors to ensure the realization of ULS. At present, there are two main planning ideas for ULS construction: one is to establish a complete urban underground logistics system, and the other is to establish an independent freight channel in key sections. Guo et al. [44] introduced the framework of ULS planning and implementation elements for the construction of new urban areas from a theoretical perspective. Lu et al. [53] focused on the example and gave the ULS planning scheme for the central area of Daqiao group in Jinan Development Zone. The University of Texas at Austin evaluated the ULS planning of key sections from the perspective of economic evaluation. It was also one of the few research institutions that considered construction cost. Rezaie et al. [49] recorded and summarized the feasibility study meeting of a ULS project construction. Participants put forward 26 key issues and 8 benefits of building the ULS, and planned two key lines. Zahed et al. [54] proposed a five-step life cycle benefit–cost analysis method for construction of a ULS. The method includes (1) developing ULS scenarios of different sizes (small, medium, and large) and routes (short-term and long-term), (2) determining life cycle cash flow, (3) calculating net present value, benefit–cost ratio, and internal rate of return, (4) sensitivity analysis, (5) breakeven analysis. Then, they used an example to verify that the implementation of a ULS is financially reasonable by taking the short-distance ULS of Dallas Fort Worth International Airport as an example [31]. In addition, the University of Texas also studied and compared the environmental impact assessment of ULS trenchless and cover excavation construction methods [55].

4.3. PART 2 Design and Implementation of Transportation Organization

4.3.1. Organizational Form and Dynamic System

At present, the freight organization forms of ULSs include underground capsule pipeline, tunnel, and container transport. Qian et al. [2] suggested that the models of underground logistics system be divided into three categories: pneumatic capsule pipeline (PCP), hydraulic capsule pipeline (HCP), and electromagnetic capsule pipeline (ECP). The research of Liu et al. [19] plays an important role in promoting the PCP system, and theirs was the first paper to focus on the concept, dynamic system, and empirical research of PCP. O’Connell et al. [56] and Asim and Mishra [57], respectively, gave design plans for capsule transport capsules of PCP and HCP. Due to some limitations with PCP and HCP, such as being without an auto navigation function [2], ECP was developed. Shahooei et al. [58] elaborated the operation principle of the power system and found a suitable propulsion system for the ULS—linear induction motor (LIM). The subsequent new ULS mostly uses electromagnetic power devices, and the ECP has gradually become a research hotspot.

4.3.2. Typical Transport Systems and Vehicle

With the deepening of the concept of sustainable development, the design of modern ULSs tends to be automated, rapid, and clean. Many countries have studied the feasibility of modern underground freight transport, and designed transport tools and transport systems. Typical pipeline designs include CargoCap and Mole Underground Freight Pipeline (MUFP); tunnel type designs include Dual Mode Truck (DMT), Cargo Sous Terrain (CST), and Ondergronds Logistiek System (OLS); container type designs include Freight Shuttle System (FSS) and Hyperloop. The locomotive forms and main parameters of the above ULS are shown in Table 9.

4.3.3. Rail Transit Coordinated Transport

The ideal underground logistics system is an independent transport network that covers the whole city and is close to customers [66]. However, there are planning, technical, and political challenges in implementing underground freight transport. Visser [3] stressed that it is becoming more and more difficult to build tunnels or lay pipelines, because the available urban shallow underground space has been exhausted. Moreover, due to the long construction period [5] and high construction funds [66], it is difficult to make substantive progress. The metro network with developed urban rail transit can provide the system with the opportunity to realize comprehensive integration, simple project construction, and effective service delivery [66]. Moreover, it is also difficult to achieve uniformity or balance in space and time with the utilization of metro, as the vehicles and infrastructure are not fully utilized, especially during off-peak times or on some suburban lines. If the coordinated transport can be realized by relying on the surplus transport capacity of the urban metro and combining it with ULS, it would be an energy-saving, environmentally friendly, safe, and efficient local logistics mode [67].
M-ULS is a typical mixed transport mode [68]. Elbert and Rentschler [69] defined this mode as Freight on Transit, and divided it into the following three categories.
(1)
Shared track: freight is transported by a separate vehicle that only shares with public transport infrastructure.
(2)
Shared vehicles: freight is transported in separate trucks or additional trailers.
(3)
Shared truck: freight and passenger are transported in the same truck or carriage.
In order to deeply study this new comprehensive system, referring to the classification of urban rail transit [24], our research scope includes not only metro system, but also suburban railway and tram. Table 10 lists 14 classic qualitative research cases searched from the references, which are briefly summarized from eight aspects: research type, track type, sharing mode, urban background, standardized transportation unit, last mile distribution, fright type, analysis content, and service range. Cases 1–12 are conceptual studies, half of them have been simulated from different aspects to quantify the practical effect of scheme implementation. Cases 13–14 are real cases. More than half of the cases made it clear that the vehicle was metro, and three cases generally attributed the carrying vehicle to urban rail transit, including metro, urban railway, and tram.
Nine cases identified the transport standard carrier unit, and the standardized transportation unit (STU) can improve cargo handling, thus helping to save time and cost [69].
As for the connection of the last kilometer distribution, some studies tend to integrate cargo bikes, E-trucks, and drones for joint distribution. Villa and Monzon [70] and Serafini et al. [71] proposed intelligent locker pick-up and delivery mode. Serafini et al. [71] focused on the public’s willingness of this mode at the metro entrance. Kikuta et al. [25] conducted a pilot project to understand the options of Sapporo taxpayers.
In terms of research content, most researchers used simulation to study the external benefits of M-ULS, such as reducing congestion, accident, noise, greenhouse gas emission, and air pollution [70,72,73,74]. Zhou et al. [68] and Brice et al. [75] studied the train carrying capacity and dispatching plan of single-track transport by simulation. Hu et al. [73] and Kelly and Marinov [76] both proposed the organization form of metro freight. Kelly and Marinov [76] considered various innovative designs inside metro wagon to separate passengers and goods. Hu et al. [35] put forward the innovative concept of M-ULS prototype, and the research involved cooperation mechanism, transport strategy, delivery scheme, and station layout. Yubo et al. [66] determined the basic mode of delivery process and summarized the basic principles of planning and building urban rail transit lines. Lee and Kweon [77] and Wang and Deng [78], respectively, gave hardware design schemes for vehicle control device and logistics control management system in underground freight systems.
B2C and B2B were the main types of freight services. Urban rail transit provides a smooth network between logistics center and warehouse. It is also a fast track between suppliers and customers [66]. There are three other types of freight worth noting. Brice et al. [75] proposed a baggage transfer system. Zurich freight trams are used for waste collection [79]. Regue [74] also proposed a similar way of waste transport. Volkswagen Group usesthe existing passenger rail network of Dresden to transport auto parts [80].
Table
Table 10. Case study of urban rail transit freight transport.
Table 10. Case study of urban rail transit freight transport.
ReferencesType of StudyTrack TypeSharingBackgroundSTULast MileFreight TypeAnalysis ContentService Range
[70]Case Study SimulationMetroTrack
Vehicle		Madrid, SpainContainerLockerB2COperating costs
Externality benefits		Network
[68]Case Study SimulationMetroTrack
Vehicle Wagon		Chengdu, ChinaContainer Trolley-ParcelCapacity
CO2 emissions		Single line
[66]Desk StudyUrban rail transitVehicle——Bike
Motorbike		B2B
B2C		—Network
[25]Case StudyMetroWagonSapporo, JapanTrolleyVehicleB2BB2CPublic satisfactionSingle line
[72]Case StudyTrams and
trains		—Belgium———Externality benefitsNetwork
[73]Case Study SimulationUrban rail transitVehicleBeijing, ChinaStandardized transport unitsE-Vehicles
Cargo-bikes
Lockers		ParcelExternality benefitsNetwork
[35]Case Study SimulationMetroTrack
Vehicle		Beijing, ChinaContainers PalletsE-Vehicles, cargo-bikes, Drones, CrowdsourcingParcelInnovative concepts for
M-ULS prototypes		Network
[76]Case StudyMetroVehicle WagonNewcastle upon Tyne, UKWheeled boxesCargo bikes, Electric—Designs for the interior of the metro carriageSingle Line
[24]Case Study SimulationUrban rail transitTrack
Vehicle		Newcastle upon Tyne, UKLogistic boxesManual pick-upB2B
B2C		SchedulingNetwork
[75]Case Study SimulationMetroTrack
Vehicle		Newcastle upon Tyne, UKContainers CradlesManual pick-upBaggageCapacity
Scheduling		Single Line
[71]Case StudyMetro—Rome, Italy—LockerB2CUnderlying behaviorNetwork
[74]Case StudyTramTrackBarcelona, Spain—Cross-docking facilities
Perpendicular short side tracks		B2C
Waste		Cost benefit analysisNetwork
[80]ReviewTramTrackDresden, GermanyContainers—Car parts—Single Line
[79]ReviewTramTrackZurich, Switzerland—Manual pick-upWaste—Network
These cases have confirmed the potential use of urban rail transit in urban logistics distribution, and the utilization of its excess capacity will also help to (I) reduce operating costs, (II) meet delivery deadlines and improve customer service for urban needs, and (III) reduce current externalities
In addition to the above 14 qualitative cases, there are 4 quantitative optimization studies on the operation scheme. Behiri et al. [34] identified relevant scientific issues at the strategic, tactical, and operational levels. Then, aiming at minimizing the total waiting time of all requirements at the departure station, studied the railway freight scheduling problem and established a mixed-integer program (MIP) model. Ozturk and Patrick [81] established two objective functions under known freight demand: minimizing the inventory level at the departure station and minimizing the total delay of goods delivery, and established two mixed integer models. Li et al. [82], balancing revenue and cost, proposed a mixed integer linear programming model aiming at maximizing the profit of freight service, and designed an iterative scheduling method to solve the model. Zheng et al. [38] established a path optimization model to minimize distribution costs based on a metro line. The model considered the capacity constraints of ground distribution vehicles, soft customer time window, and vehicle routing time window. Their research provides support for the operation of metro freight from different direction, and lays a foundation for the M-ULS network operation.

4.4. PART 3 Network Structure and Operation Optimization

The network planning and design of ULS refers to the design of nodes, channels, routes, and corresponding feature parameters [48] with the goal of improving the comprehensive efficiency of the freight network based the conditions of meeting a certain service capacity, customer needs, investment budget, and common security [83]. This work not only directly affects the operation efficiency, but also affects the project investment and the economic and social benefits of the ULS. Qihu Qian team proposed five steps for the construction of a ULS in Beijing, including urban geographic information analysis, exploitable area analysis, node selection, network layout scheme, and optimization evaluation [84,85]. Siamak Ardekani team took Houston port [83] and Dallas Fort Worth International Airport [48] as background cases to establish the optimization model of a ULS network and illustrate its advantages.
The research focuses on five aspects: network structure analysis, facility location, rout, terminal connection, and competitive allocation. Table 11 lists the basic information of the collected literature. There are 13 ULS network cases, 8 M-ULS cases, and 3 UCTS cases. In addition, Chinese scholars also put forward underground emergency logistics system (UELS) [86] model, which expands the application form of underground logistics.

4.4.1. Network Structure Analysis

The research on network structure remains at the level of qualitative research. In the literature searched, only Huang et al. [84] and Han [105] summarized the network characteristics of different frameworks and gave the steps of ULS network structure design. Influenced by the question F (construction of ULS network) of the 2017 China graduate mathematical modeling competition [106], most of the network forms are secondary hub and spoke underground logistics networks. Network node classification only focuses on the optimization process. When the demand point or supply point is known, they will not be included in the network classification node.

4.4.2. Facility Location Problem (FLP)

Generally, the objective function of the FLP is the minimum cost or the minimum node. The objective function is expressed as a combination of demand (or supply) quantity, cost, and distribution distance. There are four location models in the selected cases: set covering model, double-layer optimization model, p-median model, and fuzzy clustering. He et al. [87] and Ren et al. [89] established secondary underground logistics, and both of them determined primary logistics nodes by set covering model. Yan and Tan [91] established a double-layer optimization model. The upper-level programming minimizes the generalized logistics cost from the perspective of decision makers; the lower-level planning describes the selection behavior of customers, and the objective is to minimize the cost of each customer. The model breaks the traditional model that only considers the favorable factors of logistics providers. Yun et al. [90], based on the interpretative structural modeling method (ISM), analyzed the influence on network location with 27 influencing factors, and constructed a multilevel hierarchical structure model, which provides strong support for the fuzzy location and TOPSIS evaluation methods. Wei et al. [29] used fuzzy C-means clustering to minimize the sum of squared error between each sample and its clustering, and complete the classification of selected ULS nodes. This process includes a certain probability estimation process, which is suitable for the classification problem without clear boundary characteristics in reality. Zhao et al. [36] first used AHP and TOPSIS models to evaluate the importance of each metro station and selected alternative stations, and then used the p-median model to determine metro distribution stations in alternative stations. Zheng et al. [88] also used the p-median model, but compared with the previous study, the model comprehensively considered four factors: infrastructure cost, distance, capacity limit, passenger impact cost, and logistics factor cost, and was optimized by using Voronoi diagram.

4.4.3. Routing Problem (RP)

The routing planning problem usually establishes an MIP model to minimize the path construction investment. This kind of problem is a typical NP hard problem. Genetic algorithm (GA), ant colony optimization (ACO), particle swarm optimization (PSO), tabu search (TS), and simulated annealing (SA) are common algorithms [107]. Li and Wang [92] used Steiner minimum tree and found another way optimize the path by simulated plant growth algorithm (PGSA). Zhong et al. [28] proposed a dynamic programming model, which comprehensively uses the uncertainty graph and the improved SA. This model reflects the network construction progress and dynamic evolution process in the solution process, and is more in line with the network planning process in reality. The five papers of the JianJun Dong team should be paid attention to. They comprehensively considered the FLP, RP, and allocation problem, derived location-routing (LRP) and location-allocation-Routing (LARP) problems, expanding the research field. First, they designed a two-level ULS network considering the same influencing factors with the objectives of minimizing cost and maximizing network utilization [94,95]. Then, they used the method of combining fuzzy evaluation and mixed integer programming model to design the M-ULS network [37,93,94]. Ren et al. [97] and Hu et al. [96] considered path construction on the basis of the work of Dong et al. [37]. The three papers have the same background, but pay attention to different influencing factors, objective functions, and solving algorithms, which provides a powerful reference for network operation planning.

4.4.4. Terminal Connection Problem (TCP)

The TCP can be regarded as an extension of the multimodal transport problem from above ground to underground. Zhou et al. [39] studied routing optimization of subway–freight truck intermodal transportation. Ji et al. [100] evaluated M-ULS network performance from two perspectives: the number of hubs and the proportion of taxi drivers willing to carry packages. Fan et al. [45], Pan et al. [102], and Gao et al. [101] designed the terminal intermodal mode of a UCTS and planned the corresponding operation process. These three papers also provide guidance for the terminal freight stations in operation planning, layout, and transfer capacity evaluation. Gao et al. [101] established a multi service queuing optimization model based on container arrival time. Fan et al. [45] established a robust optimization model for the uncertainty of the number of containers, then proposed the internal layout scheme and the area calculation scheme. Pan et al. [102] proposed a simulation scheme for transport capacity evaluation.

4.4.5. Competitive Allocation Problem(CAP)

There are few references related to competitive allocation. The existing two papers focus on the impact of different influencing factors on the competitive allocation of surface and underground transport. Liu et al. [103] discussed the impact of pipeline capacity, node service capacity, unit loss cost, and cost proportion on allocation. Chen et al. [104] studied the effects of travel speed, departure frequency, and capacity constraints of lines and nodes on allocation based on random utility theory and random allocation model.

5. M-ULS Research Gaps and Agenda

The current research has made remarkable achievements in concept and planning layout. However, its development still stays in the theoretical research stage, and the research field fails to involve all aspects of actual operation. There is still a lack of discussion on engineering quantification and application implementation. We further explore the deficiencies and gaps of research from two aspects of theoretical research and application implementation, and give a panoramic description of the future research direction.

5.1. Theoretical Research

5.1.1. Large-Scale Simulation System

M-ULS is an uncertain comprehensive complex transportation system, and the corresponding simulation system is the basis of applied research. We believe that a crucial point for the relevance and utilization of simulation lies with the development of more detailed and flexible models, as well as a better integration of simulation and optimization. Simulation models will grow even larger and with more details when the results of the previous items become available [108]. Therefore, the development of new hardware and software high-performance computing architecture is also necessary.

5.1.2. Cost–Benefit Quantitative Research

An important factor restricting quantitative research is that it is difficult to objectively and accurately quantify the environmental and social benefits of the underground comprehensive transportation system. In other words, it is necessary to evaluate the cost-effectiveness of the whole life cycle of the underground transportation project. The papers of Siamak Ardekani team have important reference value. Clarifying project investors is the premise of quantifying cost-effectiveness. However, the question of who will invest and manage is also an urgent problem. Due to the publicity of metro transport, the government has the responsibility for decision-making and management, but private financing is also becoming an option, as the cases of Cargo Sous Terrain in Switzerland and Hyperloop in the USA show [3].

5.1.3. Market Competition and Game

M-ULS lacks research on the definition of appropriate goods, freight prediction, and pricing. As a new form of transportation, it is necessary to give a clear market positioning and game with other modes through reasonable price competition, so as to integrate into the increasingly mature and complete urban logistics market. In addition, the number, volume, and weight of appropriate goods are the basis for quantitative analysis, and their lack seriously restricts the management research of M-ULS. Therefore, it is necessary to fill the gap in the field of M-ULS market competition to meet the overall demand of urban freight.

5.1.4. Multimodal Transport Network Coupling

M-ULS is currently modeled and optimized as a separate system. This means that the coupling between M-ULS and urban freight network is not considered. There is thus the need for new models, methods, and software tools able to represent the complete transportation system, including new active modes and business and organizational models for freight, automated vehicles, etc. The literature on using personal rapid transit [23,40], buses [109], and taxis [43] expands this flexible delivery method. The papers of the Ghilas [33,110,111,112,113] team are particularly noteworthy. It would also be a good choice to integrate drones, auto-driving truck, intelligent locker, and household pipeline capsule in the conditional new urban area.

5.1.5. M-ULS Operation Scheme

The research on the operation scheme lacks information on carrying capacity, priority, and speed of single-track trains. To fill the gap, we can learn from the existing research on mixed passenger and freight transportation of traditional “heavy” railways by, firstly, quantifying the impact of freight on passenger transport [114] to excavate the maximum carrying capacity of the existing line network [115] and, secondly, by setting up comprehensive transport trains with different priority levels [116] and speeds [117] based on comprehensively considering cost-effectiveness, transportation timeliness, and other factors [118] to comprehensively optimize the train operation scheme.

5.2. Application Implementation

5.2.1. Policy-Making

Few studies address policy-making processes, and there is a need for tools supporting policymakers in designing sustainable policies appropriate for subway freight and underground space (e.g., the co-design with government, the subway company, and the logistics company). This implies incorporating into simulation and optimization tools a managerial perspective and a representation of the business models of the various stakeholders in terms of contracts, pricing, and costing schemes and operational issues. An appropriate regulatory framework and legal constraints are essential for managing property rights and managing underground use and development.

5.2.2. Planning of Underground Space

With the growth of global population and the acceleration of urbanization, the utilization of underground space has become more and more frequent. The research on network layout only stays in the field of transport planning, ignoring the geological structure, surface and underground space use. However, the fact is that as the underground is increasingly used for different purposes, the alignment of tunnels becomes more and more difficult [26]. The construction of a M-ULS tunnel also needs a comprehensive planning method.

5.2.3. Design of Integrated Dispatching System

The design of an integrated dispatching system, e.g., hyper connected systems (metro system, Physical Internet, synchro modality), is largely viewed as a key concept for the M-ULS. Stakeholder cooperation and the integration, synchronization, and automation of operations are at the core of these concepts and development frameworks. Yet, current studies of such systems are few, and their representations are still quite simplified.

5.2.4. Facility Transformation

The transformation of metro wagons and stations has stayed at the “form level”, planning the freight organization process and facilities layout, while ignoring the research on the “performance level”. This means that there is a lack of quantitative analysis related to civil engineering, structural mechanics, and mechanical design. The references of UCTS [45,98,99] provide some enlightenment as to the station construction. Japanese Super Rail Cargo [119], European NGT CARGO [120], and German CargoMover [121] can also provide some design references for integrated transport vehicles.

5.2.5. Operational Safety

Safe operation and emergency management are other important restrictive factors. We cannot ignore the safety problems caused by mixed passenger and freight transport, as well as the threats to personnel and goods caused by subway derailment and other operation accidents, floods, earthquakes, terrorist attacks, and so on. Efficient and rapid emergency evacuation organization is also an urgent problem to be solved. At the same time, the environmental externalities brought by the metro also cannot be ignored, such as the vibration [122].

6. Conclusions

The research in the field of underground logistics and public freight transportation shows a trend of rapid growth. Many research articles appear in journals with high IF, such as Tunneling and Underground Space Technology and Transportation Research Part B/E, or in professional academic conference organizations such as ISUFT, ASCE, ACUUS, and are produced by research teams such as Qihu Qian, Ghilas, and Siamak Ardekani. However, international cooperation is not strong, and a positive and powerful global cooperation atmosphere has not yet been formed. Through the time zone distribution of keyword contribution and data mining clustering, we draw the evolution path map of the literature, obtain 17 categories with time axis characteristics, detect 20 salient words, and construct a knowledge taxonomy to structure the recent relevant literature. Based on the scientometrics results, we summarize a series of topics in the field of ULS and public freight transport, including the concept and significance of ULS, urban planning scheme, transport vehicle, rail transit coordinated transport mode, and network operation research. Finally, we summarize the shortcomings and gaps of M-ULS, and highlight the enlightening parts of the existing ULS and public freight research on M-ULS.
Due to the lack of mature projects, public and private interests, and investment costs, there is a lack of quantitative economy and applied research, which also leads to the lack of international and inter group cooperation. Future research should gradually tend to the application of systematic implementation and construction. The primary problem is to clarify the project construction investment and construction subject. The government should be an ideal choice to promote the formation of a mature system. In addition, concerning applied research, large-scale simulation, policy-making, underground space utilization, mechanical structure design, integrated dispatching system, and safe operation guarantee are also hot issues to be studied.
The novelty of this study lies in two aspects. On the one hand, the scientific cartography method is incorporated into the systematic literature review process. The scientific mapping method consists of data mining and content analysis, which can minimize subjective randomness, master useful information, and facilitate in-depth thematic analysis. On the other hand, this study focuses on M-ULS and integrates the enlightenment of ULS and public transport related literature on the development of M-ULS, which will help to find research gaps and emerging knowledge branches regarding M-ULS, and further promote the improvement, practice, and innovation of existing research.
Inevitably, this study also has some limitations. Firstly, the search field was limited to the “Title” to avoid invalid records. This retrieval strategy undoubtedly leads to the loss of some literature related to the topic. Secondly, considering the applicability of CiteSpace, although we modified and converted the data format, it also caused some data to be missing. These limitations may affect the statistical results, but have little effect on the concentration of research trends and topics discussion.

Author Contributions

H.Z., data curation, investigation, methodology, visualization, and writing—review and original draft.; Y.L., conceptualization, funding acquisition, investigation, methodology, and writing—review and original draft; J.G., formal analysis, investigation, resources, and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (61872036).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The study did not report any data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cui, J.; Dodson, J.; Hall, P.V. Planning for Urban Freight Transport: An Overview. Transp. Rev. 2015, 35, 583–598. [Google Scholar] [CrossRef]
  2. Qian, Q.; Guo, D.; Chen, Z. Discussion on alleviating traffic congestion in Beijing—Urban underground logistics system. In Proceedings of the 11th Annual Meeting of China Society of Civil Engineering and the 13th Annual Meeting of Tunnel and Underground Engineering Branch, Beijing, China, 27–29 November 2004; pp. 747–754. [Google Scholar]
  3. Visser, J.G.S.N. The development of underground freight transport: An overview. Tunn. Undergr. Space Technol. 2018, 80, 123–127. [Google Scholar] [CrossRef]
  4. Savelsbergh, M.; Van Woensel, T. 50th Anniversary Invited Article-City Logistics: Challenges and Opportunities. Transp. Sci. 2016, 50, 579–590. [Google Scholar] [CrossRef]
  5. Chen, Y.; Dong, J.; Shang, P.; Chen, Z.; Ren, R. Research on the Cooperative Transportation Modes between Metro and Underground Logistics System in Urban Area. Chin. J. Undergr. Space Eng. 2020, 16, 637–646. [Google Scholar]
  6. Mingers, J.; Leydesdorff, L. A review of theory and practice in scientometrics. Eur. J. Oper. Res. 2015, 246, 1–19. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, C.M. Searching for intellectual turning points: Progressive knowledge domain visualization. Proc. Natl. Acad. Sci. USA 2004, 101, 5303–5310. [Google Scholar] [CrossRef] [Green Version]
  8. Chen, C.; Song, M. Visualizing a field of research: A methodology of systematic scientometric reviews. PLoS ONE 2019, 14, e0223994. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, L.; Xue, X.; Zhao, Z.; Wang, Z. The Impacts of Transportation Infrastructure on Sustainable Development: Emerging Trends and Challenges. Int. J. Environ. Res. Public Health 2018, 15, 1172. [Google Scholar] [CrossRef] [Green Version]
  10. Martinez, S.; Delgado, M.D.M.; Marin, R.M.; Alvarez, S. Science mapping on the Environmental Footprint: A scientometric analysis-based review. Ecol. Indic. 2019, 106, 105543. [Google Scholar] [CrossRef]
  11. Hu, W.; Dong, J.; Hwang, B.-G.; Ren, R.; Chen, Z. A Scientometrics Review on City Logistics Literature: Research Trends, Advanced Theory and Practice. Sustainability 2019, 11, 2724. [Google Scholar] [CrossRef] [Green Version]
  12. Chen, J.; Su, Y.; Si, H.; Chen, J. Managerial Areas of Construction and Demolition Waste: A Scientometric Review. Int. J. Environ. Res. Public Health 2018, 15, 2350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Zhao, X. A scientometric review of global BIM research: Analysis and visualization. Autom. Constr. 2017, 80, 37–47. [Google Scholar] [CrossRef]
  14. Olawumi, T.O.; Chan, D.W.M. A scientometric review of global research on sustainability and sustainable development. J. Clean. Prod. 2018, 183, 231–250. [Google Scholar] [CrossRef]
  15. Chen, C.M. CiteSpace II: Detecting and visualizing emerging trends and transient patterns in scientific literature. J. Am. Soc. Inf. Sci. Technol. 2006, 57, 359–377. [Google Scholar] [CrossRef] [Green Version]
  16. Vernimmen, B.; Dullaert, W.; Geens, E.; Notteboom, T.; T’Jollyn, B.; Van Gilsen, W.; Winkelmans, W. Underground logistics systems: A way to cope with growing internal container traffic in the port of Antwerp? Transp. Plan. Technol. 2007, 30, 391–416. [Google Scholar] [CrossRef]
  17. Pielage, B.J. Underground freight transportation. A new development for automated freight transportation systems in the Netherlands. In Proceedings of the 2001 IEEE Intelligent Transportation Systems Proceedings, Oakland, CA, USA, 25–29 August 2001; pp. 762–767. [Google Scholar]
  18. Stein, D.; Schoesser, B.; Najafi, M. CargoCap-Transportation of Goods through Underground Pipelines: Research Project in Germany. In Proceedings of the ASCE International Conference on Pipeline Engineering and Construction: New Pipeline Technologies, Security and Safety, Baltimore, MD, USA, 13–16 July 2003; American Society of Civil Engineers Texas Section: Baltimore, MD, USA, 2003; pp. 1625–1634. [Google Scholar]
  19. Liu, H.; Galleher, J.J.; Stift, M.T. Feasibility of Underground Pneumatic Freight Transport in New York City. In Proceedings of the ASCE Pipeline Division Specialty Congress—Pipeline Engineering and Construction—What’s on the Horizon, San Diego, CA, USA, 1–4 August 2004; pp. 1085–1096. [Google Scholar]
  20. Qingfen, Z.; Yu, S.; Shan, L. The Prospect of Underground Logistics System of Shanghai in E-Commerce Era. Chin. J. Undergr. Space Eng. 2011, 7, 1269–1273. [Google Scholar]
  21. Wiegmans, B.W.; Visser, J.; Konings, R.; Pielage, B.J.A. Review of underground logistic systems in the Netherlands: An ex-post evaluation of barriers, enablers and spin-offs. Eur. Transp. Trasp. Eur. 2010, 45, 34–49. [Google Scholar]
  22. Egbunike, O.N.; Potter, A.T. Are freight pipelines a pipe dream? A critical review of the UK and European perspective. J. Transp. Geogr. 2011, 19, 499–508. [Google Scholar] [CrossRef]
  23. Fatnassi, E.; Chaouachi, J.; Klibi, W. Planning and operating a shared goods and passengers on-demand rapid transit system for sustainable city-logistics. Transp. Res. Part B-Methodol. 2015, 81, 440–460. [Google Scholar] [CrossRef]
  24. Motraghi, A.; Marinov, M.V. Analysis of urban freight by rail using event based simulation. Simul. Model. Pract. Theory 2012, 25, 73–89. [Google Scholar] [CrossRef]
  25. Kikuta, J.; Ito, T.; Tomiyama, I.; Yamamoto, S.; Yamada, T. New subway-integrated city logistics system. In Seventh International Conference on City Logistics; Taniguchi, E., Thompson, R.G., Eds.; Elsevier: Amsterdam, The Netherlands, 2012; Volume 39, pp. 476–489. [Google Scholar]
  26. Qihu, Q. Present state, problems and development trends of urban underground space in China. Tunn. Undergr. Space Technol. 2016, 55, 280–289. [Google Scholar] [CrossRef]
  27. Bobylev, N.; Sterling, R. Urban underground space A growing imperative Perspectives and current research in planning and design for underground space use. Tunn. Undergr. Space Technol. 2016, 55, 1–4. [Google Scholar] [CrossRef]
  28. Zhong, Y.; Luo, S.; Bao, M.; Lv, X. Dynamic Network Planning of Underground Logistics System on Uncertainty Graph. Math. Probl. Eng. 2019, 2019, 1979275. [Google Scholar] [CrossRef]
  29. Wei, H.; Li, A.; Jia, N. Research on Optimization and Design of Sustainable Urban Underground Logistics Network Framework. Sustainability 2020, 12, 9147. [Google Scholar] [CrossRef]
  30. Dong, J.; Xu, Y.; Hwang, B.-G.; Ren, R.; Chen, Z. The Impact of Underground Logistics System on Urban Sustainable Development: A System Dynamics Approach. Sustainability 2019, 11, 1223. [Google Scholar] [CrossRef] [Green Version]
  31. Zahed, S.E.; Shahooei, S.; Farooghi, F.; Shahandashti, M.; Ardekani, S. Life-cycle cost analysis of a short-haul underground freight transportation system for the DFW Airport. Built Environ. Proj. Asset Manag. 2019, 9, 440–456. [Google Scholar] [CrossRef]
  32. Xinwei, P.; Dong, J.; Fu, G.; Zhang, G. Study on Comprehensive Evaluation Method of Underground Logistics System Feasibility Based on ANP-TOPSIS Method. Chin. J. Undergr. Space Eng. 2019, 15, 684–690. [Google Scholar]
  33. Ghilas, V.; Demir, E.; Van Woensel, T. An adaptive large neighborhood search heuristic for the Pickup and Delivery Problem with Time Windows and Scheduled Lines. Comput. Oper. Res. 2016, 72, 12–30. [Google Scholar] [CrossRef] [Green Version]
  34. Behiri, W.; Belmokhtar-Berraf, S.; Chu, C. Urban freight transport using passenger rail network: Scientific issues and quantitative analysis. Transp. Res. Part E Logist. Transp. Rev. 2018, 115, 227–245. [Google Scholar] [CrossRef]
  35. Hu, W.; Dong, J.; Hwang, B.-G.; Ren, R.; Chen, Z. A preliminary prototyping approach for emerging metro-based underground logistics systems: Operation mechanism and facility layout. Int. J. Prod. Res. 2020, 59, 7516–7536. [Google Scholar] [CrossRef]
  36. Zhao, L.; Li, H.; Li, M.; Sun, Y.; Hu, Q.; Mao, S.; Li, J.; Xue, J. Location selection of intra-city distribution hubs in the metro-integrated logistics system. Tunn. Undergr. Space Technol. 2018, 80, 246–256. [Google Scholar] [CrossRef]
  37. Dong, J.; Hu, W.; Yan, S.; Ren, R.; Zhao, X. Network Planning Method for Capacitated Metro-Based Underground Logistics System. Adv. Civ. Eng. 2018, 2018, 6958086. [Google Scholar] [CrossRef] [Green Version]
  38. Zheng, C.; Gu, Y.; Shen, J.; Du, M. Urban logistics delivery route planning based on a single metro line. IEEE Access 2021, 9, 50819–50830. [Google Scholar] [CrossRef]
  39. Zhou, X.-Y.; Cui, Y.; He, L.; Ma, X.-Y.; Wang, S.-C. Logistics Distribution Routing Optimization Based on Subway-freight Truck Intermodal Transportation. . Transp. Syst. Eng. Inf. Technol. 2020, 20, 111–117. [Google Scholar]
  40. Chebbi, O.; Chaouachi, J. Reducing the wasted transportation capacity of Personal Rapid Transit systems: An integrated model and multi-objective optimization approach. Transp. Res. Part E Logist. Transp. Rev. 2016, 89, 236–258. [Google Scholar] [CrossRef]
  41. Cleophas, C.; Cottrill, C.; Ehmke, J.F.; Tierney, K. Collaborative urban transportation: Recent advances in theory and practice. Eur. J. Oper. Res. 2019, 273, 801–816. [Google Scholar] [CrossRef]
  42. Wang, J.; Ren, J.; Fu, X. Research on Bus and Metro Transfer from Perspective of Hypernetwork—A Case Study of Xi’an, China (December 2020). IEEE Access 2020, 8, 227048–227063. [Google Scholar] [CrossRef]
  43. Li, B.X.; Krushinsky, D.; Reijers, H.A.; Van Woensel, T. The Share-a-Ride Problem: People and parcels sharing taxis. Eur. J. Oper. Res. 2014, 238, 31–40. [Google Scholar] [CrossRef] [Green Version]
  44. Guo, D.; Chen, Y.; Yang, J.; Tan, Y.H.; Zhang, C.; Chen, Z. Planning and application of underground logistics systems in new cities and districts in China. Tunn. Undergr. Space Technol. 2021, 113, 103947. [Google Scholar] [CrossRef]
  45. Fan, Y.; Liang, C.; Hu, X.; Li, Y. Planning connections between underground logistics system and container ports. Comput. Ind. Eng. 2020, 139, 106199. [Google Scholar] [CrossRef]
  46. Hai, D.; Xu, J.; Duan, Z.; Chen, C. Effects of underground logistics system on urban freight traffic: A case study in Shanghai, China. J. Clean. Prod. 2020, 260, 121019. [Google Scholar] [CrossRef]
  47. Ferrero, F.; Perboli, G.; Rosano, M.; Vesco, A. Car-sharing services: An annotated review. Sustain. Cities Soc. 2017, 37, 501–518. [Google Scholar] [CrossRef]
  48. Shahooei, S.; Farooghi, F.; Zahedzahedani, S.E.; Shahandashti, M.; Ardekani, S. Application of underground short-haul freight pipelines to large airports. J. Air Transp. Manag. 2018, 71, 64–72. [Google Scholar] [CrossRef]
  49. Rezaie, N.; Tabesh, A.; Najafi, M.; Ma, B.; Mousavipour, S.H.; Livingston, B.L.; Geisbush, J.; Cate, C.; Heidrick, J.W.; Pridmore, A. Evaluation of Applications and the Comparison of Routes for Underground Freight Transportation in Texas. In Proceedings of the Pipelines 2016 Conference: Out of Sight, Out of Mind, Not Out of Risk, Kansas, MO, USA, 17–20 July 2016; American Society of Civil Engineers (ASCE): Reston, VA, USA, 2016; pp. 847–856. [Google Scholar]
  50. Qian, Q. The fundamental solutions to urban traffic congestion, air pollution and rain, flood and waterlogging. Sci. Technol. Rev. 2015, 33, 1–2. [Google Scholar]
  51. Liu, Y. Analysis on Motivation of Underground Fast-driving Road Construction. Chin. J. Undergr. Space Eng. 2006, S2, 1293–1296. [Google Scholar]
  52. Shang, P.C.; Chen, Y.C.; Luo, G.L.; Guo, D.J.; Su, X.C. Using Underground Logistics System to Mitigate the Congestion of Urban Transportation Network; Clausius Scientific Press: Ottawa, ON, Canada, 2019; pp. 69–76. [Google Scholar]
  53. Lu, B.; Zhang, M.X.; Lu, B. Study on Underground Logistics System Planning in the Jinan Prior Zone. In Proceedings of the China Rock 2020 Conference, Beijing, China, 23–26 October 2020; IOP Conference Series: Earth and Environmental Science. Volume 570, p. 062028. [Google Scholar] [CrossRef]
  54. Zahed, S.E.; Shahandashti, S.M.; Najafi, M. Lifecycle benefit-cost analysis of underground freight transportation systems. J. Pipeline Syst. Eng. Pract. 2018, 9, 04018003. [Google Scholar] [CrossRef]
  55. Tabesh, A.; Najafi, M.; Ashoori, T.; Tavakoli, R.; Shahandashti, S.M.; Pridmore, A.; Geisbush, J. Environmental Impacts of Pipeline Construction for Underground Freight Transportation. In Proceedings of the Pipelines 2017 Conference: Planning and Design, Phoenix, AZ, USA, 6–9 August 2017; American Society of Civil Engineers (ASCE): Reston, VA, USA, 2017; pp. 181–191. [Google Scholar]
  56. O’Connell, R.M.; Lenau, C.W.; Zhao, T. Capsule Separation by Linear Induction Motor in Pneumatic Capsule Pipeline Freight Transport System. J. Pipeline Syst. Eng. Pract. 2010, 1, 84–90. [Google Scholar] [CrossRef]
  57. Asim, T.; Mishra, R. Computational fluid dynamics based optimal design of hydraulic capsule pipelines transporting cylindrical capsules. Powder Technol. 2016, 295, 180–201. [Google Scholar] [CrossRef] [Green Version]
  58. Shahooei, S.; Mattingly, S.P.; Shahandashti, M.; Ardekani, S. Propulsion system design and energy optimization for autonomous underground freight transportation systems. Tunn. Undergr. Space Technol. 2019, 89, 125–132. [Google Scholar] [CrossRef]
  59. Tsunashima, H.; Kaneko, T. Performance analysis of lateral guidance system for dual mode truck. J. Vehicle SystemDynamics. 1998, 29 (Suppl. S1), 754–759. [Google Scholar] [CrossRef]
  60. Levien, M. Freight Shuttle System: Cross-Border Movement of Goods. 2011. Available online: https://click.endnote.com/viewer?doi=10.2172%2F1048877&token=WzI3MjM4MTksIjEwLjIxNzIvMTA0ODg3NyJd.n0tQOX9XXK68-0y0ezWAuJnsYAo (accessed on 1 January 2022).
  61. Miles, R.; Gough, A.; Silverthorne, B. The Northampton Mole Project—A case study of the application of freight pipelines in an urban environment. In Proceedings of the 7th International Symposium on Underground Freight Transport, Arlington, TX, USA, 22–24 August 2016. [Google Scholar]
  62. Stein, D. CargoCap—Underground bulk goods transport in built-up areas. J. Geotech. 2006, 29, 152–156. [Google Scholar]
  63. Abdelrahman, A.S.; Sayeed, J.; Youssef, M.Z. Hyperloop Transportation System: Analysis, Design, Control, and Implementation. IEEE Trans. Ind. Electron. 2017, 65, 7427–7436. [Google Scholar] [CrossRef]
  64. Matthias, B. Cargo Sous Terrain: Guter unter die Erde. SMM Schweiz. Masch. 2018, 119, 42–44. [Google Scholar]
  65. Milinkovic, L.; Pantelic, J. Underground Systems in Service of City Logistics. In Proceedings of the 2nd Logistics International Conference, Belgrade, Serbia, 21–23 May 2015; pp. 315–320. [Google Scholar]
  66. Yubo, L.; Ketai, H.; Jie, L.; Yihang, X. Analysis of the Concept of Urban Rail Transit Based City Logistics System. In Proceedings of the International Conference on Smart Manufacturing Application, ICSMA 2008, Goyang-si, Korea, 9–11 April 2008; pp. 288–292. [Google Scholar]
  67. Wang, L.S.; Deng, Q.M. The research on local transport of goods which by the means of city subway. In Proceedings of the 2nd International Conference on Energy and Environmental Protection, ICEEP 2013, Guilin, China, 20–21 April 2013; Volume 734–737, pp. 1637–1640. [Google Scholar]
  68. Zhou, F.; Zhang, J.; Liu, X.; Peng, Q.; Wang, K.C.P. Freight transport mode based on public transport: Taking parcel delivery by subway as an example. In Proceedings of the 6th International Conference on Transportation Engineering, ICTE 2019, Chengdu, China, 20–22 September 2019; American Society of Civil Engineers (ASCE): Reston, VA, USA, 2019; pp. 745–754. [Google Scholar]
  69. Elbert, R.; Rentschler, J. Freight on urban public transportation: A systematic literature review. Res. Transp. Bus. Manag. 2021, 100679. [Google Scholar] [CrossRef]
  70. Villa, R.; Monzon, A. A Metro-Based System as Sustainable Alternative for Urban Logistics in the Era of E-Commerce. Sustainability 2021, 13, 4479. [Google Scholar] [CrossRef]
  71. Serafini, S.; Nigro, M.; Gatta, V.; Marcucci, E. Sustainable crowdshipping using public transport: A case study evaluation in Rome. Transp. Res. Procedia 2018, 30, 101–110. [Google Scholar] [CrossRef]
  72. De Langhe, K. The importance of external costs for assessing the potential of trams and trains for urban freight distribution. Res. Transp. Bus. Manag. 2017, 24, 114–122. [Google Scholar] [CrossRef]
  73. Hu, W.; Dong, J.; Hwang, B.G.; Ren, R.; Chen, Z. Using system dynamics to analyze the development of urban freight transportation system based on rail transit: A case study of Beijing. Sustain. Cities Soc. 2019, 53, 101923. [Google Scholar] [CrossRef]
  74. Regue, R. Appraising freight tram schemes: A case study of Barcelona. Eur. J. Transp. Infrastruct. Res. 2013, 13, 56–78. [Google Scholar]
  75. Brice, D.; Marinov, M.; Rüger, B. A Newly Designed Baggage Transfer System Implemented Using Event-Based Simulations. Urban Rail Transit 2015, 1, 194–214. [Google Scholar] [CrossRef] [Green Version]
  76. Kelly, J.; Marinov, M. Innovative Interior Designs for Urban Freight Distribution Using Light Rail Systems. Urban Rail Transit 2017, 3, 238–254. [Google Scholar] [CrossRef] [Green Version]
  77. Lee, J.H.; Kweon, H.B. The design of an apparatus for a vehicle control scheme in a freight transportation system to be installed in the underground. In Proceedings of the 14th International Conference on Civil, Structural and Environmental Engineering Computing, Cagliari, Sardinia, Italy, 3–6 September 2013; p. 102. [Google Scholar]
  78. Wang, L.S.; Deng, Q.M. A portable subway logistics system for the transportation of small and medium-size cargo. In Proceedings of the 2nd International Conference on Energy and Environmental Protection, ICEEP 2013, Guilin, China, 20–21 April 2013; Volume 734–737, pp. 1604–1608. [Google Scholar]
  79. Cochrane, K.; Saxe, S.; Roorda, M.J.; Shalaby, A. Moving freight on public transit: Best practices, challenges, and opportunities. Int. J. Sustain. Transp. 2017, 11, 120–132. [Google Scholar] [CrossRef]
  80. Yang, Z. Cargo Transport of Overseas Tramway Network and Its Enlightenment for Chinese Tram Development. Urban Rapid Rail Transit 2019, 1, 6. [Google Scholar]
  81. Ozturk, O.; Patrick, J. An optimization model for freight transport using urban rail transit. Eur. J. Oper. Res. 2018, 267, 1110–1121. [Google Scholar] [CrossRef]
  82. Li, Z.; Shalaby, A.; Roorda, M.J.; Mao, B. Urban rail service design for collaborative passenger and freight transport. Transp. Res. Part E Logist. Transp. Rev. 2021, 147, 102205. [Google Scholar] [CrossRef]
  83. Shahooei, S.; Najafi, M.; Ardekani, S. Design and Operation of Autonomous Underground Freight Transportation Systems. J. Pipeline Syst. Eng. Pract. 2019, 10, 05019003. [Google Scholar] [CrossRef]
  84. Huang, O.; Chen, Z.; Guo, D. Network planning of urban underground logistics system. Logist. Mater. Handl. 2005, 6, 91–93. [Google Scholar]
  85. Guo, D.; Chen, Z.; Qian, Q. On the development of underground logistics system in Beijing. Chin. J. Undergr. Space Eng. 2005, 1, 37–41. [Google Scholar]
  86. Yimin, X.; Yang, D.; Lu, W.; Liang, M.; Li, M. Research on construction of underground emergency logistics system based on ERRS location model. J. Saf. Sci. Technol. 2019, 15, 179–184. [Google Scholar]
  87. He, M.; Sun, L.; Zeng, X.; Liu, W.; Tao, S. Node layout plans for urban underground logistics systems based on heuristic Bat algorithm. Comput. Commun. 2020, 154, 465–480. [Google Scholar] [CrossRef]
  88. Zheng, C.; Zhao, X.; Shen, J. Research on Location Optimization of Metro-Based Underground Logistics System with Voronoi Diagram. IEEE Access 2020, 8, 34407–34417. [Google Scholar] [CrossRef]
  89. Ren, M.; Fan, Z.; Wu, J.; Zhou, L.; Du, Z. Design and Optimization of Underground Logistics Transportation Networks. IEEE Access 2019, 7, 83384–83395. [Google Scholar] [CrossRef]
  90. Yun, H.; Dong, J.; Fu, G.; Ren, R. ISM Analysis of Influencing Factors of Network Node Location in Urban Underground Logistics System. Chin. J. Undergr. Space Eng. 2018, 14, 39–48. [Google Scholar]
  91. Yan, W.; Tan, Y. Research on Bi-level Programming Model and Algorithm of Underground Logistics Node Location. Chin. J. Undergr. Space Eng. 2016, 12, 870–874. [Google Scholar]
  92. Li, T.; Wang, Z.-T. Optimization layout of underground logistics network in big cities with plant growth simulation algorithm. Xitong Gongcheng Lilun Yu Shijian/Syst. Eng. Theory Pract. 2013, 33, 971–980. [Google Scholar]
  93. Chuan-kun, L.; Chen, M.; Wang, Z.; Lu, T.; Sun, C. Network Design of Underground Logistics Channel Based on Simulated Annealing. J. Highw. Transp. Res. Dev. 2019, 36, 151–158. [Google Scholar]
  94. Hu, W.; Dong, J.; Hwang, B.-G.; Ren, R.; Chen, Z. Hybrid optimization procedures applying for two-echelon urban underground logistics network planning: A case study of Beijing. Comput. Ind. Eng. 2020, 144, 106452. [Google Scholar] [CrossRef]
  95. Hu, W.; Dong, J.; Hwang, B.-G.; Ren, R.; Chen, Z. Network planning of urban underground logistics system with hub-and-spoke layout: Two phase cluster-based approach. Eng. Constr. Archit. Manag. 2020, 27, 2079–2105. [Google Scholar] [CrossRef]
  96. Hu, W.; Dong, J.; Ren, R.; Chen, Z. Layout Planning of Metro-based Underground Logistics System Network Considering Fuzzy Uncertainties. J. Syst. Simul. 2021, 1–16. [Google Scholar] [CrossRef]
  97. Ren, R.; Hu, W.; Dong, J.; Chen, Z. Optimization of Urban Metro-based Underground Logistics System Network with Hub-and-Spoke Layout. J. Syst. Simul. 2021, 33, 1699–1712. [Google Scholar]
  98. Hu, Y.; Zhang, K.; Yang, J.; Wu, Y. Application of Hierarchical Facility Location-Routing Problem with Optimization of an Underground Logistic System: A Case Study in China. Math. Probl. Eng. 2018, 2018, 7235048. [Google Scholar] [CrossRef]
  99. Zhao, L.; Zhou, J.; Li, H.; Yang, P.; Zhou, L. Optimizing the design of an intra-city metro logistics system based on a hub-and-spoke network model. Tunn. Undergr. Space Technol. 2021, 116, 104086. [Google Scholar] [CrossRef]
  100. Ji, Y.; Zheng, Y.; Zhao, J.; Shen, Y.; Du, Y. A Multimodal Passenger-and-Package Sharing Network for Urban Logistics. J. Adv. Transp. 2020, 2020, 6039032. [Google Scholar] [CrossRef]
  101. Gao, Y.; Chang, D.; Fang, T.; Luo, T. Design and optimization of parking lot in an underground container logistics system. Comput. Ind. Eng. 2019, 130, 327–337. [Google Scholar] [CrossRef]
  102. Pan, Y.; Liang, C.; Dong, L. A two-stage model for an urban underground container transportation plan problem. Comput. Ind. Eng. 2019, 138, 106113. [Google Scholar] [CrossRef]
  103. Liu, A.; Sun, W.; Deng, X.; Ren, L. On the Competitive Transportation Distribution Problem Between the Ground and Underground Logistics System. J. Syst. Sci. Math. Sci. 2020, 40, 1967–1983. [Google Scholar]
  104. Chen, Y.C.; Liu, Y.; Guo, D.J.; Chen, Z.L.; Li, X. Freight Transit Assignments for an Integrated Network of Road Transportation and Underground Logistics Systems. J. Pipeline Syst. Eng. Pract. 2020, 11, 04020014. [Google Scholar] [CrossRef]
  105. Han, S. Research into the layout of underground logistics system for E-commerce. In Proceedings of the 2nd IEEE International Conference on Information Management and Engineering, ICIME 2010, Chengdu, China, 16–18 April 2010; pp. 403–406. [Google Scholar]
  106. Zhu, D. The 14th China Postgraduate mathematical modeling competition. Math. Pract. Theory 2018, 48, 1–36. [Google Scholar]
  107. Zhan, J.; Li, T. Comparative research on intelligent optimization algorithm of urban underground logistics system. ICIC Express Lett. 2018, 12, 1041–1046. [Google Scholar]
  108. Crainic, T.G.; Perboli, G.; Rosano, M. Simulation of intermodal freight transportation systems: A taxonomy. Eur. J. Oper. Res. 2017, 270, 401–418. [Google Scholar] [CrossRef]
  109. Masson, R.; Trentini, A.; Lehuédé, F.; Malhéné, N.; Péton, O.; Tlahig, H. Optimization of a city logistics transportation system with mixed passengers and goods. EURO J. Transp. Logist. 2017, 6, 81–109. [Google Scholar] [CrossRef] [Green Version]
  110. Mourad, A.; Puchinger, J.; Van Woensel, T. Integrating autonomous delivery service into a passenger transportation system. Int. J. Prod. Res. 2021, 59, 2116–2139. [Google Scholar] [CrossRef] [Green Version]
  111. Ghilas, V.; Cordeau, J.F.; Demir, E.; Van Woensel, T. Branch-and-Price for the Pickup and Delivery Problem with Time Windows and Scheduled Lines. Transp. Sci. 2018, 52, 1191–1210. [Google Scholar] [CrossRef] [Green Version]
  112. Ghilas, V.; Demir, E.; Van Woensel, T. A scenario-based planning for the pickup and delivery problem with time windows, scheduled lines and stochastic demands. Transp. Res. Part B-Methodol. 2016, 91, 34–51. [Google Scholar] [CrossRef]
  113. Ghilas, V.; Demir, E.; Van Woensel, T. The pickup and delivery problem with time windows and scheduled lines. INFOR 2016, 54, 147–167. [Google Scholar] [CrossRef] [Green Version]
  114. Ursavas, E.; Zhua, S.X. Integrated passenger and freight train planning on shared-use corridors. Transp. Sci. 2018, 52, 1376–1390. [Google Scholar] [CrossRef]
  115. Shih, M.-C.; Dick, C.T.; Barkan, C.P.L. Impact of passenger train capacity and level of service on shared rail corridors with multiple types of freight trains. Transp. Res. Rec. 2015, 2475, 63–71. [Google Scholar] [CrossRef] [Green Version]
  116. Sogin, S.; Barkan, C.P.L.; Saat, M.R. Simulating the Effects of Higher Speed Passenger Trains in Single Track Freight Networks. In Proceedings of the Winter Simulation Conference, WSC 2011, Phoenix, AZ, USA, 11–14 December 2011; pp. 3679–3687. [Google Scholar]
  117. Jiang, X.; Tian, C.; Zhang, Y.; Wang, Y. Study on the train speed matching of 200~250 km·h−1 mixed passenger and freight railway. Zhongguo Tiedao Kexue/China Railw. Sci. 2012, 33 (Suppl. S1), 111–116. [Google Scholar]
  118. Talebian, A.; Zou, B. Integrated modeling of high performance passenger and freight train planning on shared-use corridors in the US. Transp. Res. Part B Methodol. 2015, 82, 114–140. [Google Scholar] [CrossRef]
  119. Nishizawa, H.; Asakura, K.; Nakagawa, T. Development of the series M250 DC freight electric multiple-unit train (Super Rail Cargo). Jpn. Railw. Eng. 2006, 156, 26–31. [Google Scholar]
  120. Schumann, T.; Moensters, M.; Meirich, C.; Jaeger, B. NGT CARGO—Concept for a High-Speed Freight Train in Europe, WIT Transactions on the Built Environment; WIT Press: Southampton, UK, 2018; pp. 555–565. [Google Scholar]
  121. Lee, A. Driverless freight train. Engineer 2003, 292, 8. [Google Scholar]
  122. Cui, J.Q.; Nelson, J.D. Underground transport: An overview. Tunn. Undergr. Space Technol. 2019, 87, 122–126. [Google Scholar] [CrossRef]
Sustainability 14 03179 g001 550
Figure 1. Systematic protocol of reviewing literature.
Figure 1. Systematic protocol of reviewing literature.
Sustainability 14 03179 g001
Sustainability 14 03179 g002 550
Figure 2. Flowchart of data collection.
Figure 2. Flowchart of data collection.
Sustainability 14 03179 g002
Sustainability 14 03179 g003 550
Figure 3. Rank of journals with high impact factors.
Figure 3. Rank of journals with high impact factors.
Sustainability 14 03179 g003
Sustainability 14 03179 g004 550
Figure 4. Chronological distribution of indexed documents.
Figure 4. Chronological distribution of indexed documents.
Sustainability 14 03179 g004
Sustainability 14 03179 g005 550
Figure 5. Experiment 1: Analysis of regional collaboration network.
Figure 5. Experiment 1: Analysis of regional collaboration network.
Sustainability 14 03179 g005
Sustainability 14 03179 g006 550
Figure 6. Experiment 2: Analysis of co-author network.
Figure 6. Experiment 2: Analysis of co-author network.
Sustainability 14 03179 g006
Sustainability 14 03179 g007 550
Figure 7. Experiment 3: Analysis of Author co-citation network. (a) Experiment 3(a); (b) Experiment 3(b).
Figure 7. Experiment 3: Analysis of Author co-citation network. (a) Experiment 3(a); (b) Experiment 3(b).
Sustainability 14 03179 g007
Sustainability 14 03179 g008 550
Figure 8. Experiment 4: Time zone distribution analysis of co-occurrence keywords.
Figure 8. Experiment 4: Time zone distribution analysis of co-occurrence keywords.
Sustainability 14 03179 g008
Sustainability 14 03179 g009 550
Figure 9. Experiment 5: Timeline clustering analysis of co-occurrence keywords.
Figure 9. Experiment 5: Timeline clustering analysis of co-occurrence keywords.
Sustainability 14 03179 g009
Sustainability 14 03179 g010 550
Figure 10. Evolution route of underground transport research.
Figure 10. Evolution route of underground transport research.
Sustainability 14 03179 g010
Sustainability 14 03179 g011 550
Figure 11. The knowledge taxonomy structure.
Figure 11. The knowledge taxonomy structure.
Sustainability 14 03179 g011
Sustainability 14 03179 g012 550
Figure 12. Distribution according to research objective.
Figure 12. Distribution according to research objective.
Sustainability 14 03179 g012
Table
Table 1. References unrelated to the research topic.
Table 1. References unrelated to the research topic.
Mechanical Structure 329Transportation Organization 169
Deleted TopicsCountDeleted TopicsCount
Freight train dynamics96Optimization of freight train operation77
Energy saving of freight train25Freight trains formation and dispatching54
Automatic control of freight train20Train operation safety10
Freight train derailment and fault analysis36Transportation efficiency and cost8
Train braking control45Freight forecast5
Train load4Separation of passenger and freight3
Freight train Speed11Multi−transport5
Automatic detection of freight train52Train delay3
Train noise and vibration40Freight yard operation4
Other unrelated topics 61
Driver sleep2Freight train location and recognition4
Retraction2Transportation of dangerous goods2
Literature unrelated to freight transport23Related to freight transport and not easy to classify28
Table
Table 2. Basic information of top 3 influential academic conferences.
Table 2. Basic information of top 3 influential academic conferences.
ConferenceOfficial WebsiteCount
International Society on Underground Freight Transportation (ISUFT)www.isuft.org
(accessed on 1 January 2022)		15
The American Society of Civil Engineers (ASCE) Pipelines Conferencewww.asce.org
(accessed on 1 January 2022)		7
Associated Research Centers for Urban Underground Space (ACUUS)www.acuus.org
(accessed on 1 January 2022)		5
Note: ISUFT proceedings were collected from the references of our literature review portfolio.
Table
Table 3. Visual experiment parameter setting.
Table 3. Visual experiment parameter setting.
ParameterParameter SettingExperiment
Time SlicingFrom 1996 JAN To 2021 DEC # Years Per Slice 1All Experiments
Text SourceSelect: Title, Abstract, Author, Keywords (DE), Keywords Plus (ID)
Node TypeCorrespondingly select: Country, Author, Cite Author, Keyword
LinksStrength: Cosine # Scope: Within Slices
Selection CriteriaSelect top 10% of most cited or occurred items from each slice3, 4, 5, 6
Select top 100% of most cited or occurred items from each slice1, 2
PruningPathfinder # Pruning the merged network1, 2, 3(a)
Minimum Spanning Tree # Pruning the merged network3(b), 4, 5, 6
Note: Keywords (DE) (keywords given by the author); Keywords Plus (ID) (database additional keywords).
Table
Table 4. Distribution of research institutions in main research countries.
Table 4. Distribution of research institutions in main research countries.
CountryTotal of Inst.Num. of Academic Inst.Num. of Application Co.Percentage of Application Co.Total Freq.
China6253914.52%176
Germany127541.67%16
USA97222.22%33
Singapore65116.67%11
Netherlands64233.33%23
Canada5500.00%7
UK4400.00%9
Belgium1100.00%5
Table
Table 5. Lead author team.
Table 5. Lead author team.
NO.ScholarInstitutionCountCountry
1Qihu QianArmy Engineering University of PLA19China
Zhilong Cheng19China
DongJun Guo8China
2Zhilong ChengArmy Engineering University of PLA19China
JianJun DongNanjing Tech University15China
Rui Ren13China
B HWANGNational University of Singapore8China
WanJie HuNanjing Tech University/Beijing Tech University8China
3S MohsenUniversity of Texas at Austin16USA
M NAJAFI15USA
Sirwan Shahooei7USA
Siamak Ardekani7USA
Table
Table 6. Rank of top 10 highest cited authors.
Table 6. Rank of top 10 highest cited authors.
ScholarInstitutionCountCountry
Visser JgsnDelft University of Technology35Netherlands
Liu HenryFreight Pipeline Company34USA
QiHu QianChinese Academy of Engineering
Army Engineering University of PLA		31China
Egbunike ONCardiff University26UK
Najafi MohammadUniversity of Texas at Austin26USA
JianJun DongNanjing Tech University23China
Stein DietrichWG Pipeline Construction Maintenance
Ruhr-University Bochum, Bochum		23Germany
Jun KikutaDocon, Atsubetsu-ku, Sapporo21Japan
ZhiLong ChenArmy Engineering University of PLA20China
Eiichi TaniguchiKyoto University17Japan
Table
Table 7. Categories of keyword clusters.
Table 7. Categories of keyword clusters.
Topic GroupCluster IDSizeSilhouetteMean YearCluster Label (LLR)
G1: Urban underground logistics system
and planing		0150.8892014city logistics
1140.9452006structural design
1330.9692017environmental technology
15112014underground distribution center
4100.9832010logistics system
G2: Design and implementation of transportation organization research1190.7932008pipeline
2180.9192009railroad transportation
880.982009subway distribution
920.9852010public transportation
1060.9862014port
14112014multi-commodity
G3: Network structure and operation optimization3110.9092004strategic planning
5180.7452013dynamic programming
680.9792012Steiner minimum tree
7140.8382009cost accounting
12212014simulation
1610.9362002transportation: models networks
Table
Table 8. Experiment 6: Analysis of strongest citation bursts terms (top 20).
Table 8. Experiment 6: Analysis of strongest citation bursts terms (top 20).
TermsStrengthDurationTermsStrengthDuration
underground freight transport4.98212016–2019propulsion system2.48662019–2019
underground logistics system4.3092019–2021capacity limitation2.38152020–2021
freight trains3.56022015–2015intermodal terminals2.37122018–2019
passenger trains3.44852014–2015real-world simulation2.34042019–2021
freight3.04262015–2017mathematical model2.21972013–2016
city logistics2.98972020–2021urban freight distribution2.18042017–2018
civil engineers2.96382018–2019sensitivity analysis1.98362020–2021
auto freight transport system2.76772018–2019new mode1.94942019–2021
carrying freight2.59332016–2017underground space1.94562016–2016
underground pipelines2.54842016–2017engineering geology1.92562013–2013
Table
Table 9. Concept and main parameters of locomotive in underground logistics system.
Table 9. Concept and main parameters of locomotive in underground logistics system.
SystemNationPowerCargo unitVehicleSpeed (km/h)References
DMTJapanHybrid
vehicle		—TruckCity:45
Intercity:100		[59]
FSSUSAElectric45ft ContainerLocomotive105[60]
MUFPUKElectricTray 1 × 1.2 × 1.8Bulk21[61]
CargoCapGermanyElectric MaglevEuropean tray 0.8 × 1.2 × 1.05Capsule car36[62]
HyperloopUSAElectric MaglevContainer, PalletLarge cabin1126[63]
CSTSwitzerlandElectricSmall packageSuspended conveyor60[64]
TrayAGV30
OLS-ASHNetherlandsElectricTrayAGV20–40[65]
Note: AGV (automated guided vehicle).
Table
Table 11. Cases of network planning and design.
Table 11. Cases of network planning and design.
ReferencesProblemModeModelSolutionBackgroundFactorObjectiveNetwork Classification
[87]FLPULSSet covering model.
0–1 MIP		Bat-inspired algorithmShanghai, ChinaDemand, construction and fixed and distribution costsMinimize number of logistics nodes and associated costsLogistics center
Distribution center.
[36]FLPMULSComplex network
P-median model		TOPSIS,
AHP		Shanghai, ChinaNode importance index, demand, distanceMinimize distance between the demand and the metro freight hubMetro freight hub
[88]FLPMULSP-median modelVoronoi diagram,
Shortest pathalgorithm		Nanjing,
China		Infrastructure cost, distance, capacity limit, passenger impact cost, logistics costMinimize the transport costsOne Level
[89]FLPULSSet covering and Weighted set covering modelIterative evolution—Congestion index, weighted distance,
freight volume		Minimize the number of facilitiesTow Level
[90]FLPULSISM——Geology, freight flow, traffic impedance, service level, cost and other 27 factorsAnalyze the relationship between influencing factors—
[91]FLPULSBi-level optimization modelHeuristic algorithm—Operating and fixed and transport cost, demand, capacity limitUpper level: minimize logistics cost
Lower level: minimize the cost per customer		One Level
[86]FLPUELSMulti-objective modelIterative evolutionShanghai, ChinaCongestion index, rescue distance, rescue time, special nodes, covered areasMinimize rescue time and station construction costOne Level
[92]RPULSSteiner minimal trees modelPGSA——Algorithm comparisonOne Level
[93]RPULSMIPSA—Cost, capacity limit, congestion indexMinimize costTow Level
[28]RPULSEvaluating Model
Dynamic programming		Uncertainty graph
Improved SA		Nanjing, ChinaCost, uncertainty indexMinimize total path lengthOne Level
[94]LRPULSBi-objective linear MIP
Linear MIP		GA-MPSO
Floyd–Warshall		Beijing, ChinaPath construction and transport and node activated cost, capacity limit, path utilizationMinimize costs
Maximize system utilization		Distribution centers
Ground terminal
[95]LRPULSMIPGA-FCM, DFS-FCM; DANanjing, ChinaMinimize costs
[37]LAPMULSEvaluating model
MIP		E-TOPSIS,
Heuristic algorithm		Nanjing, ChinaService capacity, freight flow, regional accessibility, distanceMinimize number of facilities
Minimize costs		Metro freight hub
Ground terminal
[96]LARPMULSFuzzy stochastic programming
MIP		Binary chaotic GA
Exact algorithm		—Demand, cost, capacity limit,Minimize construction and operation cost
Maximize system utilization
[97]LARPMULSEntropy TOPSIS model
MIP		Exact algorithm
Immune clonal selection algorithm
Floyd–Warshall		Nanjing, ChinaSingle freight flow, order priority, capacity limit, cost regional accessibilityMinimize set coverage
Minimize construction and operation cost		Metro freight hub
Ground terminal
[98]LRPULSMulti-objective model.GAChinaCapacity limits, price,
node construction and pipeline construction and transport and transfer cost.		Minimize costDisposal center
Transfer station
[29]LRPULSSet covering modelMIPFuzzy clusteringNanjing, ChinaCapacity limit, congestion and construction and transport costMinimize number of facilities
Minimize cost		Tow Level
[99]LRPMULSE-TOPSIS
Max-covering model		Greedy randomized adaptive search
TS		Shanghai, ChinaCapacity limit, distanceMaximize coverage
Minimize distribution distance		Tow Level
[100]FLPTCPMULSMIP, Multi-assignment P-hub median and P-hub covering problemModified GAShanghai, ChinaDemand, capacity limit,
construction and operating costs		Minimize costGround terminal
[39]TCPMULSMIPModified GA—Metro surplus capacity, truck capacity, maximum driving distance, customer service time windowMinimize distribution distanceOne Level
[101]TCPUCTSNonlinear MIPSimulationShanghai, ChinaWaiting and arrival time,
capacity limit, lifting cost		Minimize total cost of the crane and waiting cost of vehicle queuingOne Level
[102]TCPUCTS0–1 planning modelSimulationShanghai, ChinaInvestment and operating cost, timeMinimize costOne Level
[45]FLPTCPUCTSRobust optimization modelSimulationShanghai, ChinaCapacity limit, construction and transportation and management cost, uncertain container volumeMinimize costOne Level
[103]CAPULSNonlinear MIP
Baumol–Wolfe model		Approximate iterative algorithm—Transport and loss cost, pipeline capacity, node service capacityMinimize costUnderground hub
Ground terminal
[104]CAPULSUtility theory method
Stochastic assignment model		K-shortest path routing algorithm—Travel speed, capacity limit of lines and nodes, departure frequencyMinimize generalized costOne Level
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, H.; Lv, Y.; Guo, J. New Development Direction of Underground Logistics from the Perspective of Public Transport: A Systematic Review Based on Scientometrics. Sustainability 2022, 14, 3179. https://doi.org/10.3390/su14063179

AMA Style

Zhang H, Lv Y, Guo J. New Development Direction of Underground Logistics from the Perspective of Public Transport: A Systematic Review Based on Scientometrics. Sustainability. 2022; 14(6):3179. https://doi.org/10.3390/su14063179

Chicago/Turabian Style

Zhang, Han, Yongbo Lv, and Jianwei Guo. 2022. "New Development Direction of Underground Logistics from the Perspective of Public Transport: A Systematic Review Based on Scientometrics" Sustainability 14, no. 6: 3179. https://doi.org/10.3390/su14063179

APA Style

Zhang, H., Lv, Y., & Guo, J. (2022). New Development Direction of Underground Logistics from the Perspective of Public Transport: A Systematic Review Based on Scientometrics. Sustainability, 14(6), 3179. https://doi.org/10.3390/su14063179

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
