The Phase Diagram of the API Benzocaine and Its Highly Persistent, Metastable Crystalline Polymorphs
Abstract

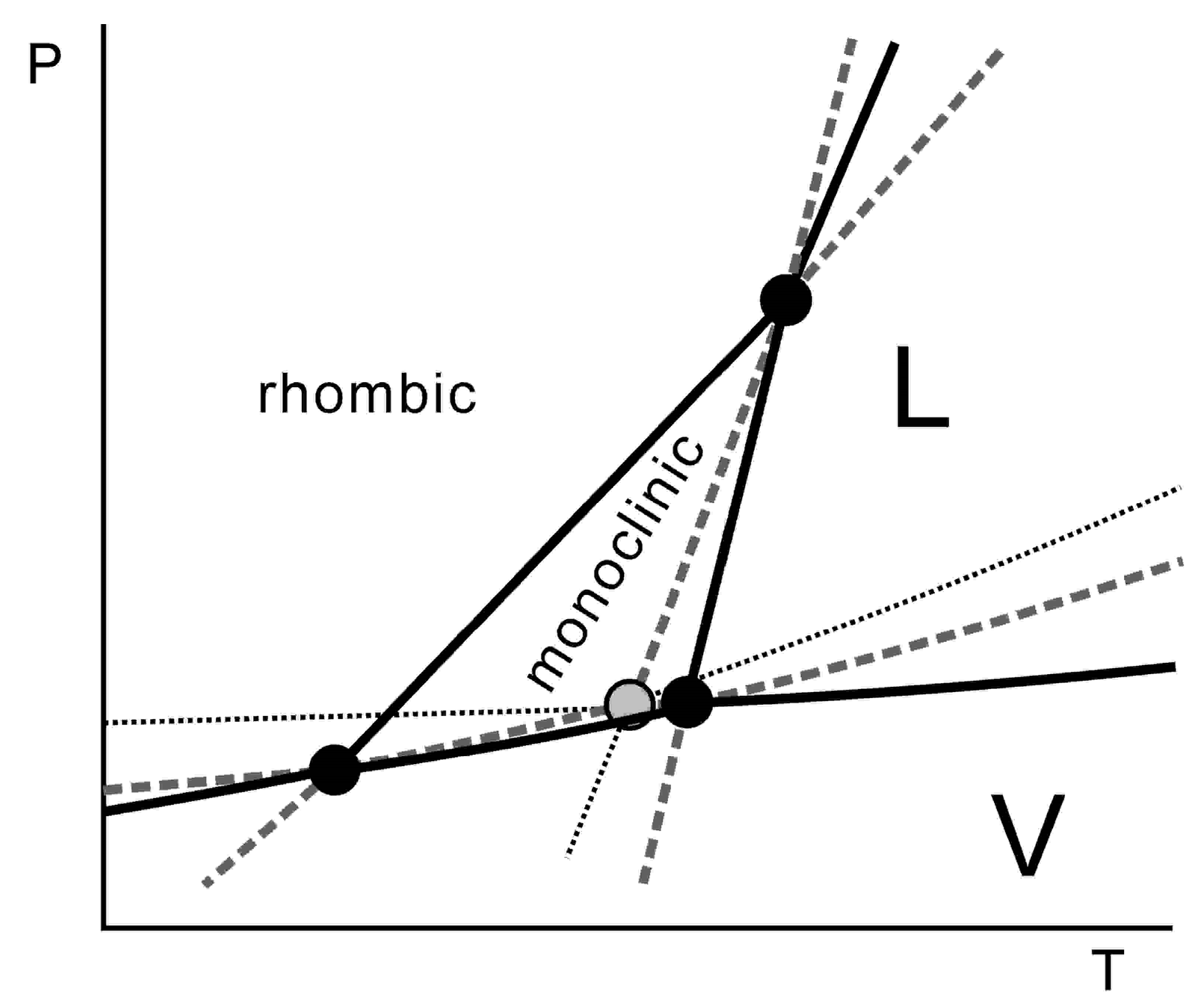

:1. Introduction
2. Experimental

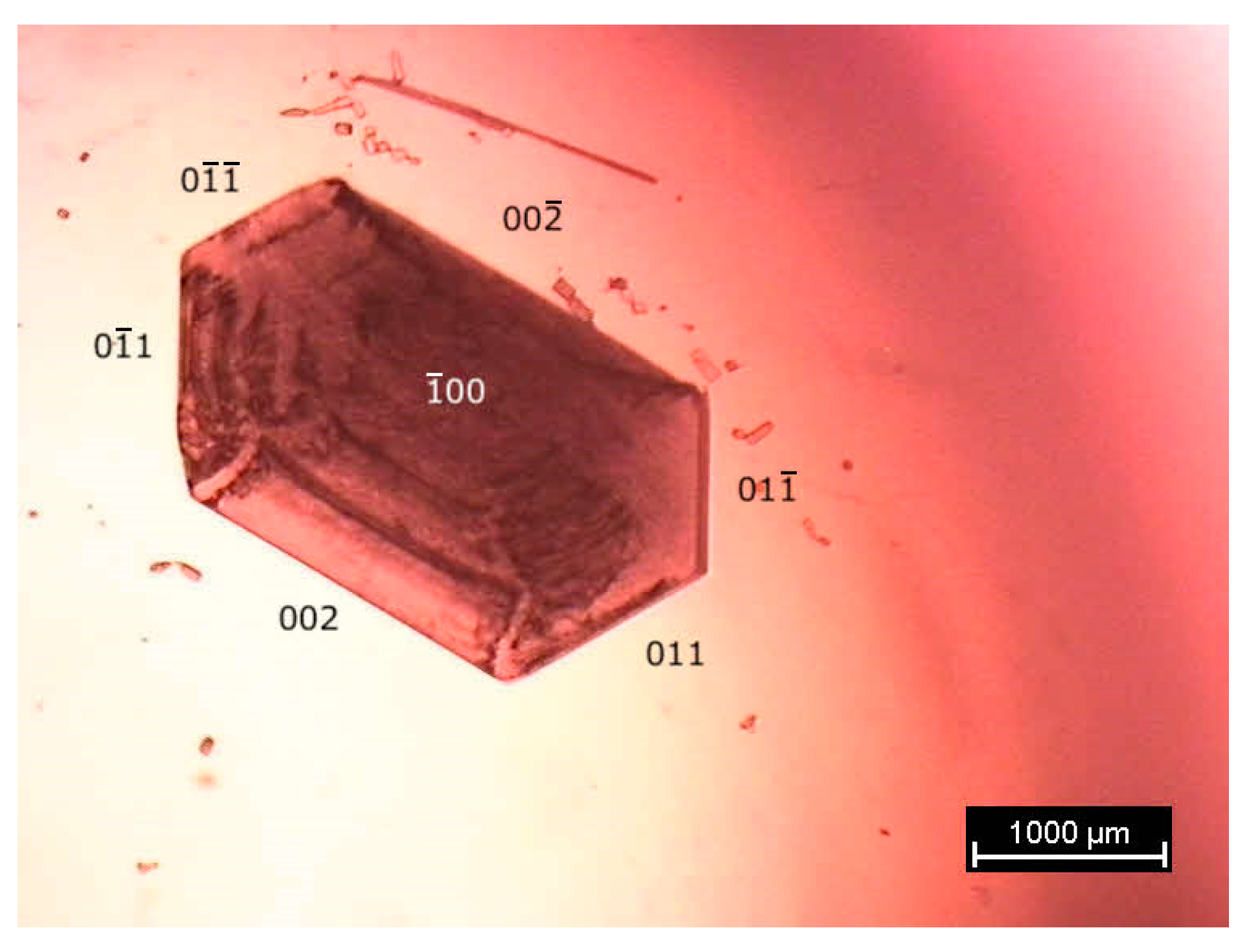

2.1. Materials
2.2. Adiabatic Calorimetry
2.3. Differential Scanning Calorimetry
2.4. Powder X-ray Diffraction
2.5. High-Pressure Differential Thermal Analysis
3. Results

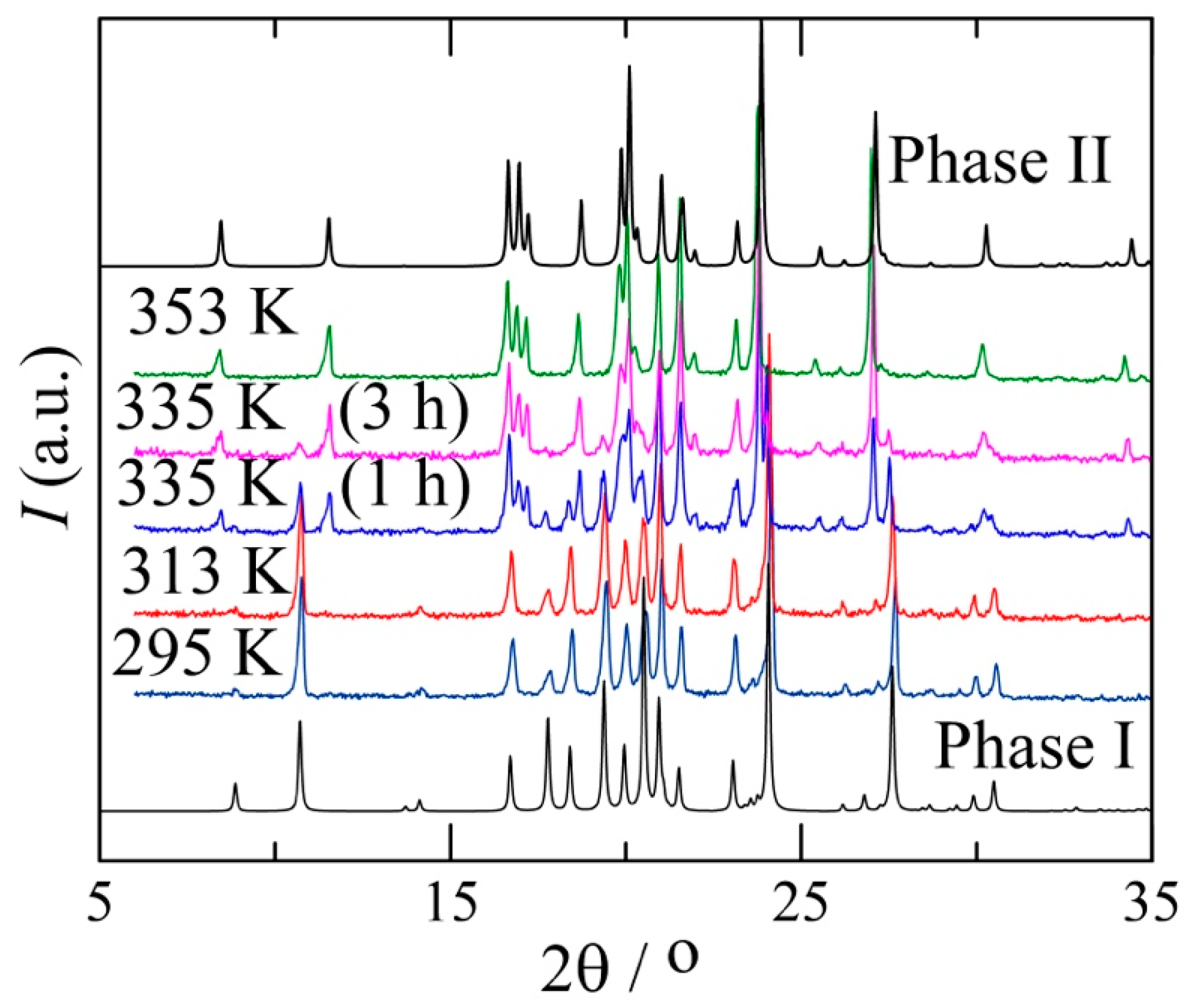

3.1. The I→ II Transformation

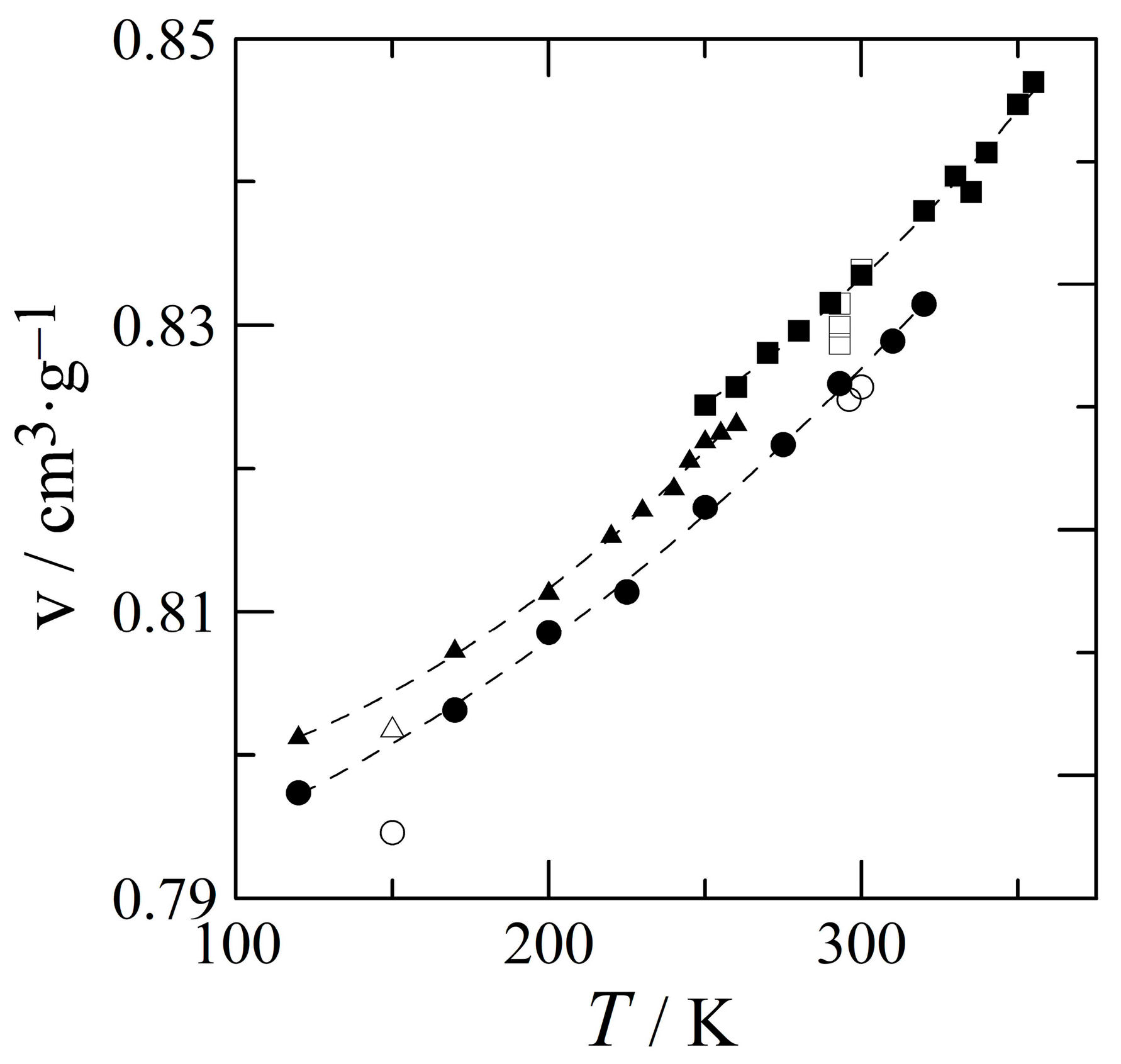

3.2. The Thermal Expansion of Benzocaine

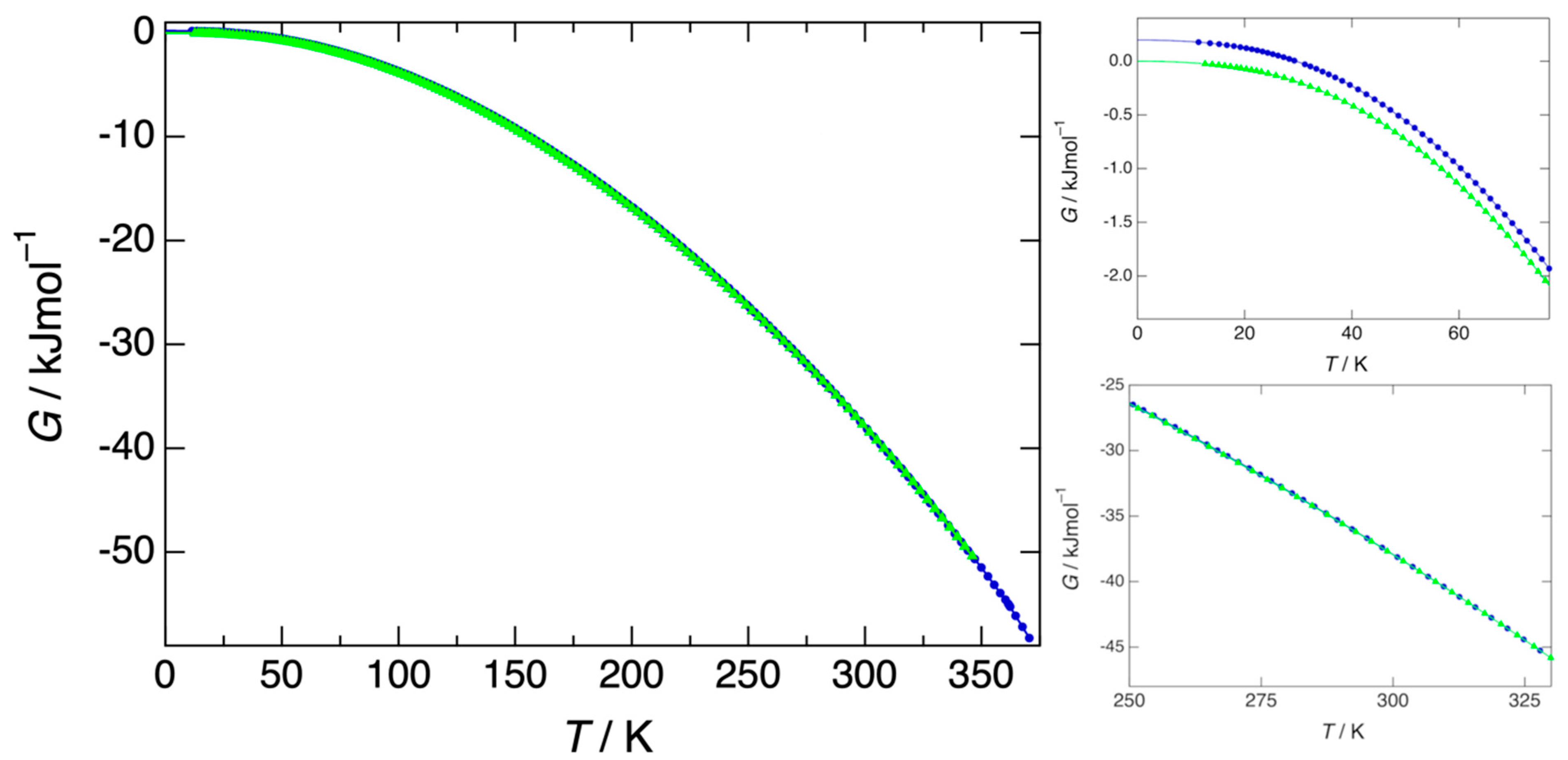

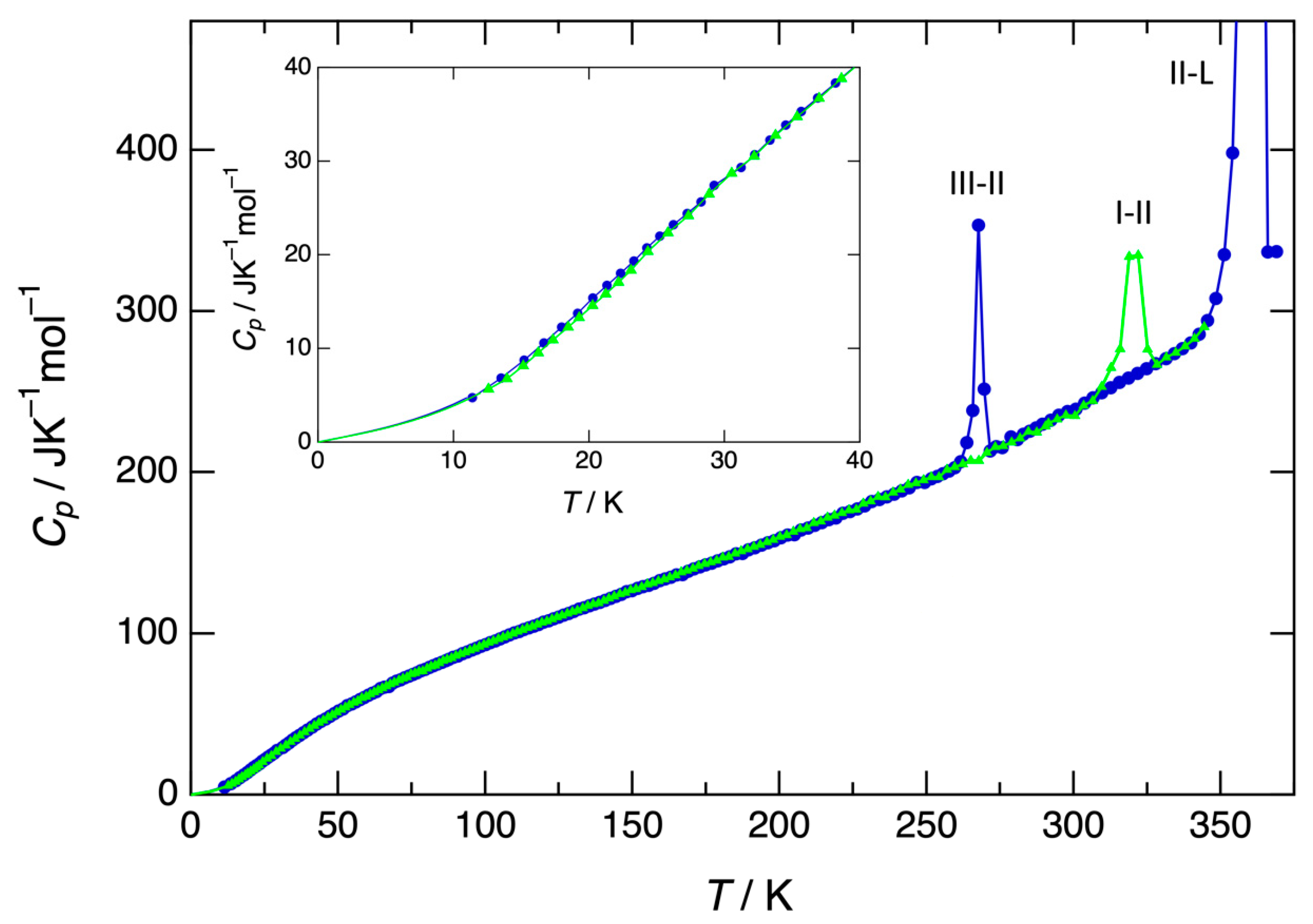

3.3. Heat Capacity, Entropy, Enthalpy, and Gibbs Free Energy Obtained via Adiabatic Calorimetry

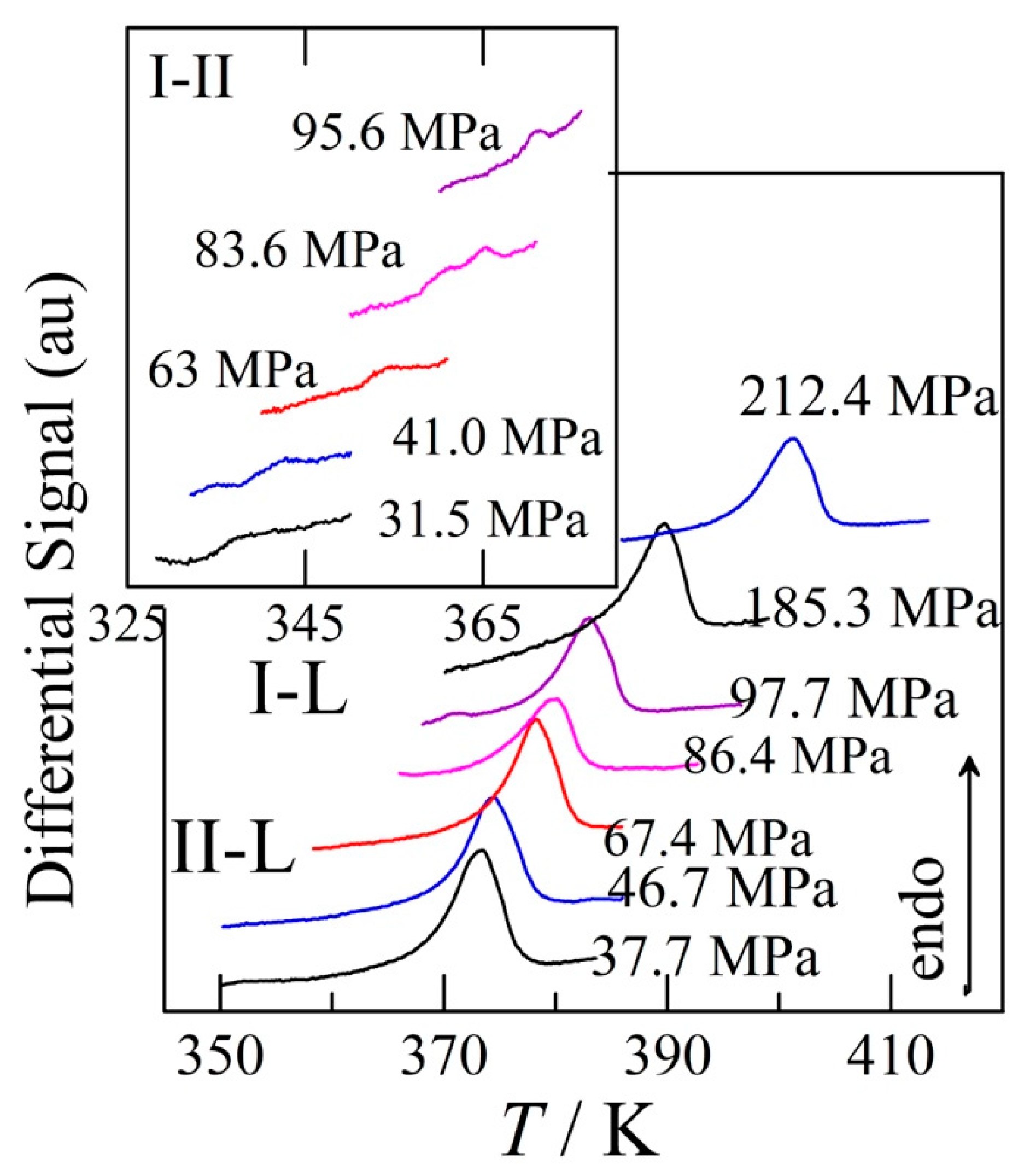

3.4. Transition Temperatures Obtained under Pressure
4. Discussion
4.1. Stability of Benzocaine under Ordinary Pressure: Adiabatic versus DSC
4.2. Construction of the Pressure–Temperature Phase Diagram
4.2.1. High-Pressure Data and Its Triple Points
4.2.2. The Positions of the I–III and the III–L Equilibria
4.2.3. The Pressure–Temperature Phase Diagram
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Gana, I.; Barrio, M.; Do, B.; Tamarit, J.-L.; Céolin, R.; Rietveld, I.B. Benzocaine polymorphism: Pressure-temperature phase diagram involving forms II and III. Int. J. Pharm. 2013, 456, 480–488. [Google Scholar] [CrossRef] [PubMed]
- Lehmann, O. Molekularphysik; Verlag von Wilhelm Engelmann: Leipzig, Germany, 1888; Volume 1. [Google Scholar]
- Nagasako, N. On enantiotropy and monotropy. I. Bull. Chem. Soc. Jpn. 1928, 3, 90–95. [Google Scholar] [CrossRef]
- Bakhuis Roozeboom, H.W. Die Heterogenen Gleichgewichte vom Standpunkte der Phasenlehre. Erstes Heft: Die Phasenlehre—Systeme aus einer Komponente; Friedrich Vieweg und Sohn: Braunschweig, Germany, 1901; Volume 1. [Google Scholar]
- Ceolin, R.; Rietveld, I.-B. X-ray crystallography, an essential tool for the determination of thermodynamic relationships between crystalline polymorphs. Ann. Pharm. Fr. 2016, 74, 12–20. [Google Scholar] [CrossRef] [PubMed]
- Reilly, A.M.; Cooper, R.I.; Adjiman, C.S.; Bhattacharya, S.; Boese, A.D.; Brandenburg, J.G.; Bygrave, P.J.; Bylsma, R.; Campbell, J.E.; Car, R.; et al. Report on the sixth blind test of organic crystal structure prediction methods. Acta Crystallogr. B 2016, 72, 439–459. [Google Scholar] [CrossRef] [PubMed]
- Addicoat, M.; Adjiman, C.S.; Arhangelskis, M.; Beran, G.J.O.; Bowskill, D.; Brandenburg, J.G.; Braun, D.E.; Burger, V.; Cole, J.; Cruz-Cabeza, A.J.; et al. Crystal structure evaluation: Calculating relative stabilities and other criteria: General discussion. Faraday Discuss. 2018, 211, 325–381. [Google Scholar] [CrossRef] [PubMed]
- Sun, G.; Liu, X.; Abramov, Y.A.; Nilsson Lill, S.O.; Chang, C.; Burger, V.; Broo, A. Current State-of-the-art In-house and Cloud-Based Applications of Virtual Polymorph Screening of Pharmaceutical Compounds: A Challenging Case of AZD1305. Cryst. Growth Des. 2021, 21, 1972–1983. [Google Scholar] [CrossRef]
- Neumann, M.A.; van de Streek, J.; Fabbiani, F.P.A.; Hidber, P.; Grassmann, O. Combined crystal structure prediction and high-pressure crystallization in rational pharmaceutical polymorph screening. Nat. Commun. 2015, 6, 7793–7799. [Google Scholar] [CrossRef]
- Baaklini, G.; Dupray, V.; Coquerel, G. Inhibition of the spontaneous polymorphic transition of pyrazinamide γ form at room temperature by co-spray drying with 1,3-dimethylurea. Int. J. Pharm. (Amst. Neth.) 2015, 479, 163–170. [Google Scholar] [CrossRef]
- Smets, M.M.H.; Baaklini, G.; Tijink, A.; Sweers, L.; Vossen, C.H.F.; Brandel, C.; Meekes, H.; Cuppen, H.M.; Coquerel, G. Inhibition of the Vapor-Mediated Phase Transition of the High Temperature Form of Pyrazinamide. Cryst. Growth Des. 2018, 18, 1109–1116. [Google Scholar] [CrossRef]
- Li, K.; Gbabode, G.; Barrio, M.; Tamarit, J.-L.; Vergé-Depré, M.; Robert, B.; Rietveld, I.B. The phase relationship between the pyrazinamide polymorphs α and γ. Int. J. Pharm. 2020, 580, 119230. [Google Scholar] [CrossRef]
- Li, K.; Gbabode, G.; Vergé-Depré, M.; Robert, B.; Barrio, M.; Itié, J.-P.; Tamarit, J.-L.; Rietveld, I.B. The pressure–temperature phase diagram of tetramorphic pyrazinamide. CrystEngComm 2022, 24, 5041–5051. [Google Scholar] [CrossRef]
- Patyk-Kazmierczak, E.; Kazmierczak, M. A new high-pressure benzocaine polymorph—Towards understanding the molecular aggregation in crystals of an important active pharmaceutical ingredient (API). Acta Crystallogr. B 2020, 76, 56–64. [Google Scholar] [CrossRef] [PubMed]
- Lynch, D.E.; McClenaghan, I. Monoclinic form of ethyl 4-aminobenzoate (benzocaine). Acta Crystallogr. E 2002, 58, O708–O709. [Google Scholar] [CrossRef]
- Chan, E.J.; Rae, A.D.; Welberry, T.R. On the polymorphism of benzocaine; a low-temperature structural phase transition for form (II). Acta Crystallogr. B 2009, 65, 509–515. [Google Scholar] [CrossRef] [PubMed]
- Chan, E.J.; Welberry, T.R. Precursor effects of the orthorhombic to monoclinic phase transition in benzocaine form (II) revealed by X-ray diffuse scattering. Acta Crystallogr. B 2010, 66, 260–270. [Google Scholar] [CrossRef] [PubMed]
- Patel, M.A.; AbouGhaly, M.H.H.; Chadwick, K. The discovery and investigation of a crystalline solid solution of an active pharmaceutical ingredient. Int. J. Pharm. 2017, 532, 166–176. [Google Scholar] [CrossRef] [PubMed]
- Baptista, A. Radiocrystallographic study of organic substances. III. Benzocaine. An. Acad. Bras. Cienc. 1968, 40, 67–70. [Google Scholar]
- Sinha, B.K.; Pattabhi, V. Crystal-Structure of Benzocaine-a Local-Anesthetic. P Indian -Chem Sci. 1987, 98, 229–234. [Google Scholar] [CrossRef]
- Rietveld, I.B.; Ceolin, R. Rotigotine: Unexpected Polymorphism with Predictable Overall Monotropic Behavior. J. Pharm. Sci. 2015, 104, 4117–4122. [Google Scholar] [CrossRef]
- Céolin, R.; Rietveld, I.B. The topological pressure-temperature phase diagram of ritonavir, an extraordinary case of crystalline dimorphism. Ann. Pharm. Fr. 2015, 73, 22–30. [Google Scholar] [CrossRef]
- Bauer, M.; Lacoulonche, F.; Ceolin, R.; Barrio, M.; Khichane, I.; Robert, B.; Tamarit, J.L.; Rietveld, I.B. On the dimorphism of prednisolone: The topological pressure-temperature phase diagram involving forms I and II. Int. J. Pharm. 2022, 624, 122047. [Google Scholar] [CrossRef] [PubMed]
- Tsukushi, I.; Yamamuro, O.; Sadanami, K.; Nishizawa, M.; Matsuo, T.; Takeda, K. Construction of a top-loading adiabatic calorimeter and enthalpy relaxation of glassy (1,3-propanediol)0.5(1,2-propanediamine)0.5. Rev. Sci. Instrum. 1998, 69, 179–184. [Google Scholar] [CrossRef]
- Roisnel, T.; Rodriguez-Carvajal, J. WinPLOTR: A Windows tool for powder diffraction pattern analysis. Mater. Sci. Forum 2001, 378–381, 118–123. [Google Scholar] [CrossRef]
- Coelho, A.A. Indexing of powder diffracton patterns by iterative use of singular value decomposition. J. Appl. Crystallogr. 2003, 36, 86–95. [Google Scholar] [CrossRef]
- Coelho, A.A. TOPAS Academic version 4.1 (Computer Software); Coelho Software: Brisbane, Australia, 2007. [Google Scholar]
- Würflinger, A. Differential thermal-analysis under high-pressure IV. Low-temperature DTA of solid-solid and solid-liquid transitions of several hydrocarbons up to 3 kbar. Ber. Bunsen-Ges. Phys. Chem. 1975, 79, 1195–1201. [Google Scholar] [CrossRef]
- Yu, L. Inferring Thermodynamic Stability Relationship of Polymorphs from Melting Data. J. Pharm. Sci. 1995, 84, 966–974. [Google Scholar] [CrossRef] [PubMed]
- Riecke, E. Spezielle Fälle von Gleichgewichterscheinungen eines aus mehreren Phasen zusammengesetzten Systemes. Z. Phys. Chem. (Munich) 1890, 6, 411–429. [Google Scholar] [CrossRef]
- ACDLabs. Advanced Chemistry Development (ACD/Labs) Software, V11.02; ACD/Labs: Toronto, ON, Canada, 2012. [Google Scholar]
- Ceolin, R.; Allouchi, H.; Rietveld, I.B. On the dimorphism and the pressure-temperature state diagram of gestodene, a steroidal progestogen contraceptive. Ann Pharm Fr 2020, 78, 303–309. [Google Scholar] [CrossRef]
- Toscani, S.; de Oliveira, P.; Céolin, R. Phenomenology of polymorphism IV. The trimorphism of ferrocene and the overall metastability of its triclinic phase. J. Solid State Chem. 2002, 164, 131–137. [Google Scholar] [CrossRef]
- Toscani, S.; Céolin, R.; Ter Minassian, L.; Barrio, M.; Veglio, N.; Tamarit, J.-L.; Louër, D.; Rietveld, I.B. Stability hierarchy between piracetam forms I, II, and III from experimental pressure-temperature diagrams and topological inferences. Int. J. Pharm. 2016, 497, 96–105. [Google Scholar] [CrossRef]
- Nicolai, B.; Barrio, M.; Lloveras, P.; Polian, A.; Itie, J.P.; Tamarit, J.L.; Rietveld, I.B. A thermodynamically consistent phase diagram of a trimorphic pharmaceutical, l-tyrosine ethyl ester, based on limited experimental data. Phys Chem Chem Phys 2018, 20, 24074–24087. [Google Scholar] [CrossRef] [PubMed]
- Barrio, M.; de Oliveira, P.; Céolin, R.; Lopez, D.O.; Tamarit, J.L. Polymorphism of 2-methyl-2-chloropropane and 2,2-dimethylpropane (neopentane): Thermodynamic evidence for a high-pressure orientationally disordered rhombohedral phase through topological p-T diagrams. Chem. Mater. 2002, 14, 851–857. [Google Scholar] [CrossRef]
Code (QQQAXG) | Form | T/K | Space Group | a | b | c | β,γ b | Vcell/Å3 | vspec/cm3 g−1 | Ref. |
---|---|---|---|---|---|---|---|---|---|---|
02 | I | 150 | P21/c | 8.198 | 5.430 | 19.592 | 91.35 | 871.9 | 0.7946 | [15] |
04 | I | 300 | P21/c | 8.257 | 5.501 | 19.956 | 91.70 | 906.0 | 0.8257 | [16] |
06 | I | 300 | P21/c | 8.257 | 5.501 | 19.956 | 91.70 | 906.0 | 0.8257 | [17] |
09 | I | 296 | P21/c | 8.250 | 5.501 | 19.950 | 91.73 | 905.0 | 0.8248 | [18] |
00 | II | 293 | P212121 | 5.307 | 8.222 | 20.869 | 910.6 | 0.8299 | [19] | |
01 | II | 293 | P212121 | 5.302 | 8.217 | 20.870 | 909.2 | 0.8287 | [20] | |
05 | II | 300 | P212121 | 5.311 | 8.242 | 20.904 | 915.0 | 0.8339 | [16] | |
07 | II | 300 | P212121 | 5.311 | 8.242 | 20.904 | 915.0 | 0.8339 | [17] | |
10 | II | 293 | P212121 | 5.309 | 8.236 | 20.866 | 912.4 | 0.8315 | [18] | |
03 | III | 150 | P21 | 8.188 | 10.639 | 20.476 | 99.37 | 1759.9 | 0.8020 | [16] |
08 | III | 150 | P21 | 8.188 | 10.639 | 20.476 | 99.37 | 1759.9 | 0.8020 | [17] |
13 | IV a | 298 | P21/c | 6.305 | 5.184 | 24.940 | 96.25 | 810.3 | 0.7385 | [14] |
Peaks I → II | Fusion | ||||||
---|---|---|---|---|---|---|---|
Sample | Mass/mg | T/K | ∆H/J g−1 | T/K | ∆H/J g−1 | T/K | ∆H/J g−1 |
TA instruments | |||||||
1 | 3.84 | 316.8 | 0.67 | 340.2 | 1.09 | 362.6 | 132.9 |
2 | 3.11 | 341.6 | 0.89 | 362.6 | 137.5 | ||
3 | 7.89 | 317.0 | 1.70 | 362.8 | 127.4 | ||
4 | 1.66 | 340.0 | 1.86 | 362.6 | 129.9 | ||
5 | 2.42 | 342.4 | 2.63 | 362.6 | 134.4 | ||
6 | 3.70 | 318.0 | 0.03 | 344.2 | 1.54 | 362.6 | 133.5 |
7 | 4.44 | 317.6 | 0.50 | 339.2 | 0.61 | 362.6 | 131.0 |
Perkin Elmer | |||||||
8 | 2.46 | 321.0 | 0.76 | 339.6 | 2.24 | 359.8 | 129.9 |
9 | 2.08 | 316.2 | 0.62 | 332.6 | 1.97 | 361.4 | 127.5 |
10 | 2.15 | 336.2 | 0.90 | 361.8 | 131.5 | ||
11 | 2.42 | 343.8 | 1.67 | 361.4 | 133.1 |
Equilibrium | T /K | ∆S /J g−1 K−1 | ∆H /J g−1 |
---|---|---|---|
III-II | 266.0 | 0.010225 | 2.7194 |
I-II | 319.5 | 0.011938 | 3.8146 |
II-L | 361.0 | 0.369514 | 133.412 |
Triple Point | Temperature/K | Pressure/Pa | |
---|---|---|---|
I–II–III | 154.0 | −307 × 106 | metastable |
III–II–v | 267.8 | 0.012 | metastable |
I–II–v | 316.6 | 2.4 | stable |
I–III–L | 326.1 | −198 × 106 | supermetastable |
III–L–v | 358.3 | 78 | supermetastable |
I–L–v | 359.5 | 83 | metastable |
II–L–v | 362.0 | 95 | stable |
I–II–L | 380.1 | 120 × 106 | stable |
III–II–L | 428.9 | 435 × 106 | metastable |
I–III–v | 639.3 | 7.4 × 106 | supermetastable |
