Next Article in Journal
A New Predictive Model of Centerline Segregation in Continuous Cast Steel Slabs by Using Multivariate Adaptive Regression Splines Approach
Next Article in Special Issue
The Modification of a Tetrafunctional Epoxy and Its Curing Reaction
Previous Article in Journal
The Use of Quaternary Ammonium to Combat Dental Caries
Previous Article in Special Issue
The Microstructural Evolution and Mechanical Properties of Zr-Based Metallic Glass under Different Strain Rate Compressions
Open AccessArticle

Preparation of Advanced Carbon Anode Materials from Mesocarbon Microbeads for Use in High C-Rate Lithium Ion Batteries

1
Department of Chemical and Materials Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan
2
China Steel Chemical Corporation, Kaohsiung 80245, Taiwan
3
Department of Materials and Optoelectronic Science, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan
4
Department of Materials Engineering, Tatung University, Taipei 80104, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Wen-Hsiang Hsieh
Materials 2015, 8(6), 3550-3561; https://doi.org/10.3390/ma8063550
Received: 13 May 2015 / Revised: 1 June 2015 / Accepted: 3 June 2015 / Published: 17 June 2015
(This article belongs to the Special Issue Selected Papers from ICETI2014)

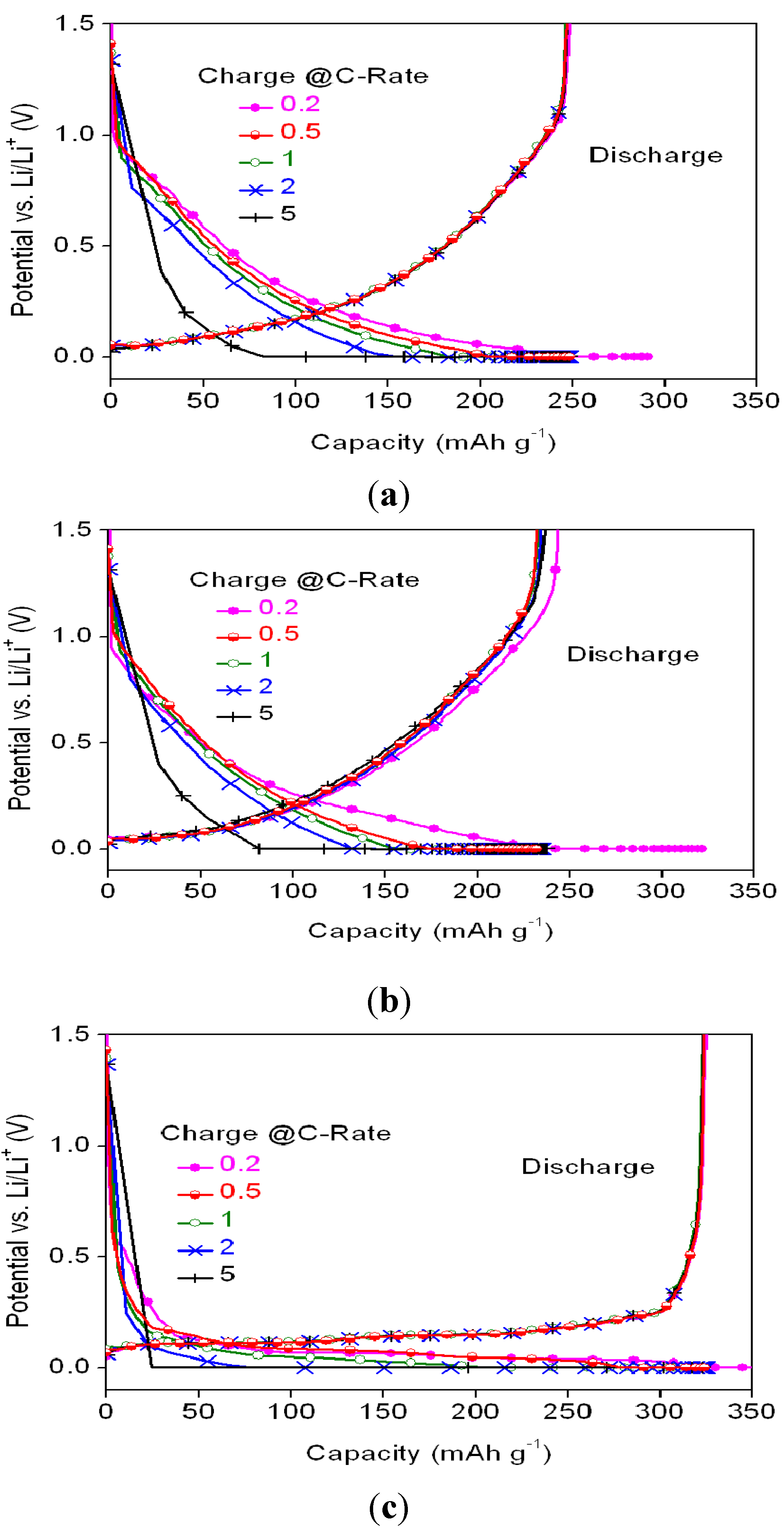

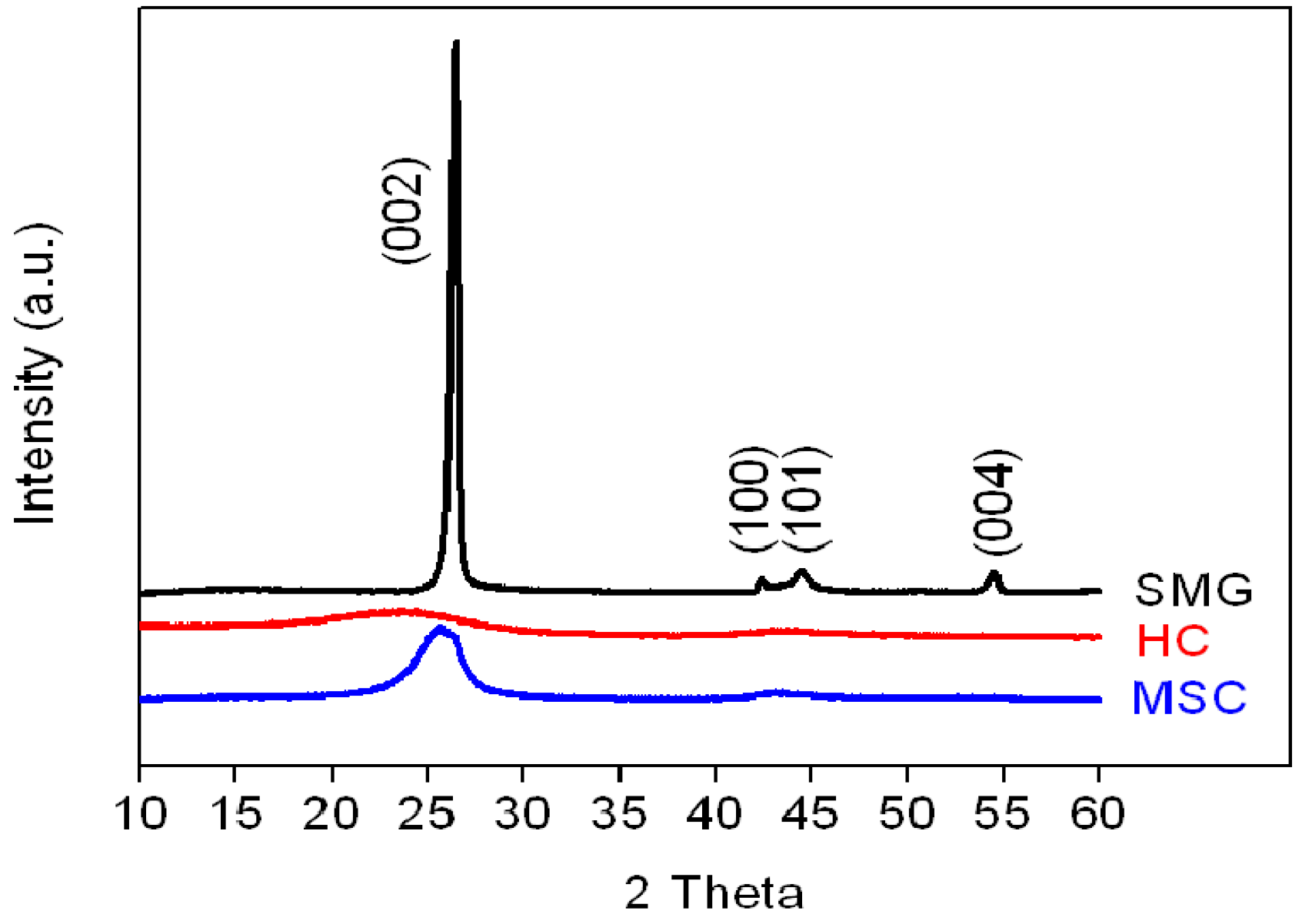

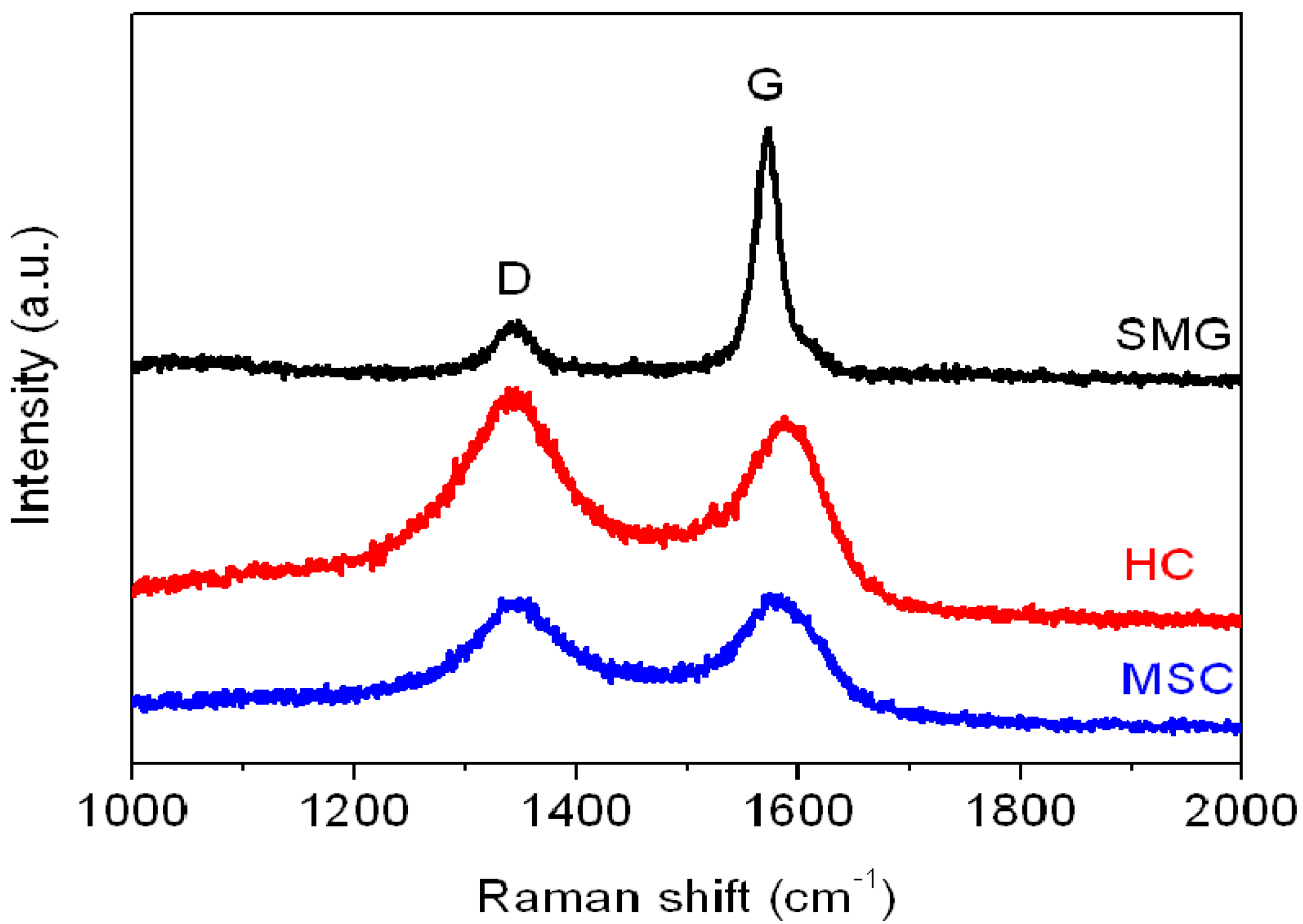

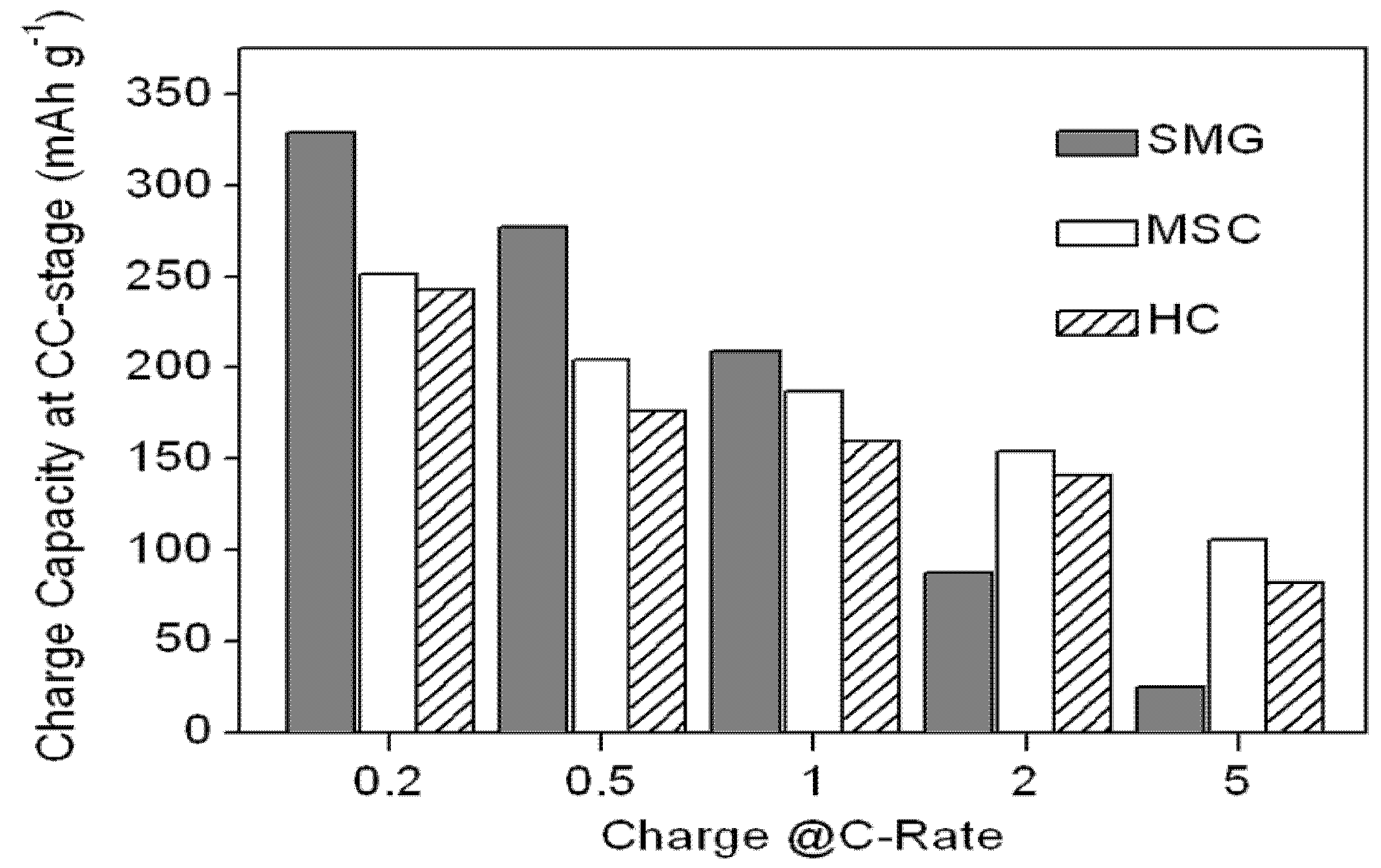

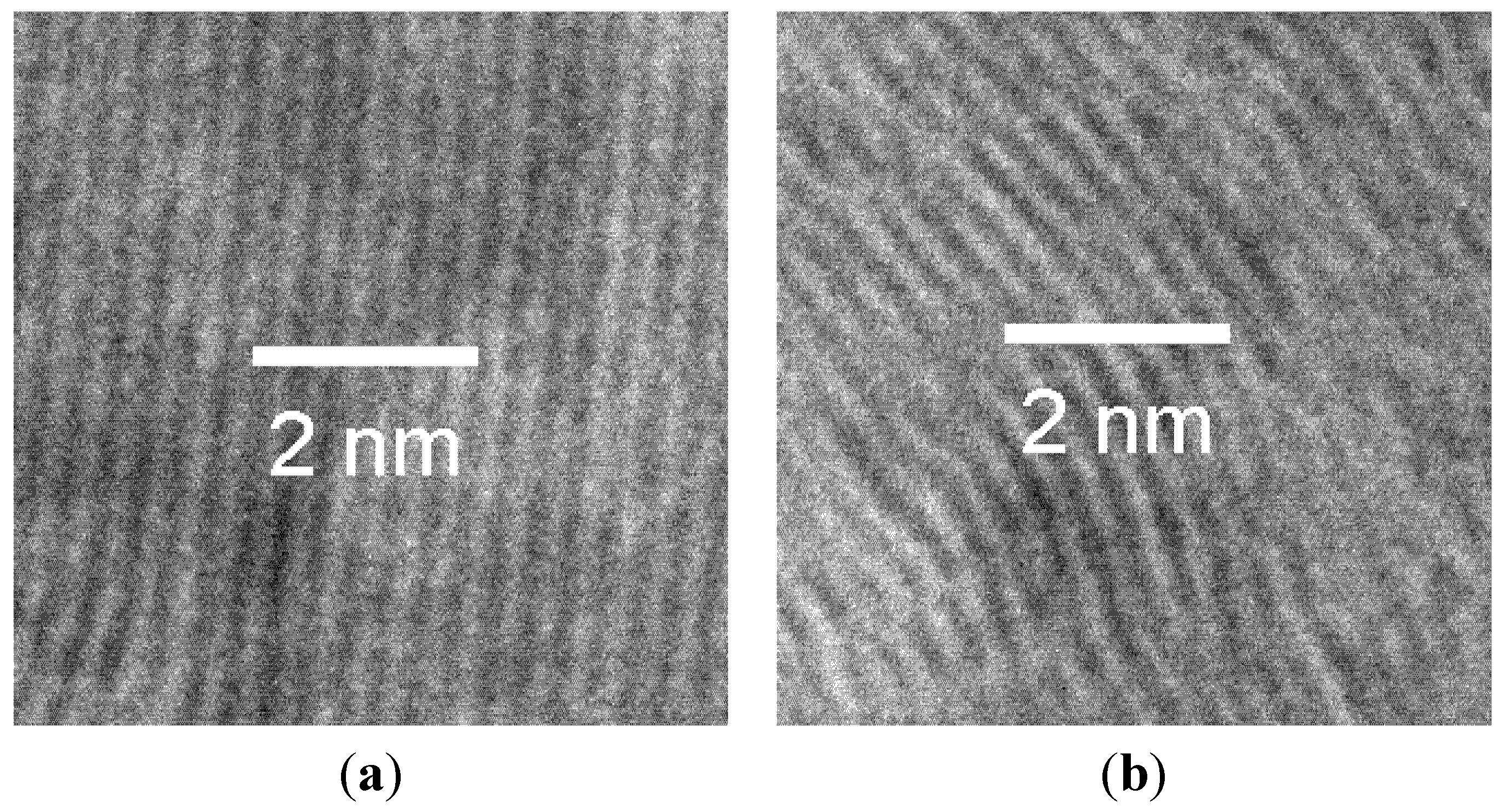

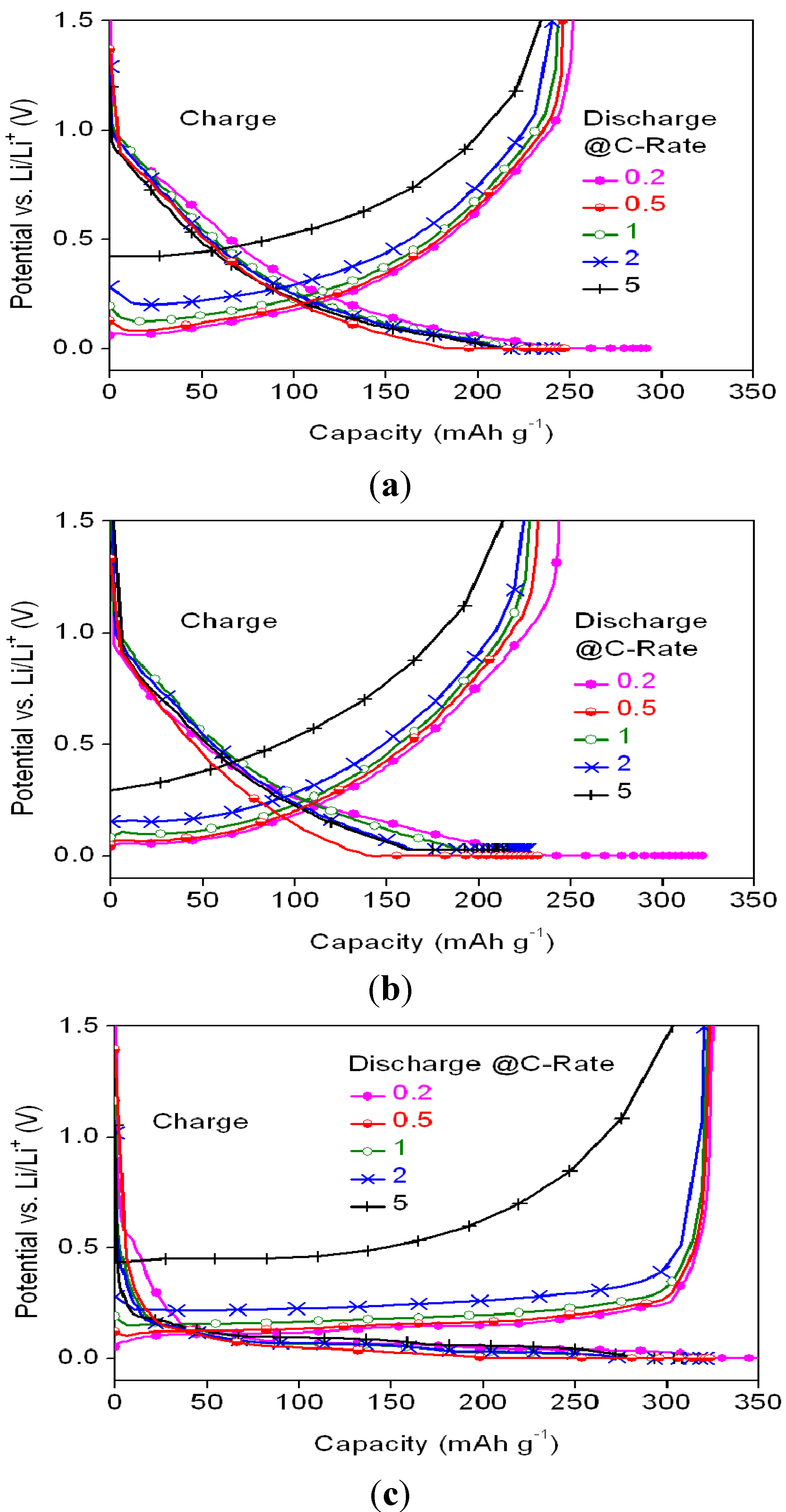

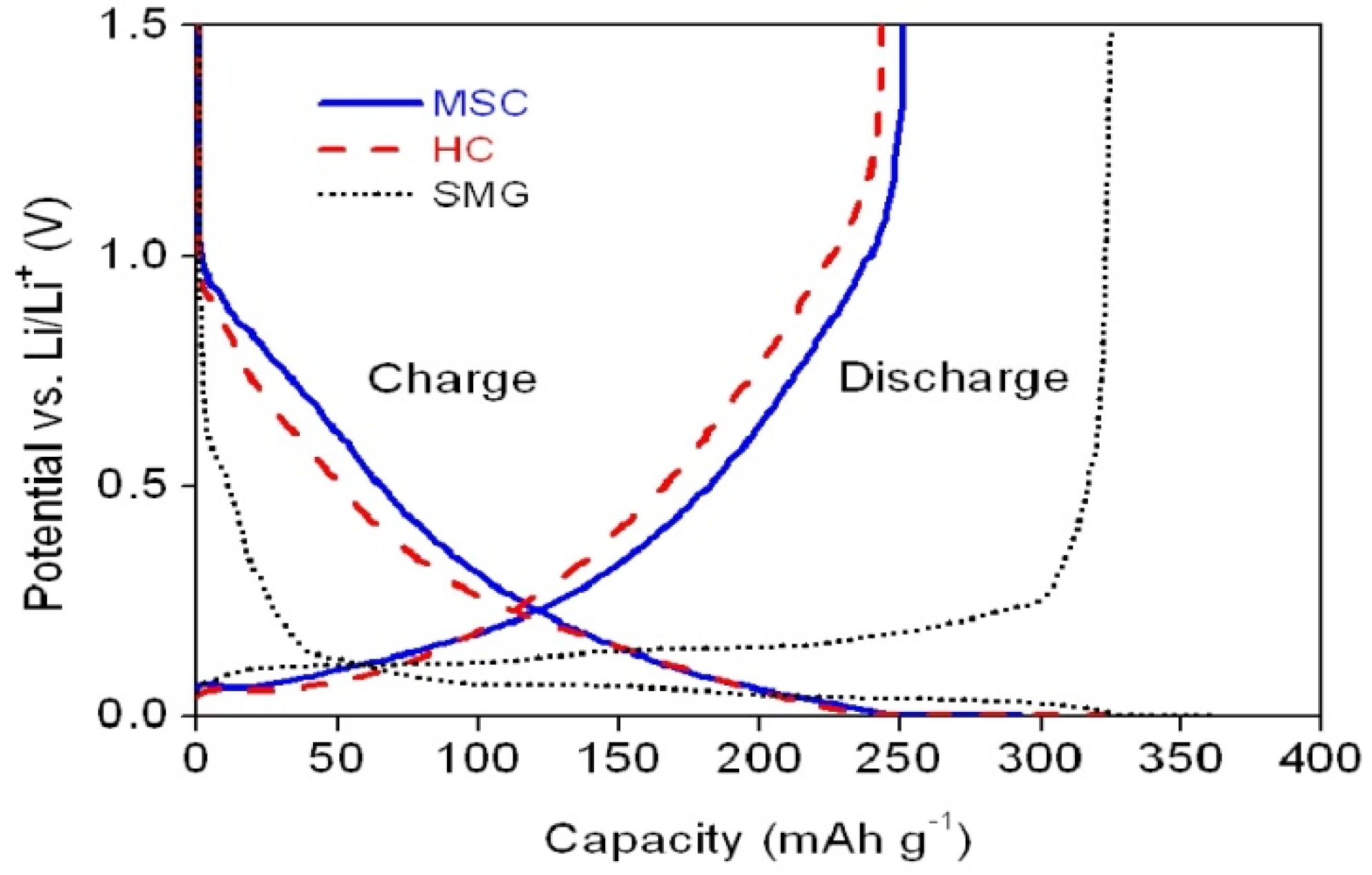

Mesophase soft carbon (MSC) and mesophase graphite (SMG), for use in comparative studies of high C-rate Lithium Ion Battery (LIB) anodes, were made by heating mesocarbon microbeads (MCMB) at 1300 °C and 3000 °C; respectively. The crystalline structures and morphologies of the MSC, SMG, and commercial hard carbon (HC) were investigated by X-ray diffraction, transmission electron microscopy, scanning electron microscopy, and Raman spectroscopy. Additionally, their electrochemical properties, when used as anode materials in LIBs, were also investigated. The results show that MSC has a superior charging rate capability compared to SMG and HC. This is attributed to MSC having a more extensive interlayer spacing than SMG, and a greater number of favorably-oriented pathways when compared to HC. View Full-Text
Keywords: mesocarbon microbeads; soft carbon; anode materials; high C-rate; lithium ion battery; charge rate capability mesocarbon microbeads; soft carbon; anode materials; high C-rate; lithium ion battery; charge rate capability
Show Figures

Figure 1

MDPI and ACS Style

Fang, M.-D.; Ho, T.-H.; Yen, J.-P.; Lin, Y.-R.; Hong, J.-L.; Wu, S.-H.; Jow, J.-J. Preparation of Advanced Carbon Anode Materials from Mesocarbon Microbeads for Use in High C-Rate Lithium Ion Batteries. Materials 2015, 8, 3550-3561.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
