S⋯N Conformational Lock Acceptor Based on Indacenodithiophene (IDT) Structure and High Electronegative Terminal End Group

,
,
,
,
,
and
1
Department of Physics, Nanjing Tech University, 30 South Puzhu Road, Nanjing 211816, China
2
Key Laboratory of Flexible Electronics (KLOFE) & Institute of Advanced Materials (IAM), Jiangsu National Synergetic Innovation Center for Advanced Materials (SICAM), Nanjing Tech University (NanjingTech), 30 South Puzhu Road, Nanjing 211816, China
3
Jiangsu Seenbom Flexible Electronics Institute Co., Ltd., Building 5, Room 201, 6 Zhida Road, Nanjing 210043, China
*
Authors to whom correspondence should be addressed.
This article belongs to the Section Optical and Photonic Materials

Abstract

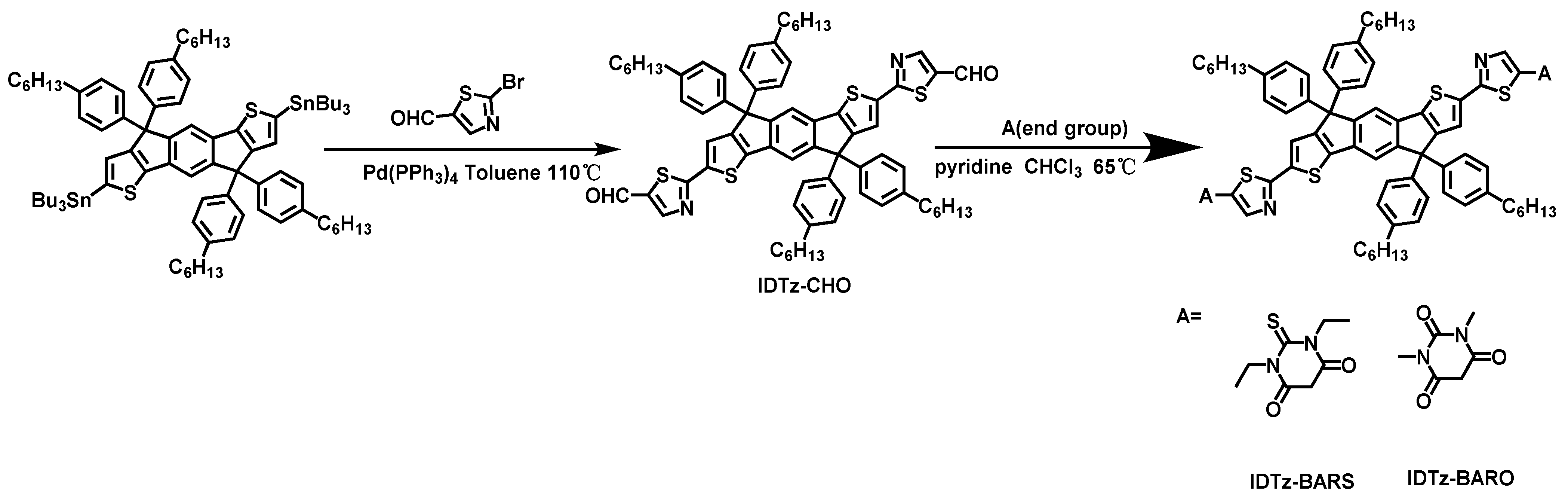

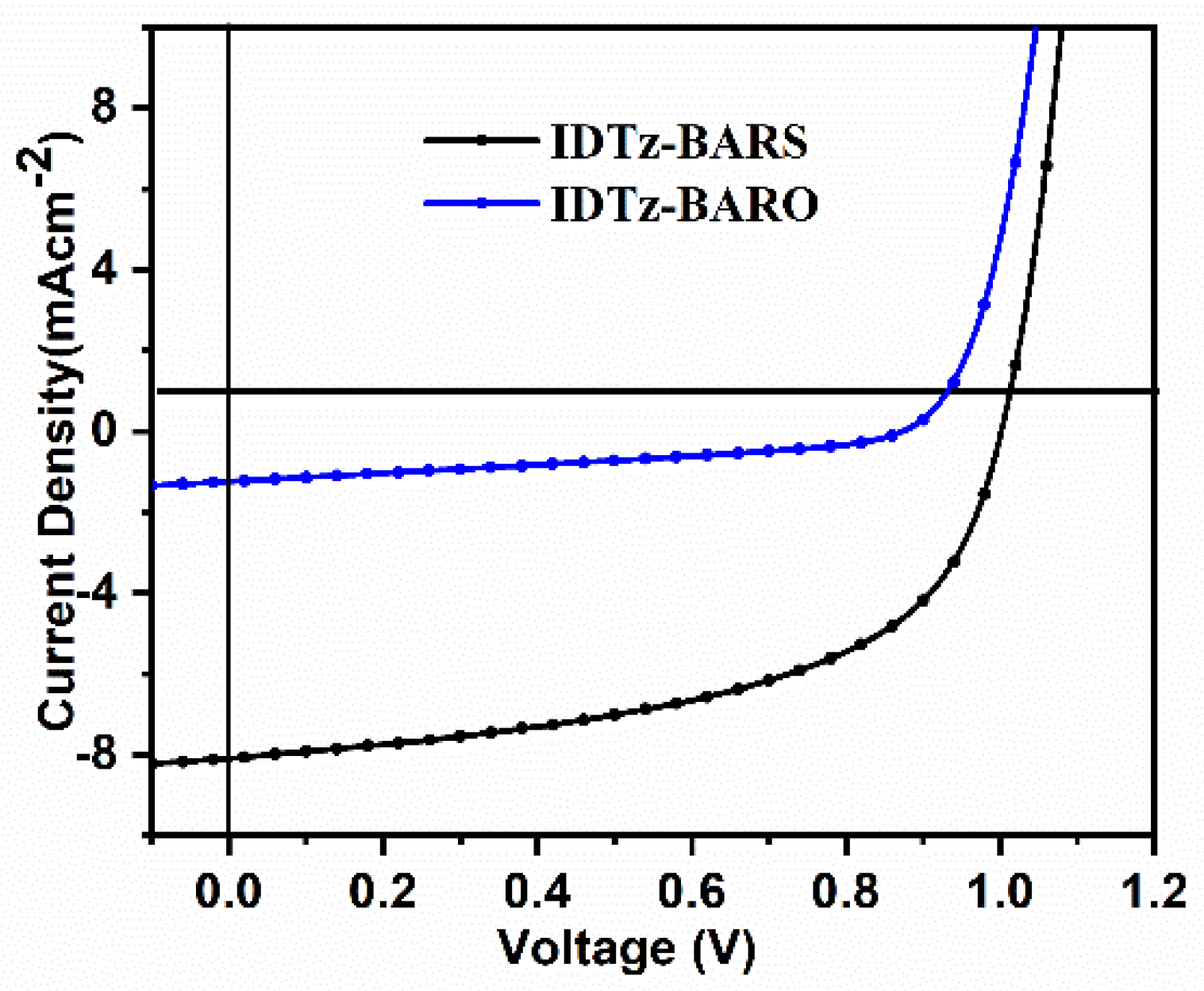

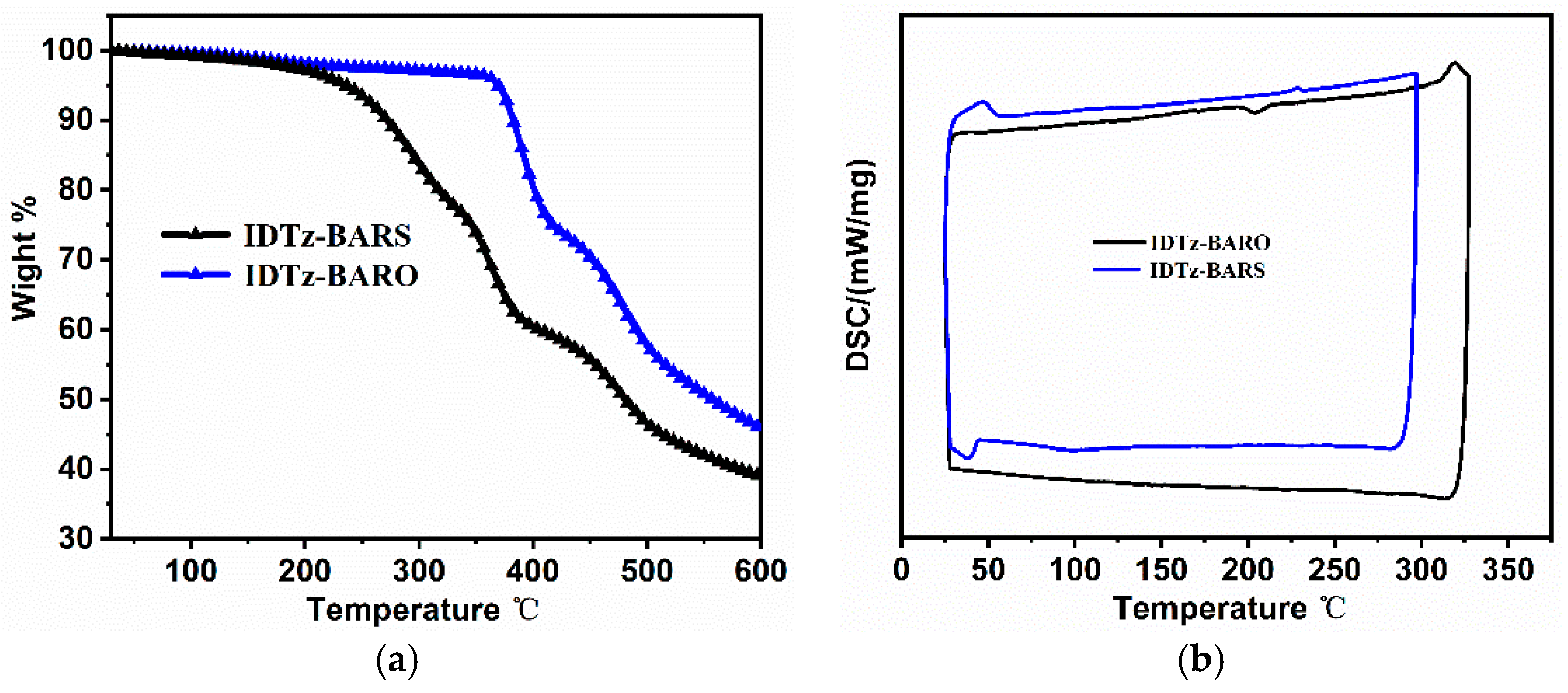

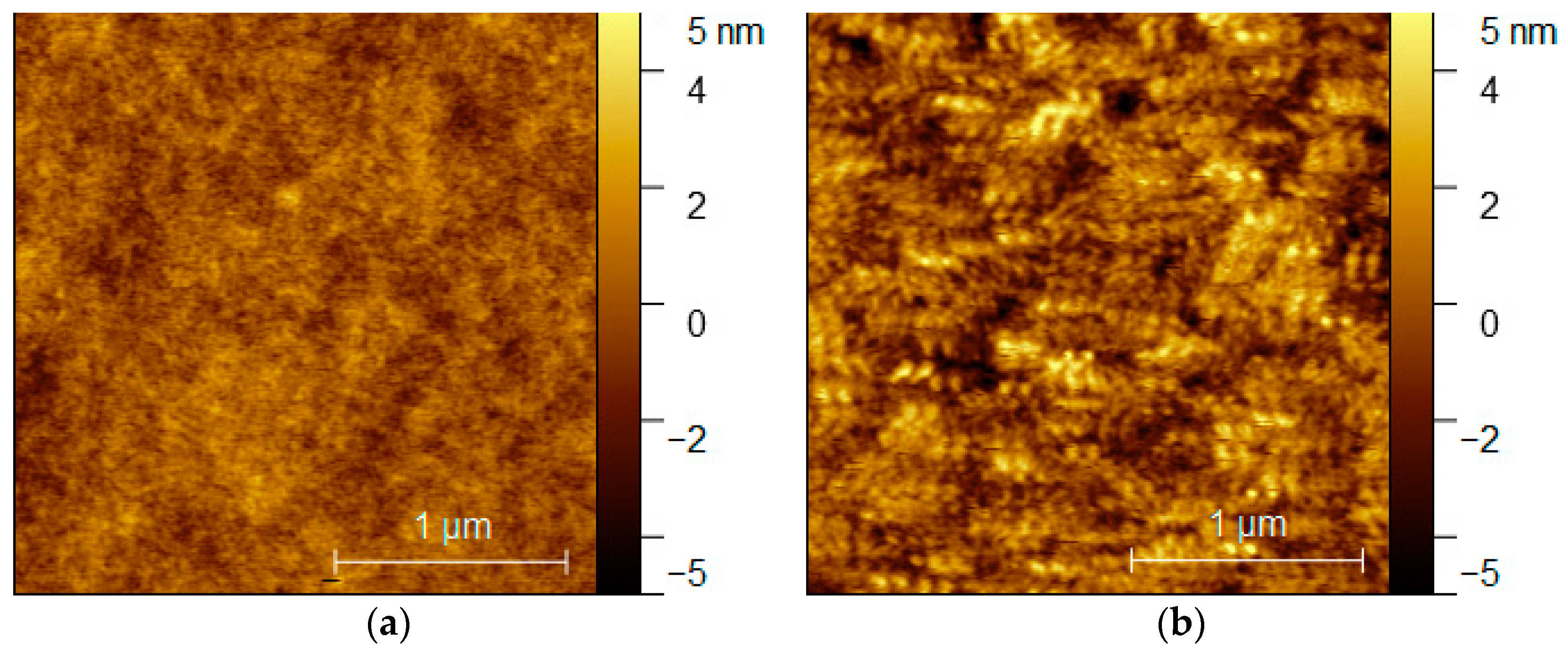

High-performance organic semiconductors should have good spectral absorption, a narrow energy gap, excellent thermal stability and good blend film morphology to obtain high-performance organic photovoltaics (OPVs). Therefore, we synthesized two IDTz-based electron acceptors in this research. When they were blended with donor PTB7-Th to prepare OPV devices, the PTB7-Th:IDTz-BARO-based binary OPVs exhibited a power conversion efficiency (PCE) of 0.37%, with a short-circuit current density (Jsc) of 1.24 mA cm−2, a fill factor (FF) of 33.99% and an open-circuit voltage (Voc) of 0.87 V. The PTB7-Th:IDTz-BARS-based binary OPVs exhibited PCE of 4.39%, with Jsc of 8.09 mA cm−2, FF of 54.13% and Voc of 1.00 V. The results show the strong electronegativity terminal group to be beneficial to the construction of high-performance OPV devices. Highlights: (1) Two new acceptors based on 5,5′-(4,4,9,9-tetrakis (4-hexylphenyl)-4,9-dihydro-s-indaceno [1,2-b:5,6-b′] dithiophene-2,7-diyl) dithiazole (IDTz) and different end groups (BARS, BARO) were synthesized; (2) BARS and BARO are electron-rich end groups, and the electron acceptors involved in the construction show excellent photoelectric properties. They can properly match the donor PTB7-Th, and show the appropriate surface morphology of the active layer in this work; (3) Compared with IDTz-BARO, IDTz-BARS has deeper LUMO and HOMO energy levels. In combination with PTB7-Th, it shows 4.39% device efficiency, 8.09 mA cm−2 short-circuit current density and 1.00 V open circuit voltage.
