Next Article in Journal
Improving the Room-Temperature Ferromagnetism in ZnO and Low-Doped ZnO:Ag Films Using GLAD Sputtering
Previous Article in Journal
Optical Solitons with Beta and M-Truncated Derivatives in Nonlinear Negative-Index Materials with Bohm Potential
Previous Article in Special Issue
Effects of Austenitizing Temperature on Tensile and Impact Properties of a Martensitic Stainless Steel Containing Metastable Retained Austenite


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 14
Issue 18
10.3390/ma14185336
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Influence of Post-Weld Heat Treatment on Microstructure and Toughness Properties of 13MnNiMoR High Strength Low Alloy Steel Weld Joint

by
Songya Tian
1,*,
Fan Xu
1,
Genyuan Zhang
1,
Adnan Saifan
1,2,*,
Bassiouny Saleh
3,4 and
Xiaobo Li
1
1
College of Mechanical and Electrical Engineering, Hohai University, Changzhou 213022, China
2
Mechanical Engineering Department, Faculty of Engineering, Sana’a University, Sana’a 12544, Yemen
3
College of Mechanics and Materials, Hohai University, Nanjing 211100, China
4
Production Engineering Department, Alexandria University, Alexandria 21544, Egypt
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(18), 5336; https://doi.org/10.3390/ma14185336
Submission received: 13 August 2021 / Revised: 7 September 2021 / Accepted: 8 September 2021 / Published: 16 September 2021
(This article belongs to the Special Issue Mechanical Behavior of Metals and Alloys: Modelling, Characterization and Relationship with Microstructure)
Browse Figures
Versions Notes

Abstract

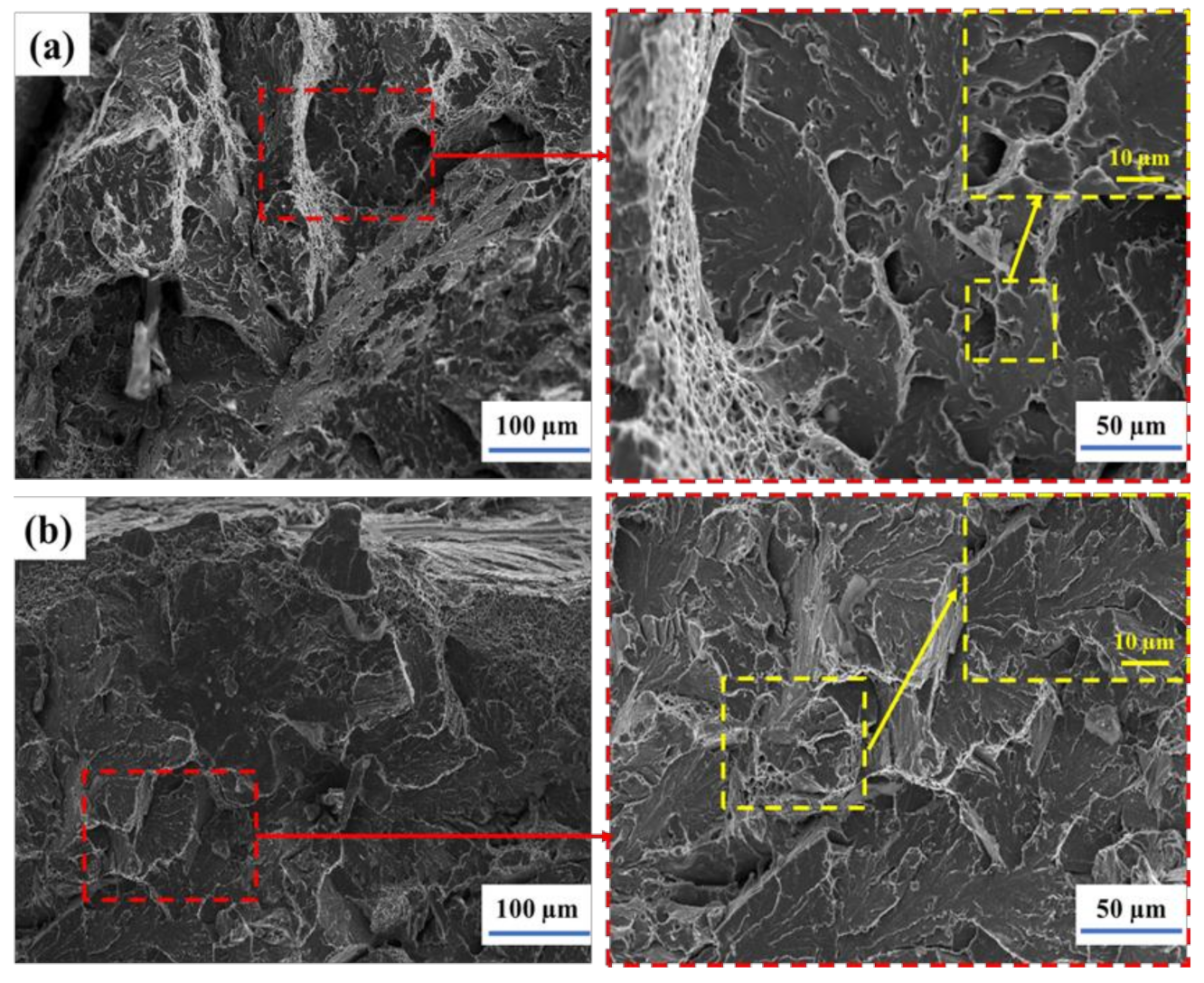

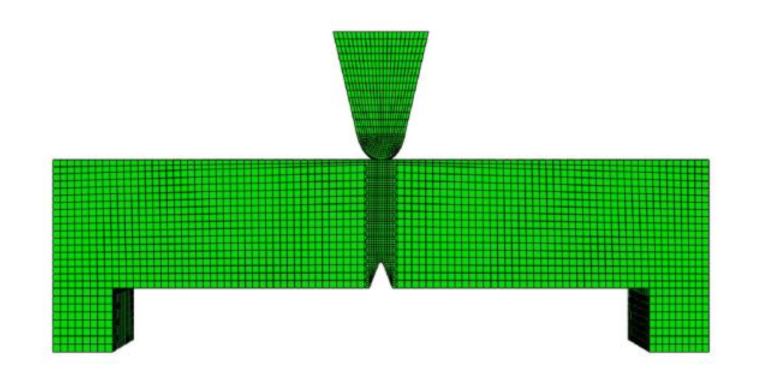

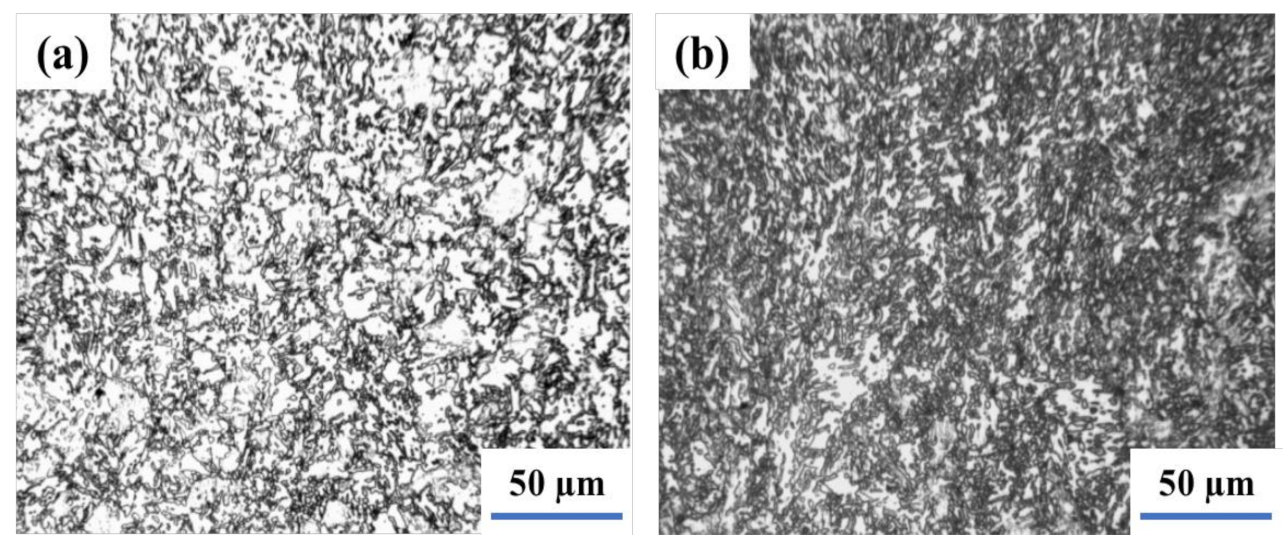

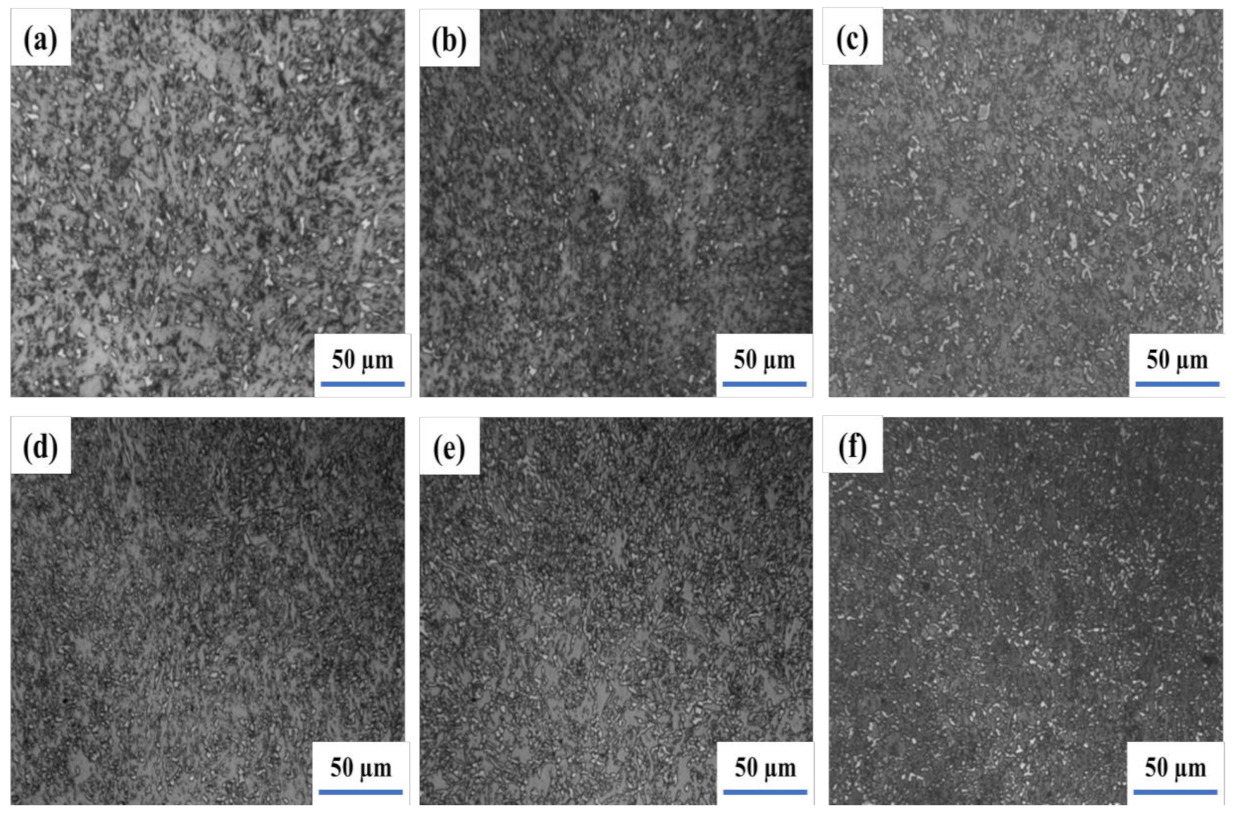

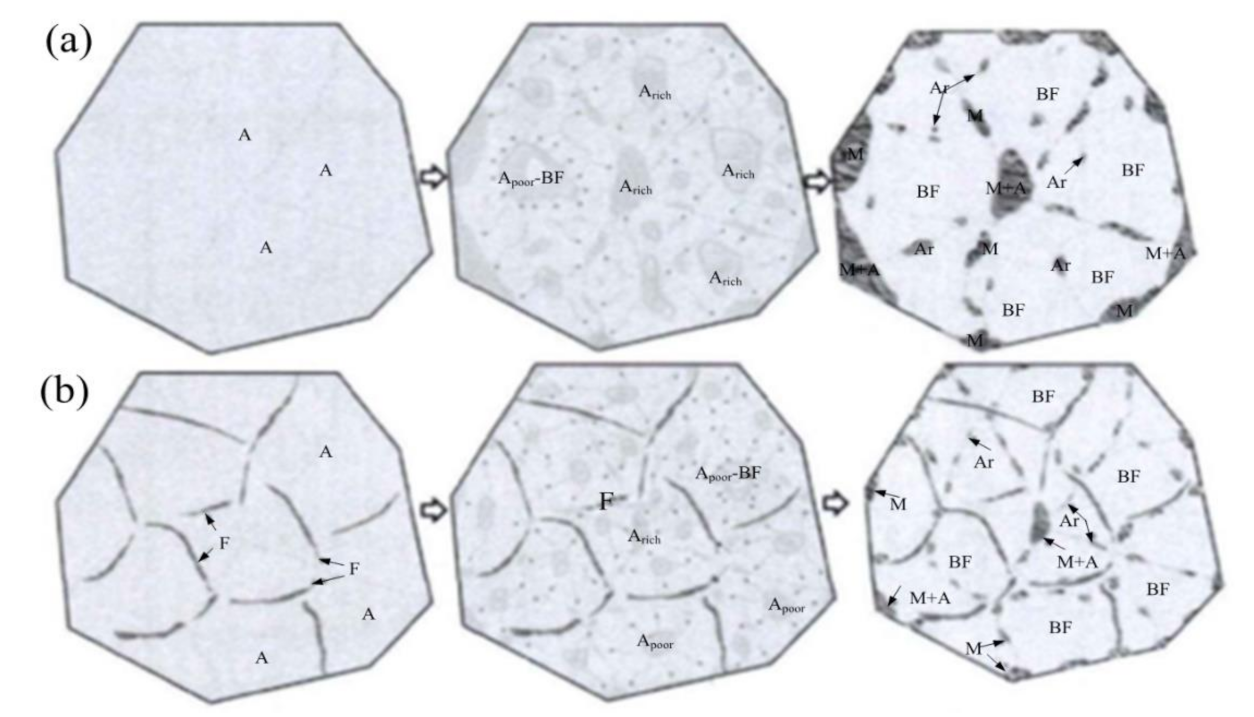

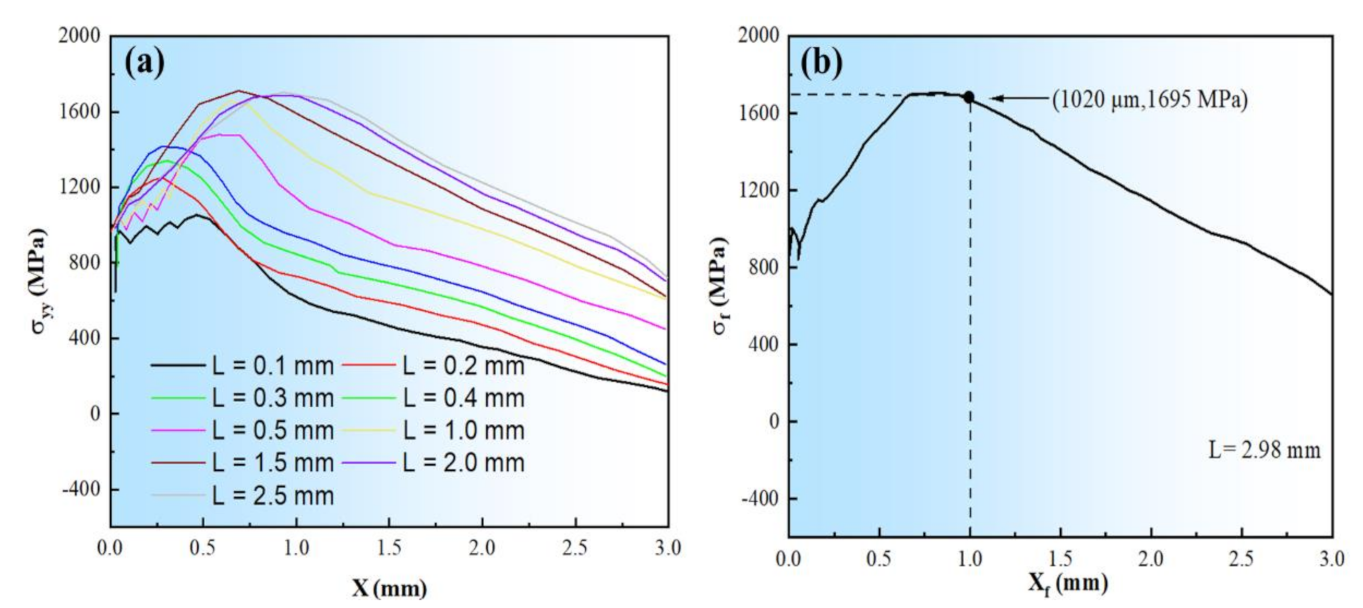

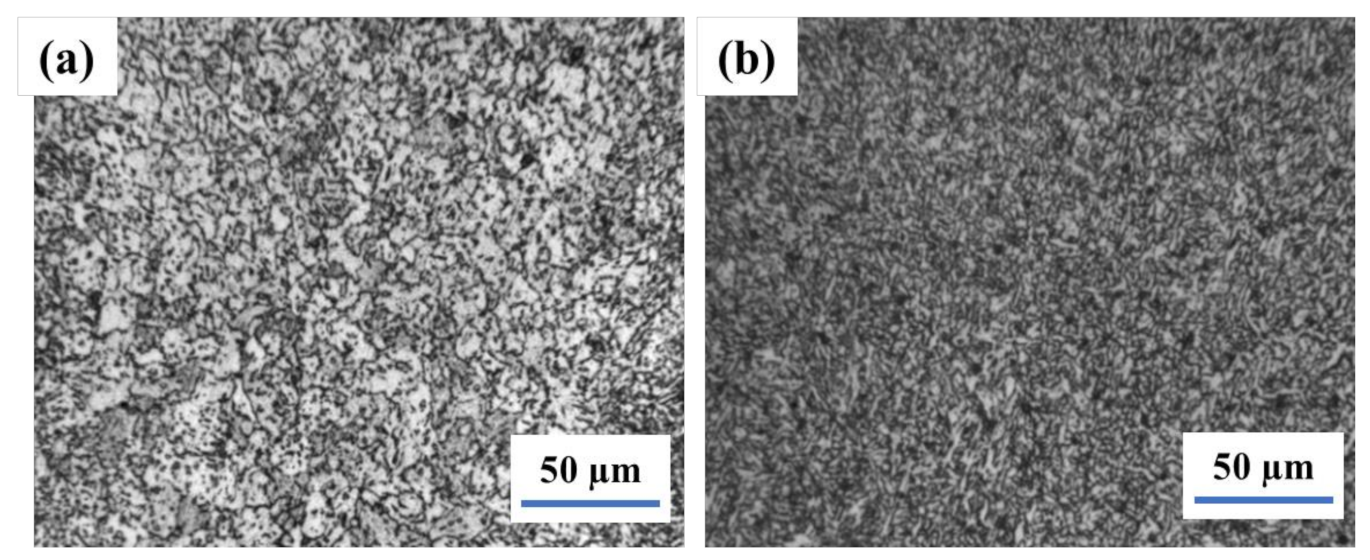

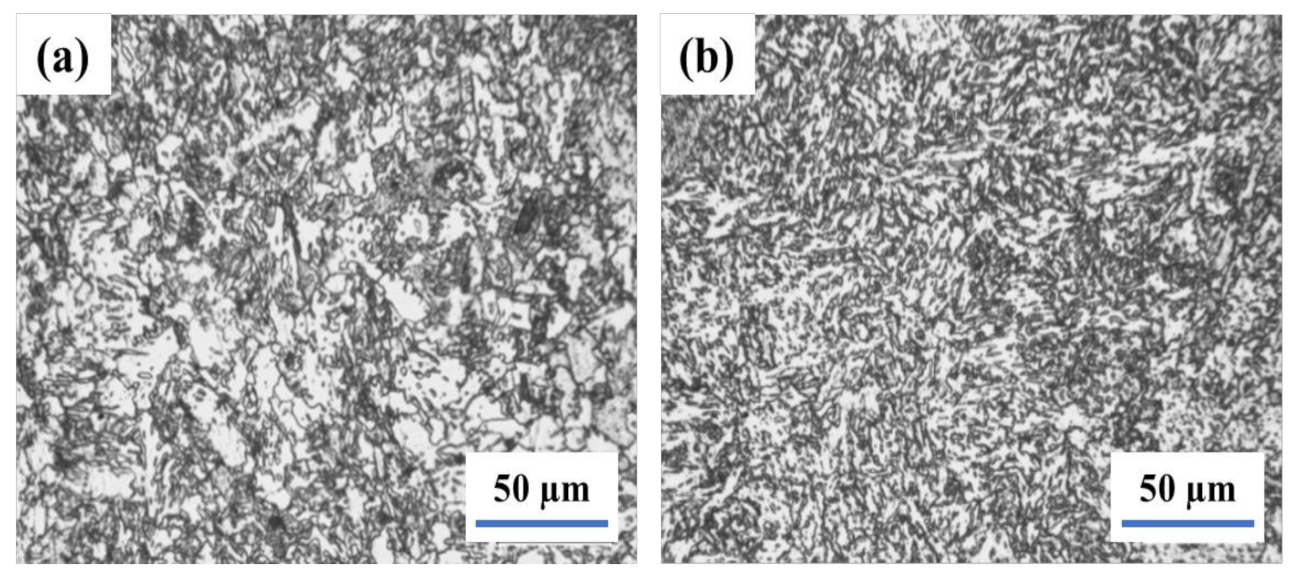

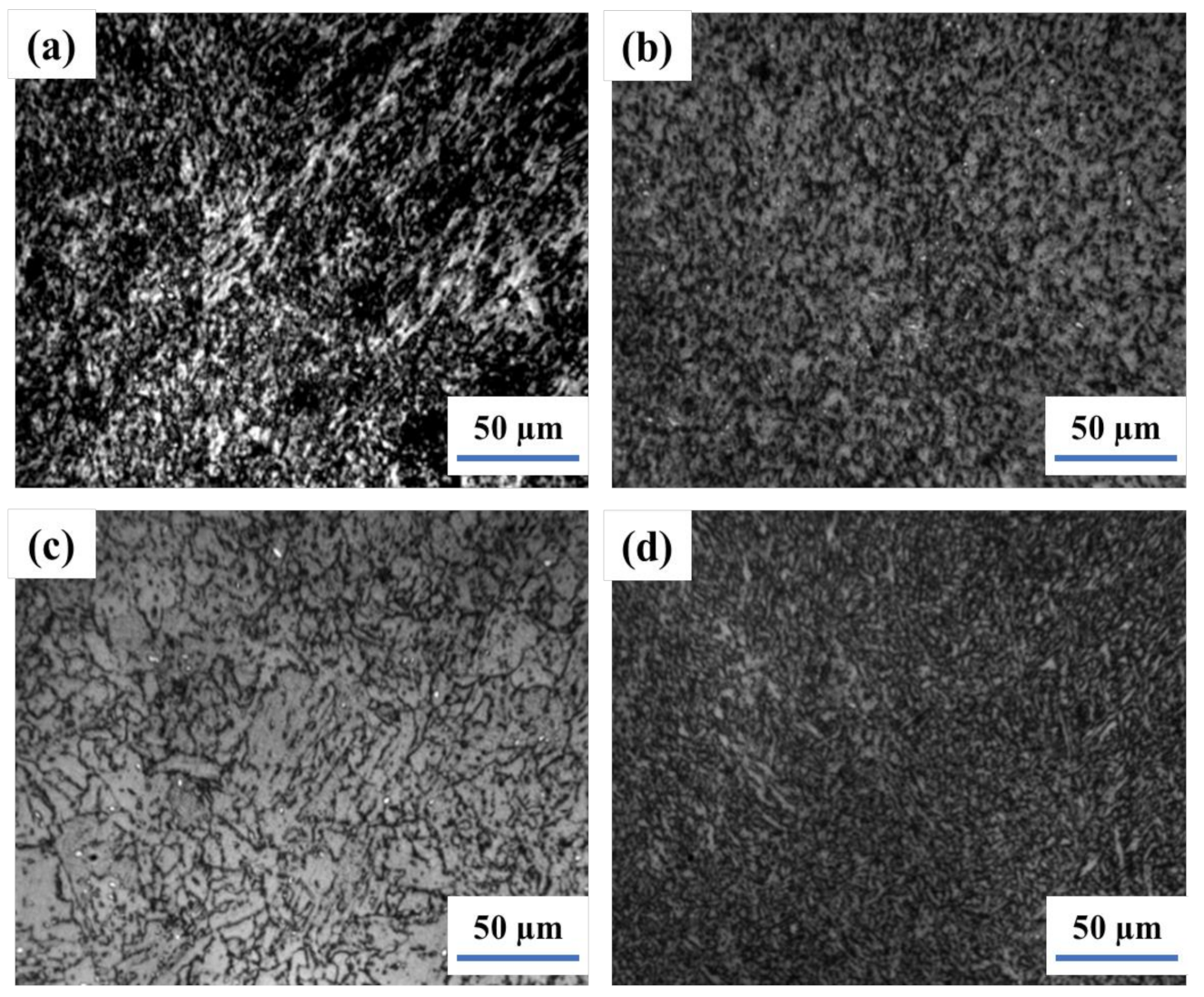

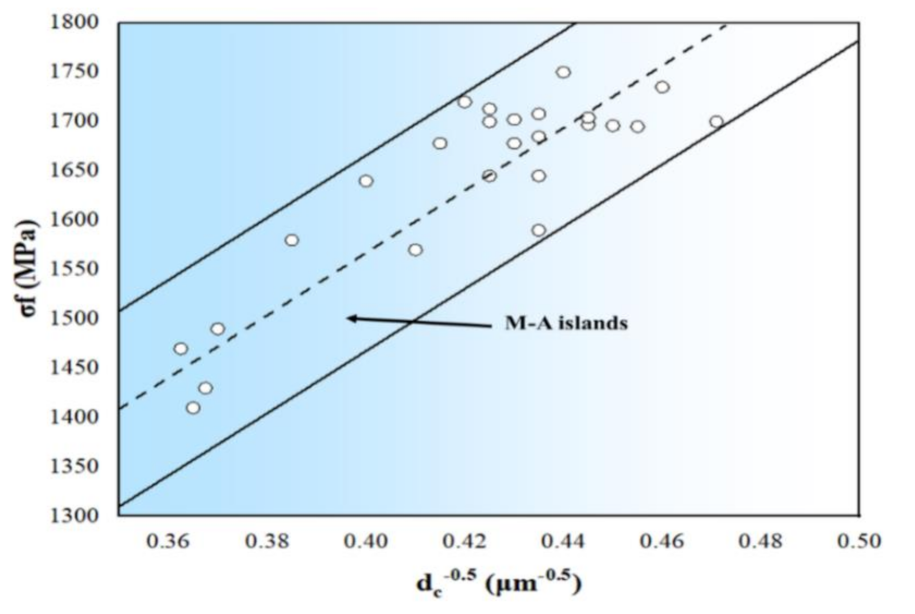

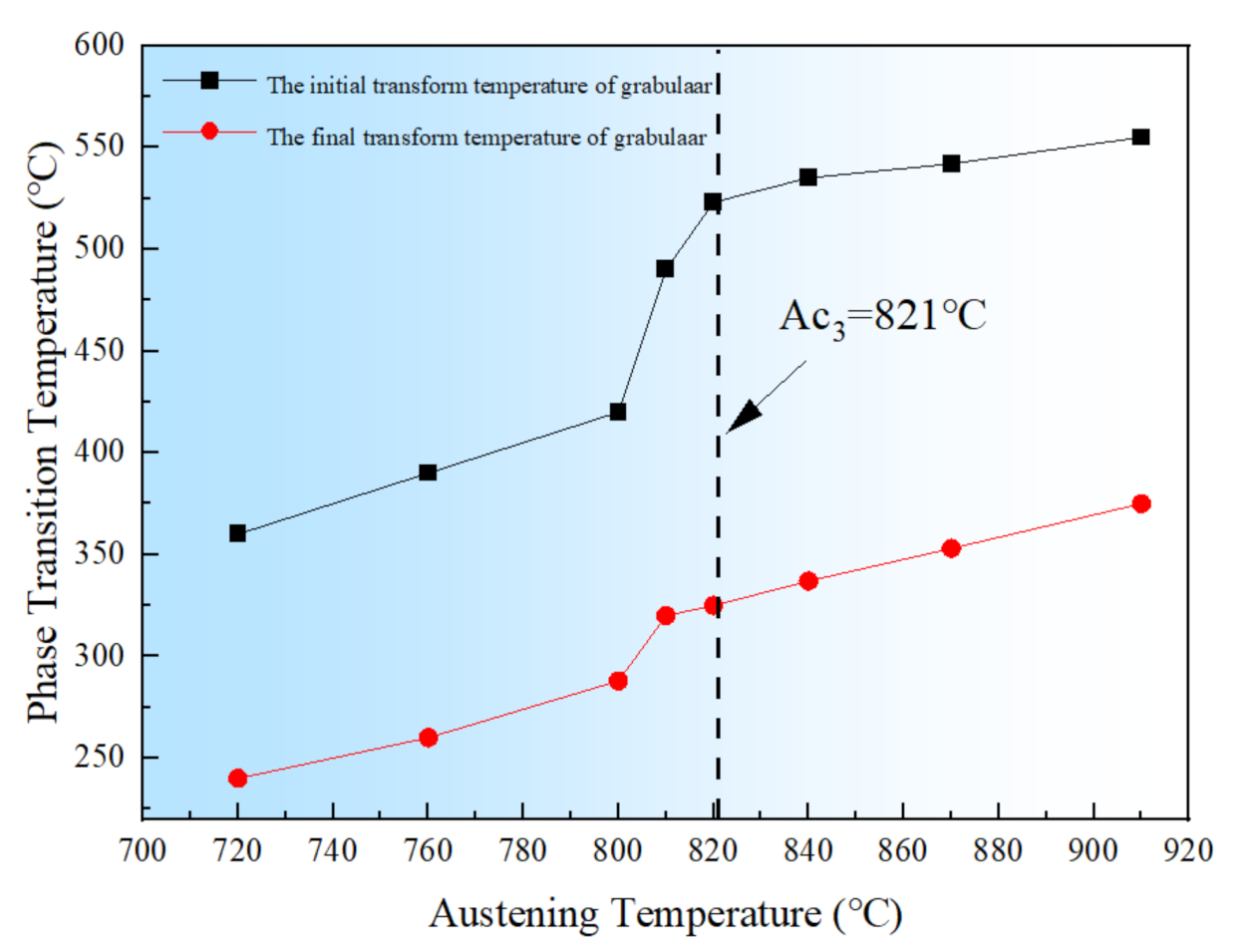

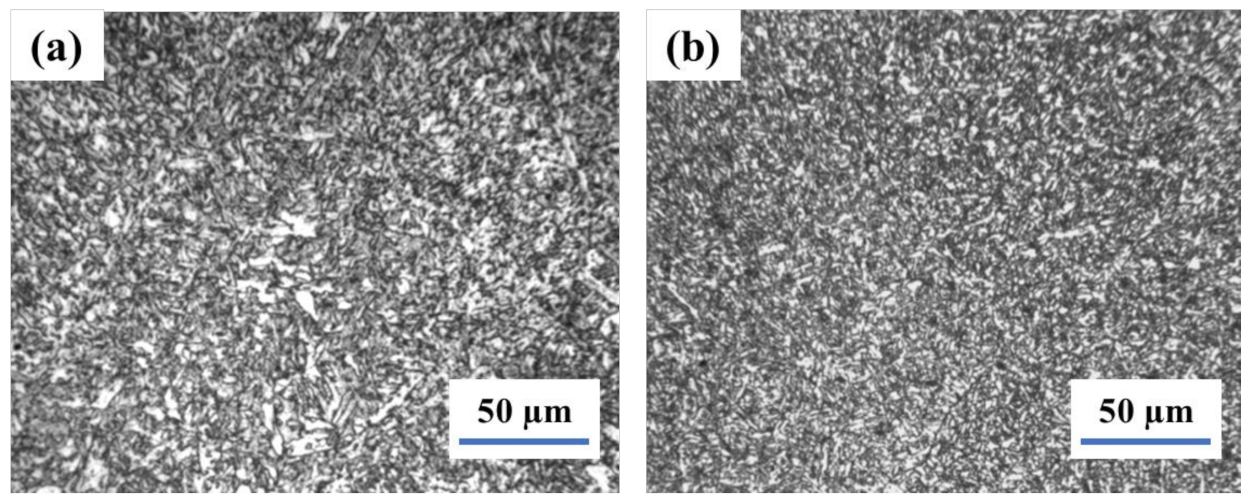

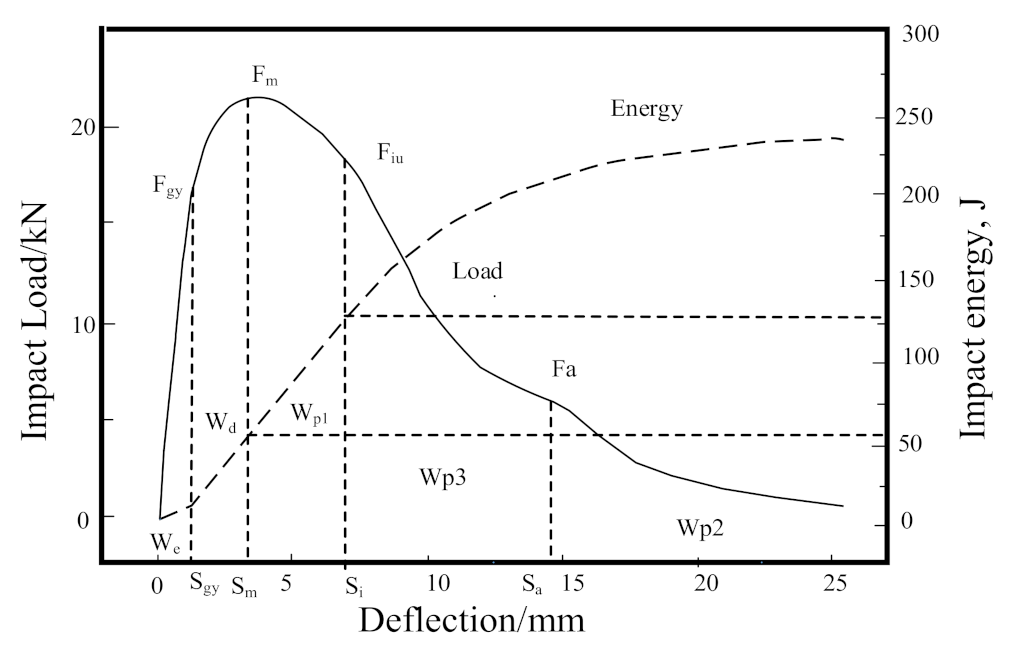

Weld and base metals require hot or cold working during the steel equipment manufacturing process. As a result, the components should be subjected to a normalizing heat treatment in order to recover their mechanical properties. In this study, the submerged-arc welding of the high strength low alloy (HSLA) thick steel plate(13MnNiMoR) is adapted for the vessel head under the normalizing and tempering heat treatment. The findings showed that the material toughness decreases after heating to simulate a vessel head forming process. The stamping process is carried out under the conditions of 980 °C for one hour, normalizing at 920 °C for 1 h and tempering between 600–660 °C for 2 h, respectively. The martensite-austenite (M-A) constituent is distributed in granular bainite and the boundary of austenite in island constituent. Therefore, it was deemed to be the most detrimental to Charpy-V impact toughness. Between normalizing and tempering, intercritical normalizing at 740 °C was added. As a result of the ferrite with fine particles M-A constituent, the toughness increases significantly.
Keywords: post-weld heat treatment; 13MnNiMoR weld metal; martensite-austenite constituent; tempering; intercritical normalizing; impact toughness post-weld heat treatment; 13MnNiMoR weld metal; martensite-austenite constituent; tempering; intercritical normalizing; impact toughness

Share and Cite

MDPI and ACS Style

Tian, S.; Xu, F.; Zhang, G.; Saifan, A.; Saleh, B.; Li, X. Influence of Post-Weld Heat Treatment on Microstructure and Toughness Properties of 13MnNiMoR High Strength Low Alloy Steel Weld Joint. Materials 2021, 14, 5336. https://doi.org/10.3390/ma14185336

AMA Style

Tian S, Xu F, Zhang G, Saifan A, Saleh B, Li X. Influence of Post-Weld Heat Treatment on Microstructure and Toughness Properties of 13MnNiMoR High Strength Low Alloy Steel Weld Joint. Materials. 2021; 14(18):5336. https://doi.org/10.3390/ma14185336

Chicago/Turabian Style

Tian, Songya, Fan Xu, Genyuan Zhang, Adnan Saifan, Bassiouny Saleh, and Xiaobo Li. 2021. "Influence of Post-Weld Heat Treatment on Microstructure and Toughness Properties of 13MnNiMoR High Strength Low Alloy Steel Weld Joint" Materials 14, no. 18: 5336. https://doi.org/10.3390/ma14185336

APA Style

Tian, S., Xu, F., Zhang, G., Saifan, A., Saleh, B., & Li, X. (2021). Influence of Post-Weld Heat Treatment on Microstructure and Toughness Properties of 13MnNiMoR High Strength Low Alloy Steel Weld Joint. Materials, 14(18), 5336. https://doi.org/10.3390/ma14185336

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
