Effect of Zn and Mg Content on Crashworthiness of Al-Zn-Mg Alloy Thin-Walled Square Extrusions
1
Light Alloy Research Institute, Central South University, Changsha 410083, China
2
State Key Laboratory of High Performance and Complex Manufacturing, Central South University, Changsha 410083, China
3
School of Materials Science and Engineering, Central South University, Changsha 410083, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(21), 4791; https://doi.org/10.3390/ma13214791
Received: 22 September 2020
/
Revised: 14 October 2020
/
Accepted: 21 October 2020
/
Published: 27 October 2020

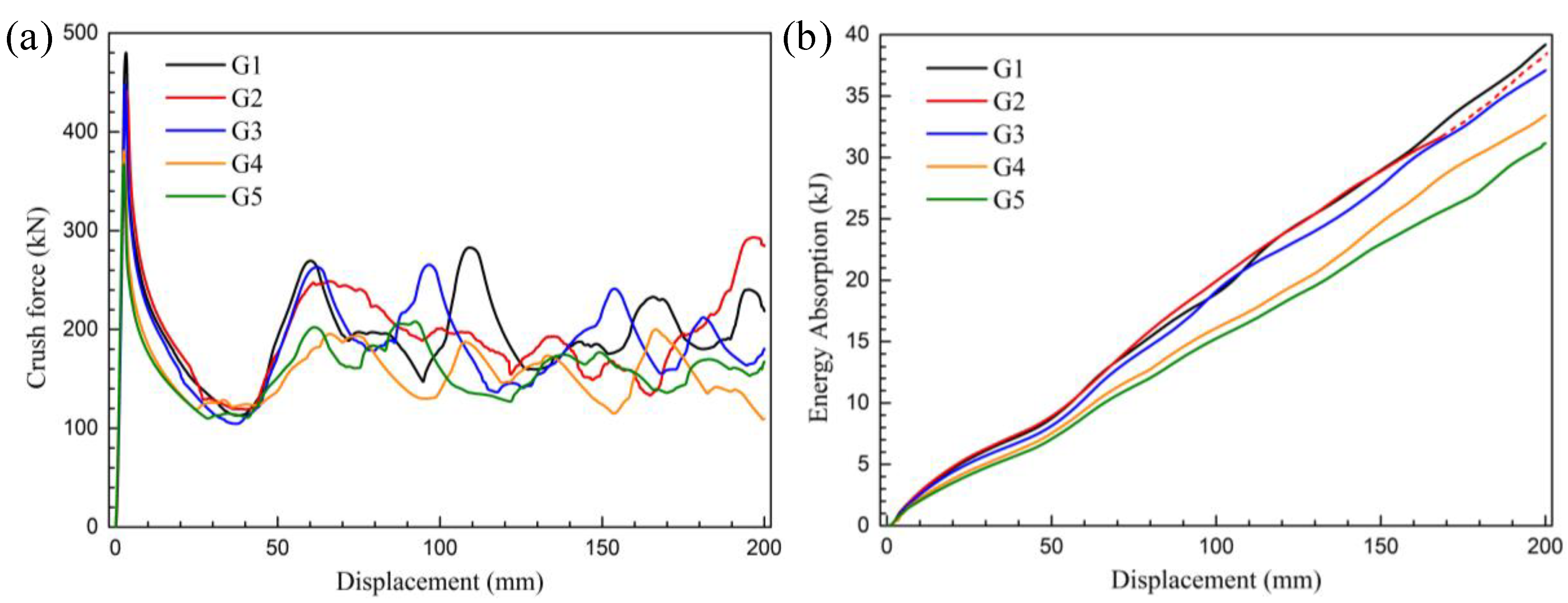

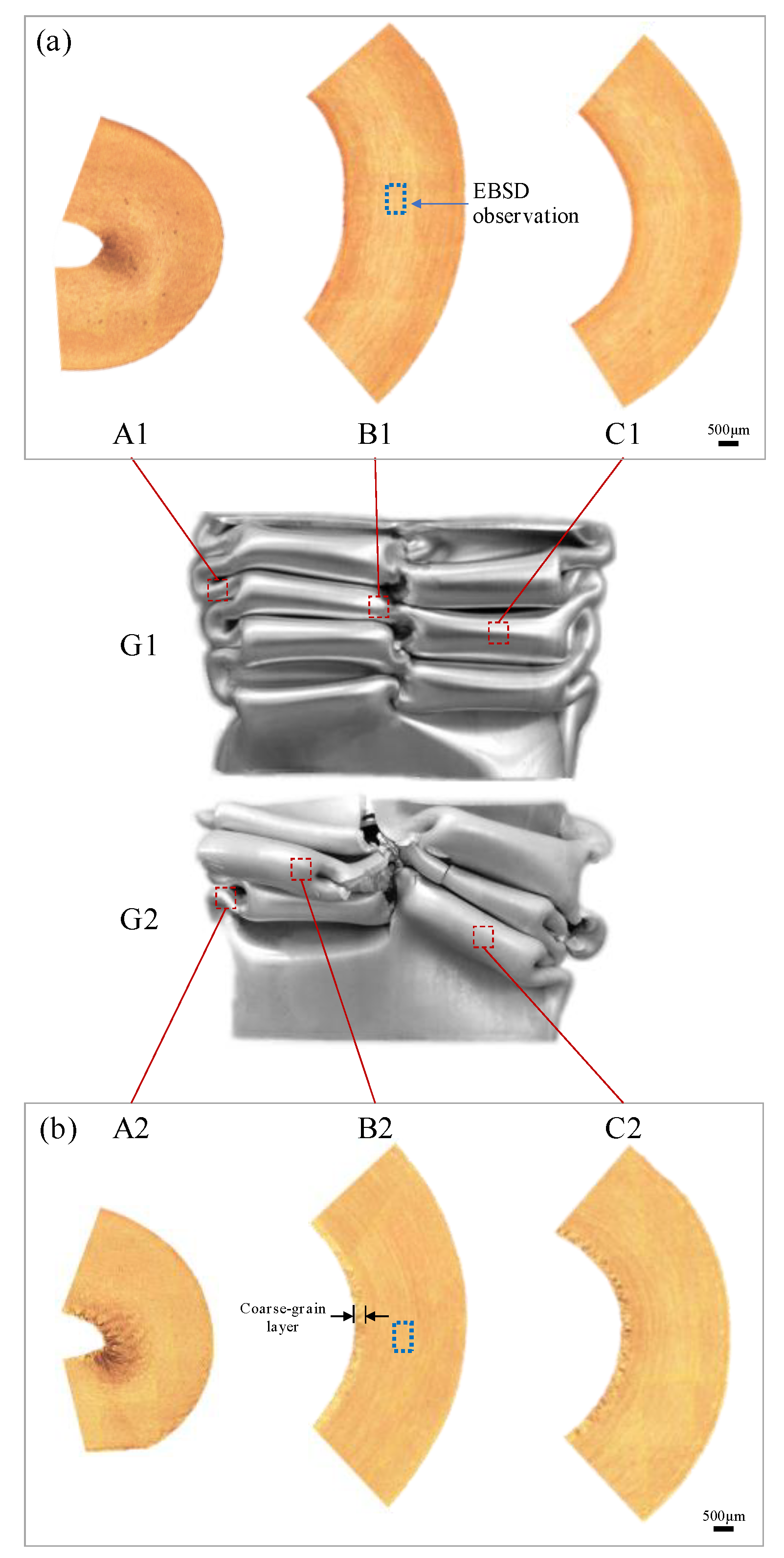

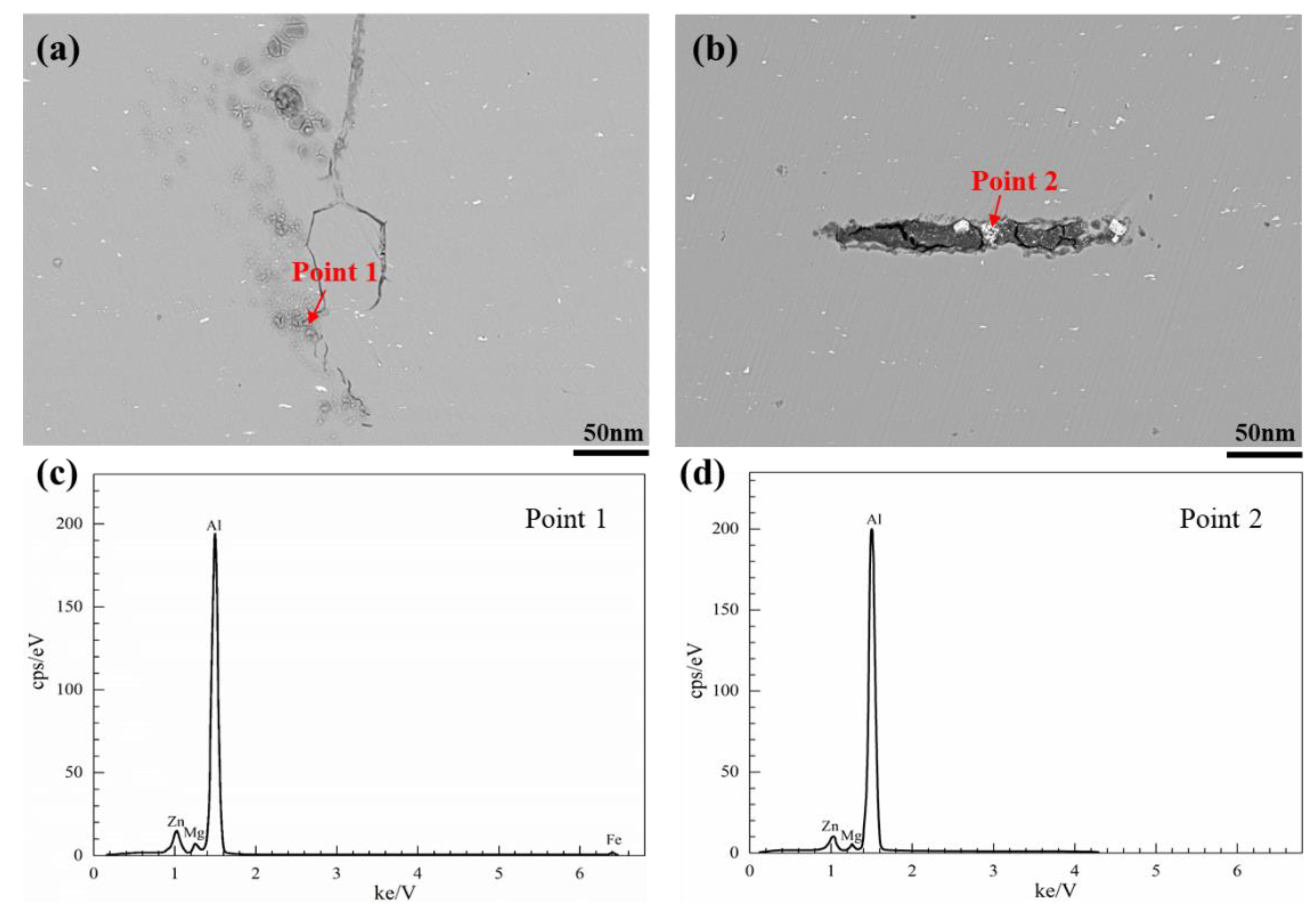

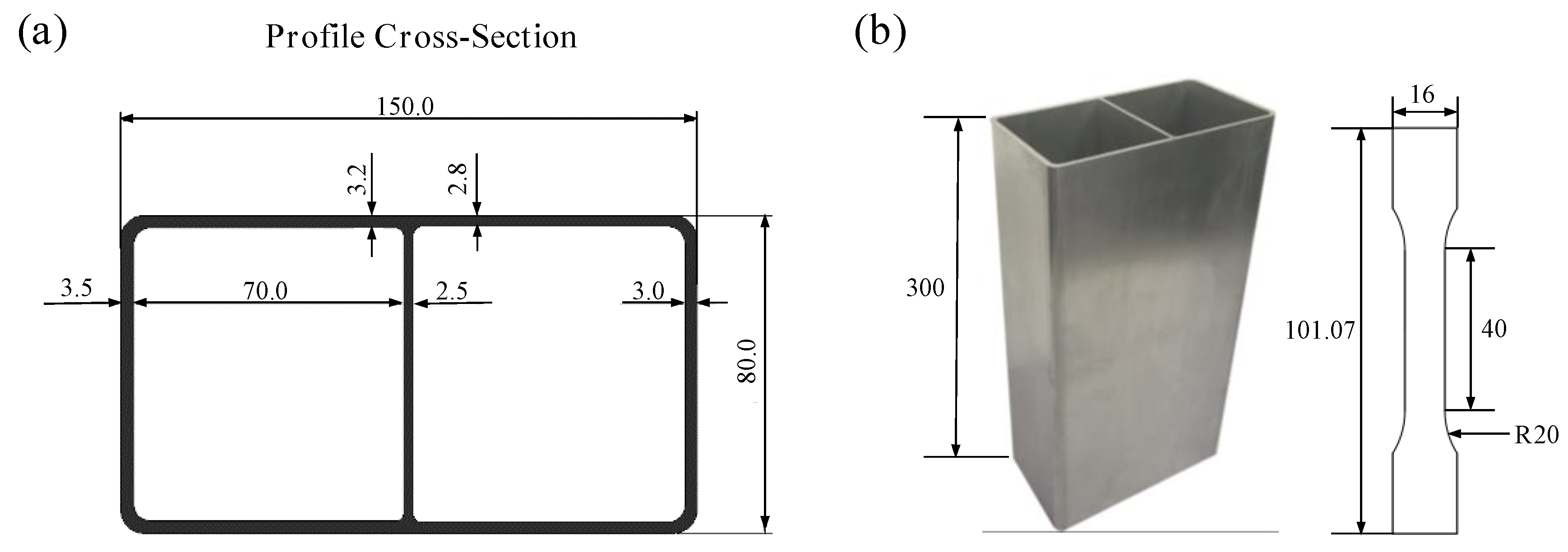

The effects of Zn and Mg content in thin-walled square extrusions of Al-Zn-Mg alloys on its crashworthiness were investigated, and the correlation between the crushing properties, mechanical properties, and microstructures of the profiles were investigated. The results showed that the strength and the compression properties were gradually increased with a decrease in the Zn/Mg ratios (from 12.48 to 4.57). When the Zn/Mg ratio is lower (less than 6.29), an increase in the Mg content simultaneously improves the alloy strength and the compression properties. An increase in Zn content (from 5.07 to 6.77) can improve the strength of the alloy however, it does not affect the compression properties. However, the higher Zn contents (6.77%) would lead to cracking in advance during the compressing, which reduces the compression energy absorption capacities of the product. Therefore, in order to obtain higher strength and excellent compression properties, the Zn/Mg ratio should be reduced. For the upper limit, the Zn content should not be too high (less than 6.77), as this may lead to early cracking and failure. For the lower limit, the Mg content should be higher (more than 0.91) to make sure that the alloy has excellent compression properties and higher strength.
View Full-Text
▼
Show Figures

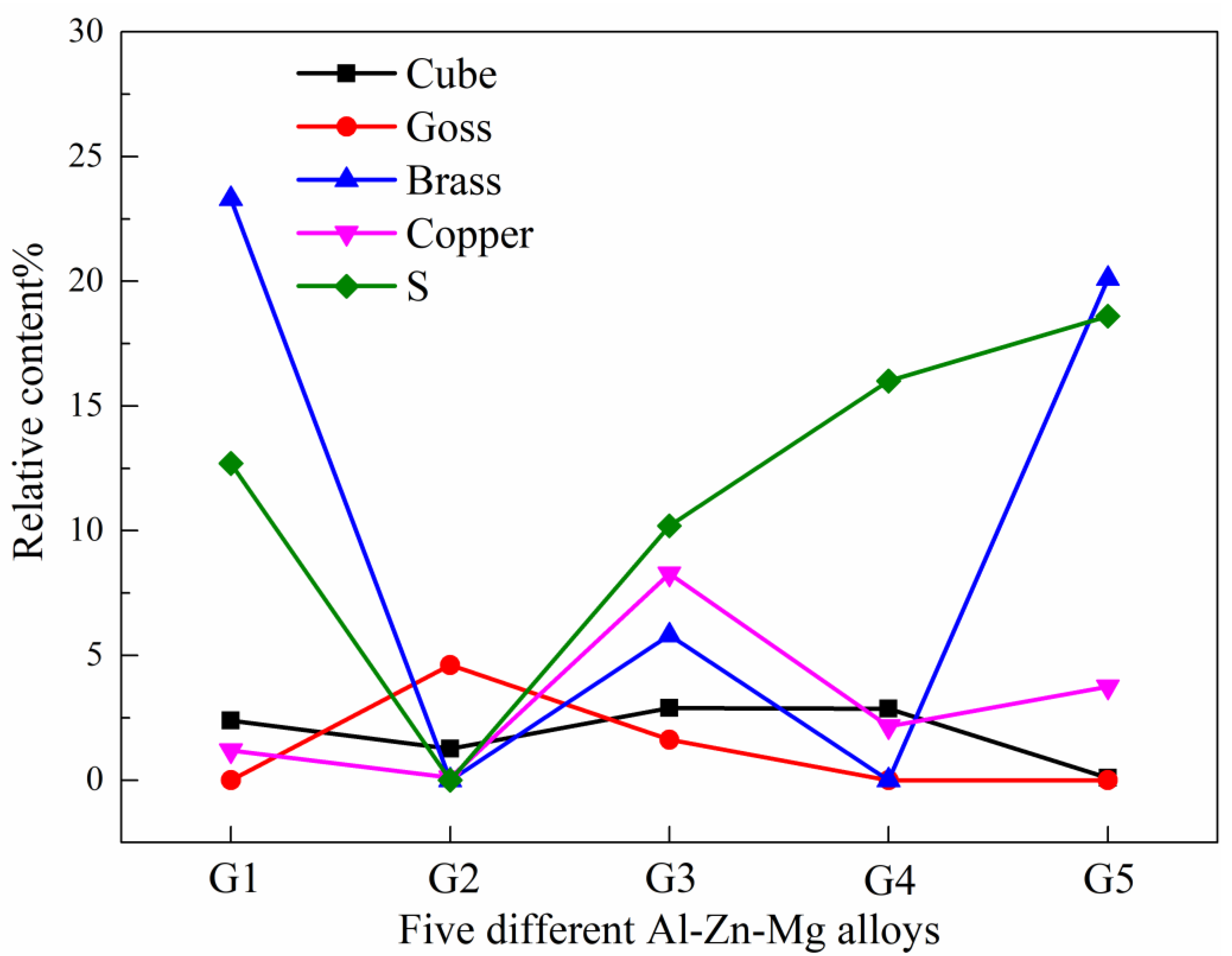

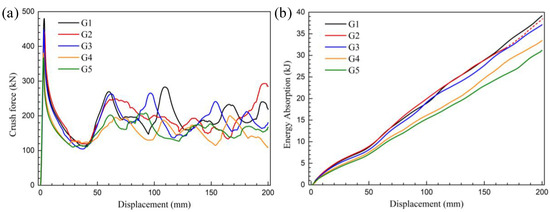

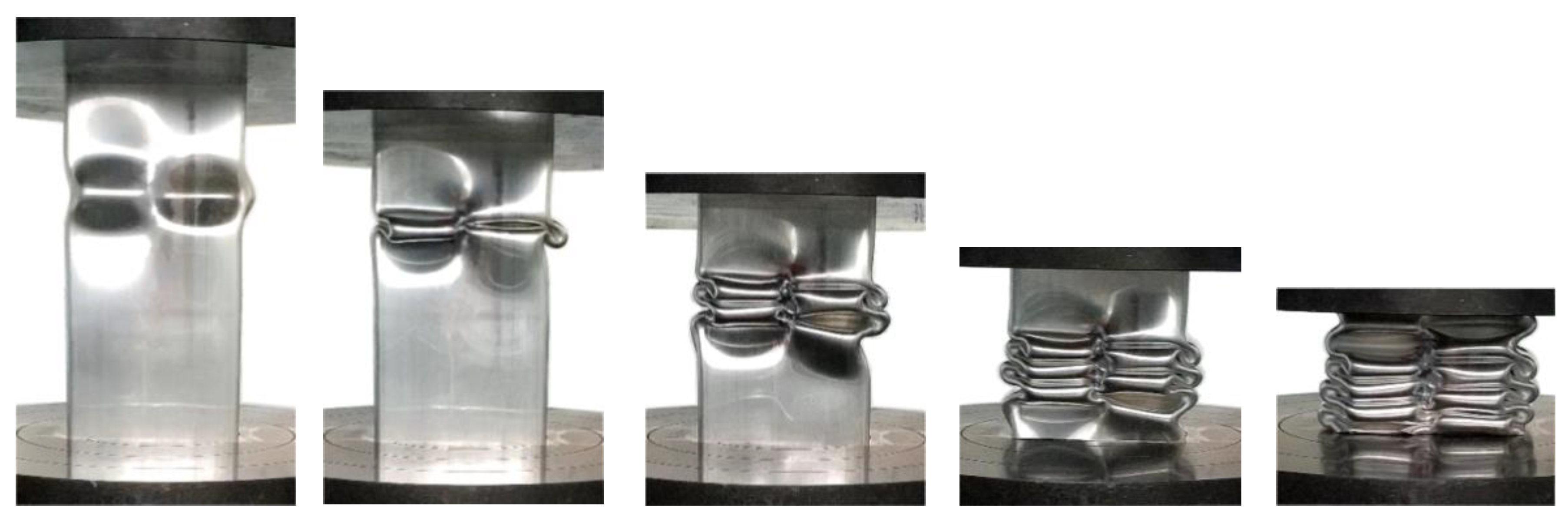

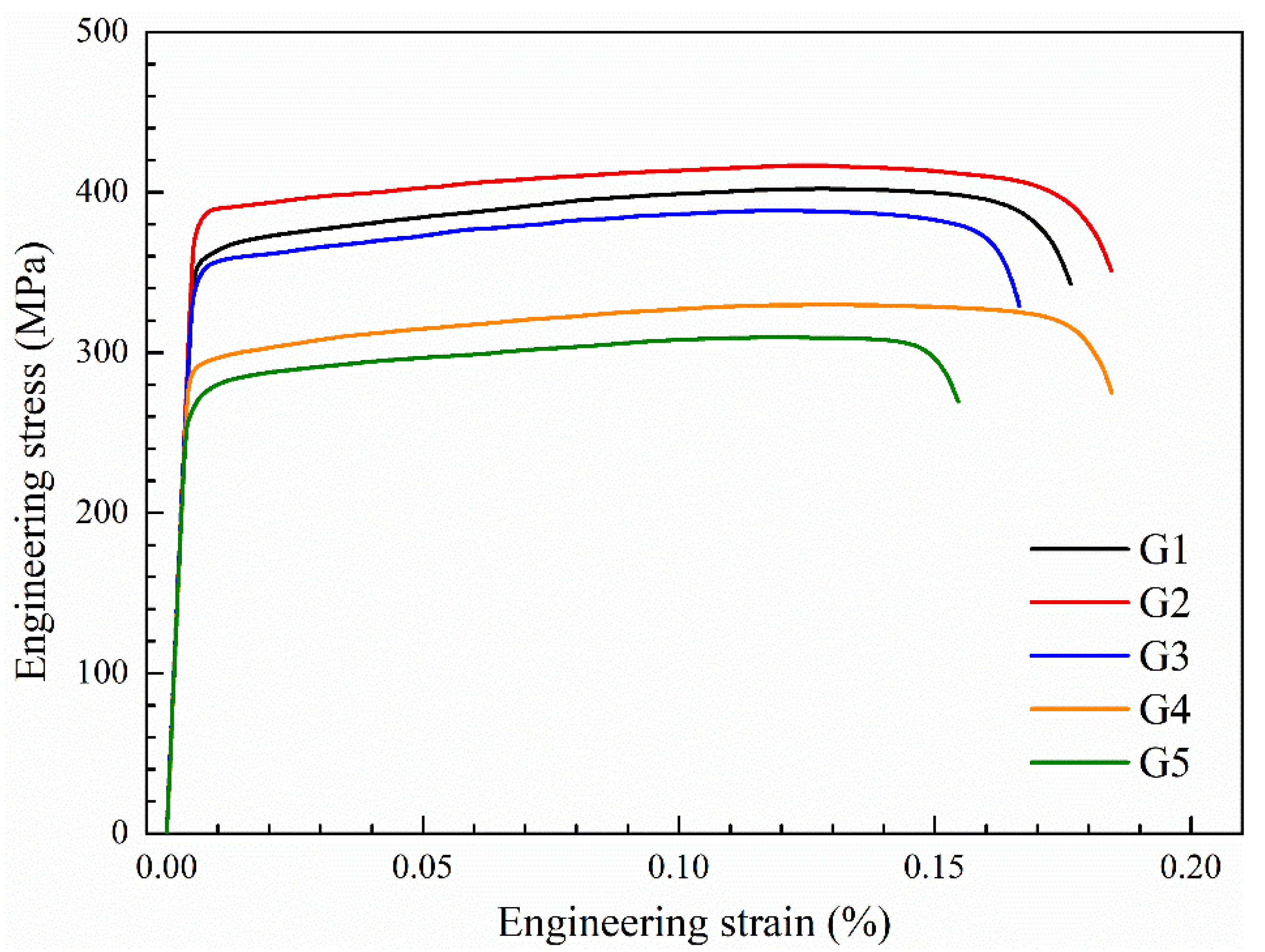

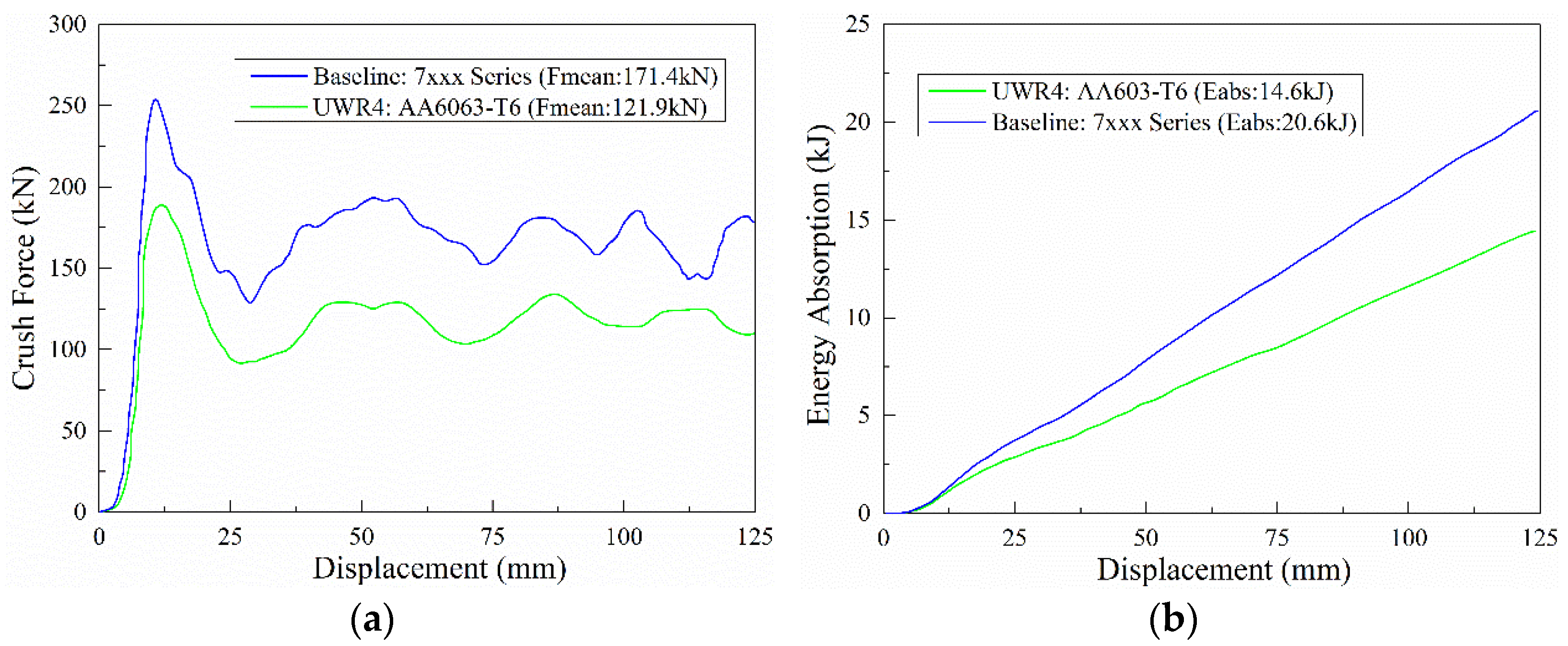

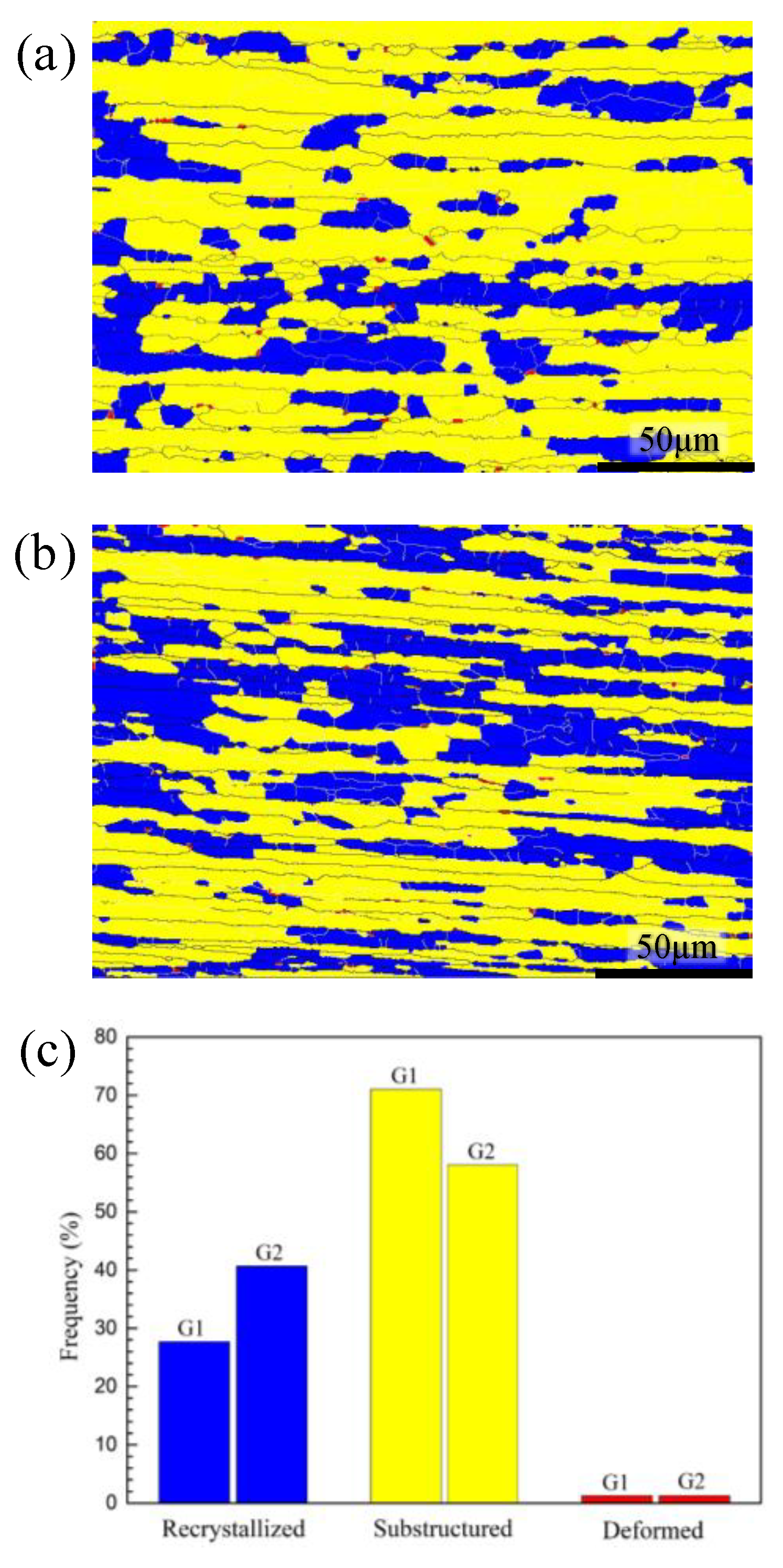

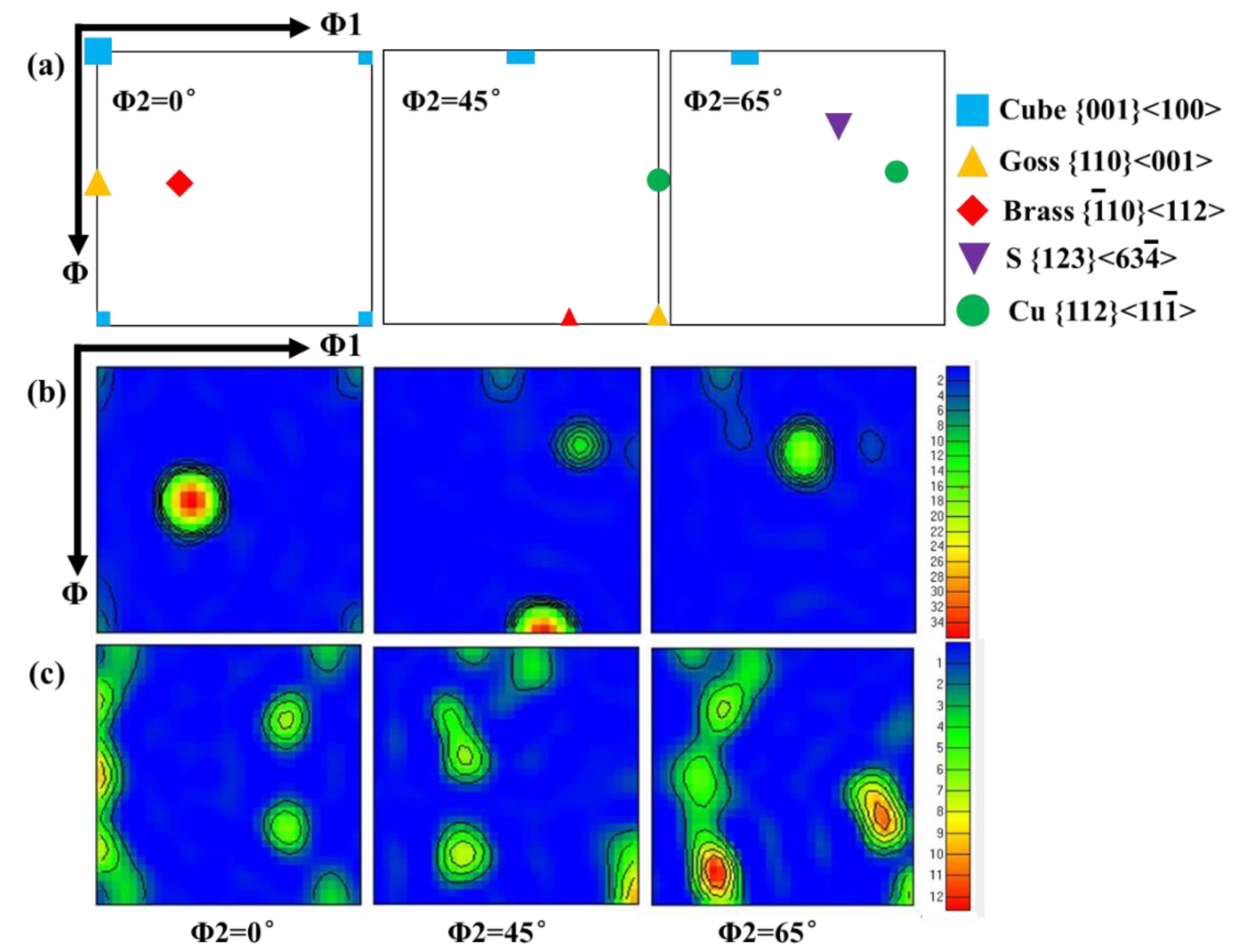

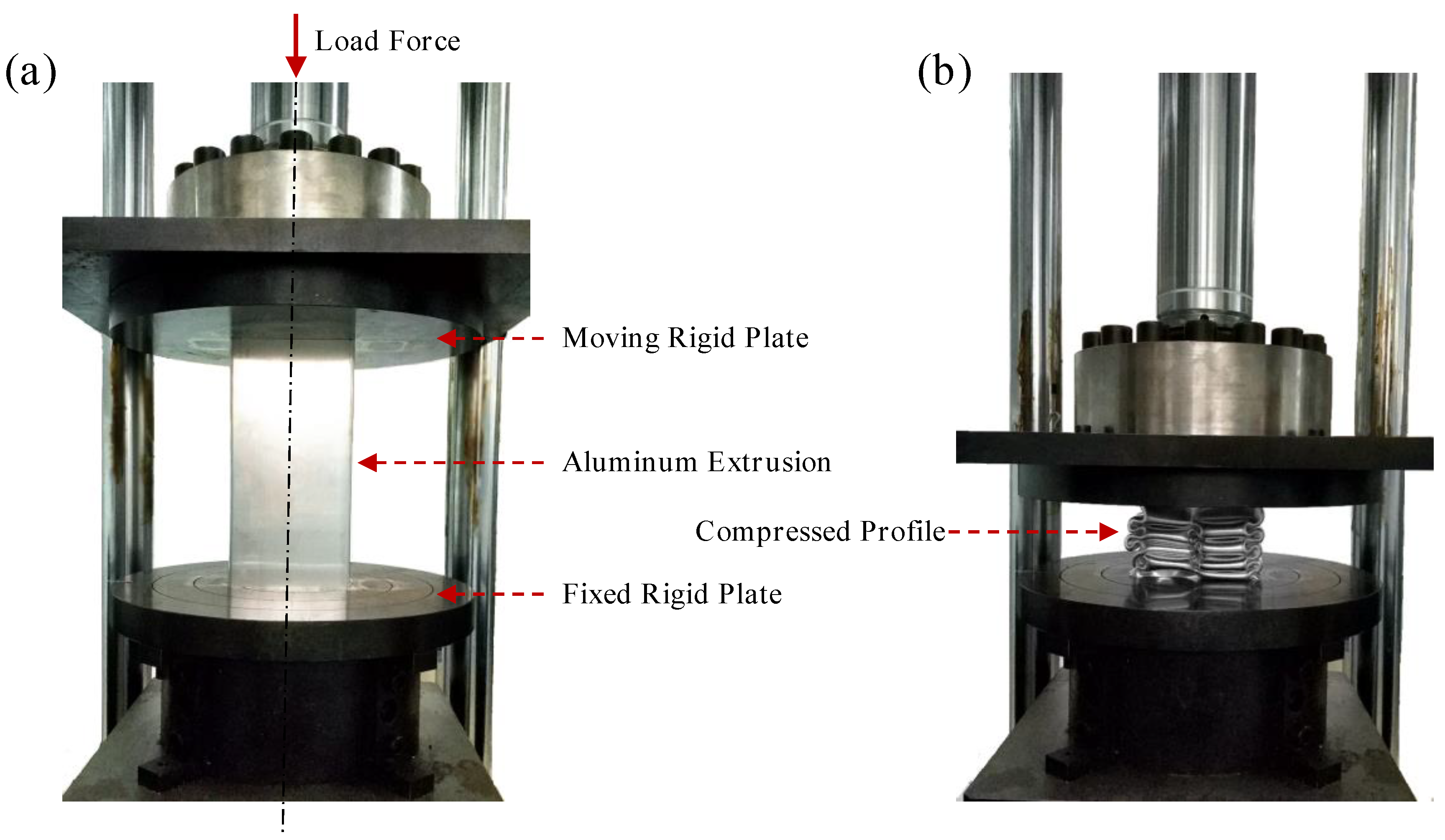

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Guo, H.; Wang, C.; Zhang, J.; Deng, Y. Effect of Zn and Mg Content on Crashworthiness of Al-Zn-Mg Alloy Thin-Walled Square Extrusions. Materials 2020, 13, 4791. https://doi.org/10.3390/ma13214791
AMA Style
Guo H, Wang C, Zhang J, Deng Y. Effect of Zn and Mg Content on Crashworthiness of Al-Zn-Mg Alloy Thin-Walled Square Extrusions. Materials. 2020; 13(21):4791. https://doi.org/10.3390/ma13214791
Chicago/Turabian StyleGuo, Hui, Cheng Wang, Jin Zhang, and Yunlai Deng. 2020. "Effect of Zn and Mg Content on Crashworthiness of Al-Zn-Mg Alloy Thin-Walled Square Extrusions" Materials 13, no. 21: 4791. https://doi.org/10.3390/ma13214791
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
