Next Article in Journal
Preparation of Hierarchical Highly Ordered Porous Films of Brominated Poly(phenylene oxide) and Hydrophilic SiO2/C Membrane via the Breath Figure Method
Next Article in Special Issue
The Multifaceted Uses and Therapeutic Advantages of Nanoparticles for Atherosclerosis Research
Previous Article in Journal
Corrosion Development of Carbon Steel Grids and Shear Connectors in Cracked Composite Beams Exposed to Wet–Dry Cycles in Chloride Environment
Previous Article in Special Issue
Hot Deformation Behavior and a Two-Stage Constitutive Model of 20Mn5 Solid Steel Ingot during Hot Compression
Open AccessArticle

Synthesis of Magnesium Nickel Boride Aggregates via Borohydride Autogenous Pressure

Institute for Future Environments and Science and Engineering Faculty, Queensland University of Technology (QUT), Brisbane, QLD 4001, Australia
*
Author to whom correspondence should be addressed.
Materials 2018, 11(4), 480; https://doi.org/10.3390/ma11040480
Received: 2 March 2018 / Revised: 16 March 2018 / Accepted: 21 March 2018 / Published: 23 March 2018
(This article belongs to the Special Issue Materials: 10th Anniversary)

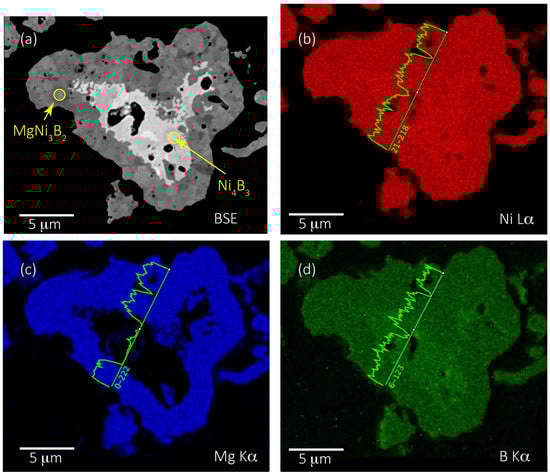

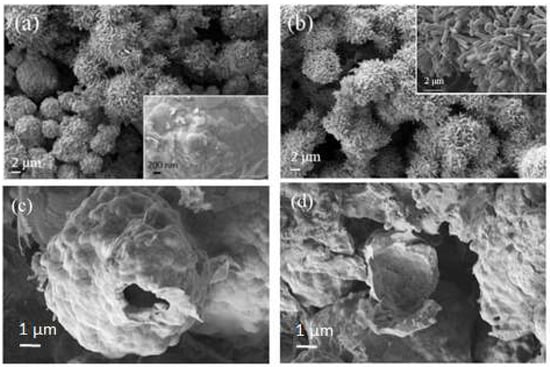

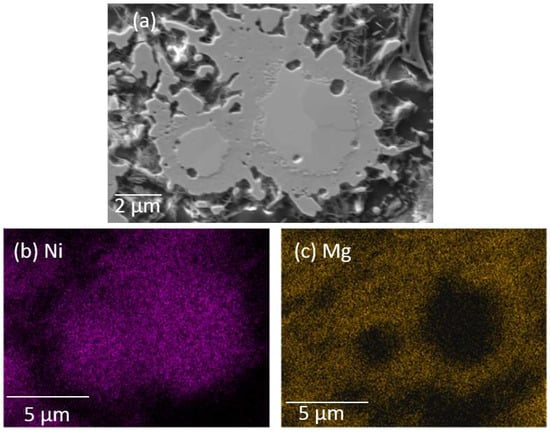

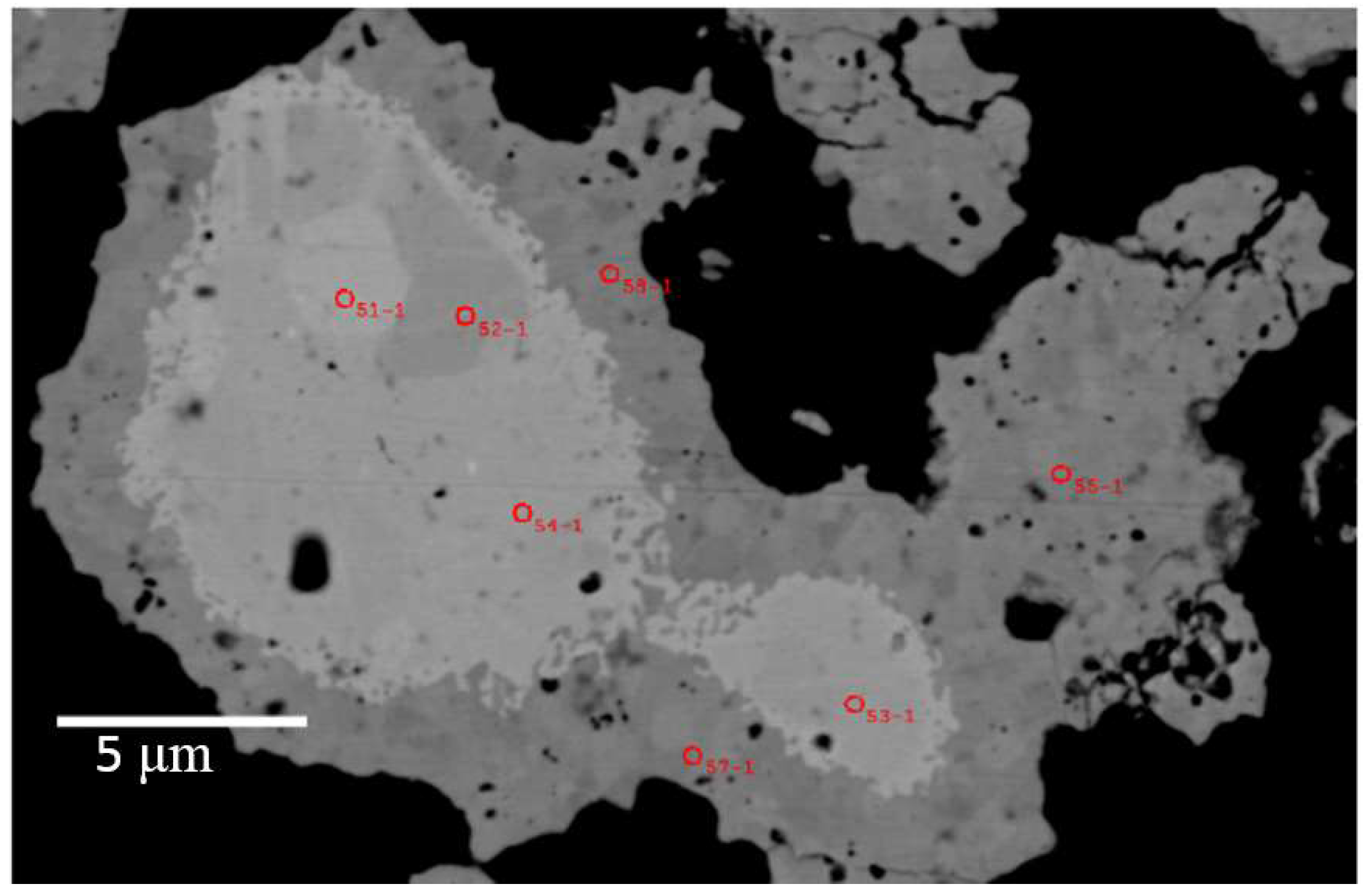

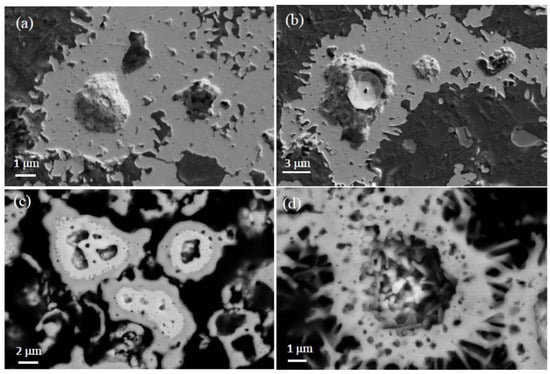

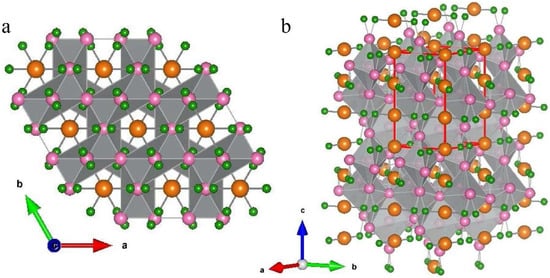

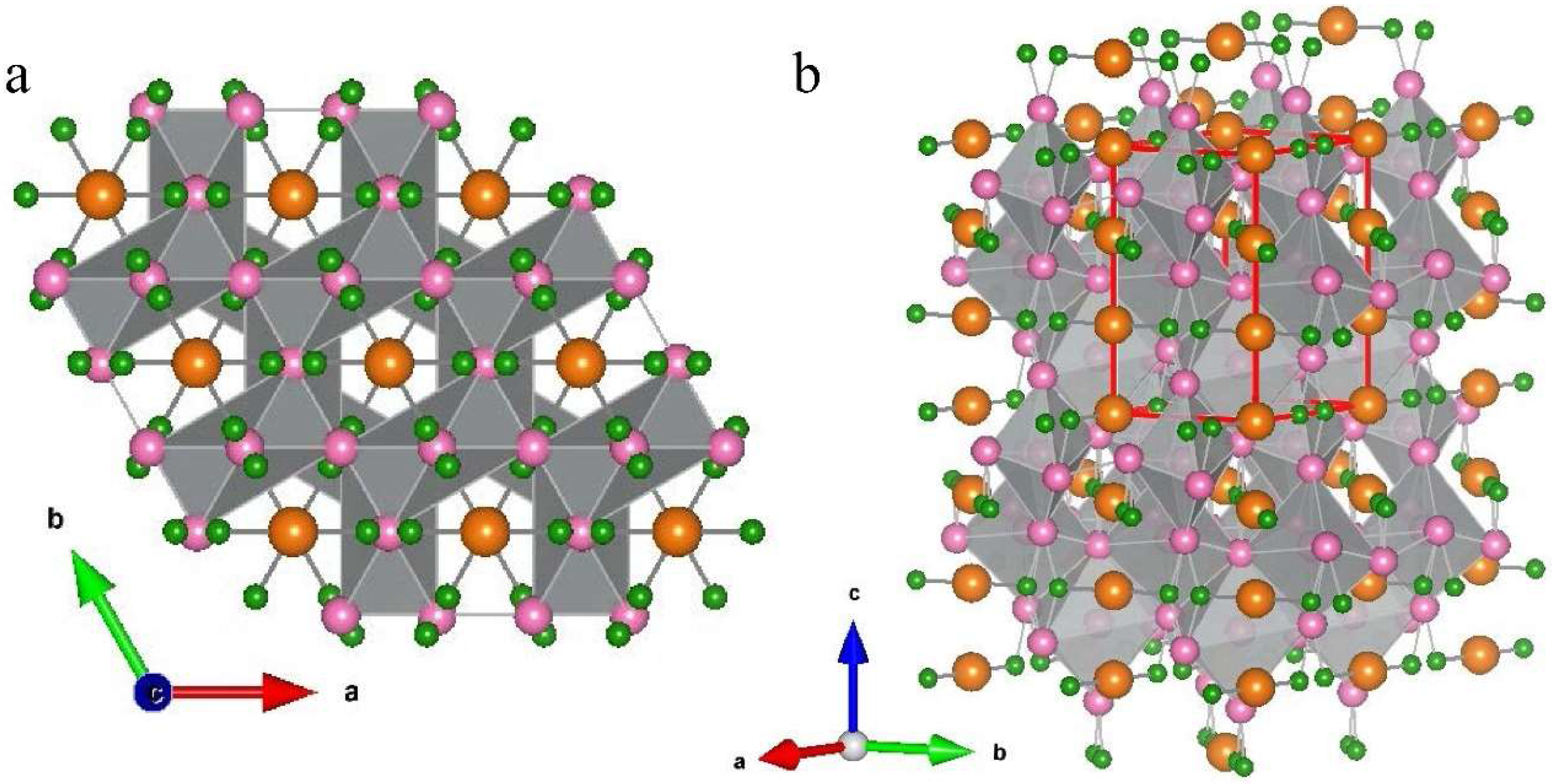

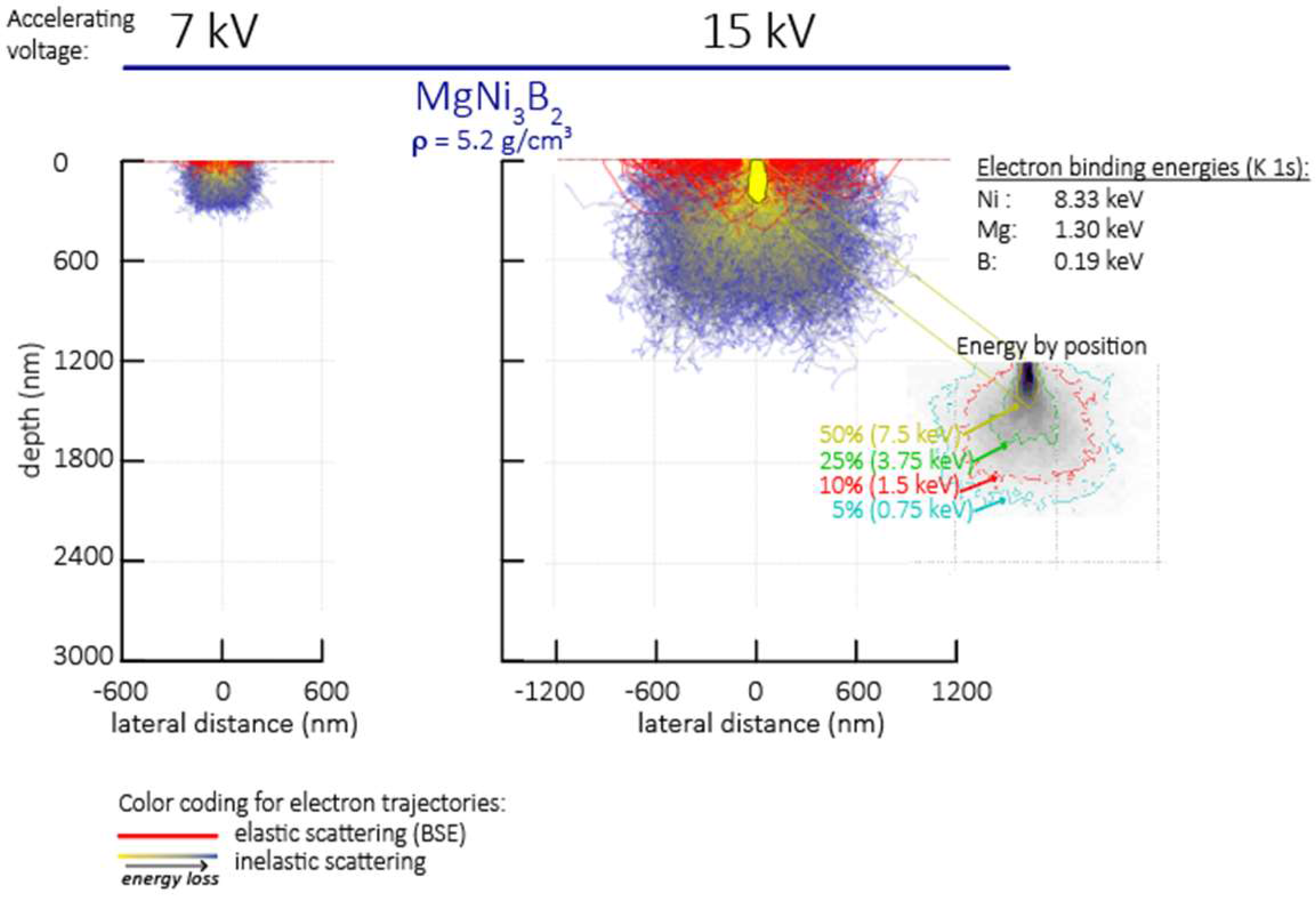

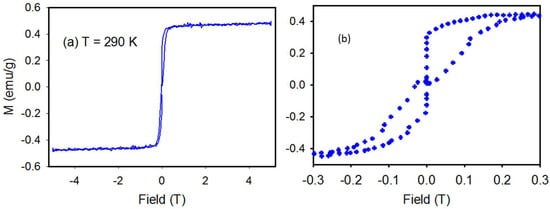

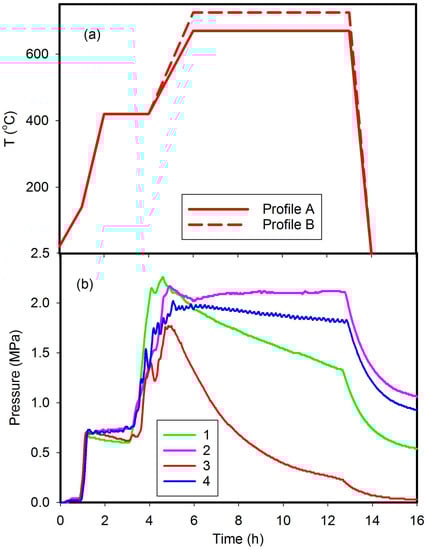

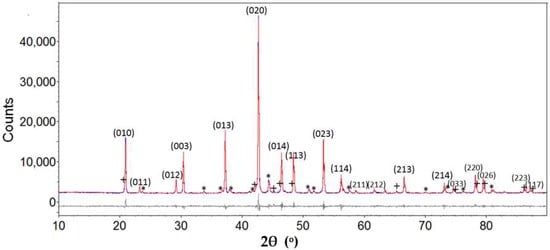

We demonstrate synthesis of the ternary intermetallic MgNi3B2 using autogenous pressure from the reaction of NaBH4 with Mg and Ni metal powder. The decomposition of NaBH4 to H2 and B2H6 commences at low temperatures in the presence of Mg and/or Ni and promotes formation of Ni-borides and MgNi3B2 with the increase in temperature. MgNi3B2 aggregates with Ni-boride cores are formed when the reaction temperature is >670 °C and autogenous pressure is >1.7 MPa. Morphologies and microstructures suggest that solid–gas and liquid–gas reactions are dominant mechanisms and that Ni-borides form at a lower temperature than MgNi3B2. Magnetic measurements of the core-shell MgNi3B2 aggregates are consistent with ferromagnetic behaviour in contrast to stoichiometric MgNi3B2 which is diamagnetic at room temperature. View Full-Text
Keywords: ternary metal borides; autogenous pressure synthesis; magnesium nickel boride; microstructures ternary metal borides; autogenous pressure synthesis; magnesium nickel boride; microstructures
Show Figures

Graphical abstract

MDPI and ACS Style

Shahbazi, M.; Cathey, H.E.; Mackinnon, I.D.R. Synthesis of Magnesium Nickel Boride Aggregates via Borohydride Autogenous Pressure. Materials 2018, 11, 480.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
