A Study of the Segment Assembly Error and Quality Control Standard of Special-Shaped Shield Tunnels

,
,
,
,
,
,
and
1
College of Environmental Science and Engineering, Donghua University, Shanghai 201620, China
2
College of Civil Engineering, Tongji University, Shanghai 200092, China
3
College of Urban Railway Transportation, Shanghai University of Engineering Science, Shanghai 201620, China
4
Shanghai Tunnel Engineering Co., Ltd., Shanghai 200032, China

Abstract

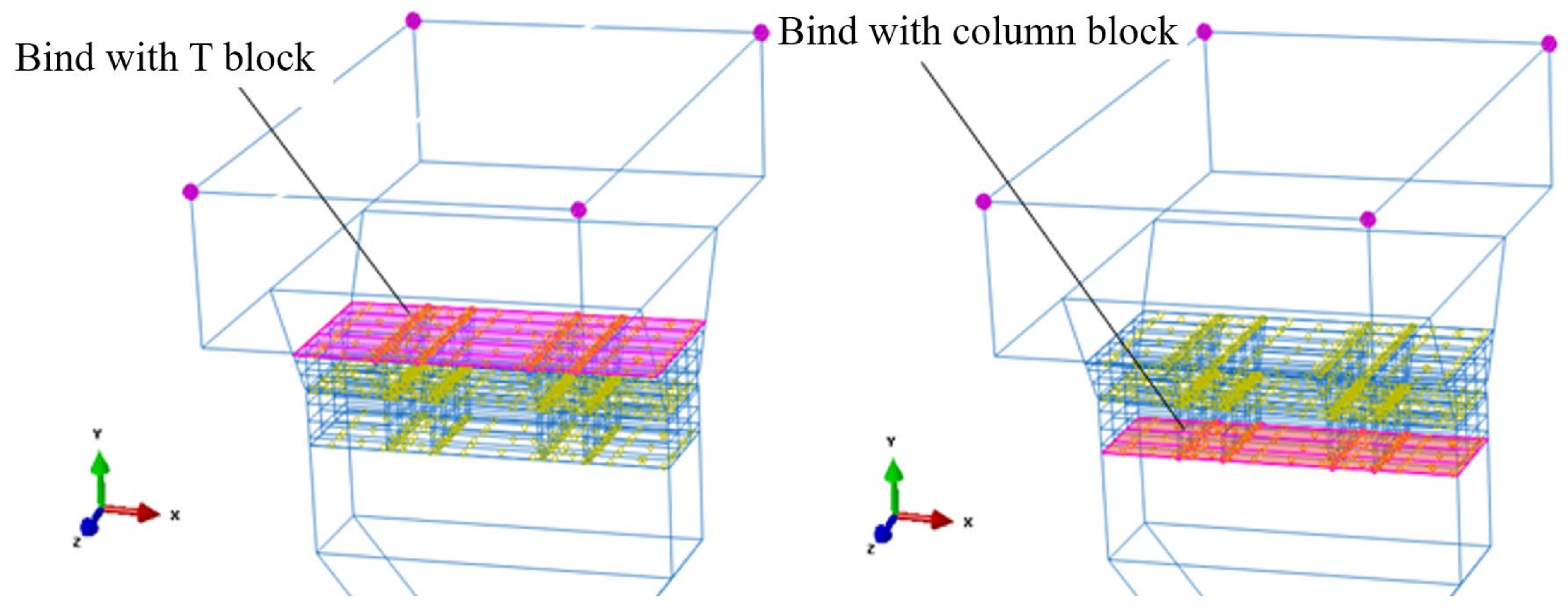

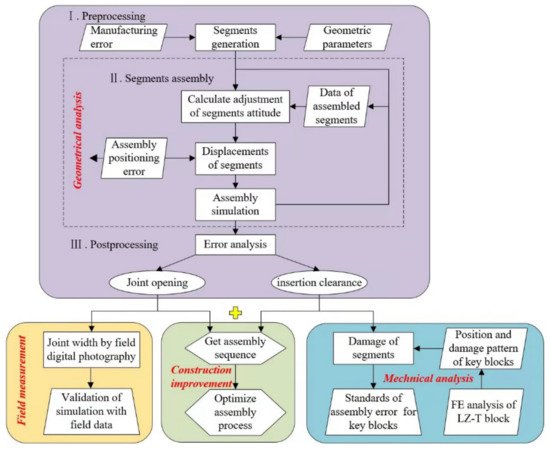

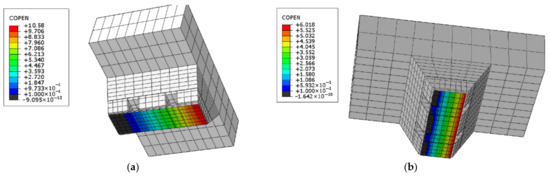

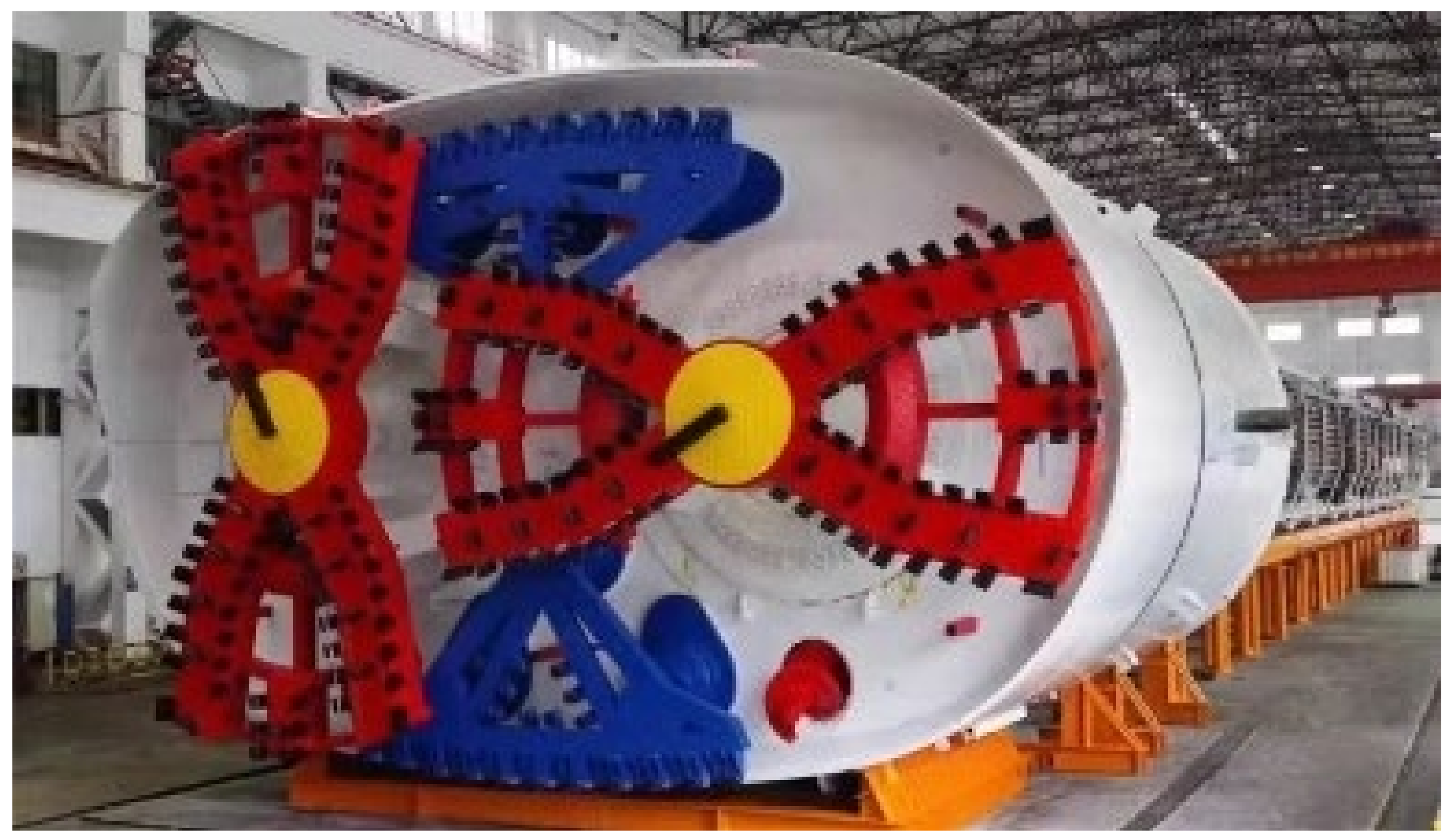

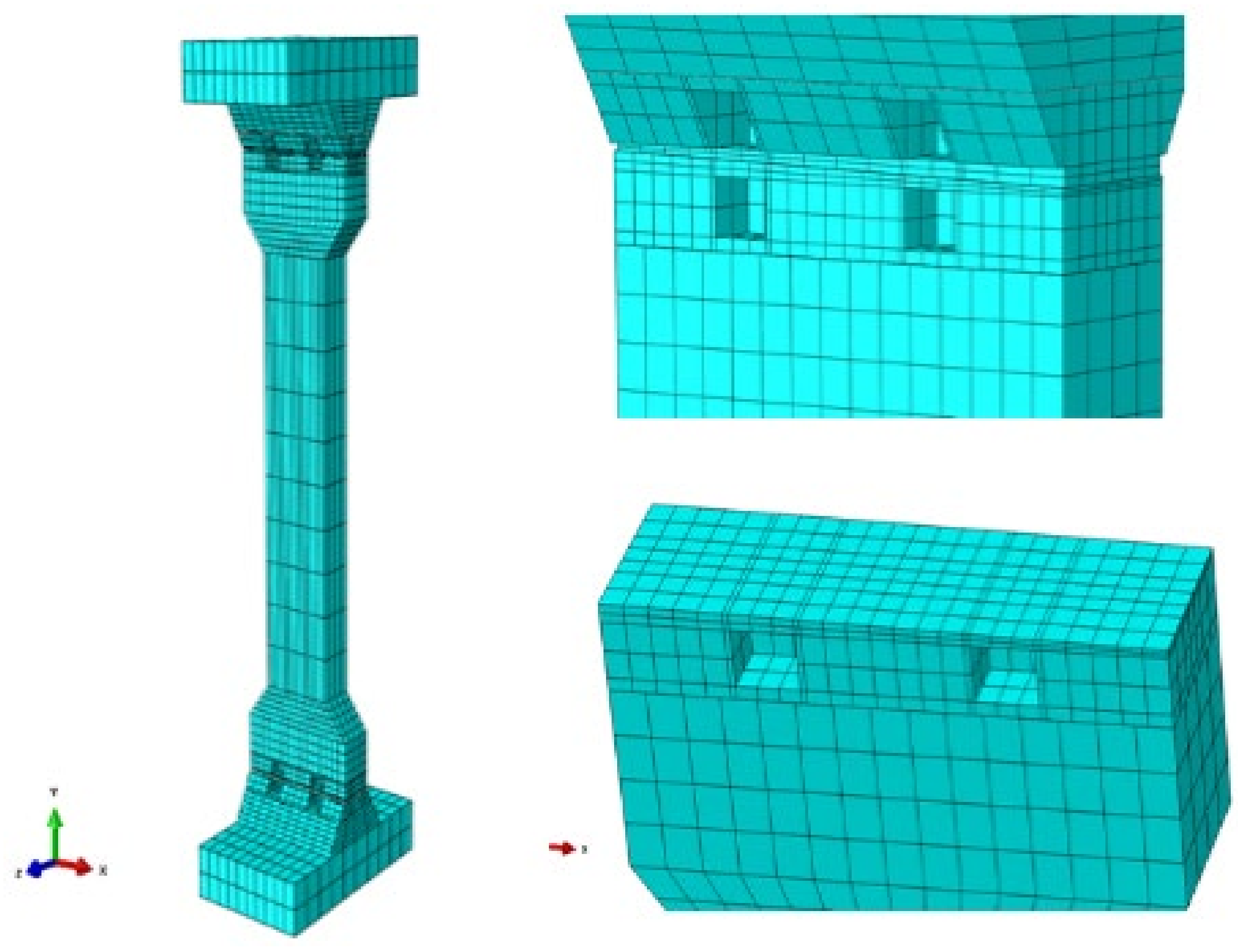

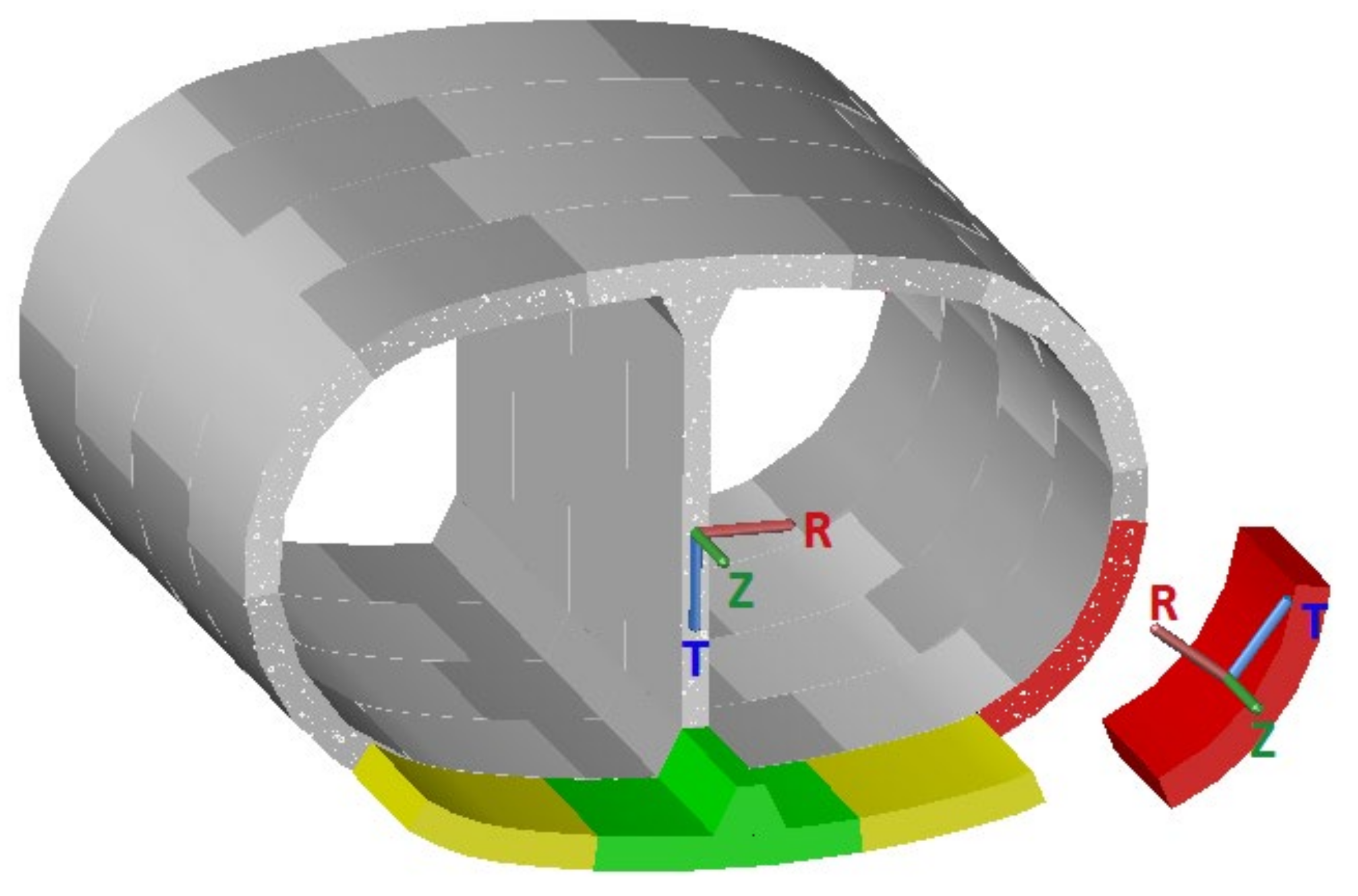

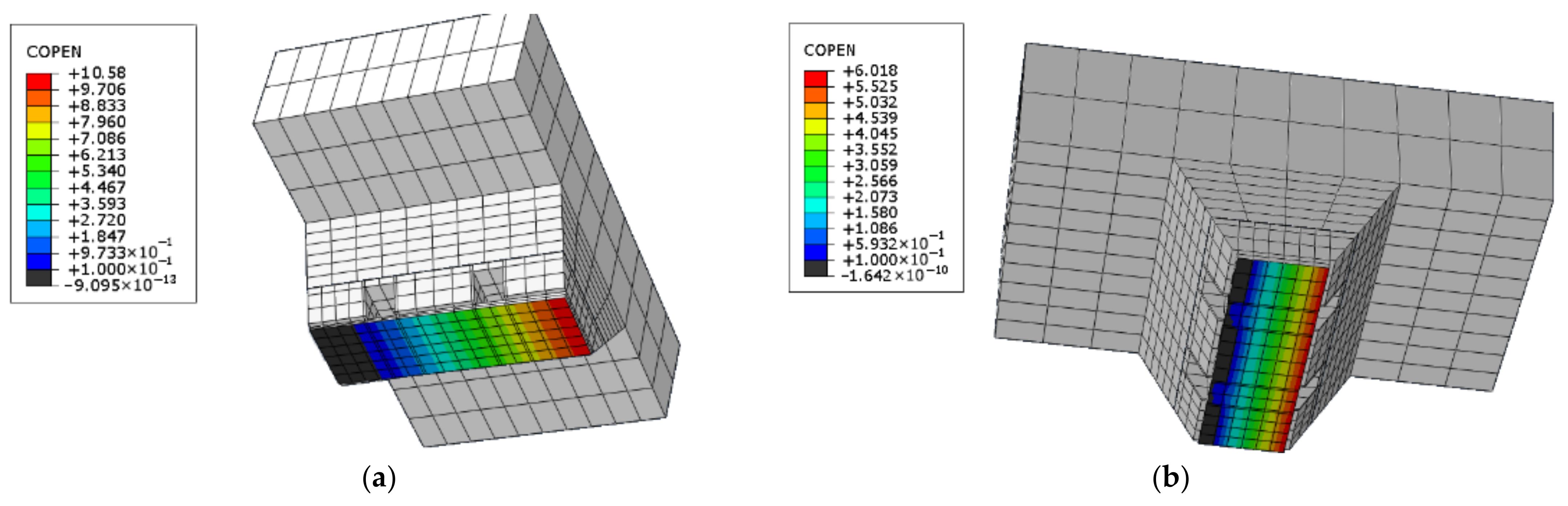

Large-section special-shaped shield tunnels feature many advantages, such as versatility and a large space utilization rate in energy transmission and public transport; however, guaranteeing the quality of segments’ assembly is difficult. Based on the quasi-rectangular shield tunnel project of Hangzhou Line 9 in China, this study investigated the formation mechanism and control measures of lining segment assembly defects. By quantifying the manufacturing error and positioning error, a simulation program for segment assembly is developed to calculate the error. Furthermore, considering the relative accumulative error between the upper and lower T blocks, the finite element model of key blocks (T-LZ block) is established to perform mechanical analysis, based on which the relative error control standard of the key block under the corresponding working conditions is proposed. The results show that the assembly quality can be effectively improved by assembling the LZ block first and applying corresponding error control measures, and the displacement of the segment along the rZ direction should be carefully controlled during the construction. The error caused by normal assembly will not damage the LZ block, and the corresponding control standard under the action of multi-degree-of-freedom error (extreme case) is 9.8 mm. Using this method to predict the assembly quality of segments can provide a basis for actual construction control of segment assembly.
