A New Hybrid Online and Offline Multi-Factor Cross-Domain Authentication Method for IoT Applications in the Automotive Industry

,
,
,
and
1
Department of Computer and Communication Systems Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400, Malaysia
2
Department of Electrical and Computer Engineering, College of Engineering and Information Technology, Ajman University, Ajman 346, United Arab Emirates
*
Authors to whom correspondence should be addressed.
This article belongs to the Special Issue Near Real-Time Smart IoT Applications

Abstract

Connected vehicles have emerged as the latest revolution in the automotive industry, utilizing the advent of the Internet of Things (IoT). However, most IoT-connected cars mechanisms currently depend on available network services and need continuous network connections to allow users to connect to their vehicles. Nevertheless, the connectivity availability shortcoming in remote or rural areas with no network coverage makes vehicle sharing or any IoT-connected device problematic and undesirable. Furthermore, IoT-connected cars are vulnerable to various passive and active attacks (e.g., replay attacks, MiTM attacks, impersonation attacks, and offline guessing attacks). Adversaries could all use these attacks to disrupt networks posing a threat to the entire automotive industry. Therefore, to overcome this issue, we propose a hybrid online and offline multi-factor authentication cross-domain authentication method for a connected car-sharing environment based on the user’s smartphone. The proposed scheme lets users book a vehicle using the online booking phase based on the secured and trusted Kerberos workflow. Furthermore, an offline authentication phase uses the OTP algorithm to authenticate registered users even if the connectivity services are unavailable. The proposed scheme uses the AES-ECC algorithm to provide secure communication and efficient key management. The formal SOV logic verification was used to demonstrate the security of the proposed scheme. Furthermore, the AVISPA tool has been used to check that the proposed scheme is secured against passive and active attacks. Compared to the previous works, the scheme requires less computation due to the lightweight cryptographic algorithms utilized. Finally, the results showed that the proposed system provides seamless, secure, and efficient authentication operation for the automotive industry, specifically car-sharing systems, making the proposed system suitable for applications in limited and intermittent network connections.

1. Introduction

The Internet of Things (IoT) paradigm has profoundly affected the automotive industry and its long-term prospects [1,2]. Traditional vehicle-to-everything (V2X) technologies are evolving into the Internet of Vehicles (IoV) to support emerging advanced vehicular applications, including intelligent transportation systems (ITS) and autonomous vehicles [3,4]. The global market for autonomous driving is expected to reach $173.15 billion by 2030, as reported by [5]. Numerous automobile businesses, such as ArgoAI, Audi, Baidu, Cruise, Mercedes-Benz, Tesla, Uber, and Waymo, have made significant investments in this domain. Customers, suppliers, and service providers will benefit from unprecedented data collecting, easy connectivity, location-based utilities, personalized insurance benefits, intelligent diagnostics, and assisted driving as the Internet of Things (IoT) is introduced to cars [6,7]. Although these opportunities are essential somehow, they are only as good as their weakest link [8]. According to Statista, more than 26 billion IoT-connected devices are in use today, with that number expected to rise to more than 75 billion by 2025. As the connected car’s knowledge, facilities, and environment evolve, so do the risks and exposures that come with it [9,10]. According to Intel predictions, autonomous vehicles may generate and consume 5 TB of data each hour of driving, with automotive cameras and radars alone generating data at rates of 20–40 Mbps and 100 kbps, respectively, [4]. Additionally, data are derived from crowdsourced traffic networks such as Google Waze. Processing such large amounts of data generated by hundreds of thousands of vehicles requires enormous computational capabilities and effective machine learning techniques to extract crucial information that must be produced for each driver [5]. As electrical vehicles (EV) are being pushed instead of internal combustion engine (ICE) technology, it is only natural that the connectivity technology is becoming more sophisticated. Furthermore, vehicles have become increasingly autonomous to provide more safety and convenience to the users. However, the increases in sophistication and autonomy need to be balanced with comprehensive security, regardless of the condition and location of the car. Central to this connected vehicle initiative is the owner’s smartphone. It is used to control, monitor, and secure the vehicles and other necessary interactions with their environment, for example, automatic parking, toll services, gas and charging stations, automakers’ service networks, and other driving facilities, as shown in Figure 1.
Figure 1. Smartphone-centric vehicle control, monitoring, and security facilities.
Furthermore, automakers emphasize their connected features, which range from on-board Wi-Fi to mobile applications that monitor locks and even start vehicles. The novelty of these "smart" features frequently outweighs the negative consequences in these situations. Thus, what happens if a customer’s phone is lost or stolen? Is there adequate protection and authentication in place to prevent their car from being stolen as well? What happens if the customer’s Internet connection is lost? Both are things to consider. Over the last few decades, vehicle networks have progressed from essential communications inside a vehicle using the CAN Bus technology (control area network) [11]. However, the issue with CAN Bus is that it was not built with safe communications in mind, and attempts to introduce secure certificate-based authentication to CAN Bus devices have largely failed. A cyberattack is a pernicious endeavor to breach the data or systems of an individual or a specific organization [12]. Several cyberattacks are possible now, such as information fraud, blackmailing, malware, man in the middle, server hijacking, spamming, trojans, phishing, denial-of-service, and so on [13]. Replay attacks are one of the many steppingstones for car hacking [14]. Replay attacks happen when malicious users record the signals between two parties. Replay attacks can occur when messages between vehicles are not encrypted and authenticated. The receiver will verify the sender as a legitimate user; while this exchange is happening is when the malicious user comes into play [15]. This, in return, makes the receiver think that this is the original sender. However, it is the malicious user gaining access to unauthorized information using a "replay" of the authenticated user’s signal [15,16]. Bluetooth and Near-Field Connectivity (NFC) are the common ways for a vehicle and a smartphone (NFC) to interact [17]. Bluetooth Low Energy (BLE) is part of the Bluetooth 5 specifications, designed to use low electricity. BLE also has the advantage of not needing system pairing. BLE is exceptionally convenient because of this. NFC is also convenient, but proximity is necessary for functioning. It is less convenient than BLE but probably more secure due to the proximity limitation, unlike BLE, which can be potentially exposed replay attack if adversaries are nearby. As a result, BLE is a common choice for real-world use. The low transmission speeds of BLE and NFC constitute a disadvantage, and theoretical bandwidth is often not achieved in practice [18]. Maintaining a continuous network connection, however, is often unlikely or unwanted due to higher costs. Moreover, in a world where most smartphones always have an Internet connection, a protocol where all steps can be completed without a network connection is necessary. However, offline authentication is used for in-person transactions where access is inaccessible or unnecessary. Thus, there must be a way of checking that a person is who they claim to be without reference to other systems (remote identity databases, online services, etc.), and if possible, that the credentials they present are genuine. Accessing the vehicle in such a network connectivity shortage makes the development of IoT-connected vehicles undesirable [19]. On the other hand, IoT services are used widely nowadays in car maintenance applications, door unlocking, and even car-sharing services. Hence, the network connection’s availability should not be an issue when offline authentication exists. Several works [16,20,21,22,23] tried to cope with a specific type of attack, which can be a limitation. In contrast, several others were designed to handle a specific challenge, such as authentication [24], privacy [25], or localization [26]. Therefore, unlike other solutions, this study proposes a hybrid online–offline authentication scheme for Industrial IoT-connected vehicles in the real world, where connectivity can be unreliable or intermittent due to many reasons and circumstances. The scheme utilized an AES-ECC algorithm for secure communication and efficient key generation management. The Kerberos workflow is used to enable users to book the car in online mode. The one-time password (OTP) is also added to the offline authentication to allow the user to access offline mode when the connectivity is unavailable in regions with poor network availability.

3. Functionality and Security Goals

Based on the literature, an unquestionable requirement in terms of security and functionality has still not been met in previous studies or any IoT-connected devices. Therefore, to ensure the security and functionality of the proposed scheme, the following requirements are considered to provide an efficient and secure authentication scheme:
  • Mutual Authentication: To ensure the effectiveness of all participants, the vehicles and the servers need to authenticate each other.
  • Offline Authentication: The car or any IoT-connected devices solutions depend on connected vehicles, which restricts their functional areas to areas with a stable network link. To address this restriction, we require users to authenticate offline during car (un)locking, allowing car-sharing services to go to areas with less secure networks or no network access at all.
  • Vehicle anonymity: When a user uploads his ID to the medical server, adversaries should not obtain the user’s identity during the registration process.
  • Low Computing Cost: The IoT devices are resource constrained devices with low power, so the authentication schemes must be designed with low computational costs to suit the IoT devices’ requirements.
  • Integrity: The vehicle may authenticate each message to ensure that it was not tampered with by an adversary.
  • Confidentiality: Passive attacks such as eavesdropping or traffic monitoring should not be able to access vehicle data. As a result, only designated individuals have access to or use vehicle data.
  • Forward Secrecy: The proposed protocol should provide backwards and forwards confidentiality to ensure the protection of messages exchanged in previous and future communications. Even if the adversary obtains the current session key, he cannot get the session keys created in prior and subsequent sessions.
  • Resistance Against Attacks: In-vehicle and device communication, any newly developed authentication scheme must be resistant to masquerade attacks, alteration attacks, replay attacks, and man-in-the-middle attacks.
    −
    Replay attacks: In IoT-connected vehicles, replay attacks should be prevented by using timestamps and random numbers in the transmitted messages [48].
    −
    Man-in-middle attack: An adversary intercepts the messages sent between the vehicle and server and replaces them with messages.
    −
    Offline password guessing attack: In this attack, an attacker can employ some of the intercepted information, such as keys, or the self-generated parameters, to guess the user’s password [49]. These attacks can never be "prevented," but protocols can be made secure against such attacks.
    −
    Server spoofing attack: This attack can be solved entirely by providing mutual authentication between vehicle and server.
    −
    Privileged insider attack: When the server needs to retain the user’s password for later authentication, the keys are probably being stolen by the adversary because the server can find out the patient’s new password.
    −
    Denial of service (DoS) attack: Services are denied to the attackers by the automative users/vehicles and the servers [50].
    −
    Impersonation attack: A dishonest user can easily impersonate another legal user.

4. Cryptography Materials

This section gives a brief overview of elliptic curve cryptography [49]. The ECC’s security is based on solving the elliptic curve discrete logarithm problem (ECDLP). It can achieve the same degree of protection with a smaller key size [51]—the use of ECC with a more minor key size results in significant cost savings. Furthermore, ECC’s smaller key sizes make it easier to design faster cryptographic operations that can run on small chips with limited memory. This is suitable for systems with limited resources, since it reduces power consumption and heat output. Furthermore, the combination of the AES-ECC method is briefly discussed and gives the steps of the method workflow. The AES is used to encrypt the message before it is transmitted using the receiver public key. It was chosen as an asymmetric key algorithm because of its highly secure symmetric algorithm, and it is easy to implement without affecting the complexity. As a result, AES-ECC is well suited for smart devices operating in resource-constrained situations [52].

4.1. Elliptic Curve Cryptography (ECC)

Let E / F p be a set of elliptic curve points over a prime field F p , defined by the following non-singular elliptic curve:
y 2 m o d p = ( x 3 + a x + b ) m o d p
where x , y , a , b ∈ F p and ( 4 a 3 + 27 b 2 ) m o d p ≠ 0 . A point P ( x , y ) is an elliptic curve point if it satisfies (1), and the point Q ( x , − y ) is called the negative of P, i.e., Q = − P . Let P ( x 1 , y 1 ) and Q ( x 2 , y 2 ) ( P ≠ Q ) be two points on (1); line l (tangent to the curve (1) if P = Q ) joining the points P and Q intersects the curve (1) at R ( x 3 , − y 3 ) and the reflection of it concerning x-axis is the point R ( x 3 , y 3 ) , i.e., P + Q = R . The points E / F p together with a point O, called "point at infinity" or "zero points," make an additive elliptic curve cyclic group G p ; i.e., G p = ( x , y ) : x , y ∈ E / F p and ( x , y ) ∈ E / F p ∪ { } of prime order p. The scalar point multiplication on G p is defined as: k · P = P + P + ⋯ + P ( k t i m e s ) . A generator point P ∈ G p has order n if n is the smallest positive integer and n . P = O .

4.2. AES-ECC Algorithm

This section discusses the AES-ECC workflow. The AES key is secured in this algorithm by encrypting it with the ECC key without increasing the complexity or cross-encrypting the AES and ECC keys [53]. The workflow diagram of the AES-ECC algorithm is shown in Figure 2, and the steps are illustrated as follows:
Figure 2. The workflow diagram of the AES-ECC algorithm.
  • Input data, i.e., username, password, and a biometric of the user using a smartphone.
  • The data are hashed using the SHA-2 function to generate a hash value for data summary.
  • It generates a digital signature using a private sender key K s and an ECC digital signature.
  • Using the private key of the AES, the sender encrypts the digital signature and the data that need to be sent result in data ciphertext and signature ciphertext.
  • The sender then encrypts the AES private key using the ECC encryption module to generate the key ciphertext. Then, it sends the ciphertext via the Internet.
  • Upon receiving, the receiver uses his private key to decrypt the AES key; then, it decrypts the data ciphertext and signature ciphertext using the AES key.
  • Based on the sender’s public key, the receiver verifies the signature to summarize the received data and the hash value using the SHA-2 function. If the value is the same, then the data are valid; otherwise, the session is ended.

5. Proposed Scheme

This section proposes a new and secure multi-factor cross-domain authentication method for Industrial IoT-connected vehicles to provide an efficient and secure vehicle booking and offline authentication. The proposed scheme utilized a smartphone, username, password, and biometric (fingerprint). The combination of AES-ECC is used on the sender and receiver sides. This combination provides secure communication and efficient key management. Furthermore, it gives secure mutual authentication between the vehicle and the cross-server. The proposed scheme comprises five phases, i.e., setup, vehicle registration, server registration, booking, and offline authentication. Figure 3 shows a the general overview of the system’s architecture. The notation and descriptions are illustrated in Table 2. Furthermore, the network diagram of the proposed scheme is shown in Figure 4.
Figure 3. System Architecture.
Table 2. Notation.
Figure 4. Network diagram of the proposed scheme.

5.1. Setup Phase

In this phase, the trusted authority selects a large prime numbers p and q, and a finite field of elliptic curve E / F p . Then, the elliptic curve generates a group G with the generator P. The TA then generates the system master key selected randomly, S M K ∈ Z q * , and the system public key based on the master key and the prime number S P K = S M K . p . The encryption and decryption pair E . / D . related to the AES-ECC algorithm are chosen by the TA. Then, it selects a one-way hash function h ( ) : 0 , 1 ∗ ß Z ∗ q . Later, it computes the corresponding AES public key P K a e s The AES’s public key is used to encrypt the transmitted message amongst participating entities. The elliptic curve is used to generate the keys since it has a decent efficiency in key generation. Finally, the TA publishes the public parameters of the system p , G , S P K , P K a e s , E . / D . , h ( . ) and key the SMK secretly.

5.2. User Registration Phase

To enable the user to be authenticated by the cross-server, the user first needs to register itself into the authentication server AS in the TA. This phase is implied in online mode, where network connectivity is mandatory to complete the user’s registration. First, however, the vehicle starts the registration by inserting the smart card into the card reader in the car and selecting the identity, password, and biometric. When the AS receives the message, it checks whether the user exists in the database; if yes, it sends a notification about other information. Otherwise, the AS will start performing the user registration by applying the following steps, as shown in Figure 5:
Figure 5. The user registration phase.
  • The user inputs the identity I D u , passwords P w u , and imprint biometrics B i u . The mobile device picks a pseudonym identity I D V ∈ Z q * . Then, it generates a random number k u ∈ Z q * as a private vehicle key and calculates the vehicle public key P k u = k u . p . Later, it generates a random number r 1 and computes C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) . The C i the message is encrypted with AES public key M 1 : E P K a e s { C i ∥ B i u } alongside the user biometric and sends M 1 to AS.
  • Upon receiving M 1 , the AS decrypts the message D P K a e s { C i ∥ B i u } using the AES public key to obtain the user’s information.
    The AS then verifies the user’s identity and password with the one stored in its database; if it exists, it notifies the user Ui. Otherwise, it computes V i = h ( I D u ∥ d ) where d is the AS’s private key. Then, the mobile device MD generates nonce based on the timestamp and a check number (CN) n o n c e = T 1 ∥ C N , where CN is a six-digit number for user identification which is a value obtained by calculating the mod nanosecond. Then it encrypts the nonce with H A = E k M D ( n o n c e ) . Furthermore, it computes X i = V i ⊕ h ( B i u ∥ C i ∥ I D V ) , and R i = h ( V i ∥ X i ∥ C i ) . The AS calculates { V i , X i , R i , p , q , h ( . ) H A , C N } and stores it in the database. Finally, it sends the parameters to the Ui.
  • After receiving { V i , X i , R i , p , q , h ( . ) H A , C N } , it stores the parameters in the memory of the vehicle module.

5.3. Server Registration Phase

In this phase, the cross-server C S i register itself into the authentication server in online mode. For server registration, the following steps are shown in Figure 6 and described as follows:

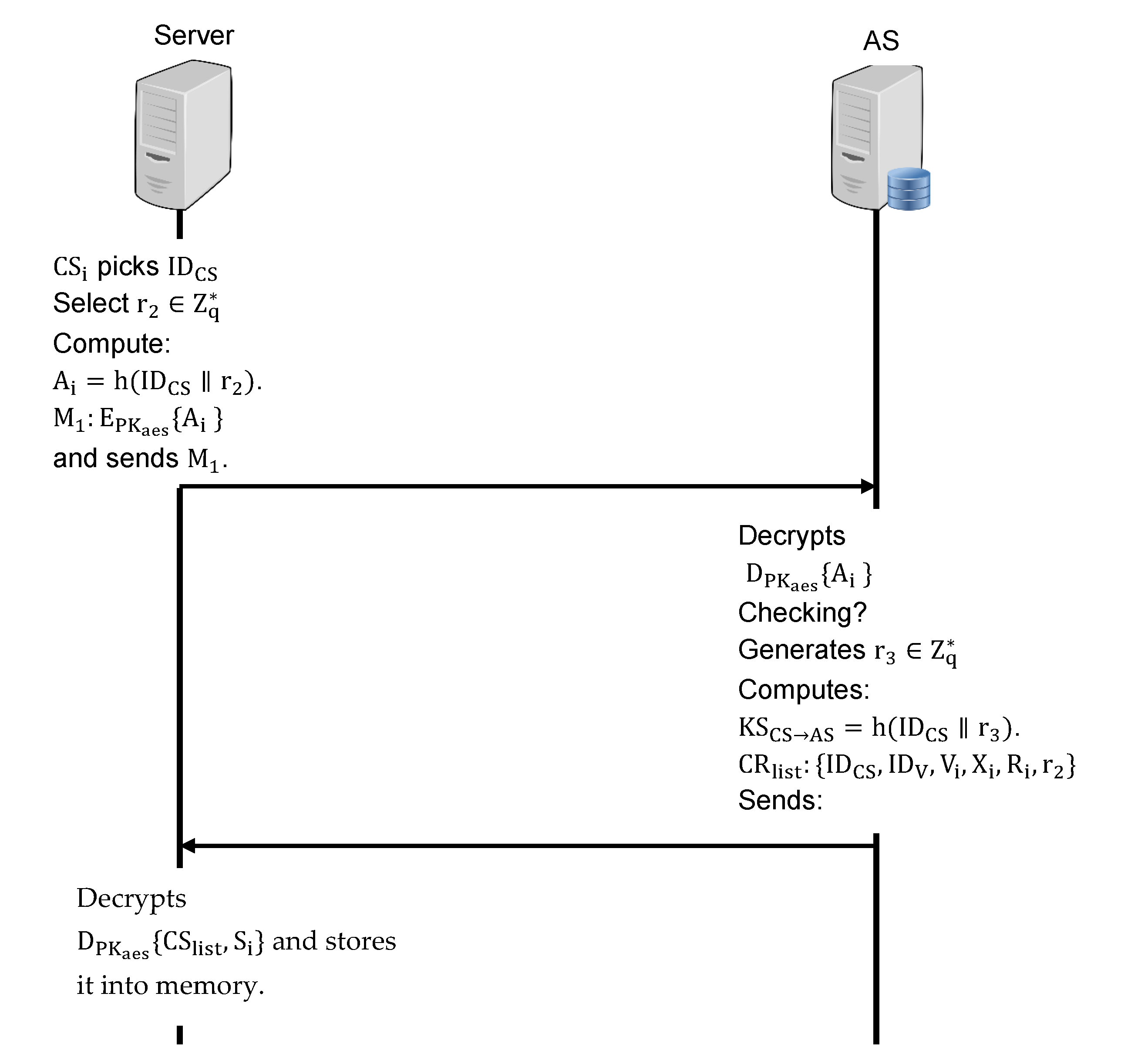

Figure 6. The server registration phase.
  • The C S i picks an identity I D C S and select a random number r 2 ∈ Z q * to compute A i = h ( I D C S ∥ r 2 ) . Then encrypt the message with AES’s public key M 1 : E P K a e s { A i } and sends M 1 to the AS.
  • The AS receives M 1 and decrypts D P K a e s { A i } using the public key to obtain the value A i , It checks whether the identity exists in the database or not; if so, the AS ask to reapply the registration. Otherwise, it generates a random number r 3 ∈ Z q * and computes a session key shared between the server and the AS K S C S → A S = h ( I D C S ∥ r 3 ) . Furthermore, the AS will prepare a list that contains all the registered cards in the reader C R l i s t : { I D C S , I D V , V i , X i , R i , r 2 } and a secret value S i to identify the server. Finally, the AS sends the M 2 : E P K a e s { C S l i s t , S i } to the server.
  • Upon receiving, the C S i decrypts the message D P K a e s { C S l i s t , S i } using AES public key and obtain the { C S l i s t , S i } . Then, it stores the values in its memory for future access.

5.4. Online Vehicle Booking

In this phase, the user books the vehicle in online mode. The user enters the identity, password, and biometric using their mobile device. To book the vehicle, the user applies the following steps, as described in Figure 7:

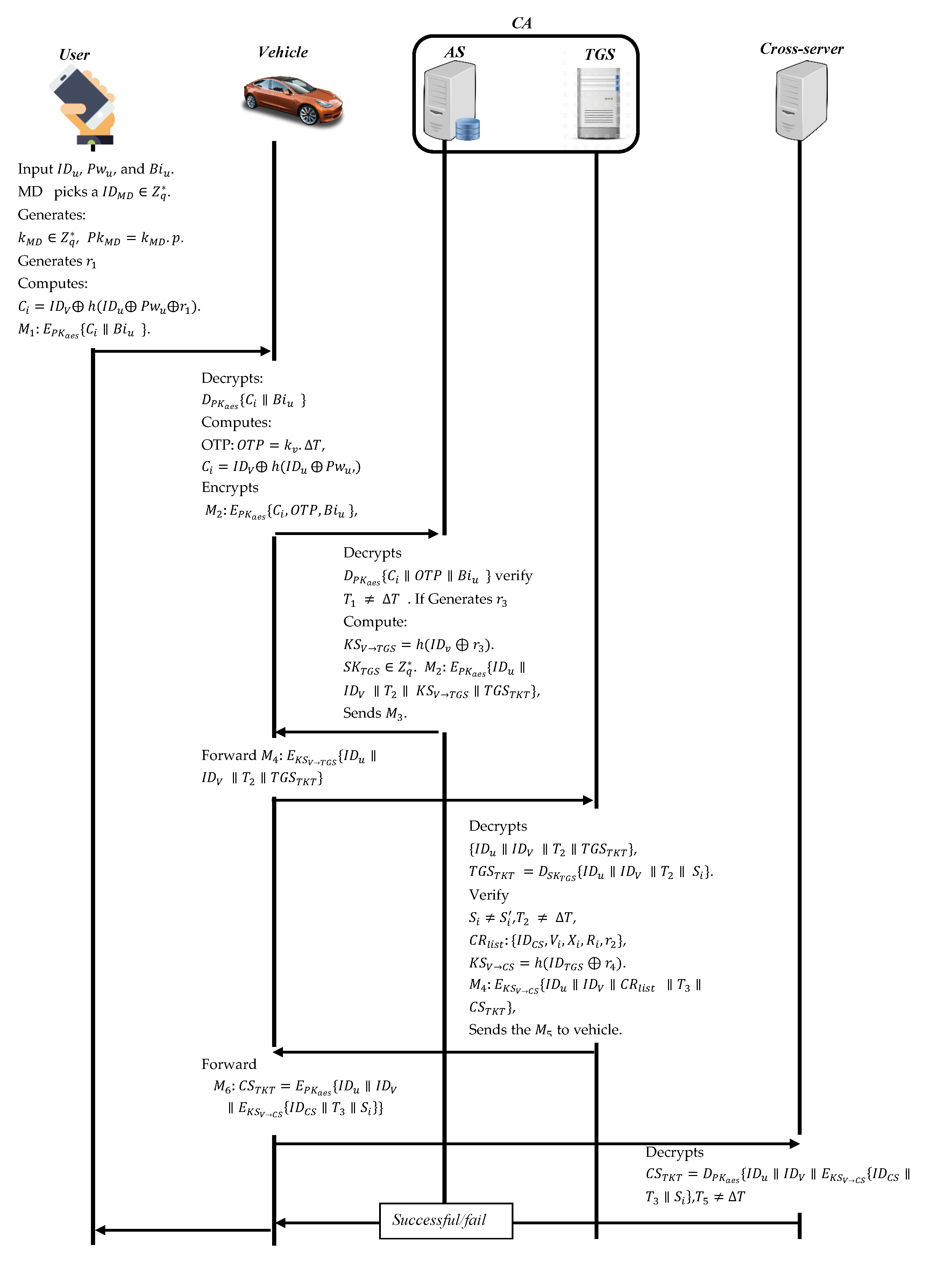

Figure 7. The online vehicle booking phase.
  • The user inputs his identity I D u , passwords P w u , and imprint biometrics B i u . The MD picks a pseudonym identity I D M D ∈ Z q * . Then, it generates a random number k M D ∈ Z q * as MD private key and calculates the MD public key P k M D = k M D . p . Later, MD generates a random number r 1 and computes C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) . The C i message is encrypted with an AES public key M 1 : E P K a e s { C i ∥ B i u } alongside the user’s biometric and sends M 1 to the vehicle.
  • Upon receiving M 1 , the vehicle decrypts the message D P K a e s { C i ∥ B i u } using an AES public key to obtain the user’s information. The vehicle then verifies the user’s identity and password with the ones stored in its database. If they exist, notify the user’s Ui. Later, the vehicle computes 32 bits T O T P : T O T P = k v . ▵ T , where ▵ T is the current time of the vehicle.
    The vehicle computes C i = I D V ⊕ h ( I D u ⊕ P w u ) and encrypts M 2 : E P K a e s { C i , O T P , B i u } ; then sends M 2 to the AS.
  • When the AS receives M 2 it decrypts the message D P K a e s { C i ∥ O T P ∥ B i u } to obtain the values { C i ∥ O T P ∥ B i u } and verify the identity of the user and vehicle, and checks the freshness of the timestamp T 1 ≠ ▵ T . If invalid, the session is ended. Furthermore, it verifies the received TOTP by matching with generated TOTP batch by the AS; if there is not a match, the session is ended; otherwise, it causes a random number r 3 and computes a shared key session to enable the vehicle to communicate with the ticket granting service (TGS) K S V → T G S = h ( I D v ⊕ r 3 ) . Then, the AS in trusted authority generates a secret key randomly for the TGS S K T G S ∈ Z q * . It later computes the message M 2 : E P K a e s { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } , where the T G S T K T = E S K T G S I D u ∥ I D V ∥ T 2 ∥ S i that can be decrypted by the TGS only. Finally, AS sends M 3 to the vehicle.
  • The vehicle gets the M 2 and decrypts it using the AES public key to obtain { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } . Then, it forwards the message M 4 : E K S V → T G S { I D u ∥ I D V ∥ T 2 ∥ T G S T K T } to the TGS in the trusted authority.
  • The TGS receives the message M 4 and decrypts it to obtain { I D u ∥ I D V ∥ T 2 ∥ T G S T K T } , and then decrypts the ticket T G S T K T = D S K T G S { I D u ∥ I D V ∥ T 2 ∥ S i } .
    The TGS verifies the secret value S i ≠ S i ′ ; if invalid, it ends the session; otherwise, it checks the freshness of the timestamp T 2 ≠ ▵ T . If not new, it ends the session. Otherwise, it generates a random number r 4 and computes the key session shared between the vehicle and the cross-server K S V → C S = h ( I D T G S ⊕ r 4 ) . Then, composes the message M 4 : E K S V → C S { I D u ∥ I D V ∥ T 3 ∥ C S T K T } , where C S T K T is C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } . Finally, the TGS sends the M 5 to the vehicle.
  • Upon receiving the M 5 , the vehicle decrypts the message to obtain the session key and the C S T K T . Then, it decrypts the ticket D P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } . It forwards M 6 : C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } to the cross-server.
  • The cross-server receives the M 6 and decrypts C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } to obtain the values. Then, it checks the freshness of the timestamp T 5 ≠ ▵ T . If not fresh, it ends the session; otherwise, the vehicle booking is successfully made.

5.5. Offline Authentication

This phase enables the user to authenticate into the offline mode using TOTP [54] when the network connectivity is not available. In Figure 8, the network diagram of the offline authentication is shown. To authenticate the user with the vehicle, the user needs to apply the following steps, as illustrated in Figure 9.
Figure 8. The offline authentication network diagram.
Figure 9. The offline authentication phases.
  • The user inputs their information identity I D u , passwords P w u , and imprint biometrics B i u using the mobile device. The mobile device verifies the identity I D u , and biometrics B i u with its database. Then, the mobile device MD generates nonce based on the timestamp and checks number ( C N ) n o n c e = T 1 ∥ C N , where CN is a six-digit number for user identification which is a value obtained by calculating the mod in nanoseconds. Then encrypts the nonce with H A = E k M D ( n o n c e ) . Later, it generates the time one-time password TOTP O T P = H A . The mobile device encrypts the message with AES public key M 1 : C i = E P K a e s { I D u ∥ B i u ∥ O T P ∥ T 1 } and sends M 1 to the vehicle.
  • Upon receiving M 1 , the vehicle module decrypts it and obtains { I D u ∥ B i u ∥ O T P ∥ T 1 } . The vehicle verifies the parameters by checking the timestamp T 1 ≠ ▵ T , and verifies the identity and biometric. The TOTP is confirmed with the generated batch of TOTPs of the last period ▵ T by the vehicle. If the provided TOTP does not match one of the batches and the number or the authentication attempts exceeds ten times, the authentication fails. A failed authentication notifies the user. Otherwise, successful offline authentication is established.

6. Security Analysis

This section discusses the proposed scheme’s security review. We first performed an informal and theoretical security review to show that the proposed scheme is secure and functional. Then, a formal security analysis using SVO logic was performed; more details are reported in the following paragraphs.

6.1. Informal Security Analysis

The informal security analysis is shown in this subsection to provide a deep discussion on securing against various attacks. The security properties and functionality are also provided to ensure that the proposed scheme meets the security requirements. Table 3 provides the security feature comparison.
Table 3. A comparison of security features.
  • Mutual Authentication: The authentication scheme must provide mutual authentication between all the considered entities in the system. In the proposed scheme, the user can communicate with all entities by verifying the timestamp T 1 ≠ ▵ T . The freshness of the session key K S V → T G S = h ( I D v ⊕ r 3 ) is checked by the AS and the TGS. Furthermore, the one-time password (OTP) is verified by the server with the generated batch to check the message’s validity and the OTP. Therefore, the proposed scheme provides a mutual authentication property.
  • Froward secrecy: In the proposed scheme, the vehicle and the server compute the session key as K S V → T G S = h ( I D v ⊕ r 3 ) , K S V → C S = h ( I D T G S ⊕ r 4 ) ; hence, the adversary cannot obtain the values because the session key is encrypted with an AES public key and also the ECC key. Furthermore, a new random number is involved in calculating the key session, and the attacker cannot obtain the random value. The user’s information is further protected using the one-way hash function C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) . Thus, the adversary cannot obtain the user’s bits; therefore, the proposed scheme provides perfect forward secrecy.
  • Anonymity: Anonymity is essential to protect the user’s information in the communication between the entities, since the transmission is done via a public channel. The user’s information is calculated C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) and encrypted further with AES public key M 1 : E P K a e s { C i ∥ B i u } . The adversary will not be able to get the user identity, password, and biometric. Furthermore, this information is protected using a one-way hash function as well. Furthermore, the key session K S V → T G S = h ( I D v ⊕ r 3 ) , K S V → C S = h ( I D T G S ⊕ r 4 ) , is generated freshly in every communication, and the adversary cannot track the communication between the entities. Assume the adversary could obtain the key session of the current transmission; he/she could not obtain the key session of the next communication. Therefore, the proposed scheme provides anonymity.
  • Confidentiality: The proposed scheme ensures the confidentiality of the message by using a fresh random number C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) . The message is also encrypted using AES public key E P K a e s { C i ∥ B i u } in every communication amongst the entities. In the offline authentication, the mobile device encrypts the value that used to calculate the OTP with device key H A = E k M D ( n o n c e ) . Furthermore, it encrypts the message with an AES key before transmission M 1 : C i = E P K a e s { I D u ∥ B i u ∥ O T P ∥ T 1 } . Furthermore, the key session is generated independently in each communication. Therefore, the proposed scheme guarantees the confidentiality of the message.
  • Integrity: The integrity of the messages transmitted during the authentication process is guaranteed in the proposed scheme, as the scheme verifies the message by comparing the received values with stored ones in the AS, TGS, and cross-server T 1 ≠ ▵ T . The verification depends on the timestamp’s freshness and the secret values on the server side by calculating them to confirm the message’s authenticity. Therefore, the proposed scheme provides message integrity.
  • Key freshness: In the proposed scheme, the shared key session is generated as K S V → T G S = h ( I D v ⊕ r 3 ) , K S V → C S = h ( I D T G S ⊕ r 4 ) , independently. The key session is generated freshly in every communication session amongst the vehicle, AS, TGS, and cross-server. Hence, the adversary cannot obtain the key session since it calculates the identity and fresh random number. Assume the adversary obtained the current key session; he/she will not get the session key of the next communication. Therefore, the freshness of the key is provided by the proposed scheme.
  • Offline Authentication: The proposed scheme provides an offline authentication between the mobile user device and the vehicle by providing the vehicle OTP=HA, and C i = E P K a e s { I D u ∥ B i u ∥ O T P ∥ T 1 } . The vehicle checks the timestamp T 1 ≠ ▵ T , and verifies the identity and biometric. Furthermore, The TOTP is confirmed with the batch of TOTPs generated in the last period ▵ T by the vehicle. If the provided OTP does not match one of the batches, the authentication fails; otherwise, successful offline authentication is established. Therefore, the proposed scheme provides offline authentication between the user and the vehicle.
  • Cross-domain authentication: The vehicle can authenticate to any server registered with a central authority and in a different geographical location. The proposed scheme allows the user to authenticate with the server in the booking phase applied in online mode. The vehicle sends an authentication request to the central authority to get the ability to authenticate with a cross-server. Therefore, the proposed scheme provides cross-domain authentication.
  • Replay attack: The freshness of the messages is guaranteed in each session, since the message is composed of a fresh timestamp T n . The tickets and the messages M 2 : E P K a e s { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } , C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } } include a fresh timestamp. Upon receiving the message, the receiver checks the freshness of the timestamp by comparing it with the current time of the system T 1 , T 2 , T 3 ≠ ▵ T . The ▵ T usually is very small to make it difficult for the adversary to replay the captured message within ▵ T . The message is further encrypted with a temporary session key make it computationally infeasible for the adversary to modify the composing timestamp. Therefore, the proposed scheme is resilient to replay attacks.
  • Impersonation attack: The adversary who wants to impersonate the user must calculate a valid C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) in the online booking phase. The values h ( I D u ⊕ P w u ⊕ r 1 ) are protected using a one-way hash function, and the adversary cannot decipher such values. Additionally, post-transmission is encrypted with the AES key for secure communication and to prevent attackers from capturing the user’s information. Therefore, the proposed scheme is resilient to impersonation attacks.
  • Modification attack: In the proposed scheme, the message integrity is preserved using a one-way hash function to protect the user’s information. for example, the element O = h a s h ( t ) guarantees prevention against modification attacks. Any alteration in the value O can easily be identified during the comparison and reconstruction of the message at another entity. Furthermore, the messages exchanged amongst entities are encrypted using AES public key, and the communication is retained. Assume the adversary captured the message M 2 : E P K a e s { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } ; it is computationally challenging for the adversary to make any changes as the information is encrypted with a temporary session key. Similarly, the exchanged messages are ciphered to prevent any modification. Therefore, the proposed scheme withstands the modification attack.
  • Man-in the middle attack: In this attack, the adversary tries to modify the captured message in a way where the destination cannot differentiate the modified message from the original message. Assume the adversary applies an MiTM attack between the vehicle and the AS by capturing and modifying the message M 2 : E P K a e s { C i , O T P , B i u } , or the message between the vehicle and the TGS M 4 : E K S V → T G S { I D u ∥ I D V ∥ T 2 ∥ T G S T K T } . The message’s construction is computationally hard for the adversary, as the message is double encrypted with both the fresh session key and an AES public key. Furthermore, the tickets, such as C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } are encrypted, and each contains a ciphered timestamp and secret value that will be validated later by their respective destinations. Therefore, the proposed scheme is protected from a man-in-the-middle attack.
  • Server spoofing attack: This attack tries to spoof a server by replaying an old authentication message M 2 i o l d : E P K a e s I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T . This attempt fails, since the user uses a new and different random number, and a fresh session key is used as well, which means the session key is used differently in each session. The session key of the current communication is different from those of the last and next sessions. Therefore, the proposed scheme is resilient to a server spoofing attack.
  • Privileged insider attack: A privileged attack can allow access to a user’s information. Assume the adversary has the registration information of the user identity I D u , P w u , and B i u ; he/she cannot guess the information as the information is protected using a one-way hash function C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) and composed with a random number. Furthermore, the information is ciphered before transmission. Therefore, the proposed scheme withstands a privileged insider attack.
  • Denial of service (DoS) attack: A DoS attack makes the server unavailable. In the proposed scheme, the timestamp T n is used to check the freshness of the message. In the booking phase, if the user and central authority exchanged the messages M 2 : E P K a e s { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } , C S T K T = E P K a e s { I D u ∥ I D V ∥ E K S V → C S { I D C S ∥ T 3 ∥ S i } , the server checks the timestamp against the current timestamp T 1 , T 2 , T 3 ≠ ▵ T ; if not fresh, the server rejects the message. Furthermore, the message also included a secret value S i . The server will check that for the validity of the message. As a result, the proposed scheme is secure against the DoS attacks.
  • Offline guessing attack: With the assistance of the side-channel attacks such as SPA and DPA, the adversary cannot obtain C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) because the user’s information is protected using the one-way hash function. Even if the adversary obtains I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T , he/she cannot decipher the ticket in the offline environment and encrypted using the temporary session key. Therefore, the proposed scheme withstands the offline guessing attack.

6.2. Syverson and Van Oorschot (Svo) Logic

A growing number of researchers are turning to systematic analysis to assess their protocols and schemes’ security. Syverson and Van Oorschot’s (SVO) logic [45], as a significant BAN-like logic, possesses the advantages of BAN logic, GNY logic, and AT logic. Furthermore, SVO logic redefines certain standard semantic principles and has fundamental inference rules or axioms. SVO logic is now a commonly used formal analysis technique. However, we provide formal security proof of the proposed scheme using SVO logic in this subsection. Table 4 gives the notation that is used in SVO logic and relevant descriptions.
Table 4. The SVO logic notation and the corresponding descriptions.
Initial Rules:The SVO logic has two main inference rules:
  • The Separation rule Modus Ponens (MP) from φ and φ ⊃ ψ ⇒ ψ .
  • The necessity of rules Necessitation (Nec) from ⊣ φ ⇒ believing φ .
SVO axiom:For any subject P and Q, the sum of the formulas φ and ψ have the following axiom schemata’s:
  • Believes:
    Ax.1: P believes φ ∧ P believes ( φ ⊃ ψ ) ⊃ P believes ψ .
    Ax.2: P believes φ ⊃ P believes ( P b e l i e v e s φ ) .
  • Source Association:
    Ax.3: Sharedkey ( K , P , Q ) ∧ R received { X Q } K ⊃ Q said X ∧ Q sees K.
    Ax.4: P K s Q ( Q , K ) ∧ R received X ∧ S V ( X , K , Y ) ⊃ Q said Y.
  • Key agreement:
    Ax.5: P K σ ( P , K P ) ∧ ( Q , K Q ) ⊃ SharedKey ( F ( K P , K Q ) , P , Q ) .
  • Receiving:
    Ax.6: P received ( X 1 , ⋯ , X n ) ⊃ P receives X i .
    AX.7: P received { X } K ∧ P sees K − 1 ⊃ P receives X.
  • Seeing:
    Ax.8: P received X ⊃ P sees X.
    Ax.9: P sees ( X 1 , ⋯ , X n ) ⊃ P sees X i .
    Ax.10: P sees X 1 ∧ ⋯ ∧ P sees F ( X 1 , ⋯ , X n ) .
  • Comprehending:
    Ax.11: P believes ( P s e e s F ( X ) ) ⊃ P believes (P sees X).
    Ax.12: :(P received F ( X ) ∧ P believes P sees X) ⊃ P believes P received F ( X ) .
  • Saying:
    Ax.13: P said ( X 1 , ⋯ , X n ) ⊃ P said X i ∧ P sees X i .
    Ax14: P says ( X 1 , ⋯ , X n ) ⊃ P says X i ∧ P said ( X 1 , ⋯ , X n ) .
  • Jurisdiction:
    Ax.15: (P controls ∧ P says φ ) ⊃ ψ .
  • Freshness:
    Ax.16: f r e s h ( X i ) ⊃ f r e s h ( X 1 , ⋯ , X n ) .
    Ax.17: f r e s h ( X 1 , ⋯ , X n ) ⊃ ( F ( X 1 , ⋯ , X n ) ) .
  • Nonce-Verification:
    Ax.18: f r e s h ( X ) ∧ P s a i d X ⊃ P s a y s X .
  • Symmetric goodness of shared keys:
    Ax.19: S h a r e d K e y ( K , P , Q ) ≡ S h a r e d K e y ( K , Q , P ) .
  • Having:
    Ax.20:P has K ⊃ P sees K.
Goals: In the following SVO logic, the goals are given according to the security requirements of the proposed scheme to prove the security of the scheme:
  • Goal.1: Vehicle believes User says ( I D V , I D u , P w u , r 1 ) .
  • Goal.2: AS believes vehicle says ( C i , O T P , B i u ) .
  • Goal.3: Vehicle believes AS says ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) .
    TGS believes vehicle says ( I D u , I D V , T 2 , T G S T K T ) .
  • Goal.4: Vehicle believes TGS says ( I D u , I D V , T 3 , C S T K T ) .
    CS believes vehicle says ( I D C S , T 3 , S i ) .
  • Goal.5: Vehicle Believes AS says ( T 2 ) . CS believes TGS says ( T 3 ) .
  • Goal.6: Vehicle believes sharedkey ( K S V → T G S , V e h i c l e , T G S ) . CS believes sharedkey ( K S V → C S , V e h i c l e , C S ) .
  • Goal.7: Vehicle believes fresh ( K S V → T G S ) . CS believes fresh ( K S V → C S ) .
  • Assumptions:
  • AS.1: Vehicle Believes fresh ( T 2 )
  • CS believes fresh ( T 3 )
  • AS.2: Vehicle believes vehicle received ( ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) ⊃ P K δ ( A S , r 3 P ) )
  • AS believes AS received ( ( [ C i , O T P , B i u ] P K a e s ) ⊃ P K δ ( V e h i c l e , r 1 P ) )
  • AS.3: TGS believes TGS received ( ( [ [ I D u , I D V , T 2 , T G S T K T ] K S V → T G S ) ⊃ P K δ ( V e h i c l e , S i P ) )
  • Vehicle believes vehicle received ( [ I D u , I D V , T 3 , C S T K T ] K S V → T G S ) ⊃ P K δ ( T G S , r 3 P ) )
  • CS believes CS received ( [ I D u , I D V ] P K a e s ) , [ I D C S , T 3 , S i ] K S V → C S ) ) ⊃ P K δ ( V e h i c l e , r 3 P ) )
  • AS.4: Vehicle believes vehicle received [ T 2 ] K S V → T G S
  • TGS believes TGS received [ T 2 ] K S V → T G S
  • CS believes CS received [ T 3 ] K S V → C S
  • AS.5: Vehicle believes P K δ ( A S , r 3 P )
  • AS believes P K δ ( V e h i c l e , r 1 P )
  • TGS believes P K δ ( V e h i c l e , S i P )
  • CS believes P K δ ( V e h i c l e , r 3 P )
  • AS.6: Vehicle believes SV ( [ I D u , I D V , T 2 , K S V → T G S , T G S T K T ] P K a e s , S K T G S , ( I D u , I D V , T 2 , S i ) )
  • AS believes SV ( [ C i , O T P , B i u ] P K a e s , ( I D V , I D u , P w u ) )
  • TGS believes SV ( [ [ I D u , I D V , T 2 , T G S T K T ] K S V → T G S , S K T G S , ( I D u , I D V , T 2 , S i ) )
  • CS believes SV ( I D u , I D V , P K a e s , K S V → C S , ( I D C S , T 3 , S i ) )
  • AS.7: Vehicle believes ((AS says ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) ⊃ P K δ ( A S , r 2 P ) )
  • TGS believes ((vehicle says ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) ⊃ P K δ ( v e h i c l e , r 2 P ) )
  • CS believes ((vehicle says ( I D u , I D V , I D C S , T 3 , S i , C S T K T ) ⊃ P K δ ( T G S , r 3 P ) )
  • AS.8: Vehicle believes P K δ ( v e h i c l e , r 1 P )
  • AS believes P K δ ( A S , r 2 P )
  • TGS believes P K δ ( T G S , r 3 P )
  • CS believes P K δ ( C S , r 3 P )
  • AS.9: Vehicle believes (vehicle sees P K δ ( v e h i c l e , r 1 P ) )
  • AS beliefs (AS sees P K δ ( A S , r 2 P ) )
  • TGS believes ( T G S s e e s P K δ ( T G S , r 3 P ) )
  • CS believes ( C S s e e s P K δ ( C S , r 3 P ) )
  • AS.10: ¬ (vehicle said T 1 P K a e s
  • ¬ (AS said T 2 K S V → T G S
  • ¬ (TGS said T 3 K S V → C S )
  • AS.11: Vehicle believes fresh ( T 2 )
  • CS believes fresh ( T 3 )
Security Proof:
  • From AS.2, AS.5, AS.6, Ax.4, we can get:
  • S1: Vehicle believes AS said I D u , I D V , T 2 , K S V → T G S , T G S T K T )
  • TGS believes the vehicle said ( I D u , I D V , T 2 , T G S T K T )
  • Vehicle believes TGS said ( I D u , I D V , I D C S , T 3 , C S T K T )
  • CS believes vehicle said ( I D u , I D V , I D C S , T 3 , S i , C S T K T )
  • From S1, AS.1, AS.2, Ax.19, we get:
  • S2: Vehicle believes User says ( I D V , I D u , P w u , r 1 )
  • AS believes vehicle says ( C i , O T P , B i u )
  • The Goal 1., and Goal 2. are proved.
  • From S2, AS.5, Ax.1, and Necessitation, we can get:
  • S3: Vehicle believes P K δ ( A S , r 3 P )
  • AS believes P K δ ( V e h i c l e , r 1 P )
  • TGS believes P K δ ( V e h i c l e , S i P )
  • CS believes P K δ ( V e h i c l e , r 3 P )
  • From S3, AS.8, Ax.5, we can get:
  • S4: Vehicle believes sharedkey ( K S V → T G S , V e h i c l e , T G S )
  • CS believes sharedkey ( K S V → C S , V e h i c l e , C S )
  • Where K S V → T G S = h ( I D v ⊕ r 3 ) ,
  • K S V → C S = h ( I D T G S ⊕ r 4 )
  • From AS.2, Ax.1, Ax.8, we can obtain:
  • S5: Vehicle believes (vehicle sees P K δ ( v e h i c l e , r 1 P ) )
  • AS believes ( A S s e e s P K δ ( A S , r 2 P ) )
  • TGS believes ( T G S s e e s P K δ ( T G S , r 3 P ) )
  • CS believes ( C S s e e s P K δ ( C S , r 3 P ) )
  • From S5, AS.9, Ax.5, we can obtain:
  • S6: Vehicle believes vehicle sees sharedkey ( K S V → T G S , V e h i c l e , T G S )
  • CS believes CS sees sharedkey ( K S V → C S ) , V e h i c l e , C S )
  • Where K S V → T G S = h ( I D v ⊕ r 3 ) ,
  • K S V → C S = h ( I D T G S ⊕ r 4 )
  • From S4, S6, the definition of Sharedkey ( K − , P , Q ) , we can get:
  • S7: Vehicle believes sharedkey ( K S V → T G S , V e h i c l e , T G S )
  • AS believes sharedkey ( K S V → C S , V e h i c l e , C S )
  • Thus, Goal.6 is proved.
  • From AS.7, AS.2, S1, Ax.6, Ax.13, Ax.14, we can obtain:
  • S8: Vehicle believes ((AS said ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) )
  • TGS believes ((vehicle said ( I D u , I D V , T 2 , K S V → T G S , T G S T K T ) )
  • CS believes ((vehicle said ( I D u , I D V , I D C S , T 3 , S i , C S T K T ) )
  • Thus, Goal 3, and Goal 4., are proved.
  • From AS.1, AS.2, S4, Ax.16,Ax.17, we can get:
  • S9: Vehicle believes fresh ( K S V → T G S )
  • CS believes fresh ( K S V → C S )
  • Goal 7., proved.
  • From AS.3, S4, Ax.3, we can obtain:
  • S10: vehicle believes AS said fresh T 2
  • TGS believes AS said T 2
  • CS believes TGS said T 3
  • From S10, AS.11, and Ax.19, we can get:
  • S11: vehicle believes AS says T 2
  • TGS believes AS says T 2
  • CS believes TGS says T 3
  • Thus, Goal 5. proved.
According to the formal descriptions of the security proof presented in this subsection, the proposed authentication scheme is secure.

7. The Avispa Simulation

AVISPA offers a broad range of modeling applications for cryptographic protocol analysis, verification, and validation. It describes security protocols using the High-Level Protocol Specification Language (HLPSL) [55]. HLPSL is a high-level, modular language requiring various attacker models, cryptographic primitives, and complex security properties. The protocol was first translated into intermediate form (IF) using the HLPSL2IF translator, and then IF was used as input to four different back-ends, as shown in Figure 10, which included On-the-fly Model-Checker (OFMC), CL-based Attack Searcher (CL-AtSe), SAT-based Model-Checker (SATMC), and Tree-Automata-based Protocol-Analyzer (TA4SP). The transmission channel was also thought to be under the influence of the Dolev-Yao attacker. A few automated security validation tools, such as ProVerif and Scyther tools, were utilized to verify the security of the protocol. Using these tools, it is easy to know what flaws such protocols suffer from. Although verification using these tools does not ensure that the protocols once verified by these tools are flawless, they still provide a means to know many of the flaws easily. ProVerif verified specifications of protocols in the symbolic model, which could also be a limitation, since the symbolic model abstracts away the details of cryptographic operations, and specifications do not consider all implementation details [55]. Unlike other studies, we used the widely used AVISPA formal verification tool because the AVISPA tool is efficient at verifying and falsifying security protocols. This tool can be used for the final analysis of the cryptographic protocol, as it allows one to detect atypical errors according to the established requirements. There were two protocols designed, online booking and offline authentication; hence, the formal verification of the online booking and the offline authentication is discussed further in the following paragraphs.
Figure 10. The typical AVISPA architecture.

7.1. Specifying the Online Booking in Hlpsl

The online booking phase’s implementation, including the vehicle registration phase, login, and authentication phase, is provided in this subsection. Our simulation had four main roles: vehicle (Vi), authentication server (AS), ticket granting service (TGS), and cross-server (CS), respectively. However, the vehicle’s specifications in HLPSL language are shown in Figure 11. The vehicle Vi received the start signal and changed its state from 0 to 1, and the sent the registration request message (V.TGS.cLifetime_1. Bio’. Ci’. N1’) to the AS securely using the / \ Snd () operation. In the login phase, the vehicle then generated (OTP’: = Kv.current_time ), and sent (CS.cLifetime_2.Uid’.Bio’.TGSid’.TkT1’.{V.OTP’}_K_UG’) using the / \ Snd() operation. The declaration / \ witness (V, TGS, t1, OTP’) expressed the TGS acceptance of the generated OTP by vehicle. The declaration / \ wrequest (V, AS, k_cg1, K_UG’) indicates that the vehicle requested the AS to check the validity of the value K_UG’.

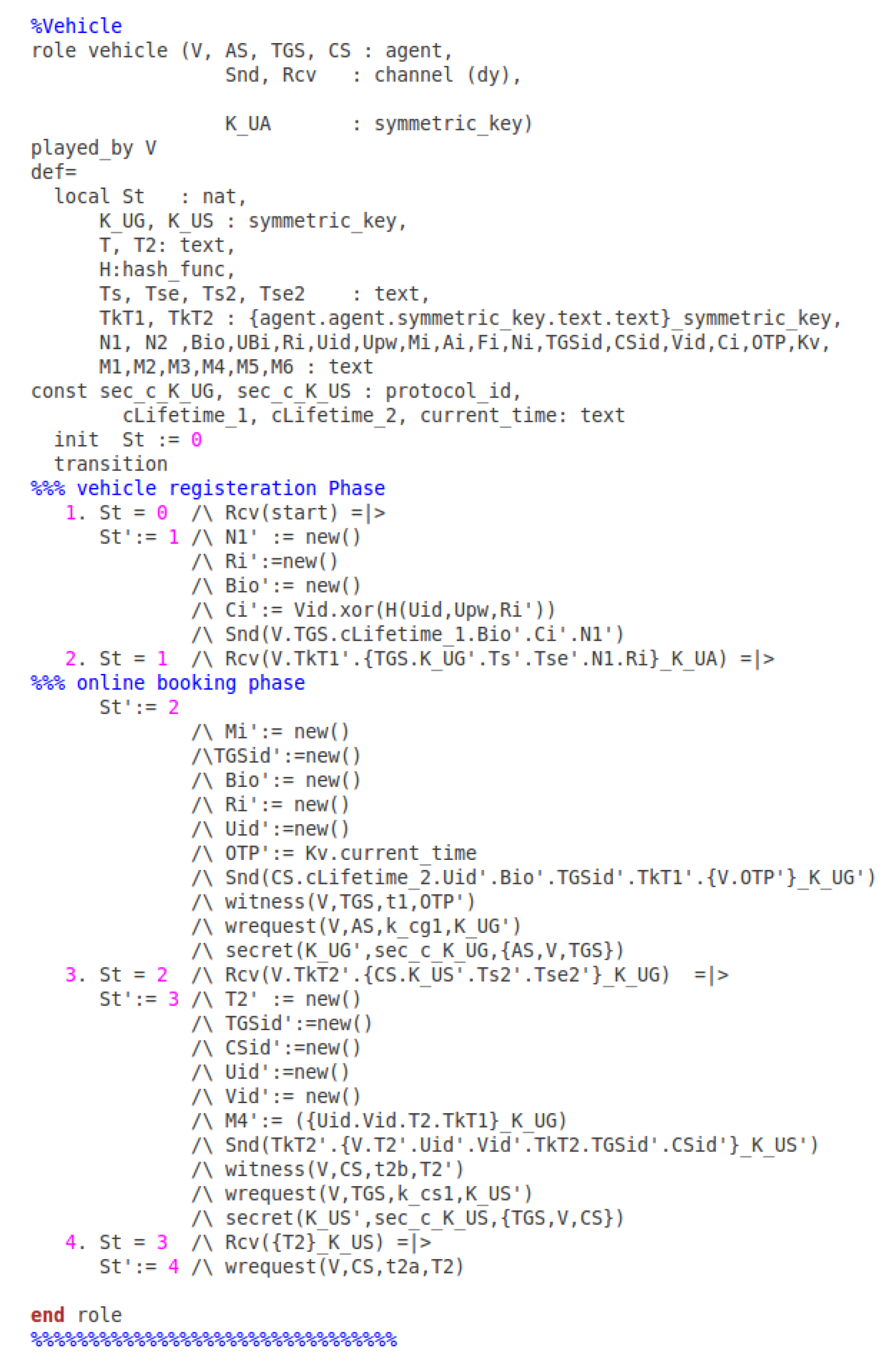

Figure 11. The vehicle’s role in HLPSL.
Later, the vehicle decelerated the / \ secret (K_UG’, sec_c_K_UG, {AS,V,TGS}) to indicate that the value K_UG’ is known to the agents {AS,V,TGS} and it is confidential. Later, the vehicle received message (V. TkT2’. {CS.K_US’.Ts2’.Tse2’}_K_UG) from the TGS using the operation / \ Rcv(). Likewise, the vehicle sent message (TkT2’.{V.T2’.Uid’.Vid’.TkT2. TGSid’.CSid’}_K_US’) to the cross-server using / \ Snd(). Hence, / \ witness (V, CS, t2b, T2’) declared for a (weak) authentication property of V by CS on T2, that agent V is the witness for the information T2. / \ wrequest (V, TGS, k_cs1, K_US’) declared that the vehicle requested the TGS to check K_US’. The declaration / \ secret(K_US’, sec_c_K_US,{TGS,V,CS}) shows that the value K_US’ was kept secret from the agent’s TGS, V, and CS.

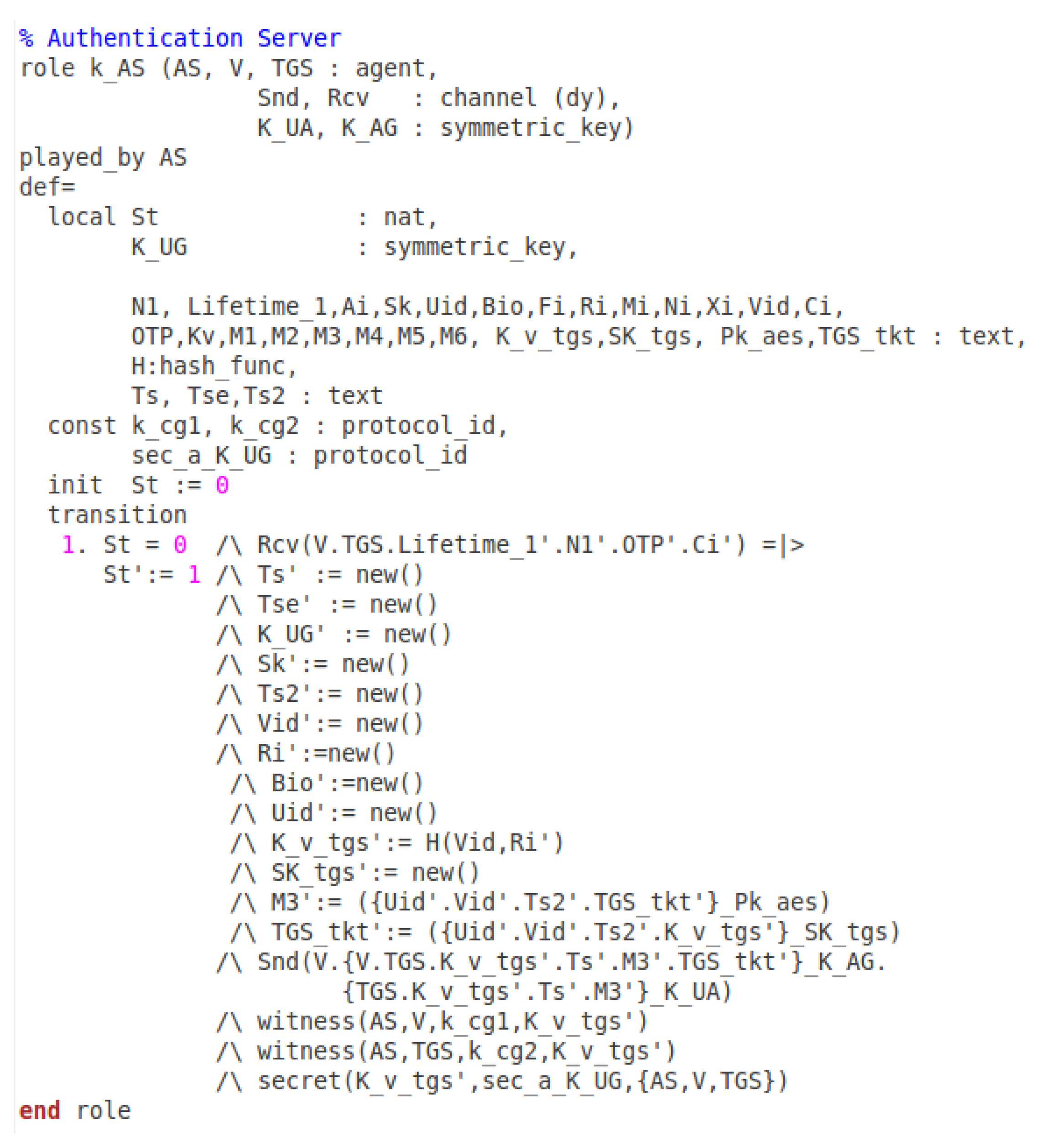

The role of the authentication server is shown Figure 12. The AS received the message (V.TGS.Lifetime_1’.N1’.OTP’.Ci’) and changed its state from 0 to 1, which was maintained by the variable state, and then sent the M3’:= ({Uid’.Vid’.Ts2’.TGS_tkt’}_Pk_aes) securely to the vehicle. It also generated ticket TGS_tkt’:= ({Uid’.Vid’.Ts2’.K_v_tgs’}_SK_tgs) encrypted using the TGS secret key. The declaration / \ witness(AS,V,k_cg1,K_v_tgs)’ shows that the shared key K_v_tgs was sent to the vehicle by the AS. Likewise, / \ witness(AS,TGS,k_cg2, K_v_tgs’) indicates that the TGS believed that the AS generated a fresh K_v_tgs and the AS witnessed it. The declaration / \ secret(K_v_tgs’,sec_a_K_UG,{AS, V,TGS}) illustrates that the K_v_tgs’ was shared securely and remained secret to the AS, V, and TGS.
Figure 12. The AS’s role in HLPSL.

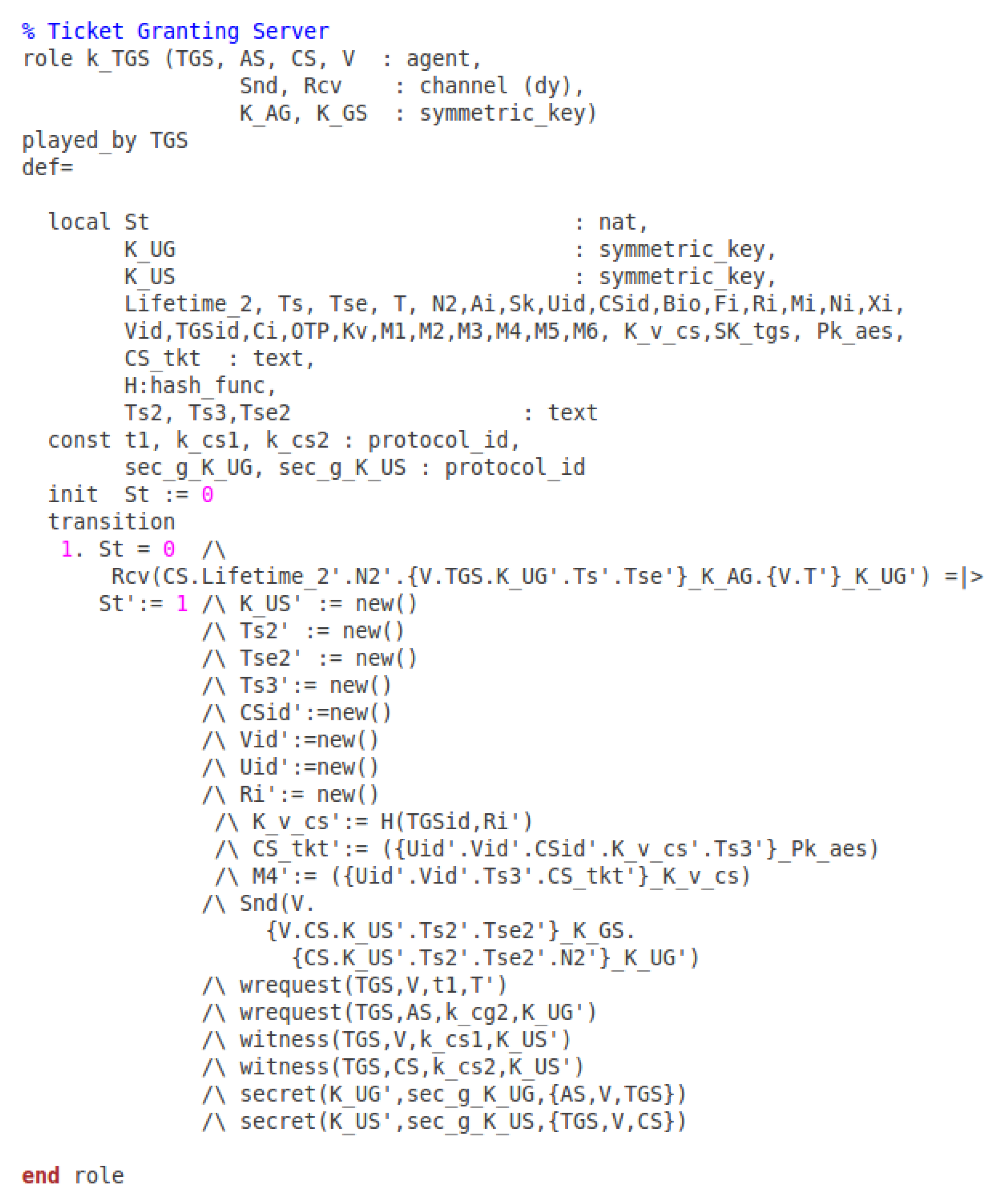

Figure 13 shows the role of the ticket granting service (TGS) in HLPSL. The TGS started by receiving (CS.Lifetime_2’.N2’.{V.TGS.K_UG’.Ts’.Tse’}_K_AG.V.T’} _K_UG’) using the Rcv() operation. Later, the TGS generated the key session / K_v_cs’:= H(TGSid,Ri’) and the ticket for CS / \ CS_tkt’:= (Uid’.Vid’.CSid’.K_v_cs’.Ts3’_Pk_aes). The TGS sent the message (V.{V.CS.K_US’.Ts2’.Tse2’}_K_GS.{CS.K_US’.Ts2’.Tse2’. N2’}_K_UG’) to the vehicle. The declaration / \ wrequest(TGS,V,t1,T’) indicates the vehicle checked T’ that was generated by TGS, where / \ wrequest(TGS,AS,k_cg2,K_UG’) shows that the AS requested the AS to validate the value K_UG’. Furthermore, the declaration / \ witness(TGS,V,k_cs1,K_US’) illustrates that V witnessed the K_US’ generated by the TGS, where / \ witness(TGS,CS,k_cs2, K_US’) declares that the CS witnessed the K_US’ that was generated by the TGS. The declaration / \ secret(K_UG’,sec_g_K_UG,{AS,V,TGS} indicates that key K_UG’ was shared secretly amongst AS, V, and TGS; the declaration / \ secret(K_US’,sec_g_K_US,{TGS,V,CS}) shows that the key K_US’ was kept secretly amongst TGS, V, and CS.
Figure 13. The TGS’s role in HLPSL.
The role of the cross-server CS in HLPSL is shown in Figure 14. It started by receiving the message ({V.CS.K_US’.Ts2’.CS_tkt’.Tse2’}_K_GS.V.T2’_K_US’) from the vehicle using the operation Rcv(). Later, the CS declared / \ witness(CS,V,t2a,T2’) to indicate that the CS witnessed the T2 that was generated by the V. The declaration / \ wrequest(CS,TGS,k_cs2,K_US ′ ) shows that the TGS requested the CS to validate the value K_US’, where / \ wrequest(CS,V,t2b, T2’) declares that the V requested the CS to check the freshness of the value T2. Later, we stated / \ secret(K_US’,sec_s_K_US,{TGS,V,CS}) to declare that the key K_US was secretly shared amongst the agents TGS, V, and CS. Finally, the session’s roles, goal, and environment in HLPSL are shown in Figure 15. In the session role, multiple participants are instantiated. In the environment role, the sessions are combined, and intruder knowledge is defined.
Figure 14. The CS’s role in HLPSL.
Figure 15. The session, goal, and environment in HLPSL.
There are six secrecy goals and seven authentications amongst the participants, as shown below:
Goals:
  • secrecy_of sec_a_K_UG: It states that AS, V, and TGS know the value K_UG.
  • secrecy_of sec_g_K_UG: It indicates that the AS, V, and TGS share the value K_UG.
  • secrecy_of sec_g_K_US: It means that the TGS, V, and CS know the K_US.
  • secrecy_of sec_s_K_US: It shows that the agents TGS, V, and CS know K_US.
  • secrecy_of sec_c_K_UG: It indicates that the AS, V, and TGS share K_UG.
  • secrecy_of sec_c_K_US: It states that the agents TGS, V, and CS share K_US.
Authentications:
  • weak_authentication_on k_cg1: The K_UG shared between the vehicle and AS.
  • weak_authentication_on k_cg2: The AS and TGS shared the key K_v_tgs.
  • weak_authentication_on k_cs1: The vehicle and TGS have the value K_US.
  • weak_authentication_on k_cs2: The TGS and the CS knows the value K_US.
  • weak_authentication_on t2a: The timestamp T2 is only valid between the CS and vehicle.
  • weak_authentication_on t2b: The timestamp T2 shared between the CS and vehicle.
  • weak_authentication_on t1: The timestamp T1 is shared amongst the vehicle and TGS.

7.2. Booking Phase Simulation Results

The proposed scheme’s simulation results in OFMC and CL-AtSe back-ends are shown in Figure 16 and Figure 17. From the output format, the following analysis can be prsented:
Figure 16. The OFMC back-end’s results.

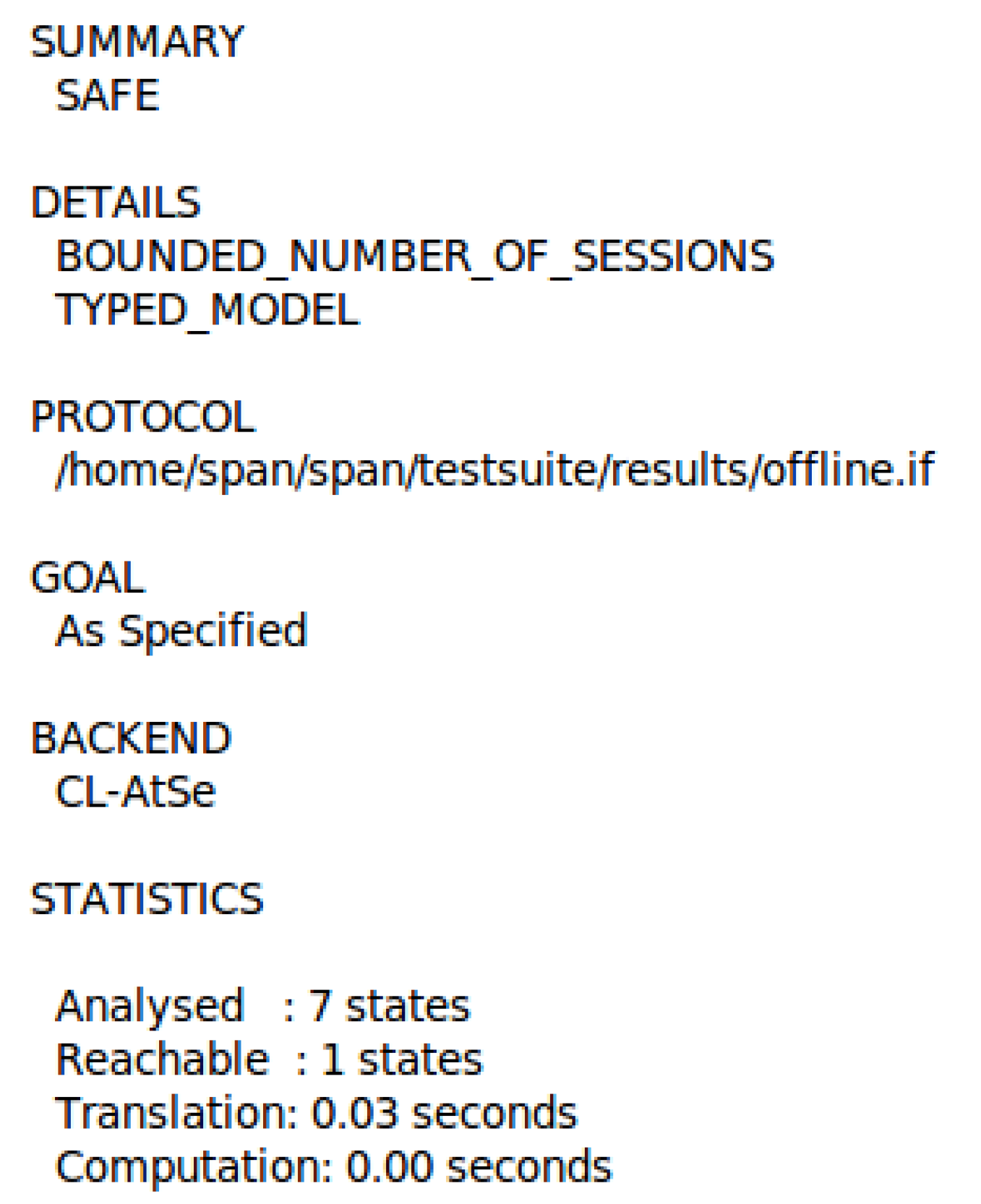

Figure 17. The CL-AtSe back-end’s results.
  • SUMMARY: This section specifies whether the protocol is "secure," "unsafe," or "inconclusive."
  • DETAILS: This section describes the various conditions under which the protocol is considered secure, and the conditions used to detect an attack or the reasons why the result was inconclusive.
  • PROTOCOL, GOAL, and BACK-END: This subdivision specifies the protocol name, the research goal, and the back-end users.
  • COMMENTS and STATISTICS: This subdivision contains some remarks and figures, and traces of an attack.
The proposed scheme has been simulated on two back-ends—the On-the-fly Model-Checker and the Constraint Logic-based Attack Searcher. The SUMMARY section indicates that the proposed protocol is SAFE and is defensive against active and passive attacks, including replay and man-in-the-middle attacks.

7.3. Specifying the Offline Phase in HLPSL

The specifications of the offline authentication implementation in HLPSL is provided here. In this protocol, the two main agents are a mobile device MD and a car. Figure 18. Shows the role of the mobile in HLPSL. The role starts by receiving the signal (start) and changes its state from 0 to 2; then, it generates the nonce / \ N’: = TS1.CN, / \ HA’: = {N’}_K_md which is encrypted with a mobile device key. Later, it generates the / \ OTP’: = HA’ and sends the message ({Uid’. Bio’. OTP’.TS1} _PKaes). The declaration / \ secret (Uid’. Bio’. OTP’.TS1, sec1, {Md, CAR}) indicates that the values OTP’ and TS1 are shared amongst Md and CAR.

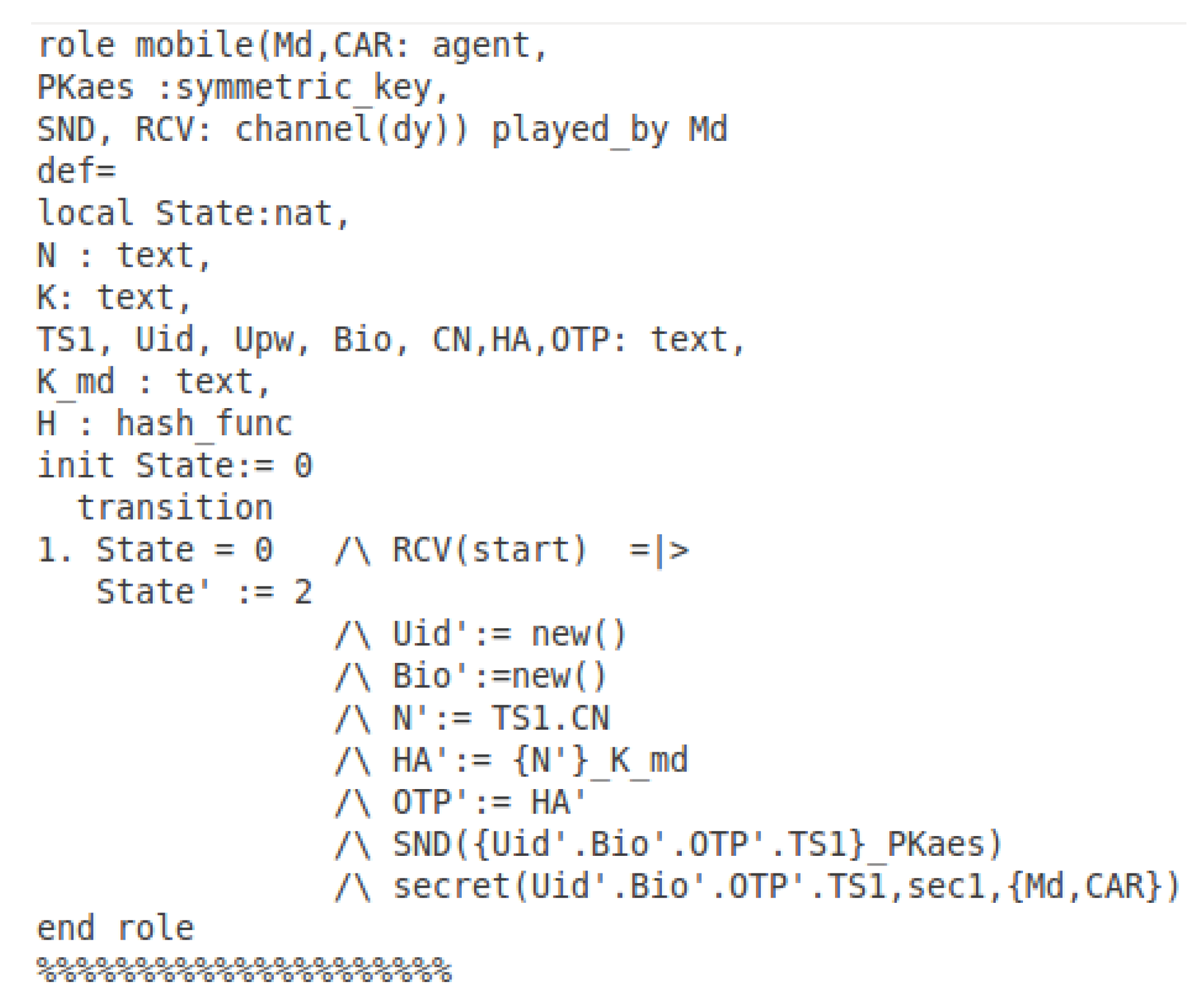

Figure 18. The mobile device’s role in HLPSL.
Likewise, the role of the car in HLPSL is shown in Figure 19. It starts by receiving the message from the mobile and changes its state from 1 to 3, and then it verifies the message for successful or failed authentication. In Figure 20, the role of the session and environment is illustrated. One secrecy goal is stated between the mobile device and the car secrecy_of sec1, which means that the values (Uid’.Bio’.OTP’.TS1) are known to the Md and CAR.
Figure 19. The vehicle’s role in HLPSL.
Figure 20. Session and environment in HLPSL in the offline phase.

7.4. Offline Phase Simulation Results

The simulation results of the proposed scheme with two back-ends OFMC and CL-AtSe, are shown in Figure 21 and Figure 22. The OFMC and CL-AtSe back-ends results show that the proposed offline phase designed to enable users to authenticate to the vehicle in offline mode is secure from active and passive attacks.
Figure 21. Results of the offline phase with OFMC backend.

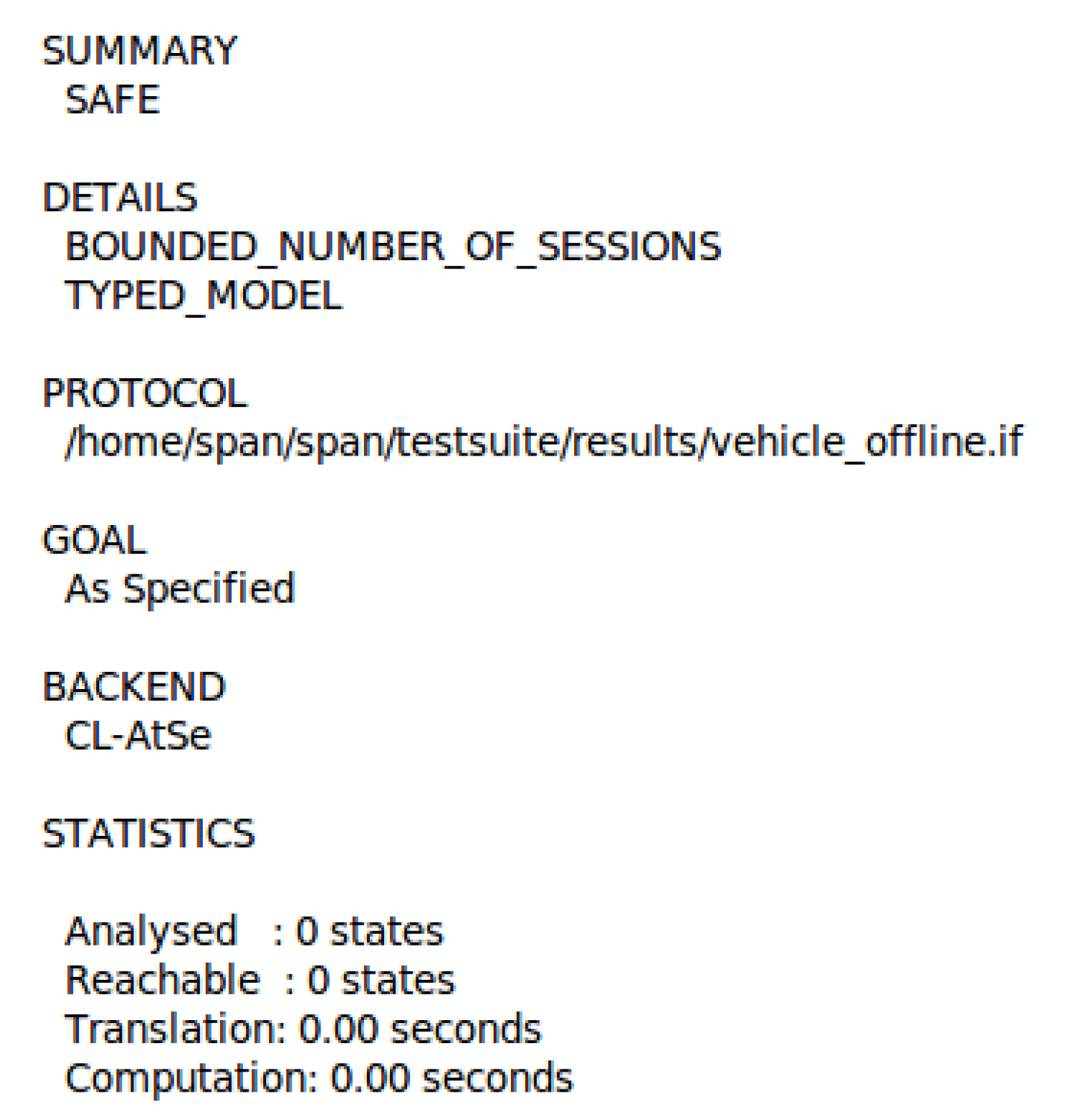

Figure 22. Results of the offline phase with CL-AtSe backend.

8. Performance Evaluation

The proposed scheme’s performance evaluation is compared with the performances of other related schemes, i.e., the HOOSC [39] scheme, SM-AKA [40] scheme. CP-VBP [20] scheme, and RSEAP [18], in terms of computational cost and communication cost; their comparison is shown in Table 5. More details are shown in the following subsections.
Table 5. Computation and communication costs comparison.

8.1. Computational Cost

The total computational cost for the execution of our scheme is compared with those of other schemes in this section. The estimation of the cryptographic operations’ execution time was computed by using the PBC library reported in [53], as illustrated in Table 6. The proposed scheme’s simulation was carried out on Intel Core™i7-5700HQ, CPU 2.70GHz platform using Java Pairing-Based Cryptography Library (JPBC). Since the bitwise XOR computational cost is much less than those of other operations, it was not considered in the performance analysis. However, in HOOSC [39] scheme, there are three types of cryptographic operations the user needs to perform, i.e., the point multiplication operation ( T m ) , exponentiation operation ( T e ) , and bilinear pairing ( T P ) . The execution times for these operations, as stated in Table 4, are 0.832, 6.614, and 12.523 ms. In the online phase, there are four-time 4 T m and one-time exponentiation 1 T e that can be represented as 4 T m + 1 T e = 9.942 ms. In the offline phase, there is a one-time multiplication operation 1 T m , one-time exponentiation 1 T e , and two-time pairing 2 T P that can be represented 1 T m + 1 T e + 2 T P = 32.492 ms. Therefore, the total computational cost of HOOSC [39] is 42.36 ms.
Table 6. Computational time consumption.
In the SM-AKA [40] scheme, six cryptographic operations are required: a nineteen-time hash function T h , fuzzy extraction operation T f e , symmetrical encryption ( T S E ) , symmetric decryption ( T S D ) , scalar multiplication ( T s m − e c c ) , and scalar multiplication ( T s m ) . Hence, the computational cost in the online phase 19 T h + T f e + T S E + T S D + T s m − e c c + T s m = 20.727 ms. In the offline phase, the computational cost can be represented as 9 T h + T f e + 4 T S E + 2 T S D + 2 T s m − e c c = 1.298 . Therefore, the total computational cost in SM-AKA [40] is 22.052 ms.
For the pseudo-identity generation process of CP-VBA scheme [20], a vehicle needs to perform four scalar multiplication operations related to ECC and two hash operations. Thus, the computational cost of the pseudo-identity generation process of their scheme is 4 T s m − e c c + 2 T h + 2 T s m = 21.638 ms. Note that the pseudo-identities of vehicles in CP-VBA scheme [20] are generated by RSU, and we only count the computational cost on the vehicle side. For the message signing process, a vehicle needs to perform one scalar multiplication operation related to ECC and one hash operation. Thus, the computational cost of the message signing process is T s m − e c c + T h = 0.353 ms. For the message verification process, a vehicle needs to perform three scalar multiplication operations related to ECC, two-point addition operations related to ECC, and two hash operations. Thus, the computational cost of the message verification process is 3 T s m − e c c + 2 T p + 2 T h = 1.0622 ms. In RSEAP [18], the vehicle requires one to perform 2 T I D V + 5 T h , which has the cost of 11.755 ms. the total 5 E T s m + 9 T h operations are performed in offline phase. Thus one should calculate the total time consumption as 5 × 1.970 + 9 × 0.0023 = 9.8707.
With the proposed scheme, we performed a lightweight cryptographic operation hash function T h , symmetrical encryption ( T S E ) , symmetric decryption ( T S D ) , and public-key-based encryption ( T P E ) . Their execution times were 0.0046, 0.0046, 0.0046, and 3.85, respectively. In the online phase, there were four-time hash functions 4 T h , six times symmetrical encryptions 6 T S E , six times symmetrical decryptions 6 T S D , and four public-key-based encryptions 4 T P E . The execution times for these operations were 0.0184, 0.0276, 0.0276, and 15.4 ms. Therefore, the total execution time in the online phase was approximately 15.473 ms. In the offline phase, the user needs to perform one-time symmetrical encryption 1 T S E , and one-time symmetric decryption 1 T S D , and their execution times will be about 0.0046 and 0.0046. Therefore, the execution time in the offline phase is nearly 0.0092 ms. Therefore, the total duration required for the proposed scheme is 15.482 ms. Table 5 shows that the proposed scheme has less computational costs compared to other schemes.

8.2. Communication Cost

To compute the communication cost, we can measure the sizes of the messages transmitted between the entities multiplied by the (bit) sizes of the parameters. Here we assume that user identity has the size of 32 bits and timestamp 24 bits, the ticket value size is 128 bits, the secret value is 160 bits, and the check number CN and the OTP are 32 bits each. In the HOOSC [39] scheme, the node sends the message ( C , β , μ , R ) to the server in the online mode phase and the ciphertext size 640 bits, and the other is 160 bits independently. The size of the message can be represented as (640 + 3 × 160) 1120 bits. The server then sends the message ( M , α ) to the node and it has a size of (640 + 160) 672 bits. In the offline mode, the size of the transmitted message is 448 bits. Therefore, the total communication cost of HOOSC [39] scheme is approximately 2368 bits. In SM-AKA [40], there are six messages interacting amongst the system entities. The communication cost for the first messages m s g 1 = { T I D i , M 1 , M 2 , T S 1 } is 480 bits. Later, the second message m s g 2 = { M 4 , M 5 , M 6 , T S 2 } has the size of 896 bits. The messages m s g 3 = { M 8 , T S 3 } , m s g 4 = { M 10 , M 11 } , m s g 5 = { M 12 , M 13 , M 14 , T S 4 } , and m s g 6 = M 16 cost 416, 320, 768, and 160 bits, respectively. Therefore, the total communication cost of SM-AKA [40] is 2880 bits. In CP-VBA scheme [20], a vehicle needs to broadcast P I D i = ( P I D i 1 , P I D i 2 , T i ) , m i , δ i = ( f i , g i ) , B i , K i , R i , T 1 w h e r e P I D i 1 , B i , K i , R i ∈ G , P I D i 2 , f i , g i ∈ Z * q . Thus, the communication cost of CP-VBA’s scheme [20] is (320 + 160 + 32 + 160 + 160 + 160 + 320 + 3205 + 320)/8 = 244 bytes which is equal to 1952 bits. The communication overhead of RSEAP [18] computes as if T i sends < I D T ⊕ a x s , a g , W 1 , T L A 1 > through the RFID reader. It takes 160 +160 + 192 bits, so it also consumes the 512 bits. Further, RFID reader passes out the message by updating the time stamp and sends < I D T ⊕ a x s a g , W 1 , T L A 3 > so it also consumes the 512 bits. After authenticating the Ui, the S responds as < W 2 , b g , T L A 5 > , which consumes 352 bits. Moreover, RFID tag just continues by updating the < M 3 , T L A 7 > , which consumes 384 bits. Thus, the total over head of RSEAP is 1740 bits in whole communication.
In the proposed scheme, the user sends the message C i = I D V ⊕ h ( I D u ⊕ P w u ⊕ r 1 ) using the mobile device to the vehicle and the size of the message can be represented as (32 × 3) 96 bits. Later, the vehicle sends the message { C i , T O T P , B i u } , where C i has the size of 64 bits and the TOTP, and B i u have the size of 32 bits independently, therefore, the message costing 128 bits. The authentication server replies to the vehicle the message { I D u ∥ I D V ∥ T 2 ∥ K S V → T G S ∥ T G S T K T } that can represented as (32 × 2 + 24 + 128) 216 bits. After that, the vehicle forwards the message { I D u ∥ I D V ∥ T 2 ∥ T G S T K T } of (32 × 2 + 24 + 128) 216 bits. Then, the TGS replies the message with { I D u ∥ I D V ∥ T 3 ∥ C S T K T } , which is (32 × 2 + 24 + 128) 216 bits. Finally, the vehicle communicates with cross server by sending { I D u ∥ I D V ∥ E K S V → C S } { I D C S ∥ T 3 ∥ S i and the size of it is (32 × 3 + 24 + 160) 280 bits. Therefore, the total communication cost of the online booking phase is nearly 928 bits. In the offline mode, there are two interacting messages; only the message C i = E P K a e s { I D u ∥ B i u ∥ T O T P ∥ T 1 } which is sent to the vehicle has (32 + 32 + 24) 88 bits. Therefore, the total communication cost of the proposed scheme is approximately 1016 bits. The communication cost of the proposed scheme compared to those of other schemes is shown in Table 5.

9. Conclusions

This paper proposed a hybrid online–offline multi-factor cross-domain authentication method for IoT applications in the automotive industry, especially car-sharing systems. The proposed scheme utilizes a Kerberos workflow by extending using the AES-ECC algorithm. The combination of AES-ECC is applied to secure the communication between the entities and efficient key generation management due to ECC advantages, which has less processing time complexity. The proposed scheme provides an online and offline mode when connectivity services are not available. The user can book the vehicle by entering his identity, password, and some biometric using a mobile phone online. When there is no Internet connection, the user can authenticate with the vehicle using the offline authentication mode. The offline mode is based on the one-time password (OTP) algorithm by providing the authentication server’s user value (CN) during the booking phase. Furthermore, the security features and properties were proved informally to obtain the achieved features. The SVO logic was used for formal security verification to validate the authentication security. Likewise, the AVISPA tool was utilized to verify that the proposed scheme is secure against passive and active attacks, i.e., replay attack, man-in-the-middle attack, impersonation attack, and so on. The proposed scheme’s functionality and performance results showed that the scheme has better security, superior computational efficiency, and lower communication costs. The results were achieved due to the AES-ECC algorithm using a lightweight cryptographic operation, which has less processing time, making it suitable for the IoT environment. We plan to extend our work by applying it to the Industrial Internet of Health Things in the future. Furthermore, the proposed scheme can be implemented in the hardware environment due to its lightweight performance.

Author Contributions

Conceptualization, H.K, and S.J.H.; Methodology, H.K., S.J.H.; Software, H.K.; Validation, H.K.; Results interception, H.K. and S.J.H.; Formal analysis, H.K.; Writing—original draft preparation, H.K.; Writing—review and editing, H.K. and S.J.H.; Supervision, S.J.H., S.M.S.A., F.H., and M.A.C.; and Project administration, S.J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Acknowledgments

We would like to thank the reviewers for their careful, constructive and insightful comments in relation to this work. Furthermore, The authors would like to thank the Universiti Putra Malaysia for supporting this work as part of the "Matching Grant UPM-Kyutech. This research was funded and supported by Universiti Putra Malaysia (UPM) research grants (GP-IPS 9696900).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abu Talib, M.; Abbas, S.; Nasir, Q.; Mowakeh, M.F. Systematic literature review on Internet-of-Vehicles communication security. Int. J. Distrib. Sens. Netw. 2018, 14, 1550147718815054. [Google Scholar] [CrossRef] [Scilit]
  2. Fu, X.; Yang, Y. Modeling and analyzing cascading failures for Internet of Things. Inf. Sci. 2021, 545, 753–770. [Google Scholar] [CrossRef] [Scilit]
  3. Zhou, H.; Xu, W.; Chen, J.; Wang, W. Evolutionary V2X technologies toward the Internet of vehicles: Challenges and opportunities. Proc. IEEE 2020, 108, 308–323. [Google Scholar] [CrossRef] [Scilit]
  4. Mahmood, A.; Zhang, W.E.; Sheng, Q.Z. Software-defined heterogeneous vehicular networking: The architectural design and open challenges. Future Internet 2019, 11, 70. [Google Scholar] [CrossRef] [Scilit]
  5. Liu, L.; Lu, S.; Zhong, R.; Wu, B.; Yao, Y.; Zhang, Q.; Shi, W. Computing Systems for Autonomous Driving: State of the Art and Challenges. IEEE Internet Things J. 2020, 8, 6469–6486. [Google Scholar] [CrossRef] [Scilit]
  6. Fraga-Lamas, P.; Fernández-Caramés, T.M.; Castedo, L. Towards the Internet of smart trains: A review on industrial IoT-connected railways. Sensors 2017, 17, 1457. [Google Scholar] [CrossRef] [Scilit]
  7. Zantalis, F.; Koulouras, G.; Karabetsos, S.; Kandris, D. A review of machine learning and IoT in smart transportation. Future Internet 2019, 11, 94. [Google Scholar] [CrossRef] [Scilit]
  8. Khalid, H.; Hashim, S.J.; Syed Ahmad, S.M.; Hashim, F.; Chaudhary, M.A. Cross-SN: A Lightweight Authentication Scheme for a Multi-Server Platform Using IoT-Based Wireless Medical Sensor Network. Electronics 2021, 10, 790. [Google Scholar] [CrossRef] [Scilit]
  9. Bhuiyan, M.Z.A.; Kuo, S.Y.; Cao, J.; Wang, G. Guest Editorial: Trustworthiness in Industrial Internet of Things Systems and Applications. IEEE Trans. Ind. Inform. 2020, 16, 6079–6082. [Google Scholar] [CrossRef] [Scilit]
  10. Chen, C.M.; Xiang, B.; Liu, Y.; Wang, K.H. A secure authentication protocol for internet of vehicles. IEEE Access 2019, 7, 12047–12057. [Google Scholar] [CrossRef] [Scilit]
  11. Arena, F.; Pau, G.; Severino, A. A review on IEEE 802.11 p for intelligent transportation systems. J. Sens. Actuator Netw. 2020, 9, 22. [Google Scholar] [CrossRef] [Scilit]
  12. Ahmad, F.; Kurugollu, F.; Adnane, A.; Hussain, R.; Hussain, F. MARINE: Man-in-the-middle attack resistant trust model in connected vehicles. IEEE Internet Things J. 2020, 7, 3310–3322. [Google Scholar] [CrossRef] [Scilit]
  13. Mahmood, A.; Butler, B.; Zhang, W.E.; Sheng, Q.Z.; Siddiqui, S.A. A hybrid trust management heuristic for VANETs. In Proceedings of the 2019 IEEE International Conference on Pervasive Computing and Communications Workshops (PerCom Workshops), Kyoto, Japan, 11–15 March 2019; pp. 748–752. [Google Scholar]
  14. Anderson, J.M.; Nidhi, K.; Stanley, K.D.; Sorensen, P.; Samaras, C.; Oluwatola, O.A. Autonomous Vehicle Technology: A Guide for Policymakers; Rand Corporation, 776 Main Street: Santa Monica, CA, USA, 2014. [Google Scholar]
  15. Dibaei, M.; Zheng, X.; Jiang, K.; Maric, S.; Abbas, R.; Liu, S.; Zhang, Y.; Deng, Y.; Wen, S.; Zhang, J.; et al. An overview of attacks and defences on intelligent connected vehicles. arXiv 2019, arXiv:1907.07455. [Google Scholar]
  16. Merco, R.; Biron, Z.A.; Pisu, P. Replay attack detection in a platoon of connected vehicles with cooperative adaptive cruise control. In Proceedings of the 2018 Annual American Control Conference (ACC), Milwaukee, WI, USA, 27–29 June 2018; pp. 5582–5587. [Google Scholar]
  17. Barbero, A.I.; Rosnes, E.; Yang, G.; Ytrehus, O. Near-field passive RFID communication: Channel model and code design. IEEE Trans. Commun. 2014, 62, 1716–1727. [Google Scholar] [CrossRef] [Scilit]
  18. Kumar, V.; Ahmad, M.; Mishra, D.; Kumari, S.; Khan, M.K. RSEAP: RFID based secure and efficient authentication protocol for vehicular cloud computing. Veh. Commun. 2020, 22, 100213. [Google Scholar] [CrossRef] [Scilit]
  19. Gitlin, J.M. Driver Stranded after Connected Rental Car Cannot Call Home. ars TECHNICA. Available online: https://www.techdirt.com/articles (accessed on 18 February 2020).
  20. Sutrala, A.K.; Bagga, P.; Das, A.K.; Kumar, N.; Rodrigues, J.J.; Lorenz, P. On the design of conditional privacy preserving batch verification-based authentication scheme for Internet of vehicles deployment. IEEE Trans. Veh. Technol. 2020, 69, 5535–5548. [Google Scholar] [CrossRef] [Scilit]
  21. Safkhani, M.; Camara, C.; Peris-Lopez, P.; Bagheri, N. RSEAP2: An enhanced version of RSEAP, an RFID based authentication protocol for vehicular cloud computing. Veh. Commun. 2021, 28, 100311. [Google Scholar] [CrossRef] [Scilit]
  22. Wei, F.; Zeadally, S.; Vijayakumar, P.; Kumar, N.; He, D. An intelligent terminal based privacy-preserving multi-modal implicit authentication protocol for internet of connected vehicles. IEEE Trans. Intell. Transp. Syst. 2020, 22, 3939–3951. [Google Scholar] [CrossRef] [Scilit]
  23. Shah, G.; Saifuddin, M.; Fallah, Y.P.; Gupta, S.D. RVE-CV2X: A Scalable Emulation Framework for Real-Time Evaluation of CV2X-based Connected Vehicle Applications. In Proceedings of the 2020 IEEE Vehicular Networking Conference (VNC), New York, NY, USA, 16–18 December 2020; pp. 1–8. [Google Scholar]
  24. Jiang, Q.; Zhang, N.; Ni, J.; Ma, J.; Ma, X.; Choo, K.K.R. Unified biometric privacy preserving three-factor authentication and key agreement for cloud-assisted autonomous vehicles. IEEE Trans. Veh. Technol. 2020, 69, 9390–9401. [Google Scholar] [CrossRef] [Scilit]
  25. Al-shareeda, M.A.; Anbar, M.; Manickam, S.; Hasbullah, I.H. An efficient identity-based conditional privacy-preserving authentication scheme for secure communication in a vehicular ad hoc network. Symmetry 2020, 12, 1687. [Google Scholar] [CrossRef] [Scilit]
  26. Alnasser, A.; Sun, H.; Jiang, J. Recommendation-based trust model for vehicle-to-everything (V2X). IEEE Internet Things J. 2019, 7, 440–450. [Google Scholar] [CrossRef] [Scilit]
  27. Addobea, A.A.; Hou, J.; Li, Q. MHCOOS: An Offline-Online Certificateless Signature Scheme for M-Health Devices. Secur. Commun. Netw. 2020, 2020. [Google Scholar] [CrossRef] [Scilit]
  28. Yu, P.; Tate, S.R. Online/offline signature schemes for devices with limited computing capabilities. In Proceedings of the Cryptographers’ Track at the RSA Conference, San Francisco, CA, USA, 8–11 April 2008; Springer: Berlin/Heidelberg, Germany, 2008; pp. 301–317. [Google Scholar]
  29. Wu, T.S.; Chen, Y.S.; Lin, K.Y. Id-based online/offline signature from pairings. In Proceedings of the 2010 International Computer Symposium (ICS2010), Tainan, 16–18 December 2010; pp. 198–203. [Google Scholar]
  30. Shamir, A.; Tauman, Y. Improved online/offline signature schemes. Annual International Cryptology Conference, Santa Barbara, CA, USA, 19–23 August 2001; Springer: Berlin/Heidelberg, Germany, 2001; pp. 355–367. [Google Scholar]
  31. Khalid, H.; Hashim, S.J.; Ahmad, S.; Hashim, F.; Chaudary, M.A. Cybersecurity in Industry 4.0 context: Background, issues, and future directions. Chapter Nine Pillars Technol. Ind. 2020, 263–307. [Google Scholar] [CrossRef] [Scilit]
  32. Liu, D.; Zhang, S.; Zhong, H.; Shi, R.; Wang, Y. An efficient identity-based online/offline signature scheme without key escrow. Int. J. Netw. Secur. 2017, 19, 127–137. [Google Scholar]
  33. Dmitrienko, A.; Plappert, C. Secure free-floating car sharing for offline cars. In Proceedings of the Seventh ACM on Conference on Data and Application Security and Privacy, Scottsdale, AZ, USA, 22–24 March 2017; pp. 349–360. [Google Scholar]
  34. Dmitrienko, A.; Sadeghi, A.R.; Tamrakar, S.; Wachsmann, C. SmartTokens: Delegable access control with NFC-enabled smartphones. In Proceedings of the International Conference on Trust and Trustworthy Computing, Vienna, Austria, 13–15 June 2012; Springer: Berlin/Heidelberg, Germany, 2012; pp. 219–238. [Google Scholar]
  35. Symeonidis, I.; Aly, A.; Mustafa, M.A.; Mennink, B.; Dhooghe, S.; Preneel, B. Sepcar: A secure and privacy-enhancing protocol for car access provision. In European Symposium on Research in Computer Security; Springer: Cham, Switzerland, 2017; pp. 475–493. [Google Scholar]
  36. Haas, S.; Wallner, A.; Toegl, R.; Ulz, T.; Steger, C. A secured offline authentication approach for industrial mobile robots. In Proceedings of the 2017 13th IEEE Conference on Automation Science and Engineering (CASE), Xi’an, China, 20–23 August 2017; pp. 308–313. [Google Scholar]
  37. Li, F.; Xiong, P. Practical secure communication for integrating wireless sensor networks into the internet of things. IEEE Sens. J. 2013, 13, 3677–3684. [Google Scholar] [CrossRef] [Scilit]
  38. Fu, X.; Fortino, G.; Pace, P.; Aloi, G.; Li, W. Environment-fusion multipath routing protocol for wireless sensor networks. Inf. Fusion 2020, 53, 4–19. [Google Scholar] [CrossRef] [Scilit]
  39. Saeed, M.E.S.; Liu, Q.; Tian, G.; Gao, B.; Li, F. HOOSC: Heterogeneous online/offline signcryption for the Internet of Things. Wirel. Netw. 2018, 24, 3141–3160. [Google Scholar] [CrossRef] [Scilit]
  40. Vinoth, R.; Deborah, L.J.; Vijayakumar, P.; Kumar, N. Secure Multi-factor Authenticated Key Agreement Scheme for Industrial IoT. IEEE Internet Things J. 2020, 8, 3801–3811. [Google Scholar] [CrossRef] [Scilit]
  41. Zmezm, H.F.; Hashim, S.; Sali, A.; Alezabi, K.A. Pre-authentication design for seamless and secure handover in mobile WiMAX. Int. Rev. Comput. Softw. (IRECOS) 2015, 10, 764–772. [Google Scholar] [CrossRef] [Scilit]
  42. Han, D.; Lu, Y.; Du, X.; Gan, J. Offline Authentication Scheme Based on Blockchain Technology for Smart Lock. In Proceedings of the 2nd International Conference on Telecommunications and Communication Engineering, Beijing, China, 28–30 November 2018; pp. 384–390. [Google Scholar]
  43. Fu, X.; Yang, Y. Analysis on invulnerability of wireless sensor networks based on cellular automata. Reliab. Eng. Syst. Saf. 2021, 212, 107616. [Google Scholar] [CrossRef] [Scilit]
  44. Casino, F.; Dasaklis, T.K.; Patsakis, C. A systematic literature review of blockchain-based applications: Current status, classification and open issues. Telemat. Inform. 2019, 36, 55–81. [Google Scholar] [CrossRef] [Scilit]
  45. Hou, J.L.; Yeh, K.H. Novel authentication schemes for IoT based healthcare systems. Int. J. Distrib. Sens. Netw. 2015, 11, 183659. [Google Scholar] [CrossRef] [Scilit]
  46. Scripcariu, L.; Mătăsaru, P.D. On the substitution method of the AES algorithm. In Proceedings of the International Symposium on Signals, Circuits and Systems ISSCS2013, Iasi, Romania, 11–12 July 2013; pp. 1–4. [Google Scholar]
  47. Scripcariu, L.; Diaconu, F.; Mătăsaru, P.D.; Gafencu, L. AES vulnerabilities study. In Proceedings of the 2018 10th International Conference on Electronics, Computers and Artificial Intelligence (ECAI), Iasi, Romania, 28–30 June 2018; pp. 1–4. [Google Scholar]
  48. Ferrag, M.A.; Maglaras, L.A.; Janicke, H.; Jiang, J.; Shu, L. Authentication protocols for internet of things: A comprehensive survey. Secur. Commun. Netw. 2017, 2017. [Google Scholar] [CrossRef] [Scilit]
  49. Hankerson, D.; Menezes, A.J.; Vanstone, S. Guide to Elliptic Curve Cryptography; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
  50. Kouicem, D.E.; Bouabdallah, A.; Lakhlef, H. Internet of things security: A top-down survey. Comput. Netw. 2018, 141, 199–221. [Google Scholar] [CrossRef] [Scilit]
  51. Hancock, B. Security views. Comput. Secur. 2001, 20, 348363. [Google Scholar] [CrossRef] [Scilit]
  52. Miller, V.S. Use of elliptic curves in cryptography. In Proceedings of the Conference on the Theory and Application of Cryptographic Techniques, Santa Barbara, CA, USA, 18–22 August 1985; Springer: Berlin/Heidelberg, Germany, 1985; pp. 417–426. [Google Scholar]
  53. Khalid, H.; Hashim, S.J.; Ahmad, S.M.S.; Hashim, F.; Chaudhary, M.A. SELAMAT: A New Secure and Lightweight Multi-Factor Authentication Scheme for Cross-Platform Industrial IoT Systems. Sensors 2021, 21, 1428. [Google Scholar] [CrossRef] [Scilit]
  54. M’Raihi, D.; Machani, S.; Pei, M.; Rydell, J. Totp: Time-based one-time password algorithm. In Internet Request for Comments; Internet Engineering Task Force (IETF): Mountain View, CA, USA, 2011; p. 685E. [Google Scholar]
  55. Chevalier, Y.; Compagna, L.; Cuellar, J.; Drielsma, P.H.; Mantovani, J.; Mödersheim, S.; Vigneron, L. A high level protocol specification language for industrial security-sensitive protocols. In Workshop on Specification and Automated Processing of Security Requirements-SAPS’2004; Austrian Computer Society: Linz, Austria, 2004; 13p. [Google Scholar]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Article Metrics

Citations

Article Access Statistics

Multiple requests from the same IP address are counted as one view.
