Nonlinear Market Coupling During COVID-19 and the Global Financial Crisis: A Convergent Cross-Mapping Analysis of US and European Equity Indices

Abstract

During financial crises, markets do not only fall or become more volatile. They may also become more dynamically coupled, with the behaviour of one market becoming more recoverable from another. The purpose of this study is to examine whether crisis periods strengthen nonlinear coupling between major US and European equity indices, using Convergent Cross-Mapping as a state-space reconstruction method. Daily log returns for the Dow Jones Industrial Average, S&P 500, FTSE 100 and DAX are analysed across pre-crisis, crisis and post-crisis windows for the COVID-19 market shock and the Global Financial Crisis. Pairwise bidirectional Convergent Cross-Mapping is used to estimate cross-map skill, convergence and directional asymmetry, with a focused lagged analysis of key transatlantic pairs during COVID-19. Cross-map skill is interpreted as the strength of the recoverable dynamical footprint between markets. The results show that nonlinear coupling, measured as recoverable dynamical information between reconstructed market states, increases during crisis phases. During COVID-19, mean late-library cross-map skill rises from the pre-crisis to the crisis period, and all tested directional relationships satisfy the convergence criterion. The Global Financial Crisis also shows increased crisis-period coupling, with stronger persistence into the post-crisis phase. Lagged COVID-19 results indicate that the strongest recoverability occurs over a short contemporaneous-to-three-trading-day alignment window. The findings position Convergent Cross-Mapping as a complementary mathematical modelling framework for identifying recoverable dynamical information between markets during financial stress.

1. Introduction

Financial crises are usually studied through price falls, volatility, correlations, liquidity indicators and regression-based measures of market dependence. These tools are essential for financial risk management, but they can leave open an important question of whether markets become more dynamically coupled during periods of stress and whether this coupling changes before, during and after a crisis. In highly connected financial systems, a shock in one market may not remain local. It may appear rapidly in other markets through investor expectations, portfolio rebalancing, liquidity pressures, algorithmic trading, policy announcements and global information flows. Understanding this process is important because financial risk is not only a property of individual assets or indices, it is also a property of the coupling structure between markets.

The COVID-19 pandemic provides a particularly useful case for studying this problem. The World Health Organization declared the outbreak a Public Health Emergency of International Concern on 30 January 2020 and characterised COVID-19 as a pandemic on 11 March 2020 (World Health Organization, 2020a, 2020b). During the same period, global equity markets experienced a rapid sell-off and a sharp increase in volatility. Market stress was not limited to equities, as official analysis also documented substantial disruption in Treasury and foreign exchange markets during the March 2020 turmoil (Dobrev & Meldrum, 2020). The COVID-19 crisis is therefore a strong empirical case for testing whether nonlinear methods can identify changes in cross-market coupling during a short, severe and globally synchronised shock.

The Global Financial Crisis provides a useful comparison. Unlike COVID-19, which was triggered by a public health emergency and then transmitted through economic and financial channels, the Global Financial Crisis emerged from within the financial system itself, through credit-market fragility, leverage, banking stress and the repricing of financial risk. Comparing COVID-19 with the Global Financial Crisis allows this study to ask whether nonlinear market coupling intensifies in both exogenous and more endogenous crisis settings and whether the temporal profile of that coupling differs across crises.

1.1. Literature Review

A large portion of the literature on financial contagion and market interdependence has used correlations, regressions, vector autoregressions, Granger causality, transfer entropy and spillover measures to study how shocks move across markets. These approaches remain central to financial risk management. Correlation-based measures describe contemporaneous co-movement, Granger-type methods assess whether past values of one series improve prediction of another, and spillover frameworks quantify how shocks or forecast-error variance are transmitted across systems. Transfer entropy extends the analysis by measuring directional information transfer and can capture nonlinear dependence, although its estimates depend on embedding, discretisation and statistical-estimation choices.

These approaches provide important but different views of interdependence. Correlation and rolling-correlation measures are useful for describing time-varying co-movement, but they do not distinguish between direct interaction, common shocks and nonlinear dependence. Granger-type approaches are useful for assessing linear predictive content, but their interpretation depends on model specification, lag selection and stationarity assumptions. Spillover indices and connectedness measures provide a system-level view of how shocks are transmitted across markets, but they are usually framed in terms of forecast-error variance or volatility transmission. Transfer entropy can capture nonlinear directional information flow, but its estimates can be sensitive to embedding choices, discretisation and sample length. These limitations do not make conventional approaches unsuitable. Rather, they motivate the use of complementary methods when the research question concerns nonlinear, state-dependent and crisis-specific coupling.

1.2. Theoretical Framework: Convergent Cross-Mapping

CCM addresses a different empirical question. It does not ask only whether markets move together, nor whether one return series improves the linear prediction of another. Instead, it asks whether the reconstructed state space of one market contains recoverable information about the dynamics of another and whether that recoverability improves as the library size increases. This distinction is particularly relevant during periods of financial stress, when market relationships may become nonlinear, state-dependent and compressed over short time scales. In this study, CCM is therefore used as a complementary state-space reconstruction method for identifying crisis-period recoverable dynamical information, not as a replacement for correlation, Granger causality, transfer entropy or conventional spillover measures.

Convergent Cross-Mapping, usually abbreviated as CCM, was introduced in its modern form by Sugihara et al. (2012) and is grounded in state-space reconstruction. When two variables belong to the same coupled dynamical system, the reconstructed dynamics of one variable may contain recoverable information about the other. In practical terms, if a variable $X$ influences a variable $Y$, then the reconstructed state space of $Y$ should contain information about $X$. The strength of this recoverable information is measured through cross-map skill, commonly denoted by $\rho$. Evidence for coupling is strengthened when cross-map skill increases as the library size grows, a property known as convergence.

This interpretation requires caution. In this paper, the term causality is used only in the CCM sense of recoverable dynamical information between reconstructed state spaces. It is not used to claim direct institutional, legal or mechanical causation between financial indices. The purpose of the study is therefore not to present CCM as superior to established financial-risk tools, but to test whether it adds useful information about market coupling during crises.

1.3. Study Aim, Research Questions and Contribution

This paper applies CCM to daily log returns for four major equity indices: the Dow Jones Industrial Average, the S&P 500, the FTSE 100 and the DAX. The indices were selected to provide two United States benchmarks and two European benchmarks, allowing the analysis to examine both within-region and transatlantic coupling. The main empirical case is the COVID-19 market shock, with the Global Financial Crisis used as a comparison. For each crisis, the analysis separates the data into pre-crisis, crisis and post-crisis windows. Pairwise bidirectional CCM is then used to estimate cross-map skill, convergence and directional asymmetry. A focused lagged CCM analysis is also conducted for key transatlantic pairs to examine whether the strongest coupling appears contemporaneously or over a short lead-lag horizon.

The study addresses three research questions. First, does nonlinear market coupling, measured through CCM cross-map skill, increase during financial crisis periods? Second, does the COVID-19 market shock produce a different coupling profile from the Global Financial Crisis? Third, do the main transatlantic relationships show evidence of short-horizon lead-lag structure during the COVID-19 crisis phase? These questions are relevant for financial risk management because crisis monitoring requires tools that can describe not only individual market stress, but also changes in the dynamical links between markets.

The principal findings are that nonlinear coupling increases during crisis phases and that the COVID-19 crisis shows a particularly clear increase in both average cross-map skill and convergence. In the COVID-19 crisis window, all tested directional relationships satisfy the convergence criterion used in this study, while convergence is less consistent in the corresponding pre-crisis period. The Global Financial Crisis also shows stronger coupling during the crisis phase, but with a more persistent elevation into the post-crisis period. The lagged CCM results for COVID-19 suggest that transatlantic coupling is strongest over a short horizon of approximately one to three trading days, although this should be interpreted as an indicative coupling horizon rather than an exact transmission speed.

The contribution of the paper is threefold. First, it applies CCM as a nonlinear mathematical modelling framework for analysing crisis-period coupling between major US and European equity indices. Second, it compares an exogenous global shock, COVID-19, with the Global Financial Crisis as a more financial-system-centred crisis, allowing the analysis to distinguish a short synchronised coupling spike from a more persistent post-crisis coupling profile. Third, it introduces a benchmark comparison with rolling correlations and linear Granger causality to clarify what CCM adds to conventional interconnectedness measures. The paper therefore positions CCM as a useful complementary tool for financial-risk monitoring when the objective is to identify recoverable nonlinear dynamical information between markets, while recognising that conventional econometric methods remain preferable for linear forecasting, variance decomposition and established spillover quantification.

2. Materials and Methods

2.1. Study Design

This study uses an empirical time-series design to examine whether nonlinear dynamical coupling between major equity indices changes during financial crises. The analysis focuses on two crisis episodes: the COVID-19 market shock and the Global Financial Crisis. The COVID-19 episode is the main case study, while the Global Financial Crisis is used as a comparison case to assess whether crisis-period changes in coupling are specific to a sudden exogenous shock or also appear during a more financial-system-centred crisis.

The study compares three phases for each episode: a pre-crisis period, a crisis period and a post-crisis period. Within each phase, pairwise bidirectional Convergent Cross-Mapping, CCM, is applied to daily log returns for four equity indices: the Dow Jones Industrial Average, the S&P 500, the FTSE 100 and the DAX. The analysis estimates cross-map skill, convergence and directional asymmetry. A focused lagged CCM analysis is also applied to key transatlantic pairs during the COVID-19 crisis phase, in order to assess whether the strongest coupling appears contemporaneously or over a short lead-lag horizon.

2.2. Data

Daily adjusted closing prices were retrieved from Yahoo Finance using the quantmod package in R. The analysis includes four equity indices: the Dow Jones Industrial Average, the S&P 500, the FTSE 100 and the DAX. The data source is cited as Yahoo Finance, accessed through the quantmod (version 0.4.25) R interface, with the selected index symbols reported to support reproducibility. The full data-retrieval window was 1 January 2005 to 31 December 2022, which provides sufficient coverage for both the Global Financial Crisis and the COVID-19 market shock.

The selected Yahoo Finance symbols were ^DJI for the Dow Jones Industrial Average, ^GSPC for the S&P 500, ^FTSE for the FTSE 100 and ^GDAXI for the DAX. The four series were aligned using common trading dates only, so that all CCM calculations were performed on matched observations across the included markets. This conservative alignment avoids missing values caused by different market holidays or trading calendars.

The main analysis uses daily log returns rather than raw price levels, because returns are more standard in financial-risk analysis and reduce the non-stationarity associated with index levels. For each index, daily log returns were calculated as follows:

$${\mathit{r}}_{\mathit{t}}=\mathbf{l}\mathbf{n}\left({\mathit{P}}_{\mathit{t}}\right)-\mathbf{l}\mathbf{n}\left({\mathit{P}}_{\mathit{t}-1}\right),$$

where ${\mathit{P}}_{\mathit{t}}$ is the adjusted closing price on trading day $\mathit{t}$, and ${\mathit{r}}_{\mathit{t}}$ is the corresponding daily log return.

The processed adjusted-price and log-return datasets were saved as reproducible outputs from the R workflow. The code records the download date, index symbols, number of observations, embedding dimension, time delay and CCM iteration settings.

2.3. Crisis Windows

For each crisis episode, three analysis windows were defined: pre-crisis, crisis and post-crisis. The windows were chosen to provide sufficient observations for CCM while retaining a meaningful distinction between baseline, stress and recovery regimes.

For the Global Financial Crisis, the pre-crisis period was defined as 3 January 2005 to 29 June 2007, the crisis period as 2 July 2007 to 30 June 2009, and the post-crisis period as 1 July 2009 to 31 December 2010. This window captures the broad escalation of financial stress from mid-2007 through the post-Lehman period and subsequent stabilisation.

For the COVID-19 market shock, the pre-crisis period was defined as 2 January 2018 to 18 February 2020, the crisis period as 19 February 2020 to 30 June 2020, and the post-crisis period as 1 July 2020 to 31 December 2021. The COVID-19 crisis window begins around the equity-market peak and includes the acute sell-off and early-recovery phase. It is broader than the shortest February to March 2020 crash interval because CCM requires enough observations for state-space reconstruction and convergence assessment.

Table 1 summarises the crisis windows used in the analysis.

Table 1. Crisis episodes and analysis windows.

Episode	Phase	Start Date	End Date	Description
Global Financial Crisis	Pre-crisis	3 January 2005	29 June 2007	Pre-crisis baseline
Global Financial Crisis	Crisis	2 July 2007	30 June 2009	Financial crisis and post-Lehman stress
Global Financial Crisis	Post-crisis	1 July 2009	31 December 2010	Early post-crisis period
COVID-19 market shock	Pre-crisis	2 January 2018	18 February 2020	Pre-COVID baseline
COVID-19 market shock	Crisis	19 February 2020	30 June 2020	COVID-19 sell-off and early recovery
COVID-19 market shock	Post-crisis	1 July 2020	31 December 2021	Post-shock recovery period

Because CCM estimates may be affected by the selected observation window, the baseline crisis definitions were also assessed through a supplementary sensitivity analysis using narrower and wider crisis-window definitions. The sensitivity analysis was used to evaluate whether the main phase-level conclusions were robust to plausible alternative partitions of each crisis episode.

2.4. Convergent Cross-Mapping

Convergent Cross-Mapping is a nonlinear causality method grounded in dynamical systems theory and state-space reconstruction. It was introduced in its modern form by Sugihara et al. (2012) and is based on the idea that, when two variables are part of the same coupled dynamical system, the reconstructed dynamics of one variable can contain recoverable information about the other.

The intuition is as follows. If a variable $\mathit{X}$ influences a variable $\mathit{Y}$, then the historical states of $\mathit{Y}$ should contain information about $\mathit{X}$, because the dynamics of $\mathit{X}$ have left a footprint in the evolution of $\mathit{Y}$. CCM tests this by reconstructing a state space from one time series and using nearest-neighbour information in that reconstructed space to estimate values of the other time series. The quality of this reconstruction is measured by cross-map skill, denoted here as $\mathit{\rho }$.

In this paper, the term causality is used only in the CCM sense of recoverable dynamical information between reconstructed state spaces. It should not be interpreted as a claim of direct institutional, legal or mechanical causation between financial indices. A high CCM value is interpreted as evidence of nonlinear dynamical coupling under the assumptions of CCM.

2.5. State-Space Reconstruction and CCM Parameters

For each time series, delay-coordinate embedding was used to reconstruct the state space. For a time series ${\mathit{x}}_{\mathit{t}}$, the reconstructed vector can be written as

$${\mathbf{x}}_{\mathit{t}}=({\mathit{x}}_{\mathit{t}},{\mathit{x}}_{\mathit{t}-\mathit{\tau }},{\mathit{x}}_{\mathit{t}-2\mathit{\tau }},...,{\mathit{x}}_{\mathit{t}-(\mathit{E}-1)\mathit{\tau }}),$$

where $\mathit{E}$ is the embedding dimension and $\mathit{\tau }$ is the time delay.

In the main analysis, the embedding dimension was set to $\mathit{E}=5$ and the time delay to $\mathit{\tau }=1$. This choice provides a transparent and fixed parameter specification across all markets, crisis windows and directions. The purpose of the study is not to optimise CCM for predictive performance, but to test whether crisis periods show stronger and more convergent nonlinear coupling under a consistent framework. A supplementary embedding-dimension sensitivity analysis was conducted for $\mathit{E}=3,4,5,6$ with $\mathit{\tau }=1$, to assess whether the phase-level crisis-coupling pattern depends on the baseline $\mathit{E}=5$ specification. The sensitivity analysis used the same episode-phase windows and pairwise bidirectional CCM structure as the main analysis and is reported in the Supplementary Materials.

Each bidirectional CCM comparison was run with 300 bootstrap iterations using the multispatialCCM package in R. Cross-map skill was summarised using the mean $\mathit{\rho }$ over the final third of library sizes, referred to in the results as late-library mean $\mathit{\rho }$. This follows the logic that the largest library sizes provide the most relevant estimate of the asymptotic cross-map skill, while avoiding dependence on a single final value.

2.6. Pairwise Bidirectional CCM

For each crisis episode and phase, pairwise bidirectional CCM was applied to all six unordered index pairs among the four indices. Each unordered pair produces two directional tests. For example, the pair DJIA and FTSE 100 produces a DJIA-to-FTSE 100 direction and an FTSE 100-to-DJIA direction. With four indices, this gives twelve directional relationships per phase.

The CCM direction follows the convention used in the R workflow and teaching example: CCM_boot(A, B, …) is reported as $\mathit{A}\to \mathit{B}$. This notation is interpreted as evidence that the proposed source $\mathit{A}$ has a recoverable dynamical footprint in the proposed target $\mathit{B}$. The analysis reports both directions for each pair because financial markets are expected to be bidirectionally coupled, especially during crises.

For each directional relationship, the following quantities were recorded:

$${\mathit{\rho }}_{\mathit{s}\mathit{t}\mathit{a}\mathit{r}\mathit{t}},{\mathit{\rho }}_{\mathit{e}\mathit{n}\mathit{d}},{\mathit{\rho }}_{\mathit{l}\mathit{a}\mathit{t}\mathit{e}},{\mathit{\rho }}_{\mathit{m}\mathit{a}\mathit{x}},{\mathit{C}}_{\mathit{s}},$$

where ${\mathit{\rho }}_{\mathit{s}\mathit{t}\mathit{a}\mathit{r}\mathit{t}}$ is the cross-map skill at the smallest library size, ${\mathit{\rho }}_{\mathit{e}\mathit{n}\mathit{d}}$ is the cross-map skill at the largest library size, ${\mathit{\rho }}_{\mathit{l}\mathit{a}\mathit{t}\mathit{e}}$ is the mean cross-map skill over the final third of library sizes, ${\mathit{\rho }}_{\mathit{m}\mathit{a}\mathit{x}}$ is the maximum observed cross-map skill, and ${\mathit{C}}_{\mathit{s}}$ is the Spearman correlation between library size and cross-map skill.

2.7. Convergence Criterion

In CCM, evidence for dynamical coupling is strengthened when cross-map skill increases with library size, a property referred to as convergence. A high cross-map skill alone is not sufficient, because high apparent association can arise from shared trends, common shocks or synchronised volatility. Convergence is important because CCM theory predicts that when a genuine dynamical relationship is present the ability to recover one variable from the reconstructed state space of another should improve as more library points become available.

In this study, convergence was assessed descriptively using two conditions. A directional relationship was classified as convergent when

$${\mathit{C}}_{\mathit{s}}>0$$

and

$${\mathit{\rho }}_{\mathit{e}\mathit{n}\mathit{d}}>{\mathit{\rho }}_{\mathit{s}\mathit{t}\mathit{a}\mathit{r}\mathit{t}.}$$

Here, ${\mathit{C}}_{\mathit{s}}$ is the Spearman correlation between library size and cross-map skill. This criterion is intentionally simple and transparent. It is used to support interpretation of the CCM results rather than as a definitive formal proof of causality.

2.8. Statistical Comparison of Crisis Phases

To provide formal support for the descriptive phase comparisons, late-library CCM cross-map skill was compared across pre-crisis, crisis and post-crisis periods using paired directional relationships as repeated units. For each crisis episode, the same twelve directional relationships were observed in each phase. Phase differences were therefore assessed using paired comparisons of late-library $\mathit{\rho }$ values across matched directions. The comparisons were crisis versus pre-crisis, post-crisis versus crisis, and post-crisis versus pre-crisis, estimated separately for the COVID-19 market shock and the Global Financial Crisis.

Because the number of directional relationships was small and normality could not be assumed, paired Wilcoxon signed-rank tests were used as the primary formal test. Holm-adjusted p-values were reported to account for multiple phase comparisons within each episode. In addition, non-parametric bootstrap confidence intervals were calculated for the mean paired difference in late-library $\mathit{\rho }$, using resampling of the twelve matched directional relationships. These tests were used to support the phase-level interpretation of the CCM results, while recognising that the directional relationships are not fully independent because they are derived from the same four underlying equity indices.

2.9. Directional Asymmetry

To assess whether coupling was stronger in one direction than the other, directional asymmetry was calculated for each unordered index pair. For a pair $\mathit{A},\mathit{B}$, the asymmetry measure was defined as

$${\mathit{A}}_{\mathit{a}\mathit{s}\mathit{y}\mathit{m}}={\mathit{\rho }}_{\mathit{l}\mathit{a}\mathit{t}\mathit{e}}\left(\mathit{A}\to \mathit{B}\right)-{\mathit{\rho }}_{\mathit{l}\mathit{a}\mathit{t}\mathit{e}}\left(\mathit{B}\to \mathit{A}\right).$$

A positive value indicates stronger late-library cross-map skill in the $\mathit{A}\to \mathit{B}$ direction, while a negative value indicates stronger cross-map skill in the $\mathit{B}\to \mathit{A}$ direction. This measure was used to identify whether crisis-period coupling was approximately balanced or whether one direction was dominant.

Directional asymmetry was interpreted cautiously. Financial indices are not isolated causal mechanisms, and all four markets are influenced by global news, macroeconomic expectations, monetary policy, liquidity conditions and investor behaviour. Asymmetry in CCM therefore indicates stronger recoverable dynamical information in one direction, not necessarily a direct one-way causal channel.

2.10. Crisis-Window Sensitivity Analysis

To assess whether the main CCM findings were driven by the specific crisis-window definitions, a supplementary crisis-window sensitivity analysis was conducted. For each crisis episode, the baseline window used in the main manuscript was compared with a narrower and a wider alternative definition. For the COVID-19 market shock, the narrower crisis window captured the acute sell-off and immediate rebound period, while the wider window captured the broader first-wave financial-market shock. For the Global Financial Crisis, the narrower window captured the Lehman-collapse and immediate stress period, while the wider window captured an extended financial-crisis and early-recovery period.

The same four indices, twelve directional relationships, log-return transformation and CCM settings were used for each alternative window definition. For each episode, window definition and phase, mean late-library cross-map skill was recalculated and compared with the baseline phase-level pattern. The purpose of this analysis was not to replace the baseline estimates, but to evaluate whether the qualitative conclusions were stable under plausible alternative crisis partitions.

2.11. Lagged CCM Analysis

The lagged analysis was designed to estimate an indicative coupling horizon rather than an exact propagation delay. For each direction, the lag with the highest late-library mean cross-map skill was recorded as the maximum-recoverability lag. This value identifies the alignment at which the dynamical footprint of the proposed source is most strongly recoverable from the proposed target during the COVID-19 crisis window. Because financial indices are simultaneously exposed to global news, policy announcements, liquidity conditions and common shocks, the best-lag estimate should not be interpreted as a precise transmission speed or as proof of a direct one-way causal channel.

The lagged analysis was applied to the following directional pair families: DJIA and FTSE 100, S&P 500 and FTSE 100, DJIA and DAX, and S&P 500 and DAX. Each pair was tested in both directions. Lags from $-5$ to $+5$ trading days were examined. A positive lag was defined as the proposed source leading the proposed target by that number of trading days. For example, a positive lag of one day in the DJIA-to-FTSE 100 direction indicates that the DJIA series is aligned one trading day ahead of the FTSE 100 series.

The lagged analysis used the same embedding dimension and time delay as the main analysis, $\mathit{E}=5$ and $\mathit{\tau }=1$, and used 100 bootstrap iterations. The lower number of iterations was chosen to keep the lagged analysis computationally tractable, because lagged CCM multiplies the number of runs across directions and lag values. The lagged results are therefore interpreted as exploratory evidence about the short-horizon structure of crisis coupling, rather than as exact estimates of transmission speed.

For each direction, the lag with the highest late-library mean $\mathit{\rho }$ was recorded as the best-lag estimate. Because cross-map skill can remain elevated across a range of nearby lags, the best lag was interpreted as an indicative coupling horizon rather than a precise propagation delay.

2.12. Benchmark Comparison with Conventional Methods

As a benchmark comparison, supplementary conventional analyses were conducted using rolling Pearson correlations and linear Granger-causality tests. Sixty-day rolling correlations were computed for the same US–European index pairs used in the CCM analysis in order to describe time-varying contemporaneous co-movement. Linear Granger-causality tests were then estimated for the same directional relationships and crisis partitions. Where the available window length allowed reliable estimation, lag orders were selected using AIC and BIC; fixed-lag tests from one to five trading days were also reported as a robustness check. These analyses were used to contextualise the CCM findings rather than to replace them. Rolling correlation measures contemporaneous co-movement, Granger causality evaluates linear predictive content, and CCM evaluates recoverable dynamical information between reconstructed state spaces.

2.13. Software and Reproducibility

All analyses were conducted in R version 4.3.1. Market data were retrieved using the quantmod package, and CCM was implemented using the multispatialCCM package. Data wrangling, table generation and plotting were performed using standard R packages including dplyr, tidyr, purrr, readr and ggplot2.

The R workflow exports the cleaned aligned adjusted-price data, cleaned aligned log-return data, pairwise CCM tables, directional asymmetry tables, lagged CCM tables, best-lag summaries and publication-ready figures. These outputs were used directly to construct Section 3. The code and processed data will be made available as Supplementary Material or deposited in a public repository prior to publication.

No human participants, animal subjects or private personal data were used in this study. Ethical approval was therefore not required.

2.14. Use of Generative Artificial Intelligence

Generative artificial intelligence was used to assist with improving the readability of the manuscript text only. It was not used to generate the financial data, perform the statistical analysis, create or alter results, or fabricate findings. All data analyses were performed in R using code created, reviewed and controlled by the author, and all interpretations, results and conclusions are the author’s own work.

3. Results

3.1. Crisis Periods Are Associated with Stronger Nonlinear Market Coupling

The pairwise CCM results indicate that nonlinear dynamical coupling between the four equity indices strengthens during crisis periods. This pattern is particularly clear for the COVID-19 market shock, where both average cross-map skill and convergence increase markedly during the crisis window.

Figure 1 shows the daily log returns for the Dow Jones Industrial Average, S&P 500, FTSE 100 and DAX across the full analysis period. The figure shows pronounced volatility clustering around the Global Financial Crisis and the COVID-19 market shock, providing the financial context for the CCM analysis.

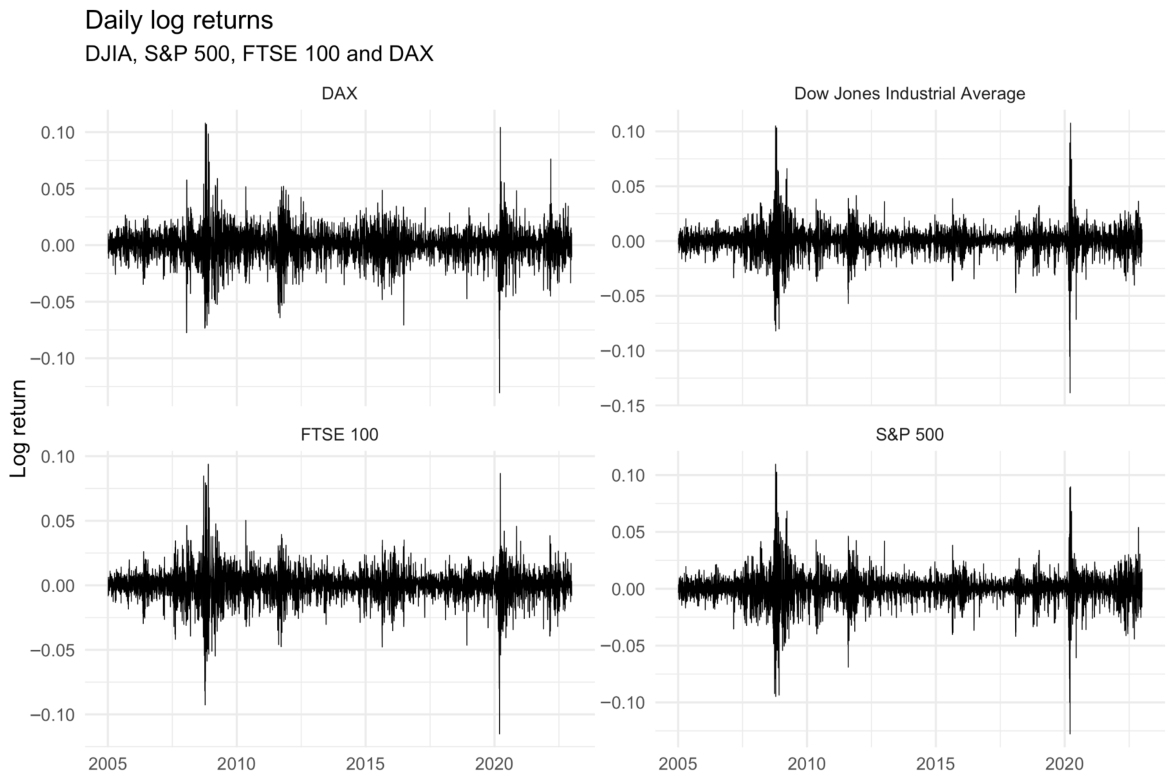

Figure 1. Daily log returns for the Dow Jones Industrial Average, S&P 500, FTSE 100 and DAX. The figure shows periods of elevated volatility around the Global Financial Crisis and the COVID-19 market shock.

Table 2 summarises the average late-library cross-map skill, median late-library cross-map skill, mean convergence and proportion of convergent directional relationships across the pre-crisis, crisis and post-crisis phases for both episodes.

Table 2. Average CCM coupling by episode and phase.

Episode	Phase	Mean Late-Library Rho	Median Late-Library Rho	Mean Convergence	Proportion Convergent
COVID-19 market shock	Pre-crisis	0.473	0.376	0.345	0.667
COVID-19 market shock	Crisis	0.637	0.581	0.939	1.000
COVID-19 market shock	Post-crisis	0.442	0.338	0.768	1.000
Global Financial Crisis	Pre-crisis	0.464	0.329	0.244	0.583
Global Financial Crisis	Crisis	0.588	0.519	0.555	0.667
Global Financial Crisis	Post-crisis	0.660	0.596	0.632	0.833

Note: Late-library rho is the mean cross-map skill over the final third of library sizes. Convergence was assessed using a positive relationship between library size and cross-map skill, together with a higher final than initial cross-map skill.

For the COVID-19 episode, the mean late-library ρ increased from 0.473 in the pre-crisis period to 0.637 during the crisis period, before falling to 0.442 in the post-crisis period. The median late-library ρ shows the same pattern, increasing from 0.376 before the crisis to 0.581 during the crisis, then declining to 0.338 after the crisis. The convergence pattern also strengthened during the crisis phase. Mean convergence increased from 0.345 before the crisis to 0.939 during the crisis, and the proportion of convergent directional relationships increased from 0.667 to 1.000. This means that all twelve tested directional relationships satisfied the convergence criterion during the COVID-19 crisis phase.

For the Global Financial Crisis, mean late-library ρ increased from 0.464 in the pre-crisis period to 0.588 during the crisis period and then increased further to 0.660 in the post-crisis period. Median late-library ρ also increased across the three phases, from 0.329 to 0.519 and then to 0.596. This suggests that the Global Financial Crisis was also associated with stronger nonlinear coupling, but with a different temporal profile from COVID-19. Whereas the COVID-19 episode shows a sharp crisis-period increase followed by a post-crisis reduction, the Global Financial Crisis shows a more persistent elevation of coupling into the post-crisis phase.

Formal paired phase comparisons support the descriptive crisis-period increase in CCM coupling. For the COVID-19 market shock, late-library cross-map skill increased significantly from the pre-crisis phase to the crisis phase across the matched directional relationships, with a mean paired difference of 0.164, Wilcoxon p = 0.005, Holm-adjusted p = 0.011, and bootstrap 95% CI [0.096, 0.229]. The post-crisis phase then showed a significant reduction relative to the crisis phase, with a mean paired difference of −0.196, Wilcoxon p = 0.003, Holm-adjusted p = 0.008, and bootstrap 95% CI [−0.257, −0.134]. The post-crisis versus pre-crisis comparison was not significant after Holm correction, although the bootstrap interval was below zero; this comparison is therefore interpreted cautiously.

For the Global Financial Crisis, the crisis phase was significantly higher than the pre-crisis phase, with a mean paired difference of 0.124, Wilcoxon p = 0.003, Holm-adjusted p = 0.008, and bootstrap 95% CI [0.085, 0.162]. The post-crisis phase was also significantly higher than the crisis phase, with a mean paired difference of 0.072, Wilcoxon p = 0.005, Holm-adjusted p = 0.008, and bootstrap 95% CI [0.046, 0.097]. The post-crisis phase was higher than the pre-crisis phase, with a mean paired difference of 0.196, Wilcoxon p = 0.003, Holm-adjusted p = 0.008, and bootstrap 95% CI [0.134, 0.251]. These results strengthen the interpretation that COVID-19 produced a sharp crisis-period increase followed by a reduction, whereas the Global Financial Crisis produced a more persistent elevation of nonlinear market coupling. The full results are reported in Supplementary Table S4.

A supplementary crisis-window sensitivity analysis was conducted to assess whether the phase-level results depended on the specific baseline crisis partitions. The results showed that the main qualitative patterns were stable under narrower and wider crisis-window definitions. For the COVID-19 market shock, all three definitions showed a crisis-period increase in mean late-library CCM cross-map skill followed by a post-crisis reduction. In the sensitivity analysis, mean late-library $\rho$ increased from 0.517 to 0.642 under the narrow definition, from 0.515 to 0.705 under the baseline definition, and from 0.511 to 0.701 under the wider definition, before falling in the post-crisis phase. For the Global Financial Crisis, all three definitions showed a crisis-period increase followed by persistent or further post-crisis elevation. The mean late-library $\rho$ increased from 0.566 to 0.648 and then to 0.709 under the narrow definition, from 0.502 to 0.629 and then to 0.695 under the baseline definition, and from 0.501 to 0.641 and then to 0.655 under the wider definition. These results indicate that the main interpretation is not driven by the exact baseline window boundaries. The full results are reported in Supplementary Tables S5 and S5b.

Figure 2 visualises the same pattern. The COVID-19 market shock produces a clear crisis-period peak in average nonlinear coupling, while the Global Financial Crisis shows a more gradual increase from the pre-crisis phase through to the post-crisis phase.

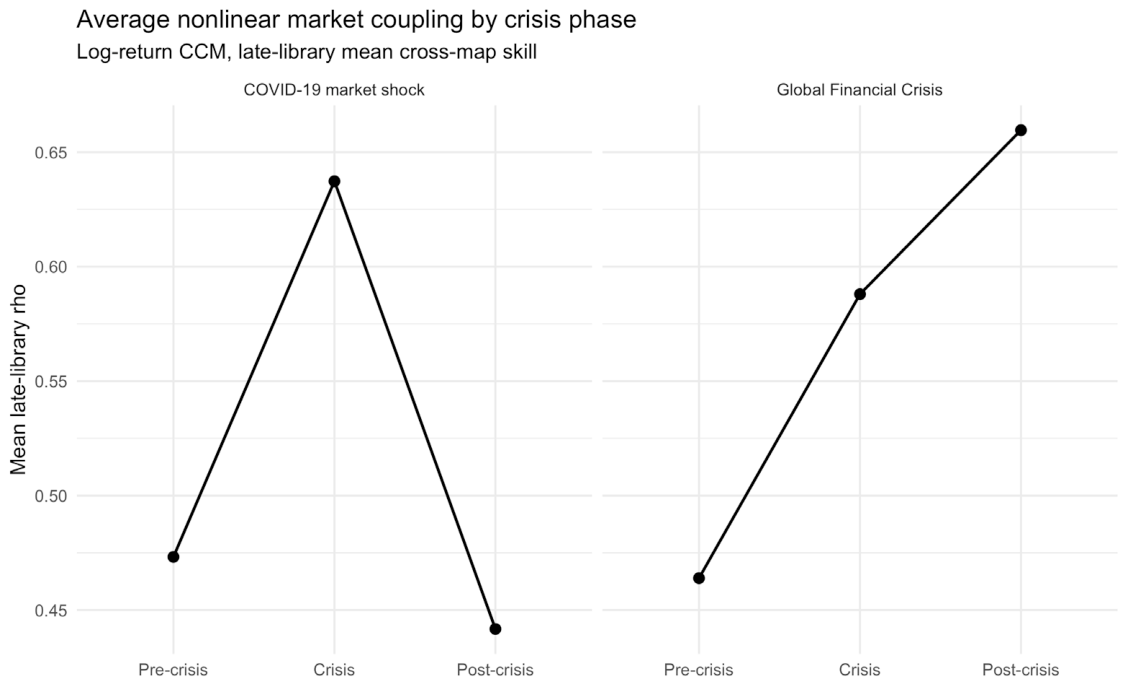

Figure 2. Average nonlinear market coupling by crisis phase. The figure shows mean late-library cross-map skill for each crisis episode and phase. The COVID-19 market shock shows a sharp crisis-period increase followed by a post-crisis decline, while the Global Financial Crisis shows elevated coupling that persists into the post-crisis phase.

The embedding-dimension sensitivity analysis supports the same qualitative interpretation. Across E = 3, 4, 5, 6, the COVID-19 crisis phase shows higher mean late-library cross-map skill than both the pre-crisis and post-crisis phases, while the Global Financial Crisis shows higher crisis-period coupling than the pre-crisis phase and a further elevation in the post-crisis phase. This indicates that the main phase-level pattern is not dependent on the baseline E = 5 specification.

3.2. COVID-19 Produces Consistently Convergent Directional Coupling

The COVID-19 crisis phase provides the clearest evidence of nonlinear dynamical coupling across the four equity indices. All twelve directional relationships between the four markets were classified as convergent during the COVID-19 crisis period. This contrasts with the pre-crisis phase, where only two thirds of the directional relationships satisfied the convergence criterion.

This result is important because high cross-map skill alone is not sufficient for a defensible CCM interpretation. In CCM, evidence for coupling is strengthened when cross-map skill improves with library size. The COVID-19 results therefore suggest not only that markets became more strongly associated during the crisis, but that their dynamics became more mutually recoverable in the CCM sense.

Figure 3 shows directional CCM coupling during the crisis phase for both episodes. Within-region coupling is strongest, as expected. During the COVID-19 crisis, the two US indices show particularly high bidirectional coupling, while the FTSE 100 and DAX also show strong European coupling. Transatlantic coupling is weaker than within-region coupling, but remains substantial and consistently convergent.

Figure 3. Directional CCM coupling during crisis phases. The heatmap shows late-library cross-map skill for all directional relationships during the crisis phase of each episode. Darker cells indicate stronger nonlinear coupling. Blank diagonal cells indicate self-pairs, which were not estimated.

3.3. Transatlantic Coupling Strengthens During the COVID-19 Market Shock

The transatlantic relationships between US and European indices also strengthen during the COVID-19 crisis phase. Table 3 reports the key COVID-19 crisis-period results for the DJIA, S&P 500, FTSE 100 and DAX transatlantic directions.

Table 3. Key transatlantic CCM results during the COVID-19 crisis phase.

Direction	Late-Library Rho	End Rho	Convergence	Convergent
DJIA to FTSE 100	0.593	0.600	0.994	Yes
FTSE 100 to DJIA	0.535	0.532	0.933	Yes
S&P 500 to FTSE 100	0.595	0.604	0.993	Yes
FTSE 100 to S&P 500	0.508	0.506	0.936	Yes
DJIA to DAX	0.569	0.569	0.966	Yes
DAX to DJIA	0.561	0.553	0.833	Yes
S&P 500 to DAX	0.570	0.572	0.964	Yes
DAX to S&P 500	0.532	0.527	0.720	Yes

The DJIA-to-FTSE 100 direction produced a late-library $\rho$ of 0.593, while the FTSE 100-to-DJIA direction produced 0.535. Similarly, the S&P 500-to-FTSE 100 direction produced 0.595, compared with 0.508 for the FTSE 100-to-S&P 500 direction. The DJIA-to-DAX and DAX-to-DJIA directions were more balanced, with late-library $\rho$ values of 0.569 and 0.561, respectively. The S&P 500-to-DAX direction produced 0.570, while the DAX-to-S&P 500 direction produced 0.532.

All of these transatlantic relationships satisfied the convergence criterion. This supports the interpretation that the COVID-19 market shock was associated with bidirectional nonlinear coupling between US and European equity markets. The US-to-European directions were generally stronger than the corresponding European-to-US directions, although the differences were modest. The results should therefore be interpreted as evidence of asymmetric bidirectional coupling rather than simple one-way causation.

The DJIA and FTSE 100 pair illustrates this crisis-period change clearly. As shown in Figure 4, the DJIA-to-FTSE 100 coupling increased from the pre-crisis phase to the COVID-19 crisis phase, then declined in the post-crisis phase. The FTSE 100-to-DJIA coupling followed a similar pattern, although the DJIA-to-FTSE 100 direction was stronger during the COVID-19 crisis phase. This supports the view that the COVID-19 shock was associated with temporary strengthening of bidirectional transatlantic coupling.

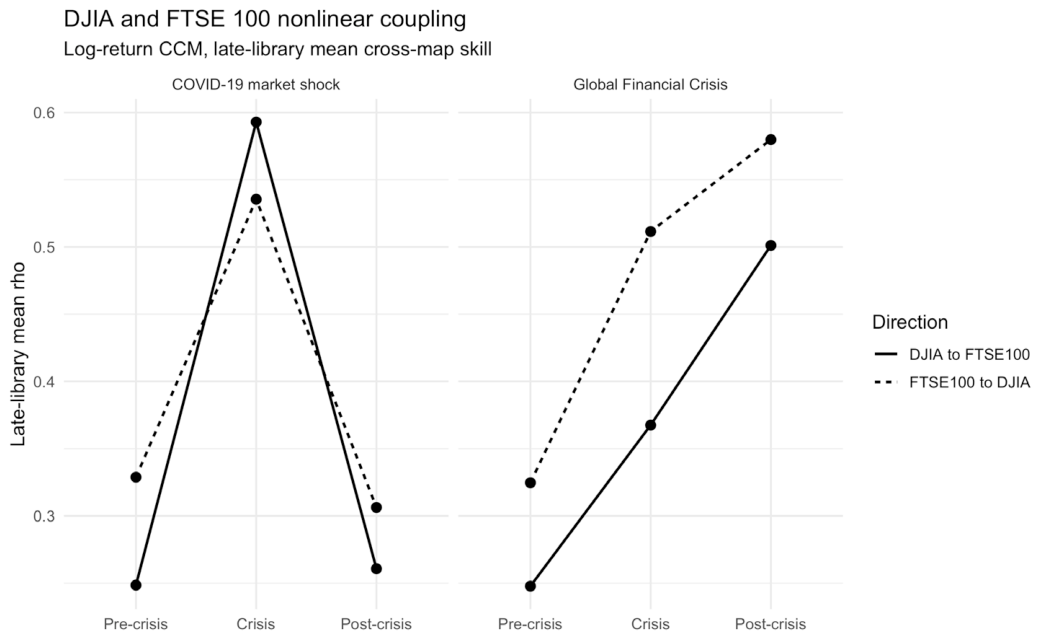

Figure 4. DJIA and FTSE 100 nonlinear coupling by phase. The figure shows late-library cross-map skill for the DJIA-to-FTSE 100 and FTSE 100-to-DJIA directions across pre-crisis, crisis and post-crisis phases. During the COVID-19 crisis phase, coupling strengthens in both directions, with the DJIA-to-FTSE 100 direction stronger than the reverse direction.

3.4. The Global Financial Crisis Shows a Different Coupling Profile

The Global Financial Crisis also shows stronger nonlinear coupling, but with a different temporal profile from COVID-19. Average coupling increases during the crisis phase, but remains elevated and rises further in the post-crisis phase. This suggests that the Global Financial Crisis may have been associated with a more persistent restructuring of market coupling, rather than a short crisis-period spike followed by rapid relaxation.

The DJIA and FTSE 100 pair also behaves differently across the two crises. During the COVID-19 crisis phase, both directions become strongly coupled and convergent, with the DJIA-to-FTSE 100 direction being stronger than the FTSE 100-to-DJIA direction. During the Global Financial Crisis, by contrast, the FTSE 100-to-DJIA direction is stronger than the DJIA-to-FTSE 100 direction, and the difference persists across the phases, as shown in Figure 4.

This contrast suggests that crisis coupling is not invariant across historical episodes. The COVID-19 shock appears as a sharp, globally synchronised event in which all tested directional relationships become convergent during the crisis window. The Global Financial Crisis shows a more persistent coupling structure, with stronger post-crisis coupling than crisis-period coupling in the aggregate results. This difference is consistent with the idea that different crisis mechanisms can produce different nonlinear coupling profiles.

3.5. Lagged CCM Suggests a Short Crisis-Period Coupling Horizon

The lagged CCM analysis was used to identify the lag at which the dynamical footprint between transatlantic markets was most strongly recoverable during the COVID-19 crisis phase. Key US–European pairs were tested in both directions to assess whether the strongest cross-map skill appeared contemporaneously or when the proposed source series was allowed to lead the proposed target series by a small number of trading days.

The results (Table 4) suggest that COVID-19 transatlantic coupling was strongest over a short contemporaneous-to-three-trading-day horizon. For the DJIA-to-FTSE 100 direction, the strongest late-library $\rho$ occurred at a lag of +1 trading day, with $\rho =0.599$. For the S&P 500-to-FTSE 100 direction, the strongest value occurred at lag 0, with $\rho =0.596$. For the DJIA-to-DAX and S&P 500-to-DAX directions, the strongest values occurred at +2 trading days, with $\rho =0.621$ and $\rho =0.611$, respectively.

Table 4. Best lagged CCM results for key transatlantic pairs during the COVID-19 crisis phase.

Direction	Best Lag, Trading Days	Late-Library Rho	End Rho	Convergent
DJIA to FTSE 100	+1	0.599	0.598	Yes
S&P 500 to FTSE 100	0	0.596	0.615	Yes
DJIA to DAX	+2	0.621	0.623	Yes
S&P 500 to DAX	+2	0.611	0.610	Yes
FTSE 100 to DJIA	+3	0.563	0.560	Yes
FTSE 100 to S&P 500	+3	0.561	0.561	Yes
DAX to DJIA	+2	0.640	0.650	Yes
DAX to S&P 500	+2	0.627	0.630	Yes

The reverse European-to-US directions also showed positive best lags. The FTSE 100-to-DJIA and FTSE 100-to-S&P 500 directions both peaked at +3 trading days, while the DAX-to-DJIA and DAX-to-S&P 500 directions both peaked at +2 trading days. All best-lag relationships were classified as convergent.

Figure 5 shows the lagged CCM curves for the COVID-19 crisis phase. The curves show weak or negative cross-map skill at several negative lags, followed by substantially stronger cross-map skill around lag 0 and short positive lags. The strongest coupling generally occurs over a window from lag 0 to approximately +3 trading days.

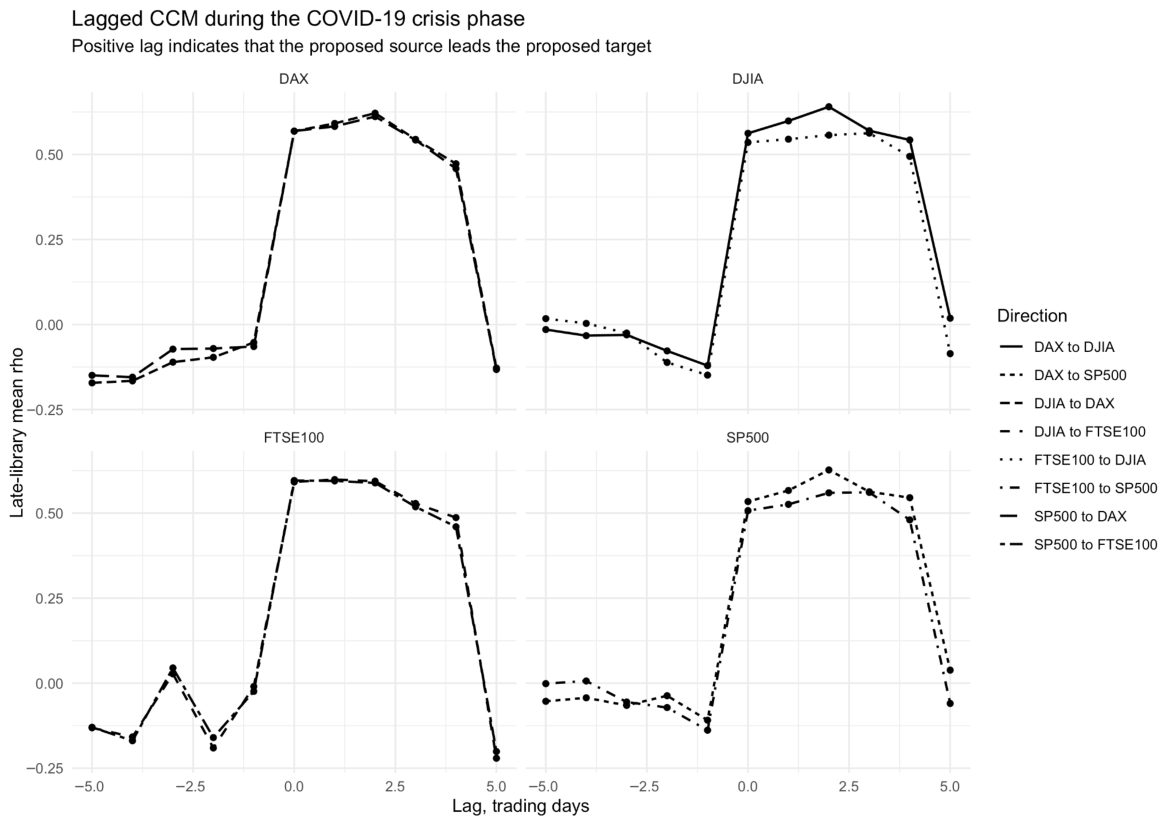

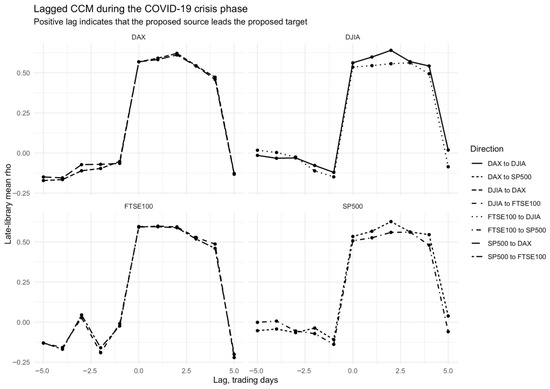

Figure 5. Lagged CCM during the COVID-19 crisis phase. The figure shows late-library cross-map skill for key transatlantic pairs across lags from −5 to +5 trading days. Positive lag values indicate that the proposed source leads the proposed target. The strongest coupling generally occurs over a short window around lag 0 to +3 trading days.

These results should not be interpreted as exact transmission speeds or as evidence of a direct one-way causal channel. Rather, they indicate a short crisis-period alignment of maximum recoverability, where the strongest recoverable dynamical information appears when one market is aligned contemporaneously or allowed to lead another by a small number of trading days. This is consistent with rapid cross-market adjustment during the COVID-19 crisis, while still recognising that all markets were responding to a common global shock and that CCM does not identify a unique transmission mechanism.

3.6. Summary of Results

The results support three main conclusions. First, nonlinear market coupling, measured through late-library CCM cross-map skill, increases during crisis periods, and this pattern is supported by formal paired phase comparisons across matched directional relationships. The increase is strongest and most consistent during the COVID-19 market shock, where the mean late-library $\rho$ rises significantly from the pre-crisis phase to the crisis phase and then declines significantly in the post-crisis phase. The Global Financial Crisis also shows a significant increase from the pre-crisis to crisis phase, followed by a further significant elevation into the post-crisis phase.

Second, the Global Financial Crisis also shows increased coupling, but with a different temporal profile. Rather than displaying a sharp crisis-period peak followed by a reduction, it shows elevated coupling that persists into the post-crisis period. This suggests that different crises may produce different forms of nonlinear market coupling.

Third, the lagged CCM results indicate that COVID-19 transatlantic coupling was strongest over a short contemporaneous-to-three-trading-day horizon. The lagged results are best interpreted as exploratory evidence of a short coupling horizon, not as exact estimates of transmission speed.

Together, these findings support the use of CCM as a complementary tool for analysing market coupling during financial stress. The method does not replace conventional correlation, volatility or regression-based approaches, but it adds a nonlinear dynamical perspective by testing whether the reconstructed behaviour of one market contains recoverable information about another.

These phase-level conclusions were also robust to narrower and wider crisis-window definitions, indicating that the main interpretation is not driven by the exact baseline window boundaries.

3.7. Benchmark Comparison with Conventional Methods

To clarify whether CCM provides information beyond conventional market-interconnectedness measures, supplementary benchmark analyses were conducted using rolling Pearson correlations and linear Granger-causality tests. The benchmark results provide useful context for the CCM findings. Rolling correlations increased markedly during the COVID-19 crisis window across all examined US–European index pairs, indicating stronger contemporaneous co-movement during the market shock. For the Global Financial Crisis, however, the highest average rolling correlations were observed mainly in the post-crisis period, consistent with a more persistent elevation of market co-movement after the initial crisis phase.

Linear Granger-causality results were more sensitive to lag specification and window length. In particular, the short COVID-19 crisis window limited selected-lag VAR estimation, and fixed-lag Granger tests provided only limited evidence of crisis-period linear predictability. These benchmark findings indicate that CCM is not simply reproducing conventional linear measures. Rolling correlations remain useful for identifying periods of heightened contemporaneous co-movement, and Granger-type methods remain appropriate when the research question concerns linear predictive content. CCM is most informative when the objective is to examine whether the state-space reconstruction of one market contains recoverable information about another market’s dynamics, especially under conditions where relationships may be nonlinear, state-dependent or compressed over short crisis horizons. The results therefore support the use of CCM as a complementary diagnostic tool rather than as a replacement for established econometric approaches.

4. Discussion

This study examined whether Convergent Cross-Mapping can reveal changes in nonlinear dynamical coupling between major US and European equity indices during financial crises. The results show that crisis periods are associated with stronger recoverable dynamical information between reconstructed market states, particularly during the COVID-19 market shock. This should be interpreted as evidence of nonlinear dynamical coupling in the CCM sense, not as proof of direct financial contagion, institutional causation or a specific transmission mechanism. The evidence is strongest for COVID-19, where average late-library cross-map skill increases during the crisis phase and all tested directional relationships satisfy the convergence criterion. The Global Financial Crisis also shows increased coupling, although with a more persistent post-crisis elevation. These findings suggest that CCM can provide a useful complementary perspective on financial contagion and market interdependence, especially when the focus is not only on whether markets move together, but on whether their reconstructed dynamics contain recoverable information about one another. This interpretation is supported by the supplementary benchmark comparison, which shows that rolling correlations and Granger causality capture related but distinct aspects of crisis-period market interdependence.

The findings also relate to recent work on nonlinear causality and crisis-period connectedness in financial markets. Ma et al. (2024) show that linear and nonlinear causal relationships in financial markets can differ and that correlation may overlook nonlinear causal structure that is relevant for portfolio risk and market monitoring. Their analysis uses transfer entropy and Convergent Cross-Mapping to distinguish linear and nonlinear causal effects, which is directly relevant to the present paper’s use of CCM as a complementary state-space method. The present study extends this line of work by applying CCM to major US and European equity indices across two crisis episodes and by comparing pre-crisis, crisis and post-crisis coupling profiles.

The results are also consistent with the wider crisis-connectedness literature. Wang et al. (2022) examine time–frequency volatility spillovers among major international financial markets during COVID-19 and find that total spillovers peaked at the beginning of the pandemic, with the US and UK stock markets acting as net spillover transmitters. Cheng et al. (2022) studied the volatility connectedness network of global stock markets during COVID-19 and found that the pandemic strengthened overall volatility connectedness, with the level of connectedness remaining high during 2020. The contribution of the present study is to show that a similar crisis-period strengthening can also be detected through recoverable nonlinear dynamical information in reconstructed state spaces, rather than only through correlation, volatility spillovers, information-flow or VAR-based connectedness measures.

The useful interpretation of CCM in this setting is not that one index mechanically causes another, but that one market can leave a recoverable dynamical footprint in another. During crisis periods, this footprint becomes stronger when cross-map skill increases and more defensible when cross-map skill also converges with increasing library size. The COVID-19 results are therefore meaningful because the crisis period shows both higher late-library cross-map skill and complete convergence across the tested directional relationships. This suggests that the four equity indices became more dynamically informative about one another during the crisis, consistent with a temporary tightening of nonlinear market coupling.

The main result supports the hypothesis that nonlinear market coupling intensifies during periods of financial stress. During the COVID-19 crisis window, mean late-library cross-map skill rises from the pre-crisis period to the crisis period, while convergence becomes much more consistent across directional relationships. This is important because the CCM interpretation depends not only on high cross-map skill, but also on whether cross-map skill improves with increasing library size. In this study, all tested COVID-19 crisis-phase directions satisfy the convergence criterion, suggesting that the crisis was associated with a more recoverable dynamical structure across the four indices. In practical terms, this means that the behaviour of each market became more informative about the behaviour of the others during the crisis phase.

This finding is consistent with the broader idea that crises increase market interdependence, but it adds a nonlinear dynamical interpretation. Conventional crisis analysis often shows that correlations rise during periods of stress, while volatility, drawdown and tail dependence also increase. CCM asks a different question. It tests whether the reconstructed state space of one series contains information about another. The results therefore suggest that the COVID-19 market shock did not only increase co-movement, it also increased the degree to which market dynamics became mutually recoverable. This distinction is important because a crisis contagion may involve nonlinear interactions, feedback loops, synchronised investor behaviour and regime-dependent dynamics that are not fully captured by linear association measures.

The COVID-19 results are particularly striking because the crisis was sudden, global and externally triggered. Unlike a financial crisis that develops primarily from within credit markets or banking systems, COVID-19 began as a public health emergency and then transmitted rapidly through expectations about economic shutdowns, earnings, liquidity, supply chains, policy responses and investor risk appetite. The finding that nonlinear coupling strengthens sharply during this period is therefore consistent with a view of COVID-19 as a globally synchronising shock. The increase in convergence across all tested directions suggests that the crisis temporarily reduced the effective independence of regional market dynamics, making US and European equity indices behave more like components of a tightly coupled global system.

The comparison with the Global Financial Crisis provides an important qualification. The Global Financial Crisis also shows increased nonlinear coupling, but its profile is different from COVID-19. In the aggregate results, coupling rises during the crisis phase and rises further in the post-crisis phase. This suggests that the Global Financial Crisis may have produced a more persistent restructuring of market dynamics, rather than a short and sharp coupling spike. This interpretation is plausible because the Global Financial Crisis unfolded through financial-sector fragility, deleveraging, banking stress and policy intervention over a longer period. By contrast, COVID-19 produced an abrupt market shock followed by rapid and substantial policy responses, which may explain why the aggregate coupling profile peaks during the crisis window and then declines in the post-crisis phase.

The directional results also show that crisis coupling should not be reduced to a simple one-way causal story. During COVID-19, transatlantic relationships strengthen in both directions, with a modest asymmetry from US indices towards European indices. For example, the DJIA-to-FTSE 100 and S&P 500-to-FTSE 100 cross-map skills are higher than those of the corresponding reverse directions, but the differences are not large enough to justify a strong claim of one-way causation. The most defensible interpretation is asymmetric bidirectional coupling. In the CCM sense, US market dynamics appear to leave a somewhat stronger recoverable footprint in European indices during the COVID-19 crisis phase, while European dynamics also remain informative about US markets.

This point matters because financial markets are not isolated cause-and-effect mechanisms. They respond to shared global news, monetary and fiscal policy, investor expectations, liquidity conditions, algorithmic trading and cross-border portfolio flows. A directional CCM result should therefore not be interpreted as proof that one index mechanically caused another to move. Rather, it indicates that one series contains recoverable dynamical information about another under the assumptions of CCM. In this sense, CCM is best understood as a method for identifying nonlinear dynamical coupling, not as a standalone proof of direct institutional causation.

The lagged CCM results add a useful secondary insight. During the COVID-19 crisis phase, the strongest transatlantic coupling generally appears between lag 0 and +3 trading days. For some US-to-European directions, the strongest coupling occurs at lag 0, +1 or +2 trading days, while several European-to-US directions peak around +2 or +3 trading days. This suggests a short crisis-period coupling horizon rather than an exact transmission speed. The lagged curves are especially useful because they show weak or negative cross-map skill at several negative lags and stronger values around contemporaneous and short positive lags. However, these findings should be interpreted cautiously because the lagged analysis was deliberately focused and used fewer iterations than the main pairwise CCM analysis.

The lagged CCM results provide an indicative coupling horizon rather than a measured propagation delay. The strongest recoverability appears from contemporaneous alignment to approximately three trading days, suggesting that the dynamical footprint between US and European markets during COVID-19 was concentrated over a short horizon. This is consistent with rapid cross-market adjustment during a globally synchronised crisis. However, the result should not be interpreted as a precise estimate of information-travel time, because the markets were also responding to common public health news, policy announcements, liquidity conditions and global investor sentiment.

From a risk-management perspective, the findings indicate that CCM can complement existing approaches to crisis monitoring. Standard measures such as volatility, drawdown, correlation, Granger causality and spillover indices remain essential because they are transparent, widely understood and directly connected to losses, exposures and forecasting models. CCM adds a different layer by asking whether markets have become more dynamically interdependent in the sense that the reconstructed dynamics of one market contain recoverable information about another. This may be useful when analysts want to understand whether a crisis is producing stronger coupling across regions, whether market dynamics are becoming more synchronised, and whether apparent interdependence is supported by convergence in the CCM sense.

For portfolio managers and risk teams, this type of information may be useful as a diagnostic indicator of changing diversification conditions. If cross-map skill and convergence increase across equity markets during a stress episode, this may indicate that markets are becoming less dynamically independent, even when the analysis does not identify a direct causal transmission channel. In practical terms, this could support closer monitoring of cross-regional exposures, reassessment of hedging assumptions, and stress tests that allow for stronger nonlinear coupling during crisis periods.

For financial institutions, CCM could also support market-regime monitoring. A rise in recoverable dynamical information across markets may indicate that a crisis is changing the structure of interdependence, rather than only increasing volatility. This may be relevant for risk committees, treasury teams and model-risk functions that need to assess whether assumptions calibrated in normal periods remain appropriate during stress. CCM could therefore be used as an additional exploratory tool alongside conventional indicators, rather than as a replacement for them.

For supervisors and macroprudential analysts, the practical value of CCM is that it may help identify periods in which market dynamics become more synchronised across jurisdictions. This could be useful for monitoring systemic stress, comparing the behaviour of different crisis episodes, and identifying when shocks are associated with stronger nonlinear coupling across major markets. The method is not intended to provide a standalone early-warning system or a trading rule, but it can contribute to a broader risk-monitoring framework by highlighting changes in recoverable dynamical information that may not be fully visible from correlations alone.

The results also show why methodological caution and robustness analysis are necessary. CCM estimates can be affected by crisis-window definitions, embedding dimension, time delay, lag structure, library-size choices and data transformation. The revised analysis therefore includes two robustness checks that directly address important sources of sensitivity. First, the embedding-dimension sensitivity analysis shows that the main phase-level pattern is stable across $\mathit{E}=3,4,5,6$, rather than depending only on the baseline $\mathit{E}=5$ specification. Second, the crisis-window sensitivity analysis shows that the main qualitative conclusions remain stable under narrower and wider definitions of the COVID-19 and Global Financial Crisis windows. These checks support the interpretation that the reported crisis-period increase in recoverable dynamical information is not simply an artefact of one embedding choice or one crisis-window definition. At the same time, the analysis remains subject to other robustness limitations. Future work should test alternative time delays, library-size schemes, lag ranges, data frequencies, market selections and asset classes, and should evaluate whether CCM-based indicators improve crisis-monitoring performance when compared with conventional benchmarks.

There are several limitations. First, the analysis is restricted to four major equity indices. These indices are important and economically meaningful, but they do not represent the full structure of global financial markets. Future studies should include additional equity markets, exchange rates, bond yields, credit spreads, commodities and volatility indices. Second, the analysis uses daily data. Higher-frequency data could capture intraday propagation more directly, especially across markets with different trading hours, although this would introduce additional issues related to market microstructure, opening and closing times, and asynchronous trading. Third, the lagged CCM analysis is intentionally focused and exploratory. It supports the interpretation of a short coupling horizon during COVID-19, but it should be extended with more iterations, alternative lag ranges and additional robustness checks before being treated as a precise lead-lag estimate. A further limitation is that crisis-period coupling may partly reflect common global shocks rather than pairwise transmission between specific markets. This is especially relevant for COVID-19, where all markets were exposed to shared public health news, policy responses, liquidity conditions and global investor sentiment. CCM identifies recoverable dynamical information and directional asymmetry under its modelling assumptions, but it does not by itself separate direct pairwise influence from common-driver effects. Shared global news, monetary and fiscal policy announcements, liquidity conditions, volatility spillovers, portfolio rebalancing, algorithmic trading and synchronised investor behaviour may all contribute to the observed strengthening of cross-map skill during crisis periods. This is particularly important in crisis analysis, where common shocks can affect many markets simultaneously. CCM therefore does not remove the fundamental difficulty of causal inference from observational financial data. The method provides evidence of recoverable dynamical information between reconstructed state spaces, which is consistent with nonlinear coupling under the assumptions of the method, but it does not prove that one market directly caused another in a simple structural sense. The interpretation in this paper is therefore deliberately cautious: CCM is used to identify nonlinear dynamical coupling and directional asymmetry, not to claim direct mechanistic causation or a unique causal transmission channel.

Despite these limitations, the study makes three contributions. First, it applies CCM to compare nonlinear market coupling across two major crisis episodes, COVID-19 and the Global Financial Crisis. Second, it shows that the temporal profile of coupling differs across crises, with COVID-19 producing a sharp crisis-phase increase and the Global Financial Crisis showing more persistent post-crisis elevation. Third, it demonstrates that lagged CCM can provide exploratory evidence about the short-horizon structure of transatlantic market coupling during a crisis. Together, these contributions position CCM as a useful addition to the financial-risk toolkit, particularly for studies of crisis contagion, nonlinear interdependence and market-regime change.

Future research should extend this analysis in several directions. A first extension would be to extend the benchmark comparison to transfer entropy, spillover indices and other nonlinear or network-based measures, so that the added value of the state-space approach can be assessed against a wider set of interconnectedness methods. A second extension would be to conduct a systematic embedding-dimension and time-delay sensitivity analysis. A third extension would be to apply the method to a broader set of crises, including the Eurozone sovereign debt crisis, the Brexit referendum period and the 2022 inflation and interest-rate shock. Finally, future work could use higher-frequency data to test whether the short lag horizon observed here can be resolved more precisely at intraday scales.

Overall, the results suggest that financial crises can be understood not only as episodes of increased volatility or falling prices, but also as episodes in which markets become more dynamically coupled. CCM provides a way to measure this coupling through recoverable dynamical fingerprints between time series. The findings do not imply that CCM should replace conventional financial-risk indicators, but they show that it can enrich crisis analysis by revealing nonlinear interdependence that is not reducible to simple correlation or regression-based association.

5. Conclusions

This paper examined whether Convergent Cross-Mapping can identify changes in nonlinear dynamical coupling between major US and European equity indices during financial crises. Using daily log returns for the Dow Jones Industrial Average, S&P 500, FTSE 100 and DAX, the study compared pre-crisis, crisis and post-crisis periods for the COVID-19 market shock and the Global Financial Crisis.

The results show that nonlinear market coupling increases during crisis periods. The pattern is especially clear for COVID-19, where average late-library cross-map skill rises during the crisis phase and all tested directional relationships satisfy the convergence criterion. This indicates that during the COVID-19 market shock the dynamics of the analysed equity indices became more mutually recoverable in the CCM sense. The Global Financial Crisis also shows stronger coupling, but with a different temporal profile, as coupling remains elevated into the post-crisis period.

The findings also show that crisis coupling is bidirectional rather than purely one-way. During COVID-19, the US-to-European directions are generally stronger than the reverse directions, but European indices also contain recoverable information about US indices. The lagged CCM analysis further suggests that COVID-19 transatlantic coupling was strongest over a short contemporaneous-to-three-trading-day horizon, although this should be interpreted as an indicative coupling window rather than an exact transmission speed.

The main conclusion is that CCM provides a useful nonlinear mathematical modelling framework for analysing crisis-period market coupling. Its value lies in estimating the strength of recoverable dynamical footprints between markets and testing whether this recoverability strengthens during financial stress. The method does not replace correlation, volatility, Granger causality, transfer entropy or conventional contagion analysis, and it does not prove direct mechanical causation between indices. Instead, it adds a complementary state-space perspective on market interdependence. Future work should extend the analysis to additional asset classes, higher-frequency data, alternative crisis windows, broader embedding-parameter and time-delay sensitivity checks, formal benchmark comparisons with Granger causality and transfer entropy, and tests of whether CCM-based coupling indicators improve crisis-monitoring systems.
