Quality by Design Assisted Optimization of a Chiral Capillary Electrokinetic Chromatographic Method for the Separation of Amlodipine Enantiomers Using Maltodextrin as Chiral Selector

,
,
and
1
Institute of Medicinal and Pharmaceutical Chemistry, Technische Universität Braunschweig, 38106 Braunschweig, Germany
2
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, University of Surabaya, Surabaya 60293, Indonesia
3
Natural and Medical Sciences Research Center, University of Nizwa, P.O. Box 33, Birkat Al Mauz, Nizwa 616, Oman
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Chirality in Drug Discovery

Abstract

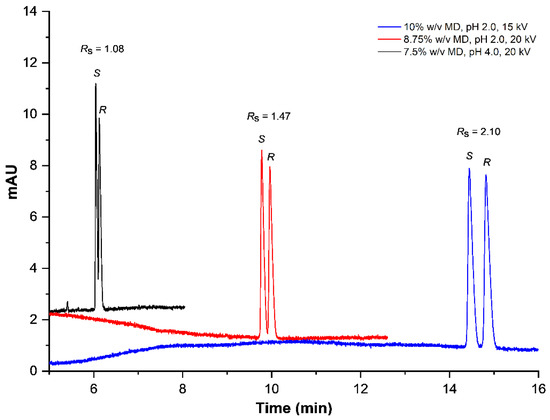

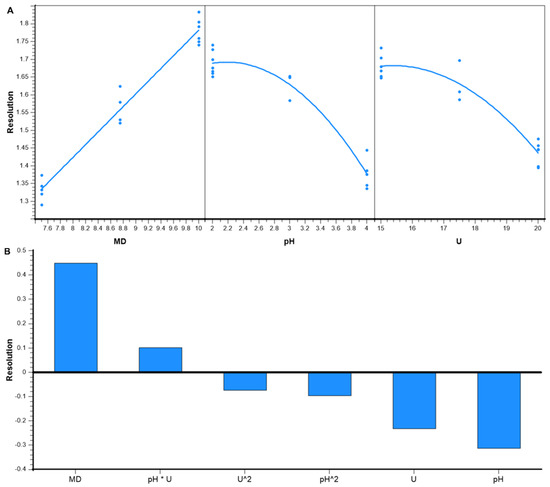

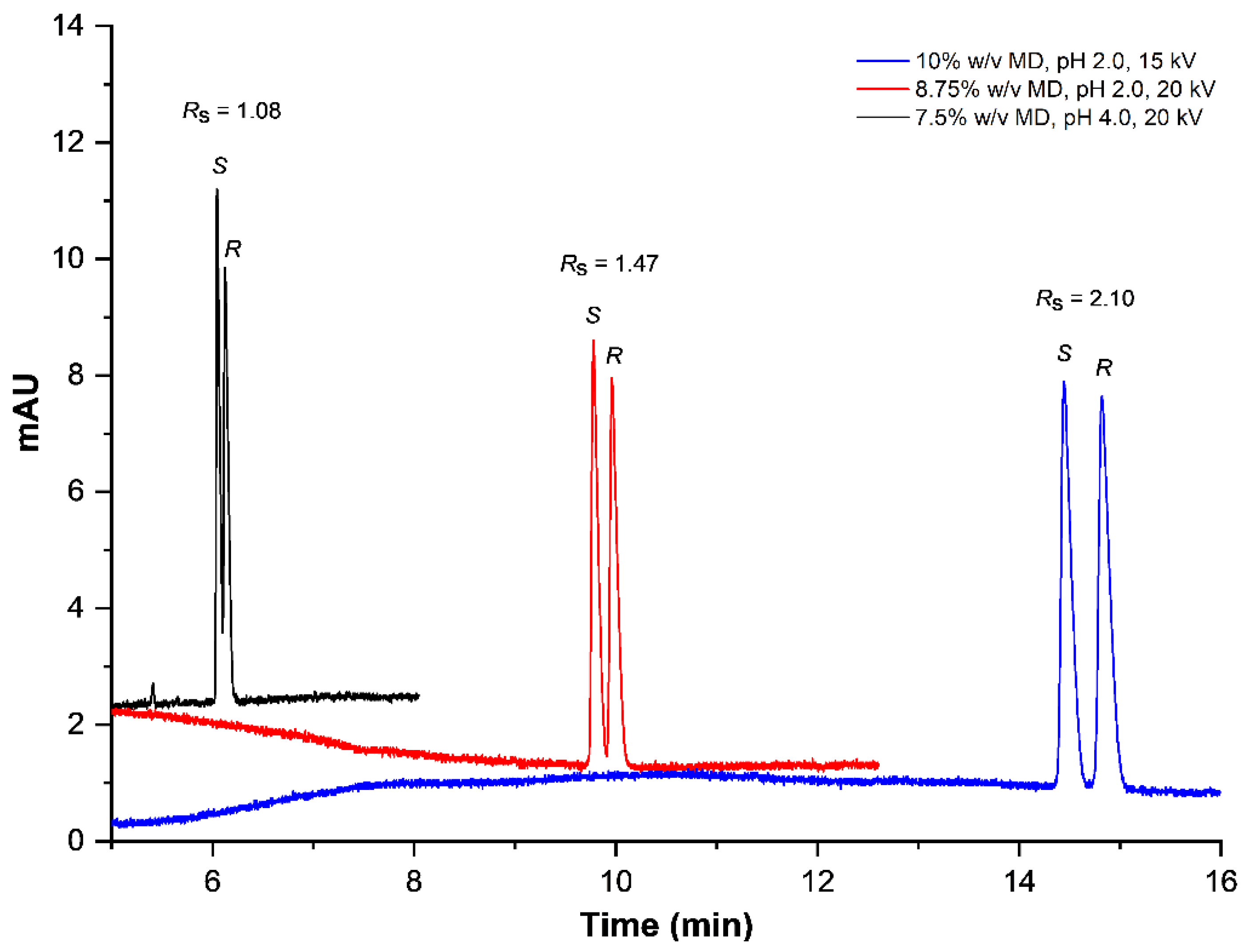

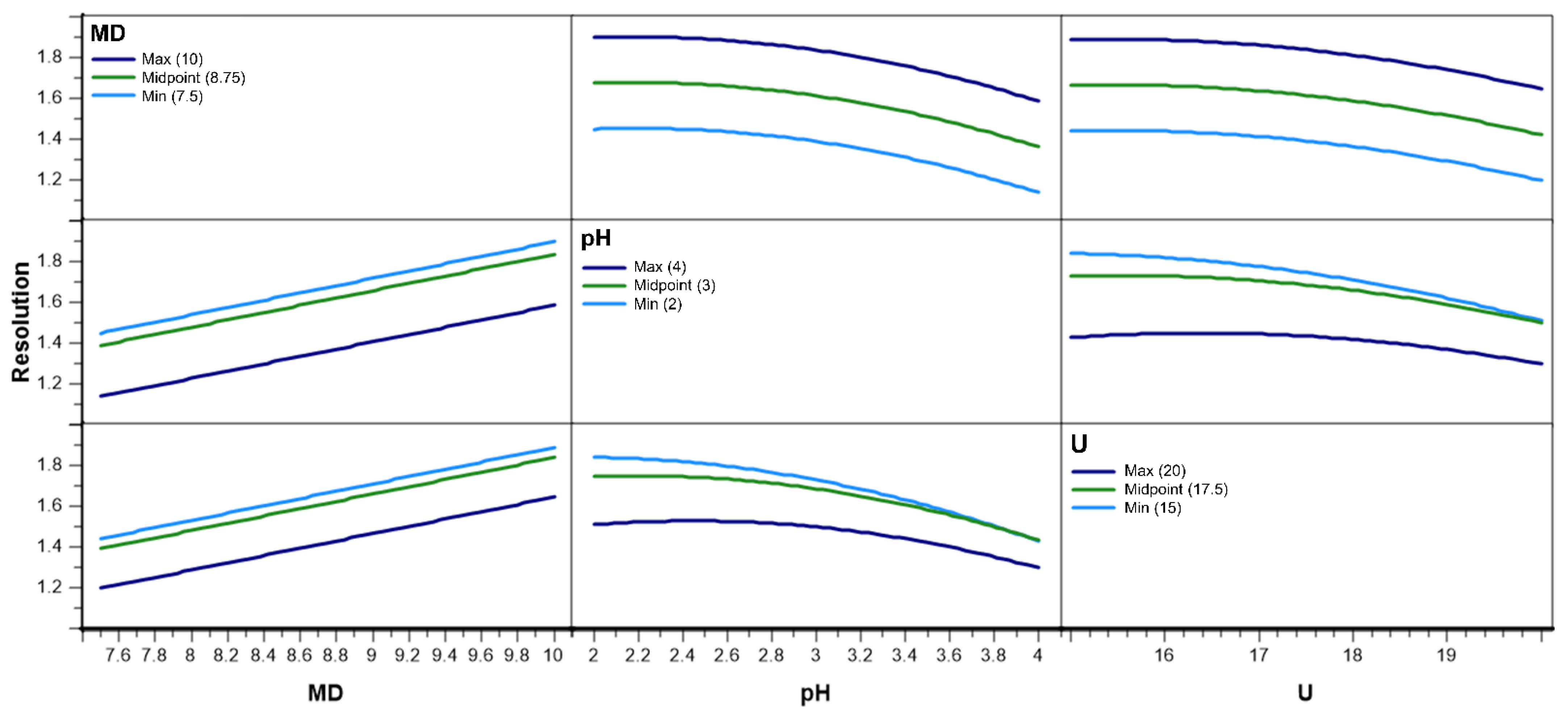

Analytical-method development based on design of experiment has been applied for optimizing the enantioseparation of amlodipine by chiral capillary electrokinetic chromatography using maltodextrin as the chiral selector. The effect of different factors on the enantioresolution quality was screened. Three separation factors, namely maltodextrin concentration, pH of the background electrolyte and applied voltage were selected as independent variables. The number of experiments was reduced while maximizing the information content using design of experiment. Based on a full-quadratic design that included three variables on three levels, the total design space could be reduced to fifteen factor combinations using a D-optimal algorithm. The aim of the experiment was to find the optimal factor combinations with respect to resolution. The maltodextrin concentration (7.5–10% w/v) demonstrated the strongest effect on the resolution followed by pH (2–4) of the background electrolyte and the applied voltage (15–20 kV). An increase in the maltodextrin concentration was found to result in a greater stereoselectivity, represented by the higher resolution values (Rs ≥ 1.5). The separation conditions in the proposed method were feasible to be adjusted within the applied range with an acceptable resolution.
