Open AccessArticle
Sensors 2018, 18(9), 2981;

Structured-Light Based 3D Reconstruction System for Cultural Relic Packaging

Key Laboratory of Advanced Electrical Engineering and Energy Technology, Tianjin Polytechnic University, Tianjin 300387, China
School of Mechanical Engineering, Tianjin University of Technology and Education, Tianjin 300222, China
School of Electrical, Computer and Tele communications Engineering, University of Wollongong, Wollongong NSW2500, Australia
China packaging & Test Center, Tianjin 300457, China
Author to whom correspondence should be addressed.
Received: 27 July 2018 / Revised: 2 September 2018 / Accepted: 3 September 2018 / Published: 6 September 2018
(This article belongs to the Special Issue Image Sensors)
Full-Text   |   PDF [8543 KB, uploaded 6 September 2018]   |


The non-contact three-dimensional measurement and reconstruction techniques have played a significant role in the packaging and transportation of precious cultural relics. This paper develops a structured light based three-dimensional measurement system, with a low-cost for cultural relics packaging. The structured light based system performs rapid measurements and generates 3D point cloud data, which is then denoised, registered and merged to achieve accurate 3D reconstruction for cultural relics. The multi-frequency heterodyne method and the method in this paper are compared. It is shown that the relative accuracy of the proposed low-cost system can reach a level of 1/1000. The high efficiency of the system is demonstrated through experimental results. View Full-Text
Keywords: structured light; cultural relics packaging; 3D reconstruction structured light; cultural relics packaging; 3D reconstruction

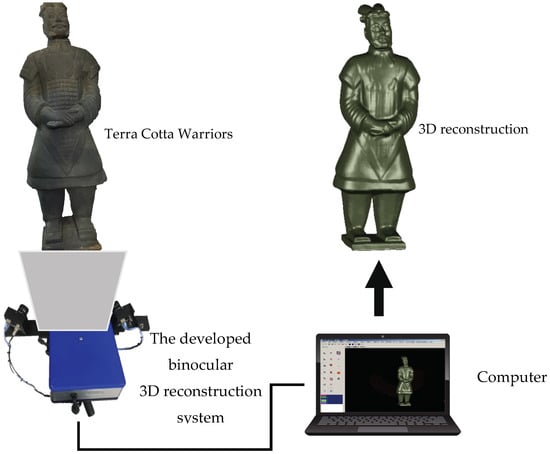

Figure 1
