Communication

Polygodial and Ophiobolin A Analogues for Covalent Crosslinking of Anticancer Targets

by
Vladimir Maslivetc
1,*,
Breana Laguera
1,
Sunena Chandra
1,
Ramesh Dasari
1,
Wesley J. Olivier
2,
Jason A. Smith
2,
Alex C. Bissember
2,
Marco Masi
3,
Antonio Evidente
3,
Veronique Mathieu
4,5 and
Alexander Kornienko
1,*
1
Department of Chemistry and Biochemistry, Texas State University, San Marcos, TX 78666, USA
2
School of Natural Sciences-Chemistry, University of Tasmania, Hobart, TAS 7001, Australia
3
Dipartimento di Scienze Chimiche, Università di Napoli Federico II, Complesso Universitario Monte Sant’Angelo, Via Cintia 4, 80126 Napoli, Italy
4
Department of Pharmacotherapy and Pharmaceutics, Faculté de Pharmacie, Université Libre de Bruxelles (ULB), 1050 Brussels, Belgium
5
UCRC, ULB Cancer Research Center, Université Libre de Bruxelles (ULB), 1050 Brussels, Belgium
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(20), 11256; https://doi.org/10.3390/ijms222011256
Submission received: 17 September 2021 / Revised: 12 October 2021 / Accepted: 15 October 2021 / Published: 19 October 2021
(This article belongs to the Special Issue Theme Issue Honoring Prof. Dr. Ludger Wessjohann’s 60th Birthday: Natural Products in Modern Drug Discovery)
Browse Figures
Versions Notes

Abstract

:
In a search of small molecules active against apoptosis-resistant cancer cells, including glioma, melanoma, and non-small cell lung cancer, we previously prepared α,β- and γ,δ-unsaturated ester analogues of polygodial and ophiobolin A, compounds capable of pyrrolylation of primary amines and demonstrating double-digit micromolar antiproliferative potencies in cancer cells. In the current work, we synthesized dimeric and trimeric variants of such compounds in an effort to discover compounds that could crosslink biological primary amine containing targets. We showed that such compounds retain the pyrrolylation ability and possess enhanced single-digit micromolar potencies toward apoptosis-resistant cancer cells. Target identification studies of these interesting compounds are underway.

Graphical Abstract

1. Introduction

Cancers with intrinsic resistance to apoptosis are characterized by the lack of responsiveness to the current chemotherapeutic agents that generally work by the induction of apoptosis in cancer cells. These cancers include tumors of the lung, melanoma and glioblastoma and they represent a major challenge in the clinic [1]. For example, patients afflicted by glioblastoma multiforme [2,3], have a median survival expectancy of less than 14 months when treated with the best available protocol that involves surgery, radiation and chemotherapy with temozolomide [4]. Further, the main cause of death of cancer patients are tumor metastases. Metastatic cells are resistant to anoikis, a type of apoptotic cell death triggered by the loss of contact with the extracellular matrix or neighboring cells [5]. Resistance to anoikis, and thus apoptosis, renders metastatic cells unresponsive to the large majority of proapoptotic agents as well [3,6]. Therefore, a search for novel anticancer agents that can overcome cancer cell resistance, including resistance to apoptosis, is an important pursuit.
In this connection, natural products represent a valuable source of not only cytotoxic compounds, but also those capable of overcoming the intrinsic resistance of cancer cells to apoptosis [7,8,9,10]. Half of the anticancer drugs developed since the 1940s either originated from natural sources, such as vinca alkaloids, taxanes, podophyllotoxin, and camptothecins; or synthetic derivatization of natural products, such as vinflunine (fluorinated vinca alkaloid derivative), cabazitaxel (derivative of a natural taxoid), and mifamurtide (derivative of muramyl dipeptide) [11,12].
In addition to their ability to infiltrate a variety of cell processes and locales, natural products are known to be able to modulate multiple molecular targets that are frequently deregulated in cancers. This can be especially useful for overcoming the resistance of cancer cells to single-target pharmaceutical drugs [13,14]. While apoptosis is the most widespread and well-studied mode of cell death induced by synthetic and naturally occurring anticancer agents, alternative mechanisms of cell death (including, autophagy, regulated necrosis, mitotic catastrophe, paraptosis, parthanatos, methuosis, and lysosomal membrane permeabilization) are prevalent among natural products [15,16,17].
In the pursuit of agents active against apoptosis- and multidrug-resistant cancer cells, our recent studies have focused on the synthetic derivatives of polygodial (Figure 1a), a sesquiterpenoid dialdehyde isolated from Tasmannia lanceolata, and ophiobolin A (Figure 1b), a plant toxin isolated from pathogenic fungi of the Bipolaris genus (Drechslera gigantea and Bipolaris maydis). For instance, we have shown that C12-Wittig derivatives of polygodial (1) exhibit antiproliferative activity mainly through cytostatic effects and in many cases display higher efficiency compared to the parent compound [18]. Additionally, both polygodial and compound 1 can readily undergo the pyrrole formation with primary amines to give 3 and 2, which can lead to pyrrolation of lysine residues in biological environment [18,19,20].
Another natural anticancer product, ophiobolin A (Figure 1b), represents an interesting candidate for the treatment of apoptosis-resistant cancer cells due to a unique mechanism of action [21]. It was demonstrated to induce paraptosis in glioblastoma cells, offering an innovative strategy to combat this aggressive cancer. This cellular effect is understood to also originate from pyrrolylation of primary amine groups abundant in human cells (5) [22], such as intracellular lysine residues or phosphatidylethanolamine (6), which would lead to lipid bilayer destabilization [23]. Similarly to polygodial derivative 1, ophiobolin A can be converted into α,β-unsaturated ester 4 when treated with stabilized Wittig reagents [22].
The work reported in the current manuscript describes the early attempts of improving anticancer activity of polygodial and ophiobolin A derivatives through preparation of synthetic analogues that are capable of the covalent crosslinking of anticancer targets via the pyrrolylation of primary amines. The method that we envisioned involves the construction of dimeric conjugates of above-mentioned natural products. This approach has a proven record of success in oncology: such dimeric conjugates were often found to possess significantly improved anticancer activity compared to parent compounds (Figure 2) [24,25,26,27,28,29,30,31].
For instance, Crooks and coworkers [24] synthesized dimers of anticancer sesquiterpene lactone melampomagnolide B (Figure 2a) and assessed their activity against the NCI panel of 60 human hematological and solid tumor cell lines. Most active products exhibited potent growth inhibition (GI50 = 0.16–0.99 μM) against the majority of cells. Notably, some of the compounds (7) displayed up to 1 × 106-fold higher cytotoxic effect against rat 9L-SF gliosarcoma cells when compared to previously developed monomeric melampomagnolide B analogs, such as DMAPT (8). This remarkable increase in activity for dimeric structures was attributed to the ability to provide multiple covalent interaction opportunities with multiple exposed surface cysteine residues of the GCLC and GCLM proteins via the formation of Michael addition adducts.
Another well-known example of rationally designed anticancer dimers involves the synthetic modification of the naturally occurring pyrrolobenzodiazepine (PBD) antitumor antibiotics, such as Anthramycin (Figure 2b) [25,26]. These compounds are sequence-selective DNA minor-groove binding agents. When monomeric PBD units were linked to form dimers containing two alkylating imine functionalities, it allowed them to form interstrand or intrastrand DNA cross-links in addition to mono-alkylated adducts, thus resulting in significantly greater cytotoxicity, antitumor activity and antibacterial activity compared to PBD monomers due to the different mode of DNA damage (Figure 2b) [25]. One of these dimers, SJG-136, has displayed potent cytotoxicity in the low nM range against human tumor cell lines and reached Phase II clinical trials in ovarian cancer and leukemia. Subsequent structural modification of the PBD dimers resulted in compounds with enhanced potency through increased interstrand DNA cross-linking ability, including agents with pM and in some cases sub-pM, activity in vitro [26]. These compounds were also employed as chemical payloads of antibody–drug conjugates, some of which are now in Phase III clinical trials [31].

2. Results and Discussion

In order to reduce the concept of multivalent anticancer conjugates to practice, in this work we focused on the preparation and assessment of dimeric polygodial and ophiobolin A α,β-unsaturated esters [32,33]. The synthesis of polygodial esters was initiated by the preparation of bromoacetates 9, 10 and 11 with varied ethylene glycol chain lengths by heating diethylene, triethylene and tetraethylene glycols with bromoacetic acid under neat conditions (Figure 3). Bromoacetates 9, 10 and 11 were then reacted with 2 eq of triphenylphosphine in toluene at room temperature to give phosphonium bromides 12, 13 and 14, respectively, which were conveniently purified with column chromatography on silica gel. Finally, the latter were subjected to Wittig olefination with polygodial, to yield dimeric α,β- and γ,δ-unsaturated esters 15, 16 and 17 with varied linker chain lengths based on the number of incorporated ethylene glycol moieties. In a manner similar to the preparation of monomeric α,β- and γ,δ-unsaturated esters, such as 1 [18], polygodial reacted at the C-12 aldehyde only, possibly due to the sterically congested nature of the C-11 aldehyde group.
To confirm that the dimeric unsaturated esters retain the pyrrole forming ability upon the reaction with primary amines such as lysine residues in proteins, compound 15 was reacted with benzyl amine in the presence of AcOH in THF at room temperature and bis-pyrrole 18 was isolated in 70% yield (Figure 4). We also explored the preparation of a possible trimeric unsaturated ester. To this end, glycerol was reacted with bromoacetic acid under neat conditions to give tribromoacetate 19. The latter was then subjected to a reaction with 3 eq of triphenylphosphine and phosphonium bromide 20 was isolated and purified with column chromatography on silica gel. The latter was treated with 3 eq of polygodial in the presence of Et3N in THF at room temperature to give the desired trimeric α,β- and γ,δ-unsaturated ester 21 (Figure 5).
Ophiobolin A α,β- and γ,δ-unsaturated ester dimers 22 and 23, containing one and two ethylene glycol unit linkers, respectively, were synthesized using bis(triphenylphosphonium) bromides 12 and 13 (Figure 6). The latter were stirred with excess of ophiobolin A in the presence of Et3N in THF at room temperature for 48 h and yielded the desired dimers in good yields.
The synthesized polygodial and ophiobolin A dimeric and trimeric unsaturated esters were evaluated for in vitro growth inhibition using the MTT colorimetric assay against a panel of six cancer cell lines. This included cells resistant to a number pro-apoptotic stimuli, such as human A549 non-small cell lung cancer (NSCLC) [34], human glioblastoma U373 [35,36], and human SKMEL-28 melanoma [37], as well as tumor models, which are largely susceptible to apoptosis-inducing stimuli, such as human Hs683 anaplastic oligodendroglioma [36], human MCF-7 breast adenocarcinoma [38] and mouse B16F10 melanoma (Table 1) [37]. Analysis of these data reveals that where monomeric α,β- and γ,δ-unsaturated esters of polygodial (1) and ophiobolin A (4) possess double digit micromolar antiproliferative potencies, dimeric polygodial unsaturated ester with one ethylene glycol linker 15 and both ophiobolin unsaturated esters 22 and 23 have single digit micromolar potencies. Thus, the conversion of monomeric covalently reacting polygodial and ophiobolin A unsaturated esters into their dimeric analogues is capable of enhancing the potency by an order of magnitude. Such potencies compare favorably with the clinically used cancer drug cisplatin (Table 1). It is noteworthy that the lengthening of the ethylene glycol linker between the polygodial molecules to two and to three units, i.e., 15→16→17, progressively leads to a decrease in the potency of the dimers, pointing to a possible specificity of the interaction between these dimeric agents and their intracellular targets. This specificity is likely to be lost with the trimeric agent 21, where the potency is in double digit micromolar region as well. Our data are similar to what has been seen in investigations of linker lengths in dimeric agents targeting G protein-coupled receptors [39], estrogen receptors [40], proteolysis targeting chimeras [39], among others [41].
It is noteworthy that polygodial and ophiobolin A unsaturated esters displayed comparable potencies in cells both sensitive and resistant to apoptosis induction, indicating that this family of compounds is capable of overcoming apoptosis resistance in the clinic (Table 1) [18,22]. The comparison of the cellular effects of monomeric (1 and 4) and dimeric (15 and 23) polygodial and ophiobolin A esters on human glioblastoma U373 cells by phase contrast videomicroscopy did not reveal marked changes between the monomers and their respective dimers at their respective GI50 concentrations (Figure 7). Phenotypically, it thus appears that the mode of action has not changed with the dimerization, despite the increase in potency.

3. Materials and Methods

3.1. Human Cell Lines and Antiproliferative Effects

Breast carcinoma MCF-7 (DSMZ ACC107), oligodendroglioma Hs683 (ATCC HTB138), non-small cell lung cancer A549 (DSMZ ACC107), glioblastoma U373 (ECACC 08061901), melanoma SKMEL-28 (ATCC HTB72) and the murine melanoma B16F10 (ATCC CRL-6475) were cultured in RPMI supplemented with 10% heat-inactivated FBS (GIBCO code 10270106), 4 mM glutamine (Lonza code BE17-605E), 100 µg/mL gentamicin (Lonza code 17-5182), and penicillin-streptomycin (200 units/mL and 200 µg/mL) (Lonza code 17-602E). Cell lines were cultured in flasks, maintained and grown at 37 °C, 95% humidity, 5% CO2. Antiproliferative effects of the compounds on these cell lines were evaluated through the colorimetric assay MTT. Briefly, cells were trypsinized and seeded in 96-well plates. Prior to treatment, compounds were dissolved in DMSO at a concentration of 10 mM. After 24 h, cells were treated with the compounds at different concentrations ranging from 10 nM to 100 µM or left untreated for 72 h. Cell viability was estimated by means of the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide, Sigma, Bornem, Belgium) mitochondrial reduction into formazan in living cells. The optical density of the untreated control was normalized as 100% of viable cells, allowing determination of the concentration that reduced their global growth by 50%.

3.2. Natural Product Isolation

Polygodial was isolated from Tasmannia lanceolata following a reported procedure [32].
Ophiobolin A was isolated from Drechslera gigantea following a reported procedure [33].

3.3. Selected Procedure for the Preparation of Polygodial-Based Cross-Linking Agent 16

To a solution of Wittig salt 13 (17.5 mg, 0.02 mmol) in THF (2 mL) was added triethylamine (18 μL, 0.13 mmol). The reaction was stirred for 20 min until the Wittig salt dissolved. A solution of polygodial (32.9 mg, 0.14 mmol) was dissolved in THF (0.5 mL) separately and added dropwise to the reaction mixture. The reaction mixture was stirred for 48 h and monitored by TLC (20% ethyl acetate/hexane). The reaction mixture was concentrated and purified by preparative TLC to yield 8.8 mg of 16 (70%). 1H NMR (400 MHz, CDCl3) δ 9.48 (d, J = 4.7 Hz, 2H), 7.33 (d, J = 10.6 Hz, 2H), 6.52 (dd, J = 8.6, 5.3 Hz, 2H), 5.53 (d, J = 16.3 Hz, 2H), 4.36–4.17 (m, 4H), 3.73–3.67 (m, 4H), 2.91–0.81 (m, 38H). 13C NMR (500 MHz, CDCl3) δ 205.6 (2C), 167.4 (2C), 147.4 (2C), 142.2 (2C), 130.9 (2C), 116.6 (2C), 69.6 (2C), 64.0 (2C), 63.2 (2C), 49.1 (2C), 42.2 (2C), 40.7 (2C), 37.9 (2C), 33.7 (2C), 33.6 (2C), 25.4 (2C), 22.7 (2C), 18.5 (2C), 16.0 (2C). HRMS m/z (ESI) calcd for C38H54O7Na (M+Na) 645.3767, found 645.3769.

3.4. Selected Procedure for the Preparation of Ophiobolin A-Based Cross-Linking Agent 23

To a solution of Wittig salt 13 (3.1 mg, 3.6 μmol) in THF (2 mL) was added triethylamine (3.2 μL, 0.023 mmol). The reaction was stirred for 20 min until the Wittig salt dissolved. A solution of OpA (10 mg, 0.025 mmol) was dissolved in THF (1 mL) separately and added dropwise to the reaction mixture. The reaction mixture was stirred for 48 h and monitored by TLC (20% ethyl acetate/hexane). The reaction mixture was concentrated and purified by preparative TLC to yield 2.8 mg of 23 (82%). 1H NMR (400 MHz, MeOD) δ 7.32 (dd, J = 15.6, 0.7 Hz, 2H), 6.43 (t, J = 8.5 Hz, 2H), 5.97 (d, J = 15.6 Hz, 2H), 5.23–5.16 (m, 2H), 4.55–4.45 (m, 2H), 4.27–4.18 (m, 4H), 3.75–3.69 (m, 4H), 3.67–3.62 (m, 2H), 3.60–3.55 (m, 2H), 2.58–2.45 (m, 4H), 2.45–2.36 (m, 2H), 2.25–2.21 (m, 2H), 2.19–2.06 (m, 6H), 1.87–1.77 (m, 2H), 1.74 (d, J = 1.2 Hz, 6H), 1.70 (d, J = 1.2 Hz, 6H), 1.67–1.63 (m, 2H), 1.62–1.39 (m, 8H), 1.37 (s, 6H), 1.33–1.26 (m, 2H), 1.09 (d, J = 7.2 Hz, 6H), 0.97–0.89 (m, 2H), 0.88 (s, 6H). 13C NMR (100 MHz, MeOD) δ 167.3 (2C), 148.1 (2C), 137.1 (2C), 135.4 (2C), 133.6 (2C), 125.5 (2C), 115.9 (2C), 95.3 (2C), 77.1 (2C), 71.1 (2C), 68.9 (2C), 63.3 (2C), 61.3 (2C), 59.9 (2C), 54.5 (2C), 51.6 (2C), 50.3 (2C), 42.7 (2C), 42.6 (2C), 40.7 (2C), 36.5 (2C), 34.8 (2C), 30.1 (2C), 24.6 (2C), 24.1 (2C), 22.1 (2C), 17.0 (2C), 16.9 (2C), 16.8 (2C). HRMS m/z (ESI) calcd for C58H82O11Na (M+Na) 977.5749, found 977.5164.

4. Conclusions

In conclusion, previously we synthesized α,β- and γ,δ-unsaturated esters of polygodial and ophiobolin A with potential covalent reactivity in cancer cells, i.e., pyrrolylation of lysine residues in proteins. In the present work we converted such covalently reacting compounds into dimeric and even trimeric species, capable of crosslinking proteins through such pyrrolylation reactions. Indeed, we showed that such dimeric compounds retain the ability to form pyrroles with primary amines. One selected polygodial dimer with the shortest linker length and both synthesized ophiobolin A dimers possess significantly enhanced antiproliferative potencies compared with their monomeric analogues, supporting this research premise. Mechanistic studies with a possible identification of intracellular targets for these molecules are underway.

Author Contributions

Conceptualization, A.K.; Methodology, B.L., S.C., R.D., W.J.O., and M.M.; Writing, V.M. (Vladimir Maslivetc) and A.K.; Supervision, J.A.S., A.C.B., A.E. and V.M. (Veronique Mathieu); Funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NIH, grants 5R21GM131717-02 and 1R15CA227680-01A1. The Belgian Brain Tumor Support is also acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

A.K. and Veronique Mathieu acknowledge Annelise De Carvalho, Aude Ingels and Vittoria Simioni for their contribution to the biological assays. The authors thank Maurizio Vurro and Angela Boari, Istituto di Scienze delle Produzioni Alimentari, CNR, Bari, Italy, for the supply of the culture filtrates of D. gigantea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brenner, H. Long-Term Survival Rates of Cancer Patients Achieved by the End of the 20th Century: A Period Analysis. Lancet 2002, 360, 1131–1135. [Google Scholar] [CrossRef]
  2. Agnihotri, S.; Burrell, K.E.; Wolf, A.; Jalali, S.; Hawkins, C.; Rutka, J.T.; Zadeh, G. Glioblastoma, a Brief Review of History, Molecular Genetics, Animal Models and Novel Therapeutic Strategies. Arch. Immunol. Ther. Exp. 2013, 61, 25–41. [Google Scholar] [CrossRef] [PubMed]
  3. Lefranc, F.; Sadeghi, N.; Camby, I.; Metens, T.; Dewitte, O.; Kiss, R. Present and Potential Future Issues in Glioblastoma Treatment. Expert Rev. Anticancer Ther. 2006, 6, 719–732. [Google Scholar] [CrossRef] [PubMed]
  4. Stupp, R.; Hegi, M.E.; Mason, W.P.; Van Den Bent, M.J.; Taphoorn, M.J.B.; Janzer, R.C.; Ludwin, S.K.; Allgeier, A.; Fisher, B.; Belanger, K. Effects of Radiotherapy with Concomitant and Adjuvant Temozolomide versus Radiotherapy Alone on Survival in Glioblastoma in a Randomised Phase III Study: 5-Year Analysis of the EORTC-NCIC Trial. Lancet Oncol. 2009, 10, 459–466. [Google Scholar] [CrossRef]
  5. Simpson, C.D.; Anyiwe, K.; Schimmer, A.D. Anoikis Resistance and Tumor Metastasis. Cancer Lett. 2008, 272, 177–185. [Google Scholar] [CrossRef] [PubMed]
  6. Savage, P.; Stebbing, J.; Bower, M.; Crook, T. Why Does Cytotoxic Chemotherapy Cure Only Some Cancers? Nat. Clin. Pract. Oncol. 2009, 6, 43–52. [Google Scholar] [CrossRef] [PubMed]
  7. Dasari, R.; Banuls, L.M.Y.; Masi, M.; Pelly, S.C.; Mathieu, V.; Green, I.R.; van Otterlo, W.A.L.; Evidente, A.; Kiss, R.; Kornienko, A. C1, C2-Ether Derivatives of the Amaryllidaceae Alkaloid Lycorine: Retention of Activity of Highly Lipophilic Analogues against Cancer Cells. Bioorg. Med. Chem. Lett. 2014, 24, 923–927. [Google Scholar] [CrossRef]
  8. Kornienko, A.; Mathieu, V.; Rastogi, S.K.; Lefranc, F.; Kiss, R. Therapeutic Agents Triggering Nonapoptotic Cancer Cell Death. J. Med. Chem. 2013, 56, 4823–4839. [Google Scholar] [CrossRef]
  9. Bury, M.; Girault, A.; Megalizzi, V.; Spiegl-Kreinecker, S.; Mathieu, V.; Berger, W.; Evidente, A.; Kornienko, A.; Gailly, P.; Vandier, C. Ophiobolin A Induces Paraptosis-like Cell Death in Human Glioblastoma Cells by Decreasing BKCa Channel Activity. Cell Death Dis. 2013, 4, e561. [Google Scholar] [CrossRef] [Green Version]
  10. Mathieu, V.; Chantôme, A.; Lefranc, F.; Cimmino, A.; Miklos, W.; Paulitschke, V.; Mohr, T.; Maddau, L.; Kornienko, A.; Berger, W. Sphaeropsidin A Shows Promising Activity against Drug-Resistant Cancer Cells by Targeting Regulatory Volume Increase. Cell. Mol. Life Sci. 2015, 72, 3731–3746. [Google Scholar] [CrossRef] [Green Version]
  11. Newman, D.J.; Cragg, G.M. Natural Products as Sources of New Drugs over the 30 Years from 1981 to 2010. J. Nat. Prod. 2012, 75, 311–335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Safarzadeh, E.; Shotorbani, S.S.; Baradaran, B. Herbal Medicine as Inducers of Apoptosis in Cancer Treatment. Adv. Pharm. Bull. 2014, 4 (Suppl. 1), 421. [Google Scholar] [PubMed]
  13. Wondrak, G.T. Redox-Directed Cancer Therapeutics: Molecular Mechanisms and Opportunities. Antioxid. Redox Signal. 2009, 11, 3013–3069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Ahmad, A.; Sakr, W.A.; Rahman, K.M. Novel Targets for Detection of Cancer and Their Modulation by Chemopreventive Natural Compounds. Front. Biosci. 2012, 4, 410–425. [Google Scholar] [CrossRef]
  15. Lee, D.; Kim, I.Y.; Saha, S.; Choi, K.S. Paraptosis in the Anti-Cancer Arsenal of Natural Products. Pharmacol. Ther. 2016, 162, 120–133. [Google Scholar] [CrossRef]
  16. Wang, X.; Feng, Y.; Wang, N.; Cheung, F.; Tan, H.Y.; Zhong, S.; Li, C.; Kobayashi, S. Chinese Medicines Induce Cell Death: The Molecular and Cellular Mechanisms for Cancer Therapy. Biomed Res. Int. 2014, 2014. [Google Scholar] [CrossRef]
  17. Gali-Muhtasib, H.; Hmadi, R.; Kareh, M.; Tohme, R.; Darwiche, N. Cell Death Mechanisms of Plant-Derived Anticancer Drugs: Beyond Apoptosis. Apoptosis 2015, 20, 1531–1562. [Google Scholar] [CrossRef] [PubMed]
  18. Dasari, R.; De Carvalho, A.; Medellin, D.C.; Middleton, K.N.; Hague, F.; Volmar, M.N.M.; Frolova, L.V.; Rossato, M.F.; Jorge, J.; Dybdal-Hargreaves, N.F. Wittig Derivatization of Sesquiterpenoid Polygodial Leads to Cytostatic Agents with Activity against Drug Resistant Cancer Cells and Capable of Pyrrolylation of Primary Amines. Eur. J. Med. Chem. 2015, 103, 226–237. [Google Scholar] [CrossRef] [Green Version]
  19. Zhang, L.; Gavin, T.; DeCaprio, A.P.; LoPachin, R.M. γ-Diketone Axonopathy: Analyses of Cytoskeletal Motors and Highways in CNS Myelinated Axons. Toxicol. Sci. 2010, 117, 180–189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Graham, D.G.; Anthony, D.C.; Boekelheide, K.; Maschmann, N.A.; Richards, R.G.; Wolfram, J.W.; Shaw, B.R. Studies of the Molecular Pathogenesis of Hexane Neuropathy: II. Evidence That Pyrrole Derivatization of Lysyl Residues Leads to Protein Crosslinking. Toxicol. Appl. Pharmacol. 1982, 64, 415–422. [Google Scholar] [CrossRef]
  21. Masi, M.; Dasari, R.; Evidente, A.; Mathieu, V.; Kornienko, A. Chemistry and Biology of Ophiobolin A and Its Congeners. Bioorg. Med. Chem. Lett. 2019, 29, 859–869. [Google Scholar] [CrossRef]
  22. Dasari, R.; Masi, M.; Lisy, R.; Ferdérin, M.; English, L.R.; Cimmino, A.; Mathieu, V.; Brenner, A.J.; Kuhn, J.G.; Whitten, S.T. Fungal Metabolite Ophiobolin A as a Promising Anti-Glioma Agent: In vivo Evaluation, Structure–Activity Relationship and Unique Pyrrolylation of Primary Amines. Bioorg. Med. Chem. Lett. 2015, 25, 4544–4548. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Chidley, C.; Trauger, S.A.; Birsoy, K.; O’Shea, E.K. The Anticancer Natural Product Ophiobolin A Induces Cytotoxicity by Covalent Modification of Phosphatidylethanolamine. Elife 2016, 5, e14601. [Google Scholar] [CrossRef] [PubMed]
  24. Janganati, V.; Ponder, J.; Jordan, C.T.; Borrelli, M.J.; Penthala, N.R.; Crooks, P.A. Dimers of Melampomagnolide B Exhibit Potent Anticancer Activity against Hematological and Solid Tumor Cells. J. Med. Chem. 2015, 58, 8896–8906. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Mantaj, J.; Jackson, P.J.M.; Rahman, K.M.; Thurston, D.E. From Anthramycin to Pyrrolobenzodiazepine (PBD)-containing Antibody–Drug Conjugates (ADCs). Angew. Chemie Int. Ed. 2017, 56, 462–488. [Google Scholar] [CrossRef] [Green Version]
  26. Hartley, J.A. Antibody-Drug Conjugates (ADCs) Delivering Pyrrolobenzodiazepine (PBD) Dimers for Cancer Therapy. Expert Opin. Biol. Ther. 2021, 21, 931–943. [Google Scholar] [CrossRef]
  27. Gong, Y.; Gallis, B.M.; Goodlett, D.R.; Yang, Y.; Lu, H.; Lacoste, E.; Lai, H.; Sasaki, T. Effects of Transferrin Conjugates of Artemisinin and Artemisinin Dimer on Breast Cancer Cell Lines. Anticancer Res. 2013, 33, 123–132. [Google Scholar]
  28. Dury, L.; Nasr, R.; Lorendeau, D.; Comsa, E.; Wong, I.; Zhu, X.; Chan, K.-F.; Chan, T.-H.; Chow, L.; Falson, P. Flavonoid Dimers Are Highly Potent Killers of Multidrug Resistant Cancer Cells Overexpressing MRP1. Biochem. Pharmacol. 2017, 124, 10–18. [Google Scholar] [CrossRef]
  29. Wong, I.L.K.; Zhu, X.; Chan, K.-F.; Law, M.C.; Lo, A.M.Y.; Hu, X.; Chow, L.M.C.; Chan, T.H. Discovery of Novel Flavonoid Dimers To Reverse Multidrug Resistance Protein 1 (MRP1, ABCC1) Mediated Drug Resistance in Cancers Using a High Throughput Platform with “Click Chemistry”. J. Med. Chem. 2018, 61, 9931–9951. [Google Scholar] [CrossRef]
  30. Zhu, X.; Wong, I.L.K.; Chan, K.-F.; Cui, J.; Law, M.C.; Chong, T.C.; Hu, X.; Chow, L.M.C.; Chan, T.H. Triazole Bridged Flavonoid Dimers as Potent, Nontoxic, and Highly Selective Breast Cancer Resistance Protein (BCRP/ABCG2) Inhibitors. J. Med. Chem. 2019, 62, 8578–8608. [Google Scholar] [CrossRef]
  31. Kung Sutherland, M.S.; Walter, R.B.; Jeffrey, S.C.; Burke, P.J.; Yu, C.; Kostner, H.; Stone, I.; Ryan, M.C.; Sussman, D.; Lyon, R.P. SGN-CD33A: A Novel CD33-Targeting Antibody–Drug Conjugate Using a Pyrrolobenzodiazepine Dimer Is Active in Models of Drug-Resistant AML. Blood J. Am. Soc. Hematol. 2013, 122, 1455–1463. [Google Scholar] [CrossRef]
  32. Just, J.; Jordan, T.B.; Paull, B.; Bissember, A.C.; Smith, J.A. Practical Isolation of Polygodial from Tasmannia Lanceolata: A Viable Scaffold for Synthesis. Org. Biomol. Chem. 2015, 13, 11200–11207. [Google Scholar] [CrossRef] [Green Version]
  33. Bury, M.; Novo-Uzal, E.; Andolfi, A.; Cimini, S.; Wauthoz, N.; Heffeter, P.; Lallemand, B.; Avolio, F.; Delporte, C.; Cimmino, A. Ophiobolin A, a Sesterterpenoid Fungal Phytotoxin, Displays Higher in vitro Growth-Inhibitory Effects in Mammalian than in Plant Cells and Displays in vivo Antitumor Activity. Int. J. Oncol. 2013, 43, 575–585. [Google Scholar] [CrossRef] [Green Version]
  34. Ingrassia, L.; Lefranc, F.; Dewelle, J.; Pottier, L.; Mathieu, V.; Spiegl-Kreinecker, S.; Sauvage, S.; El Yazidi, M.; Dehoux, M.; Berger, W. Structure− Activity Relationship Analysis of Novel Derivatives of Narciclasine (an Amaryllidaceae Isocarbostyril Derivative) as Potential Anticancer Agents. J. Med. Chem. 2009, 52, 1100–1114. [Google Scholar] [CrossRef]
  35. Le Calvé, B.; Rynkowski, M.; Le Mercier, M.; Bruyère, C.; Lonez, C.; Gras, T.; Haibe-Kains, B.; Bontempi, G.; Decaestecker, C.; Ruysschaert, J.-M. Long-Term in vitro Treatment of Human Glioblastoma Cells with Temozolomide Increases Resistance in vivo through up-Regulation of GLUT Transporter and Aldo-Keto Reductase Enzyme AKR1C Expression. Neoplasia 2010, 12, 727–739. [Google Scholar] [CrossRef]
  36. Branle, F.; Lefranc, F.; Camby, I.; Jeuken, J.; Geurts-Moespot, A.; Sprenger, S.; Sweep, F.; Kiss, R.; Salmon, I. Evaluation of the Efficiency of Chemotherapy in in vivo Orthotopic Models of Human Glioma Cells with and without 1p19q Deletions and in C6 Rat Orthotopic Allografts Serving for the Evaluation of Surgery Combined with Chemotherapy. Cancer Interdiscip. Int. J. Am. Cancer Soc. 2002, 95, 641–655. [Google Scholar] [CrossRef]
  37. Mathieu, V.; Pirker, C.; de Lassalle, E.M.; Vernier, M.; Mijatovic, T.; DeNeve, N.; Gaussin, J.; Dehoux, M.; Lefranc, F.; Berger, W. The Sodium Pump A1 Sub-unit: A Disease Progression–Related Target for Metastatic Melanoma Treatment. J. Cell. Mol. Med. 2009, 13, 3960–3972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Medellin, D.C.; Zhou, Q.; Scott, R.; Hill, R.M.; Frail, S.K.; Dasari, R.; Ontiveros, S.J.; Pelly, S.C.; van Otterlo, W.A.L.; Betancourt, T. Novel Microtubule-Targeting 7-Deazahypoxanthines Derived from Marine Alkaloid Rigidins with Potent in vitro and in vivo Anticancer Activities. J. Med. Chem. 2016, 59, 480–485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Perez-Benito, L.; Henry, A.; Matsoukas, M.-T.; Lopez, L.; Pulido, D.; Royo, M.; Cordomi, A.; Tresdern, G.; Pardo, L. The size matters? A computational tool to design bivalent ligands. Bioinformatics 2018, 34, 3857–3863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Knox, A.; Kalchschmid, C.; Schuster, D.; Gaggia, F.; Manzl, C.; Baecker, D.; Gust, R. Development of bivalent trialkene- and cyclofenil-derived dual estrogen receptor antagonist and downregulators. Eur. J. Med. Chem. 2020, 192, 112191. [Google Scholar] [CrossRef]
  41. Paquin, A.; Reyes-Moreno, C.; Berube, G. Recent advances in the use of the dimerization strategy as a means to increase the biological potential of natural or synthetic molecules. Molecules 2021, 26, 2340. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 11256 g001 550
Figure 1. (a) Structures of polygodial, Wittig product 1, a proposed mechanism for pyrrole 2 formation involving intermediates I and II, unstable pyrrole 3; (b) Structures of ophiobolin A, Wittig product 4, pyrrole 5 and conjugated phosphatidylethanolamine 6.
Figure 1. (a) Structures of polygodial, Wittig product 1, a proposed mechanism for pyrrole 2 formation involving intermediates I and II, unstable pyrrole 3; (b) Structures of ophiobolin A, Wittig product 4, pyrrole 5 and conjugated phosphatidylethanolamine 6.
Ijms 22 11256 g001
Ijms 22 11256 g002 550

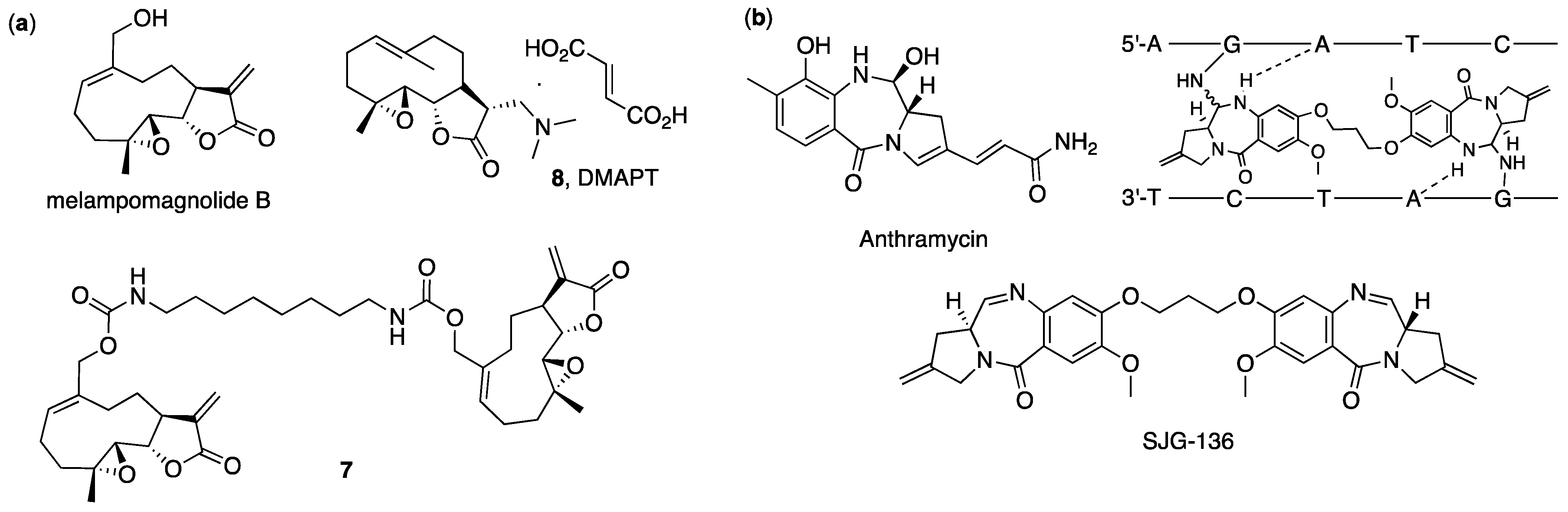

Figure 2. Dimeric anticancer conjugates of natural products: (a) Melampomagnolide B, its monomeric (8) and dimeric (7) derivatives; (b) Anthramycin, dimer SJG-136 and schematic representation of interstrand cross-link formation through DNA binding.
Figure 2. Dimeric anticancer conjugates of natural products: (a) Melampomagnolide B, its monomeric (8) and dimeric (7) derivatives; (b) Anthramycin, dimer SJG-136 and schematic representation of interstrand cross-link formation through DNA binding.
Ijms 22 11256 g002
Ijms 22 11256 g003 550

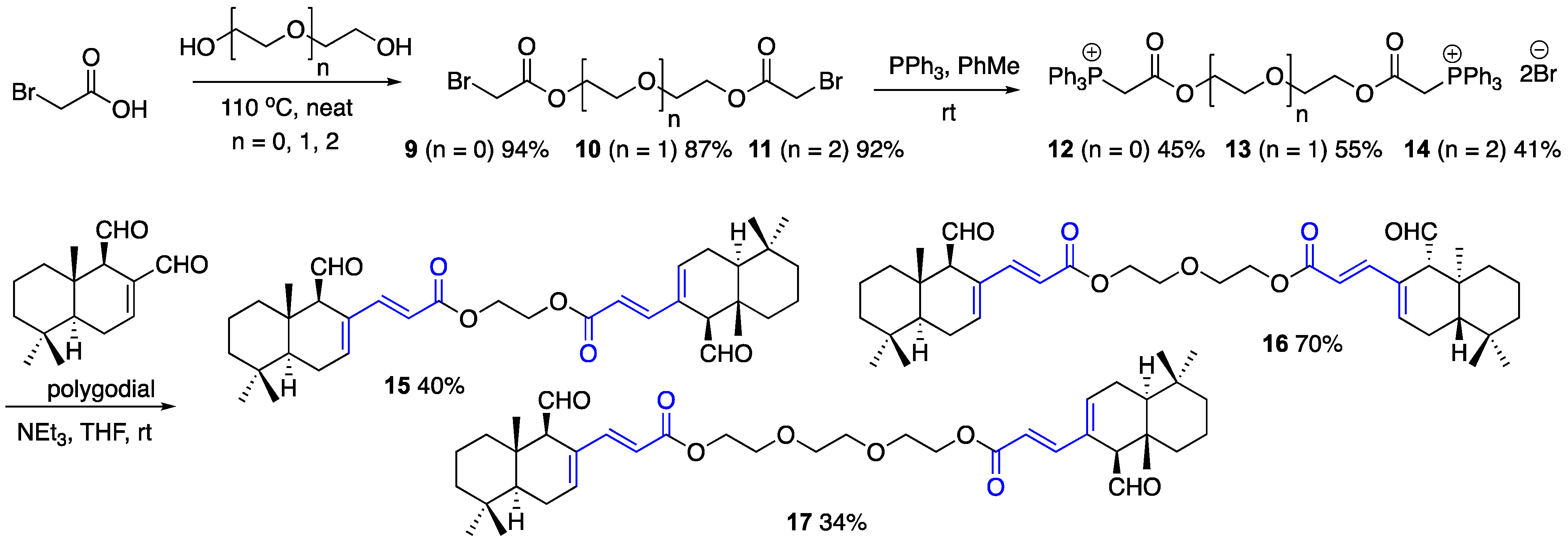

Figure 3. Synthesis of dimeric polygodial-based crosslinking agents 15, 16 and 17.
Figure 3. Synthesis of dimeric polygodial-based crosslinking agents 15, 16 and 17.
Ijms 22 11256 g003
Ijms 22 11256 g004 550

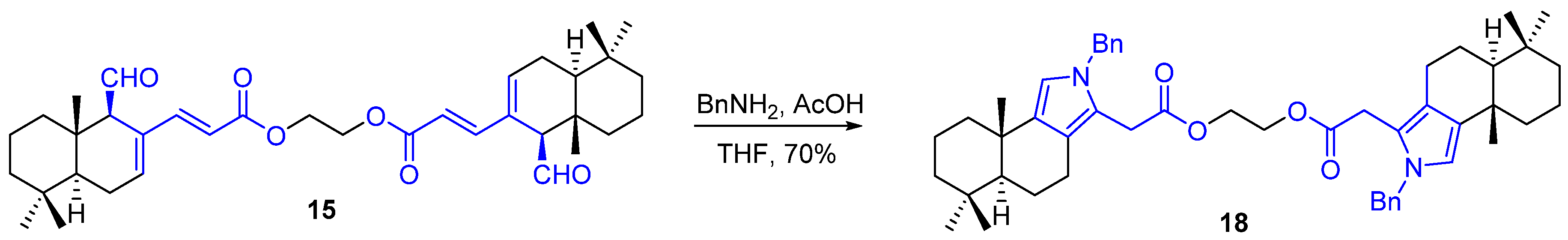

Figure 4. Demonstration of the feasibility of the formation of bis-pyrrole 18 from dimer 15.
Figure 4. Demonstration of the feasibility of the formation of bis-pyrrole 18 from dimer 15.
Ijms 22 11256 g004
Ijms 22 11256 g005 550

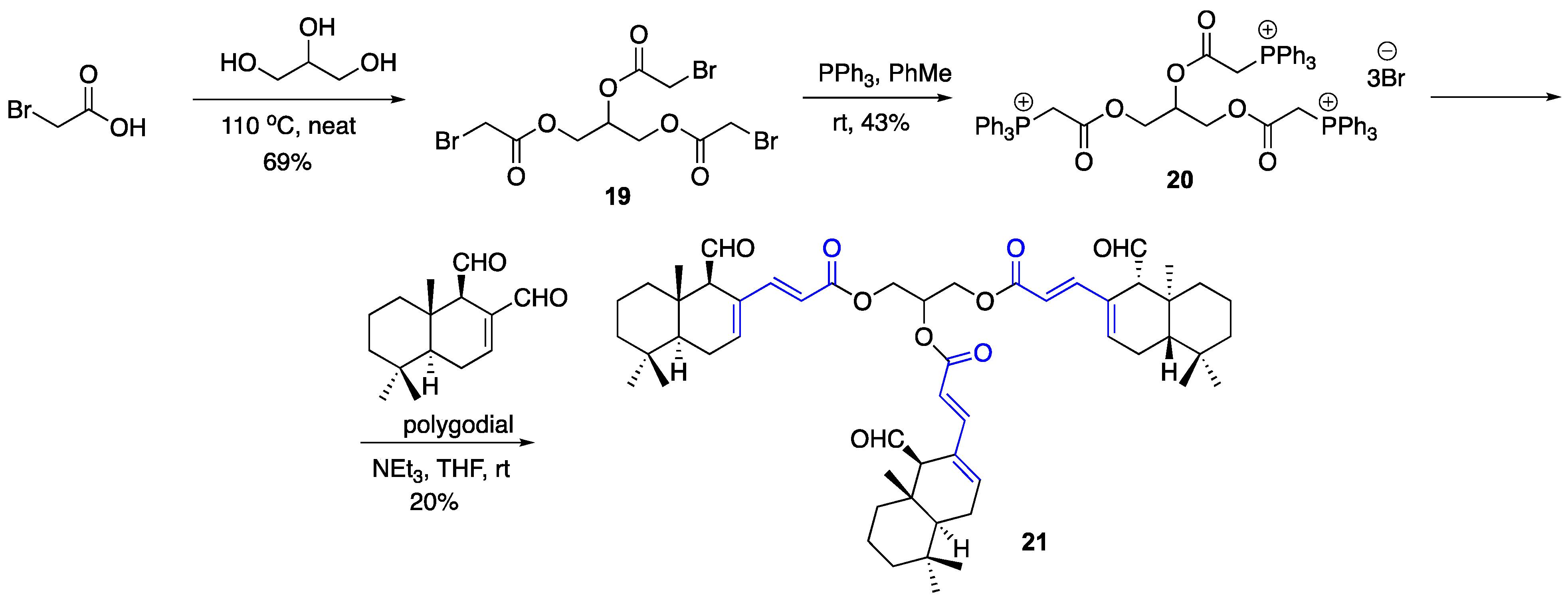

Figure 5. Synthesis of trimeric polygodial-based crosslinking agent 21.
Figure 5. Synthesis of trimeric polygodial-based crosslinking agent 21.
Ijms 22 11256 g005
Ijms 22 11256 g006 550

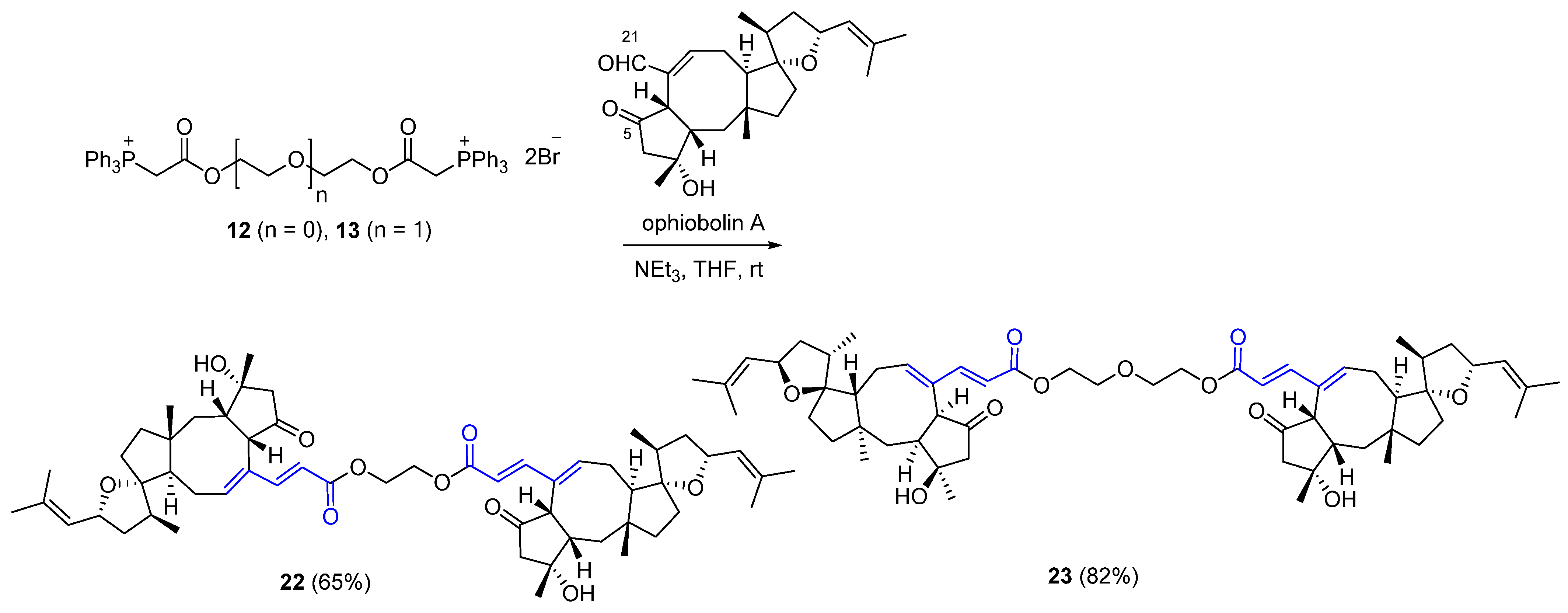

Figure 6. Synthesis of ophiobolin A-based crosslinking agents 22 and 23.
Figure 6. Synthesis of ophiobolin A-based crosslinking agents 22 and 23.
Ijms 22 11256 g006
Ijms 22 11256 g007 550
Figure 7. In vitro videomicroscopic analysis of the anticancer effects of monomeric Wittig products 1 and 4 as well as cross-linking agents 15 and 23. The U373 human glioma cell line was treated with polygodial and ophiobolin A derivatives at their mean GI50 concentrations (Table 1) or left untreated. The experiment was conducted once in triplicate. Scale bars correspond to 100 μm.
Figure 7. In vitro videomicroscopic analysis of the anticancer effects of monomeric Wittig products 1 and 4 as well as cross-linking agents 15 and 23. The U373 human glioma cell line was treated with polygodial and ophiobolin A derivatives at their mean GI50 concentrations (Table 1) or left untreated. The experiment was conducted once in triplicate. Scale bars correspond to 100 μm.
Ijms 22 11256 g007
Table
Table 1. In vitro growth inhibitory effects of cross-linking agents in comparison with their monomeric counterparts.
Table 1. In vitro growth inhibitory effects of cross-linking agents in comparison with their monomeric counterparts.
CompoundGI50 In Vitro Values (µM) 1
Resistant to ApoptosisSensitive to Apoptosis
A549SKMEL-28U373MCF7Hs683B16F10
130424136297
157149445
16172228989
17552979365024
2125242823176
425986864359ND
2258328104
23435333
cisplatin726ND3578
1 Mean concentration required to reduce the viability of cells by 50% after a 72 h treatment relative to a control, each experiment performed in sextuplicates, as determined by MTT assay. 2 Data are from ref. [22]. ND = not determined.
