Skip to Content
MDPIMDPI

Advanced

MoleculesMolecules
PDF
  • Review
  • Open Access

18 May 2026

22 Pages

Melanin-like Materials for Photothermal Applications: Recent Advancements and Future Directions

,
,
,
,
,
,
and
1
National Joint Engineering Research Center for Highly-Efficient Utilization Technology of Forestry Resources, Southwest Forestry University, Kunming 650224, China
2
State Key Laboratory of Advanced Polymer Materials, Sichuan University, Chengdu 610065, China
*
Author to whom correspondence should be addressed.
Molecules2026, 31(10), 1712;https://doi.org/10.3390/molecules31101712
This article belongs to the Section Macromolecular Chemistry
Version Notes
Order Reprints

Abstract

Melanin-like polymers, particularly polydopamine, have gained significant attention as photothermal materials due to their broad light absorption (ultraviolet to near-infrared), high photothermal conversion efficiency, negligible fluorescence, good biocompatibility regarding unmodified melanin-like polymers, and universal adhesion. Upon light irradiation, these bioinspired polymers convert absorbed optical energy into heat through molecular vibration and electron–phonon coupling, making them ideal for diverse photothermal applications. This review comprehensively summarizes recent advances in using melanin-like polymers for photothermal purposes. In biomedical engineering, they serve as efficient agents for photothermal therapy and synergistic antibacterial treatment. In catalysis, their photothermal effect enhances pollutant degradation, hydrogen production, and chemical warfare agent detoxification. For water remediation, melanin-like polymers are fabricated into evaporators, membranes, and aerogels for solar-driven steam generation, desalination, and oil spill cleanup. They also enable sensitive photothermal sensing, near-infrared imaging, and laser desorption ionization mass spectrometry imaging. Furthermore, these materials are incorporated into soft actuators and self-healing elastomers for light-controlled shape memory, programmable folding, and remote manipulation. Finally, we discuss remaining challenges such as long-term stability, biocompatibility, scalability, and color limitations and provide future perspectives for advancing melanin-like photothermal materials toward practical applications.

1. Introduction

Light is a form of electromagnetic radiation, which can be converted into various types of energy, such as heat, electricity, chemical energy, and photoluminescence [1,2]. Light absorption materials play an important role in the efficient harvesting and utilization of optical energy. Recently, melanin-like polymers have been well established as light-harvesting and photothermal conversion agents due to their broad light absorption spectra and many promising intrinsic properties, such as biocompatibility, universal adhesion, and abundant active groups for surface modification [3,4,5,6,7]. In nature, melanin is a group of biological pigments distributed in a wide range of organisms; it plays an important role in protecting skin from ultraviolet (UV) irradiation and affects the metal ion transport pathway [8,9,10,11,12,13]. In melanocytes, tyrosine can be oxidized enzymatically, forming 3,4-dihydroxyphenylalanine (DOPA), which is able to further self-cyclize, rearrange, and polymerize into eumelanin [14]. Inspired by this synthetic route, numerous melanin-like polymeric materials have been designed and fabricated through the oxidative polymerization of dopamine, DOPA, or 5,6-dihydroxyindole (DHI) [15,16,17]. In particular, polydopamine (PDA) is considered the most typical melanin-like polymer representative; it can be synthesized through the polymerization of dopamine monomers under mild alkaline conditions [18]. The investigation of melanin-like polymers and their derivatives has led to their exponential growth in the biomedical, energy, and environmental fields [19,20,21,22,23,24,25].
Over the past decade, great efforts have been made to develop melanin-like polymers with interesting light absorption and photothermal conversion abilities [26,27,28,29]. They can be processed into various dimensions and morphologies, including fibers [30,31], thin films [32,33], capsules and shells [34,35], nanoparticles (NPs) [4,36,37], and bulk materials (e.g., gels and elastomers) [38,39,40], which all exhibit similar chemical structures to natural melanin, showing broad decay light absorption spectra from the UV to visible and near-infrared regions [3,41]. Therefore, numerous functional materials with light-harvesting and photothermal conversion abilities have been developed and employed in various fields, including biomedical engineering (e.g., photothermal therapy and antibacterial) [35,42,43,44,45,46], catalysts [47], water remediation [48,49,50,51], and sensing and imaging, [52,53], as well as photothermal actuation and self-healing [32,54,55,56].
It is known that there is almost no photoluminescence within melanin-like polymers due to their complicated physical stacking and chemical structures, so that regulating their light absorption capacity is critical to the photothermal effects of melanin-like polymers [4,57]. However, the main problem is that the structure–light absorption relationship in melanin-like polymers has not been established systematically so far because of the different oxidation states of the monomers or oligomers and the undefined individual chromophores [4,41]. While some reviews have discussed the regulation of the light absorption and photothermal performance of melanin-like polymers from a methodological perspective [58], the present review focuses on their applications and potential scenarios. In this review, we briefly introduce emerging regulation strategies and then focus on the current progress in melanin-like photothermal functional materials and their potential application scenarios. These melanin-like polymers are divided into five categories: fibers, thin films, capsules and shells, nanoparticles, and bulk materials. These are well documented to be used in a range of applications, such as biomedical engineering, catalysis, water remediation, and sensing and imaging, as well as photothermal actuation and self-healing (Figure 1). The structures and applications of these melanin-like polymers are summarized in Table 1. To guide the selection of melanin-like polymers for specific photothermal applications, Table 2 benchmarks the key parameters of representative materials based on their distinct chemical structures. These parameters include the absorption bandwidth, photothermal conversion efficiency (ηtotal), spectral range (NIR-I/II), biocompatibility, and cost-effectiveness. Finally, some remaining challenges and future perspectives are also put forward, aiming to stimulate new inspiration for the development of melanin-like polymers for photothermal applications and beyond.

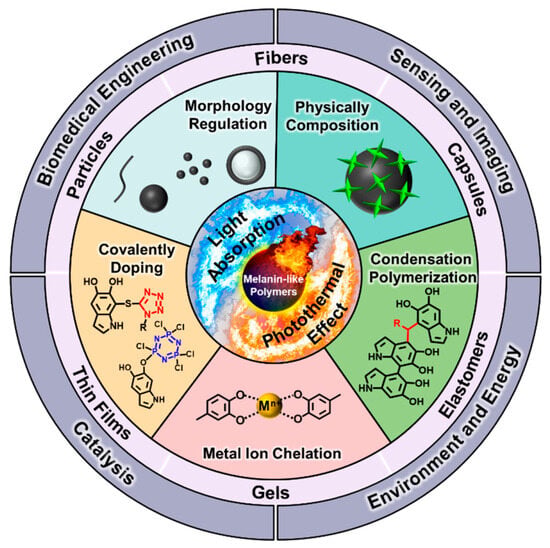

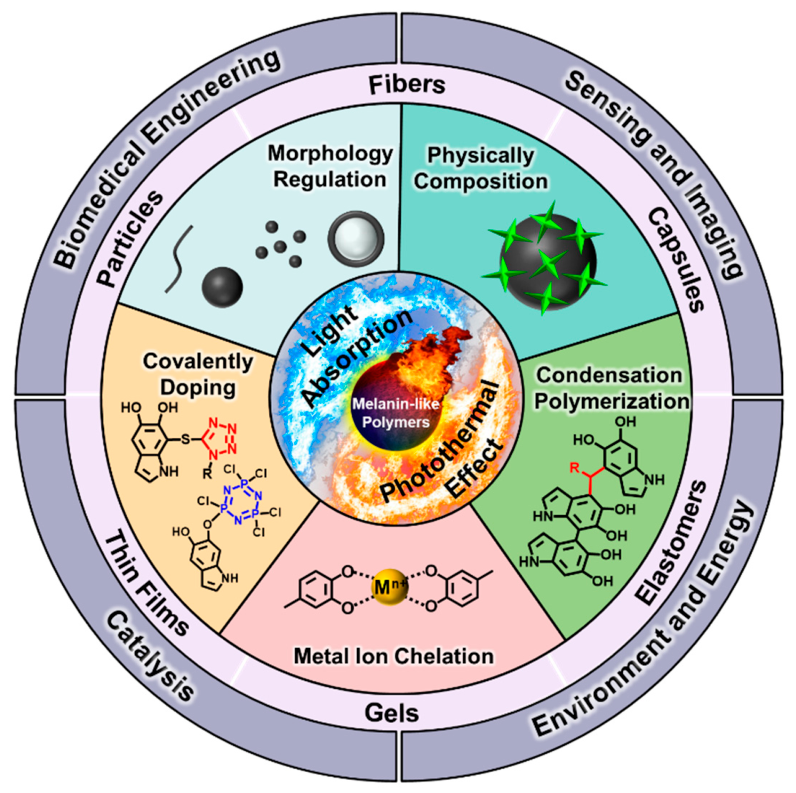

Figure 1. Overview of light absorption and photothermal effect regulation strategies of melanin-like polymers and their applications.
Table 1. Melanin-like polymeric photothermal materials for various applications.
Table 2. Benchmarking of representative melanin-like polymers for photothermal applications.

Bibliographic Methodology

To ensure transparency and reproducibility, this review followed a systematic literature retrieval process. The databases Web of Science, Scopus, and PubMed were searched using the following keyword combinations: (“melanin-like polymer” OR “polydopamine” OR “PDA” OR “poly(DHI)” OR “poly(DOPA)”) AND (“photothermal” OR “photo-thermal”) AND (“application” OR “therapy” OR “catalysis” OR “water remediation” OR “actuation” OR “self-healing”). The search covered peer-reviewed articles and reviews published between January 2013 and April 2026. Only studies that reported quantitative photothermal performance were considered. Studies focusing solely on non-photothermal properties (e.g., antioxidant, adhesive) were excluded.
Several review articles published in 2025 have addressed specific sub-areas of melanin-based photothermal materials. Wu et al. systematically summarized melanin/melanin-like nanoparticles in tumor photothermal and targeted therapies [129]. Menichetti et al. critically reviewed photothermally controlled release applications of melanin-like nanoparticles [130]. Another recent review focused on polydopamine nanoparticles for antimicrobial applications [131]. The present review is distinguished from these previous works in three key aspects. First, rather than focusing exclusively on nanoparticles, we cover all material morphologies, including fibers, thin films, capsules, gels, and elastomers, thereby providing a more comprehensive material-level perspective. Second, we extend beyond biomedical applications into environmental and energy fields, including solar-driven water remediation, photothermal catalysis, photothermoelectric devices, and soft actuators. Third, we go beyond reporting successful cases by offering critical assessments of material failure scenarios (“rejection criteria”) and a forward-looking roadmap to guide future research. As such, this review complements rather than duplicates existing contributions and serves as a practical reference for researchers across materials science, chemistry, biomedical engineering, and environmental technology.

2. Strategies for Regulating Photothermal Performance of Melanin-like Polymers

Before surveying specific photothermal applications, it is instructive to briefly outline the main strategies used to tune the light absorption and photothermal efficiency of melanin-like polymers. These strategies (morphology regulation, hybrid composition, metal ion chelation, covalent doping, and condensation polymerization, as illustrated in Figure 1) are briefly outlined below in terms of their underlying photophysical mechanisms.
(i)
Structural monomer modifications: The absorption spectrum of PDA can be shifted by introducing substituents on the monomeric units. For example, ortho-substitution with electron-donating groups or electron-withdrawing groups alters the energy gap between HOMO and LUMO, thereby red- or blue-shifting the absorption [4,10]. Covalent doping with nitrogen-containing heterocycles (e.g., HCCP, CC, TCCA) or mercaptotetrazole (MT) derivatives constructs donor–acceptor pairs that narrow the bandgap and extend absorption into the NIR region [36,37,57,118].
(ii)
Metal coordination and LMCT effects: The chelation of transition metal ions (Cu2+, Mn2+, Fe3+, etc.) through catechol groups introduces d-d transitions and ligand-to-metal charge transfer (LMCT), which significantly enhance absorption in the 600–1200 nm range without altering the polymer backbone [17,111,112]. The improved photothermal efficiency directly correlates with metal ion loading and the coordination geometry.
(iii)
Control over molecular stacking/aggregation: The broad, decayed absorption of melanin-like polymers is partly due to heterogeneous π-stacking and aggregation. Recent computational studies using time-dependent density functional theory (TD-DFT) and machine learning have revealed how inter-ring dihedral angles (e.g., the twist caused by the carboxylate group in DHICA) affect the conjugation length and absorption profiles [30]. Such tools are now being used to predict optimal monomer sequences and stacking motifs for targeted light absorption.

3. Photothermal Applications of Melanin-like Polymers

The excellent light-harvesting properties and photothermal effects of melanin-like polymers mean that they have significant potential for applications in biomedical engineering (e.g., photothermal therapy and antibacterial), catalysis, water remediation, sensing and imaging, photothermal actuation, and self-healing. In recent years, the rational design and effective regulation of their photothermal performance have been well-documented, enabling them to adapt a wide range of practical uses. This section focuses on recent progress regarding advanced applications of melanin-like photothermal materials.

3.1. Biomedical Engineering

The intrinsic photothermal effect of PDA-based materials makes them efficient photothermal agents for photothermal therapy [132]. PDA NPs usually exhibit favorable colloidal stability in 10% blood serum solutions, which is beneficial for therapeutic applications in vivo. They also exhibit negligible resonance light scattering, ensuring strong photothermal conversion abilities and excellent photostability, which can help to suppress cancer cell growth without damaging normal cells [3]. In this context, low scattering minimizes light re-emission and energy loss, directing more absorbed energy into nonradiative decay pathways (heat generation). PDA coatings can not only lead to enhanced photothermal effects of metallic nanostructures for photothermal therapy but also suppress their cytotoxicity and improve their dispersity. The PDA capsule can even be coated on tumor-targeting bacteria to achieve biotherapy and photothermal cancer therapy simultaneously (Figure 2a) [35,45]. An all-in-one system with chemo-, gene-, and photothermal treatments can be achieved via a PDA-based nanoplatform for synergistic cancer therapy. For example, MPDA NPs filled with indocyanine green (ICG) and L-arginine (AI-MPDA) have been designed and fabricated, while the photothermal effect of PDA triggers on-demand ICG release to produce oxygen species (ROS) for nitric oxide (NO) gas generation under NIR irradiation [106]. Notably, the loading of ICG and L-arginine cannot weaken the photothermal capabilities of PDA. Hollow PDA nanocapsules possess excellent intrinsic photothermal effects and drug loading abilities for chemo-photothermal synergistic therapy. Through coating DOX NPs with PDA capsules, the drug loading capacity can be as high as 85.8%, resulting in NIR-induced on-demand drug release via the “nanobomb” property through the photothermal effect of PDA (Figure 2b) [133]. Other functional molecules, such as triphenylphosphonium (TPP) and 2-phenylethynesulfonamide (PES), have been immobilized on PDA for bioimaging, chemotherapy, and antibacterial applications, respectively, achieving a synergistic effect with photothermal therapy [74,134].

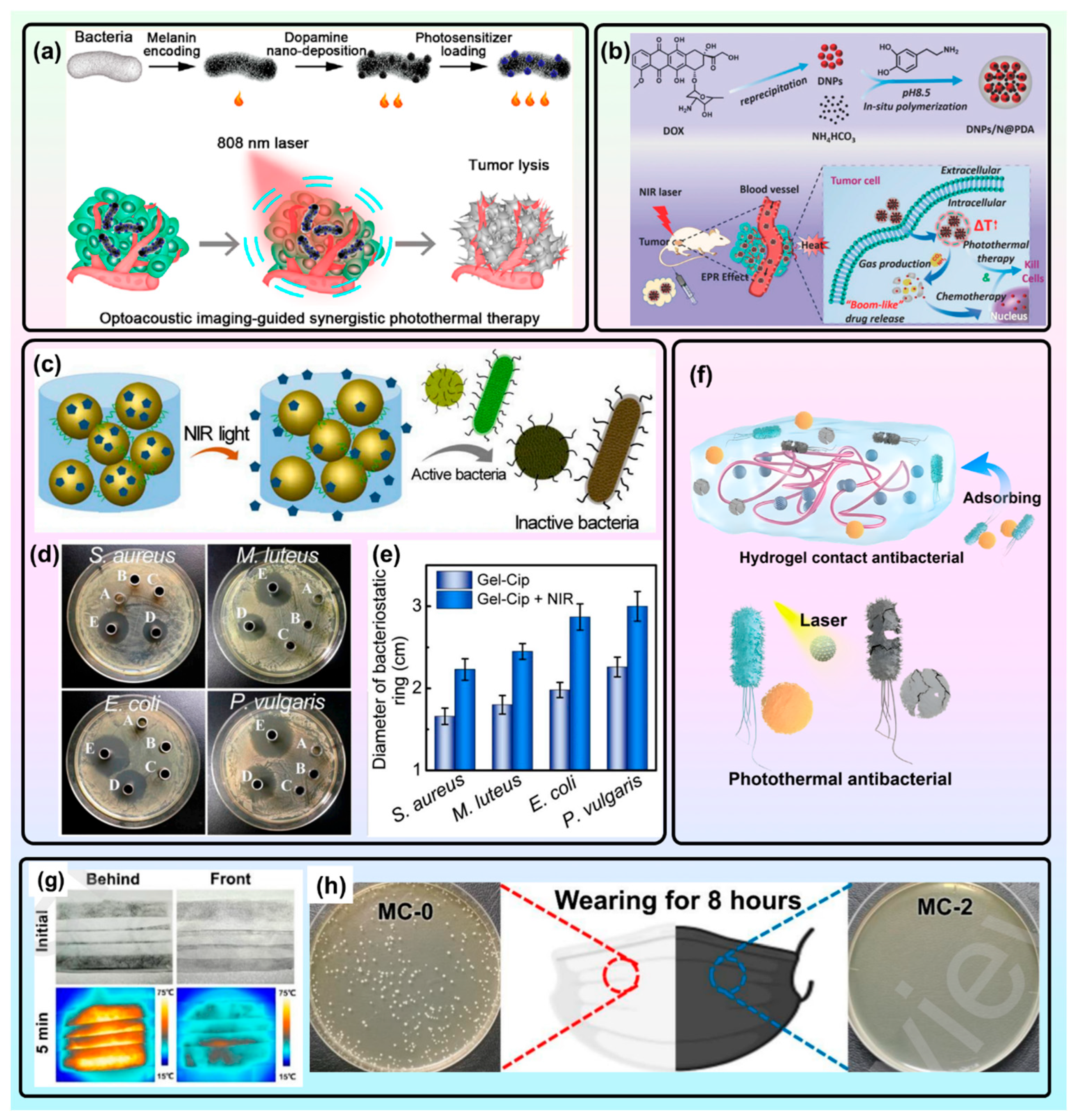

Figure 2. (a) Optoacoustic imaging-guided synergistic photothermal therapy through tumor-targeting bacteria coated by PDA. Reproduced with permission [45]. Copyright 2023 American Chemical Society. (b) PDA-coated DOX NPs with “bomb-like” on-demand drug release property triggered by NIR light [133]. (c) Schematic illustration of Cip-loaded gel and Cip release under NIR light for bacterial inactivation. (d) Photographs and (e) corresponding statistical histogram of inhibition zones of various bacteria with different treatments (A: NIR, B: Gel, C: Gel + NIR, D: Gel-Cip, and E: Gel-Cip + NIR) after 48 h of culture. (c–e) Reproduced with permission [120]. Copyright 2019 Elsevier. (f) A robust hydrogel (CG/PDA@Ag) with bacterial capture and photothermal antibacterial properties against E. coli and S. aureus under 808 nm NIR irradiation (1.0 W/cm2, 3 min) [135]. (g) Infrared photos of the front and rear of a PDA/Fe3+/GA-coated surgical mask. (h) Results of colony-forming unit assay of blank and PDA/Fe3+/GA-coated surgical masks after 8 h of wearing. (g,h) Reproduced with permission [64]. Copyright 2023 Elsevier.
The excellent photothermal effects of PDA-mediated materials not only induce hyperthermia to destroy the antioxidant stress system of bacteria but also accelerate the generation of antibacterial agents, such as ROS [43,44], NO [77], or antibiotics. For example, PDA–ferrocene (PDA-Fc) coatings have been proven to be redox-active for ROS release to combat bacterial infections [43]. Bacterial biofilm formation can be further hindered under NIR irradiation due to localized hyperthermia and enhanced ROS generation simultaneously. Yu et al. conjugated N-diazeniumdiolate (NONOate) on a PDA capsule through dendritic poly(amidoamine) (PAMAM) for controllable NO release, resulting in synergistic photothermal therapy and NO antibacterial effects [77]. An injectable hydrogel-based drug reservoir was fabricated by blending ciprofloxacin (Cip)-loaded PDA NPs with glycol chitosan, which realized on-demand Cip release for hyperthermia-assisted antimicrobial therapy by NIR light triggering (Figure 2c–e) [120]. The multiple active groups of PDA-based materials are beneficial to capture and kill bacteria through effective interactions, such as hydrophobic interactions, Van der Waals forces, and electrostatic forces (Figure 2f) [135]. A reusable surgical mask with self-sterilization and self-powered real-time respiratory monitoring properties has been developed through the sequential use of PDA and Fe3+/gallic acid (GA) coatings. Under sunlight illumination, the mask could achieve self-sterilization, allowing facile reutilization, while real-time respiratory monitoring benefited from the wet electricity generated by the carboxyl groups of GA (Figure 2g,h) [64].

3.2. Catalysis

PDA can serve as a robust support material for various catalysts. The excellent photothermal effect of PDA can be leveraged to enhance the catalytic activity of photothermal–catalytic reactions. For example, in terms of PDA-coated AuNRs, a PDA coating can enhance the total photothermal effect, leading to the augmentation of ROS production and improving the photocatalytic performance of dye degradation (Figure 3a–f) [80]. The existence of a PDA layer can not only enhance the transference of hot carriers from the AuNR to PDA but also suppress the recombination of the carriers and shuttle them on the particle surface for ROS generation. Moreover, PDA NPs can not only act as photothermal agents but also as carriers of ammonia borane (AB) prodrugs for hydrogen gas (H2) production in the weakly acidic conditions of the tumor microenvironment, demonstrating a combination of photothermal and hydrogen therapies for cancer treatment [136,137]. Although this example represents catalytic nanomedicine rather than conventional photothermal-enhanced catalysis, it is included here to illustrate the broader catalytic functionality of melanin-like polymers in biomedical contexts. Due to the intrinsic ability of H2 to react with ROS, membrane-camouflaged PDA loaded with AB (mPDAB) could inhibit inflammation during tumor therapy and destroy redox homoeostasis in tumor cells (Figure 3g–i) [137]. Incorporating cadmium sulfide (CdS) onto PDA NPs could also result in stable photothermal activity and photocatalytic behavior for H2 production (Figure 3j) [138]. Additionally, other synergistic photocatalytic–photothermal systems can be achieved via PDA-supported catalysts, such as noble metals, bismuth iodide oxide (BiOI), and zirconium-based metal–organic frameworks (Zr-MOFs), for applications such as nitrophenol [115] and p-nitroaniline reduction [116], antibacterial effects [90], and chemical warfare agent (CWA) degradation (Figure 3k,l) [47].

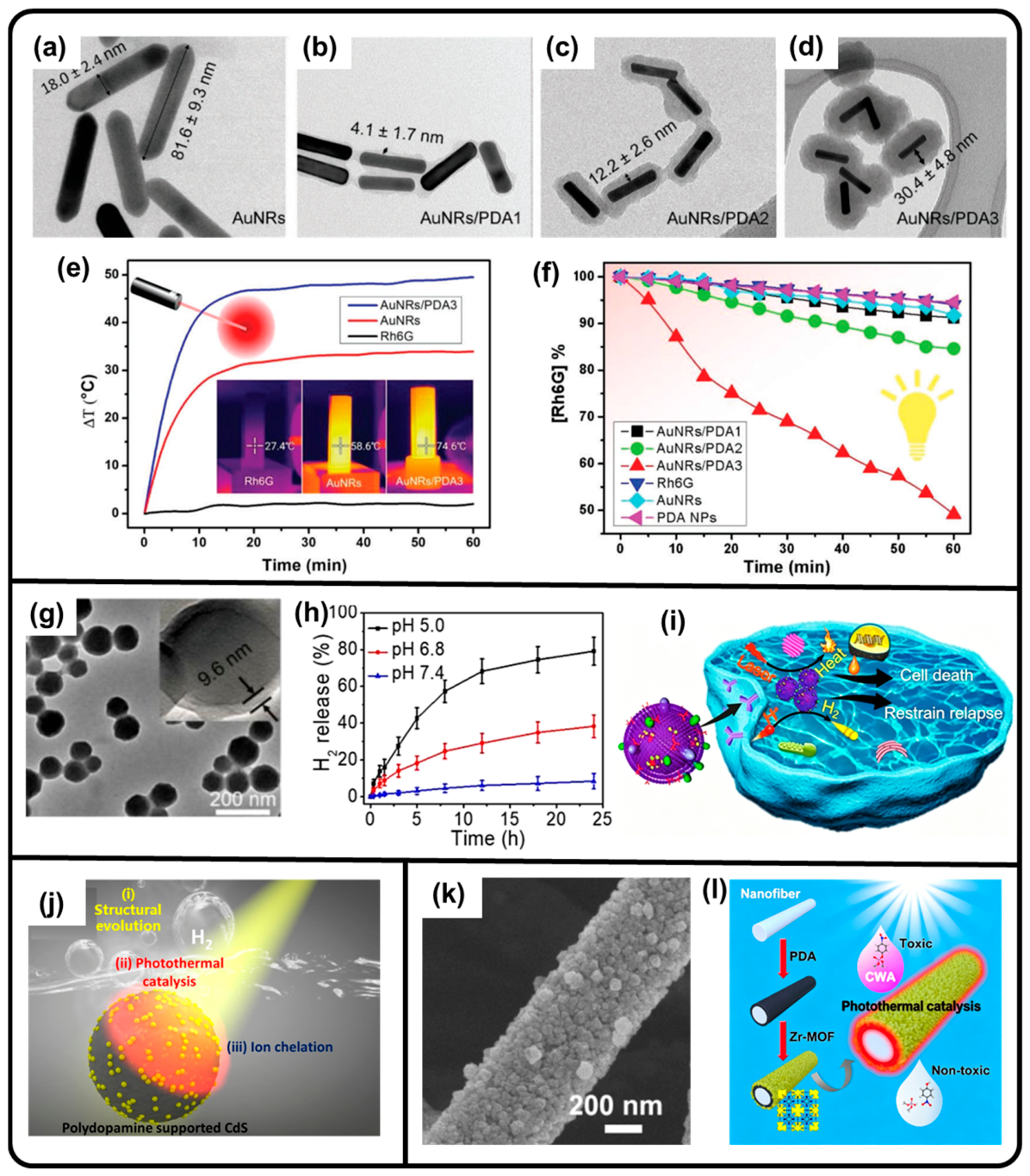

Figure 3. TEM images of (a) bare AuNRs and (b–d) PDA-coated AuNRs with different shell thicknesses. (e) Temperature elevation and photographs of Rh6G, bare AuNRs, and PDA-coated AuNRs in solution under NIR irradiation. (f) Changes in Rh6G concentration versus time for different photocatalysis applications within 1 h [80]. (g) TEM and HRTEM (inset) images of mPDAB NPs. (h) The H2 release performance of mPDAB under acidic conditions. (i) Schematic illustration of anti-inflammation and tumor therapy through photothermal effect and H2 generation of mPDAB. (g–i) Reproduced with permission [137]. Copyright 2019 Elsevier. (j) CdS-loaded PDA NPs for photocatalytic H2 production through photothermal effect. Reproduced with permission [138]. Copyright 2022 Elsevier. (k) SEM image of PDA-mediated Zr-MOF nanofiber. (l) PDA-mediated Zr-MOF nanofibers for photothermal-driven CWD degradation. (k,l) Reproduced with permission [47]. Copyright 2020 American Chemical Society.

3.3. Water Remediation

Solar steam generation is considered a sustainable approach to obtaining fresh water through heat localization by photothermal materials. Melanin-like polymers have been used to fabricate multifunctional photothermal devices, such as gels and thin films [7,48,49,66,124,125,126]. They are robust and universal coatings without selectivity for substrates; they exhibit broad light absorption spectra, high photothermal conversion efficiency, and post-modification properties. For example, a biodegradable photothermal evaporator was fabricated through PDA NP-filled bacterial nanocellulose (BNC), which demonstrated flexible, scalable, and efficient water transportation for solar steam generation (Figure 4a–c) [48]. To resolve the salt deposition problem, fluoro-functional groups (tridecafluoro-1,1,2,2-tetrahydrooctyl)-trichlorosilane (FTCS) can be modified on the surface of a PDA-coated PVDF membrane through the formation of Si-O bonds, resulting in a hydrophobic surface with salt rejection properties in direct contact membrane distillation (DCMD) (Figure 4d,e) [125].

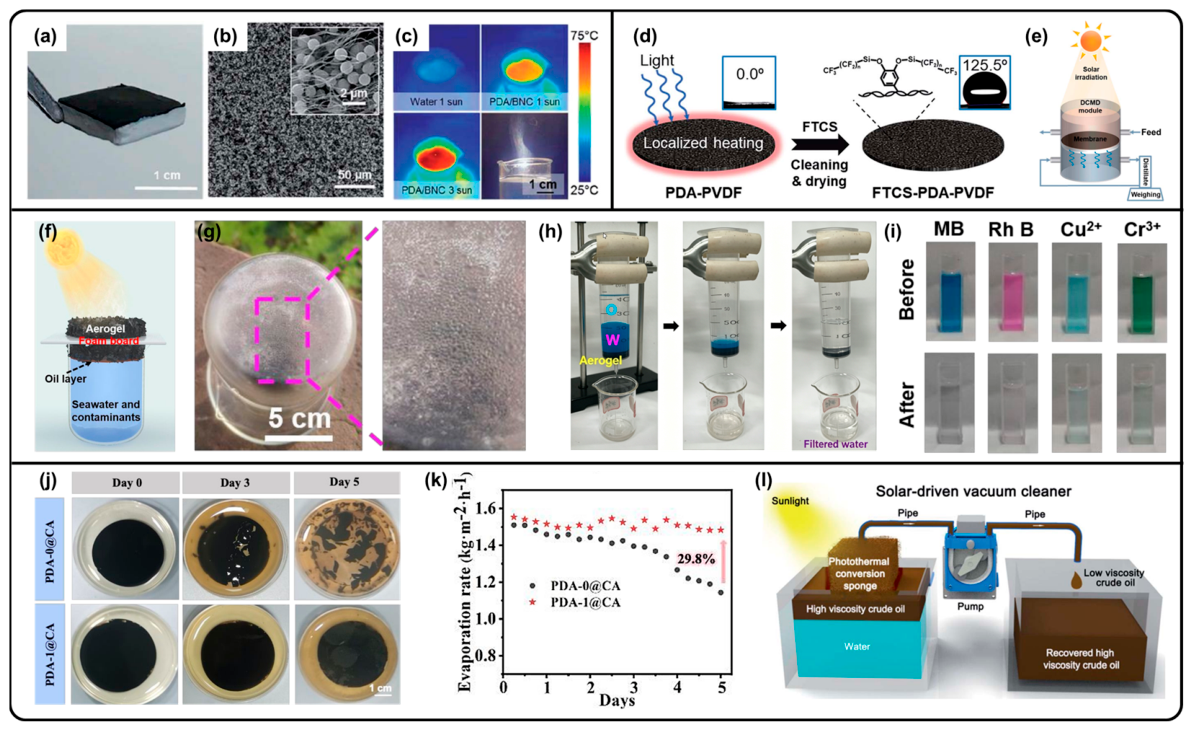

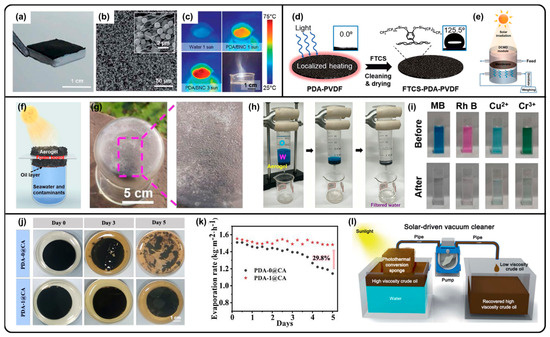

Figure 4. (a) Photograph and (b) SEM image of PDA-coated BNC foam. (c) IR images of water and PDA-coated BNC under 1-sun and 3-sun illumination and photograph of PDA-coated BNC under 3-sun illumination with visible steam generation. (a–c) Reproduced with permission [48]. Copyright 2017 Royal Society of Chemistry. (d) Schematic illustration of synthesis of FTCS-PDA-PVDF membrane and (e) solar-driven DCMD system. (d,e) Reproduced with permission [125]. Copyright 2018 Royal Society of Chemistry. (f) Schematic depiction of melanin-like aerogel-based solar desalination device. (g) Optical images of outdoor solar steam generation experiment. (h) Photographs of oil–water separation and dye removal process. (i) Photographs of different contaminant solutions before and after aerogel treatment. (f–i) Reproduced with permission [124]. Copyright 2023 Royal Society of Chemistry. (j) Optical images of PDA- and TOC-PDA-based membrane immersed in bacterial solution for different periods. (k) Cycling stability of PDA- and TOC-PDA-based membrane after being immersed in bacterial solution for 5 days. (j,k) Reproduced with permission [66]. Copyright 2023 Royal Society of Chemistry. (l) Schematic illustration of solar-driven vacuum cleaner for continuous separation of high-viscosity crude oil on water surface. Reproduced with permission. Copyright 2018 Royal Society of Chemistry [126].
A series of all-in-one melanin-like polymer-based aerogels for water remediation, such as a PDA-coated cellulose aerogel [49] and DHI-formaldehyde aerogel [124], were also developed. They do not only exhibit effective solar-driven evaporation abilities but also absorb contaminants, such as organic dyes, through hydrogen bonding and electrostatic interactions (Figure 4f–i) [49,124]. However, in the real world, sewage is filled with bacteria, which may cause degradation and reduce the photothermal effect of PDA. Notably, including tobramycin (TOB), a natural broad-spectrum antibiotic with a structure of amino-functionalized glycosidic bonds, in the PDA system can achieve the long-term and on-demand release of antibiotics, which could be composed with a cellulose film for durable solar desalination even under bacteria-rich environments (Figure 4j,k) [66].
Furthermore, a hydrophilic PDA-coated melamine sponge could be transformed into an oleophilic sponge through the deposition of polydimethylsiloxane (PDMS), which could reduce the viscosity of crude oil through self-heating for oil spill remediation (Figure 4l) [126].

3.4. Sensing and Imaging

By taking advantage of the excellent photothermal effect, PDA-based materials have been applied for sensing and imaging. PDA NPs have been demonstrated to achieve the reversible modulation of the electrical activity of excitable cells through their photothermal effects, due to their broad light-harvesting abilities, biocompatibility, and biodegradability. A collagen/PDA NP composite foam was fabricated to enhance the interfacing between PDA photothermal transducers and excitable cells, as well as realizing the spatial localization of the photothermal stimulus (Figure 5a,b) [102]. Due to the high blackness and reflective index and good dispersibility in aqueous solution, a series of metal ion-doped PDA NPs with good photothermal behavior as NIR imaging inks were developed (Figure 5c) [113]. PDA-encapsulated Cu3(PO4)2 nanosheets could be adhered to C-reactive protein (CRP) for the photothermal detection and immunosensing of CRP. The temperature changes presented a linear relationship with the CRP concentration from 0.42 to 16 pM, demonstrating a low-cost, biocompatible photothermal immunosensor for protein biomarker detection (Figure 5d) [86]. The light-to-heat conversion of PDA coatings improved the thermal desorption of antireflection polished 304 stainless steel (AR-SS) for high-sensitivity laser desorption ionization mass spectrometry imaging (LDI-MSI) (Figure 5e) [62]. A well-defined contrast agent based on PPy-PDA hybrid-coated silica NPs achieved the amplification of the photoacoustic imaging (PAI) signal intensity, which was dominated by the photothermal effects of the contrast agents [139].

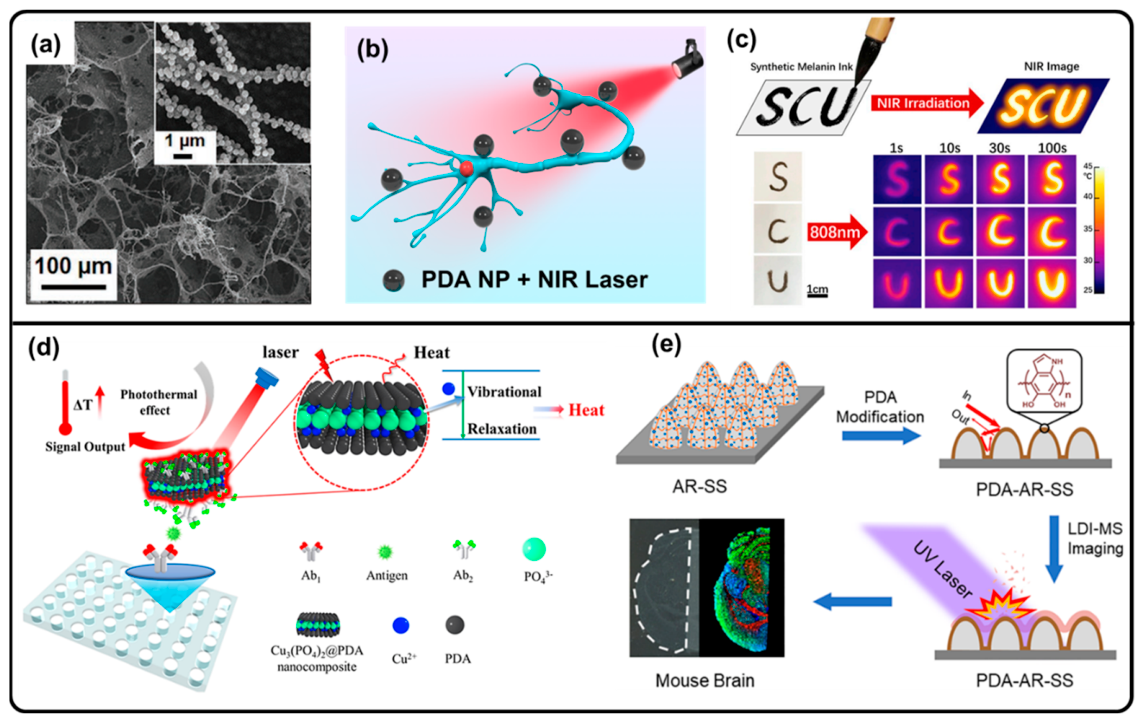

Figure 5. (a) SEM image of collagen/PDA NP composite foam (inset: high-magnification SEM image). (b) PDA NP-mediated photothermal stimulation of neurons. (a,b) Reproduced with permission [102]. Copyright 2021 Wiley-VCH. (c) Schematic illustration of NIR imaging by PDA inks and IR images of SCU letters under NIR illumination. Reproduced with permission [113]. Copyright 2020 Elsevier. (d) Schematic illustration of photothermal immunosensor using PDA-encapsulated Cu3(PO4)2 nanosheets. (d) Reproduced with permission [86]. Copyright 2019 American Chemical Society. (e) High-sensitivity laser desorption ionization MSI enhanced by photothermal effect of PDA coating through thermal desorption. Reproduced with permission [62]. Copyright 2019 American Chemical Society.

3.5. Actuation and Self-Healing

PDA coatings with good adhesion and light-to-heat conversion abilities can be used to fabricate light-induced shape transition composites. For example, PDA thin films can not only reduce graphene oxide (GO) to reduced GO (rGO) and provide hydrophilicity for water absorption but also endow the composite with NIR-induced bending/unbending behavior due to the water absorption/desorption abilities, resulting in programmable instant self-folding walking devices (Figure 6a) [32,54]. In addition, PDA-coated shape memory membranes can achieve light-controlled shape programming through the photothermal effect of PDA [55]. Shape memory materials can also be fabricated by PEG-DA and Fe(III) through coordination bonds, with internal stress relaxation properties and broad NIR light absorption abilities. After gluing to aluminum foil, a bilayer actuator could be used as a light-driven switch to achieve the controllable “on–off” switching of a bulb under NIR irradiation (Figure 6b) [140]. Photothermal composite actuators were fabricated through incorporating melanin-like poly(L-DOPA) NPs into PDMS films, achieving folding, switching, and forward-moving performance (Figure 6c,d) [16]. Furthermore, PDA-coated Fe3O4-encapsuled CHCl3 droplets could be remotely controlled to ascend, shuttle, and suspend in aqueous solution by NIR laser irradiation due to the generation of small bubbles through the photothermal effect (Figure 6e) [73].

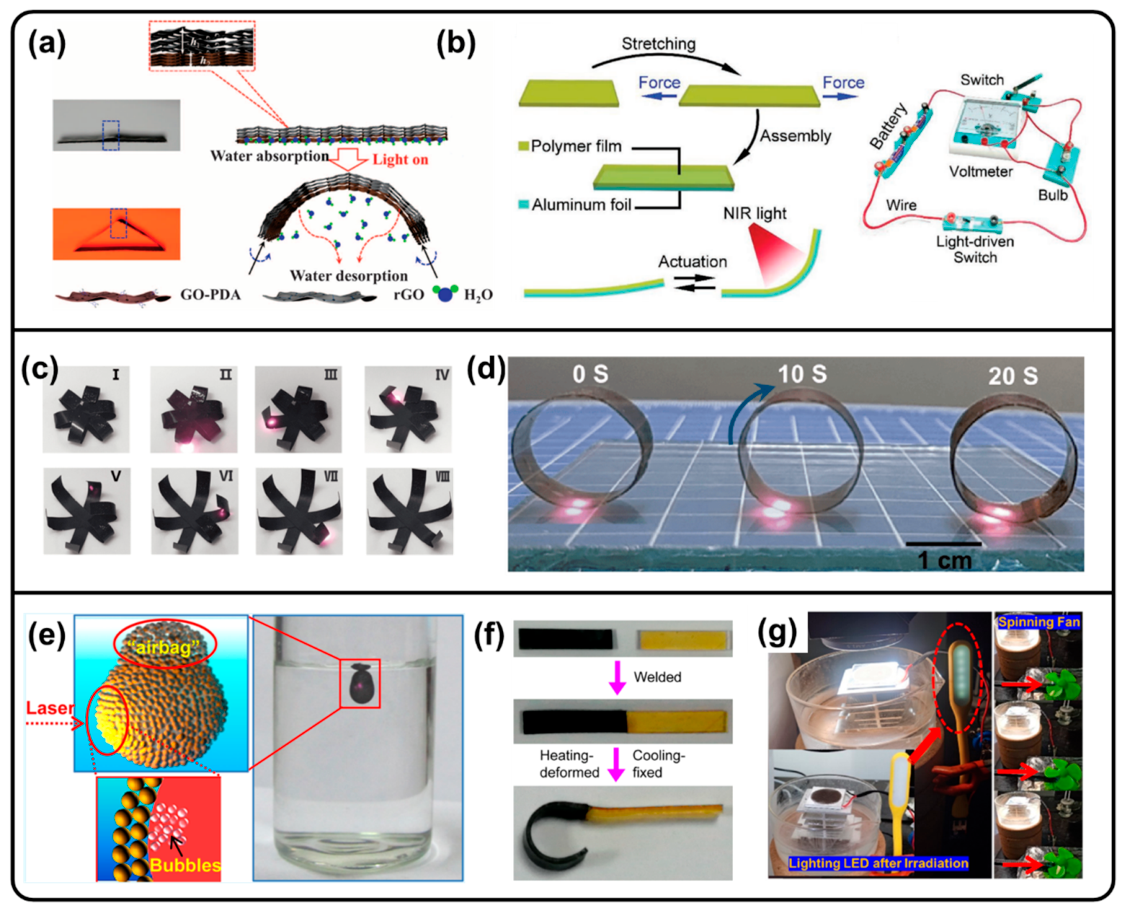

Figure 6. (a) Schematic illustration of bending/unbending mechanism of PDA-coated GO/rGO film. Reproduced with permission [32]. Copyright 2015 American Association for the Advancement of Science. (b) Schematic illustration of fabrication of bilayer laminate through shape memory polymer and aluminum foil, with light-driven switches applied to control a bulb. Reproduced with permission [140]. Copyright 2021 Wiley-VCH. (c) Optical images of shape memory behavior of poly(L-DOPA) NP-doped PDMS film triggered by NIR irradiation (I: Closed initial state. II–VII: NIR irradiation sequentially triggers petal-by-petal opening. VIII: Fully recovered, open permanent shape.). (d) Optical image of a forward-moving motor driven by NIR irradiation. (c,d) Reproduced with permission [16]. Copyright 2020 Springer Nature. (e) Remote manipulation of a microdroplet encapsulated by core–shell Fe3O4@PDA NPs by NIR irradiation. Reproduced with permission [73]. Copyright 2016 American Chemical Society. (f) Photographs of the self-healing and photothermal deformation performance of PU/PDA composites. Reproduced with permission [127]. Copyright 2022 American Chemical Society. (g) Photo-thermoelectric conversion device to light an LED light and turn on a spinning fan. Reproduced with permission [36]. Copyright 2022 American Chemical Society.
A dynamic crosslinked polyurea/PDA NP nanocomposite has been fabricated with remotely photoresponsive self-healing properties due to the enhanced photothermal effect of PDA NPs (Figure 6f) [127]. The fast self-healing process is facilitated by NIR irradiation, resulting in the dynamic exchange reaction of the hindered urea bonds. Moreover, Diels–Alder (DA) dynamic bonds in crosslinked polyurethane blended with PDA NPs can also enable shape recovery and self-healing through the photothermal effect of PDA, as well as the photothermally dynamic nature of DA bonds [56]. Notably, solar photothermoelectric device can also be fabricated through polyDHI/PES resin composite membranes combined with aluminum plates, which could successfully light an LED light and turn on a spinning fan under sunlight illumination (Figure 6g) [36,37,57,118].

4. Discussion

Over the past few years, melanin-like polymers have been well documented as light-harvesting and conversion agents for a wide range of applications, including photothermal therapy, catalysis, water remediation, and soft actuators [3,4,41]. Despite these successes, several critical challenges remain that hinder their further development and practical translation.
Firstly, the intrinsic dark color of most melanin-like polymers limits their application in cosmetics, sunscreens, and transparent devices. While broadening the bandgap can reduce visible and NIR absorption while enhancing UV shielding, achieving light-colored or transparent melanin-like materials remains a significant hurdle. Future efforts should focus on molecular engineering to disrupt long-range π-conjugation without sacrificing UV protection, e.g., by introducing twisted monomer units such as DHICA or aliphatic spacers.
Secondly, although melanin-like polymers are generally considered biocompatible due to their natural origin, strategies to enhance light absorption often rely on introducing non-natural heterocyclic compounds or high concentrations of metal ions. The long-term biological safety of such modified materials requires systematic evaluation. Moreover, increasing the quinone content, a common approach to boost absorption, may compromise the intrinsic adhesion and solubility of polydopamine and its analogs [15,16]. To address these issues, we suggest a shift toward naturally derived building blocks (e.g., gallic acid, caffeic acid) and tighter control over metal ion loading to avoid excess leaching, combined with long-term in vivo degradation studies.
Thirdly, the polymerization mechanism of melanin-like polymers remains incompletely understood. The precise chemical structures, the identity and distribution of chromophoric units (e.g., DHI, DHICA, indolequinone), and the polymerization pathways under different conditions (acidic, alkaline, radical-mediated) are still debated. A clearer structure–property relationship is essential for rational material design. Computational simulations and machine learning approaches have recently been applied to predict absorption spectra and molecular conformations, offering promising tools to unravel these complexities. Specifically, for extending absorption into the NIR-II window (1000–1700 nm), machine learning could guide the design of donor–acceptor pairs or quinoid-rich domains, while synthetic strategies such as condensation polymerization or covalent doping with strong acceptors should be systematically explored.
Fourthly, the gap between laboratory-scale investigations and real-world applications is substantial. Photostability is a major concern: polyphenolic moieties are prone to oxidation under prolonged light exposure, leading to the gradual loss of photothermal performance. Additionally, small oligomers or unreacted monomers may leach out from the polymer network, especially in aqueous environments, raising concerns about environmental and biological safety. Furthermore, the synthetic yield of artificial melanin is typically very low, making large-scale production cost-prohibitive. To overcome these barriers, encapsulation strategies such as using silica or polymer shells could be employed to slow photooxidation, while covalent crosslinking may help to reduce monomer or oligomer leaching. Furthermore, developing continuous flow or enzyme-catalyzed polymerization methods would improve synthetic yields and scalability. These limitations have different weight depending on the application: for water remediation membranes (Section 3.3), leaching and oxidative stability are the primary concerns; for therapeutic applications (Section 3.1), biodegradation kinetics and the clearance of metabolites are most critical; for catalysis (Section 3.2), photostability under prolonged irradiation dominates.
Beyond visible and NIR absorption, other types of melanin—such as pheomelanin and allomelanin (e.g., fungal melanin)—have been shown to absorb shorter-wavelength radiation, including UV, gamma, and X-rays. Fungal melanin, found in high-radiation environments like Chernobyl, is particularly promising as a radioprotective material [141,142]. Expanding the scope of melanin-like polymers to cover the entire electromagnetic spectrum could open up new avenues in radiation shielding and space applications.
We also acknowledge the limited understanding of material failure under realistic conditions. First, the long-term photostability of melanin-like polymers remains a concern; prolonged light exposure gradually reduces their photothermal efficiency due to photooxidation [4]. Second, metal ions chelated for enhanced NIR absorption may leach out under acidic or physiologically relevant conditions, and unreacted monomers or oligomers can also diffuse from the polymer network, raising safety concerns for in vivo applications [27,29]. Third, the biodegradation kinetics of these materials in complex biological environments (e.g., serum, tissue, or microbial communities) are poorly characterized [64,66]. While PDA degrades slowly over weeks to months, the actual degradation rate varies significantly with the local pH, enzyme activity, and protein adsorption. These factors must be carefully considered when designing melanin-like polymers for long-term implants or rapidly clearing devices.
Lastly, while the melanin-like polymer family also includes poly(norepinephrine), synthetic fungal melanin, and other polyphenolic platforms, the present review focuses on those with well-established photothermal performance, i.e., polydopamine (PDA), poly(DHI), and their derivatives [19,142,143]. Compared to gold nanoparticles and MXenes, which exhibit narrow plasmonic absorption peaks, melanin-like polymers offer broad absorption from UV to NIR without shape engineering. Relative to carbon-based nanomaterials (carbon nanotubes, graphene oxide), melanin-like polymers are intrinsically biocompatible, biodegradable, and rich in surface-functional groups for post-modification, although their photothermal conversion efficiency per mass is generally lower. Hence, melanin-like polymers are best suited for applications where moderate yet broadband absorption, safety, and chemical versatility are prioritized, such as in injectable hydrogels, biodegradable coatings, and theranostic platforms.

5. Conclusions

In conclusion, melanin-like polymers have proven themselves as highly versatile and efficient photothermal materials, finding promising applications in cancer therapy, antibacterial treatment, catalysis, water remediation, sensing, imaging, actuation, and self-healing. Despite this remarkable progress, several critical challenges remain. The intrinsic dark color limits their use in cosmetics and transparent devices, although melanin’s natural dark hue can actually function as a constituent for generating structural colors through orderly arrangement at the nanoscale (e.g., feather barbules) [144,145]. Moving from color to performance, enhancing light absorption often introduces non-natural components that may compromise biocompatibility. Moreover, the polymerization mechanisms and structure–property relationships are still not fully understood, and practical issues such as poor photostability, oligomer leaching, and low synthetic yields hinder large-scale production. Overcoming these obstacles will require close collaboration across polymer chemistry, materials engineering, and computational modeling. Nevertheless, with continued innovation in synthesis and material design, melanin-like polymers hold great promise to become key components in next-generation photothermal technologies for sustainable energy, clean water, precision medicine, and soft robotics.

Author Contributions

Conceptualization, X.L. and Y.Z.; literature curation, Y.Z., J.D., J.Y., S.L., C.C., D.H. and F.Y.; writing—original draft preparation, Y.Z.; writing—review and editing, X.L., J.D., J.Y., S.L., C.C., D.H. and F.Y.; visualization, Y.Z., Y.Z. and J.D.; supervision, X.L.; project administration, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Youth Foundation of Yunnan Province (202501AU070046), the Programs of the Science and Technology Department of Yunnan Province (YNQR-QNRC2018-099), and the Opening Project of the State Key Laboratory of Advanced Polymer Materials, Sichuan University (sklapm2025-3-32).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data contained within this review are available by accessing the articles cited in the bibliography. No new data were created for this review.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

PDApolydopamine
NPnanoparticle
MPDAmesoporous polydopamine
DHI5,6-dihydroxyindole
DHICA5,6-dihydroxyindole-2-carboxylic acid
DOPA3,4-dihydroxyphenylalanine
NIRnear-infrared
UVultraviolet
ROSreactive oxygen species
BNCbacterial nanocellulose
rGOreduced graphene oxide
LMCTligand-to-metal charge transfer
ICGindocyanine green
PAMAMpoly(amidoamine)
NONOateN-diazeniumdiolate
TCCAtrichloroisocyanuric acid
HCCPhexachlorocyclotriphosphazene
CCcyanogen chloride
MTmercaptotetrazole (and derivatives MMT, PMT, NMT)
APNadiponectin
TOBtobramycin
LAPDAlaser-annealed polydopamine
MSNmesoporous silica nanoparticle
BGNbioactive glass nanoparticle
UCNPsupconversion nanoparticles
TEMPO2,2,6,6-tetramethylpiperidinyl-1-oxide
EGCGepigallocatechin gallate
RGDarginine–glycine–aspartic acid peptide

References

  1. Ruggenthaler, M.; Tancogne-Dejean, N.; Flick, J.; Appel, H.; Rubio, A. From a quantum-electrodynamical light–matter description to novel spectroscopies. Nat. Rev. Chem. 2018, 2, 0118. [Google Scholar] [CrossRef] [Scilit]
  2. Aydin, K.; Ferry, V.E.; Briggs, R.M.; Atwater, H.A. Broadband polarization-independent resonant light absorption using ultrathin plasmonic super absorbers. Nat. Commun. 2011, 2, 517. [Google Scholar] [CrossRef] [Scilit]
  3. Liu, Y.; Ai, K.; Liu, J.; Deng, M.; He, Y.; Lu, L. Dopamine-Melanin Colloidal Nanospheres: An Efficient Near-Infrared Photothermal Therapeutic Agent for In Vivo Cancer Therapy. Adv. Mater. 2013, 25, 1353–1359. [Google Scholar] [CrossRef] [Scilit]
  4. Zou, Y.; Chen, X.; Yang, P.; Liang, G.; Yang, Y.; Gu, Z.; Li, Y. Regulating the absorption spectrum of polydopamine. Sci. Adv. 2020, 6, eabb4649. [Google Scholar] [CrossRef] [Scilit]
  5. Cao, H.; Yang, L.; Tian, R.; Wu, H.; Gu, Z.; Li, Y. Versatile polyphenolic platforms in regulating cell biology. Chem. Soc. Rev. 2022, 51, 4175–4198. [Google Scholar] [CrossRef] [Scilit]
  6. Zhang, T.; Hu, J.; Guo, L.; Gu, Z.; Jiang, X.; Li, Y. Nature-inspired safe and efficient hair dyes: Beyond the traditional hair dyes. Green Chem. 2024, 26, 3125–3138. [Google Scholar] [CrossRef] [Scilit]
  7. Li, M.; Bai, W.; Yang, Y.; Zhang, X.; Wu, H.; Li, Y.; Xu, Y. Waste Tea-Derived Theabrownins for Solar-Driven Steam Generation. ACS Appl. Mater. Interfaces 2024, 16, 10158–10169. [Google Scholar] [CrossRef] [Scilit]
  8. d’Ischia, M.; Wakamatsu, K.; Cicoira, F.; Di Mauro, E.; Garcia-Borron, J.C.; Commo, S.; Galván, I.; Ghanem, G.; Kenzo, K.; Meredith, P.; et al. Melanins and melanogenesis: From pigment cells to human health and technological applications. Pigment Cell Melanoma Res. 2015, 28, 520–544. [Google Scholar] [CrossRef] [Scilit]
  9. Hong, L.; Simon, J.D. Current Understanding of the Binding Sites, Capacity, Affinity, and Biological Significance of Metals in Melanin. J. Phys. Chem. B 2007, 111, 7938–7947. [Google Scholar] [CrossRef] [Scilit]
  10. Yang, Z.; Wang, X.; Bai, W.; Zou, Z.; Wu, H.; Li, Y. Structural disruption of melanin-like polymers with boosted UV protection. Sci. China Chem. 2024, 67, 1653–1663. [Google Scholar] [CrossRef] [Scilit]
  11. Cao, H.; Zhu, J.; Zhang, J.; Yang, L.; Guo, X.; Tian, R.; Wu, H.; Li, Y.; Gu, Z. In Situ Fabrication of Robust Polyphenolic Hydrogels for Skin Protection and Repair. Chem. Mater. 2023, 35, 2191–2201. [Google Scholar] [CrossRef] [Scilit]
  12. Wang, T.; Zhao, J.; Yang, Z.; Xiong, L.; Li, L.; Gu, Z.; Li, Y. Polyphenolic sunscreens for photoprotection. Green Chem. 2022, 24, 3605–3622. [Google Scholar] [CrossRef] [Scilit]
  13. Hu, J.; Yang, L.; Yang, P.; Jiang, S.; Liu, X.; Li, Y. Polydopamine free radical scavengers. Biomater. Sci. 2020, 8, 4940–4950. [Google Scholar] [CrossRef] [Scilit]
  14. Simon, J.D.; Peles, D.N. The Red and the Black. Acc. Chem. Res. 2010, 43, 1452–1460. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Liu, Y.; Ai, K.; Lu, L. Polydopamine and Its Derivative Materials: Synthesis and Promising Applications in Energy, Environmental, and Biomedical Fields. Chem. Rev. 2014, 114, 5057–5115. [Google Scholar] [CrossRef] [Scilit]
  16. Wang, X.; Yang, L.; Yang, P.; Guo, W.; Zhang, Q.-P.; Liu, X.; Li, Y. Metal ion-promoted fabrication of melanin-like poly(L-DOPA) nanoparticles for photothermal actuation. Sci. China Chem. 2020, 63, 1295–1305. [Google Scholar] [CrossRef] [Scilit]
  17. Chang, C.; Long, S.; Deng, J.; Shen, X.; Sun, H.; Lin, X.; Zou, Y. Engineering the Melanin Building Block DHICA into a Fe3+ Coordination Coating for Solar Evaporation. Langmuir 2026, 42, 7238–7247. [Google Scholar] [CrossRef] [Scilit]
  18. Lee, H.; Dellatore, S.M.; Miller, W.M.; Messersmith, P.B. Mussel-Inspired Surface Chemistry for Multifunctional Coatings. Science 2007, 318, 426–430. [Google Scholar] [CrossRef] [Scilit]
  19. Zhang, H.; Huang, C.; Zhang, J.; Wang, C.; Wang, T.; Shi, S.; Gu, Z.; Li, Y. Synthetic fungal melanin nanoparticles with excellent antioxidative property. Giant 2022, 12, 100120. [Google Scholar] [CrossRef] [Scilit]
  20. Yang, P.; Zhu, F.; Zhang, Z.; Cheng, Y.; Wang, Z.; Li, Y. Stimuli-responsive polydopamine-based smart materials. Chem. Soc. Rev. 2021, 50, 8319–8343. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Yang, L.; Guo, X.; Jin, Z.; Guo, W.; Duan, G.; Liu, X.; Li, Y. Emergence of melanin-inspired supercapacitors. Nano Today 2021, 37, 101075. [Google Scholar] [CrossRef] [Scilit]
  22. Jin, Z.; Yang, L.; Shi, S.; Wang, T.; Duan, G.; Liu, X.; Li, Y. Flexible Polydopamine Bioelectronics. Adv. Funct. Mater. 2021, 31, 2103391. [Google Scholar] [CrossRef] [Scilit]
  23. Fu, Y.; Yang, L.; Zhang, J.; Hu, J.; Duan, G.; Liu, X.; Li, Y.; Gu, Z. Polydopamine antibacterial materials. Mater. Horiz. 2021, 8, 1618–1633. [Google Scholar] [CrossRef] [Scilit]
  24. Koshevaya, E.; Lifanovsky, N.; Shishmakova, E.; Staltsov, M.; Dubovik, A.; Belousov, A.; Kaluzhny, D.; Kuzmin, V.; Morozov, V.; Kolyvanova, M.; et al. Interaction of BSA with Ta2O5 Nanoparticles: The Effect of Polydopamine Pre-Coating. Molecules 2026, 31, 241. [Google Scholar] [CrossRef] [Scilit]
  25. Lo Presti, A.; Molinari, F.N.; Abate, C.; Fazio, E.; Corsaro, C.; Giuffrè, O.; Piperno, A.; Neri, G.; Foti, C. Electrochemical Detection of Levofloxacin Using a Polydopamine-Based Molecular Imprinting Polymer. Molecules 2026, 31, 52. [Google Scholar] [CrossRef] [Scilit]
  26. Farokhi, M.; Mottaghitalab, F.; Saeb, M.R.; Thomas, S. Functionalized theranostic nanocarriers with bio-inspired polydopamine for tumor imaging and chemo-photothermal therapy. J. Control. Release 2019, 309, 203–219. [Google Scholar] [CrossRef] [Scilit]
  27. Wang, Z.; Zou, Y.; Li, Y.; Cheng, Y. Metal-Containing Polydopamine Nanomaterials: Catalysis, Energy, and Theranostics. Small 2020, 16, 1907042. [Google Scholar] [CrossRef] [Scilit]
  28. Cheng, W.; Zeng, X.; Chen, H.; Li, Z.; Zeng, W.; Mei, L.; Zhao, Y. Versatile Polydopamine Platforms: Synthesis and Promising Applications for Surface Modification and Advanced Nanomedicine. ACS Nano 2019, 13, 8537–8565. [Google Scholar] [CrossRef] [Scilit]
  29. Li, N.; Zou, Y.; Zhang, X.; Jin, Z.; Yang, Y.; Yang, L.; Duan, G.; Xu, Y.; Li, Y. Degradable and Recyclable Solar Desalination Membranes Based on Naturally Occurring Building Blocks. Chem. Mater. 2022, 34, 10399–10408. [Google Scholar] [CrossRef] [Scilit]
  30. Zong, L.; Li, M.; Li, C. Intensifying solar-thermal harvest of low-dimension biologic nanostructures for electric power and solar desalination. Nano Energy 2018, 50, 308–315. [Google Scholar] [CrossRef] [Scilit]
  31. Ding, W.; Chechetka, S.A.; Masuda, M.; Shimizu, T.; Aoyagi, M.; Minamikawa, H.; Miyako, E. Lipid Nanotube Tailored Fabrication of Uniquely Shaped Polydopamine Nanofibers as Photothermal Converters. Chem. Eur. J. 2016, 22, 4345–4350. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  32. Mu, J.; Hou, C.; Wang, H.; Li, Y.; Zhang, Q.; Zhu, M. Origami-inspired active graphene-based paper for programmable instant self-folding walking devices. Sci. Adv. 2015, 1, e1500533. [Google Scholar] [CrossRef] [Scilit]
  33. Lee, K.; Park, M.; Malollari, K.G.; Shin, J.; Winkler, S.M.; Zheng, Y.; Park, J.H.; Grigoropoulos, C.P.; Messersmith, P.B. Laser-induced graphitization of polydopamine leads to enhanced mechanical performance while preserving multifunctionality. Nat. Commun. 2020, 11, 4848. [Google Scholar] [CrossRef] [Scilit]
  34. Hu, C.; Chen, H.; Zheng, J.; Zhou, S.; Yang, X.; Ngocho, K.; Xie, T.; Wang, K.; Liu, J. Interfacial Polymerization Fabricated Polydopamine Capsules as a Step Toward a Photothermal Protocell Model. Adv. Funct. Mater. 2024, 35, 2412408. [Google Scholar] [CrossRef] [Scilit]
  35. Chen, W.; Wang, Y.; Qin, M.; Zhang, X.; Zhang, Z.; Sun, X.; Gu, Z. Bacteria-Driven Hypoxia Targeting for Combined Biotherapy and Photothermal Therapy. ACS Nano 2018, 12, 5995–6005. [Google Scholar] [CrossRef] [Scilit]
  36. Bai, W.; Xiang, P.; Liu, H.; Guo, H.; Tang, Z.; Yang, P.; Zou, Y.; Yang, Y.; Gu, Z.; Li, Y. Molecular Hyperpolarization-Directed Photothermally Enhanced Melanin-Inspired Polymers. Macromolecules 2022, 55, 6426–6434. [Google Scholar] [CrossRef] [Scilit]
  37. Bai, W.; Yang, P.; Liu, H.; Zou, Y.; Wang, X.; Yang, Y.; Gu, Z.; Li, Y. Boosting the Optical Absorption of Melanin-like Polymers. Macromolecules 2022, 55, 3493–3501. [Google Scholar] [CrossRef] [Scilit]
  38. Wang, X.; Wang, C.; Wang, X.; Wang, Y.; Zhang, Q.; Cheng, Y. A Polydopamine Nanoparticle-Knotted Poly(ethylene glycol) Hydrogel for On-Demand Drug Delivery and Chemo-photothermal Therapy. Chem. Mater. 2017, 29, 1370–1376. [Google Scholar] [CrossRef] [Scilit]
  39. He, G.; Chen, S.; Xu, Y.; Miao, Z.; Ma, Y.; Qian, H.; Lu, Y.; Zha, Z. Charge reversal induced colloidal hydrogel acts as a multi-stimuli responsive drug delivery platform for synergistic cancer therapy. Mater. Horiz. 2019, 6, 711–716. [Google Scholar] [CrossRef] [Scilit]
  40. Fu, Y.; Wan, R.; Yang, L.; Xiong, L.; Hu, J.; Tang, J.; He, H.; Gu, Z.; Li, L.; Li, Y. Propolis inspired sunscreens for efficient UV-protection and skin barrier maintenance. Nano Res. 2022, 15, 8237–8246. [Google Scholar] [CrossRef] [Scilit]
  41. Hong, S.; Wang, Y.; Park, S.Y.; Lee, H. Progressive fuzzy cation-π assembly of biological catecholamines. Sci. Adv. 2018, 4, eaat7457. [Google Scholar] [CrossRef] [Scilit]
  42. Yang, P.; Zhang, S.; Zhang, N.; Wang, Y.; Zhong, J.; Sun, X.; Qi, Y.; Chen, X.; Li, Z.; Li, Y. Tailoring Synthetic Melanin Nanoparticles for Enhanced Photothermal Therapy. ACS Appl. Mater. Interfaces 2019, 11, 42671–42679. [Google Scholar] [CrossRef] [Scilit]
  43. Song, J.; Liu, H.; Lei, M.; Tan, H.; Chen, Z.; Antoshin, A.; Payne, G.F.; Qu, X.; Liu, C. Redox-Channeling Polydopamine-Ferrocene (PDA-Fc) Coating to Confer Context-Dependent and Photothermal Antimicrobial Activities. ACS Appl. Mater. Interfaces 2020, 12, 8915–8928. [Google Scholar] [CrossRef] [Scilit]
  44. Yuan, Z.; Tao, B.; He, Y.; Liu, J.; Lin, C.; Shen, X.; Ding, Y.; Yu, Y.; Mu, C.; Liu, P.; et al. Biocompatible MoS2/PDA-RGD coating on titanium implant with antibacterial property via intrinsic ROS-independent oxidative stress and NIR irradiation. Biomaterials 2019, 217, 119290. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Guo, H.; Cao, Z.; Li, J.; Fu, Z.; Lin, S.; Wang, L.; Liu, J. Integrating Bacteria with a Ternary Combination of Photosensitizers for Monochromatic Irradiation-Mediated Photoacoustic Imaging-Guided Synergistic Photothermal Therapy. ACS Nano 2023, 17, 5059–5071. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  46. Chen, M.-X.; Dai, J.-Y.; Zhang, L.-Y.; Wang, S.-P.; Liu, J.-K.; Wu, Y.-G.; Ba, X.-W.; Liu, X.-Q. The Role of Renewable Protocatechol Acid in Epoxy Coating Modification: Significantly Improved Antibacterial and Adhesive Properties. Chin. J. Polym. Sci. 2024, 42, 63–72. [Google Scholar] [CrossRef] [Scilit]
  47. Yao, A.; Jiao, X.; Chen, D.; Li, C. Bio-Inspired Polydopamine-Mediated Zr-MOF Fabrics for Solar Photothermal-Driven Instantaneous Detoxification of Chemical Warfare Agent Simulants. ACS Appl. Mater. Interfaces 2020, 12, 18437–18445. [Google Scholar] [CrossRef] [Scilit]
  48. Jiang, Q.; Gholami Derami, H.; Ghim, D.; Cao, S.; Jun, Y.-S.; Singamaneni, S. Polydopamine-filled bacterial nanocellulose as a biodegradable interfacial photothermal evaporator for highly efficient solar steam generation. J. Mater. Chem. A 2017, 5, 18397–18402. [Google Scholar] [CrossRef] [Scilit]
  49. Zou, Y.; Zhao, J.; Zhu, J.; Guo, X.; Chen, P.; Duan, G.; Liu, X.; Li, Y. A Mussel-Inspired Polydopamine-Filled Cellulose Aerogel for Solar-Enabled Water Remediation. ACS Appl. Mater. Interfaces 2021, 13, 7617–7624. [Google Scholar] [CrossRef] [Scilit]
  50. Zhang, X.; Yan, Y.; Li, N.; Yang, P.; Yang, Y.; Duan, G.; Wang, X.; Xu, Y.; Li, Y. A robust and 3D-printed solar evaporator based on naturally occurring molecules. Sci. Bull. 2023, 68, 203–213. [Google Scholar] [CrossRef] [Scilit]
  51. Xu, Y.; Hu, J.; Zhang, X.; Yuan, D.; Duan, G.; Li, Y. Robust and multifunctional natural polyphenolic composites for water remediation. Mater. Horiz. 2022, 9, 2496–2517. [Google Scholar] [CrossRef] [Scilit]
  52. Lemaster, J.E.; Wang, Z.; Hariri, A.; Chen, F.; Hu, Z.; Huang, Y.; Barback, C.V.; Cochran, R.; Gianneschi, N.C.; Jokerst, J.V. Gadolinium Doping Enhances the Photoacoustic Signal of Synthetic Melanin Nanoparticles: A Dual Modality Contrast Agent for Stem Cell Imaging. Chem. Mater. 2019, 31, 251–259. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  53. Hu, H.; Yang, Q.; Baroni, S.; Yang, H.; Aime, S.; Steinmetz, N.F. Polydopamine-decorated tobacco mosaic virus for photoacoustic/magnetic resonance bimodal imaging and photothermal cancer therapy. Nanoscale 2019, 11, 9760–9768. [Google Scholar] [CrossRef] [Scilit]
  54. Ji, M.; Jiang, N.; Chang, J.; Sun, J. Near-Infrared Light-Driven, Highly Efficient Bilayer Actuators Based on Polydopamine-Modified Reduced Graphene Oxide. Adv. Funct. Mater. 2014, 24, 5412–5419. [Google Scholar] [CrossRef] [Scilit]
  55. Chen, T.; Li, H.; Li, Z.; Jin, Q.; Ji, J. A “writing” strategy for shape transition with infinitely adjustable shaping sequences and in situ tunable 3D structures. Mater. Horiz. 2016, 3, 581–587. [Google Scholar] [CrossRef] [Scilit]
  56. Yang, L.; Lu, X.; Wang, Z.; Xia, H. Diels–Alder dynamic crosslinked polyurethane/polydopamine composites with NIR triggered self-healing function. Polym. Chem. 2018, 9, 2166–2172. [Google Scholar] [CrossRef] [Scilit]
  57. Zou, Y.; Liu, H.; Wang, X.; Xu, Y.; Yang, Y.; Bai, W.; Li, Y. Light Harvesting Modulation of Melanin-Like Polymers via Thiol-Michael “Click” Chemistry. Macromolecules 2023, 56, 9530–9539. [Google Scholar] [CrossRef] [Scilit]
  58. Zou, Y.; Wang, T.; Lin, X.; Yang, L.; Li, Y. Regulation of the Light Absorption and Photothermal Performance of Melanin-Like Polymers. Acc. Chem. Res. 2025, 58, 2815–2829. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  59. Xi, Y.; Ge, J.; Wang, M.; Chen, M.; Niu, W.; Cheng, W.; Xue, Y.; Lin, C.; Lei, B. Bioactive Anti-inflammatory, Antibacterial, Antioxidative Silicon-Based Nanofibrous Dressing Enables Cutaneous Tumor Photothermo-Chemo Therapy and Infection-Induced Wound Healing. ACS Nano 2020, 14, 2904–2916. [Google Scholar] [CrossRef] [Scilit]
  60. Cao, S.; Wu, X.; Zhu, Y.; Gupta, R.; Tan, A.; Wang, Z.; Jun, Y.-S.; Singamaneni, S. Polydopamine/hydroxyapatite nanowire-based bilayered membrane for photothermal-driven membrane distillation. J. Mater. Chem. A 2020, 8, 5147–5156. [Google Scholar] [CrossRef] [Scilit]
  61. Xu, Y.; Xu, H.; Zhu, Z.; Hou, H.; Zuo, J.; Cui, F.; Liu, D.; Wang, W. A mechanically durable, sustained corrosion-resistant photothermal nanofiber membrane for highly efficient solar distillation. J. Mater. Chem. A 2019, 7, 22296–22306. [Google Scholar] [CrossRef] [Scilit]
  62. Yang, J.; Zhang, W.; Zhang, H.; Zhong, M.; Cao, W.; Li, Z.; Huang, X.; Nie, Z.; Liu, J.; Li, P.; et al. Polydopamine-Modified Substrates for High-Sensitivity Laser Desorption Ionization Mass Spectrometry Imaging. ACS Appl. Mater. Interfaces 2019, 11, 46140–46148. [Google Scholar] [CrossRef] [Scilit]
  63. Lei, W.; Ren, K.; Chen, T.; Chen, X.; Li, B.; Chang, H.; Ji, J. Polydopamine Nanocoating for Effective Photothermal Killing of Bacteria and Fungus upon Near-Infrared Irradiation. Adv. Mater. Interfaces 2016, 3, 1600767. [Google Scholar] [CrossRef] [Scilit]
  64. Li, H.; Li, N.; Yang, Y.; Zhang, L.; Bai, W.; Zhang, X.; Xu, Y.; Li, Y. Self-sterilization and self-powered real-time respiratory monitoring of reusable masks engineered by bioinspired coatings. Nano Energy 2023, 115, 108750. [Google Scholar] [CrossRef] [Scilit]
  65. Deng, Y.; Gao, X.; Shi, X.-L.; Lu, S.; Yang, W.; Duan, C.; Chen, Z.-G. Graphene Oxide and Adiponectin-Functionalized Sulfonated Poly(etheretherketone) with Effective Osteogenicity and Remotely Repeatable Photodisinfection. Chem. Mater. 2020, 32, 2180–2193. [Google Scholar] [CrossRef] [Scilit]
  66. Yang, Y.; Yang, L.; Yang, F.; Bai, W.; Zhang, X.; Li, H.; Duan, G.; Xu, Y.; Li, Y. A bioinspired antibacterial and photothermal membrane for stable and durable clean water remediation. Mater. Horiz. 2023, 10, 268–276. [Google Scholar] [CrossRef] [Scilit]
  67. Tan, L.; Tang, W.; Liu, T.; Ren, X.; Fu, C.; Liu, B.; Ren, J.; Meng, X. Biocompatible Hollow Polydopamine Nanoparticles Loaded Ionic Liquid Enhanced Tumor Microwave Thermal Ablation in Vivo. ACS Appl. Mater. Interfaces 2016, 8, 11237–11245. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  68. Guo, K.; Chen, D.; Ren, S.; Younis, M.R.; Teng, Z.; Zhang, L.; Wang, Z.; Tian, Y. Reversing Immune Suppression and Potentiating Photothermal Immunotherapy via Bispecific Immune Checkpoint Inhibitor Loaded Hollow Polydopamine Nanospheres. ACS Appl. Mater. Interfaces 2023, 15, 13879–13891. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  69. Cheng, W.; Nie, J.; Gao, N.; Liu, G.; Tao, W.; Xiao, X.; Jiang, L.; Liu, Z.; Zeng, X.; Mei, L. A Multifunctional Nanoplatform against Multidrug Resistant Cancer: Merging the Best of Targeted Chemo/Gene/Photothermal Therapy. Adv. Funct. Mater. 2017, 27, 1704135. [Google Scholar] [CrossRef] [Scilit]
  70. Huang, C.; Zhang, L.; Guo, Q.; Zuo, Y.; Wang, N.; Wang, H.; Kong, D.; Zhu, D.; Zhang, L. Robust Nanovaccine Based on Polydopamine-Coated Mesoporous Silica Nanoparticles for Effective Photothermal-Immunotherapy Against Melanoma. Adv. Funct. Mater. 2021, 31, 2010637. [Google Scholar] [CrossRef] [Scilit]
  71. Chen, C.; Tang, W.; Jiang, D.; Yang, G.; Wang, X.; Zhou, L.; Zhang, W.; Wang, P. Hyaluronic acid conjugated polydopamine functionalized mesoporous silica nanoparticles for synergistic targeted chemo-photothermal therapy. Nanoscale 2019, 11, 11012–11024. [Google Scholar] [CrossRef] [Scilit]
  72. Xue, Y.; Niu, W.; Wang, M.; Chen, M.; Guo, Y.; Lei, B. Engineering a Biodegradable Multifunctional Antibacterial Bioactive Nanosystem for Enhancing Tumor Photothermo-Chemotherapy and Bone Regeneration. ACS Nano 2020, 14, 442–453. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  73. Chu, Y.; Liu, F.; Qin, L.; Pan, Q. Remote Manipulation of a Microdroplet in Water by Near-Infrared Laser. ACS Appl. Mater. Interfaces 2016, 8, 1273–1279. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  74. Liu, D.; Ma, L.; Liu, L.; Wang, L.; Liu, Y.; Jia, Q.; Guo, Q.; Zhang, G.; Zhou, J. Polydopamine-Encapsulated Fe3O4 with an Adsorbed HSP70 Inhibitor for Improved Photothermal Inactivation of Bacteria. ACS Appl. Mater. Interfaces 2016, 8, 24455–24462. [Google Scholar] [CrossRef] [Scilit]
  75. Zheng, R.; Wang, S.; Tian, Y.; Jiang, X.; Fu, D.; Shen, S.; Yang, W. Polydopamine-Coated Magnetic Composite Particles with an Enhanced Photothermal Effect. ACS Appl. Mater. Interfaces 2015, 7, 15876–15884. [Google Scholar] [CrossRef] [Scilit]
  76. Lin, L.-S.; Cong, Z.-X.; Cao, J.-B.; Ke, K.-M.; Peng, Q.-L.; Gao, J.; Yang, H.-H.; Liu, G.; Chen, X. Multifunctional Fe3O4@Polydopamine Core–Shell Nanocomposites for Intracellular mRNA Detection and Imaging-Guided Photothermal Therapy. ACS Nano 2014, 8, 3876–3883. [Google Scholar] [CrossRef] [Scilit]
  77. Yu, S.; Li, G.; Liu, R.; Ma, D.; Xue, W. Dendritic Fe3O4@Poly(dopamine)@PAMAM Nanocomposite as Controllable NO-Releasing Material: A Synergistic Photothermal and NO Antibacterial Study. Adv. Funct. Mater. 2018, 28, 1707440. [Google Scholar] [CrossRef] [Scilit]
  78. Choi, C.K.K.; Chiu, Y.T.E.; Zhuo, X.; Liu, Y.; Pak, C.Y.; Liu, X.; Tse, Y.-L.S.; Wang, J.; Choi, C.H.J. Dopamine-Mediated Assembly of Citrate-Capped Plasmonic Nanoparticles into Stable Core–Shell Nanoworms for Intracellular Applications. ACS Nano 2019, 13, 5864–5884. [Google Scholar] [CrossRef] [Scilit]
  79. Wang, S.; Zhao, X.; Wang, S.; Qian, J.; He, S. Biologically Inspired Polydopamine Capped Gold Nanorods for Drug Delivery and Light-Mediated Cancer Therapy. ACS Appl. Mater. Interfaces 2016, 8, 24368–24384. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  80. Aguilar-Ferrer, D.; Vasileiadis, T.; Iatsunskyi, I.; Ziółek, M.; Żebrowska, K.; Ivashchenko, O.; Błaszkiewicz, P.; Grześkowiak, B.; Pazos, R.; Moya, S.; et al. Understanding the Photothermal and Photocatalytic Mechanism of Polydopamine Coated Gold Nanorods. Adv. Funct. Mater. 2023, 33, 2304208. [Google Scholar] [CrossRef] [Scilit]
  81. Nam, J.; Son, S.; Ochyl, L.J.; Kuai, R.; Schwendeman, A.; Moon, J.J. Chemo-photothermal therapy combination elicits anti-tumor immunity against advanced metastatic cancer. Nat. Commun. 2018, 9, 1074. [Google Scholar] [CrossRef] [Scilit]
  82. Zhang, L.; Su, H.; Cai, J.; Cheng, D.; Ma, Y.; Zhang, J.; Zhou, C.; Liu, S.; Shi, H.; Zhang, Y.; et al. A Multifunctional Platform for Tumor Angiogenesis-Targeted Chemo-Thermal Therapy Using Polydopamine-Coated Gold Nanorods. ACS Nano 2016, 10, 10404–10417. [Google Scholar] [CrossRef] [Scilit]
  83. Liu, S.; Wang, L.; Lin, M.; Wang, D.; Song, Z.; Li, S.; Ge, R.; Zhang, X.; Liu, Y.; Li, Z.; et al. Cu (II)-Doped Polydopamine-Coated Gold Nanorods for Tumor Theranostics. ACS Appl. Mater. Interfaces 2017, 9, 44293–44306. [Google Scholar] [CrossRef] [Scilit]
  84. Han, X.; Xu, Y.; Li, Y.; Zhao, X.; Zhang, Y.; Min, H.; Qi, Y.; Anderson, G.J.; You, L.; Zhao, Y.; et al. An Extendable Star-Like Nanoplatform for Functional and Anatomical Imaging-Guided Photothermal Oncotherapy. ACS Nano 2019, 13, 4379–4391. [Google Scholar] [CrossRef] [Scilit]
  85. Ma, G.; Zhang, X.; Zhao, K.; Zhang, S.; Ren, K.; Mu, M.; Wang, C.; Wang, X.; Liu, H.; Dong, J.; et al. Polydopamine Nanostructure-Enhanced Water Interaction with pH-Responsive Manganese Sulfide Nanoclusters for Tumor Magnetic Resonance Contrast Enhancement and Synergistic Ferroptosis–Photothermal Therapy. ACS Nano 2024, 18, 3369–3381. [Google Scholar] [CrossRef] [Scilit]
  86. Tan, X.; Wang, X.; Zhang, L.; Liu, L.; Zheng, G.; Li, H.; Zhou, F. Stable and Photothermally Efficient Antibody-Covered Cu3(PO4)2@Polydopamine Nanocomposites for Sensitive and Cost-Effective Immunoassays. Anal. Chem. 2019, 91, 8274–8279. [Google Scholar] [CrossRef] [Scilit]
  87. Li, Z.; Hu, Y.; Howard, K.A.; Jiang, T.; Fan, X.; Miao, Z.; Sun, Y.; Besenbacher, F.; Yu, M. Multifunctional Bismuth Selenide Nanocomposites for Antitumor Thermo-Chemotherapy and Imaging. ACS Nano 2016, 10, 984–997. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  88. Yang, J.-C.; Chen, Y.; Li, Y.-H.; Yin, X.-B. Magnetic Resonance Imaging-Guided Multi-Drug Chemotherapy and Photothermal Synergistic Therapy with pH and NIR-Stimulation Release. ACS Appl. Mater. Interfaces 2017, 9, 22278–22288. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  89. Liu, J.; Jin, L.; Wang, Y.; Ding, X.; Zhang, S.; Song, S.; Wang, D.; Zhang, H. A New Co-P Nanocomposite with Ultrahigh Relaxivity for In Vivo Magnetic Resonance Imaging-Guided Tumor Eradication by Chemo/Photothermal Synergistic Therapy. Small 2018, 14, 1702431. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  90. Kong, J.; Ma, S.; Chu, R.; Liu, J.; Yu, H.; Mao, M.; Ge, X.; Sun, Y.; Wang, Y. Photothermal and Photocatalytic Glycol Chitosan and Polydopamine-Grafted Oxygen Vacancy Bismuth Oxyiodide (BiO1-xI) Nanoparticles for the Diagnosis and Targeted Therapy of Diabetic Wounds. Adv. Mater. 2024, 36, 2307695. [Google Scholar] [CrossRef] [Scilit]
  91. Guo, W.; Wang, F.; Ding, D.; Song, C.; Guo, C.; Liu, S. TiO2–x Based Nanoplatform for Bimodal Cancer Imaging and NIR-Triggered Chem/Photodynamic/Photothermal Combination Therapy. Chem. Mater. 2017, 29, 9262–9274. [Google Scholar] [CrossRef] [Scilit]
  92. Ding, X.; Liu, J.; Li, J.; Wang, F.; Wang, Y.; Song, S.; Zhang, H. Polydopamine coated manganese oxide nanoparticles with ultrahigh relaxivity as nanotheranostic agents for magnetic resonance imaging guided synergetic chemo-/photothermal therapy. Chem. Sci. 2016, 7, 6695–6700. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  93. Chu, X.; Zhang, L.; Li, Y.; He, Y.; Zhang, Y.; Du, C. NIR Responsive Doxorubicin-Loaded Hollow Copper Ferrite @ Polydopamine for Synergistic Chemodynamic/Photothermal/Chemo-Therapy. Small 2023, 19, 2205414. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  94. Yang, Y.; Liu, J.; Liang, C.; Feng, L.; Fu, T.; Dong, Z.; Chao, Y.; Li, Y.; Lu, G.; Chen, M.; et al. Nanoscale Metal–Organic Particles with Rapid Clearance for Magnetic Resonance Imaging-Guided Photothermal Therapy. ACS Nano 2016, 10, 2774–2781. [Google Scholar] [CrossRef] [Scilit]
  95. Wu, Q.; Niu, M.; Chen, X.; Tan, L.; Fu, C.; Ren, X.; Ren, J.; Li, L.; Xu, K.; Zhong, H.; et al. Biocompatible and biodegradable zeolitic imidazolate framework/polydopamine nanocarriers for dual stimulus triggered tumor thermo-chemotherapy. Biomaterials 2018, 162, 132–143. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  96. Liu, B.; Li, C.; Xing, B.; Yang, P.; Lin, J. Multifunctional UCNPs@PDA-ICG nanocomposites for upconversion imaging and combined photothermal/photodynamic therapy with enhanced antitumor efficacy. J. Mater. Chem. B 2016, 4, 4884–4894. [Google Scholar] [CrossRef] [Scilit]
  97. He, H.; Markoutsa, E.; Zhan, Y.; Zhang, J.; Xu, P. Mussel-inspired PLGA/polydopamine core-shell nanoparticle for light induced cancer thermochemotherapy. Acta Biomater. 2017, 59, 181–191. [Google Scholar] [CrossRef] [Scilit]
  98. Poinard, B.; Lam, S.A.E.; Neoh, K.G.; Kah, J.C.Y. Mucopenetration and biocompatibility of polydopamine surfaces for delivery in an Ex Vivo porcine bladder. J. Control. Release 2019, 300, 161–173. [Google Scholar] [CrossRef] [Scilit]
  99. Ding, Y.; Su, S.; Zhang, R.; Shao, L.; Zhang, Y.; Wang, B.; Li, Y.; Chen, L.; Yu, Q.; Wu, Y.; et al. Precision combination therapy for triple negative breast cancer via biomimetic polydopamine polymer core-shell nanostructures. Biomaterials 2017, 113, 243–252. [Google Scholar] [CrossRef] [Scilit]
  100. Zhang, R.; Su, S.; Hu, K.; Shao, L.; Deng, X.; Sheng, W.; Wu, Y. Smart micelle@polydopamine core–shell nanoparticles for highly effective chemo–photothermal combination therapy. Nanoscale 2015, 7, 19722–19731. [Google Scholar] [CrossRef] [Scilit]
  101. Ding, F.; Gao, X.; Huang, X.; Ge, H.; Xie, M.; Qian, J.; Song, J.; Li, Y.; Zhu, X.; Zhang, C. Polydopamine-coated nucleic acid nanogel for siRNA-mediated low-temperature photothermal therapy. Biomaterials 2020, 245, 119976. [Google Scholar] [CrossRef] [Scilit]
  102. Gholami Derami, H.; Gupta, P.; Weng, K.-C.; Seth, A.; Gupta, R.; Silva, J.R.; Raman, B.; Singamaneni, S. Reversible Photothermal Modulation of Electrical Activity of Excitable Cells using Polydopamine Nanoparticles. Adv. Mater. 2021, 33, 2008809. [Google Scholar] [CrossRef] [Scilit]
  103. Zhao, X.; Zha, X.-J.; Tang, L.-S.; Pu, J.-H.; Ke, K.; Bao, R.-Y.; Liu, Z.-y.; Yang, M.-B.; Yang, W. Self-assembled core-shell polydopamine@MXene with synergistic solar absorption capability for highly efficient solar-to-vapor generation. Nano Res. 2019, 13, 255–264. [Google Scholar] [CrossRef] [Scilit]
  104. Fan, R.; Chen, C.; Hou, H.; Chuan, D.; Mu, M.; Liu, Z.; Liang, R.; Guo, G.; Xu, J. Tumor Acidity and Near-Infrared Light Responsive Dual Drug Delivery Polydopamine-Based Nanoparticles for Chemo-Photothermal Therapy. Adv. Funct. Mater. 2021, 31, 2009733. [Google Scholar] [CrossRef] [Scilit]
  105. Liu, S.; Pan, J.; Liu, J.; Ma, Y.; Qiu, F.; Mei, L.; Zeng, X.; Pan, G. Dynamically PEGylated and Borate-Coordination-Polymer-Coated Polydopamine Nanoparticles for Synergetic Tumor-Targeted, Chemo-Photothermal Combination Therapy. Small 2018, 14, 1703968. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  106. Yuan, Z.; Lin, C.; He, Y.; Tao, B.; Chen, M.; Zhang, J.; Liu, P.; Cai, K. Near Infrared Light Triggered Nitric Oxide-Enhanced Photodynamic Therapy and Low-Temperature Photothermal Therapy for Biofilm Elimination. ACS Nano 2020, 14, 3546–3562. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  107. Wang, Z.; Wang, L.; Prabhakar, N.; Xing, Y.; Rosenholm, J.M.; Zhang, J.; Cai, K. CaP coated mesoporous polydopamine nanoparticles with responsive membrane permeation ability for combined photothermal and siRNA therapy. Acta Biomater. 2019, 86, 416–428. [Google Scholar] [CrossRef] [Scilit]
  108. Zeng, W.; Li, Z.; Huang, Q.; Ding, C.; Yang, L.; Wang, W.; Shi, Z.; Yang, Y.; Chen, H.; Mei, L.; et al. Multifunctional Mesoporous Polydopamine-Based Systematic Delivery of STING Agonist for Enhanced Synergistic Photothermal-Immunotherapy. Adv. Funct. Mater. 2024, 34, 2307241. [Google Scholar] [CrossRef] [Scilit]
  109. Liu, S.; Liu, Y.; Chang, Q.; Celia, C.; Deng, X.; Xie, Y. pH-Responsive Sorafenib/Iron-Co-Loaded Mesoporous Polydopamine Nanoparticles for Synergistic Ferroptosis and Photothermal Therapy. Biomacromolecules 2024, 25, 522–531. [Google Scholar] [CrossRef] [Scilit]
  110. Chen, W.; Song, Y.; Bai, S.; He, C.; Guo, Z.; Zhu, Y.; Zhang, Z.; Sun, X. Cloaking Mesoporous Polydopamine with Bacterial Membrane Vesicles to Amplify Local and Systemic Antitumor Immunity. ACS Nano 2023, 17, 7733–7749. [Google Scholar] [CrossRef] [Scilit]
  111. Ge, R.; Lin, M.; Li, X.; Liu, S.; Wang, W.; Li, S.; Zhang, X.; Liu, Y.; Liu, L.; Shi, F.; et al. Cu2+-Loaded Polydopamine Nanoparticles for Magnetic Resonance Imaging-Guided pH- and Near-Infrared-Light-Stimulated Thermochemotherapy. ACS Appl. Mater. Interfaces 2017, 9, 19706–19716. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  112. Miao, Z.-H.; Wang, H.; Yang, H.; Li, Z.-L.; Zhen, L.; Xu, C.-Y. Intrinsically Mn2+-Chelated Polydopamine Nanoparticles for Simultaneous Magnetic Resonance Imaging and Photothermal Ablation of Cancer Cells. ACS Appl. Mater. Interfaces 2015, 7, 16946–16952. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  113. Zou, Y.; Wu, T.; Li, N.; Guo, X.; Li, Y. Photothermal-enhanced synthetic melanin inks for near-infrared imaging. Polymer 2020, 186, 122042. [Google Scholar] [CrossRef] [Scilit]
  114. Xue, C.; Li, M.; Liu, C.; Li, Y.; Fei, Y.; Hu, Y.; Cai, K.; Zhao, Y.; Luo, Z. NIR-Actuated Remote Activation of Ferroptosis in Target Tumor Cells through a Photothermally Responsive Iron-Chelated Biopolymer Nanoplatform. Angew. Chem. Int. Ed. 2021, 60, 8938–8947. [Google Scholar] [CrossRef] [Scilit]
  115. Wang, Z.; Wang, W.; Wamsley, M.; Zhang, D.; Wang, H. Colloidal Polydopamine Beads: A Photothermally Active Support for Noble Metal Nanocatalysts. ACS Appl. Mater. Interfaces 2022, 14, 17560–17569. [Google Scholar] [CrossRef] [Scilit]
  116. Xu, X.; Sarhan, R.M.; Mei, S.; Kochovski, Z.; Koopman, W.; Priestley, R.D.; Lu, Y. Photothermally Triggered Nanoreactors with a Tunable Catalyst Location and Catalytic Activity. ACS Appl. Mater. Interfaces 2023, 15, 48623–48631. [Google Scholar] [CrossRef] [Scilit]
  117. Wang, X.; Zhang, J.; Li, H.; Zhang, R.; Yang, X.; Li, W.; Li, Z.; Gu, Z.; Li, Y. Quaternary Ammonium Assisted Synthesis of Melanin-like Poly(l-DOPA) Nanoparticles with a Boosted Photothermal Effect. ACS Appl. Mater. Interfaces 2024, 16, 22493–22503. [Google Scholar] [CrossRef] [Scilit]
  118. Bai, W.; Yang, P.; Zhang, H.; Wang, T.; Yang, Y.; Zhang, X.; Duan, G.; Xu, Y.; Li, Y. Polycondensation-Involved Melanin-like Polymers for Enhanced Solar Energy Utilization. Macromolecules 2023, 56, 4566–4574. [Google Scholar] [CrossRef] [Scilit]
  119. Han, L.; Zhang, Y.; Lu, X.; Wang, K.; Wang, Z.; Zhang, H. Polydopamine Nanoparticles Modulating Stimuli-Responsive PNIPAM Hydrogels with Cell/Tissue Adhesiveness. ACS Appl. Mater. Interfaces 2016, 8, 29088–29100. [Google Scholar] [CrossRef] [Scilit]
  120. Gao, G.; Jiang, Y.-W.; Jia, H.-R.; Wu, F.-G. Near-infrared light-controllable on-demand antibiotics release using thermo-sensitive hydrogel-based drug reservoir for combating bacterial infection. Biomaterials 2019, 188, 83–95. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  121. Luo, Y.; Wei, X.; Wan, Y.; Lin, X.; Wang, Z.; Huang, P. 3D printing of hydrogel scaffolds for future application in photothermal therapy of breast cancer and tissue repair. Acta Biomater. 2019, 92, 37–47. [Google Scholar] [CrossRef] [Scilit]
  122. Wu, Y.; Wang, H.; Gao, F.; Xu, Z.; Dai, F.; Liu, W. An Injectable Supramolecular Polymer Nanocomposite Hydrogel for Prevention of Breast Cancer Recurrence with Theranostic and Mammoplastic Functions. Adv. Funct. Mater. 2018, 28, 1801000. [Google Scholar] [CrossRef] [Scilit]
  123. Zhao, X.; Liang, Y.; Huang, Y.; He, J.; Han, Y.; Guo, B. Physical Double-Network Hydrogel Adhesives with Rapid Shape Adaptability, Fast Self-Healing, Antioxidant and NIR/pH Stimulus-Responsiveness for Multidrug-Resistant Bacterial Infection and Removable Wound Dressing. Adv. Funct. Mater. 2020, 30, 1910748. [Google Scholar] [CrossRef] [Scilit]
  124. Yang, P.; Bai, W.; Zou, Y.; Zhang, X.; Yang, Y.; Duan, G.; Wu, J.; Xu, Y.; Li, Y. A melanin-inspired robust aerogel for multifunctional water remediation. Mater. Horiz. 2023, 10, 1020–1029. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  125. Wu, X.; Cao, S.; Ghim, D.; Jiang, Q.; Singamaneni, S.; Jun, Y.-S. A thermally engineered polydopamine and bacterial nanocellulose bilayer membrane for photothermal membrane distillation with bactericidal capability. Nano Energy 2021, 79, 105353. [Google Scholar] [CrossRef] [Scilit]
  126. Zhang, C.; Wu, M.-B.; Wu, B.-H.; Yang, J.; Xu, Z.-K. Solar-driven self-heating sponges for highly efficient crude oil spill remediation. J. Mater. Chem. A 2018, 6, 8880–8885. [Google Scholar] [CrossRef] [Scilit]
  127. Zhou, Z.; Wang, X.; Yu, H.; Yu, C.; Zhang, F. Dynamic Cross-Linked Polyurea/Polydopamine Nanocomposites for Photoresponsive Self-Healing and Photoactuation. Macromolecules 2022, 55, 2193–2201. [Google Scholar] [CrossRef] [Scilit]
  128. Li, Z.; Yang, Y.; Wang, Z.; Zhang, X.; Chen, Q.; Qian, X.; Liu, N.; Wei, Y.; Ji, Y. Polydopamine nanoparticles doped in liquid crystal elastomers for producing dynamic 3D structures. J. Mater. Chem. A 2017, 5, 6740–6746. [Google Scholar] [CrossRef] [Scilit]
  129. Wu, J.; Xu, Y.; Wu, D.; Zhou, W.; Wang, P.; Gong, J.; Yang, J.; Xia, X. Melanin/melanin-like nanoparticles in tumor photothermal and targeted therapies. Int. J. Pharm. 2025, 672, 125354. [Google Scholar] [CrossRef] [Scilit]
  130. Menichetti, A.; Vicenzi, S.; Pane, A.; Mordini, D.; Mancin, F.; Montalti, M. Photothermal Release by Melanin-like Nanoparticles: Biomedical Applications. J. Funct. Biomater. 2025, 16, 243. [Google Scholar] [CrossRef] [Scilit]
  131. Guzman-Sanchez, S.; Patel, N.; Rosado, A.S. Recent progress of polydopamine nanoparticles as advanced antimicrobial nanomaterials. Front. Bioeng. Biotechnol. 2025, 13, 1678136. [Google Scholar] [CrossRef] [Scilit]
  132. Ma, Z.-Y.; Li, D.-Y.; Jia, X.; Wang, R.-L.; Zhu, M.-F. Recent Advances in Bio-Inspired Versatile Polydopamine Platforms for “Smart” Cancer Photothermal Therapy. Chin. J. Polym. Sci. 2023, 41, 699–712. [Google Scholar] [CrossRef] [Scilit]
  133. Li, M.; Sun, X.; Zhang, N.; Wang, W.; Yang, Y.; Jia, H.; Liu, W. NIR-Activated Polydopamine-Coated Carrier-Free “Nanobomb” for In Situ On-Demand Drug Release. Adv. Sci. 2018, 5, 1800155. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  134. Wang, Y.; Wei, G.; Zhang, X.; Huang, X.; Zhao, J.; Guo, X.; Zhou, S. Multistage Targeting Strategy Using Magnetic Composite Nanoparticles for Synergism of Photothermal Therapy and Chemotherapy. Small 2018, 14, 1702994. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  135. Qi, X.; Huang, Y.; You, S.; Xiang, Y.; Cai, E.; Mao, R.; Pan, W.; Tong, X.; Dong, W.; Ye, F.; et al. Engineering Robust Ag-Decorated Polydopamine Nano-Photothermal Platforms to Combat Bacterial Infection and Prompt Wound Healing. Adv. Sci. 2022, 9, 2106015. [Google Scholar] [CrossRef] [Scilit]
  136. Yuan, G.; Cen, J.; Liao, J.; Huang, Y.; Jie, L. In situ hydrogen nanogenerator for bimodal imaging guided synergistic photothermal/hydrogen therapies. Nanoscale 2021, 13, 15576–15589. [Google Scholar] [CrossRef] [Scilit]
  137. Zhang, C.; Zheng, D.-W.; Li, C.-X.; Zou, M.-Z.; Yu, W.-Y.; Liu, M.-D.; Peng, S.-Y.; Zhong, Z.-L.; Zhang, X.-Z. Hydrogen gas improves photothermal therapy of tumor and restrains the relapse of distant dormant tumor. Biomaterials 2019, 223, 119472. [Google Scholar] [CrossRef] [Scilit]
  138. Wang, W.; Li, M.; Huang, X.; Fang, J.; Peng, F.; Huang, H. Structural evolution mechanisms of Polydopamine/CdS and photothermal effect boosted photocatalytic H2 production activity. Appl. Surf. Sci. 2022, 601, 154114. [Google Scholar] [CrossRef] [Scilit]
  139. Lin, Q.; Yang, Y.; Ma, Y.; Zhang, R.; Wang, J.; Chen, X.; Shao, Z. Bandgap Engineered Polypyrrole–Polydopamine Hybrid with Intrinsic Raman and Photoacoustic Imaging Contrasts. Nano Lett. 2018, 18, 7485–7493. [Google Scholar] [CrossRef] [Scilit]
  140. Liang, R.; Yu, H.; Wang, L.; Wang, N.; Amin, B.U. NIR Light-Triggered Shape Memory Polymers Based on Mussel-Inspired Iron–Catechol Complexes. Adv. Funct. Mater. 2021, 31, 2102621. [Google Scholar] [CrossRef] [Scilit]
  141. Xie, W.; Dhinojwala, A.; Gianneschi, N.C.; Shawkey, M.D. Interactions of Melanin with Electromagnetic Radiation: From Fundamentals to Applications. Chem. Rev. 2024, 124, 7165–7213. [Google Scholar] [CrossRef] [Scilit]
  142. Wang, C.; Zhang, R.; Zhang, J.; Zhang, X.; Zhang, H.; Cao, H.; Yang, Z.; Li, Y. Synthetic fungal melanin UV absorbers. Sci. China Chem. 2024, 67, 3098–3110. [Google Scholar] [CrossRef] [Scilit]
  143. Hong, S.; Kim, J.; Na, Y.S.; Park, J.; Kim, S.; Singha, K.; Im, G.-I.; Han, D.-K.; Kim, W.J.; Lee, H. Poly (norepinephrine): Ultrasmooth material-independent surface chemistry and nanodepot for nitric oxide. Angew. Chem. Int. Ed. 2013, 52, 9187–9191. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  144. D’Alba, L.; Van Hemert, C.; Spencer, K.A.; Heidinger, B.J.; Gill, L.; Evans, N.P.; Monaghan, P.; Handel, C.M.; Shawkey, M.D. Melanin-Based Color of Plumage: Role of Condition and of Feathers’ Microstructure. Integr. Comp. Biol. 2014, 54, 633–644. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  145. Shawkey, M.D.; D’Alba, L.; Xiao, M.; Schutte, M.; Buchholz, R. Ontogeny of an iridescent nanostructure composed of hollow melanosomes. J. Morphol. 2015, 276, 378–384. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
Waste Baijiu Distillers’ Grain-Derived Porous Biochar: A Promising Material for Bisphenol AF Removal from Water Through Both Adsorption and Advanced Oxidation Process
Previous
Multi-Center Catalytic Oxidation of the Sotalol Drug Adsorbed on Gold Nanoparticles
Next
