Search Results (211)

The aim of this work is to investigate the possibility of improving the performance properties of 40CrMnMo7 steel by conducting duplex surface modification treatment. Chemical-thermal treatment processes were used—nitrocarburization and ion-nitriding and subsequent application of a nanostructured multilayer coating, Cr/(Cr-C)ml. The resulting structures and their influence on the adhesion of the applied coating, as well as their influence on the tribological properties of the coating, were studied. By conducting Glow Discharge Optical Emission Spectroscopy (GDOES), it was established that the penetration of nitrogen into the depth is greater in the ion-nitriding process, and the results of the conducted optical metallography and hardness measurement show that after ion-nitriding, the obtained hard layer has a greater thickness and hardness. The data obtained from the studies of the phase composition of the hard layers show that after nitrocarburization the non-stoichiometric, but crystalline phase Fe₃N_1.1 (ξ)—98.4% was formed. In the composition of the hard layer formed after the ion-nitriding process, the presence of Fe₃N (ξ-phase) in an amount of 79.5% and Fe₄N (γ′-phase) in an amount of 19.1% was established. On the chemically and thermally treated surfaces, a Cr/(Cr-C)ml coating was applied through the unbalanced magnetron sputtering technology. The applied coating has a hardness of 17.1 ± 0.6 GPa and a modulus of elasticity of 289 ± 8.7 GPa. The thickness of the coating applied on the test bodies not subjected to diffusion enrichment is 1.967 µm, and the adhesion class is classified as HF-2. It has been established that the profile of the surfaces obtained after the application of the chemical-thermal treatment processes has an impact on the thickness of the applied coating and on its adhesion. After nitrocarburization, the thickness of the coating is 2.9 µm, and the adhesion of the coating is classified as HF-0. The thickness of the applied coating on the test bodies subjected to ion-nitriding is 2.4 µm, and the adhesion class is HF-1. The results of the conducted tribological tests show that the used chemical-thermal treatment processes have an impact on the coefficients of friction and wear of the coating. The coefficient of friction for the combination of the nitriding process and Cr/(Cr-C)ml coating has the highest value (µ ≈ 0.38), while that of the ion-nitrided sample with subsequent coating has a value (µ ≈ 0.21) slightly higher than the COF of the test body with only the coating applied (µ ≈ 0.18). The lowest value of the coating wear coefficient is registered for the combination of the ion-nitriding and coating process (k = 7.96 × 10⁻⁵), while for the combination of nitriding and coating, it is the highest (k = 12.4 × 10⁻⁴). The relevance of the present work is related to the implementation of surface modification of 40CrMnMo7 steel by using established technological processes of chemical-thermal treatment and subsequent deposition of nanostructured multilayer Cr/(Cr-C)ml coating. The other novelty in the present study is related to the use of MF pulsed DC power supplies, operating at a fixed frequency of 100 kHz and a specific pulse shape, similar to the shape of HiPIMS pulses, for the deposition of nanostructured multilayer Cr/(Cr/a-C)ml coatings. Full article

The control of surface residual stress is paramount for ensuring the mechanical performance and longevity of machined GH2132 superalloy bolts. However, direct measurement of residual stress remains challenging. This study introduces a novel, efficient approach by establishing a quantitative correlation between Vickers hardness and residual stress based on the energy indentation method. The core hypothesis leverages the principle that residual stress modifies the indentation work; the difference in energy dissipation between stressed and stress-free states provides a direct measure of residual stress. A mathematical model relating hardness (HV) to residual stress (σ) was derived. To validate the model and unravel the underlying microstructural mechanisms, orthogonal cutting experiments were conducted. Comprehensive microstructural characterization using SEM, XRD, and metallography revealed a synchronous relationship between hardness and residual stress. Both properties increased concurrently with greater grain refinement and higher volume fraction/distribution density of carbides and γ’ phases, which impede dislocation motion and introduce micro-strain. The model predictions showed excellent agreement (R² = 92.5%) with X-ray diffraction measurements, confirming its reliability. Furthermore, the influence of cutting parameters (speed V_c, feed f, depth of cut a_p) on residual stress was analyzed. Cutting depth was identified as the most significant factor. An optimal parameter combination (V_c = 20 m × min⁻¹, f = 1 mm × rev⁻¹, a_p = 1.2 mm) was identified to maximize beneficial compressive residual stress, corresponding to the most refined microstructure. This work presents a validated, hardness-based model for residual stress assessment in GH2132 and provides a microstructure-guided pathway for optimizing machining processes to enhance component life. Full article

The structural reliability of pistons operating under severe thermo-mechanical loading strongly depends on the properties of the selected Al–Si alloy. This study presents an integrated experimental–numerical investigation of hypereutectic Al–Si alloys intended for piston applications. Phase constitution and silicon morphology were characterized by metallography and X-ray diffraction, while tensile testing provided mechanical properties for finite element modeling. The experimentally determined parameters were implemented in a three-dimensional piston model to evaluate stress distribution, deformation, and safety margins under maximum combustion pressure and maximum engine speed. The simulations revealed maximum von Mises stresses up to 150 MPa, with inter-alloy differences below 0.3%, indicating geometry-dominated stress behavior. The maximum displacement did not exceed 76 µm, varying by approximately 3% between alloys. In contrast, the minimum factor of safety ranged from 1.20 to 1.35, showing differences of up to 12%, primarily governed by yield strength and microstructural homogeneity. The results demonstrate that piston performance under combustion-dominated loading is strength-controlled rather than stiffness-controlled. The study provides quantitative insight into the structure–properties–performance relationship of hypereutectic Al–Si alloys and supports informed material selection for preliminary piston design. Full article

Fused deposition modeling/fused filament fabrication (FDM/FFF) enables architectural tailoring of mechanical response through layer configuration and multi-material manufacturing strategies. However, the combined effects of layer arrangement, infill ratio, and packing geometry in polymer–metal hybrid structures and interfacial load transfer mechanisms are still not sufficiently elucidated. In this study, the tensile behavior of single- and multi-material structures produced using PLA and 17-4 PH stainless steel filaments was systematically investigated. A total of 24 experimental parameter sets were created with four-layer configurations (PLA, 17-4 PH, PLA/17-4 PH/PLA, and 17-4 PH/PLA/17-4 PH), three infill ratios (20%, 60%, and 100%), and two packing patterns (linear and hexagonal); the samples were tested according to the ASTM D638 standard. Mechanical data were modeled using Response Surface Methodology (RSM) and ANOVA, and the developed regression models showed high accuracy (R² > 0.95). The findings showed that tensile and yield strength are primarily controlled by the layer arrangement, while infill ratio and infill pattern have a secondary effect. The highest strength was measured in 100% infill linear PLA samples (≈10.35 MPa), and the lowest value was measured in 17-4 PH “green part” samples without sintering (≈0.92 MPa). Hybrid structures exhibited intermediate performance in the range of 2.9–4.9 MPa. ANOVA results showed that the majority of the mechanical variance was explained by the layer arrangement (70–85% contribution), while infill ratio and infill pattern had a secondary effect. Fracture surface analyses showed that high performance was associated with homogeneous filament fusion and low porosity; Studies have confirmed that poor performance is associated with delamination and interfacial separation. Full article

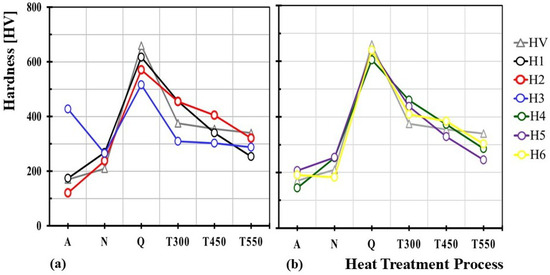

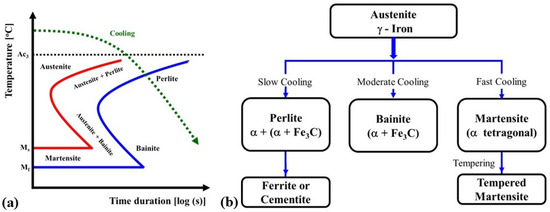

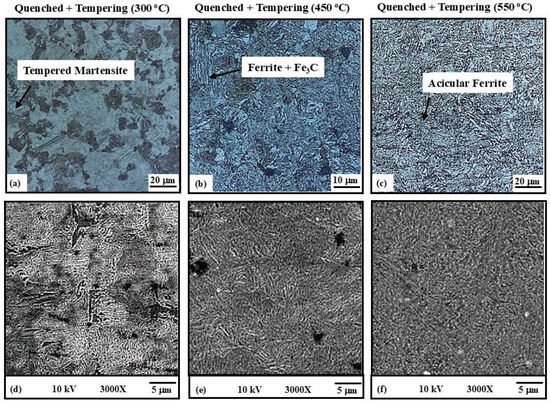

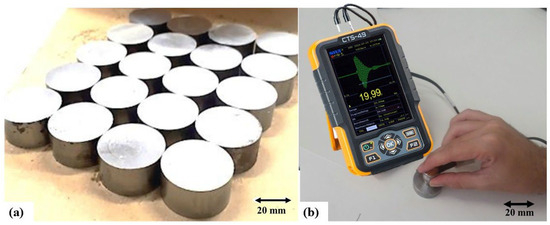

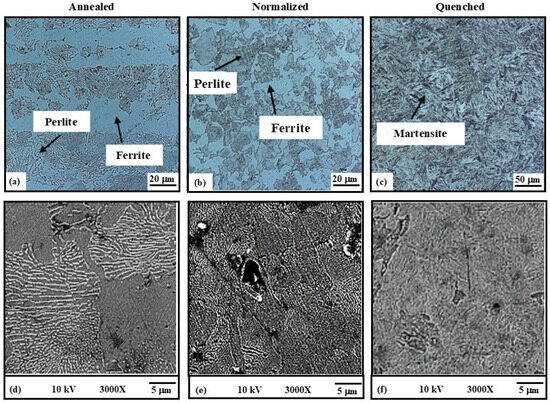

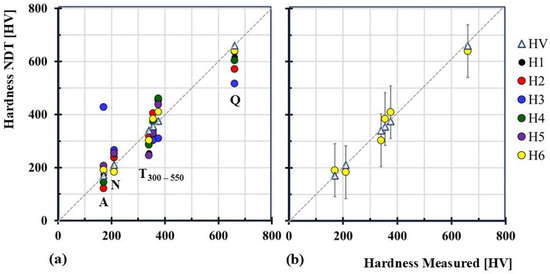

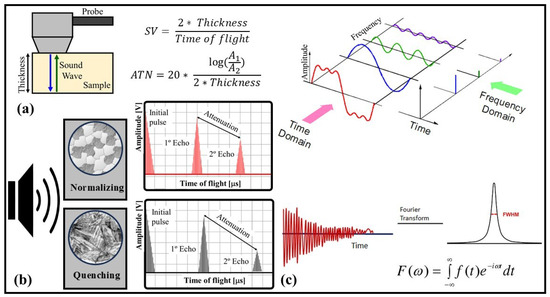

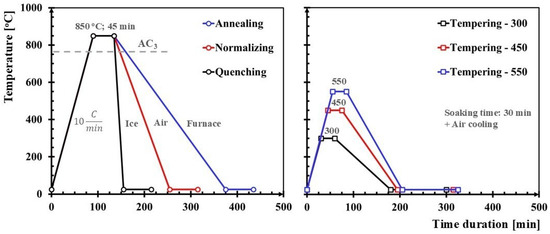

The characterization of mechanical properties in heat-treated carbon steels, which is crucial for quality control, traditionally relies on destructive testing. This study evaluated the reliability of the non-destructive ultrasonic technique as a metrological alternative for AISI 1045 steel. Samples subjected to six heat treatment conditions (Annealing, Normalizing, Quenching, and Tempering) were characterized by hardness, metallography, and ultrasound. Through linear regression analyses, the multiparametric model combining sound velocity, attenuation, and FWHM demonstrated exceptional metrological precision, resulting in a coefficient of determination of (R² = 96.687%). The metrological robustness of the model was validated by quantifying the Expanded Uncertainty (U), following the GUM (Guide to the Expression of Uncertainty in Measurement). It is concluded that the multiparametric ultrasonic methodology is an accurate, robust, and non-destructive alternative for the quantitative determination of Vickers Hardness in AISI 1045 steels, contributing to the optimization of industrial processes and metrological rigor. Full article

Semantic segmentation of metallographic micrographs is a key task for quantitative microstructural analysis in additive manufacturing, yet it remains challenging due to phase heterogeneity, complex morphologies, and the scarcity of annotated data. The MetalDAM dataset, composed of 42 labeled scanning electron microscopy images of steel microstructures, has been widely adopted as a benchmark, with U-Net commonly reported as the strongest supervised baseline. Nevertheless, the encoder–decoder structure of U-Net imposes architectural constraints that hinder the precise delineation of heterogeneous and irregular phase boundaries under severe data limitations. To address this limitation, this paper investigates a Fully Convolutional Network (FCN)-based architecture as an alternative approach for semantic segmentation on the MetalDAM dataset. The FCN is trained and evaluated under the same experimental protocol as the U-Net baseline, enabling a direct and fair comparison. Performance is assessed using multiple evaluation metrics, including Intersection over Union (IoU), precision, recall, and mean Average Precision at an IoU threshold of 0.5. The results show that the FCN achieves comparable overall IoU values (0.75) while delivering substantial improvements at the class level, particularly for minority and morphologically complex phases, with gains of up to 25–30% in class-specific IoU. Additional metrics confirm enhanced robustness, with consistently higher precision, recall, and mAP@0.5 values. These findings demonstrate that FCN-based architectures constitute a competitive and robust alternative to U-Net for metallographic segmentation in additive manufacturing scenarios characterized by limited annotated data. Full article

Coating a sword’s surface with clay before quenching in water not only produces distinctive patterns but also modifies its hardness and corrosion resistance. This study investigated two steel swords with differing carbon contents (L01 containing 0.69% C and L02 containing 0.98% C) subjected to the clay-coated quenching process to assess its impact on the blades’ microstructure, hardness, and corrosion characteristics. Samples from each sword underwent analysis through metallography, microhardness tests, electrochemical tests, and scanning electron microscopy. The investigation revealed that L02 comprising martensite, pearlite, retained austenite and carbides, exhibited a greater diversity of microconstituents than L01 containing martensite and pearlite. In addition, the hardness range of L02 (425~1050 HV) showed a broader hardness spectrum than that of L01 (HV 550~846), further illustrating that L02 possessed a higher degree of microstructural gradation and better balance of hardness and toughness. However, the electrochemical tests showed that each test area of L01 exhibited consistently lower corrosion rates than their counterparts on L02. The i_corr values for L01 ranged from 5.12 to 8.29 μA·cm⁻², while L02 had i_corr values between 21.17 and 25.23 μA·cm⁻². Importantly, the calculated R_p values across the different zones of L01 (ranging from 2338 to 4129 Ω·cm²) exceeded those of the corresponding zones of L02 (ranging from 502 to 816 Ω·cm²). The electrochemical impedance spectroscopy (EIS) data revealed that the R_ct values for L01 (ranging from 2016 to 2837 Ω·cm²) were also greater than the corresponding values for L02 (range: 424~571 Ω·cm²). The data indicated that L02 exhibited inferior corrosion resistance compared to L01, attributable to its higher carbon content. This increased carbon content facilitated the development of a more heterogeneous and diversified microstructure during clay quenching, resulting in a greater electrochemical potential difference and subsequently accelerating corrosion. These insights delineate a distinct microstructure–corrosion relationship in gradient steel blades processed by clay-coated quenching and offer practical guidance for selecting carbon content to enhance both mechanical properties and corrosion resistance in traditionally crafted blades. Full article

This study investigates the corrosion resistance of aluminum alloy AlSi10Mg to evaluate the influence of both manufacturing methods and heat treatments on its durability. The research compares samples produced via laser powder bed fusion (LPBF) and conventional casting, with subsets subjected to either no, T5 (artificial aging), and T6 (solution annealing and aging) heat treatment. All samples were exposed to an accelerated cyclic corrosion test, using immersion and drying cycles. Corrosion performance was quantified via mass loss (ML) measurements and analyzed using metallography. The analysis revealed that heat treatment (factor A) is the only statistically significant factor affecting mass loss. Even short exposure to the corrosive environment caused clearly visible surface changes. This suggests a significant decrease in corrosion resistance, linked to microstructural changes. While LPBF parts exhibited lower mass loss in the as-manufactured and T5 states, the T6 treatment negatively impacted both manufacturing routes. Full article

This study presents the first metallurgical analysis of twenty-five votive statuettes of Hercules from the National Archaeological Museum of Campobasso, Molise, Italy. These artifacts, which have previously been unexamined from a metallurgical perspective, were analyzed to understand their composition, manufacturing techniques, and current state of preservation. All the samples were first analyzed in situ using X-ray fluorescence (XRF) and then were sampled to conduct microstructural analyses on polished cross-sections by optical and scanning electron microscopy. The statuettes revealed a ternary Cu-Sn-Pb alloy, consistent with historical alloying practices and manufacturing techniques typical of the period. The study highlights a homogeneous biphasic microstructure with dispersed lead nodules within the bronze matrix. The corrosion products on the surface have peculiar colors and textures due to both the finishing process and the alteration accord over centuries of abandonment, aiding the understanding of the material’s behavior over time. The compositional results confirm the usage of materials and techniques in line with other coeval artifacts. Full article

This study introduces a composite method that integrates a diamond-coated tubular grinding electrode with short electric arc machining (SEAM) for GH4099. Mechanical micro-grinding and arc erosion act concurrently within the inter-electrode gap, enabling an in situ “erode–dress” coupling in which the grinding action levels nascent craters and promotes debris evacuation while SEAM supplies localized thermal–electrical energy for removal. A design-of-experiment scheme probes discharge and grinding factors, and performance is evaluated by material removal behavior, electrode wear, and surface integrity. Within a robust window (12–24 V; 500–2000 r/min), the composite process sustains stable discharges without catastrophic melting at 24 V and yields dense, uniform textures. Representative surfaces show controllable areal roughness (Sa ≈ 14–27 µm across 80#–600#), reflecting a practical finishing–efficiency trade-off. Multi-scale characterization (3D topography, cross-sectional metallography, SEM) evidences suppression of recast steps, macro-protrusions, and irregular pits, with more evenly distributed, shallower grinding traces compared to those with single-mode SEAM. The comparative analyses clarify discharge stabilization and recast-layer mitigation mechanisms, establishing a feasible pathway to high-quality, high-efficiency composite SEAM of GH4099 without resorting to overly aggressive electrical conditions. Full article

This study examines initial and repair welds between creep-resistant steels, P22 and P91, using ER90S-B3 and ERNiCrMo-3 steel-based and nickel-based filler materials, respectively. TIG welding with and without PWHT was applied. Microstructural evaluation revealed martensitic transformation in HAZ, decarburization in repairs, and the presence of Laves phase. Ni-based filler welds showed greater inhomogeneity. Hardness profiles confirmed softening in P91 HAZ and improved uniformity with PWHT. Steel-based filler provided better compatibility, especially in repair scenarios. The results support the use of ER90S-B3 with PWHT for enhanced reliability. Our findings align with EPRI guidelines and standards for weld integrity in high-temperature piping applications. Full article

Improving the efficiency of electric vehicle traction motors requires non-oriented silicon steels with low core loss and favorable magnetic induction. This study aims to clarify the influence of annealing temperature on the microstructure, texture, and magnetic properties of a 3.2%Si–0.9%Al steel, providing guidance for process optimization. Optical metallography, X-ray diffraction, and electron backscatter diffraction were employed to characterize the evolution. Recrystallization was completed between 620 °C and 720 °C, during which fine recrystallized grains replaced the deformed structure, accompanied by the nucleation of {111}<112> and {114}<481> grains. With further annealing from 850 °C to 1050 °C, grain growth occurred, resulting in an α*-fiber texture dominated by {114}<481>. The fraction of high-angle {114}<481> grains increased, while low-angle {111}<112> grains decreased. This microstructural evolution significantly influenced the magnetic properties of non-oriented electrical steel. The P_1.5/50 and P_1.0/400 core losses reached minimum values of 2.02 W/kg and 16.48 W/kg at 1010 °C and 930 °C, respectively, while B₅₀ decreased slightly from 1.670 T to 1.652 T. These findings indicate that precise control of the annealing temperature is an effective strategy to tailor microstructure and texture, thereby optimizing the magnetic properties of non-oriented electrical steel. Full article

As the most commercially developed metal additive process, laser powder bed fusion (LPBF) is vital to advancing several industry sectors, enabling high-precision part production across aerospace, biomedical, and manufacturing industries. Al 7075 alloy offers low density and high-specific strength yet faces LPBF challenges such as hot cracking and porosity due to rapid solidification, thermal gradients, and a wide freezing range. To address these challenges, this study proposes an integrated computational and experimental framework to enhance the LPBF processability of Al 7xxx alloys by compositional modification. Using the Calculation of Phase Diagram approach, printable Al 7xxx compositions were designed by adding grain refiners (V and/or Ti) and a eutectic solidification enhancer (Mg) to Al 7075 alloy to enable grain refinement and eutectic solidification. Subsequent LPBF experiments and characterization tests, such as metallography (scanning electron microscopy), energy-dispersive X-ray spectroscopy, X-ray diffraction, and X-ray micro-computed tomography, confirmed the production of refined microstructures with reduced defects. This study contributes to existing approaches for producing high-quality Al 7xxx alloy parts without significant compositional deviations using an integrated computational and experimental approach. Finally, aligning with the Materials Genome Initiative, this study contributes to the development and industrial adoption of advanced materials. Full article

The method and results of evaluating the kinetics of austenite isothermal decomposition in austempered ductile iron (ADI) samples are presented based on the dimensional changes in austenitized and isothermally hardened cast iron samples. Experimental measurements were carried out on samples intended for the production of ADI castings under industrial conditions of ODLEWNIE POLSKIE S.A. A partial solution of the Kolmogorov–Johnson–Mehl–Avrami statistical theory of phase transformations as proposed by Avrami was applied to analyze the experimental results of dilatometric measurements. It is shown that Avrami diagrams can be used to evaluate changes in the kinetics of phase transformations occurring in ADI samples during the first stage of isothermal austenite decomposition. The application of the proposed method has made it possible to identify three steps of ausferrite growth during the first stage, with two statistically significant slowdowns. Using quantitative metallography methods, it is demonstrated that the slowdown in the rate of austenite decomposition during the transition from the first to the second step is related to the development of the microstructure of the metallic matrix of cast iron. Full article

Quasicrystals are ordered phases without periodicity. They are often found in aluminium and other alloys. They can appear in different sizes. Therefore, several metallographic and characterisation techniques are required to fully determine their shape, size, crystallography, and chemical composition. This review paper gives special attention to identifying quasicrystals in aluminium alloys using classical metallographic techniques, such as etching, deep etching, and particle extraction, which allow the investigation of larger areas by light and scanning electron microscope, giving additional information by combining with complementary high-resolution techniques. Full article
