Dual Network Hydrogel with High Mechanical Properties, Electrical Conductivity, Water Retention and Frost Resistance, Suitable for Wearable Strain Sensors

,
,
,
,
and
1
Jiangsu Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, Jiangsu Provincial Key Laboratory of Pulp and Papermaking Science and Technology, Nanjing Forestry University, Nanjing 210037, China
2
College of Food Science and Light Industry, Nanjing Tech University, Nanjing 211800, China
*
Author to whom correspondence should be addressed.

Abstract

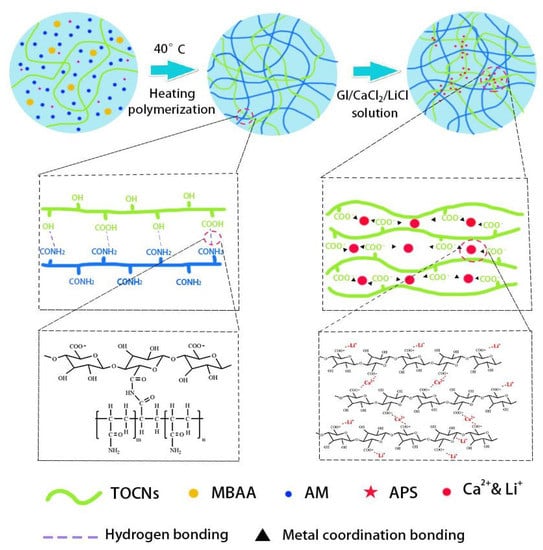

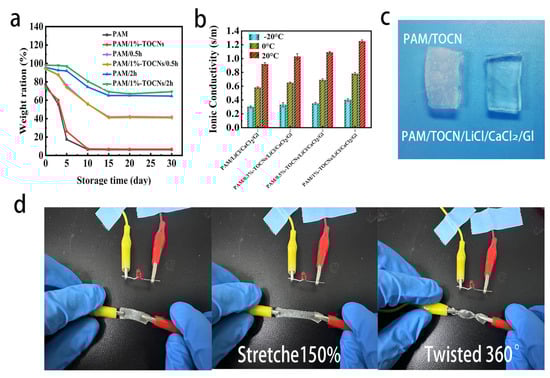

With the progress of science and technology, intelligent wearable devices have become more and more popular in our daily life. Hydrogels are widely used in flexible sensors due to their good tensile and electrical conductivity. However, traditional water-based hydrogels are limited by shortcomings of water retention and frost resistance if they are used as the application materials of flexible sensors. In this study, the composite hydrogels formed by polyacrylamide (PAM) and TEMPO-Oxidized Cellulose Nanofibers (TOCNs) are immersed in LiCl/CaCl2/GI solvent to form double network (DN) hydrogel with better mechanical properties. The method of solvent replacement give the hydrogel good water retention and frost resistance, and the weight retention rate of the hydrogel was 80.5% after 15 days. The organic hydrogels still have good electrical and mechanical properties after 10 months, and can work normally at −20 °C, and has excellent transparency. The organic hydrogel show satisfactory sensitivity to tensile deformation, which has great potential in the field of strain sensors.
