Research on Path Planning and Tracking Control of Autonomous Vehicles Based on Improved RRT* and PSO-LQR

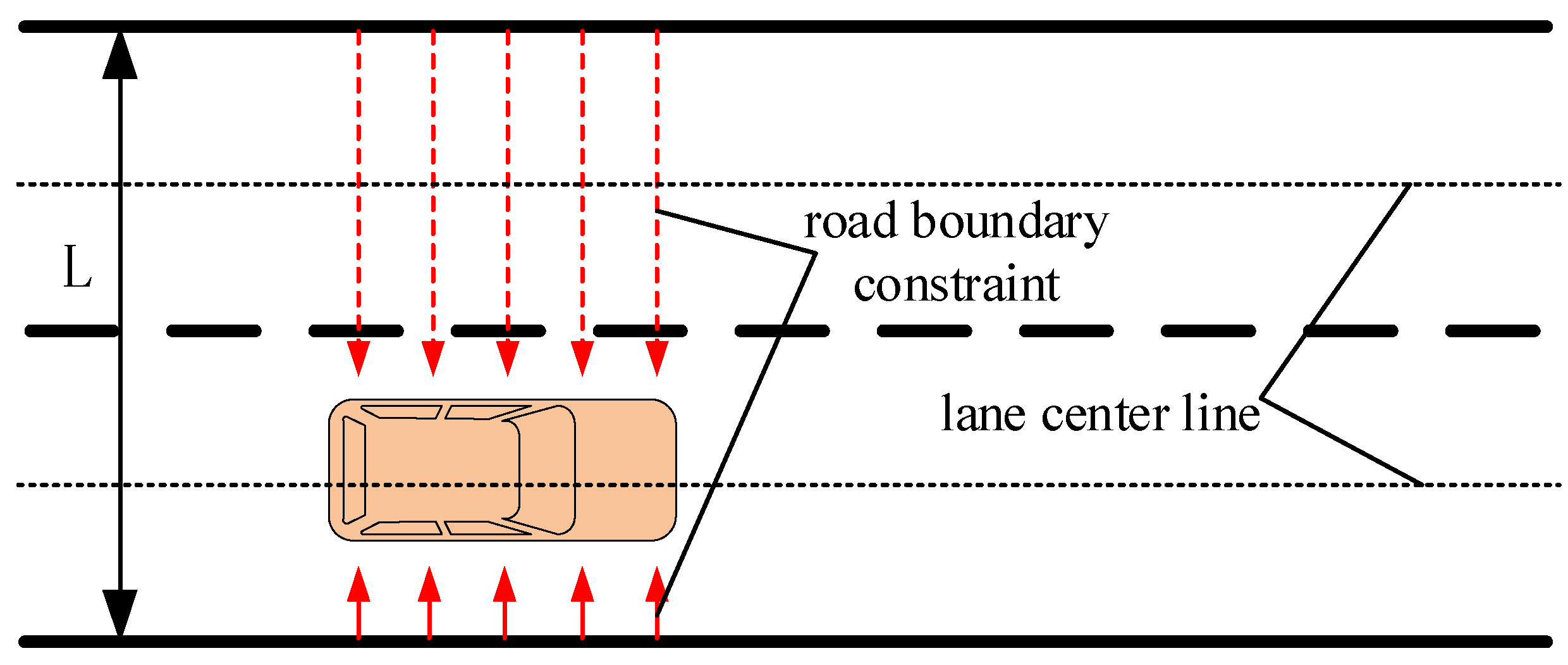

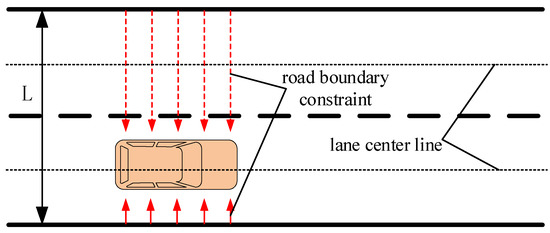

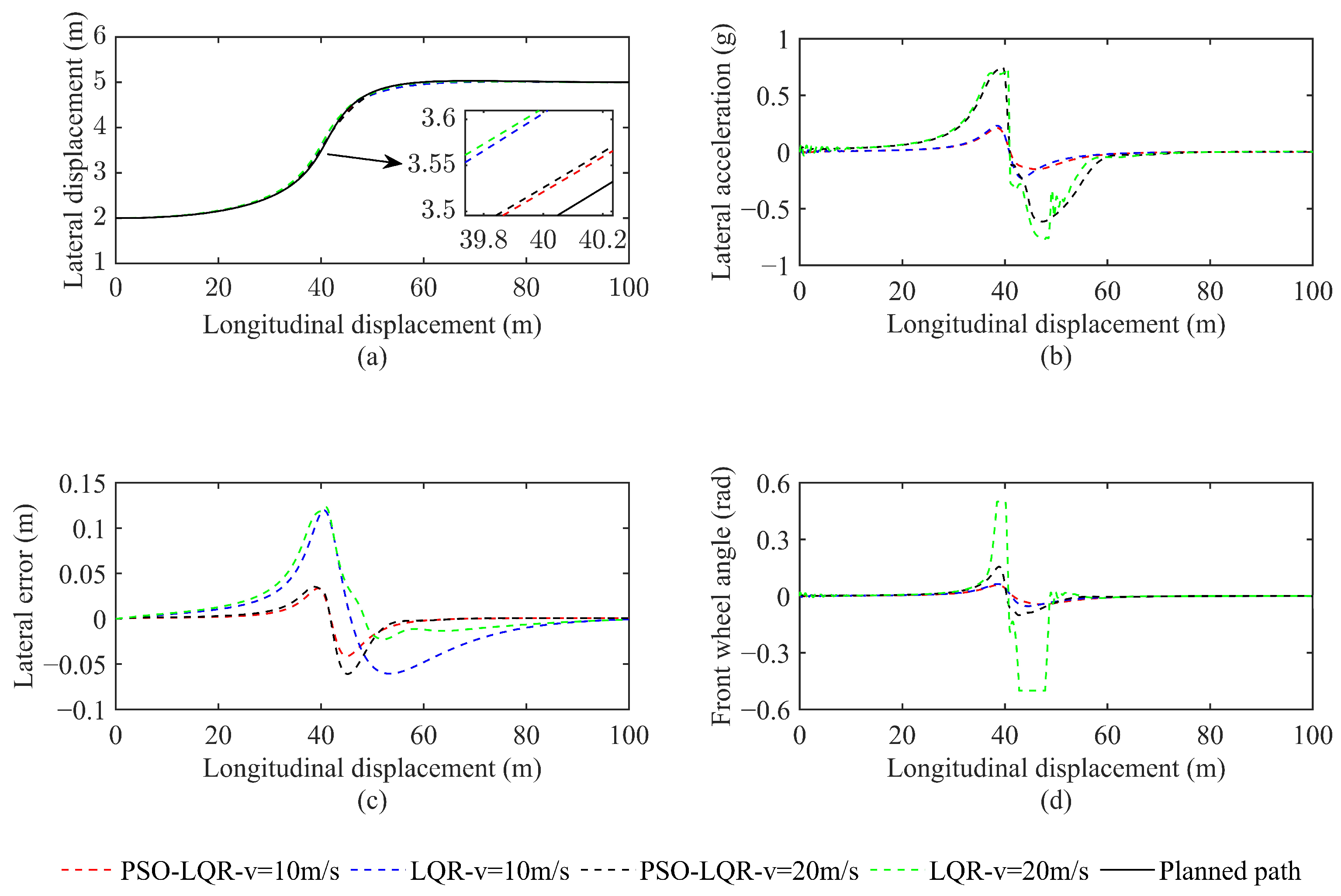

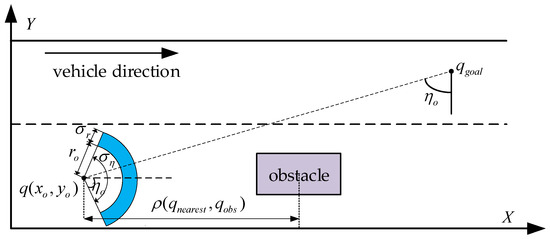

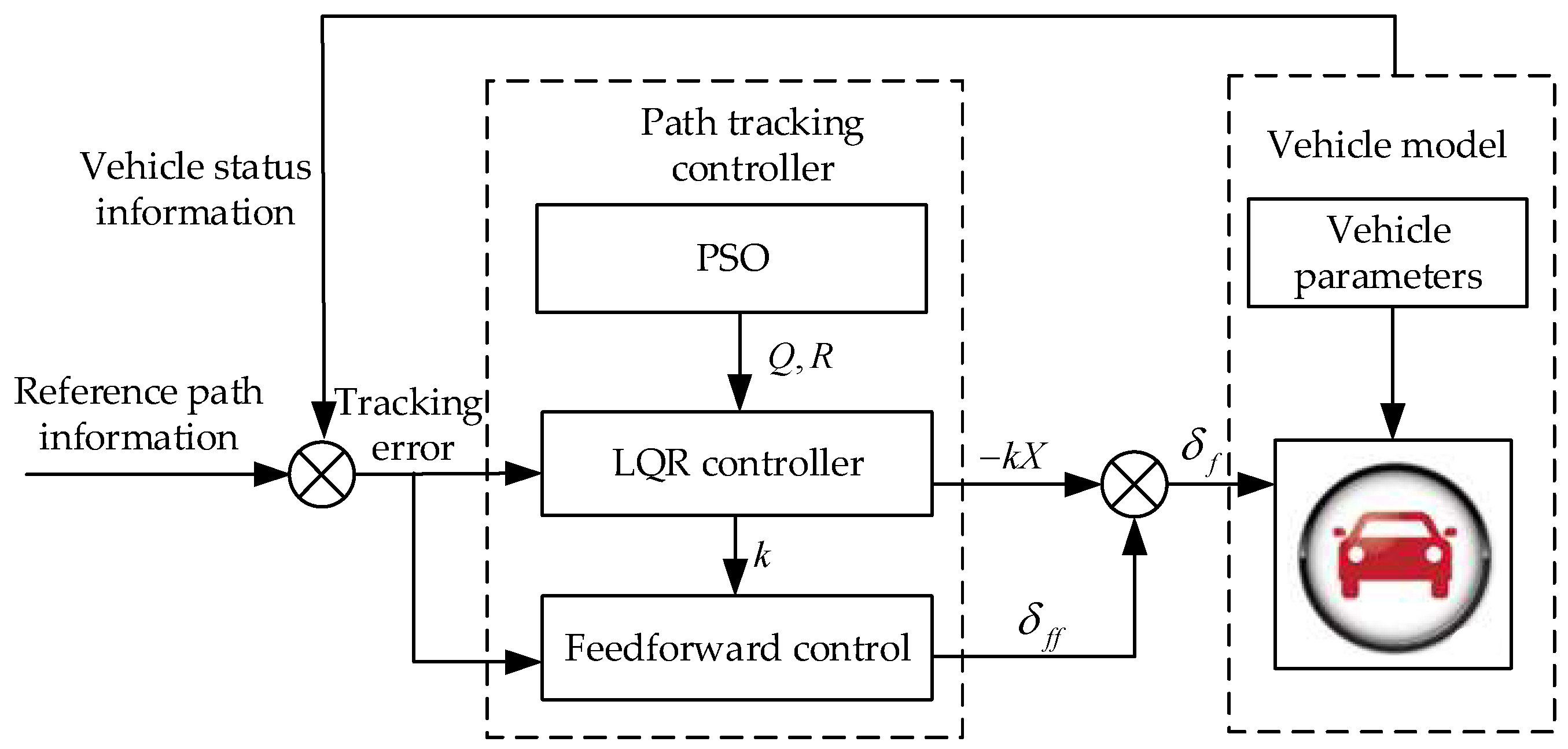

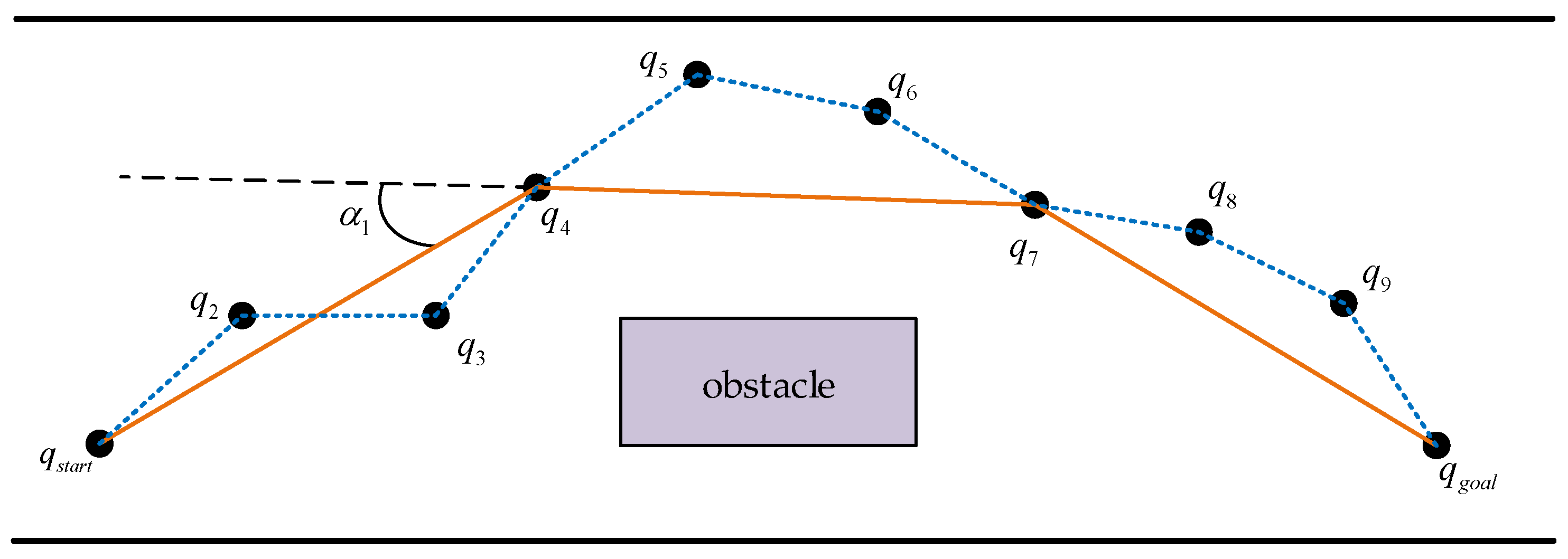

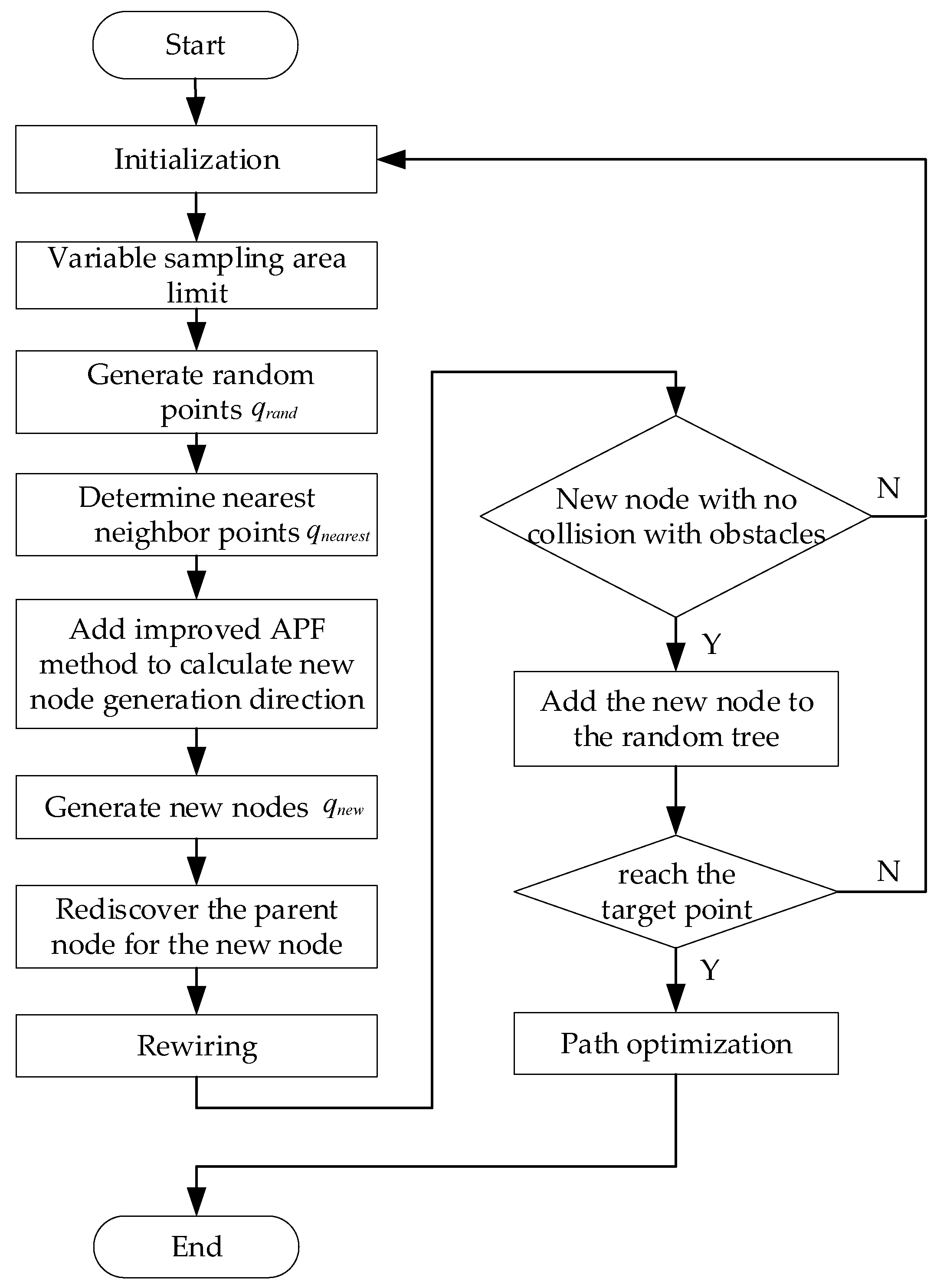

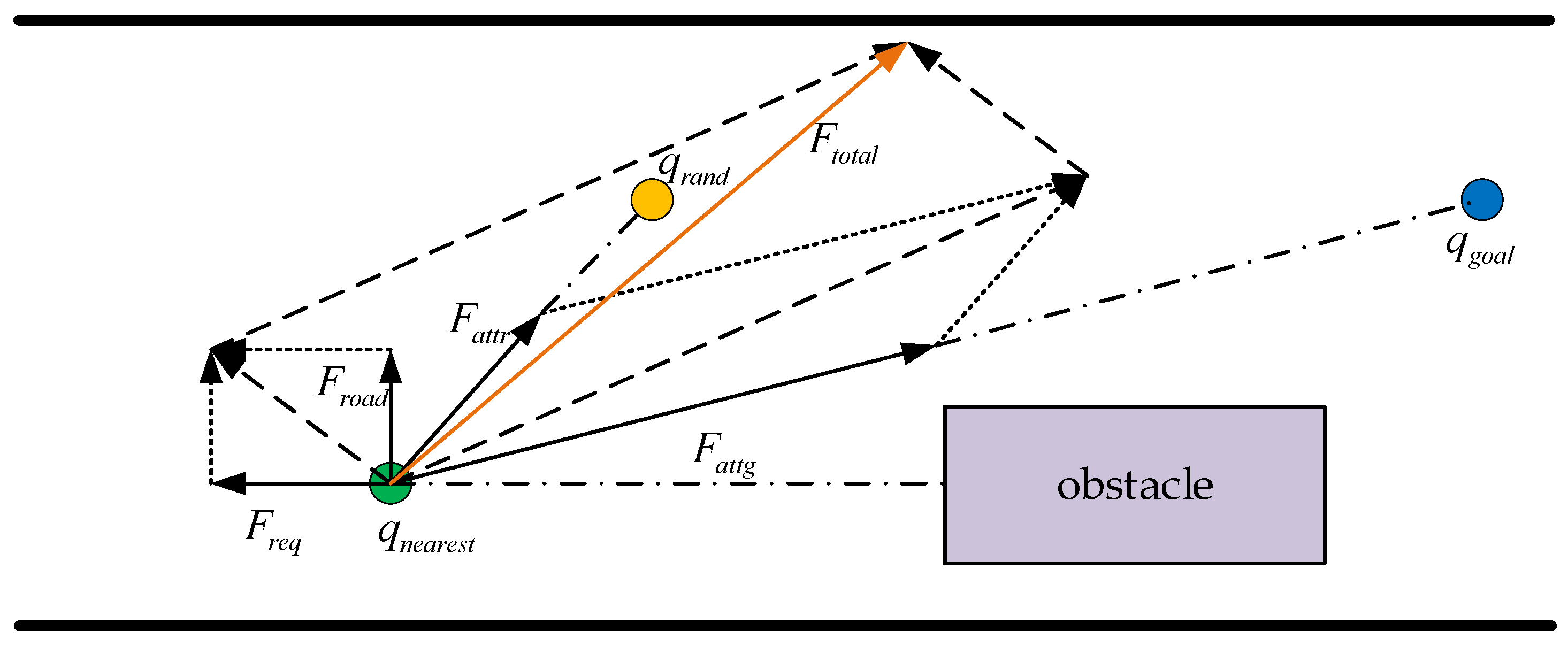

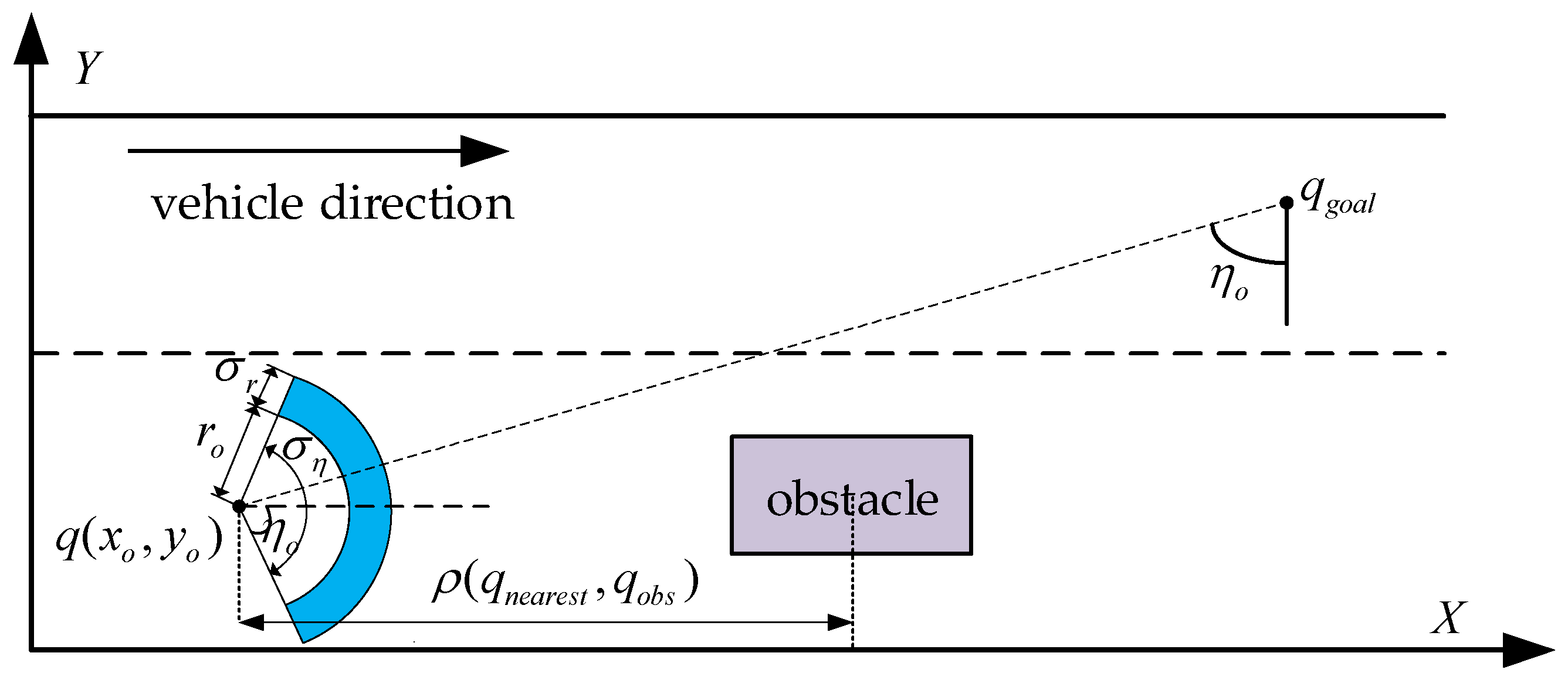

Path planning and tracking control are essential parts of autonomous vehicle research. Regarding path planning, the Rapid Exploration Random Tree Star (RRT*) algorithm has attracted much attention due to its completeness. However, the algorithm still suffers from slow convergence and high randomness. Regarding path tracking, the Linear Quadratic Regulator (LQR) algorithm is widely used in various control applications due to its efficient stability and ease of implementation. However, the relatively empirical selection of its weight matrix can affect the control effect. This study suggests a path planning and tracking control framework for autonomous vehicles based on an upgraded RRT* and Particle Swarm Optimization Linear Quadratic Regulator (PSO-LQR) to address the abovementioned issues. Firstly, according to the driving characteristics of autonomous vehicles, a variable sampling area is used to limit the generation of random sampling points, significantly reducing the number of iterations. At the same time, an improved Artificial Potential Field (APF) method was introduced into the RRT* algorithm, which improved the convergence speed of the algorithm. Utilizing path pruning based on the maximum steering angle constraint of the vehicle and the cubic B-spline algorithm to achieve path optimization, a continuous curvature path that conforms to the precise tracking of the vehicle was obtained. In addition, optimizing the weight matrix of LQR using POS improved path-tracking accuracy. Finally, this article’s improved RRT* algorithm was simulated and compared with the RRT*, target bias RRT*, and P-RRT*. At the same time, on the Simulink–Carsim joint simulation platform, the PSO-LQR is used to track the planned path at different vehicle speeds. The results show that the improved RRT* algorithm optimizes the path search speed by 34.40% and the iteration number by 33.97%, respectively, and the generated paths are curvature continuous. The tracking accuracy of the PSO-LQR was improved by about 59% compared to LQR, and its stability was higher. The position error and heading error were controlled within 0.06 m and 0.05 rad, respectively, verifying the effectiveness and feasibility of the proposed path planning and tracking control framework.
