Some Intrinsic Properties of Tadmor–Tanner Functions: Related Problems and Possible Applications

Abstract

In this paper, we study some properties of an exponentially optimal filter proposed by Tadmor and Tanner. More precisely, we consider the problem for approximating the function of rectangular type $F\left(t\right)$ by the class of exponential functions ${\sigma }_{adapt}\left(t\right)$ about the Hausdorff metric. We prove upper and lower estimates for “saturation”—d (in the case $q=2$). New activation and “semi-activation” functions based on ${\sigma }_{adapt}\left(t\right)$ are defined. Some related problems are discussed. We also consider modified families of functions with “polynomial variable transfer”. Numerical examples, illustrating our results using CAS MATHEMATICA are given.

1. Introduction

In antenna-feeder techniques, the most often occurred signals $F\left(t\right)$ are of rectangular type, as shown in Figure 1. In [1,2], the authors construct a new class of accurate filters for processing piecewise smooth spectral data.

Figure 1. Signal of rectangular type—$F\left(t\right)$.

Definition 1.

The exponentially optimal filter is defined as [1,2]:

$${\sigma }_{adapt}\left(t\right):=\left\{\begin{array}{c}{e}^{\frac{c_q{t}^q}{t^2-1}};\left|t\right|<1,\hfill \\ 0,\left|t\right|\ge 1\hfill \end{array}\right.c_q=2^q.\frac{3}{8}.\frac{18q^2+3q+14}{9q^2+6q+2}.$$

(1)

Various modifications of this “powerful” class of functions have been proposed and studied by a number of researchers. This study represents a certain interesting problem for approximating the function $F\left(t\right)$ with the specified class of exponential functions ${\sigma }_{adapt}\left(t\right)$ in the Hausdorff sense.

Definition 2

([3,4]). The Hausdorff distance (the H–distance) [3] $\rho (f,g)$ between two interval functions $f,g$ on $\Omega \subseteq \mathbb{R}$, is the distance between their completed graphs $F\left(f\right)$ and $F\left(g\right)$ considered as closed subsets of $\Omega \times \mathbb{R}$. More precisely,

$$\rho (f,g)=max\{\underset{A\in F\left(f\right)}{sup}\underset{B\in F\left(g\right)}{inf}||A-B||,\underset{B\in F\left(g\right)}{sup}\underset{A\in F\left(f\right)}{inf}||A-B||\},$$

(2)

wherein $\left|\right|.\left|\right|$ is any norm in ${\mathbb{R}}^2$—e. g. the maximum norm $\left|\right|(t,x)\left|\right|=max\left\{\right|t|,|x\left|\right\}$—hence, the distance between the points $A=(t_A,x_A)$, $B=(t_B,x_B)$ in ${\mathbb{R}}^2$ is $\left|\right|A-B\left|\right|=max\left(\right|t_A-t_B|,|x_A-x_B\left|\right)$.

The basic approaches for approximation of functions and point sets of the plane by algebraic and trigonometric polynomials in respect to Hausdorff distance (H–distance) are connected to the work and achievements of Bl. Sendov who established a Bulgarian school in Approximation theory, particularly for developing the theory of Hausdorff approximations.

For some basic results, see [5,6].

In this paper we consider some intrinsic properties of function (1). A number of modified adaptive functions have also been proposed that can find application in the field of antenna-feeder analysis. Of course, the specialists working in this direction will assess which of the new models have the right to exist.

2. Main Results

2.1. Some Intrinsic Properties

We will consider only the case q–even (see, Figure 2). Let $t_0$ be the value for which ${\sigma }_{adapt}\left(t_0\right)=\frac{1}{2}$—i.e., $t_0$ is the solution of the nonlinear equation:

$$e^{\frac{c_q{t}_0^q}{t_0^2-1}}-\frac{1}{2}=0.$$

(3)

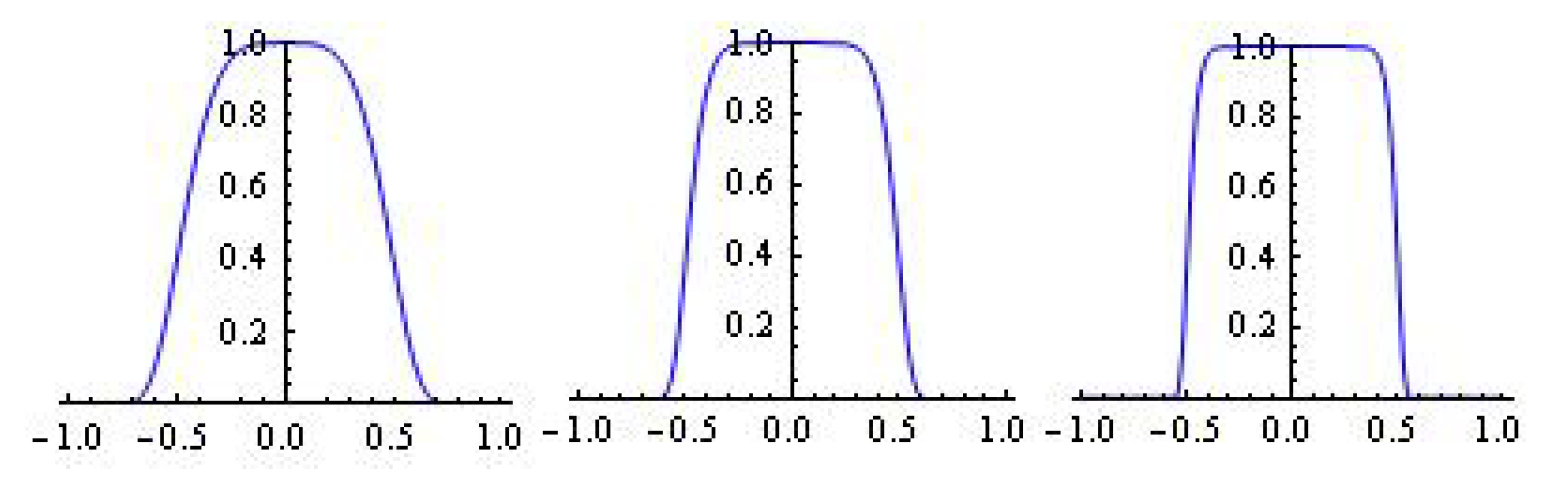

Figure 2. The exponentially optimal filter ${\sigma }_{adapt}\left(t\right)$ for $q=4,8,16$.

The Hausdorff distance d between $F\left(t\right)$ and ${\sigma }_{adapt}\left(t\right)$ satisfies the relation:

$$e^{\frac{c_q{(t_0-d)}^q}{{(t_0-d)}^2-1}}=1-d.$$

(4)

Some computational examples using relations (3) and (4) are depicted on Figure 3. Equations (3) and (4) are nonlinear equations for solving $t_0$ and d. For large values of q, the coefficient $c_q$ grows very rapidly, which severely limits the computational calculations and visualization of the results in any Computer Algebraic Platform. The same remark remains valid when solving the nonlinear Equation (4) for the magnitude of the best Hausdorff approximation—d. This requires obtaining precise two-sided estimates for d. We will sketch the idea, for example, for $q=2$. Let (see (4))

$$G\left(d\right)=c_2\frac{{(t_0-d)}^2}{{(t_0-d)}^2-1}-ln(1-d).$$

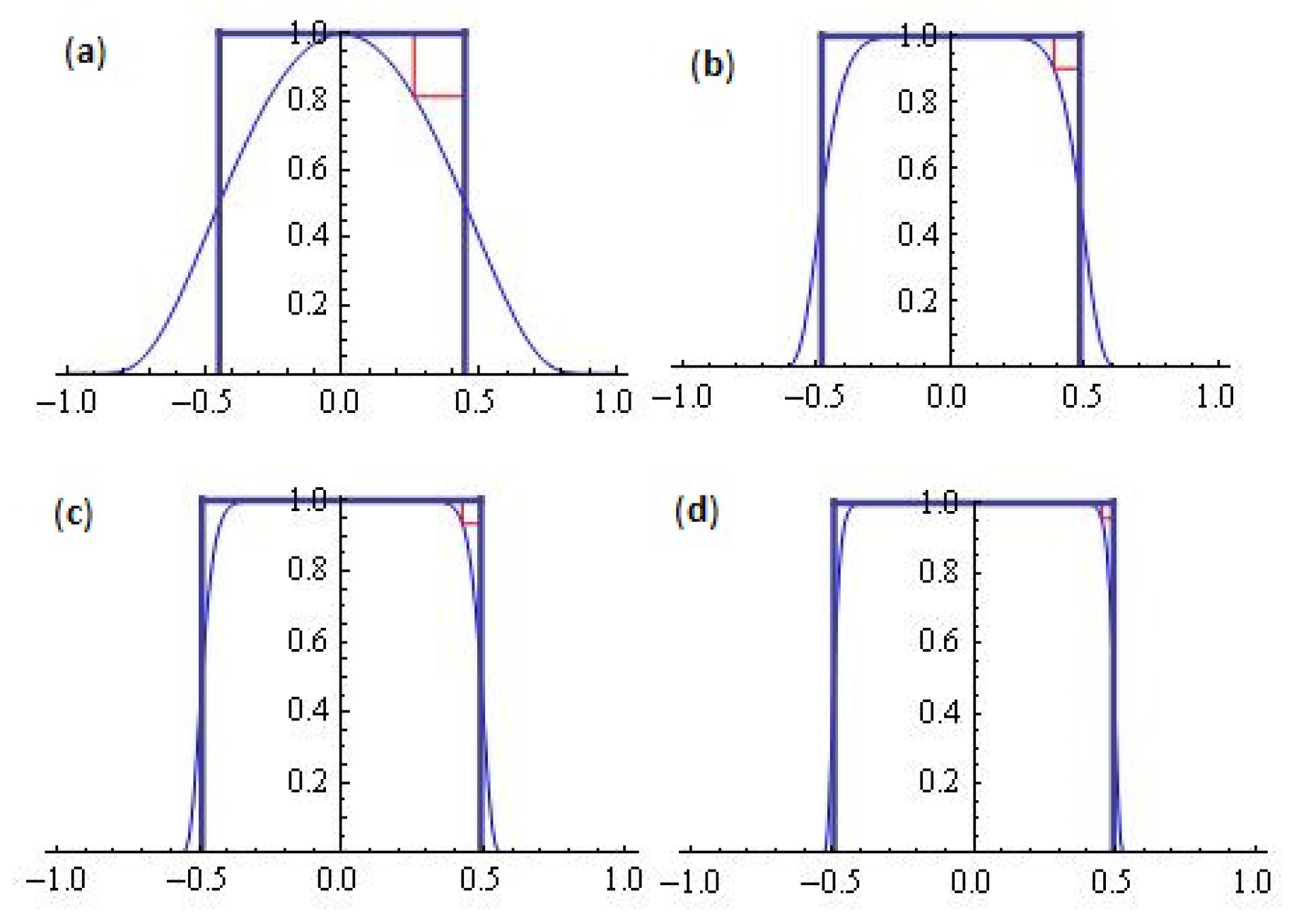

Figure 3. Approximation of $F\left(t\right)$ by ${\sigma }_{adapt}\left(t\right)$: (a) $q=2,c_q=2.76,t_0=0.448028$; Hausdorff distance $d$=$0.185197$; (b) $q=8,c_q=182.492,t_0=0.482049$; Hausdorff distance $d=0.0974479$; (c) $q$=$16,c_q$=$47781,t_0$=$0.489945$; Hausdorff distance $d=0.0646479$; (d) $q$=$30,c_q$=$7.9266\times {10}^8,t_0$=$0.494313$; Hausdorff distance $d=0.0427321$.

The following theorem gives upper and lower bounds for d.

Theorem 1.

Let $q=2$. The “saturation”-d satisfies the following inequalities

$$d_l:=\frac{1}{2p_2}<d<\frac{ln\left(2p_2\right)}{2p_2}:=d_r.$$

(5)

where

$$p_2=\frac{1+2c_2{t}_0-2t_0^2+t_0^4}{{(t_0^2-1)}^2}.$$

Proof.

From $G^{\prime }\left(d\right)>0$, we conclude that the function G is strictly monotonically increasing. Consider the function

$$G_1\left(d\right)=c_2\frac{t_0^2}{t_0^2-1}+\frac{1+2c_2{t}_0-2t_0^2+t_0^4}{{(t_0^2-1)}^2}d=p_1+p_{2}d.$$

(6)

From Taylor expansion, we obtain $G\left(d\right)-G_1\left(d\right)=O\left(d^2\right)$. Hence, $G_1\left(d\right)$ approximates $G\left(d\right)$ with $d\to 0$ as $O\left(d^2\right)$ (see, Figure 4). In addition, $G_1^{\prime }\left(d\right)>0$. Further, we have

$$\begin{array}{ccc}\hfill G_1\left(\frac{1}{2p_2}\right)& =& p_1+\frac{1}{2}=-0.193147<0,\hfill \\ \hfill G_1\left(\frac{ln\left(2p_2\right)}{2p_2}\right)& =& p_1+\frac{1}{2}ln\left(2p_2\right)=0.445106>0.\hfill \end{array}$$

Figure 4. The functions $G\left(d\right)$ and $G_1\left(d\right)$ for $q=2$.

This completes the proof of the theorem. □

From (5), we see that for $q=2$, $d_l=0.102642<d=0.185197<d_r=0.233665$.

The reader may formulate the corresponding approximation problem for arbitrary q following the ideas given in this note, and this will be omitted. Some techniques for obtaining accurate two-sided estimates can be found in [7].

2.2. Some Remarks

The basic problems considered in [8,9,10]) are an approximation of functions and point sets by algebraic and trigonometric polynomials in the Hausdorff metric as well as their applications in the field of antenna-feeder techniques, analysis and the synthesis of antenna patterns and filters, including noise minimization by the suitable approximation of impulse functions.

The application of Fourier analysis for the approximation of impulse and transmitting functions is compared to this, which can be obtained using the elements of the best Hausdorff approximation.

The advantage of the Hausdoorff metric is the removal of “Gibbs’ phenomenon” [11] (see, Figure 5).

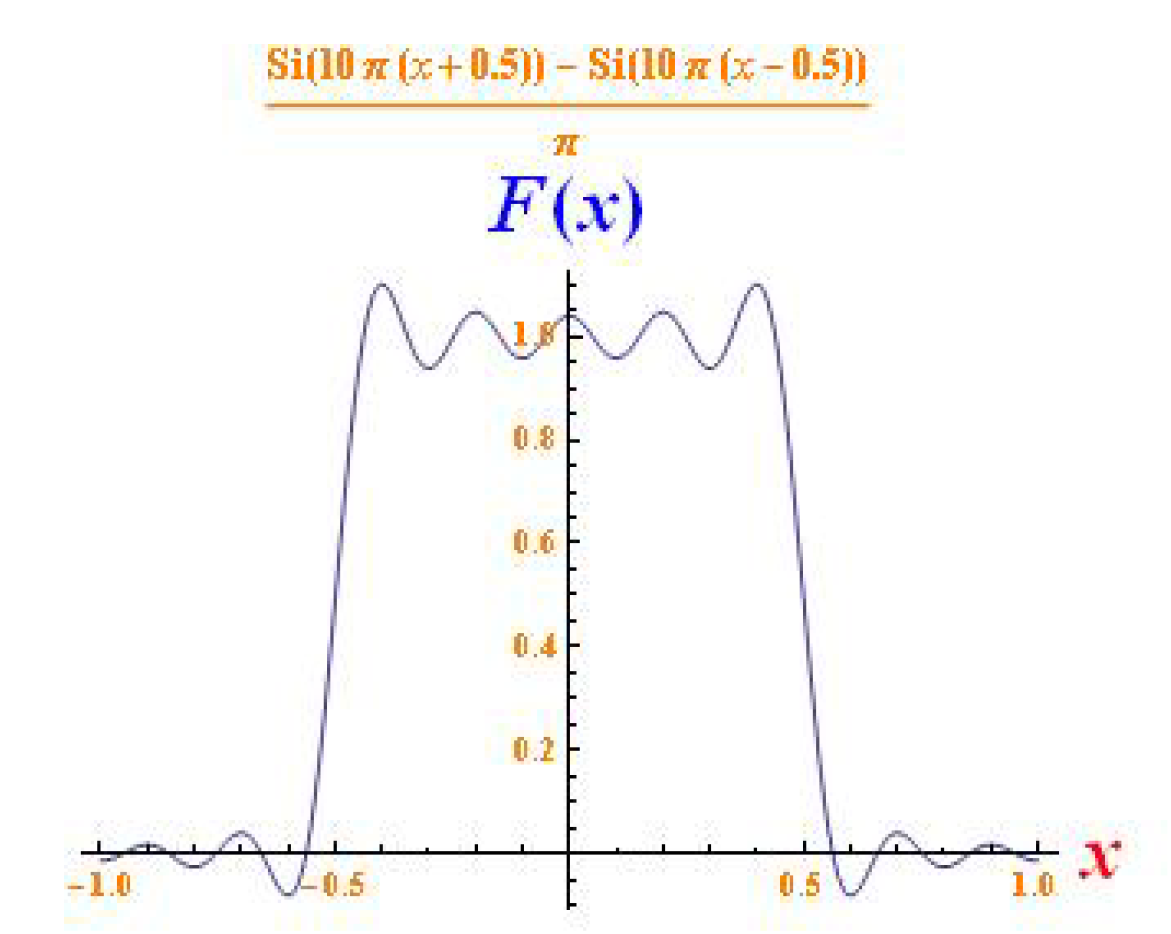

Figure 5. A typical application of Fourier transform to analysis of radiation patterns (“Gibbs’ phenomenon”) [8].

• Modified Families with ”Polynomial Variable Transfer”
  Following the ideas formally given by us, we consider the following modified families of functions based on ${\sigma }_{adapt}\left(t\right)$ with “polynomial variable transfer”:

  $$\begin{array}{c}{F}_1\left(t\right):=e^{\frac{c_{q}f{\left(t\right)}^q}{t^2-1}},\hfill \\ f\left(t\right)={\displaystyle \sum _{i=0}^n}{a}_i{t}^i,a_0=0\hfill \end{array}$$

  (7)

  and

  $$\begin{array}{c}{F}_2\left(t\right):=e^{\frac{c_{q}f{\left(t\right)}^q}{f{\left(t\right)}^2-1}},\hfill \\ f\left(t\right)={\displaystyle \sum _{i=0}^n}{a}_i{t}^i,a_0=0.\hfill \end{array}$$

  (8)
  The modified families: $F_1\left(t\right)$ for $q=2,n=3,a_0=0,a_1=3.96,a_2=-18.9,a_3=5.7$ and $F_2\left(t\right)$ for $q=2,n=4,a_0=0,a_1=-1.96,a_2=8.9,a_3=-6.7,a_4=2$ are depicted in Figure 6.
  Let $t=b_0(\pi cos\left(\theta \right)+a)$, where $\theta$ is azimuthal angle and a is the phase difference.
  Then, for example, typical radiation patterns with “restrictions” using $F_1\left(\theta \right)$ for
  (a) $q=2,n=3,a_0=0,a_1=1,a_2=-3.9,b_0=-0.5,a=3.2$;
  (b) $q=2,n=3,a_0=0,a_1=1,a_2=-3.9,b_0=-1.8,a=2.4$
  are plotted on Figure 7 and Figure 8.
  Numerical examples are presented using CAS MATHEMATICA.
• The New Activation Function
  We define the following activation function based on ${\sigma }_{adapt}\left(t\right)$ (1):

  $$F_3\left(t\right)=\frac{1-e^{\frac{c_q{t}^q}{t^2-1}}}{1+e^{\frac{c_q{t}^q}{t^2-1}}}.$$

  (9)
  In antenna-feeder technique most often occurred signals are of types shown in Figure 9 and Figure 10. For q even, the corresponding approximation using model (9) is shown in Figure 9. For q odd, the corresponding approximation using new activation function $F_3\left(t\right)$ is shown in Figure 10.
  The reader may formulate the corresponding approximation problem following the ideas given in this article, and this will be omitted. The results have important role in the fields of Population Dynamics, Biostatistics, Signal Theory, Reliability Analysis and Life testing experiments. For other results, see [12,13,14,15]. Another application of the Hausdorff metric can be found in [16].
• New ”semi-activation” function
  We define the following “semi-activation” function

  $$F_4\left(t\right)=\frac{1-e^{\frac{c_q{t}^q}{{(a_0+a_{1}t+a_2{t}^2)}^2-1}}}{1+e^{\frac{c_q{(a_0+a_{1}t+a_2{t}^2)}^q}{{(a_0+a_{1}t+a_2{t}^2)}^2-1}}}.$$

  (10)
  The problem of approximating the “point set” depicted in Figure 11 is also of independent interest (in the limiting case, the “point set CROSS”—see, for instance, [17]).
  The modified family $F_4\left(t\right)$ for $q=7$:
  (a) $a_0=0,a_1=0.04,a_2=7.2$;
  (b) $a_0=0,a_1=0.01,a_2=9.01$
  is depicted in Figure 11.
• Another activation function
  Formally, we define the following activation function

  $$F_5\left(t\right)=\frac{e^{-\frac{a{t}^q}{t^2-1}}-e^{\frac{a{t}^q}{t^2-1}}}{e^{-\frac{a{t}^q}{t^2-1}}+e^{\frac{a{t}^q}{t^2-1}}},t\in \left(0.1\right)$$

  (11)

  where $a>0$.
  The shifted Heaviside step function is defined by

  $$h_{t_0}\left(t\right)=\left\{\begin{array}{ccc}\hfill cll0,& if& t<t_0,\hfill \\ \hfill [0,1],& if& t=t_0,\hfill \\ \hfill 1,& if& t>t_0\hfill \end{array}\right.$$
  Obviously, the new function $F_5\left(t\right)$ can be used successfully to approximate the Heaviside step function (see Figure 12).
  Approximation of shifted Heaviside step function $h_{t_0}\left(t\right)$ by sigmoidal function $F_5\left(t\right)$ for:
  (a) $q=6$: $a=1000,t_0=0.282245$; Hausdorff distance $d=0.0580217$;
  (b) $q=3$$a=700,t_0=0.0919762$; Hausdorff distance $d=0.0460022$
  is visualized on Figure 12.
  The function $F_5\left(t\right)$ can be used in the field of population dynamics and biostatistics [7].
• The new function
  Formally, we define the following function:

  $$F_6\left(t\right)=1-e^{-\frac{H\left(t\right)}{G\left(t\right)}}$$

  (12)

  where $H\left(t\right)$ and $G\left(t\right)$ are polynomials.
  In some cases, the function $F_6\left(t\right)$ can be used for analysis of “rectangular signals”.
  For example, see Figure 13 for fixed
  $G\left(t\right)=1.17755t^{10}-51.87041*t^9+2.85984*t^8+123.85465*t^7-14.21173*t^6-100.59484*t^5+16.45178*t^4+30.42548*t^3-7.39353*t^2-0.95663*t+1.1$ and
  $H\left(t\right)=t^8+t^6+t^4+t^2+2.9$.
  Remark 1.

  $G\left(t\right)$ is the polynomial of best one–sided Hausdorff distance of the function

  $$\kappa \left(t\right)=\left\{\begin{array}{ccc}\hfill cll-1,& if& -1\le t\le -\frac{1}{3},\hfill \\ \hfill 1,& if& -\frac{1}{3}<t\le 1.\hfill \end{array}\right.$$

  by polynomial of degree 10 (see, for example, [4]).
  Let $t=b_0(\pi cos\left(\theta \right)+a)$.
  A “typical radiation pattern” $F_6\left(\theta \right)$ for $b=0.132$ and $a=4.263$ is depicted on Figure 14 and Figure 15.
  Unfortunately, these diagrams cannot always be realized in practice.
• Application to the ”cut-off function”
  The analysis presented in this article can also be applied to the “cut-off function”, see (1):

  $$F_7\left(t\right)=e^{-\frac{C{t}^p}{t^2-{\pi }^2}}$$

  where $C>0$ and p is even.
• Approximation with restrictions
  Often some restrictions must be imposed on the main lobe of the radiation pattern—for example, see Figure 16
  The polynomial

  $$f\left(t\right)=133.123786t^{10}-251.561221t^8+107.004415t^6+36.476971t^4-30.804320t^2+6.189054$$

  computed by Remez’s algorithm from [18] and shown in Figure 17, provides a reliable approximation of the window (Figure 16).
  We note that the “adaptive function” with $c_1=6.9$

  $$F_8\left(t\right)=\frac{1}{{\left(1-e^{\frac{c_1{t}^2}{t^2-1}}\right)}^2}$$

  based on function of Tadmor and Tanner (1) is of the form shown in Figure 17.
  Unfortunately, these diagrams cannot always be realized in practice.
  Specialists working in these scientific fields have the final word.
  We will look at another instructive example.
  A typical diagram function $R\left(t\right)$ with imposed constraints at the median level is shown in Figure 18.
  After serious analysis, it turned out that the function by Tadmor and Tanner could be modified in such a way as to obtain the following “differential analogue with step h”:

  $${\sigma }_{adapt}^{*}\left(t\right):=({\sigma }_{adapt}\left(t\right)+{\sigma }_{adapt}(t-h))/2$$

  (13)

  where

  $${\sigma }_{adapt}\left(t\right):=e^{\frac{c_q{t}^q}{t^2-1}}$$

  and

  $$c_q=2^q.\frac{3}{8}.\frac{18q^2+3q+14}{9q^2+6q+2}.$$
  From the attached visualization (see Figure 19 and Figure 20) it can be seen that the proposed new modification can be used successfully for the approximation of functions of type $R\left(t\right)$.
  Obviously, higher order differential analogues can be obtained, which we leave to the readers’ attention.

Figure 6. (a) Modified family $F_1\left(t\right)$ for $q=2,n=3,a_0=0,a_1=3.96,a_2=-18.9,a_3=5.7$; (b) Modified family $F_2\left(t\right)$ for $q=2,n=4,a_0=0,a_1=-1.96,a_2=8.9,a_3=-6.7,a_4=2$.

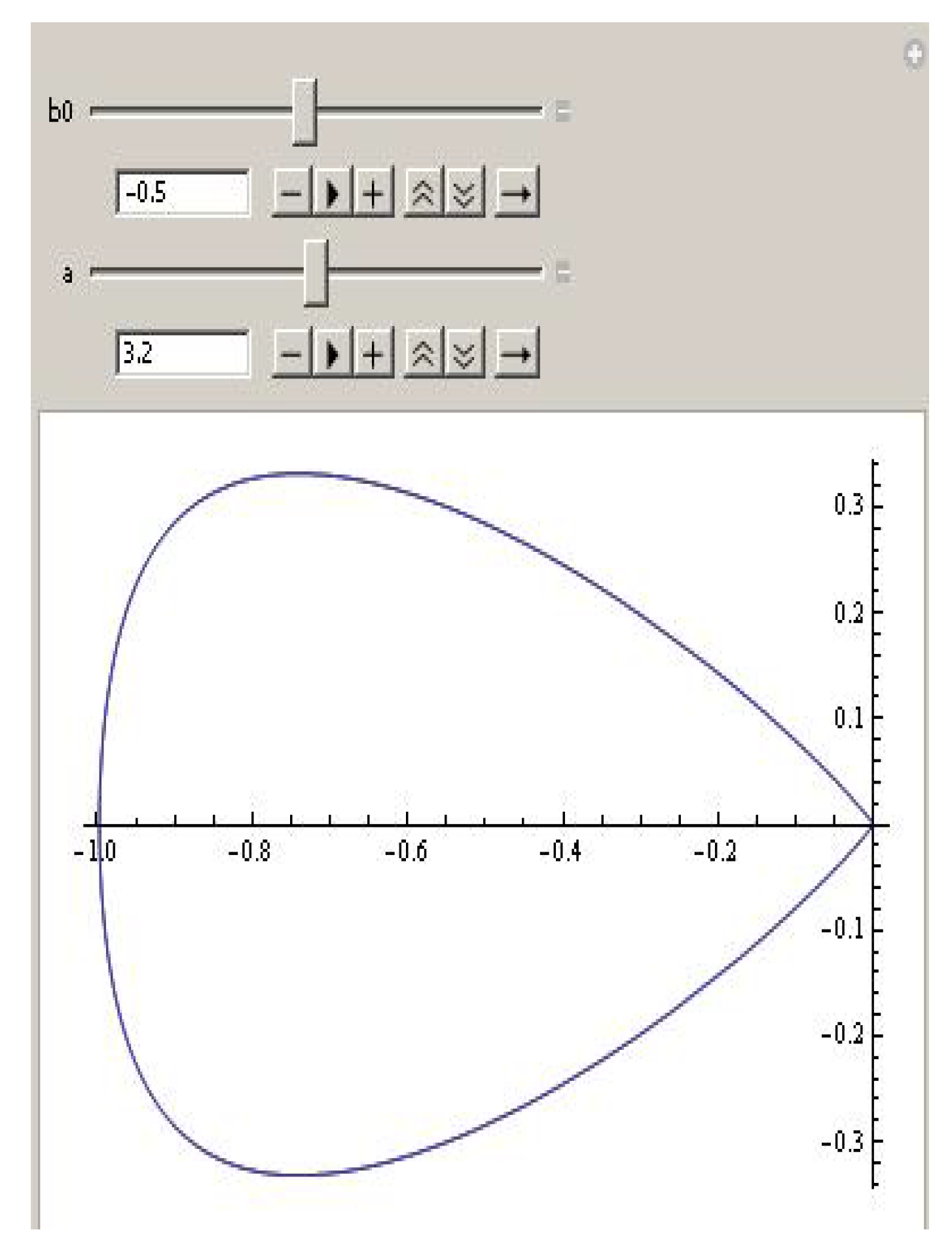

Figure 7. A typical radiation pattern with “restrictions” using $F_1\left(\theta \right)$ for $q$=$2,n$=$3,a_0$=$0,a_1$=$1$, $a_2$=$-3.9,a_3$=$1.7,b_0$=$-0.5,a$=$3.2$.

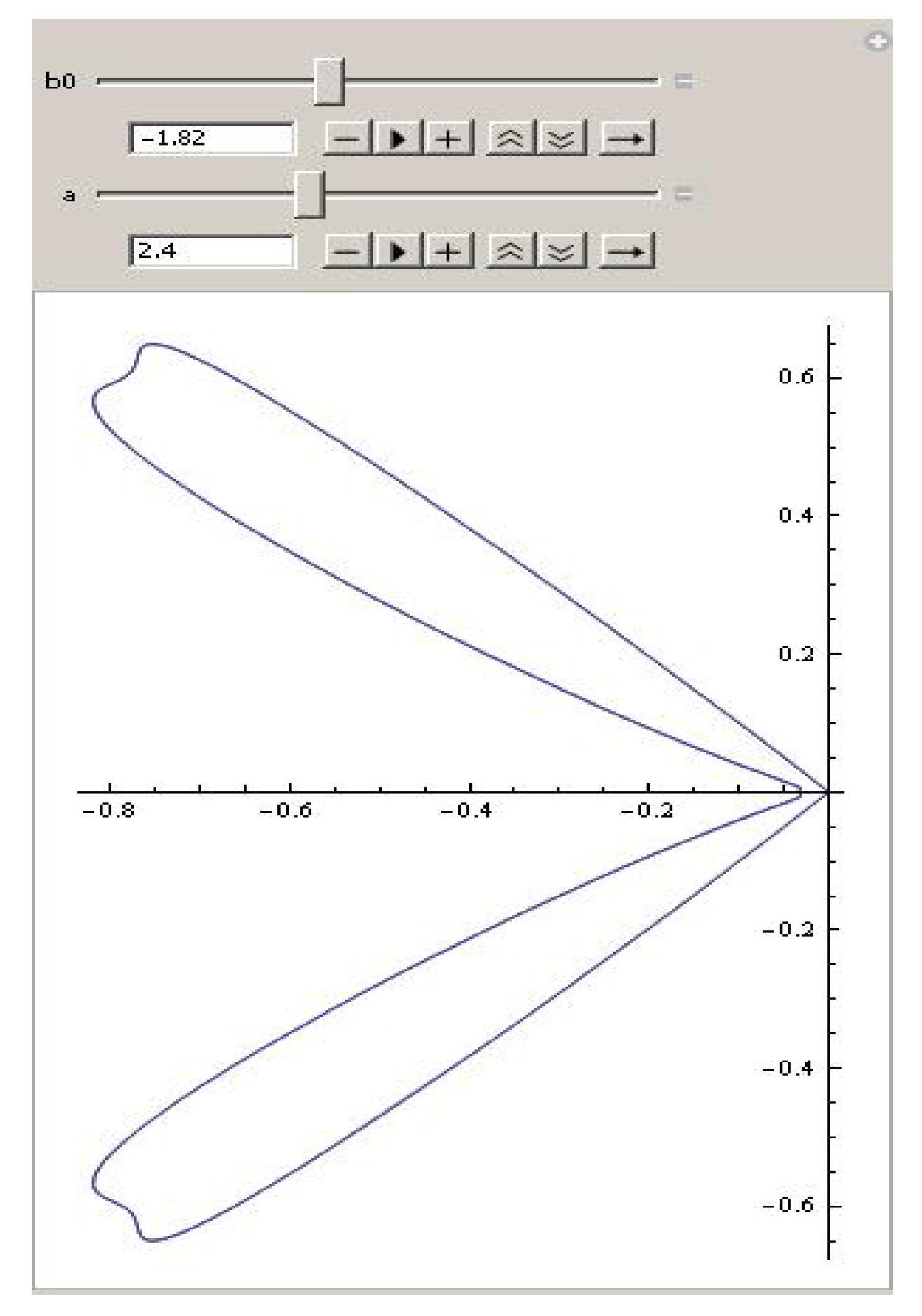

Figure 8. A typical radiation pattern with “restrictions” using $F_1\left(\theta \right)$ for $q=2,n=3,a_0$=$0,a_1$=$1$, $a_2$=$-3.9,a_3=1.7,b_0=-1.82,a=2.4$.

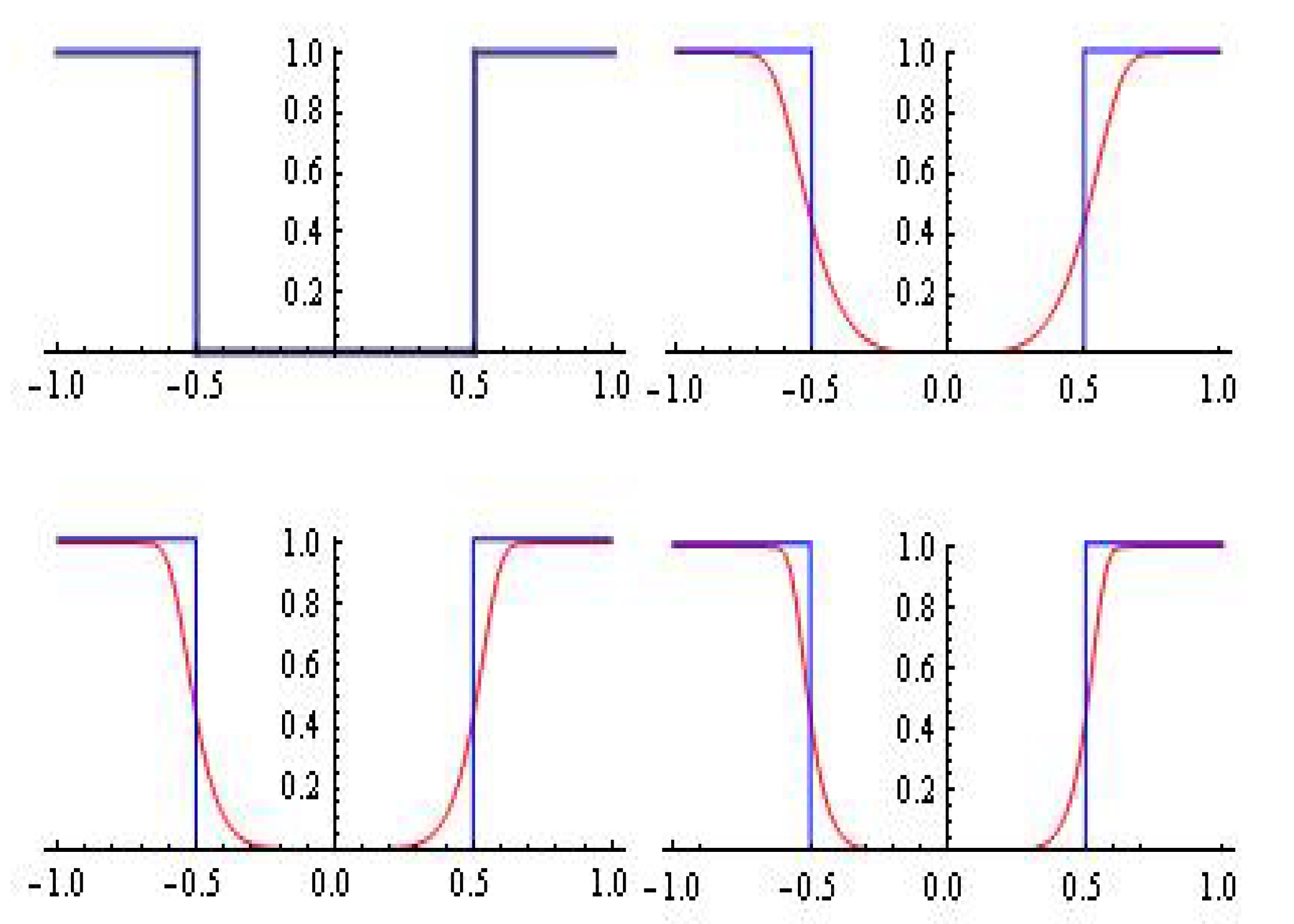

Figure 9. Approximation by $F_3\left(t\right)$ for $q=4,6,8$.

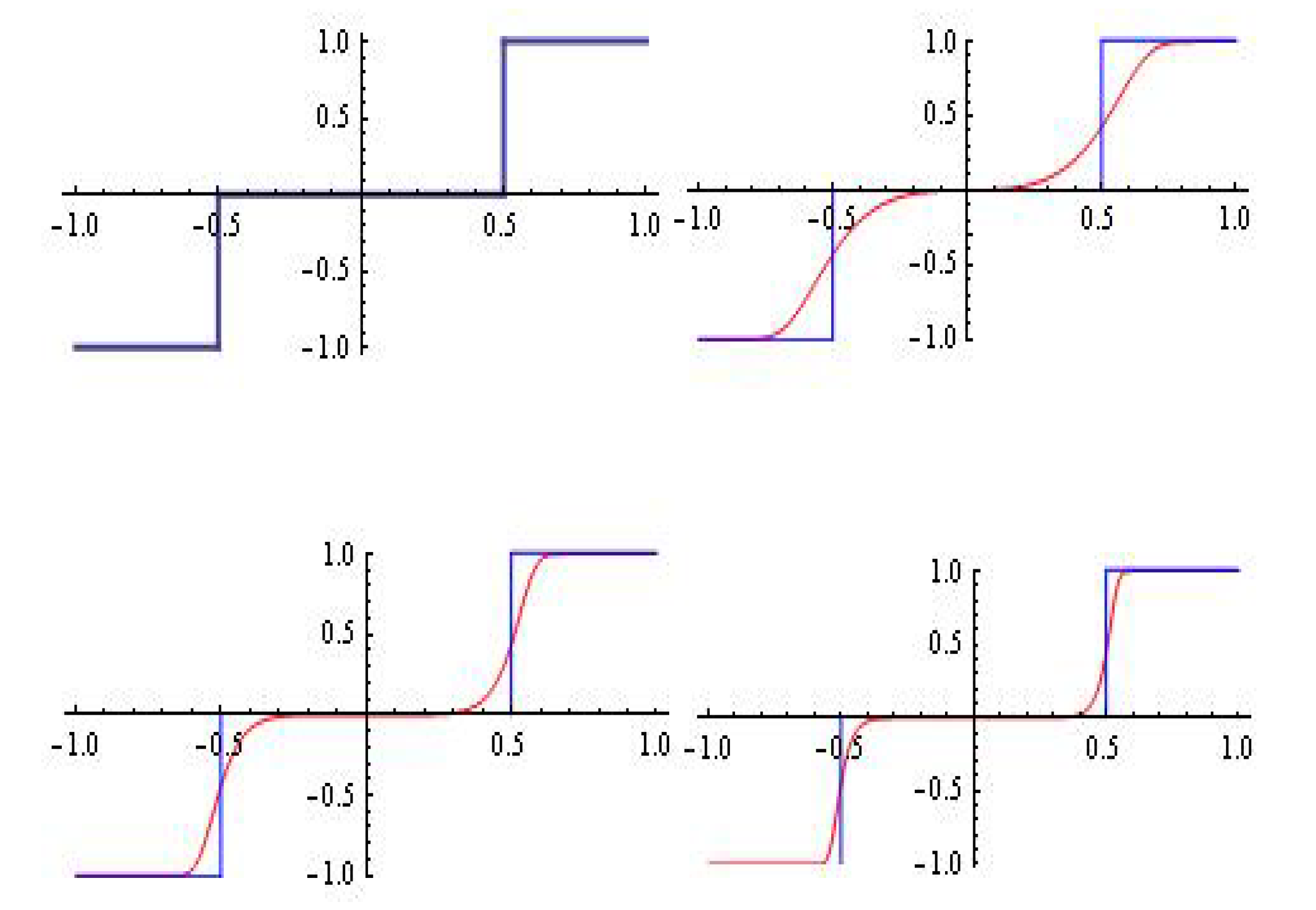

Figure 10. Approximation by $F_3\left(t\right)$ for $q=3,7,13$.

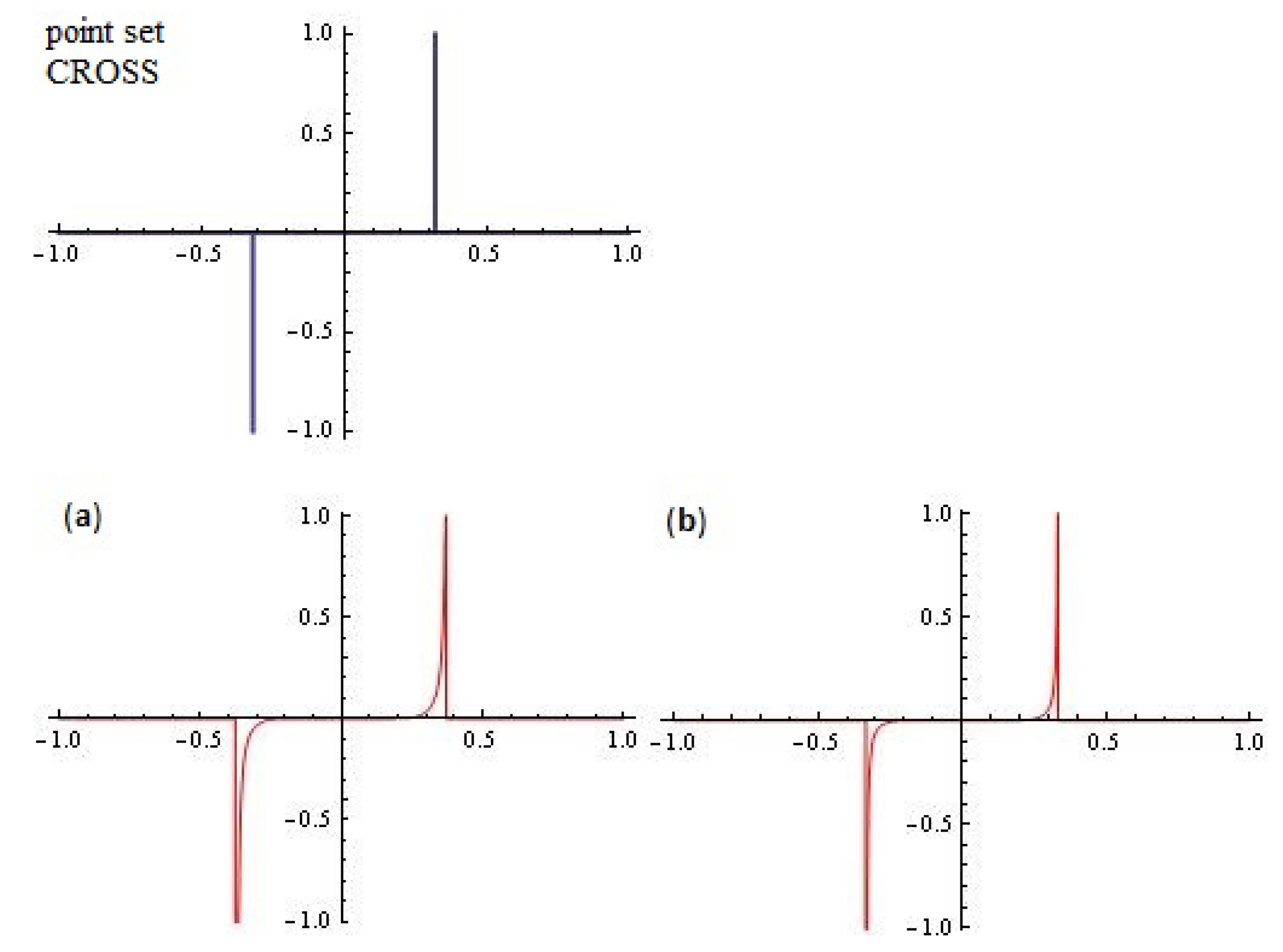

Figure 11. Approximation by $F_4\left(t\right)$, $q=7$: (a) $a_0=0,a_1=0.04,a_2=7.2$; (b) $a_0=0,a_1=0.01,a_2=9.01$.

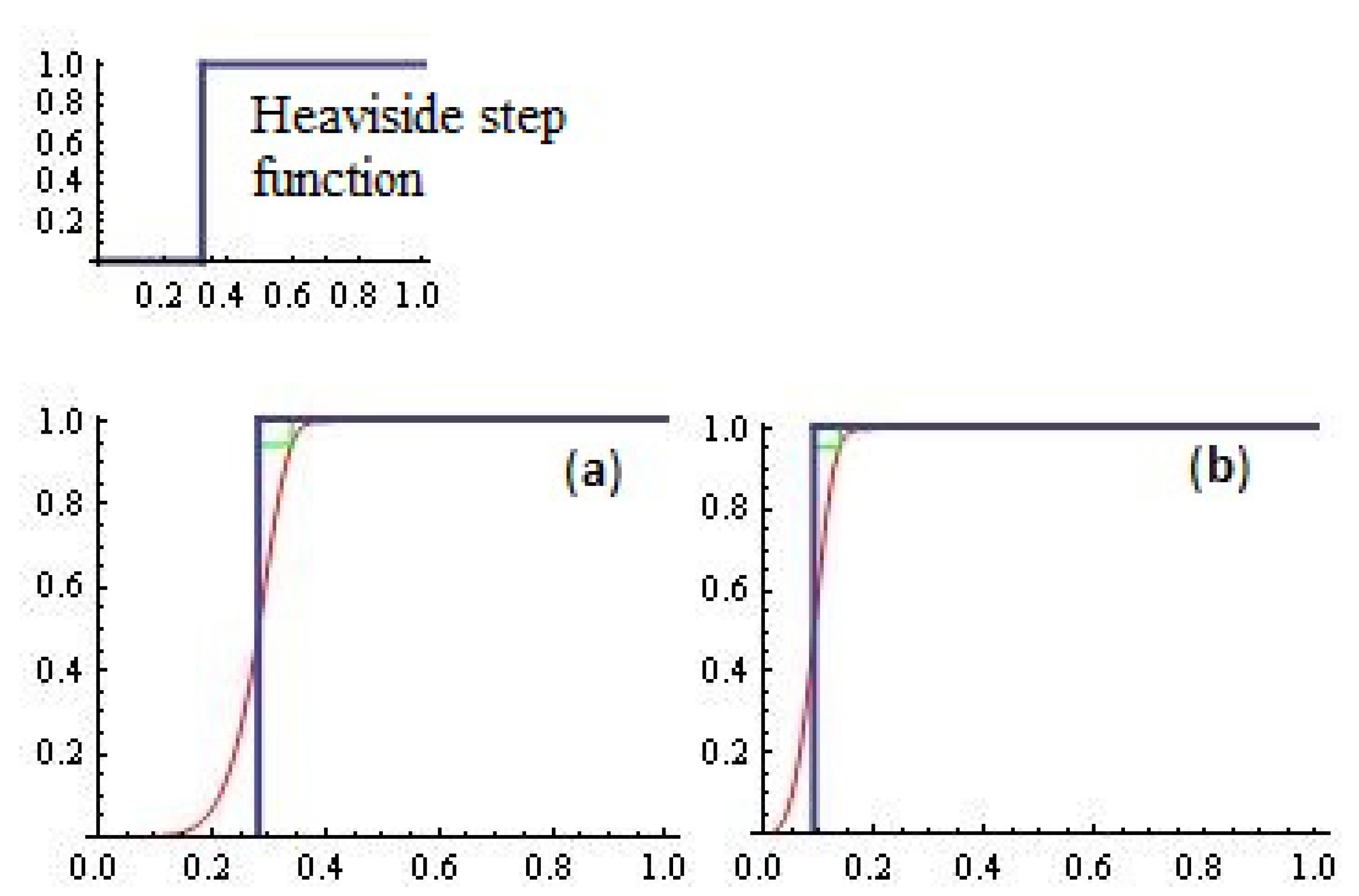

Figure 12. Approximation of $h_{t_0}\left(t\right)$ by $F_5\left(t\right)$: (a) $q=6$: a) $a=1000,t_0=0.282245$; Hausdorff distance $d=0.0580217$; (b) $q=3$: a) $a=700,t_0=0.0919762$; Hausdorff distance $d=0.0460022$.

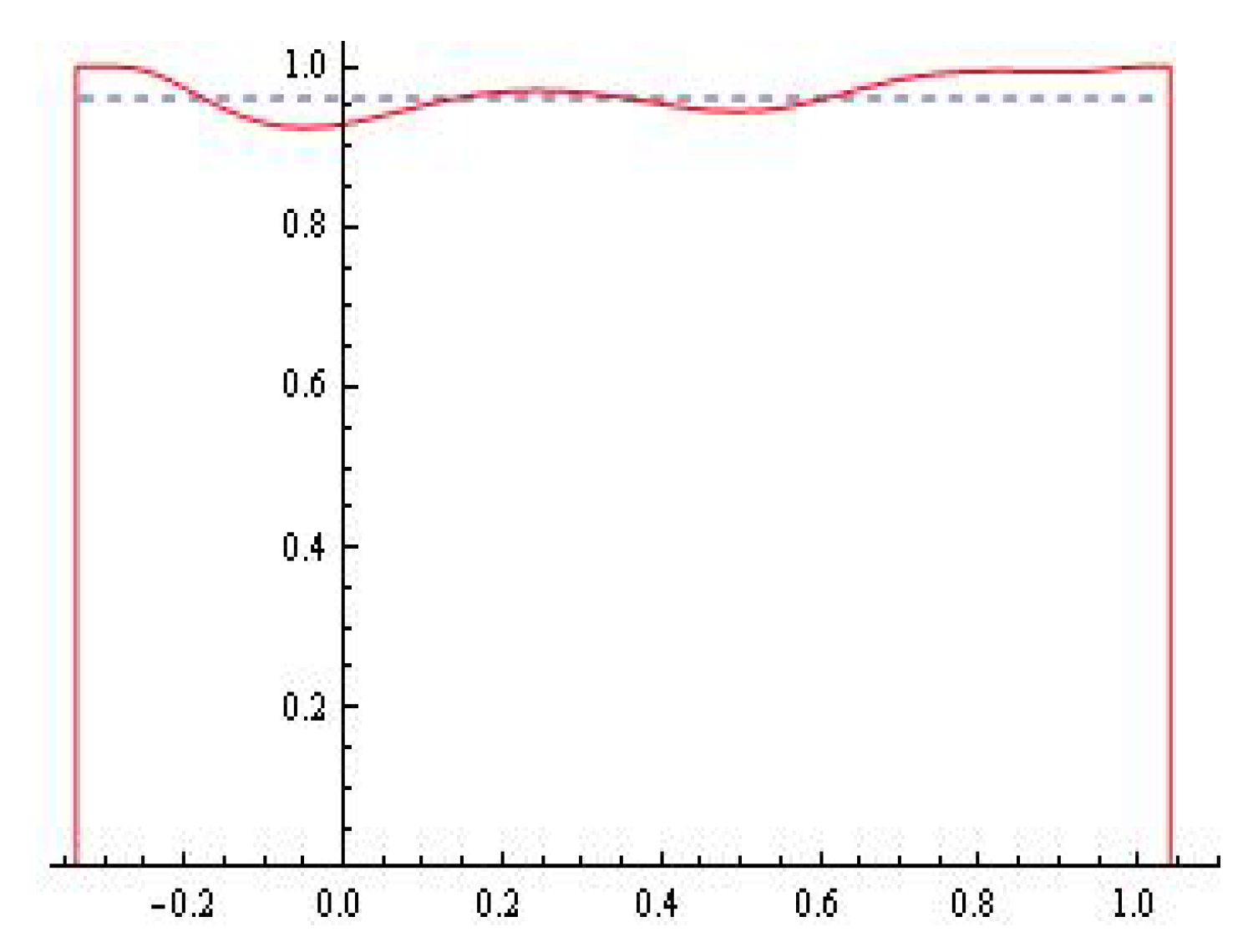

Figure 13. The function $F_5\left(t\right)$-red.

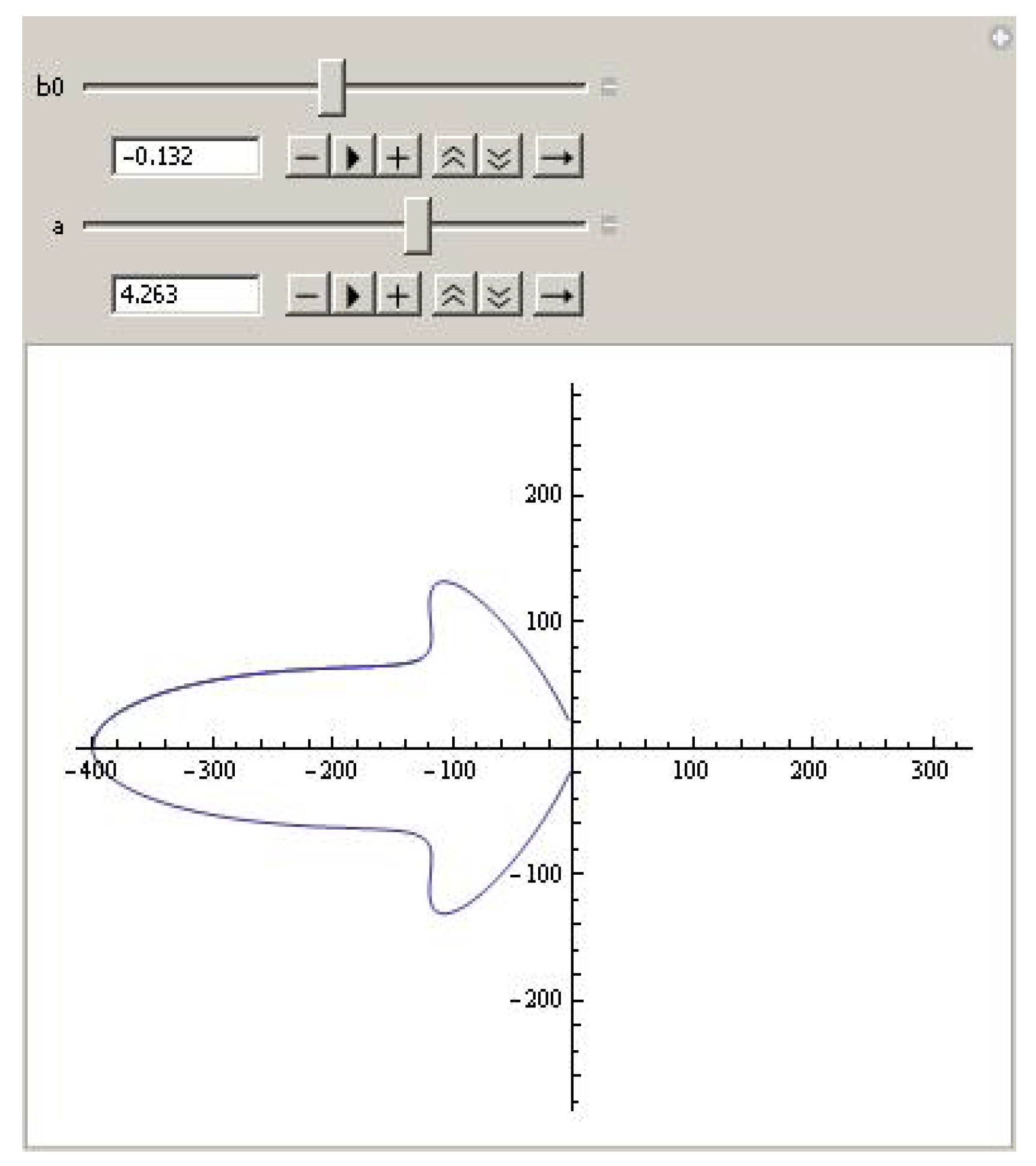

Figure 14. A “typical radiation pattern” $F_6\left(\theta \right)$ for $b=0.132$ and $a=4.263$.

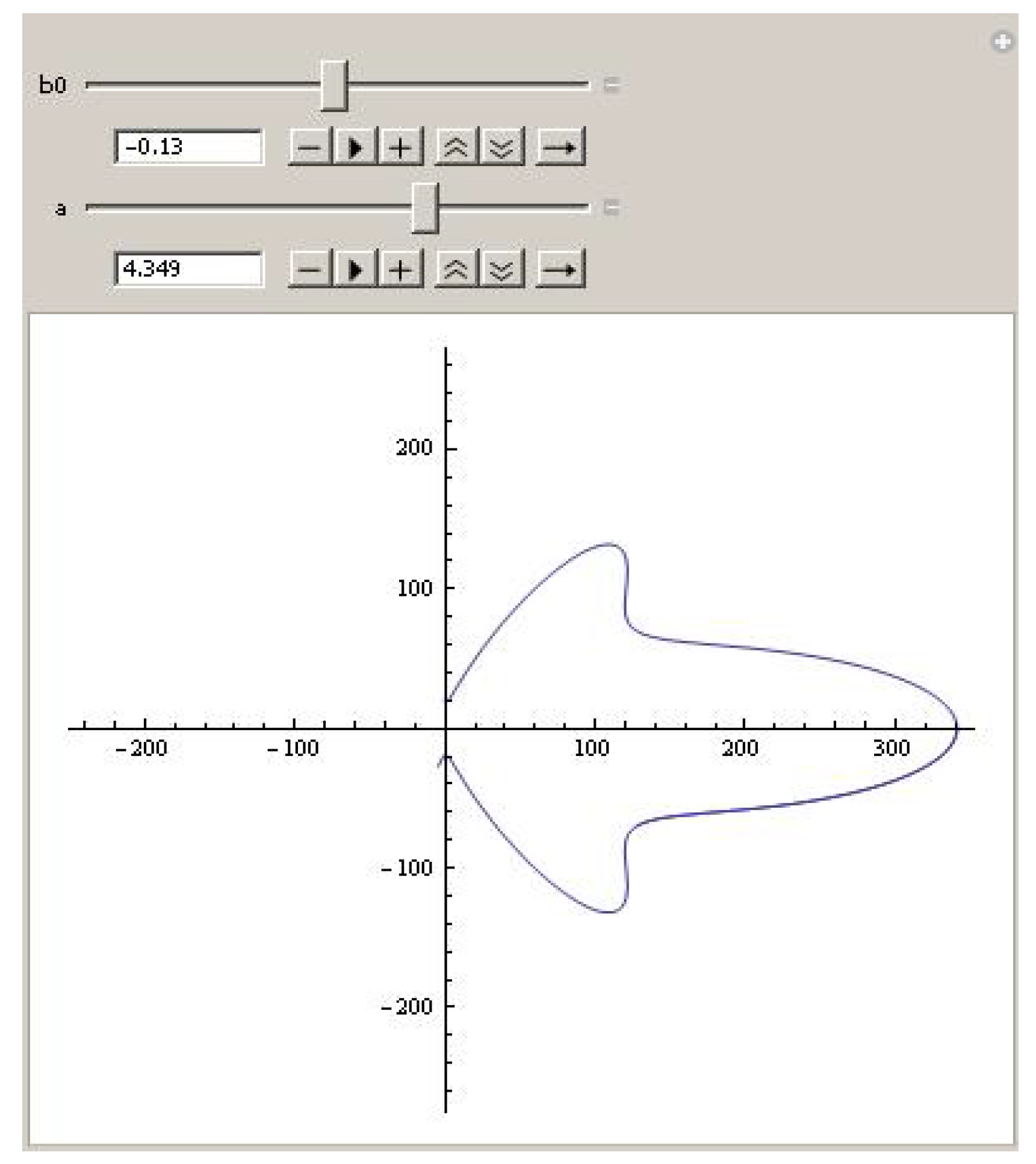

Figure 15. A “typical radiation pattern” $F_6\left(\theta \right)$ for $b=-0.13$ and $a=4.349$.

Figure 16. “Typical restrictions”.

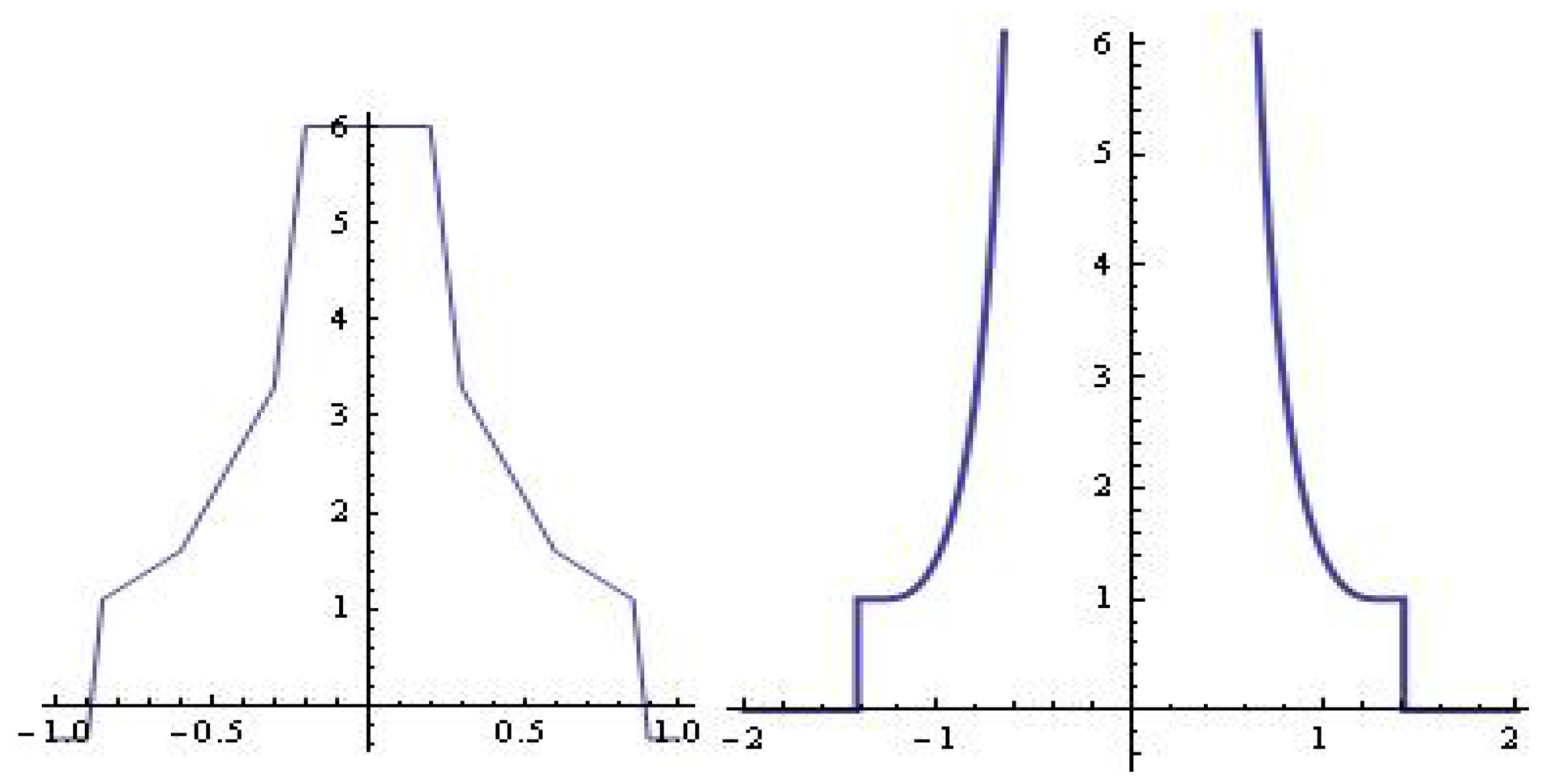

Figure 17. “Typical radiation patterns”.

Figure 18. A typical diagram function $R\left(t\right)$ with restrictions.

Figure 19. The function ${\sigma }_{adapt}^{*}\left(t\right)$ for $q=8$: (a) $h=0.32$; (b) $h=0.22$.

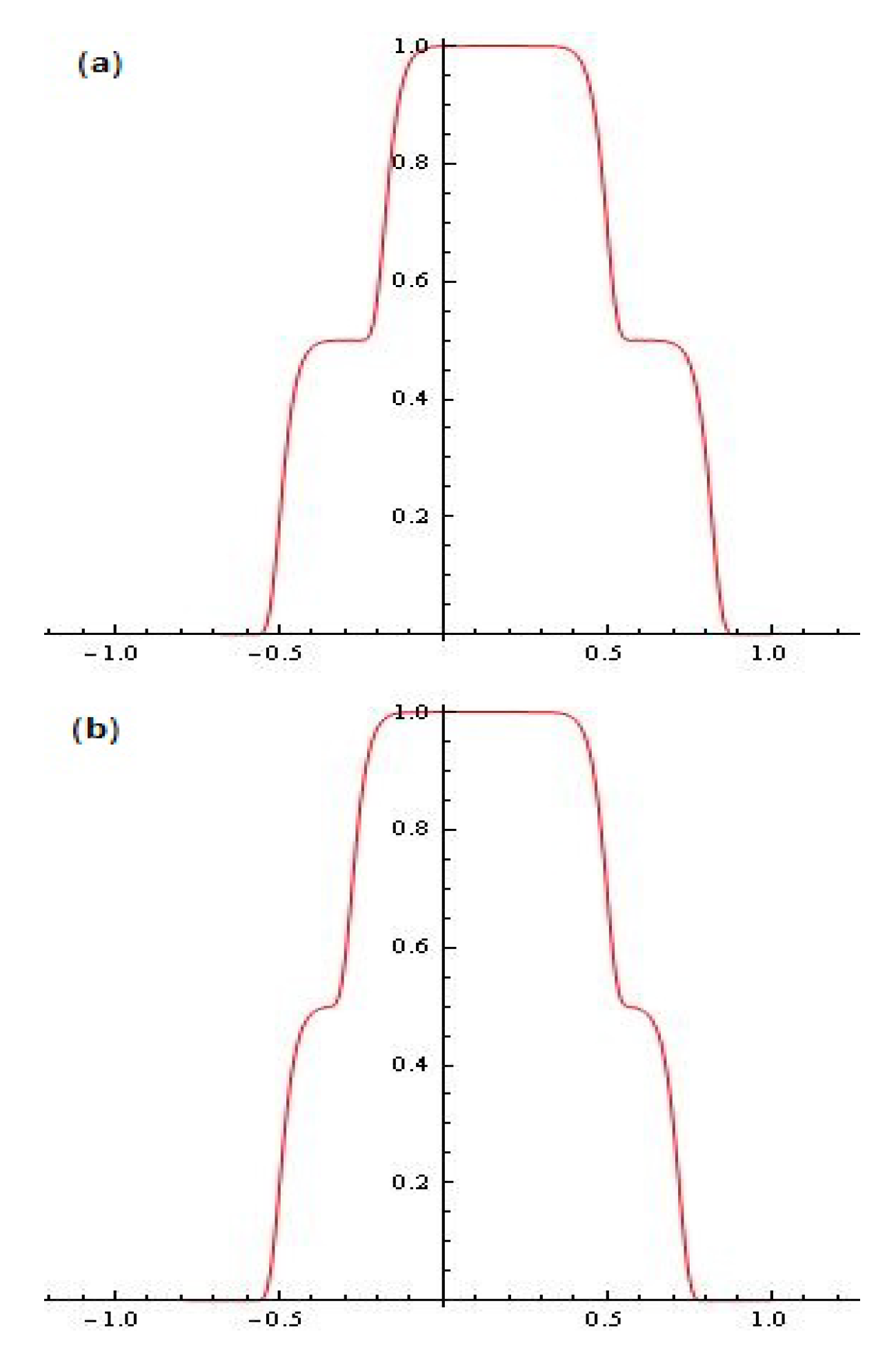

Figure 20. The function ${\sigma }_{adapt}^{*}\left(t\right)$ for $q=16$: (a) $h=0.32$; (b) $h=0.22$.

3. Concluding Remarks

The aim of the present research is to define families of “adaptive functions” that could be used in various branches of scientific knowledge, in particular in the approximation of a number of classical impulse signals, point sets in the plane and supplemented graphs of discontinuous functions.

Questions related to the synthesis and analysis of transfer functions, radiation diagrams with algebraic and trigonometric polynomials about Hausdorff distance are elaborated in detail in the monograph in [8].

In this article we consider only some aspects related to the disclosure of intrinsic properties of some of the proposed families of “adaptive functions” in a purely methodological aspect.

Many of the proposed new models could not be used as “feasible models–diagrams” in practice.

In this connection, the specialists working in the indicated field have the floor. For some results, see [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39].
