Domain Knowledge-Infused Synthetic Data Generation for LLM-Based ICS Intrusion Detection: Mitigating Data Scarcity and Imbalance

Abstract

Industrial control systems (ICSs) are increasingly interconnected with enterprise IT networks and remote services, which expands the attack surface of operational technology (OT) environments. However, collecting sufficient attack traffic from real OT/ICS networks is difficult, and the resulting scarcity and class imbalance of malicious data hinder the development of intrusion detection systems (IDSs). At the same time, large language models (LLMs) have shown promise for security analytics when system events are expressed in natural language. This study investigates an LLM-based network IDS for a smart-factory OT/ICS environment and proposes a synthetic data generation method that injects domain knowledge into attack samples. Using the ICSSIM simulator, we construct a bottle-filling smart factory, implement six MITRE ATT&CK for ICS-based attack scenarios, capture Modbus/TCP traffic, and convert each request–response pair into a natural-language description of network behavior. We then generate synthetic attack descriptions with GPT by combining (1) statistical properties of normal traffic, (2) MITRE ATT&CK for ICS tactics and techniques, and (3) expert knowledge obtained from executing the attacks in ICSSIM. The Llama 3.1 8B Instruct model is fine-tuned with QLoRA on a seven-class classification task (Benign vs. six attack types) and evaluated on a test set composed exclusively of real ICSSIM traffic. Experimental results show that synthetic data generated only from statistical information, or from statistics plus MITRE descriptions, yield limited performance, whereas incorporating environment-specific expert knowledge is associated with substantially higher performance on our ICSSIM-based expanded test set (100% accuracy in binary detection and 96.49% accuracy with a macro F1-score of 0.958 in attack-type classification). Overall, these findings suggest that domain-knowledge-infused synthetic data and natural-language traffic representations can support LLM-based IDSs in OT/ICS smart-factory settings; however, further validation on larger and more diverse datasets is needed to confirm generality.

1. Introduction

Industrial control systems (ICSs) are losing their clear perimeter due to the spread of the Industrial Internet of Things (IIoT) and the convergence of operational technology (OT) and information technology (IT) [1]. Traditionally, ICSs were deployed in isolated networks using proprietary protocols and dedicated hardware. However, in recent years, Ethernet-based communication, standard protocols such as TCP/IP and Modbus/TCP, remote monitoring, and cloud integration have been widely adopted. Although these changes improve production efficiency and operational convenience, they also increase the number of paths through which cyberattackers can gain access to control networks [2,3,4]. As a result, OT networks are no longer isolated environments, but complex cyber–physical systems interconnected with enterprise IT networks, external maintenance vendors, and remote-operation systems. Consequently, cyberattacks targeting OT/ICS environments are emerging as realistic threats, and attempts and incidents involving attacks on actual production facilities continue to be reported [5].

OT/ICS systems are responsible for controlling physical processes and equipment in the real world. Unlike in IT environments, cyberattacks in OT/ICS can lead not only to data breaches but also to severe physical consequences such as production downtime, safety incidents, and malfunctioning equipment [6]. For example, attacks that modify the control logic of programmable logic controllers (PLCs) or manipulate sensor and actuator signals can alter process conditions, causing equipment damage or degradation of product quality. However, there are several constraints on the application of cybersecurity measures in OT/ICS environments. Many devices are designed for long-term operation and therefore often lack modern security features, and because availability and safety are top priorities, applying patches or rebooting systems is difficult [7]. In addition, the cost of interrupting production is extremely high, making it practically infeasible to perform active scanning or penetration tests on live systems for attack detection [8,9]. Due to these constraints, network-based intrusion detection systems (NIDSs) are attracting attention as a relatively feasible alternative for OT/ICS environments [10].

OT/ICS network traffic exhibits domain-specific characteristics that depend on the configuration of processes and equipment. Each site has distinct register maps, control cycles, and communication patterns. In contrast to general IT environments, publicly available public datasets are scarce and it is difficult to collect traffic that covers various attack scenarios.

Conventional OT/ICS intrusion detection research has mainly focused on classifying normal and abnormal behavior using machine learning or deep learning models trained on features extracted from network traffic. Such approaches must often be redesigned whenever the environment changes, still require a sufficient amount of labeled data, and tend to respond primarily to numerical patterns rather than to the semantic meaning of actions. In contrast, large language models (LLMs) have shown promising applicability in various security domains beyond natural language processing, including code analysis and security log analysis [11]. When network traffic or system logs are converted into natural language and provided as input to an LLM, it has been suggested that the model can infer “in what context and with what intent an action was taken” in a manner similar to human reasoning [12,13,14]. In OT/ICS environments in particular, protocols with relatively simple request–response structures, such as Modbus/TCP, are widely used. This makes it natural to express each packet or transaction as a sentence describing which human machine interface (HMI) or PLC accessed which register, using which function code, with what value, and under what periodic pattern.

However, to effectively train an LLM-based intrusion detection system, a sufficient amount of data is required. Publicly available OT/ICS traffic data are limited, and attack scenarios differ across industrial sites, making it difficult to construct and generalize such systems.

Therefore, this study aims to address the lack of training data for building LLM-based network intrusion detection systems in OT/ICS environments. To this end, we implement attack techniques from the MITRE ATT&CK for ICS framework in the publicly available ICSSIM simulation environment, collect normal and attack traffic, and generate synthetic attack data infused with domain knowledge using the GPT-4o API. In addition, we fine-tune the Llama 3.1 8B Instruct model and quantitatively evaluate the detection performance of the proposed approach.

Contributions

• We implement six attack scenarios based on MITRE ATT&CK for ICS in the ICSSIM simulation environment and propose a method for generating synthetic attack data that combines statistical information, the MITRE ATT&CK for ICS knowledge base, and expert domain knowledge.
• We propose a method for representing network traffic as natural-language sentences for use as LLM training data and suggest its applicability to OT/ICS intrusion detection systems.

The remainder of this paper is organized as follows. Section 2 reviews related work, including machine learning- and deep learning-based intrusion detection systems and the application of LLMs to cybersecurity. Section 3 introduces the ICSSIM-based smart-factory simulation environment and the threat model, and describes in detail the six OT/ICS attack scenarios designed on this basis. Section 4 explains the process of collecting normal and attack network traffic in the ICSSIM environment, converting it into natural language to construct an LLM training dataset, and generating GPT-based synthetic attack data by combining statistical information, MITRE ATT&CK for ICS, and domain expert knowledge. Section 5 presents the experimental setup for the proposed LLM-based intrusion detection system, including dataset partitioning, fine-tuning configurations for the Llama 3.1 8B Instruct model using QLoRA, prompt templates, evaluation metrics, and the overall experimental procedure. Section 6 quantitatively compares and analyzes the experimental results for each synthetic data composition case and for simulation-based attack data in terms of both binary classification and attack-type classification. Based on these results, Section 7 discusses the validity of the synthetic data, the strengths and limitations of LLM-based intrusion detection, and considerations for applying the approach to real OT/ICS environments. Finally, Section 8 concludes the paper.

2. Related Work

Intrusion detection systems (IDSs) are generally categorized into signature-based and anomaly-based approaches. In particular, a large body of work has combined anomaly detection with machine learning or deep learning techniques [15,16]. Network-based IDSs typically extract various features from packets to classify traffic as normal or malicious, and ML/DL-based intrusion detection has been studied extensively across both IT and OT environments. Many studies have evaluated diverse classifiers, deep neural networks, and hybrid architectures using benchmark datasets such as KDD, NSL-KDD, and UNSW-NB15, reporting high accuracy. However, mismatches between the characteristics of these datasets and those of real-world environments have raised concerns and criticisms regarding their generalizability [15,17,18]. In addition, in the OT/ICS domain, industrial protocols such as Modbus/TCP require domain-specific designs that reflect periodic communication patterns and process characteristics, and conventional models based on numerical feature vectors make it difficult to explain attack behavior in a form that is easily understandable to humans.

Recently, large language models (LLMs) have demonstrated outstanding performance not only in natural language generation and summarization but also in tasks such as code and log analysis, leading to growing interest in applying them to cybersecurity [19,20,21]. LLMs have been explored as assistive tools for explaining security and log alerts in natural language and for supporting the generation of detection rules and search queries. There are also proposals in which an LLM-based agent aggregates the outputs of multiple ML-based IDSs, adapts to zero-day attacks, and provides explanations for detection results. Fernandez et al. compared classical machine learning classifiers with several open-source LLMs on IoT security logs and confirmed that LLMs can achieve superior performance in multiclass attack classification [22]. Otoum et al. fine-tuned a lightweight LLM on an IoT-specific dataset and proposed a threat detection and prevention framework that provides real-time anomaly detection and automated response, demonstrating its scalability across diverse environments through Docker-based modular deployment [23].

In the IT and IoT domains, ML/DL-based IDSs have been actively studied for many years [24,25,26,27], and more recently, various frameworks have been proposed that leverage LLMs to classify IoT traffic and logs, detect zero-day attacks and malware, and explain detection results [23,28,29]. However, most of these studies focus on IT/IoT networks and generic protocols. To the best of our knowledge, there has been little work that converts traffic generated by industrial protocols used in OT/ICS environments, such as Modbus/TCP, into natural-language behavioral descriptions and trains and evaluates LLMs using synthetic attack data that combine MITRE ATT&CK for ICS with domain expert knowledge.

In this study, we target an OT/ICS smart-factory environment based on ICSSIM and (1) convert network traffic into natural-language descriptions that can be understood by LLMs, (2) generate synthetic attack data using the GPT API by incorporating normal traffic statistics, knowledge of MITRE ATT&CK for ICS tactics and techniques, and domain expert knowledge into prompts, and (3) fine-tune an LLM as an intrusion detection model and evaluate its performance on actual simulated attack traffic, thereby addressing this research gap.

3. Attack Scenarios

This section describes the six attack scenarios implemented in the ICSSIM-based smart-factory environment. All scenarios are built on the OT/ICS architecture of the bottle-filling plant modeled in ICSSIM and focus on network-observable behaviors of attack techniques defined in the MITRE ATT&CK for ICS framework. The attacker is assumed to be an insider who has already taken control of an HMI or PLC in the OT zone. Under this assumption, the NIDS is required to monitor HMI–PLC network traffic under internal compromise conditions and detect anomalous behavior.

3.1. ICSSIM Simulation

In this study, we leverage the ICSSIM simulation environment to evaluate an LLM-based intrusion detection system in OT/ICS settings. As shown in Figure 1, ICSSIM is a framework designed to emulate realistic industrial traffic by implementing a virtual ICS composed of HMIs, PLCs, sensors, actuators, attacker nodes, and other components as containers, and by emulating the network interconnecting them [30]. Each component runs in a separate Docker container, and a virtual switch forms the control network. This configuration enables the execution of various attack scenarios and the collection of both normal and attack traffic.

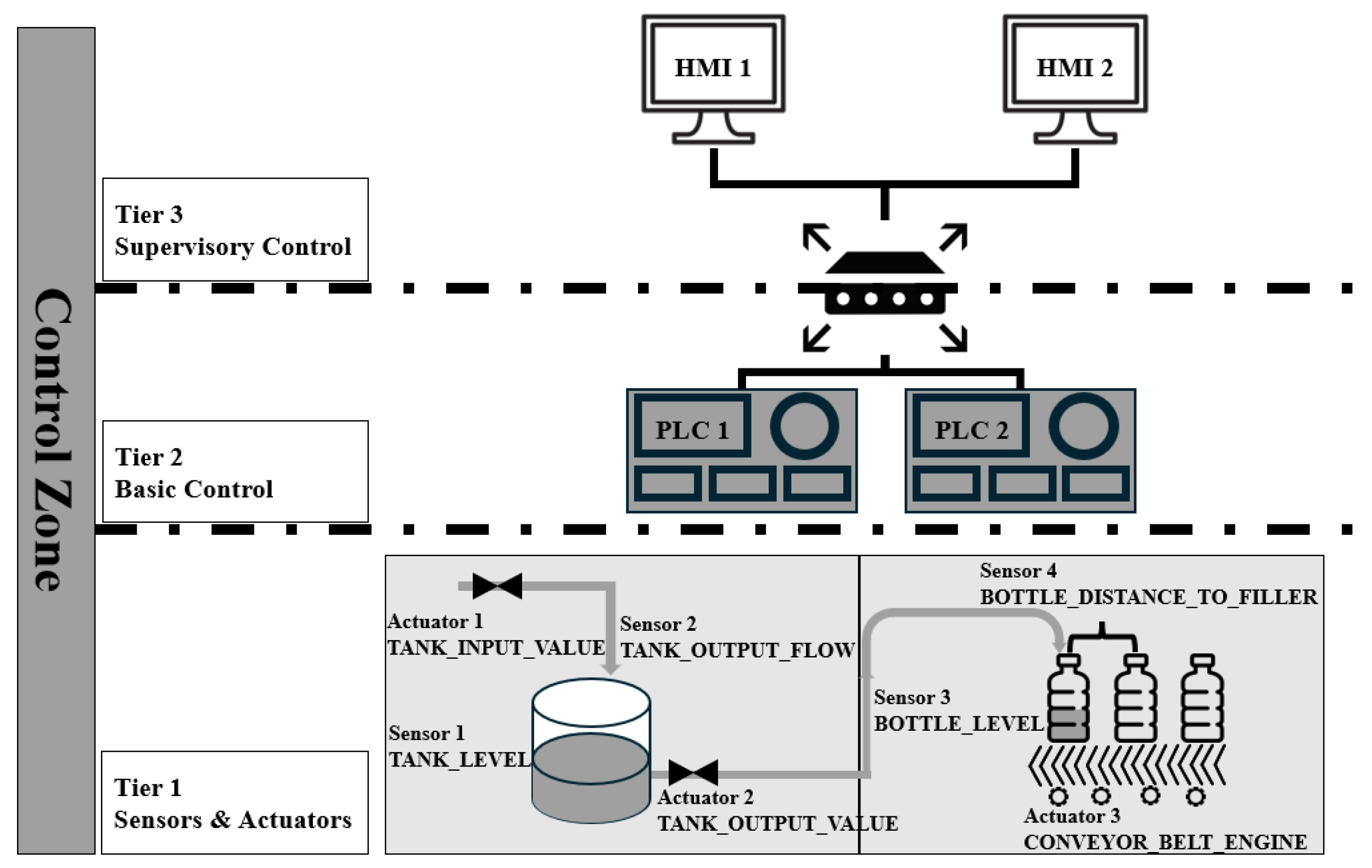

Figure 1. Architecture of the ICSSIM environment.

We configure a smart-factory environment consisting of HMIs, PLCs, sensors, and actuators based on the bottle-filling process provided by ICSSIM. Two PLCs are responsible for tank-level control and conveyor control, respectively, and two HMIs are assigned distinct roles: HMI1 for monitoring process status and HMI2 for issuing operational commands. Sensors measure process variables such as tank water level, flow rate, and bottle position, while actuators operate valves, pumps, and conveyor belts. Communication between HMIs and PLCs for control and monitoring is performed using the Ethernet-based Modbus/TCP protocol.

3.2. Threat Model and Design Principles

Although the ICSSIM architecture allows an attacker node to be directly connected to the control network to perform various attacks, it is rare in real industrial environments for an external attacker to obtain a dedicated node directly connected to the control network. In this study, we therefore assume a threat model in which an HMI or PLC inside the OT network has already been compromised by the attacker, for example through stolen credentials, infection of a maintenance workstation, or abuse of a remote access account. The main assumptions used to design the attack scenarios based on this threat model are summarized in Table 1, and an example attack scenario is shown in Figure 2.

Table 1. Main assumptions for designing attack scenarios.

Item	Description
Compromise point	An HMI or PLC inside the OT network is already in a compromised state.
Attacker location	Inside the control network (no separate external attacker node).
Attacker privileges	From the compromised HMI/PLC, the attacker can execute system commands and abuse existing Modbus/TCP channels between HMIs and PLCs.
Attack target	PLC register values, control commands, etc.
Constraints	We focus on attacks whose behavior can be observed at the network level.
Observation point	Modbus/TCP and other protocols between HMIs and PLCs observed at a mirror port on the control switch.
Detection cues	Function code changes, register value modifications, scanning behavior, etc.

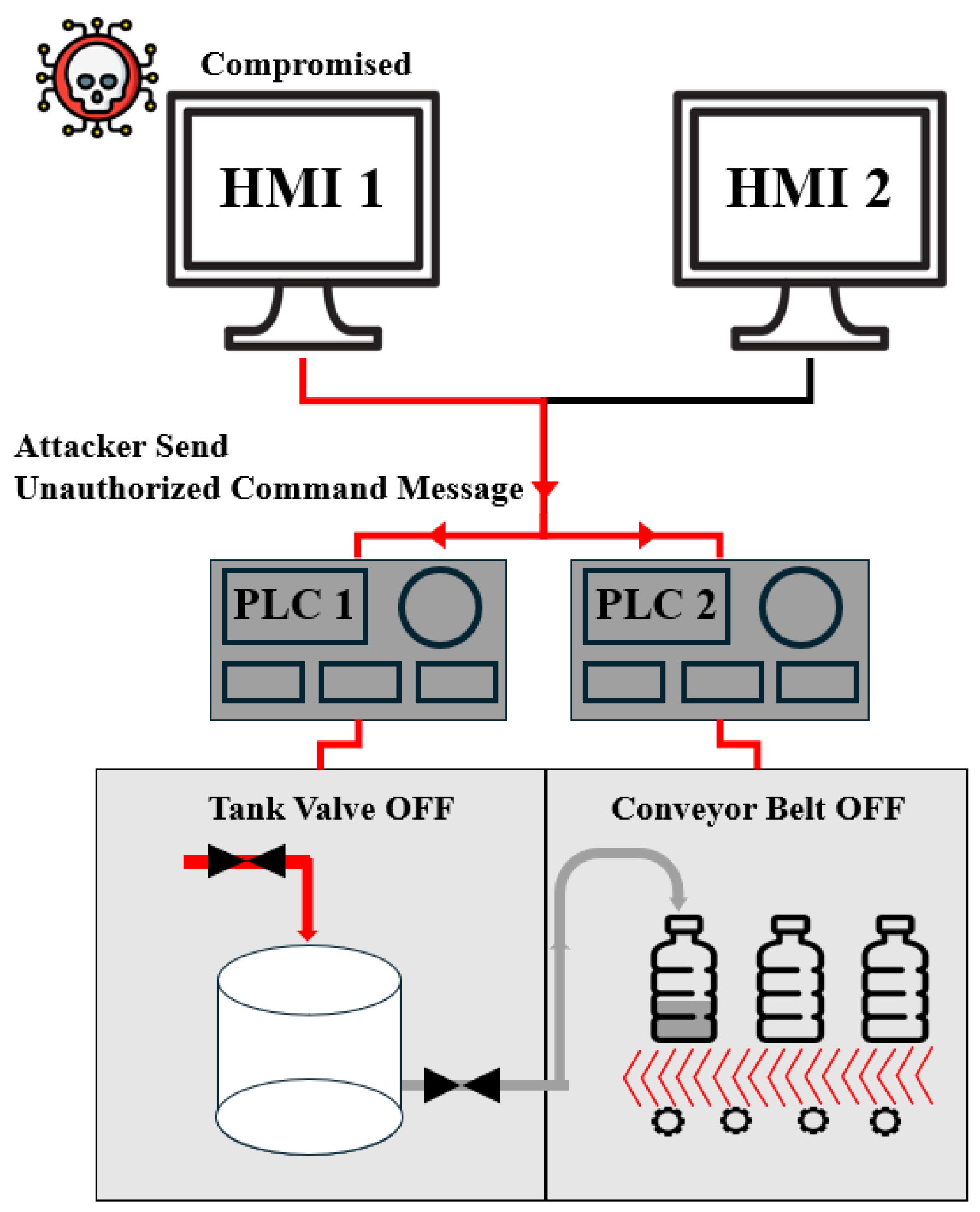

Figure 2. Unauthorized Command Message attack scenario example (Red arrows show the attack flow from the compromised HMI1 to the PLCs, resulting in the tank valve and conveyor belt being turned OFF).

Under these assumptions, the NIDS must detect anomalous behavior originating from internal HMIs or PLCs rather than focusing solely on the perimeter of the control network.

3.3. Remote System Discovery

The Remote System Discovery (T0846) attack involves an attacker-controlled internal device that scans the OT network to identify other control devices and collect information about their communication characteristics and service ports. In this scenario, we assume that HMI1 has been compromised by the attacker. From HMI1, the attacker performs a port scan over the internal control-network range (e.g., 192.168.0.1–255) to discover active hosts and open ports. The IP address and port ranges are divided into multiple segments that are scanned sequentially, and a sleep interval is inserted between segments so that the overall scan is carried out stealthily over an extended period. This avoids the sudden traffic spikes that occur when scanning the entire network in a short time, which can be easily detected by ICS operators or NIDSs.

During the Remote System Discovery attack, in addition to Modbus/TCP-based control traffic, TCP port-connection attempts and ARP-based host-discovery packets occur at a higher-than-normal frequency. As shown in Figure 3, Wireshark captures repeatedly show ARP broadcasts of the form “Who has 192.168.0.x? Tell 192.168.0.21”. From a network perspective, this attack is characterized by (1) a single HMI performing port scans against multiple internal IP addresses, (2) an abnormal increase in the frequency of ARP broadcasts, and (3) repeated connection attempts to ports that are not normally used in the ICS environment. An LLM-based NIDS can be trained on natural-language descriptions of these characteristics to detect long-term, stealthy network-scanning patterns.

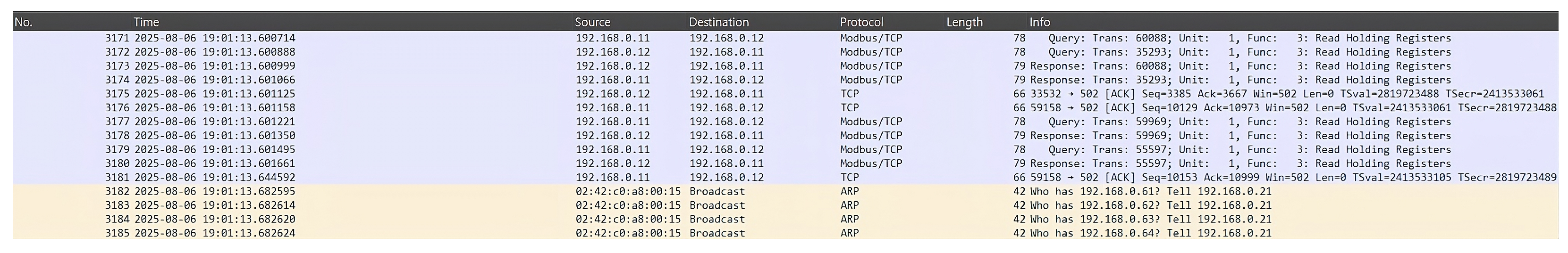

Figure 3. Wireshark capture of network-scanning traffic during the Remote System Discovery attack.

3.4. Unauthorized Command Message

The Unauthorized Command Message (T0855) attack forces control devices to execute commands that operators did not intend. A representative example is an unauthorized HMI issuing write commands to a PLC. In normal operation, HMI1 periodically sends read requests such as function code 3 (Read Holding Registers) to PLC1 and PLC2 for process monitoring, while HMI2 exclusively issues write commands required for process control (e.g., valve actuation, motor stop commands). In an Unauthorized Command Message attack, this separation of roles is violated. After compromising HMI1, the attacker sends write commands such as function code 16 (Write Multiple Registers) from HMI1 to the PLCs to perform unauthorized control actions such as stopping the conveyor belt or forcing pump operation.

From a network perspective, this attack is distinguishable from normal traffic in that write function codes (e.g., FC 6, 16) are observed from HMI1, which is supposed to be used only for monitoring, and these write operations are concentrated on specific registers that control the states of valves, pumps, and conveyors. By learning function-code and register-access patterns associated with each HMI role from natural-language descriptions, an LLM-based intrusion detection model can discriminate between legitimate control commands and Unauthorized Command Messages.

3.5. Modify Parameter

The Modify Parameter (T0836) attack changes parameters such as setpoints and thresholds used in control logic to abnormal values, causing the system to operate based on incorrect criteria. Although operators follow normal procedures, attacker-manipulated parameters can cause the control system to make incorrect decisions. In normal operation, setpoints and thresholds rarely change during runtime, and most Modbus/TCP write commands issued during operation are related to immediate control actions such as valve actuation, pump operation, and conveyor state changes.

In a Modify Parameter attack, we assume that HMI2, which has write privileges, has been compromised. The attacker sends write commands from HMI2 to relax configuration parameters such as upper and lower tank-level limits and flow-rate thresholds. From a network perspective, this attack uses the same HMI–PLC communication paths and the same Modbus/TCP protocol as normal traffic but differs in that transient write requests appear targeting configuration-parameter registers that are rarely modified during normal operation.

By learning natural-language descriptions that express behaviors such as sudden write requests to setpoints or thresholds during operation and changes to more permissive limits compared to normal values, an LLM-based NIDS can distinguish Modify Parameter attacks from ordinary control commands.

3.6. Remote System Information Discovery

The Remote System Information Discovery (T0888) attack collects operational information such as device vendor, product code, firmware version, and network configuration from control devices (PLCs, RTUs, HMIs, etc.) in the ICS network and later uses this information for vulnerability analysis and attack-path planning. In this scenario, we use the Modbus/TCP Read Device Identification function (function code 43/14) to gather detailed information about the control devices in the ICSSIM environment. In normal operation, HMIs primarily use function code 3 to read process status and sensor values, and requests using function code 43/14 for device identification rarely occur during runtime.

In the Remote System Information Discovery attack, we again assume that HMI1 has been compromised. HMI1 establishes Modbus/TCP sessions with each PLC and sends function code 43/14 (Read Device Identification) requests. As a result, the attacker obtains device-identification information such as vendor, product code, and firmware revision, as shown in Figure 4.

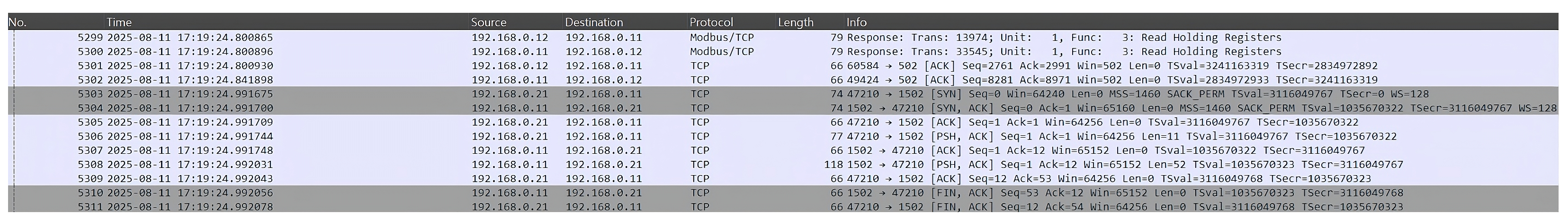

Figure 4. Wireshark capture of network-scanning traffic during the Remote System Information Discovery attack.

From a network perspective, this attack uses the same HMI–PLC communication paths as normal control traffic but differs in that function code 43/14, which is rarely used during normal operation, appears repeatedly for multiple PLCs within a short period of time. By learning natural-language descriptions of such behavior, an LLM-based NIDS can recognize actions in which “an HMI queries vendor and firmware information from PLCs using the Read Device Identification function code (43/14)” as indicative of the Remote System Information Discovery stage.

3.7. Adversary-in-the-Middle (AiTM)

The Adversary-in-the-Middle (AiTM, T0830) attack places the attacker in the middle of the communication path between control devices, allowing the interception of packets, observation or modification of their contents, and retransmission. By obtaining this man-in-the-middle position, the attacker can manipulate sensor and actuator values or prepare follow-up attacks such as Spoof Reporting Message, Modify Parameter, and Unauthorized Command Message.

In this study, we implement a false data injection scenario in which Modbus/TCP traffic between HMIs and PLCs is intercepted in transit and response messages are manipulated. We assume that an HMI on the same network has been compromised by the attacker, and this HMI conducts ARP spoofing to poison the ARP tables of both the PLC and the legitimate HMI. As a result, the PLC misidentifies the attacker HMI’s MAC address as that of the legitimate HMI, and the legitimate HMI uses the attacker HMI’s MAC address instead of the PLC’s MAC address. Consequently, all Modbus/TCP packets between them are rerouted through the attacker HMI.

From this man-in-the-middle position, the attacker HMI passively monitors the traffic and selectively modifies certain register values representing process states in responses from the PLC to the HMI, then forwards the modified responses to the HMI as if they were sent by the PLC. From a network perspective, the AiTM attack exhibits the following characteristics: (1) during the ARP spoofing phase, the MAC address associated with a given IP address suddenly changes, or the attacker HMI sends a series of ARP replies to both the PLC and the legitimate HMI; and (2) during the Modbus/TCP phase, it appears that the HMI is still communicating directly with the PLC, but the actual source MAC address of response packets has changed. By learning natural-language descriptions of ARP and Modbus/TCP behavior, an LLM-based NIDS can detect such man-in-the-middle attack patterns.

3.8. Spoof Reporting Message

The Spoof Reporting Message (T0854) attack forges or tampers with the information that control devices report to upper-level HMIs or SCADA systems, thereby delivering false information that does not reflect the actual process state. The attacker’s goal is to conceal abnormal conditions or the impact of other attacks (e.g., Modify Parameter, Unauthorized Command Message) and to delay operators’ awareness of anomalies.

In this study, we implement scenarios in the ICSSIM environment in which registers representing sensor values and device states are reported to the HMI with falsified values. Spoofing is performed in two ways: (1) by modifying PLC internal logic so that state values included in response messages are manipulated, or (2) by intercepting PLC → HMI responses at an Adversary-in-the-Middle (AiTM) position, altering only the payload, and then forwarding the modified responses. In both cases, the physical behavior of field devices remains unchanged, but the HMI screens and alarm logic make decisions based solely on the manipulated reported values.

From a network perspective, Spoof Reporting Message attacks are difficult to detect because the communication peers, ports, function codes, and request intervals between HMIs and PLCs remain almost identical to those during normal operation, and only the register values in response messages are altered. Therefore, in our design, the LLM-based NIDS is trained on natural-language descriptions of inconsistencies between state values observed across different devices and paths, so that it can identify indications of Spoof Reporting Message attacks.

4. Dataset Construction

This section describes the datasets used to train and evaluate the LLM-based intrusion detection model. We first explain how normal and attack network traffic are collected in the ICSSIM environment and how packets are preprocessed and converted into natural-language form. We then describe how normal data are constructed and how GPT-based synthetic attack data (malicious data) are generated. We also report the computational overhead of converting extracted CSV records into LLM-ready JSON inputs used for training and evaluation.

4.1. Network Traffic Collection

Network traffic was collected by running the ICSSIM-based OT/ICS environment described in Section 3 in both normal-operation and attack-execution modes. For normal traffic, the system was operated for 12 h, and all traffic between HMIs and PLCs was captured using Wireshark and stored in PCAP format.

For attack traffic, we implemented the six attack scenarios from Section 3 in the ICSSIM environment. For each scenario, network traffic generated before, during, and after the attack was captured and stored as separate PCAP files. The collected PCAP files were then processed sequentially, and only the necessary fields were extracted from each packet and stored on a per-packet basis. As summarized in Table 2, key fields from the IP and TCP headers and from Modbus/TCP and other protocol headers were saved in CSV format. Based on subsequent attack analysis, we selected a subset of fields from the CSV files that provide useful information for LLM training.

Table 2. Example CSV columns and values extracted from pcap file.

Column Name	Description	Example
src_ip	Source IP address	192.168.0.11
src_port	Source TCP port	502
dst_ip	Destination IP address	192.168.0.12
dst_port	Destination TCP port	34,048
protocol	Protocol name	Modbus/TCP, TCP
direction	Packet direction with respect to Modbus/TCP	Query
frame_len	Total frame length including L2 header	78
tcp_flags	TCP flag string	PSH, ACK
trans_id	Modbus transaction ID (request/response matching)	13,795
func_code	Function code (e.g., 3, 6, 16)	3 (Read Holding Register)
register_start	First register address	4
register_count	Number of consecutive registers	2
register_value	List of register values	2:0; 3:65,000

Because Modbus/TCP traffic is organized into request–response pairs, we matched each request with its corresponding response and constructed natural-language descriptions that combine the register-address information from the request with the register value from the response. As shown in Table 3, each request–response pair can be represented as a sentence describing “which HMI or PLC read which register or modified which register value using which function code.”

Table 3. Template and example for Modbus/TCP natural language conversion.

Modbus/TCP natural language conversion format	“From source IP [src_ip] port [src_port] to destination IP [dst_ip] port [dst_port], a Modbus/TCP [query/response] was transmitted with function code [function_code] requesting [quantity] values from register [start_address] through register [end_address], and the packet length at the time of the request was [frame_len] bytes.”
Example	“From source IP 192.168.0.11 port 34,048 to destination IP 192.168.0.12 port 502, a Modbus/TCP query was transmitted with function code 3 (Read Holding Registers), requesting 2 values from register 22 through register 23, and the packet length at the time of the request was 78 bytes.”

By representing each packet (or query–response pair) as a single sentence in this way, we enable the LLM to interpret network packets as meaningful network behaviors rather than as lists of individual fields. The same format is used for attack traffic, but the attack type is not embedded directly in the sentence; instead, it is provided as a separate output label that serves as the ground truth for supervised learning during fine-tuning.

In this study, we also evaluated the computational overhead associated with transforming raw network traffic initially stored in CSV format into a structured format suitable for LLM-based intrusion detection. This transformation consists of three main steps: (1) extracting relevant fields from the CSV file, (2) constructing natural-language sentences along with associated metadata, and (3) serializing and storing the output in JSON format. Table 4 summarizes the average processing time (in seconds), throughput (rows per second), peak memory usage (in MB), and resulting JSON file size (in MB), measured across three trials on a system equipped with an Intel Core i7-12700F CPU and 32 GB of RAM.

Table 4. Computational overhead of converting CSV records into LLM-ready JSON inputs (mean of 3 runs).

Rows (n)	Time (s)	Throughput (Rows/s)	Peak Mem (MB)	Output JSON (MB)
1000	0.025	39,967	0.1119	0.041
5000	0.085	58,690	0.4044	0.208
10,000	0.147	68,768	0.7693	0.417
100,000	1.568	63,853	7.3562	4.177

Although this preprocessing stage introduces additional overhead, it encodes the contextual structure of each network event—capturing “which entity performed which action on which object”—by integrating information such as device roles (HMI/PLC), communication direction (request/response), Modbus function codes, and register access ranges. This representation enables the LLM to more effectively learn complex behavioral patterns, including policy violations (e.g., unauthorized use of write operations by HMI1) and combinatorial access patterns (e.g., repeated writes to critical register regions). Accordingly, the overhead presented in Table 4 reflects the cost of enriching raw packet data with relational context essential for semantic modeling.

4.2. Benign Data

To construct the Benign dataset, we analyzed changes in register values after preprocessing the normal traffic and converting packets into natural-language form. As shown in Figure 5, normal samples are obtained by extracting ICSSIM traffic, converting it to CSV format, and formatting it into LLM-ready sentences.

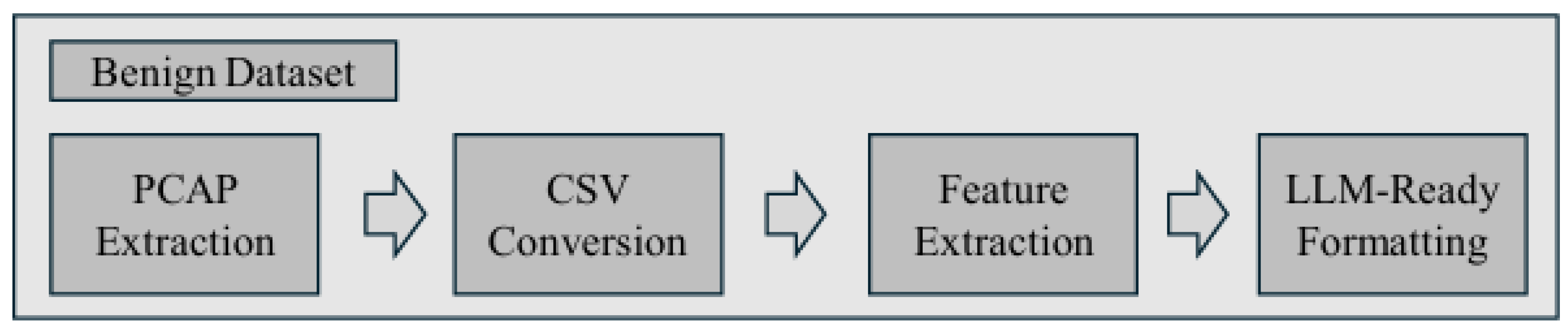

Figure 5. Pipeline for constructing the benign dataset from ICSSIM traffic.

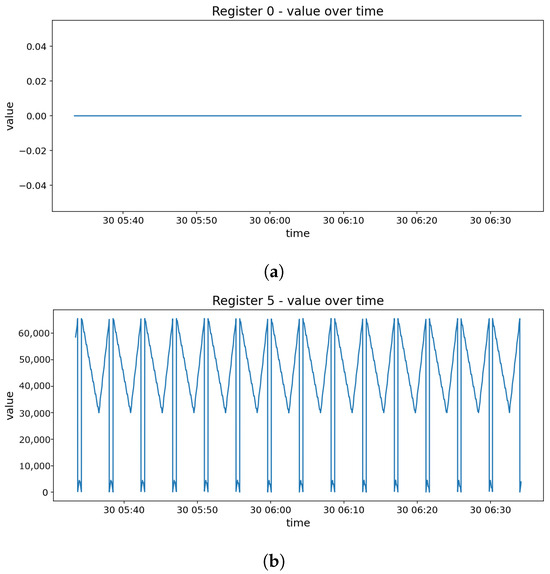

As shown in Figure 6, some registers remain at a constant value, whereas others exhibit periodic patterns in which values repeatedly vary between a minimum and a maximum according to the process state. This reflects the characteristic behavior of OT environments, where devices operate according to fixed logic and register values form periodic patterns within specific ranges [31].

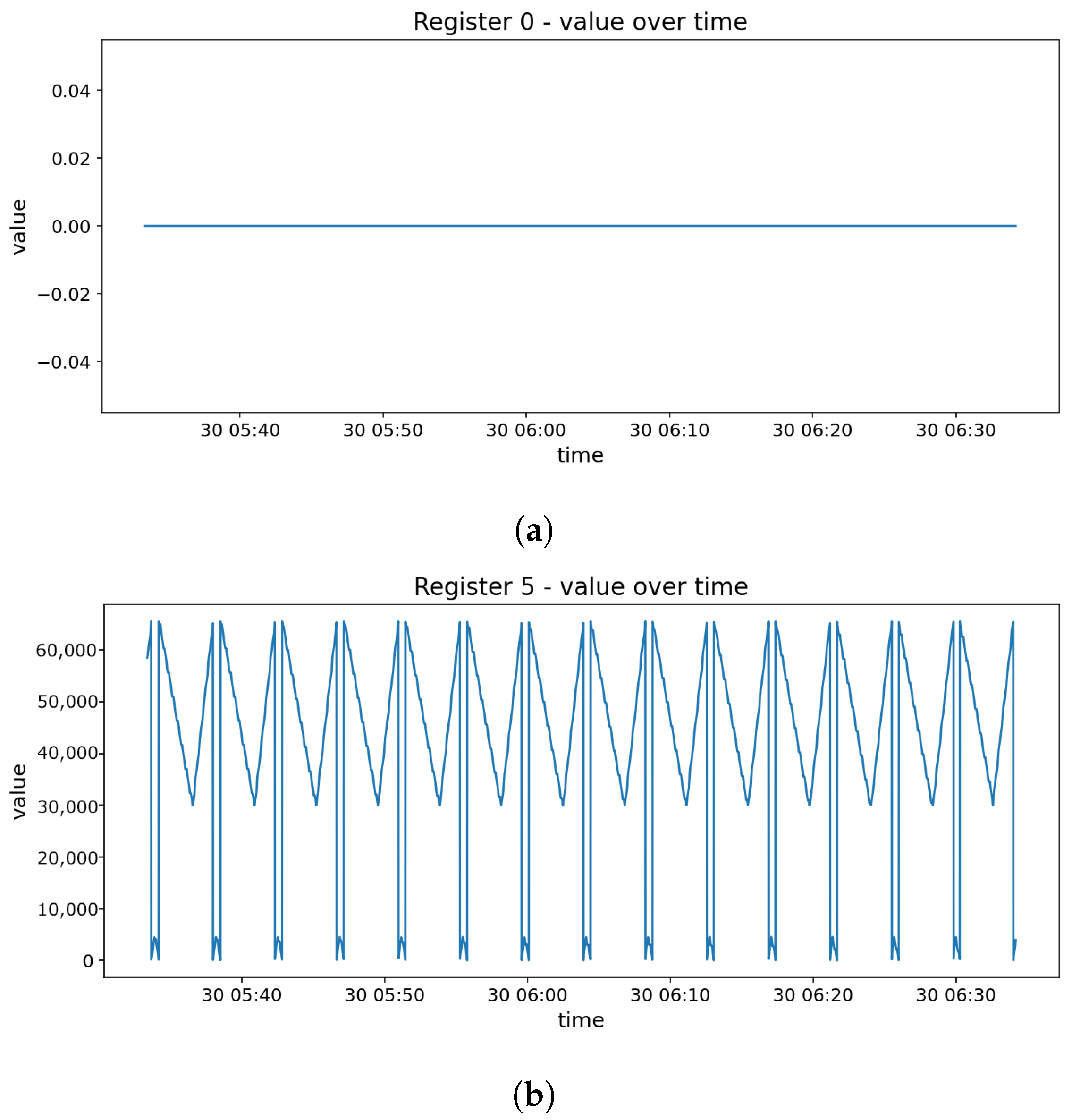

Figure 6. Examples of register-value patterns observed in normal ICSSIM operation. (a) Register whose value remains constant during normal operation; (b) Register whose value periodically varies according to the process state.

Rather than naively expanding the amount of normal data, we selected normal samples based on the following rules:

• For each register, we first include samples at the observed minimum and maximum values.
• Within the range between the minimum and maximum, we randomly sample representative states of the register.

In this way, a relatively small amount of normal data can still capture the distribution of register values and the underlying process patterns, while mitigating severe class imbalance between normal and attack data that would arise from excessive expansion of normal samples. The selected normal data are then combined with the synthetic attack data described in Section 4.3 and split into training, validation, and test datasets.

4.3. Synthetic Data (Attack Data)

In real OT/ICS environments, it is practically difficult to collect large volumes of attack traffic. The amount of attack data observed in real systems is therefore far from sufficient to design an intrusion detection system based solely on real attacks [21,32,33]. As a result, when only real traffic is used, a severe class imbalance inevitably arises between normal and attack samples, and detection performance for the minority attack class can degrade.

To address this limitation, we generate synthetic data using GPT-4o based on the normal and attack traffic collected in the ICSSIM environment. The overall pipeline for generating synthetic attack data is shown in Figure 7. In the synthetic data, the sentence itself does not include the attack type; instead, the attack type is assigned as a separate label for supervised learning.

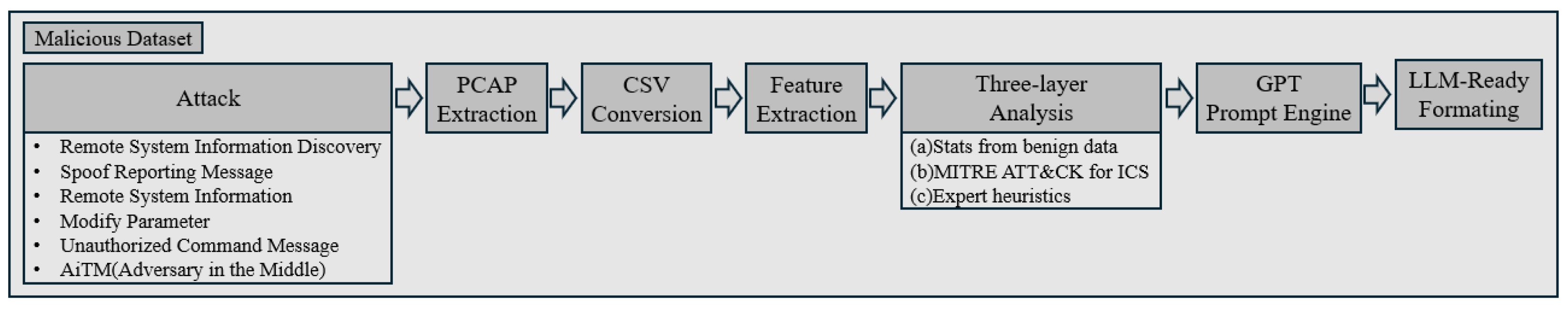

Figure 7. Pipeline for generating GPT-based synthetic attack data from ICSSIM traffic.

When generating synthetic data, we provide GPT with the following three types of information:

1.

Statistical knowledge derived from normal traffic: Using traffic collected during normal operation, we supply statistical analysis results such as the distribution of function codes, register addresses and ranges, packet lengths, and PLC–HMI communication pairs. This allows GPT to understand what types of network behaviors appear in the ICSSIM environment under normal operation.

2.

Descriptions of tactics and techniques from MITRE ATT&CK for ICS for the six attack types: For each attack type, we include the tactics and technique descriptions defined in MITRE ATT&CK for ICS so that GPT can recognize the objectives and behavioral patterns of each attack in the ICSSIM environment.

3.

Expert knowledge: We summarize observations obtained while actually executing each attack in the ICSSIM simulation environment, including HMI/PLC roles, changes in process flow, register access patterns, and the relationship between communication behavior and process state changes at the time of attack. This guides GPT to generate sentences that reflect how attacks would “actually manifest as network behavior” in this specific environment.

By combining these pieces of information, we construct prompts that encourage GPT to generate natural-language network-behavior descriptions that capture both normal behavior and the characteristics of each attack scenario in the ICSSIM simulation environment, rather than producing arbitrary text.

Depending on the level of information included in the prompts, we define the following three synthetic datasets:

• Case 1: Synthetic data generated using only statistical knowledge derived from normal traffic.
• Case 2: Synthetic data generated using both statistical knowledge and MITRE ATT&CK for ICS tactics and technique descriptions.
• Case 3: Synthetic data generated using statistical knowledge, MITRE ATT&CK for ICS tactics and technique descriptions, and expert knowledge based on ICSSIM attack analysis.

The objectives and detailed configurations of each case (sizes of normal and attack datasets, training/validation/test splits, and evaluation methods) are described in Section 5.

5. Experimental Setup

This section describes the experimental setup used to evaluate the performance of the proposed smart-factory-oriented LLM-based intrusion detection system. The experiments are conducted on the ICSSIM-based smart-factory simulation environment introduced in Section 3 and the data preprocessing and synthesis procedures presented in Section 4. We first define the task and dataset configuration and then describe the model and fine-tuning settings, evaluation metrics, and overall experimental procedure. All fine-tuning experiments were conducted on Google Colab using an NVIDIA A100 GPU (40 GB VRAM) and 167 GB RAM.

5.1. Datasets

5.1.1. Task Definition

The task in this study is a seven-class multiclass classification problem, in which the LLM takes as input a natural-language description of a single network behavior and predicts whether the behavior is normal (Benign) or corresponds to one of six attack types: Unauthorized Command Message, Modify Parameter, Spoof Reporting Message, Remote System Discovery, Adversary-in-the-Middle, or Remote System Information Discovery.

Input sentences are generated through the preprocessing pipeline described in Section 4. From traffic collected in PCAP format, we extract the necessary fields, such as source and destination IP addresses, port numbers, Modbus function codes, register addresses and values, and request/response direction, and then convert them into human-readable natural-language sentences. This representation allows the LLM to interpret network behavior in the smart-factory environment not as a list of individual fields but as a semantically meaningful behavior description.

5.1.2. Data Composition and Splits

The dataset is divided into three parts: training, validation, and test. Normal data are generated by collecting HMI–PLC traffic while the ICSSIM environment operates in normal mode and then applying the preprocessing procedure described in Section 4. For each split (train/validation/test), samples are adjusted so that identical normal behaviors do not appear in multiple splits, in order to prevent the model from overfitting to specific patterns.

In the training and validation datasets, we intentionally construct an imbalanced ratio between normal and attack samples to reflect realistic network conditions. The test dataset is composed solely of real traffic collected by executing the six attack scenarios in the ICSSIM environment, and no synthetic data are included. Normal samples are extracted from normal-operation segments before and after each attack, whereas attack samples are taken from attack traffic observed during each scenario. The sizes of the training, validation, and test datasets and the ratio of normal to attack samples are summarized in Table 5.

Table 5. Sizes of benign and malicious samples in the training, validation, and test datasets.

	Benign	Malicious
Train	5000	1500 (250 samples per attack)
Validation	50	300 (50 samples per attack)
Test	52	206

The number of samples per attack type in the test dataset is shown in Table 6. The same test dataset is used across all cases so that the impact of differences in training-data composition on performance can be compared fairly.

Table 6. Number of malicious samples per attack type in the test dataset(malicious subset, $N=206$).

Attack Type	Count
Remote System Discovery	56
Adversary-in-the-Middle	29
Unauthorized Command Message	30
Modify Parameter	24
Spoof Reporting Message	39
Remote System Information Discovery	28

5.2. Model and Fine-Tuning Settings

This subsection describes the base language model, QLoRA configuration, prompt template, and training hyperparameters used in the experiments. The three cases (1–3) defined in Section 4.3 differ only in their data composition; the fine-tuning settings described in this subsection are kept identical across all cases for a fair comparison.

5.2.1. Base Model and QLoRA Configuration

We use Meta’s Llama 3.1 8B Instruct model as the base language model. This instruction-tuned LLM is pre-trained to generate appropriate responses to natural-language prompts, making it suitable for the task of determining whether an input description of network behavior corresponds to an intrusion and, if so, to which attack type.

To enable efficient experimentation on a single GPU, we apply 4-bit quantization when loading the model. The weights are quantized using the NF4 4-bit format, while computations are performed in 16-bit bfloat16 precision. The tokenizer is identical to that of Llama 3.1 8B Instruct, and one special token is designated as the padding token to align sequence lengths.

Fine-tuning is performed using the QLoRA approach. The 4-bit quantized base model weights are frozen, and only low-rank adapter (LoRA) parameters are trained. The LoRA configuration is as follows:

• Rank $r=64$;
• Scaling $\alpha =64$;
• Dropout $=0.05$.

LoRA adapters are inserted into the main self-attention and feed-forward layers of Llama 3.1 by targeting the following modules:

• target_module :q_proj, k_proj, v_proj, o_proj, gate_proj, up_proj, down_proj

This allows for efficient domain-specific fine-tuning under constrained GPU memory without updating all model parameters.

5.2.2. Prompt Template

Fine-tuning is performed in a supervised-learning setting. Each data sample consists of a natural-language description of a single network behavior and a corresponding security analysis result (label). In the prompt, the model is explicitly instructed to act as a network security analyst for the smart-factory environment. The prompt template includes the elements summarized in Table 7.

Table 7. Components of the prompt template used for supervised fine-tuning.

Role and task definition	Explicitly specify that the model acts as a smart-factory network security analyst. Instruct it to make conservative decisions and avoid guessing when evidence is insufficient.
Output format rules	If the traffic is benign, output “Benign”. If it is malicious, output “Malicious: <Attack type>”. Also output “Reason: <the basis for that assessment>”.
Environment information	Provide a description of the ICSSIM process and the OT/ICS network configuration.
Few-shot examples	Include one Benign example and one example for each attack type as few-shot demonstrations.

The model is trained to produce, for each network behavior, (1) the intrusion status (Benign/Malicious), (2) if malicious, one of the six attack types, and (3) the reasoning behind the decision. This final response format is embedded in the output field of each training example, and the prompt generation function concatenates the instruction (role, rules, environment, and examples) and the response (ground-truth answer) into a single text used as supervised fine-tuning (SFT) data.

5.2.3. Training Hyperparameters

Fine-tuning is performed using the SFTTrainer from the TRL library, with the main training hyperparameters set as follows:

• Maximum sequence length: 2048 tokens
• Batching and optimization

  –

  per_device_train_batch_size $=2$;

  –

  per_device_eval_batch_size $=2$;

  –

  gradient_accumulation_steps $=8$;

  –

  optimizer: AdamW (8-bit, optim = “adamw_8bit”);

  –

  learning rate: $2\times {10}^{-4}$

  –

  weight decay: $0.01$;

  –

  learning-rate schedule: constant with 50 warmup steps.

• Training steps and evaluation

  –

  maximum training steps (max_steps): 700;

  –

  evaluation interval (eval_steps): 50;

  –

  checkpoint saving interval (save_steps): 700;

  –

  logging interval (logging_steps): 10.

All three cases (1–3) use the same hyperparameters and training strategy. As described in Section 5.1, only the composition of normal and attack samples in the training and validation datasets differs. For each case, an independent model is trained and evaluated using the same metrics defined in Section 5.3.

5.3. Evaluation Metrics

For each case, the trained model is evaluated on the same test dataset (ICSSIM traffic). During evaluation, we use the same prompt structure as in training, but only the sentence describing the network behavior is provided as input, and the model’s generated response is parsed to determine the predicted class.

The response parsing rules are as follows:

• If the response begins with Benign, the sample is classified as normal.
• If the response begins with Malicious: and is followed by one of the six attack types, the sample is classified as the corresponding attack type.

Intrusion detection systems operate in environments with severe class imbalance, and overall accuracy alone is insufficient to assess model performance. Furthermore, because the number of samples is not perfectly balanced across normal/attack and among different attack types, overall accuracy does not fully reflect per-class performance. Therefore, we use the following metrics to evaluate the model:

• Accuracy;
• Per-class precision, recall, and F1-score;
• Macro F1-score.

From a practical intrusion detection perspective, we also analyze how effectively the model detects attacks without missing them and how often it incorrectly flags normal behavior as malicious, thereby assessing its performance in distinguishing between normal and attack traffic.

5.4. Experimental Procedure

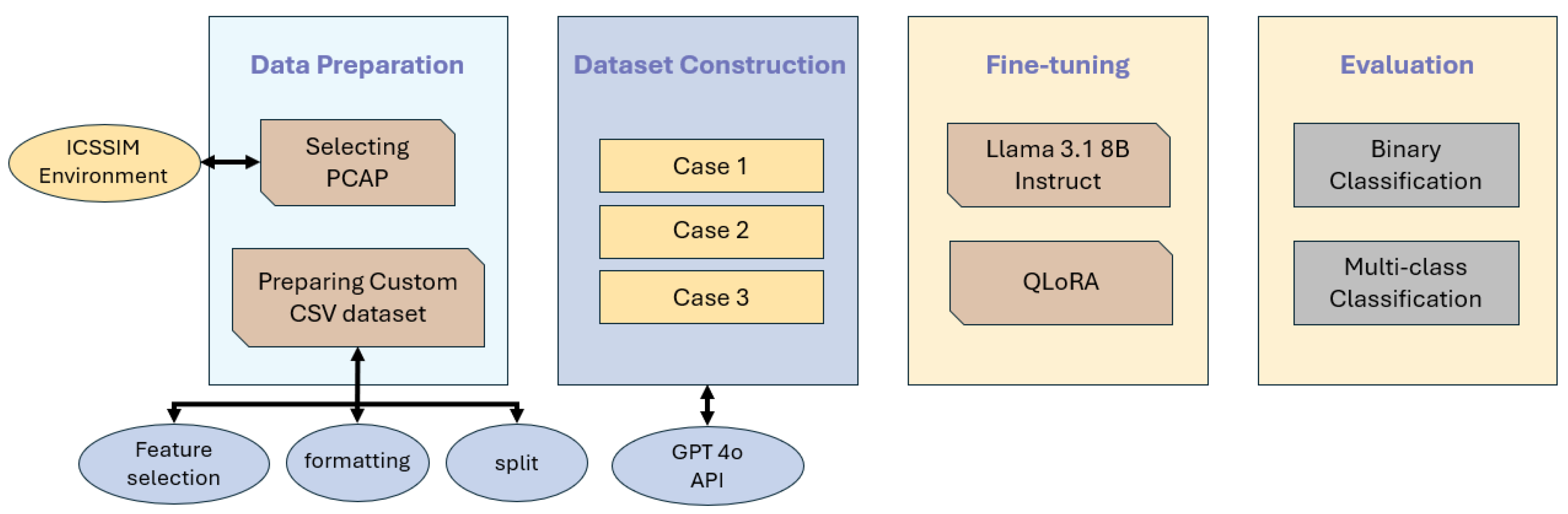

The overall experimental procedure in this study is summarized in Figure 8. We first execute normal operation and the six attack scenarios in the ICSSIM-based smart-factory environment and collect network traffic in PCAP format. The collected traffic is then preprocessed and converted into natural-language form according to the method described in Section 4 to construct the dataset. The converted data are split into training, validation, and test sets, and the test dataset is composed exclusively of real traffic and shared across all cases.

Figure 8. Overall experimental procedure for training and evaluating the LLM-based intrusion detection model.

For each training case, the normal-data configuration is kept fixed, while the attack data are constructed by varying the level of domain knowledge included during synthetic data generation (statistical information, MITRE knowledge, and expert knowledge). Using these datasets, we fine-tune the Llama 3.1 8B Instruct model with the QLoRA configuration.

Finally, for each case, we feed the common test dataset to the trained model and compare performance based on the metrics defined in Section 5.3. Through this analysis, we evaluate how effectively the LLM-based intrusion detection model trained with the proposed synthetic data generation method can detect real attacks in OT/ICS environments where normal–attack imbalance is severe and attack data are difficult to obtain in sufficient quantity.

6. Experimental Results

In this section, we analyze the results of fine-tuning the Llama 3.1 8B Instruct model using the settings described in Section 5. For the three cases defined according to the composition of synthetic data, we evaluate performance from two perspectives: (1) binary classification of normal versus attack traffic and (2) multiclass classification of the six attack types.

The inference latency measured on the test dataset is summarized in Table 8. Inference time was evaluated by recording the total wall-clock time required to process all 258 test samples, as well as the average inference time per individual sample. The total inference time ranged from 4 min 34 s to 5 min 40 s, corresponding to an average per-sample inference latency of 1.062 to 1.317 s for a single network event. These results provide not only an empirical assessment of the computational performance of the proposed method but also a practical reference point for evaluating its feasibility in real-time or near–real-time monitoring scenarios within operational OT/ICS environments.

Table 8. Inference-time cost measured over the entire test set.

Metric	Minimum	Maximum
Total evaluation wall-clock time	4 min 34 s	5 min 40 s
Per-sample inference time	1.062 (s)	1.317 (s)

6.1. Binary Classification Performance

Table 9 summarizes the binary classification performance for each case when distinguishing normal versus attack traffic. Precision and recall are computed with respect to the attack class.

Table 9. Binary classification performance for normal vs. attack traffic. Precision and recall are computed with respect to the attack class.

Case	Accuracy (%)	Precision	Recall	F1-Score
Case 1	60.08	1.000	0.500	0.667
Case 2	62.02	1.000	0.524	0.688
Case 3	99.61	1.000	0.995	0.998

In Case 1 and Case 2, the attack recall is 0.500 and 0.524, respectively, meaning that only about half of the 206 attack samples are detected as attacks. However, all samples predicted as attacks are indeed attacks, resulting in a precision of 1.000 for the attack class. This behavior reflects the prompt design, which instructs the model to “make conservative decisions when evidence is insufficient,” leading the model to adopt a conservative strategy in attack detection. While no normal traffic is misclassified as attacks, missing roughly half of the actual attacks is insufficient for practical use as an intrusion detection system.

In contrast, Case 3 achieves a substantially higher overall accuracy of 99.61%, with an attack recall of 0.995, where 205 out of 206 attack samples are correctly detected as attacks, and all 52 normal samples are correctly classified as normal. This demonstrates that incorporating expert knowledge about the ICSSIM environment into the synthetic data, in addition to statistical information and MITRE knowledge, significantly improves attack detection performance even from the binary classification perspective.

6.2. Attack-Type Classification Performance

In this subsection, we evaluate how well the model distinguishes among the six attack types for samples labeled as attacks. Attack-type classification is performed only on the 206 samples whose true label is Malicious. For these samples, we compute precision, recall, and F1-score for each of the six attack types. Cases where normal traffic is misclassified as a particular attack type are reflected in the binary classification metrics in Section 6.1. The overall attack-type accuracy and macro F1-score for each case are summarized in Table 10.

Table 10. Attack-type classification performance on the 206 malicious samples in the test dataset.

Case	Type Accuracy (%)	Macro F1-Score
Case 1	14.08	0.170
Case 2	14.56	0.147
Case 3	95.63	0.952

In Case 1 and Case 2, the performance in distinguishing among the six attack types is very low. The attack-type accuracy is around 0.14, which is not much better than the expected accuracy of random guessing among six classes (about 16.7%), and the macro F1-score is below 0.20. In contrast, Case 3 achieves an attack-type accuracy and macro F1-score both close to 0.95, indicating that the model can accurately classify the six attack types at a fine-grained level.

6.2.1. Performance by Attack Type: Case 1

Case 1 is the setting in which synthetic attack data are generated using only statistical information derived from normal traffic, and the overall attack-type classification performance is limited, as shown in Table 11.

Table 11. Per-attack-type precision, recall, and F1-score for Case 1.

Attack Type	Precision	Recall	F1-Score
Modify Parameter	0	0	0
Unauthorized Command Message	0.750	0.800	0.774
Remote System Discovery	0	0	0
Remote System Information Discovery	0	0	0
AiTM	0.417	0.172	0.244
Spoof Reporting Message	0	0	0

Among the six types, Unauthorized Command Message achieves the relatively best performance, followed by Adversary-in-the-Middle (AiTM) with modest but non-trivial performance. This suggests that comparatively simple patterns such as device permissions (read/write) can be learned to some extent from normal-traffic statistics alone.

For the remaining four attack types, however, most samples are misclassified as Benign or as other attack types, resulting in an F1-score of 0. For example, Spoof Reporting Message involves behaviors in which register values, function codes, and device roles interact in a structured manner. Because the synthetic data in Case 1 do not sufficiently capture such structural information, the LLM fails to clearly distinguish between different attack scenarios.

6.2.2. Performance by Attack Type: Case 2

Case 2 generates synthetic attack data using both normal-traffic statistical information and MITRE ATT&CK for ICS tactics and technique descriptions. Overall performance remains similar to that of Case 1, as shown in Table 12, and the per-attack-type results are as follows.

Table 12. Per-attack-type precision, recall, and F1-score for Case 2.

Attack Type	Precision	Recall	F1-Score
Modify Parameter	0	0	0
Unauthorized Command Message	0.789	1.000	0.882
Remote System Discovery	0	0	0
Remote System Information Discovery	0	0	0
AiTM	0	0	0
Spoof Reporting Message	0	0	0

The performance for Unauthorized Command Message improves compared to Case 1: all 30 attacks of this type are detected while maintaining a reasonable precision. This suggests that MITRE descriptions related to “unauthorized control commands” or “policy-violating actions” are reflected in the synthetic data, enabling more stable detection of this particular type.

However, the model also tends to over-rely on Unauthorized Command Message, misclassifying some samples of other attack types as this category. For the remaining attack types, the model still fails to provide meaningful discrimination, similar to Case 1. This indicates that while MITRE descriptions help the model conceptually understand attack tactics and techniques, they do not fully specify environment-specific details such as protocol fields, addressing schemes, and device-role relationships in a particular OT/ICS setting. As a result, the synthetic data may be biased toward certain attack patterns.

6.2.3. Performance by Attack Type: Case 3

Case 3 combines statistical information, MITRE ATT&CK knowledge, and expert knowledge obtained from executing attacks in the ICSSIM environment, leading to a significant improvement in attack-type classification performance, as shown in Table 13. A detailed breakdown by attack type is shown in Figure 9.

Table 13. Per-attack-type precision, recall, and F1-score for Case 3.

Attack Type	Precision	Recall	F1-Score
Modify Parameter	0.800	1.000	0.889
Unauthorized Command Message	1.000	1.000	1.000
Remote System Discovery	0.982	0.964	0.973
Remote System Information Discovery	1.000	1.000	1.000
AiTM	1.000	0.759	0.863
Spoof Reporting Message	0.975	1.000	0.987

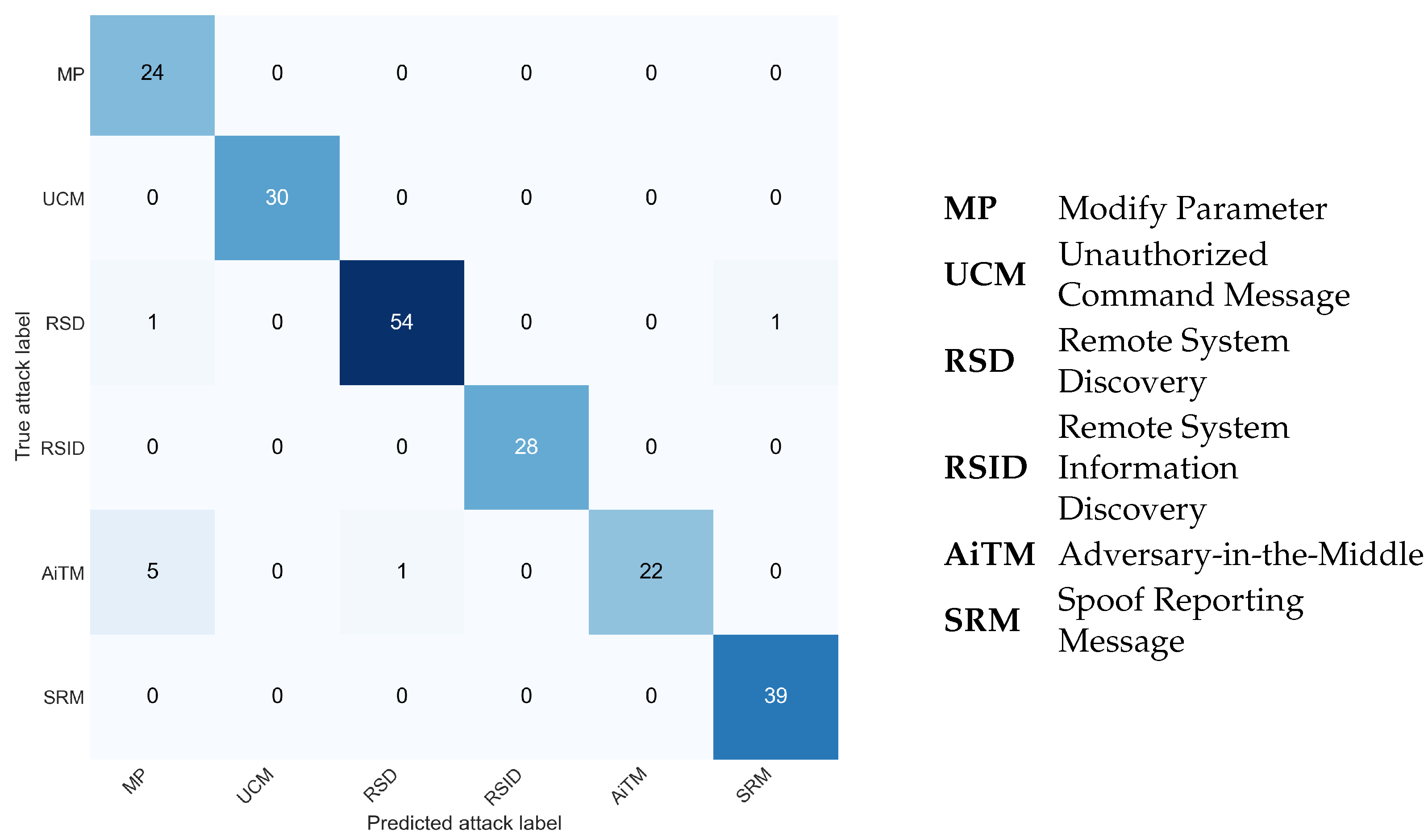

Figure 9. Confusion matrix of attack-type classification results for Case 3 (color intensity increases with count).

For Modify Parameter, the model correctly detects all 24 attacks but misclassifies 6 samples of other types as Modify Parameter. This can be interpreted as a result of domain knowledge such as “setpoints and thresholds are changed via write requests to specific registers” being sufficiently reflected in the synthetic data, enabling the model to distinguish between ordinary control writes and parameter-modification attacks.

Unauthorized Command Message is detected perfectly, with all 30 attacks correctly identified and no false positives, stabilizing the already high performance observed in Case 2. Remote System Discovery correctly detects 54 out of 56 attacks, and Remote System Information Discovery correctly detects all 28 attacks, showing that information-gathering behaviors such as port scanning, probing, and device identification are well captured in the synthetic data.

For Adversary-in-the-Middle (AiTM), the model detects 22 out of 29 attacks, missing 7. AiTM attacks must be distinguished based on session-level characteristics such as sequence ordering, latency, and path asymmetry rather than on individual packet features. However, because the sentence-level textual representation and synthetic data used in this work do not fully capture such long-term dependencies, the model reliably detects samples with clear patterns but fails to consistently distinguish shorter or weaker patterns from ordinary TCP communication.

Finally, for Spoof Reporting Message, the model correctly detects 39 attacks and misclassifies only 1 sample. Synthetic data for this attack type were generated such that PLCs report sensor values to HMIs with register-level patterns that differ clearly from normal traffic, enabling the model to reliably discriminate these spoofed reports.

Overall, Case 1 captures only simple policy-violation patterns and fails to distinguish most attack types, whereas Case 2 achieves partial improvement only for Unauthorized Command Message. In contrast, Case 3 achieves high precision and recall across all six attack types. This confirms that when synthetic data generation incorporates not only statistical information and MITRE knowledge but also expert knowledge reflecting real system behavior, an LLM-based intrusion detection system can perform reliable attack-type classification.

6.3. Comparative Evaluation with Traditional Baselines

To further assess the performance of the proposed LLM-based intrusion detection model (Case 3), we conducted a comparative evaluation against several traditional baseline classifiers, including Random Forest, XGBoost, and a 1D-CNN. The evaluation considered both binary classification and multiclass attack-type classification. To enhance statistical robustness, the test set was expanded to a total of 842 samples, comprising 500 benign and 342 malicious instances, as summarized in Table 14.

Table 14. Number of malicious samples per attack type in the expanded test dataset (malicious subset, N = 342).

Remote System Discovery	78
Adversary-in-the-Middle	35
Unauthorized Command Message	80
Modify Parameter	74
Spoof Reporting Message	47
Remote System Information Discovery	28
Sum	342

For fair comparison, all models were evaluated on the same dataset. The input features for the baseline models were constructed by parsing the structured information embedded in the natural-language sentences used during LLM training. Specifically, the following attributes were extracted at the network protocol level:

• Communication source/target information (source/destination IP, port, and device role);
• Traffic characteristics (Modbus/TCP, query/response direction, TCP segment type);
• Modbus semantics (function code, read/write series, register range, and number);
• Packet length
• TCP flags (e.g., RST, ACK, SYN, PSH).

Categorical features were one-hot encoded, resulting in a 136-dimensional feature vector for each sample. Table 15 summarizes the performance of each model.

Table 15. Comparison with traditional baselines on the same test set. Attack-type metrics are computed on the malicious subset ($N=342$).

Metric	Case 3 (LLM)	Random Forest	XGBoost	1D-CNN
Binary Acc (%)	100.00	99.88	99.76	86.46
Binary Recall	1.000	0.997	0.994	0.988
Type Acc (%)	96.49	93.27	92.98	90.06
Type F1 (macro)	0.958	0.901	0.899	0.820

In terms of binary classification, the proposed model (Case 3) achieved a perfect classification, correctly identifying all 500 benign samples and all 342 malicious samples. Both Random Forest and XGBoost achieved perfect precision for benign samples; however, they misclassified one and two malicious samples, respectively, as benign. The 1D-CNN model achieved high recall for malicious samples but suffered from a high false positive rate, misclassifying 110 benign samples as malicious. This resulted in a significantly lower overall binary classification accuracy for 1D-CNN compared to the other models.

In terms of attack-type classification, multiclass classification performance is visualized in Figure 10. The proposed model (Case 3) outperformed the traditional baselines, achieving an accuracy over 3% higher than Random Forest and XGBoost, and 6.4% higher than the 1D-CNN. According to the confusion matrices, all models demonstrated relatively consistent classification performance for MP, UCM, RSID, and SRM. However, AiTM remained the most frequently misclassified class. In particular, Random Forest and XGBoost consistently misclassified a notable portion of AiTM samples as RSD. The 1D-CNN exhibited more distributed misclassifications, with AiTM samples being confused with RSD, UCM, or SRM, contributing to a comparatively lower macro-F1 score. Although the Case 3 model yielded the highest macro-F1 score among all models, it also misclassified a few instances of AiTM as MP or RSD, as shown in Figure 10a.

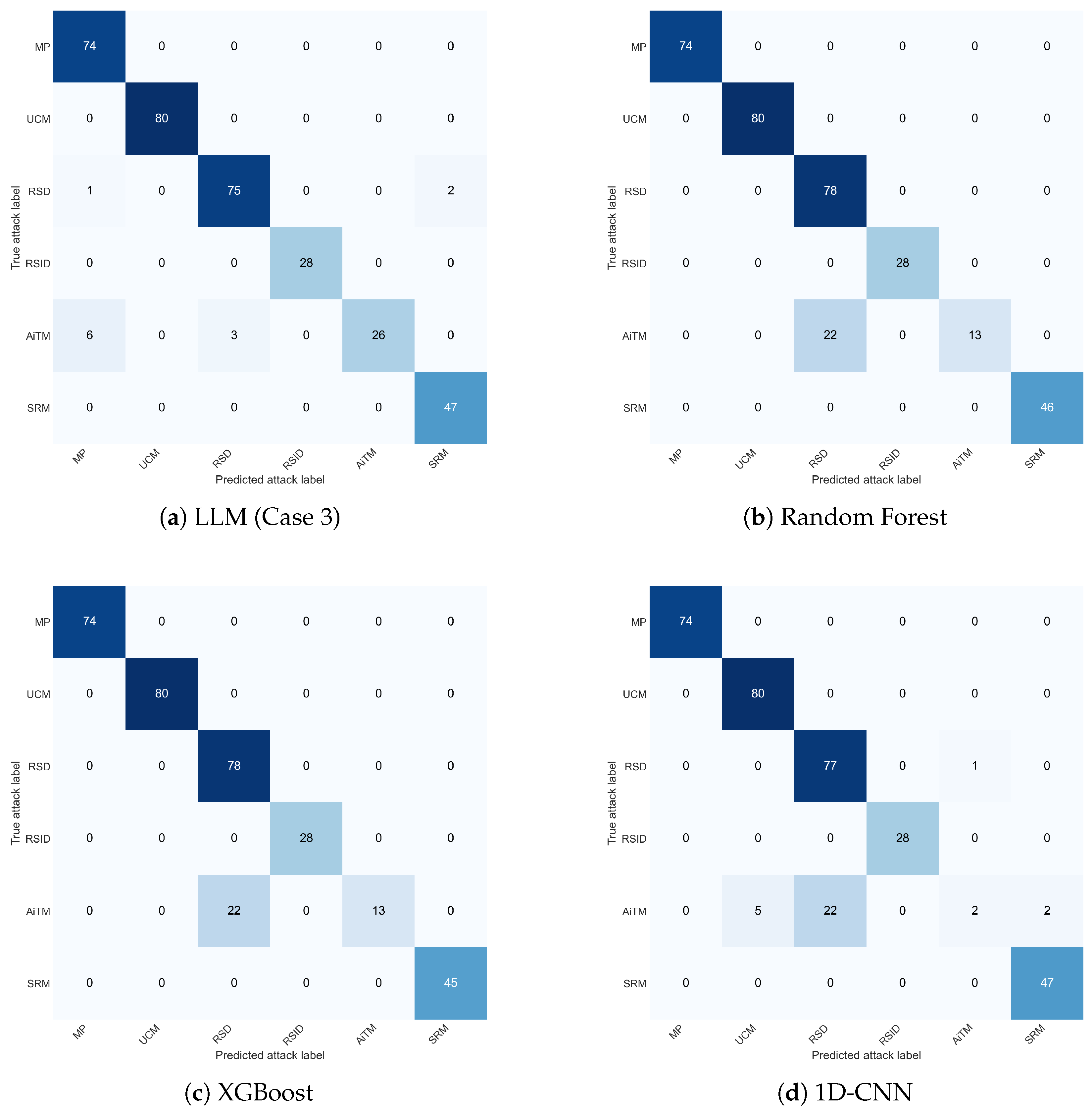

Figure 10. Confusion matrices on the same test set (attack-type classification result and color intensity increases with count).

These misclassifications suggest that, in some cases, AiTM attacks may exhibit observable symptoms—such as abnormal register value responses—that overlap with those of other attack types. This overlap introduces ambiguity when models rely solely on transaction-level features, i.e., single request–response pairs. Consequently, some attack-type pairs cannot be reliably distinguished without incorporating session-level context or longer-range behavioral patterns. Future work will explore augmenting the input representation with such contextual information to enhance classification performance for complex attacks like AiTM.

6.4. Error Analysis: Misclassification of Contextual Attacks

Despite the overall high accuracy of the Case 3 model in multiclass classification, confusion matrix analysis revealed consistent misclassifications between specific attack types. The most prominent misclassification occurred between AiTM and Modify Parameter (MP), with 6 out of 35 AiTM samples misclassified as MP. To investigate this confusion, we performed a qualitative analysis of the natural-language input sentences for the misclassified samples. A representative example is shown below:

• From source IP 192.168.0.11 port 502 to destination IP 192.168.0.21 port 502 a Modbus TCP response was received with function code 3 read holding registers reporting register 14 value 0 and register 15 value 32000 and the response packet length was 66 bytes.

In this case, the model correctly identified that the reported register values were abnormal, potentially indicating malicious behavior. However, it did not distinguish whether the abnormality resulted from (1) direct modification of configuration parameters by a compromised HMI/PLC (MP) or (2) manipulation during transmission through a man-in-the-middle attack (AiTM).

This ambiguity stems from the transaction-level nature of the current input representation. While the natural-language format captures semantic anomalies (e.g., register value deviations), it lacks indicators of session/flow-level context—such as MAC address spoofing, communication path redirection, or sequencing irregularities—that are critical for reliably identifying AiTM behavior.

These findings highlight a key limitation of the current approach: contextual attacks like AiTM, which require reasoning across multiple transactions or tracking communication flows, are not easily distinguishable using isolated transaction-level representations. To address this, future work will explore session-aware control loop analysis (CLA) techniques that incorporate temporal dependencies, ARP behavior, communication path dynamics, and packet sequencing into the model’s input context. Such enhancements could substantially improve the detection accuracy for complex and stealthy ICS attacks.

7. Discussion and Limitations

This study evaluates the feasibility of applying an LLM-based intrusion detection system in OT/ICS environments by alleviating the scarcity of real attack data and class imbalance through carefully designed synthetic data. As shown in the results of Section 6, the mere use of synthetic data is not sufficient; the level and fidelity of domain knowledge incorporated into the synthesis process emerge as key factors determining performance.

First, the results of Case 1 and Case 2 align with existing criticisms that “models trained solely on synthetic data are difficult to deploy in real environments.” In Case 1, where synthetic attack data are generated using only normal-traffic statistics, the model detects only about half of the actual attacks in binary classification and achieves near-random performance in attack-type classification. Case 2, which additionally incorporates MITRE ATT&CK for ICS knowledge, still falls short of practical use as a detector, except for Unauthorized Command Message.

This indicates that OT/ICS network attack patterns cannot be fully captured by simple statistical anomalies or abstract attack descriptions alone. In particular, when environment-specific information such as register addresses, values, ranges, and device-role relationships is insufficient, the LLM lacks decisive cues to distinguish attacks from normal behavior.

In contrast, Case 3 shows that when synthetic data incorporate (1) statistical information derived from normal traffic, (2) tactics and technique descriptions from MITRE ATT&CK for ICS, and (3) expert knowledge obtained from actually executing attacks in the ICSSIM environment, an LLM-based intrusion detection system can achieve practically usable performance in both binary and attack-type classification. When synthetic data explicitly encode which function-code–and-register combinations characterize each attack, which HMIs and PLCs exchange requests and responses, and how the communication flow differs from normal behavior, the model can reliably classify the six attack types. This suggests that the core issue is not “synthetic data” per se but rather synthetic data that lack sufficient domain knowledge. Furthermore, the structured injection of domain knowledge addresses the potential concern regarding the sensitivity of LLMs to prompt phrasing, often referred to as “prompt brittleness.” While generative models can be sensitive to minor wording changes, our approach stabilizes the generation process by anchoring the model with explicit constraints: (1) statistical profiles from normal traffic, (2) MITRE ATT&CK descriptions, and (3) expert heuristics. These components serve as strong contextual anchors, ensuring that the quality of synthetic data is driven by the underlying domain logic rather than the random chance of token probabilities associated with specific instruction wording. This structural robustness minimizes the risk of overfitting to “magic words” and enhances the reproducibility of the proposed pipeline.

Traditional OT/ICS intrusion detection studies have mainly converted packet fields and statistical characteristics into numerical feature vectors and fed them into ML/DL models. In contrast, this work describes source/destination IPs and ports, Modbus/TCP function codes, and register ranges as natural-language sentences and trains the LLM to respond in the form “Benign” or “Malicious: <Attack type>, Reason: <…>.” As a result, in actual outputs, the model can generate explanations such as “This is classified as Unauthorized Command Message because monitoring-only HMI1 used a write function code to modify control registers.” Such explanations can help OT/ICS operators intuitively understand why a packet (or behavior) is classified as an attack and thus contribute to the development of explainable ICS intrusion detection systems.

From the perspective of data imbalance, this study also suggests that “systematic design of synthetic data based on limited real normal and attack samples may be more effective than indiscriminately collecting large amounts of data.” In real OT/ICS environments, systems often operate continuously for long periods, and attack occurrences are extremely rare compared to normal behavior. There are practical limitations to increasing the amount of attack data by exposing real systems to risk or forcefully staging numerous attack scenarios.

Our approach combining statistical information from normal operation, public knowledge frameworks such as MITRE ATT&CK, and domain-expert analysis in LLM prompts to generate synthetic data based on a relatively small set of real normal and attack samples demonstrates that it is possible to achieve meaningful detection performance for real attacks. This suggests a realistic alternative for environments where attack data are inherently scarce.

However, this study has the following limitations:

• Limited process domain and Generalizability: The experimental validation in this study was conducted on a bottle-filling process modeled in ICSSIM. It is important to note that due to the inherent heterogeneity of ICS environments, a “universal” NIDS model capable of covering diverse industrial processes (e.g., power generation, water treatment, oil refining) is practically infeasible. Each OT domain possesses unique control loops, register maps, and operational baselines; for instance, normal control logic for a bottle-filling process would be anomalous or nonsensical in a power grid. Therefore, the contribution of this study is not a single pre-trained model applicable to all sectors, but a process-agnostic methodology. We demonstrate that our framework can generate effective synthetic data and train an NIDS for a specific target process, provided that the corresponding domain knowledge (statistics and expert heuristics) is injected. While this study validates the framework on a bottle-filling process, the pipeline itself is structurally applicable to other industrial domains without modification to the core architecture.
• Applicability across diverse ICS protocols: While this study was conducted using Modbus/TCP, the proposed framework is designed to be extensible across heterogeneous ICS protocols. Although industrial protocols such as DNP3, S7Comm, and EtherNet/IP employ distinct byte-level encodings and protocol-specific control mechanisms, they share common high-level control semantics, including operation intent (e.g., read, write, control), target entities, and value/state transitions. Importantly, communication patterns such as periodic polling or event-driven control are primarily governed by the underlying control logic and physical process states rather than the protocol syntax itself. Our framework exploits this property by transforming protocol-specific packet fields into structured natural language descriptions, thereby abstracting low-level binary representations into semantic control narratives. As a result, the framework can be extended to other ICS protocols by appropriately extending the preprocessing parser to map protocol-specific fields and control constructs (e.g., DNP3 Objects and Variations, CIP service codes) to a unified semantic representation, without modifying the core LLM architecture.
• Latency and Real-time Feasibility: A common concern in ICS security is the requirement for low-latency detection (e.g., sub-100ms) to prevent process disruptions. However, it is crucial to distinguish between Inline IPS and Passive NIDS. Since our proposed framework operates as a Passive NIDS collecting traffic via port mirroring, the inference latency does not introduce any delay to the actual control loop, thereby eliminating the risk of process disruptions. Furthermore, operational requirements vary significantly across domains; while motion control requires millisecond-level responses, processes like water treatment or chemical plants often have cycle times measured in seconds, making the current inference speed of LLMs acceptable for supervisory monitoring. Future work will further address latency by exploring parallel processing architectures and lightweight LLMs to enable faster, near-real-time analysis without compromising the model’s explanatory capabilities.
• Limited attack coverage: The attack scenarios focus on six techniques from MITRE ATT&CK for ICS. Future work should explore a broader range of tactics and technique combinations.
• Transaction-level text representation: The textual representation focuses on individual transactions, which limits performance for attacks such as AiTM that must be understood at the session or sequence level. Accordingly, performance may be limited for AiTM, which often requires session/sequence-level context. In future work, we plan to incorporate session-based representations by aggregating consecutive transactions into a higher-level sequence description.
• Simulation-to-Real Gap: As the experiments in this study were conducted within an ICSSIM-based containerized simulation environment, certain types of noise commonly observed in real-world OT/ICS networks—such as jitter, packet retransmissions, and transient network congestion—were not fully captured. However, the proposed method relies primarily on protocol semantics rather than precise timing features, rendering it relatively robust to minor timing variations. Furthermore, in practical deployments, the effects of retransmissions can be mitigated through preprocessing techniques such as deduplication prior to natural language conversion. To enhance realism and generalizability, future work will focus on addressing the simulation-to-real gap through evaluations in physical testbed environments or by injecting synthetic noise into simulated traffic.

Despite these limitations, this study is meaningful in that it demonstrates the practical potential of LLM-based intrusion detection systems in OT/ICS environments by leveraging domain-knowledge-infused synthetic data and natural-language representations of network behavior.

8. Conclusions

This study proposes and evaluates a method that uses synthetic data to mitigate the scarcity of real attack data and class imbalance in LLM-based intrusion detection systems for smart-factory environments. Using the ICSSIM simulator, we construct an OT/ICS network environment consisting of HMIs, PLCs, sensors, and actuators, implement six attack scenarios, capture the resulting traffic, and convert it into natural-language form suitable for LLM training and evaluation.

In particular, we combine statistical information from normal traffic, knowledge from MITRE ATT&CK for ICS, and domain expert knowledge to generate synthetic attack data via the GPT API and fine-tune the Llama 3.1 8B Instruct model using QLoRA. The results show that Case 1, which uses only statistical information, and Case 2, which combines statistical information with MITRE knowledge, yield insufficient performance in both binary and attack-type classification for practical deployment as an intrusion detection system.

In contrast, on the ICSSIM-based expanded test dataset shown in Section 6.3, Case 3—using synthetic data incorporating statistical information, MITRE knowledge, and expert knowledge—achieves a binary classification accuracy of 100%, an attack-type classification accuracy of 96.49%, and a macro F1-score of 0.958.

These results suggest that, in this experimental setting, intrusion detection performance depends not only on the use of synthetic data but also on the level and fidelity of domain knowledge injected into the synthesis process. However, because the test set is limited in size and scope, further validation on larger and more diverse datasets is needed to confirm the generality of these findings.

Furthermore, by expressing network traffic as natural-language descriptions and training the LLM to output not only the intrusion status and attack type but also the reasoning behind its decisions, our experiments indicate that natural-language-based outputs can provide additional contextual information beyond binary alerts. This may help OT/ICS operators interpret alerts and prioritize incident response, although the practical utility of such explanations should be assessed in broader operational settings.

Overall, this study suggests that (1) synthetic data combining statistical information, public knowledge frameworks, and domain-expert analysis can serve as a practical option for mitigating attack-data scarcity in OT/ICS environments; (2) domain-knowledge-infused natural-language representations of network behavior can support LLM-based intrusion detection in a smart-factory simulation setting; and (3) natural-language reasoning outputs merit further investigation as part of future ICS intrusion detection systems.

Future work includes extending the approach to other industrial domains and protocols (e.g., DNP3, BACnet), developing textual representations that capture session- and sequence-level context (e.g., packet sequences and path changes) to better handle attacks such as Adversary-in-the-Middle (AiTM), and exploring diverse LLM architectures and multi-agent combinations to further broaden the applicability and reliability of LLM-based intrusion detection in OT/ICS environments.
