Software Weakness Detection in Solidity Smart Contracts Using Control and Data Flow Analysis: A Novel Approach with Graph Neural Networks

,
,
,
and
1
Department of Computer Science and Engineering, Dongguk University, Seoul 04620, Republic of Korea
2
Department of Biomedical Sciences, Korea University College of Medicine, Seoul 02841, Republic of Korea
3
Department of Artificial Intelligence, Dongguk University, Seoul 04620, Republic of Korea
4
Department of Electronics and Computer Engineering, Seokyeong University, Seoul 02713, Republic of Korea
Electronics2024, 13(16), 3162;https://doi.org/10.3390/electronics13163162
This article belongs to the Special Issue Intelligent Approaches for Solving Software Problems with AI Techniques
Version Notes
Order Reprints

Abstract

Smart contracts on blockchain platforms are susceptible to security issues that can lead to significant financial losses. This study converts the Solidity code into abstract syntax trees and generates control flow graphs and data flow graphs. These graphs train a graph convolutional network model to detect security weaknesses. The proposed system outperforms traditional tools, achieving higher accuracy, recall, precision, and F1 scores when detecting weaknesses such as integer overflow/underflow, reentrancy, delegate call to the untrusted callee, and time-based issues. This study demonstrates that leveraging control and data flow analysis with graph neural networks significantly enhances smart contract security and provides a robust and reliable solution.

1. Introduction

Recent advancements in blockchain technology, which is known for its decentralized and tamper-resistant characteristics, have led to rapid developments in various applications. Blockchain is essentially a distributed and shared ledger of transactions maintained across a network of miners following a consensus protocol [1]. Smart contracts, which are programs that automatically execute or enforce the terms of a contract, leverage the tamper resistance of blockchain technology to enhance the transparency and reliability of transactions. However, poorly designed smart contracts are susceptible to weaknesses that can be exploited by malicious actors [2]. A notable example is the Decentralized Autonomous Organization (DAO) event, where hackers exploited a reentrance bug in the DAO contract, leading to a theft of 3.6 million Ether [3]. These weaknesses are continuously being discovered and exploited.
Smart contracts on blockchain platforms are susceptible to security issues that can lead to significant financial losses. Existing security analysis tools for smart contracts are primarily rule-based, which makes them specialized for detecting specific weaknesses but prone to generating many false positives. To address these limitations, this study proposes a novel method that considers a program’s control and data flows to detect security weaknesses. Our approach begins by converting the Solidity code into an abstract syntax tree (AST) and then generating control flow graphs (CFGs) and data flow graphs (DFGs). These graphs are then used to train a graph convolutional network (GCN) model to classify security weaknesses in the code. The key novelty of our approach lies in the integration of control and data flow analysis with graph neural networks (GNNs), which provides more comprehensive and accurate detection of weaknesses compared to traditional rule-based tools.
Blockchain networks adopt existing test and dynamic execution methods from programming language communities to detect smart contract weaknesses [4,5]. However, these approaches encounter two significant challenges. First, they rely heavily on predefined rules (or patterns) established by experts, which can result in high false-positive rates and difficulties handling complex code patterns. However, some attackers can easily circumvent these rules [6]. Second, the scalability of these rule-based approaches is inherently limited because they depend on a small group of experts to define accurate rules [7]. With the rapid increase in smart contracts, it has become impractical for a few experts to verify all contracts [8].
To address these limitations and to align them with intelligent approaches for solving software problems using AI techniques, this study proposes a method that utilizes a CFG and a DFG to detect security weaknesses in smart contracts. The CFG represents the execution flow of a program, whereas the DFG represents data flow. By analyzing these graphs, we can effectively detect security weaknesses in complex smart contracts and reduce the number of false positives. This approach is aligned with the fundamental concepts of artificial intelligence, software engineering, and data security.

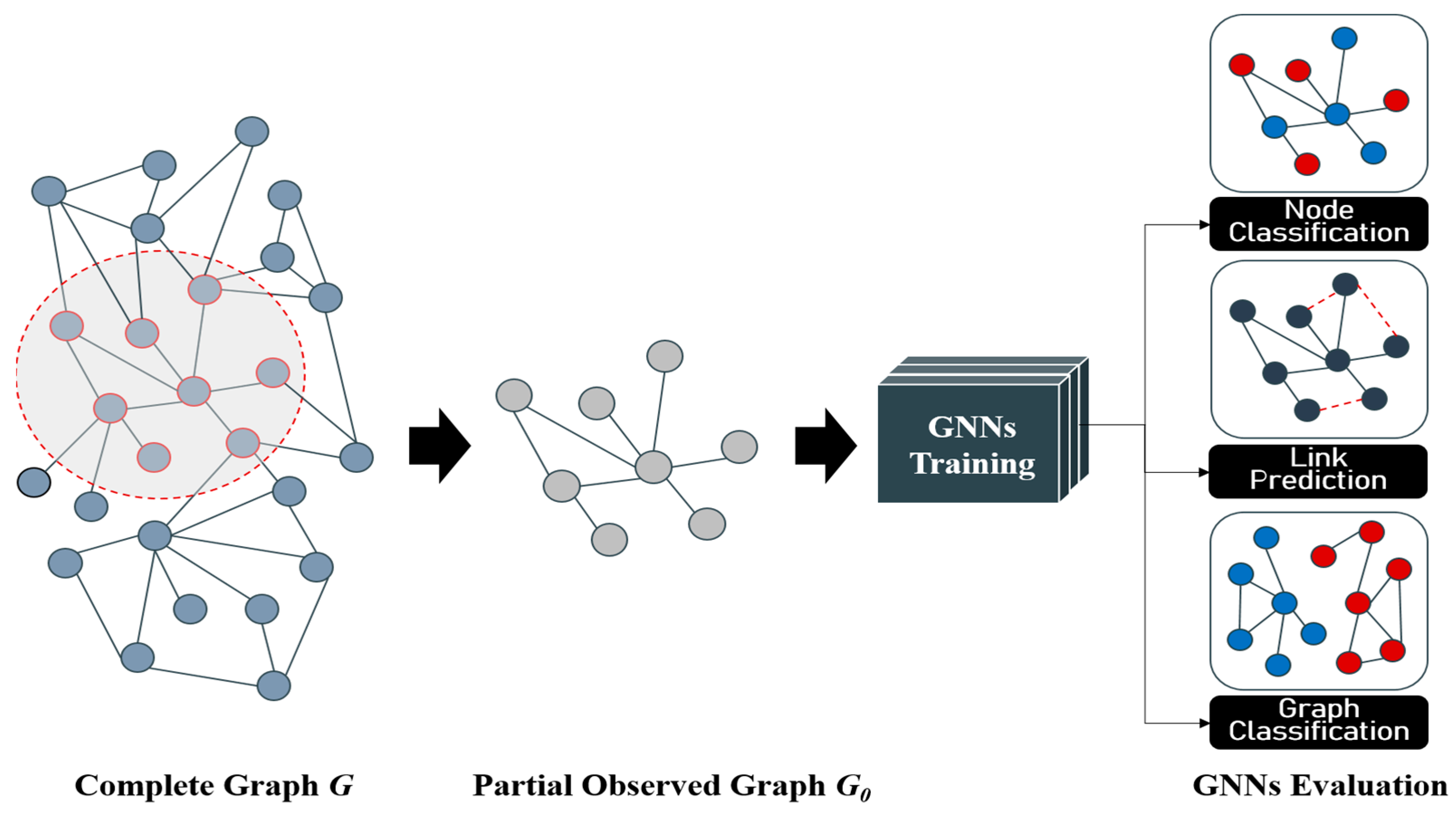

The proposed method employs GNN to process graph-shaped data. By learning and analyzing graph data using a GNN, we aim to develop a more effective weakness detection tool than existing rule-based tools, thereby enhancing the security of smart contracts and protecting user assets. This leverages the advancements in AI service development, model optimization, and data integration [9].
This study analyzed security weaknesses in Solidity, the core programming language of the Ethereum blockchain platform. Specifically, we targeted four types of weaknesses: reentry, timestamp, overflow/underflow, and delegate call. These weaknesses were selected to demonstrate the effectiveness of the proposed method over existing rule-based detection tools.
We parsed the Solidity code into an AST to consider both the execution and data flows of the program. The AST is represented as a tree structure in JSON format, containing structural elements, execution flow, and data flow information. However, ASTs include extraneous information beyond what is necessary for GNN learning. Therefore, we extracted the CFG and DFG from the AST, focusing on the relevant parts representing the execution and data flows. The CFG nodes represent the basic blocks, the edges represent the control flow, the DFG nodes represent the data processing operations, and the edges represent the data flow.
By integrating these graphs and their attributes into a single dataset, along with the corresponding labels, we generated multiple datasets to train the GNN model. This process allows us to input the Solidity code, convert it into an AST, generate graphs, and determine whether the code contains security weaknesses. Our proposed method aims to provide an effective weakness detection tool that considers both execution and data flow, thereby improving the security of smart contracts.

3. Proposed System

The proposed system is a software weakness analysis tool for smart contracts written in Solidity, a high-level programming language used to develop smart contracts on the Ethereum blockchain. This system converts the Solidity code into an AST representing the syntactic structure of the program and then generates CFGs and DFGs from the AST. The CFGs and DFGs were subsequently used to train a GNN model to detect security weaknesses in the code. This multistep approach allows the system to analyze the execution and data flows within smart contracts effectively. Figure 3 shows the overall architecture of the proposed system.

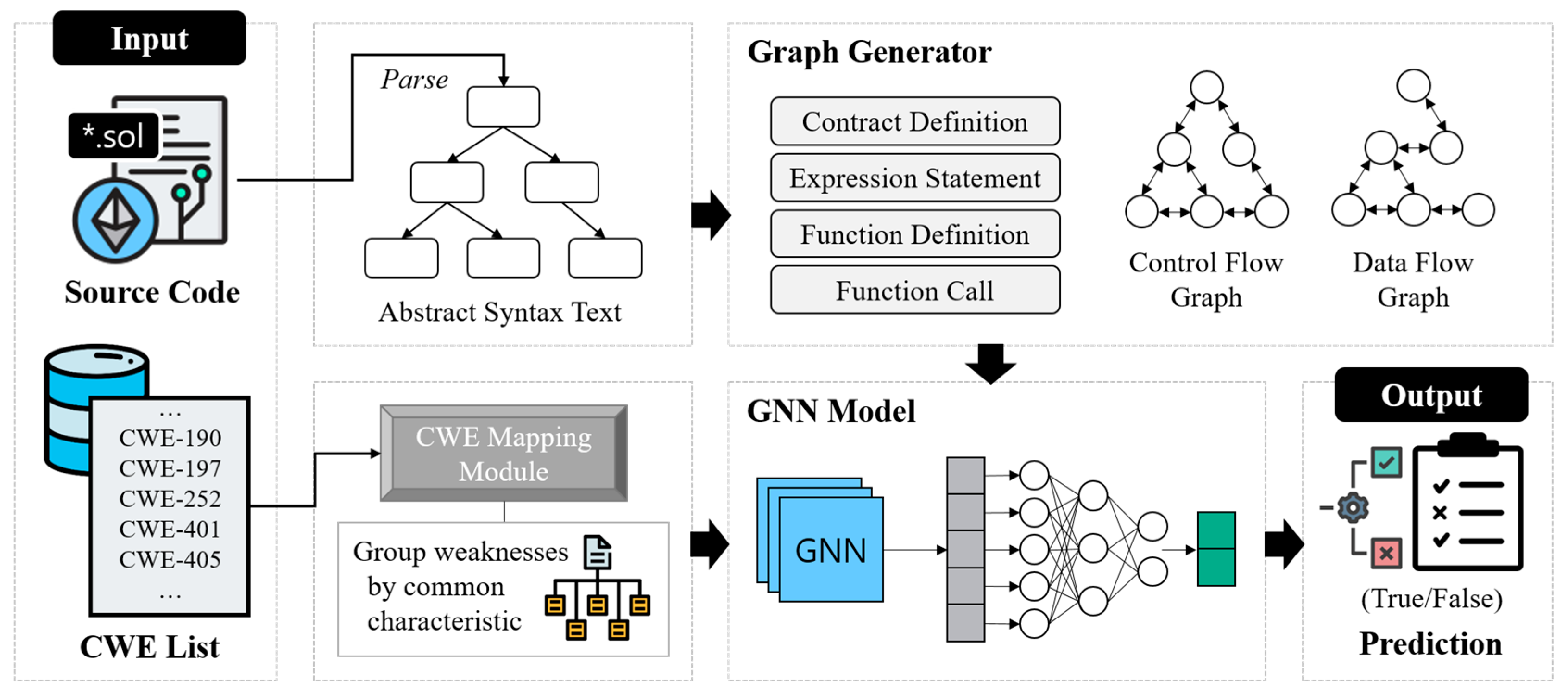

Figure 3. Overall architecture of the proposed system.
Algorithm 1 illustrates the pseudocode of the proposed system. Initially, the Solidity code is translated into an AST using the Translate_AST_from_Solidity function. From this AST, the Generate_CFG_from_AST function creates a list of CFGs. An empty container, viz_code, is initialized to store the dot-format visualization code. For each CFG in the list, the CFG is converted to dot format using Convert_CFG_to_dot and appended to viz_code. The complete visualization code in viz_code is then transformed into a DGL dataset format using Convert_viz_to_DGL. A dataset object is created with the Create_Dataset function, including the DGL dataset and corresponding labels. This dataset is then batched using a data loader initialized by Create_DataLoader, which shuffles the data for robust training. Next, the GNN model is instantiated with Initialize_GNN, and an optimizer is initialized using Initialize_Optimizer with the model parameters. The model is trained over a predefined number of epochs. For each batch of data, the model performs a forward pass with Model_Forward_Pass, computes the loss with Compute_Loss, and updates the model parameters using the optimizer with Update_Model. Finally, the trained model is saved using the Save_Model function, resulting in a classification model ready for deployment.
Algorithm 1 Pseudocode for the process of the proposed system
Input:  Solidity code file
Output:  Trained classification model
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:		ast = Translate_AST_from_Solidity(file)
cfg_list = Generate_CFG_from_AST(ast)
viz_code = ““

for cfg in cfg_list do
viz_code += Convert_CFG_to_dot(cfg)

dgl_dataset = Convert_viz_to_DGL(viz_code)
dataset = Create_Dataset(dgl_dataset, labels)
dataloader = Create_DataLoader(dataset, batch_size, shuffle=True)
model = Initialize_GNN()
optimizer = Initialize_Optimizer(model_parameters)

for epoch in range(num_epochs) do
for batched_graph, labels in dataloader do
logits = Model_Forward_Pass(model, batched_graph)
loss = Compute_Loss(logits, labels)
Update_Model(optimizer, loss)

Save_Model(model)
This comprehensive process ensures that the system can effectively learn from the graph representations of smart contracts, thereby allowing accurate detection of security weaknesses. Using CFGs and DFGs to represent different aspects of code behavior enables a GNN to capture complex relationships and dependencies within the code, leading to improved performance over traditional rule-based methods.

3.1. AST Generation from Solidity Code

The first step in implementing the proposed system was to convert the Solidity code into an AST using a Solidity parser. Converting the Solidity code to an AST involves several stages: tokenization, syntax parsing, AST generation, and AST analysis and processing. The selected security weaknesses are classified according to the SWC registry, which provides a standardized method for identifying and categorizing smart contract weaknesses [18].
In the tokenization stage, the Solidity parser reads the Solidity code and breaks it into tokens. These tokens represent the smallest elements of the code, such as keywords, variable names, operators, and literature. Each token provides information about the structure and content of the code.
The parser analyzes the tokenized code during syntax parsing to create an AST. This involves checking the code’s structure and grammar and generating a tree structure that reflects the code’s hierarchical organization. Each node in the AST represents a syntactic construct, such as function definitions, control statements, and variable declarations. The resulting tree structure is then converted into an AST, which provides an abstract representation of the code structure.
Through this process, the Solidity code is transformed into an AST. The AST is typically represented in the JSON format and contains essential information about the execution flow and data flow within the code. This structured representation enables the extraction of CFGs and DFGs from the AST, which are crucial for further analysis.
By converting the Solidity code into an AST, we obtained a comprehensive representation that captured both the syntactic and semantic details of the code. This AST is the foundation for generating the CFGs and DFGs used to train the GNN model for security analysis.

3.2. Generation of Control Flow Graph and Data Flow Graph

The AST represents the overall execution flow and data flow of the code. However, the direct use of the AST for GNN training includes unnecessary information and is not in graph form, making it unsuitable for GNNs. Thus, we extract information representing only the control flow from the AST to generate a CFG and data flow information to generate a DFG.
The steps in generating a CFG include initialization, AST traversal, basic block creation, control structure handling, node connections, and final processing. In the initialization stage, the start and end nodes of the CFG are created, and the current node pointer is set as the start node. During the AST traversal, the AST is traversed in pre-order, processing each node. Continuous statements form a basic block, and new basic blocks begin with control structures, such as conditionals and loops. Control structures, such as conditionals (e.g., if-else) and loops (e.g., for, while), are processed by adding the corresponding CFG nodes and connecting them appropriately to represent true/false branches and loop structures. Jump statements (e.g., break, continue, and return) are handled by adding CFG nodes and making the necessary connections, such as connecting return statements directly to the end node. After processing all AST nodes, the final CFG is formed by connecting the last CFG node to the end node.
To generate a DFG, we analyzed the program’s data flow and tracked the relationships between variable definitions and uses. This process involves AST traversal, tracking variable definitions and uses, handling operators and expressions, processing function calls and returns, considering the control flow, and optimizing the DFG by removing unused variables or dead codes. This generates a DFG from the AST, representing the data dependencies within the code.
Algorithm 2 and Figure 4 illustrate the CFG and DFG generated from the Solidity code example. These visualizations aid in understanding how the control and data flows are represented in graph form for further analysis.
Algorithm 2. Example of a CFG generated from Solidity code
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
20:
21:
22:
23:
24:
25:
26:
27:
28:		…
contract BREBuy {
      struct ContractParam {
            uint32 totalSize;
            uint256 singlePrice;
            uint8 pumpRate;
            bool hasChange;
      }
      uint32 gameIndex = 0;
      ContractParam public setConfig;
      ContractParam public curConfig;
      address[] public addressArray = new address[](0);
      function startNewGame() private {
            gameIndex++;
            if(curConfig.hasChange) {
                  if(curConfig.totalSize != setConfig.totalSize) {
                        curConfig.totalSize = setConfig.totalSize;
                  }
                  if(curConfig.singlePrice != setConfig.singlePrice){
                        curConfig.singlePrice = setConfig.singlePrice;
                  }
                  if(curConfig.pumpRate != setConfig.pumpRate) {
                        curConfig.pumpRate = setConfig.pumpRate;
                  }
                  curConfig.hasChange = false;
            }
            addressArray.length=0;
}
…

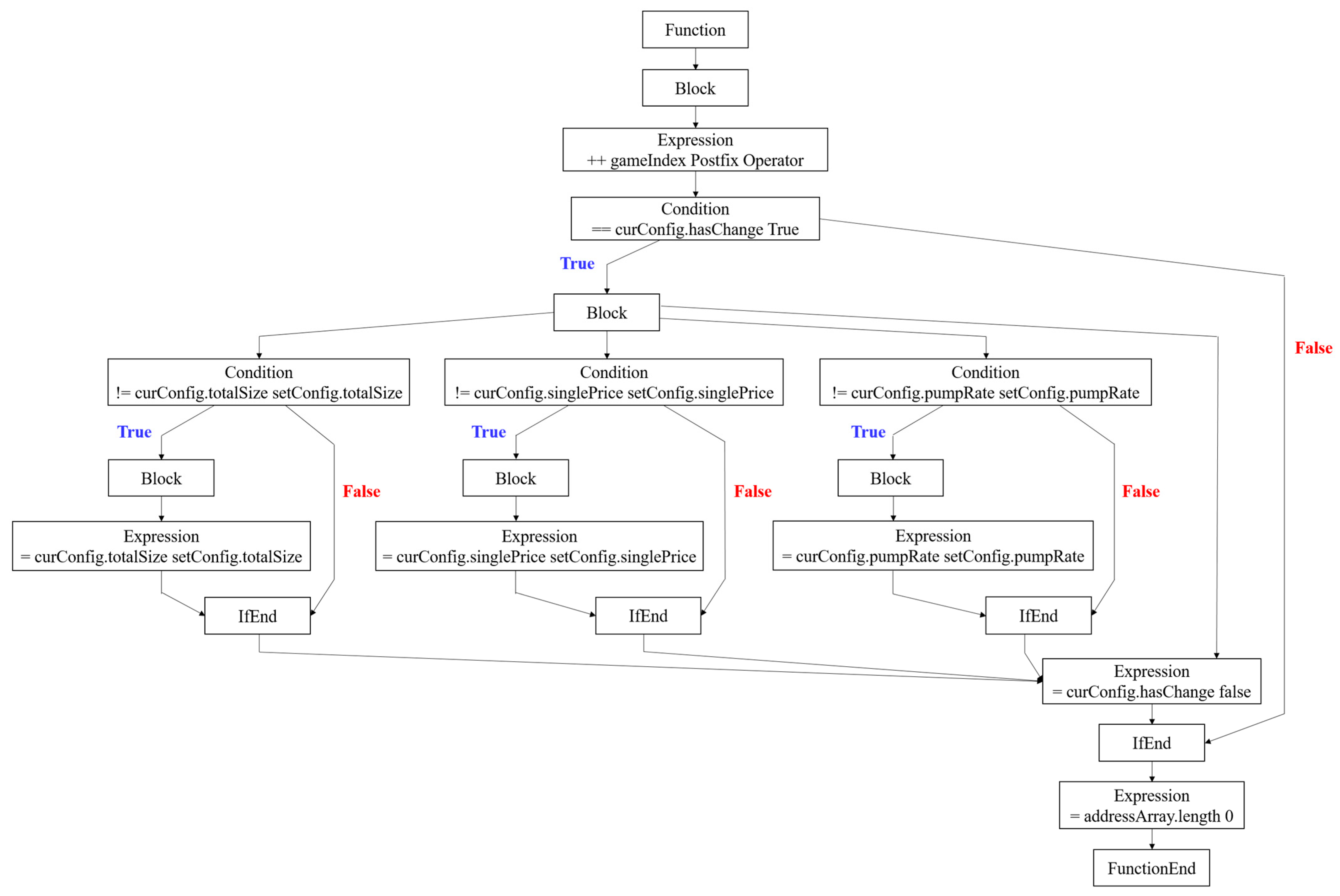

Figure 4. Example of function-level CFG generation in a Solidity contract.
Algorithm 2 shows the CFG generated using the Solidity code. This algorithm shows how the execution flow is captured, with the nodes representing the basic blocks and the edges representing the flow between them. Figure 4 illustrates the CFG generated for each function within the Solidity contract. This example shows how multiple functions within a single contract can be visualized, highlighting the control flow for each function.
By processing the AST into CFGs and DFGs, we can capture both the execution and data flow within the code, enabling effective analysis and weakness detection using GNNs.

3.3. Training the GNN Model

After converting the Solidity code into an AST and generating the corresponding CFG and DFG, these graphs were prepared to train the GNN model. The GNN model used in our study consists of three layers, including two convolutional layers followed by one fully connected layer. Each layer utilizes the ReLU activation function to introduce non-linearity. To prevent overfitting, we applied dropout with a rate of 0.5. The model was trained using the Adam optimizer with a learning rate of 0.001. We conducted the training over 100 epochs with a batch size of 32. The training process involved early stopping criteria to monitor the validation loss and stop training when the validation loss did not improve for 10 consecutive epochs. The generated CFG and DFG contain node and edge information essential for creating graph representations suitable for GNN training.
The node and edge information are stored in two separate files: nodes.csv for node information and edges.csv for edge information. Each file includes the identifiers and attributes necessary to reconstruct the graphs. Specifically, the nodes.csv file contains columns for graph_id, num_node, and type. The graph_id uniquely identifies each graph, num_node indicates the number of nodes, and type distinguishes between CFG (0) and DFG (1). The edges.csv file includes columns for graph_id, src, dst, and type, with src and dst specifying each edge’s start and end nodes. These CSV files served as the input data for the GNN model training process, with nodes and edges encoded to facilitate learning.
Each graph can be uniquely identified and reconstructed using the ‘graph_id’ present in both nodes.csv and edges.csv. These CSV files were then used to generate the final graph data structures required for the GNN training. This is accomplished using a DGL, which helps create and manipulate graph data for deep learning applications.

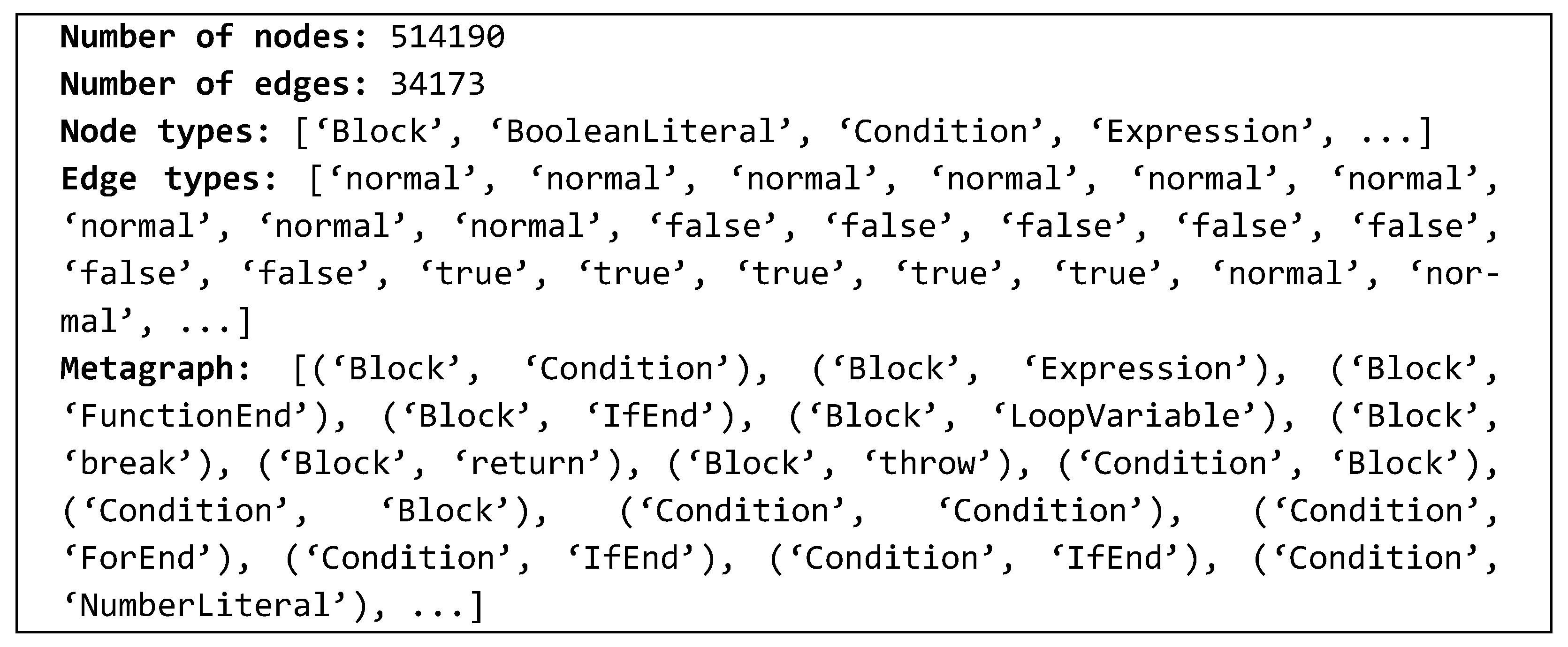

Figure 5 depicts the conversion of a CFG into a visual representation using Viz, facilitating an understanding of the code control flow. The visualization was then converted into a format suitable for deep learning (DGL), enabling the use of graph data to train the GNN. The graph structure includes the number of nodes and edges, node types, edge types, and metagraphs, which provide an overview of the relationships between the different node types.
Figure 5. Example of training graph structure.
Using this graph structure, a program’s complex execution and data flow can be effectively represented and learned. The GNN model leverages this representation to analyze and detect potential security weaknesses within the smart contract code. By capturing the intricate relationships and dependencies within the code, the GNN model provides a robust mechanism for identifying subtle and complex security issues that traditional static analysis tools may miss.

4. Experiments and Results

4.1. Selection and Description of Security Weaknesses

To validate the proposed system, we selected security weaknesses from the SWC list, in which existing detection tools are not fully detected. The selection criteria included the severity of the weakness, if it occurred, the inability of existing detection tools to reliably identify the weakness, and the feasibility of detecting the weakness by analyzing the execution and data flows of the program. Based on these criteria, we identified four security weaknesses: SWC-101 (integer overflow and underflow), SWC-107 (reentrancy), SWC-112 (delegatecall to untrusted callee), and SWC-116 (Block values as a proxy for time). The selected weaknesses are summarized in Table 2.
Table 2. Selected security weaknesses.
  • SWC-101 (integer overflow and underflow): Integer overflow and underflow weaknesses occur when an integer variable exceeds its maximum or falls below its minimum limit. Integer overflow occurs when an integer variable exceeds its maximum value, which can cause unexpected initialization to zero or overwrite the other variables. Conversely, integer underflow occurs when an integer variable falls below its minimum value, potentially causing unexpected initialization to the maximum value or overwriting other variables. These weaknesses are critical in the Solidity code, as they can lead to significant economic losses if Ether values are tampered with in smart contracts. An example of this weakness is shown in Algorithm 3.
  • SWC-107 (reentrancy): Reentrancy weaknesses occur when a smart contract calls an external contract or function and the external contract or function calls back to the original contract before the first invocation is complete. This can result in unexpected states or drain the balance of contracts. Algorithm 4 shows an example of this weakness.
  • SWC-112 (delegatecall to untrusted callee): The delegatecall weakness occurs when the delegatecall function in Solidity executes code from another contract within the context of the caller’s contract. If not handled properly, this can lead to security issues, because the contract can manipulate the state of the calling contract. An example of this weakness is shown in Algorithm 5.
  • SWC-116 (block values as a proxy for time) arises when Solidity smart contracts use block values such as block.timestamp or now as a proxy for time. Miners can manipulate such dependencies, leading to unexpected behaviors or invalid contract states. Algorithm 6 shows an example of this weakness.
Algorithm 3 Example of Solidity code with integer overflow and underflow weakness
1:
2:
3:
4:
5:
6:
7:
8:		…
contract IntegerOverflowMappingSym {
      mapping(uint256 => uint256) map;
      function init(uint256 k, uint256 v) public{
            map[k] -= v;
      }
}
…
Algorithm 4 Example of Solidity code with reentrancy weakness
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:		…
contract SimpleDAO {
      mapping(address => uint) public credit;
      function donate(address to) payable public {
            credit[to] += msg.value;
      }
      function withdraw(uint amount) public {
            if (credit[msg.sender] >= amount) {
                  require(msg.sender.call.value(amount)());
                  credit[msg.sender] -= amount;
            }
      }
      function queryCredit(address to) view public returns (uint) {
            return credit[to];
      }
}
…
Algorithm 5 Example of Solidity code with delegatecall weakness
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:		…
contract Proxy {
      address owner;
      constructor() public {
            owner = msg.sender;
      }
      function forward(address callee, bytes _data) public {
            require(callee.delegatecall(_data));
            }
}
…
Algorithm 6 Example of Solidity code with block values as a proxy for time weakness
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:		…
contract TimeBasedVault {
      address owner;
      uint256 unlockTime;
      constructor(uint256 _unlockHours) public {
            owner = msg.sender;
            unlockTime = now + (_unlockHours * 1 hours);
      }
      function withdraw() public {
            require(msg.sender == owner, “Only the owner can withdraw.”);
            require(now >= unlockTime, “Funds are locked until the unlock time.”);
            msg.sender.transfer(address(this).balance);
                                                                           }
}
…
To evaluate the performance of the proposed system, we used a dataset collected from the Ethereum platform and GitHub repositories, which included instances of selected weaknesses. The dataset consisted of 372 instances of SWC-101, 382 instances of SWC-107, 202 instances of SWC-112, and 504 instances of SWC-116. Each weakness is categorized into safe codes or codes that contain weaknesses. Table 3 summarizes the numbers of safe and at-risk instances for each weakness type.
Table 3. Number of data instances per software weakness.
The selected weaknesses and their respective datasets were used to train and validate the proposed system, demonstrating its effectiveness in detecting security issues in solid, smart contracts.

4.2. Selection of Comparative Analysis Tools

Experiments were conducted using existing analytical tools on the constructed dataset to demonstrate the validity and significance of the proposed system. The selection criteria for these tools included being open source, freely available, and commonly used for analyzing security weaknesses in Solidity smart contracts. Based on these criteria, we selected four software weakness analysis tools for comparative analysis: sFuzz, Smartcheck, Osiris, and Mythril. The characteristics of each tool are as follows.
sFuzz [19] is an automated tool for detecting weaknesses in smart contracts. It analyzes Solidity-based smart contracts to identify weaknesses. sFuzz automatically examines smart contracts for various weaknesses and addresses common security concerns. It can detect various weakness types, including reentry, integer overflow/underflow, and timestamp issues. In addition, sFuzz can generate automated transactions to invoke contract functions and analyze transaction results. The tool produces summary reports that include details regarding the discovered weaknesses, their locations in the smart contract, and the outcomes of the executed transactions.
Smartcheck [20] is another tool for detecting security weaknesses in Solidity-based smart contracts. It analyzes the Solidity code to identify security issues, such as reentrancy, integer overflow/underflow, logic errors, and incorrect permission settings. A key feature of SmartCheck is its web-based interface, which allows users to upload smart contracts and review the results easily. The tool automatically generates a report summarizing the findings, including information regarding the identified weaknesses, their locations in the code, detection methods, and risk levels.
Osiris [21] is also designed to detect smart contracts’ security weaknesses. It focuses on weaknesses such as reentry, integer overflow/underflow, logic errors, and incorrect permission settings. Similar to SmartCheck, Osiris provides a web interface for users to visualize results. A notable feature of Osiris is its application programming interface (API), which enables integration with other systems, making it easy to incorporate into development and automated security testing processes.
Mythril [22] is a tool for analyzing the security weaknesses of Ethereum smart contracts. It targets the codes of smart contracts running on the Ethereum blockchain platform, detects various security issues, and provides relevant information. Mythril performed both static and dynamic analyses of smart contracts. Static analysis allows code to be examined without executing it, thus identifying weaknesses early in development. On the other hand, dynamic analysis allows Mythril to execute the smart contract and monitor for potential weaknesses and issues during execution.
By comparing the performance of these selected tools against the proposed system on the constructed dataset, we can evaluate the effectiveness of the proposed approach in detecting security weaknesses in Solidity smart contracts.

4.3. Training and Evaluation of the Proposed Model

To validate the effectiveness of the proposed system, we utilized a dataset from Jiang [4] that included samples of Solidity smart contract codes with specific security weaknesses. The dataset focuses on four weaknesses: SWC-101 (integer overflow and underflow), SWC-107 (reentrancy), SWC-112 (delegatecall to untrusted callee), and SWC-116 (block values as a proxy for time). Each weakness category contained labeled samples indicating whether the code was unexposed (label 0) or exposed (label 1), with the following distribution: 372 samples for both unexposed and exposed SWC-101; 382 samples for both unexposed and exposed SWC-107; 202 samples for both unexposed and exposed SWC-112; and 504 samples for both unexposed and exposed SWC-116. This balanced dataset facilitates the robust training and evaluation of the proposed security analysis model.
Four key metrics were used to evaluate the performance of the proposed model and the existing tools: accuracy (ACC), recall (RE), precision (PRE), and F1-score (F1). These metrics are essential for evaluating the models’ performance and providing a comprehensive view of their effectiveness in detecting security weaknesses.

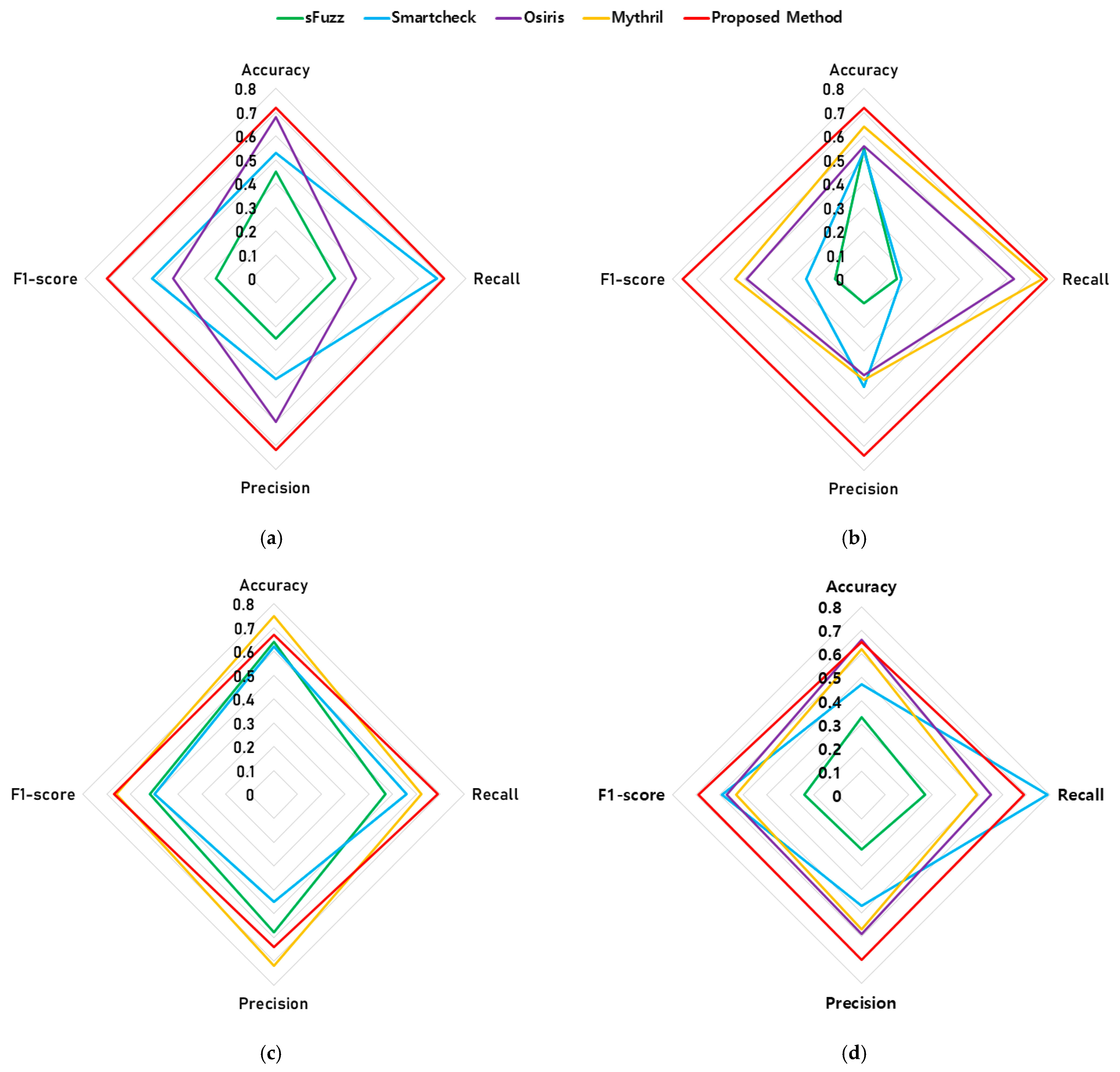

Figure 6 illustrates the performance of different analysis tools across the four evaluated security weaknesses using radar charts. These charts provide a visual comparison of the tools’ performance based on the four key metrics: accuracy (ACC), recall (RE), precision (PRE), and F1-score (F1). Each subfigure focuses on a specific weakness: (a) SWE-101, (b) SWE-107, (c) SWE-112, and (d) SWE-116. The radar charts demonstrate that the proposed GNN-based model consistently outperforms existing tools across all metrics, showcasing its robustness and reliability in detecting security weaknesses in Solidity smart contracts.
Figure 6. Radar charts illustrating the performance of different analysis tools across various metrics for each security weakness: (a) SWE-101, (b) SWE-107, (c) SWE-112, and (d) SWE-116.
Table 4 presents the results of training the proposed model and the comparative experiments with existing tools. This table summarizes the performance of each tool across the four selected security weaknesses.
Table 4. Experimental results of different analysis tools in terms of accuracy (ACC), recall (RE), precision (PRE), and F1-score (F1).
The results show that the proposed GNN-based model achieves significant performance improvements across all evaluated security weaknesses compared with existing tools. The proposed model’s accuracy, recall, precision, and F1-scores were consistently high, demonstrating its effectiveness in detecting security issues in Solidity smart contracts. In contrast, existing tools exhibit varying performance levels, excelling at detecting specific weaknesses and failing in others.
This comprehensive evaluation highlights the robustness and efficacy of the proposed model, suggesting that it provides a reliable tool for smart contract security analysis by capturing intricate relationships and dependencies within the code more effectively than traditional static analysis tools.

5. Conclusions

In the current landscape, most security analysis tools for smart contracts are rule-based, making them specialized for detecting specific weaknesses and prone to generating many false positives. To address these limitations, this study proposes a novel method that integrates control and data flow analysis with GNNs to detect security weaknesses in Solidity smart contracts. This approach begins by converting the Solidity code into an AST, then generating a CFG and a DFG, which are used to train a GCN model to classify security weaknesses.
Our method offers a significant advancement over traditional rule-based tools by providing a robust and reliable solution for detecting a wide range of weaknesses. The experimental results demonstrate that our system outperforms existing rule-based detection tools, achieving higher accuracy, recall, precision, and F1 scores in identifying weaknesses such as integer overflow/underflow, reentrancy, delegate calls to untrusted callees, and time-based issues. These findings highlight the practical benefits of combining control and data flow analysis with GNNs to enhance smart contract security.
The key contribution of this research lies in the innovative integration of program analysis techniques with advanced AI models. By leveraging CFGs and DFGs, our system captures intricate relationships within the code, often overlooked by traditional tools, leading to more comprehensive and accurate detection of weaknesses.
While our method shows significant improvements, there are limitations and challenges to consider. One limitation is the computational complexity associated with generating and analyzing CFGs and DFGs for large and complex smart contracts. The GNN model requires substantial computational resources for training, which may not be readily available in all settings. The accuracy of the model also depends on the quality and diversity of the training dataset, making the availability of comprehensive datasets a potential challenge. Future research should focus on addressing these limitations and optimizing the computational efficiency of our method.
The experimental results demonstrate the effectiveness and significance of the proposed system. As more datasets are collected and training is conducted on additional weaknesses, the system is anticipated to detect a broader range of security weaknesses. Techniques such as generating synthetic datasets have shown promise in enhancing model training and evaluation. This study utilized a basic GCN model, but higher performance is expected by using more advanced and specialized GNN models tailored to specific datasets.
This study also suggests future research directions, such as improving efficiency by simplifying graphs to include only parts related to security weaknesses and exploring more advanced GNN models tailored to specific datasets. Additionally, our method can be extended to incorporate privacy-preserving techniques, such as those used in Blockshare and SymmeProof, to enhance both security and privacy in smart contracts. Combining our approach with other blockchain security methods could further enhance overall security, providing a more comprehensive and resilient solution.
In summary, this study highlights the potential for integrating control flow and data flow analysis with advanced AI techniques to enhance the detection of security weaknesses in smart contracts. Similar to using advanced computational techniques in medical analyses for precise diagnostics, the proposed approach uses AI to improve software weakness detection. The findings suggest that focusing on the relevant sections of code for graph generation and exploring more sophisticated GNN models can further improve the effectiveness and efficiency of the system.
This study’s contributions are significant in enhancing the detection accuracy of smart contract weaknesses and addressing the limitations of existing tools by reducing false positives and covering a wider range of weaknesses. This study paves the way for future advancements by promoting safer and more reliable blockchain environments.
